1 Training Fire Periphery Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights.

Similar presentations


Presentation on theme: "1 Training Fire Periphery Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights."— Presentation transcript:

1 1 Training Fire Periphery Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems

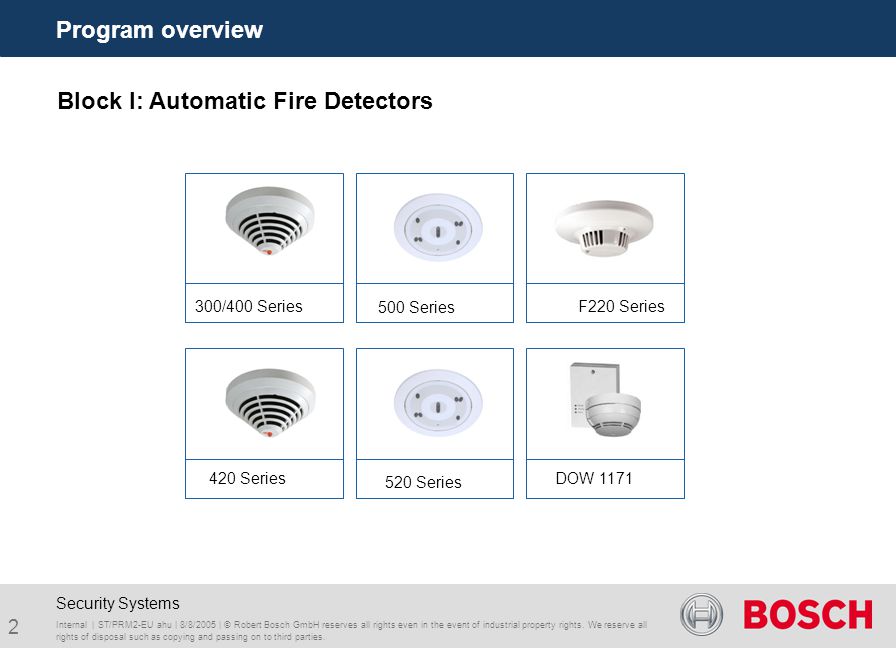

2 2 Program overview Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems 520 Series 500 Series F220 Series 420 Series 300/400 Series DOW 1171 Block I: Automatic Fire Detectors

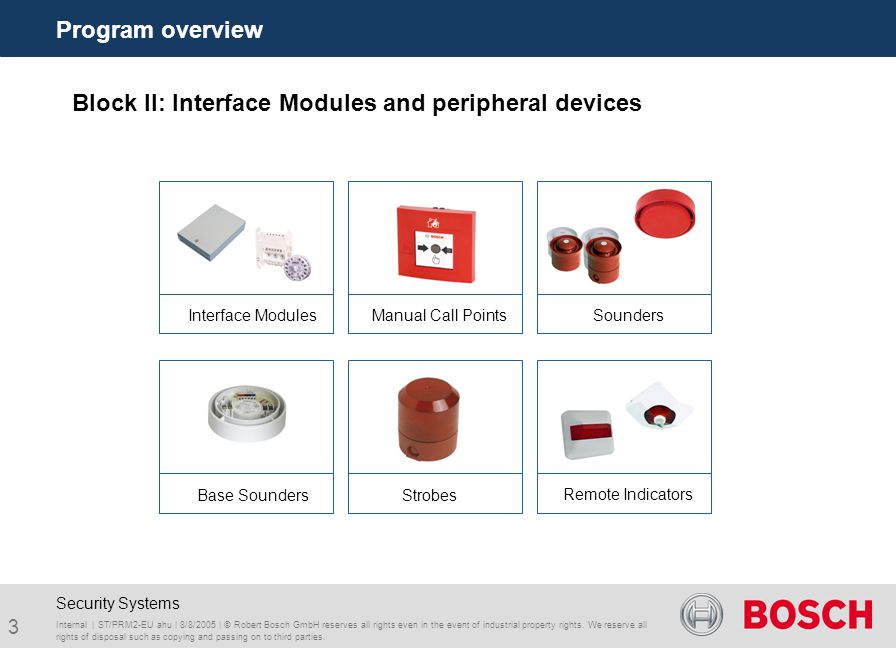

3 3 Program overview Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Block II: Interface Modules and peripheral devices Strobes Manual Call Points Sounders Base Sounders Remote Indicators Interface Modules

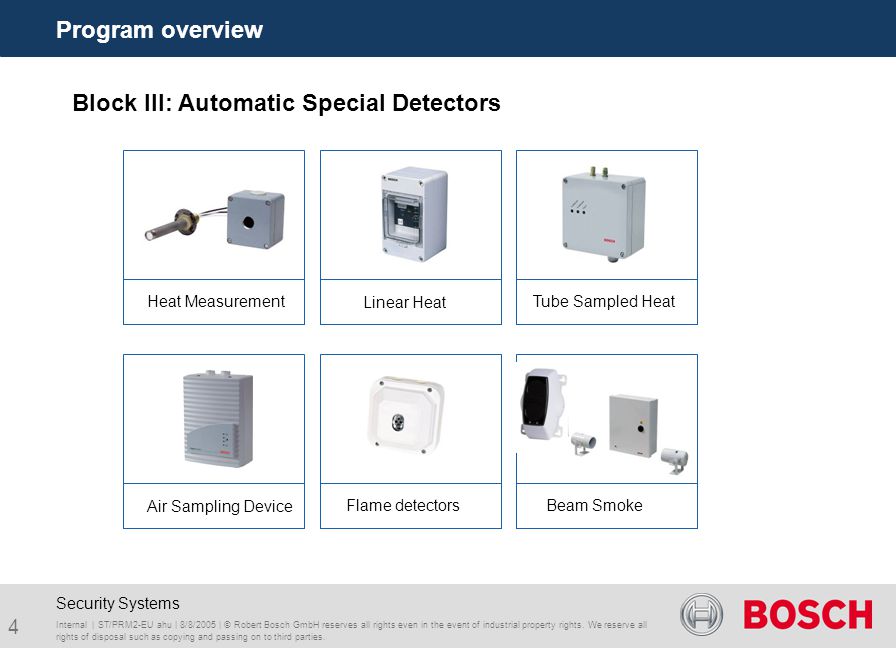

4 4 Program overview Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Block III: Automatic Special Detectors Linear Heat Tube Sampled Heat Air Sampling Device Beam Smoke Heat Measurement Flame detectors

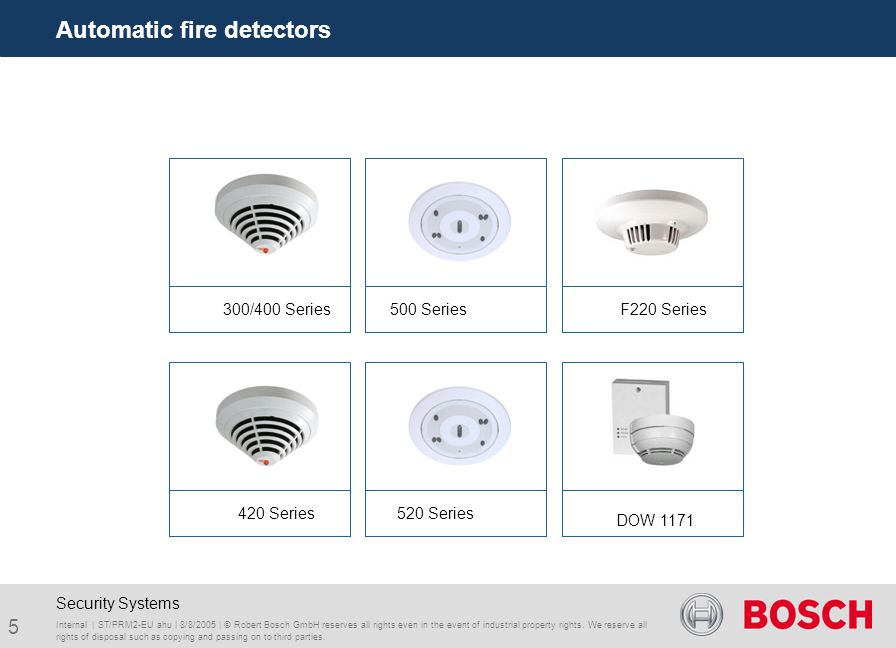

5 5 Automatic fire detectors Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems 520 Series 500 Series F220 Series 420 Series 300/400 Series DOW 1171

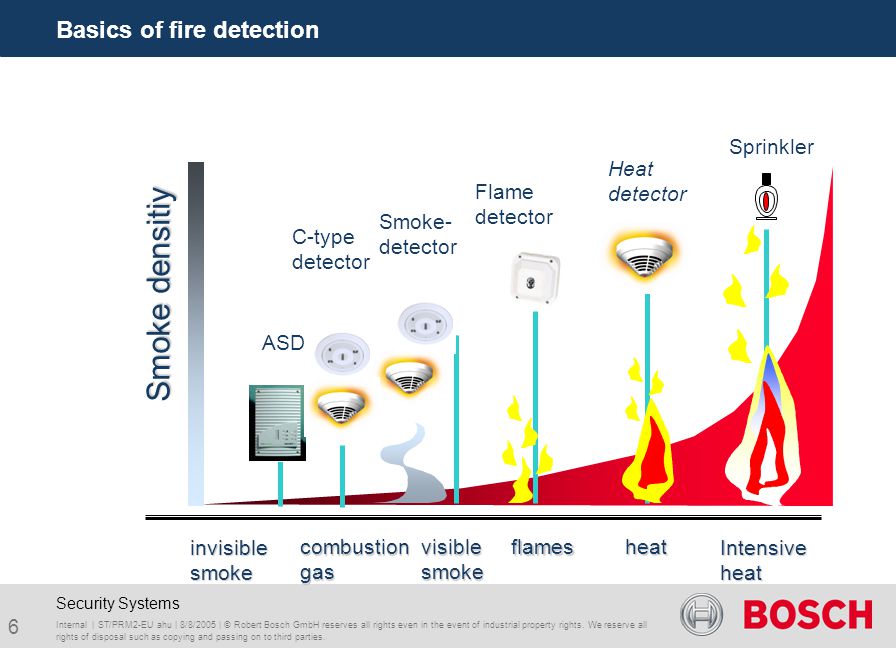

6 6 Basics of fire detection Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems ASD Smoke- detector Flame detector Sprinkler invisible smoke visible smoke flames heat Smoke densitiy Heat detector Intensive heat combustion gas C-type detector

7 7 Magic.Sens Automatic fire detectors 300/400 series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems

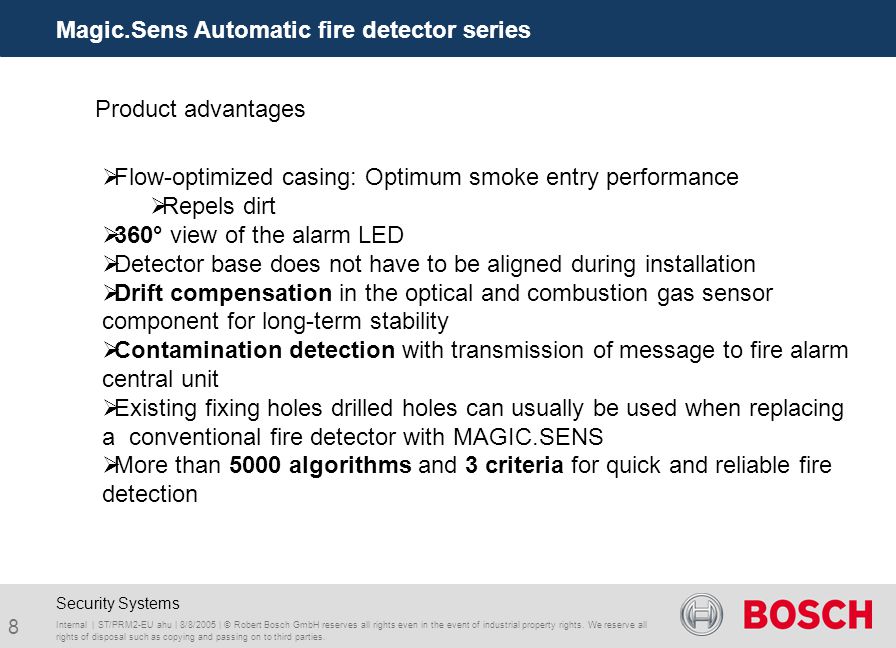

8 8 Magic.Sens Automatic fire detector series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  Flow-optimized casing: Optimum smoke entry performance  Repels dirt  360° view of the alarm LED  Detector base does not have to be aligned during installation  Drift compensation in the optical and combustion gas sensor component for long-term stability  Contamination detection with transmission of message to fire alarm central unit  Existing fixing holes drilled holes can usually be used when replacing a conventional fire detector with MAGIC.SENS  More than 5000 algorithms and 3 criteria for quick and reliable fire detection Product advantages

9 9 Magic.Sens Automatic fire detector series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Alarm pattern analysis

10 10 Magic.Sens Automatic fire detector series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Best possible reduction of false alarms Cuts costs of unnecessary fire brigade call-outs Faster detection of fires Minimises damage and protects against personal injury OTC Criteria used for the alarm condition: Density of smoke Increase of smoke concentration Temperature Temperature rate of rise CO-Concentration

11 11 Magic.Sens Automatic fire detector 300/400 series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems LSN OTC 410 LSN OC 410 LSN OT 400 LSN O 400 LSN T 400 LSN Conventional OC 310 GLT OT 300 GLT O 300 GLT T 300 GLT Product Range Optical/Thermal/Chemical Optical/Chemical Optical/Thermal Optical Thermal

12 12 Magic.Sens Automatic fire detector 420 series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems LSN FAP-OTC 420 FAP-OT 420 FAP-O 420 FAH-T 420 Product Range Optical/Thermal/Chemical Optical/Thermal Optical Thermal FAP 420 series – what is new? Improved IP Improved contact concept (better contacts) Thermo element isolated every detector with Protective dust cover Works with LSN improved version Reduced power consumption Rotary switches

13 13 Magic.Sens Automatic fire detector series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Optical / Thermal / ChemicalOTC 410 LSN- Optical / ChemicalOC 410 LSN OC 310 Optical / ThermalOT 400 LSN OT 300 Thermal T 400 LSN T 300 OpticalO 400 LSN O 300 LSNConventional Detector types

14 14 Magic.Sens Automatic fire detector series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  Base seal for use in damp and humid areas  Protective dust cover  Parallel detector alarm display

15 15 Magic.Sens Automatic fire detector series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  Sounder base  Protective mesh  Wall arm

16 16 Magic.Sens Automatic fire detector series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  Maintenance Tool  Tester for optical smoke detectors  Wireless test set for heat detectors

17 17 500 Series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems The art of invisible fire detection

18 18 Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems LSN FAP-OC 500 FAP-OC 500-P FAP-O 500 FAP-O 500-P Conventional FCP-OC 500 FCP-OC 500-P FCP-O 500 FCP-O 500-P Product Range Optical/Chemical white Optical/Chemical transparent Optical white Optical transparent 500 Series

19 19 Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems LSN FAP-OC 500 FAP-OC 500-P FAP-O 500 FAP-O 500-P Conventional FCP-OC 500 FCP-OC 500-P FCP-O 500 FCP-O 500-P Product Range Optical/Chemical white Optical/Chemical transparent Optical white Optical transparent 500 Series

20 20 Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems LSN FAP-OC 520 FAP-OC 520-P FAP-O 520 FAP-O 520-P Product Range Optical/Chemical white Optical/Chemical transparent Optical white Optical transparent 520 Series FAP 520 series- what is new? Works with LSN improved version Slightly reduced power consumption

21 21 500 Series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  It is ultra-slim and lies flush in the ceiling  Colour rings can be fitted into the detector  No optical labyrinth protruding from the ceiling  Easy to clean Design and technology innovation

22 22 FCP-500-Series Internal | ST-FIR/PRM3 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Wiring

23 23 FCP-500-Series Internal | ST-FIR/PRM3 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Alarm Resistance FCA-500-EU base with alarm relay and alarm resistor in series R FCP-O500 detector head R= 0 Ohm or 680 Ohm Conventional Fire Alarm Control Panel To next detector

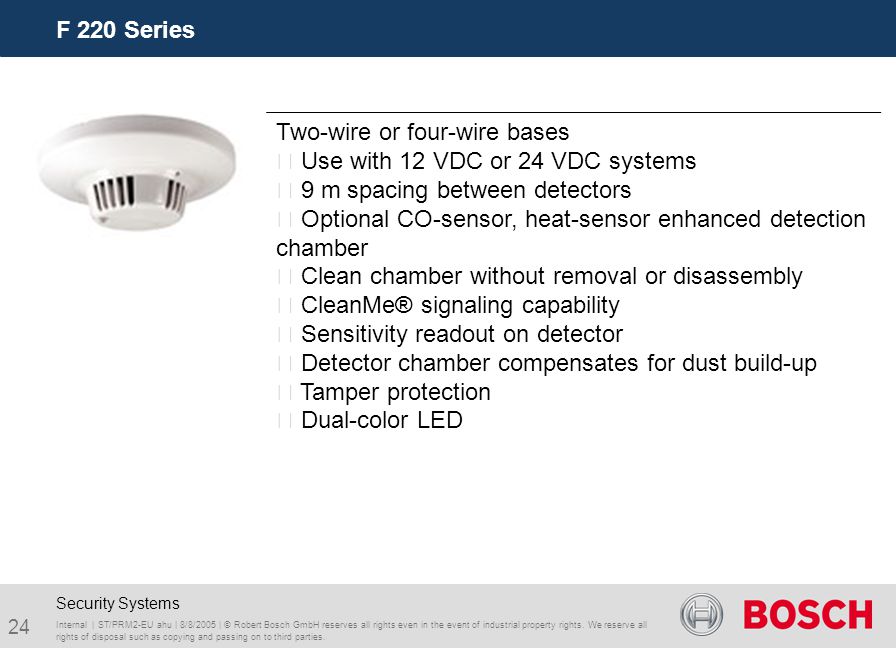

24 24 F 220 Series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Two-wire or four-wire bases ▶ Use with 12 VDC or 24 VDC systems ▶ 9 m spacing between detectors ▶ Optional CO-sensor, heat-sensor enhanced detection chamber ▶ Clean chamber without removal or disassembly ▶ CleanMe® signaling capability ▶ Sensitivity readout on detector ▶ Detector chamber compensates for dust build-up ▶ Tamper protection ▶ Dual-color LED

25 25 F 220 Series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Availabledetectors F220-135Rate of rise and fixed temperature detector (57°C) F220-135FHeat detector with fixed temperature (57°) F220-190FHeat detector with fixed temperature (88°) F220-PPhotoelectric smoke detector F220-PTHPhotoelectric smoke/heat detector F220-PTHCSmoke/ heat/ CO detector

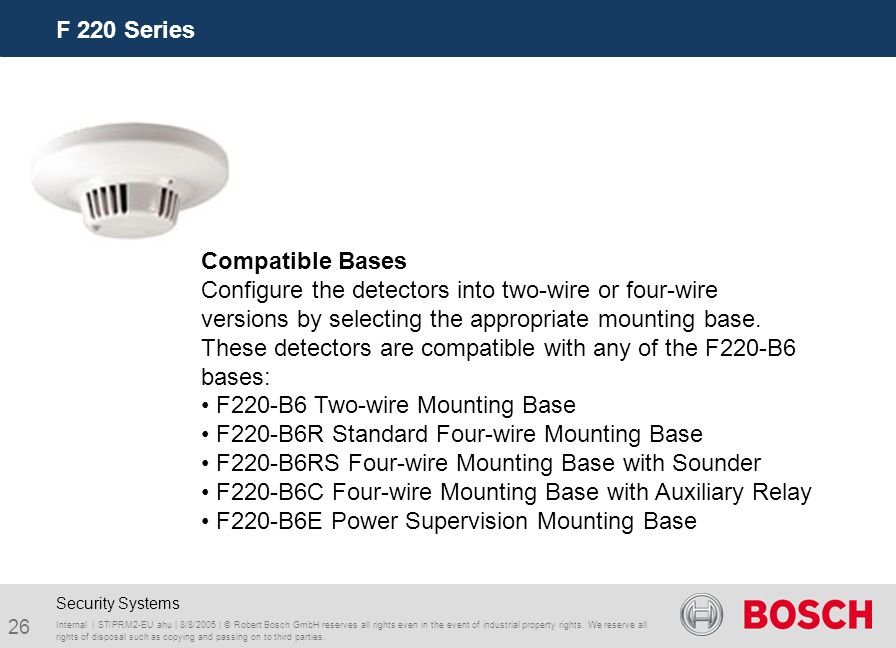

26 26 F 220 Series Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Compatible Bases Configure the detectors into two-wire or four-wire versions by selecting the appropriate mounting base. These detectors are compatible with any of the F220-B6 bases: F220-B6 Two-wire Mounting Base F220-B6R Standard Four-wire Mounting Base F220-B6RS Four-wire Mounting Base with Sounder F220-B6C Four-wire Mounting Base with Auxiliary Relay F220-B6E Power Supervision Mounting Base

27 27 LSN RF Fire Detection Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems FK 100 LSN RF interface module and DOW 1171 optical RF smoke detector Operating range 868-870 MHz band, released exclusively for security technology. Up to 30 DOW 1171 RF detectors per interface module. Bi-directional information transfer detector and interface If base channel is occupied the radio cell switches to a secondary channel to guarantee alarm transmission. The LSN part in the RF interface module is supplied with voltage via the LSN.

28 28 Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Radio module needs separate power supply FK 100 LSN with tamper contact, a reed switch for manually activating the configuration mode and three LEDs for operating status display. The RF interface module meets the standard EN 54 DOW 1171 is battery-powered, can be configured Outstanding interference immunity LSN RF Fire Detection

29 29 Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems LSN RF Fire Detection - Accessories Radio Spy 1 Field strength measuring unit and software DZW 1171 Radio test unit (Field strength measuring device) Exchanger device for the DOW 1171 RF smoke detector

30 30 Fire Periphery Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Strobes Manual Call Points Sounders Base Sounders Remote Indicators Interface Modules

31 31 LSN interfaces for fire detection equipment Interface Modules - Overview Internal | ST-FIR/PRM1 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems NBK 100 LSNAux Power +28V NSB 100 LSNAux Power +28V NTK 100 LSNAux Power +28V Couplers with AUX PowerCouplers without AUX Power NAK 100 LSN NKK 100 LSN 100 Series interface modules 420 Series Interface modules FLM-420-RHVHigh Voltage Relay Interface FLM-420-NACUS Type Interface Module FLM-I 420Short cut isolator FLM-420-RLV1Low Voltage Relay Interface (1 Relay) FLM-420/4-CONConventional Interface Module 4-wire FLM-420-CONConventional Interface Module FLM-420-I2Interface Module with 2 Inputs FLM-420-O2Interface Module with 2 Output

32 32 How to replace the 100 Series? Internal | Abteilung | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems NSB 100 NBK 100 NKK 100 NTK 100 NZM 0002A RML 0008A RMH 0002A FLM-420-RHV high voltage relay FLM-420-NAC If for sounders/strobes FLM-420-RLV1 Low V. 1 Relay CZM 0004A IOP 0008A FLM-GLT420 FLM-420/4-CON conventional Interface Mod. FLM-420-I2interface module w. 2 Inputs FLM-420-O2: 2 Open-Collector Output interface modules 100 Series Modules for replacement New interface modules 420 Series

33 33 Internal | ST-FIR/PRM3 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems LSNi-Interface Modules  Functions of old interface modules are realized in FPA 5000 modules and additionally in LSNi interface modules  The various functions of the NSB100 will be divided into several variants of interface modules  Depending on the needed effort for the wiring (loop length), all interface module’s functions can already be realized through the corresponding FPA 5000 module  2 versions (NAC, RLHV) of the new LSNi-interface modules can be delivered end of Oct. 05  Concept phase of further LSNi-couplers will be completed end of Oct. 05  Start of production (SOP) of LSNi couplers (GLT, Input-, Output- and Relays) estimated for July 06 (RoHS)

34 34 Interface Modules Internal | ST-FIR/PRM1 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems NSB 100 LSN Panel Loop Extinguishing system Smoke hatch S = Control device Signaling device E = LSN-element Stub line

35 35 Interface Modules Internal | ST-FIR/PRM1 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Functions  2 control outputs  1 monitored input Operating voltage  - LSN section:+ 10V DC... + 33V DC  - needs separate aux power: + 12V DC... + 28V DC Power consumption  LSN section:4.5mA  BR1-BR2 position 2-3 – polarity reversal  GAT 100 – DC-DC Converter necessary NSB 100 LSN

36 36 LSNi - Interface Modules Internal | ST-FIR/PRM3 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems FPA 5000 modules that replace the NSB 100 NAC/Sounder Module NZM 0002 A Low Voltage Relay Module RML 0008 A High Voltage Relay Module RMH 0002 A 2 Relays 230V/10A + Feed-back Trigger extinguishing systems 8 Relays(30V/1A switch contact) Control of sounder/strobe through reverse polarity

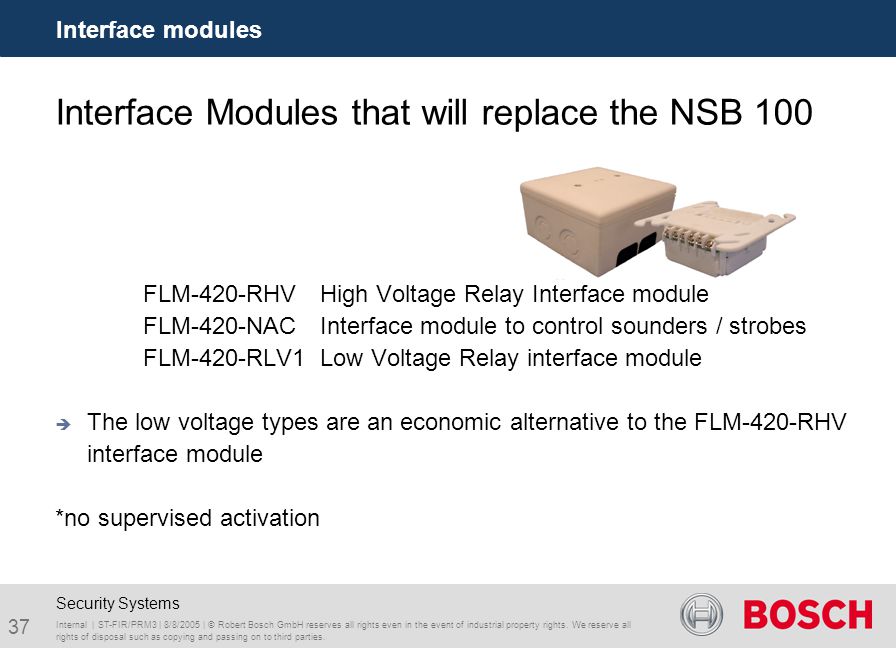

37 37 Interface modules Internal | ST-FIR/PRM3 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Interface Modules that will replace the NSB 100 FLM-420-RHVHigh Voltage Relay Interface module FLM-420-NACInterface module to control sounders / strobes FLM-420-RLV1Low Voltage Relay interface module  The low voltage types are an economic alternative to the FLM-420-RHV interface module *no supervised activation

38 38 Interface Modules Internal | ST-FIR/PRM1 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems NBK 100 LSN Panel Loop Primary line M = Conv. detector Stub line

39 39 Interface Modules Internal | ST-FIR/PRM1 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Functions:  Connecting conventional fire detectors  Up to 2 conventional lines with 32 detectors Operating Voltage  LSN section10V - 33V  Conventional20V Power consumption  LSN section:3.5mA  S1 and S2 are open - for Magic.Sens detectors!  GAT 100 – DC-DC Converter necessary NBK 100 LSN

40 40 Interface Modules Internal | ST-FIR/PRM3 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Modules that may replace the NBK100  The FLM-420/4-CON Conventional interface module 4 wire LSN Convent. -Module CZM 0004 A Connection of up to 4 zones LSNi interface module that will replace the NBK100

41 41 Interface Modules Internal | ST-FIR/PRM1 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems NKK 100 LSN Panel Loop Stub line

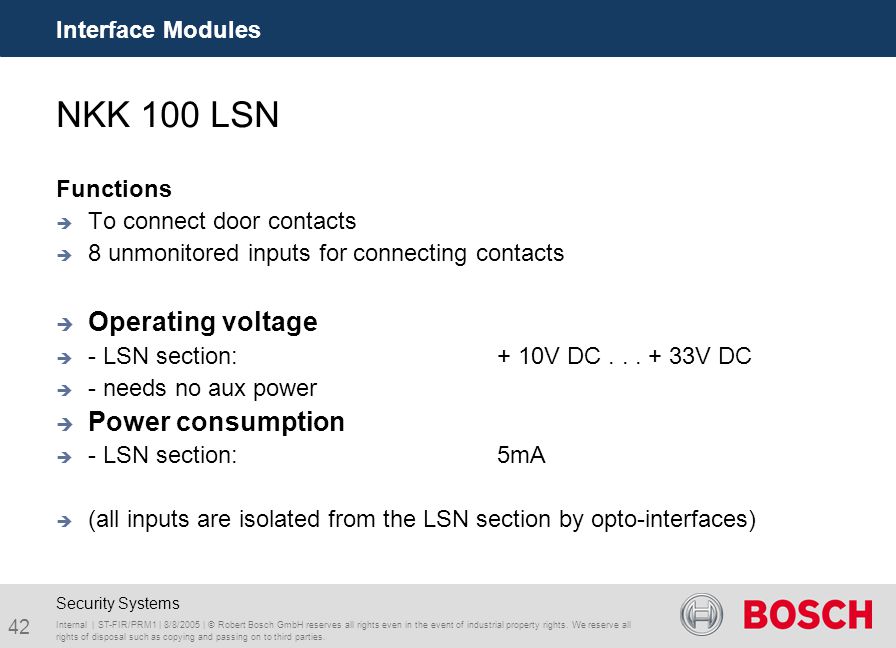

42 42 Interface Modules Internal | ST-FIR/PRM1 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Functions  To connect door contacts  8 unmonitored inputs for connecting contacts  Operating voltage  - LSN section:+ 10V DC... + 33V DC  - needs no aux power  Power consumption  - LSN section: 5mA  (all inputs are isolated from the LSN section by opto-interfaces) NKK 100 LSN

43 43 Interface modules Internal | ST-FIR/PRM3 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  FLM-420-I2interf. module w. 2 Inputs LSNi interface module that will replace the NKK100 I/O-Module IOP 0008 A Input/Output module 8 Inputs+ 8 Outputs

44 44 NTK 100 LSN Interface Modules Internal | ST-FIR/PRM1 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Loop Stub line Panel Push-button

45 45 Interface Modules Internal | ST-FIR/PRM1 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Functions  For connecting the display panel  8 switching open collector outputs for connection of an external display.  2 inputs for connecting e.g. push-buttons. Operating voltage  - LSN section:+ 10V DC... + 33V DC  - needs separate aux power: + 28V DC Power consumption  - LSN section: 6mA  - Outputs: 8 x max. 100mA  - Alarm (Inputs) 2 x max. 6mA  (inputs and outputs are isolated from  the LSN section by opto-interfaces) NTK 100 LSN

46 46 Interface modules Internal | ST-FIR/PRM3 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  FLM-420-O2: 2 Open-Collector Outputs I/O-Module IOP 0008 A Input/Output 8 Inputs + 8 Outputs LSNi interf. modules that will replace the NTK100

47 47 NAK 100 LSN Interface Modules Internal | ST-FIR/PRM1 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Panel Loop Stub line Tee-off

48 48 Internal | ST-FIR/PRM1 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Functions  To form LSN Tee-off Technical data  Operating voltage+ 10V DC... + 33V DC  Power consumption (LSN)2.5mA  Connection option: branch with ring or spur line  Max. 32 Elements in one spur NAK 100 LSN Interface Modules

49 49 Interface Modules Internal | ST-FIR/PRM3 | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Modules that replace the NAK 100 Not needed anymore with LSNi, because of T-Tapping

50 50 FMC-210 New LSN improved – manual call point Internal | Department | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems What is new?  Use of LSN improved  Compliant with EN-54-11  More reliable micro-switch  PCB with parylene coating for outside use  Height increased by 2mm  Available in red, blue and yellow

51 51 MAGIC.SENS Stand-alone detector base sounders Internal | Department | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  MSS 300 - SA red conventional technology Detector base sounder triggered via a control interface NSB, tone type set via DIP switch, volume set via potentiometer  MSS 400 LSN - SA red Detector base sounder with direct link to the LSN, setting of tone type and volume via the LSN  MSS 401 LSN – SA red Detector base sounder with separate power supply and direct link to the LSN, setting of tone type and volume via the LSN  MSS 401 LSN – SA white Detector base sounder with separate power supply and direct link to the LSN, setting of tone type and volume via the LSN

52 52 MAGIC.Sens Base sounders Internal | Department | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  MSS 300 ws detector base sounder white, control via C-point of the detector  MSS 300 ws - EC (externally connected) detector base sounder white control through fire panel via interface  MSS 400 LSN detector base sounder white for direct connection to the LSN  MSS 401 LSN detector base sounder white for direct connection to the LSN with direct separate power supply

53 53 Strobes Internal | Department | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems ▶ Compact, robust and maintenance-free ▶ Reliable, bright light, and long-life with Xenon flash tubes ▶ For operating voltage 12 V DC and 24 V DC ▶ Can be used in adverse environmental conditions ▶ Suitable for surface and flush-mounted cable feed ▶ Compact, robust and maintenance-free ▶ Reliable, bright light (5J), and long-life with Xenon flash tubes ▶ Can be used in adverse environmental conditions ▶ Polarity-safe connections ▶ Cable feed surface and flush-mounted possible

54 54 Remote Indicators (MPA) Internal | Department | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Remote indicator according to DIN14623 FAA-420-RI Remote indicator

55 55 Auto special detectors Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Linear Heat Tube Sampled Heat Air Sampling Device Beam Smoke Heat Measurement Flame detectors

56 56 Auto special detector Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  Application areas Tunnels Dusty Areas Recycling Companies Areas, where maintenance is not possible Corrosive areas Compact, robust design Corrosion-resistant Hermetically-sealed contact system Suitable for extreme environmental conditions High Sensitivity Permissible ambient temperature: 50°C – 350°C Trigger temperature: 60°C Heat measurement detector FCH-heat-bar

57 57 Auto special detector Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Heat measurement detectors are used where the operation of detectors with open detection systems is prohibited, e.g. colour mixing equipment, silos, roller mills, refineries, airplane hangars, etc. Should be installed so that they are protected against mechanical damage, but a good heat feed is possible nevertheless Dust and dirt accumulations on the sensor tube should be avoided Heat measurement detectors are unsuitable for the following areas of application: - Areas with high air currents, e.g. near air conditioning and ventilation equipment, - locations with direct sunlight.

58 58 Auto special detector Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  Operation principle: Change of resistance is based on the change in resistance of an electrical conductor caused by a rise of temperature LHD4 - Linear Heat Detector

59 59 Auto special detector Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems LHD4 - Linear Heat Detector – FC´S-LWM1

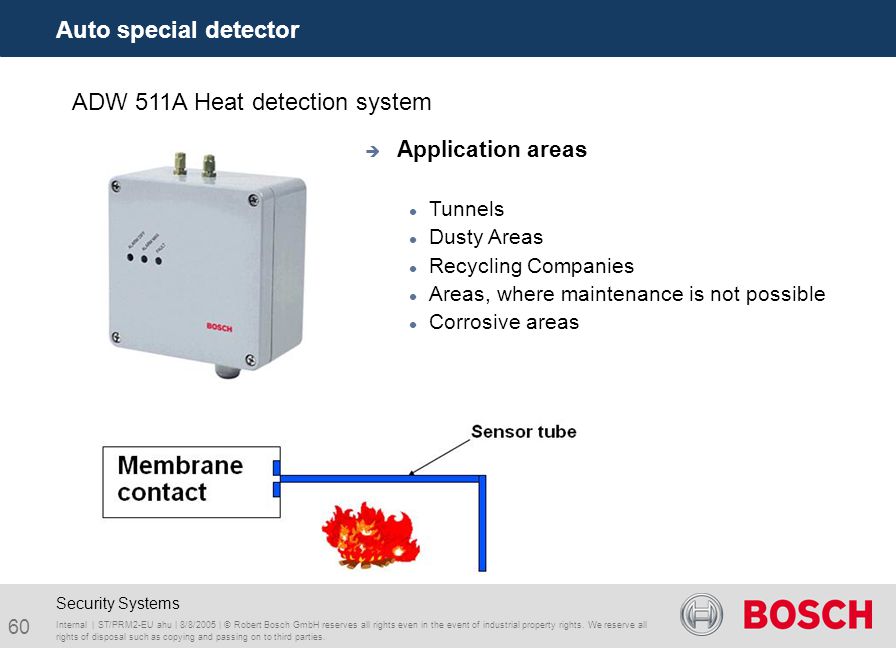

60 60 Auto special detector Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  Application areas Tunnels Dusty Areas Recycling Companies Areas, where maintenance is not possible Corrosive areas ADW 511A Heat detection system

61 61 Auto special detector Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  Application areas Tunnels Dusty Areas Recycling Companies Areas, where maintenance is not possible Corrosive areas ADW 511A Heat detection system

62 62 Auto special detector Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  Air sampling smoke detection system for the universal use in fire detection with alert-, action-, and fire alarm  Multi-level alarm concept can be realized  Equipped with intelligent signal processing  Display sensitivity can be set up to 0,005 %/m light obscuration  software controllable over computer network Titanus Air sampling device

63 63 Auto special detectors Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  The transmitter sends an invisible infrared beam, condensed by a lens, to a receiver. If smoke crosses the path of the beam, the signal is attenuated.  When reaching a certain threshold, an alarm is triggered. Application areas  Warehouses  Big halls with high ceilings where maintenance is difficult  Recycling Companies  Historical buildings where normal detectors are not allowed  Dirty environments Beam smoke detector Fireray 2000

64 64 Auto special detector Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Infrared flame detector DF 1192 and DF 1101 EX ▶ Compact, robust and nearly maintenance-free ▶ Suitable for outdoor use under extreme conditions ▶ Optimal adjustment to the environmental conditions with 10 DIP switches ▶ Two sensitivity levels ▶ Easy-to-see red individual display ▶ For room heights from 1.50 m to 20 m

65 65 Auto special detector Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems Infrared flame detector Infrared flame detectors are used to detect open flames in rooms or outdoors. Especially suitable for smokeless liquid and gas fires as well as for fires of materials that contain carbon with strong smoke development. Typical applications: large industrial warehouses airplane hangars chemical facilities oil refineries machine rooms, ferries and freight ships power plants printing plants Wood warehouses subway tunnels

66 66 Auto special detectors Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems  The transmitter sends an invisible infrared beam, condensed by a lens, to a receiver. If smoke crosses the path of the beam, the signal is attenuated  When reaching a certain threshold, an alarm is triggered Application areas  Warehouses  Big halls with high ceilings where maintenance is difficult  Recycling Companies  Historical buildings where normal detectors are not allowed  Dirty environments Beam smoke detector Fireray 50R/100R and Fireray 2000

67 67 Quick reference guide Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems

68 68 Quick reference guide Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems

69 69 Quick reference guide Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems

70 70 Fire Periphery Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Security Systems


Download ppt "1 Training Fire Periphery Internal | ST/PRM2-EU ahu | 8/8/2005 | © Robert Bosch GmbH reserves all rights even in the event of industrial property rights."
