1. COMPREHENSIVE Excel Tutorial 10 Performing What-If Analyses

2. XP Objectives Explore the principles of cost-volume-profit relationships Perform a basic what-if analysis Use Goal Seek to calculate a solution Create a one-variable data table Create a two-variable data table Create and apply different Excel scenarios New Perspectives on Microsoft Office Excel 20072

3. XP Objectives Generate a scenario summary report Generate a scenario PivotTable report Explore the principles of price elasticity Run Solver to calculate optimal solutions Create and apply constraints to a Solver model Save and load a Solver model New Perspectives on Microsoft Office Excel 20073

4. XP Understanding Cost-Volume-Profit Relationships Cost-volume-profit (CVP) analysis expresses the relationship between a company’s expenses, its volume of business, and the resulting profit or net income Variable expenses change in proportion to the amount of business a company does A fixed expense is an expense that must be paid regardless of sales volume A variable expense is part variable and part fixed The point where revenue equals expenses is called the break-even point – Break-even analysis New Perspectives on Microsoft Office Excel 20074

5. XP Understanding Cost-Volume-Profit Relationships New Perspectives on Microsoft Office Excel 20075

6. XP Working with What-If Analysis and Goal Seek To perform what-if analysis: – Change the value of a worksheet cell (the input cell) – Observe its impact on one or more calculated cells (the result cells) To perform Goal Seek: – In the Data Tools group on the Data tab, click the What-If Analysis button, and then click Goal Seek – In the Set cell box, select the result cell, and then, in the To value box, specify its value (goal) – In the By changing cell box, specify the input cell – Click the OK button. The value of the input cell changes to set the value of the result cell New Perspectives on Microsoft Office Excel 20076

7. XP Working with What-If Analysis and Goal Seek New Perspectives on Microsoft Office Excel 20077

8. XP Working with What-If Analysis and Goal Seek New Perspectives on Microsoft Office Excel 20078

9. XP Working with One-Variable Data Tables A data table organizes the results of several what-if analyses within a single table Insert a formula that references the input cell in the upper-left cell of the table Insert input values in either the first row or first column of the table For input values in the first row, insert formulas referencing result cells in the table’s first column; for input values in the first column, insert formulas referencing result cells in the table’s first row New Perspectives on Microsoft Office Excel 20079

10. XP Working with One-Variable Data Tables Select the table (excluding any row or column headings). In the Data Tools group on the Data tab, click the What-If Analysis button, and then click Data Table If the input values are in the first row, enter the cell reference to the input cell in the Row input cell box; if the input values are in the first column, enter the cell reference to the input cell in the Column input cell box Click the OK button New Perspectives on Microsoft Office Excel 200710

11. XP Working with One-Variable Data Tables New Perspectives on Microsoft Office Excel 200711

12. XP Working with Two-Variable Data Tables A two-variable data table uses two input cells, but unlike a one variable data table, only the value of a single result cell can be displayed Insert a formula that references the result cell in the upper-left cell of the table Insert input values in the first row and first column of the table Select the table (excluding any row or column headings) In the Data Tools group on the Data tab, click the What- If Analysis button, and then click Data Table New Perspectives on Microsoft Office Excel 200712

13. XP Working with Two-Variable Data Tables Enter the cell reference corresponding to the input values in the first row in the Row input cell box; enter the cell reference to the input values in the first column in the Column input cell box Click the OK button New Perspectives on Microsoft Office Excel 200713

14. XP Working with Two-Variable Data Tables New Perspectives on Microsoft Office Excel 200714

15. XP Using Scenario Manager Scenario Manager enables you to create as many scenarios as you want, easily switching between the different scenarios to display the results of several what-if analyses Enter the data values in the worksheet for the scenario In the Data Tools group on the Data tab, click the What-If Analysis button, and then click Scenario Manager New Perspectives on Microsoft Office Excel 200715

16. XP Using Scenario Manager Click the Add button in the Scenario Manager dialog box In the Scenario name box, type a name for the scenario In the Changing cells box, specify the input or changing cells Click the OK button In the Scenario Values dialog box, specify values for each of the input cells, clicking the Add button after each Click the OK button New Perspectives on Microsoft Office Excel 200716

17. XP Using Scenario Manager New Perspectives on Microsoft Office Excel 200717

18. XP Creating a Scenario Summary Report A scenario summary report lists the values for the changing cells and result cells under each scenario In the Data Tools group on the Data tab, click the What- If Analysis button, and then click Scenario Manager Click the Summary button Click the Scenario summary option button to create a scenario summary report (or click the Scenario PivotTable report option to create a PivotTable describing the scenarios) Select the results cells to display in the report Click the OK button New Perspectives on Microsoft Office Excel 200718

19. XP Creating a Scenario Summary Report New Perspectives on Microsoft Office Excel 200719

20. XP Creating a Scenario PivotTable Report A Scenario PivotTable report displays the results from each scenario as a pivot field in a PivotTable In the Data Tools group on the Data tab, click the What-If Analysis button, and then click Scenario Manager Click the Summary button, and then click the Scenario PivotTable report option button Click the OK button New Perspectives on Microsoft Office Excel 200720

21. XP Creating a Scenario PivotTable Report New Perspectives on Microsoft Office Excel 200721

22. XP Understanding Price Elasticity of Demand New Perspectives on Microsoft Office Excel 200722

23. XP Understanding Price Elasticity of Demand The effect that price has on demand is called the price elasticity of demand – Relatively inelastic – Perfectly inelastic – Relatively elastic – Perfectly elastic – Unit elastic New Perspectives on Microsoft Office Excel 200723

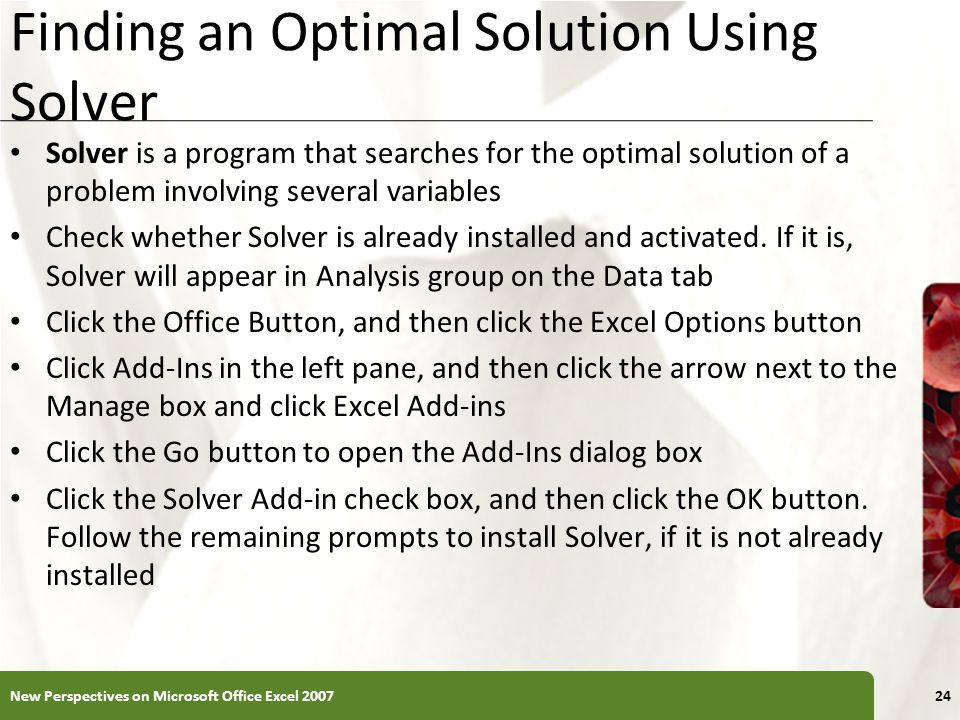

24. XP Finding an Optimal Solution Using Solver Solver is a program that searches for the optimal solution of a problem involving several variables Check whether Solver is already installed and activated. If it is, Solver will appear in Analysis group on the Data tab Click the Office Button, and then click the Excel Options button Click Add-Ins in the left pane, and then click the arrow next to the Manage box and click Excel Add-ins Click the Go button to open the Add-Ins dialog box Click the Solver Add-in check box, and then click the OK button. Follow the remaining prompts to install Solver, if it is not already installed New Perspectives on Microsoft Office Excel 200724

25. XP Setting Solver Parameters In the Analysis group on the Data tab, click the Solver button In the Set Target Cell box, specify the target cell Click the Max, Min, or Value of option buttons to maximize, minimize, or set the target cell to a specified value In the By Changing Cells input box, specify the changing cells New Perspectives on Microsoft Office Excel 200725

26. XP Setting Constraints on the Solver Solution In the Solver Parameters dialog box, click the Add button Enter the cell reference of the cell or cells containing the constraint Specify the nature of the constraint ( =, int, or bin) Enter the constraint value in the Constraint box Click the OK button to add the constraint and return to the Solver dialog box Repeat for each constraint you want to add New Perspectives on Microsoft Office Excel 200726

27. XP Setting Constraints on the Solver Solution New Perspectives on Microsoft Office Excel 200727

28. XP Saving and Loading a Solver Model To save a Solver model: – Open the Solver dialog box – Click the Options button and then click the Save Model button – Select the range to contain the parameters of the Solver model, and then click the OK button To load a Solver model: – Open the Solver dialog box – Click the Options button and then click the Load Model button – Select the range within the current worksheet containing the Solver parameters, and then click the OK button New Perspectives on Microsoft Office Excel 200728

29. XP Saving and Loading a Solver Model New Perspectives on Microsoft Office Excel 200729

30. XP Saving and Loading a Solver Model New Perspectives on Microsoft Office Excel 200730
