1. Scorpion BP

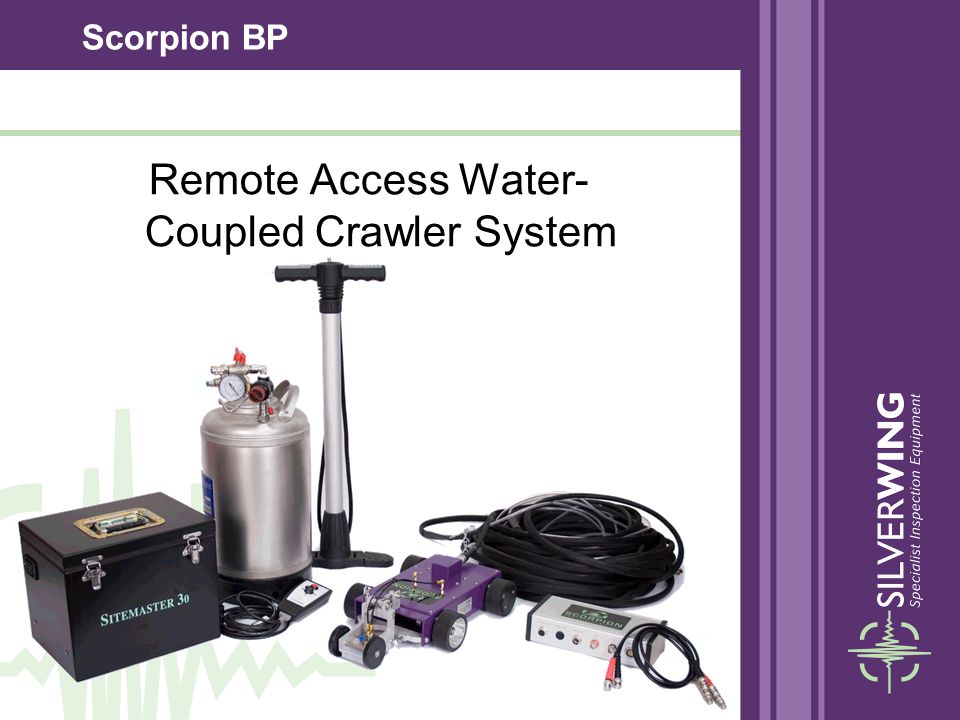

2. Remote Access Water- Coupled Crawler System

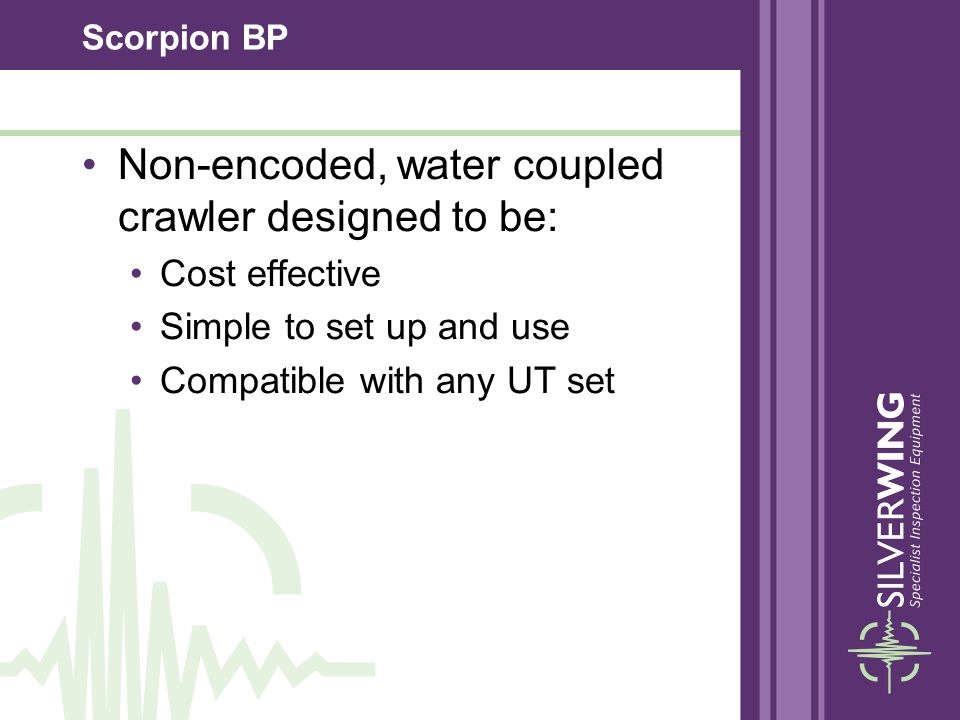

3. Scorpion BP Non-encoded, water coupled crawler designed to be: Cost effective Simple to set up and use Compatible with any UT set

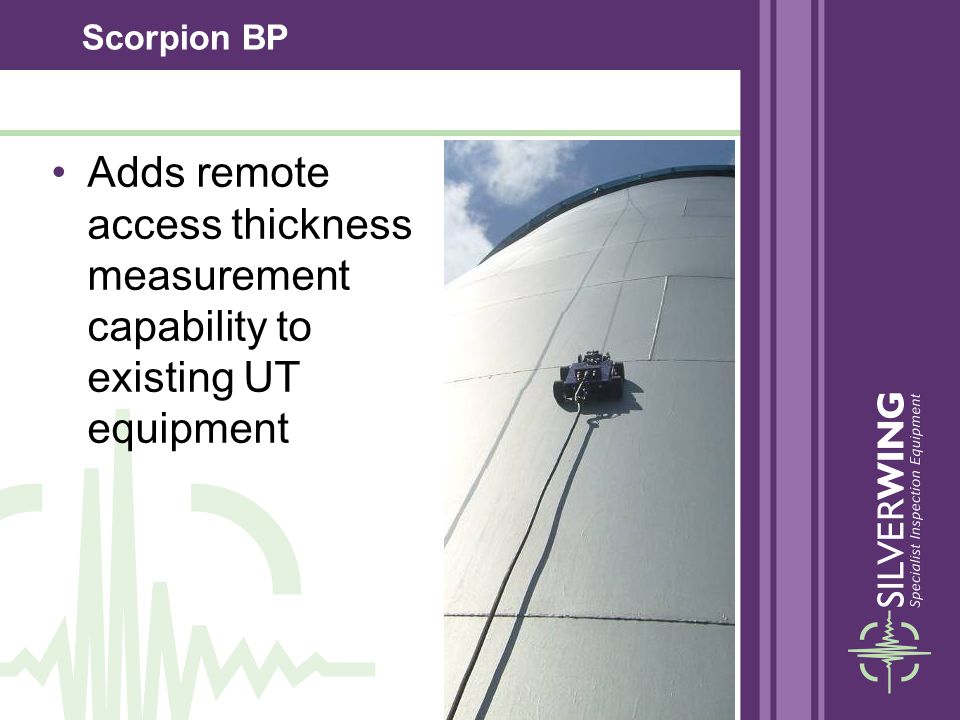

4. Scorpion BP Adds remote access thickness measurement capability to existing UT equipment

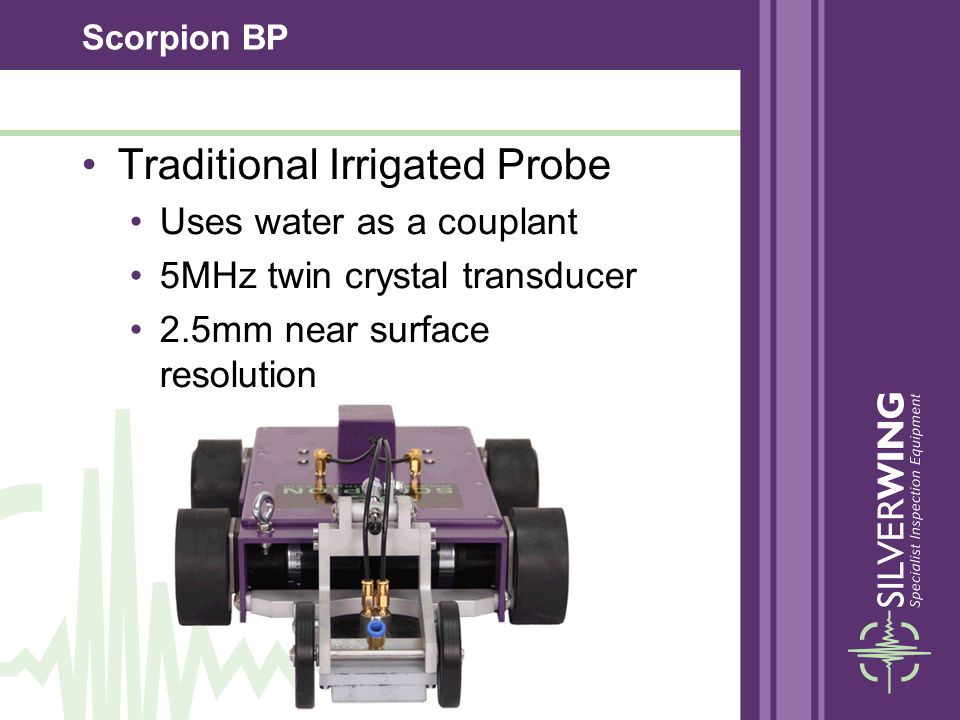

5. Scorpion BP Traditional Irrigated Probe Uses water as a couplant 5MHz twin crystal transducer 2.5mm near surface resolution

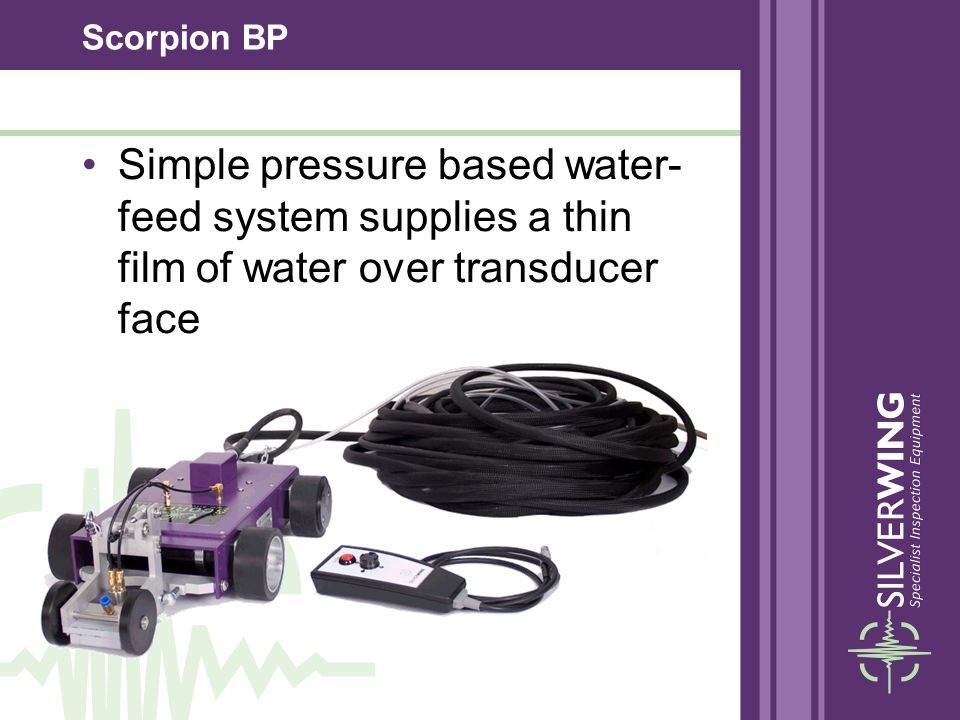

6. Scorpion BP Simple pressure based water- feed system supplies a thin film of water over transducer face

7. Scorpion BP The water reservoir is pressurised using a manual air pump Water output is adjusted so a thin film forms over the transducer face

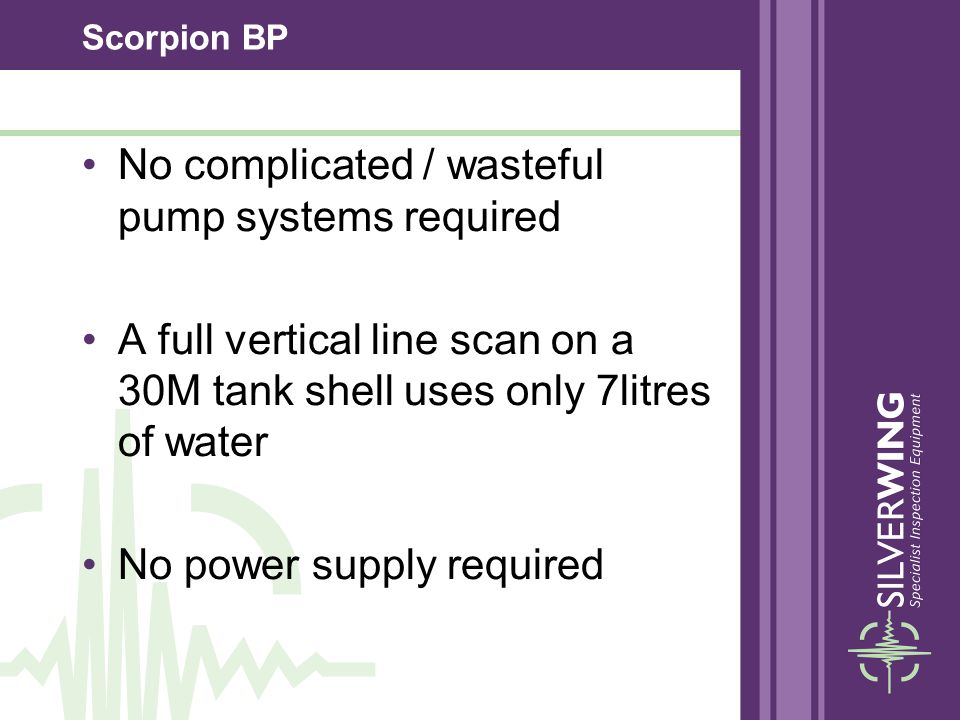

8. Scorpion BP No complicated / wasteful pump systems required A full vertical line scan on a 30M tank shell uses only 7litres of water No power supply required

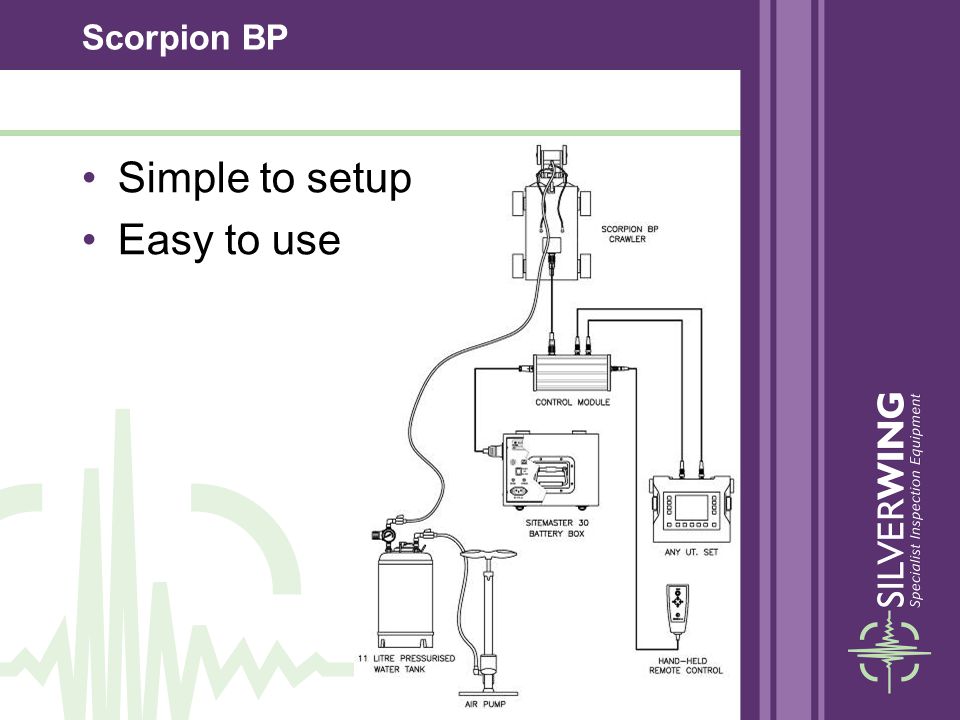

9. Scorpion BP Simple to setup Easy to use

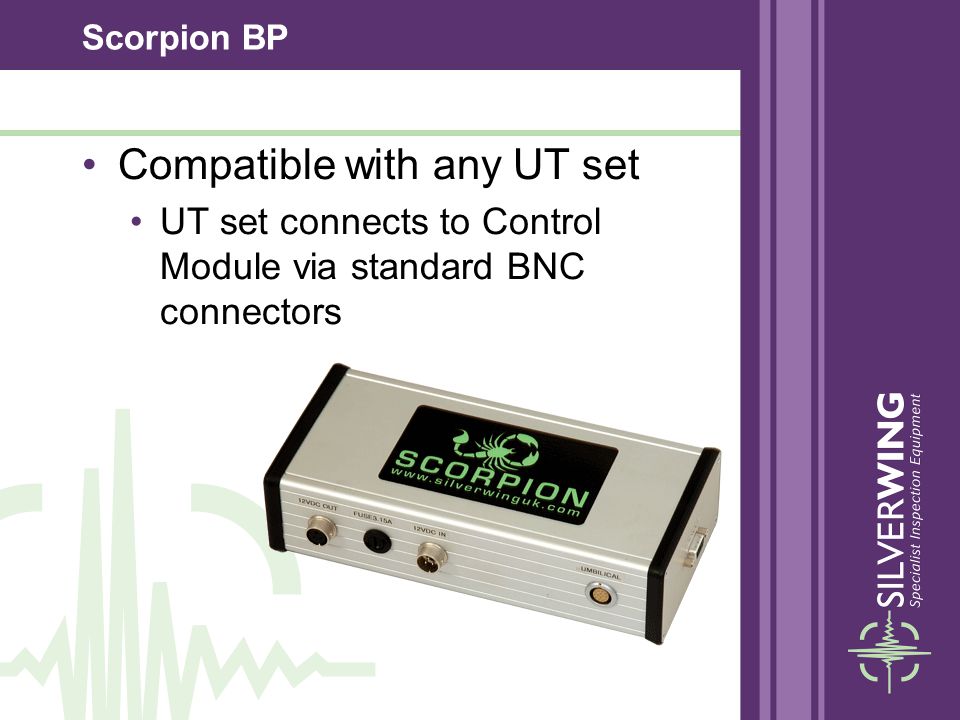

10. Scorpion BP Compatible with any UT set UT set connects to Control Module via standard BNC connectors

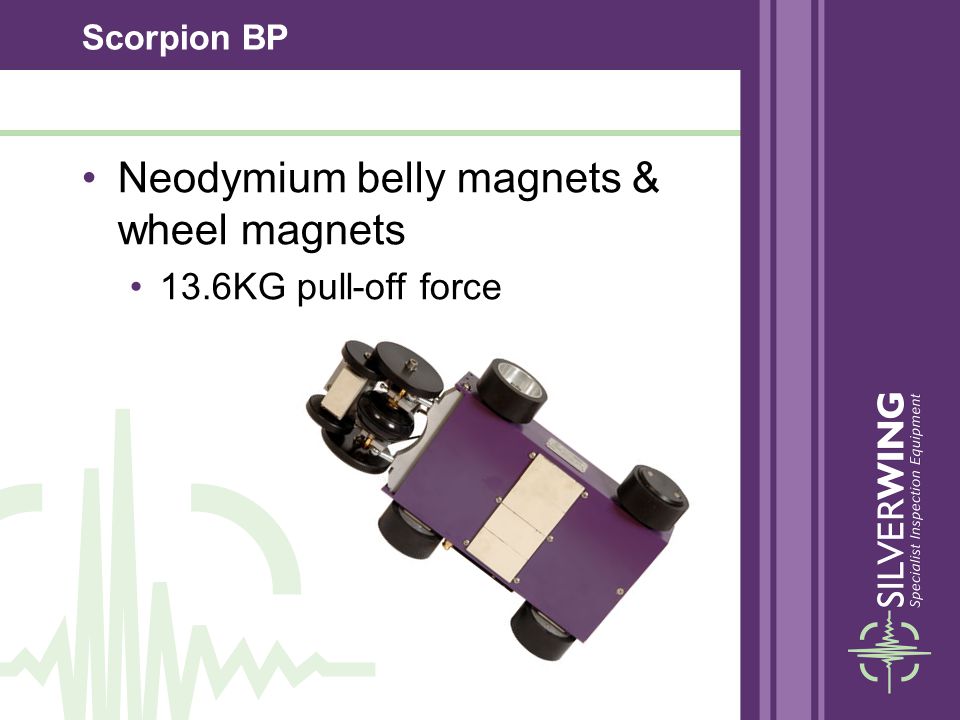

11. Scorpion BP Neodymium belly magnets & wheel magnets 13.6KG pull-off force

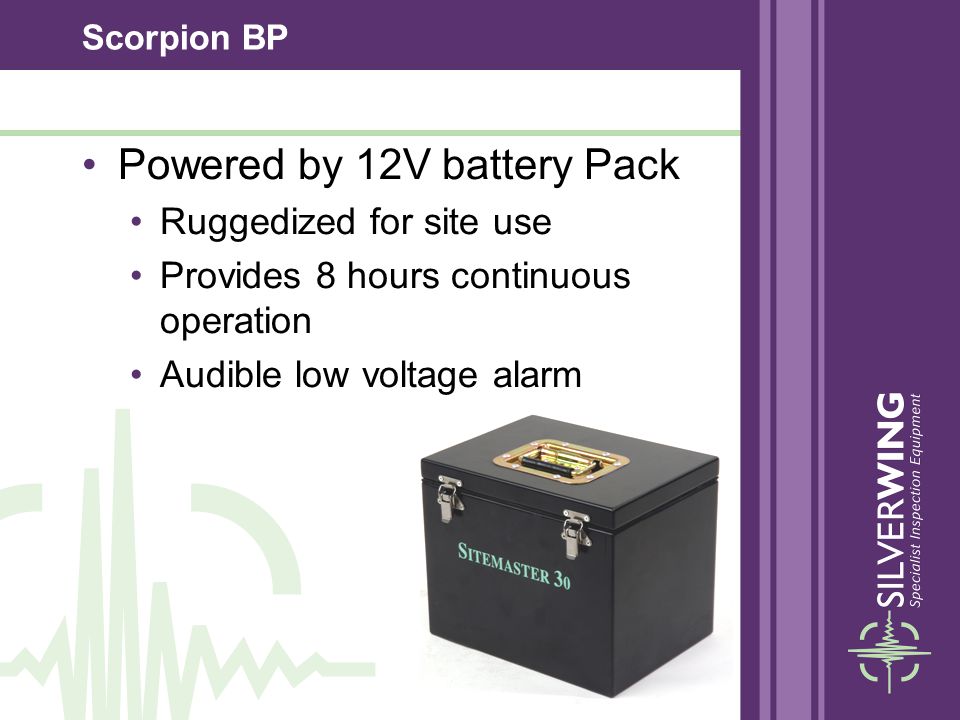

12. Scorpion BP Powered by 12V battery Pack Ruggedized for site use Provides 8 hours continuous operation Audible low voltage alarm

13. Scorpion BP Four independently controlled drive-wheels provide full steering control

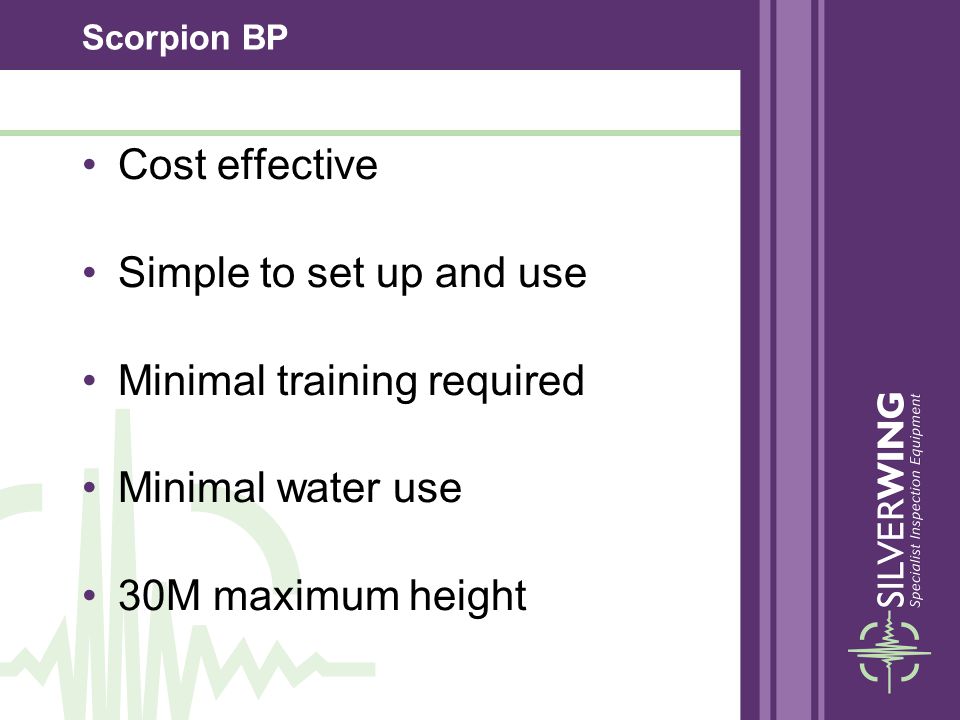

14. Scorpion BP Cost effective Simple to set up and use Minimal training required Minimal water use 30M maximum height

15. www.silverwinguk.com TECHNOLOGY DRIVEN

16. NOT OPERATOR DEPENDENT
