1 7.1 Techniques for Producing and Analyzing DNA SBI4UP MRS. FRANKLIN

2 Recombinant DNA Technology Recombinant DNA: a molecule of DNA composed of genetic material from different sources. Prokaryotic organisms have synthesized many different restriction enzymes that enable them to protect themselves against viral DNA. Restriction enzymes cleave viral DNA so that it can no longer replicate within the organism. Restriction endonuclease is an example of a restriction enzyme.

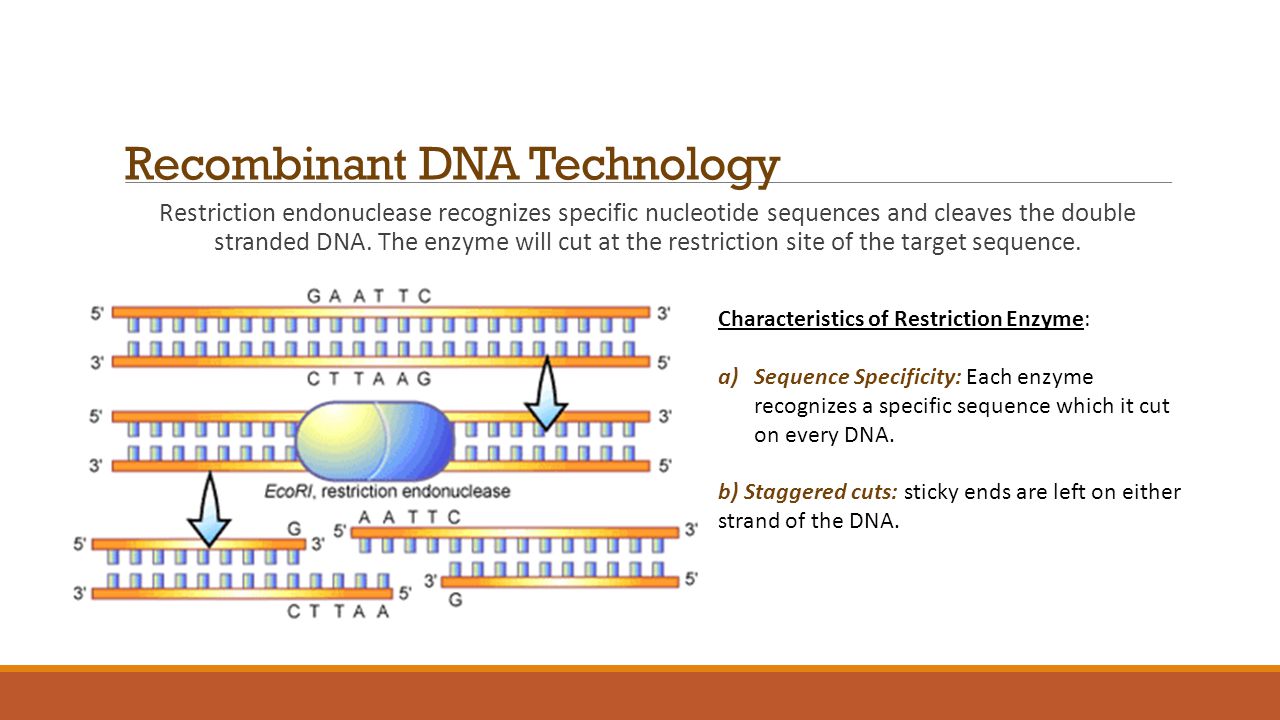

3 Restriction endonuclease recognizes specific nucleotide sequences and cleaves the double stranded DNA. The enzyme will cut at the restriction site of the target sequence. Recombinant DNA Technology Characteristics of Restriction Enzyme: a)Sequence Specificity: Each enzyme recognizes a specific sequence which it cut on every DNA. b) Staggered cuts: sticky ends are left on either strand of the DNA.

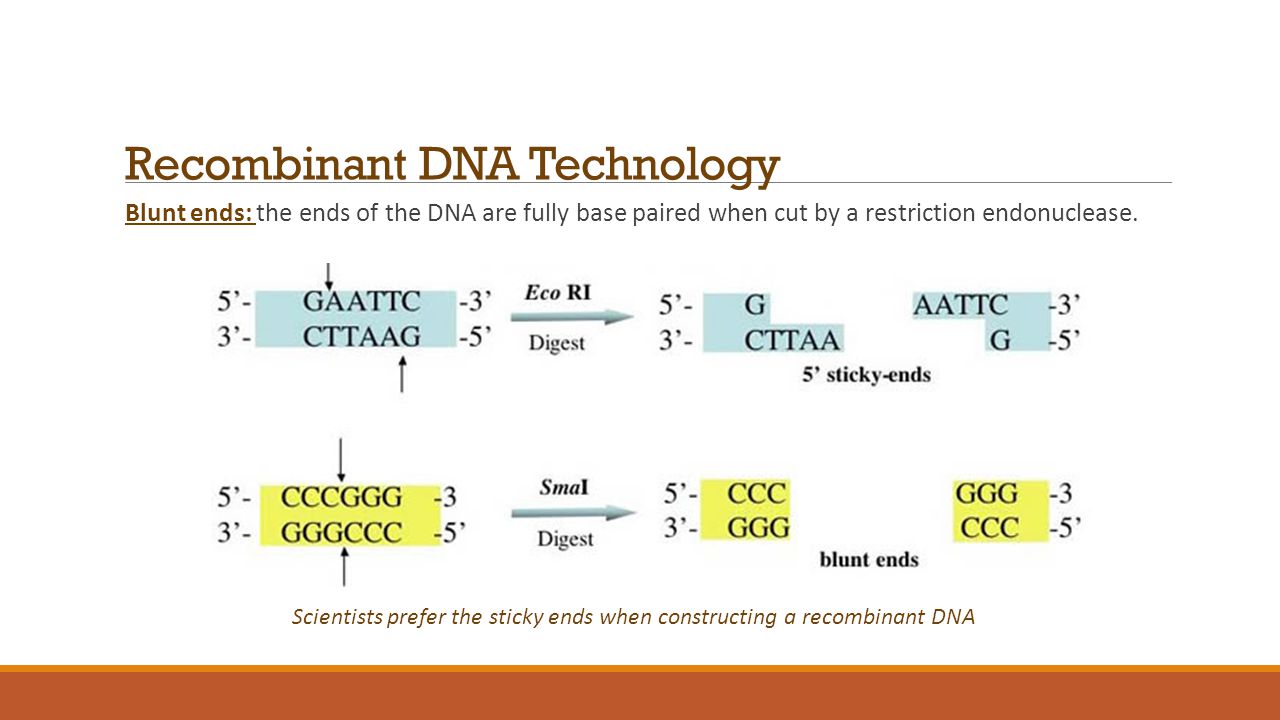

4 Blunt ends: the ends of the DNA are fully base paired when cut by a restriction endonuclease. Recombinant DNA Technology Scientists prefer the sticky ends when constructing a recombinant DNA

5 All bacterial cells can produce their own restriction endonucleases which enables them to breakdown bacteriophage DNA and prevent them from being transcribed when they invade their cells. By adding methyl to the recognition sites of endonucleases, the enzyme will not destroy its own DNA. Bacteriophage DNA does not contain methyl groups and thus is destroyed. Recombinant DNA Technology

6 Features of Bacterial cells and restriction endonucleases that are useful in recombinant technology: 1) Enzymes can produce sticky ends 2) By adding a methyl group to a recognition site it will not be destroyed. 3) Most bacterial strains contain plasmids which can be used as a vector to carry genes of interest. Recombinant DNA Technology

7 Restriction Endonuclease enzymes are used by scientists to combine DNA of interest to a plasmid. The sticky ends of the DNA can combine to any other DNA that also have complementary sticky ends. Recombinant DNA Technology Both DNA strands must be cut with the same restriction enzyme so that the sticky ends are complementary. When both pieces of DNA bind together it is known as ‘Recombinant DNA’.

8 Step 1: Restriction enzyme are used to cleave the target sequence of the DNA of interest. Step 2: When the target DNA sequence is removed, it produces a DNA fragment with sticky ends. Step 3: The other DNA of interest must be cut with the same enzyme to produce complimentary sticky ends. Step 4: Both DNA restriction fragments are incubated with DNA ligase so that a covalent bond can be formed between both fragments.

9 Gene Cloning in Bacteria Recombinant DNA can be used by scientists to determine particular function of the gene of interest. Considering that specificity of restriction enzymes, particular sequences of human DNA can be analyzed and reproduced. Recombinant DNA can be used to clone a gene of interest (gene cloning). In order to do so, a vector is required. A vector can be a plasmid (from prokaryotic cells) that can carry the human genre of interest. Vectors contain origins of replication that are independent of the bacterial DNA.

10 Gene Cloning in Bacteria Criteria for Plasmids: 1)Must contain its own origin of replication 2)Must contain a gene resistant to a drug (ie ampicillin) 3)Must contain restriction sites that will allow the DNA of interest to bind.

11 Both the DNA of interest and the vector must be cut with the same restriction enzyme so that complementary stick ends can be produced. The bacterial medium must be treated with chemicals so that the membrane can be disrupted and the DNA of interest can enter the cytoplasm. Gene Cloning in Bacteria

12 Two types of bacteria are grown on a petri dish containing ampicillin and an X-gal (galactose) which causes bacterial colonies to turn blue when broken down by active lacZ gene. Gene Cloning in Bacteria Through the process of elimination, scientists are able to identify the colonies that have integrated the gene of interest. They are isolated and grown on a separate culture.

13 Recap of Gene Cloning in Bacteria

14 PCR is a biotechnology used by scientists to produce large amounts of DNA (i.e DNA amplification). This technology also enables scientists to purify a small fragment of DNA for analysis purposes. The Polymerase Chain Reaction (PCR)

15 Step 1: double stranded DNA is denatured in high temperature (95ᴼC). Step 2: The temperature is lowered (55ᴼC) so that DNA primers can anneal to the 3’ end of both DNA strands. Step by Step PCR Procedure

16 Step 3: Temperature is increased to 72 C and Taq polymerase is added to the sample. Taq polymerase adds free nucleotides to the primers that are complementary to the template DNA strand. Step 4: The steps 1-3 are repeated multiple times (30 – 40 cycles). Each round of replication generates two new DNA strands. This DNA is amplified exponentially. Step by Step PCR Procedure

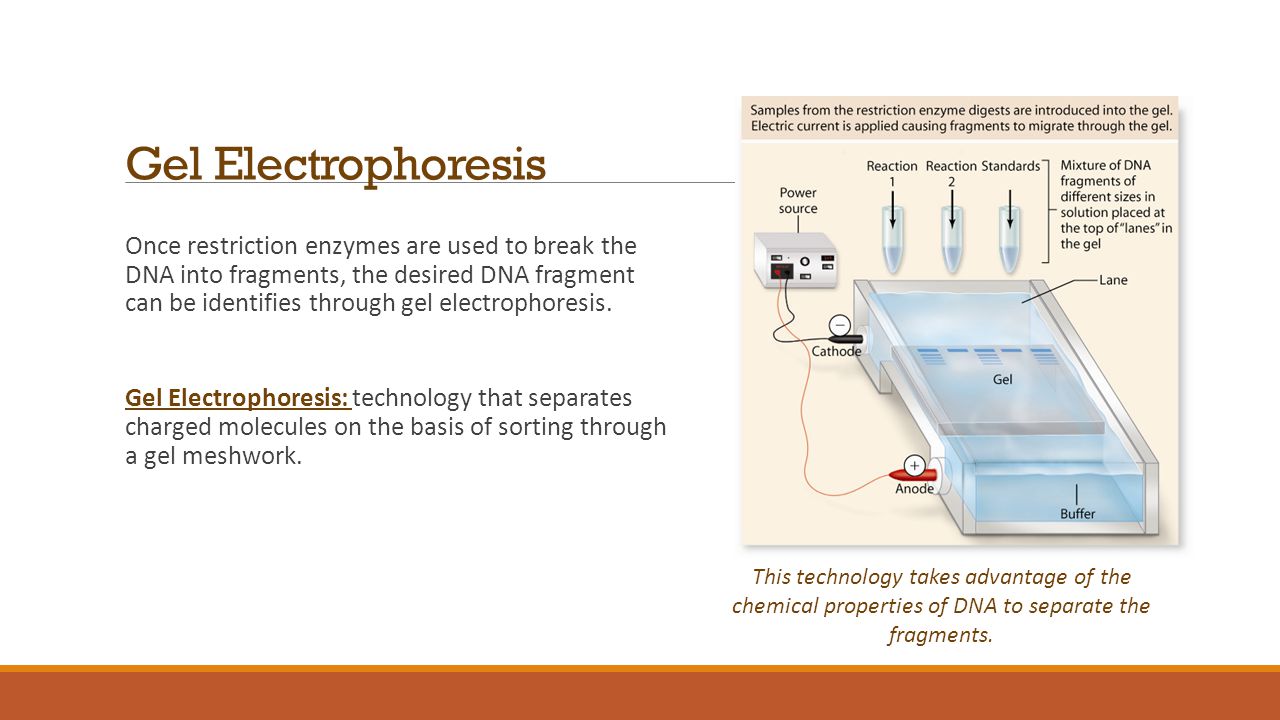

17 Once restriction enzymes are used to break the DNA into fragments, the desired DNA fragment can be identifies through gel electrophoresis. Gel Electrophoresis: technology that separates charged molecules on the basis of sorting through a gel meshwork. Gel Electrophoresis This technology takes advantage of the chemical properties of DNA to separate the fragments.

18 Properties of DNA: 1) DNA is negatively charged due to the phosphate group on the backbone 2) The molar mass of each nucleotide is approximately the same. Gel Electrophoresis As a result of these two properties, each nucleotide has the same charge-to-mass ratio. The only difference between both fragments is the length of the fragment.

19 The smaller DNA fragments have smaller molecular mass and travel through the gel at a greater speed. The smaller fragments are able to travel trough the pores of the gel much easier than larger fragments. Gel Electrophoresis A buffer solution such as agarose or a polyacrylamide gel is added to the box. The buffer creates pores of different diameters. A dye is also added to the DNA fragment solution so that it can be visible when added to the buffer solution.

20 A negative charge is applied to the well where the DNA solution is injected and a positive charge is applied on the opposite end. Due to DNA’s negative charge, it will migrate towards the positively charged end of the box. Gel Electrophoresis The smaller fragments will travel much quicker towards the positively charged end of the box. The heavier fragments will remain closer to the wells where they were first injected.

21 When using a particular restriction enzyme to cleave the DNA, there is a characteristic pattern that is associated with that enzyme. Molecular markers must be used on the well to compare the sizes of the DNA fragments from the solution. Gel Electrophoresis The fragments from the DNA solution are them compared to the molecular marker to find the gene of interest. This area can be detected by looking at the bands on the gel. The desired fragment can then be isolated and purified for further study.

22 What is the main function of restriction enzymes? A) to join DNA fragments at the 3’ ends B) to join DNA fragments at the 5’ ends C) to cut DNA at specific sites within the DNA D) to cut DNA from the 5’ or 3’ ends E) to cut DNA at the 5’ ends Checking for Understanding

23 Which enzyme catalyzes the joining of fragments to form recombinant DNA? A) DNA polymerase B) helicase C) DNA ligase D) Restriction endonuclease E) RNA polymerase Checking for Understanding

24 What is the name of the process that introduces DNA into bacterial cells? A) gene cloning B)translocation C) translation D) transcription E) transformation Checking for Understanding

25 Why are bacteria the most common hosts used in gene cloning? A) bacteria can produce selectable markers B) bacteria have the capacity to perform all post-translational modification of human proteins C) bacteria have mechanisms to prevent the degradation of foreign proteins D) bacteria are resistant to many antibiotics E) bacteria grow quickly in large amounts and are inexpensive to maintain Checking for Understanding

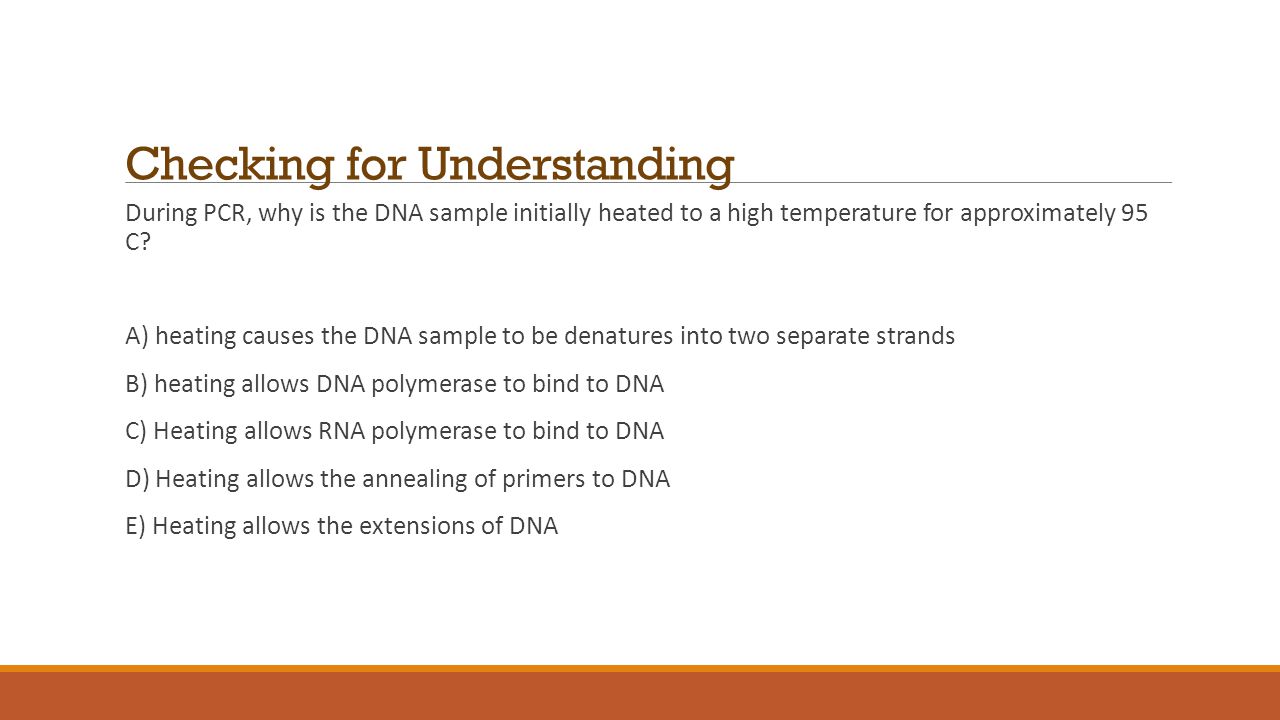

26 During PCR, why is the DNA sample initially heated to a high temperature for approximately 95 C? A) heating causes the DNA sample to be denatures into two separate strands B) heating allows DNA polymerase to bind to DNA C) Heating allows RNA polymerase to bind to DNA D) Heating allows the annealing of primers to DNA E) Heating allows the extensions of DNA Checking for Understanding

27 Textbook: p. 291 # 1-6 Homework
