1 COLLECTING MONEY FOR CHARITIES
AREAS TO REVISE FOR THIS YEARS EXAM- GO TO technologystudent.com/ CLICK ON GRAPHICS FOCUS ON THE FOLLOWING AREAS – 2 POINT PERSPECTIVE ISOMETRIC PROJECTION OROTHOGRAPHIC PROJECTION PAPER AND CARD SIZES, PRINTING PROCESSES AND PRINTING EFFECTS (Revise up to section 14) DEVELOPING LOGOS/SYMBOLS PACKAGING-SYMBOLS DEVELOPMENTS- NETS PACKAGING MATERIALS AND MANUFACTURE ERGONOMICS MODEL/PROTOTYPE MANUFACTURE 25 Other revision material - scroll down to the bottom and click on it READ THEM ALL!! DO NOT FORGET TO REVISE THE LONSDALE ESSENTIALS GRAPHIC PRODUCTS BOOK THOROUGHLY TOO! USEFUL WEBSITES FOR REVISION FOR PACKAGING NETS GOOD REVISION SITE PACKAGING SCALE MODELS AND HAVING FUN!!!! a variety of graphics skills through animated worksheets. A technology site covering many useful and interesting aspects of design and technology. host of ideas and information tips for pupils at Key Stage 3 and 4 FUN, FUN, FUN…… stuff works ! Explanations of all those things you wondered about…from toilets to telephones… some with animation…. the mind boggles! templates packaging nets REVISION TIPS – TRY TO FOCUS ON THE INFORMATION WHICH IS RELEVANT TO THE COLLECTING MONEY FOR CHARITIES THEME! REVISE IN A QUIET AREA AND MAKE SURE YOU RE-READ ANY AREAS WHICH YOU ARE UNSURE ABOUT ASK A FRIEND OR A FAMILY MEMBER TO ASK YOU QUESTIONS REGARDING YOUR REVISION

2 THE CHARITY LOGO BEING SUPPORTED
LOGO IS PROMINENTLY DISPLAYED BOLD SIMPLISTIC CHARITY NAME IS PROMINENTLY DISPLAYED INFORMATIVE BOX IS IN THE SHAPE OF THE CHARITY LOGO BEING SUPPORTED MADE OUT OF CARD OR PLASTIC WHAT DO THESE CHARITY BOXES HAVE IN COMMON?

3 PRODUCT ANALYSIS – dissect the products
Easy to assemble, carry Easy to read font, silhouette of an image used without the use of too much detail. Easy to insert money, store money. High quality graphics printed onto card using offset Lithography. Graphics protected with Varnish/spot varnishing. Made out of card, plastic (PVC – Polyvinyl chloride) Bright, contrasting colours Used.

4 Example of a surface development (net)
Surface developments Example of a surface development (net) Flaps push against the top to give a better grip, as the tongue presses harder against front of box. Small ‘cut-ins’ allow the top flap to fold over easily. Tongue to hold the lid down. One glue tab only: this reduces cost and speeds up assembly. The width of the glue tab should only be a few mm less than the side. The dashed lines are fold lines.

5 Self-locking boxes An example of a simple locking mechanism.
A complete self-locking box. These can be used for packaging heavier objects. Crash bottom and interlocking containers.

6 TESSALATION AND DIE CUTTING
Industry aims to reduce waste and keep costs low. Most high-speed production lines cut out the nets using a process called ‘die cutting’. This is computer-aided manufacture (CAM). To do this, each net is positioned to fit as closely as possible to the next. There is just a small gap to allow for the width of the cutting blades. This process is called tessellation. Less wasted card reduces the environmental impact and keeps raw material costs to the bare minimum. Die cutting is similar to high- tech pastry cutting. Blades are arranged to cut the outline and as they are pressed down, other, less sharp blades will either lightly score or compress the fibres on the fold lines. In this way, the outline is cut through completely and the folds are scored for easy assembly.

7

8

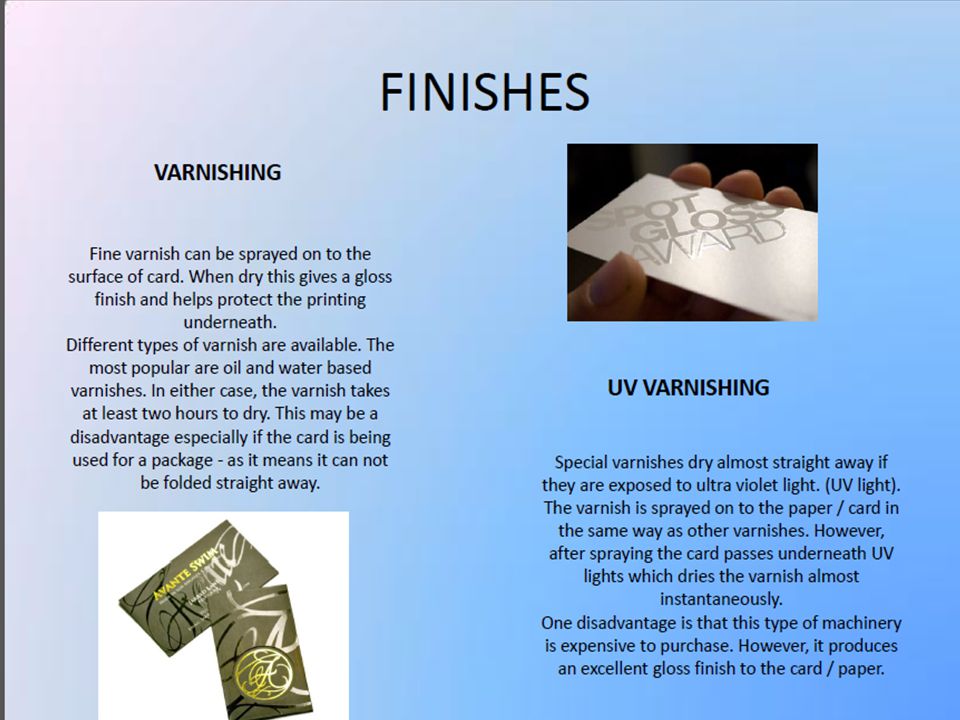

9 Finishes Holographic – printing produces a pattern that,
Although flat, appears to have three dimensions. Layers of metallic foil are used to achieve this effect. Foil blocking works by stamping pre-glued metallic foil onto the printed surface by heat and pressure. It is used on cards and expensive Packaging.

10 Rigid surface that can be easily printed on Model Making 5
TYPES OF MATERIAL Properties Uses Cost 10=high cost Board (card) Rigid surface that can be easily printed on Model Making 5 Carton board Different layers and materials used to make carton board Aluminium foil for insulation Plastic for waterproofing Greaseproof paper for baking Wax coating for waterproofing Packaging Takeaway coffees Baking cups for cup cakes Innocent Smoothies Capri Sun drinks 7-10 Mount board Thick coloured rigid board Model making and high quality picture mounting 9 Corrugated card Strong and lightweight Packaging protection – perfume Point of sale displays Corriflute Fluted plastic – light, strong weather resistant material Exterior signage (‘For Sale’ sign) Foam Board Two layers of high quality card with a foam centre Point of Sale displays Presentation boards 10 Essex board (Grey board Made entirely of waste paper - recycled Inner packaging (Shoe boxes) The base of boxes Plastic polystyrene Low density, can be vacuum formed Inserts in chocolate boxes Polypropylene Flexible Food products Laser photo paper Special paper for high gloss or matt finishes Magazine covers, presentations, photos

11 Most common method used in mass production Fast Expensive to set up
INDUSTRIAL PROCESS Common use Advantages Disadvantages How it works? Offset lithography Newspapers Magazines Books High quality finish Most common method used in mass production Fast Expensive to set up Consists of 4 printing plates (CMYK) Each plate transfers the image onto paper The image needs to pass through all four plates before image is transferred onto paper Vacuum Forming Trays , casing and containers Protects product inside of the packaging. Sheets of thermoplastics are heated and shaped over a mould Foil blocking Christmas cards Expensive packaging Makes packaging more visually appealing Expensive Pre- glued metallic foil is stamped onto paper and card by using heat and pressure. Embossing Makes brands and logos more visually appealing on packaging Raises part of the card surface by applying five tonnes of pressure to a steel dye or stamp onto the surface. Die cutting To cut accurate 2D nets Can cut thousands of 2D net accurately. Very fast Serrated blades on the dye cutter are expensive to make so only use when mass producing a 2D net Rounded edges or serrated edges forms the outside of the die which and is stamped into a press forme base which is made out of plywood. Laminating Menus Strengthens paper or card Improves appearance Produces a wipe of surface Plastic can over heat on the steel rollers and can effect production The process involves heat sealing a thin layer of plastic to the printed surface using heat and pressure from big steel rollers. Varnishing CD covers Magazine covers Book covers Protects the colour applied on the paper/ gives paper a matt, satin or gloss finish. Can dry slowly onto paper if UV light not applied Varnish is sprayed onto a printed surface and then it is passed under a UV light which dries the varnish immediately. Blow moulding Milk bottles, Easter egg casing Keeps food products fresh and protected. Plastic is blown onto the sides of a mould to form a shape.

12 Conformite Europeene CE Symbol – Tells you that the product meets the minimum requirements from the EU directive to be allowed to be put on display.

13 k A g ba t p R Sketchy Rounded Spooky Scroll Bold (Black) Circus like
DESCRIBING FONT A Rounded Bold (Black) Solid Stocky Sturdy Broad ba Round/ square Straight edges Retro Bulbous Butch t Italic Slim/ Light Sharp Fast Movement Narrow Tall R p Very light Slender Delicate Feminine Dainty Tiny k Sketchy Scroll Rough edgy Old fashioned gothic g Spooky Circus like shadowed Outlined Burlesque Traditional Calligraphy Square Sharp

14 DESCRIBING FONT

15 WHAT DOES THE COLOUR SAY ABOUT ME?

16 PRODUCT RESEARCH Simple (silhouette logo visible to represent the
Charity. Lithography printing technique used if made to a mass scale. Solid whiteboard used for a vibrant print. PLEASE DONATE HERE applied using a contrasting colour scheme/easy to read font. Laminated surface for water resistance and Durability.

17 Manufacturing Processes:
For each of the following charity boxes evaluate using the terms below. Manufacturing Processes: Finishing processes: Materials: Function: Aesthetics:

18 Manufacturing Processes:
For each of the following charity boxes evaluate using the terms below. Manufacturing Processes: Finishing processes: Symbols applied: Materials: Function: Aesthetics:

19 Manufacturing Processes:
For each of the following charity boxes evaluate using the terms below. Manufacturing Processes: Finishing processes: Safety: Materials: Function: Aesthetics:

20 Homework task 1 Generate 6 creative, different design ideas for collecting money for charities. The charity will be your own choice (LOROS, Age Concern, NSPCC …). The drawings need to be pictorial (3-D) . You must add graphics (logo, imagery etc.). The designs ideas must be presented in colour and must be shaded and outlined. Through labelling and annotations you must explain the concept behind each one of your ideas and write what material and techniques will be used to create them.

21 Homework task 2 Draw nets (developments) for the 3 – d shapes below. The nets are for collecting money for charities therefore you must take that into consideration and allow for an opening big enough to fit money through (notes and coins). In addition to the above you must consider how the charities will empty the containers. Glue tabs must be added, cutting and scoring lines must be identified. Accuracy of measuring is essential.
