1. A/E/C CADD STANDARD MODEL FILE NAMING CONVENTION Pages 12-17 Chapter 2 Drawing File Organization of the 3.0 Standard dtd Sep 06

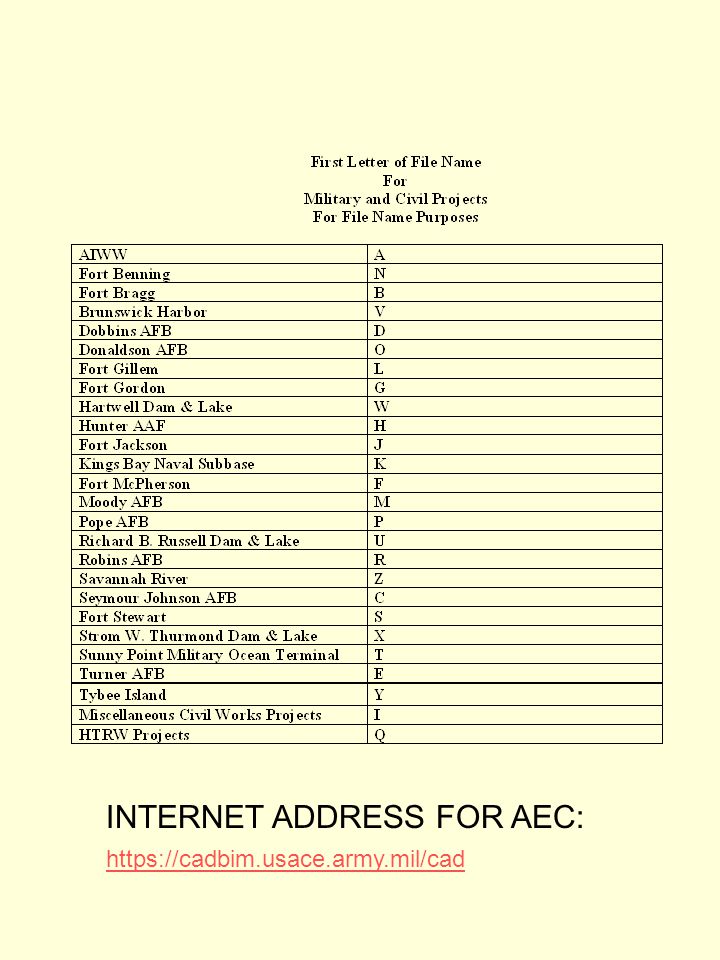

2. INTERNET ADDRESS FOR AEC: https://cadbim.usace.army.mil/cad

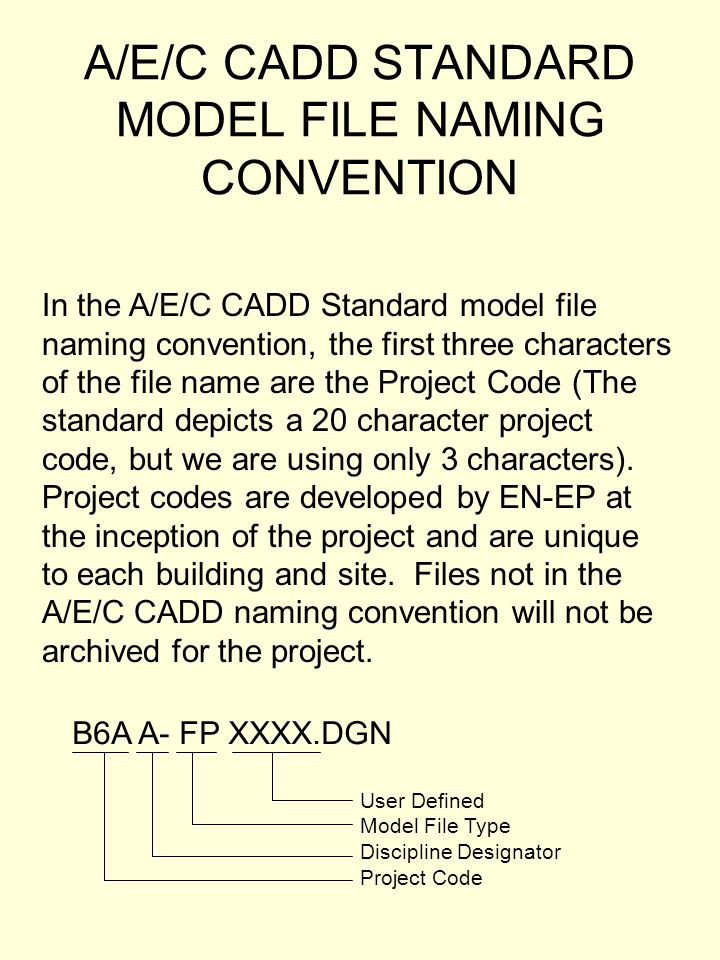

3. A/E/C CADD STANDARD MODEL FILE NAMING CONVENTION In the A/E/C CADD Standard model file naming convention, the first three characters of the file name are the Project Code (The standard depicts a 20 character project code, but we are using only 3 characters). Project codes are developed by EN-EP at the inception of the project and are unique to each building and site. Files not in the A/E/C CADD naming convention will not be archived for the project. B6A A- FP XXXX.DGN User Defined Model File Type Discipline Designator Project Code

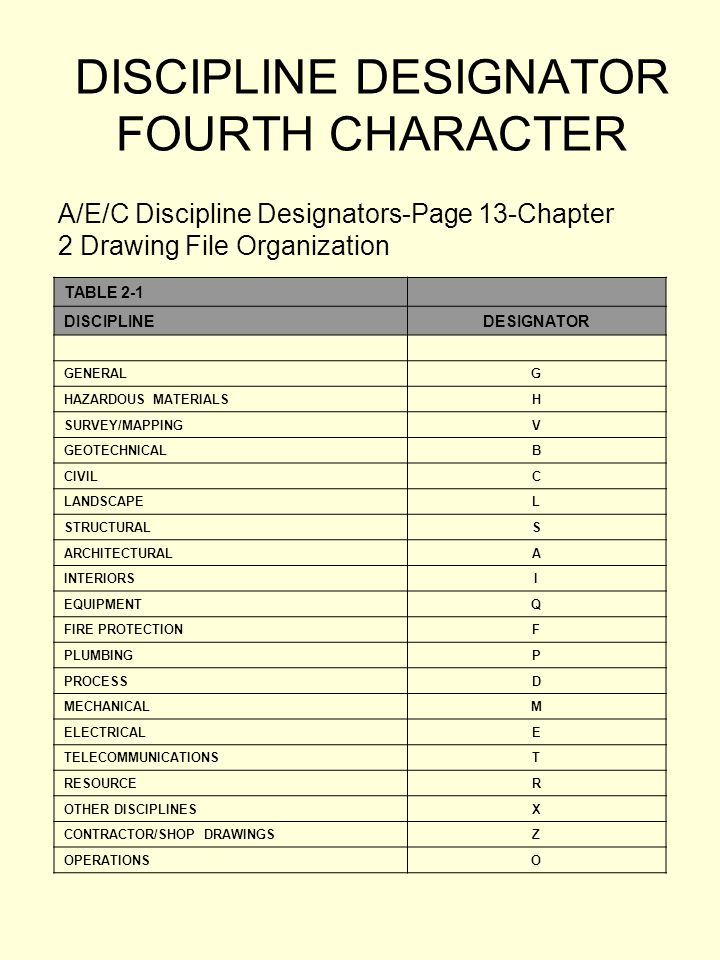

4. DISCIPLINE DESIGNATOR FOURTH CHARACTER A/E/C Discipline Designators-Page 13-Chapter 2 Drawing File Organization TABLE 2-1 DISCIPLINEDESIGNATOR GENERALG HAZARDOUS MATERIALSH SURVEY/MAPPINGV GEOTECHNICALB CIVILC LANDSCAPEL STRUCTURALS ARCHITECTURALA INTERIORSI EQUIPMENTQ FIRE PROTECTIONF PLUMBINGP PROCESSD MECHANICALM ELECTRICALE TELECOMMUNICATIONST RESOURCER OTHER DISCIPLINESX CONTRACTOR/SHOP DRAWINGSZ OPERATIONSO

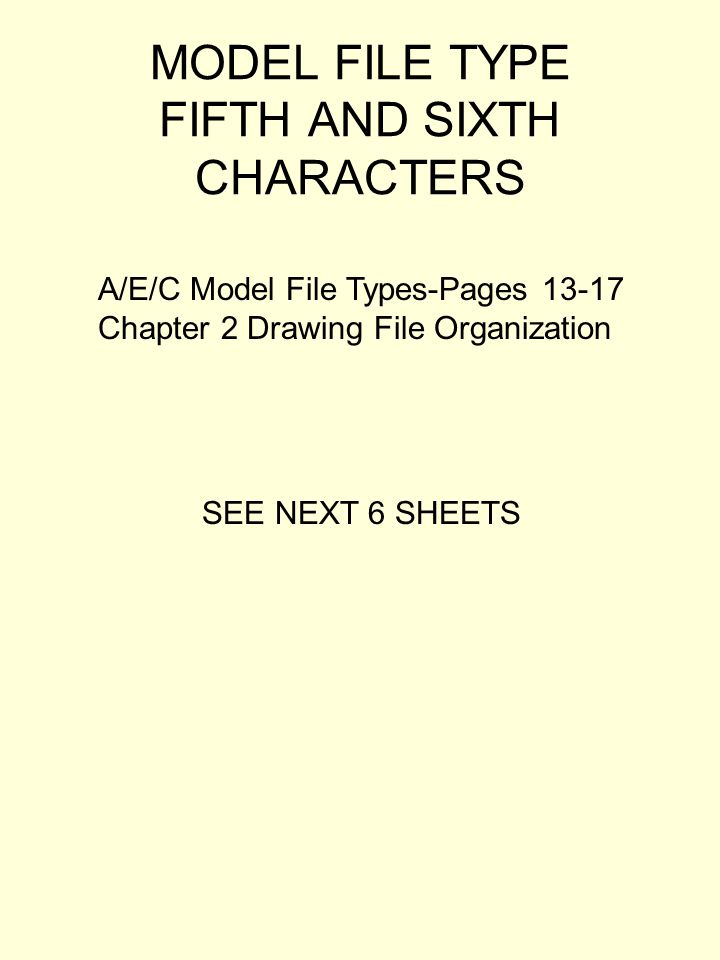

5. MODEL FILE TYPE FIFTH AND SIXTH CHARACTERS SEE NEXT 6 SHEETS A/E/C Model File Types-Pages 13-17 Chapter 2 Drawing File Organization

6. TABLE 2-2 MODEL FILE TYPES DISCIPLINECODEDEFINITION GENERAL (G) BSBORDER SHEET CSCOVERSHEET KPKEY PLAN HAZARDOUS MATERIALS (H) DTDETAIL ELELEVATION LGLEGEND PPPOLLUTION PREVENTION PLAN QPEQUIPMENT PLAN SCSECTION XDEXISTING/DEMOLITION PLAN SURVEY/MAPPING (V) ALEXISTING AIRFIELD LIGHTING PLAN CPEXISTING COMMUNICATION PLAN EUEXISTING ELECTRICAL UTILITIES PLAN HPEXISTING HYDROGRAPHIC SURVEY PLAN HTEXISTING HTCW UTILITIES PLAN LGLEGEND PBPROJECT BOUNDARY PREXISTING PROFILE SCEXISTING SECTION SPSURVEY AND MAPPING PLAN UPEXISTING UTILITIES PLAN

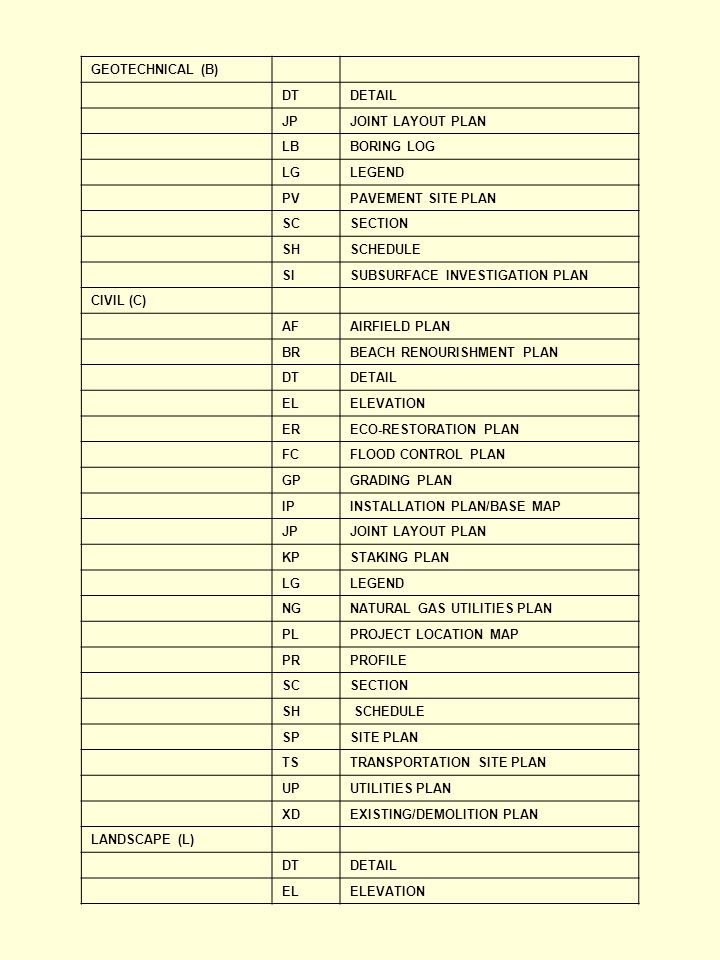

7. GEOTECHNICAL (B) DTDETAIL JPJOINT LAYOUT PLAN LBBORING LOG LGLEGEND PVPAVEMENT SITE PLAN SCSECTION SHSCHEDULE SISUBSURFACE INVESTIGATION PLAN CIVIL (C) AFAIRFIELD PLAN BRBEACH RENOURISHMENT PLAN DTDETAIL ELELEVATION ERECO-RESTORATION PLAN FCFLOOD CONTROL PLAN GPGRADING PLAN IPINSTALLATION PLAN/BASE MAP JPJOINT LAYOUT PLAN KPSTAKING PLAN LGLEGEND NGNATURAL GAS UTILITIES PLAN PLPROJECT LOCATION MAP PRPROFILE SCSECTION SH SCHEDULE SPSITE PLAN TSTRANSPORTATION SITE PLAN UPUTILITIES PLAN XDEXISTING/DEMOLITION PLAN LANDSCAPE (L) DTDETAIL ELELEVATION

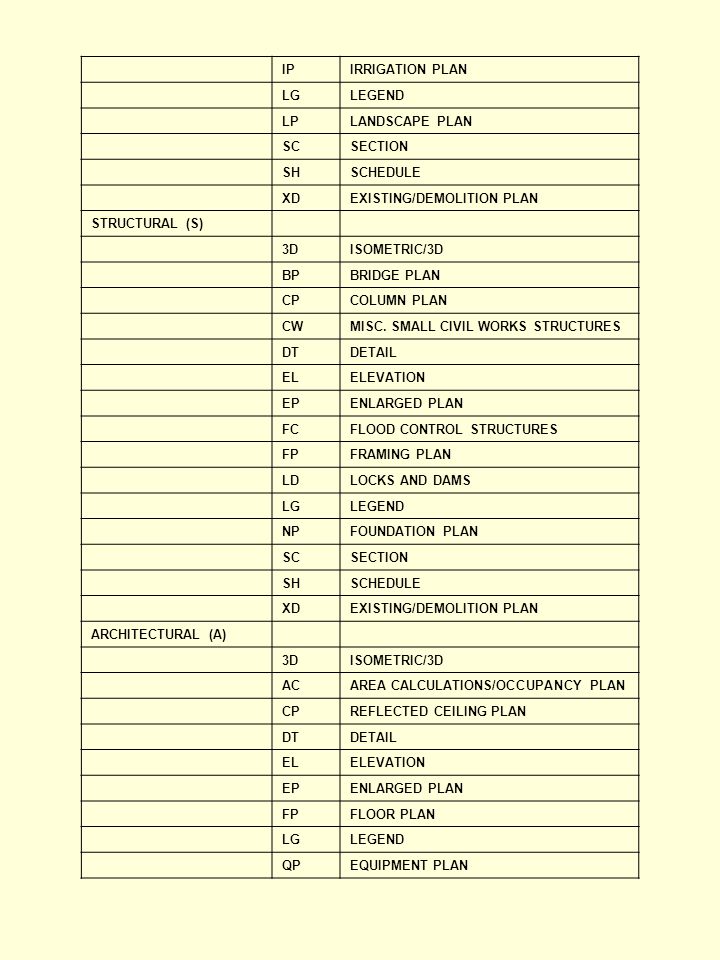

8. IPIRRIGATION PLAN LGLEGEND LPLANDSCAPE PLAN SCSECTION SHSCHEDULE XDEXISTING/DEMOLITION PLAN STRUCTURAL (S) 3DISOMETRIC/3D BPBRIDGE PLAN CPCOLUMN PLAN CWMISC. SMALL CIVIL WORKS STRUCTURES DTDETAIL ELELEVATION EPENLARGED PLAN FCFLOOD CONTROL STRUCTURES FPFRAMING PLAN LDLOCKS AND DAMS LGLEGEND NPFOUNDATION PLAN SCSECTION SHSCHEDULE XDEXISTING/DEMOLITION PLAN ARCHITECTURAL (A) 3DISOMETRIC/3D ACAREA CALCULATIONS/OCCUPANCY PLAN CPREFLECTED CEILING PLAN DTDETAIL ELELEVATION EPENLARGED PLAN FPFLOOR PLAN LGLEGEND QPEQUIPMENT PLAN

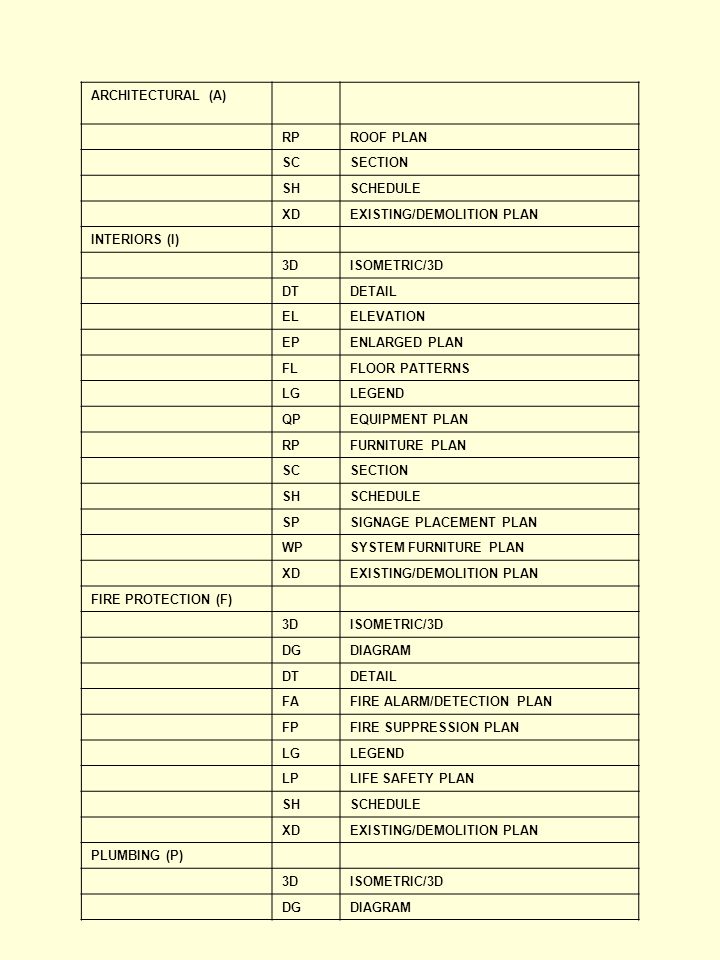

9. ARCHITECTURAL (A) RPROOF PLAN SCSECTION SHSCHEDULE XDEXISTING/DEMOLITION PLAN INTERIORS (I) 3DISOMETRIC/3D DTDETAIL ELELEVATION EPENLARGED PLAN FLFLOOR PATTERNS LGLEGEND QPEQUIPMENT PLAN RPFURNITURE PLAN SCSECTION SHSCHEDULE SPSIGNAGE PLACEMENT PLAN WPSYSTEM FURNITURE PLAN XDEXISTING/DEMOLITION PLAN FIRE PROTECTION (F) 3DISOMETRIC/3D DGDIAGRAM DTDETAIL FAFIRE ALARM/DETECTION PLAN FPFIRE SUPPRESSION PLAN LGLEGEND LPLIFE SAFETY PLAN SHSCHEDULE XDEXISTING/DEMOLITION PLAN PLUMBING (P) 3DISOMETRIC/3D DGDIAGRAM

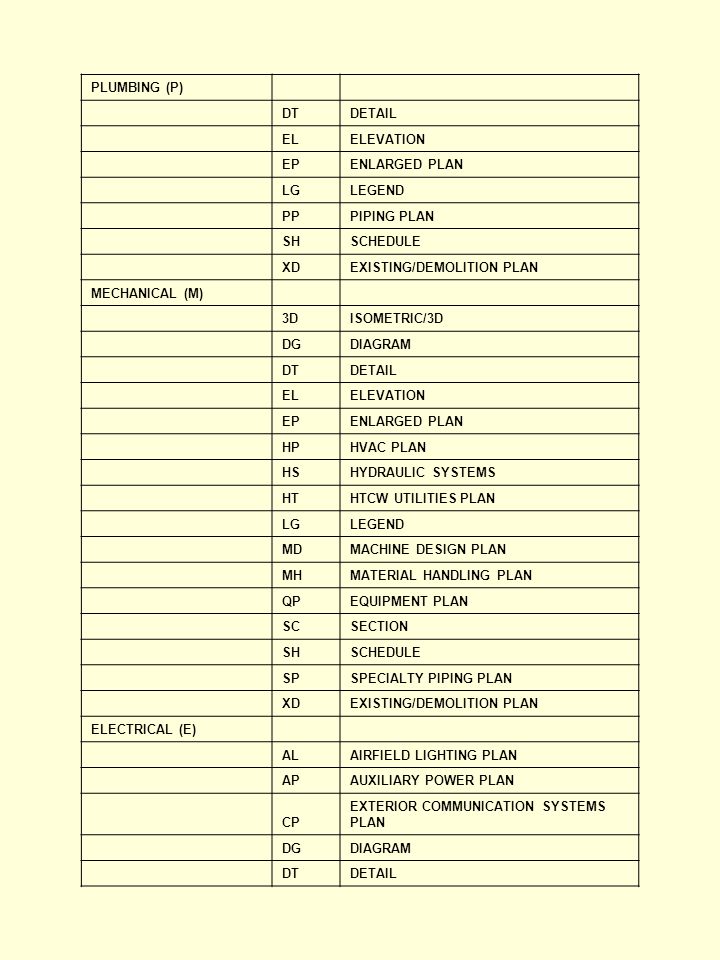

10. PLUMBING (P) DTDETAIL ELELEVATION EPENLARGED PLAN LGLEGEND PPPIPING PLAN SHSCHEDULE XDEXISTING/DEMOLITION PLAN MECHANICAL (M) 3DISOMETRIC/3D DGDIAGRAM DTDETAIL ELELEVATION EPENLARGED PLAN HPHVAC PLAN HSHYDRAULIC SYSTEMS HTHTCW UTILITIES PLAN LGLEGEND MDMACHINE DESIGN PLAN MHMATERIAL HANDLING PLAN QPEQUIPMENT PLAN SCSECTION SHSCHEDULE SPSPECIALTY PIPING PLAN XDEXISTING/DEMOLITION PLAN ELECTRICAL (E) ALAIRFIELD LIGHTING PLAN APAUXILIARY POWER PLAN CP EXTERIOR COMMUNICATION SYSTEMS PLAN DGDIAGRAM DTDETAIL

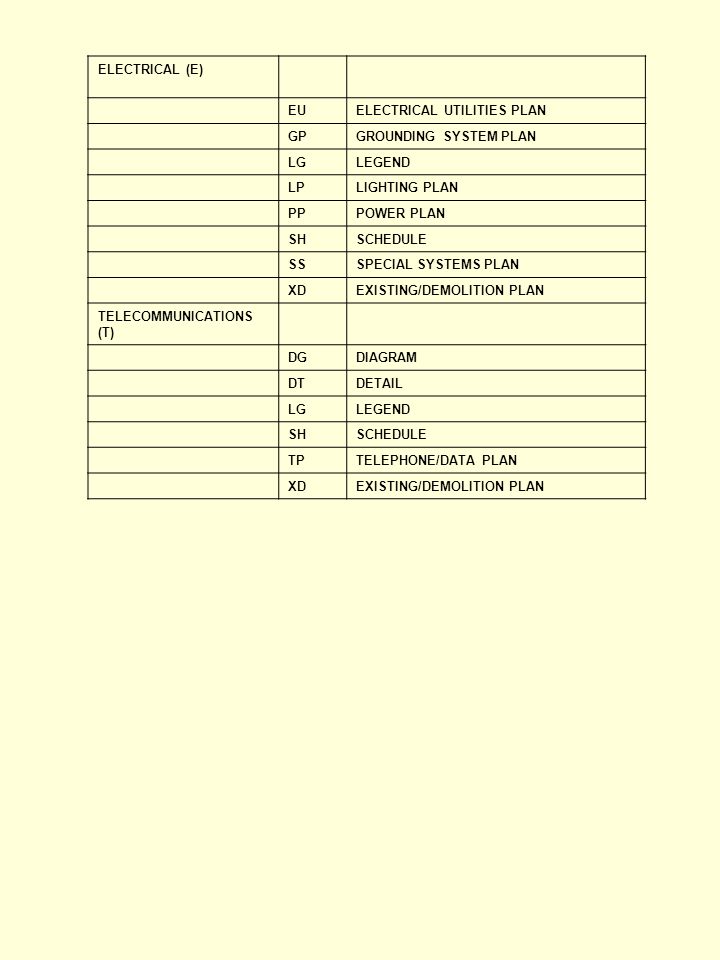

11. ELECTRICAL (E) EUELECTRICAL UTILITIES PLAN GPGROUNDING SYSTEM PLAN LGLEGEND LPLIGHTING PLAN PPPOWER PLAN SHSCHEDULE SSSPECIAL SYSTEMS PLAN XDEXISTING/DEMOLITION PLAN TELECOMMUNICATIONS (T) DGDIAGRAM DTDETAIL LGLEGEND SHSCHEDULE TPTELEPHONE/DATA PLAN XDEXISTING/DEMOLITION PLAN

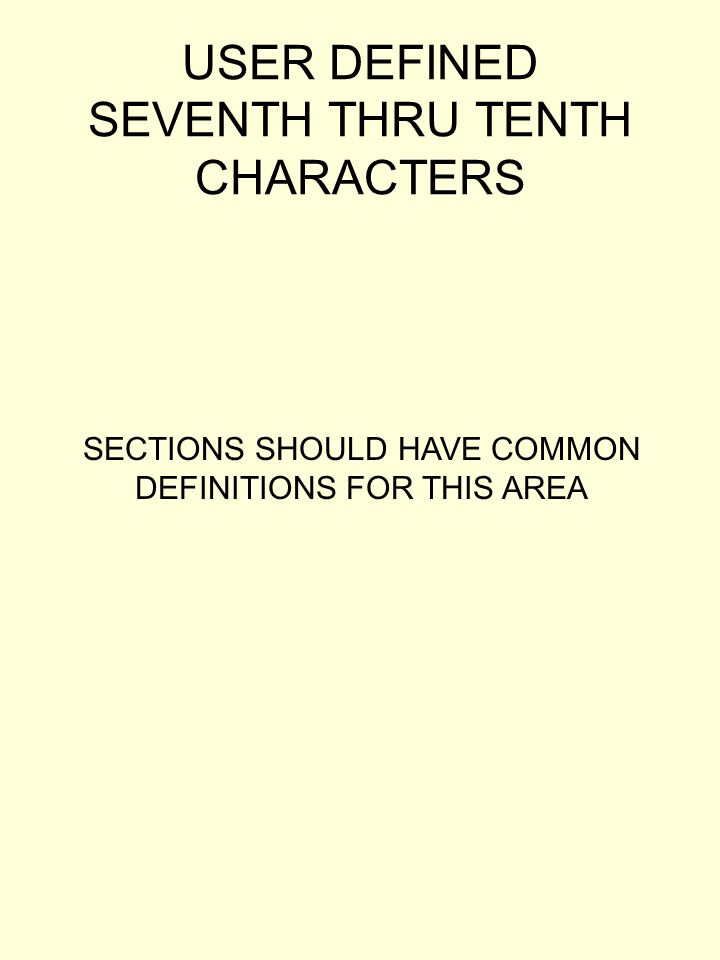

12. USER DEFINED SEVENTH THRU TENTH CHARACTERS SECTIONS SHOULD HAVE COMMON DEFINITIONS FOR THIS AREA

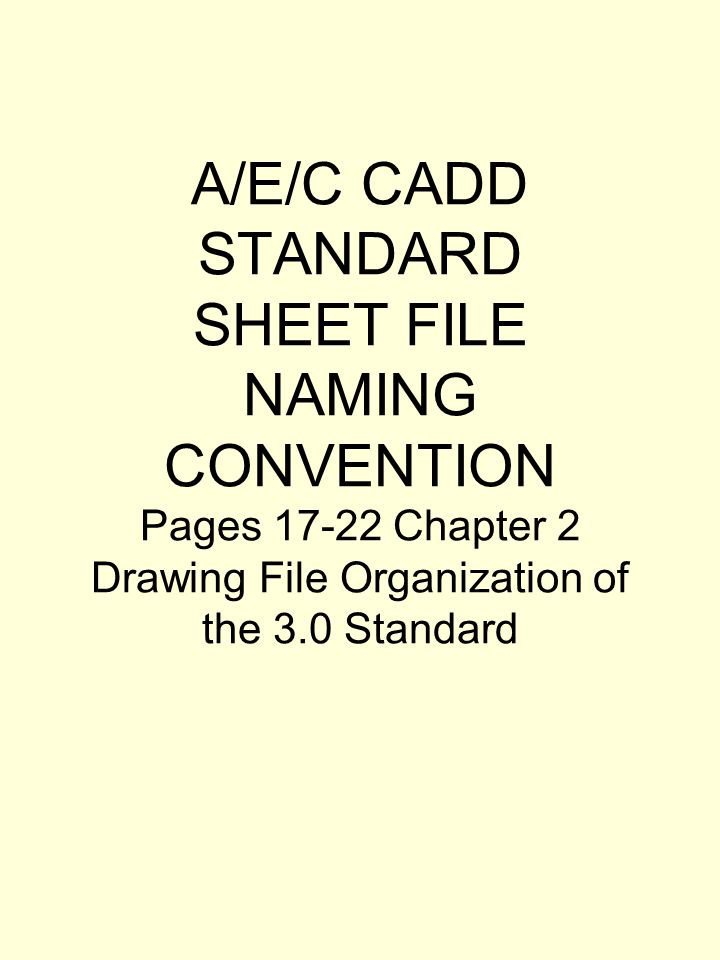

13. A/E/C CADD STANDARD SHEET FILE NAMING CONVENTION Pages 17-22 Chapter 2 Drawing File Organization of the 3.0 Standard

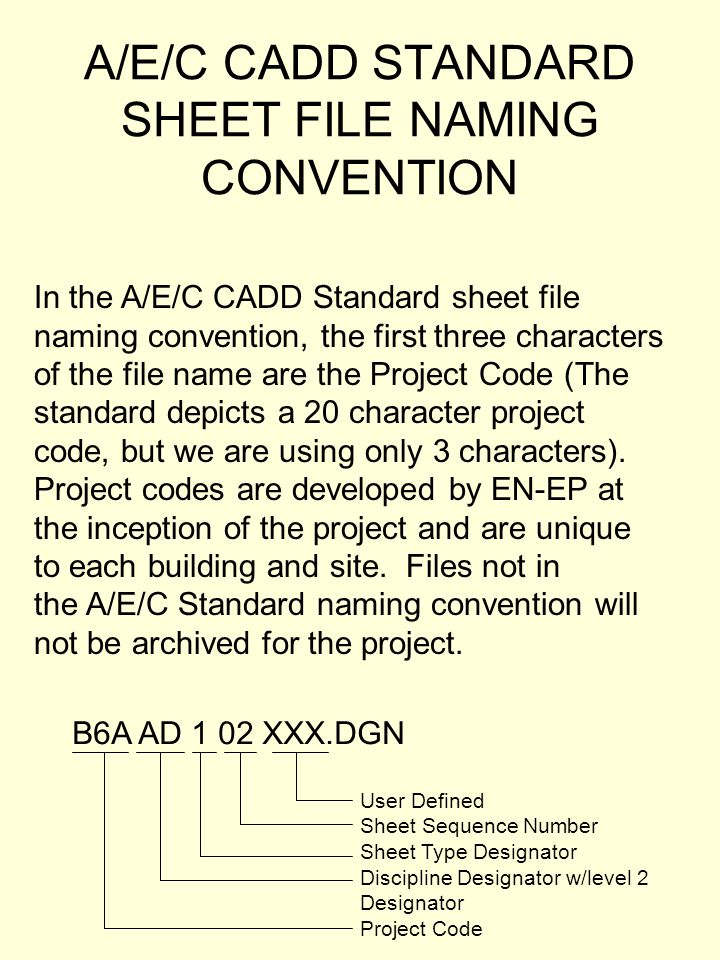

14. A/E/C CADD STANDARD SHEET FILE NAMING CONVENTION In the A/E/C CADD Standard sheet file naming convention, the first three characters of the file name are the Project Code (The standard depicts a 20 character project code, but we are using only 3 characters). Project codes are developed by EN-EP at the inception of the project and are unique to each building and site. Files not in the A/E/C Standard naming convention will not be archived for the project. B6A AD 1 02 XXX.DGN User Defined Sheet Sequence Number Sheet Type Designator Discipline Designator w/level 2 Designator Project Code

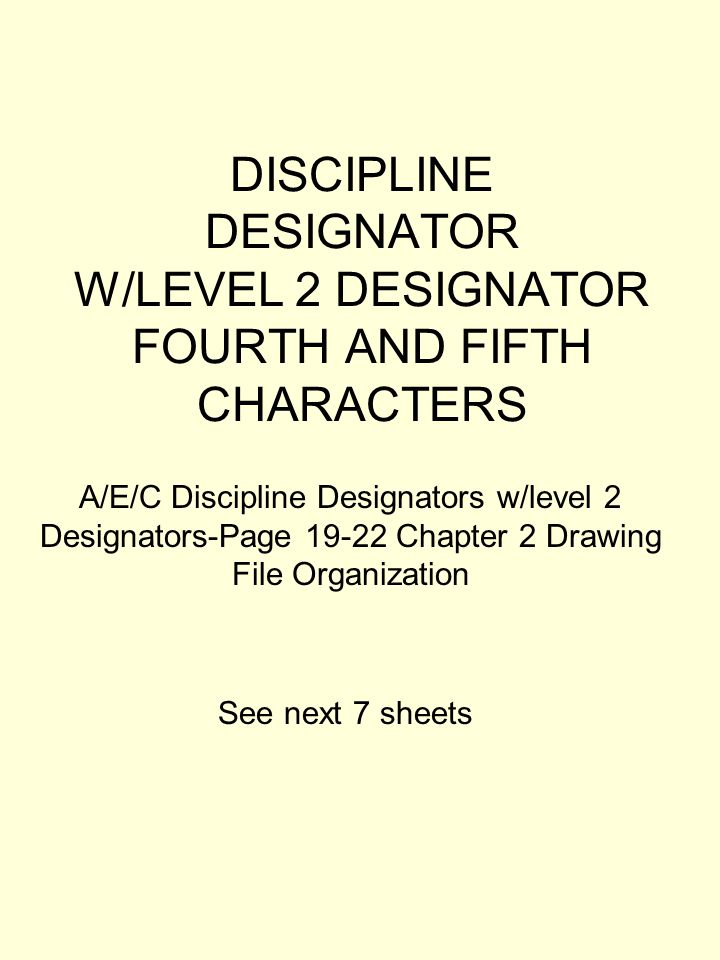

15. DISCIPLINE DESIGNATOR W/LEVEL 2 DESIGNATOR FOURTH AND FIFTH CHARACTERS A/E/C Discipline Designators w/level 2 Designators-Page 19-22 Chapter 2 Drawing File Organization See next 7 sheets

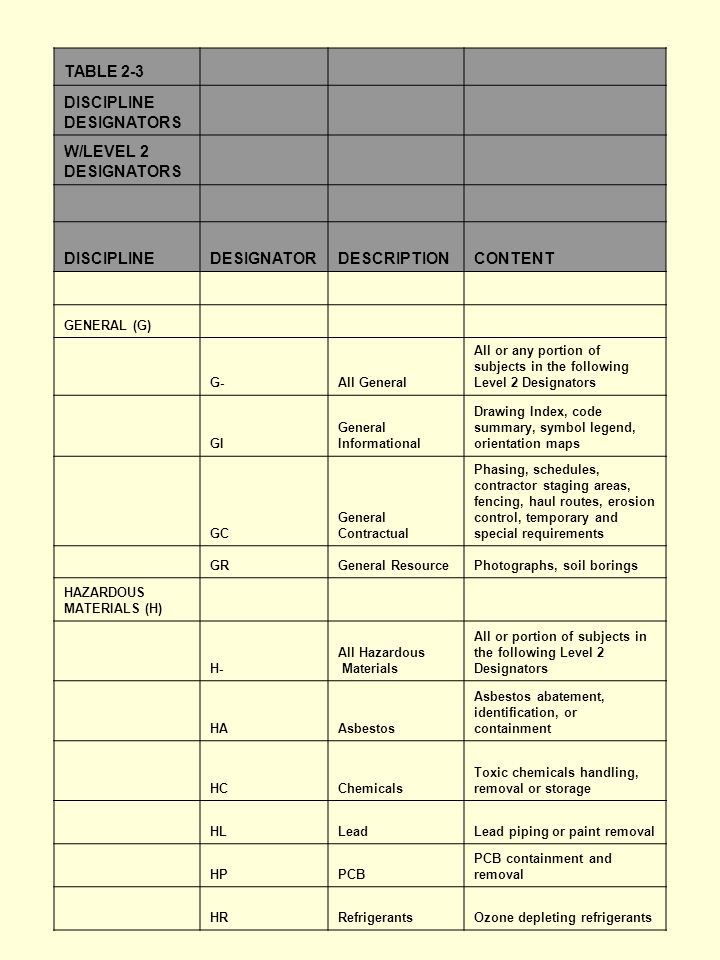

16. TABLE 2-3 DISCIPLINE DESIGNATORS W/LEVEL 2 DESIGNATORS DISCIPLINEDESIGNATORDESCRIPTIONCONTENT GENERAL (G) G-All General All or any portion of subjects in the following Level 2 Designators GI General Informational Drawing Index, code summary, symbol legend, orientation maps GC General Contractual Phasing, schedules, contractor staging areas, fencing, haul routes, erosion control, temporary and special requirements GRGeneral ResourcePhotographs, soil borings HAZARDOUS MATERIALS (H) H- All Hazardous Materials All or portion of subjects in the following Level 2 Designators HAAsbestos Asbestos abatement, identification, or containment HCChemicals Toxic chemicals handling, removal or storage HLLeadLead piping or paint removal HPPCB PCB containment and removal HRRefrigerantsOzone depleting refrigerants

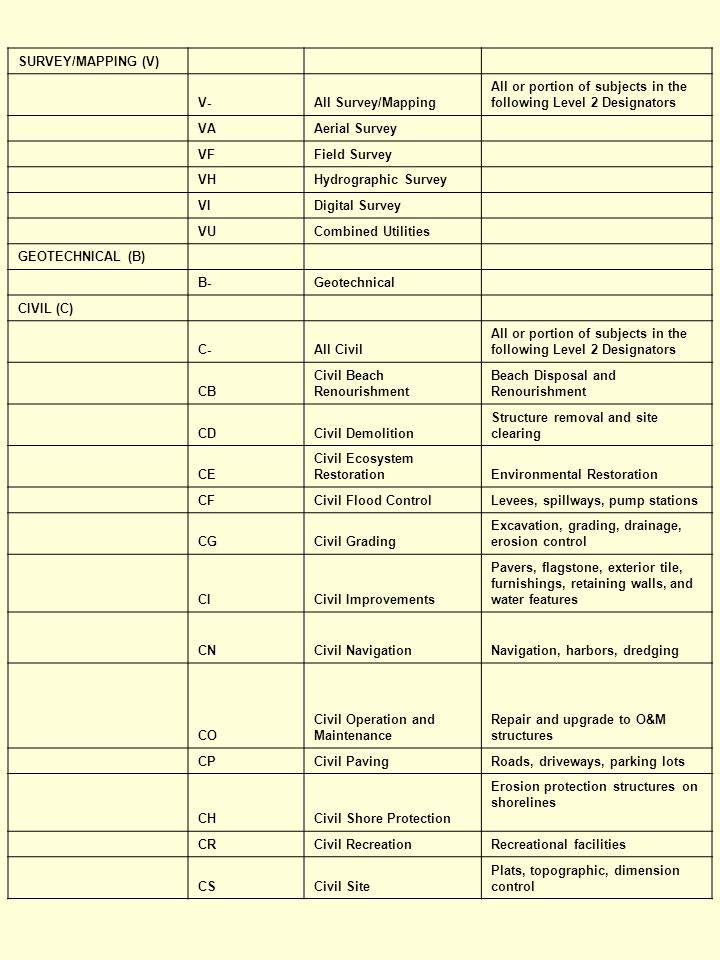

17. SURVEY/MAPPING (V) V-All Survey/Mapping All or portion of subjects in the following Level 2 Designators VAAerial Survey VFField Survey VHHydrographic Survey VIDigital Survey VUCombined Utilities GEOTECHNICAL (B) B-Geotechnical CIVIL (C) C-All Civil All or portion of subjects in the following Level 2 Designators CB Civil Beach Renourishment Beach Disposal and Renourishment CDCivil Demolition Structure removal and site clearing CE Civil Ecosystem RestorationEnvironmental Restoration CFCivil Flood ControlLevees, spillways, pump stations CGCivil Grading Excavation, grading, drainage, erosion control CICivil Improvements Pavers, flagstone, exterior tile, furnishings, retaining walls, and water features CNCivil NavigationNavigation, harbors, dredging CO Civil Operation and Maintenance Repair and upgrade to O&M structures CPCivil PavingRoads, driveways, parking lots CHCivil Shore Protection Erosion protection structures on shorelines CRCivil RecreationRecreational facilities CSCivil Site Plats, topographic, dimension control

18. CIVIL (C) CXCivil SecuritySecurity-related work CTCivil Transportation Waterways, wharves, docks, trams, railways, airfields and people movers CUCivil Utilities Water, sanitary sewer, storm sewer, power, communications, natural gas, and steam systems LANDSCAPE (L) L-All Landscape All or any portion of subjects in the following level 2 Designators LDLandscape Demolition Protection and removal of existing landscape LILandscape Irrigation LPLandscape Planting STRUCTURAL (S) S-All Structural All or any portion of subjects in the following Level 2 Designators SDStructural DemolitionProtection and removal SSStructural Site SBStructural Substructure Foundations, piers, slabs and retaining walls SFStructural FramingFloors and roofs ARCHITECTURAL (A) A-All Architectural All or any portion of subjects in the following Level 2 Designators ADArchitectural DemolitionProtection and removal ASArchitectural Site AEArchitectural ElementsGeneral Architecture AIArchitectural Interiors AFArchitectural Finishes AGArchitectural Graphics INTERIORS (I) I-All Interiors All or any portion of subjects in the following Level 2 Designators IDInterior Demolition INInterior Design

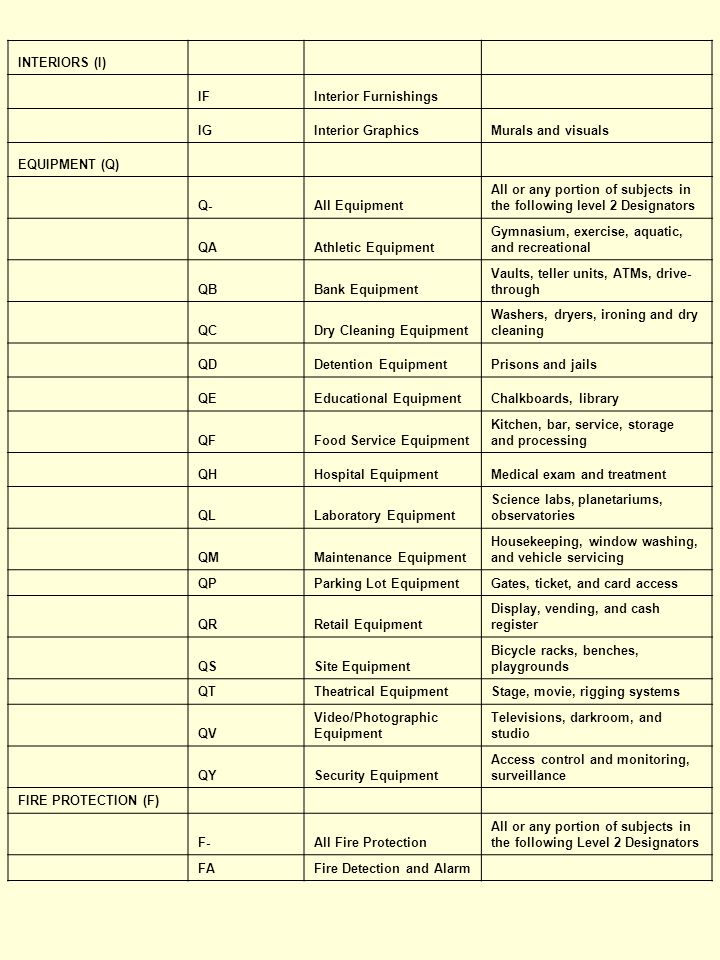

19. INTERIORS (I) IFInterior Furnishings IGInterior GraphicsMurals and visuals EQUIPMENT (Q) Q-All Equipment All or any portion of subjects in the following level 2 Designators QAAthletic Equipment Gymnasium, exercise, aquatic, and recreational QBBank Equipment Vaults, teller units, ATMs, drive- through QCDry Cleaning Equipment Washers, dryers, ironing and dry cleaning QDDetention EquipmentPrisons and jails QEEducational EquipmentChalkboards, library QFFood Service Equipment Kitchen, bar, service, storage and processing QHHospital EquipmentMedical exam and treatment QLLaboratory Equipment Science labs, planetariums, observatories QMMaintenance Equipment Housekeeping, window washing, and vehicle servicing QPParking Lot EquipmentGates, ticket, and card access QRRetail Equipment Display, vending, and cash register QSSite Equipment Bicycle racks, benches, playgrounds QTTheatrical EquipmentStage, movie, rigging systems QV Video/Photographic Equipment Televisions, darkroom, and studio QYSecurity Equipment Access control and monitoring, surveillance FIRE PROTECTION (F) F-All Fire Protection All or any portion of subjects in the following Level 2 Designators FAFire Detection and Alarm

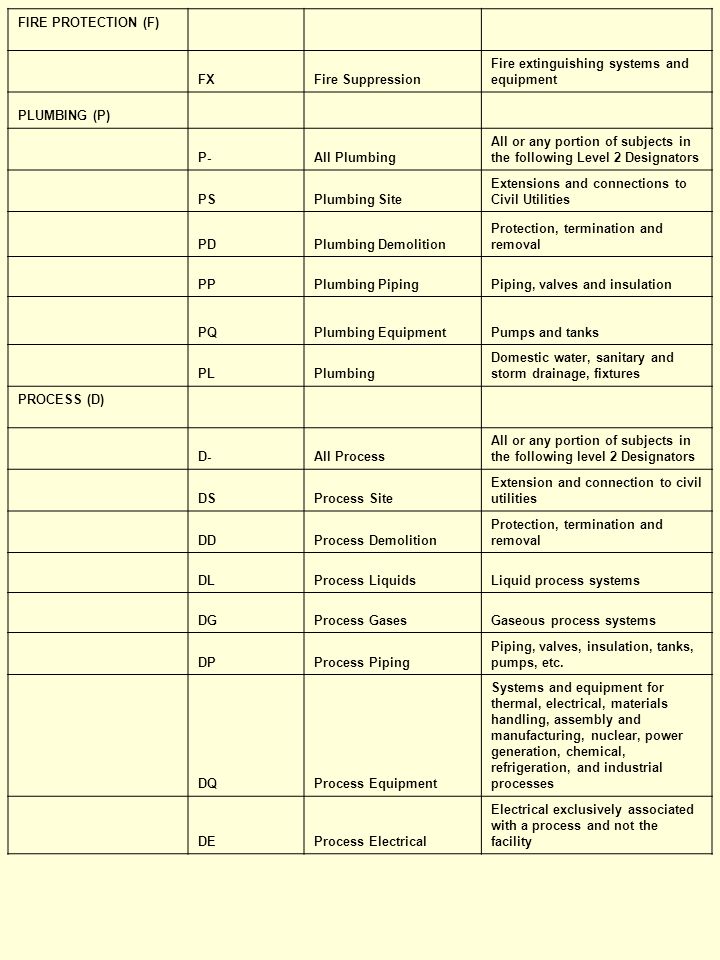

20. FIRE PROTECTION (F) FXFire Suppression Fire extinguishing systems and equipment PLUMBING (P) P-All Plumbing All or any portion of subjects in the following Level 2 Designators PSPlumbing Site Extensions and connections to Civil Utilities PDPlumbing Demolition Protection, termination and removal PPPlumbing PipingPiping, valves and insulation PQPlumbing EquipmentPumps and tanks PLPlumbing Domestic water, sanitary and storm drainage, fixtures PROCESS (D) D-All Process All or any portion of subjects in the following level 2 Designators DSProcess Site Extension and connection to civil utilities DDProcess Demolition Protection, termination and removal DLProcess LiquidsLiquid process systems DGProcess GasesGaseous process systems DPProcess Piping Piping, valves, insulation, tanks, pumps, etc. DQProcess Equipment Systems and equipment for thermal, electrical, materials handling, assembly and manufacturing, nuclear, power generation, chemical, refrigeration, and industrial processes DEProcess Electrical Electrical exclusively associated with a process and not the facility

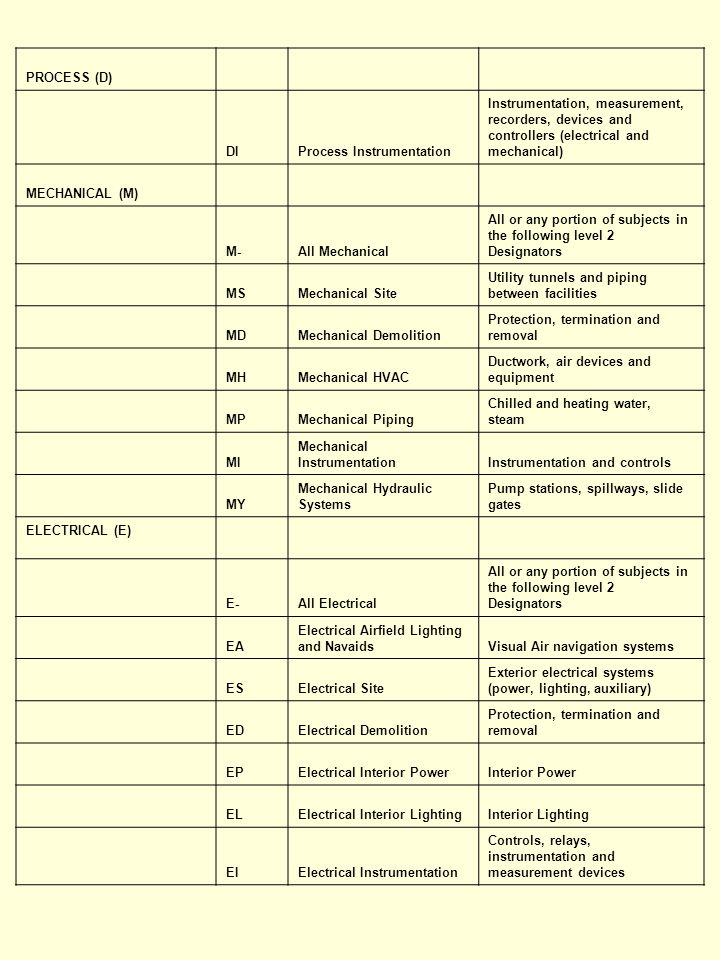

21. PROCESS (D) DIProcess Instrumentation Instrumentation, measurement, recorders, devices and controllers (electrical and mechanical) MECHANICAL (M) M-All Mechanical All or any portion of subjects in the following level 2 Designators MSMechanical Site Utility tunnels and piping between facilities MDMechanical Demolition Protection, termination and removal MHMechanical HVAC Ductwork, air devices and equipment MPMechanical Piping Chilled and heating water, steam MI Mechanical InstrumentationInstrumentation and controls MY Mechanical Hydraulic Systems Pump stations, spillways, slide gates ELECTRICAL (E) E-All Electrical All or any portion of subjects in the following level 2 Designators EA Electrical Airfield Lighting and NavaidsVisual Air navigation systems ESElectrical Site Exterior electrical systems (power, lighting, auxiliary) EDElectrical Demolition Protection, termination and removal EPElectrical Interior PowerInterior Power ELElectrical Interior LightingInterior Lighting EIElectrical Instrumentation Controls, relays, instrumentation and measurement devices

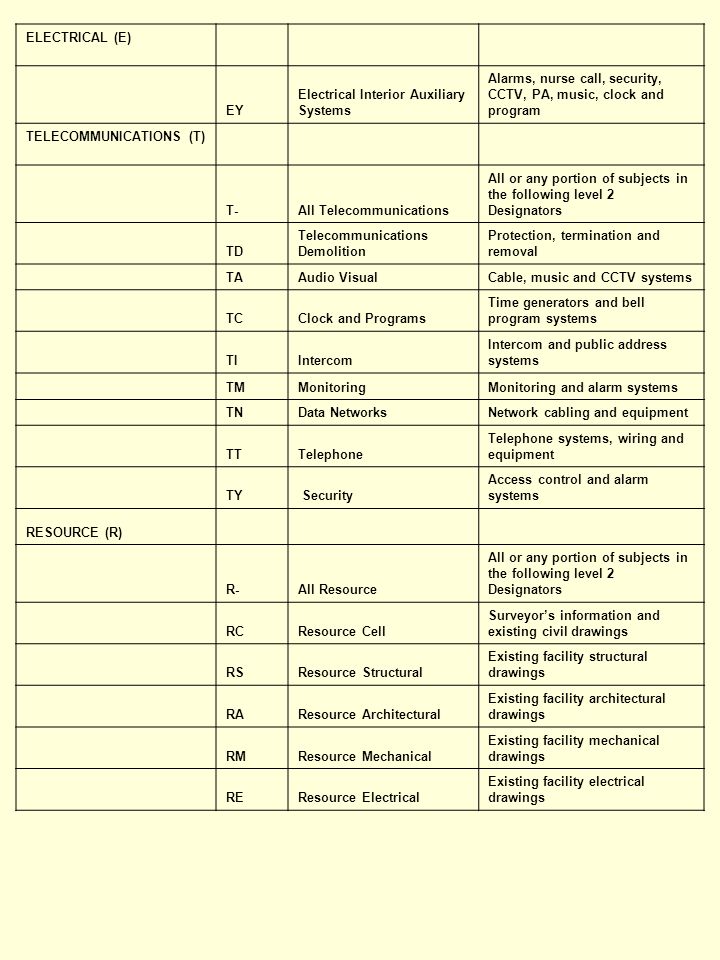

22. ELECTRICAL (E) EY Electrical Interior Auxiliary Systems Alarms, nurse call, security, CCTV, PA, music, clock and program TELECOMMUNICATIONS (T) T-All Telecommunications All or any portion of subjects in the following level 2 Designators TD Telecommunications Demolition Protection, termination and removal TAAudio VisualCable, music and CCTV systems TCClock and Programs Time generators and bell program systems TIIntercom Intercom and public address systems TMMonitoringMonitoring and alarm systems TNData NetworksNetwork cabling and equipment TTTelephone Telephone systems, wiring and equipment TY Security Access control and alarm systems RESOURCE (R) R-All Resource All or any portion of subjects in the following level 2 Designators RCResource Cell Surveyor’s information and existing civil drawings RSResource Structural Existing facility structural drawings RAResource Architectural Existing facility architectural drawings RMResource Mechanical Existing facility mechanical drawings REResource Electrical Existing facility electrical drawings

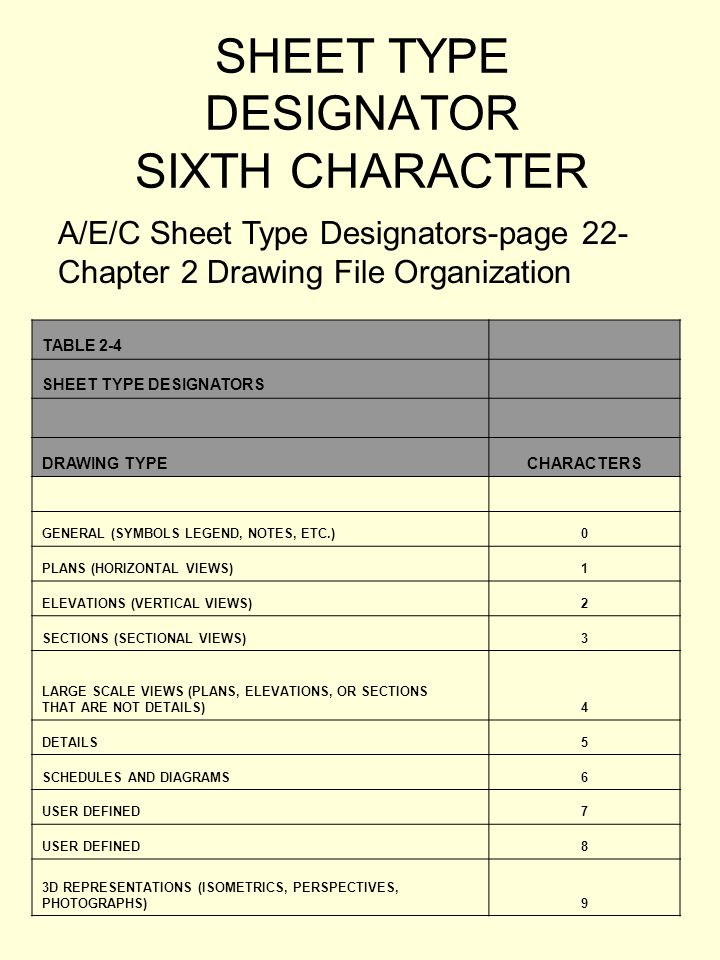

23. SHEET TYPE DESIGNATOR SIXTH CHARACTER A/E/C Sheet Type Designators-page 22- Chapter 2 Drawing File Organization TABLE 2-4 SHEET TYPE DESIGNATORS DRAWING TYPECHARACTERS GENERAL (SYMBOLS LEGEND, NOTES, ETC.)0 PLANS (HORIZONTAL VIEWS)1 ELEVATIONS (VERTICAL VIEWS)2 SECTIONS (SECTIONAL VIEWS)3 LARGE SCALE VIEWS (PLANS, ELEVATIONS, OR SECTIONS THAT ARE NOT DETAILS)4 DETAILS5 SCHEDULES AND DIAGRAMS6 USER DEFINED7 8 3D REPRESENTATIONS (ISOMETRICS, PERSPECTIVES, PHOTOGRAPHS)9

24. SHEET SEQUENCE NUMBER SEVENTH AND EIGHTH CHARACTERS 01 THRU 99

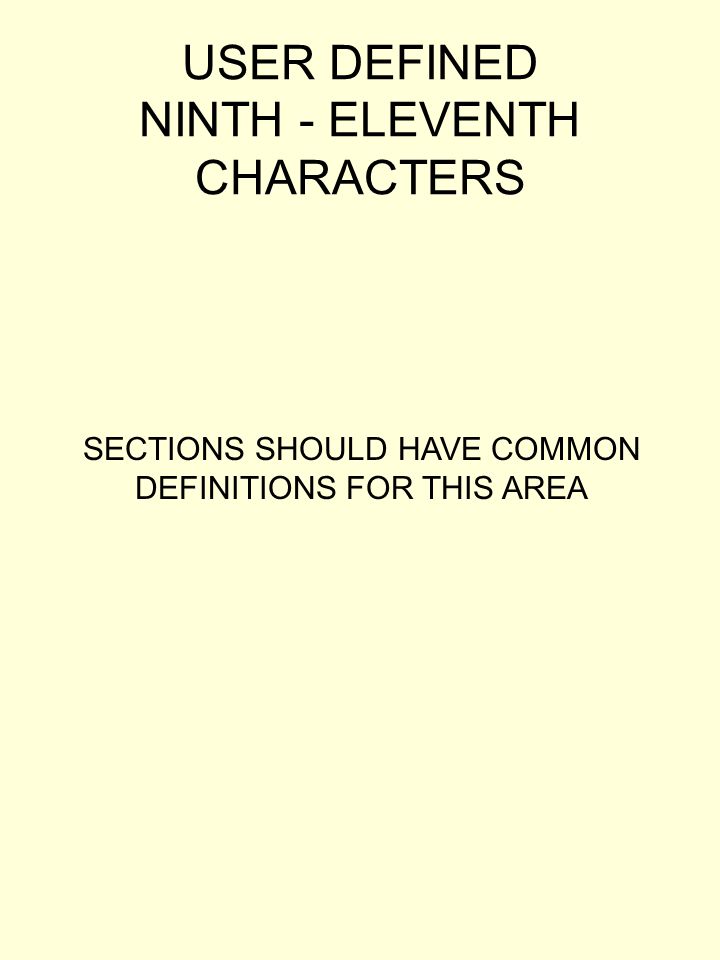

25. USER DEFINED NINTH - ELEVENTH CHARACTERS SECTIONS SHOULD HAVE COMMON DEFINITIONS FOR THIS AREA
