1. CERN IT Department CH-1211 Geneva 23 Switzerland www.cern.ch/i t Lorena Lobato Pardavila T1s Coordination Meeting Introduction to GoldenGate administration

2. CERN IT Department CH-1211 Geneva 23 Switzerland www.cern.ch/i t Outline GoldenGate overview GoldenGate Architecture Parameter Files Manager Extract Data Pump Replicat Setting up GoldenGate processes Steps to set up GoldenGate replication Questions

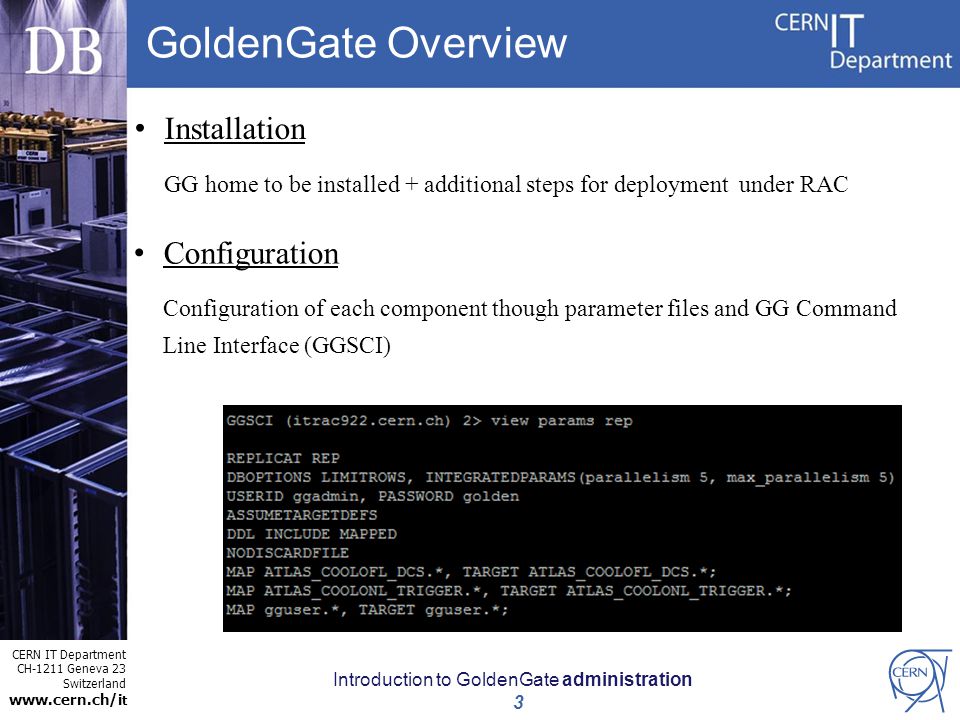

3. CERN IT Department CH-1211 Geneva 23 Switzerland www.cern.ch/i t GoldenGate Overview Introduction to GoldenGate administration 3 Installation GG home to be installed + additional steps for deployment under RAC Configuration Configuration of each component though parameter files and GG Command Line Interface (GGSCI)

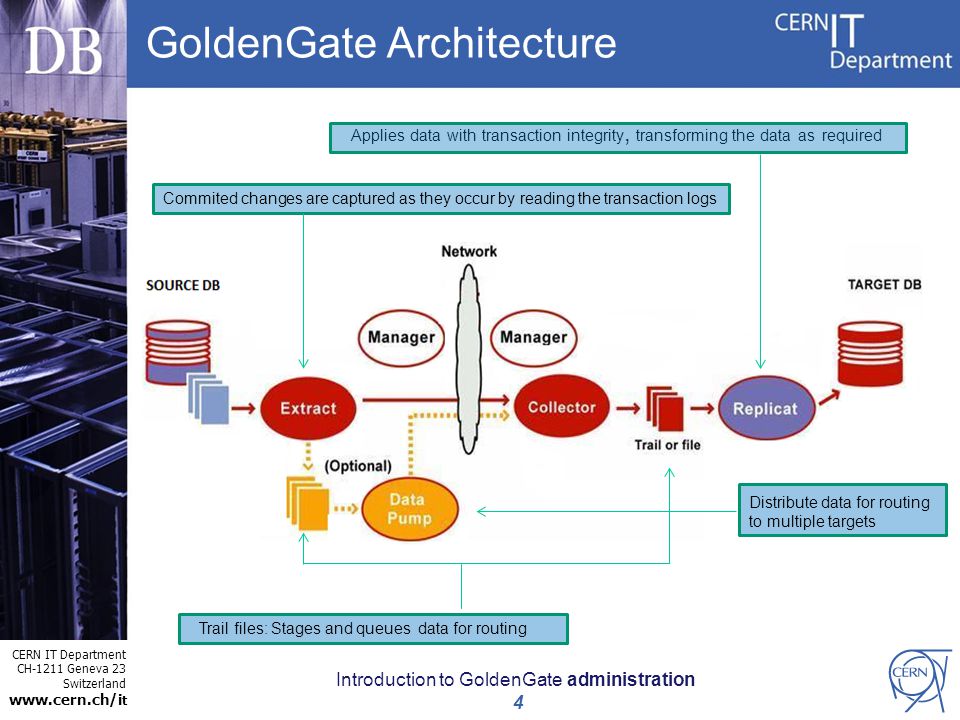

4. CERN IT Department CH-1211 Geneva 23 Switzerland www.cern.ch/i t GoldenGate Architecture Introduction to GoldenGate administration 4 Commited changes are captured as they occur by reading the transaction logs Trail files: Stages and queues data for routing Applies data with transaction integrity, transforming the data as required Distribute data for routing to multiple targets

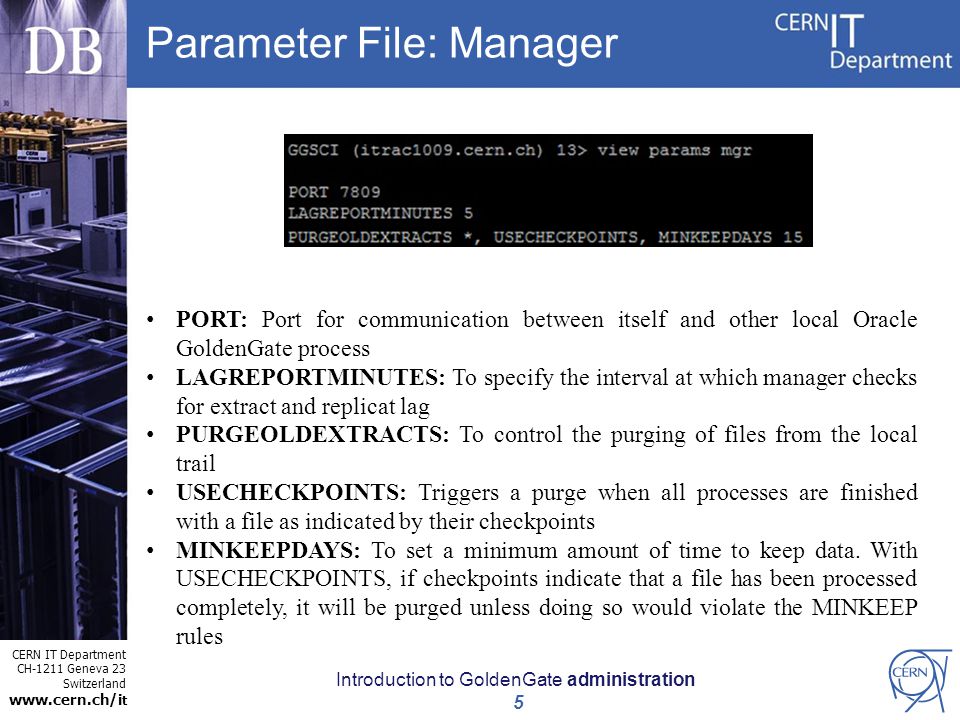

5. CERN IT Department CH-1211 Geneva 23 Switzerland www.cern.ch/i t Parameter File: Manager Introduction to GoldenGate administration 5 PORT: Port for communication between itself and other local Oracle GoldenGate process LAGREPORTMINUTES: To specify the interval at which manager checks for extract and replicat lag PURGEOLDEXTRACTS: To control the purging of files from the local trail USECHECKPOINTS: Triggers a purge when all processes are finished with a file as indicated by their checkpoints MINKEEPDAYS: To set a minimum amount of time to keep data. With USECHECKPOINTS, if checkpoints indicate that a file has been processed completely, it will be purged unless doing so would violate the MINKEEP rules

6. CERN IT Department CH-1211 Geneva 23 Switzerland www.cern.ch/i t Parameter File: EXTRACT Introduction to GoldenGate administration 6 EXTTRAIL: To specify the path name of the trails LOGALLSUPCOLS: To control the writing of supplementally logged columns TRANLOGOPTIONS: To control the way that Extract interacts with the transaction log or with the API that passes transaction data max_sga_size: Controls the amount of shared memory used by the logmining server parallelism: Controls the number of processes used by the logmining server DDLOPTIONS: To configure aspects of DDL processing TABLE: It is limited to table-to-table mapping

7. CERN IT Department CH-1211 Geneva 23 Switzerland www.cern.ch/i t Parameter File: Data Pump Introduction to GoldenGate administration 7 INCLUDE: For using a macro library RMTHOST: Identify a remote system to which the local Extract process connects RMTTRAIL: To specify the location of the remote trail DISCARDFILE: To specify the discardfile where are rejected records will be dumped PASSTHRU: Mode being used for the DP where the name of source and target objects are identical and no column mapping or filtering is being performed TABLE: It is limited to table-to-table mapping

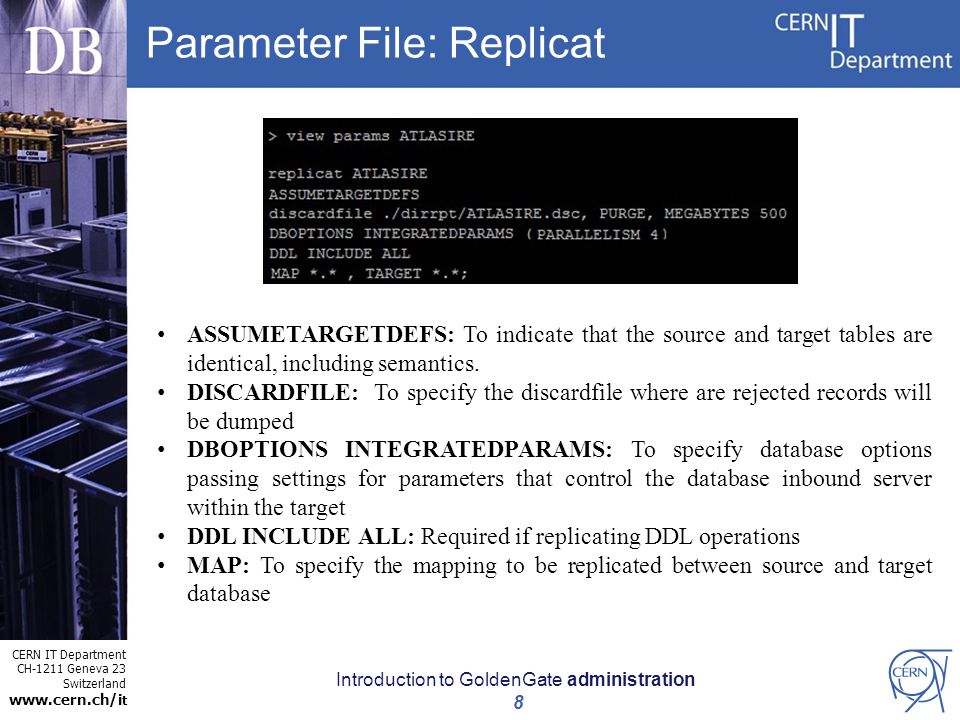

8. CERN IT Department CH-1211 Geneva 23 Switzerland www.cern.ch/i t Parameter File: Replicat Introduction to GoldenGate administration 8 ASSUMETARGETDEFS: To indicate that the source and target tables are identical, including semantics. DISCARDFILE: To specify the discardfile where are rejected records will be dumped DBOPTIONS INTEGRATEDPARAMS: To specify database options passing settings for parameters that control the database inbound server within the target DDL INCLUDE ALL: Required if replicating DDL operations MAP: To specify the mapping to be replicated between source and target database

9. CERN IT Department CH-1211 Geneva 23 Switzerland www.cern.ch/i t Setting up GoldenGate processes Introduction to GoldenGate administration 9  SOURCE MANAGER start mgr EXTRACT dblogin userid, password register extract with database add extract, integrated tranlog, begin now add exttrail, extract, megabytes start extract DATA PUMP dblogin userid, password add extract, exttrailsource add rmttrail, extract, megabytes start extract

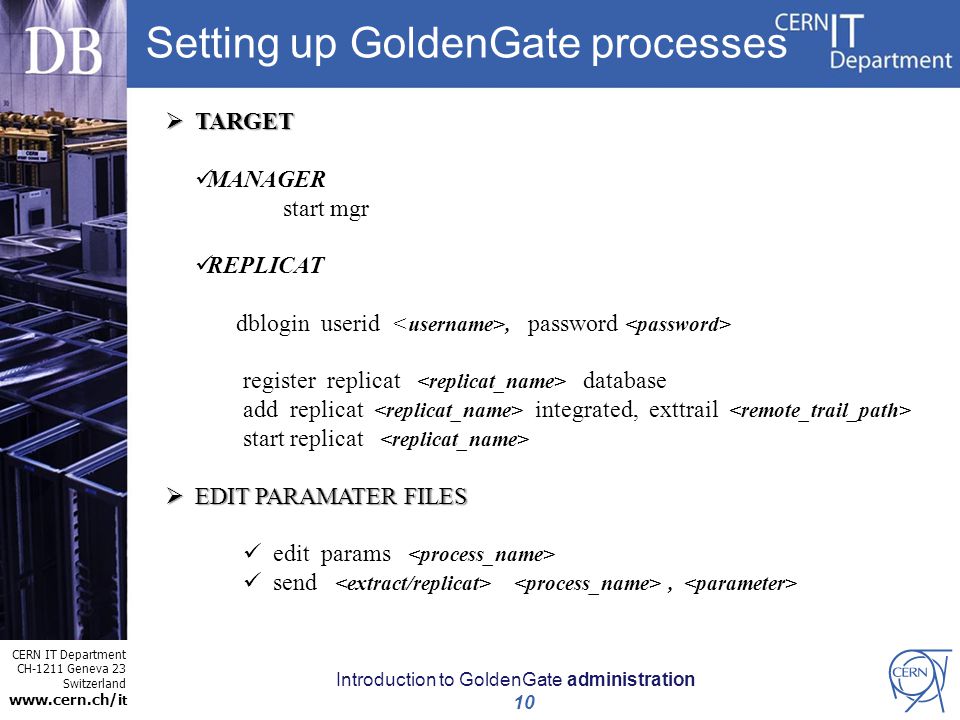

10. CERN IT Department CH-1211 Geneva 23 Switzerland www.cern.ch/i t Setting up GoldenGate processes Introduction to GoldenGate administration 10  TARGET MANAGER start mgr REPLICAT dblogin userid, password register replicat database add replicat integrated, exttrail start replicat  EDIT PARAMATER FILES edit params send,

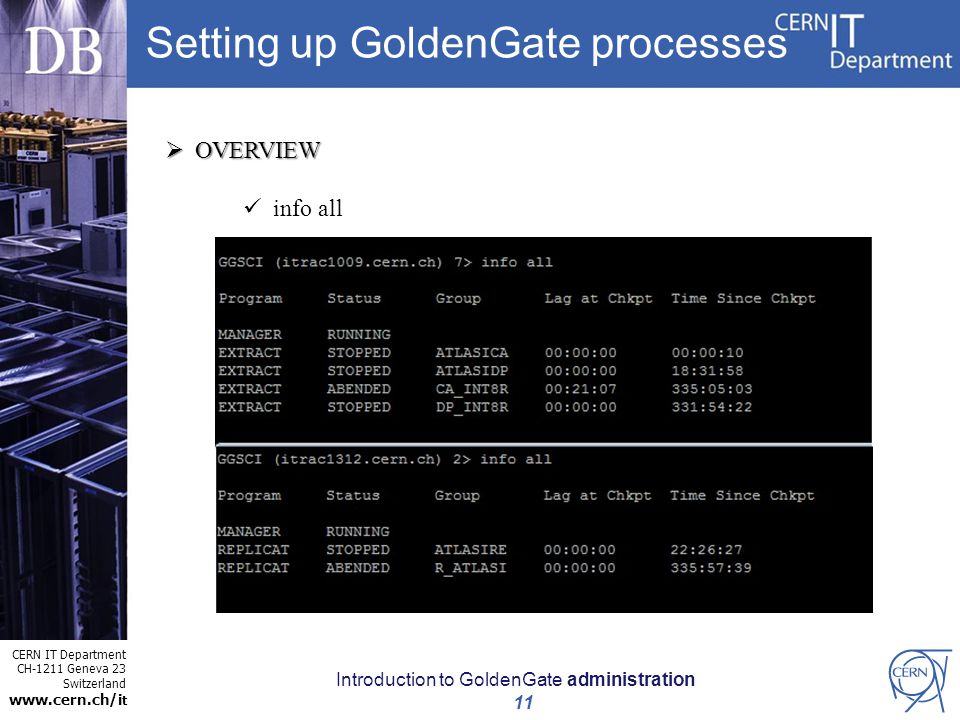

11. CERN IT Department CH-1211 Geneva 23 Switzerland www.cern.ch/i t Setting up GoldenGate processes Introduction to GoldenGate administration 11  OVERVIEW info all

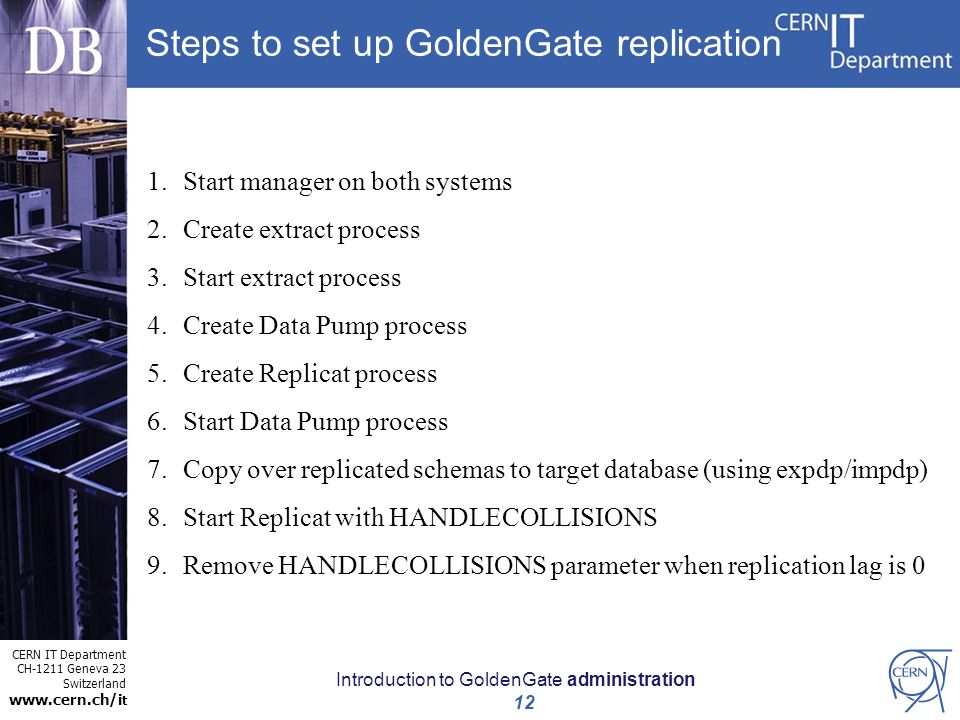

12. CERN IT Department CH-1211 Geneva 23 Switzerland www.cern.ch/i t Steps to set up GoldenGate replication Introduction to GoldenGate administration 12 1.Start manager on both systems 2.Create extract process 3.Start extract process 4.Create Data Pump process 5.Create Replicat process 6.Start Data Pump process 7.Copy over replicated schemas to target database (using expdp/impdp) 8.Start Replicat with HANDLECOLLISIONS 9.Remove HANDLECOLLISIONS parameter when replication lag is 0

13. CERN IT Department CH-1211 Geneva 23 Switzerland www.cern.ch/i t Questions? THANKS YOU! QUESTIONS?
