1. Programming Arrays

2. Question Write a program that reads 3 numbers from the user and print them in ascending order. How many variables do we need to store the input? How could we cope with 100 numbers? 1000? We need a “variable” that can store a series of values

3. Arrays Sequence of variables of a single type int a[10]; Defines an array of integers of size 10  a block of 10 consecutive ints named a[0], a[1],..., a[9] a[0]a[1]a[2]a[3]a[4]a[5]a[6]a[7]a[8]a[9]

4. Array Definition type name[size]; size must be a constant expression  char sentence[100];  int grades[30 + 15];  double numebrs[30];

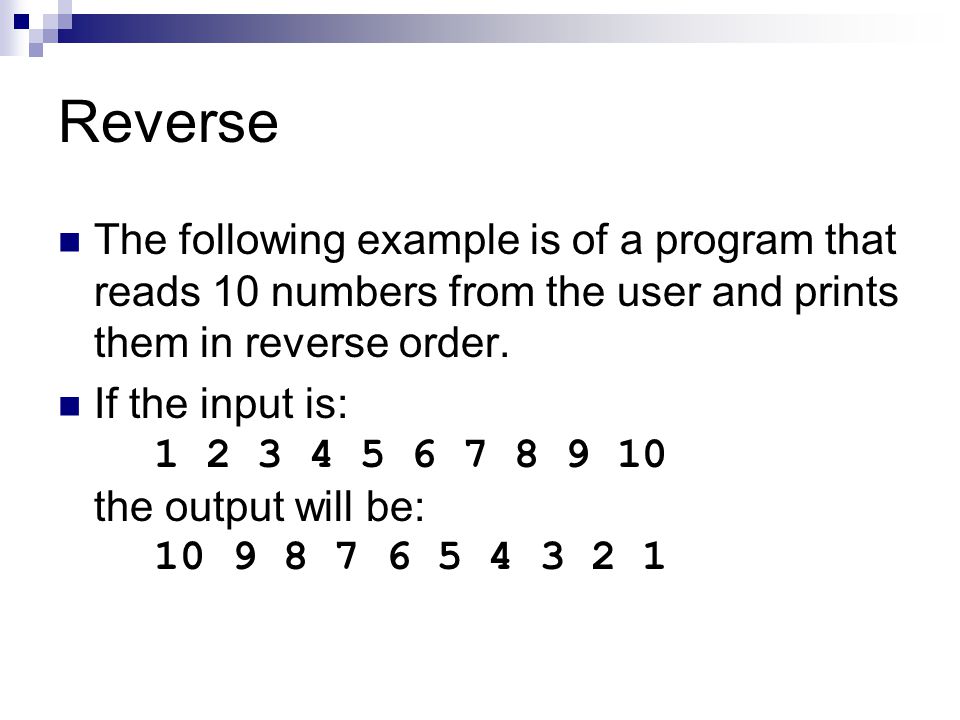

5. Reverse The following example is of a program that reads 10 numbers from the user and prints them in reverse order. If the input is: 1 2 3 4 5 6 7 8 9 10 the output will be: 10 9 8 7 6 5 4 3 2 1

6. Example - Reverse int main(void) { int i, numbers[10]; printf(“Please enter 10 numbers:\n"); for (i = 0; i < 10; ++i) scanf("%d", &numbers[i]); printf("numbers in reversed order:\n"); for (i = 9; i >= 0; --i) printf("%d\n", numbers[i]); return 0; } A single variable of type int, called i. An array of 10 integers, called numbers. The first input is stored in numbers[0], the second in numbers[1] and so on. The last input is stored in numbers[9] We can use a single variable to go over both loops The first output is is the one stored in numbers[9], the second in numbers[8] and so on. The last output is stored in numbers[0]

7. Questions What is that 10 in your program? Do all the 10s mean the same thing? How many changes you have to make if you need to go from 10 to 20?  In large programs finding all those places may be extremely difficult

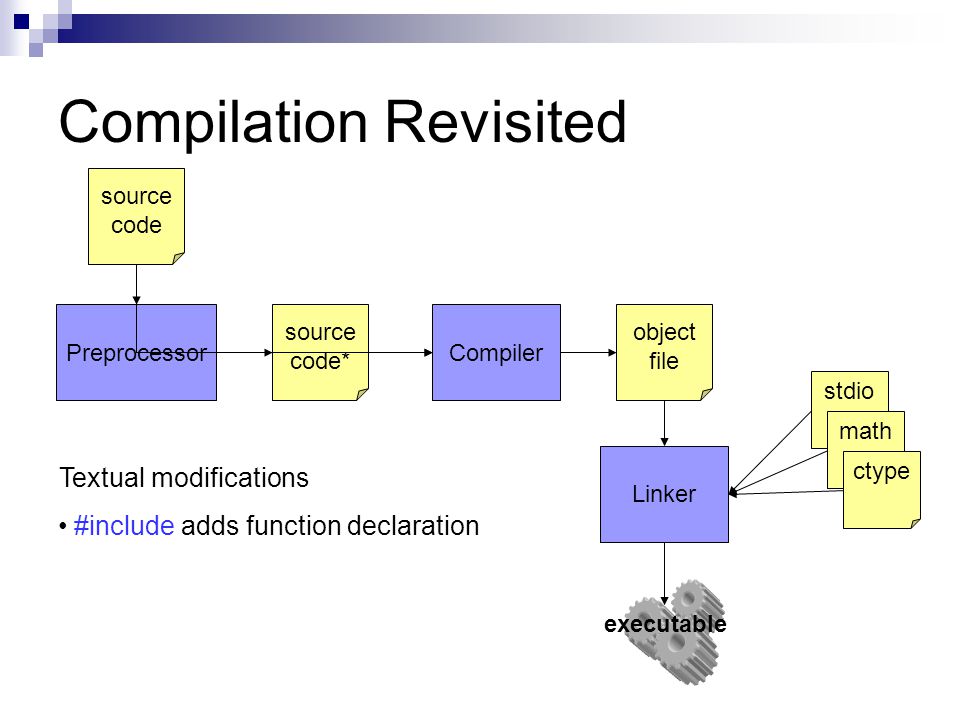

8. Compilation Revisited object file CompilerPreprocessor Linker stdio math ctype source code executable source code* Textual modifications #include adds function declaration

9. #define Define a symbolic name #define ARRAY_SIZE 10 During preprocessing phase, symbolic names are replaced by the replacement text

10. Reverse with #define #define ARRAY_SIZE 10 int main(void) { int i; int numbers[ARRAY_SIZE]; printf(“Please enter %d numbers:\n", ARRAY_SIZE); for (i = 0; i < ARRAY_SIZE; ++i) scanf("%d",&numbers[i]); printf("numbers in reversed order:\n"); for (i = ARRAY_SIZE - 1; i >= 0; --i) printf("%d\n",numbers[i]); return 0; }

11. After Preprocessing int main(void) { int i; int numbers[10]; printf(“Please enter %d numbers:\n", 10); for (i = 0; i < 10; ++i) scanf("%d",&numbers[i]); printf("numbers in reversed order:\n"); for (i = 10 - 1; i >= 0; --i) printf("%d\n", numbers[i]); return 0; } This is what the compiler “see” All ARRAY_SIZE were replaced by 10

12. From 10 to 20 #define ARRAY_SIZE 20 int main(void) { int i; int numbers[ARRAY_SIZE]; printf(“Please enter %d numbers:\n", ARRAY_SIZE); for (i = 0; i < ARRAY_SIZE; ++i) scanf("%d",&numbers[i]); printf("numbers in reversed order:\n"); for (i = ARRAY_SIZE - 1; i >= 0; --i) printf("%d\n",numbers[i]); return 0; }

13. Limitation Define expansion does not occur within a quoted string printf("Please enter ARRAY_SIZE numbers:\n"); printf("Please enter %d numbers:\n", ARRAY_SIZE); Please enter ARRAY_SIZE numbers: Please enter 10 numbers:

14. From now on Variable and function names  lowercase letters only – size, array, power, num1, is_digit Defines  All caps – ARRAY_SIZE, TRUE, FALSE

15. We can initialize the array during declaration. int array[8] = {2, 4, 6, 8, 10, 12, 14, 16}; The number of initializers cannot be more than the number of elements in the array  but it can be less  in which case, the remaining elements are initialized to 0 Array Initialization

16. The array size can be inferred from the number of initializers by leaving the square brackets empty  These are identical declarations : int array1[8] = {2, 4, 6, 8, 10, 12, 14, 16}; int array2[] = {2, 4, 6, 8, 10, 12, 14, 16}; Array Initialization

17. Exercise Write a program that gets an input line from the user (until ‘\n’) and displays the number of times each lowercase letter appears in it. input line: hello, world! The letter 'd' appears 1 time(s). The letter 'e' appears 1 time(s). The letter 'h' appears 1 time(s). The letter 'l' appears 3 time(s). The letter 'o' appears 2 time(s). The letter 'r' appears 1 time(s). The letter 'w' appears 1 time(s).

18. Solution #define ABC_LEN 26 int main(void) { int i = 0, count[ABC_LEN] = {0}; int c; printf("Please enter a line of text: \n"); c = getchar(); while (c != '\n') { if (c = 'a') ++count[c - 'a']; c = getchar(); } printf("The letter distribution in your line :\n"); for (i = 0; i < ABC_LEN; ++i) { if (count[i] > 0) printf("The letter '%c' appears %d time(s).\n", 'a' + i, count[i]); } return 0; }

19. Arrays as Function Arguments Calculate the sum of an array’s elements int calc_sum(int arr[], int size) { int i = 0, sum = 0; for (i = 0; i < size; ++i) sum += arr[i]; return sum; }

20. Arrays as Function Arguments int calc_sum(int arr[], int size); The function takes an array of integers.  The size of the array is unknown  another argument specifies the size int calc_sum(int arr[10], int size); Counterintuitive, this doesn’t change anything  The size of the array is still unknown and another argument is needed.

21. Arrays as Function Arguments For example: int calc_sum(int arr[], int size); Within the function, arr is accessed in the usual way Changes to elements of the array from within the function are seen outside. The original array is changed!!

22. Arrays as Function Arguments Using calc_sum int main(void) { int input[ARRAY_SIZE], sum = 0;... sum = calc_sum(input, ARRAY_SIZE);... }

23. Sorting We would like to sort the elements in an array in an ascending order. 7 2854 2 4578 sort

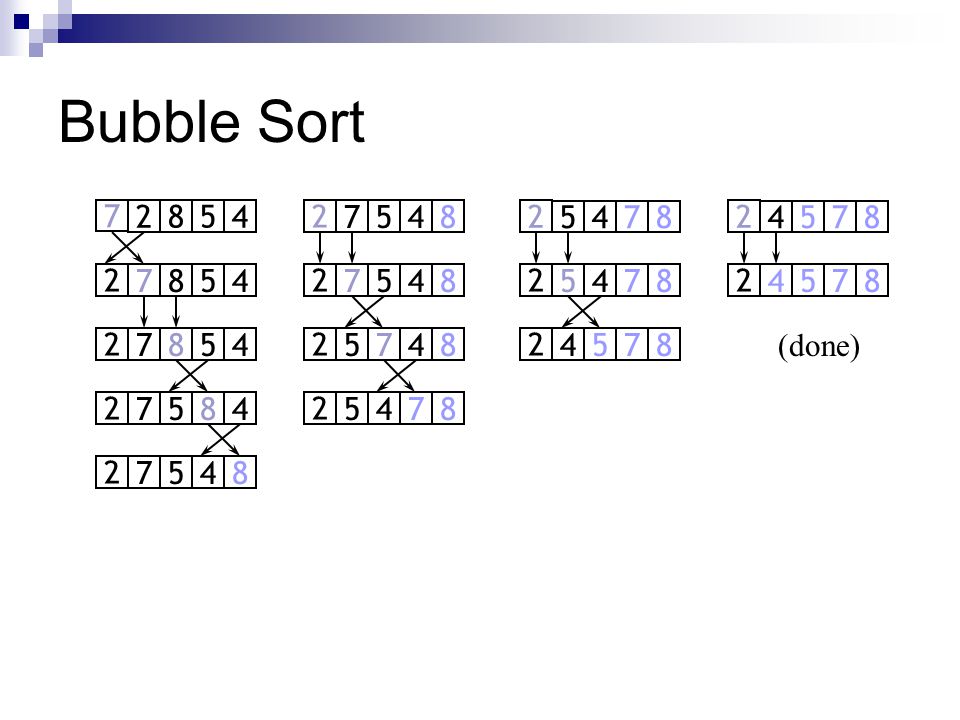

24. Bubble Sort 7 2854 2 7854 2 7854 2 7584 2 7548 2 7548 2 5748 2 5478 2 7548 2 5478 2 4578 2 5478 2 4578 2 4578 (done)

25. Bubble Sort void bubble_sort(int a[], int size) { int i, j, temp; for (i = size - 1; i >= 0; --i) /* counting down */ { for (j = 0; j < i; ++j) /* bubbling up */ { if (a[j] > a[j+1]) /* if out of order... */ { /*... then swap */ temp = a[j]; a[j] = a[j+1]; a[j+1] = temp; }

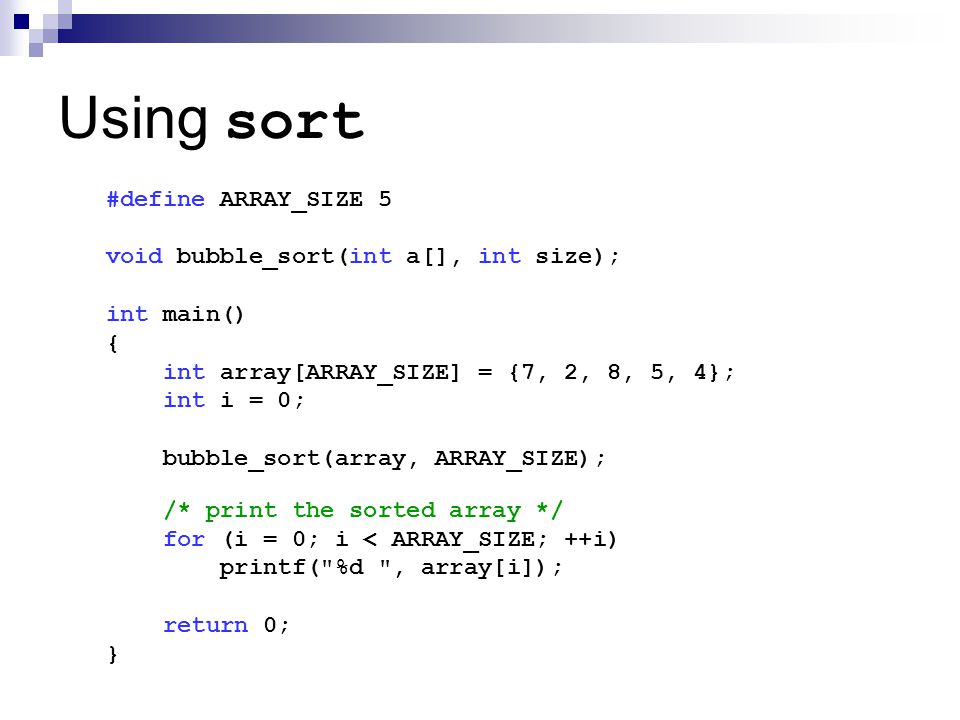

26. Using sort #define ARRAY_SIZE 5 void bubble_sort(int a[], int size); int main() { int array[ARRAY_SIZE] = {7, 2, 8, 5, 4}; int i = 0; bubble_sort(array, ARRAY_SIZE); /* print the sorted array */ for (i = 0; i < ARRAY_SIZE; ++i) printf("%d ", array[i]); return 0; }

27. Exercise Implement the function: int compare_arrays(int arr1[], int arr2[], int size); The function takes two integer arrays and returns true if they are equal, false otherwise Write a program that accepts two arrays of integers from the user and checks for equality using the above function

28. Solution int compare_arrays(int arr1[], int arr2[], int size) { int i = 0; for (i = 0; i < size; ++i) { if (arr1[i] != arr2[i]) return 0; } /* if we got here, the arrays are identical */ return 1; }

29. Two-dimensional Arrays Declaration: int matrix[4][11]; 4 x 11 rows columns

30. Element Access In order to access the j-th element (column) of the i-th array (row) matrix[i][j] row column

31. Initializing Two-dimensional Arrays int arr[2][3] = { {1, 2, 3}, {4, 5, 6} }; As with regular array size can be inferred from the initialization Unlike regular array, this is only true for the number of rows. int arr[][3] = { {1, 2, 3}, {4, 5, 6} }; 123 456

32. Example: Matrix Addition #define MATRIX_SIZE 3 int main(void) { int a[][MATRIX_SIZE] = {{1,2,3}, {4,5,6}, {7,8,9}}; int b[][MATRIX_SIZE] = {{1,1,1}, {2,2,2}, {3,3,3}}; int c[MATRIX_SIZE][MATRIX_SIZE_SIZE]; int i = 0, j = 0; for (i = 0; i < MATRIX_SIZE; ++i) for (j = 0; j < MATRIX_SIZE; ++j) c[i][j] = a[i][j] + b[i][j]; /* print c */... return 0; }

33. Exercise Write a program that defines 3 matrices a,b and c of size 3x3 with int elements; initialize the first two matrices (a and b). Compute the matrix multiplication of a and b and store it in c (i.e. c = a*b) Print all the matrices on the screen

34. Solution #define MATRIX_SIZE 3 int main(void) { int a[][MATRIX_SIZE] = { {1,2,3}, {4,5,6}, {7,8,9}}; int b[][MATRIX_SIZE] = { {1,0,0}, {0,2,0}, {0,0,3}}; int c[MATRIX_SIZE][MATRIX_SIZE]; int i = 0, j = 0, k = 0; /* Compute the product c = a * b */ for (i = 0; i < MATRIX_SIZE; ++i) for (j = 0; j < MATRIX_SIZE; ++j) { c[i][j] = 0; for (k = 0; k < MATRIX_SIZE; ++k) c[i][j] += a[i][k] * b[k][j]; } /* Print c */... return 0; }
