1. www.transoft.com Sonny Goodwin Rene Nunnington

2. Transoft update

3. Transoft update Transoft is an expert in providing innovative modernization software and services enabling organizations to apply the latest technologies to existing software applications Our philosophy: Transoft was founded on the premise that it is often better to modernize rather than replace existing business critical applications. These frequently highly customized systems are the foundation of any business and usually give invaluable competitive advantage. Transoft endeavors to create innovative solutions that help our customers take advantage of the latest technologies without abandoning investments made in existing applications.

4. Transoft solution portfolio Application migration and re-architecting Legacy Integration Application development Software development lifecycle Database modernization

5. The Transoft Heritage Founded 1986 Specialist modernization and migration tools and services Successful completion of hundreds of migrations to Open Systems Successful deployment of development languages, databases & software interfaces –U/FOS, U/BL, U/SQL, TCA, DBPronto, DBIntegrate Evolve new solutions from existing applications –Reduced risk compared to replacement –Lower cost than replacement –Continued return on investment Long term partnership in the lifecycle management of legacy applications

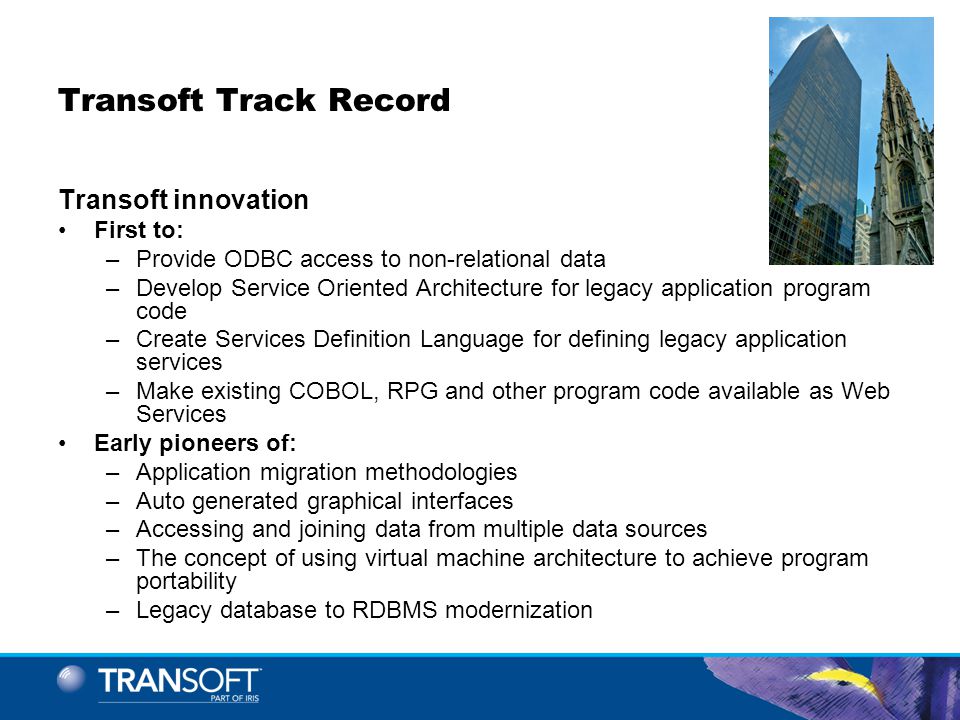

6. Transoft Track Record Transoft innovation First to: –Provide ODBC access to non-relational data –Develop Service Oriented Architecture for legacy application program code –Create Services Definition Language for defining legacy application services –Make existing COBOL, RPG and other program code available as Web Services Early pioneers of: –Application migration methodologies –Auto generated graphical interfaces –Accessing and joining data from multiple data sources –The concept of using virtual machine architecture to achieve program portability –Legacy database to RDBMS modernization

7. Transoft, part of IRIS IRIS Group –Largest privately held software company in the UK –Top 6 software companies in UK –$220 million revenue –Over 1,000 employees –Privately owned by leading US private equity firm Hellman & Friedman

8. International customer base

9. HP3000 Modernization

10. HP e3000 Migration Project Choices Migration Tools Migration Services Combination Project Approach

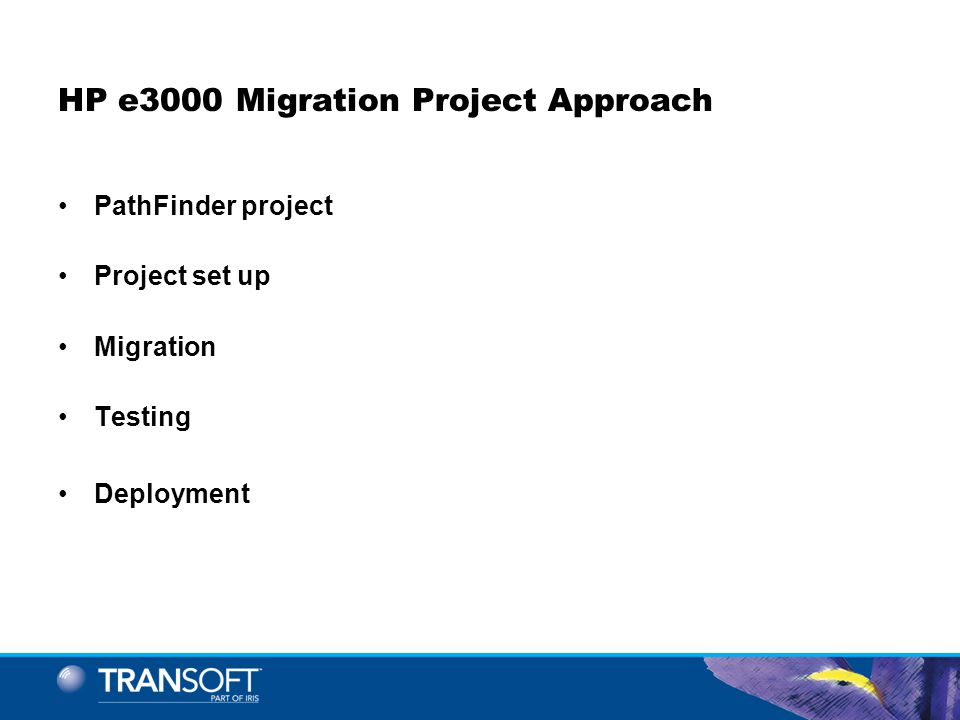

11. HP e3000 Migration Project Approach PathFinder project Project set up Migration Testing Deployment

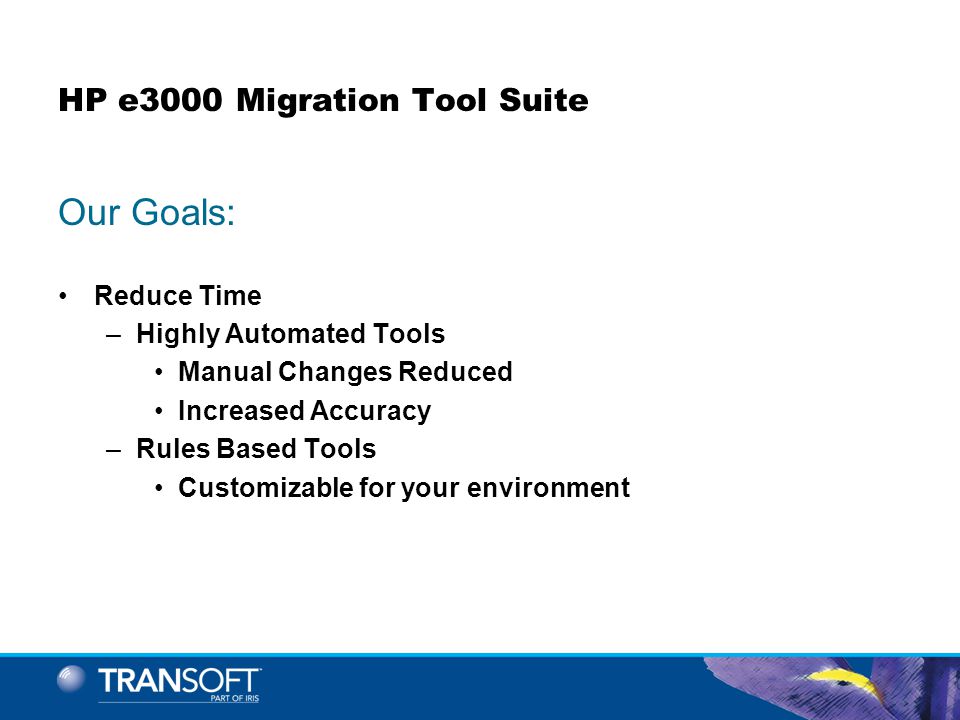

12. HP e3000 Migration Tool Suite Our Goals: Reduce Time –Highly Automated Tools Manual Changes Reduced Increased Accuracy –Rules Based Tools Customizable for your environment

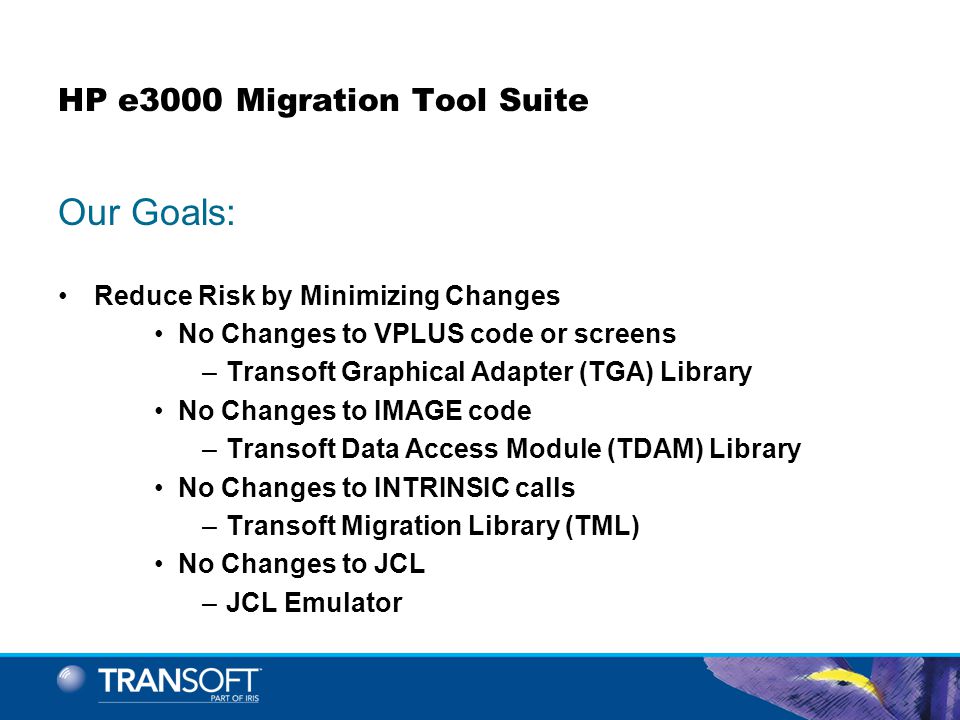

13. HP e3000 Migration Tool Suite Our Goals: Reduce Risk by Minimizing Changes No Changes to VPLUS code or screens –Transoft Graphical Adapter (TGA) Library No Changes to IMAGE code –Transoft Data Access Module (TDAM) Library No Changes to INTRINSIC calls –Transoft Migration Library (TML) No Changes to JCL –JCL Emulator

14. HP e3000 Migration Tool Suite Our Goals: Increase Benefit – Move to Web Browser UI – Move to Relational Database

15. Transoft HP e3000 Migration choices Interface VPLUS Forms TGA Browser, GUI Character Terminal Applications MPE COBOL Open COBOL Database IMAGE & KSAM TDAM / TML RDBMS / C-ISAM Jobs MPE JCL VBScript or Korn Shell / JCL Emulator Operating System MPE Intrinsics TML Transoft MPE Library

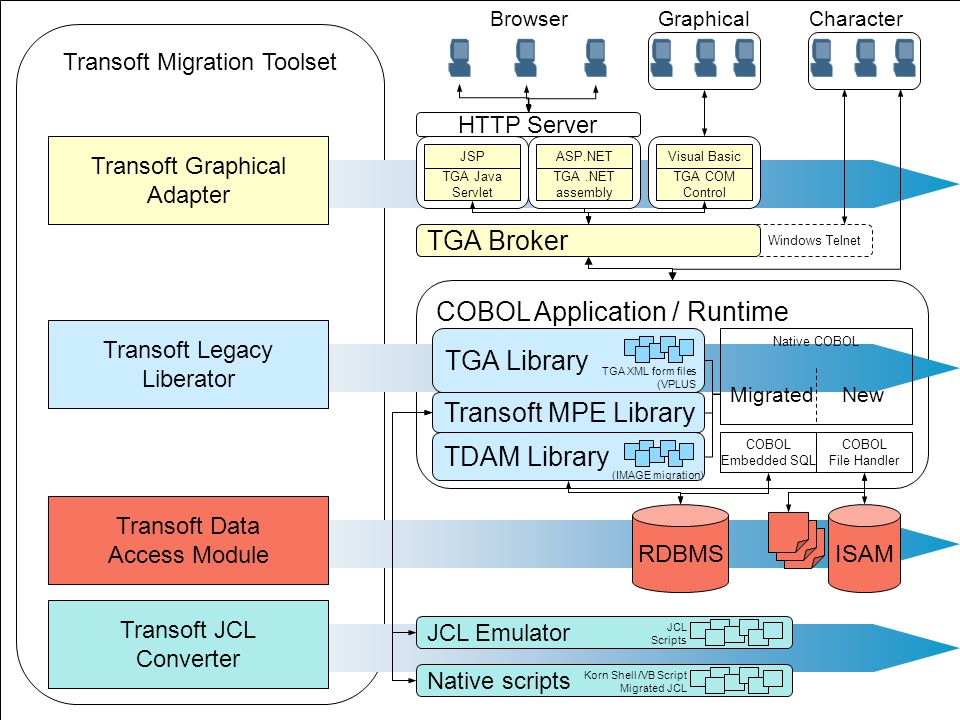

16. Transoft Migration Toolset Transoft Graphical Adapter Windows Telnet Visual Basic TGA COM Control BrowserGraphicalCharacter JSP TGA Java Servlet ASP.NET TGA.NET assembly HTTP Server TGA Broker COBOL Application / Runtime Transoft Data Access Module RDBMSISAM JCL Emulator JCL Scripts Native scripts Korn Shell /VB Script Migrated JCL Transoft JCL Converter Migrated TDAM Library (IMAGE migration) COBOL File Handler TGA Library TGA XML form files (VPLUS formspecs) COBOL Embedded SQL Native COBOL New Transoft MPE Library Transoft Legacy Liberator

17. HP3000 Homesteading

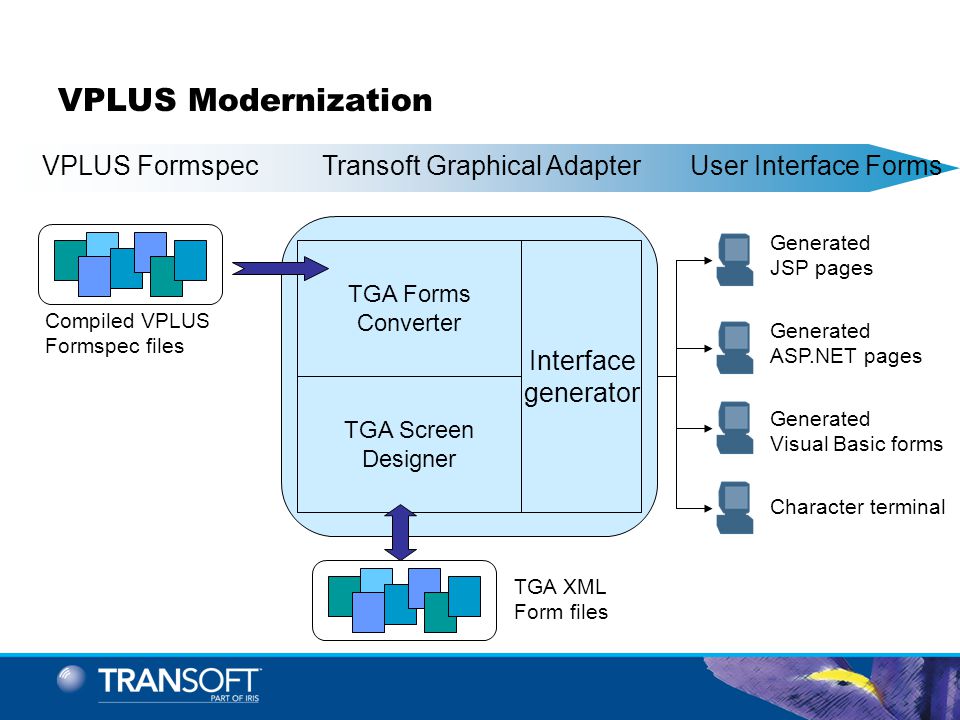

18. VPLUS Formspec Compiled VPLUS Formspec files User Interface Forms Character terminal Generated Visual Basic forms Generated ASP.NET pages Generated JSP pages TGA Screen Designer TGA Forms Converter Interface generator Transoft Graphical Adapter TGA XML Form files VPLUS Modernization

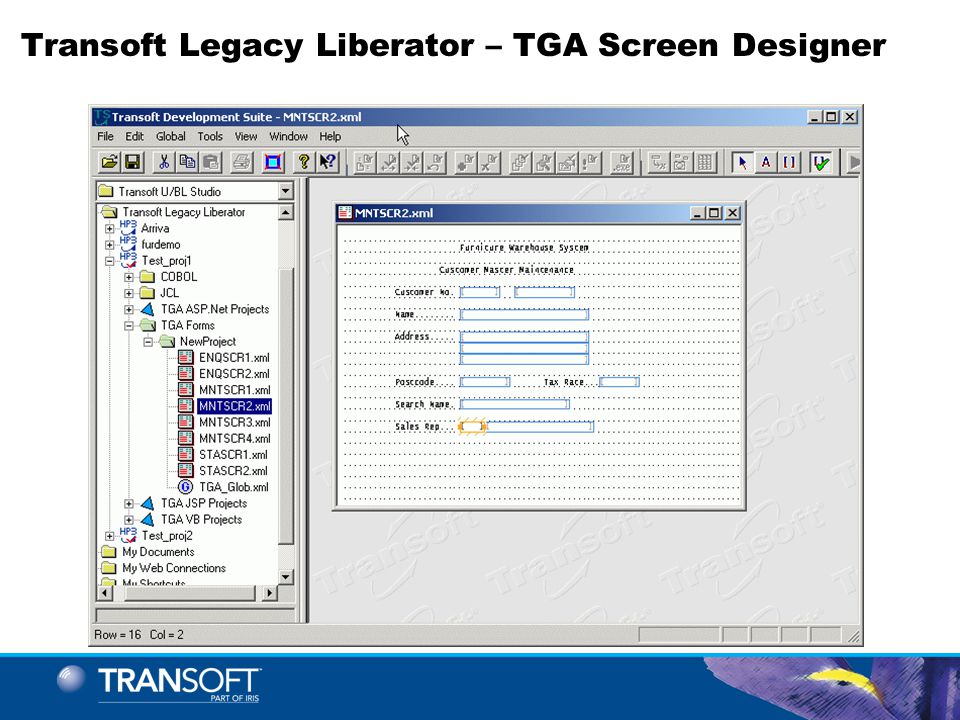

19. Transoft Legacy Liberator – TGA Screen Designer

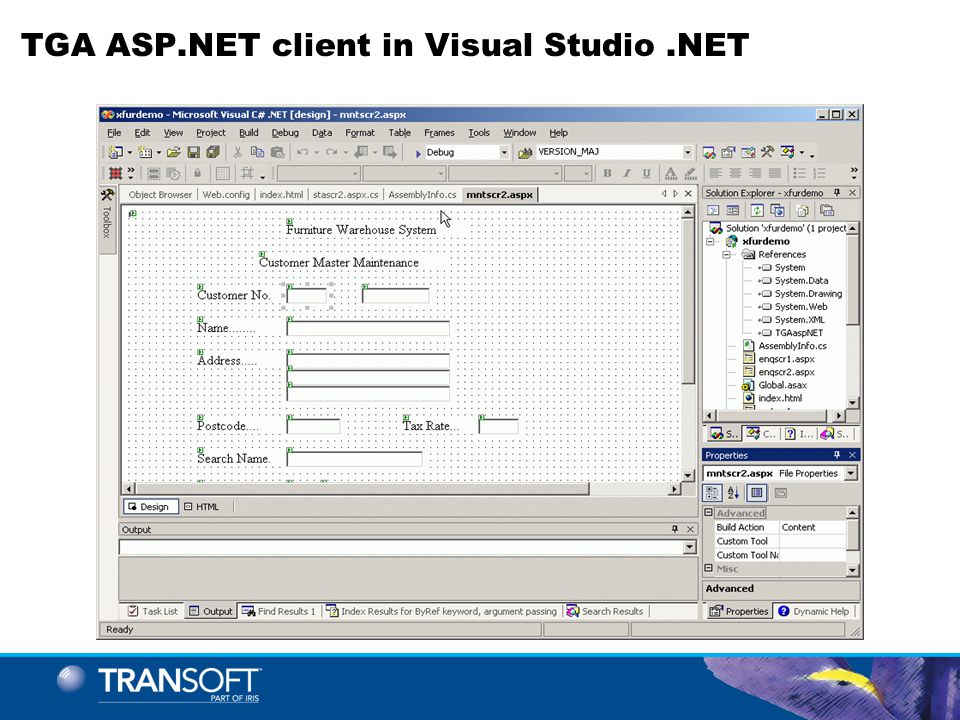

20. TGA ASP.NET client in Visual Studio.NET

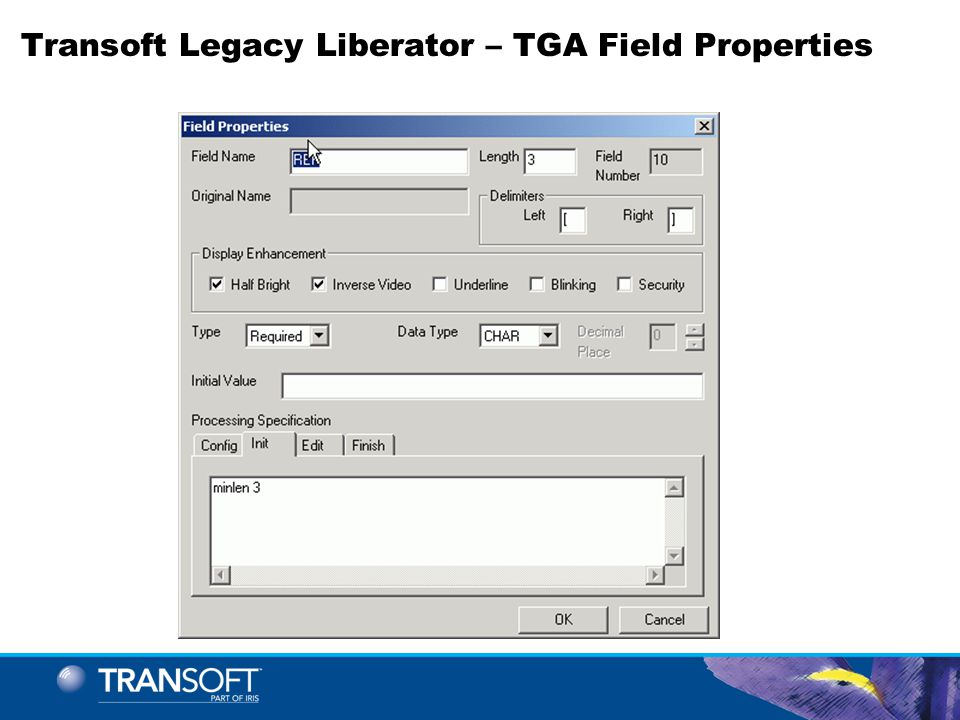

21. Transoft Legacy Liberator – TGA Field Properties

22. Character Screens Visual Basic forms JSP or ASP.NET forms

23. www.transoft.com
