1. Design and Implementation of Object Oriented Dynamic Programming Languages Jonathan Bachrach Greg Sullivan Kostas Arkoudous

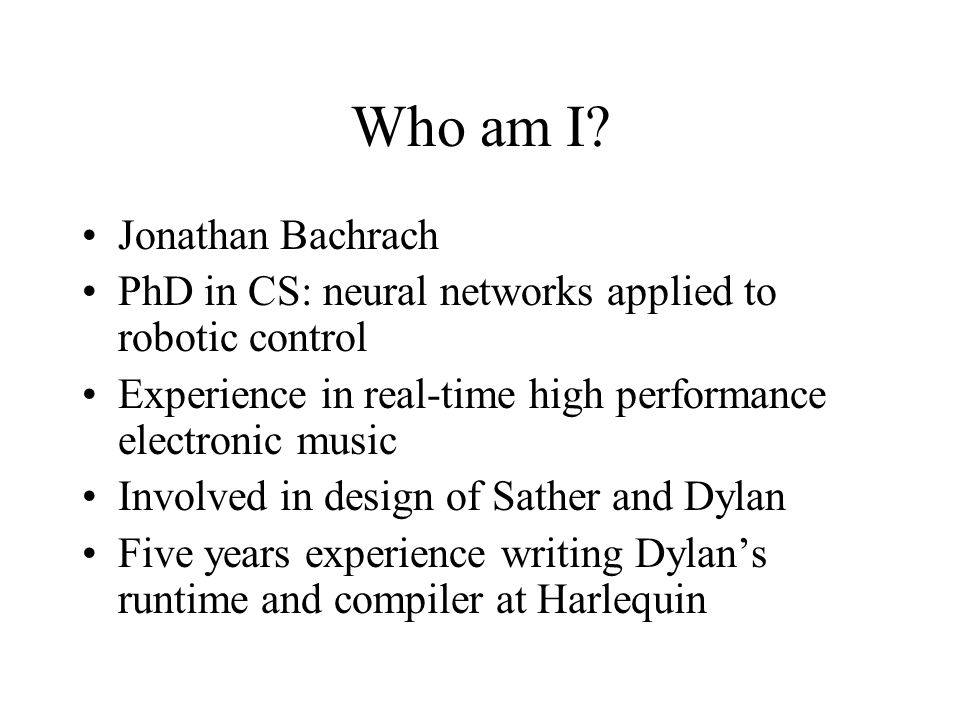

2. Who am I? Jonathan Bachrach PhD in CS: neural networks applied to robotic control Experience in real-time high performance electronic music Involved in design of Sather and Dylan Five years experience writing Dylan’s runtime and compiler at Harlequin

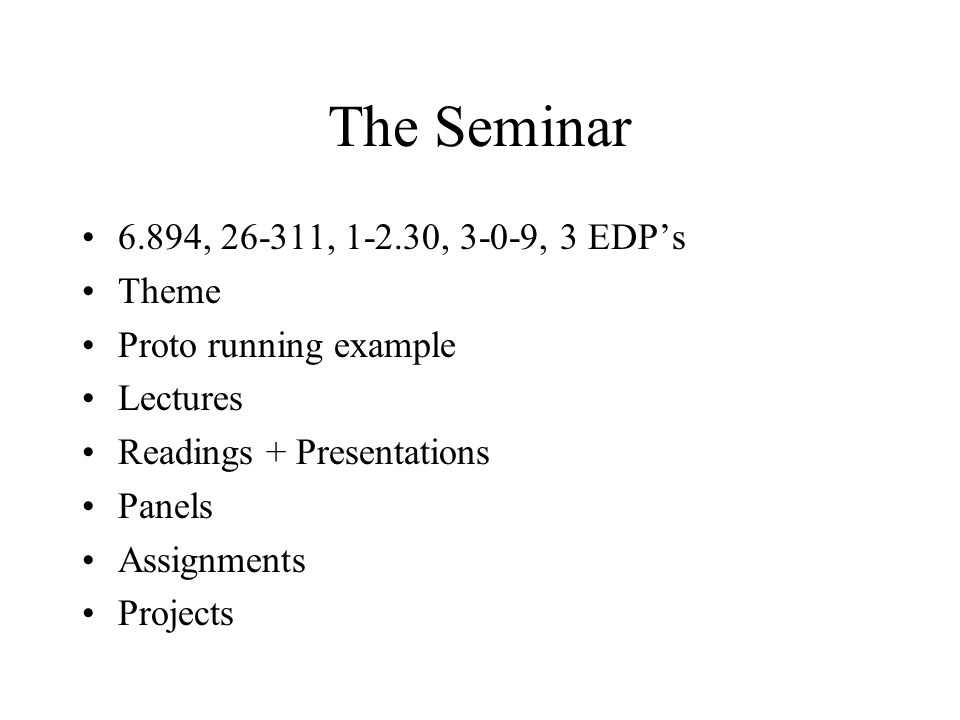

3. The Seminar 6.894, 26-311, 1-2.30, 3-0-9, 3 EDP’s Theme Proto running example Lectures Readings + Presentations Panels Assignments Projects

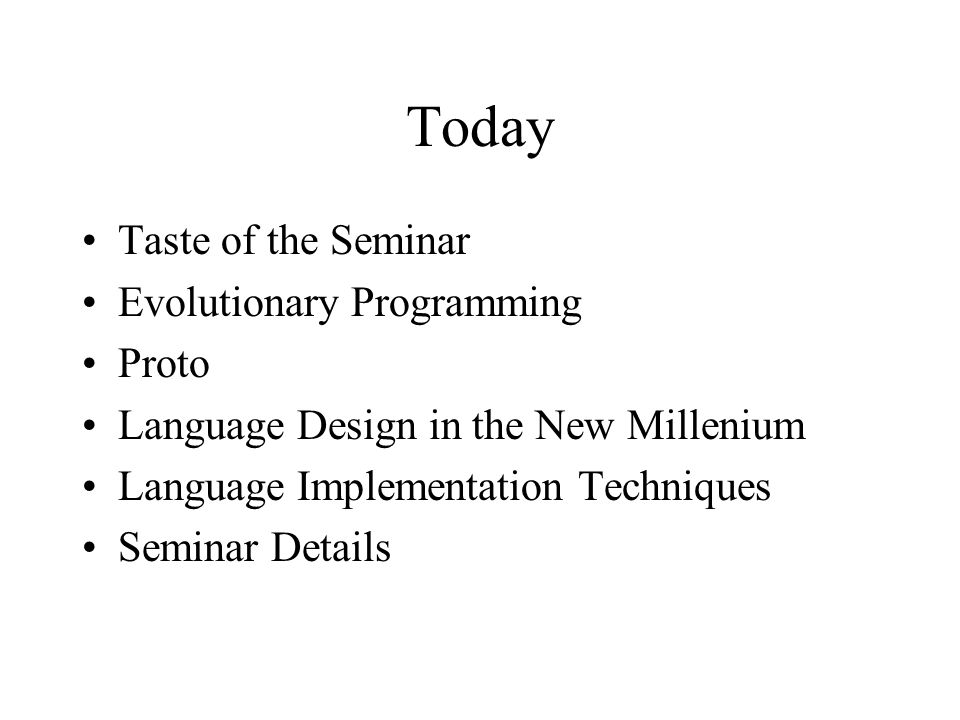

4. Today Taste of the Seminar Evolutionary Programming Proto Language Design in the New Millenium Language Implementation Techniques Seminar Details

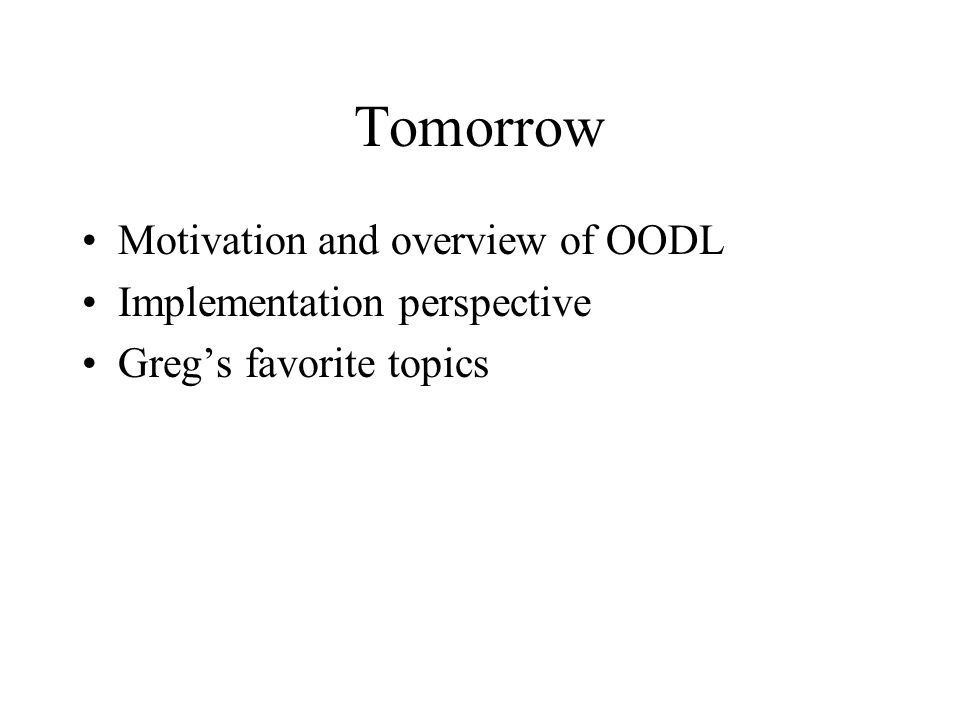

5. Tomorrow Motivation and overview of OODL Implementation perspective Greg’s favorite topics

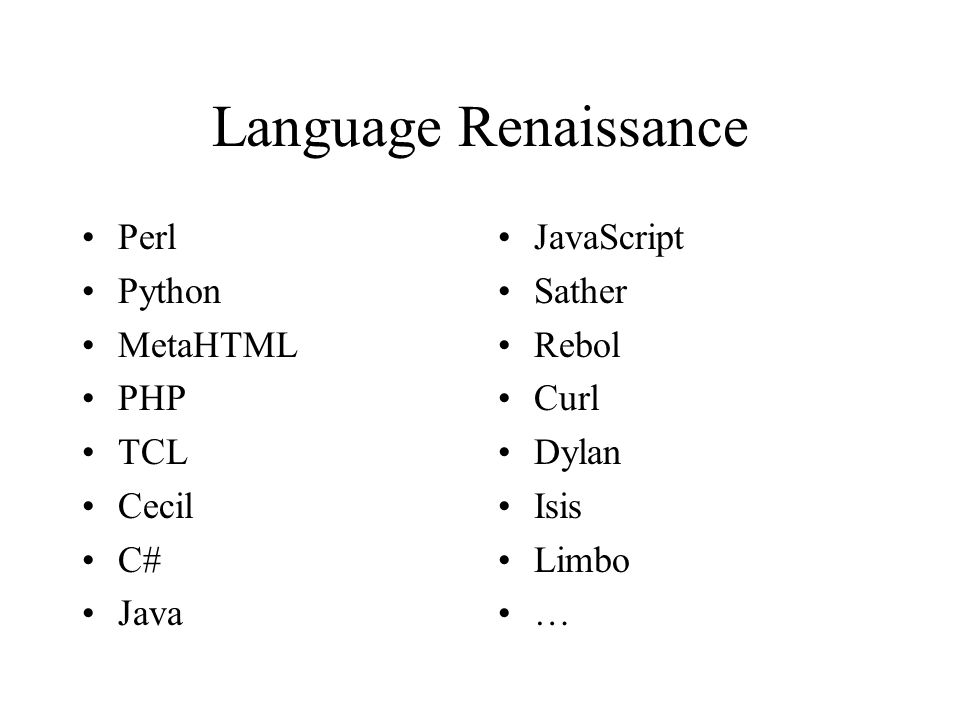

6. Language Renaissance Perl Python MetaHTML PHP TCL Cecil C# Java JavaScript Sather Rebol Curl Dylan Isis Limbo …

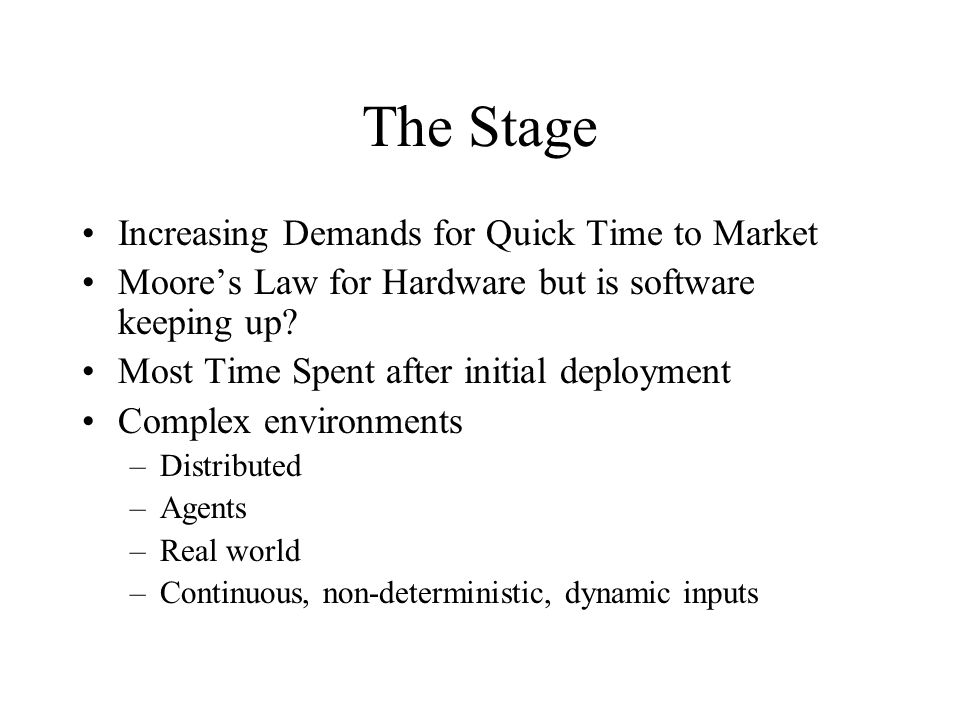

7. The Stage Increasing Demands for Quick Time to Market Moore’s Law for Hardware but is software keeping up? Most Time Spent after initial deployment Complex environments –Distributed –Agents –Real world –Continuous, non-deterministic, dynamic inputs

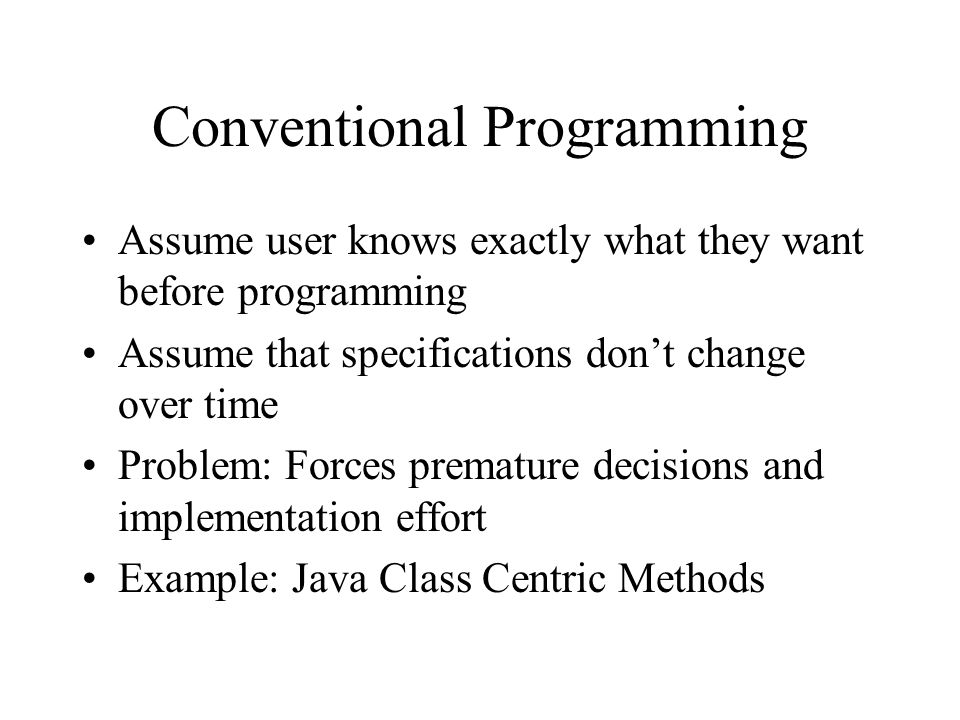

8. Conventional Programming Assume user knows exactly what they want before programming Assume that specifications don’t change over time Problem: Forces premature decisions and implementation effort Example: Java Class Centric Methods

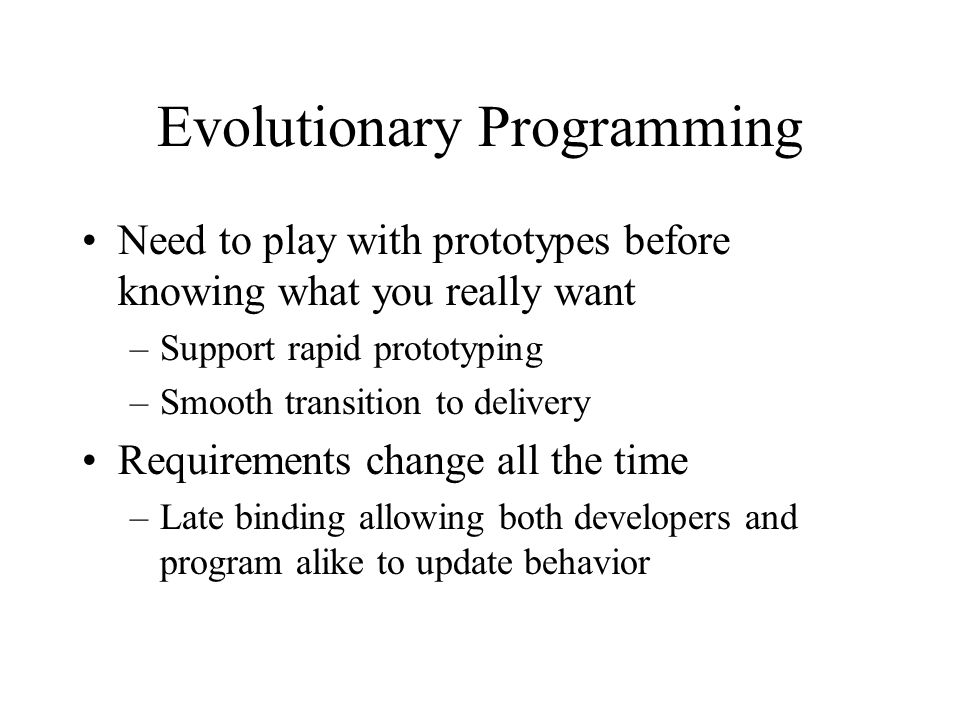

9. Evolutionary Programming Need to play with prototypes before knowing what you really want –Support rapid prototyping –Smooth transition to delivery Requirements change all the time –Late binding allowing both developers and program alike to update behavior

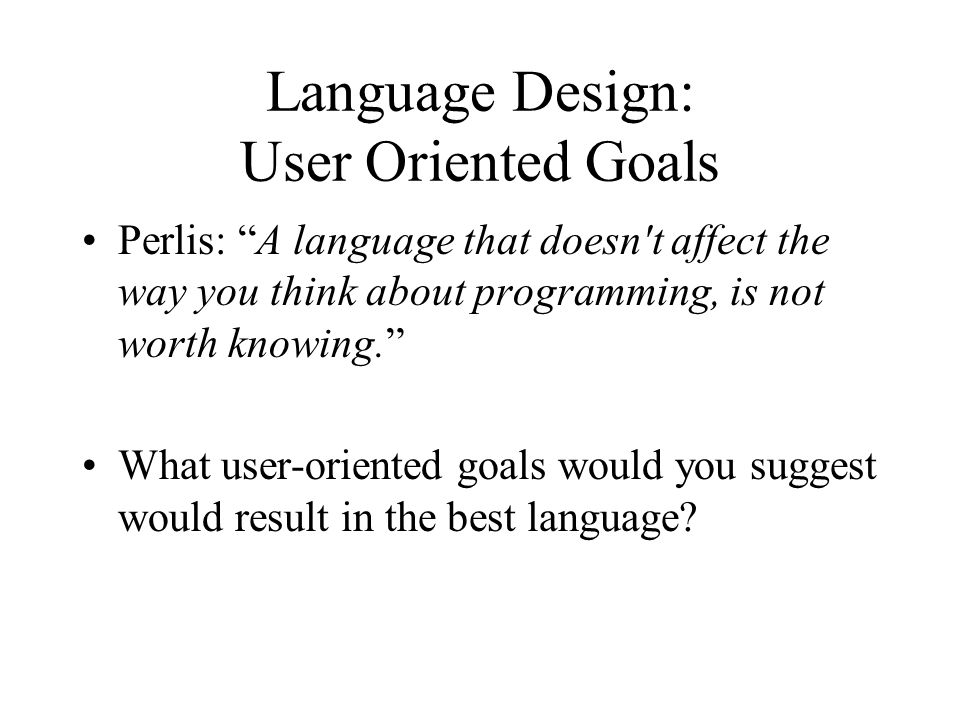

10. Language Design: User Oriented Goals Perlis: “A language that doesn't affect the way you think about programming, is not worth knowing.” What user-oriented goals would you suggest would result in the best language?

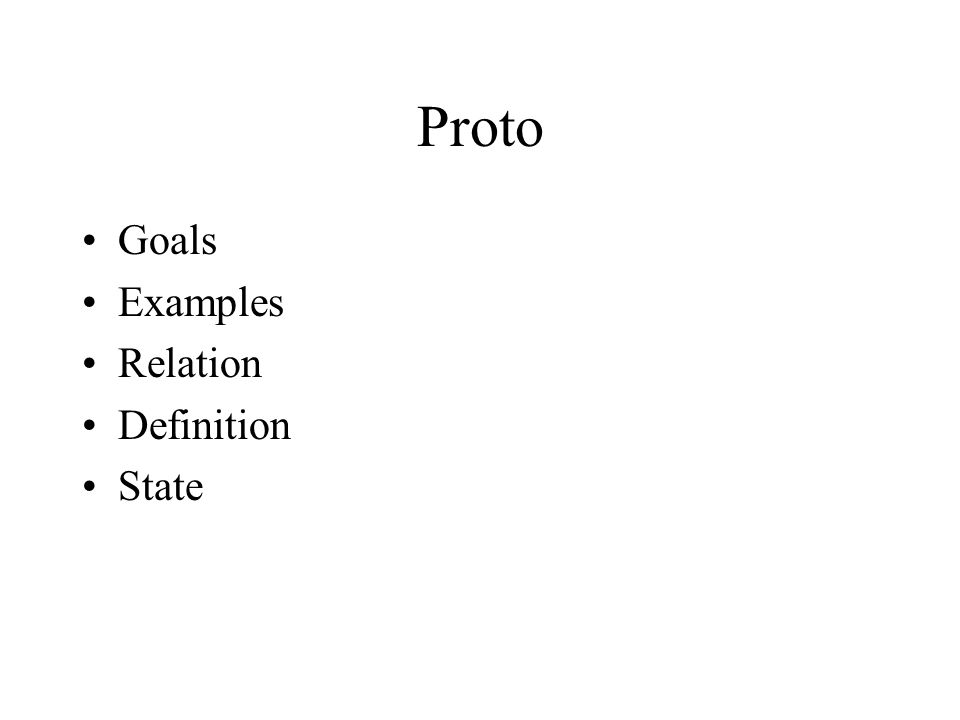

11. Proto Goals Examples Relation Definition State

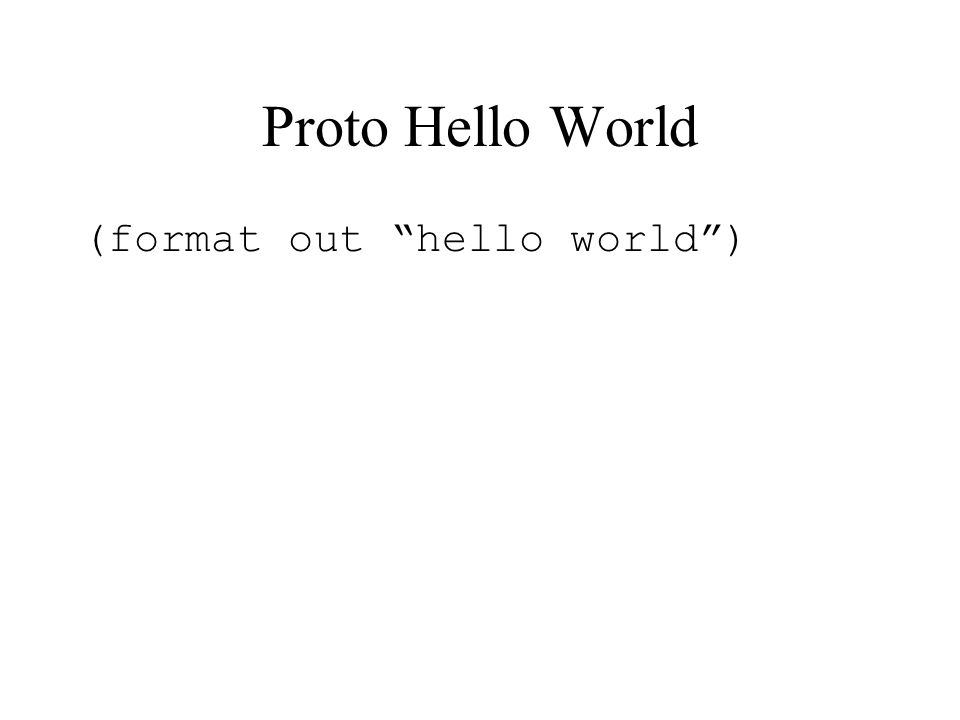

12. Proto Hello World (format out “hello world”)

13. Proto Goals Simple Productive Powerful Extensible Dynamic Efficient Real-time Teaching and research vehicle Electronic music is domain to keep it honest

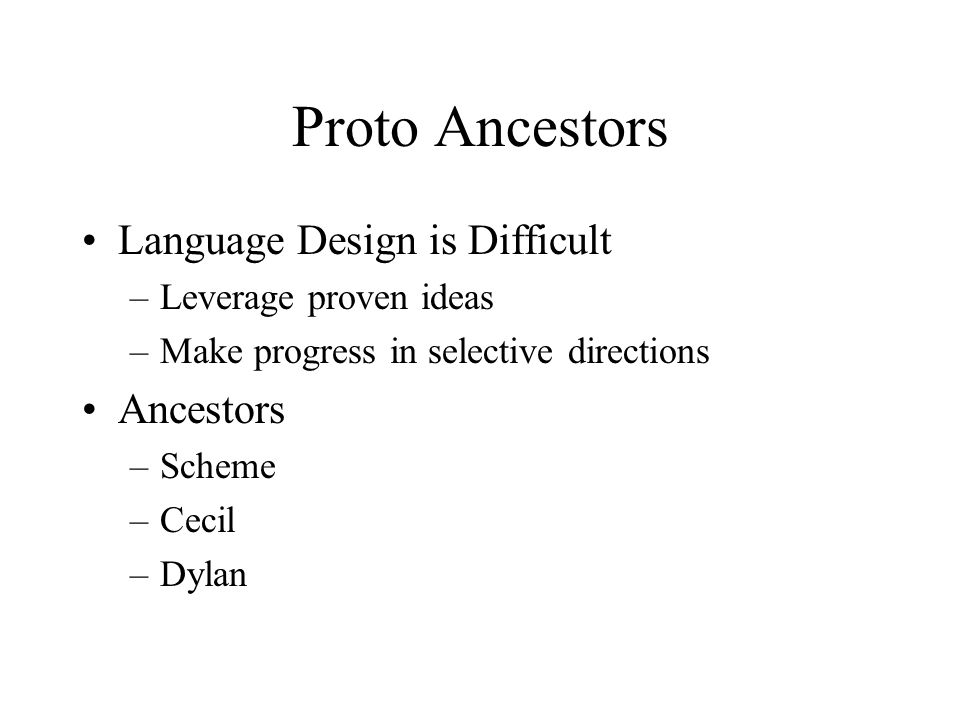

14. Proto Ancestors Language Design is Difficult –Leverage proven ideas –Make progress in selective directions Ancestors –Scheme –Cecil –Dylan

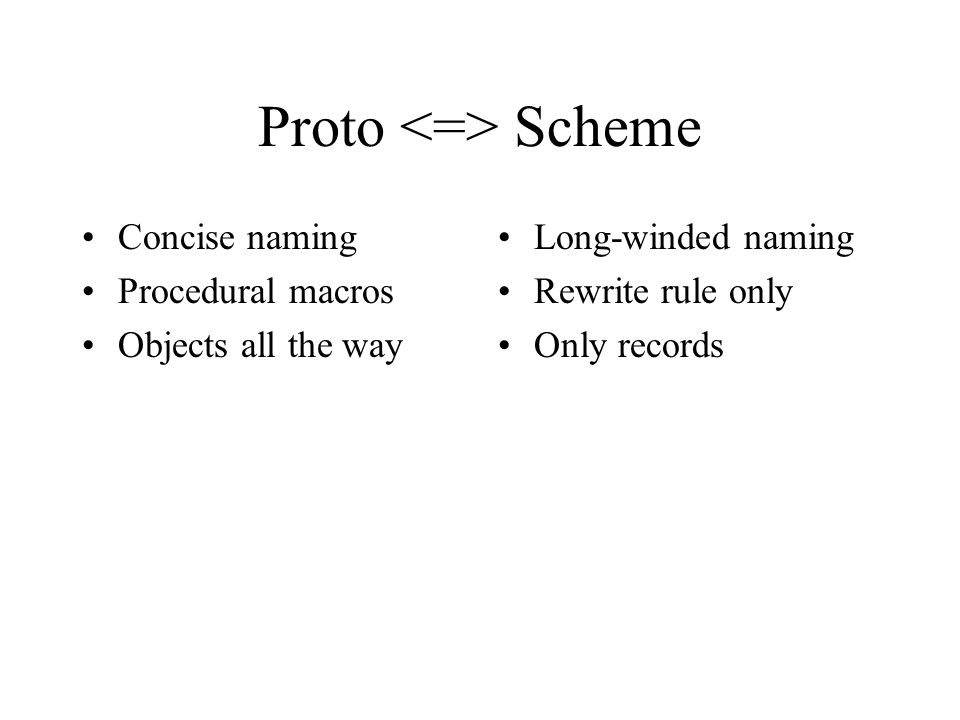

15. Proto Scheme Concise naming Procedural macros Objects all the way Long-winded naming Rewrite rule only Only records

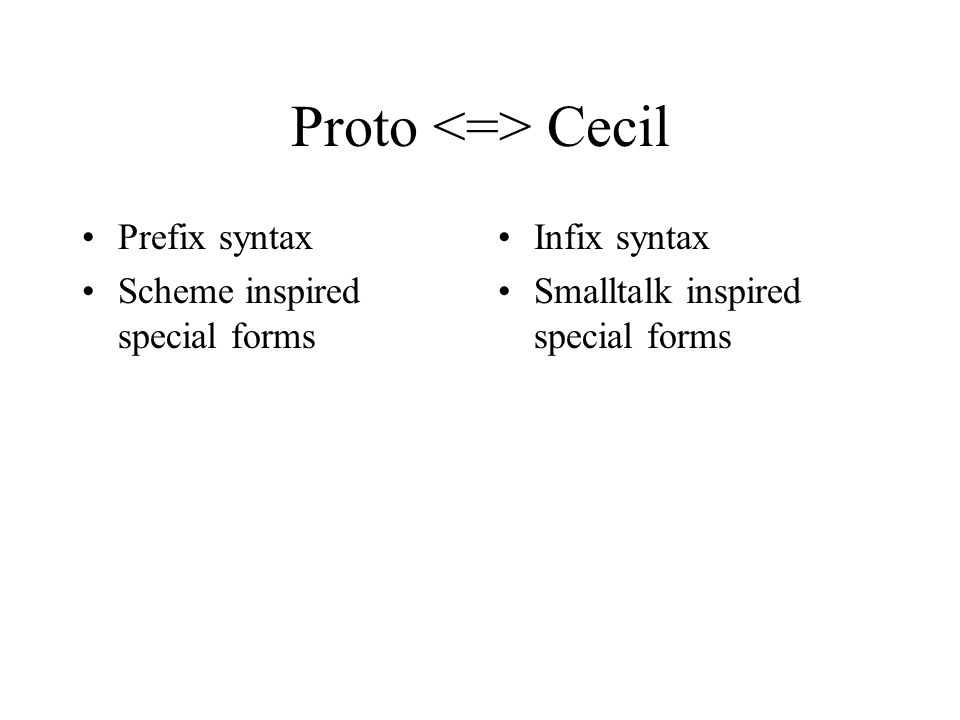

16. Proto Cecil Prefix syntax Scheme inspired special forms Infix syntax Smalltalk inspired special forms

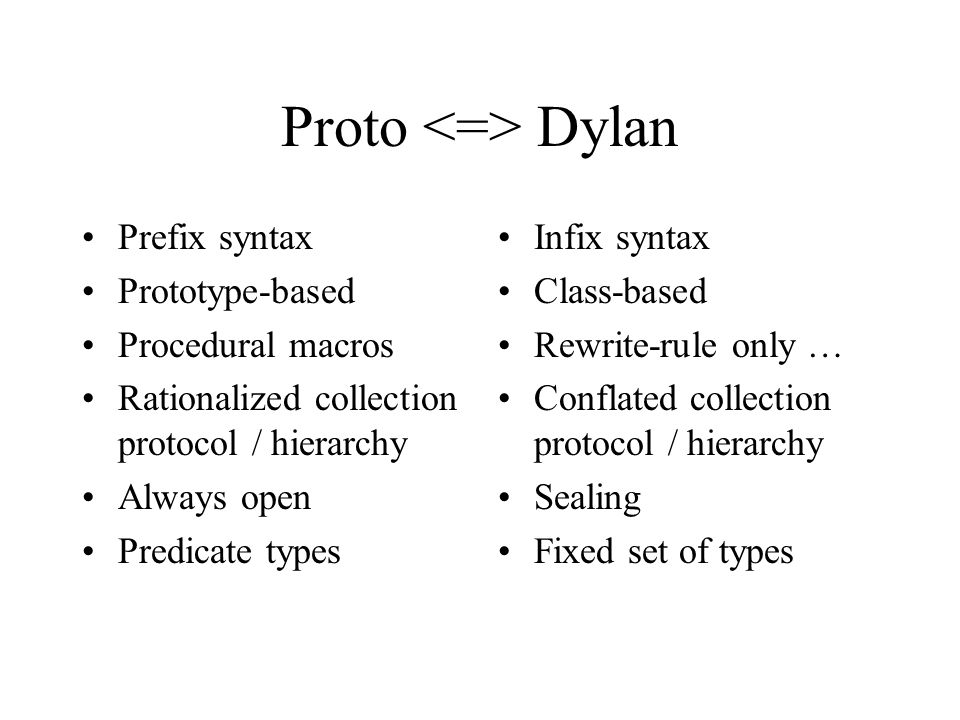

17. Proto Dylan Prefix syntax Prototype-based Procedural macros Rationalized collection protocol / hierarchy Always open Predicate types Infix syntax Class-based Rewrite-rule only … Conflated collection protocol / hierarchy Sealing Fixed set of types

18. Object Orientation Assume you know OO basics Motivations: –Abstraction –Reuse –Extensibility

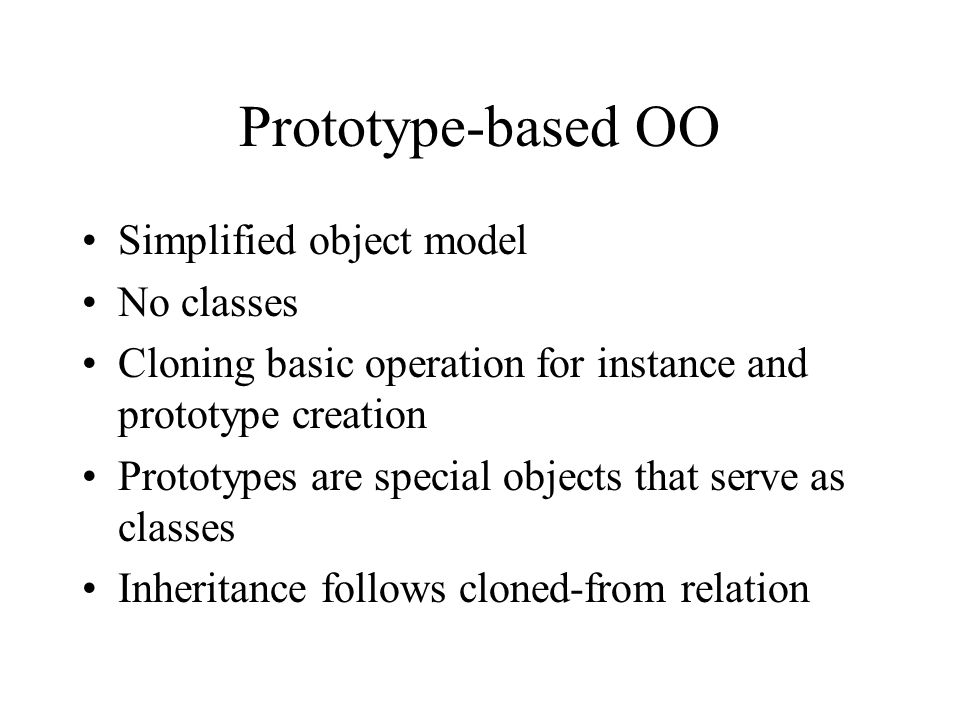

19. Prototype-based OO Simplified object model No classes Cloning basic operation for instance and prototype creation Prototypes are special objects that serve as classes Inheritance follows cloned-from relation

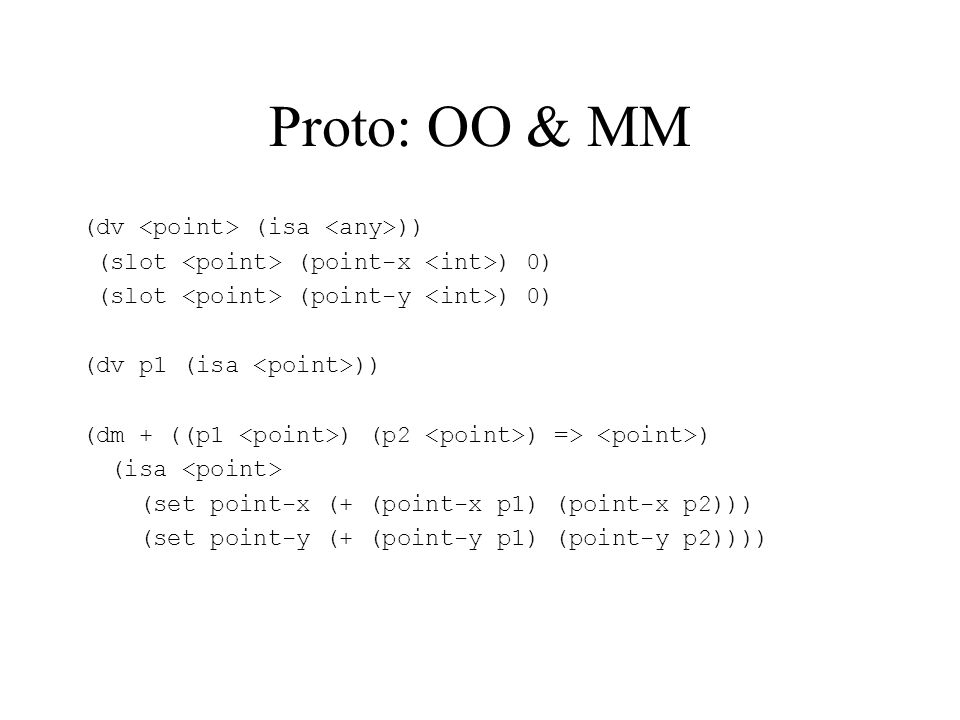

20. Proto: OO & MM (dv (isa )) (slot (point-x ) 0) (slot (point-y ) 0) (dv p1 (isa )) (dm + ((p1 ) (p2 ) => ) (isa (set point-x (+ (point-x p1) (point-x p2))) (set point-y (+ (point-y p1) (point-y p2))))

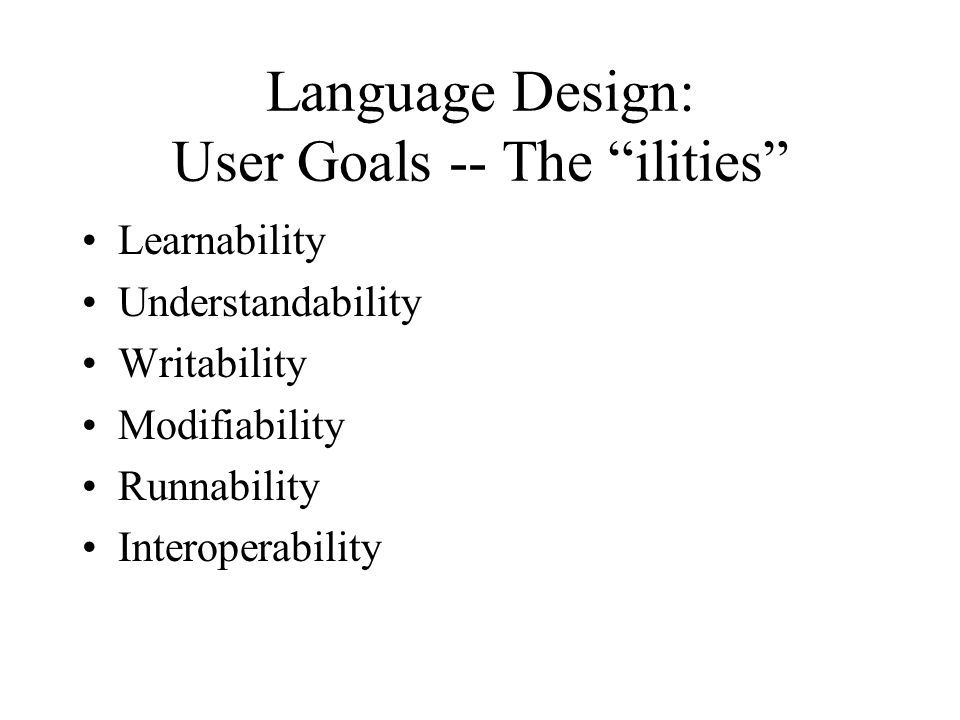

21. Language Design: User Goals -- The “ilities” Learnability Understandability Writability Modifiability Runnability Interoperability

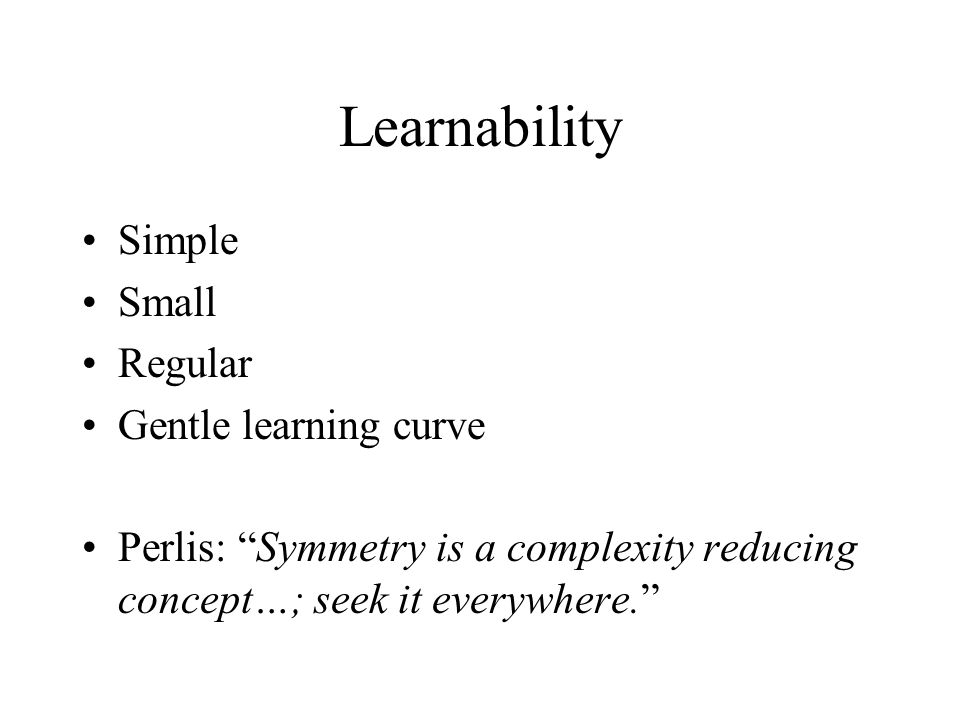

22. Learnability Simple Small Regular Gentle learning curve Perlis: “Symmetry is a complexity reducing concept…; seek it everywhere.”

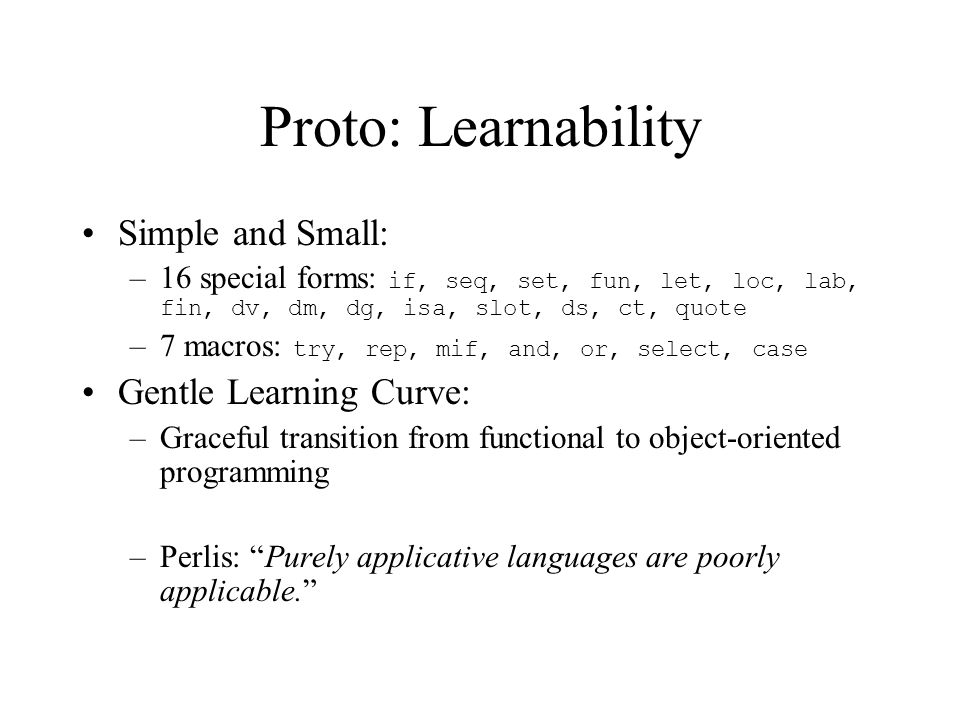

23. Proto: Learnability Simple and Small: –16 special forms: if, seq, set, fun, let, loc, lab, fin, dv, dm, dg, isa, slot, ds, ct, quote –7 macros: try, rep, mif, and, or, select, case Gentle Learning Curve: –Graceful transition from functional to object-oriented programming –Perlis: “Purely applicative languages are poorly applicable.”

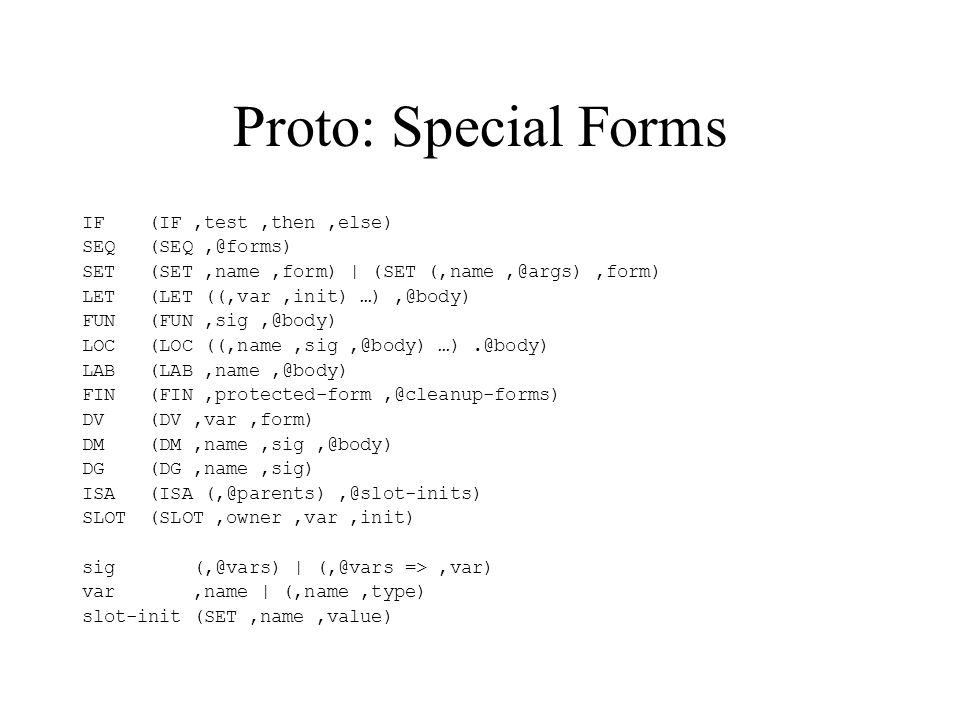

24. Proto: Special Forms IF (IF,test,then,else) SEQ (SEQ,@forms) SET (SET,name,form) | (SET (,name,@args),form) LET (LET ((,var,init) …),@body) FUN (FUN,sig,@body) LOC (LOC ((,name,sig,@body) …).@body) LAB (LAB,name,@body) FIN (FIN,protected-form,@cleanup-forms) DV (DV,var,form) DM (DM,name,sig,@body) DG (DG,name,sig) ISA (ISA (,@parents),@slot-inits) SLOT (SLOT,owner,var,init) sig (,@vars) | (,@vars =>,var) var,name | (,name,type) slot-init (SET,name,value)

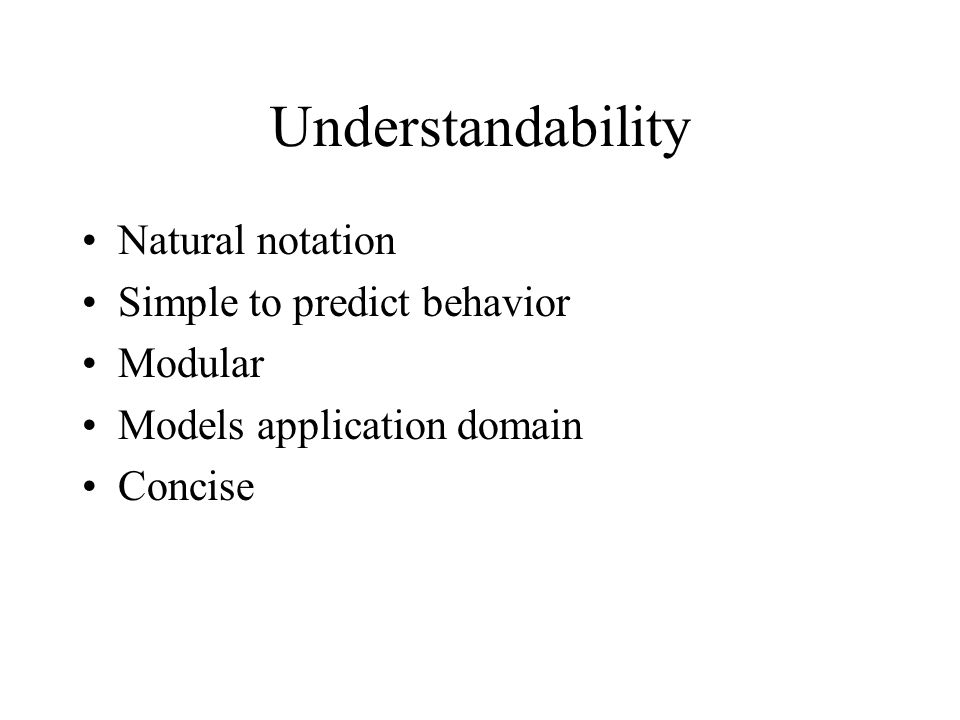

25. Understandability Natural notation Simple to predict behavior Modular Models application domain Concise

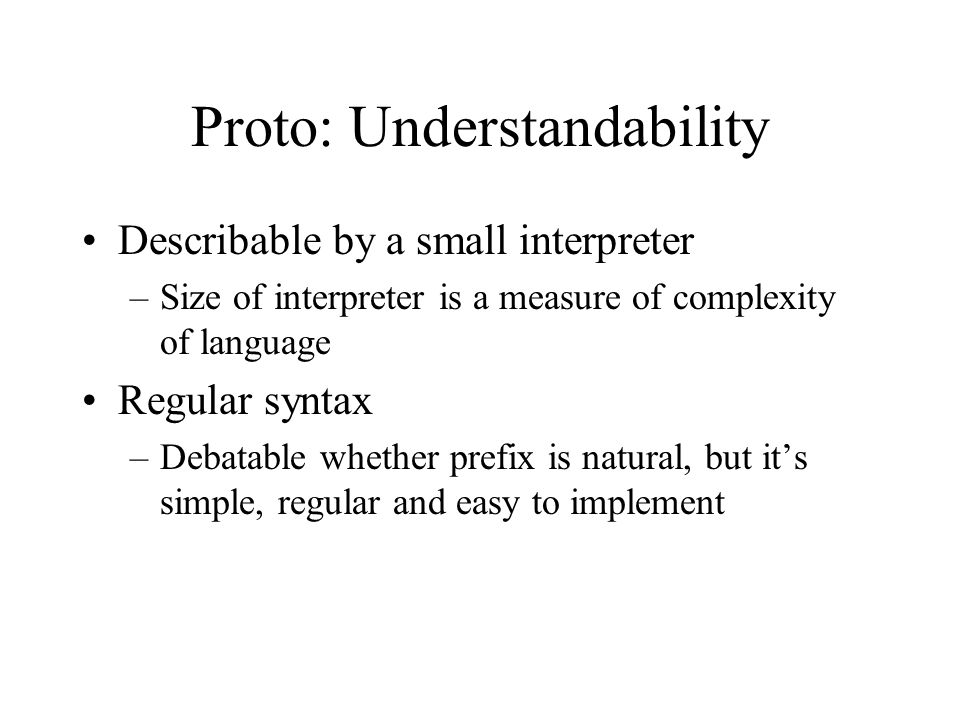

26. Proto: Understandability Describable by a small interpreter –Size of interpreter is a measure of complexity of language Regular syntax –Debatable whether prefix is natural, but it’s simple, regular and easy to implement

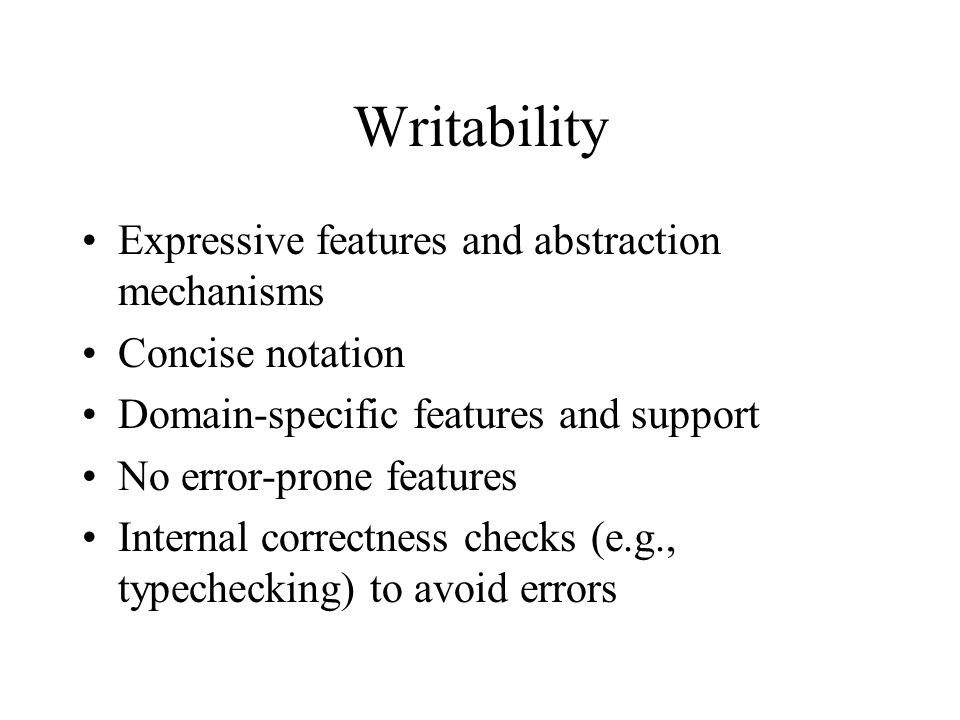

27. Writability Expressive features and abstraction mechanisms Concise notation Domain-specific features and support No error-prone features Internal correctness checks (e.g., typechecking) to avoid errors

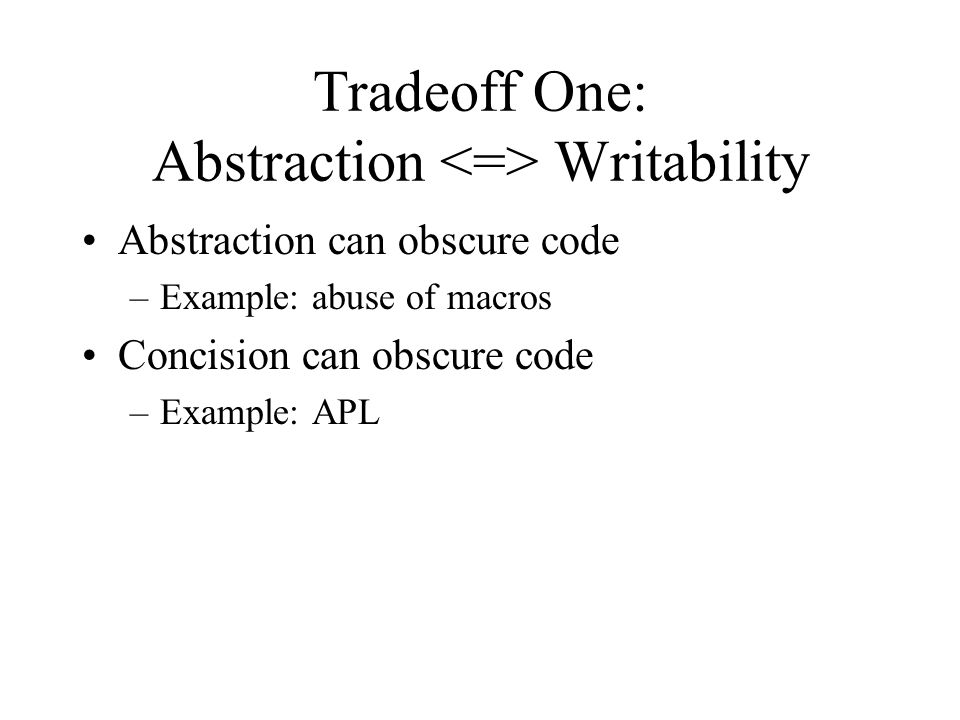

28. Tradeoff One: Abstraction Writability Abstraction can obscure code –Example: abuse of macros Concision can obscure code –Example: APL

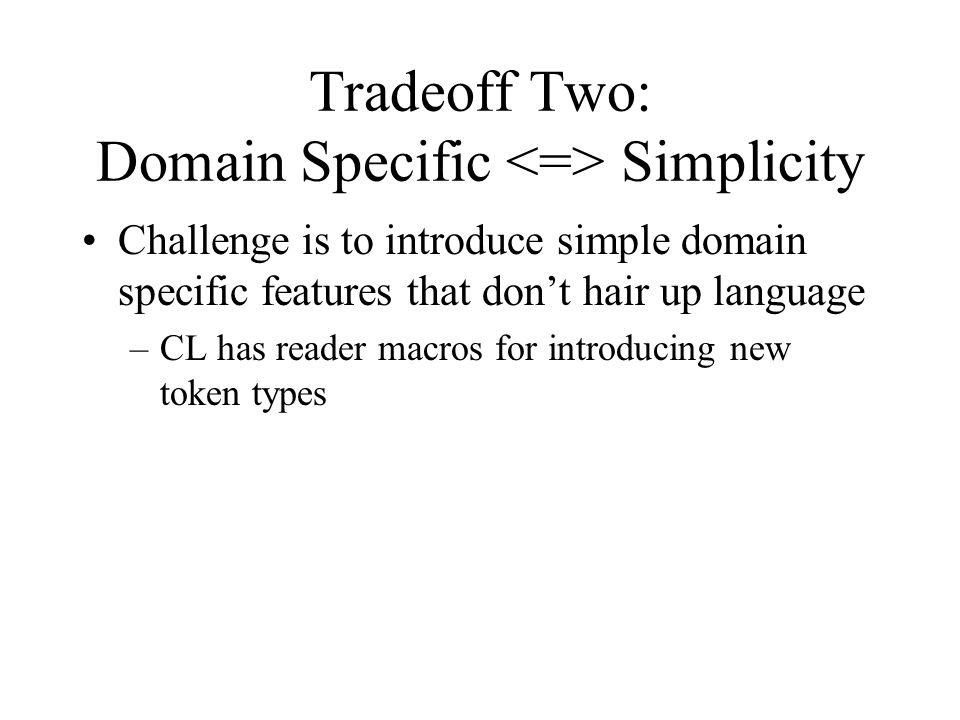

29. Tradeoff Two: Domain Specific Simplicity Challenge is to introduce simple domain specific features that don’t hair up language –CL has reader macros for introducing new token types

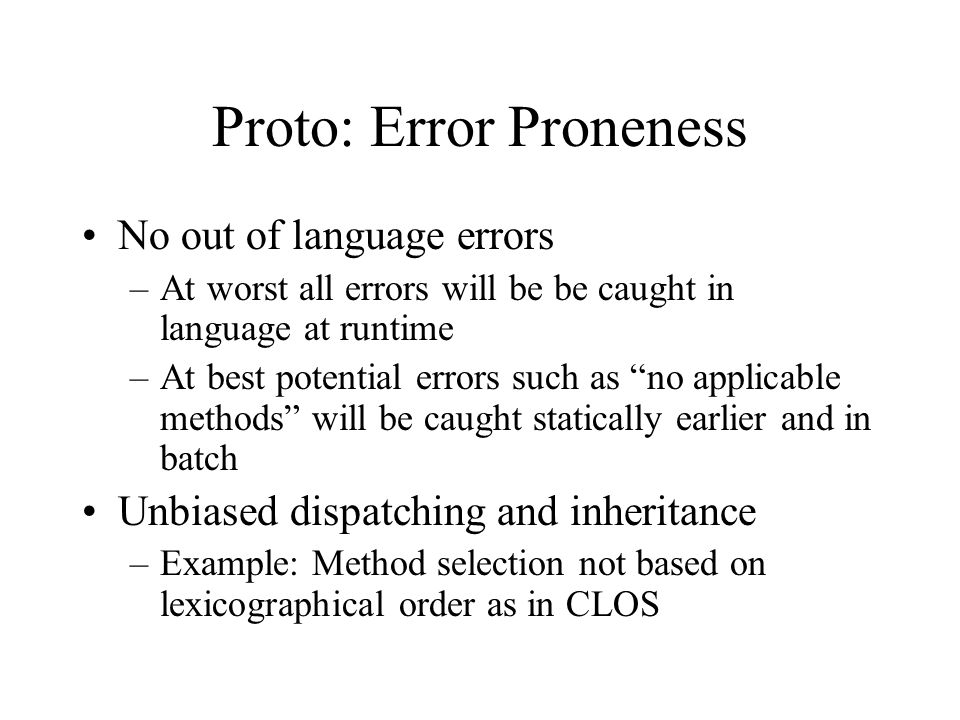

30. Proto: Error Proneness No out of language errors –At worst all errors will be be caught in language at runtime –At best potential errors such as “no applicable methods” will be caught statically earlier and in batch Unbiased dispatching and inheritance –Example: Method selection not based on lexicographical order as in CLOS

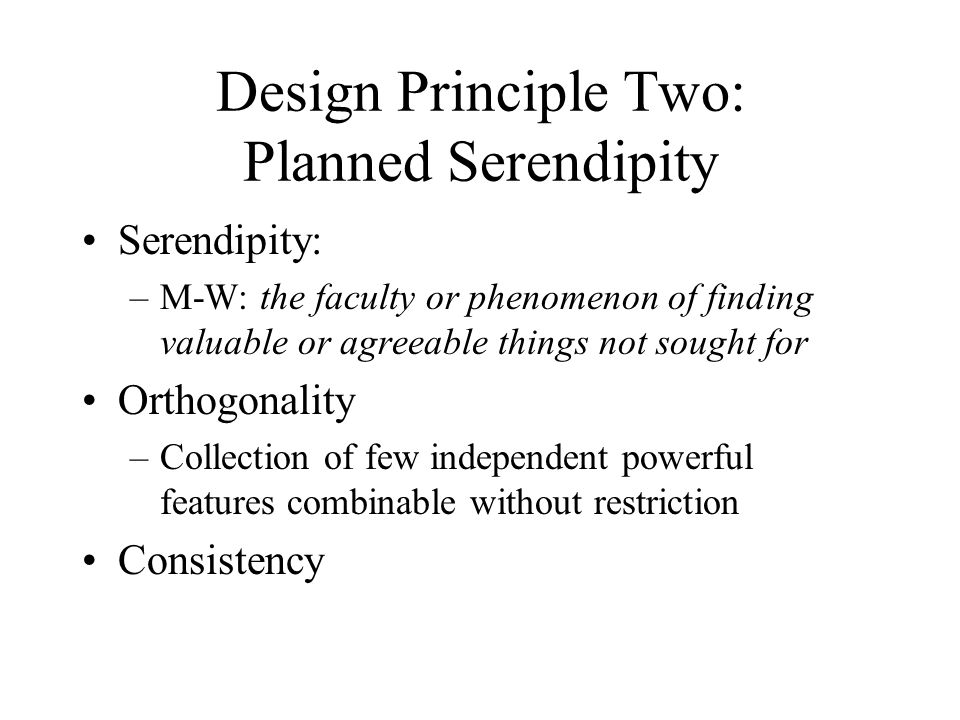

31. Design Principle Two: Planned Serendipity Serendipity: –M-W: the faculty or phenomenon of finding valuable or agreeable things not sought for Orthogonality –Collection of few independent powerful features combinable without restriction Consistency

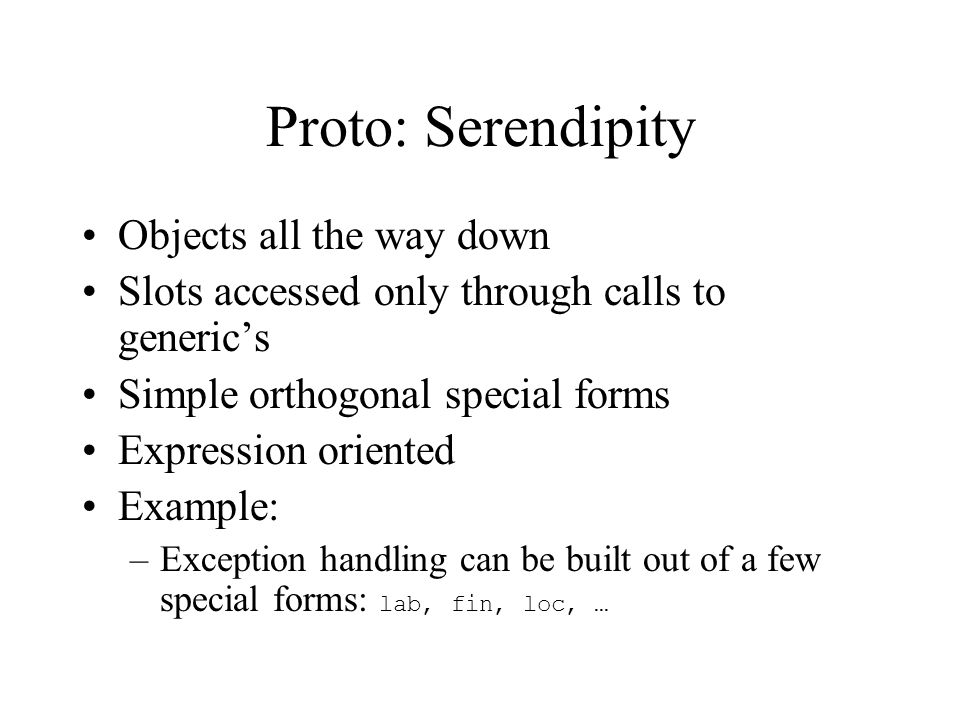

32. Proto: Serendipity Objects all the way down Slots accessed only through calls to generic’s Simple orthogonal special forms Expression oriented Example: –Exception handling can be built out of a few special forms: lab, fin, loc, …

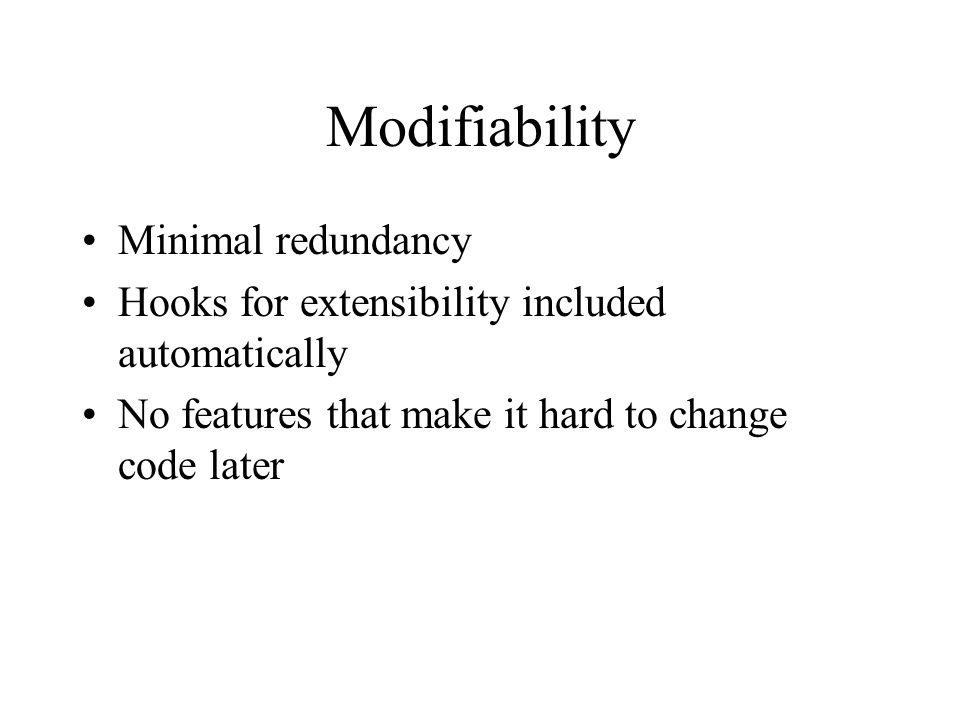

33. Modifiability Minimal redundancy Hooks for extensibility included automatically No features that make it hard to change code later

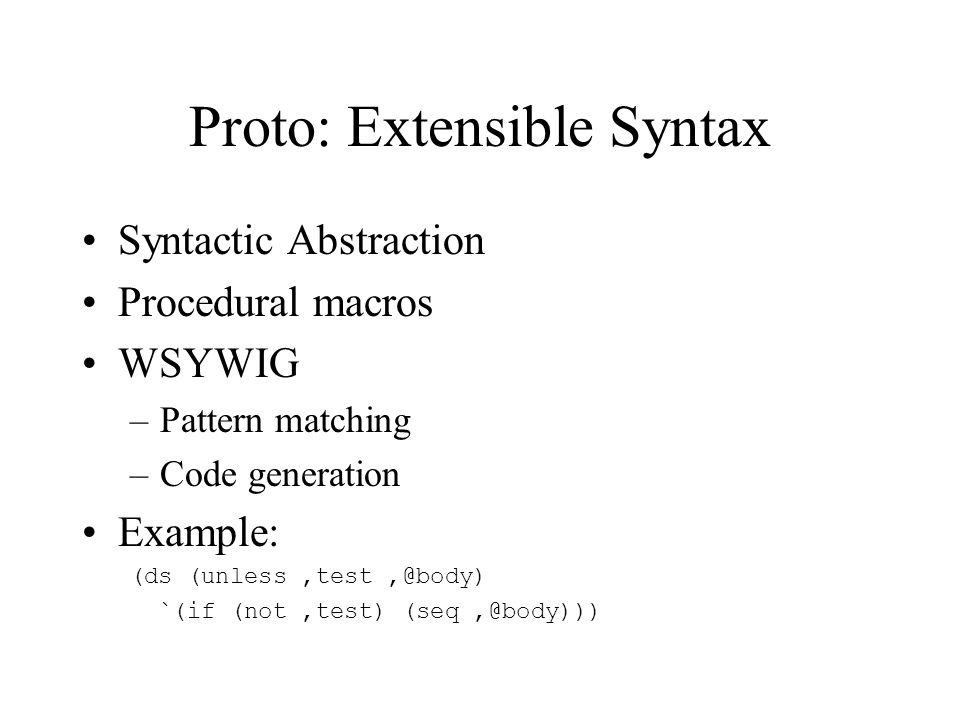

34. Proto: Extensible Syntax Syntactic Abstraction Procedural macros WSYWIG –Pattern matching –Code generation Example: (ds (unless,test,@body) `(if (not,test) (seq,@body)))

35. Proto: Multimethods Can add methods outside original class definition: –(dm jb-print ((x )) …)

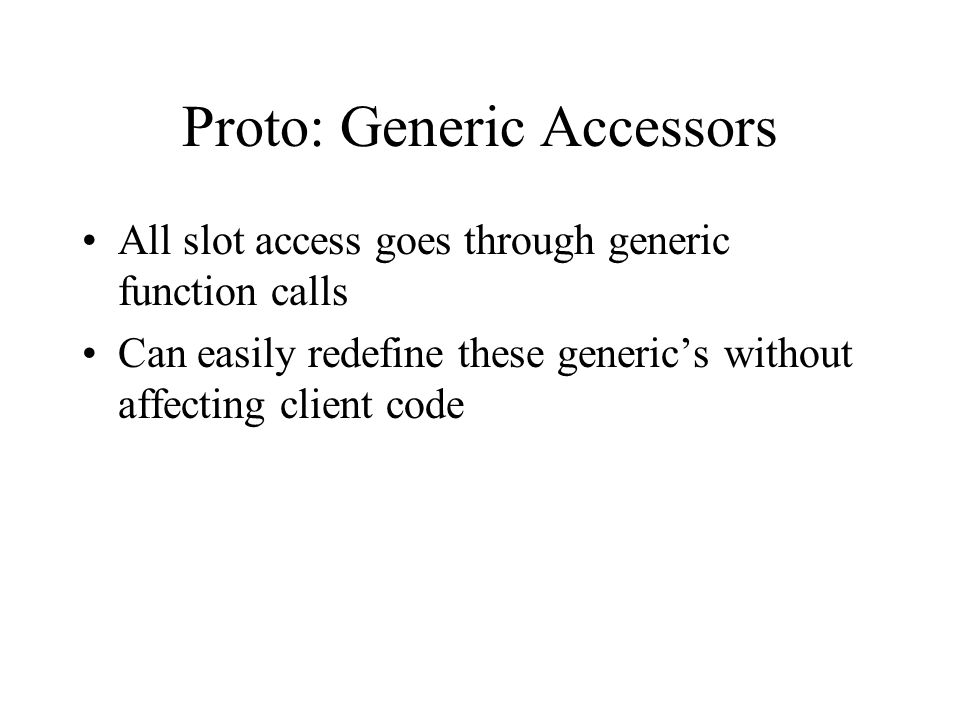

36. Proto: Generic Accessors All slot access goes through generic function calls Can easily redefine these generic’s without affecting client code

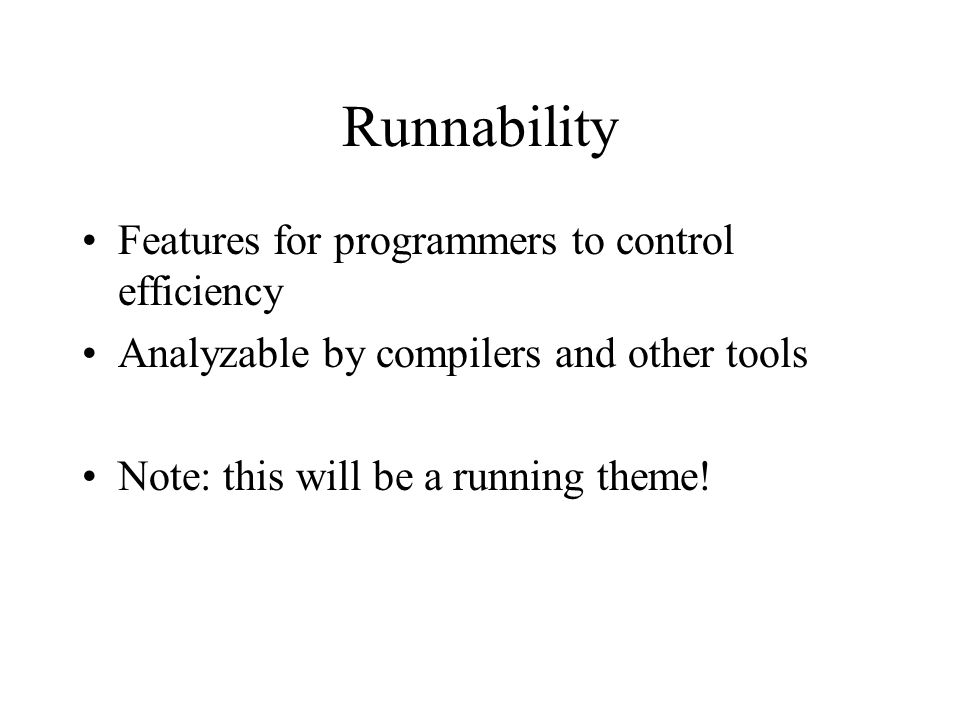

37. Runnability Features for programmers to control efficiency Analyzable by compilers and other tools Note: this will be a running theme!

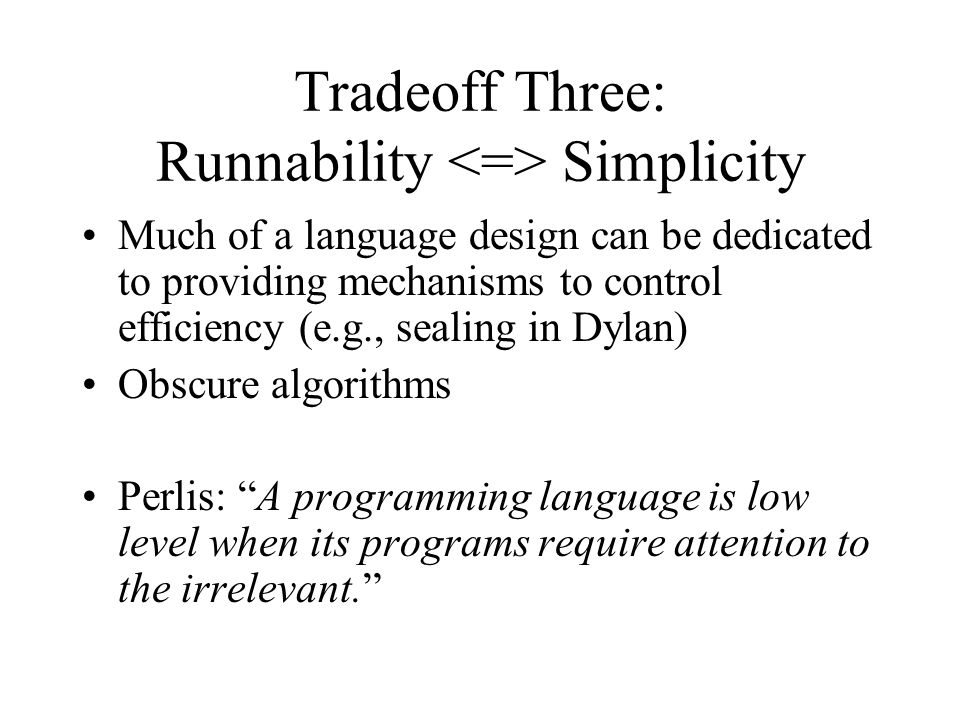

38. Tradeoff Three: Runnability Simplicity Much of a language design can be dedicated to providing mechanisms to control efficiency (e.g., sealing in Dylan) Obscure algorithms Perlis: “A programming language is low level when its programs require attention to the irrelevant.”

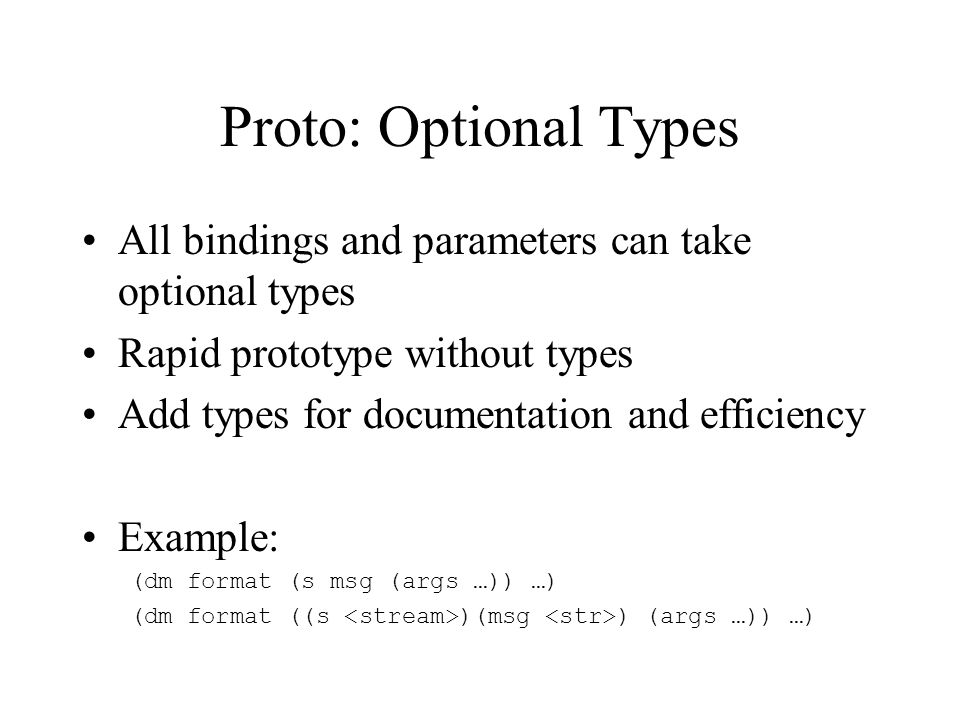

39. Proto: Optional Types All bindings and parameters can take optional types Rapid prototype without types Add types for documentation and efficiency Example: (dm format (s msg (args …)) …) (dm format ((s )(msg ) (args …)) …)

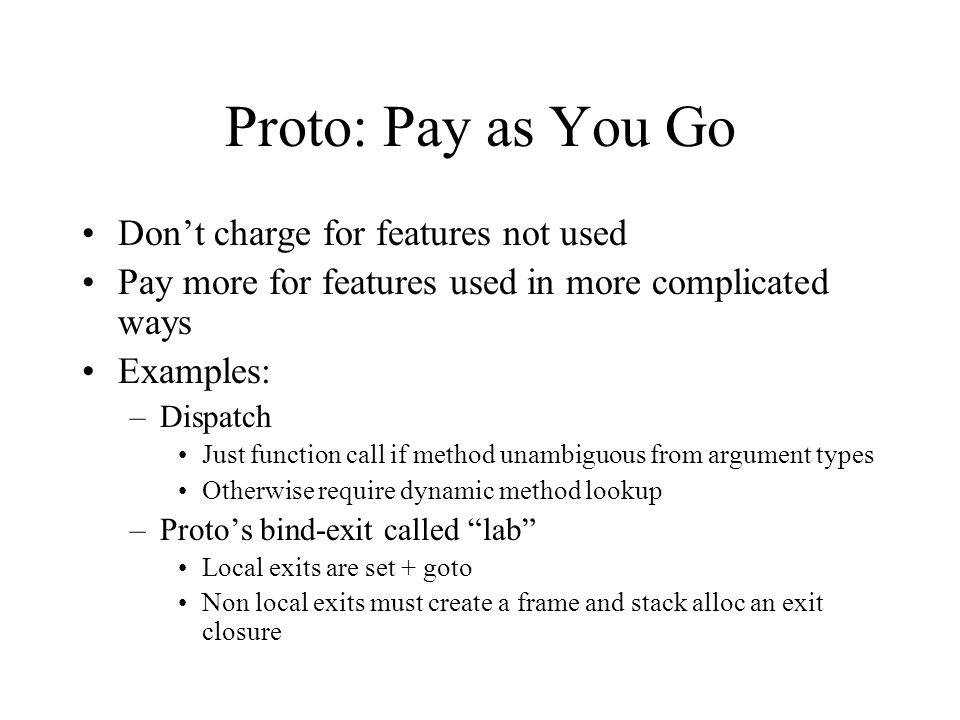

40. Proto: Pay as You Go Don’t charge for features not used Pay more for features used in more complicated ways Examples: –Dispatch Just function call if method unambiguous from argument types Otherwise require dynamic method lookup –Proto’s bind-exit called “lab” Local exits are set + goto Non local exits must create a frame and stack alloc an exit closure

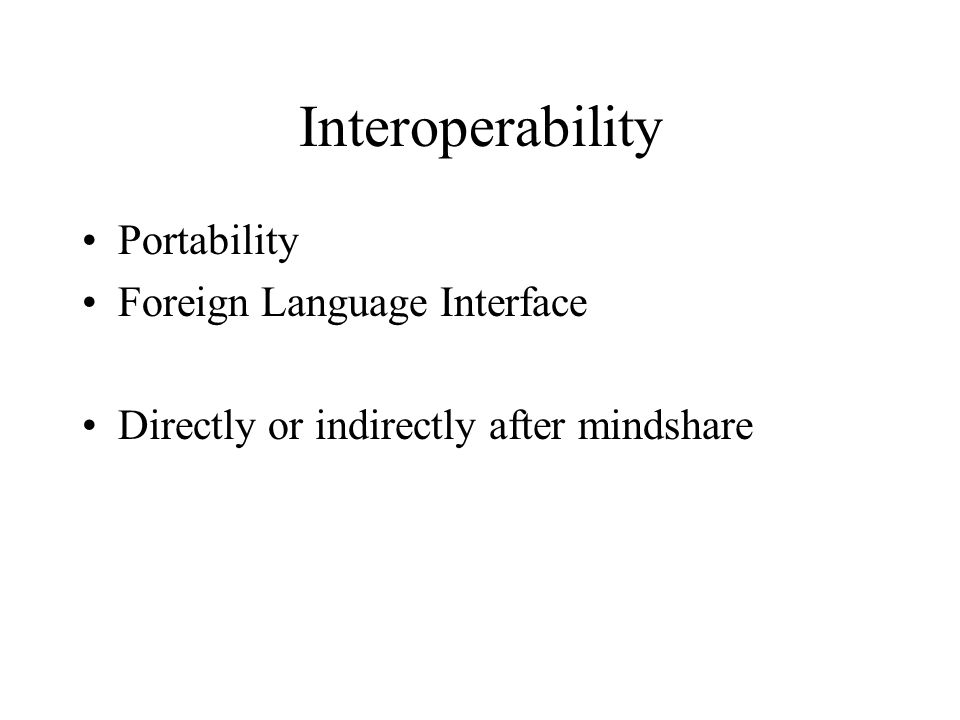

41. Interoperability Portability Foreign Language Interface Directly or indirectly after mindshare

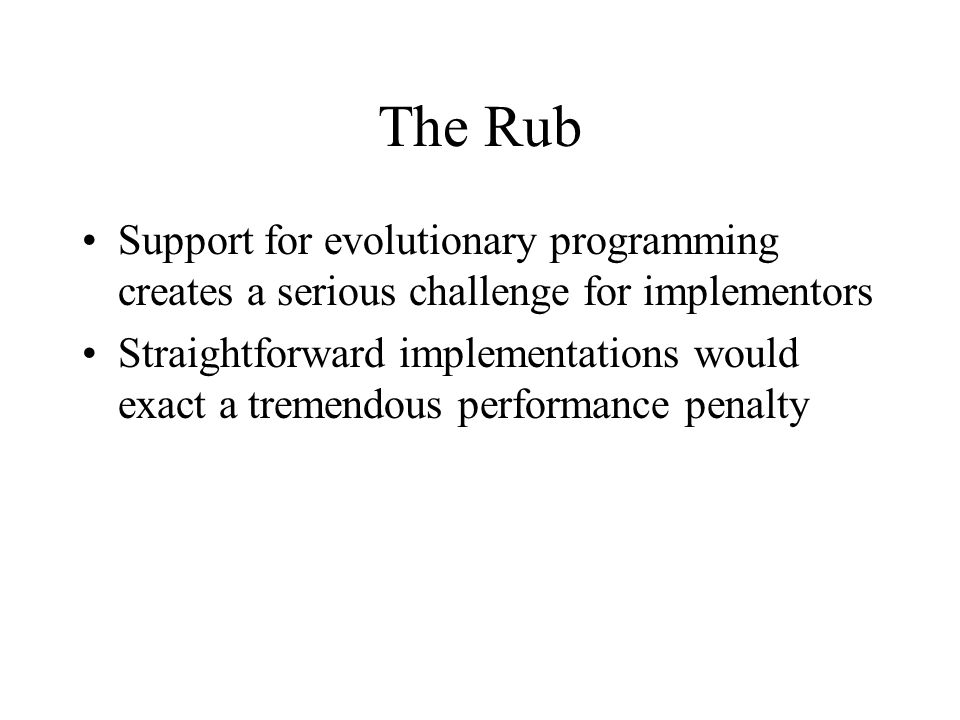

42. The Rub Support for evolutionary programming creates a serious challenge for implementors Straightforward implementations would exact a tremendous performance penalty

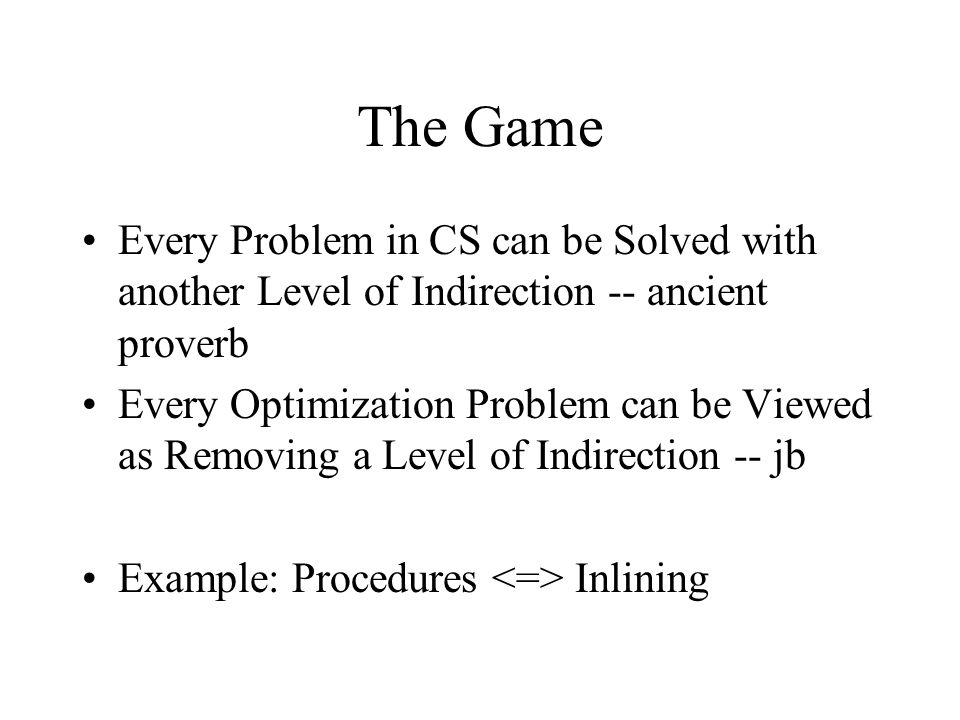

43. The Game Every Problem in CS can be Solved with another Level of Indirection -- ancient proverb Every Optimization Problem can be Viewed as Removing a Level of Indirection -- jb Example: Procedures Inlining

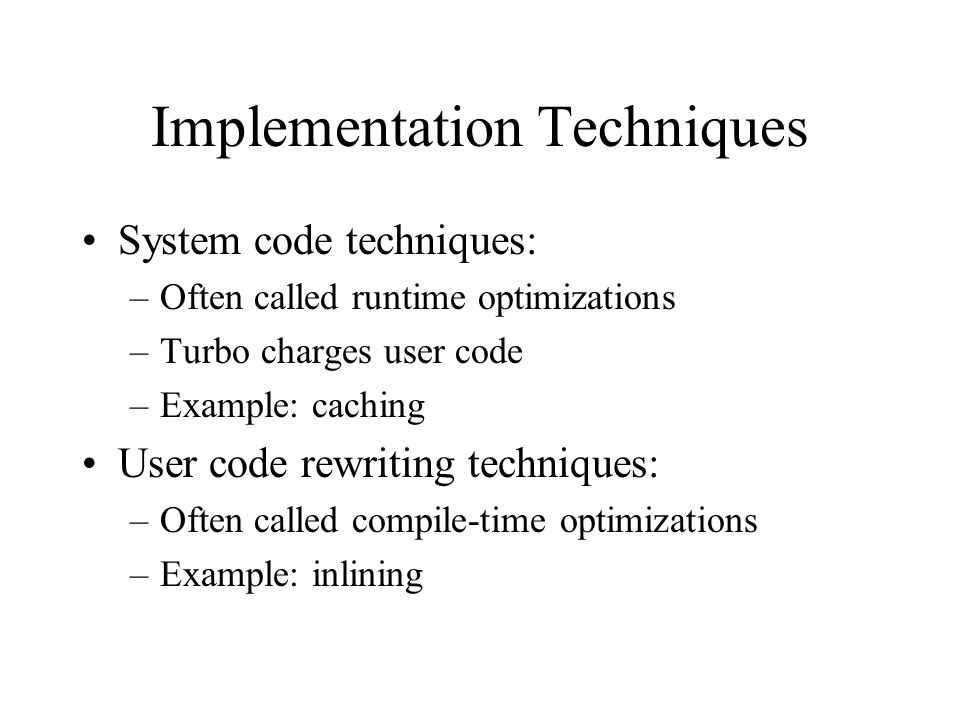

44. Implementation Techniques System code techniques: –Often called runtime optimizations –Turbo charges user code –Example: caching User code rewriting techniques: –Often called compile-time optimizations –Example: inlining

45. Implementing Prototypes Problem –No classes only objects –But objects need descriptions of slots and state –Would be too expensive for each object to have a copy of these descriptions A solution: –Create classes called traits on demand When you are cloned or When slots are added to you –Objects contain their values and share traits through a traits pointer

46. Proto: Traits on Demand

47. Implementing Generic Dispatch Multimethod dispatch –Considers all arguments –Orders methods based on specializer type specificity Naïve description: –Find applicable methods –Sort applicable methods –Call most specific method Problem: too expensive

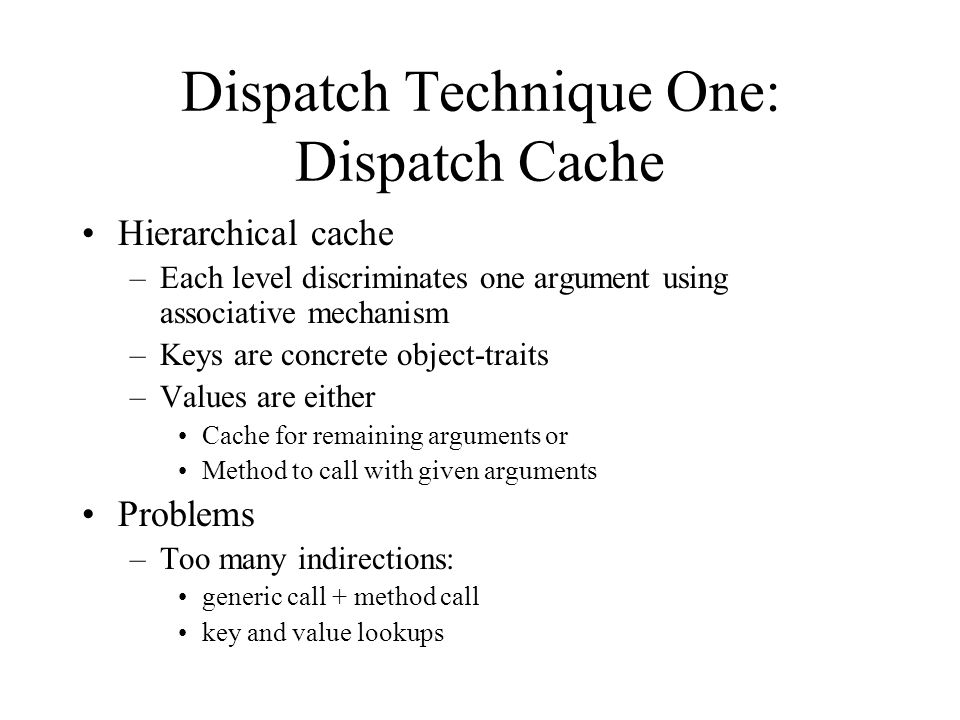

48. Dispatch Technique One: Dispatch Cache Hierarchical cache –Each level discriminates one argument using associative mechanism –Keys are concrete object-traits –Values are either Cache for remaining arguments or Method to call with given arguments Problems –Too many indirections: generic call + method call key and value lookups

49. Engine Node Dispatch Glenn Burke and myself at Harlequin, Inc. circa 1996- –Partial Dispatch: Optimizing Dynamically-Dispatched Multimethod Calls with Compile-Time Types and Runtime Feedback, 1998 Shared decision tree built out of executable engine nodes Incrementally grows trees on demand upon miss Engine nodes are executed to perform some action typically tail calling another engine node eventually tail calling chosen method Appropriate engine nodes can be utilized to handle monomorphic, polymorphic, and megamorphic discrimination cases corresponding to single, linear, and table lookup

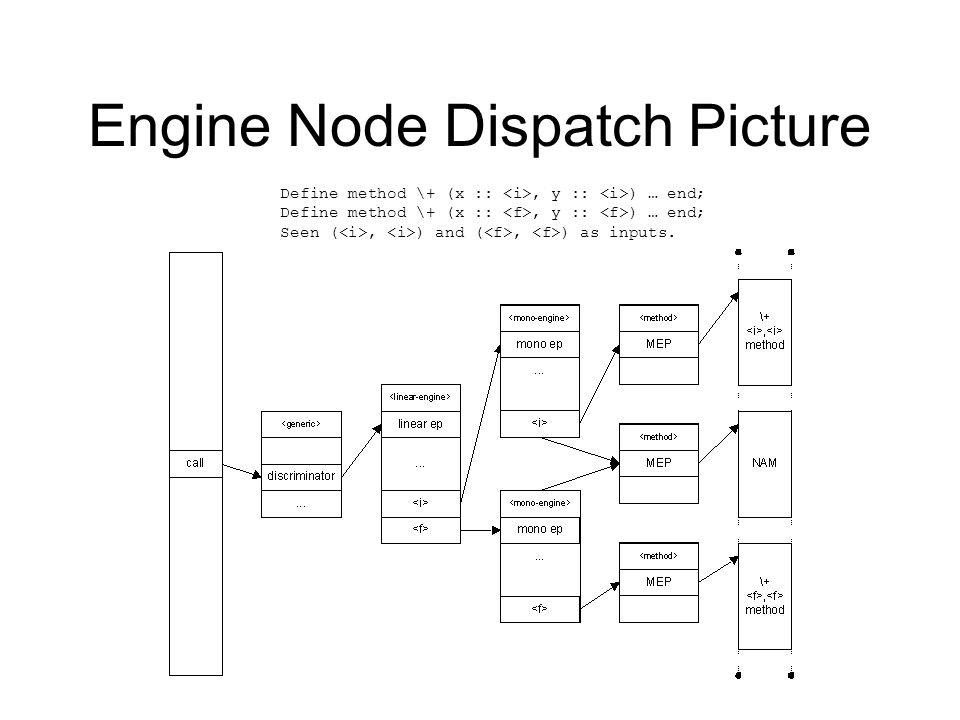

50. Engine Node Dispatch Picture Define method \+ (x ::, y :: ) … end; Seen (, ) and (, ) as inputs.

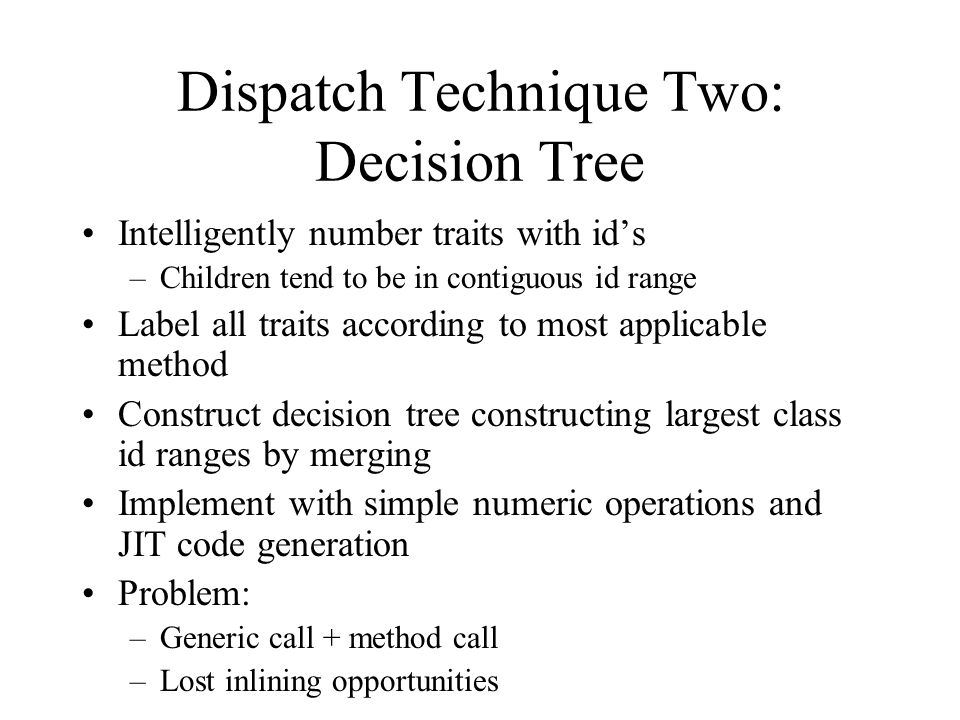

51. Dispatch Technique Two: Decision Tree Intelligently number traits with id’s –Children tend to be in contiguous id range Label all traits according to most applicable method Construct decision tree constructing largest class id ranges by merging Implement with simple numeric operations and JIT code generation Problem: –Generic call + method call –Lost inlining opportunities

52. Class Numbering

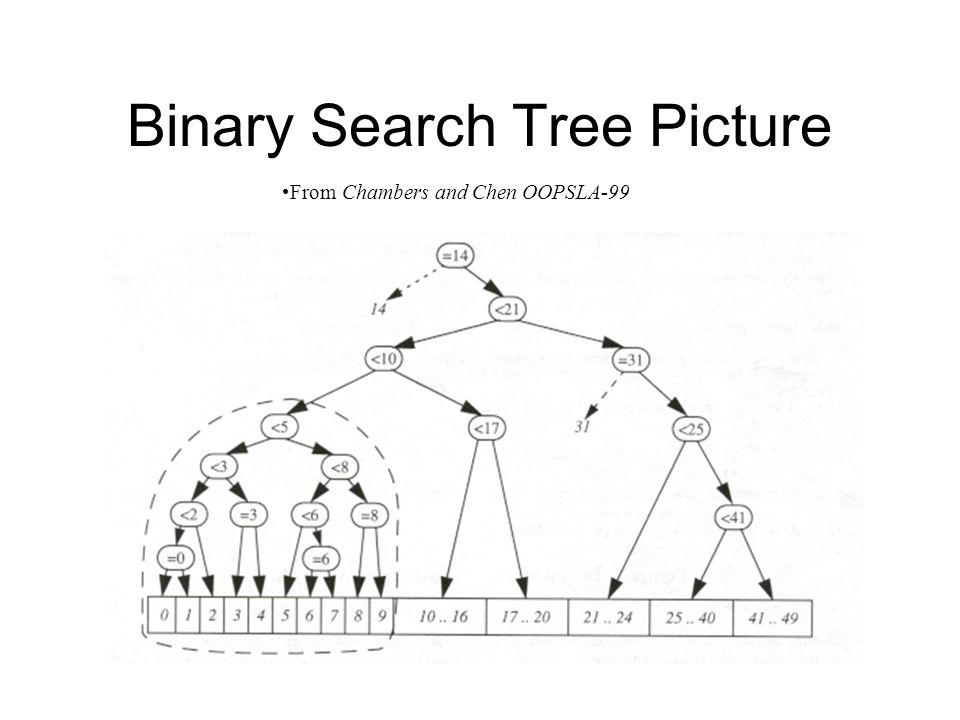

53. Binary Search Tree Picture From Chambers and Chen OOPSLA-99

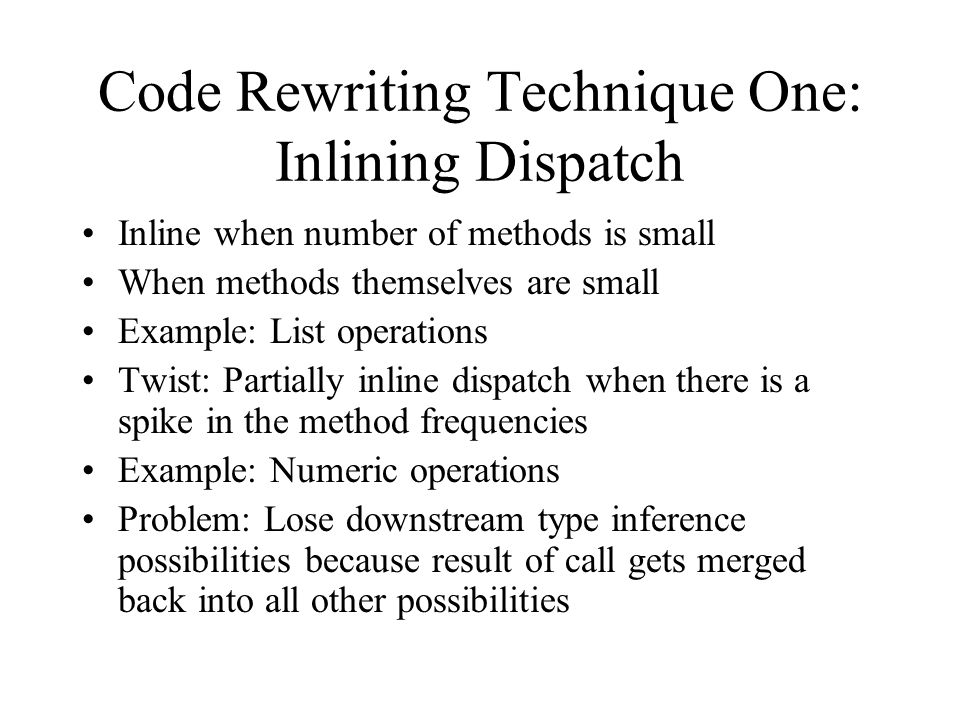

54. Code Rewriting Technique One: Inlining Dispatch Inline when number of methods is small When methods themselves are small Example: List operations Twist: Partially inline dispatch when there is a spike in the method frequencies Example: Numeric operations Problem: Lose downstream type inference possibilities because result of call gets merged back into all other possibilities

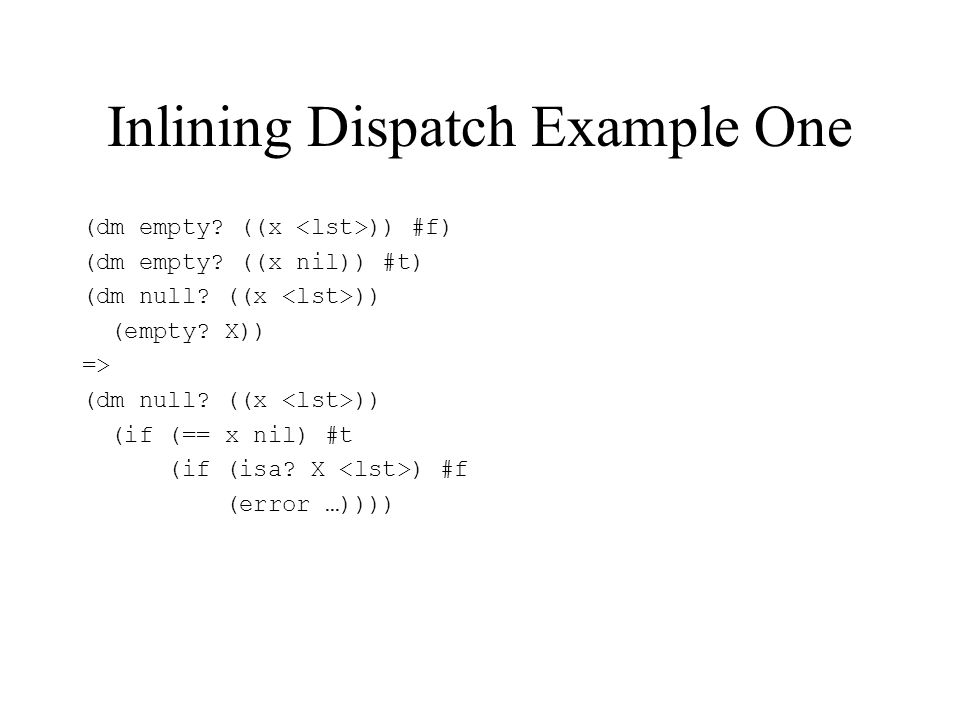

55. Inlining Dispatch Example One (dm empty? ((x )) #f) (dm empty? ((x nil)) #t) (dm null? ((x )) (empty? X)) => (dm null? ((x )) (if (== x nil) #t (if (isa? X ) #f (error …))))

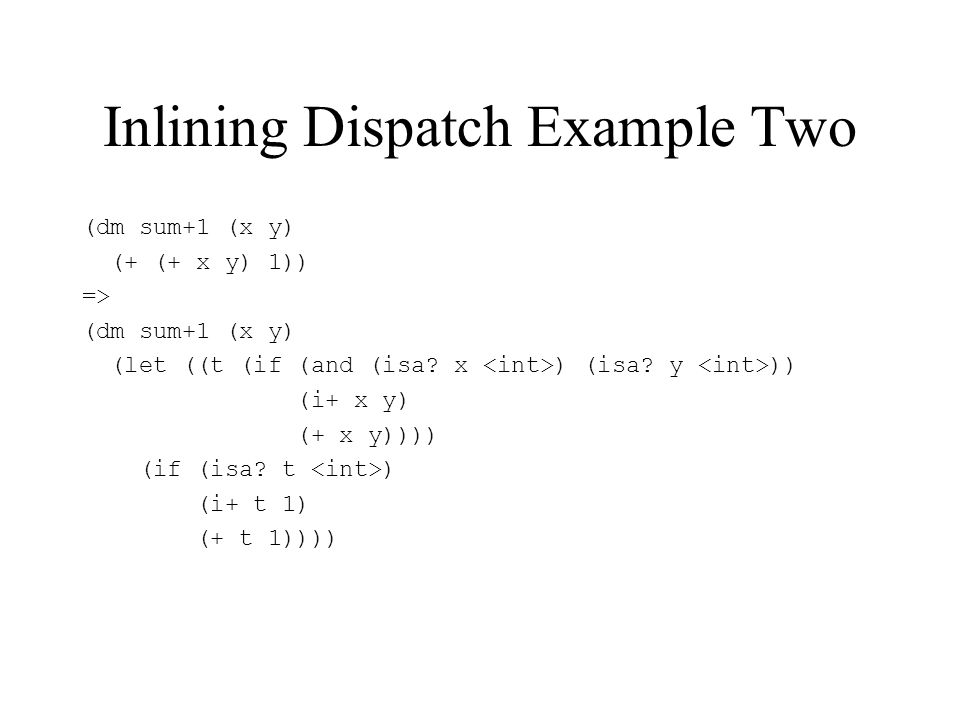

56. Inlining Dispatch Example Two (dm sum+1 (x y) (+ (+ x y) 1)) => (dm sum+1 (x y) (let ((t (if (and (isa? x ) (isa? y )) (i+ x y) (+ x y)))) (if (isa? t ) (i+ t 1) (+ t 1))))

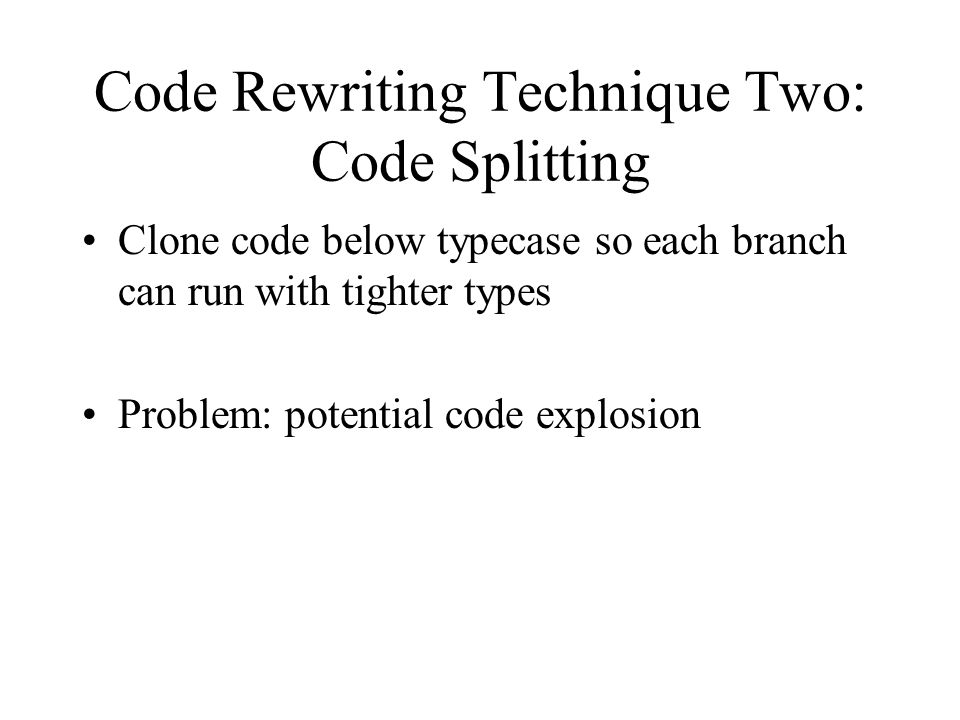

57. Code Rewriting Technique Two: Code Splitting Clone code below typecase so each branch can run with tighter types Problem: potential code explosion

58. Code Splitting Example (dm sum+1 (x y) (+ (+ x y) 1)) => (dm sum+1 (x y) (if (and (isa? x ) (isa? y )) (i+ (i+ x y) 1) (+ (+ x y) 1)))

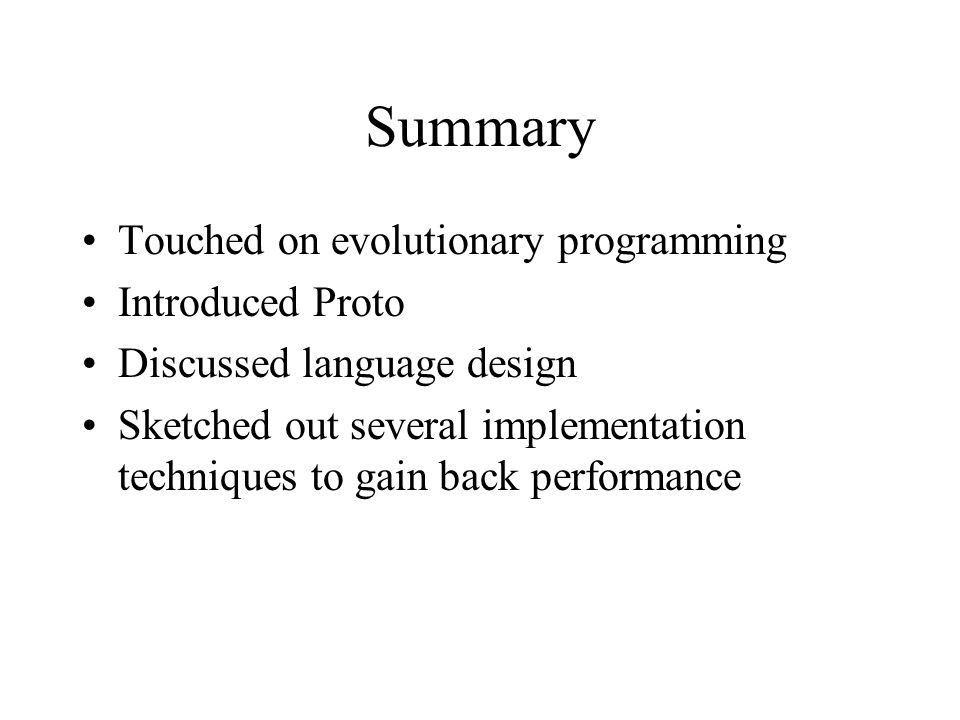

59. Summary Touched on evolutionary programming Introduced Proto Discussed language design Sketched out several implementation techniques to gain back performance

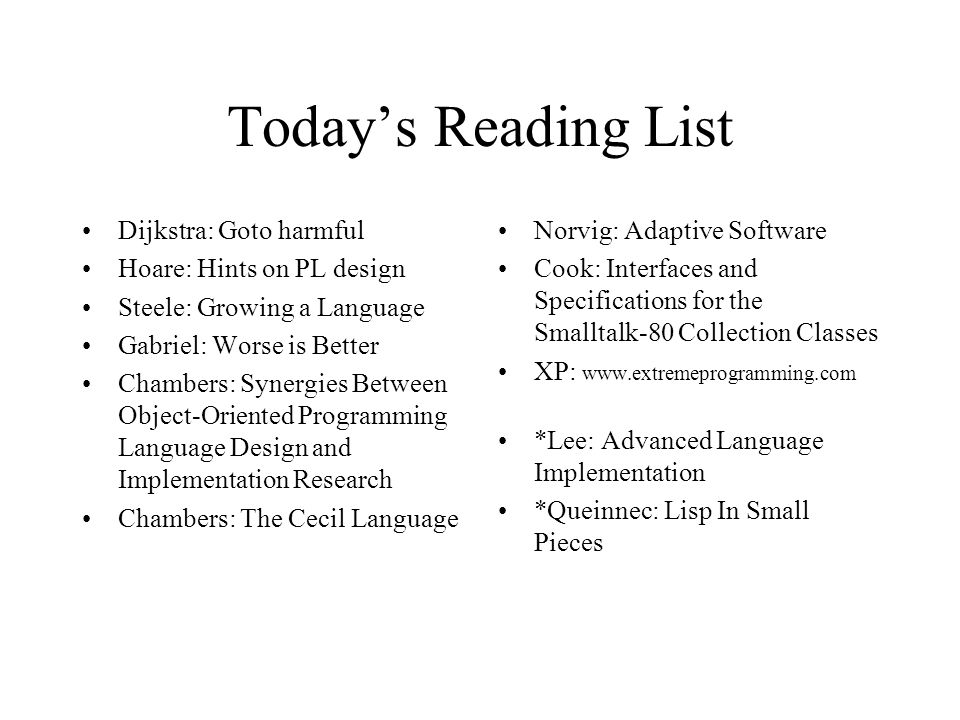

60. Today’s Reading List Dijkstra: Goto harmful Hoare: Hints on PL design Steele: Growing a Language Gabriel: Worse is Better Chambers: Synergies Between Object-Oriented Programming Language Design and Implementation Research Chambers: The Cecil Language Norvig: Adaptive Software Cook: Interfaces and Specifications for the Smalltalk-80 Collection Classes XP: www.extremeprogramming.com *Lee: Advanced Language Implementation *Queinnec: Lisp In Small Pieces

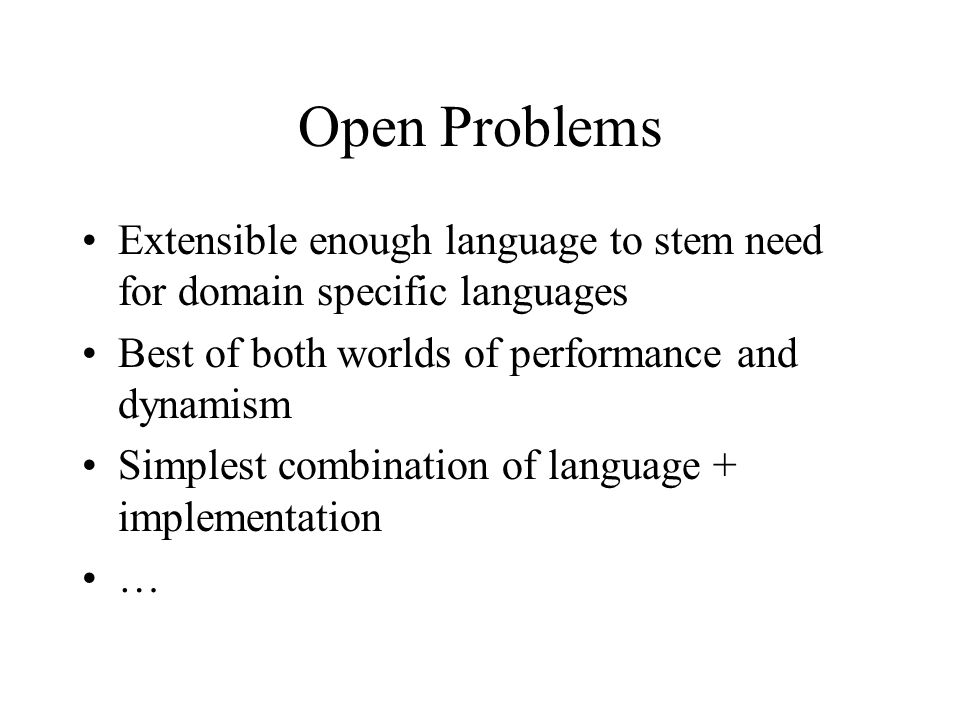

61. Open Problems Extensible enough language to stem need for domain specific languages Best of both worlds of performance and dynamism Simplest combination of language + implementation …

62. Credits Craig Chambers’ notes on language design for UW CSE-505

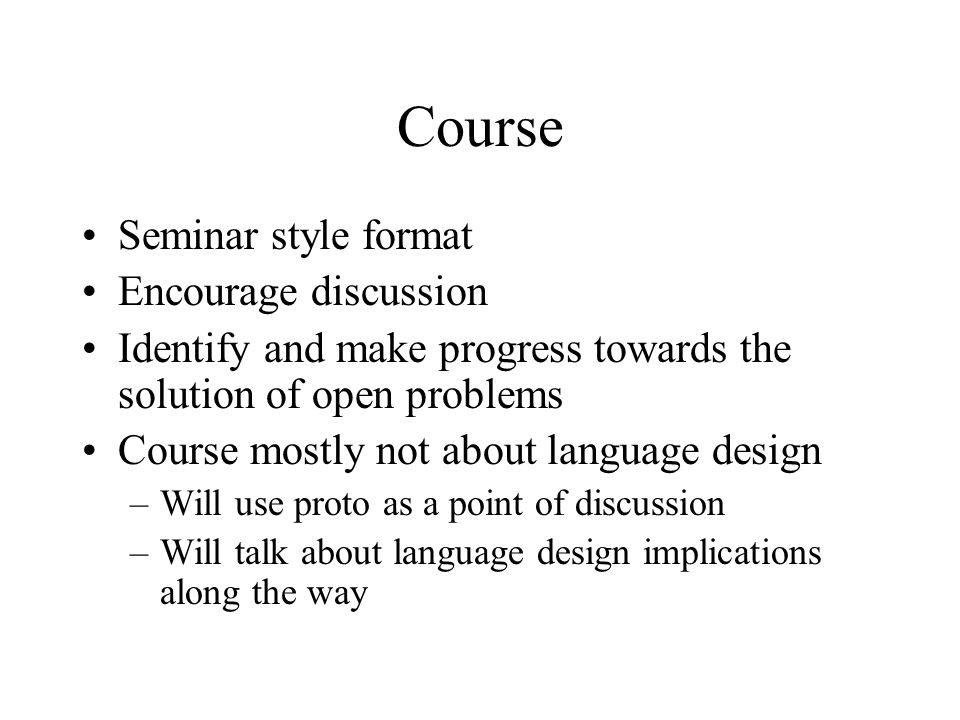

63. Course Seminar style format Encourage discussion Identify and make progress towards the solution of open problems Course mostly not about language design –Will use proto as a point of discussion –Will talk about language design implications along the way

64. Prerequisites 6.001 (SICP) 6.035 (Computer Language Engineering) 6.821 (Programming Languages) preferred Or permission of instructor

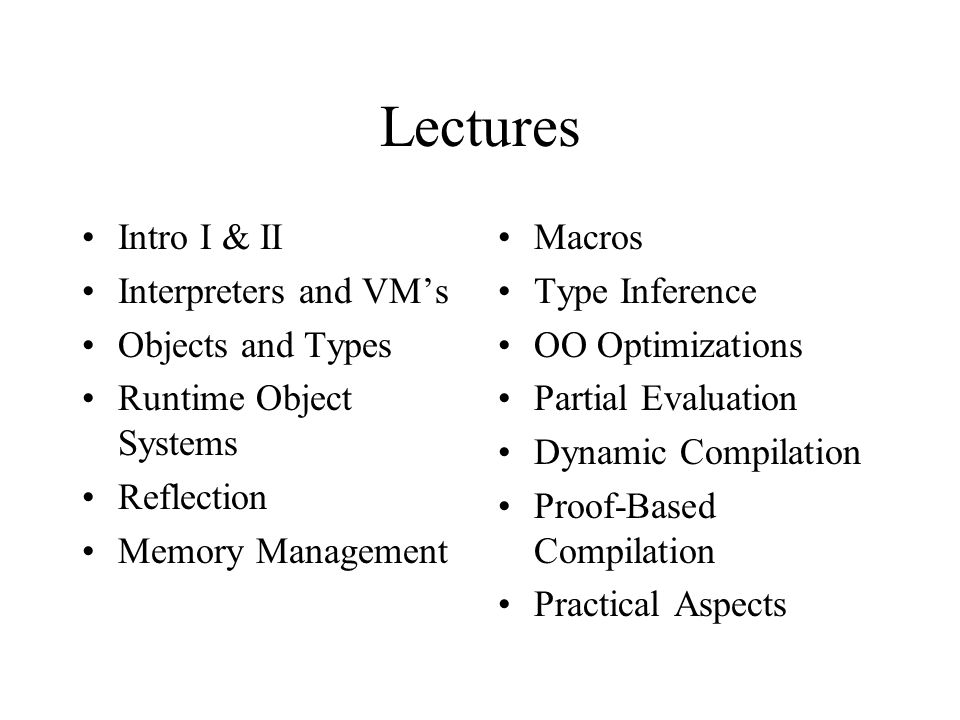

65. Lectures Intro I & II Interpreters and VM’s Objects and Types Runtime Object Systems Reflection Memory Management Macros Type Inference OO Optimizations Partial Evaluation Dynamic Compilation Proof-Based Compilation Practical Aspects

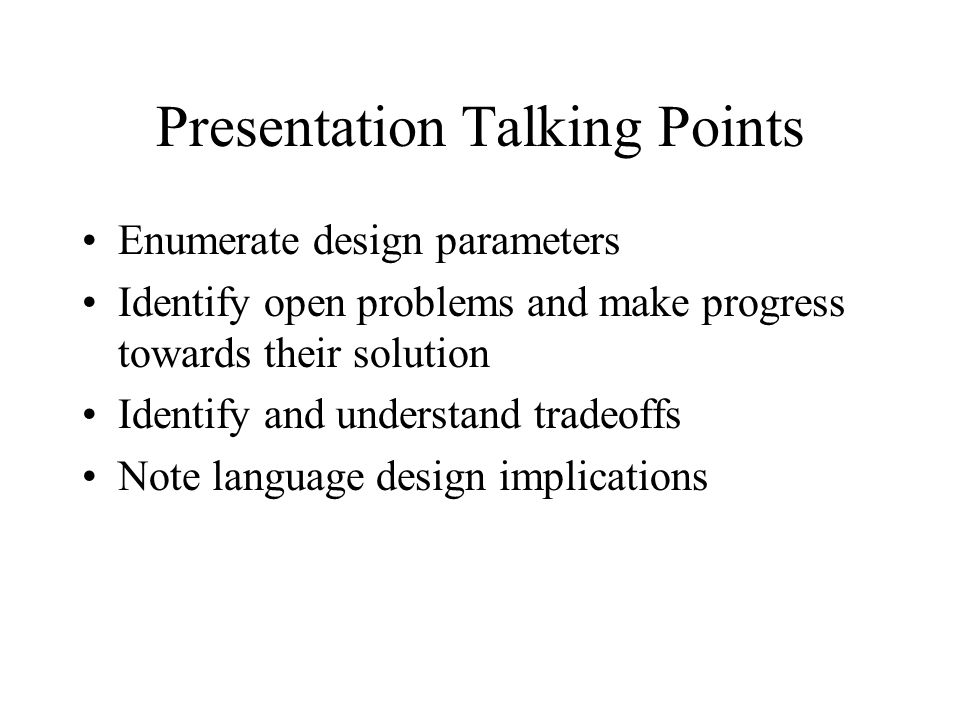

66. Presentation Talking Points Enumerate design parameters Identify open problems and make progress towards their solution Identify and understand tradeoffs Note language design implications

67. Paper Presentations Each student will present one or two papers judged important to the course Each presentation will be about a half hour A reading list is available on the course web site Other research can be presented at instructor’s discretion Three slots in the following categories: Language Design, Interpreters & VM’s Types and Object Systems, Reflection, and Memory Management Macros, Type Inference, and OO Optimizations, Partial Evaluation and Dynamic Compilation

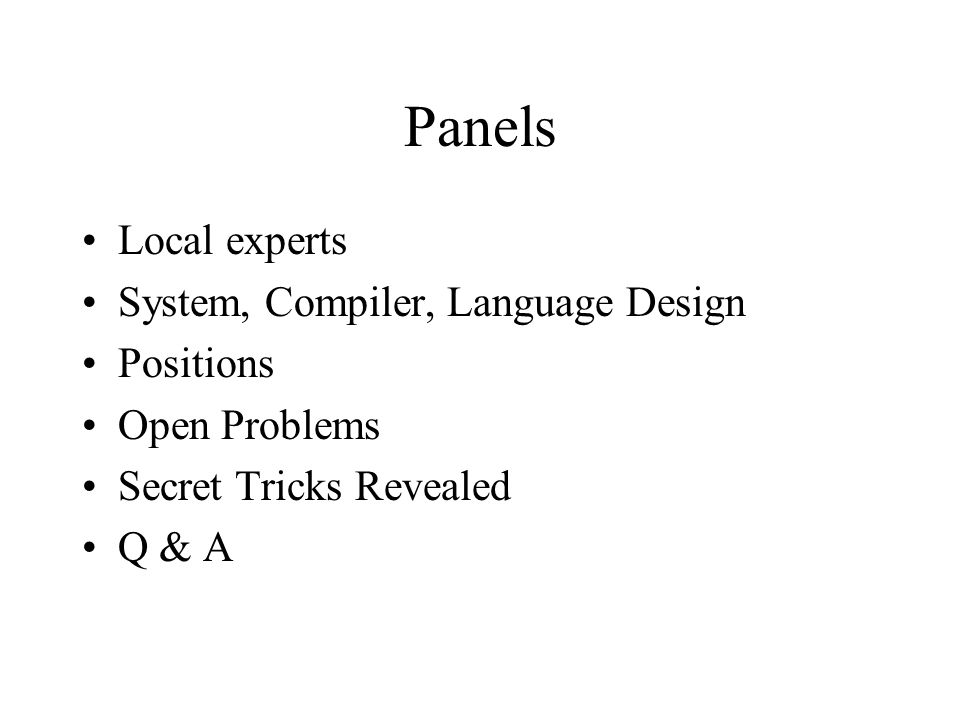

68. Panels Local experts System, Compiler, Language Design Positions Open Problems Secret Tricks Revealed Q & A

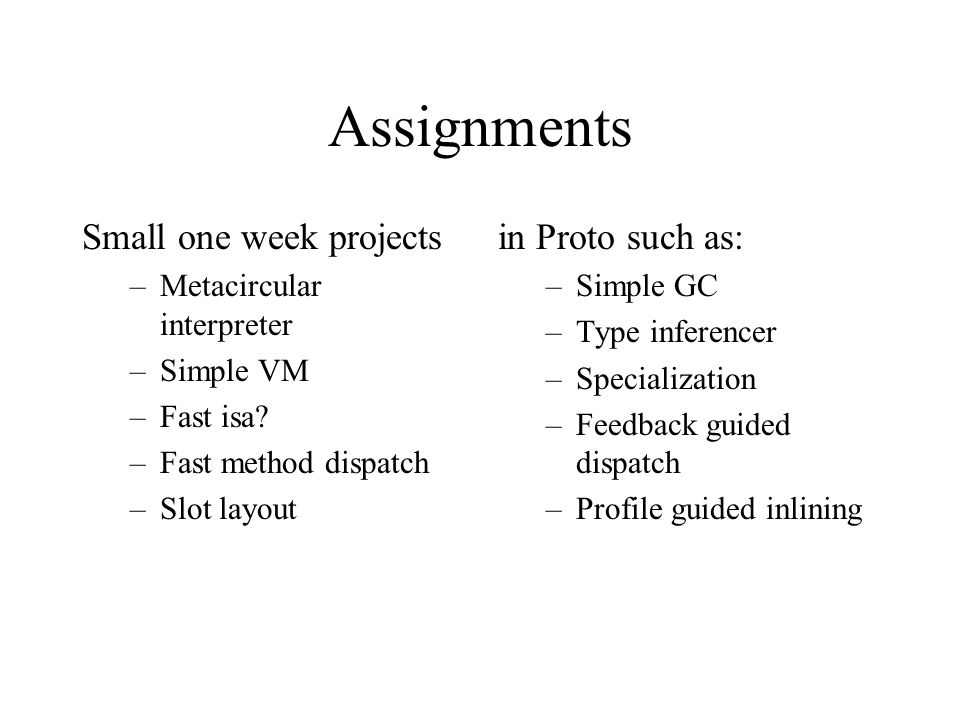

69. Assignments Small one week projects –Metacircular interpreter –Simple VM –Fast isa? –Fast method dispatch –Slot layout in Proto such as: –Simple GC –Type inferencer –Specialization –Feedback guided dispatch –Profile guided inlining

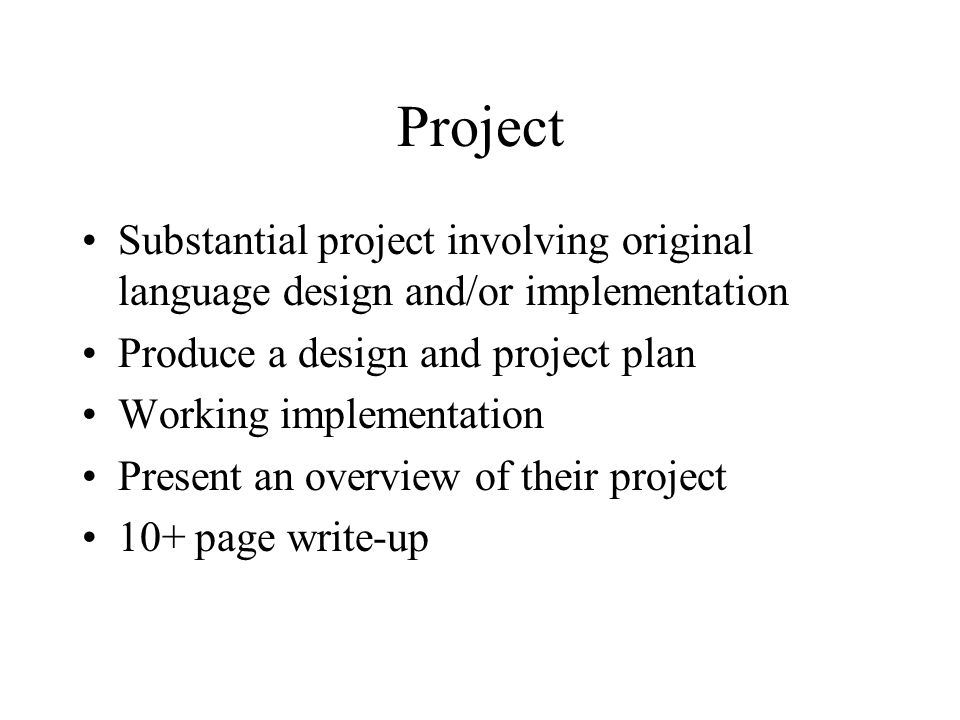

70. Project Substantial project involving original language design and/or implementation Produce a design and project plan Working implementation Present an overview of their project 10+ page write-up

71. Grades Will be based on the deliverables and class participation

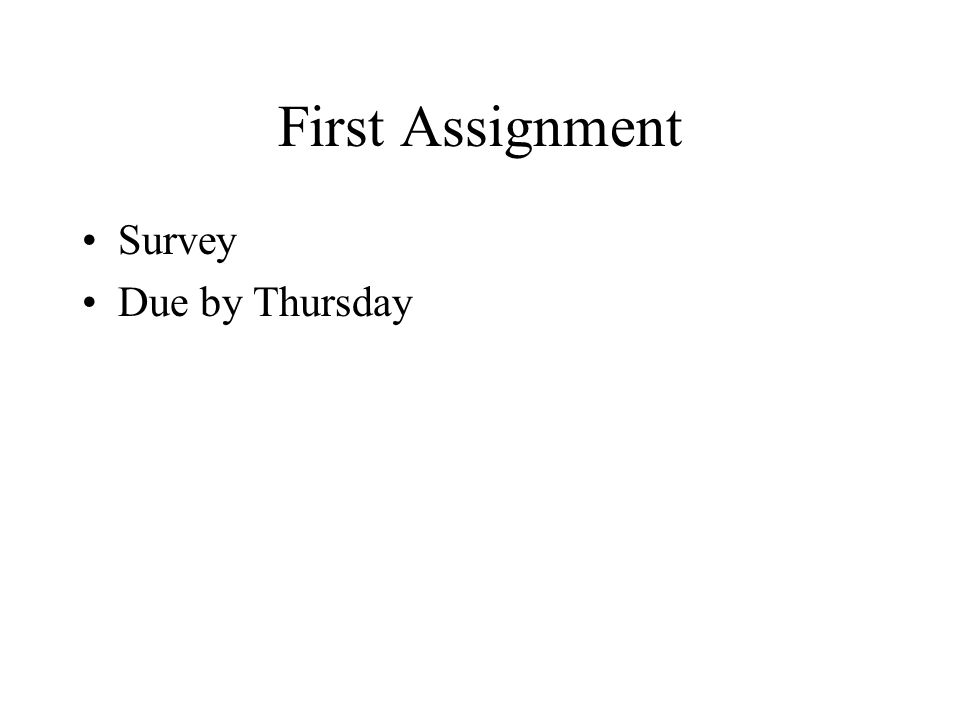

72. First Assignment Survey Due by Thursday
