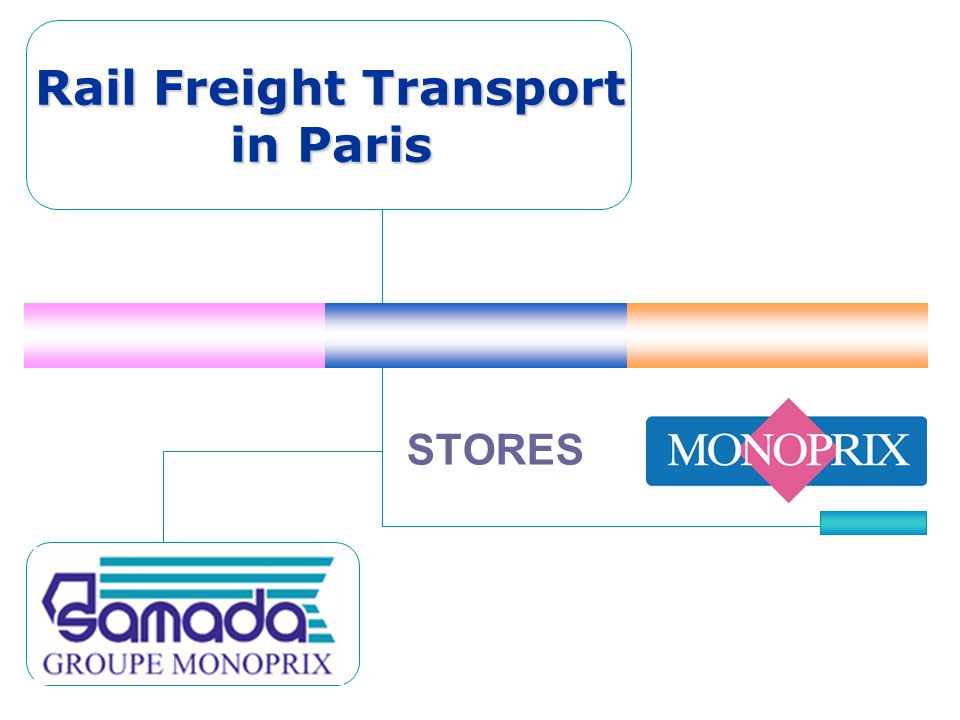

1. STORES Rail Freight Transport in Paris

2. © NP 2 Monoprix at a glance Monoprix  286 stores  A broad range of products: an average of 30,000  Many services for urban customers Monop’  50 convenience stores  More than 5,000 products  Late opening hours beauty monop  5 stores  A broad range of beauty and hygiene products dailymonop’  13 stores  Urban sandwich bars Naturalia  49 stores  A large range of organic products 2010 turnover : 4.000 M€ excl.VAT consolidated (IFRS standards) Shareholder’s equity held 50/50 by the groups Galeries Lafayette and Casino Online shop : monoprix.fr 20 000 staff members

3. © NP 3 PROJECT’S PRESENTATION PROJECT’S PRESENTATION PART 1

4. © NP 4  La Direction Régionale de l’Équipement d’Île-de- France (Regional Equipment & Facilities Board for Paris and surrounding areas)  Le Conseil Régional d’Île- de-France (Ile-de-France Regional council)  La Mairie de Paris (Paris City Hall)  Réseau Ferré de France (French Rail Network) The experiment is supported by:

5. © NP 5 The project’s major stages Invitation to tender 2005200620072008 Feasibility Operator Specs May 2006 Selection SNCF Freight Dec 2006 June 2007 Dec 2007 Contract with SNCF Freight Start-up 2004 Conception of an operation including alternative transport and the search for partners DREIF SAMADA

6. © NP 6 Key issues for success  Deliver MONOPRIX sales outlets in Greater Paris by rail  Start up of an experimental service in 2007  Define criteria-meeting solutions Economic and financial appeal Social, economic & environmental factors Logistic feasibility

7. © NP 7 Targets  Retain current logistics over 2 warehouses  The Paris-Melun line: use the rail lines available at off-peak hours  Optimise store deliveries  No change to delivery lead times

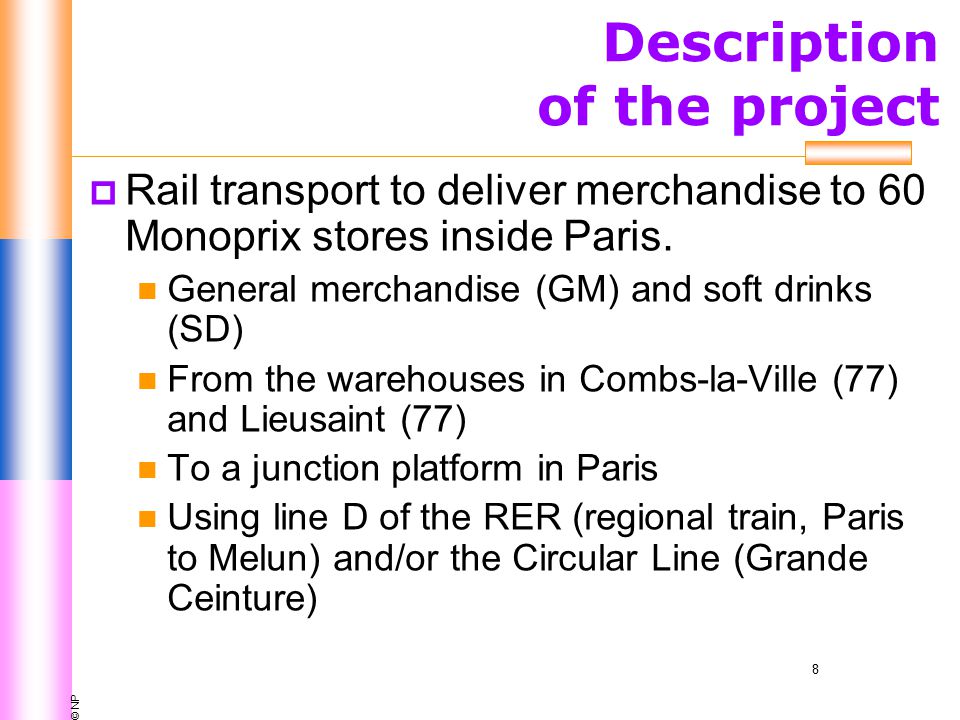

8. © NP 8 Description of the project  Rail transport to deliver merchandise to 60 Monoprix stores inside Paris. General merchandise (GM) and soft drinks (SD) From the warehouses in Combs-la-Ville (77) and Lieusaint (77) To a junction platform in Paris Using line D of the RER (regional train, Paris to Melun) and/or the Circular Line (Grande Ceinture)

9. © NP 9 Combs-La-Ville Building E (GM) Lieusaint Building D (SD) N E S O useable length: 243 m quayside length: 193 m Junction for build. E (mid 2008) Junction for Build. D (end 2006) Rail sidings IJK track K (405m) track J (360m) track I (380m) length: 206 m GM & SD Warehouses: Site Plan

10. © NP N S EO Rail approach : Short line regional train Bercy

11. © NP The SAMADA’s modal shift system loading 26 NGV trucks : 06h00 / 12h00 Bercy (75) Crossdoking over 1 000 palett/day unloading 21h00 / 05h00 Short line Lieusaint – Bercy 5 trains a week VFLI until 1 200 t Combs & Lieusaint (77) loading up to 22 freight cars 08h00 / 18h00 Delivery of 90 parisians and suburbans stores 06h30 / 12h30

12. © NP 12 CHOOSING A SITE IN PARIS CHOOSING A SITE IN PARIS PART 2

13. © NP 13 Junction sites in Paris

14. © NP 14 Utilisation of infrastructures  Advantages Ground available in the heart of Paris Good connection with the rail network  Drawbacks Limited number of junction sites  In great demand from promoters and town-planners Complex split of land (SNCF/RFF)  The way sites are cut up Development and upgrading work now indispensable  Cost, time lines Integrating activity with the environment  Immediate neighbourhood (pollution, noise…)  Rail work sites

15. © NP Site at Paris-Bercy : Halle G. Lamé SAMADA Bercy Gare de Lyon Melun Road quayside Rail quayside NGV Station

16. © NP 16 Halle G. Lamé after renovation  Integration of a logistics facility in the urban environment Building of an anti-noise device to accommodate freight trains Architectural style  But still a few fears on the part of neighbours

17. © NP Platform at Bercy: rail quayside  Available length: 200 m  Acoustic protection (boarding)  acoustic test to be conducted

18. © NP 18 OPERATING THE HALLE G. LAME OPERATING THE HALLE G. LAME PART 3

19. © NP Platform at Bercy: Building’s blueprint Cellule MILLIET SAMADA unit 3700m² EXIT Rail line ENTRy movement of traffic Car Park SAMADA neighboring buildings hotel Rail quayside

20. © NP 20 Bercy: operating la Halle  Positioning of pallets in bays (plan) Storage capacity: 1,100 pallets (80x120) Max. shuttle capacity: 1,000 pallets (80x120)  Unloading bay Freight cars available 9.30 pm/4 am (to check): 6 and a half hours Manoeuvring time: 90 minutes  3 quay load coupons (30’) + 3 car movements (10’) Real work time: 5 hours

21. © NP 21 Upgrading of operations  CONSOLIDATION & OPTIMISATION of the EXPERIMENT RAIL TRANSPORT  Junction at COMBS la VILLE May 2008  All products delivered by trainJune 2008 ROAD TRANSPORT  Gradual introduction of GNV trucks  10 vehicles may/june 2008  10 vehicles june/july 2008  6 vehicles september 2008  Optimisation of transport plan 1st SEM 2008  NGV station integrated with the Bercy site october 2008

22. © NP Upgrading of operations  November 2007 27 stores  February 2008 55 stores  June 2008 72 stores  September 2008 80 stores  June 2010 : 92 Monoprix stores  60 City  25 Monop’  5 réserves  2 Beauty 51% IDF stores 68% Paris stores + 1 Casino superstore  hypermarcket Masséna (Paris 13) -> 755 pal/day = 15 500 pal/month =190 000 pal/year

23. © NP Bercy: Railway Approach  1 rail operator = VFLI Fret SNCF subsidiary  5 shuttles / week 17 freight cars average a day (22 max) unloading : 21:30 / 04:30  Rolling stock Diesel particle filter Engine

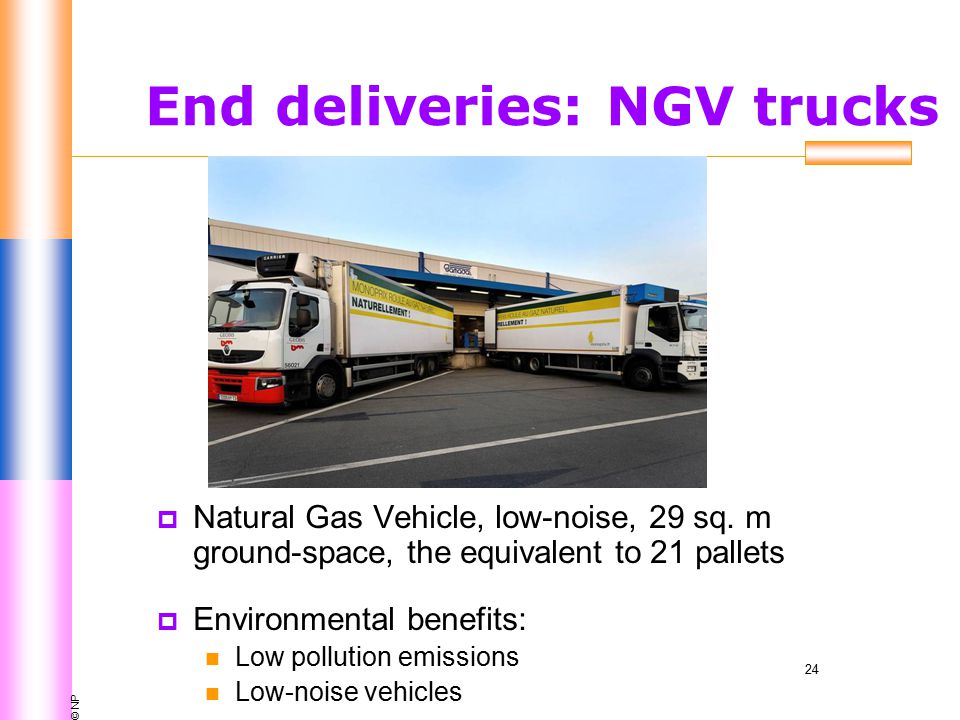

24. © NP 24  Natural Gas Vehicle, low-noise, 29 sq. m ground-space, the equivalent to 21 pallets  Environmental benefits: Low pollution emissions Low-noise vehicles End deliveries: NGV trucks

25. © NP 25  Technical drawbacks: Limited range and power Higher purchase and operating costs  But city centre locations offset the drawbacks of GNVs. End deliveries: NGV trucks

26. © NP 26 Platform at Bercy: NGV station

27. © NP Environmental gains  Greatly reduced emissions of pollutants: 410 t fewer CO2 emissions = - 47% Harmful particles = - 52% Volatile organic compounds = - 44% NOx = - 56%  700 000 km reduced per year  250 rail shuttles substitute 10 000 trucks per year

28. © NP Thank you for your attention.
