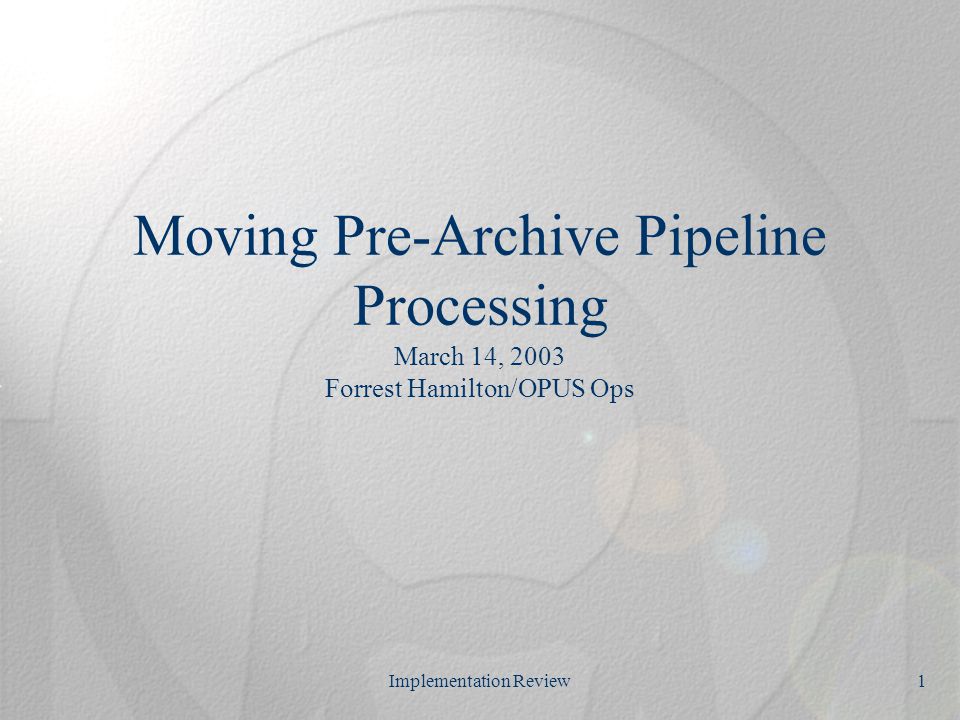

1. Implementation Review1 Moving Pre-Archive Pipeline Processing March 14, 2003 Forrest Hamilton/OPUS Ops

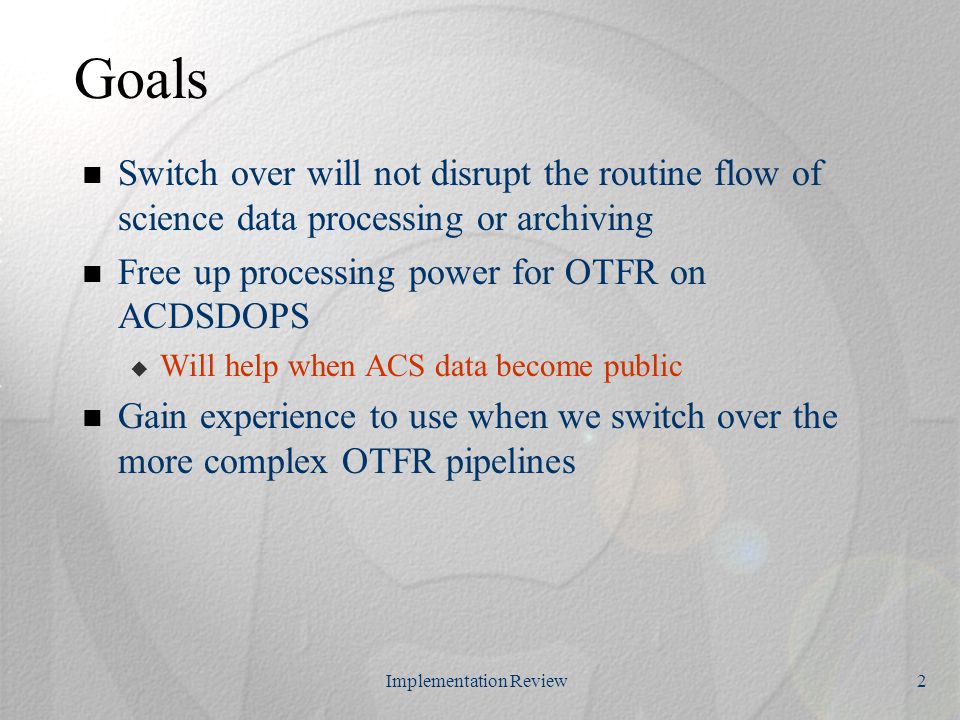

2. Implementation Review2 Goals Switch over will not disrupt the routine flow of science data processing or archiving Free up processing power for OTFR on ACDSDOPS  Will help when ACS data become public Gain experience to use when we switch over the more complex OTFR pipelines

3. Implementation Review3 Plan Switch pre-archive science processing space over from ACDSDOPS storage array to EMC Migrate pre-archive science processing on ACDSDOPS to the Sun Fire 15K Both of these configurations will have already been successfully tested in the new test environment

4. Implementation Review4

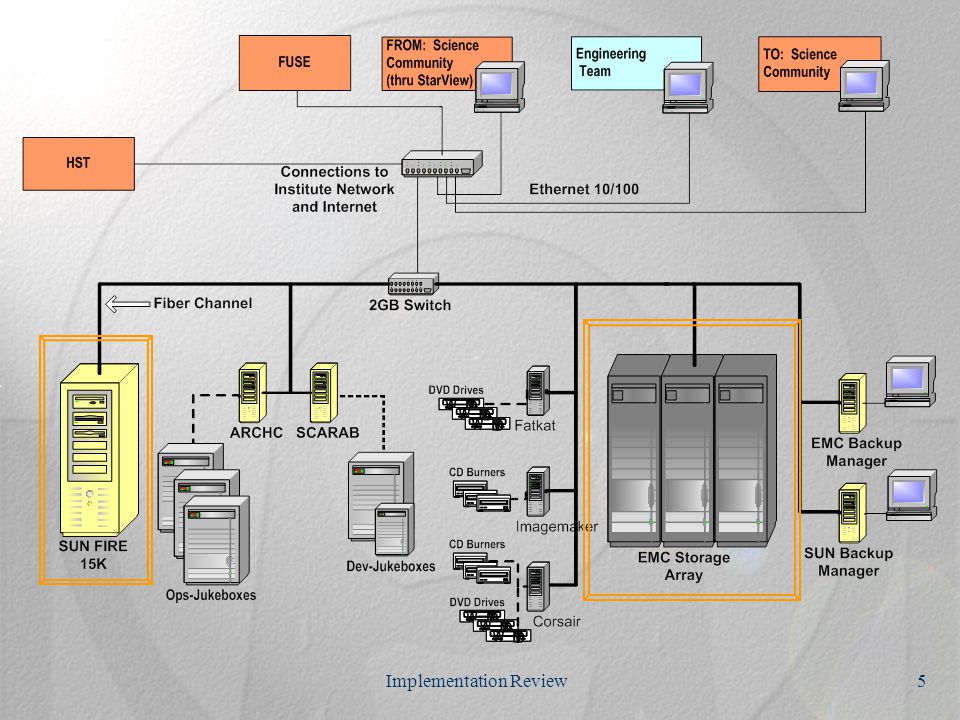

5. 5

6. 6 OPUS Installation Primer opus_login.csh # setenv SOGS_DISK setenv OAPI_LIB setenv OPUS_DEFINITION setenv OPUS_HOME_DIR setenv DSQUERY setenv OPUS_DB setenv jref setenv jtab opus_definitions_dir = *.path STAGE_FILE = OPUS_HOME_DIR = OPUS_TEMP_DIR = POD_IN_DIR = ACS_CAL_DIR = STI_CAL_DIR = NIC_CAL_DIR = WF2_CAL_DIR *.pipeline dp_acs professor acdsdops ss_acs professor acdsdops dv_acs professor acdsdops wcsacs professor acdsdops gc_acs professor acdsdops calacs professor acdsdops /home/opus/defs/ /store/opus14_2/defs/unix/ source opus_login.csh.alias Pre-archive pipeline process

7. Implementation Review7 Post-installation Configuration opus_definitions_dir /home/opus/defs/ Ops files OPUS Installation Primer opus_definitions_dir Nominal Configuration Ops files DSB files /home/opus/defs/ /store/opus14_2/defs/unix/ Pre-installation Configuration Ops files DSB files Modified Ops files New DSB files /home/opus/defs/ /home/opus/opus14_3/ /store/opus14_2/defs/unix/ /store/opus14_3/defs/unix/ opus_definitions_dir Modified Ops files /store/opus14_3/defs/unix/ New DSB files

8. Implementation Review8 Migration Process: ACDSDOPS EMC Perform pipeline account access checks Deployment Review  Needed to determine readiness and appropriate time for switch to EMC Copy OPUS software onto EMC  No new OPUS software installation required Create a copy of pipeline configuration files and edit in the changes needed to point to the EMC  Standard procedure used for OPUS software upgrades Terminate the CDBS (reference files) pipeline Copy reference data onto EMC

9. Implementation Review9 Migration Process: ACDSDOPS EMC Terminate pre-archive pipeline processing to allow data to clear off of the ACDSDOPS disks  Done to prevent major cleanups if problems arise  Migrate any trouble data over Activate modified configuration files Bring up pre-archive processing using EMC

10. Implementation Review10 Migration Process: ACDSDOPS Sun Fire 15K Verify PACOR-A interface Verify DADS interface Migrate OPUS pipeline configuration directory hierarchy from ACDSDOPS to Sun Fire 15K  Similar process has already been done to activate the EDPS Verify pipeline account access Deployment Review Terminate pre-archive processing on ACDSDOPS Install the OPUS software version that supports Sun Fire 15K processing

11. Implementation Review11 Migration Process: ACDSDOPS Sun Fire 15k Activate configuration files pointing to the Sun Fire 15K  Make use of new reference file area (GEIS format is OS dependent) Bring up pre-archive processing using the Sun Fire 15K

12. Implementation Review12 Risk Management Transitioning the easiest and most stable pipeline over onto new hardware first  Migration of OTFR, which is a more complex pipeline, will occur later If problems arise, we can revert back to ACDSDOPS until problem resolution  This is the case for either transition  ACDSDOPS EMC  ACDSDOPS Sun Fire 15K The pre-archive pipeline will contain as little data as possible (a.k.a draining the pipes)  Again this will be done for both transitions

13. Implementation Review13 Schedule: EMC March 26, 2003: Connect 0.5 TB of EMC space to ACDSDOPS March 28, 2003: Aliveness Test for ACDSDOPS/EMC April 7, 2003: Acceptance Test for ACDSDOPS/EMC April 14, 2003: Deployment Review April 21, 2003: ACDSDOPS/EMC operational

14. Implementation Review14 Schedule: Sun Fire 15K
