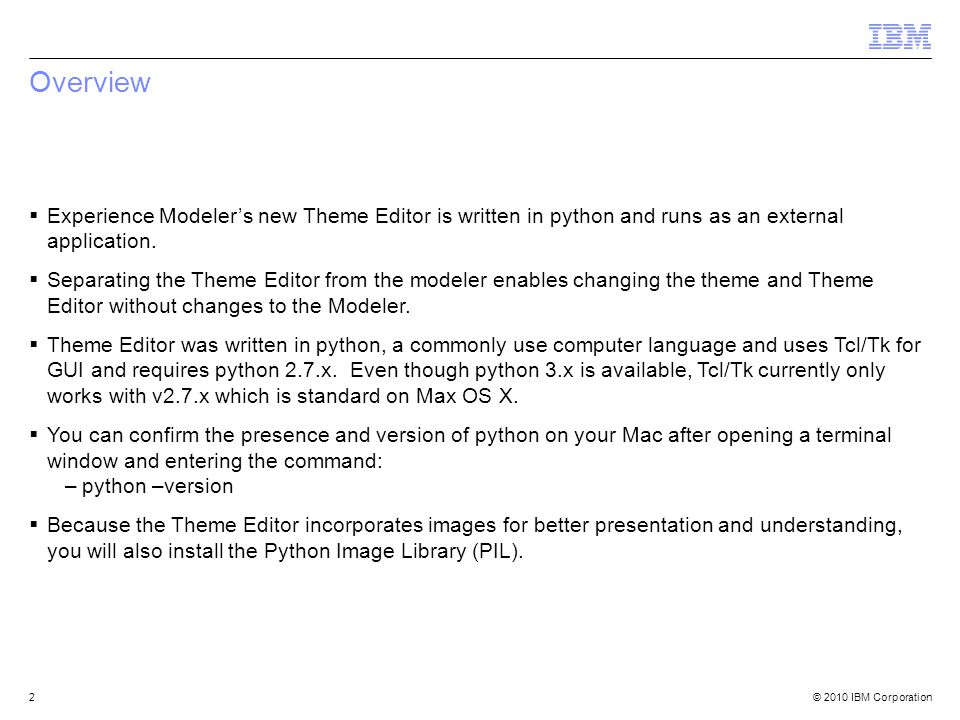

2. © 2010 IBM Corporation Overview  Experience Modeler’s new Theme Editor is written in python and runs as an external application.  Separating the Theme Editor from the modeler enables changing the theme and Theme Editor without changes to the Modeler.  Theme Editor was written in python, a commonly use computer language and uses Tcl/Tk for GUI and requires python 2.7.x. Even though python 3.x is available, Tcl/Tk currently only works with v2.7.x which is standard on Max OS X.  You can confirm the presence and version of python on your Mac after opening a terminal window and entering the command: –python –version  Because the Theme Editor incorporates images for better presentation and understanding, you will also install the Python Image Library (PIL). 2

3. © 2010 IBM Corporation Installation  After confirming the presence of a compatible version of python, you will need to install the Python Image Library (PIL).  There are many ways to install PIL, but these will do a basic install using standard Mac tools. You can also install with MacPorts and Homebrew, although they install in locations unique to themselves.  Procedure: –Install Xcode from App Store – free –Install command line tools for Xcode This include gcc the GNU c compiler –Install PIP – Package Installer for PHP –Install PIL – Python Image Library  That’s it 3

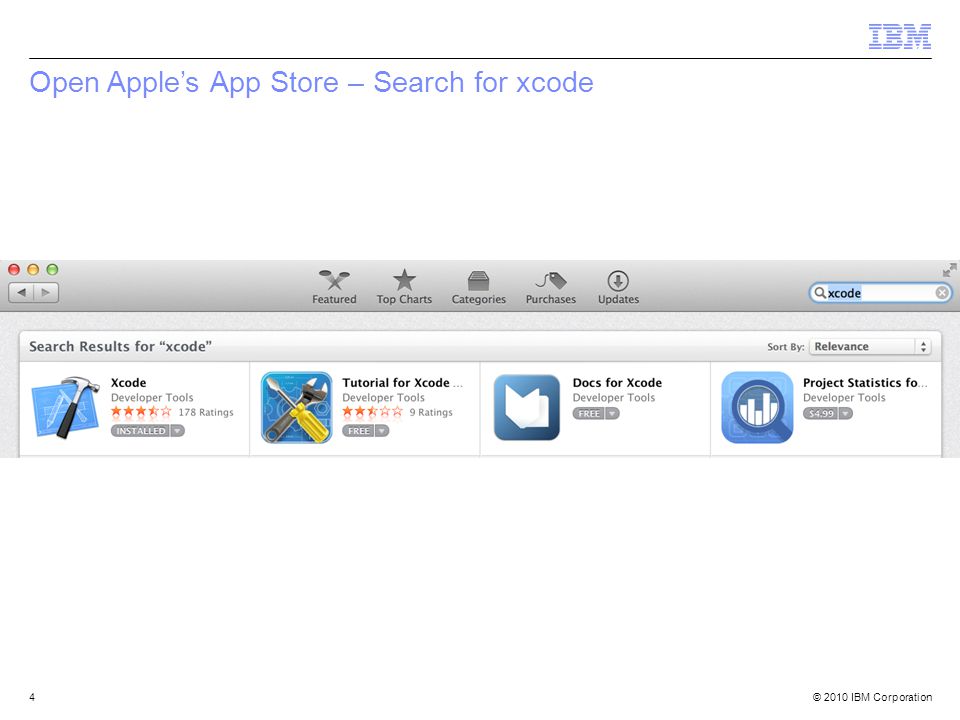

4. © 2010 IBM Corporation Open Apple’s App Store – Search for xcode 4

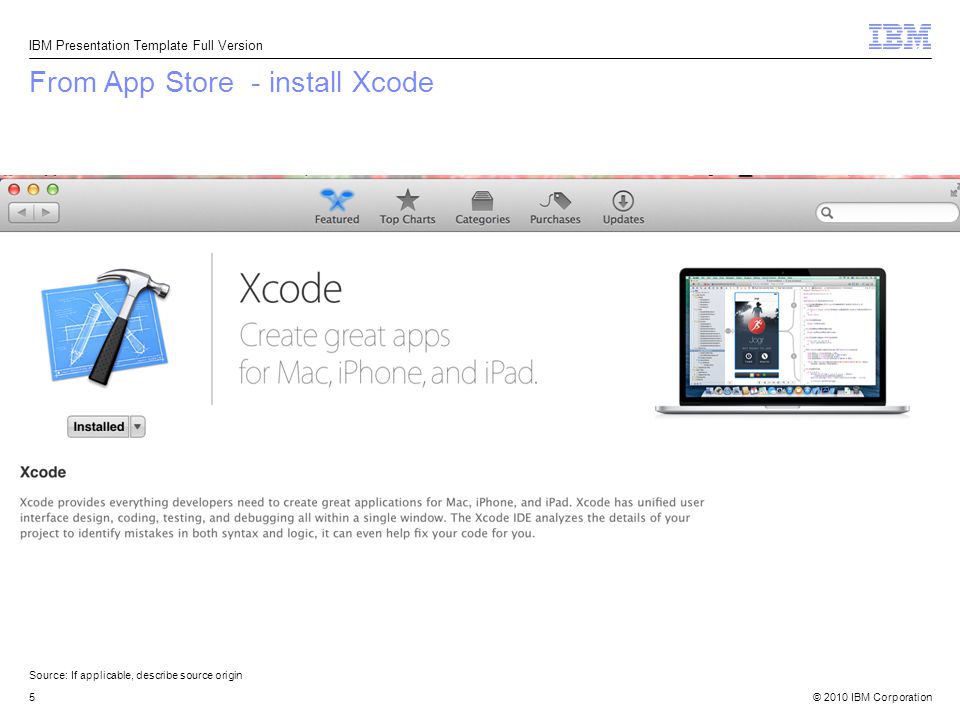

5. © 2010 IBM Corporation5 From App Store - install Xcode Source:If applicable, describe source origin IBM Presentation Template Full Version

6. © 2010 IBM Corporation Install additional Xcode components 6

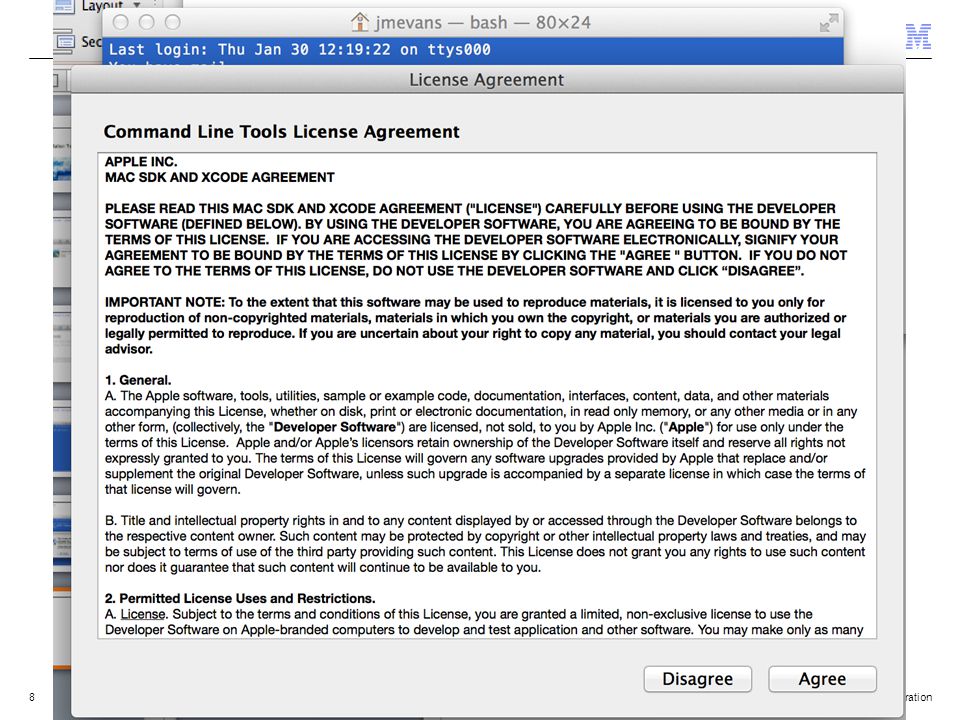

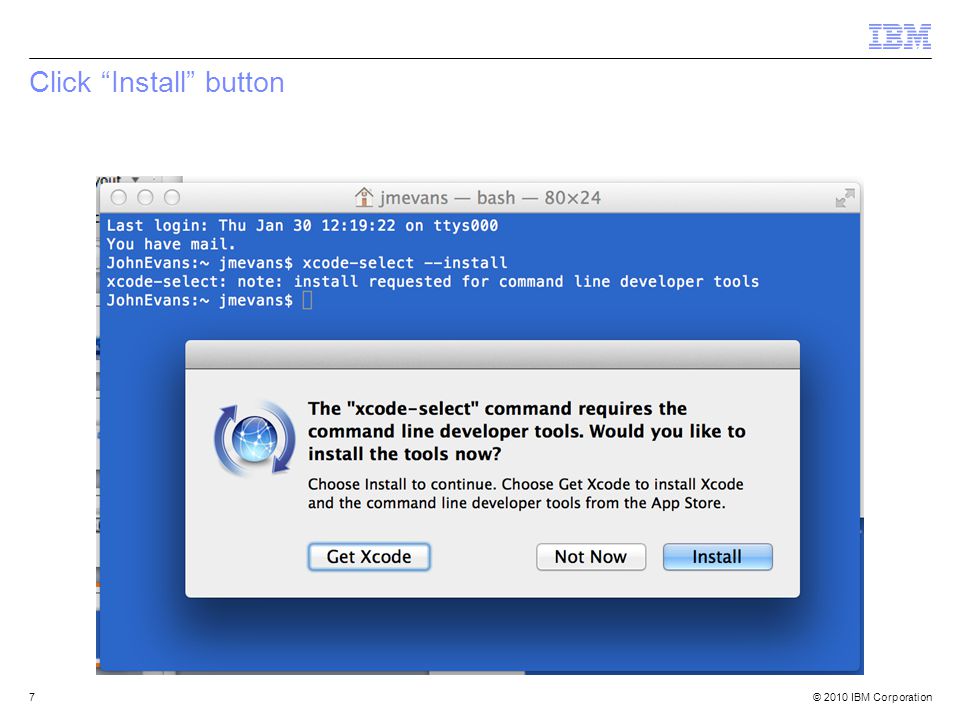

7. © 2010 IBM Corporation Click “Install” button 7

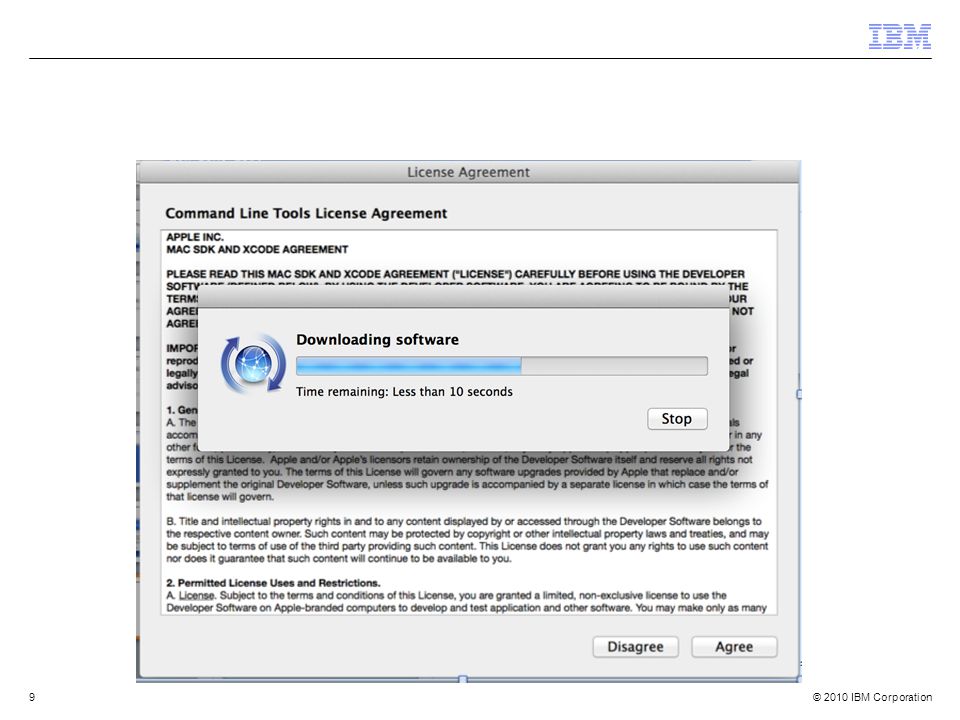

8. © 2010 IBM Corporation8

9. 9

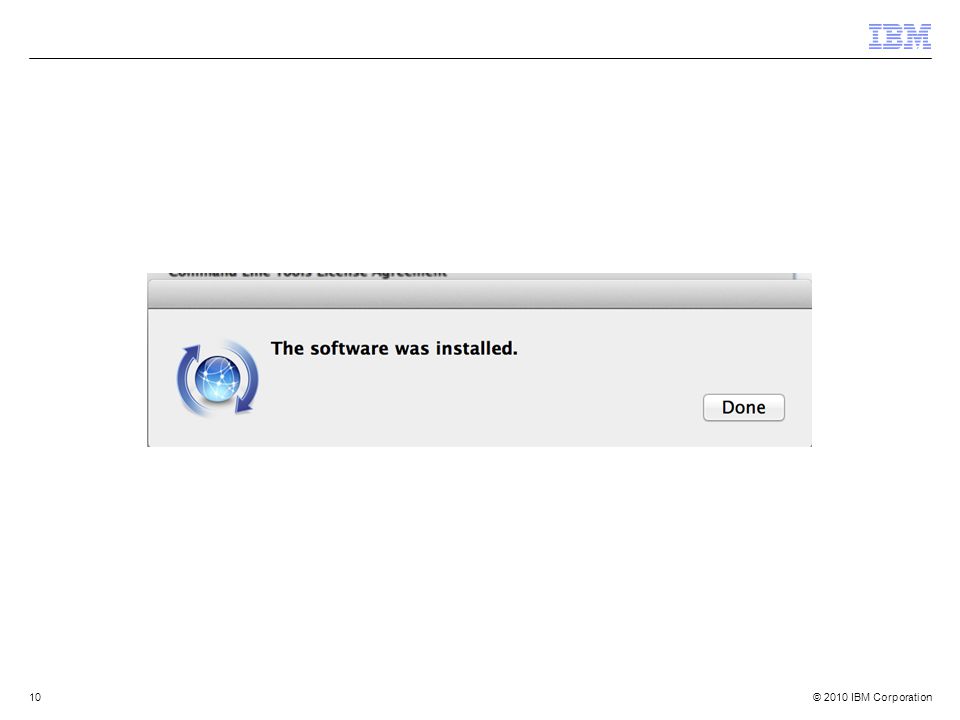

10. 10

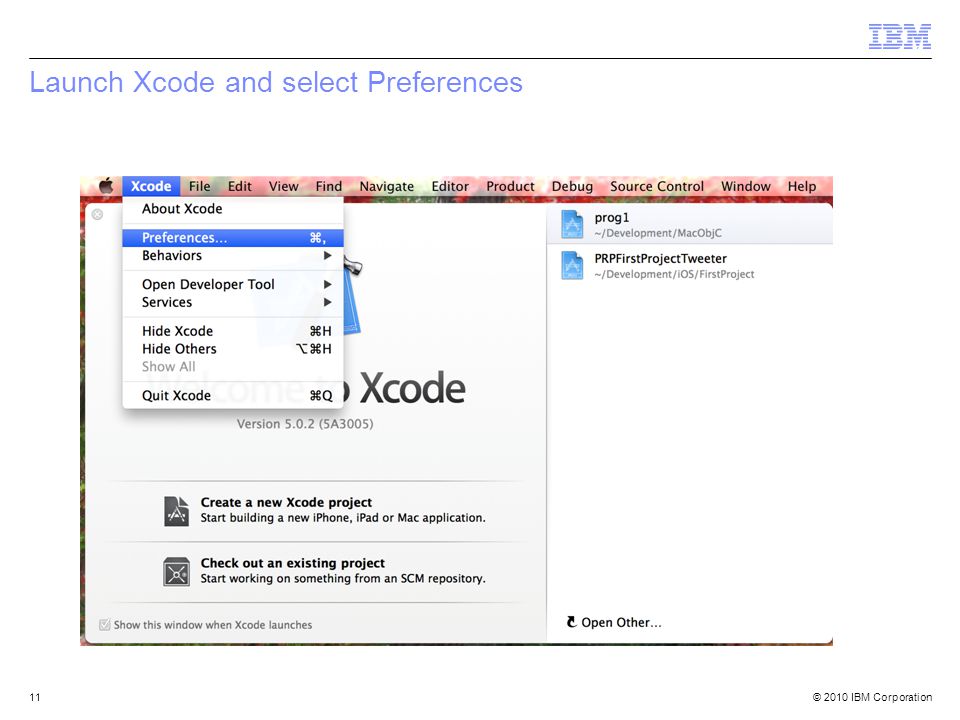

11. © 2010 IBM Corporation Launch Xcode and select Preferences 11

12. © 2010 IBM Corporation Click on Downloads icon, click “Command line tools”, Install. 12 Normally appears here. Mine is already installed.

13. © 2010 IBM Corporation13

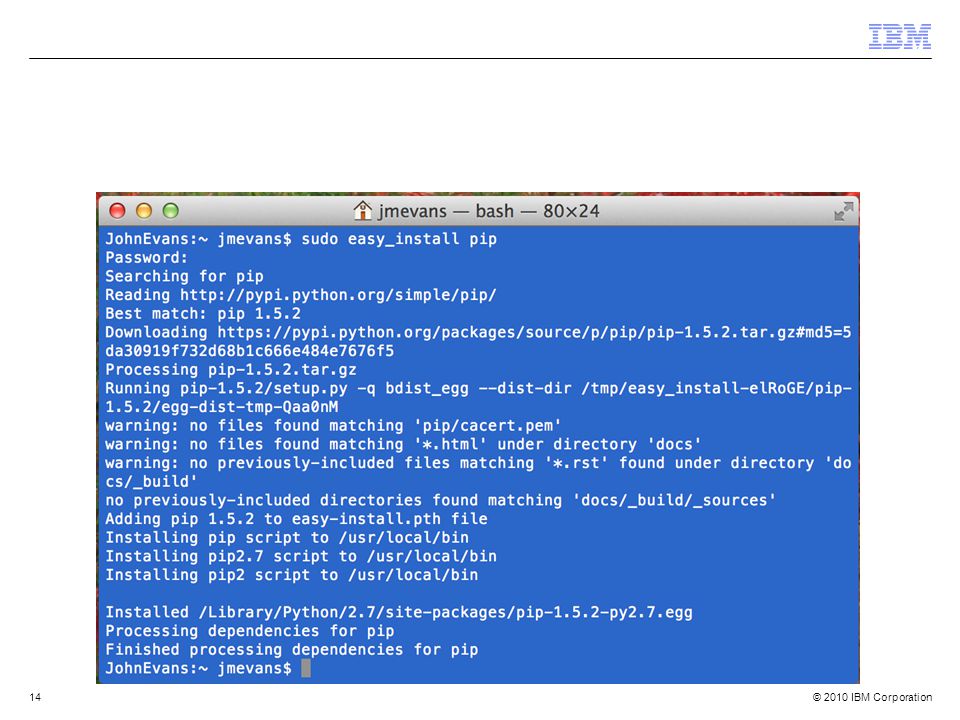

14. © 2010 IBM Corporation14

15. © 2010 IBM Corporation15

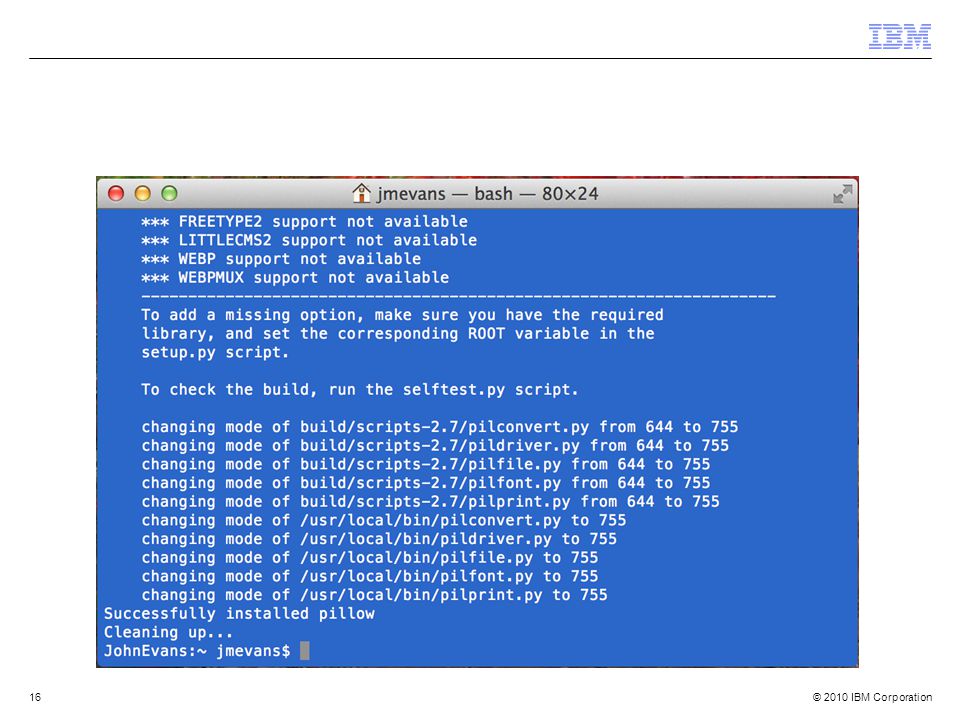

16. © 2010 IBM Corporation16

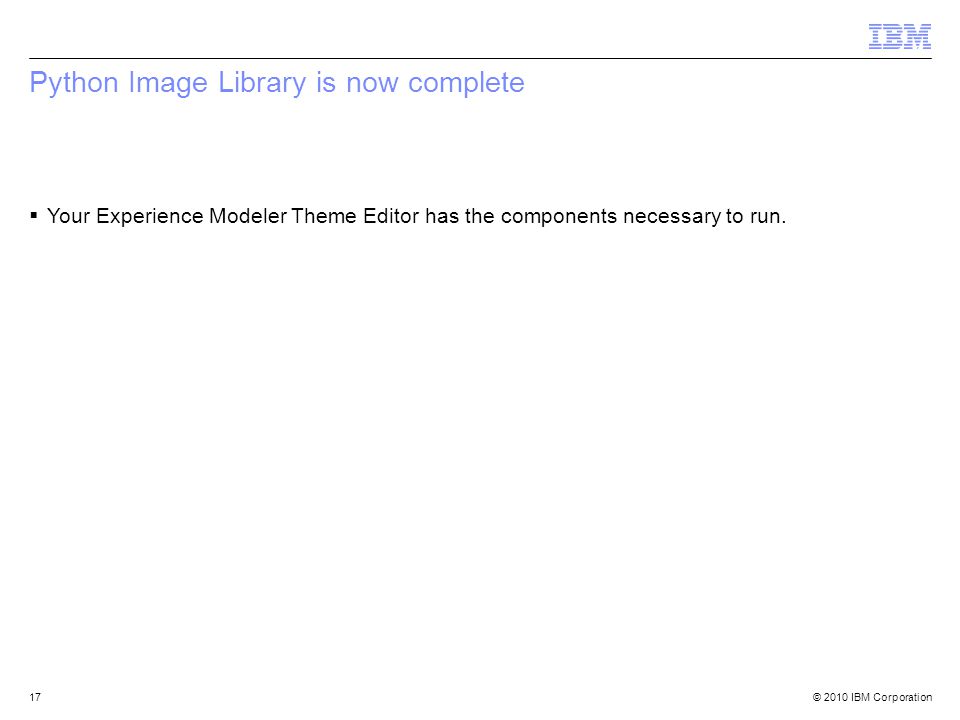

17. © 2010 IBM Corporation Python Image Library is now complete  Your Experience Modeler Theme Editor has the components necessary to run. 17

18. © 2010 IBM Corporation  From the top menu, Run, select External Tools.  On that menu, select External Tools Configuration Set up the Theme Editor in Experience Modeler

19. © 2010 IBM Corporation  Click on the “New” icon

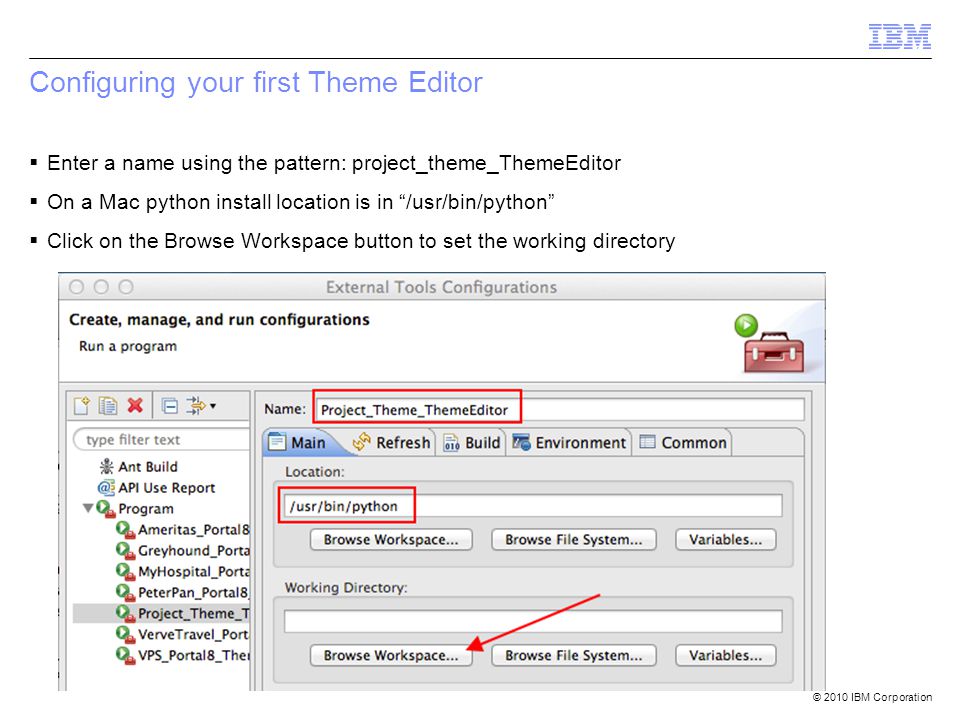

20. © 2010 IBM Corporation Configuring your first Theme Editor  Enter a name using the pattern: project_theme_ThemeEditor  On a Mac python install location is in “/usr/bin/python”  Click on the Browse Workspace button to set the working directory

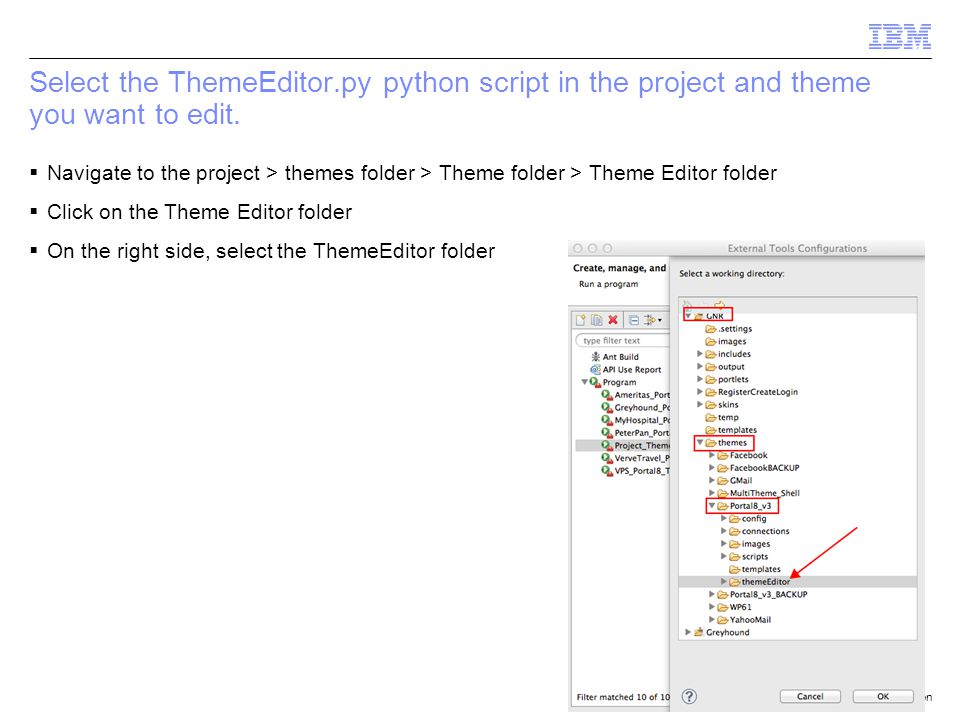

21. © 2010 IBM Corporation Select the ThemeEditor.py python script in the project and theme you want to edit.  Navigate to the project > themes folder > Theme folder > Theme Editor folder  Click on the Theme Editor folder  On the right side, select the ThemeEditor folder

22. © 2010 IBM Corporation Complete configuration and Run the Theme Editor  Working directory was set from browsing.  Add Argument: ThemeEditor.py  Click Apply  Click Run

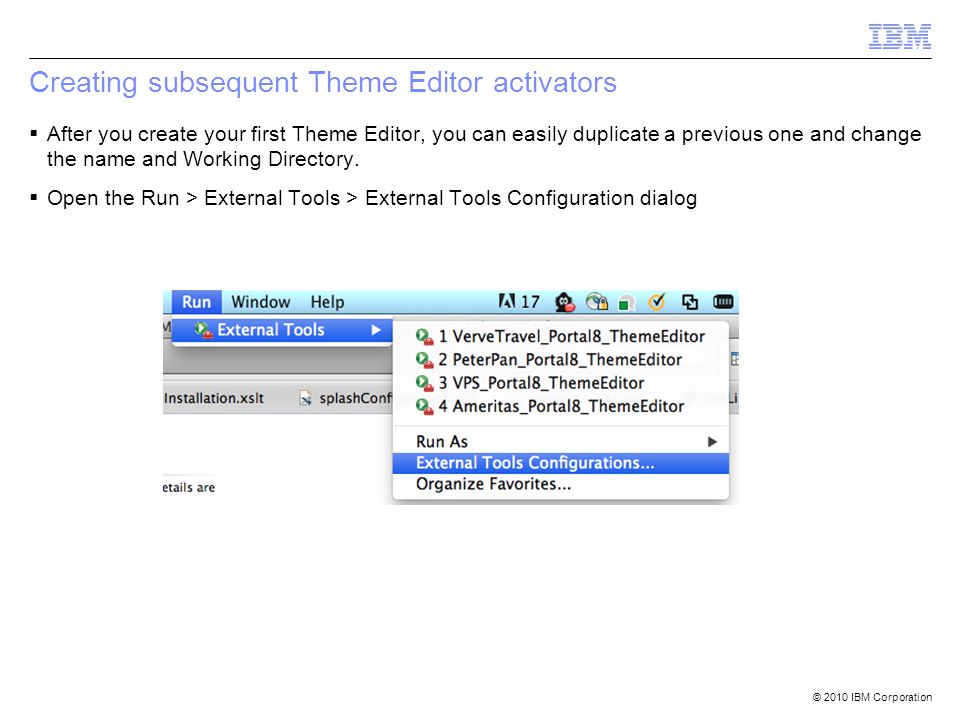

23. © 2010 IBM Corporation Creating subsequent Theme Editor activators  After you create your first Theme Editor, you can easily duplicate a previous one and change the name and Working Directory.  Open the Run > External Tools > External Tools Configuration dialog

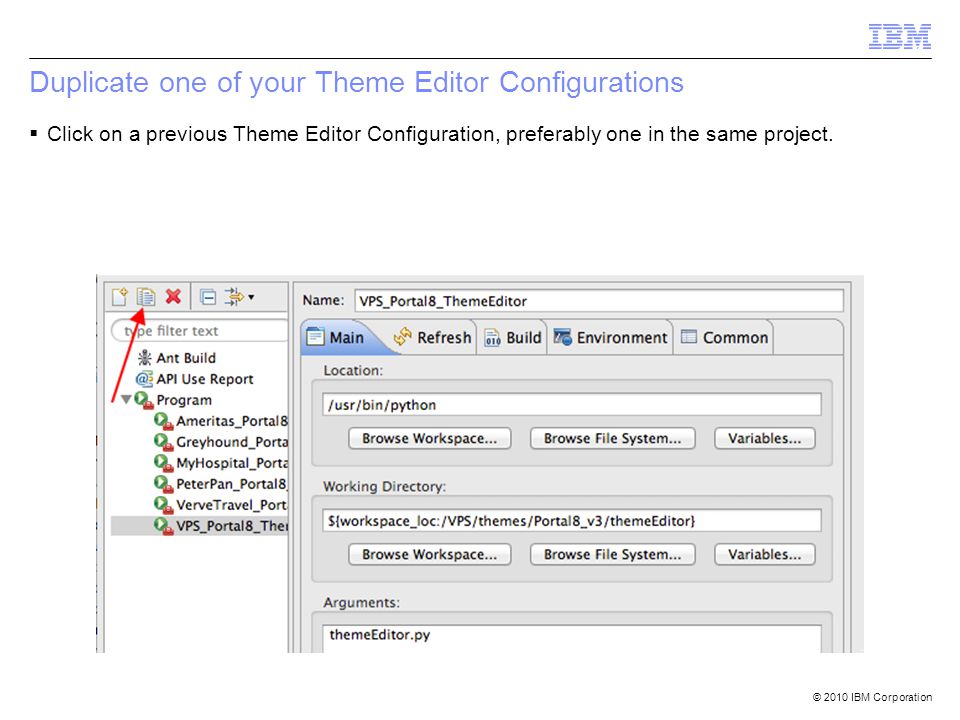

24. © 2010 IBM Corporation Duplicate one of your Theme Editor Configurations  Click on a previous Theme Editor Configuration, preferably one in the same project.

25. © 2010 IBM Corporation Modify setting for new Theme Editor Activator  Change the name to reflect the project and theme  Either browse to the project > themes folder > theme folder > Theme Editor folder or just modify the string for the Working Directory  Location and Argument remain the same

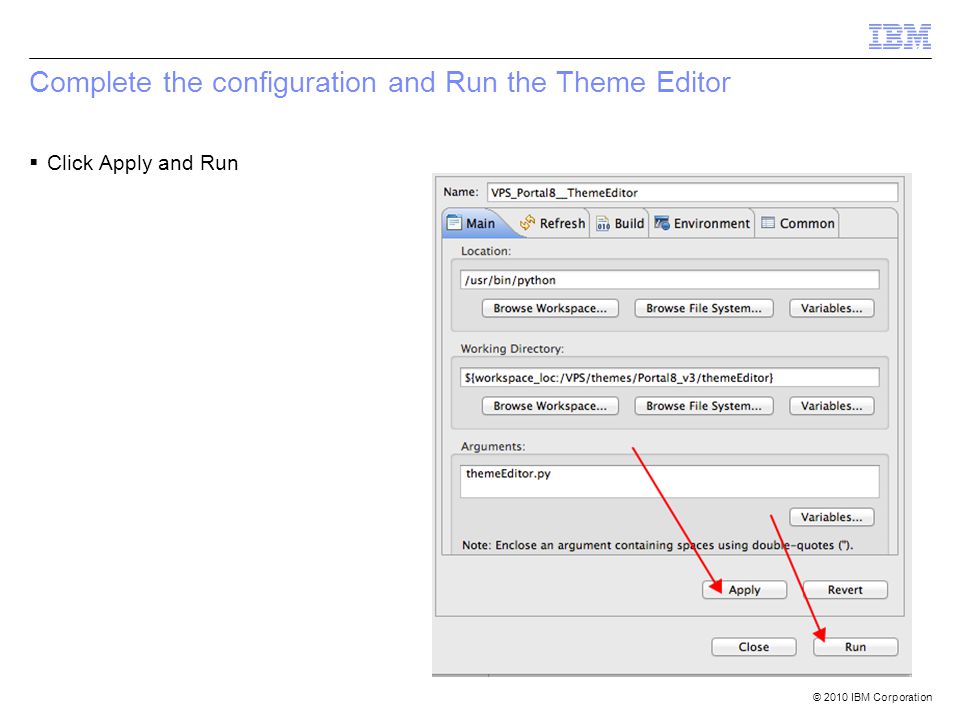

26. © 2010 IBM Corporation Complete the configuration and Run the Theme Editor  Click Apply and Run

27. © 2010 IBM Corporation Additional Information You can also review the video on YouTube for configuring the Theme Editor, although it is for Windows so the path to the python executable is different.
