1 Prepared By Rama Gaikwad 1. Number Systems

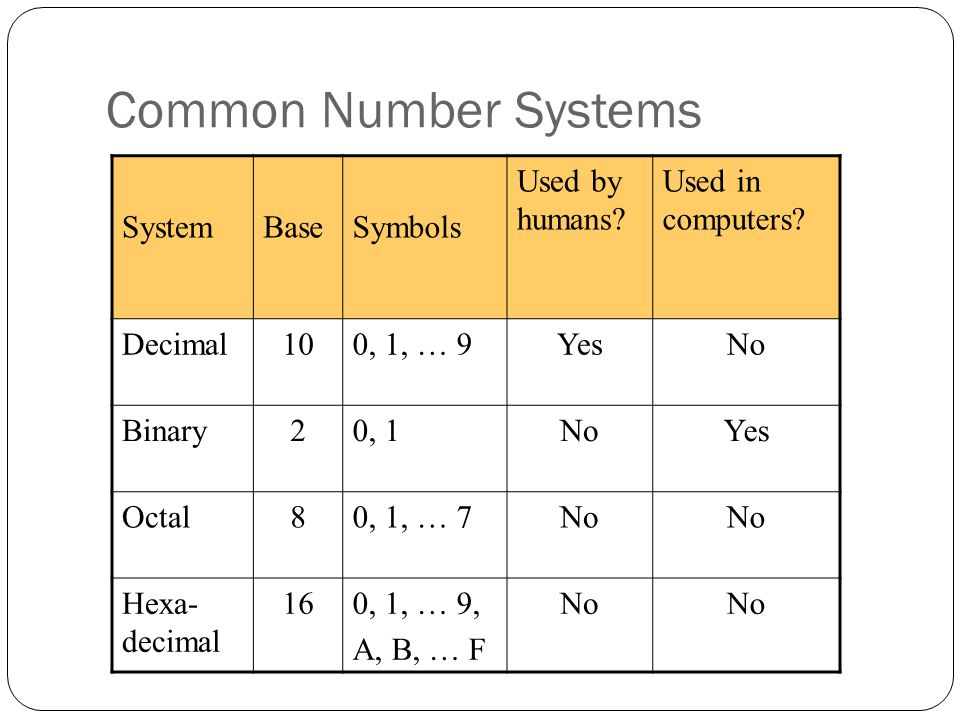

2 Common Number Systems SystemBaseSymbols Used by humans? Used in computers? Decimal100, 1, … 9YesNo Binary20, 1NoYes Octal80, 1, … 7No Hexa- decimal 160, 1, … 9, A, B, … F No

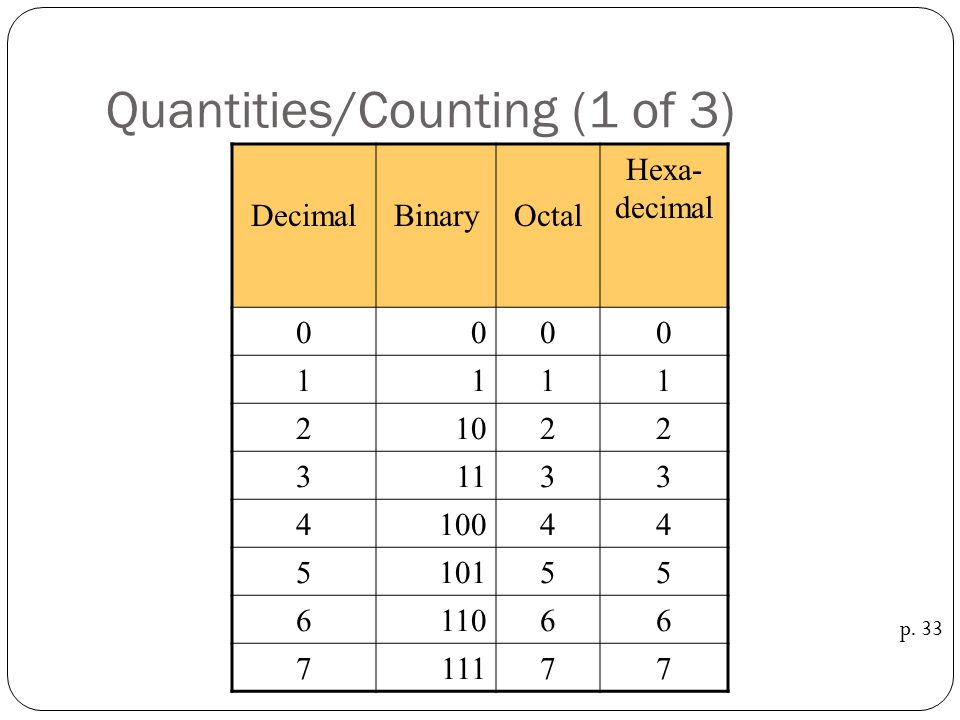

3 Quantities/Counting (1 of 3) DecimalBinaryOctal Hexa- decimal 0000 1111 21022 31133 410044 510155 611066 711177 p. 33

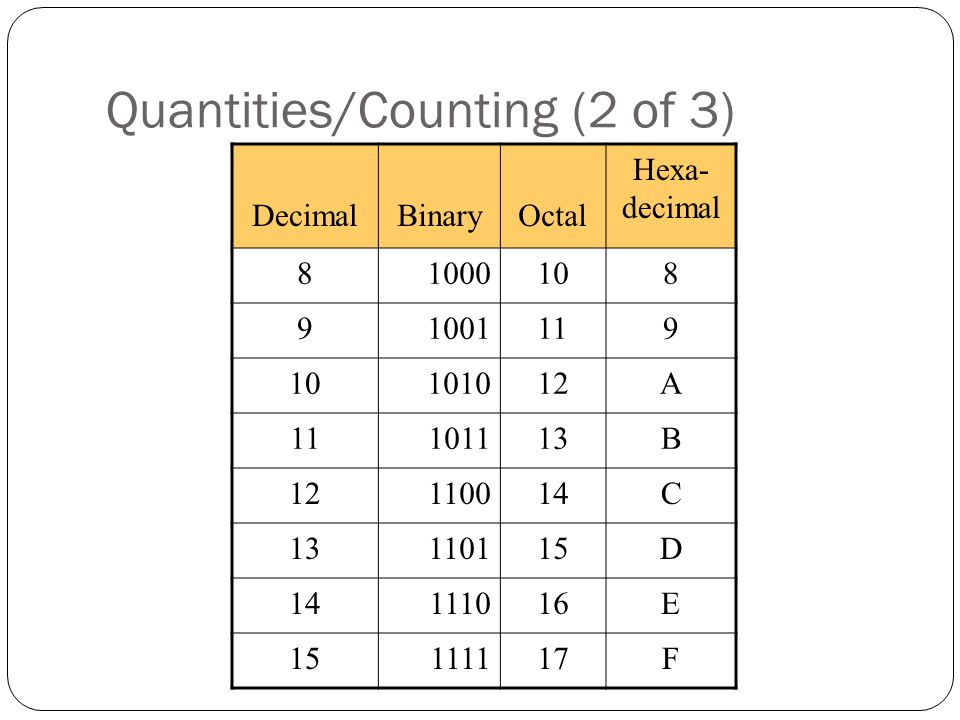

4 Quantities/Counting (2 of 3) DecimalBinaryOctal Hexa- decimal 81000108 91001119 10101012A 11101113B 12110014C 13110115D 14111016E 15111117F

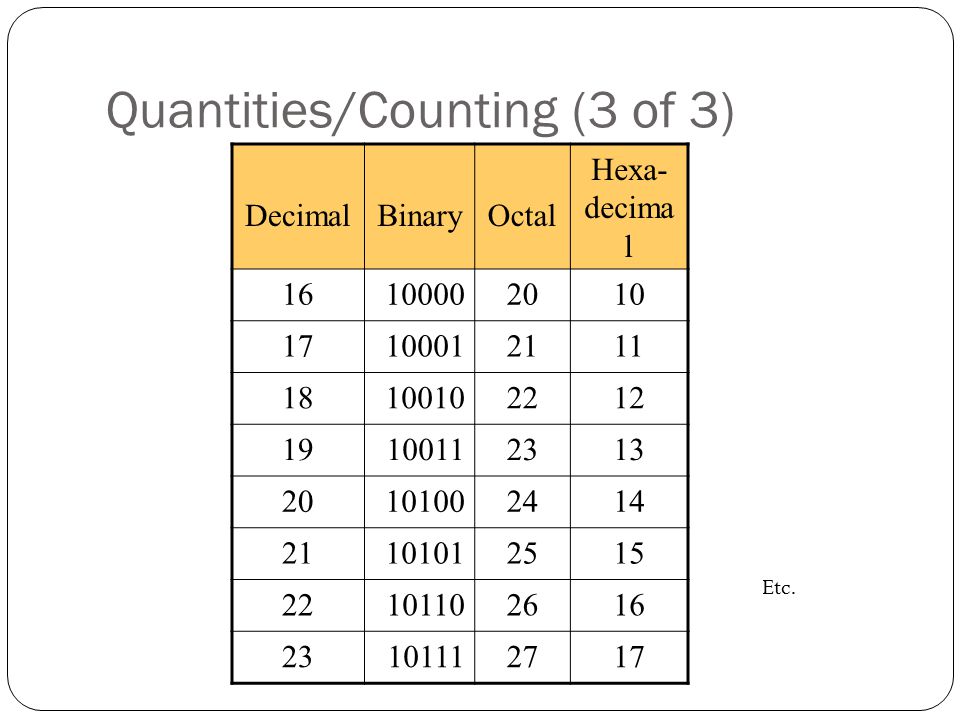

5 Quantities/Counting (3 of 3) DecimalBinaryOctal Hexa- decima l 16100002010 17100012111 18100102212 19100112313 20101002414 21101012515 22101102616 23101112717 Etc.

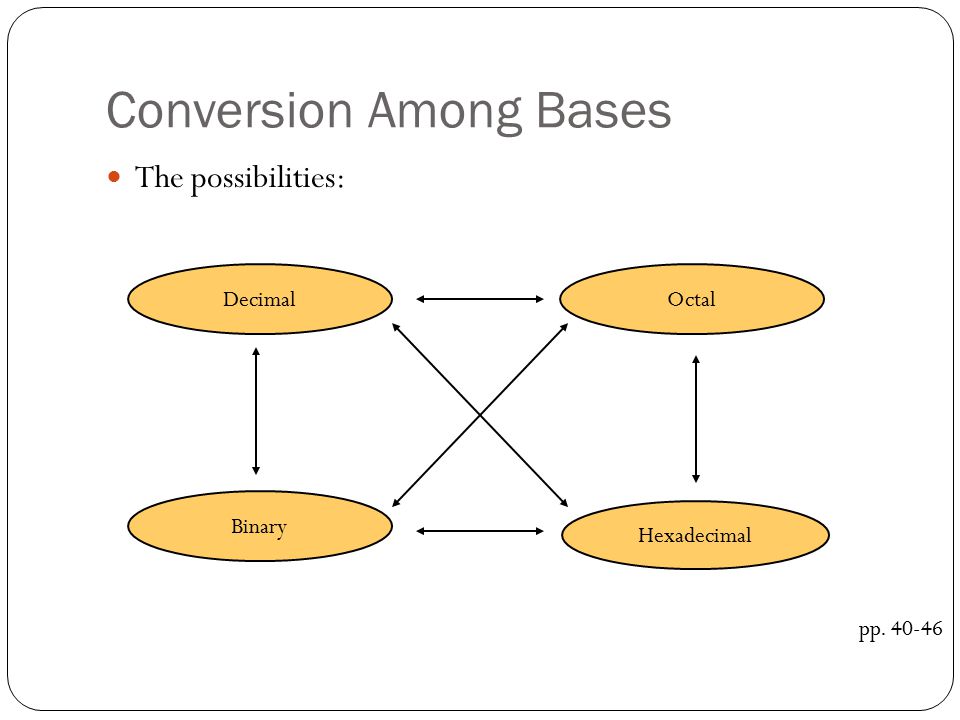

6 Conversion Among Bases The possibilities: Hexadecimal DecimalOctal Binary pp. 40-46

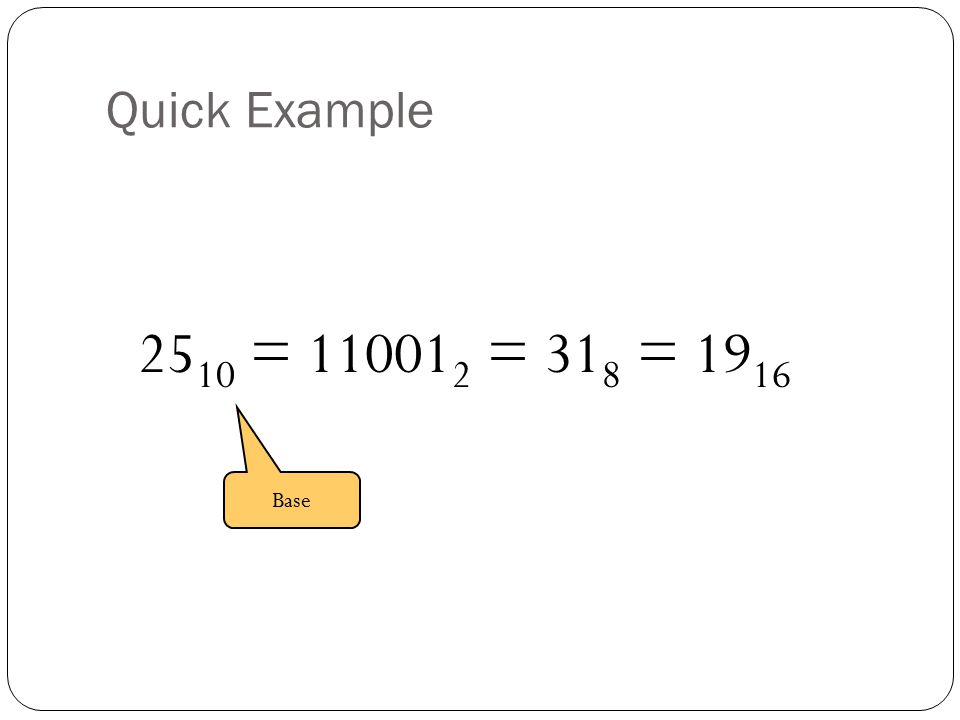

7 Quick Example 25 10 = 11001 2 = 31 8 = 19 16 Base

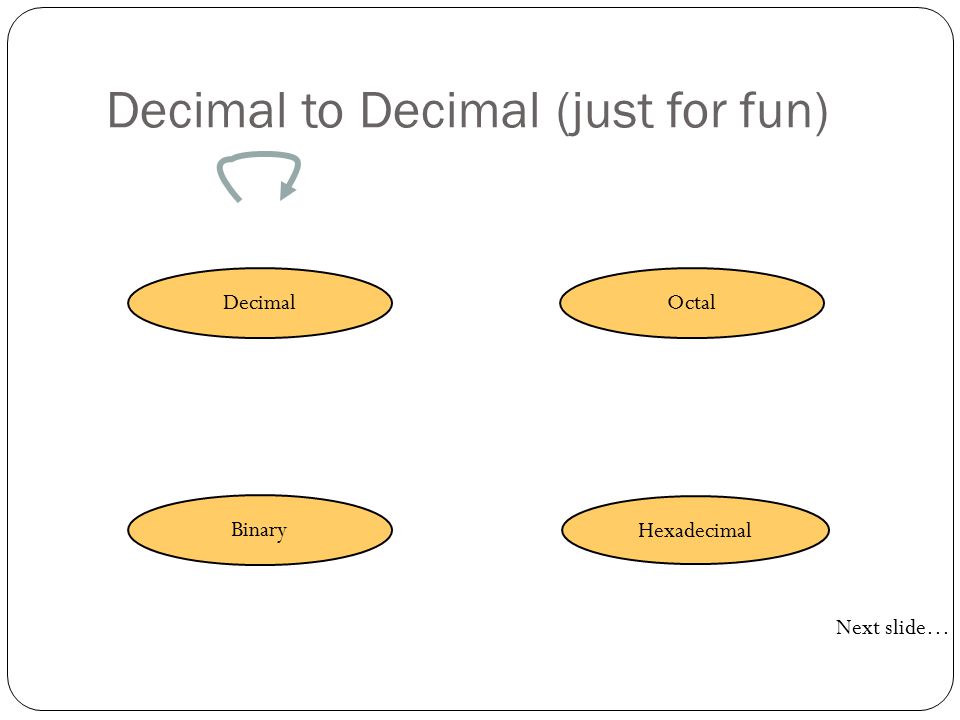

8 Decimal to Decimal (just for fun) Hexadecimal DecimalOctal Binary Next slide…

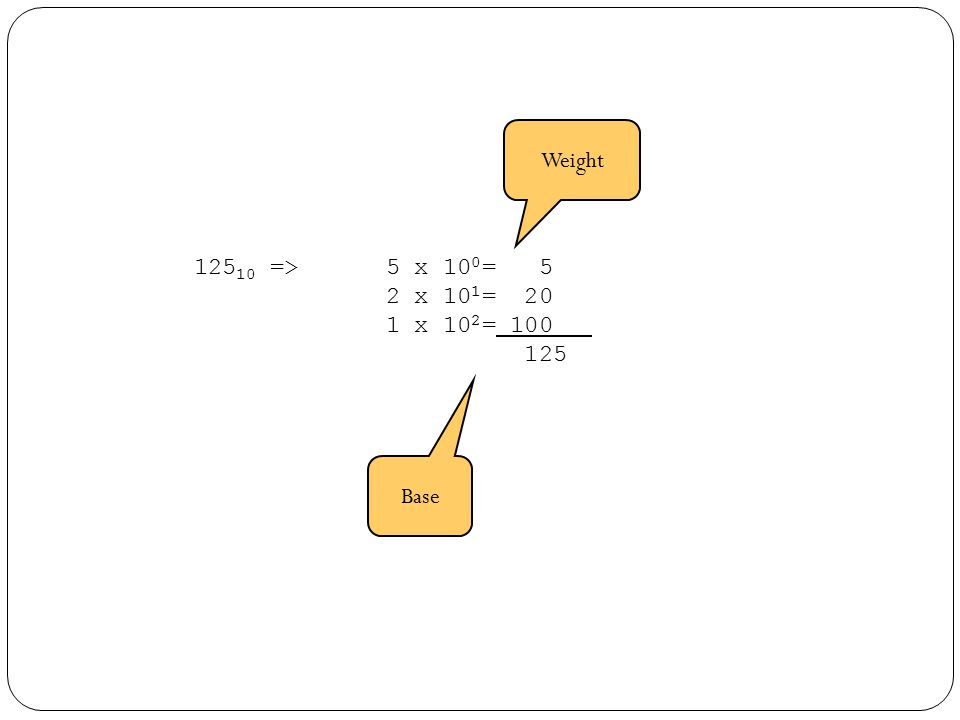

9 125 10 =>5 x 10 0 = 5 2 x 10 1 = 20 1 x 10 2 = 100 125 Base Weight

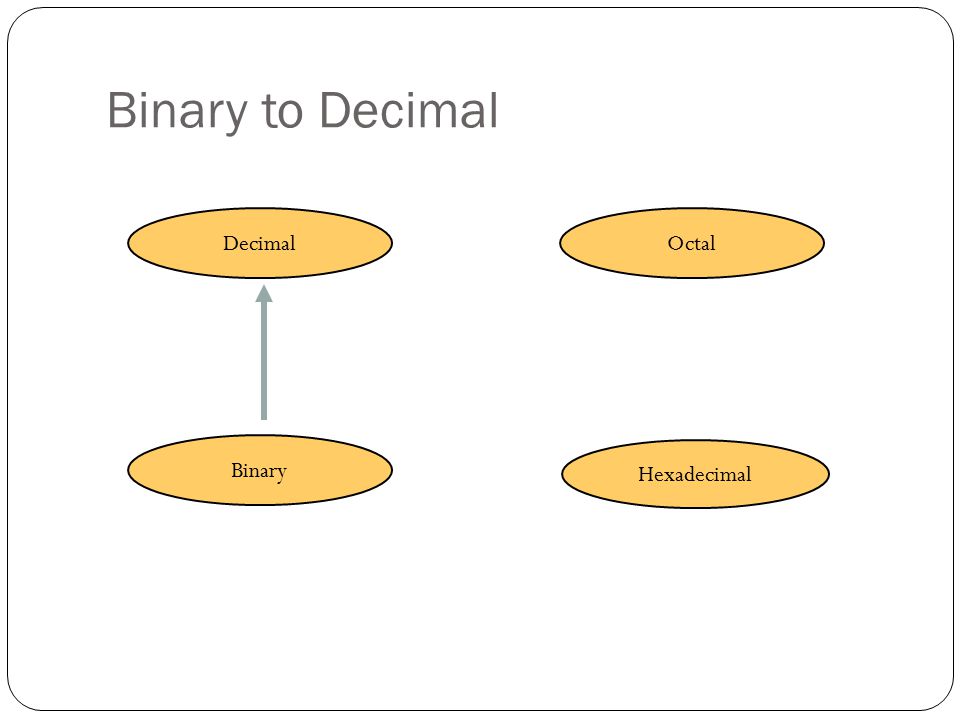

10 Binary to Decimal Hexadecimal DecimalOctal Binary

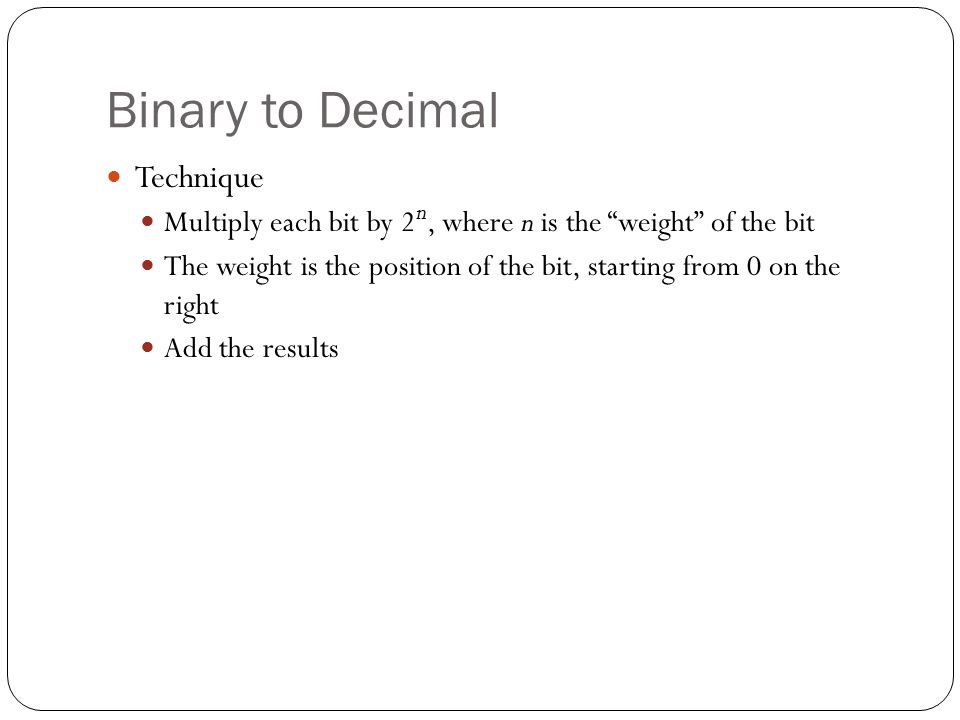

11 Binary to Decimal Technique Multiply each bit by 2 n, where n is the “weight” of the bit The weight is the position of the bit, starting from 0 on the right Add the results

12 Example 101011 2 => 1 x 2 0 = 1 1 x 2 1 = 2 0 x 2 2 = 0 1 x 2 3 = 8 0 x 2 4 = 0 1 x 2 5 = 32 43 10 Bit “0”

13 Octal to Decimal Hexadecimal DecimalOctal Binary

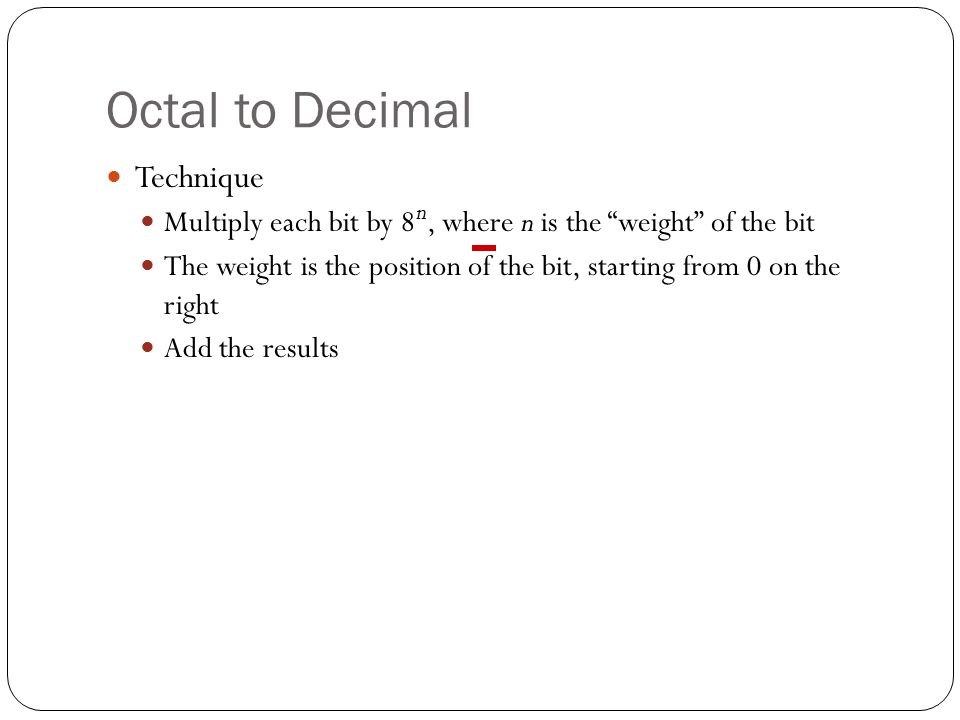

14 Octal to Decimal Technique Multiply each bit by 8 n, where n is the “weight” of the bit The weight is the position of the bit, starting from 0 on the right Add the results

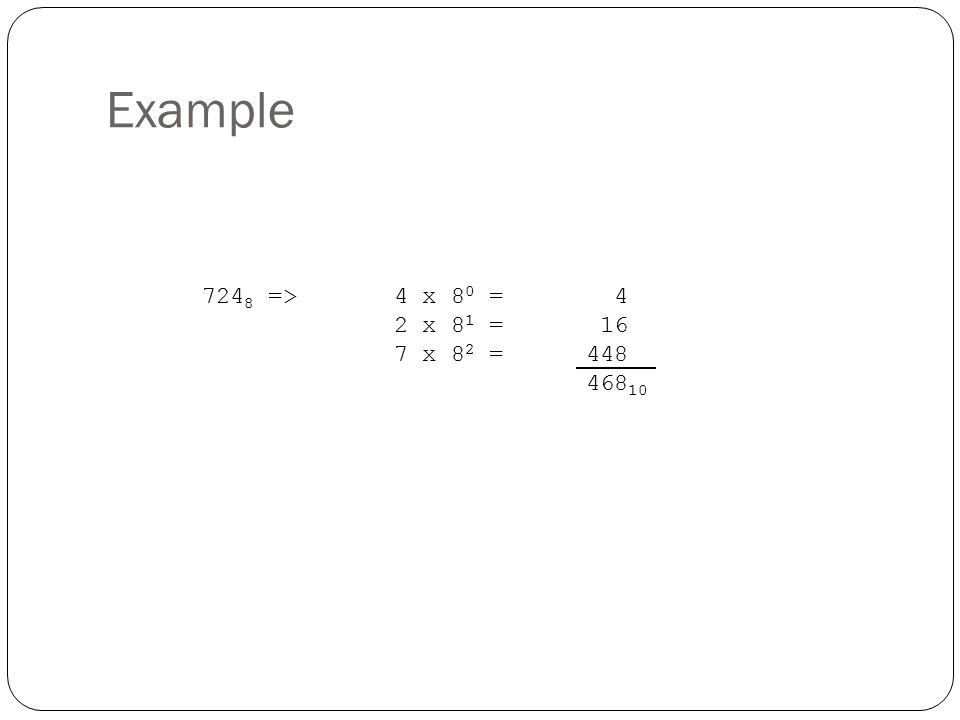

15 Example 724 8 => 4 x 8 0 = 4 2 x 8 1 = 16 7 x 8 2 = 448 468 10

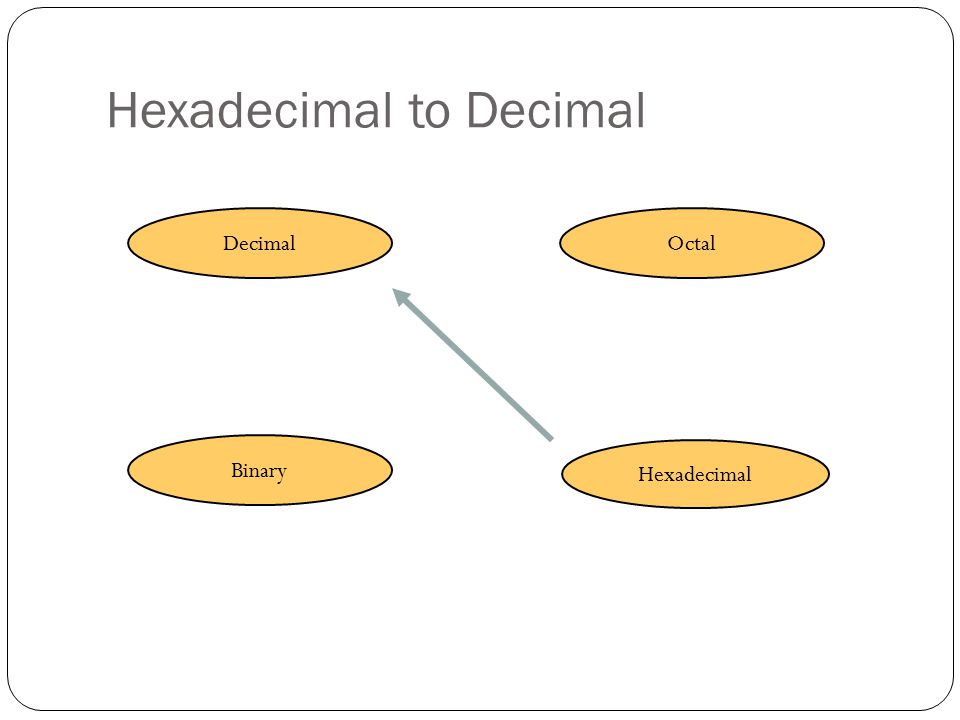

16 Hexadecimal to Decimal Hexadecimal DecimalOctal Binary

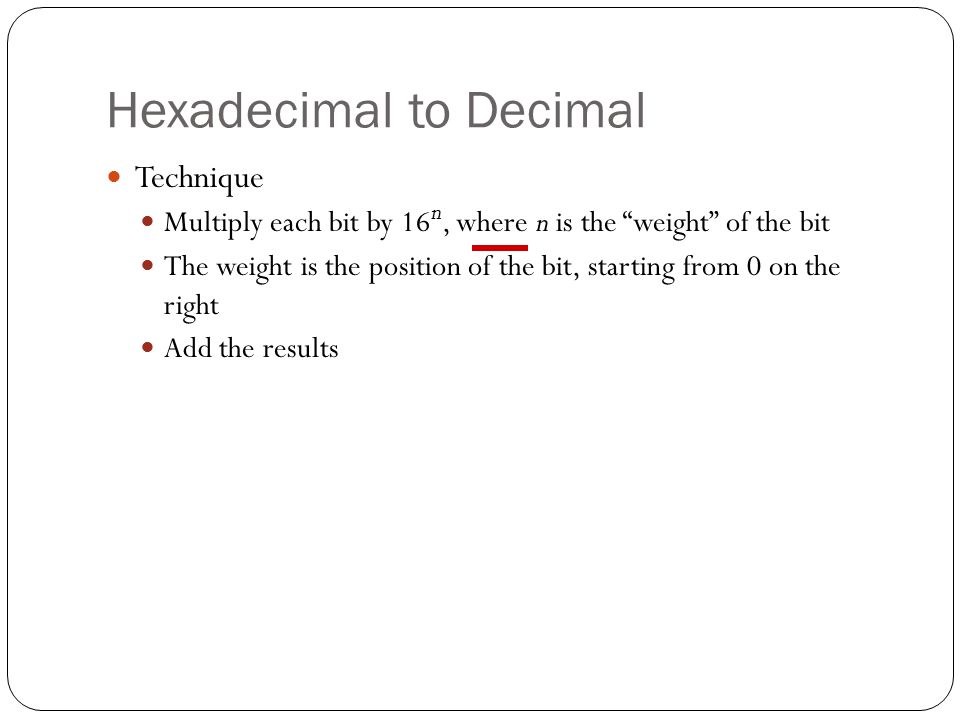

17 Hexadecimal to Decimal Technique Multiply each bit by 16 n, where n is the “weight” of the bit The weight is the position of the bit, starting from 0 on the right Add the results

18 Example ABC 16 =>C x 16 0 = 12 x 1 = 12 B x 16 1 = 11 x 16 = 176 A x 16 2 = 10 x 256 = 2560 2748 10

19 Decimal to Binary Hexadecimal DecimalOctal Binary

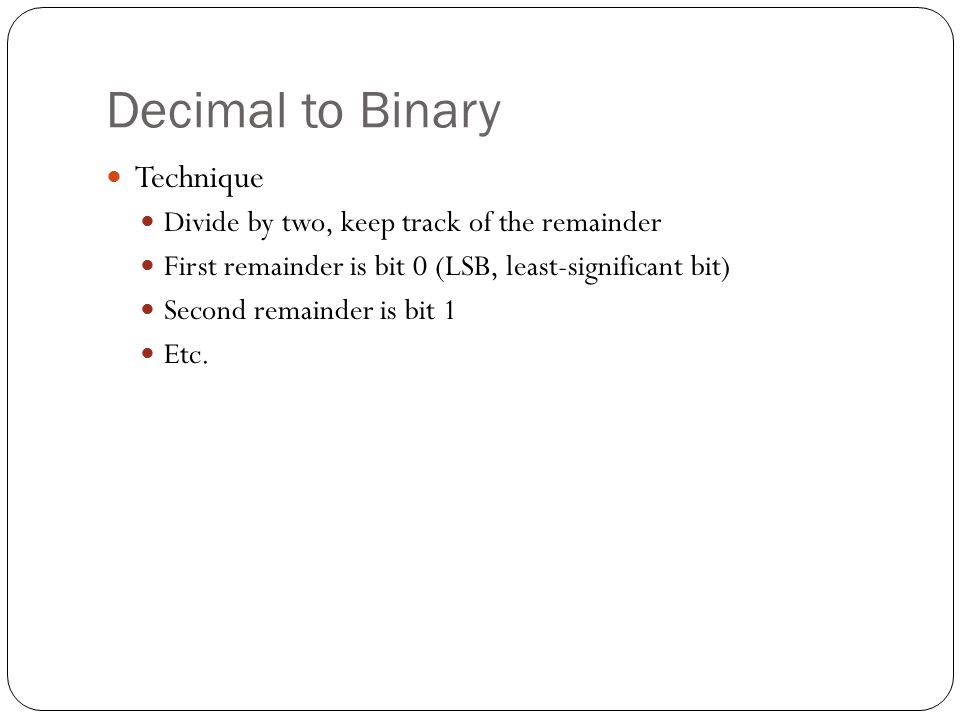

20 Decimal to Binary Technique Divide by two, keep track of the remainder First remainder is bit 0 (LSB, least-significant bit) Second remainder is bit 1 Etc.

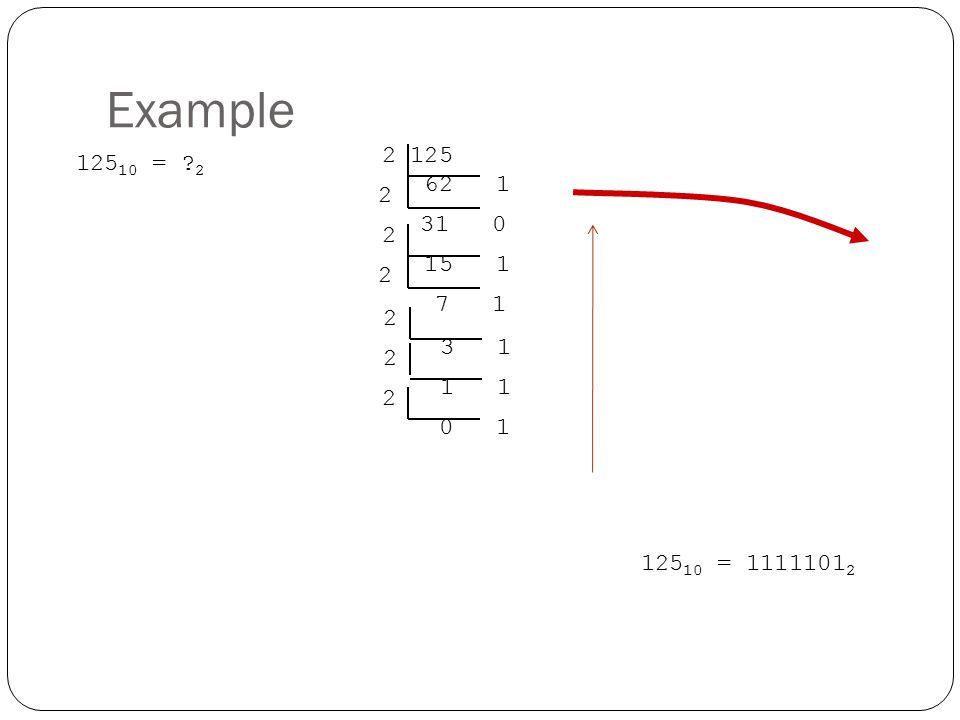

21 Example 125 10 = ? 2 2 125 62 1 2 31 0 2 15 1 2 7 1 2 3 1 2 1 1 2 0 1 125 10 = 1111101 2

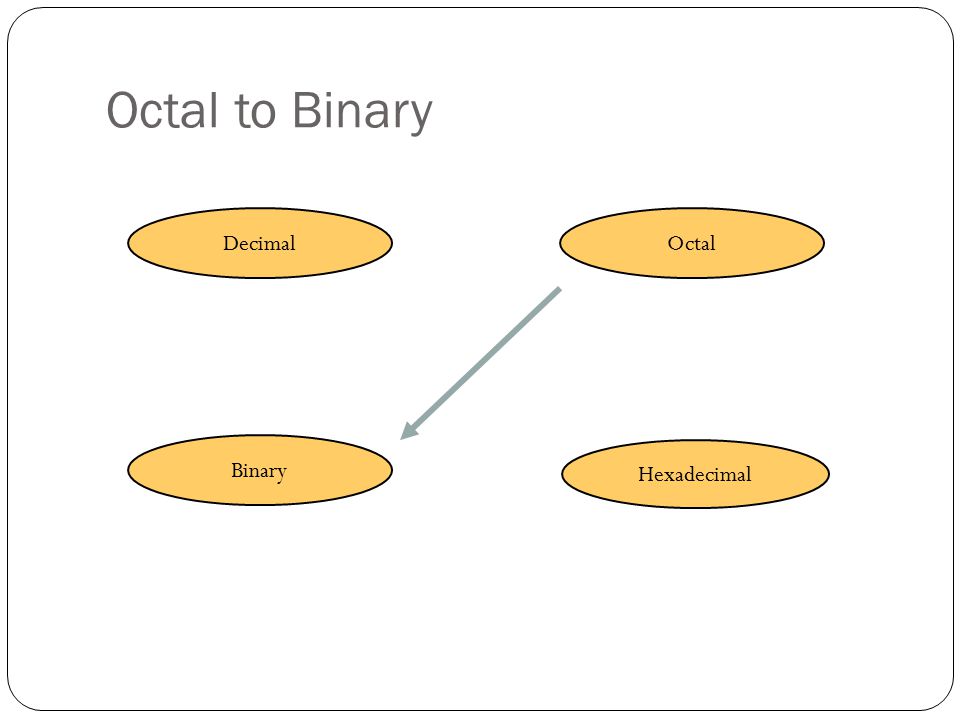

22 Octal to Binary Hexadecimal DecimalOctal Binary

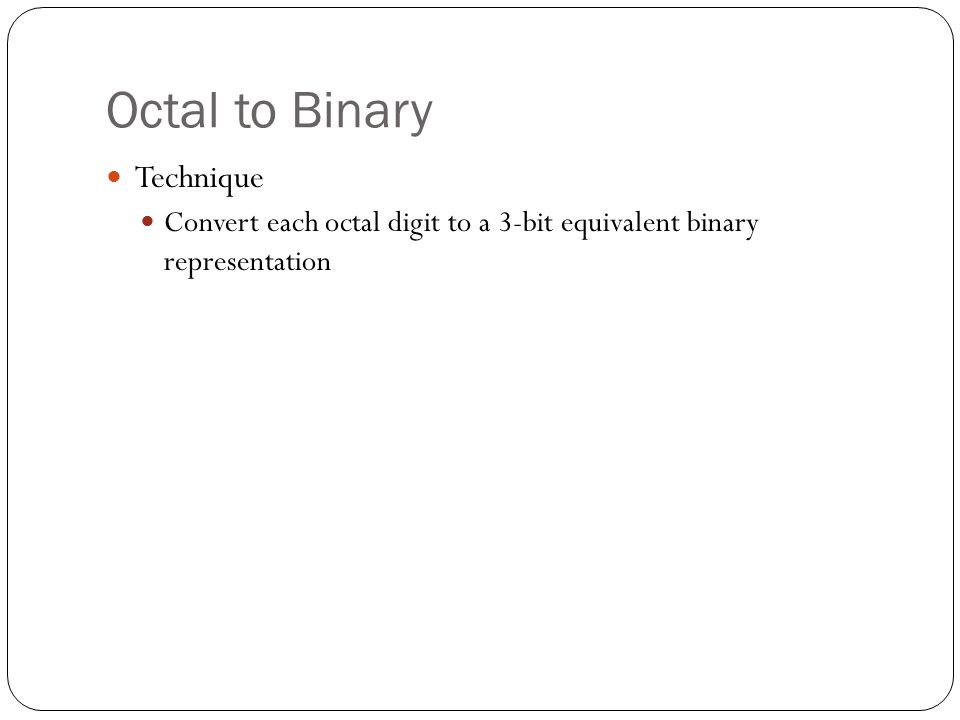

23 Octal to Binary Technique Convert each octal digit to a 3-bit equivalent binary representation

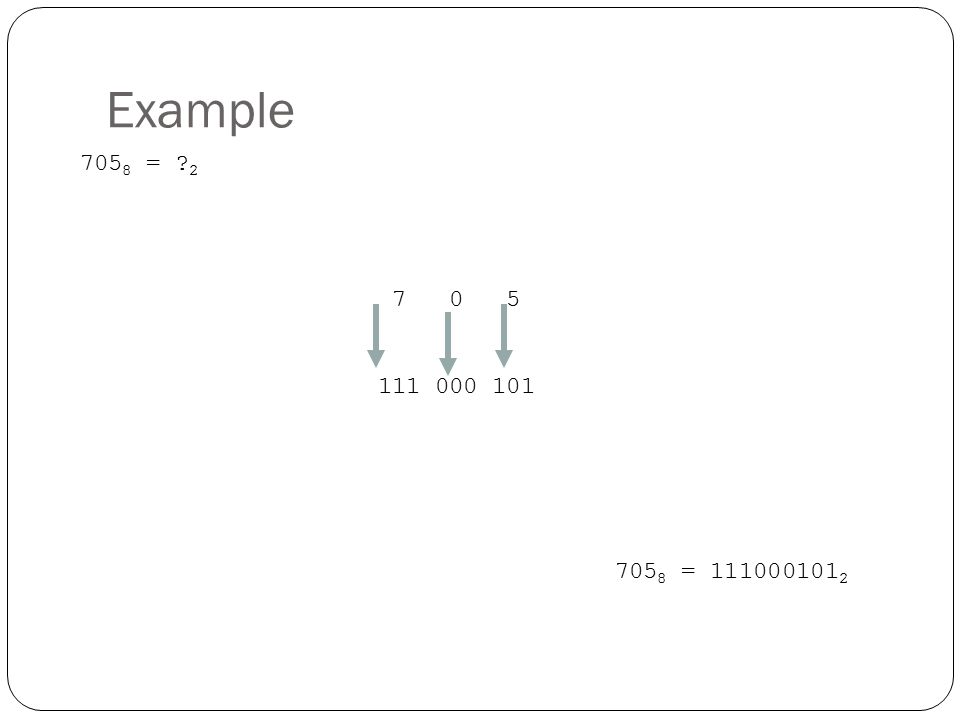

24 Example 705 8 = ? 2 7 0 5 111 000 101 705 8 = 111000101 2

25 Hexadecimal to Binary Hexadecimal DecimalOctal Binary

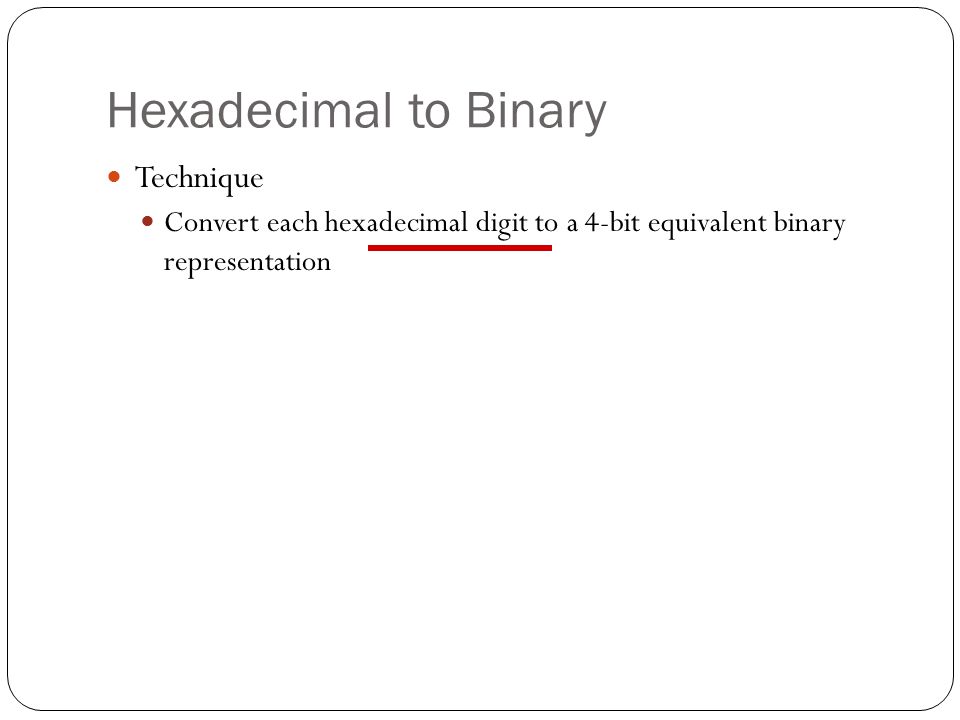

26 Hexadecimal to Binary Technique Convert each hexadecimal digit to a 4-bit equivalent binary representation

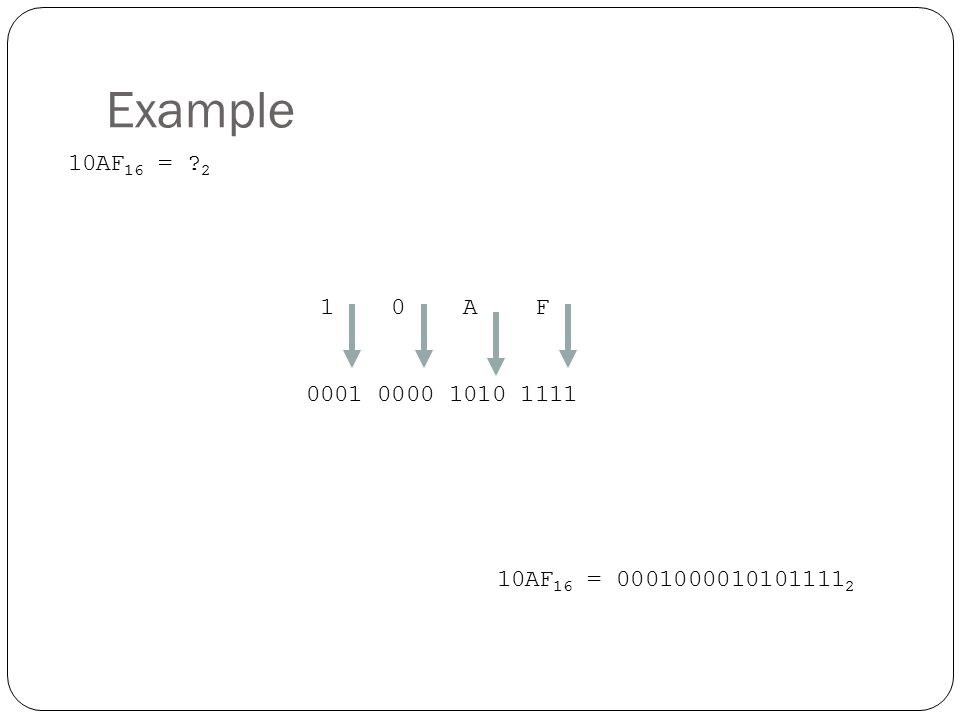

27 Example 10AF 16 = ? 2 1 0 A F 0001 0000 1010 1111 10AF 16 = 0001000010101111 2

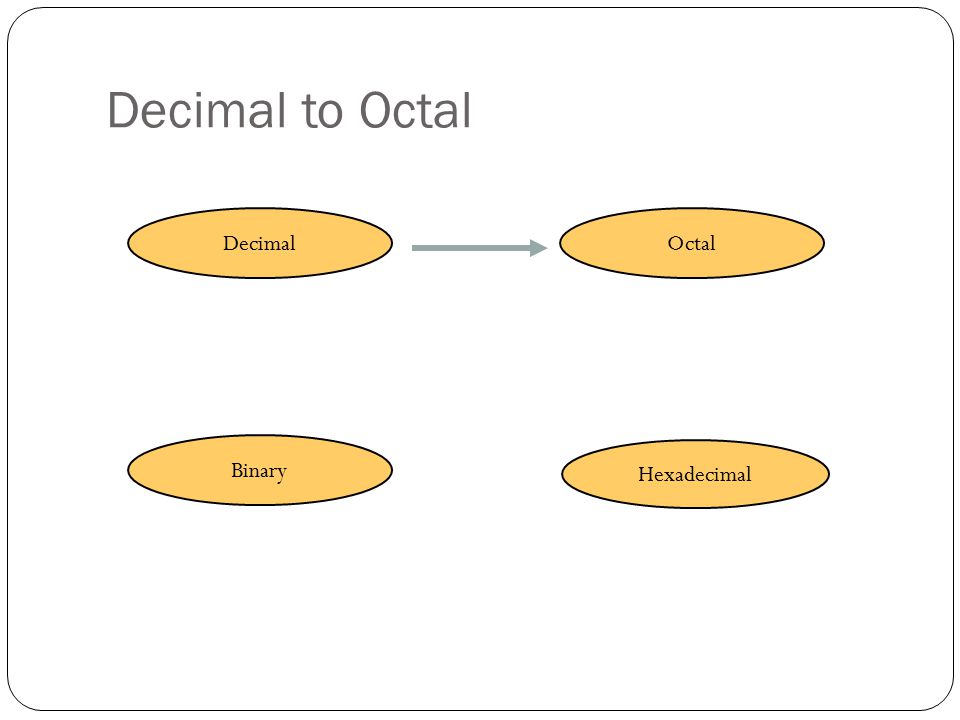

28 Decimal to Octal Hexadecimal DecimalOctal Binary

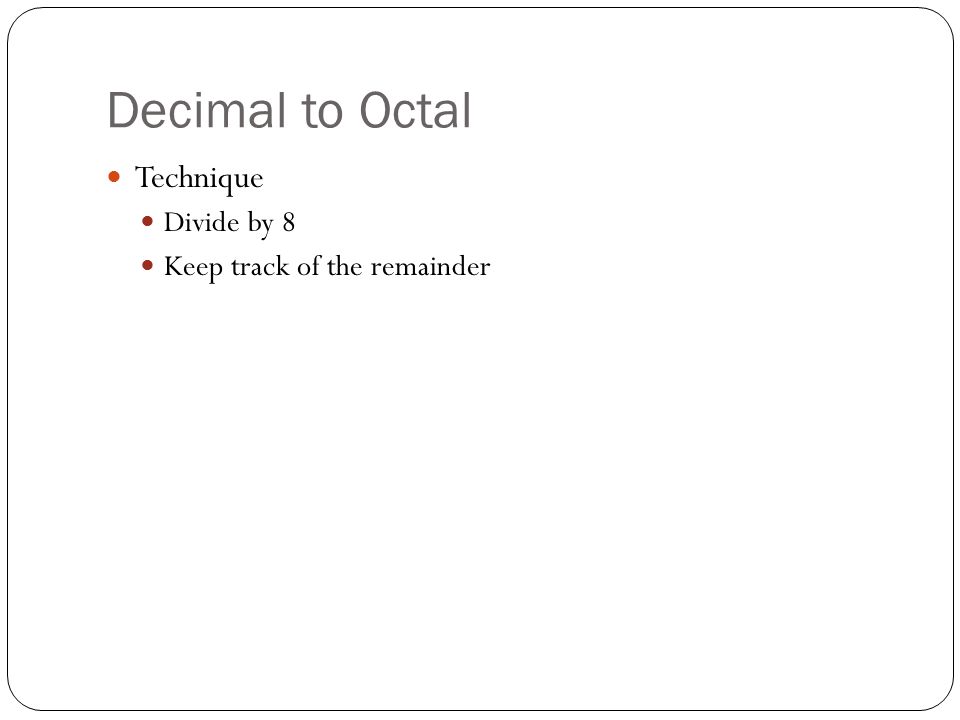

29 Decimal to Octal Technique Divide by 8 Keep track of the remainder

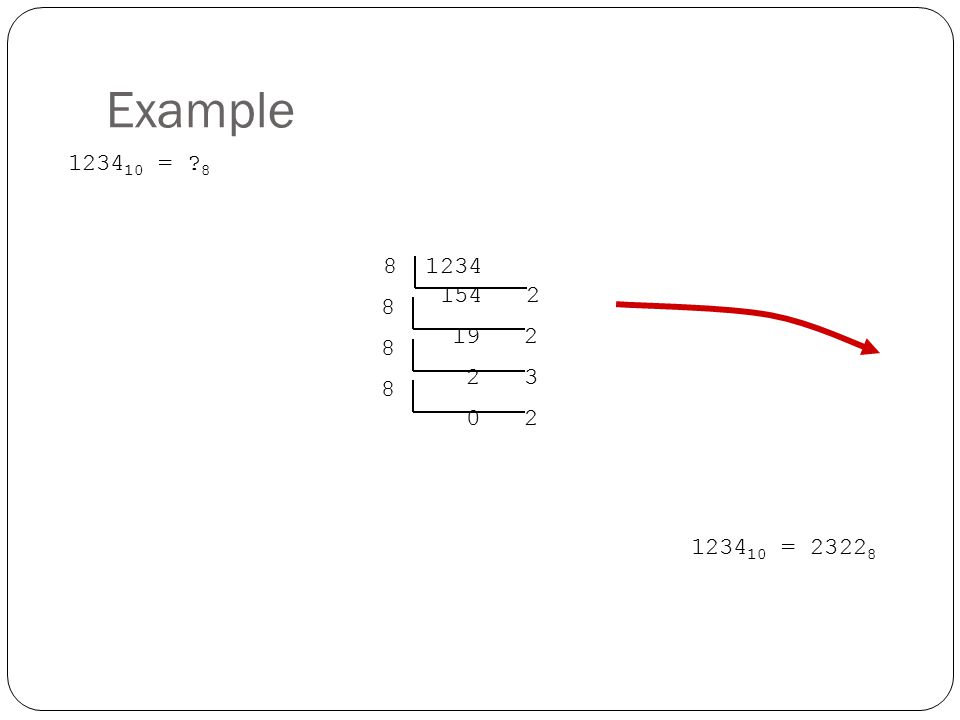

30 Example 1234 10 = ? 8 8 1234 154 2 8 19 2 8 2 3 8 0 2 1234 10 = 2322 8

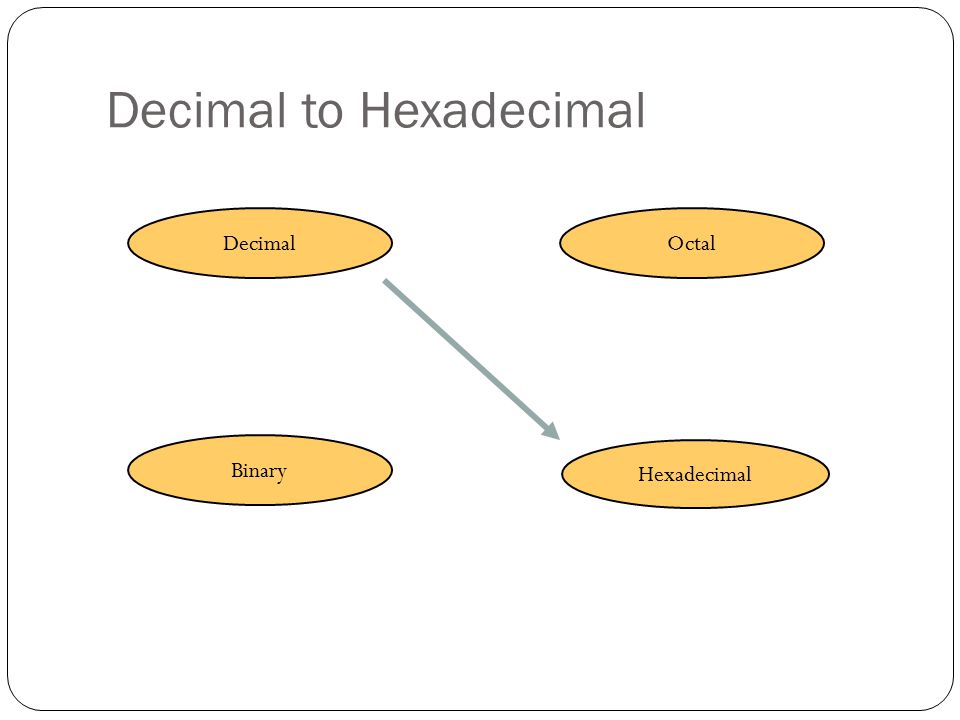

31 Decimal to Hexadecimal Hexadecimal DecimalOctal Binary

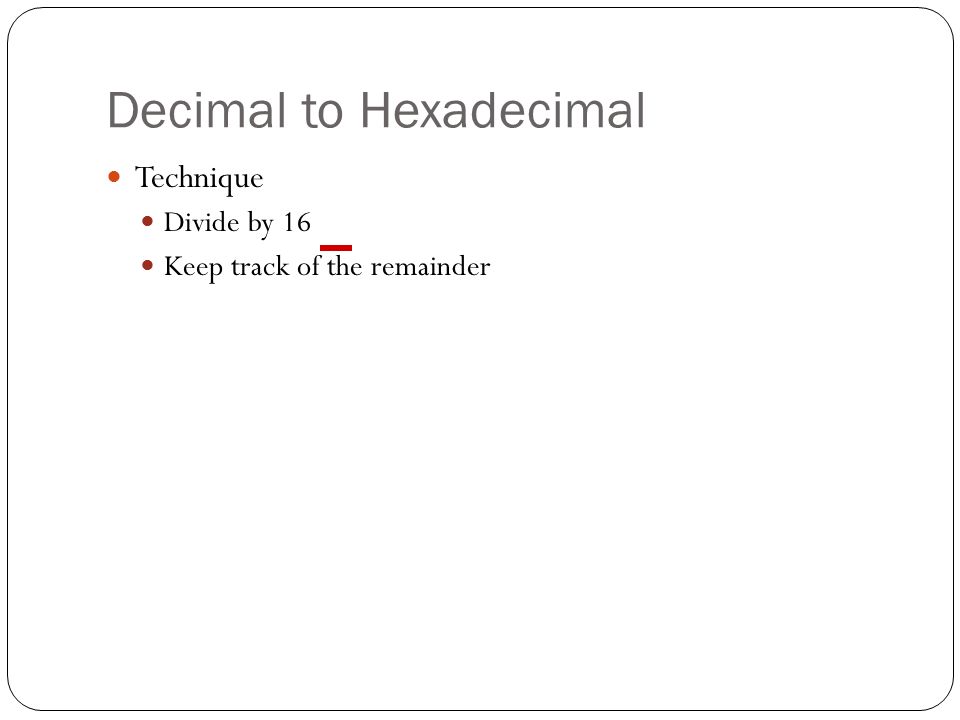

32 Decimal to Hexadecimal Technique Divide by 16 Keep track of the remainder

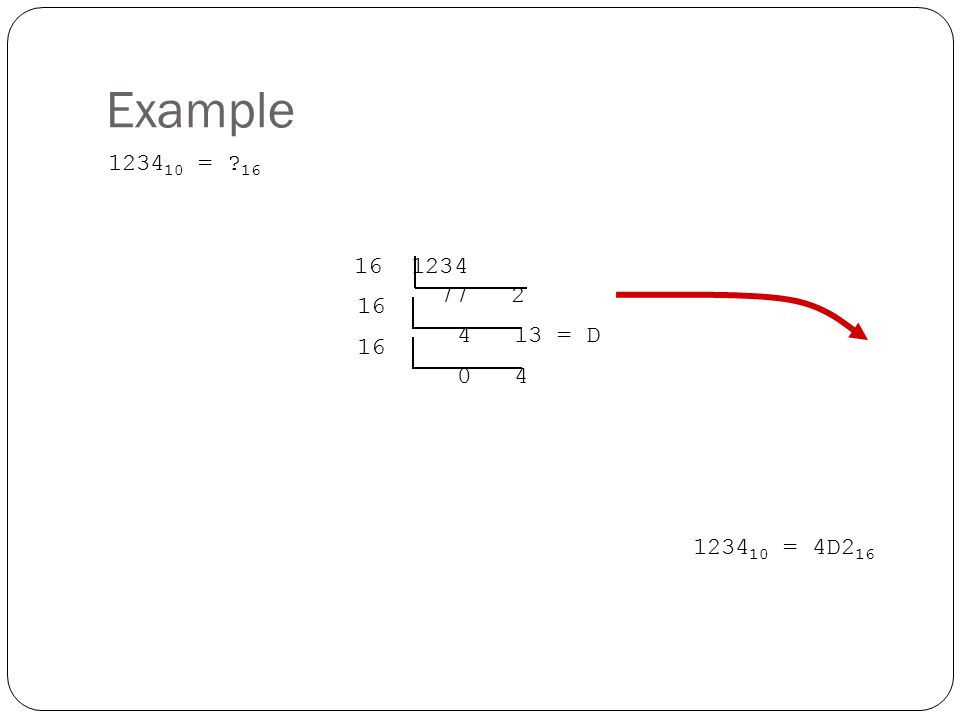

33 Example 1234 10 = ? 16 1234 10 = 4D2 16 16 1234 77 2 16 4 13 = D 16 0 4

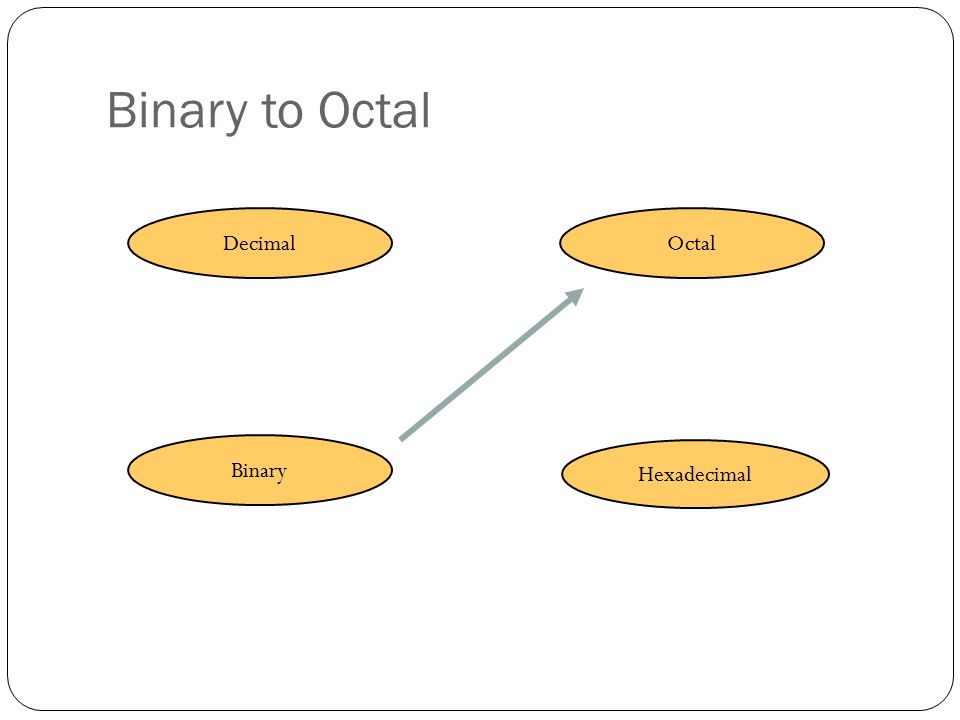

34 Binary to Octal Hexadecimal DecimalOctal Binary

35 Binary to Octal Technique Group bits in threes, starting on right Convert to octal digits

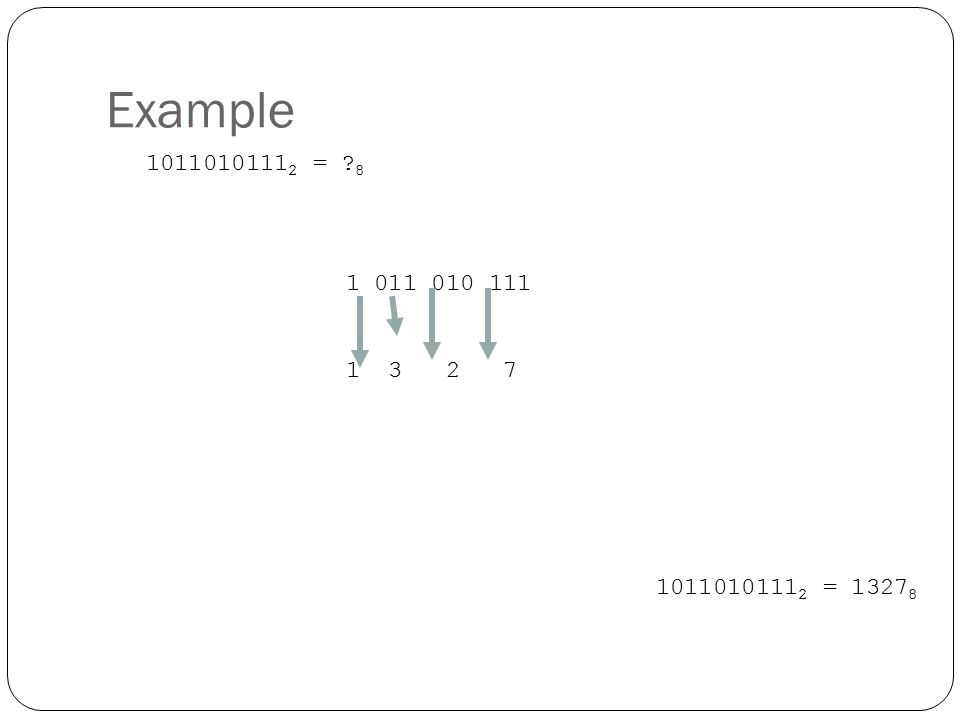

36 Example 1011010111 2 = ? 8 1 011 010 111 1 3 2 7 1011010111 2 = 1327 8

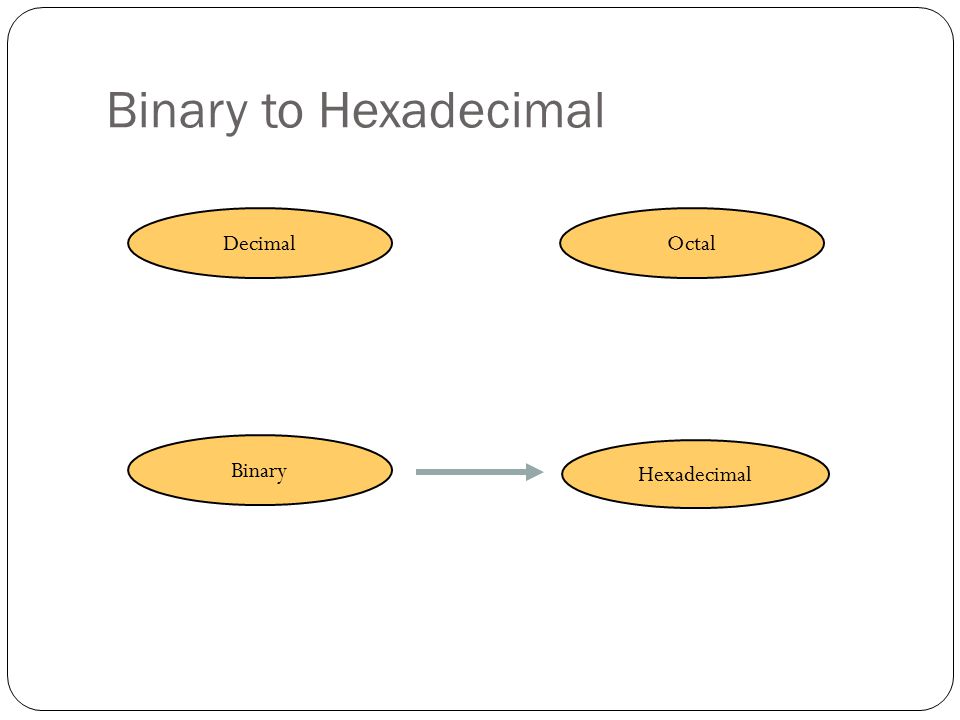

37 Binary to Hexadecimal Hexadecimal DecimalOctal Binary

38 Binary to Hexadecimal Technique Group bits in fours, starting on right Convert to hexadecimal digits

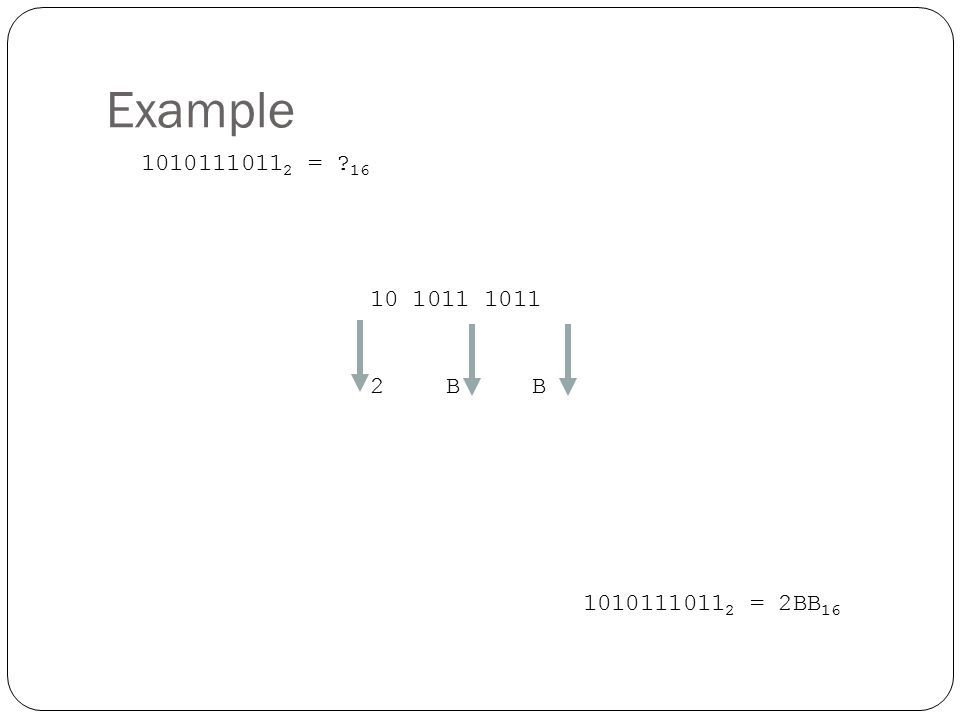

39 Example 1010111011 2 = ? 16 10 1011 1011 2 B B 1010111011 2 = 2BB 16

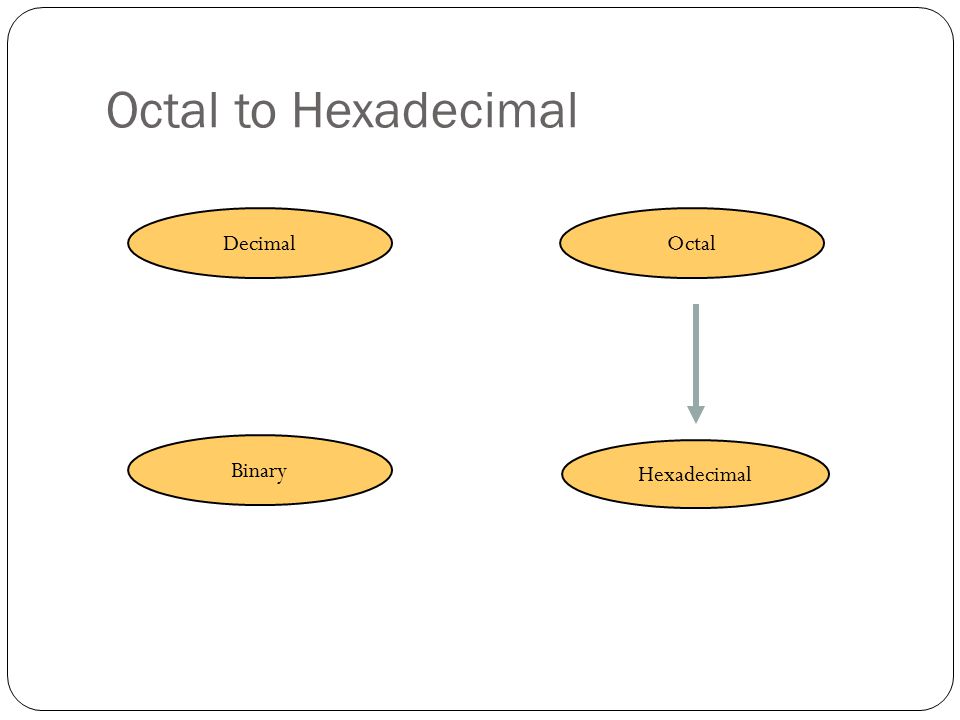

40 Octal to Hexadecimal Hexadecimal DecimalOctal Binary

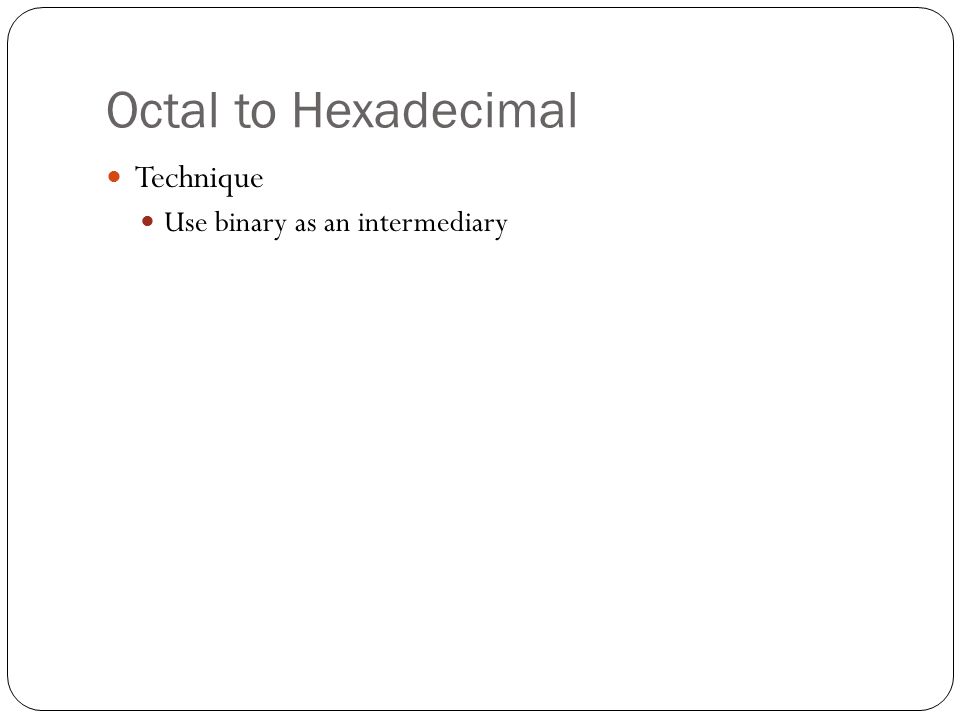

41 Octal to Hexadecimal Technique Use binary as an intermediary

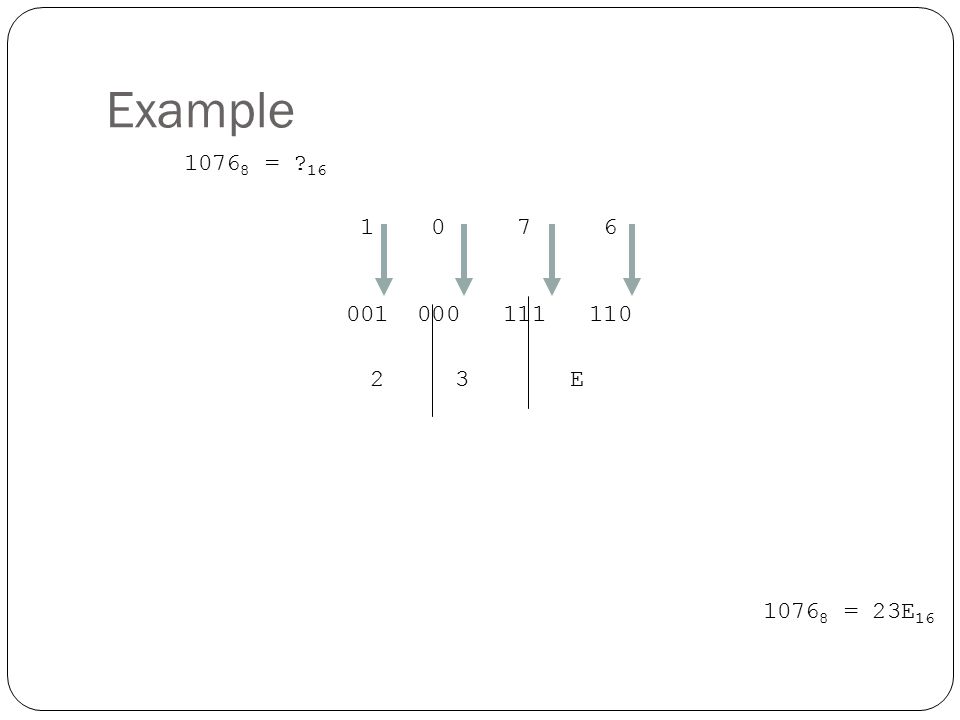

42 Example 1076 8 = ? 16 1 0 7 6 001 000 111 110 2 3 E 1076 8 = 23E 16

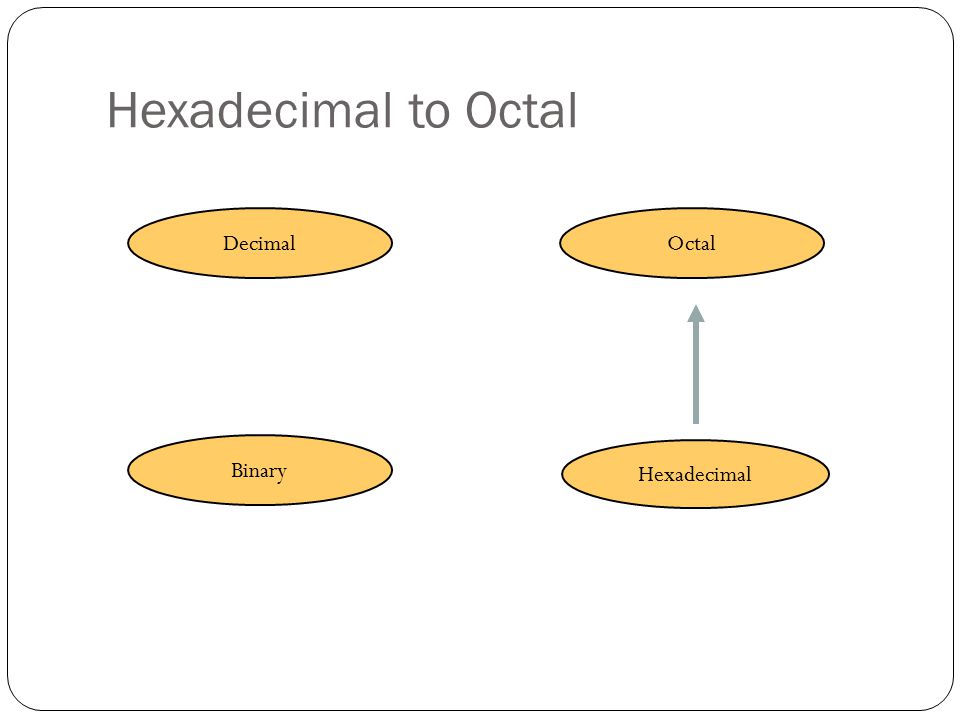

43 Hexadecimal to Octal Hexadecimal DecimalOctal Binary

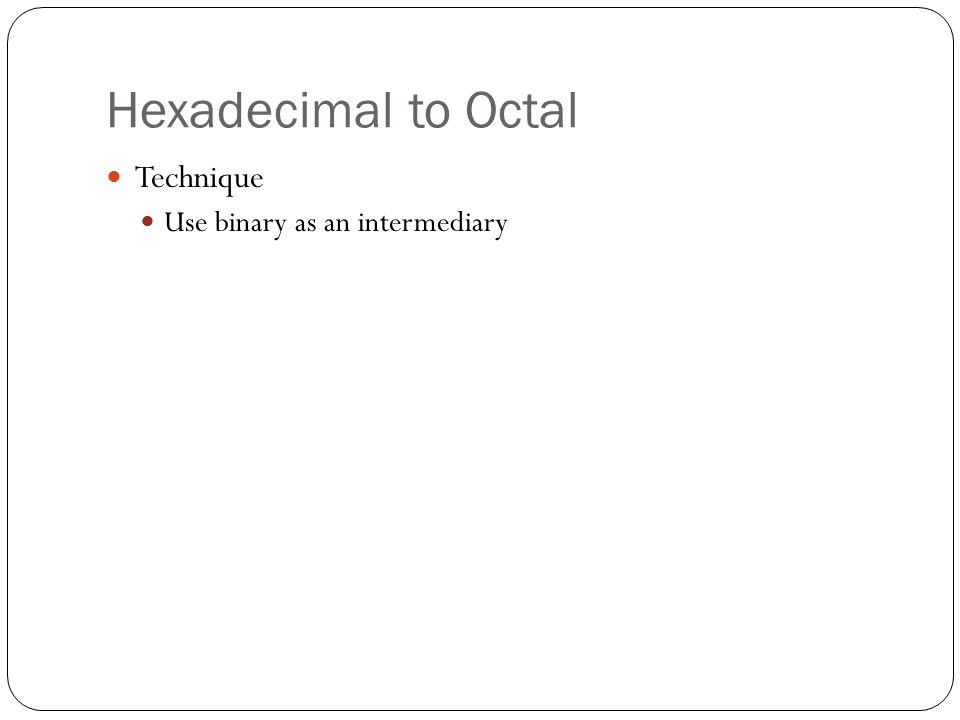

44 Hexadecimal to Octal Technique Use binary as an intermediary

45 Example 1F0C 16 = ? 8 1 F 0 C 0001 1111 0000 1100 1 7 4 1 4 1F0C 16 = 17414 8

46 Exercise – Convert... Don’t use a calculator! DecimalBinaryOctal Hexa- decimal 33 1110101 703 1AF Skip answer Answer
