1 Measuring the Magnetic Field in the Sun and the Interstellar Medium Steven R. Spangler… University of Iowa

2 The solar corona and the interstellar medium…two astrophysical plasmas

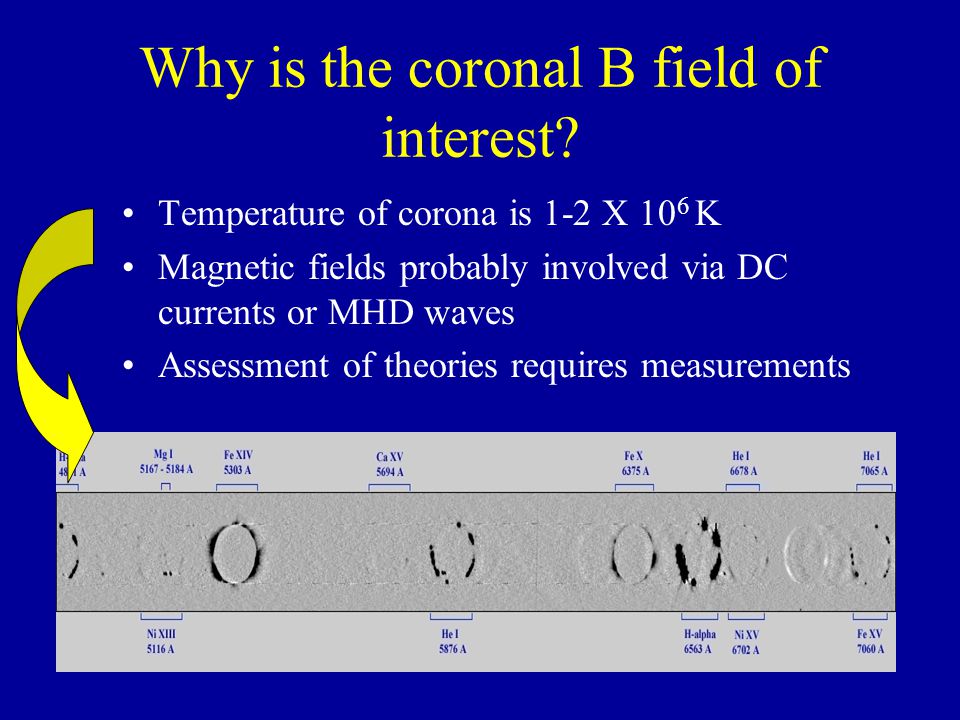

3 Why is the coronal B field of interest? Temperature of corona is 1-2 X 10 6 K Magnetic fields probably involved via DC currents or MHD waves Assessment of theories requires measurements

4 We know the magnetic field both below and above the corona

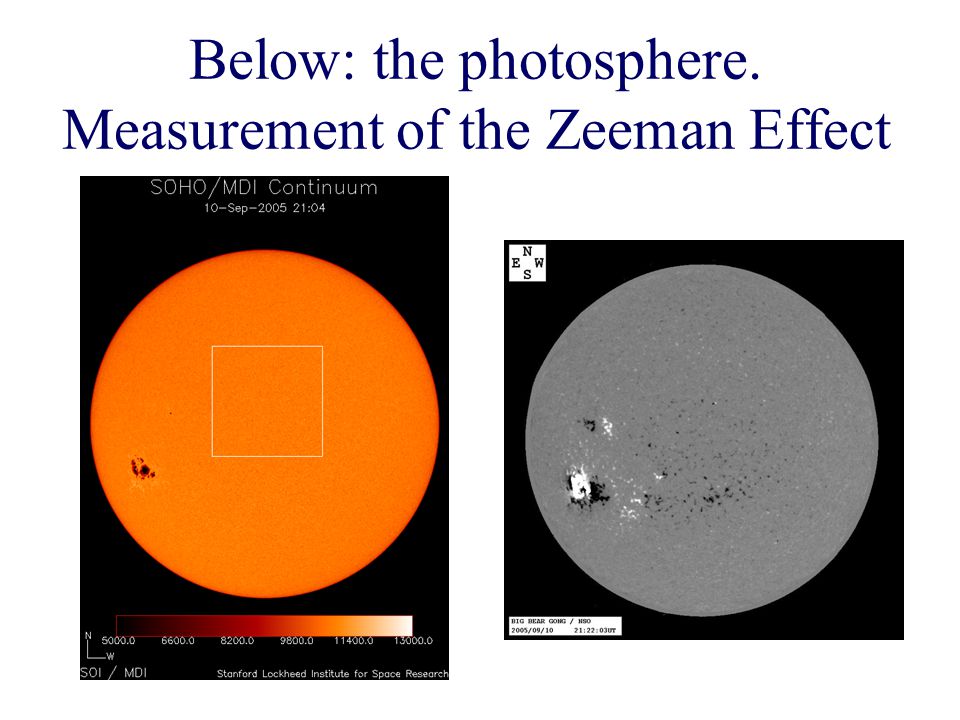

5 Below: the photosphere. Measurement of the Zeeman Effect

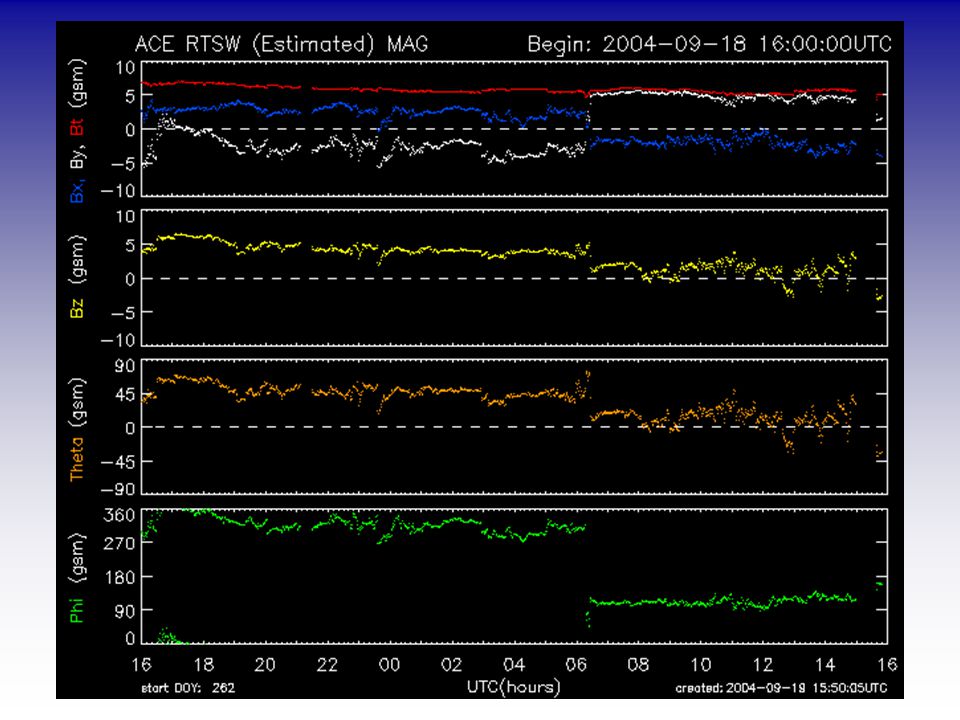

6 Above the corona: direct magnetometer measurements in the solar wind

7

8 How do we measure B in the corona itself? Zeeman measure ments here Direct measure ments out here

9 Radioastronomical propagation measurements Technique discussed here: Faraday rotation

10

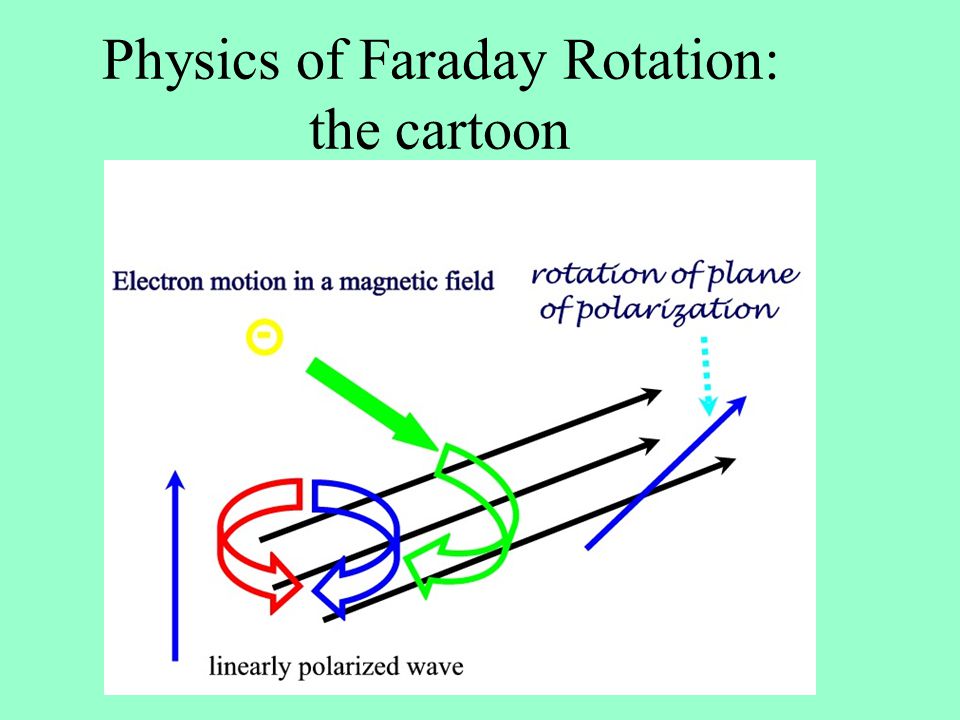

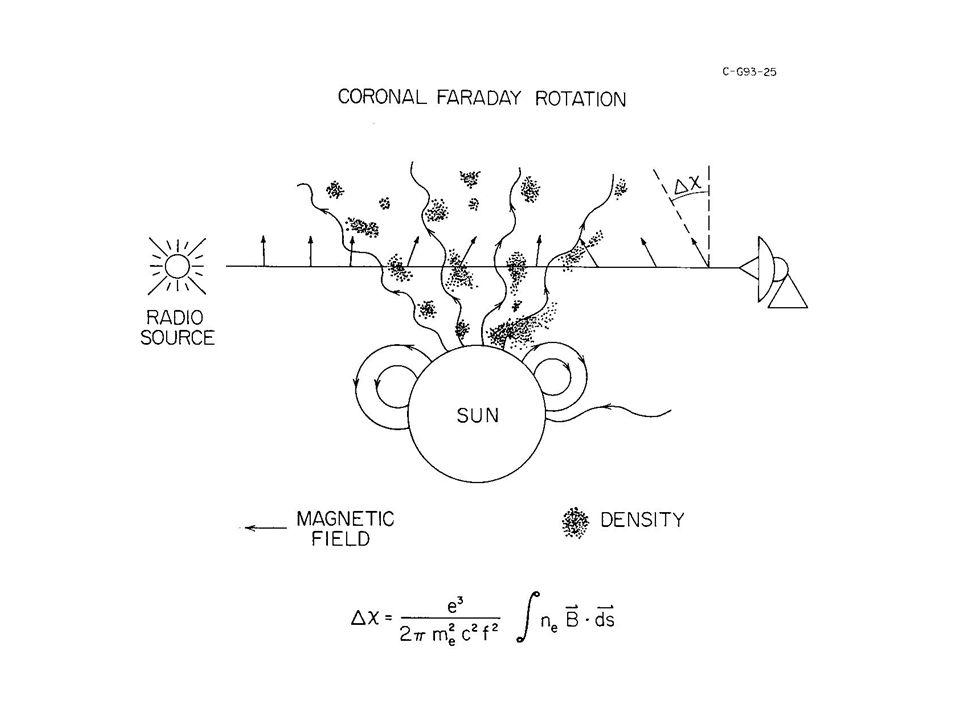

11 Physics of Faraday Rotation: the cartoon

12 Physics of Faraday Rotation Phase speed of R&L waves Phase shift (cm) after prop. Phase shift (radians) Rotation of polarization position angle

13 The Physics of Faraday Rotation Demonstration

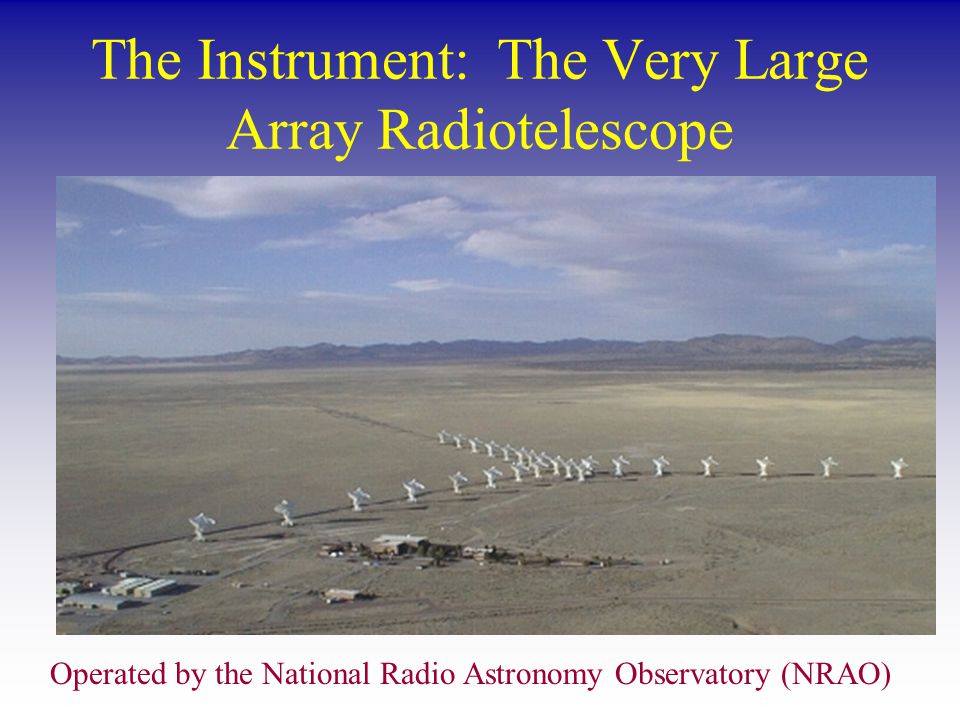

14 The Instrument: The Very Large Array Radiotelescope Operated by the National Radio Astronomy Observatory (NRAO)

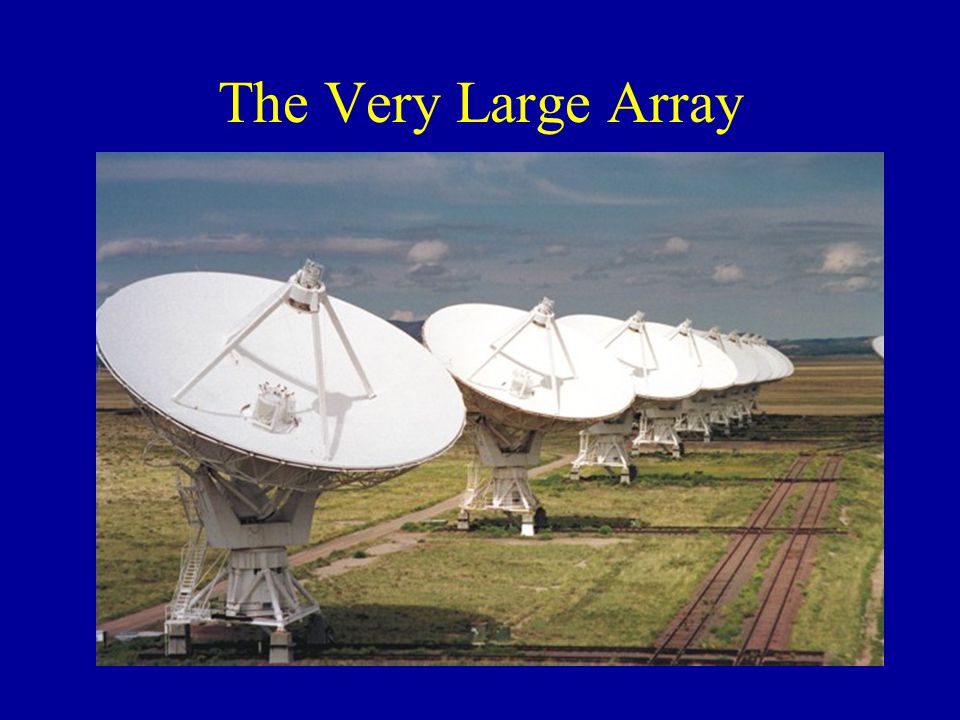

15 The Very Large Array

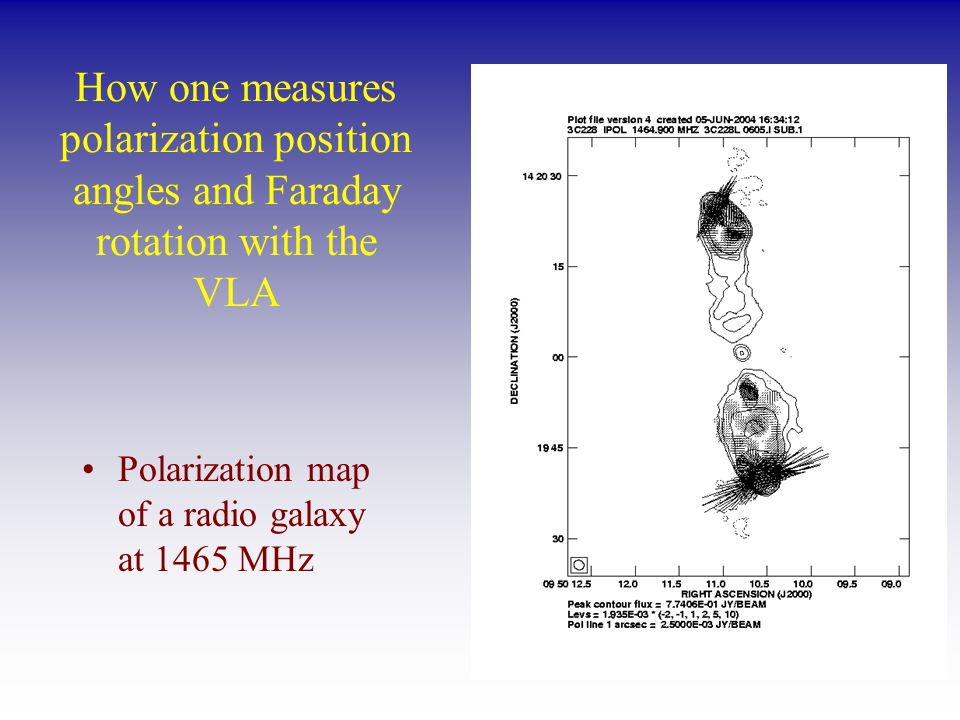

16 How one measures polarization position angles and Faraday rotation with the VLA Polarization map of a radio galaxy at 1465 MHz

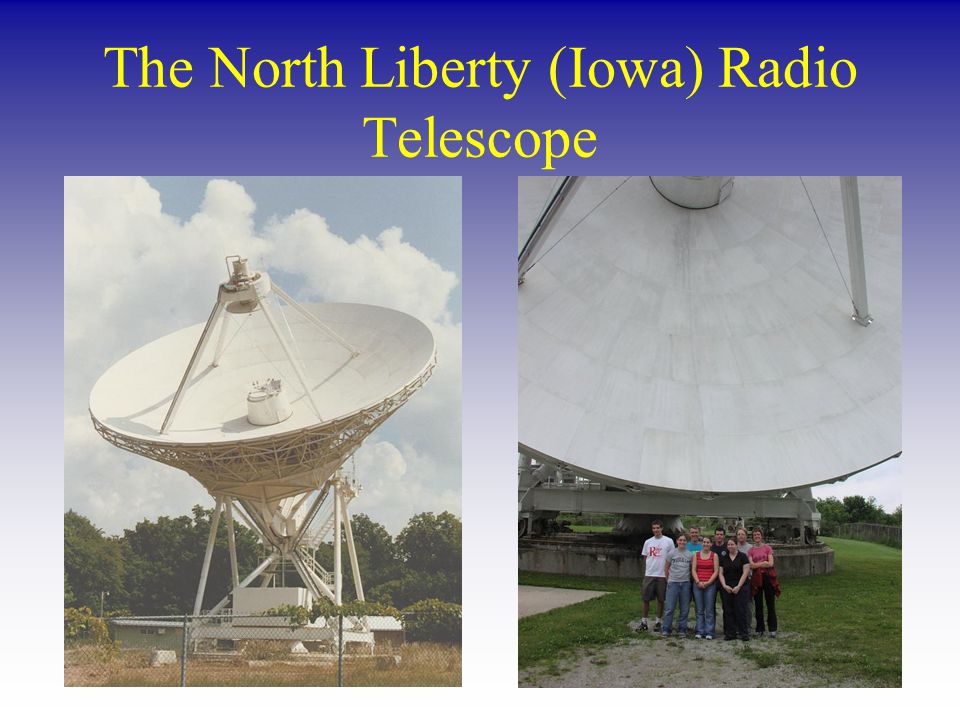

17 The North Liberty (Iowa) Radio Telescope

18 The background sources (signal generators for propagation expmts) Extragalactic radio sources EG sources provide many “drillholes” through corona

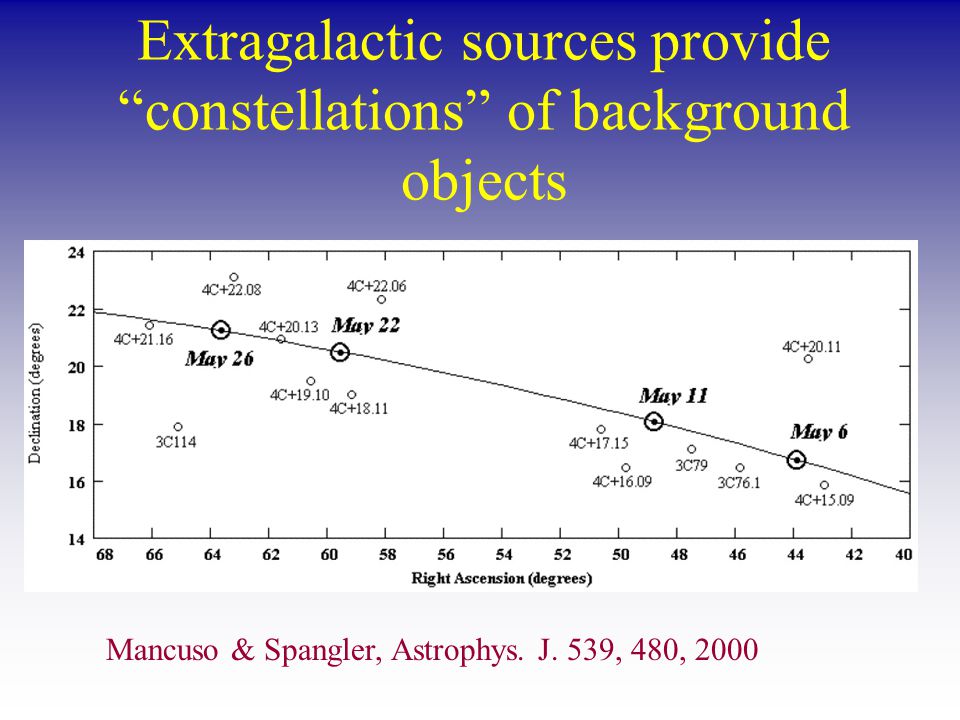

19 Extragalactic sources provide “constellations” of background objects Mancuso & Spangler, Astrophys. J. 539, 480, 2000

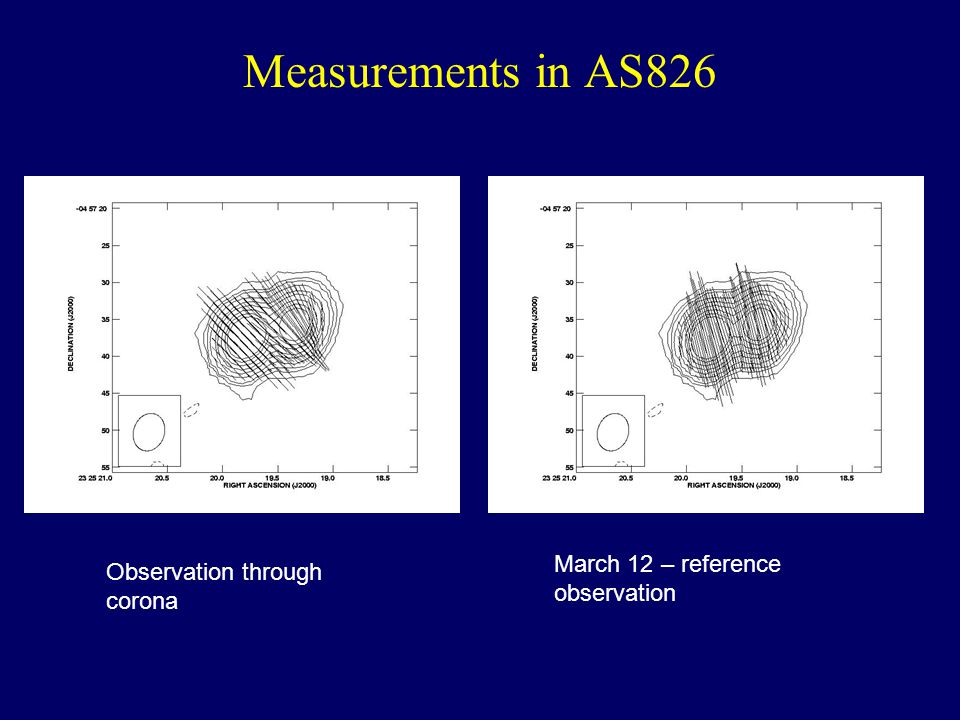

20 Measurements in AS826 Observation through corona March 12 – reference observation

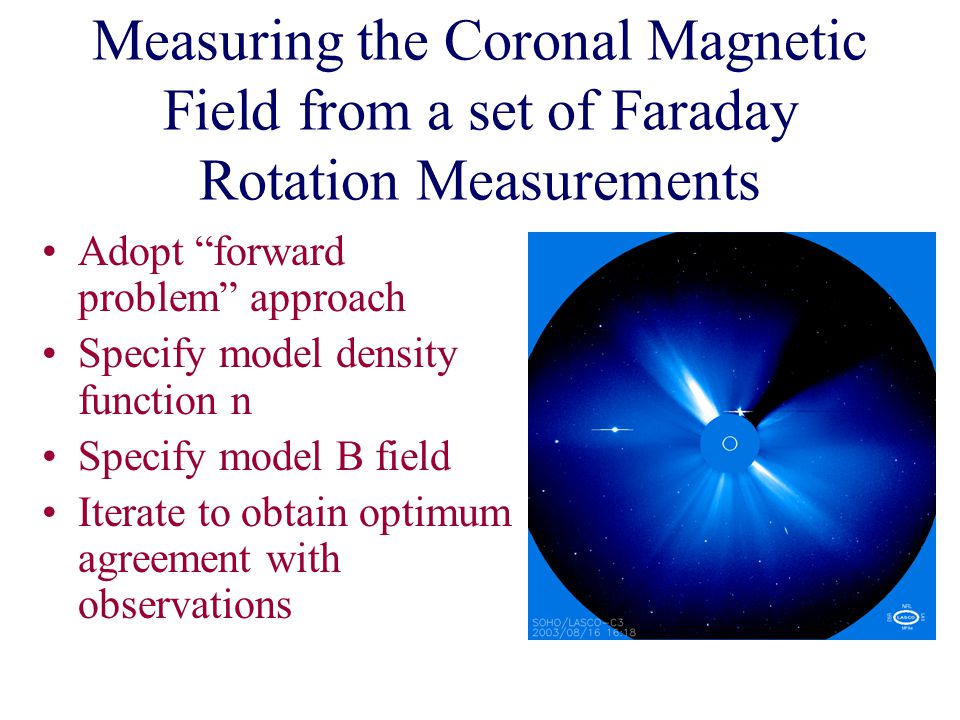

21 Measuring the Coronal Magnetic Field from a set of Faraday Rotation Measurements Adopt “forward problem” approach Specify model density function n Specify model B field Iterate to obtain optimum agreement with observations

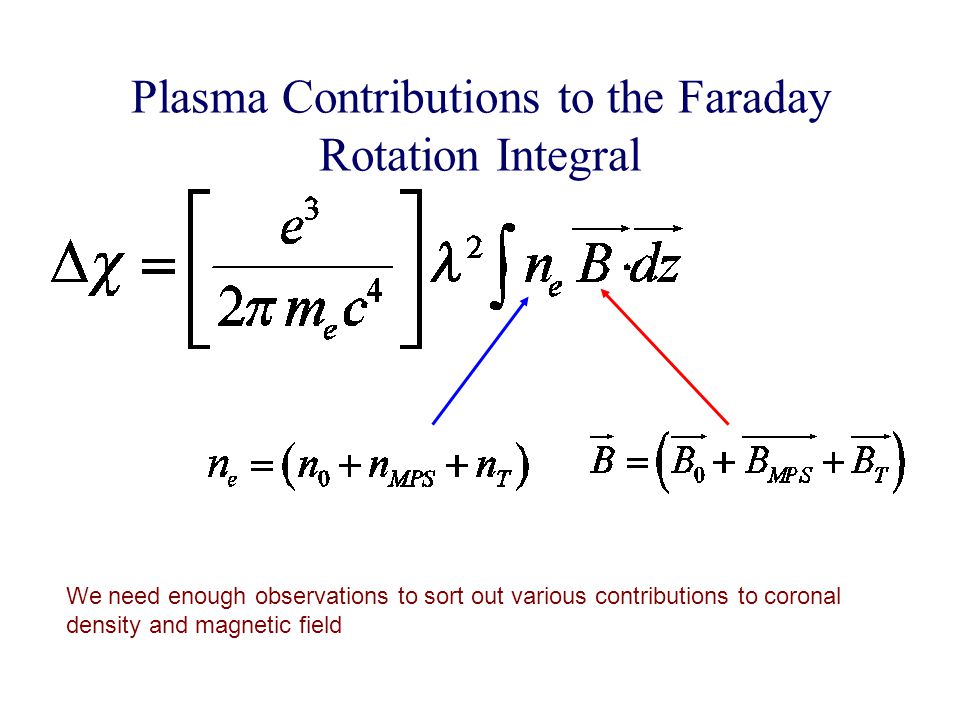

22 Plasma Contributions to the Faraday Rotation Integral We need enough observations to sort out various contributions to coronal density and magnetic field

23 Conclusions Measurements consistent with coronal field of 30-80mG at r=6R. (Paetzold et al 1987) Future observations could more effectively constrain the functional form of the coronal magnetic field. Rotation measure changes substantially on timescales of a few hours; too slow to be turbulence. Thus “Mesoscale Plasma Structures”. Smaller, faster fluctuations attributable to waves seen in spacecraft beacon data.

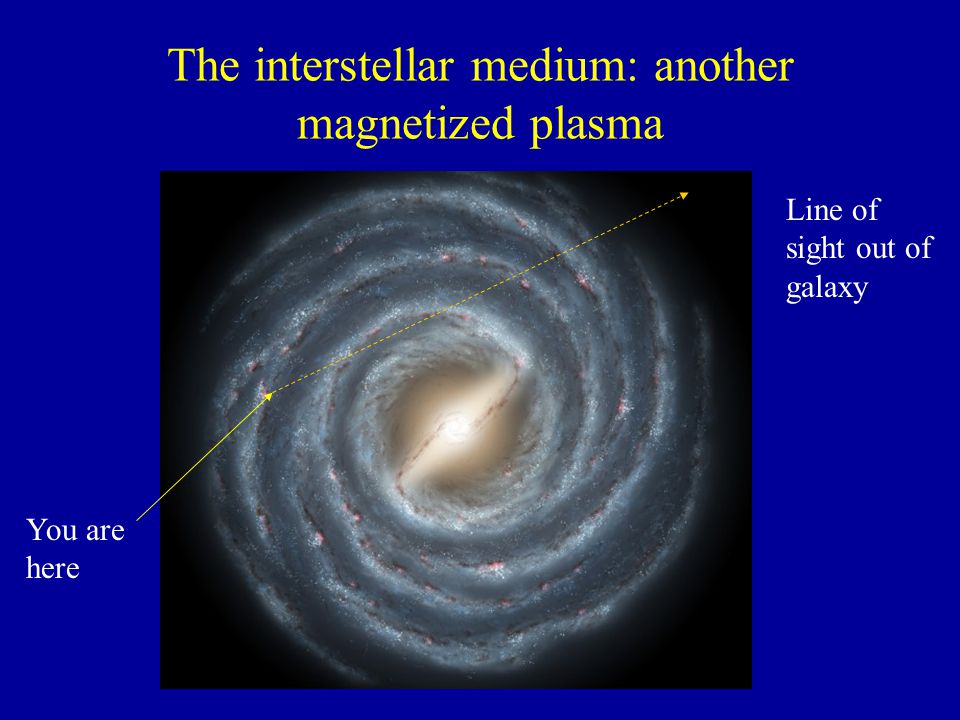

24 The interstellar medium: another magnetized plasma You are here Line of sight out of galaxy

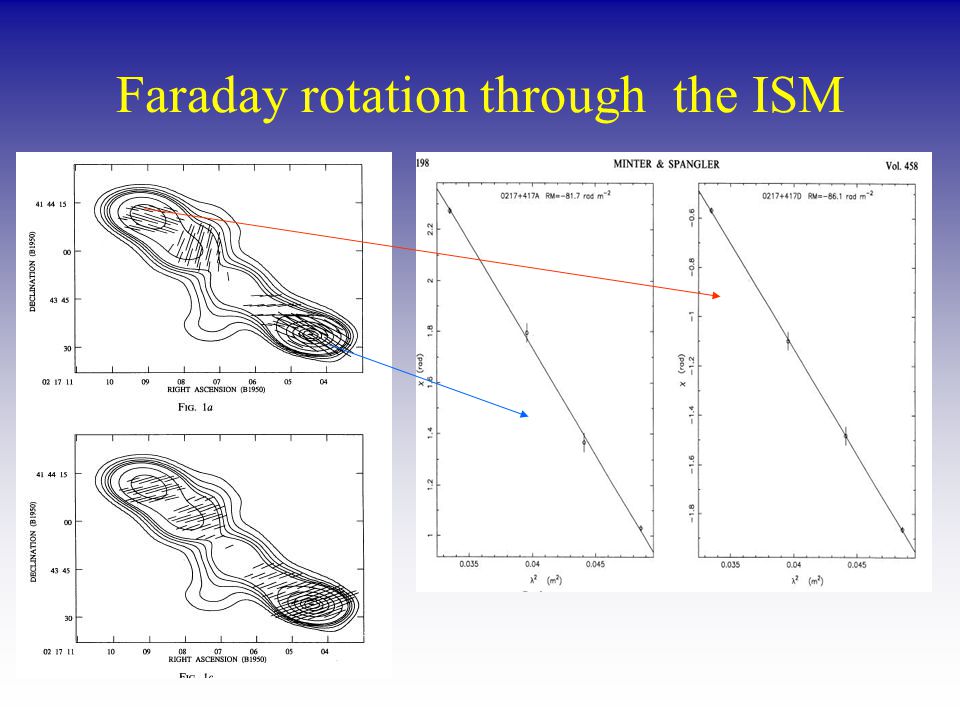

25 Faraday rotation through the ISM

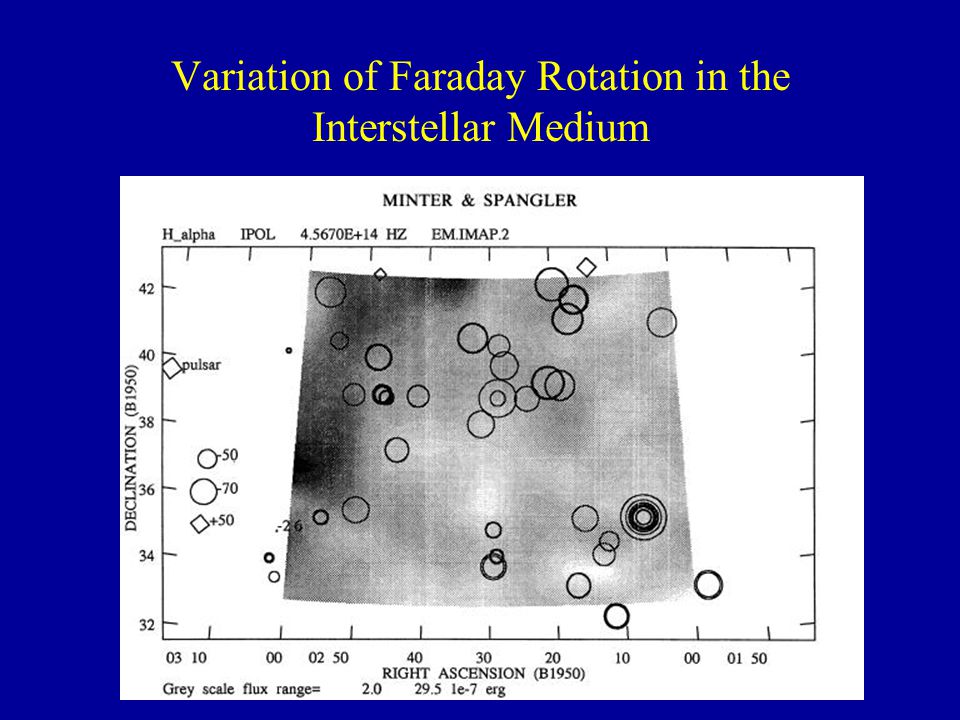

26 Variation of Faraday Rotation in the Interstellar Medium

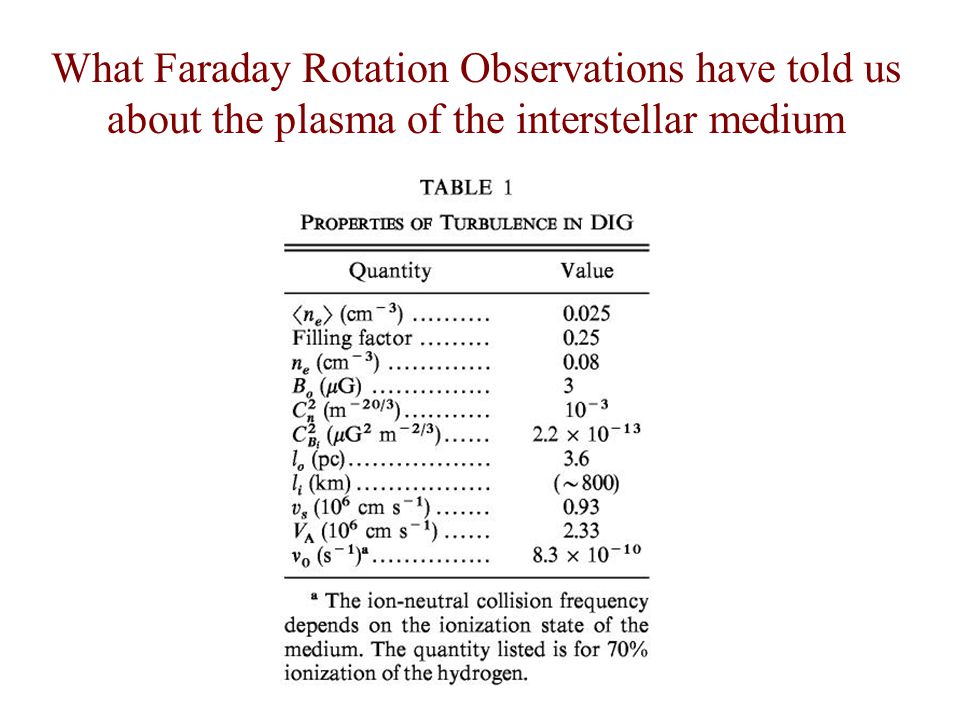

27 What Faraday Rotation Observations have told us about the plasma of the interstellar medium

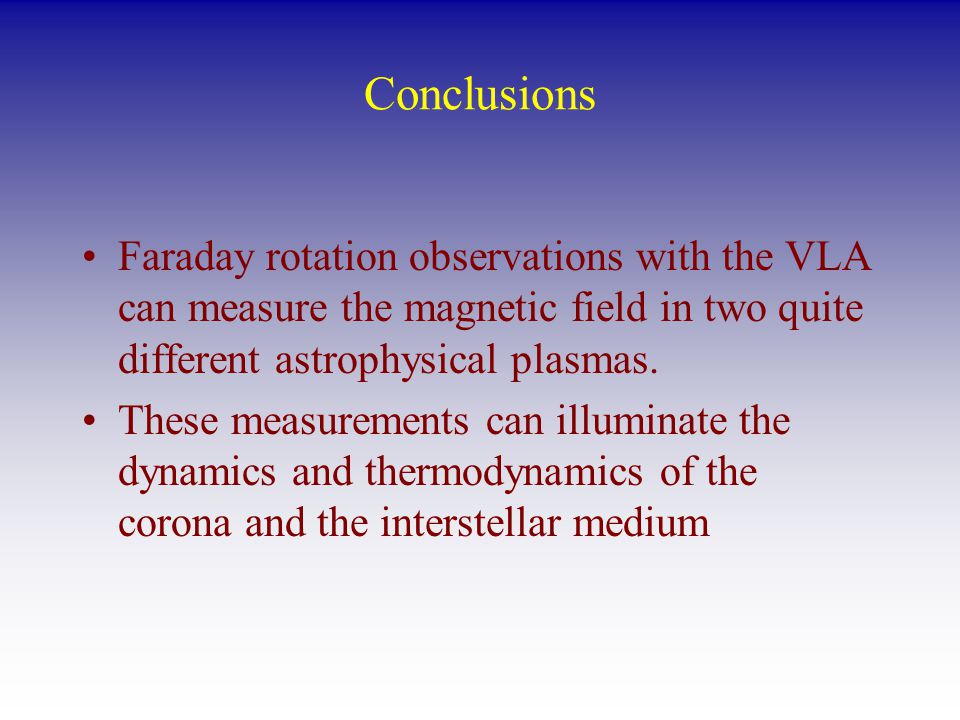

28 Conclusions Faraday rotation observations with the VLA can measure the magnetic field in two quite different astrophysical plasmas. These measurements can illuminate the dynamics and thermodynamics of the corona and the interstellar medium
