1. RISC Architecture and Super Computer
CS147 Lecture 20
RISC Architecture and Super Computer
Prof. Sin-Min Lee
Department of Computer Science
San Jose State University

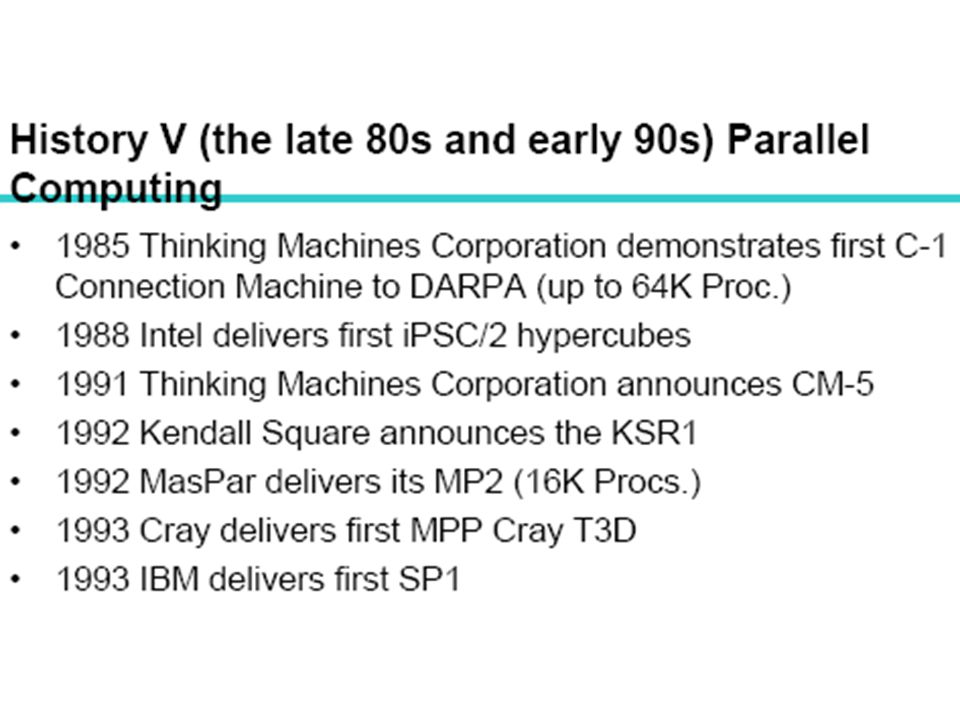

18. The Basis for RISC Use of simple instructions
One of their key realizations was that a sequence of simple instructions produces the same results as a sequence of complex instructions, but can be implemented with a simpler (and faster) hardware design. Reduced Instruction Set Computers---RISC machines---were the result.

19. Addressing modes Limited number of addressing modes
The effective address is computed in a single clock cycle.

20. Instruction Pipeline Similar to a manufacturing assembly line
Fetch an instruction
Decode the instruction
Execute the instruction
Store results
Each stage processes simultaneously (after initial latency)
Execute one instruction per clock cycle

21. Pipeline Stages
Some processors use 3, 4, or 5 stages

24. RISC characteristics Simple instruction set.
In a RISC machine, the instruction set contains simple, basic instructions, from which more complex instructions can be composed.
Same length instructions.

25. RISC characteristics
Each instruction is the same length, so that it may be fetched in a single operation.
1 machine-cycle instructions.
Most instructions complete in one machine cycle, which allows the processor to handle several instructions at the same time. This pipelining is a key technique used to speed up RISC machines.

26. Instructions Pipelines
It is to prepare the next instruction while the current instruction is still executing.
A Three states RISC pipelines is :
Fetch instruction
Decode and select registers
Execute the instruction
Clock
Stage 1 2 3 4 5 6 7 i1 i2 i3 i4 i5 i6 i7 -

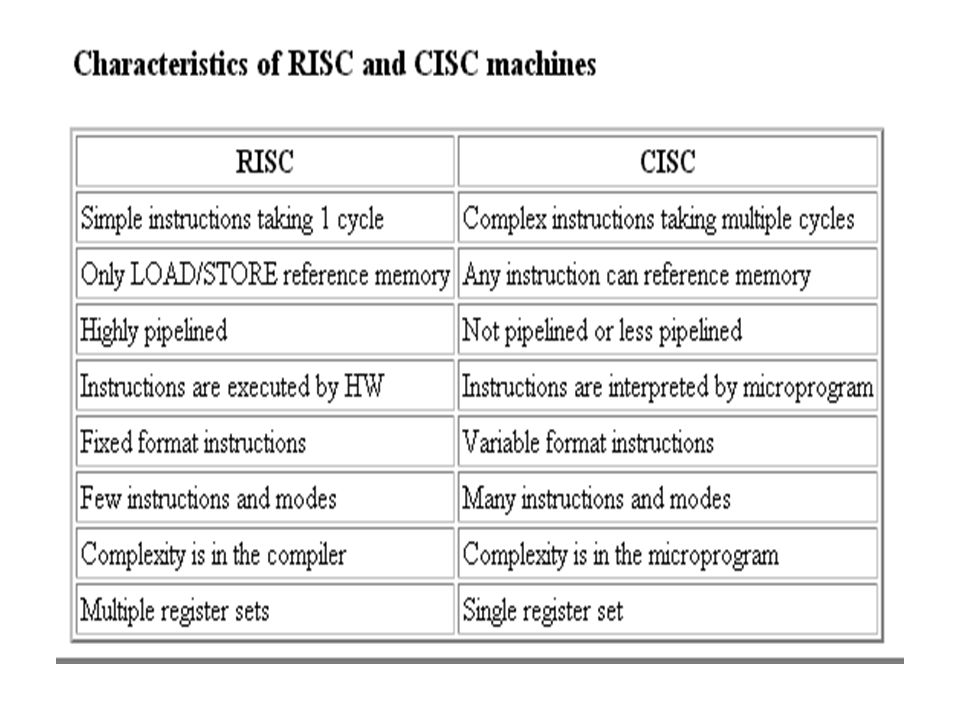

27. RISC vs. CISC
RISC have fewer and simpler instructions, therefore, they are less complex and easier to design. Also, it allow higher clock speed than CISC. However, When we compiled high-level language. RISC CPU need more instructions than CISC CPU.
CISC are complex but it doesn’t necessarily increase the cost. CISC processors are backward compactable.

28. Why RISC is better
The 80/20 rule: Analysis of the instruction mix generated by
CISC compilers, shows that more than 80% of the instructions
generated and executed used only 20% of an instruction set. It was
an obvious conclusion that if this 20% of instruction was speeded
up, the performance benefits would be far greater. Further analysis
shows that these instructions tend to perform the simpler operations
and use only the simpler addressing modes. For the CISC machine,
all the effort invested in processor design to provide complex
instructions and thereby reduce the compiler workload was being
wasted. .

29. Less cost: Since only the simpler instructions are needed, the processor hardware required to implement them could be reduced in complexity. Therefor it should be possible to design a more performance processor with less cost.
Good performance: With a simpler instruction set, it should possible for a processor to execute its instruction in a single clock cycle. Higher performance can be achieved.

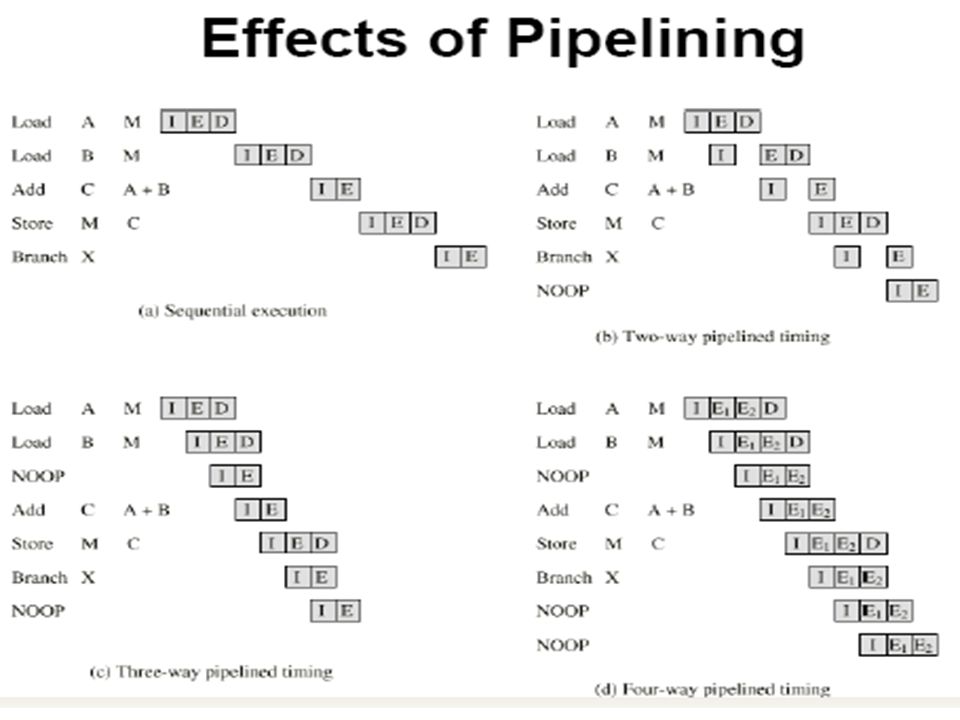

30. Pipelining: A key RISC technique
RISC designers are concerned primarily with creating the
fastest chip possible, and so they use a number of techniques,
including pipelining.
Pipelining is a design technique where the computer's
hardware processes more than one instruction at a time, and
doesn't wait for one instruction to complete before starting
the next.

34. Implementing a processor with a simplified instruction set design
The advantages of RISC
Implementing a processor with a simplified instruction set design
provides several advantages over implementing a comparable CISC
design:
(1) Speed. Since a simplified instruction set allows for a pipelined, superscalar
design RISC processors often achieve 2 to 4 times the performance of CISC
processors using comparable semiconductor technology and the same clock rates.
(2) Simpler hardware. Because the instruction set of a RISC processor is so simple,
it uses up much less chip space; extra functions, such as memory management
units or floating point arithmetic units, can also be placed on the same chip.
Smaller chips allow a semconductor manufacturer to place more parts on a single
silicon wafer, which can lower the per-chip cost dramatically.
(3) Shorter design cycle. Since RISC processors are simpler than corresponding
CISC processors, they can be designed more quickly, and can take advantage of
other technological developments sooner than corresponding CISC designs,
leading to greater leaps in performance between generations.

35. Early RISC Machines
IBM
120 instructions
No microcode
32 bit instructions
MSI technology
Berkeley RISC
Coined RISC and CISC
Promoted architecture and implementation innovations as RISC
Single VLSI chip implementation
Stanford MIPS
Concentrated on compiler technology to improve system
performance

36. IBM 801
Put in hardware what
Could not be moved to compile time
Could not be efficiently implemented in executable code
by a compiler
Could be implemented as random logic
Architecture
32 32 bit registers
Separate data and instruction caches
Two stage pipeline, decode-operand fetch-execute, shift-set
conditions-write
Delayed branches, Branch with execute
Compilers
No intent on letting end users program in assembly

37. Berkeley RISC
Unlike IBM 801
No heavy reliance on compiler technology
Single chip implementation
Argues that RISC is the best way to use scarce silicon area
Influential because
Introduced RISC and CISC terms
First single chip RISC processor
Introduced several innovations at once
Great marketing job

38. Current RISC
RISC -> SPARC
MIPS -> MIPS R[2-4]000
IBM 801 -> IBM RT -> IBM RS/6000
HP-PA RISC
ARM
M88000
PowerPC
i860
I960

48. Instruction Pipeline
An instruction pipeline is very similar to a manufacturing assembly line. Imagine an assembly line partitioned into four stages:
1st stage receives some parts, performs its assembly task, and passes the results to the second stage;
2nd stage takes the partially assembled product from the first stage, performs its task, and passes its work to the third stage;
3rd stage does its work, passing the results to the last stage, which completes the task and outputs its results.

49. As the first piece moves from the first stage to the second stage, a new set of parts for a new piece enters the first stage. Ultimately, every stage processes a piece simultaneously. This is how time is saved. Each product requires the same amount of time to be processed (actually slightly more, to account for the transfers between stages), but products are manufactured more quickly because several are being created at the same time.

50. 1st stage: fetches the instruction from memory.
An instruction pipeline processes an instruction the way the assembly line processes a product.
1st stage: fetches the instruction from memory.
2nd stage: decodes the instruction and fetches any required operands.
3rd stage: executes the instruction,
4th stage: stores the result.

51. Consider a nonpipelined machine with 6 execution stages of lengths 50 ns, 50 ns, 60 ns, 60 ns, 50 ns, and 50 ns. -  Find the instruction latency on this machine.    -  How much time does it take to execute 100 instructions?
Instruction latency = = 320 ns Time to execute 100 instructions = 100*320 = ns

52. Suppose we introduce pipelining on this machine
Suppose we introduce pipelining on this machine. Assume that when introducing pipelining, the clock skew adds 5ns of overhead to each execution stage.
      - What is the instruction latency on the pipelined machine?       - How much time does it take to execute 100 instructions?
Solution: Remember that in the pipelined implementation, the length of the pipe stages must all be the same, i.e., the speed of the slowest stage plus overhead. With 5ns overhead it comes to:

53. The length of pipelined stage = MAX(lengths of unpipelined stages) + overhead = = 65 ns Instruction latency =  6x65 ns =390ns Time to execute 100 instructions = 65*6*1 + 65*1*99  = = 6825 ns

54. Instructions Pipelines
It is to prepare the next instruction while the current instruction is still executing.
A Three states RISC pipelines is :
Fetch instruction
Decode and select registers
Execute the instruction
Clock
Stage 1 2 3 4 5 6 7 i1 i2 i3 i4 i5 i6 i7 -

55. What is the speedup obtained from pipelining
What is the speedup obtained from pipelining?   Solution: Speedup is the ratio of the average instruction time without pipelining to the average instruction time with pipelining. Average instruction time not pipelined = 320 ns Average instruction time pipelined = 65 ns Speedup = 320 / 65 = 4.92

56. Each instruction is the same length, so that it may be fetched in a single operation.
1 machine-cycle instructions.
Most instructions complete in one machine cycle, which allows the processor to handle several instructions at the same time. This pipelining is a key technique used to speed up RISC machines.

58. This is one possible configuration of an RISC pipeline, the pipeline implemented in the SPARC MB86900 CPU. The IBM 801, the first RISC computer, also uses a four-stage instruction pipeline. Other processors, such as the RISC II, use only three stages; they combine the execute and store result operations in to a single stage.

59. The MIPS processor uses a five-stage pipeline; it decodes the instruction and selects the operand registers in separate stages. These three configurations are shown in the following figure.

60. Note that each stage has a register that latches its data at the end of the stage to synchronize data flow between stages. The flow of instructions through each pipeline is shown in the following Figure.

62. A Single Pipelined Control Unit Offers Several Advantage:
The primary advantage is the reduced hardware requirements of the pipeline.
A second advantage of instruction pipelines is the reduced complexity of the memory interface.

63. Many video game systems like Sony Play Station and Nintendo use small (66MHZ in PS1) RISC processors. These machines are Single Purpose machines and always run the same types of programs, so small RISC processors give excellent performance results on machines like these.
Pocket PC’s like the Palm Pilot and Compaq’s Ipaq series also use small RISC processors. Again, a machine like this is basically single purpose. Yes, you can do lot of things with them, but often you use a calendar, MP3 player, and maybe a word processor.

64. So, why don’t I have a RISC processor at home? (Continued)
RISC based PC processors are still quite a bit more expensive than their CISC counterparts.
When you write code for a RISC based machine, you are writing code native to that particular processor. Compatibility become an extreme issue – Another RISC processor using the same OS won’t be able to run software that you coded on the previous machine.
The rather bright fellows at INTEL have come up with a solution for you. The current processor you own (provided that it is a x486 or higher) is a CRISC processor.

65. CRISC – I shouldn’t have to tell you what this stands for
Intel realized that while the x86 CISC set is very large there are a few instructions that are quite common and only do one thing (ex. JMP, MOV, INC. etc.)
Intel decided to take those common instructions, adjust them to be the same size and then hardwired them into the CPU’s core so they could be executed in a RISC like fashion.
Yes, your Pentium III processor at home will behave like a RISC processor, sometimes. This helps gain more efficiency from the CPU while remaining backwards compatible

66. Why Use Pipelining?
Pipelining allows you to start the process of executing one instruction before the previous one has completed
Even if there are delays in any one stage of the process for one instruction, it is still more efficient than non-pipelined processors
Pipelining is introduced with the 486 processor

67. Review of 6- Stage execution process
FETCH – Instructions are fetched from a MICROCODE ROM (CISC)
DECODE – Instructions are decoded into simple code that the CPU understands (often called Micro-ops)
ISSUE/SCHEDULE – Once instructions have been decoded, they are placed into a pool and then issued to a unit (Integer, FPU, MMX) for execution
EXECUTE – The instruction is executed here
RETIRE – Results are analyzed and put back into their proper order
WRITE BACK – The results of the instructions are written to memory (committed to code)

70. Super Scalar
Put simply, a super scalar processor has two or more integer execution units that run in parallel (they can execute instructions simultaneously)
The Pentium Processor is the first INTEL super scalar processor
The scheduling unit can issue instructions simultaneously to different units to be executed at the same time

71. Data Flow

72. Performance Improvement
The speedup is the ratio of the time needed to process n instruction using a non-pipelined control unit to the time needed using a pipelined control unit
Sn = n T1 / (n + k -1) Tk

73. Pipeline Problems Memory access Branch statements
Fetch an instruction in one clock cycle
Include cache memory
Branch statements
The instruction that are in pipeline should not be there

74. Register Windowing More than 100 registers, not always accessible
Global registers are always accessible
The remaining registers are windowed, accessible at specific times

75. SPARC Processor Register Windowing

76. Keeping Track
A window point register contains the value of the window that is currently active
A window mask register contains 1 bit per window and denotes which windows contain valid data.

77. Subroutine Calls
Register windows provide greatest benefit during subroutine calls
During the calling process, the register window is moved down one position.
CPU can pass parameters to the subroutine via the registers that overlap
Same register can be used to return results to the calling routine.

78. Example

79. Example (cont)

80. RISC Advantages RISC have fewer and simpler instructions.
Their control units are less complex and easier to design
Run at higher clock frequencies
Reduced amount of space needed on the processor chip -> more space for additional registers
Easier to incorporate parallelism
Compilers are less complex

81. CISC Advantages
New complex processors incorporate the design of the previous designs.
Backward compatibility with other processors in their series.
