1. 1 IPv6 Address Management Rajiv Kumar

2. 2 Lecture Overview Introduction to IP Address Management Rationale for IPv6 IPv6 Addressing IPv6 Policies & Procedures References

3. 3 Rationale for IPv6 IPv4 address space consumption Now ~10 years free space remaining Up to 17 if unused addresses reclaimed These are today’s projections – reality will be different Loss of “end to end” connectivity Widespread use of NAT due to ISP policies and marketing Additional complexity and performance degradation

4. 4 The NAT “Problem” 10.0.0.1..2..3..4 *AKA home router, ICS, firewall NAT* 61.100.32.128 R 61.100.32.0/25 61.100.32.1..2..3..4 ISP 61.100.0.0/16 The Internet

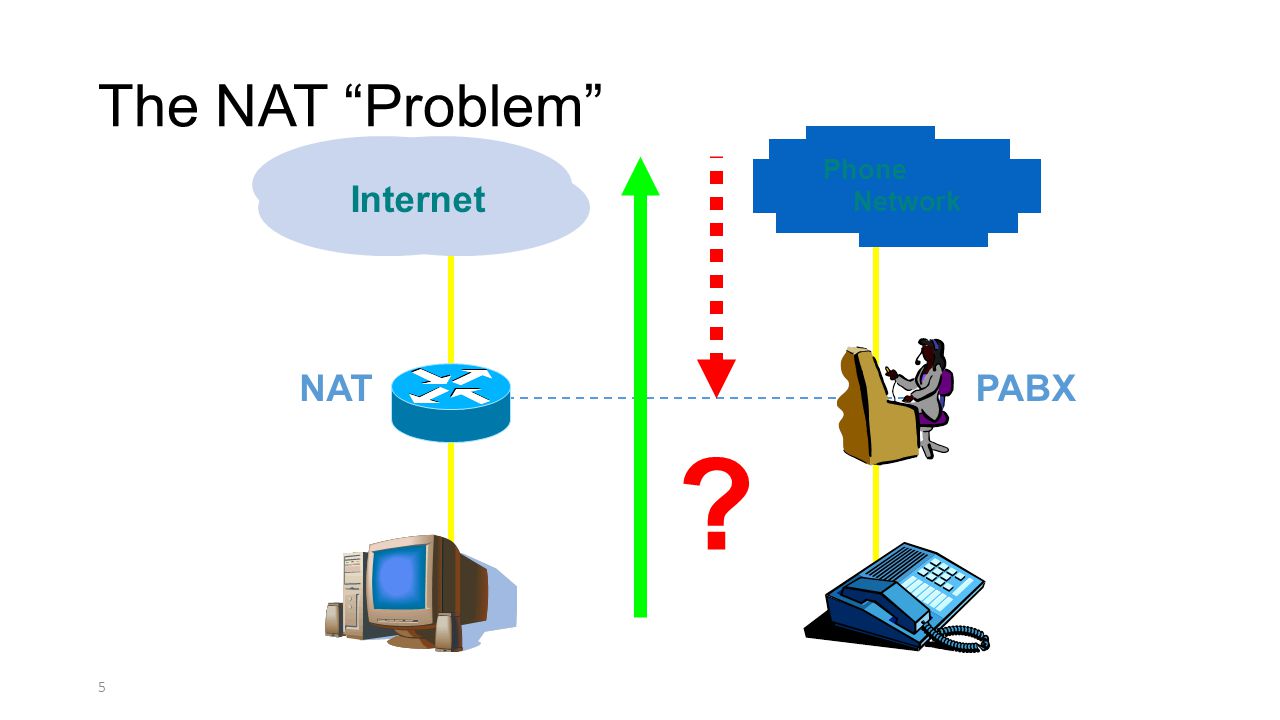

5. 5 The NAT “Problem” Internet 10.0.0.1 61.100.32.128 NAT ? Extn 10 Phone Network 10 4567 9876 PABX

6. 6 NAT implications Breaks end-to-end network model Some applications cannot work through NATs Breaks end-end security (IPsec) Requires application-level gateway (ALG) When new application is not NAT-aware, ALG device must be upgraded ALGs are slow and do not scale Merging of separate private networks is difficult Due to address clashes See RFC2993 Architectural Implications of NAT

7. 7 Features of IPv6

8. 8 IPv6 feature summary Increased size of address space Header simplification Autoconfiguration Stateless (RFC 2462) or stateful (DHCPv6) Facilitates renumbering QoS Integrated services (int-serv), Differentiated services (diff-serv and RFC2998) RFC 3697 IPSec As for IPv4 Transition techniques Dual stack Tunnelling

9. 9 IPv6 addressing model Unicast Single interface Anycast Any one of several Multicast All of a group of interfaces Replaces IPv4 “broadcast” See RFC 3513

10. 10 IPv4 vs IPv6 IPv4: 32 bits 2 32 addresses = 4,294,967,296 addresses = 4 billion addresses IPv6: 128 bits 2 128 addresses? = 340,282,366,920,938,463,463,374,607,431,770,000,000 = 340 billion billion billion billion addresses? No, due to IPv6 address structure…

11. 11 IPv6 header IPv6 header is simpler than IPv4 IPv4: 14 fields, variable length (20 bytes +) IPv6: 8 fields, fixed length (40 bytes) Header fields eliminated in IPv6 Header Length Identification Flag Fragmentation Offset Checksum Header fields enhanced in IPv6 Traffic Class Flow Label

12. 40 bytes 20 bytes IPv4 IPv6 0 151631 vers hlen TOS total length identification flags flag-offset TTL protocol header checksum source address destination address options and padding vers traffic class flow-label payload length next header hop limit source address destination address Removed (6) ID, flags, flag offset TOS, hlen header checksum Changed (3) Added (2) Expanded total length => payload protocol => next header TTL => hop limit traffic class flow label address 32 to 128 bits Header comparison

13. Major Improvements of IPv6 Header No option field: Replaced by extension header. Result in a fixed length, 40-byte IP header. No header checksum: Result in fast processing. No fragmentation at intermediate nodes: Result in fast IP forwarding.

14. Extension Headers Routing – Extended routing, like IPv4 loose list of routers to visit Fragmentation – Fragmentation and reassembly Authentication – Integrity and authentication, security Encapsulation – Confidentiality Hop-by-Hop Option – Special options that require hop-by-hop processing Destination Options – Optional information to be examined by the destination node

15. Stateless Address Autoconfiguration 3 ways to configure network interfaces: Manually, Stateful, Stateless IPSAA  IPv6 addr. Separated into 2 parts: network and interface id. Link- local addresses: prefix FE80::0 + interface identifier (EUI-64 format) Obtain network id through Router solicitation (RS)

16. Stateless vs Stateful IP addressing There are two ways DHCPv6 can be implemented, either Stateful or Stateless. Stateful DHCP is centrally managed on a DHCP server(s); and the DHCP clients use Stateful DHCP to obtain an IP address(es) and other useful configuration informaiton from the DHCP server(s). But, Stateless DHCP on the other hand; means the DHCP server(s) is not required to store any dynamic state information on the DHCP server(s) about any indivisual DHCP clients. Instead, the DHCP clients autoconfigure their own IP address(es) based on router advertisments. So, with Stateless DHCP, the DHCP clients don't use the DHCP server(s) to obtain IP address(es) information, they use the DHCP server(s) to obtain the other useful configuration informaiton (like the address(es) of DNS servers). Currently, Cisco recommends that you use Stateless DHCP instead of Stateful DHCP when implementing and deploying IPv6 networks; because, Cisco Routers are not designed to act as Stateful DHCPv6 servers. But, if you need to implement Stateful DHCP on your IPv6 network; Cisco makes a product named Cisco Network Registar (CNR) that can help you out a lot.

17. 17 IPv6 transition Dual stack hosts Two TCP/IP stacks co-exists on one host Supporting IPv4 and IPv6 Client uses whichever protocol it wishes IPv4IPv6 www.apnic.net ?? IPv4 TCP/UDP Application IPv6 Link

18. 18 IPv6 tunnel over IPv4 IPv6 transition IPv4 Network IPv6 IPv6 Header Data IPv4 Header IPv6 Header Data IPv6 Header Data tunnel

19. 19 IPv6 Addressing

20. 20 128 bits How much IPv6? TopologicalInterface /0/64/128 InfrastructureSite /0/64/48 2 48 site addresses = 281,474,976,710,656 = 281 thousand billion site addresses 2 64 “subnet” addresses = 18,446,744,073,709,551,616 = 18 billion billion subnet addresses

21. 21 IPv6 address format 8 groups of 4 hexadecimal digits Each group represents 16 bits Separator is “:” Case-independent 128 bits2001:0DA8:E800:0000:0260:3EFF:FE47:0001

22. 22 2001:0DA8:E800:0000:0000:0000:0000:0001 2001:0DA8:E800:0000:0260:3EFF:FE47:0001 IPv6 address format 2001:DA8:E800:0:260:3EFF:FE47:1 2001:0DA8:E800:0000:0000:0000:0000:0001 2001:0DA8:E800:0000:0260:3EFF:FE47:0001 2001:DA8:E800::1

23. 23 IPv6 Address Structure

24. 24 IPv6 address structure InfrastructureSite /0/64/48 Each site address is /48 Providing 2 16 = 65,536 subnet addresses Current ISP allocation (min) is /32 Providing 2 16 = 65,536 customer site addresses ISP allocation can be larger and can increase InfrastructureCustomerISP /0/48/32

25. 25 Every ISP receives a /32 (or more) Providing 65,536 site addresses (/48) /32 IPv6 – ISP addressing /32

26. 26 Every “site” receives a /48 Providing 65,536 /64 (LAN) addresses IPv6 – Site addressing /48

27. 27 IPv6 – LAN addressing Every LAN segment receives a /64 Providing 2 64 interface addresses per LAN /64

28. 28 IPv6 – Device addressing Every device interface receives a /128 May be EUI-64 (derived from interface MAC address), random number (RFC 3041), autoconfiguration, or manual configuration /128
