1. Ing. Ondřej Ševeček MCSM:Directory | MVP:Enterprise Security | Certified Ethical Hacker | MCSE:SharePoint ondrej@sevecek.com | www.sevecek.com Smart card logon

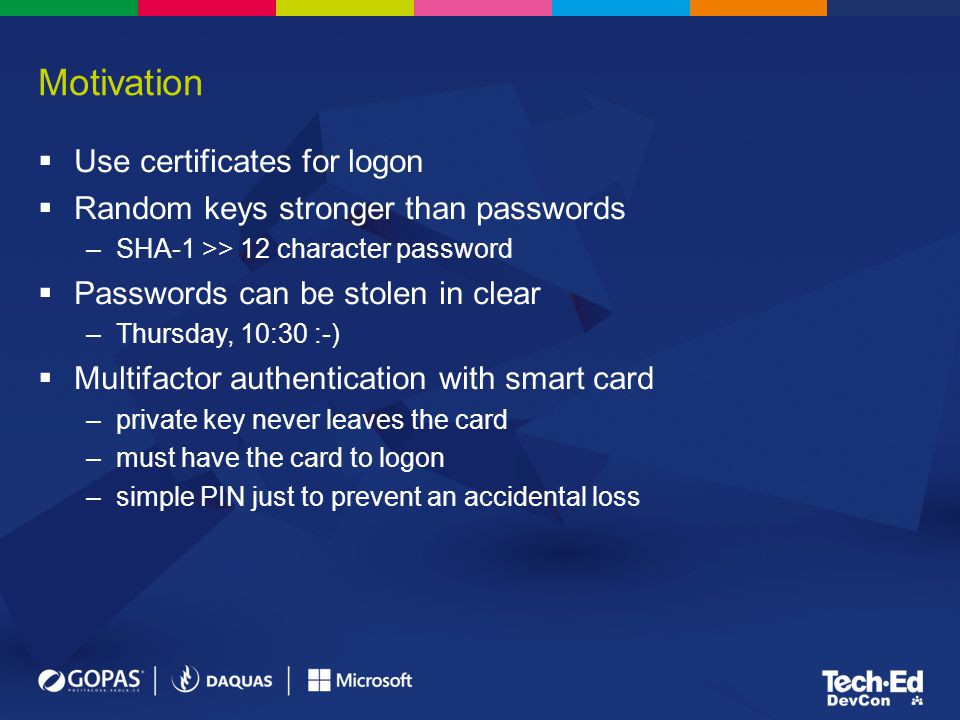

2. Motivation  Use certificates for logon  Random keys stronger than passwords –SHA-1 >> 12 character password  Passwords can be stolen in clear –Thursday, 10:30 :-)  Multifactor authentication with smart card –private key never leaves the card –must have the card to logon –simple PIN just to prevent an accidental loss

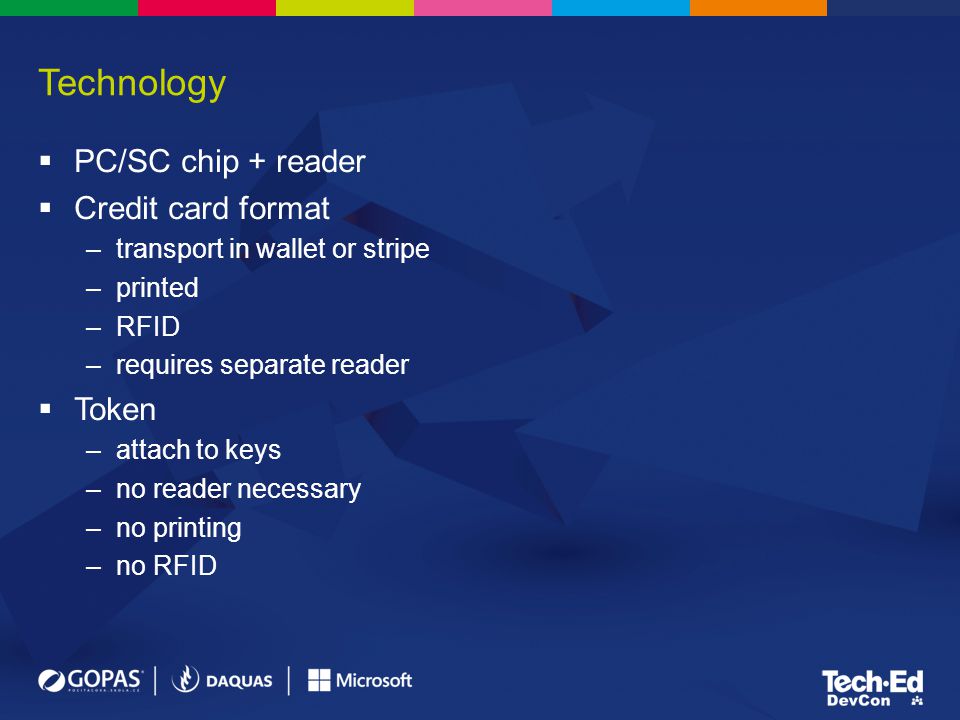

3. Technology  PC/SC chip + reader  Credit card format –transport in wallet or stripe –printed –RFID –requires separate reader  Token –attach to keys –no reader necessary –no printing –no RFID

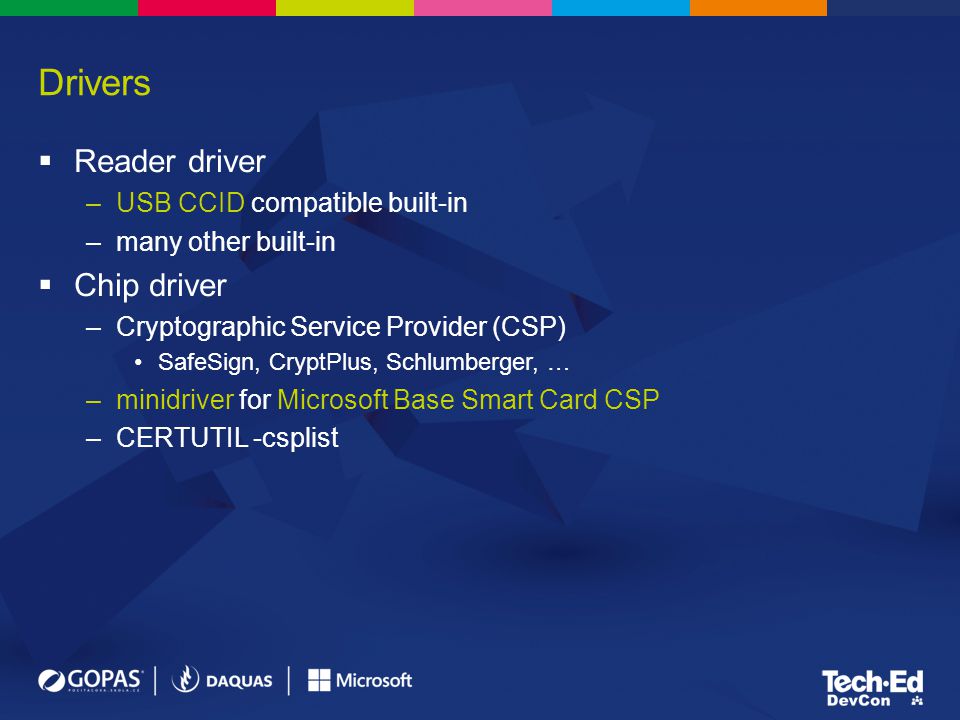

4. Drivers  Reader driver –USB CCID compatible built-in –many other built-in  Chip driver –Cryptographic Service Provider (CSP) SafeSign, CryptPlus, Schlumberger, … –minidriver for Microsoft Base Smart Card CSP –CERTUTIL -csplist

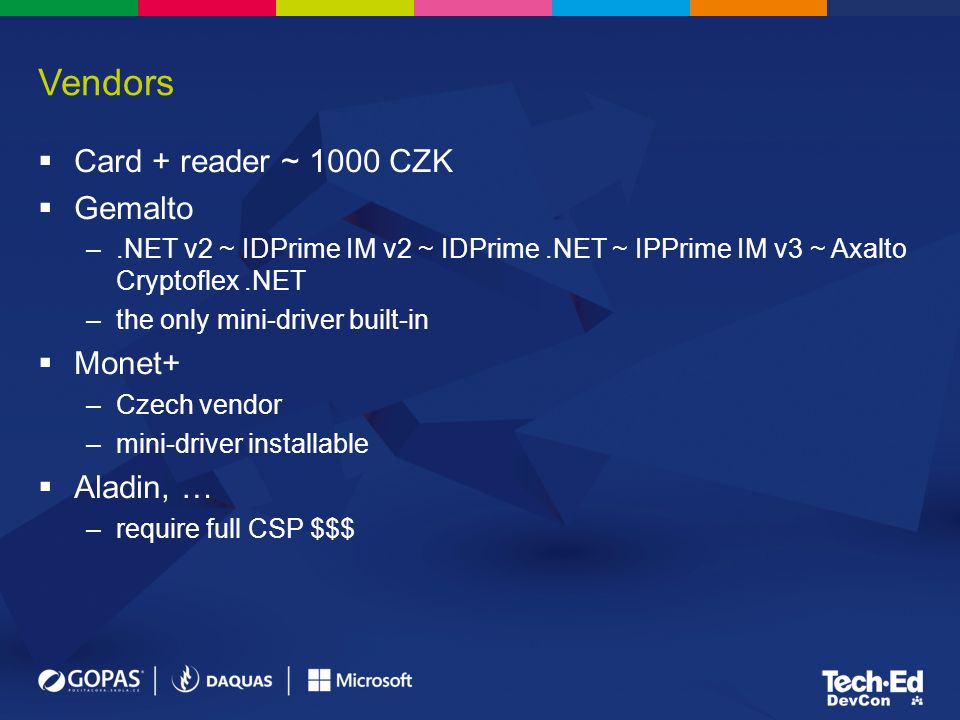

5. Vendors  Card + reader ~ 1000 CZK  Gemalto –.NET v2 ~ IDPrime IM v2 ~ IDPrime.NET ~ IPPrime IM v3 ~ Axalto Cryptoflex.NET –the only mini-driver built-in  Monet+ –Czech vendor –mini-driver installable  Aladin, … –require full CSP $$$

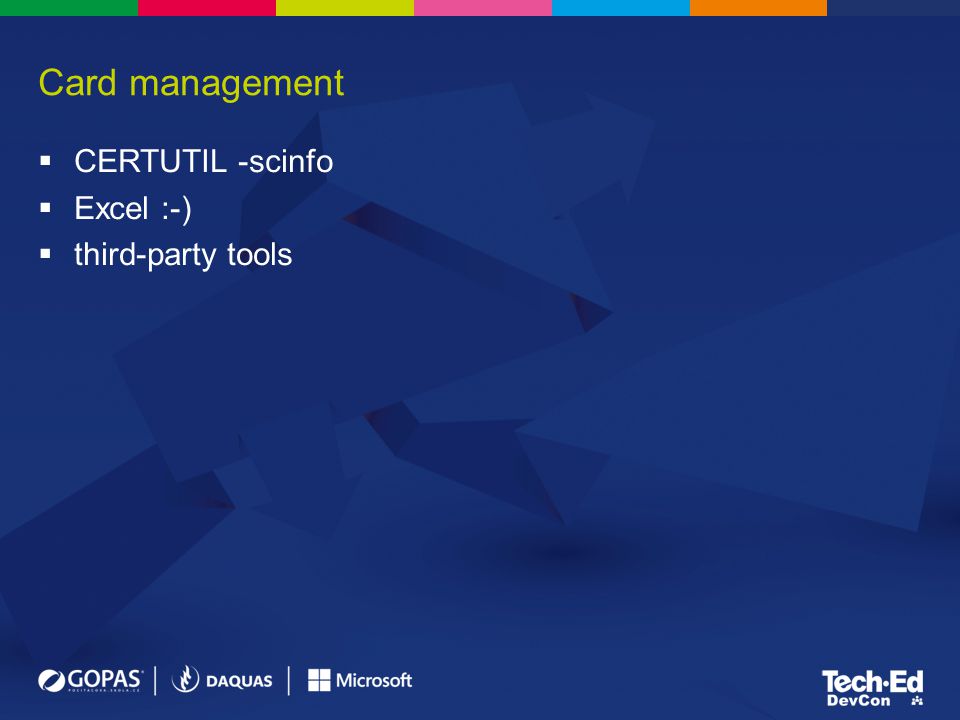

6. Card management  CERTUTIL -scinfo  Excel :-)  third-party tools

7. CA hierarchy?  Trust maintenance –may be expensive to be trusted –may be even more expensive to revoke root –risk analysis  Revocation of subordinates  Distributed administration –Qualified subordination  CRL (Certificate Revocation List)  OSCP (Online Certificate Status Protocol) 7

8. CA hierarchy? GOPAS Root CA GOPAS London CA GOPAS Paris CA GOPAS Prague CA Leaf certificate

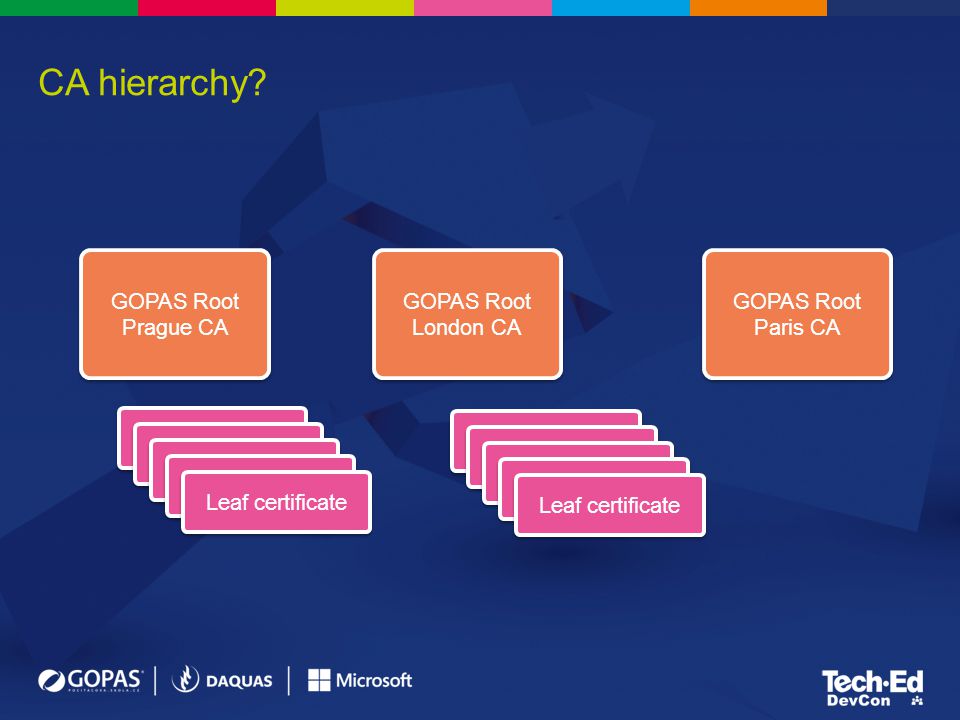

9. CA hierarchy? GOPAS Root London CA GOPAS Root Paris CA GOPAS Root Prague CA Leaf certificate

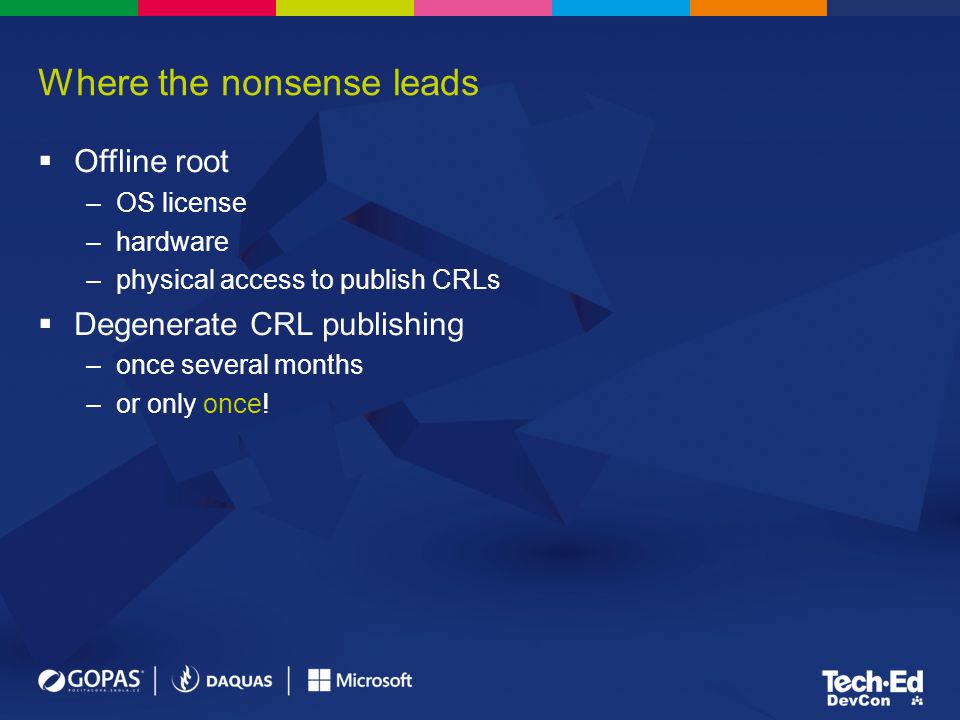

10. Where the nonsense leads  Offline root –OS license –hardware –physical access to publish CRLs  Degenerate CRL publishing –once several months –or only once!

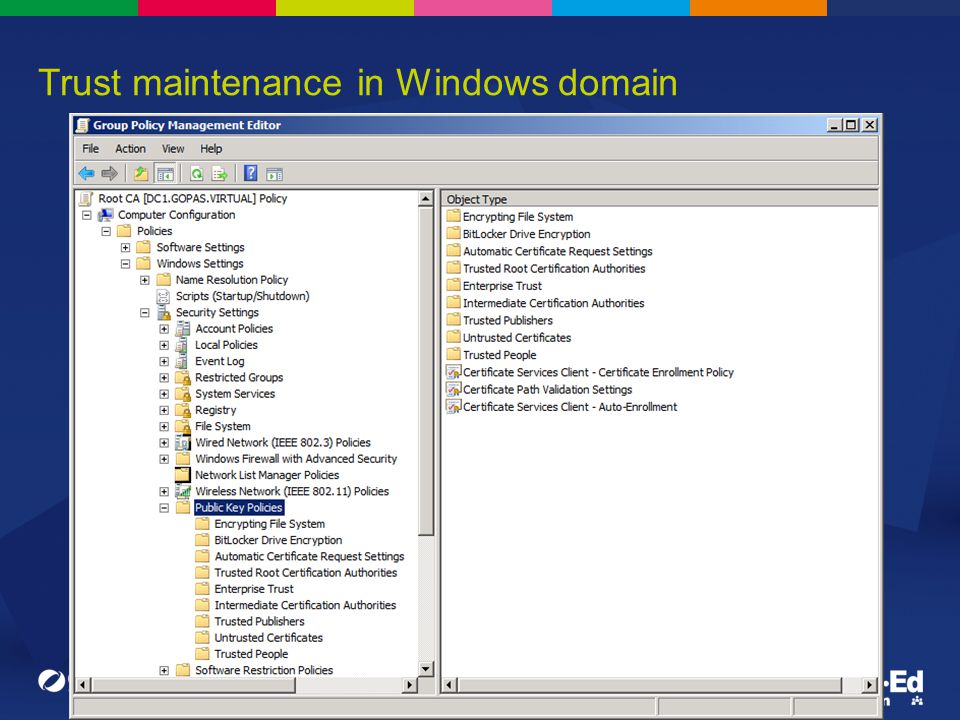

11. Trust maintenance in Windows domain

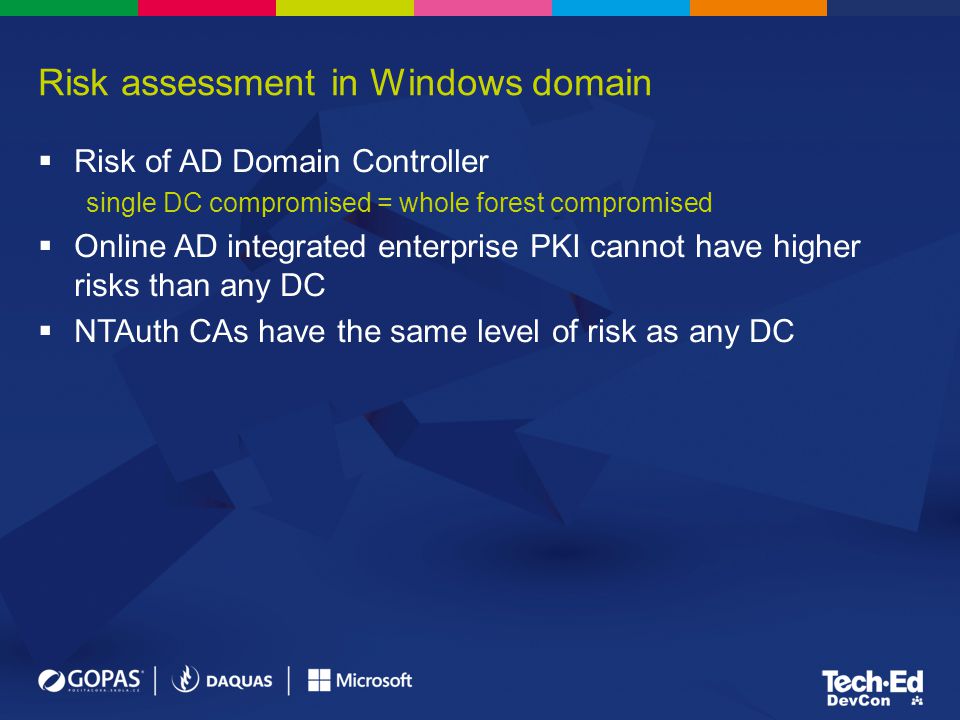

12. Risk assessment in Windows domain  Risk of AD Domain Controller single DC compromised = whole forest compromised  Online AD integrated enterprise PKI cannot have higher risks than any DC  NTAuth CAs have the same level of risk as any DC

13. CA hierarchy?

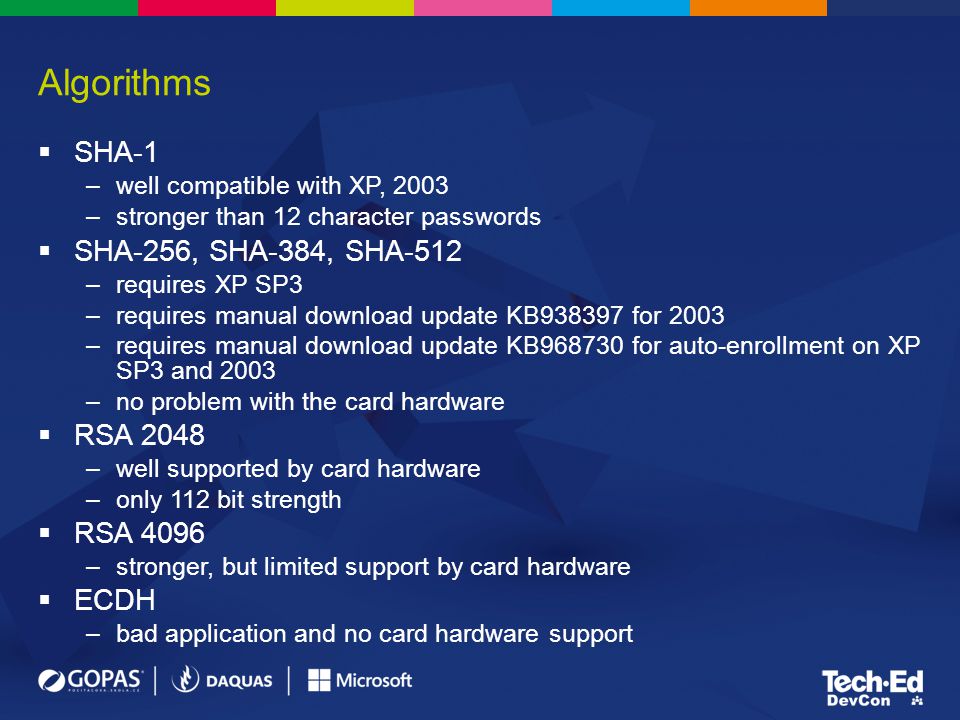

14. Algorithms  SHA-1 –well compatible with XP, 2003 –stronger than 12 character passwords  SHA-256, SHA-384, SHA-512 –requires XP SP3 –requires manual download update KB938397 for 2003 –requires manual download update KB968730 for auto-enrollment on XP SP3 and 2003 –no problem with the card hardware  RSA 2048 –well supported by card hardware –only 112 bit strength  RSA 4096 –stronger, but limited support by card hardware  ECDH –bad application and no card hardware support

15. Comparable Algorithm Strengths (SP800-57) StrengthSymetricRSAECDSASHA 80 bit2TDEARSA 1024ECDSA 160SHA-1 112 bit3TDEARSA 2048ECDSA 224SHA-224 128 bitAES-128RSA 3072ECDSA 256SHA-256 192 bitAES-192RSA 7680ECDSA 384SHA-384 256 bitAES-256RSA 15360ECDSA 512SHA-512

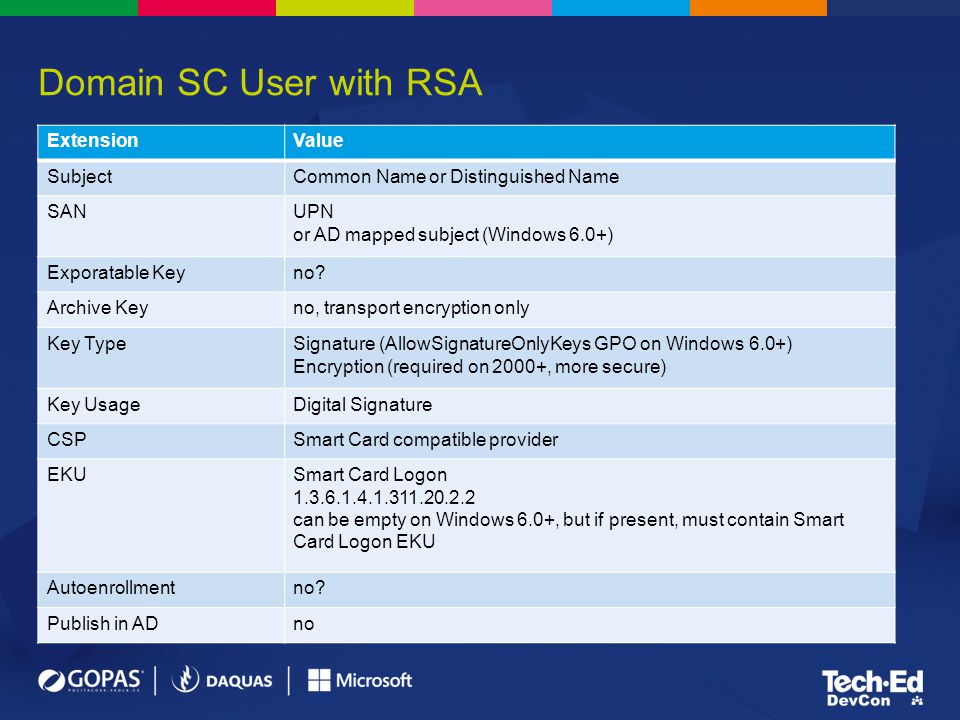

16. Domain SC User with RSA ExtensionValue SubjectCommon Name or Distinguished Name SANUPN or AD mapped subject (Windows 6.0+) Exporatable Keyno? Archive Keyno, transport encryption only Key TypeSignature (AllowSignatureOnlyKeys GPO on Windows 6.0+) Encryption (required on 2000+, more secure) Key UsageDigital Signature CSPSmart Card compatible provider EKUSmart Card Logon 1.3.6.1.4.1.311.20.2.2 can be empty on Windows 6.0+, but if present, must contain Smart Card Logon EKU Autoenrollmentno? Publish in ADno

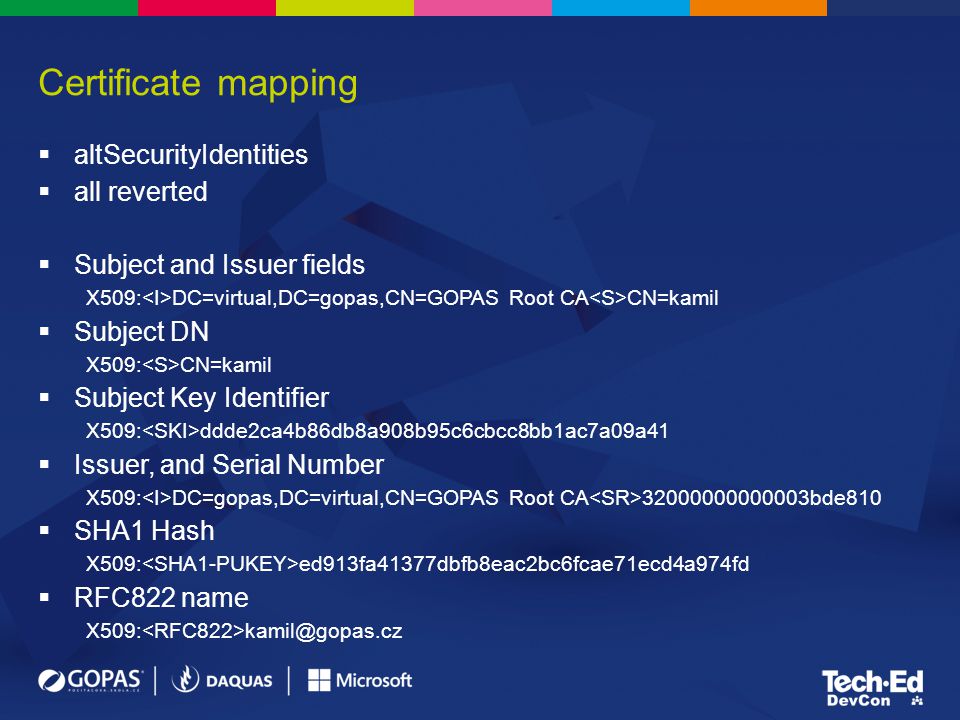

17. Certificate mapping  altSecurityIdentities  all reverted  Subject and Issuer fields X509: DC=virtual,DC=gopas,CN=GOPAS Root CA CN=kamil  Subject DN X509: CN=kamil  Subject Key Identifier X509: ddde2ca4b86db8a908b95c6cbcc8bb1ac7a09a41  Issuer, and Serial Number X509: DC=gopas,DC=virtual,CN=GOPAS Root CA 32000000000003bde810  SHA1 Hash X509: ed913fa41377dbfb8eac2bc6fcae71ecd4a974fd  RFC822 name X509: kamil@gopas.cz
