1 P H Y S I C S Chapter 7: Waves and Vibrations Section 7B: SHM of a Pendulum

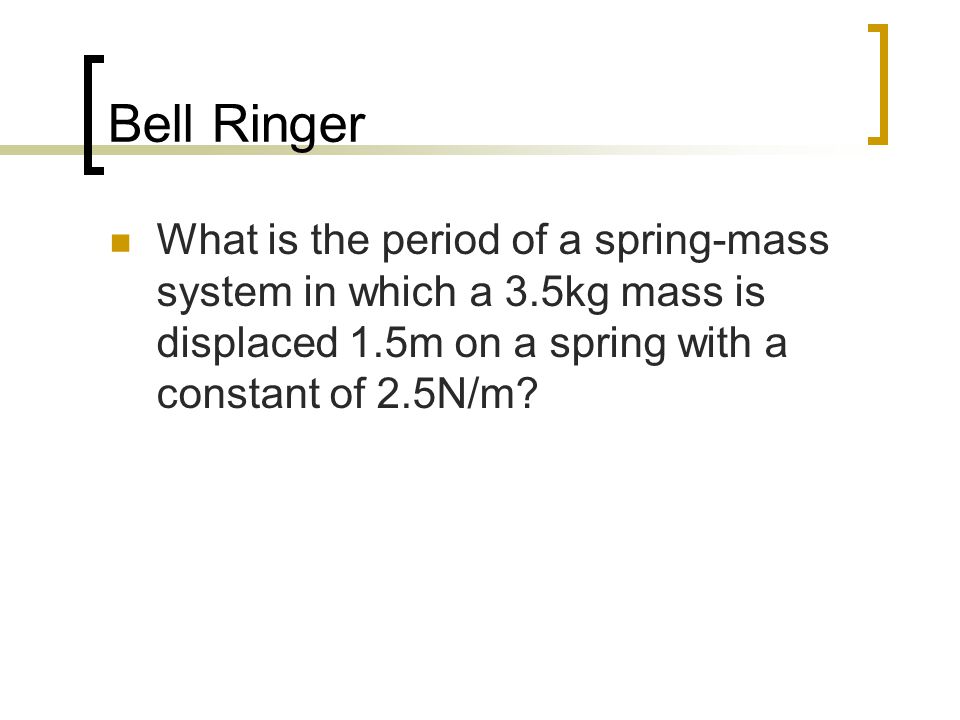

2 Bell Ringer What is the period of a spring-mass system in which a 3.5kg mass is displaced 1.5m on a spring with a constant of 2.5N/m?

3 Period of Pendulum (1564-1642) Galileo Galilei

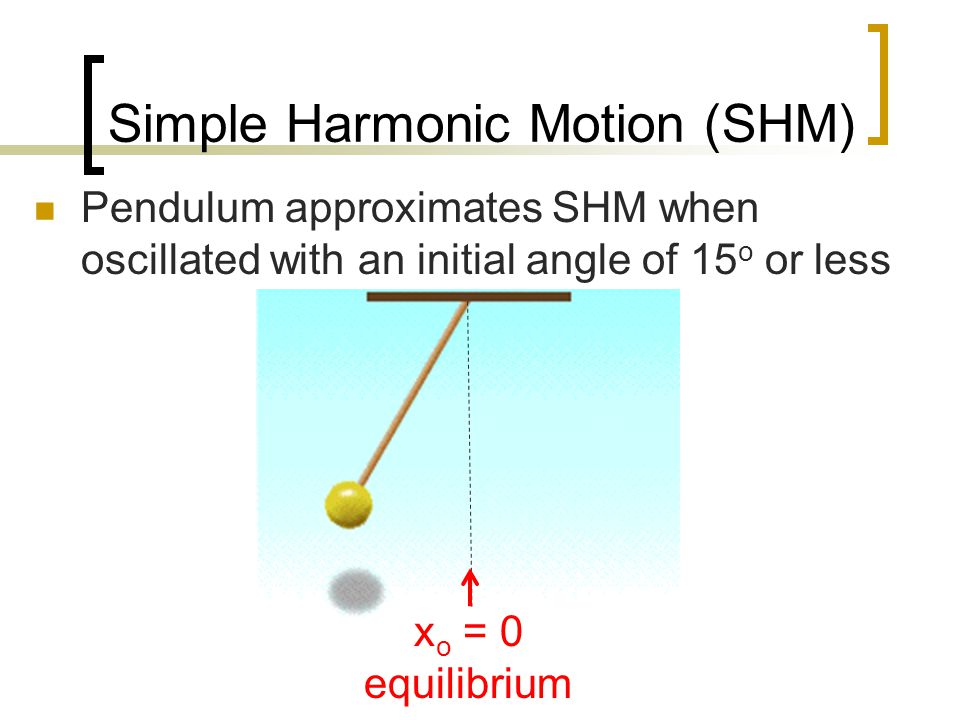

4 x o = 0 equilibrium Simple Harmonic Motion (SHM) Pendulum approximates SHM when oscillated with an initial angle of 15 o or less

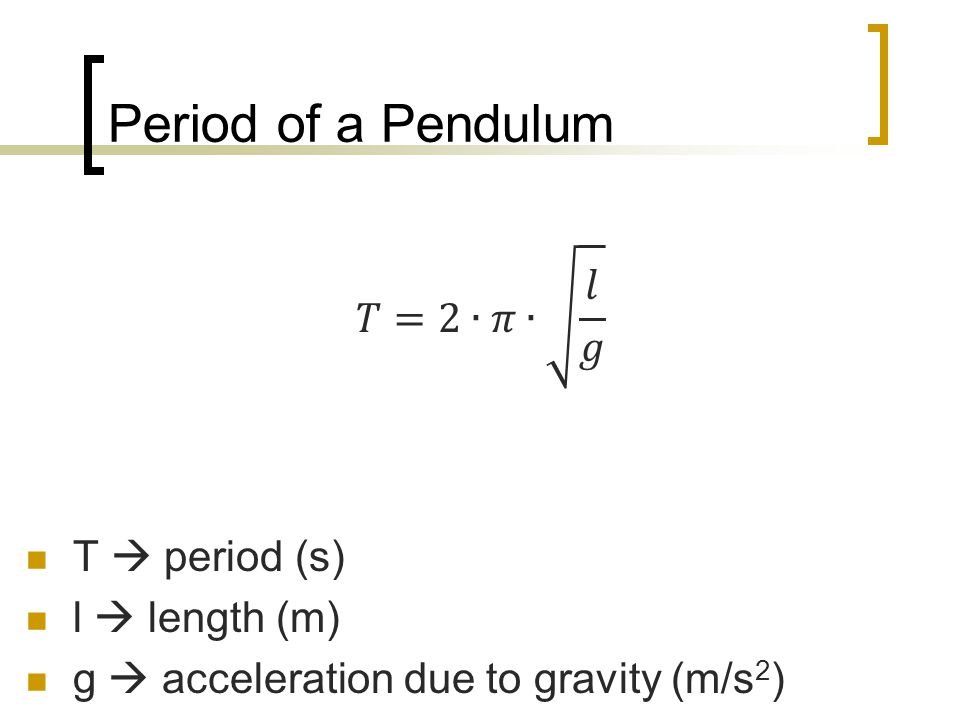

5 Period of a Pendulum

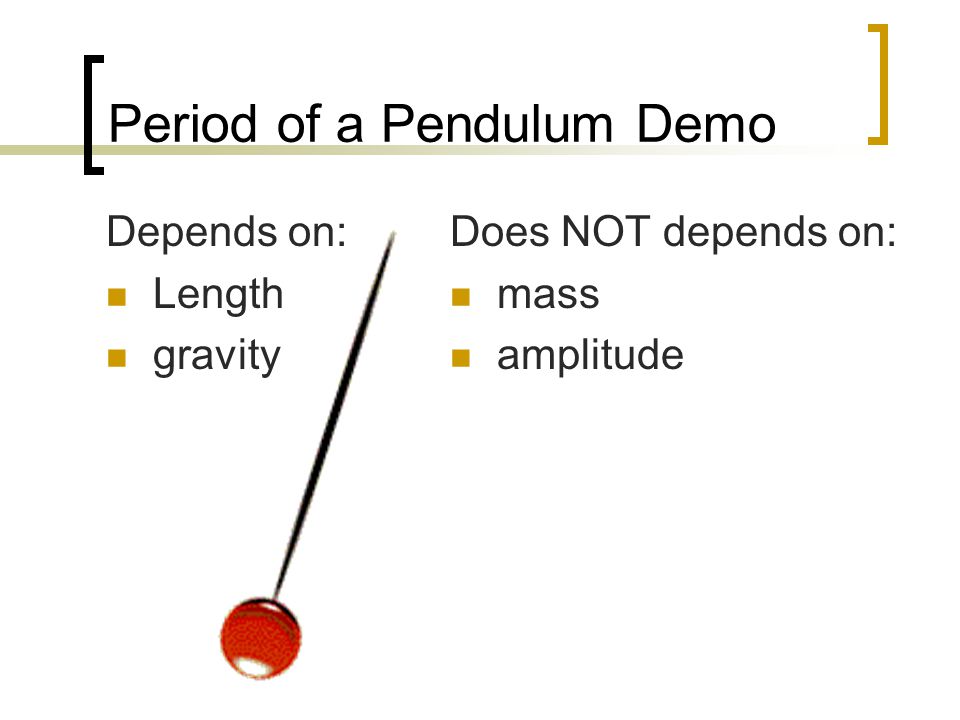

6 Depends on: Length gravity Period of a Pendulum Demo Does NOT depends on: mass amplitude

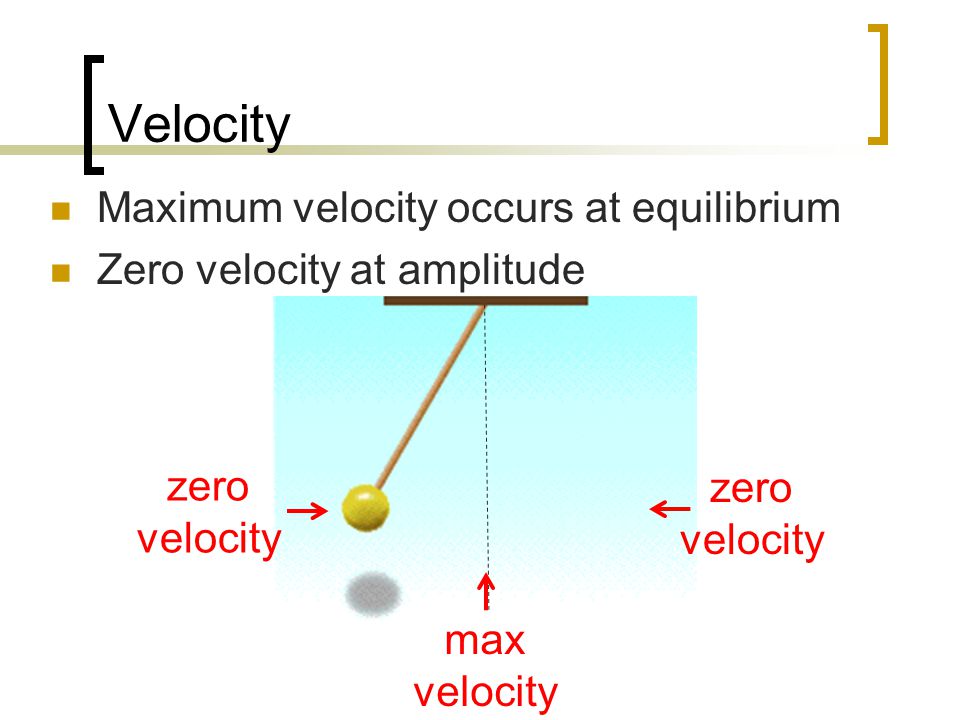

7 Maximum velocity occurs at equilibrium Zero velocity at amplitude Velocity max velocity zero velocity zero velocity

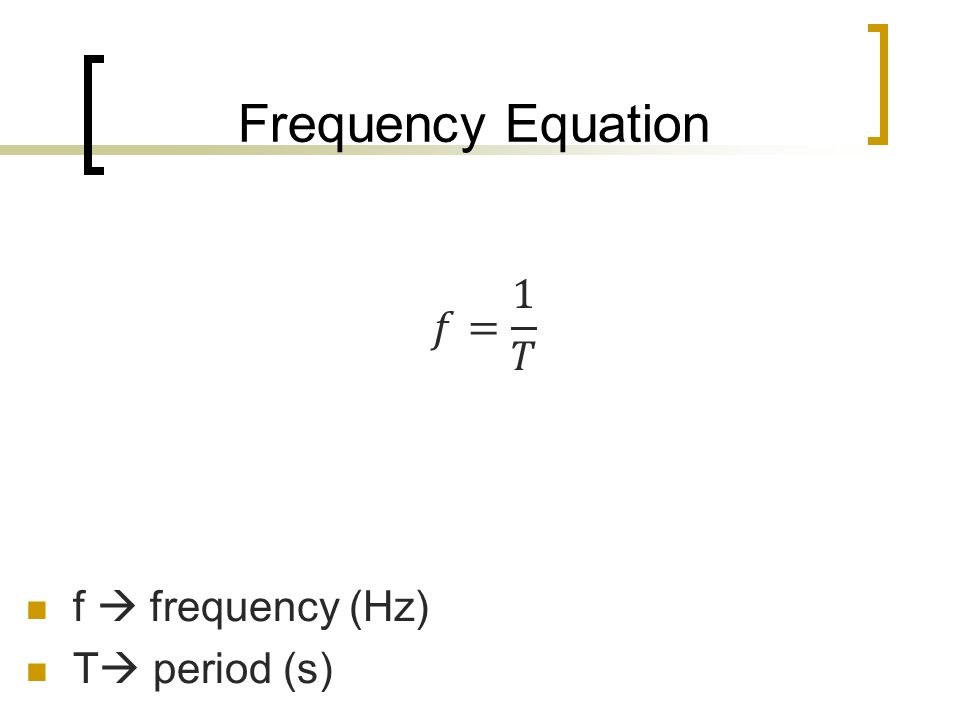

8 Frequency Equation

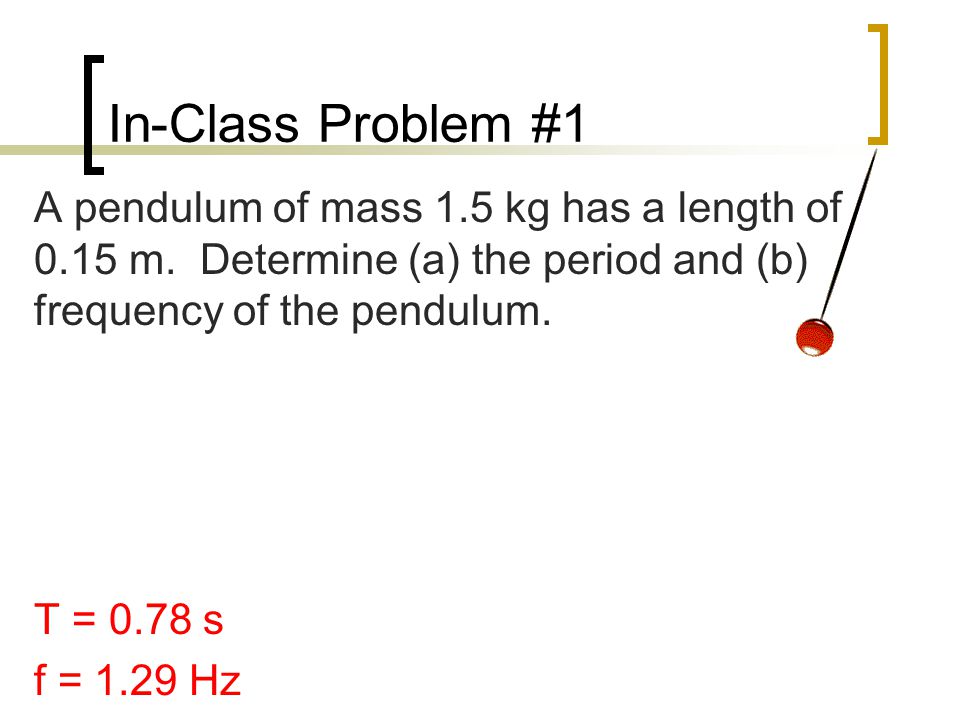

9 In-Class Problem #1 A pendulum of mass 1.5 kg has a length of 0.15 m. Determine (a) the period and (b) frequency of the pendulum. T = 0.78 s f = 1.29 Hz

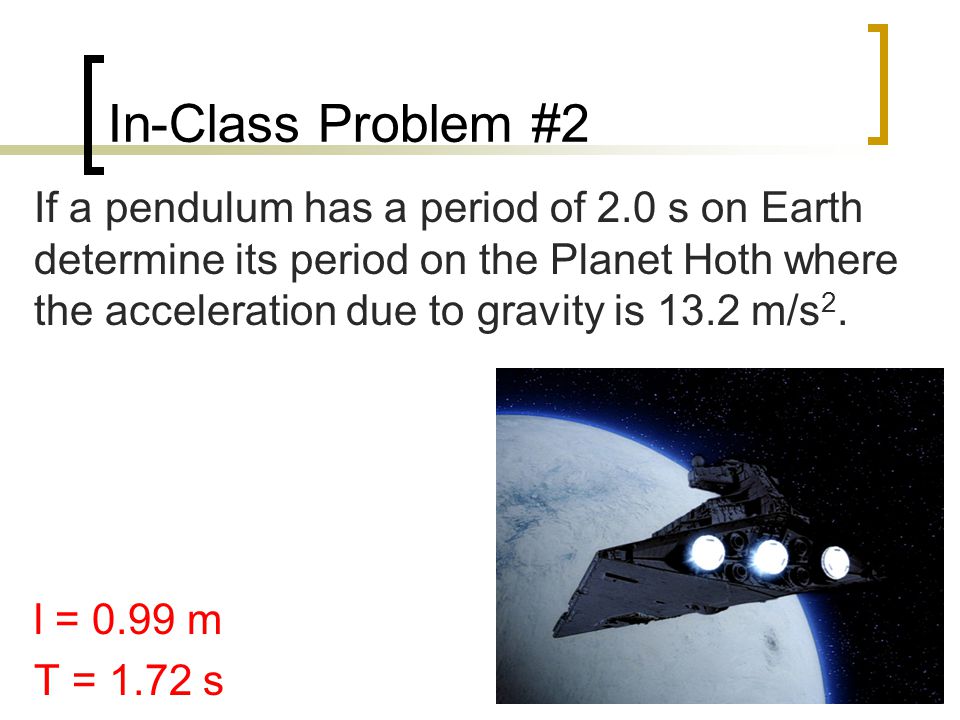

10 In-Class Problem #2 If a pendulum has a period of 2.0 s on Earth determine its period on the Planet Hoth where the acceleration due to gravity is 13.2 m/s 2. l = 0.99 m T = 1.72 s

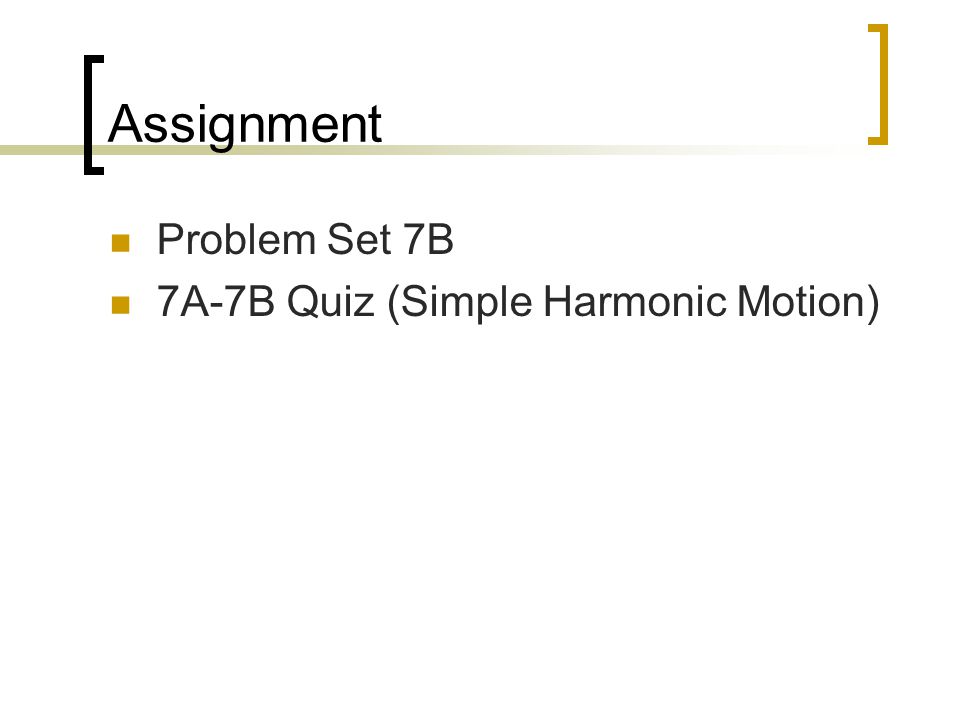

11 Assignment Problem Set 7B 7A-7B Quiz (Simple Harmonic Motion)
