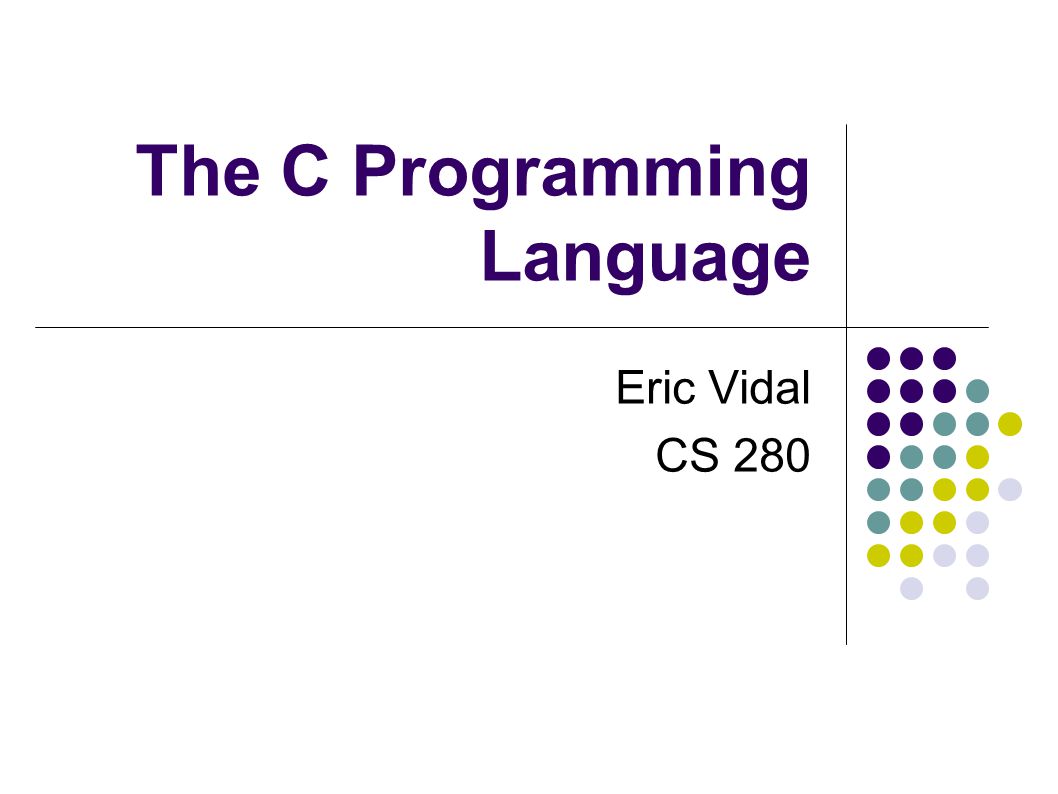

1. The C Programming Language Eric Vidal CS 280

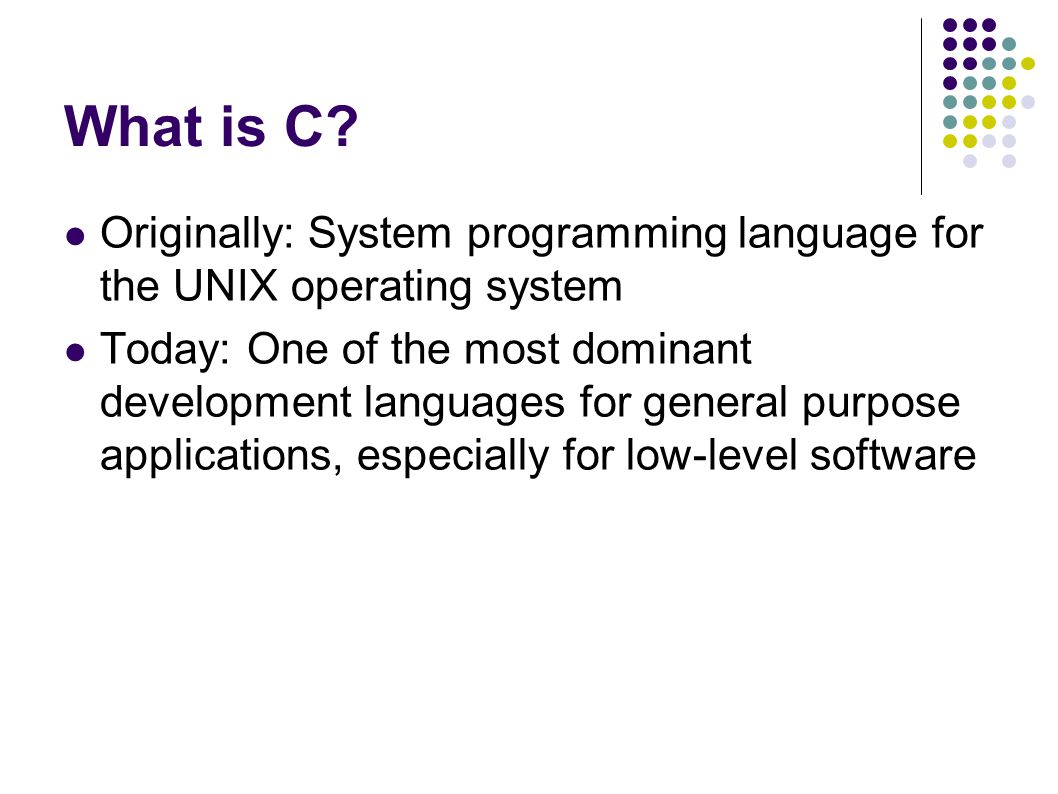

2. What is C? Originally: System programming language for the UNIX operating system Today: One of the most dominant development languages for general purpose applications, especially for low-level software

3. Sample C Programs Hello, world! #include int main(int argc, char *argv[], char *envp[]) { printf("Hello, world!\n"); return 0; }

4. Sample C Programs Quicksort #include void quicksort(int *array, int start, int end) { int last_start = start, last_end = end, swap; /* we do not need to sort zero/one item arrays */ if (start >= end) return; /* move items greater than pivot to the end */ /* and keep items less than pivot at the start */ start++; while (start < end) { if (array[start] > array[last_start]) { swap = array[start]; array[start] = array[end]; array[end--] = swap; } else start++; } /* move pivot to the center of the array */ if (array[start] > array[last_start]) start--; swap = array[last_start]; array[last_start] = array[start]; array[start] = swap; /* recursively sort array before and after pivot */ quicksort(array, last_start, start - 1); quicksort(array, start + 1, last_end); } int main(int argc, char *argv[], char *envp[]) { int foo[7] = { 4, 1, 6, 10, 9, 7, 3 }; int i; quicksort(foo, 0, 6); for (i = 0; i < 7; i++) printf("%d\n", foo[i]); return 0; }

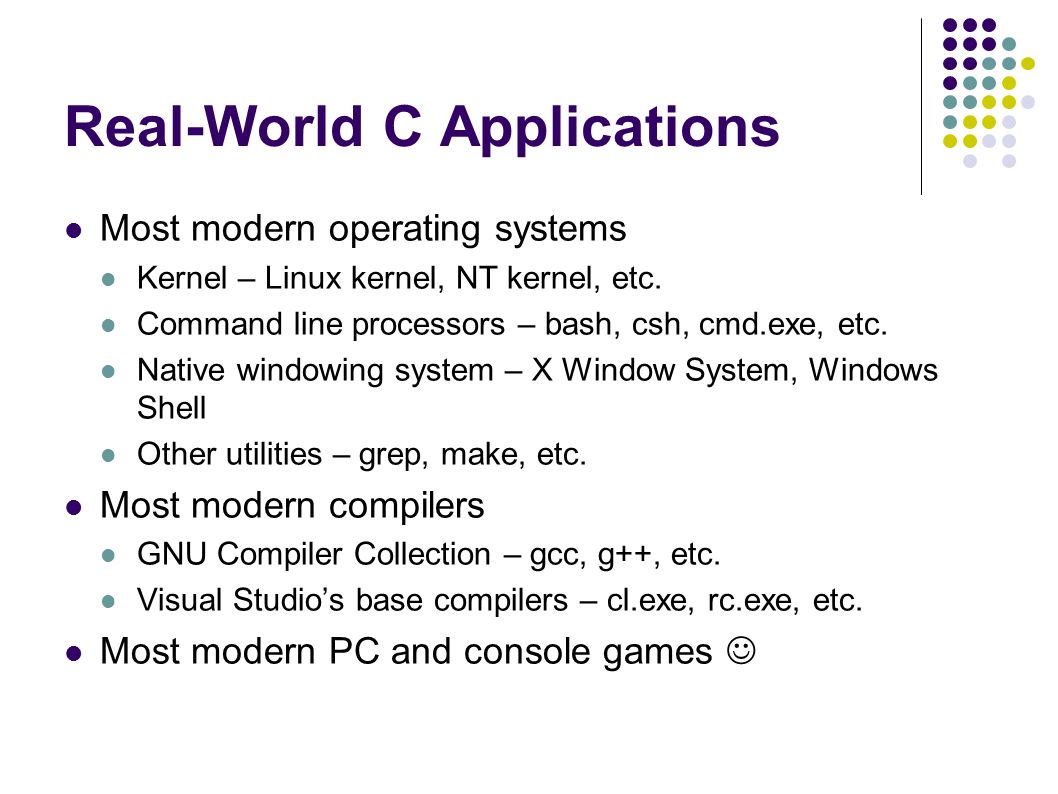

5. Real-World C Applications Most modern operating systems Kernel – Linux kernel, NT kernel, etc. Command line processors – bash, csh, cmd.exe, etc. Native windowing system – X Window System, Windows Shell Other utilities – grep, make, etc. Most modern compilers GNU Compiler Collection – gcc, g++, etc. Visual Studio’s base compilers – cl.exe, rc.exe, etc. Most modern PC and console games

6. Evolution of C CPL – Cambridge Programming Language or Combined Programming Language (1963) Invented by Christopher Strachey, et al. Heavily influenced by Algol 60 Too complex to implement on existing computers BCPL – Basic CPL (1966) Invented by Martin Richards Programming language of choice for the Multics systems in Bell Laboratories

7. Evolution of C B Programming Language (1969) Invented by Ken Thompson Implemented on a DEC PDP-7 with 8K 18-bit words of memory Intended as the system implementation language for UNIX Revision of an earlier language, “Bon” Not named after the B in BCPL, but heavily influenced by it

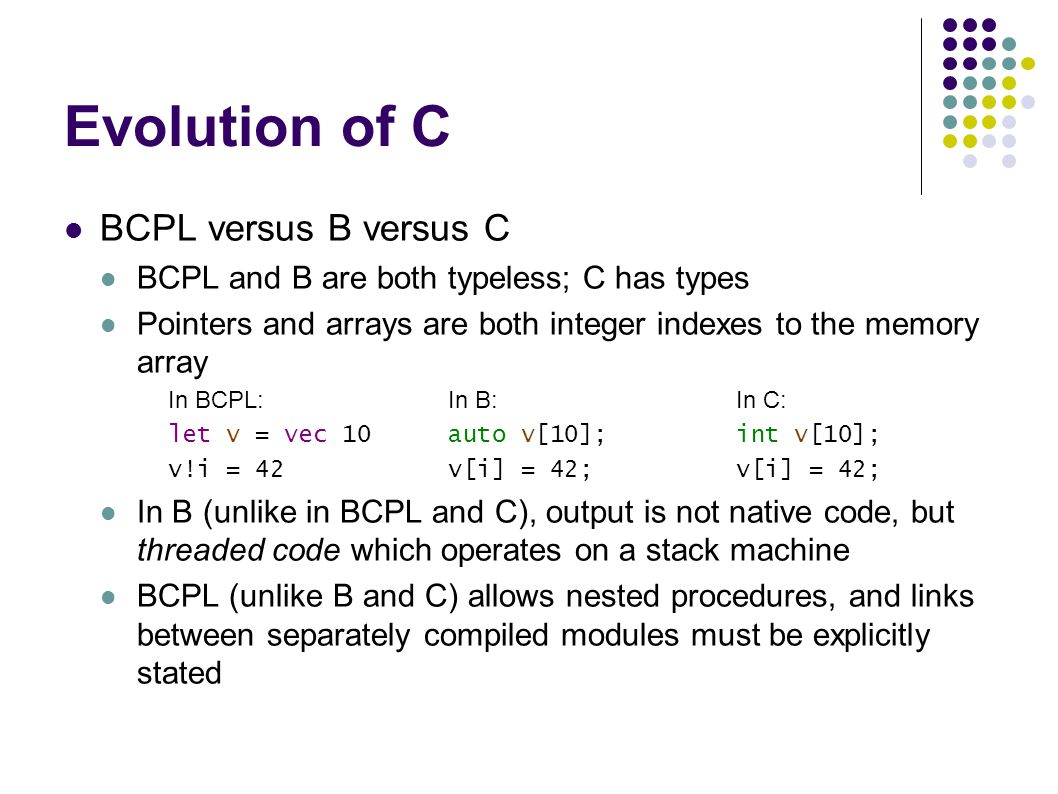

8. Evolution of C BCPL versus B versus C BCPL and B are both typeless; C has types Pointers and arrays are both integer indexes to the memory array In BCPL:In B:In C: let v = vec 10auto v[10];int v[10]; v!i = 42v[i] = 42;v[i] = 42; In B (unlike in BCPL and C), output is not native code, but threaded code which operates on a stack machine BCPL (unlike B and C) allows nested procedures, and links between separately compiled modules must be explicitly stated

9. Evolution of C NB – New B (1971) Invented by Dennis Ritchie On the DEC PDP-11 with 12K 16-bit words of memory, character data is not accessed in words but in bytes Required two distinct data types: int and char Floating point arithmetic will also require a new float data type NB compiles to native code

10. Evolution of C NB versus C Previously, arrays and pointers are the same, but Ritchie wanted to implement structures: struct direntry { int inumber; char name[14]; }; Pointer to an array != actual array in the structure Inconvenient for reading from disk

11. Evolution of C C Programming Language (1972) Also invented by Ritchie, proper successor to B In C, arrays are still similar to pointers Pointer to an array is created only when the array name is mentioned in an expression Generalization of pointers: int i, *pi, **ppi; int fi(), *fpi(), (*pfi)(); int *api[10], (*pai)[10];

12. Evolution of C K&R C – first C standard (1978) Appeared in The C Programming Language by Brian Kernighan and Dennis Ritchie && and || operators Previously & and | means both logical and bitwise AND and OR Unfortunately, precedence was never fixed (to preserve compatibility with B): if (a & mask == b) /* logical error */ Preprocessor #include #define MACRO unsigned, long, union, enum Type casts

13. Evolution of C ANSI C or C89 – first official C standard (1989) Produced by the ANSI X3J11 working group Required the types of formal arguments in the type signature of the function: In K&R C:In ANSI C: double sin();double sin(double); const, volatile Ratified a Standard C Library Should be implemented by all ANSI C-compliant vendors

14. Evolution of C ISO/IEC 9899 C90 – second official C standard (1990) Exactly the same as C89, with changes to numbering to reflect ISO practice ISO/IEC 9899 C99 – current official C standard (1999) Produced by the ISO/IEC/JTC/SC22/WG14 working group Added invariant ISO646 and multibyte support extensions Clarified the existing standard via technical corrigenda: ISO/IEC 9899 TCOR1 (1995) ISO/IEC 9899 TCOR2 (1996) Available at: http://std.dkuug.dk/JTC1/SC22/WG14/http://std.dkuug.dk/JTC1/SC22/WG14/

15. Disadvantages of C Ambiguity in variable use Type safety (integers versus pointers) Fence post errors (arrays versus pointers) Indirection problems int *fp(); int (*pf)(); int *(*pfp)(); Treats strings as null-terminated character arrays Finding the length of the string is O(n) Generally not well-suited for string processing

16. Disadvantages of C Array problems Dynamically changing the size of an array is clumsy Functions expecting multiple pointers to arrays cannot be optimized fully for SIMD or vector machines; arrays may overlap Modularization problems Only two levels of naming: external (global) and internal (function) Developers must create their own modularization conventions

17. Disadvantages of C Memory problems C itself only provides two types of storage: automatic (in the stack segment) and static (in the data segment) Dynamically allocated storage in the heap ( malloc() and free() ) is tedious and error- prone Automatic garbage collection is difficult

18. Advantages of C Low-level functionality Bitwise operators Pointers Type looseness High-level syntax Abstract enough to describe underlying algorithms Result: A language that can do practically everything, is portable to other systems, and runs as fast as assembly

19. Advantages of C Small and simple Easy to parse; compilers occupy very little memory Ties with UNIX Language not designed in isolation, but in a real environment with emphasis on practicality Meets the needs of programmers, but does not supply too much Compatibility with old programs – C has been remarkably stable through the years (unlike FORTRAN or Pascal)

20. Compilers for C First C compiler, cc, is developed by Dennis Ritchie First portable C compiler, pcc, is developed by Steve Johnson (1978) Became the reference implementation for K&R C Currently a ton of compilers available Mostly because compiler theory classes use a subset of C for their final project

21. Compilers for C Generally available C compilers (also works for C++): Borland C++Builder http://www.borland.com/cbuilder/ Microsoft Visual C++.NET http://msdn.microsoft.com/visualc/ The GNU Compiler Collection For Linux: http://gcc.gnu.org/http://gcc.gnu.org/ For Windows: http://www.mingw.org/http://www.mingw.org/

22. References Ritchie, Dennis M. The Development of the C Language. April 1993. Internet on-line. Available from [31 July 2003]http://cm.bell- labs.com/cm/cs/who/dmr/chist.html International Standards Organization. 2003. ISO/IEC JTC1/SC22/WG14 – C. Denmark: International Standards Organization, 2003 [cited 31 July 2003]. Available from World Wide Web: (http://std.dkuug.dk/JTC1/SC22/WG14/)http://std.dkuug.dk/JTC1/SC22/WG14/
