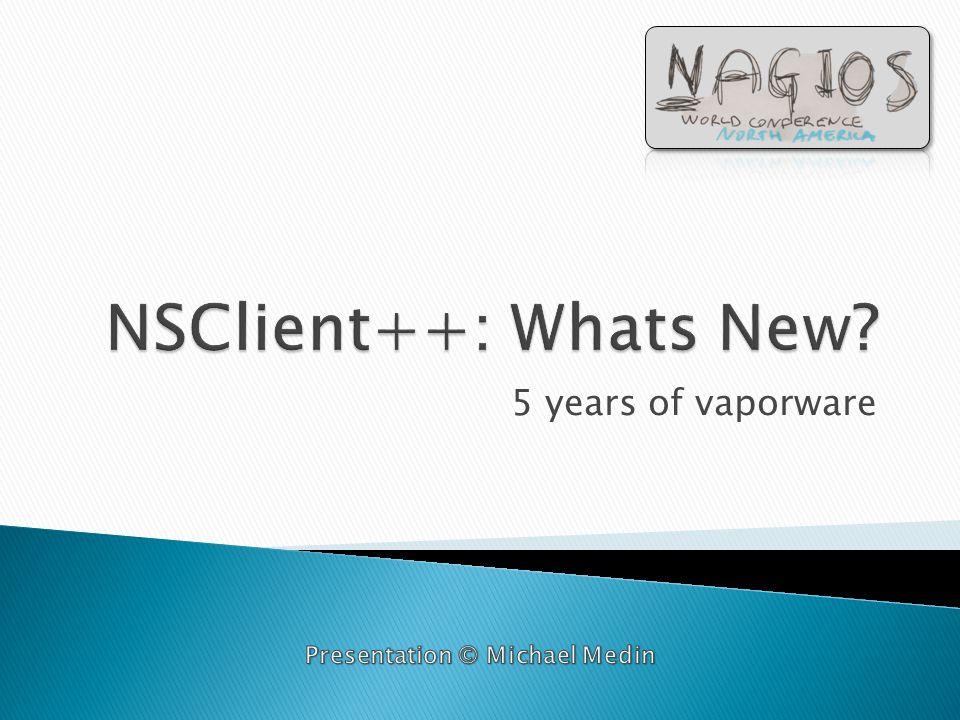

1. 5 years of vaporware

2.  These slides represent the work and opinions of the author and do not constitute official positions of any organization sponsoring the author’s work  This material has not been peer reviewed and is presented here as-is with the permission of the author.  The author assumes no liability for any content or opinion expressed in this presentation and or use of content herein. It is not their fault! It is not my fault! It is your fault!

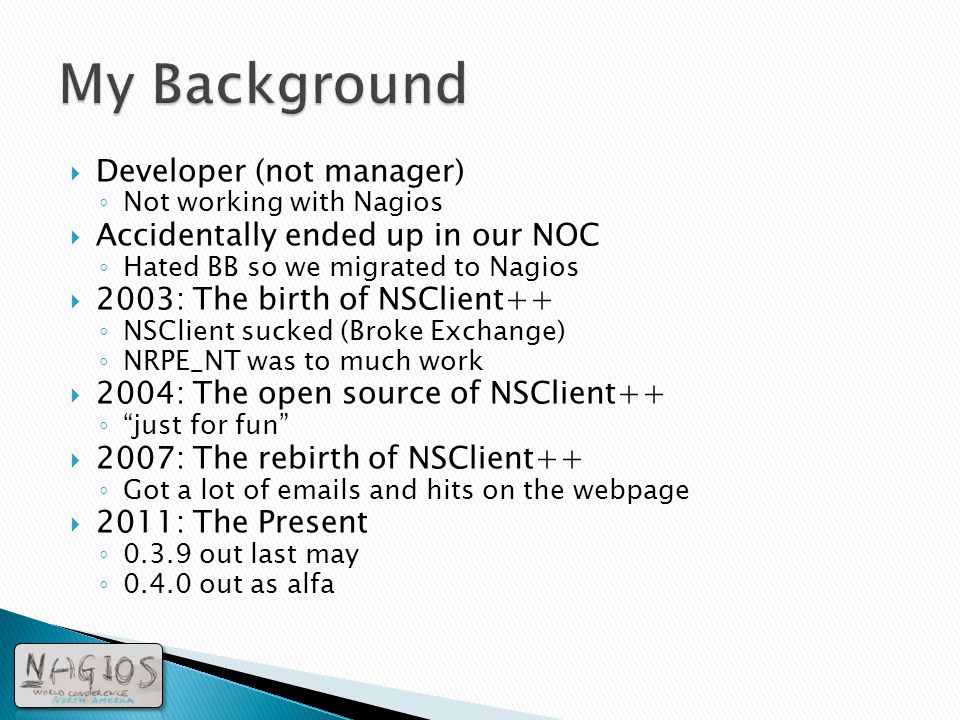

3.  Developer (not manager) ◦ Not working with Nagios  Accidentally ended up in our NOC ◦ Hated BB so we migrated to Nagios  2003: The birth of NSClient++ ◦ NSClient sucked (Broke Exchange) ◦ NRPE_NT was to much work  2004: The open source of NSClient++ ◦ “just for fun”  2007: The rebirth of NSClient++ ◦ Got a lot of emails and hits on the webpage  2011: The Present ◦ 0.3.9 out last may ◦ 0.4.0 out as alfa

4.  Windows Monitoring and NSClient++ ◦ Quick Introduction  What’s new in 0.3.9 ◦ Disk/File/* ◦ Scheduled Tasks ◦ Aliases ◦ Crash Handling  What’s new in 0.4.0 ◦ New core ◦ Unix support ◦ New settings subsystem ◦ New protocol ◦ Python Scripting  The end of NSClient++!  Q/A

5. Quick Introduction

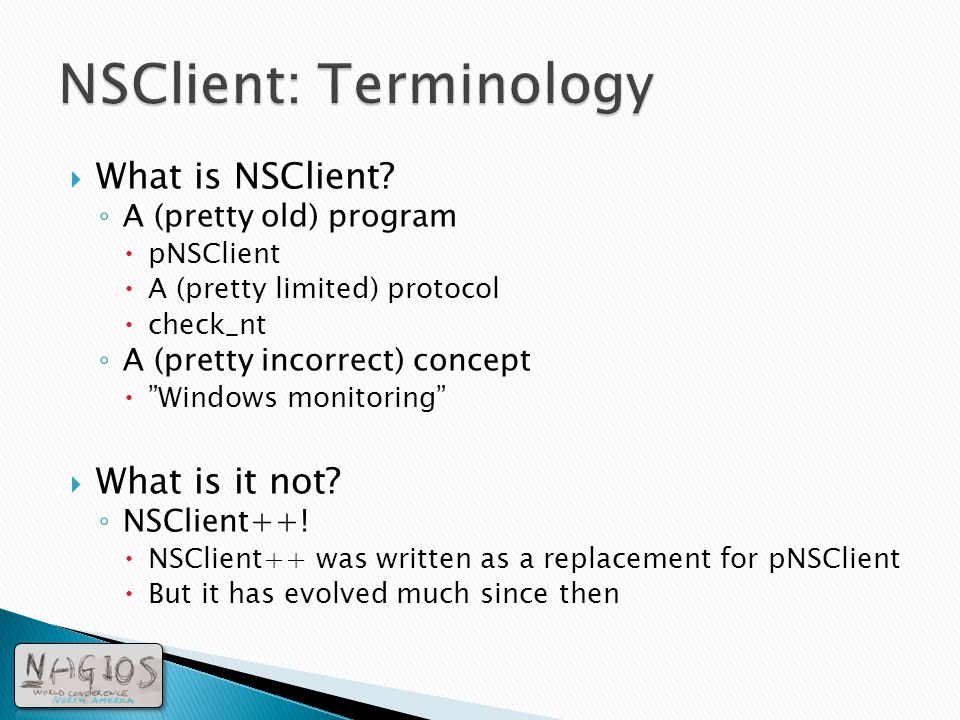

6.  What is NSClient? ◦ A (pretty old) program  pNSClient  A (pretty limited) protocol  check_nt ◦ A (pretty incorrect) concept  ”Windows monitoring”  What is it not? ◦ NSClient++!  NSClient++ was written as a replacement for pNSClient  But it has evolved much since then

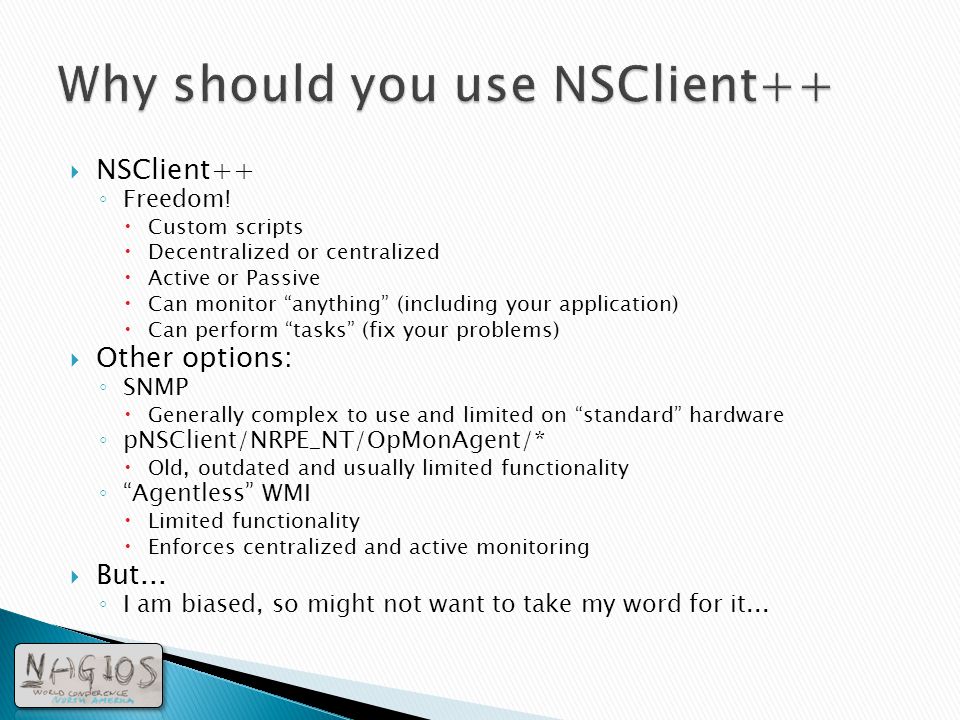

7.  NSClient++ ◦ Freedom!  Custom scripts  Decentralized or centralized  Active or Passive  Can monitor “anything” (including your application)  Can perform “tasks” (fix your problems)  Other options: ◦ SNMP  Generally complex to use and limited on “standard” hardware ◦ pNSClient/NRPE_NT/OpMonAgent/*  Old, outdated and usually limited functionality ◦ “Agentless” WMI  Limited functionality  Enforces centralized and active monitoring  But... ◦ I am biased, so might not want to take my word for it...

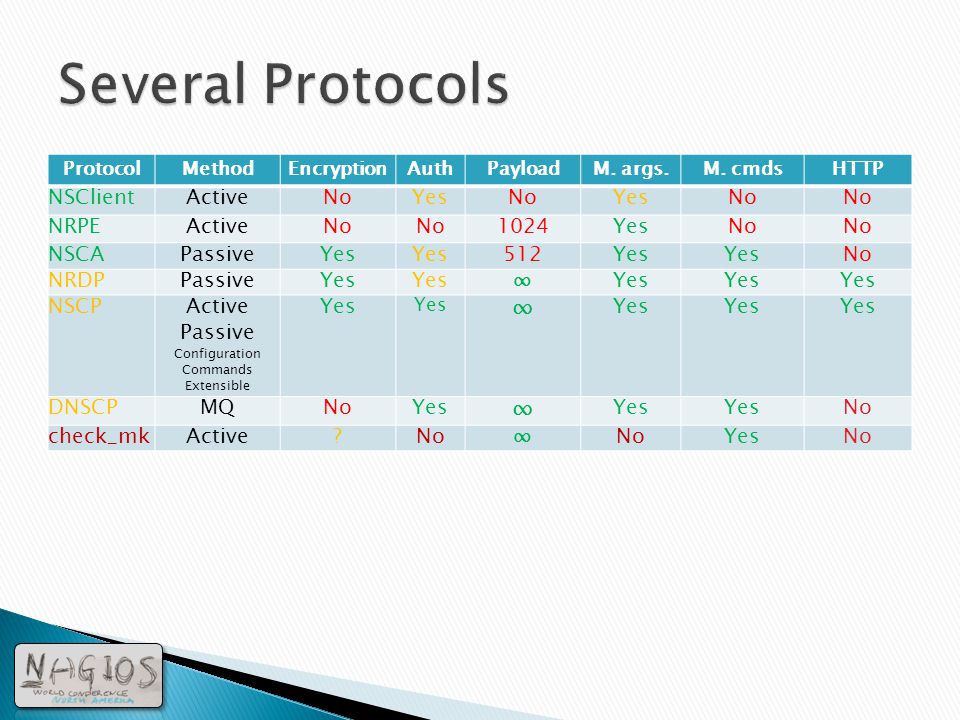

8. ProtocolMethodEncryptionAuthPayloadM. args.M. cmdsHTTP NSClientActiveNoYesNoYesNo NRPEActiveNo 1024YesNo NSCAPassiveYes 512Yes No NRDPPassiveYes ∞ NSCPActive Passive Configuration Commands Extensible Yes ∞ DNSCPMQNoYes ∞ No check_mkActive?No∞ YesNo

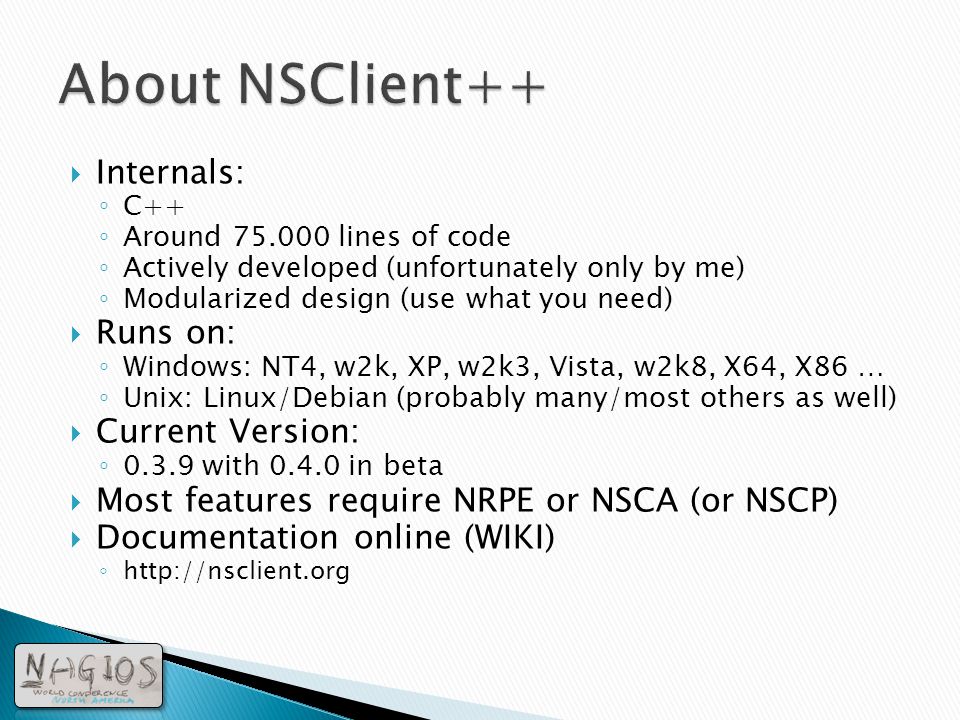

9.  Internals: ◦ C++ ◦ Around 75.000 lines of code ◦ Actively developed (unfortunately only by me) ◦ Modularized design (use what you need)  Runs on: ◦ Windows: NT4, w2k, XP, w2k3, Vista, w2k8, X64, X86 … ◦ Unix: Linux/Debian (probably many/most others as well)  Current Version: ◦ 0.3.9 with 0.4.0 in beta  Most features require NRPE or NSCA (or NSCP)  Documentation online (WIKI) ◦ http://nsclient.org

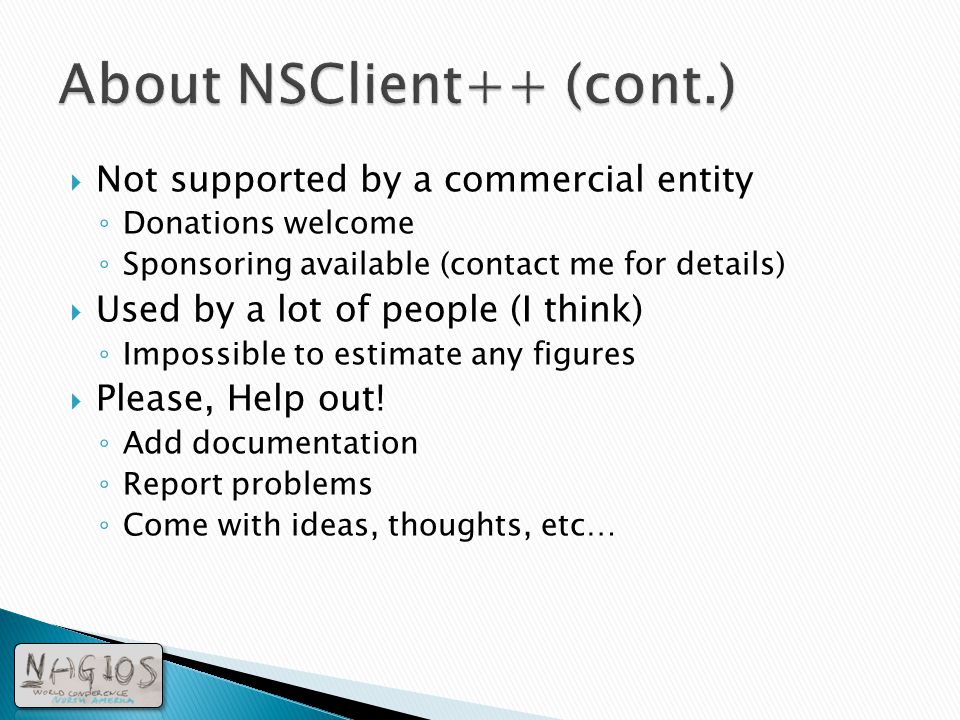

10.  Not supported by a commercial entity ◦ Donations welcome ◦ Sponsoring available (contact me for details)  Used by a lot of people (I think) ◦ Impossible to estimate any figures  Please, Help out! ◦ Add documentation ◦ Report problems ◦ Come with ideas, thoughts, etc…

12. Using NSClient++

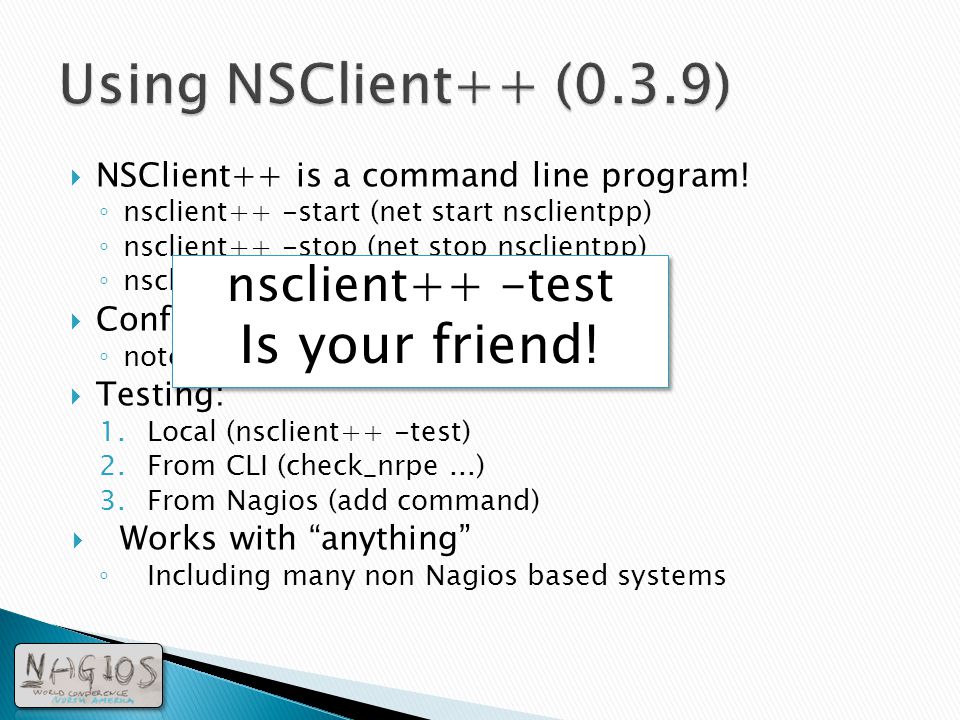

13.  NSClient++ is a command line program! ◦ nsclient++ -start (net start nsclientpp) ◦ nsclient++ -stop (net stop nsclientpp) ◦ nsclient++ -test  Configuration: ◦ notepad nsc.ini  Testing: 1.Local (nsclient++ -test) 2.From CLI (check_nrpe...) 3.From Nagios (add command)  Works with “anything” ◦ Including many non Nagios based systems nsclient++ -test Is your friend! nsclient++ -test Is your friend!

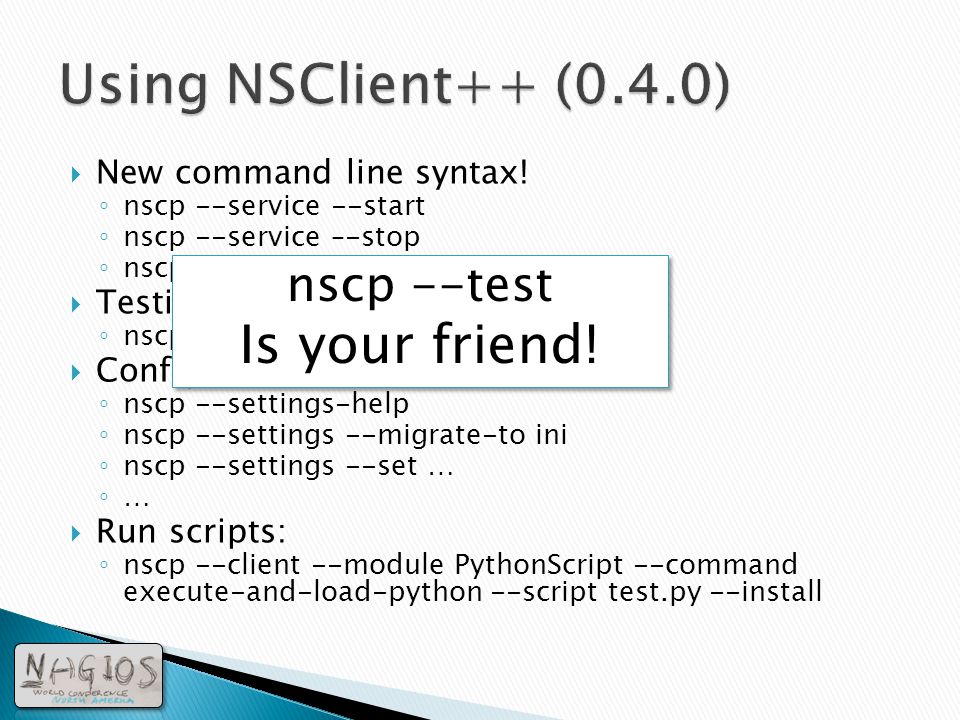

14.  New command line syntax! ◦ nscp --service --start ◦ nscp --service –-stop ◦ nscp --help  Testing ◦ nscp --test  Configuration: ◦ nscp --settings-help ◦ nscp --settings --migrate-to ini ◦ nscp --settings --set … ◦ …  Run scripts: ◦ nscp --client --module PythonScript --command execute-and-load-python --script test.py --install nscp --test Is your friend! nscp --test Is your friend!

15. Overview

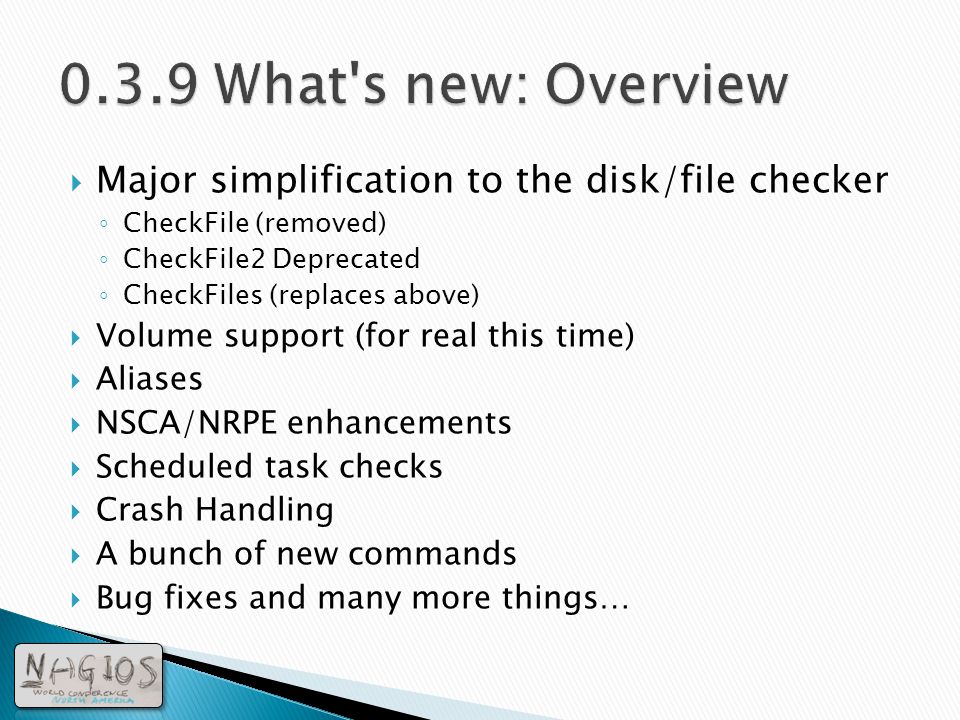

16.  Major simplification to the disk/file checker ◦ CheckFile (removed) ◦ CheckFile2 Deprecated ◦ CheckFiles (replaces above)  Volume support (for real this time)  Aliases  NSCA/NRPE enhancements  Scheduled task checks  Crash Handling  A bunch of new commands  Bug fixes and many more things…

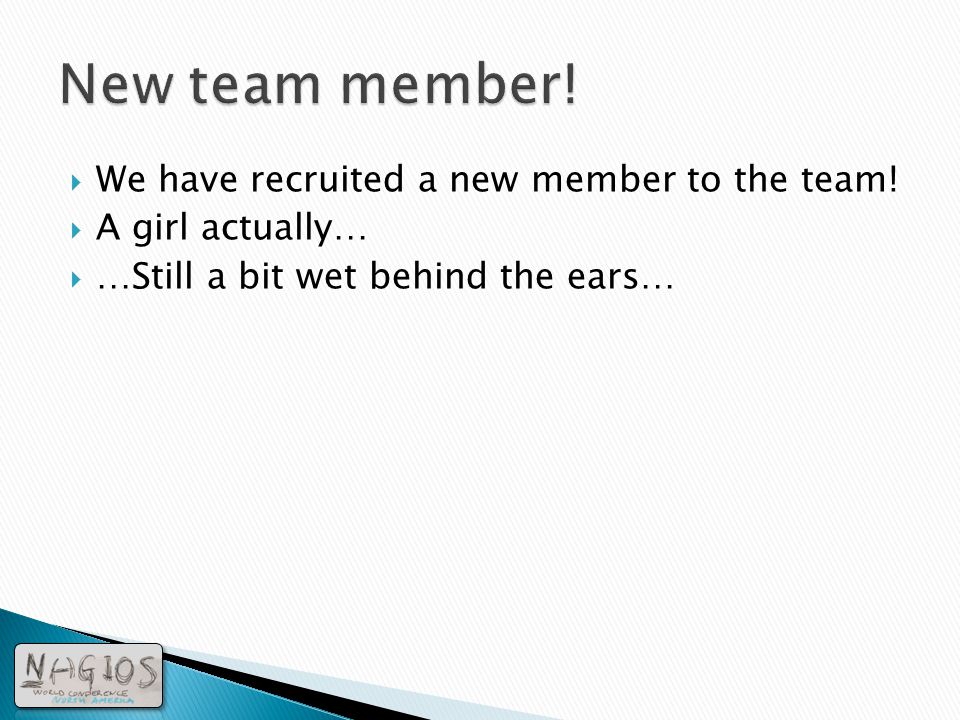

17.  We have recruited a new member to the team!  A girl actually…  …Still a bit wet behind the ears…

19. CheckFile(1,2,s,…)

20.  The good: ◦ Powerfull interface! ◦ Simple to use! ◦ out-of-the-box solution!  (on which you can expand)  The bad: ◦ Nothing! Really, I mean it!  …and then… yesterday… ◦ …in the bar… ◦ …all hopes shattered… ◦ …aparently it is still to complicated… 

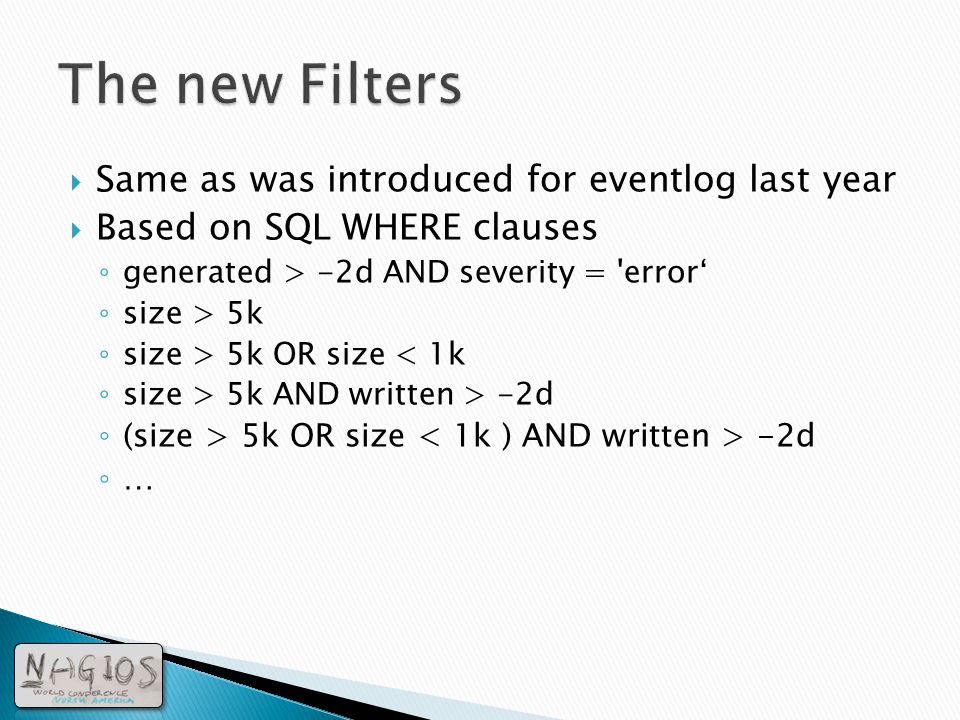

21.  Same as was introduced for eventlog last year  Based on SQL WHERE clauses ◦ generated > -2d AND severity = 'error‘ ◦ size > 5k ◦ size > 5k OR size < 1k ◦ size > 5k AND written > -2d ◦ (size > 5k OR size -2d ◦ …

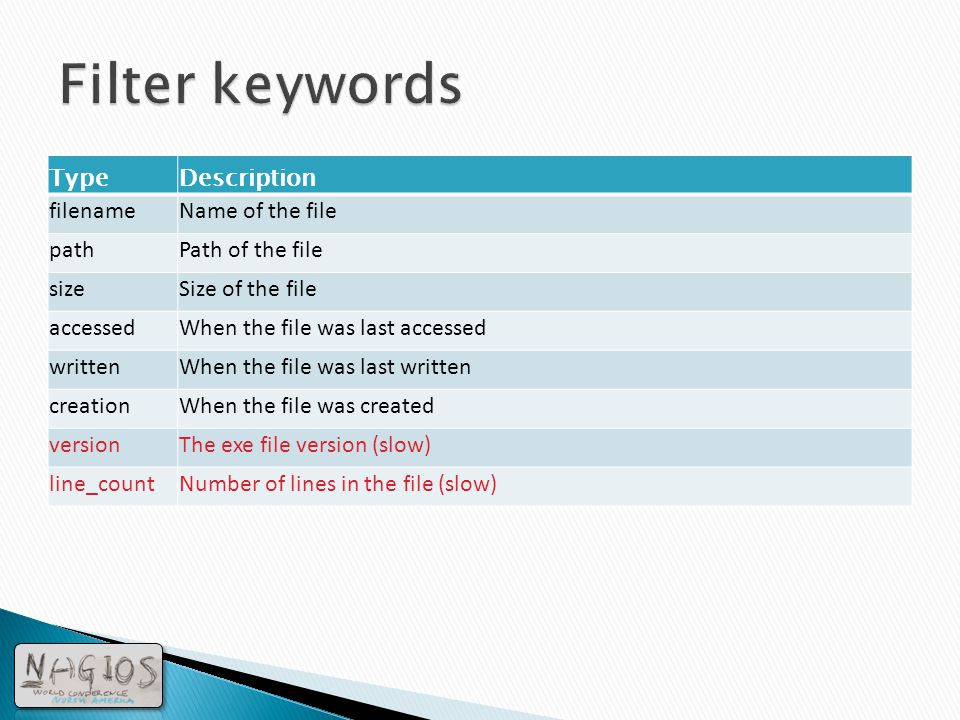

22. TypeDescription filenameName of the file pathPath of the file sizeSize of the file accessedWhen the file was last accessed writtenWhen the file was last written creationWhen the file was created versionThe exe file version (slow) line_countNumber of lines in the file (slow)

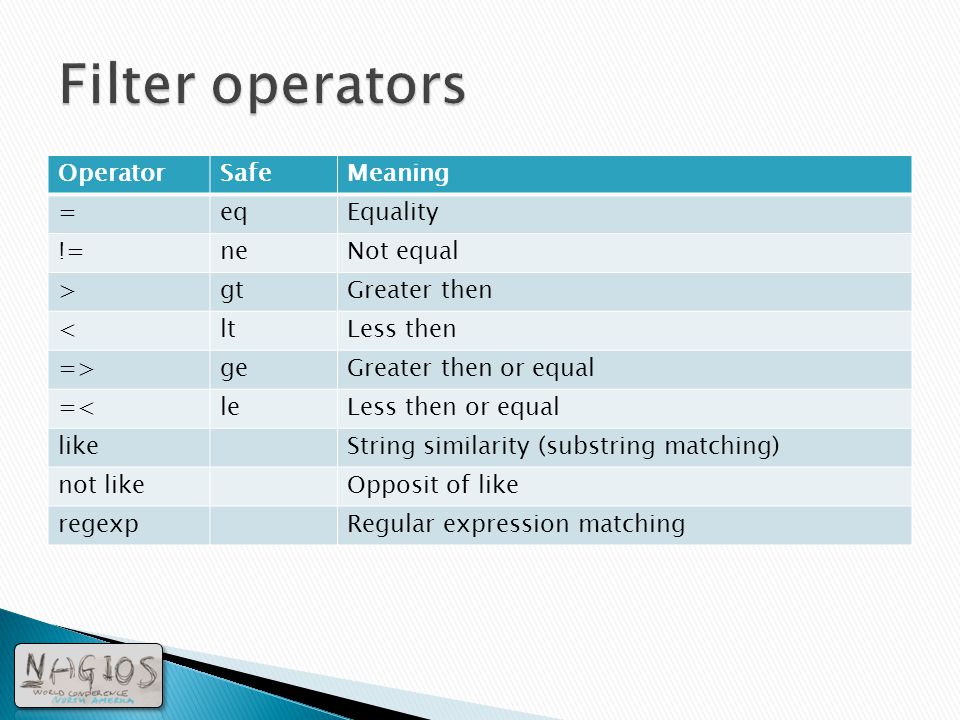

23. OperatorSafeMeaning =eqEquality !=neNot equal >gtGreater then <ltLess then =>geGreater then or equal =<leLess then or equal likeString similarity (substring matching) not likeOpposit of like regexpRegular expression matching

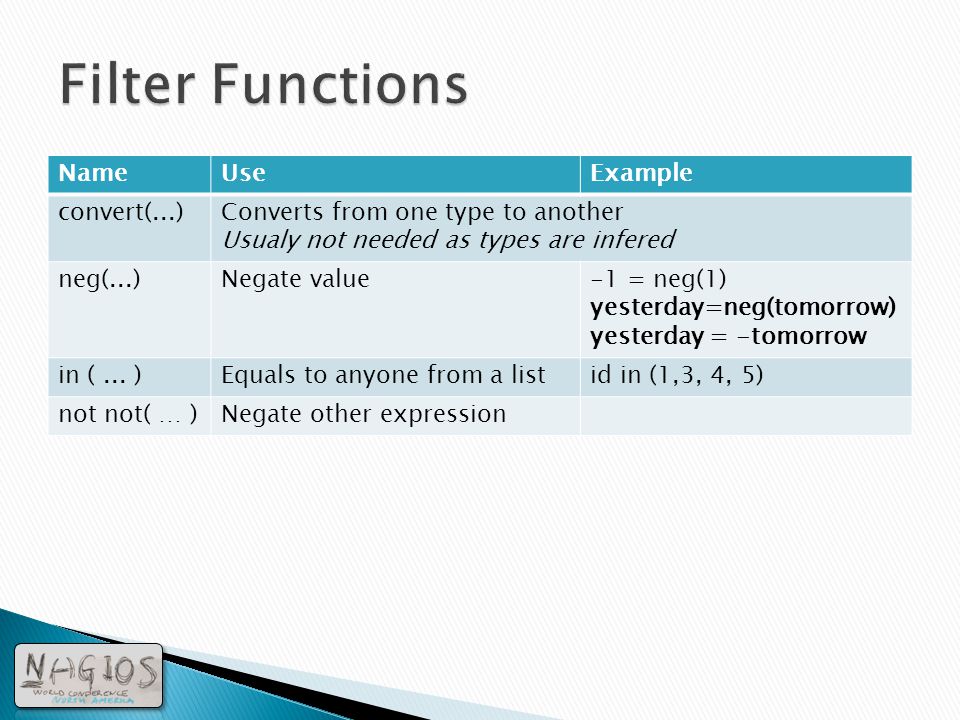

24. NameUseExample convert(...)Converts from one type to another Usualy not needed as types are infered neg(...)Negate value-1 = neg(1) yesterday=neg(tomorrow) yesterday = -tomorrow in (... )Equals to anyone from a listid in (1,3, 4, 5) not not( … )Negate other expression

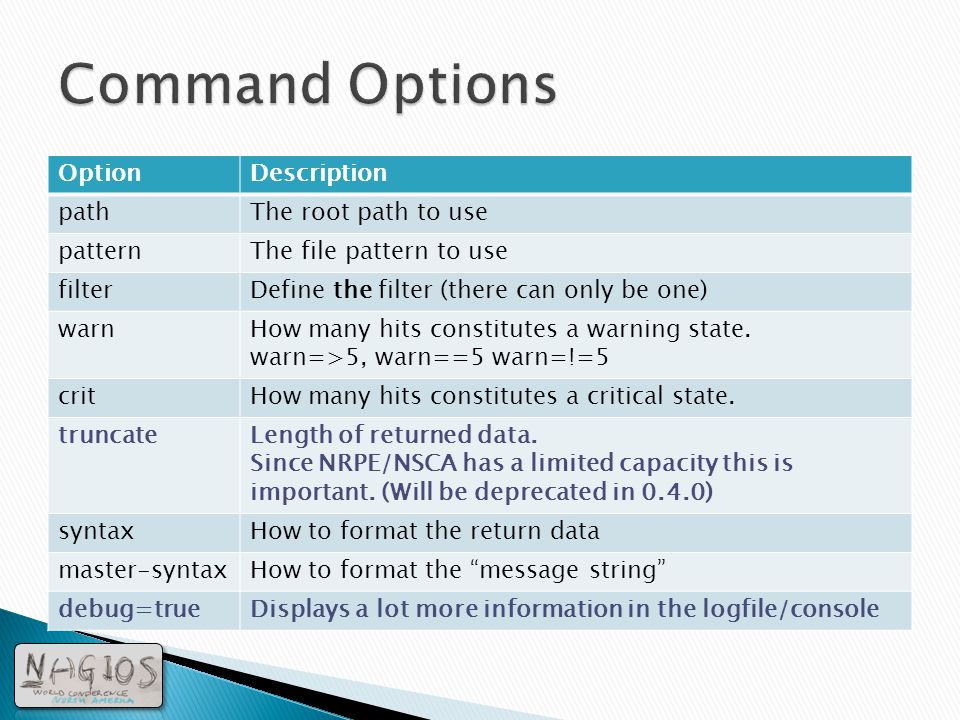

25. OptionDescription pathThe root path to use patternThe file pattern to use filterDefine the filter (there can only be one) warnHow many hits constitutes a warning state. warn=>5, warn==5 warn=!=5 critHow many hits constitutes a critical state. truncateLength of returned data. Since NRPE/NSCA has a limited capacity this is important. (Will be deprecated in 0.4.0) syntaxHow to format the return data master-syntaxHow to format the “message string” debug=trueDisplays a lot more information in the logfile/console

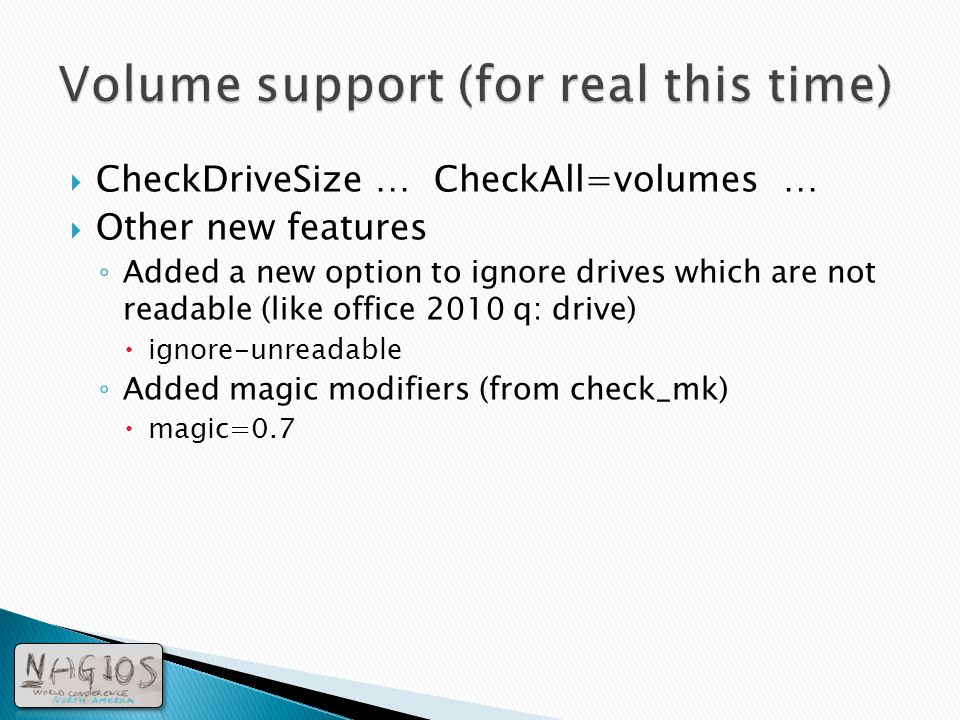

26.  CheckDriveSize … CheckAll=volumes …  Other new features ◦ Added a new option to ignore drives which are not readable (like office 2010 q: drive)  ignore-unreadable ◦ Added magic modifiers (from check_mk)  magic=0.7

27. Scheduled Tasks

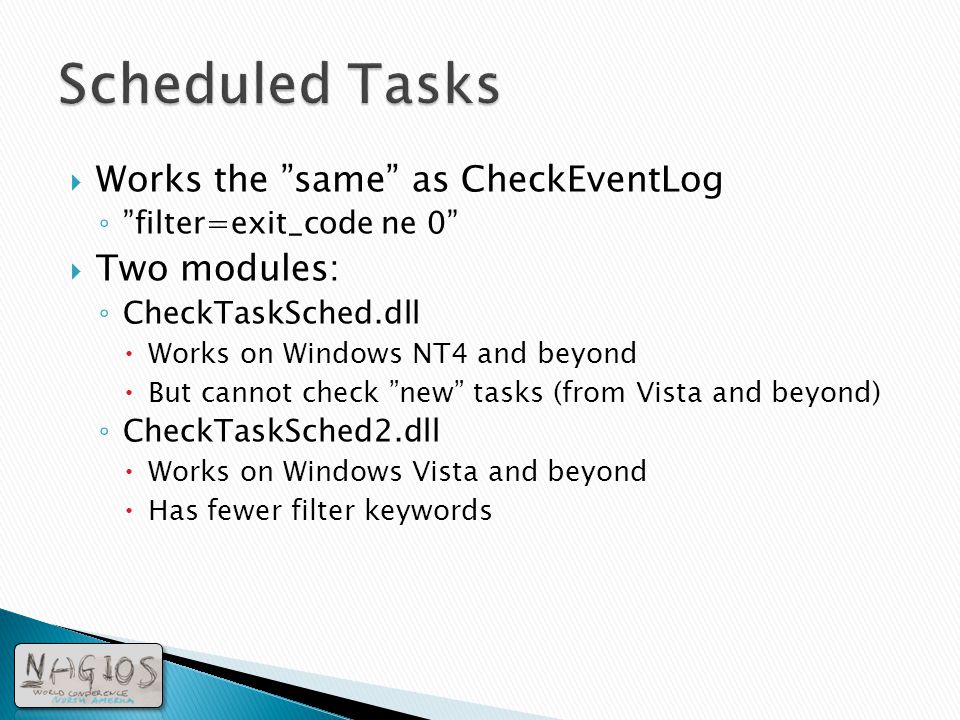

28.  Works the ”same” as CheckEventLog ◦ ”filter=exit_code ne 0”  Two modules: ◦ CheckTaskSched.dll  Works on Windows NT4 and beyond  But cannot check ”new” tasks (from Vista and beyond) ◦ CheckTaskSched2.dll  Works on Windows Vista and beyond  Has fewer filter keywords

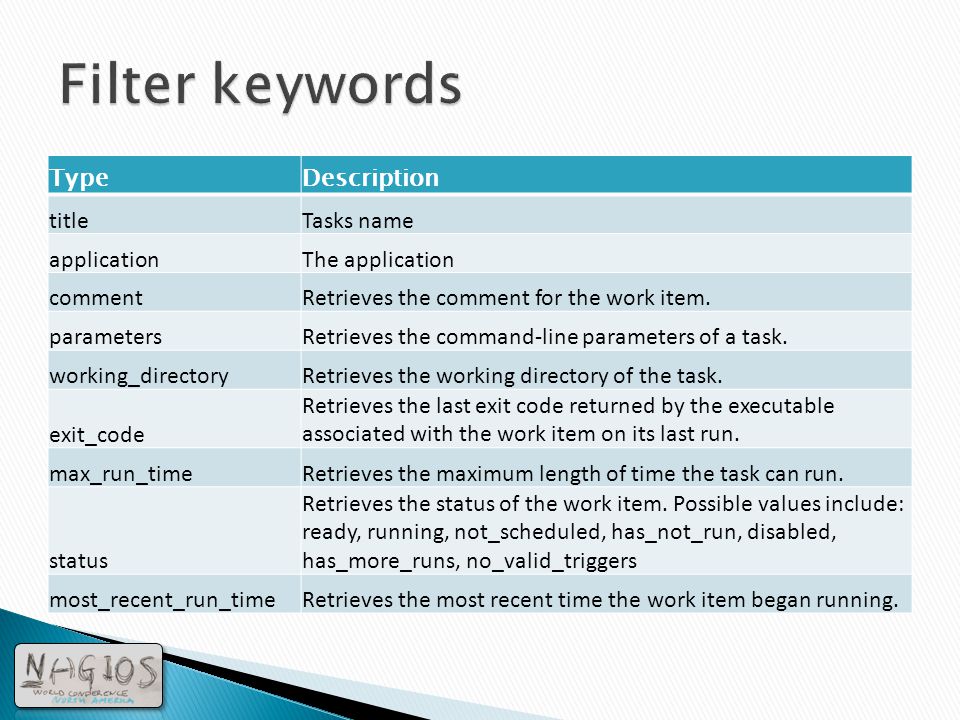

29. TypeDescription titleTasks name applicationThe application commentRetrieves the comment for the work item. parametersRetrieves the command-line parameters of a task. working_directoryRetrieves the working directory of the task. exit_code Retrieves the last exit code returned by the executable associated with the work item on its last run. max_run_timeRetrieves the maximum length of time the task can run. status Retrieves the status of the work item. Possible values include: ready, running, not_scheduled, has_not_run, disabled, has_more_runs, no_valid_triggers most_recent_run_timeRetrieves the most recent time the work item began running.

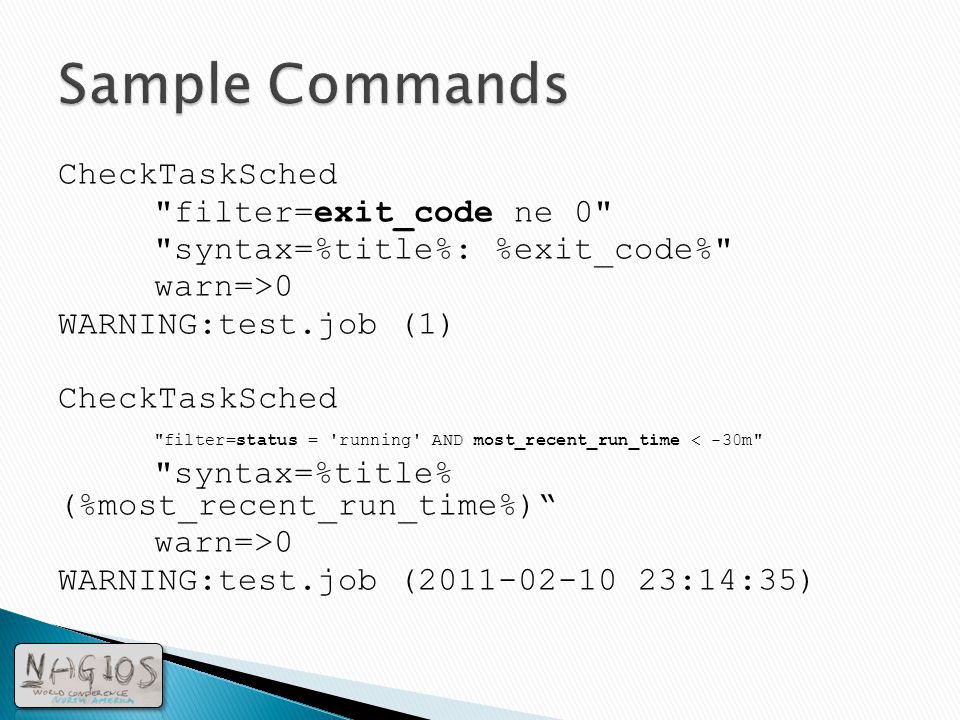

30. CheckTaskSched "filter=exit_code ne 0" "syntax=%title%: %exit_code%" warn=>0 WARNING:test.job (1) CheckTaskSched "filter=status = 'running' AND most_recent_run_time < -30m" "syntax=%title% (%most_recent_run_time%)“ warn=>0 WARNING:test.job (2011-02-10 23:14:35)

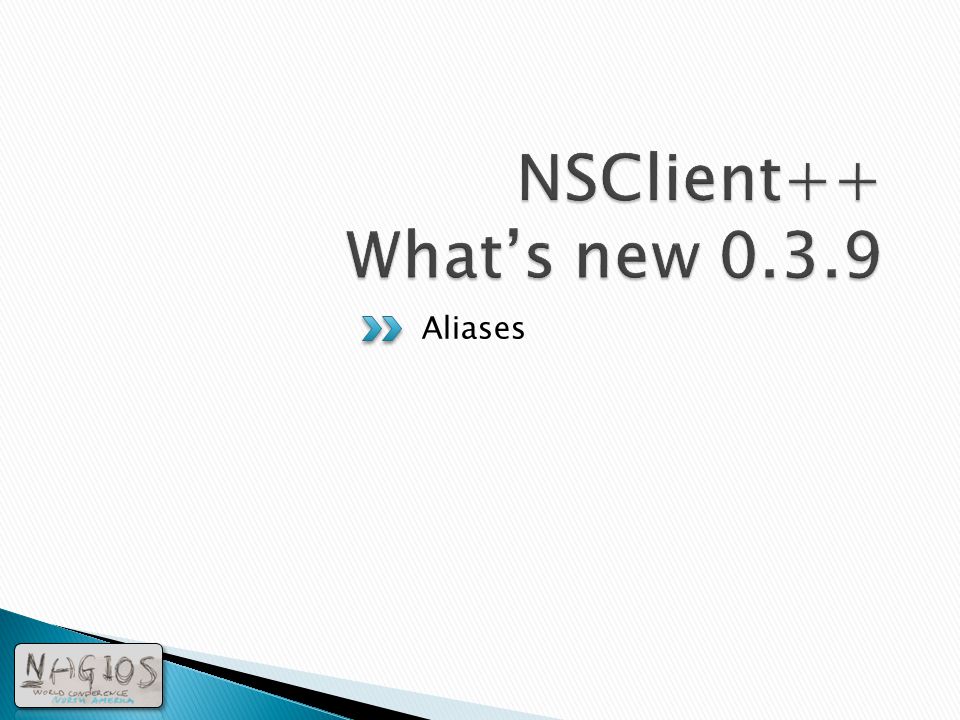

31. Aliases

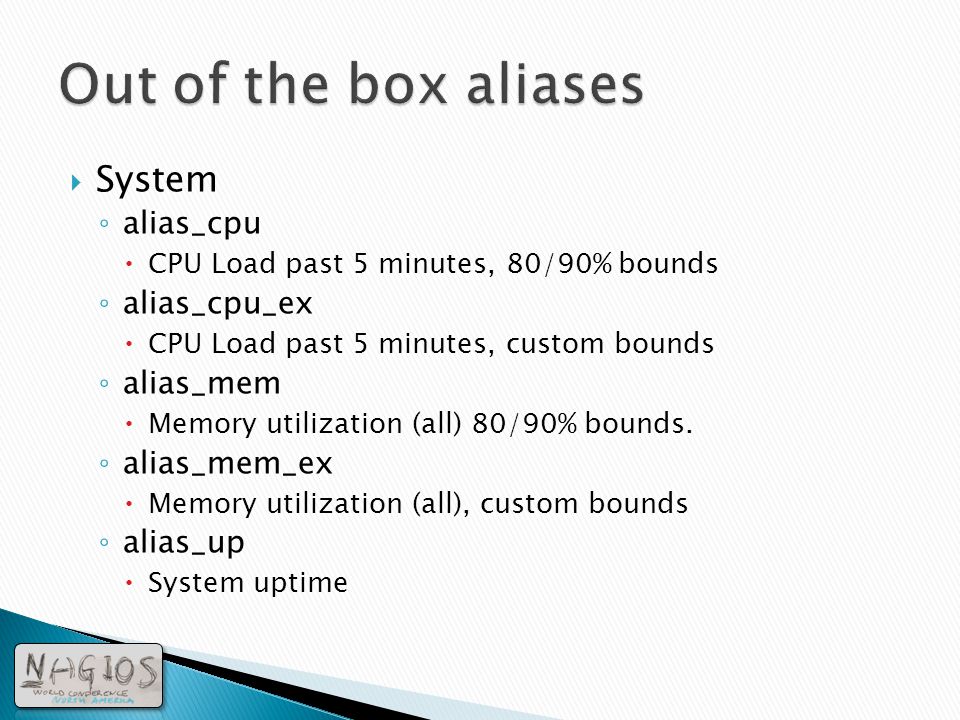

32.  System ◦ alias_cpu  CPU Load past 5 minutes, 80/90% bounds ◦ alias_cpu_ex  CPU Load past 5 minutes, custom bounds ◦ alias_mem  Memory utilization (all) 80/90% bounds. ◦ alias_mem_ex  Memory utilization (all), custom bounds ◦ alias_up  System uptime

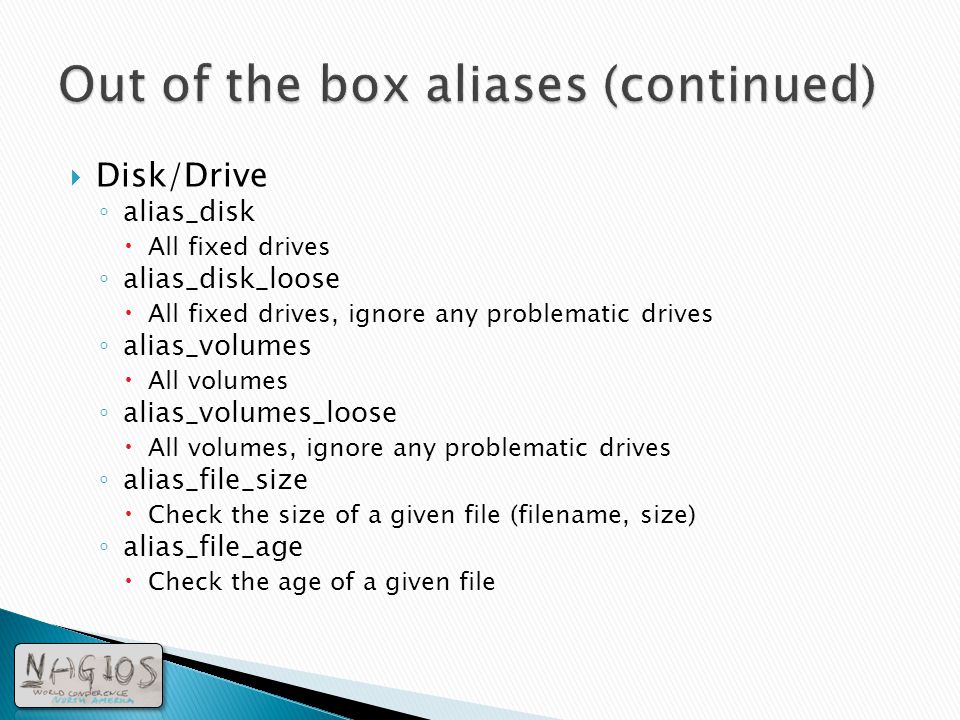

33.  Disk/Drive ◦ alias_disk  All fixed drives ◦ alias_disk_loose  All fixed drives, ignore any problematic drives ◦ alias_volumes  All volumes ◦ alias_volumes_loose  All volumes, ignore any problematic drives ◦ alias_file_size  Check the size of a given file (filename, size) ◦ alias_file_age  Check the age of a given file

34.  Eventlog ◦ alias_event_log  Check for errors in the event log  Schedules Tasks ◦ alias_sched_all  No scheduled jobs have failed ◦ alias_sched_long  No task has been running for longer then a given time. ◦ alias_sched_task  Check if a given task succeeded  Misc ◦ alias_updates  Check that updates are applied

35.  Processes ◦ alias_service  All services in “sensible state” ◦ alias_service_ex  All services in “sensible state” (exclude various services) ◦ alias_process  A process must be running ◦ alias_process_stopped  A process must not be running ◦ alias_process_count  A process must not have more then X instances ◦ alias_process_hung  A process must not be hung

36. Crash Handling

37.  Using Google break pad ◦ same as Google Chrome, Mozilla Firefox, etc  Three options (not mutually exclusive) 1.Send crash dumps to crash.nsclient.org  Server can be changed  if you want to have an internal server or proxy server. 2.Store crash dumps for analysis  Will also be checked with check_nscp 3.Restart service

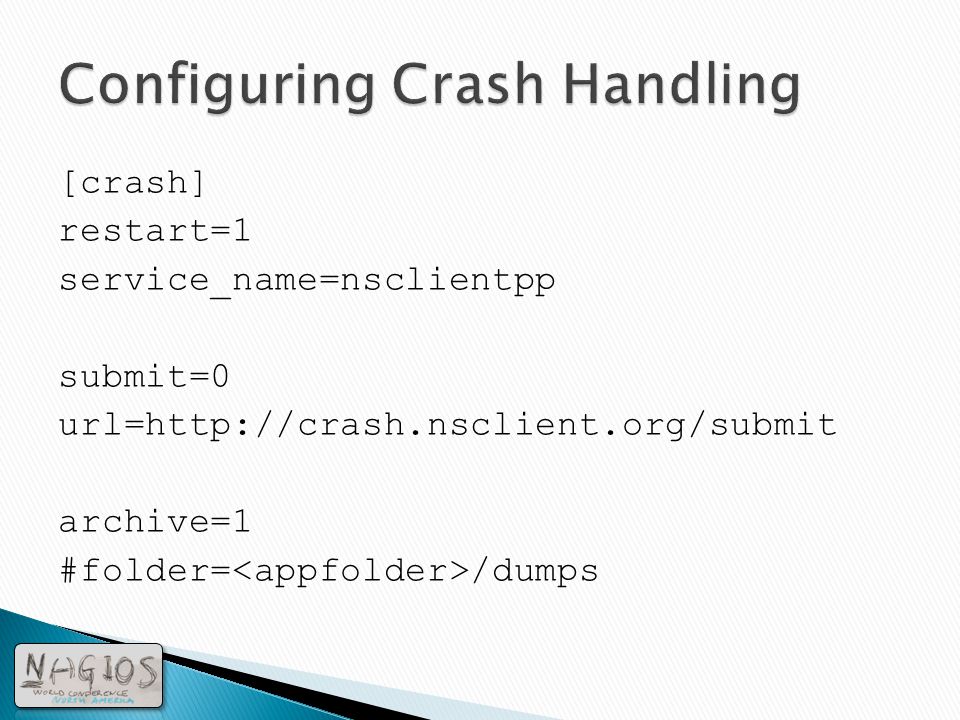

38. [crash] restart=1 service_name=nsclientpp submit=0 url=http://crash.nsclient.org/submit archive=1 #folder= /dumps

39. Miscellaneous Fixes

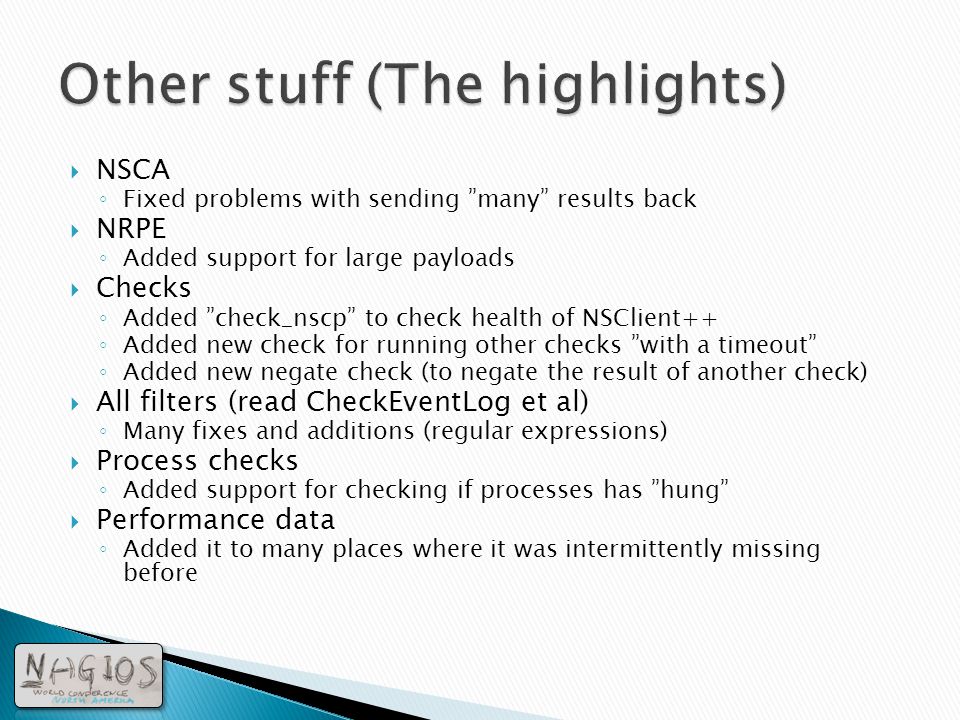

40.  NSCA ◦ Fixed problems with sending ”many” results back  NRPE ◦ Added support for large payloads  Checks ◦ Added ”check_nscp” to check health of NSClient++ ◦ Added new check for running other checks ”with a timeout” ◦ Added new negate check (to negate the result of another check)  All filters (read CheckEventLog et al) ◦ Many fixes and additions (regular expressions)  Process checks ◦ Added support for checking if processes has ”hung”  Performance data ◦ Added it to many places where it was intermittently missing before

41. Whats to come?

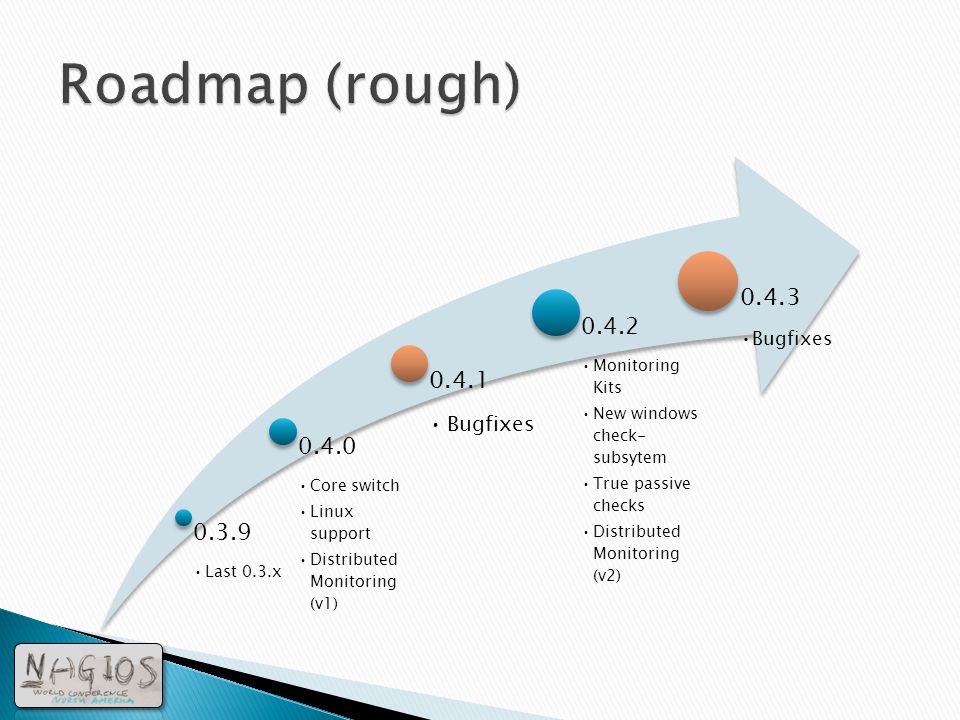

42. 0.3.9 Last 0.3.x 0.4.0 Core switch Linux support Distributed Monitoring (v1) 0.4.1 Bugfixes 0.4.2 Monitoring Kits New windows check- subsytem True passive checks Distributed Monitoring (v2) 0.4.3 Bugfixes

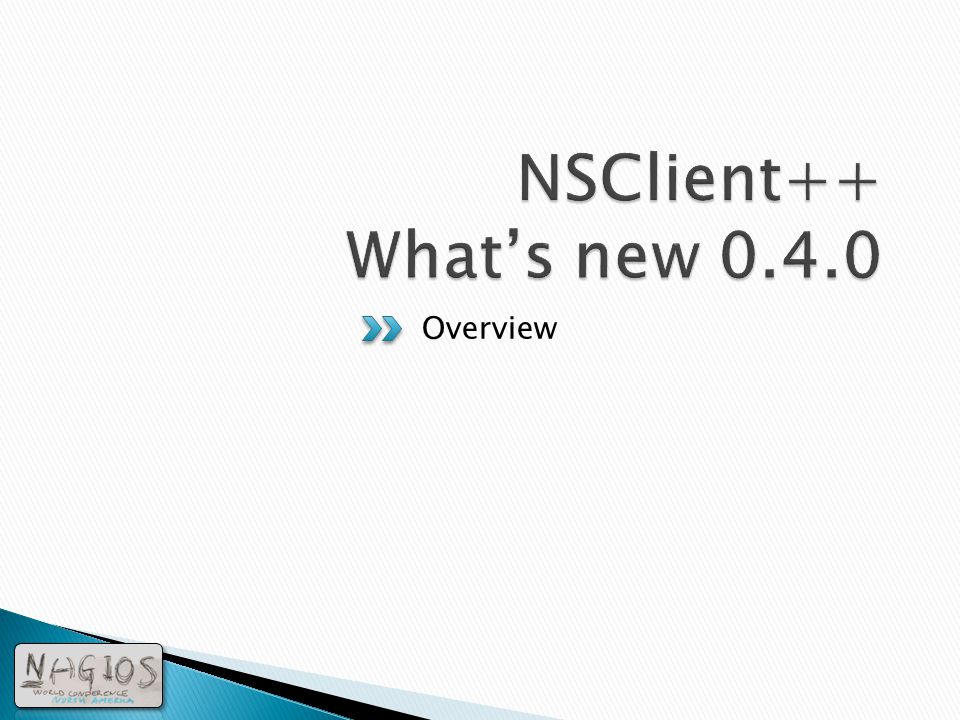

43. Overview

44.  Brand new core based upon libraries ◦ Things should *work* not just “work” ◦ More modular and extensible  Unix support ◦ Both as a client and server  New settings subsystem ◦ Registry, improved ini support, http, etc  New protocol ◦ NSCP (HTTP(s), MQ, Native)  Distributed monitoring ◦ Many new things in this area (including MQ)  Python scripting ◦ Primary goal (for me) is to create “unit-test”  Updated installer ◦ Wix 3.5, more customizable

45.  “Monitoring Kits” ◦ Monitoring solutions for “standard things”  New windows check-subsytem ◦ More modern and less arcane (no NT4 support) ◦ Remote checking .Net plugin support ◦ Possibly internal VBA scripting support  Metrics cache and aggregation ◦ Lightweight version of CEP ◦ “crit=cpu > 80% AND transactions_per_sec < 10”

46.  Filter-like API (in addition to options) ◦ “warn=any drive > 90% OR c: > 80%”  Remote updates/upgrades ◦ Allow NSCP to upgrade itself  “port” of the “standard plugins”? ◦ Run your favorite check_xxx from inside NSClient++  Unix plugins? ◦ Run CheckCPU on unix machines?  Client/web Interface? ◦ A nice little program (systray)  Let me know what you would like to see!

47. Brand new core

49.  This is why it was so long in the making ◦ Merging each new version took forever!  New internal protocol ◦ Removed all internal “limits” (think buffer sizes) ◦ Allows many new features ◦ Allows much more advanced internal scripts ◦ Allows for “non NRPE based checks”  A lot of new bugs? ◦ This is the scary part (for me)  but my testing has show it seems very stable

50. Unix support

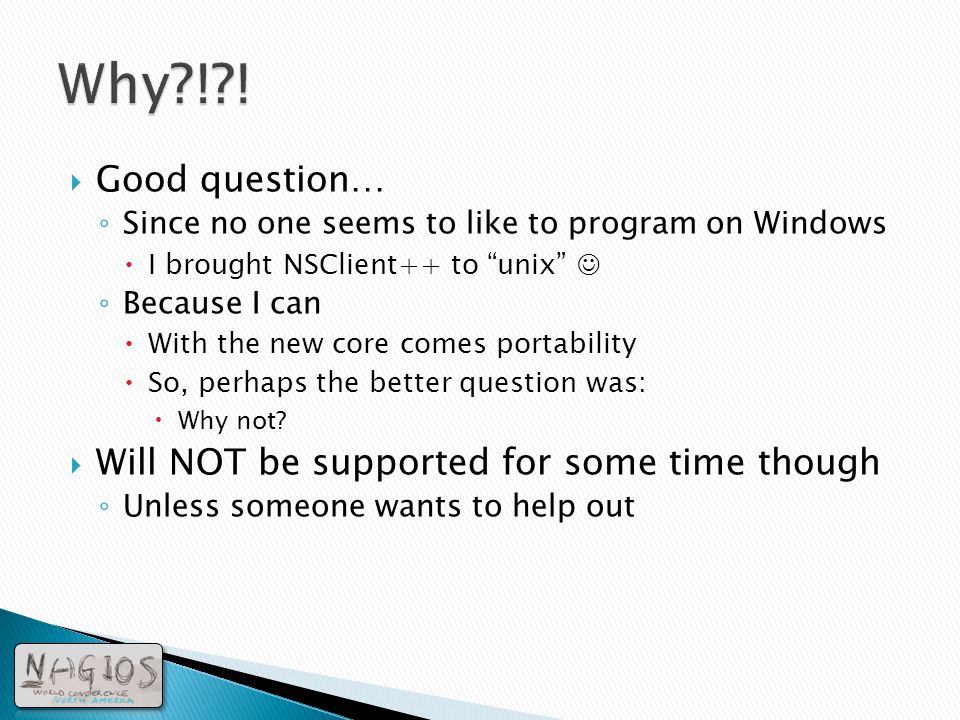

51.  Good question… ◦ Since no one seems to like to program on Windows  I brought NSClient++ to “unix” ◦ Because I can  With the new core comes portability  So, perhaps the better question was:  Why not?  Will NOT be supported for some time though ◦ Unless someone wants to help out

52. New Settings

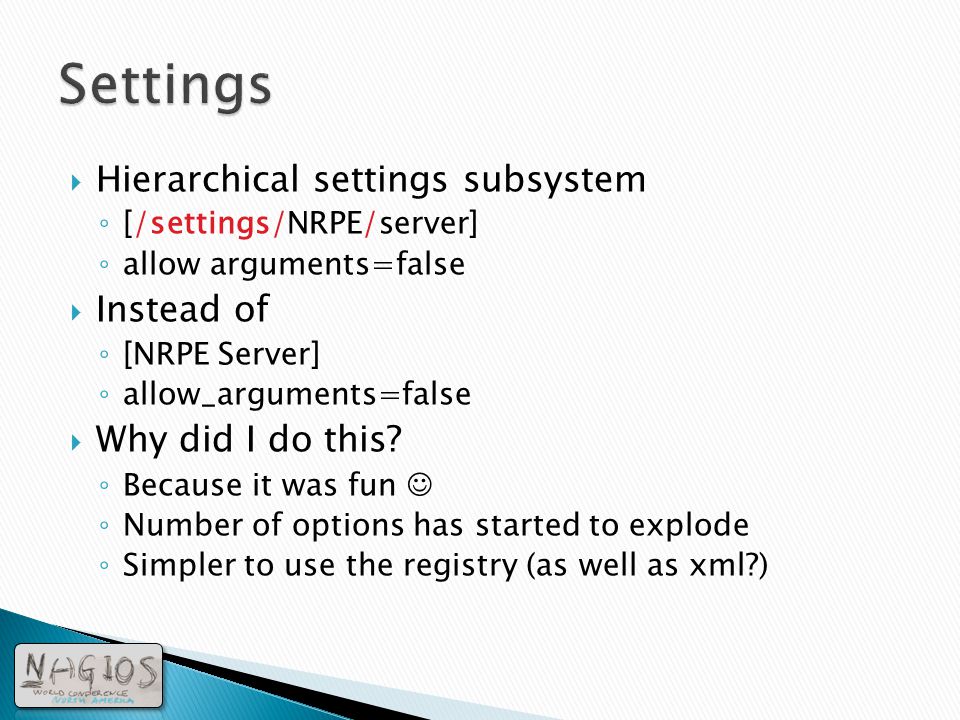

53.  Hierarchical settings subsystem ◦ [/settings/NRPE/server] ◦ allow arguments=false  Instead of ◦ [NRPE Server] ◦ allow_arguments=false  Why did I do this? ◦ Because it was fun ◦ Number of options has started to explode ◦ Simpler to use the registry (as well as xml?)

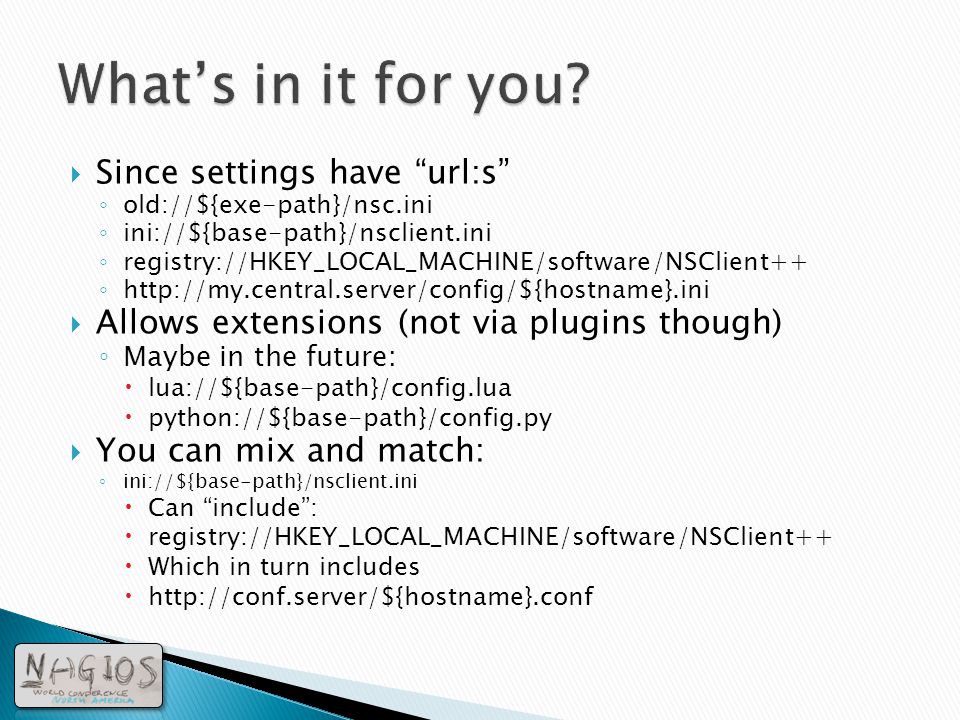

54.  Since settings have “url:s” ◦ old://${exe-path}/nsc.ini ◦ ini://${base-path}/nsclient.ini ◦ registry://HKEY_LOCAL_MACHINE/software/NSClient++ ◦ http://my.central.server/config/${hostname}.ini  Allows extensions (not via plugins though) ◦ Maybe in the future:  lua://${base-path}/config.lua  python://${base-path}/config.py  You can mix and match: ◦ ini://${base-path}/nsclient.ini  Can “include”:  registry://HKEY_LOCAL_MACHINE/software/NSClient++  Which in turn includes  http://conf.server/${hostname}.conf

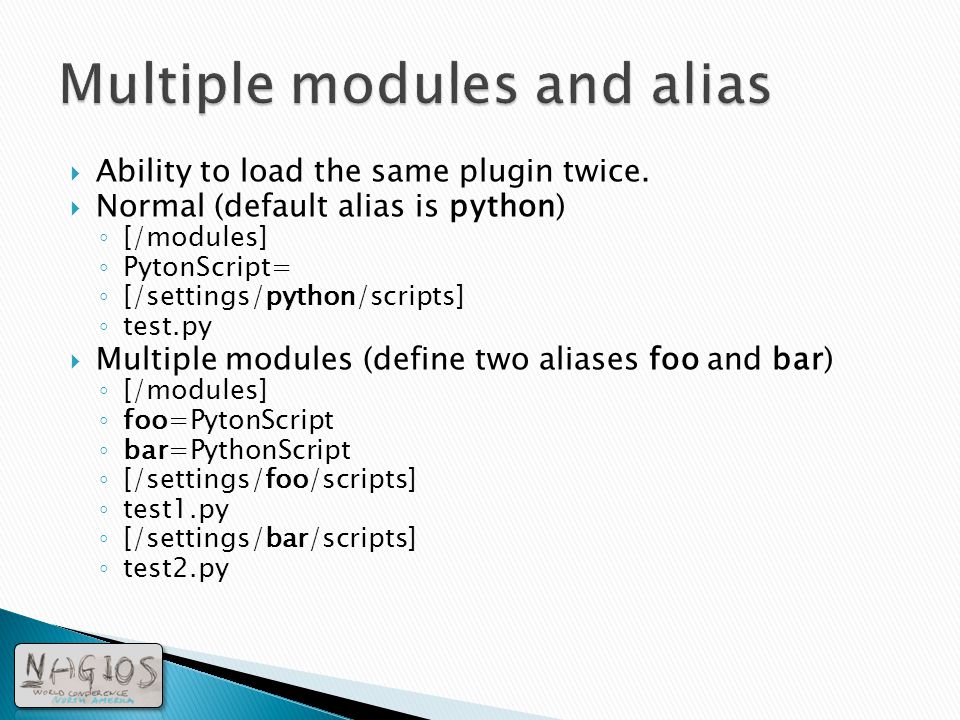

55.  Ability to load the same plugin twice.  Normal (default alias is python) ◦ [/modules] ◦ PytonScript= ◦ [/settings/python/scripts] ◦ test.py  Multiple modules (define two aliases foo and bar) ◦ [/modules] ◦ foo=PytonScript ◦ bar=PythonScript ◦ [/settings/foo/scripts] ◦ test1.py ◦ [/settings/bar/scripts] ◦ test2.py

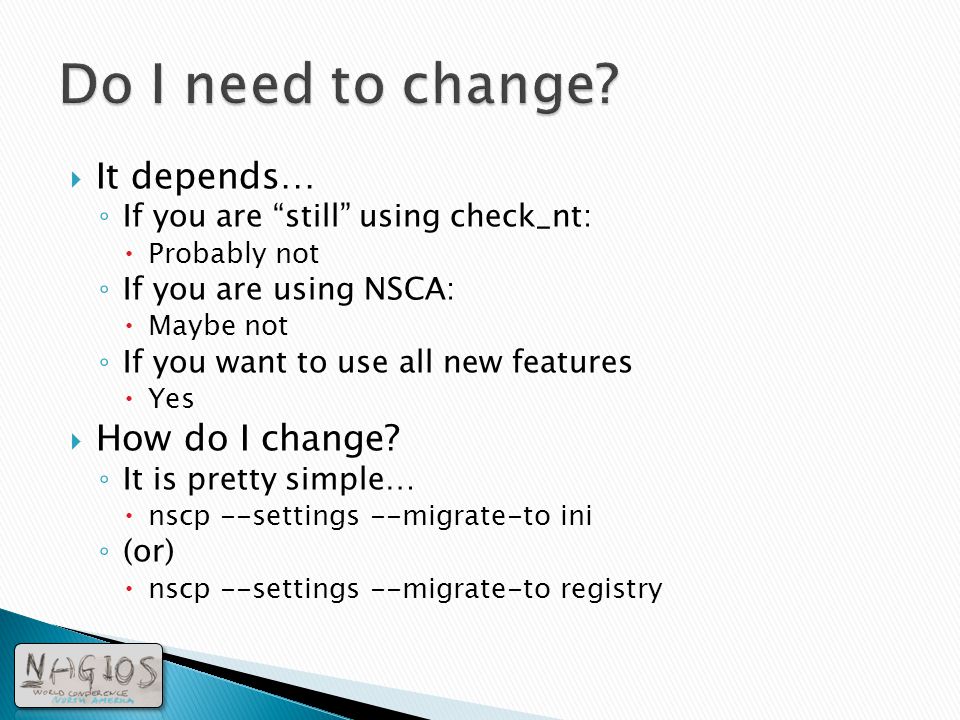

56.  It depends… ◦ If you are “still” using check_nt:  Probably not ◦ If you are using NSCA:  Maybe not ◦ If you want to use all new features  Yes  How do I change? ◦ It is pretty simple…  nscp --settings --migrate-to ini ◦ (or)  nscp --settings --migrate-to registry

57. New protocol

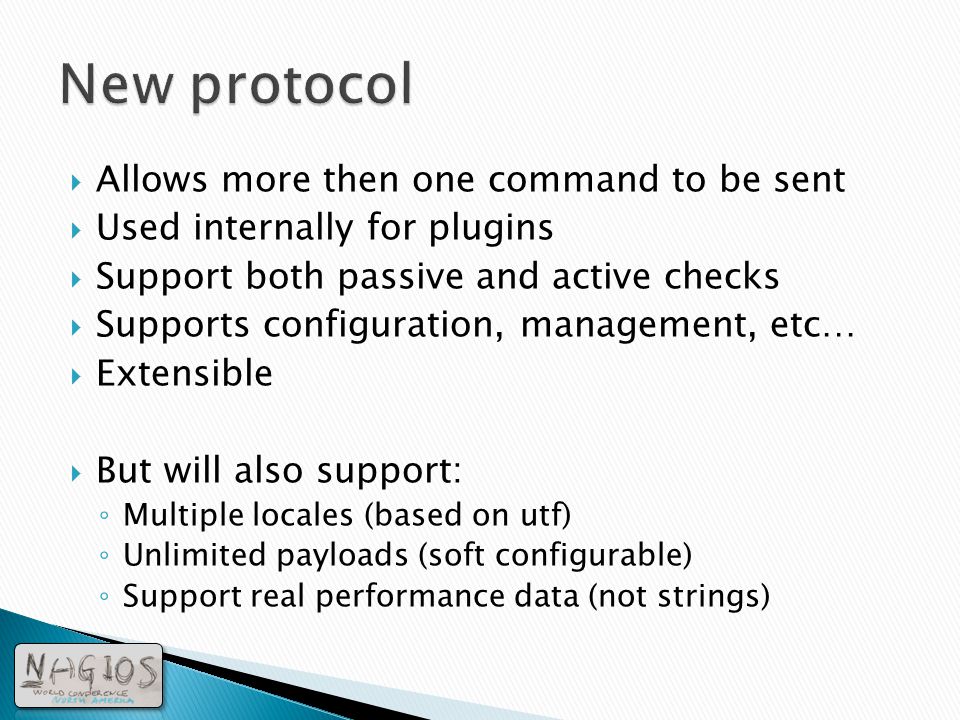

60.  Allows more then one command to be sent  Used internally for plugins  Support both passive and active checks  Supports configuration, management, etc…  Extensible  But will also support: ◦ Multiple locales (based on utf) ◦ Unlimited payloads (soft configurable) ◦ Support real performance data (not strings)

61. Distributed monitoring

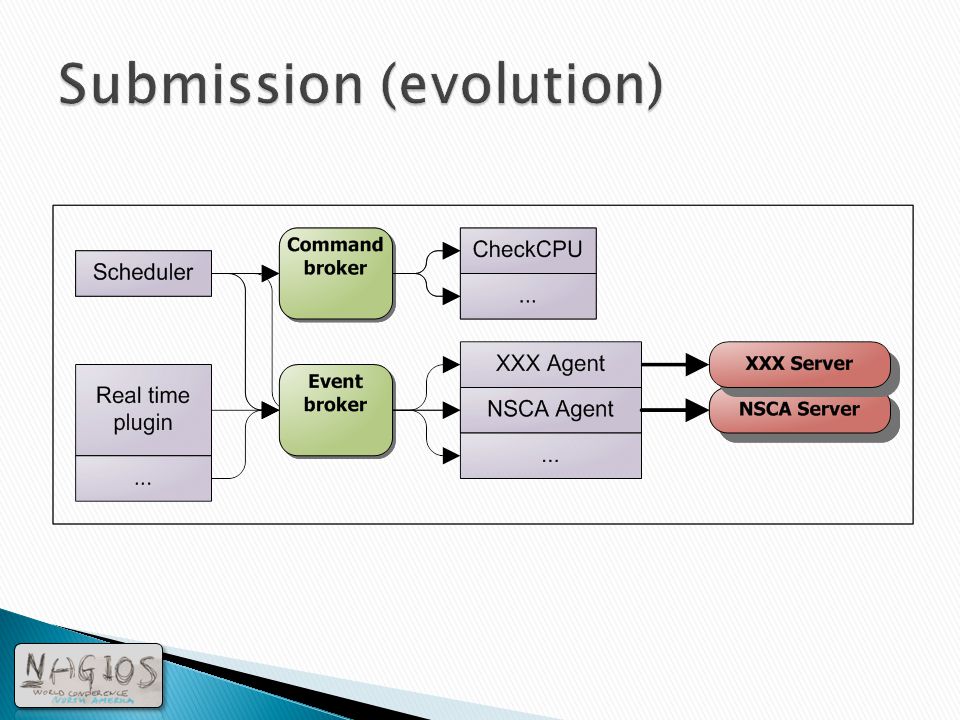

64.  an extension of the passive checks ◦ ”Something” can send notification events ◦ ”Something” can receive notification events ◦ Agents can forward notification events ◦ Replaces NSCAListener module  Supports routing  Not a one-to-one mapping. ◦ Multiple consumers ◦ multiple producers  Allows ◦ Passive plugins (other then the built-in NSCA) ◦ Script and rule based routing

65. Python scripting

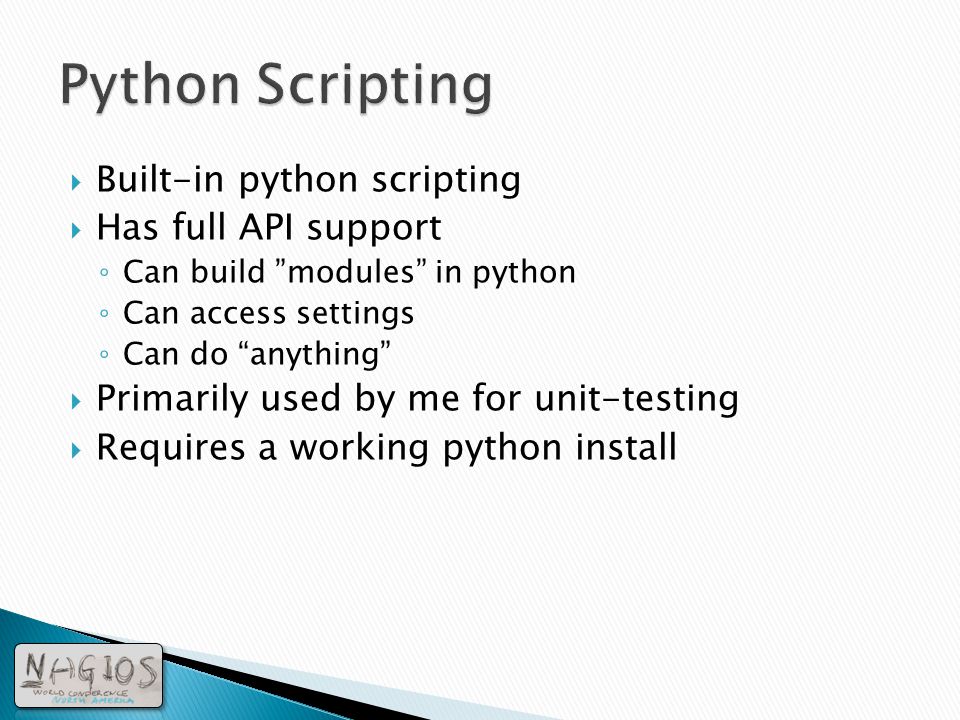

66.  Built-in python scripting  Has full API support ◦ Can build ”modules” in python ◦ Can access settings ◦ Can do “anything”  Primarily used by me for unit-testing  Requires a working python install

67. Le Roi est mort, vive le Roi!

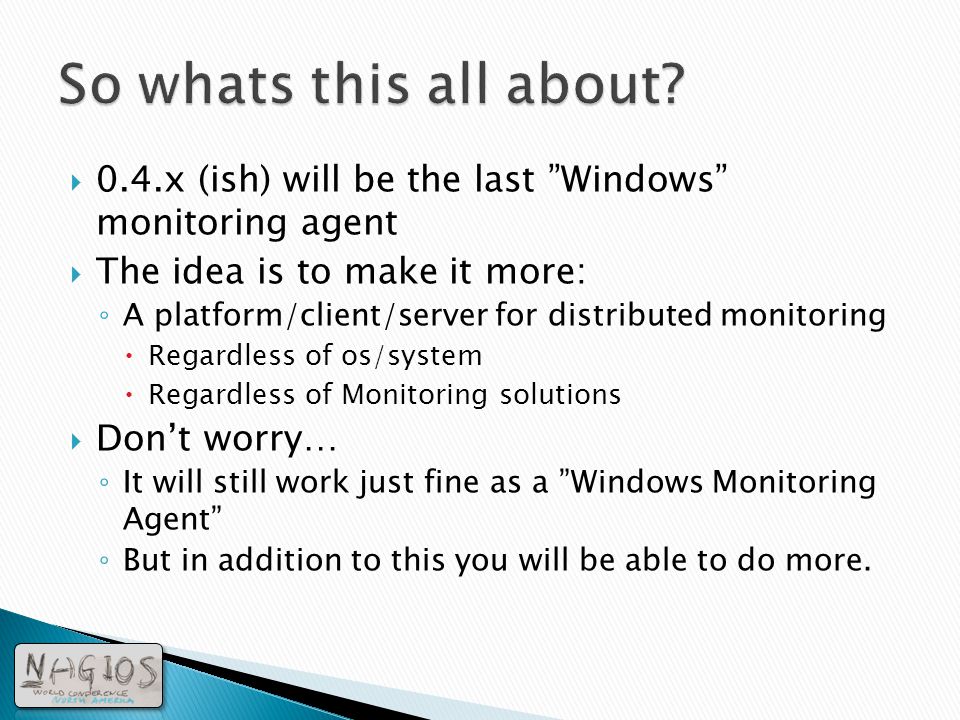

68.  0.4.x (ish) will be the last ”Windows” monitoring agent  The idea is to make it more: ◦ A platform/client/server for distributed monitoring  Regardless of os/system  Regardless of Monitoring solutions  Don’t worry… ◦ It will still work just fine as a ”Windows Monitoring Agent” ◦ But in addition to this you will be able to do more.

69. Questions?
