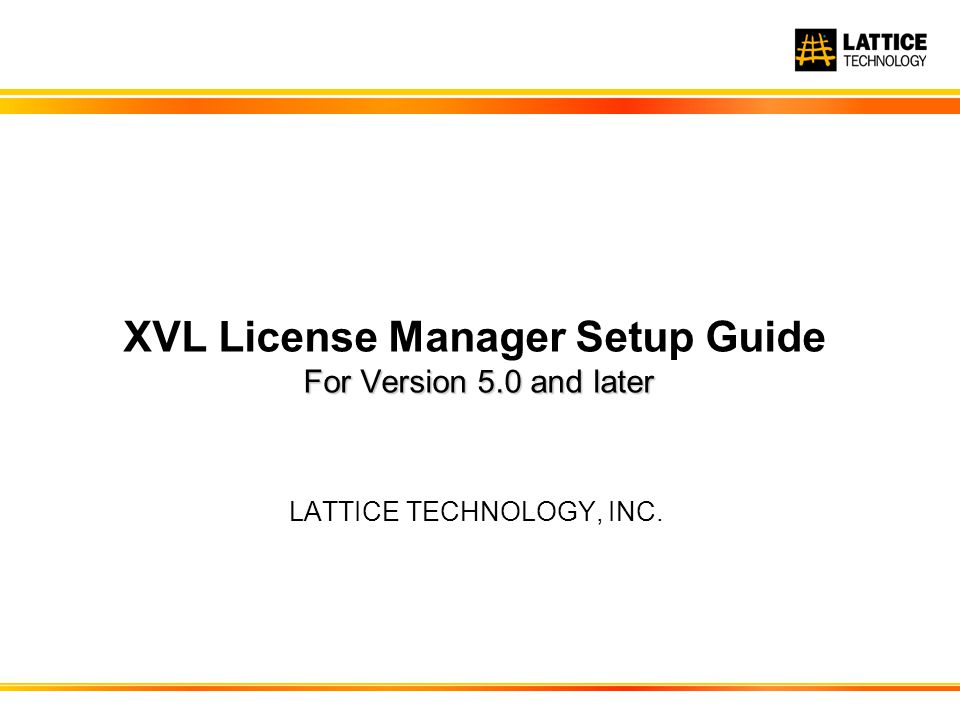

1. For Version 5.0 and later XVL License Manager Setup Guide For Version 5.0 and later LATTICE TECHNOLOGY, INC.

2. June 2012 Lattice Technology, Inc. 2 XVL License Manager Installation 1.Double-click on XVL_LicenseManager-*_*.exe to start installation. 2.Follow the installation wizard to finish installation.

3. June 2012 Lattice Technology, Inc. 3 Installation Directory XVL License Manager is installed under C:\xvllm\. C:\ xvllm\ License (license folder) Bin (XVL License Manager Main modules) Logfile (log file folder)

4. June 2012 Lattice Technology, Inc. 4 License File When you use more than one XVL products in floating license, you can merge all license files and create a single license file. 1.Open C:\xvllm\License\xvlproducts.ltl in a text editor. 2.Open your floating license in a text editor and copy SERVER and VENDOR lines to xvlproducts.ltl. Example) SERVER hostname 01ac23bd56ef 1200 VENDOR xvllm 3.Copy FEATURE and INCREMENT lines of each product to xvlproducts.ltl. Example) FEATURE XVLStudioPro2 xvllm 11 22-nov-2012 3 SIGN=A9C4A7D4AB1C INCREMENT bXVLStudioPro2 xvllm 11 22-nov-2012 3 BORROW=720 \ SIGN=C8BF844E5EA0

5. June 2012 Lattice Technology, Inc. 5 License File - Example SERVER hostname 0026b9c9a5bd 1200 VENDOR xvllm # Please extract ALL FEATURE lines from the license file of each product # and copy after following product name. # XVL Studio Pro/Standard/Basic FEATURE XVLStudioPro2 xvllm 11 22-nov-2012 3 SIGN=A9C4A7D4AB1C INCREMENT bXVLStudioPro2 xvllm 11 22-nov-2012 3 BORROW=720 \ SIGN=C8BF844E5EA0 FEATURE XVLStudio_Difference xvllm 11 22-nov-2012 3 BORROW=720 \ SIGN=1A0914FAAB02 FEATURE XVLStudio_Illust xvllm 11 22-nov-2012 3 BORROW=720 \ SIGN=9D7F0646C3BA # XVL Player Pro FEATURE XVLPlayerPro xvllm 11 22-nov-2012 5 SIGN=9BEA9ACA1BF6 INCREMENT bXVLPlayerPro xvllm 11 22-nov-2012 5 BORROW=720 \ SIGN=58652288C42A # Lattice3D Reporter FEATURE L3DReporter xvllm 5 22-nov-2012 3 SIGN=3469BEB2A780 INCREMENT bL3DReporter xvllm 5 22-nov-2012 3 BORROW=720 \ SIGN=42A1A09AB4E0 FEATURE L3DReporter_Template xvllm 5 22-nov-2012 3 BORROW=720 \ SIGN=84E92416E1D2 Server information XVL Studio Pro license XVL Studio Option license XVL Player Pro license Lattice3D Reporter license

6. June 2012 Lattice Technology, Inc. 6 XVL License Manager Setup 1/2 1.Open XVL License Manager by selecting [Start] > [All Programs] > [XVL License Manager] > [FLEXlm Control Panel]. 2.Click on the “Config Services” tab. 3.Select “XVL License Manager” for Service Name. 4.Specify the location of the each file: a)Specify the location of lmgrd.exe (C:\xvllm\bin\lmgrd.exe). b)Specify the location of the license file (C:\xvllm\License\xvlproducts.ltl). c)Specify the location of the debug log file (C:\xvllm\Logfile\debug.log). 1 a b c * Debug.log file does not exist by default. This file needs to be created by users.

7. June 2012 Lattice Technology, Inc. 7 XVL License Manager Setup 2/2 3.To start XVL License Manager automatically when the server powers up, check “Use NT Services” and “Start Server at Power-Up”. 4.To use XVL License Manager as Windows service, check “Use Services”. 3 4

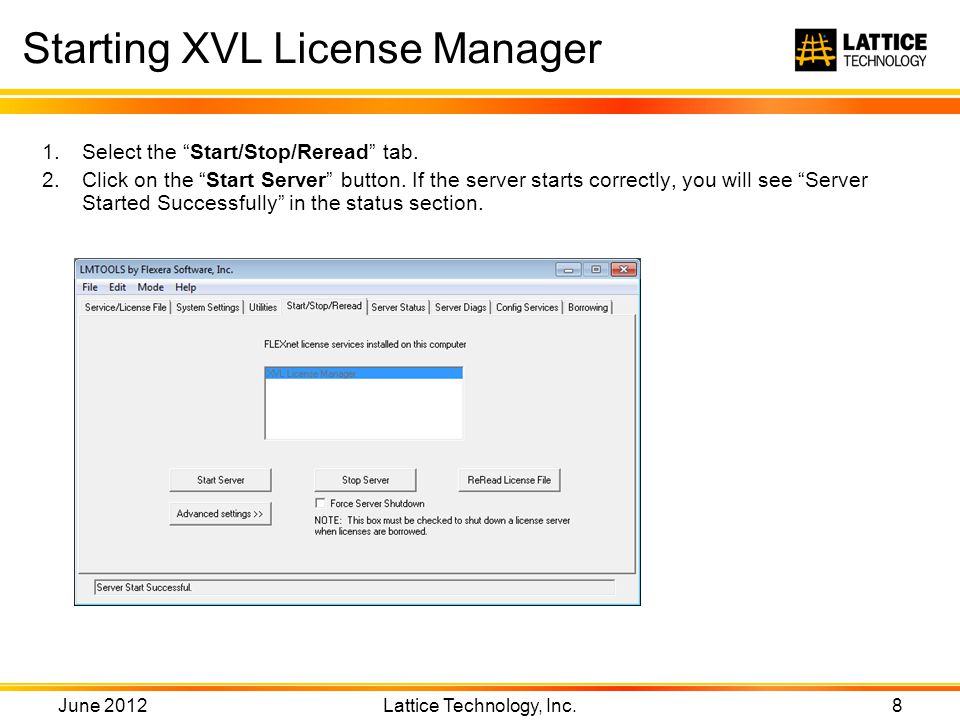

8. June 2012 Lattice Technology, Inc. 8 Starting XVL License Manager 1.Select the “Start/Stop/Reread” tab. 2.Click on the “Start Server” button. If the server starts correctly, you will see “Server Started Successfully” in the status section.

9. June 2012 Lattice Technology, Inc. 9 Questions? E. support@lattice3d.com T.+1.415.274.1670 F. +1.415.274.1671 W.www.lattice3d.com
