DNA replication Central dogma of molecular biology.

Similar presentations


Presentation on theme: "DNA replication Central dogma of molecular biology."— Presentation transcript:

1

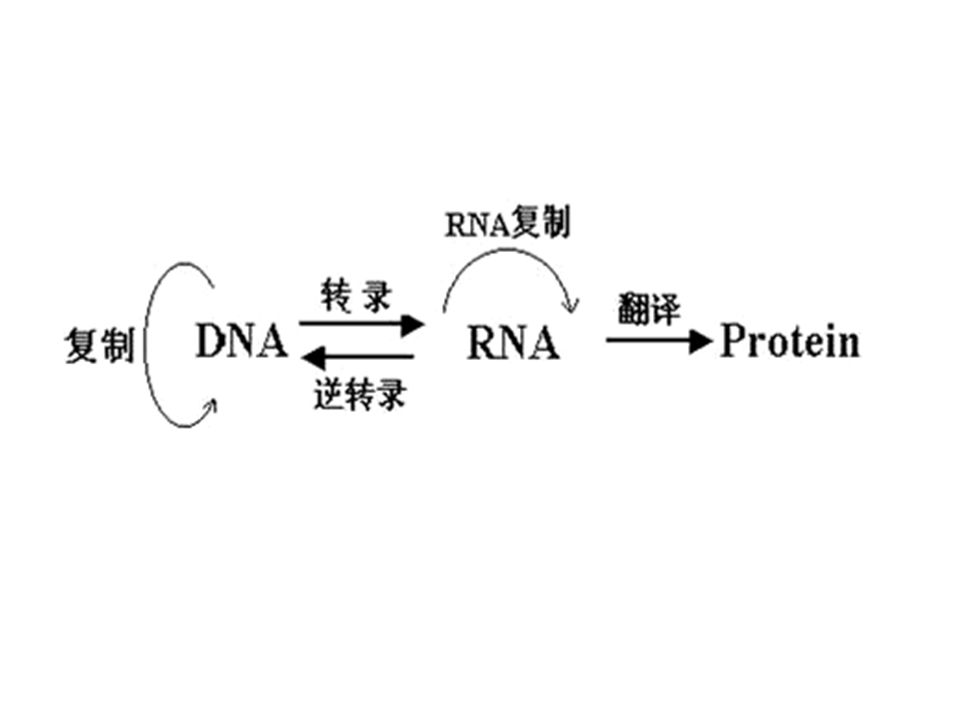

2 DNA replication Central dogma of molecular biology

3

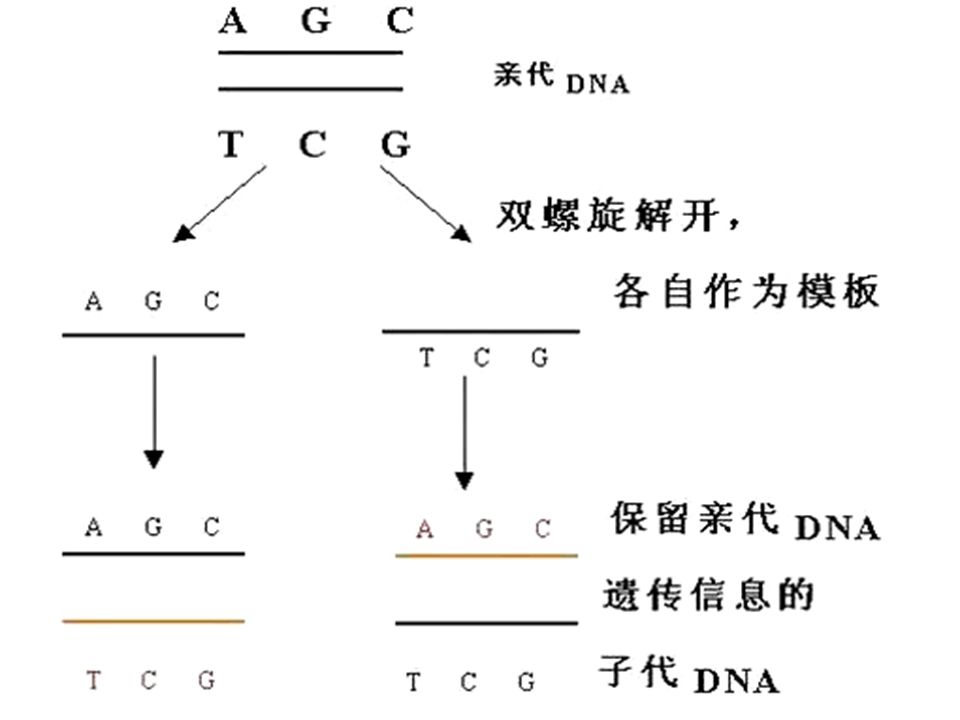

4 1.the basic principle of DNA replication (1) Semiconservative replication

5

6 a. concept b. evidence c. conclusion

7

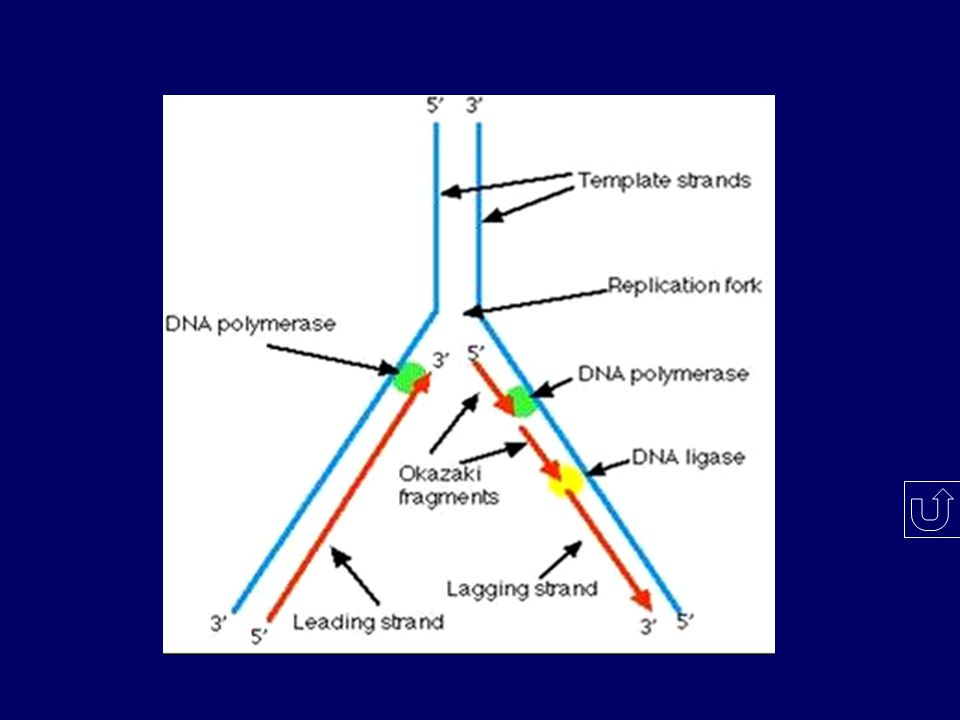

8 (2) Semidiscontinuous replication * The synthesis direction of DNA polymerase * leading strand & lagging strand

9

10 * Okazaki fragment (3) RNA primer * the synthesis * the function

11

12 (4) fidelity 2. Enzymes & proteins cooperate in the DNA replication

13 (1) E.coli DNA polymerase I (Kornberg enzyme,DNA-Directed DNA polymerase,DDDP,pol I )

14 * The principle materials for pol I # four dNTP # Mg 2+ # RNA primer or DNA single strand possessed 3’-OH # DNA template

15 * Multiple function of pol I Klenow fragment------- (large fragment) DNA polymerase activity, 3’-5’ exonuclease activity small fragment------- 5’-3’ exonuclease activity

16 5’ 3’ 3’ 5’ exonuclease exonuclease DNA polymerase activity activity activity Small fragment large fragment (Klenow fragment) pol I Proofreading

17

18

19 * the principle materials for pol II & pol III # four dNTP # Mg 2+ # RNA primer or DNA single strand possessed 3’-OH # DNA template

20 * the characteristics of pol II & pol III pol II---mostly concerned with proofreading & DNA repair pol III---- indispensable for DNA replication,the highest rate of chain elongation and processive

21

22

23 (2) DNA polymerase in eukaryocyte polymerase  : gap filling & synthesis of lagging strand  : DNA proofreading & repair  : DNA repair  : mitochondria DNA synthesis  : processive,leading strand synthesis, need the assistance of PCNA

24 (3) helicase & gyrase a. helicase * function * require b. single strand binding protein (SSB),helix disabling protein,HDP

25

26 * function c.topoisomerase I * function d. topoisomerase II, gyrase * function

27 (4) Primosome (5) DNA ligase * function * require * process

28

29

30 * characteristics * usage 3.procedure of DNA replication (1) the initiation of the replication

31 * the origin of replication ---- The special structure (ori C) * the process of initiation formation of replication fork ( replication bubbles)

32

33

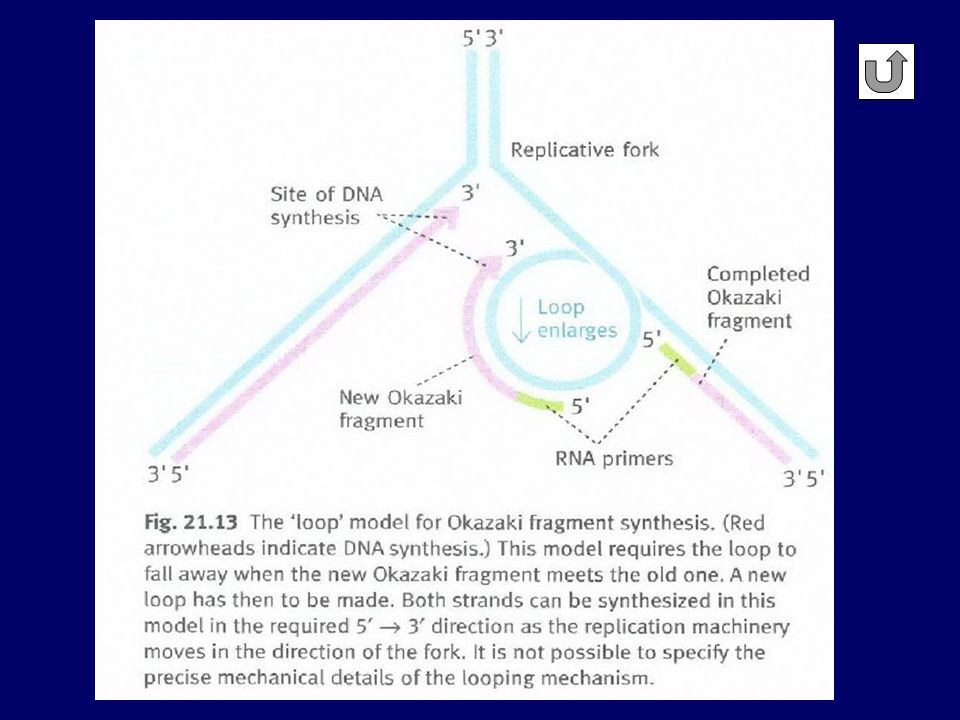

34 * how to deal with synthesis direct ? (3) the termination of the replication (2) the elongation of the replication

35

36

37

38

39

40

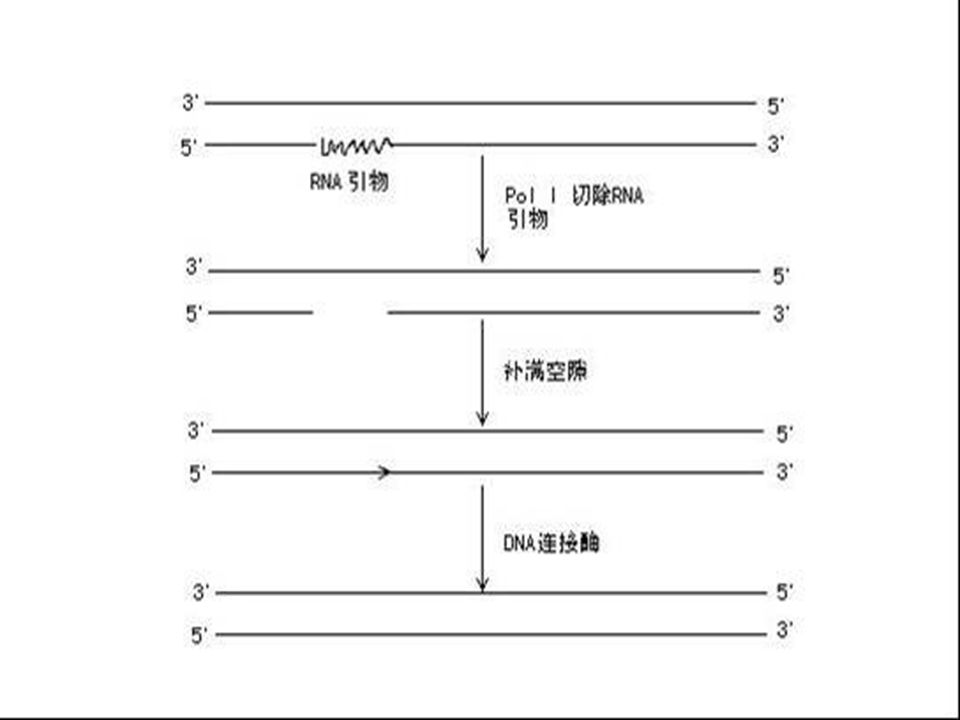

41 *Removes primers---- pol I small fragment * fills the gap with dNTP----- pol I large fragment (Klenow fragment) * ligation----DNAligase

42

43

44 4. Summarize of DNA replication a.identification of the origin of replication b.unwinding (denature)of ds DNA to provide ssDNA c. formation of replication fork d.initiation of DNA synthesis & elongation

45 e. formation of replication bubbles with ligation of the newly synthesized DNA segment f. Reconstitution of chromatin DNA

46

47

48

49 5.Telomere & telomerase (1) telomere *concept *structure * function

50 (2) The function & molecular components of telomerase * function * components (RNP) * mechanism

51

52

53 Telomerase & carcinoma 5.DNA damage & repair (1) the basic of repair (2)the causes of DNA damage *remove purine by heat & acid

54

55 ionizing radiation ultraviolet ray chemical agents (3) The type of DNA damage

56

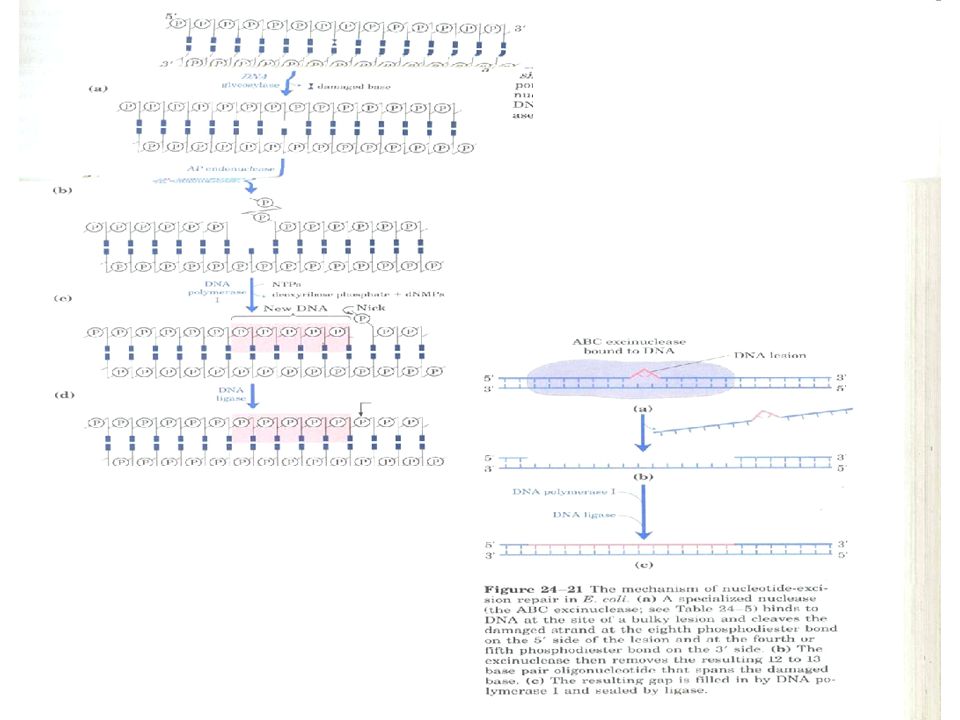

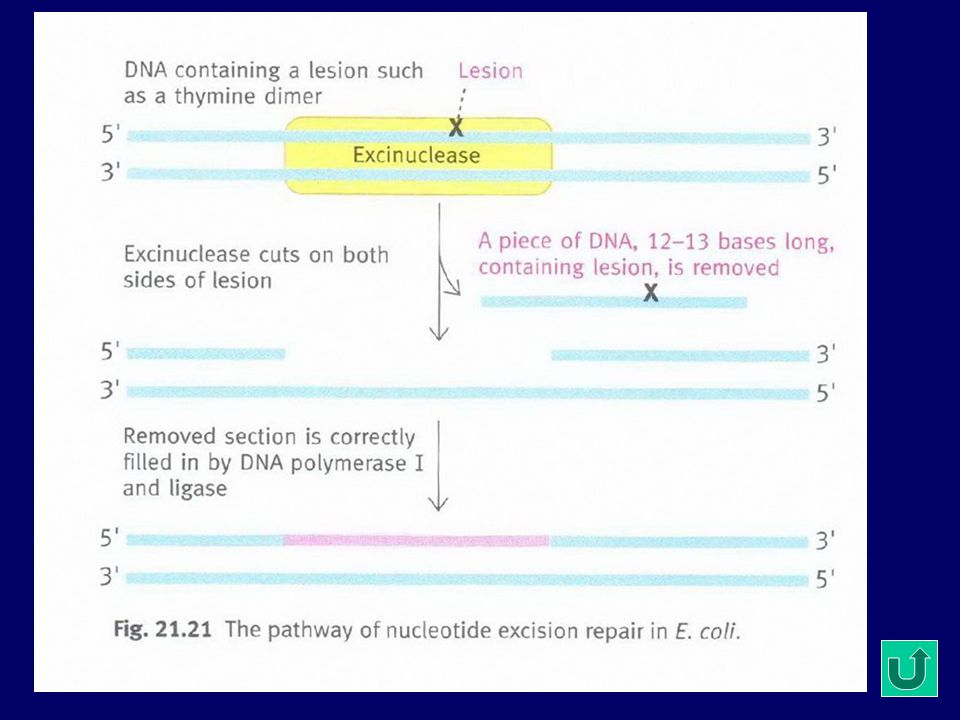

57 (4)Mechanism of DNA repair * photo repair * excision repair significant (correct large defects) * base excision repair a.process

58

59

60

61

62

63

64 Characteristics summarize a. the enzyme uracil DNA glycosylase removes the uracil created by spontaneous deamination of cytosine

65 b. an endonuclease cuts the backbone near the defect c. an endonuclease removes a few bases d. the defect is filled in by the action of a repair polymerase ( pol I )

66 e. The strand is rejoined by ligase
