Gluconeogenesis By Amr S. Moustafa, M.D.; Ph.D. Assistant Prof. & Consultant, Medical Biochemistry Dept. College of Medicine, KSU

Similar presentations


Presentation on theme: "Gluconeogenesis By Amr S. Moustafa, M.D.; Ph.D. Assistant Prof. & Consultant, Medical Biochemistry Dept. College of Medicine, KSU"— Presentation transcript:

1

2 Gluconeogenesis By Amr S. Moustafa, M.D.; Ph.D. Assistant Prof. & Consultant, Medical Biochemistry Dept. College of Medicine, KSU amrsm@hotmail.com

3 Gluconeogenesis: An Overview Liver (mainly) and Kidneys Both mitochondria and Cytosol Exception: Glycerol, only cytosol Gluconeogenic substrates: Glycerol Lactate Glucogenic amino acids Propionyl CoA

4 Gluconeqgenic Substrate: Glycerol GlycerolGlycerol 3-phosphate *GK Dihydroxyacetone phosphate Glycerol 3-phosphate dehydrogenase NAD+ NADH Glucose *GK: Glycerol kinase only in liver & kidneys ATPADP

5 Glucogenic Amino Acids Glu, Gln Pro, His Arg Met Val Ile Phe Tyr Amino acids Asp Asn

6 Gluconeogenic Substrates Glu, Gln Pro, His Arg Met Val Ile Phe Tyr Amino acids Asp Asn Pyruvate Gly, Ala, Ser Thr, Cys, Try Amino acids Propionyl CoA + Lactate

7 Gluconeogenic Substrate: Lactate (Cori Cycle)

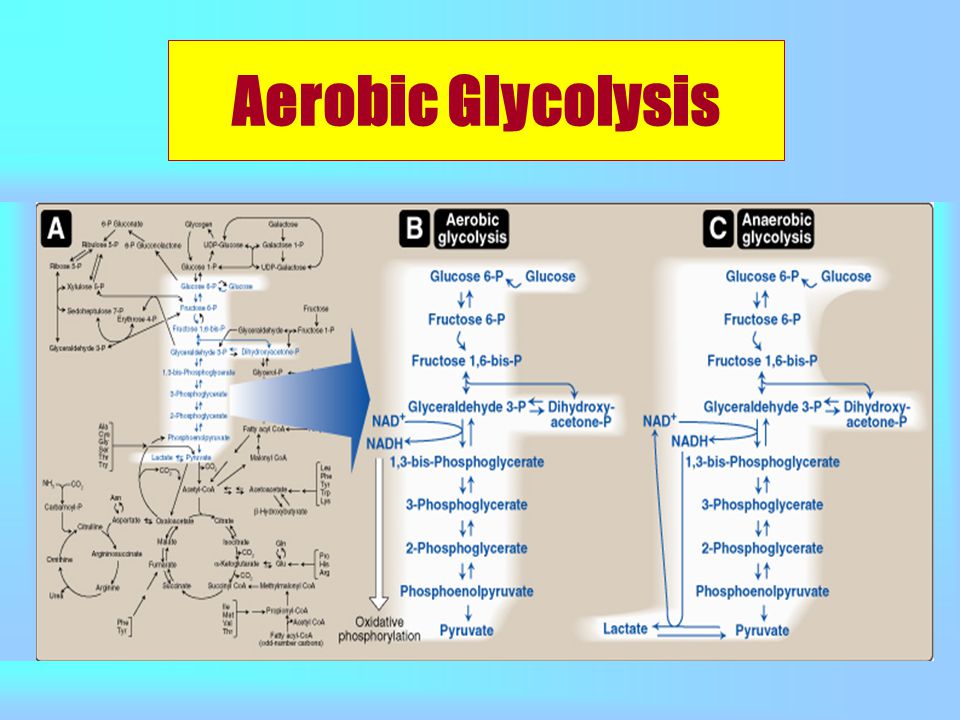

8 Aerobic Glycolysis

9 Gluconeogenesis Pathway Carboxylation of pyruvate Transport of OAA Dephosphorylation of F 1,6-P Dephosphorylation of G-6-P

10 Pruvate Carboxylase and PEP-CK Fasting: Acetyl CoA (FAO) OAA (Gluconeogensis) Pyruvate carboxylase + PEP-CK = Pyruvate kinase

11 Fructose 1,6-Bisphosphatase Fructose 1,6-bisphosphatase = PFK-1

12 Glucose 6-Phosphatase Glucose 6-phosphatase = Glucokinase Glucose 6-phoshate translocase: G 6-P across ER membrane (ER-Enzyme)

13 F – 2,6 – Bisphosphate and PFK-2: Fasting State (high glucagon)

14 F – 2,6 – Bisphosphate and PFK-2: Well-fed State (high insulin)

15 Gluconeogensis: E- Consumed Six High-Energy Phosphate Bonds For Pyruvate to Glucose 2 ATP 2 ADP

16 Gluconeogenesis: Regulation Reciprocal control Gluconeogenesis & Glycolysis Allosteric: Acetyl CoA (Pyruvate carboxylase) AMP or ATP F 2,6-Bisphosphate Glucagon ( I/G ratio) Allosteric ( F 2,6-Bisphosphate) Covalent modification (Pyruvate kinase) Induction (PEP-CK) F 1,6-bisphosphatase
