1. Precise Memory Leak Detection for Java Software Using Container Profiling Guoqing Xu, Atanas Rountev Program analysis and software tools group Ohio State University Supported by NSF under CAREER grant CCF-0546040

2. Memory Leaks C: malloc without free C++: new without delete Java: garbage-collected language – Unreachable objects are identified and freed – How about reachable objects that are not used again? A Java memory leak can cause serious problems – Performance degradation due to GC cost – Crash with OutOfMemory exception – For long-running enterprise applications with large memory footprint: even small leaks are bad 2PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

3. Finding the Causes of Memory Leaks (1/2) Compile-time analysis usually does not work Run-time analysis is preferable, but tricky – Millions of heap objects at any moment of time – The statement that finally exhausts the memory has nothing to do with the source of heap growth Continuous run-time heap analysis looking for suspicious behavior (symptom) – E.g., a possible symptom is the growing number of objects: “the number of java.util.HashMap$Entry objects keeps growing” Finding the leak cause, given this symptom 3PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

4. Finding the Causes of Memory Leaks (2/2) Issue 1: what is a leak symptom? – Growing number of instances of a type LeakBot [ECOOP’05]; Cork [POPL’07] – Staleness (time since last use) of an object Sleigh [ASPLOS’06] Issue 2: what is the leak cause? – Starting with the suspicious objects, traverse backwards the run-time object graph to find the cause This is all great, but … 4PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

5. What is a Leak Symptom? A single factor is not enough as the leak symptom – Growing number of instances may be due to perfectly legitimate useful data – Staleness does not necessarily mean a leak E.g., a JFrame window object is never used after creation, but it is not a leak Other factors: e.g., volume of memory consumed by an object and all objects reachable from it – E.g., a big container that is not used for a while may be more important than a never-used string 5PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

6. What is the Leak Cause? From the suspicious objects, traverse backwards the object graph and examine the reference edges – Very large and complex object graph on the heap – The programmer is buried under a mountain of data – How to decide if a reference edge is unnecessary? – Why does this edge exist at all? Where exactly in the program code – was this reference edge created? – the edge should have been destroyed? – should the programmer look to find and fix the bug? 6PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

7. Outline Motivation New container-based approach – Key idea – Generic leak analysis – Specific leak analysis for Java Experimental evaluation – Real-world memory leaks – Run-time overhead 7PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

8. A New Perspective Observation: containers are often the leak causes – Elements are not properly removed from containers – Many real-world JDK memory leak bugs are caused by misuse of containers Let’s reverse the traditional diagnosis process – Start by suspecting that all containers are leaking, and use symptoms to rule out those less likely to leak – Avoid the effort to search for a cause starting from arbitrary suspicious objects 8PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

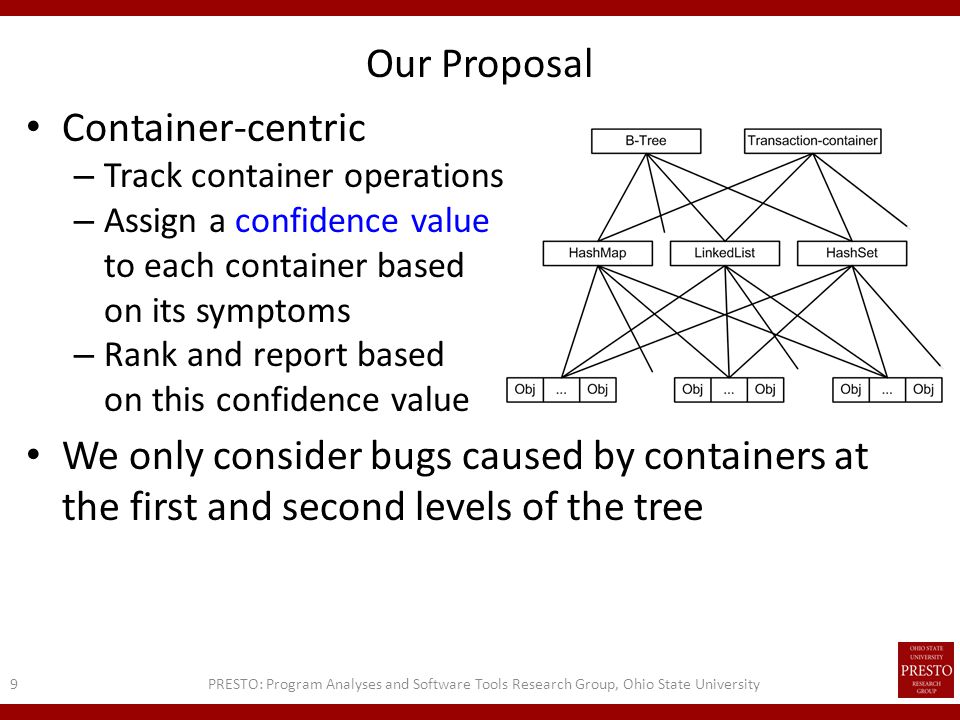

9. Our Proposal Container-centric – Track container operations – Assign a confidence value to each container based on its symptoms – Rank and report based this on this confidence value We only consider bugs caused by containers at the first and second levels of the tree 9PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

10. Run-time Leak Confidence Analysis Generic “analysis template” that can be implemented in different ways – Later we show a specific implementation for Java Considers the combined effect of multiple factors – Memory taken up by an individual container – Overall memory consumption – Staleness of a container Container abstraction: ADT with three operations – ADD( , o) adds object o to container  – GET(  ) retrieves an object from container  – REMOVE( , o) removes object o from container  10PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

11. Leaking Region A time region [  s,  e ] in which symptoms occur – Garbage collection (CG) occurs at  s, at  e, and several times in between – The live-memory consumption at these GC events (mostly) keeps increasing from one event to the next Choice of  e – Offline, post-mortem analysis: the time at which the program ends or OutOfMemory exception is thrown – Online, while the program is running: any time when a user wants to generate a report Choice of  s : examine the history of GC events before  e and the live-memory usage at them 11PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

12. Memory Usage of a Container At some GC event in the leaking region – Find the total memory consumed by all objects reachable from the container – Relative value: divide by the total live memory at this GC event; get a number  [0, 1] Memory usage graph: – X axis: time relative to  e – Y axis: relative memory Memory contribution MC(  ): area under the curve  [0, 1] 12PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

13. Staleness of a Container Time since last use [ASPLOS’06] A new definition in terms of  and o SC(o) = (  2 -  1 )/(  2 -  0 ) SC(  ) is the average SC(o) for objects o in  – A number  [0, 1] Large value of SC means that many elements are sitting in the container without being used 13PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

14. Putting it All Together Leaking confidence LC = SC × MC 1-SC  [0, 1] – If SC or MC increases, LC also increases Properties – MC = 0 and SC  [0, 1]  LC = 0 – SC = 0 and MC  [0, 1]  LC = 0 – SC = 1 and MC  [0, 1]  LC = 1 – MC = 1 and SC  [0, 1]  LC = SC Analysis output: – Containers ranked by their LC value – ADD/GET call sites ranked by the average staleness of their elements 14PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

15. Outline Motivation New container-based approach – Key idea – Generic leak analysis – Specific leak analysis for Java Experimental evaluation – Real-world memory leaks – Run-time overhead 15PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

16. Modeling and Tracking of Containers 16PRESTO: Program Analyses and Software Tools Research Group, Ohio State University class HashMap { Object put(Object key, Object value) {…} Object get(Object key) {…} Object remove(Object key) {…} } class Java_util_HashMap { static void put_after (int csID, Map map, Object key, Object value, Object result) { if (result == null) { … Recorder.v().record(csID, map, key, …, Recorder.EFFECT_ADD); } } } Object result = m.put(a,b); Java_util_HashMap.put_after(1234, m, a, b, result);

17. Tracking of Memory Usage Approximation of MC – An object graph traversal thread is launched periodically to calculate the total amount of memory consumed by objects reachable from the container object – Precision and overhead tradeoff is defined by the interval between two runs of the thread – Our experience shows that once every 50 GC events is a good compromise 17PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

18. Data Analysis Decide what should be the leaking region Compute the approximation of MC – MC =  M T i ×(T i+1 – T i ) Compute SC – Scan the Recorder data and remove data entries outside the leaking region – For each element, find its REMOVE event and its last GET event 18PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

19. Evaluation on Real-World Memory Leaks Java AWT/Swing bugs – Sun JDK bug #6209673 – existed in Java 5, fixed in 6 – Sun JDK bug #6559589 – still open in Java 6 SPECjbb bug The generated reports are precise – Top-ranked containers are the actual causes of the bugs – Confidence values for bug-inducing containers and correctly-used containers differ significantly 19PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

20. Sun JDK Bug #6209673 The bug manifests when switching between two Swing applications According to a developer’s report, it is very hard to track down We instrumented the entire java.awt and javax.swing packages, and the test case that triggered the bug 20PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

21. Sun JDK Bug #6209673 21PRESTO: Program Analyses and Software Tools Research Group, Ohio State University Container:29781703 type: java.util.HashMap (LC: 0.443, SC: 0.480, MC: 0.855) ---cs: javax.swing.RepaintManager:591 Container:2263554 type: class java.util.LinkedList (LC: 0.145, SC:0.172, MC: 0.814) ---cs: java.awt.DefaultKeyboardFocusManager:738 Container:399262 type: class javax.swing.JPanel (LC: 0.038, SC:0.044, MC: 0.860) ---cs: javax.swing.JComponent:796

22. Sun JDK Bug #6209673 Line 591 of javax.swing.RepaintManager – A GET operation image = (VolatileImage) volatileMap.get(config); – The container that is misused is the volatileMap – This information is sufficient for a developer to locate the bug Where is the actual bug? – VolatileImage objects are cached in the map – Upon a display mode switch, the old configuration object get invalidated and will not be used again – But the images are still maintained in the map Similar bugs exist for #6559589 and SPECJbb 22PRESTO: Program Analyses and Software Tools Research Group, Ohio State University

23. Overhead Compile-time analysis Dynamic overhead – Sampling rate: 1/15GC, 1/50GC – Initial heap size: default, 512M

24. Overhead for Different Sampling Rates Y-axis: (NewTime-OldTime)/OldTime 1/15GC: 121.2% 1/50GC: 87.5%

25. Overhead for Different Initial Heap Size Default heap: 177.2% 512M heap: 87.5%

26. Summary Proposed a container-centric approach – Tracking all modeled containers – Computing a leak confidence for each container Memory contribution and staleness contribution – Can be used for both online and offline diagnosis Memory leak detection for Java – Code transformation + run-time profiling Future work – Lower overhead (e.g., selective profiling; JVM internals) – Evaluate other confidence models – Larger experimental study 26PRESTO: Program Analyses and Software Tools Research Group, Ohio State University
