1. 1 CS 162 Introduction to Computer Science Chapter 10 C++ Simulation of Recursion Herbert G. Mayer, PSU Status 11/17/2014

2. 2 Syllabus Definition of Recursive Algorithm Definition of Recursive Algorithm Recursion vs. Iteration Recursion vs. Iteration Fact() and Fibo(), Recursive and Iterative Fact() and Fibo(), Recursive and Iterative Q-Sequence Q-Sequence Ackermann Function Ackermann Function Stack Data Structure Stack Data Structure Simulate Recursion via Iteration Simulate Recursion via Iteration References References

3. 3 Definition of Recursive Algorithm An algorithms is recursive, if it is partly defined by simpler versions of itself [1] A recursive program is the implementation of a recursive algorithm What is the problem for a programmer, using a language that is non-recursive (e.g. standard Fortran) if the algorithm to be implemented is recursive? --See later! What then are the other parts of a recursive algorithm, aside from the partly? Correct recursive algorithm requires a starting point, formally known as “base case” Base case could be multiple steps Simpler version means: the algorithm cannot use the original call. For example, if the original call was a(n), the recursive call cannot also be a(n), but perhaps a(n-1) Recursive body can be indirectly recursive through intermediate function a()-> b()-> a() – through intermediate function b() Primitive examples are the factorial( n ) function; or Fibonacci( n ), for non-negative arguments n; Fibo( n ) shown here, discussed next: Base case 1:Fibo(0) = 0 Base case 2:Fibo(1) = 1 Recursive Definition:Fibo( n ) for n > 1 = Fibo( n-1 ) + Fibo( n-2 )

4. 4 Recursion vs. Iteration Iteration is expressed in programming languages by loops; e.g. for-, while-, do-, or repeat loopsIteration is expressed in programming languages by loops; e.g. for-, while-, do-, or repeat loops These are readable and efficient methods for expressing iteration, but are not strictly necessaryThese are readable and efficient methods for expressing iteration, but are not strictly necessary Recursion can replace iterative steps; yet for some people this seems counter-intuitiveRecursion can replace iterative steps; yet for some people this seems counter-intuitive Neophytes are sometimes unused to recursion; yet recursion can be as intuitive as simple iterationNeophytes are sometimes unused to recursion; yet recursion can be as intuitive as simple iteration

5. 5 Fact() and Fibo(), Recursive + Iterative We’ll show both solutions for the factorial and the fibonacci functions We’ll show both solutions for the factorial and the fibonacci functions Factorial:fact1() iterative,fact2() recursive Fibonacci:fibo1() iterative,fibo2() recursive Sometimes the recursive algorithm is easier to see + understand, if the problem is inherently recursive Sometimes the recursive algorithm is easier to see + understand, if the problem is inherently recursive Later we discuss both with recursion simulated, not at CCUT CS 162 Later we discuss both with recursion simulated, not at CCUT CS 162 Fibonacci was Italian mathematician in Pisa, 1170 – c. 1250; introduced Hindu-Arabic numeral system to Europe Fibonacci was Italian mathematician in Pisa, 1170 – c. 1250; introduced Hindu-Arabic numeral system to Europe Also show the famous Towers of Hanoi Also show the famous Towers of Hanoi

6. 6 Fact() and Fibo(), Recursive + Iterative Factorial(n) is the product of the first n unsigned numbers, with factorial(0) defined as = 1 Factorial(n) is the product of the first n unsigned numbers, with factorial(0) defined as = 1 Fibonacci(n) is defined as 0 and 1 for arguments indexed 0, and 1. For all other n the result is the sum of the previous 2 Fibonacci numbers, i.e. Fibonacci(n) = Fibonacci(n-1) + Fibonacci(n-2) Fibonacci(n) is defined as 0 and 1 for arguments indexed 0, and 1. For all other n the result is the sum of the previous 2 Fibonacci numbers, i.e. Fibonacci(n) = Fibonacci(n-1) + Fibonacci(n-2)

7. 7 Fact(), Recursive and Iterative #include #include unsigned fact1( unsigned arg )// iterative { // fact1 unsigned int result = 1; for ( int i = 1; i <= arg; i++ ) { result *= i; } //end for return result; } //end fact1 unsigned fact2( unsigned arg )// recursive { // fact2 if ( arg < 2 ) { return 1; }else{ return arg * fact2( arg-1 ); } //end if } //end fact2

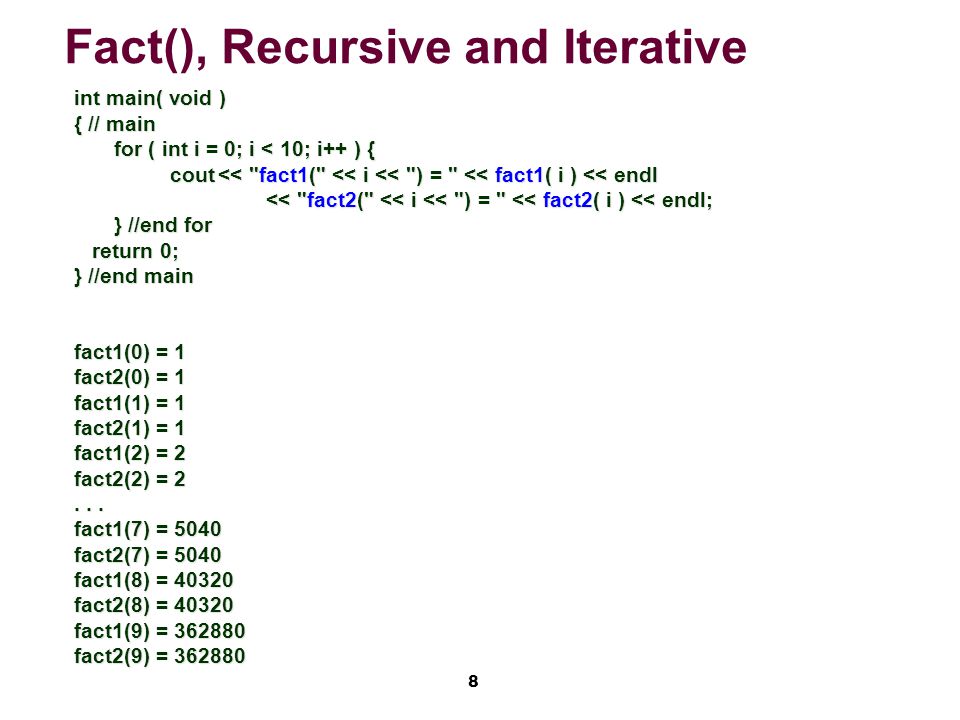

8. 8 Fact(), Recursive and Iterative int main( void ) { // main for ( int i = 0; i < 10; i++ ) { cout<< "fact1(" << i << ") = " << fact1( i ) << endl << "fact2(" << i << ") = " << fact2( i ) << endl; } //end for return 0; return 0; } //end main fact1(0) = 1 fact2(0) = 1 fact1(1) = 1 fact2(1) = 1 fact1(2) = 2 fact2(2) = 2... fact1(7) = 5040 fact2(7) = 5040 fact1(8) = 40320 fact2(8) = 40320 fact1(9) = 362880 fact2(9) = 362880

9. 9 Fibo(), Recursive and Iterative #include #include unsigned fibo1( unsigned arg )// iterative { // fibo1 unsigned fm2 = 0; unsigned fm1 = 1; unsigned fm0 = 1; for ( int i = 1; i <= arg; i++ ) { fm2 = fm1; fm1 = fm0; fm0 = fm1 + fm2; } //end for return fm2; } //end fibo1 unsigned fibo2( unsigned arg )// recursive { // fibo2 if ( arg < 2 ) { return arg; }else{ return fibo2( arg-1 ) + fibo2( arg-2 ); } //end if } //end fibo2

10. 10 Fibo(), Recursive and Iterative int main( void ) { // main for ( int i = 0; i < 10; i++ ) { cout<< "fibo1(" << i << ") = " << fibo1( i ) << endl << "fibo2(" << i << ") = " << fibo2( i ) << endl; } //end for return 0; } //end main fibo1(0) = 0 fibo2(0) = 0 fibo1(1) = 1 fibo2(1) = 1 fibo1(2) = 1 fibo2(2) = 1 fibo1(3) = 2 fibo2(3) = 2 fibo1(4) = 3 fibo2(4) = 3... fibo1(9) = 34 fibo2(9) = 34

11. 11 Replace Iteration via Recursion What is the problem, if algorithm to be programmed is recursive, but language does not allow recursion?What is the problem, if algorithm to be programmed is recursive, but language does not allow recursion? 1. Rewrite the algorithm 2. Or simulate recursion <- not discussed at CCUT! Here we do the opposite: Use recursion to simulate all mathematical dyadic operations + - / * etc.Here we do the opposite: Use recursion to simulate all mathematical dyadic operations + - / * etc. Using only functions, called recursivelyUsing only functions, called recursively Plus arithmetic increment/decrement operators ++ -- and unary minus –Plus arithmetic increment/decrement operators ++ -- and unary minus – And conventional relational operators > >= != etc.And conventional relational operators > >= != etc. All other operators are dis-allowed, i.e. cannot use + - * / % ** etc.All other operators are dis-allowed, i.e. cannot use + - * / % ** etc.

12. 12 Recursion vs. Iteration: add() // return a + b without + operation! int add( int a, int b ) { // add if ( 0 == b ) { return a; }else if ( b < 0 ) { return add( --a, ++b ); }else{ return add( ++a, --b ); } //end if } //end add

13. 13 Recursion vs. Iteration: sub() // return a – b; no dyadic – operation int sub( int a, int b ) { // sub return add( a, -b ); } //end sub

14. 14 Recursion vs. Iteration: mult() // return a * b, no * but add() int mult( int a, int b ) { // mult if ( 0 == b ) { return 0; }else if ( 1 == b ) { return a; }else if ( b < 0 ) { return -mult( a, -b ); }else{ // b > 0 return add( a, mult( a, --b ) ); } //end if } //end mult

15. 15 Recursion vs. Iteration: expo() // return a ** b, no ** op in C++; requires mult( int, int ) int expo( int a, int b ) { // expo if ( 0 == a ) { if ( 0 == a ) { if ( 0 == b ) { if ( 0 == b ) { printf( ”undefined value0^0\n" ); printf( ”undefined value0^0\n" ); }else if ( b < 0 ) { }else if ( b < 0 ) { printf( “0 to <0 power is undefined\n" ); printf( “0 to <0 power is undefined\n" ); } //end if } //end if return 0; return 0; }else if ( 0 == b ) { }else if ( 0 == b ) { return 1; return 1; }else if ( 1 == a ) { }else if ( 1 == a ) { return 1; return 1; }else if ( -1 == a ) { }else if ( -1 == a ) { return b % 2 ? -1 : 1; return b % 2 ? -1 : 1; }else if ( b < 0 ) { }else if ( b < 0 ) { return 0; return 0; }else{ }else{ return mult( expo( a, --b ), a ); return mult( expo( a, --b ), a ); } //end if } //end if } //end expo

16. 16 Q-Sequence, Definition Q-Sequence defined by Douglas Hofstadter in [1] as a function q( n ) for positive integers n > 0 Base case n = 1: q(1) = 1 Base case n = 2: q(2) = 1 Recursive definition of q(n), for positive n > 2 q( n ) = q( n – q( n - 1 ) ) + q( n – q( n - 2 ) ) Q-Sequence reminds us of Fibonacci( n ) function, but with surprising difference in the type of result: By contract, the function results of fibonacci( n ) are monotonically increasing with increasing argument Results of q( n ) are non-monotonic! Note # of calls: calls(q( 40 )) = 1,137,454,741

17. 17 Q-Sequence, Coded in C++ #define MAX 100// arbitrary limit; never reached!!!! int calls;// will be initialized each time int q( int arg ) { // q calls++;// track another call if ( arg <= 2 ) { return 1;// base case return 1;// base case }else{// now recurse! return q( arg - q( arg-1 ) ) + q( arg - q( arg-2 ) ); return q( arg - q( arg-1 ) ) + q( arg - q( arg-2 ) ); } // end if } // end q void main() { // main for( int i = 1; i < MAX; i++ ) { calls = 0;// initially no calls yet calls = 0;// initially no calls yet printf( "Q(%2d) = %3d, #calls = %10d\n", i, q(i), calls ); printf( "Q(%2d) = %3d, #calls = %10d\n", i, q(i), calls ); } // end for } // end main

18. 18 Q-Sequence Results Q( 1) = 1, #calls = 1 Q( 2) = 1, #calls = 1 Q( 3) = 2, #calls = 5 Q( 4) = 3, #calls = 13 Q( 5) = 3, #calls = 25 Q( 6) = 4, #calls = 49 Q( 7) = 5, #calls = 93 Q( 8) = 5, #calls = 161 Q( 9) = 6, #calls = 281 Q(10) = 6, #calls = 481 Q(11) = 6, #calls = 813...... Q(26) = 14, #calls = 1341433 Q(27) = 16, #calls = 2174493 Q(28) = 16, #calls = 3521137 Q(29) = 16, #calls = 5700281 Q(30) = 16, #calls = 9229053 Q(31) = 20, #calls = 14941993 Q(32) = 17, #calls = 24182797 Q(33) = 17, #calls = 39137473 Q(34) = 20, #calls = 63354153 Q(35) = 21, #calls = 102525697 Q(36) = 19, #calls = 165896537 Q(37) = 20, #calls = 268460333 Q(38) = 22, #calls = 434429737 Q(39) = 21, #calls = 702952137 Q(40) = 22, #calls = 1137454741... Will never reach Q(100) in your life time... Will never reach Q(100) in your life time

19. 19 Ackermann Definition Ackermann a( m, n ) is defined as a function of two non- negative (i.e. unsigned in C++) integers m and n Base case 1: a( 0, n ) = n + 1 Base case 2: a( m, 0 ) = a( m - 1, 1 ) Recursive definition of a( m, n ), m, n > 0 a( m, n ) = a( m - 1, a( m, n - 1 ) ) Ackermann complexity grows awfully fast; e.g. a(4,2) is an integer number with 19,729 decimal digits; greater than the national US debt!

20. 20 Ackermann Definition Students, code now in C++, volunteers shows result on white-board: Base case 1: a( 0, n ) = n + 1 Base case 2: a( m, 0 ) = a( m - 1, 1 ) Recursive definition of a( m, n ), m, n > 0 a( m, n ) = a( m - 1, a( m, n - 1 ) )

21. 21 Ackermann Coded in C++ unsigned a( unsigned m, unsigned n ) { // a calls++;// global unsigned if ( 0 == m ) {// note operand order return n + 1;// first base case return n + 1;// first base case }else if ( 0 == n ) {// m > 0 return a( m - 1, 1 );// other base case return a( m - 1, 1 );// other base case }else{// m > 0, n > 0 return a( m-1, a( m, n-1 ) );// recurse! return a( m-1, a( m, n-1 ) );// recurse! } // end if } // end q void main() { // main for( int i = 0; i < MAX; i++ ) { printf( "\nFor m = %d\n", i ); printf( "\nFor m = %d\n", i ); for( int j = 0; j < MAX; j++ ) { for( int j = 0; j < MAX; j++ ) { calls = 0; calls = 0; printf( "a(%1d,%1d) = %10u, calls = %12u\n", printf( "a(%1d,%1d) = %10u, calls = %12u\n", i, j, a( i, j ), calls ); i, j, a( i, j ), calls ); } // end for } // end for } // end for return 0; } // end main

22. 22 Ackermann Results For m = 0 a(0,0) = 1, calls = 1... For m = 1... a(1,7) = 9, calls = 16 For m = 2 a(2,0) = 3, calls = 5 a(2,1) = 5, calls = 14 a(2,2) = 7, calls = 27 a(2,3) = 9, calls = 44 a(2,4) = 11, calls = 65 a(2,5) = 13, calls = 90 a(2,6) = 15, calls = 119 a(2,7) = 17, calls = 152 For m = 3 a(3,0) = 5, calls = 15 a(3,1) = 13, calls = 106 a(3,2) = 29, calls = 541 a(3,3) = 61, calls = 2432 a(3,4) = 125, calls = 10307 a(3,5) = 253, calls = 42438 a(3,6) = 509, calls = 172233 a(3,7) = 1021, calls = 693964 For m = 4 a(4,0) = 13, calls = 107 don’t even dream about computing a(4,2) or higher!

23. 23 Stack Data Structure High-level language functions call each other in a nested fashion, recursively, even indirectly recursively High-level language functions call each other in a nested fashion, recursively, even indirectly recursively And return in strictly the reverse order (LIFO), but with any number of further calls in between And return in strictly the reverse order (LIFO), but with any number of further calls in between Stack is the natural data structure to track callée return information Stack is the natural data structure to track callée return information Languages also allow local data per function call, of which formal parameters are just one variation Languages also allow local data per function call, of which formal parameters are just one variation Natural to have locals also live and die on the run time stack, synchronized with call-return information Natural to have locals also live and die on the run time stack, synchronized with call-return information Possible but wasteful to have a separate stack for automatic locals: conclusion to have unified stack Possible but wasteful to have a separate stack for automatic locals: conclusion to have unified stack

24. 24 Other temps 0 or more locals Field 1: Function return value Caller pushes formals 0..32 registers saved Field 2: return address Field 3: dynamic link Field 4: static link sp bp hp Stack Marker Stack Frame Stack Frame of callee Stack grows downwards Stack grows downward

25. 25 Stack Data Structure Stack is natural data structure for recursive call: Stack is natural data structure for recursive call: 1.) Before call: provide (push) all actual parameters During the call, these are the formal parameters 2.) Then execute call, provide the return address on stack Provide space on stack for return value if needed (function) And push bp register, pointing to the frame of caller: known as dynamic link 3.) Before executing callée code: allocate locals on stack And allocate temps, e.g. copies of all regs to be used, save them and later restore before return Thus stack grows by 3 physical + logical sections: Thus stack grows by 3 physical + logical sections: 1. Formal parameters, some of them just addresses for & 2. Stack Marker, AKA Activation Record: RA, RV, Dynamic Link 3. Locals + temps+ saved regs

26. 26 Stack Data Structure Stack is addressed by 2 HW resources, typically registers bp and sp (AKA top) Stack is addressed by 2 HW resources, typically registers bp and sp (AKA top) It is computable to have a single register address stack via current frame, since the compiler “knows” at each place, by how much stack must have grown It is computable to have a single register address stack via current frame, since the compiler “knows” at each place, by how much stack must have grown Actually so done by Greenhills compilers in 1990s for register- starved Intel architecture Actually so done by Greenhills compilers in 1990s for register- starved Intel architecture Base Pointer register bp points to some defined place of stack marker, typically to dynamic link Base Pointer register bp points to some defined place of stack marker, typically to dynamic link The top of stack register sp points to the dynamically changing, momentary top of stack –dynamic = during the call The top of stack register sp points to the dynamically changing, momentary top of stack –dynamic = during the call The bp stays invariant during the call; changes only at further calls and at any returns –static = during the call The bp stays invariant during the call; changes only at further calls and at any returns –static = during the call The sp changes with each call preparation, each temp pushed on top, each intermediate result, etc. The sp changes with each call preparation, each temp pushed on top, each intermediate result, etc.

27. 27 Simulate Recursion via Iteration Important for master programmer to understand RT- stack and recursion!Important for master programmer to understand RT- stack and recursion! What to do, if you implement a recursive algorithm using a language that does not support recursion?What to do, if you implement a recursive algorithm using a language that does not support recursion? Replace recursive by a non-recursive algorithm!Replace recursive by a non-recursive algorithm! Or simulate recursion via non-recursive methodsOr simulate recursion via non-recursive methods After all, a computer chip has no notion of recursion; it is a sequential machine that “simulates recursion” via non-recursive methods; the compiler plus run-time system perform this transformation!After all, a computer chip has no notion of recursion; it is a sequential machine that “simulates recursion” via non-recursive methods; the compiler plus run-time system perform this transformation! Done so at local industry in the past: FPS used Fortran!! to implement System SW and compilersDone so at local industry in the past: FPS used Fortran!! to implement System SW and compilers Here are the actual steps of simulating recursion via iteration; must use language with Goto –terrible sinHere are the actual steps of simulating recursion via iteration; must use language with Goto –terrible sin

28. 28 Steps of Simulating Recursion consider directly-recursive calls of simulated function: consider directly-recursive calls of simulated function:  Define data structure struct stack_tp, to hold params, locals, etc.  Define explicit stack with top of stack (top) index, initially top=0; like a real stack identified by sp, may overflow, so include code to check; stack[ top ] holds parameters, function return value, return location (labels after a recursive call), and automatics  Define labels for each point of recursive call, more precisely at each point after the call; number these points of return, e.g. l1, l2, l3, l4 etc. There shall be branches=gotos to these points of return  At each point of recursive call: Increment : i.e. top++, like HW recursion that grows + shrinks sp Manually move parameters for “this call” onto stack; e.g. assign: stack[ top ].arg1 = actual1; stack[ top ].arg2 = actual2.. Store the place of return: stack[ top ].ret = 1, or 2, or 3 alluding to l1, l2, l3... Initialize local, automatic objects: stack[ top ].local1 = value1... Jump (Goto, the terrible sin!) to function head, not including initializing code

29. 29 Steps of Simulating Recursion 4. Point of return: In simple cases, all explicitly coded returns and the implied return at the end of the recursive function body can be re-coded into a single place; if not, the code to simulate a return is replicated: Decrement the top of stack index: top-- Check, to which of the stored labels the flow of control has to branch to simulate return (via goto) to continue execution; e.g.: if ( stack[ top+1 ].ret == xyz ) goto label_xyz; And if no other branch is open, then fall through to the end For void functions this is a literal fall-through For true functions, the return value has to be computed before the fall-through, e.g.: return stack[ top ].return_val; // top is that of caller! 5. For nested recursive calls or several recursive calls in a row or both: “be creative” ; see an example later; apply these steps with meticulous precision

30. 30 Simulate Recursion, fact() #include #include #define MAX_STACK 100// never reached or exceeded! #define MAX 14// higher factorial overflows 32bits unsigned calls = 0;// track # of calls typedef struct s_tp { unsigned arg;// for formal parameters unsigned fact;// function return value unsigned ret;// code address after call, return! } struct_s_tp; // first the recursive fact() function for reference // includes tracking # of calls unsigned fact( unsigned arg ) { // fact calls++;// gotta be global if ( 0 == arg ) {// why strange order? return 1; return 1;}else{ return fact( arg - 1 ) * arg; return fact( arg - 1 ) * arg; } // end if // there should be an assertion here! } // end fact

31. 31 Simulate Recursion, fact() unsigned nrfact( unsigned arg ) { // nrfact struct_s_tp s[ MAX_STACK ];// simulate RT stack! unsigned top = 0;// simulate sp register s[ top ].arg = arg;// this call’s argument s[ top ].ret = 3;// 3 alludes to label l3 l1:if ( 0 == s[ top ].arg ) { s[ top ].fact = 1; s[ top ].fact = 1;}else{ top++;// recursion! top++;// recursion! s[ top ].arg = s[ top-1 ].arg-1; s[ top ].arg = s[ top-1 ].arg-1; s[ top ].ret = 2;// remember label l2 s[ top ].ret = 2;// remember label l2 goto l1;// now simulate recursion goto l1;// now simulate recursionl2: // back from recursive call // back from recursive call top--;// sp-- top--;// sp-- s[ top ].fact = s[ top + 1 ].fact * s[ top ].arg; s[ top ].fact = s[ top + 1 ].fact * s[ top ].arg; } // end if if ( s[ top ].ret == 2 ) {// test, where to branch to goto l2;// unstructured goto into if goto l2;// unstructured goto into if } // end if l3: return s[ top ].fact; } // end nrfact

32. 32 Simulate Recursion, fact() Result r_fact( 0) = 1, calls = 1 r_fact( 1) = 1, calls = 2 r_fact( 2) = 2, calls = 3 r_fact( 3) = 6, calls = 4 r_fact( 4) = 24, calls = 5 r_fact( 5) = 120, calls = 6 r_fact( 6) = 720, calls = 7 r_fact( 7) = 5040, calls = 8 r_fact( 8) = 40320, calls = 9 r_fact( 9) = 362880, calls = 10 r_fact(10) = 3628800, calls = 11 r_fact(11) = 39916800, calls = 12 r_fact(12) = 479001600, calls = 13 r_fact(13) = 1932053504, calls = 14 nr_fact( 0) = 1 nr_fact( 1) = 1 nr_fact( 2) = 2 nr_fact( 3) = 6 nr_fact( 4) = 24 nr_fact( 5) = 120 nr_fact( 6) = 720 nr_fact( 7) = 5040 nr_fact( 8) = 40320 nr_fact( 9) = 362880 nr_fact(10) = 3628800 nr_fact(11) = 39916800 nr_fact(12) = 479001600 nr_fact(13) = 1932053504 r_fact( 0) = 1, calls = 1 r_fact( 1) = 1, calls = 2 r_fact( 2) = 2, calls = 3 r_fact( 3) = 6, calls = 4 r_fact( 4) = 24, calls = 5 r_fact( 5) = 120, calls = 6 r_fact( 6) = 720, calls = 7 r_fact( 7) = 5040, calls = 8 r_fact( 8) = 40320, calls = 9 r_fact( 9) = 362880, calls = 10 r_fact(10) = 3628800, calls = 11 r_fact(11) = 39916800, calls = 12 r_fact(12) = 479001600, calls = 13 r_fact(13) = 1932053504, calls = 14 nr_fact( 0) = 1 nr_fact( 1) = 1 nr_fact( 2) = 2 nr_fact( 3) = 6 nr_fact( 4) = 24 nr_fact( 5) = 120 nr_fact( 6) = 720 nr_fact( 7) = 5040 nr_fact( 8) = 40320 nr_fact( 9) = 362880 nr_fact(10) = 3628800 nr_fact(11) = 39916800 nr_fact(12) = 479001600 nr_fact(13) = 1932053504

33. 33 Simulate Recursion, fibo() #define MAX_STACK 100// never to be reached or exceeded! #define MAX 30// higher fibo(n) not computable! unsigned calls;// in case we track # of calls typedef struct s_tp {// type of stack unsigned arg;// copy of fibo’s arg unsigned fibo;// return value for fibo unsigned ret;// to which label to goto? } struct_s_tp; // recursive function for reference: unsigned fibo( unsigned arg ) { // fibo calls++; if ( arg <= 1 ) {// base case? return arg;// if so: done! return arg;// if so: done!}else{ return fibo( arg-1 ) + fibo( arg-2 ); return fibo( arg-1 ) + fibo( arg-2 ); } // end if } // end fibo

34. 34 Simulate Recursion, fibo() unsigned nr_fibo( unsigned arg ) { //nr_fibo struct_s_tp s[ MAX_STACK ];// stack can be local struct_s_tp s[ MAX_STACK ];// stack can be local unsigned top = 0;// initially unsigned top = 0;// initially s[ top ].arg = arg;// copy arg to stack s[ top ].arg = arg;// copy arg to stack s[ top ].ret = 4;// if all fails, return s[ top ].ret = 4;// if all fails, return l1: if ( s[ top ].arg <= 1 ) { s[ top ].fibo = s[ top ].arg; s[ top ].fibo = s[ top ].arg; }else{ }else{ top++;// ready to recurse top++;// ready to recurse s[ top ].arg = s[ top - 1 ].arg - 1; s[ top ].arg = s[ top - 1 ].arg - 1; s[ top ].ret = 2;// to place of 1. return s[ top ].ret = 2;// to place of 1. return goto l1;// recurse! goto l1;// recurse! l2: top++;// ready to recurse again s[ top ].arg = s[ top - 2 ].arg - 2; s[ top ].arg = s[ top - 2 ].arg - 2; s[ top ].ret = 3;// to place of 2nd return s[ top ].ret = 3;// to place of 2nd return goto l1;// recurse! goto l1;// recurse! l3:// two returns simulated top -= 2;// simulate 2 returns top -= 2;// simulate 2 returns s[ top ].fibo = s[ top + 1 ].fibo + s[ top + 2 ].fibo; s[ top ].fibo = s[ top + 1 ].fibo + s[ top + 2 ].fibo; } // end if } // end if if ( 2 == s[ top ].ret ) {// second recursive call if ( 2 == s[ top ].ret ) {// second recursive call goto l2; goto l2; }else if ( 3 == s[ top ].ret ) { }else if ( 3 == s[ top ].ret ) { goto l3; goto l3; } // end if } // end if l4:return s[ top ].fibo;// all done } // end nr_fibo

35. 35 Simulate Recursion, fibo() Result r_fibo( 0) = 0, calls = 1 r_fibo( 1) = 1, calls = 1 r_fibo( 2) = 1, calls = 3 r_fibo( 0) = 0, calls = 1 r_fibo( 1) = 1, calls = 1 r_fibo( 2) = 1, calls = 3 r_fibo( 3) = 2, calls = 5 r_fibo( 4) = 3, calls = 9... r_fibo( 3) = 2, calls = 5 r_fibo( 4) = 3, calls = 9... r_fibo(22) = 17711, calls = 57313 r_fibo(23) = 28657, calls = 92735 r_fibo(24) = 46368, calls = 150049 r_fibo(25) = 75025, calls = 242785 r_fibo(26) = 121393, calls = 392835 r_fibo(27) = 196418, calls = 635621 r_fibo(28) = 317811, calls = 1028457 r_fibo(29) = 514229, calls = 1664079 nr_fibo( 0) = 0 nr_fibo( 1) = 1 nr_fibo( 2) = 1 nr_fibo( 3) = 2 nr_fibo( 4) = 3... r_fibo(22) = 17711, calls = 57313 r_fibo(23) = 28657, calls = 92735 r_fibo(24) = 46368, calls = 150049 r_fibo(25) = 75025, calls = 242785 r_fibo(26) = 121393, calls = 392835 r_fibo(27) = 196418, calls = 635621 r_fibo(28) = 317811, calls = 1028457 r_fibo(29) = 514229, calls = 1664079 nr_fibo( 0) = 0 nr_fibo( 1) = 1 nr_fibo( 2) = 1 nr_fibo( 3) = 2 nr_fibo( 4) = 3... nr_fibo(22) = 17711 nr_fibo(23) = 28657 nr_fibo(24) = 46368 nr_fibo(25) = 75025 nr_fibo(26) = 121393 nr_fibo(27) = 196418 nr_fibo(28) = 317811 nr_fibo(29) = 514229

36. 36 Simulating Return of fibo() Must the computation of the continuation place be after the if-statement? Or can we relocate it into the Else-Clause? Must the computation of the continuation place be after the if-statement? Or can we relocate it into the Else-Clause? That would lead to a partial simulation, in which only the case arg > 1 continues correctly That would lead to a partial simulation, in which only the case arg > 1 continues correctly Yet even cases for arg <= 1 must compute the right continuation via (unstructured) brute-force gotos: Yet even cases for arg <= 1 must compute the right continuation via (unstructured) brute-force gotos: if ( 2 == s[ top ].ret ) {// second recursive call goto l2; goto l2; }else if ( 3 == s[ top ].ret ) { goto l3; goto l3; } // end if

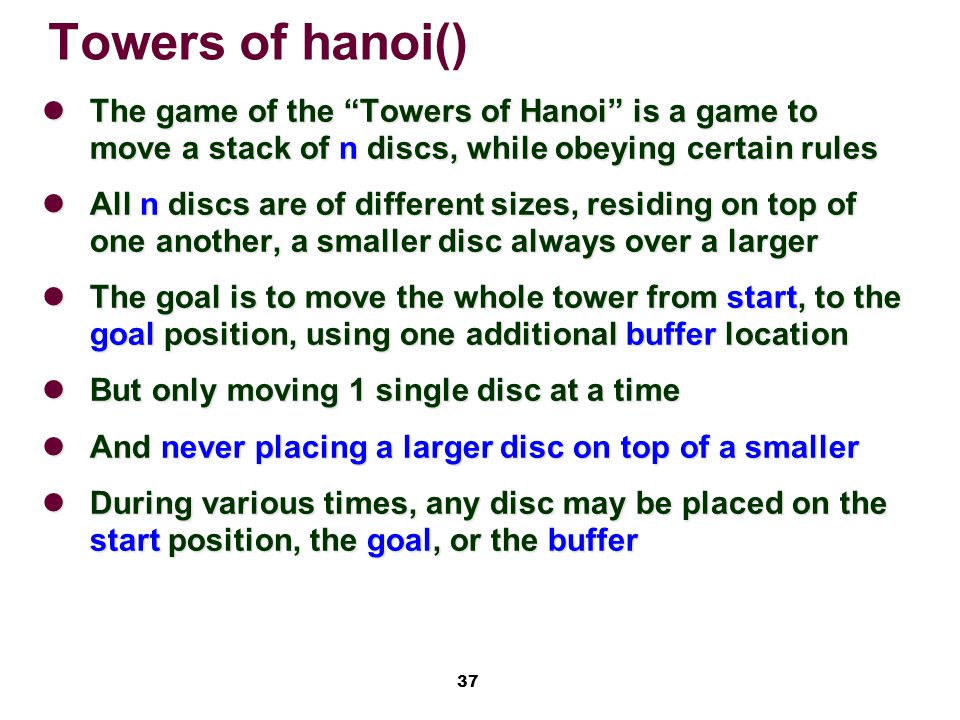

37. 37 Towers of hanoi() The game of the “Towers of Hanoi” is a game to move a stack of n discs, while obeying certain rules The game of the “Towers of Hanoi” is a game to move a stack of n discs, while obeying certain rules All n discs are of different sizes, residing on top of one another, a smaller disc always over a larger All n discs are of different sizes, residing on top of one another, a smaller disc always over a larger The goal is to move the whole tower from start, to the goal position, using one additional buffer location The goal is to move the whole tower from start, to the goal position, using one additional buffer location But only moving 1 single disc at a time But only moving 1 single disc at a time And never placing a larger disc on top of a smaller And never placing a larger disc on top of a smaller During various times, any disc may be placed on the start position, the goal, or the buffer During various times, any disc may be placed on the start position, the goal, or the buffer

38. 38 Towers of hanoi(), Recursive #include #include #define MAX … some small integer < 32 void hanoi( int discs, char* start, char* goal, char* buff ) { // hanoi if ( discs > 0 ){ if ( discs > 0 ){ hanoi( discs-1, start, buff, goal ); cout << "move disc " << discs << " from " << start << " to “ << goal << endl; << goal << endl; hanoi( discs-1, buff, goal, start ); } // end if } // end if } // end hanoi int main() { // main for ( int discs = 1; discs <= MAX; discs++ ) { for ( int discs = 1; discs <= MAX; discs++ ) { cout << ” hanoi for " << discs << " discs" << endl; hanoi( discs, "start", "goal ", "buff " ); cout << endl; } // end for } // end for return 0; return 0; } // end main

39. 39 Towers of hanoi(), Recursive move disc 1 from start to goal< For 1 disc move disc 1 from start to buff< For 2 discs move disc 2 from start to goal move disc 1 from buff to goal move disc 1 from start to goal < For 3 discs move disc 2 from start to buff move disc 1 from goal to buff move disc 3 from start to goal move disc 1 from buff to start move disc 2 from buff to goal move disc 1 from start to goal move disc 1 from start to buff < For 4 discs move disc 2 from start to goal move disc 1 from buff to goal move disc 3 from start to buff move disc 1 from goal to start move disc 2 from goal to buff move disc 1 from start to buff move disc 4 from start to goal move disc 1 from buff to goal move disc 2 from buff to start move disc 1 from goal to start move disc 3 from buff to goal move disc 1 from start to buff move disc 2 from start to goal move disc 1 from buff to goal

40. 40 Simulate Recursion, hanoi() void nr_hanoi( unsigned discs, char* start, char* goal, char* buff ) { // nr_hanoi struct_h_type s[ MAX_STACK ]; unsigned top = 0; s[ top ].discs = discs; s[ top ].start = start; s[ top ].buff = buff; s[ top ].goal = goal; s[ top ].ret = 4; l1:if ( s[ top ].discs > 0 ) { top++; s[ top ].discs = s[ top-1 ].discs - 1; s[ top ].start = s[ top-1 ].start; s[ top ].buff = s[ top-1 ].goal; s[ top ].goal = s[ top-1 ].buff; s[ top ].ret = 2; goto l1; l2:cout << "nr move disc “ << s[ top ].discs << “ from “ << s[ top ].start << “ to “ << s[ top ].goal << endl; << s[ top ].start << “ to “ << s[ top ].goal << endl; top++; top++; s[ top ].discs = s[ top-1 ].discs - 1; s[ top ].discs = s[ top-1 ].discs - 1; s[ top ].start = s[ top-1 ].buff; s[ top ].start = s[ top-1 ].buff; s[ top ].buff = s[ top-1 ].start; s[ top ].buff = s[ top-1 ].start; s[ top ].goal = s[ top-1 ].goal; s[ top ].goal = s[ top-1 ].goal; s[ top ].ret = 3; s[ top ].ret = 3; goto l1; goto l1; } // end if l3:if ( 2 == s[ top ].ret ) { top--; top--; goto l2; goto l2; }else if ( 3 == s[ top ].ret ) { top--; top--; goto l3; goto l3; } // end if } // end nr_hanoi

41. 41 References  Douglas R. Hofstadter, “Gödel, Escher, Bach: an eternal golden braid”, Basic Books, 1999, ISBN 0465026567; came out in 1979  Ackermann function at NIST: http://xlinux.nist.gov/dads/HTML/ackermann.html  Herbert G Mayer: “Advanced C Programming on the IBM PC”, 1989, Windcrest, ISBN 0-8306-9163-4  Non-recursive solution to Towers of Hanoi: http://portal.acm.org/citation.cfm?id=948602  Herbert G Mayer, Don Perkins, SIGLAN Notices, 1984, non-recursive Towers of Hanoi Solution: http://dl.acm.org/citation.cfm?id=948573
