Deploying Windows Server 2012: From Bare Metal, Server Core, Minimal Server Interface, and More Andrew Mason Principal Group Program Manager Microsoft Corporation
6

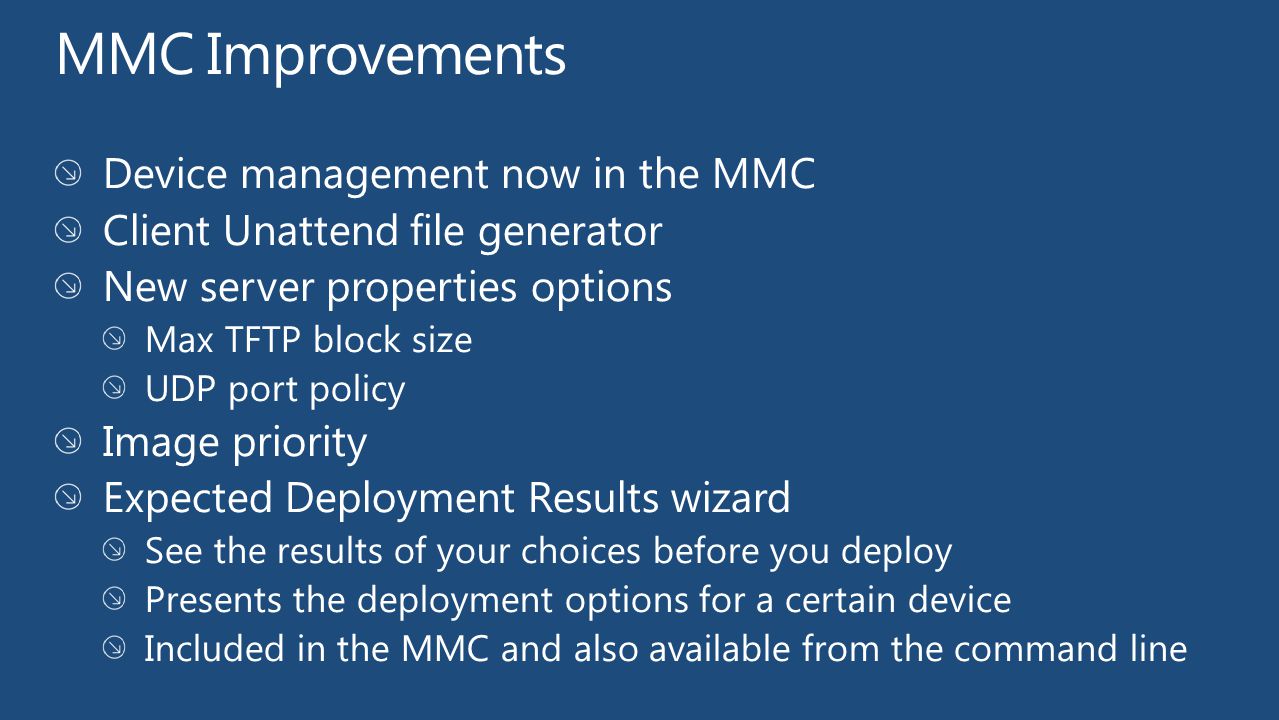

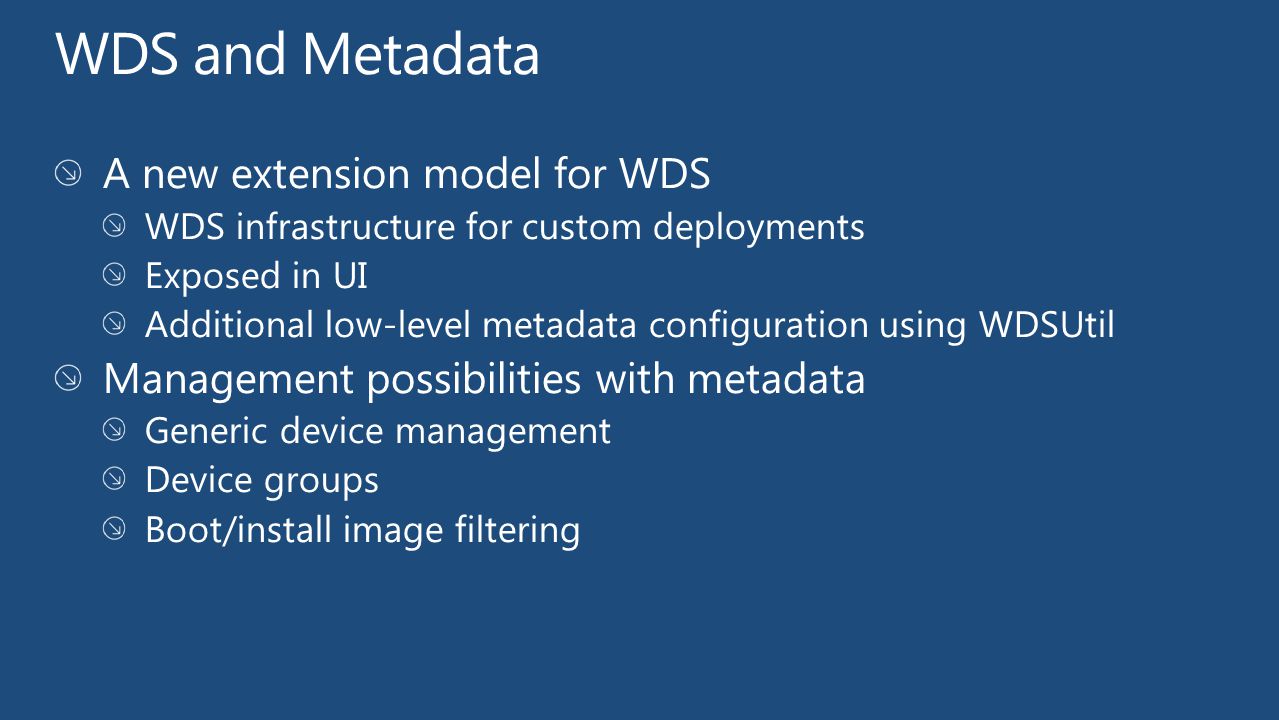

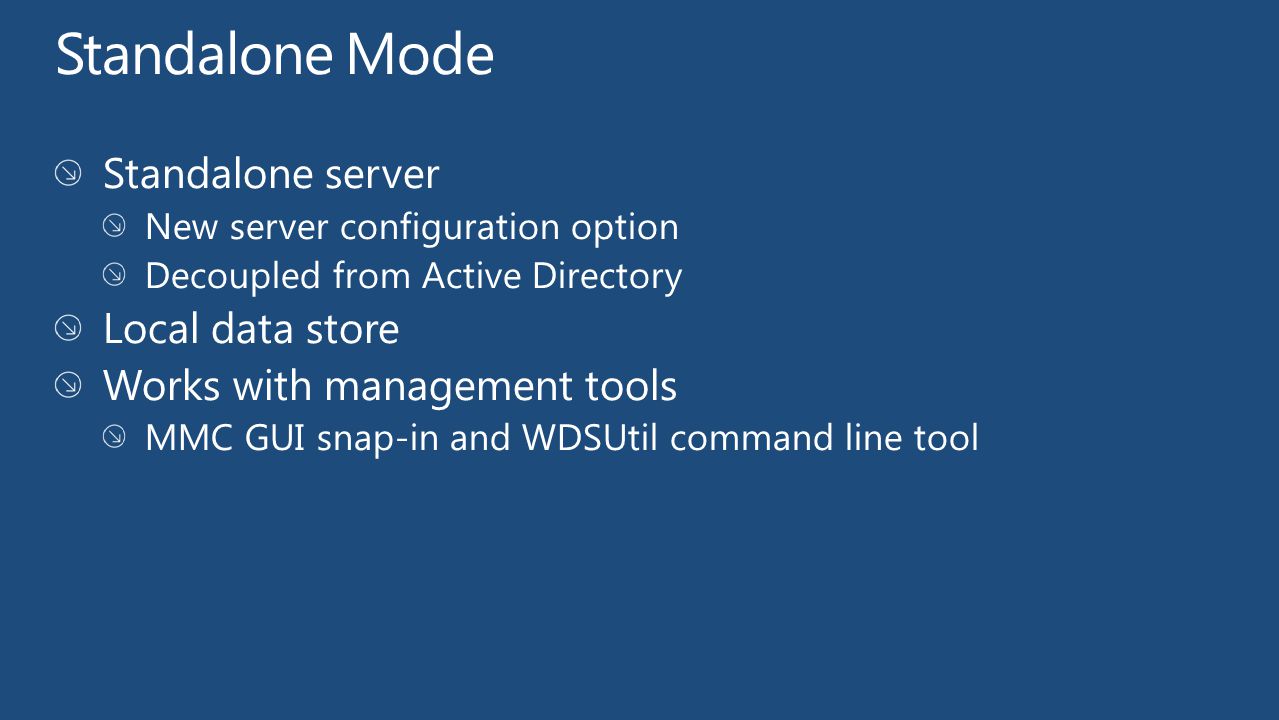

Plan, manage, diagnose Boot with PXE Get into WinPE Apply full OS image Inject drivers First boot and OOBE Standalone mode MMC improvements WDS infrastructure to customize Diagnosability enhancements
11
Plan, manage, diagnose Boot with PXE Get into WinPE Apply full OS image Inject drivers First boot and OOBE WDS Server is configured and ready Server PXE boots WDS Server responds with boot program x86 UEFI support IPv6 PXE support
13
Plan, manage, diagnose Boot with PXE Get into WinPE Apply full OS image Inject drivers First boot and OOBE TFTP transfer of boot and OS loader Variable-size transmission window TFTP shared UDP port allocation TFTP shared client buffer
15
Plan, manage, diagnose Boot with PXE Get into WinPE Apply full OS image Inject drivers First boot and OOBE WDS is running in WinPE Apply of image begins In-place WIM multicast apply Multicast performance improved VHDX apply
20
Server with a GUI Minimal Server Interface Server Core NEW Full Server without Server Graphical Shell No Explorer, Internet Explorer or associated files MMC, Server Manager, and a subset of Control Panel applets are still installed Provides many of the benefits of Server Core for those applications or users that haven’t yet made the transition Server Core NEW Can move between Server Core and Full Server by simply installing or uninstalling components Classic “Full Server” Full Metro-style GUI shell Install Desktop Experience to run Metro-style apps
22
POWERSHELL Uninstall-WindowsFeature Server-Gui-Mgmt-Infra -Restart POWERSHELL Install-WindowsFeature Server-Gui-Mgmt-Infra,Server-Gui-Shell -Restart NEW Can install multiple features with one command by separating with commas Single reboot required to restart all services
23

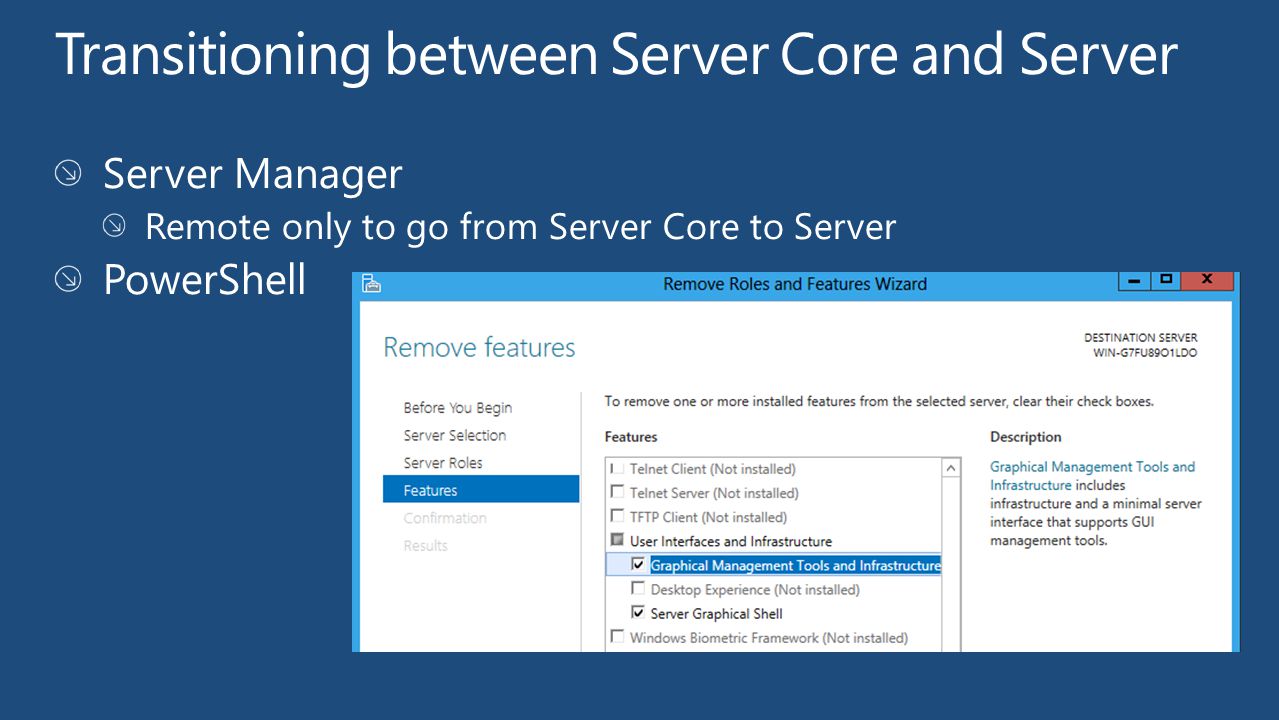

demo Transitioning between Server Core and Server with a GUI
25

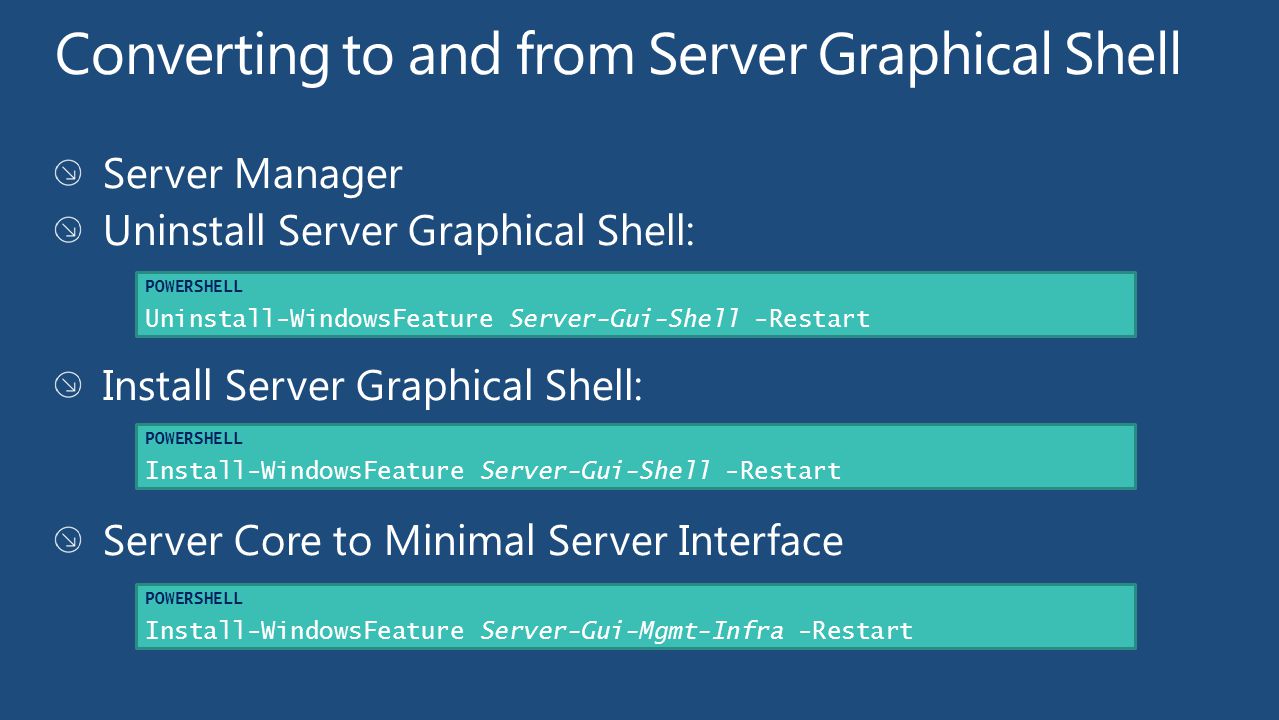

POWERSHELL Uninstall-WindowsFeature Server-Gui-Shell -Restart POWERSHELL Install-WindowsFeature Server-Gui-Shell -Restart POWERSHELL Install-WindowsFeature Server-Gui-Mgmt-Infra -Restart
28
Server CoreMinimal Server Interface Server Graphical Shell ServerCore = 1Set ServerGuiMgmt = 1Not SetSet ServerGuiShell = 1Not Set Set
29

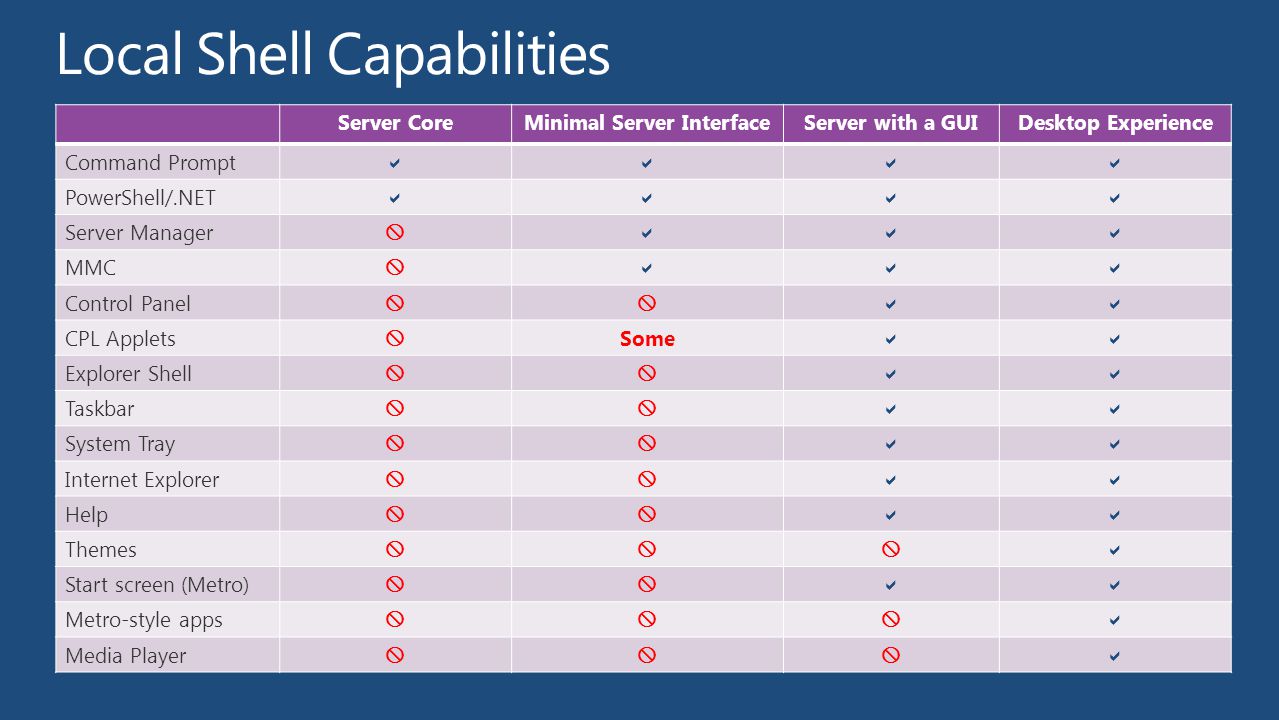

Server CoreMinimal Server InterfaceServer with a GUIDesktop Experience Command Prompt PowerShell/.NET Server Manager MMC Control Panel CPL Applets Some Explorer Shell Taskbar System Tray Internet Explorer Help Themes Start screen (Metro) Metro-style apps Media Player
30
demo Minimal Server Interface
33

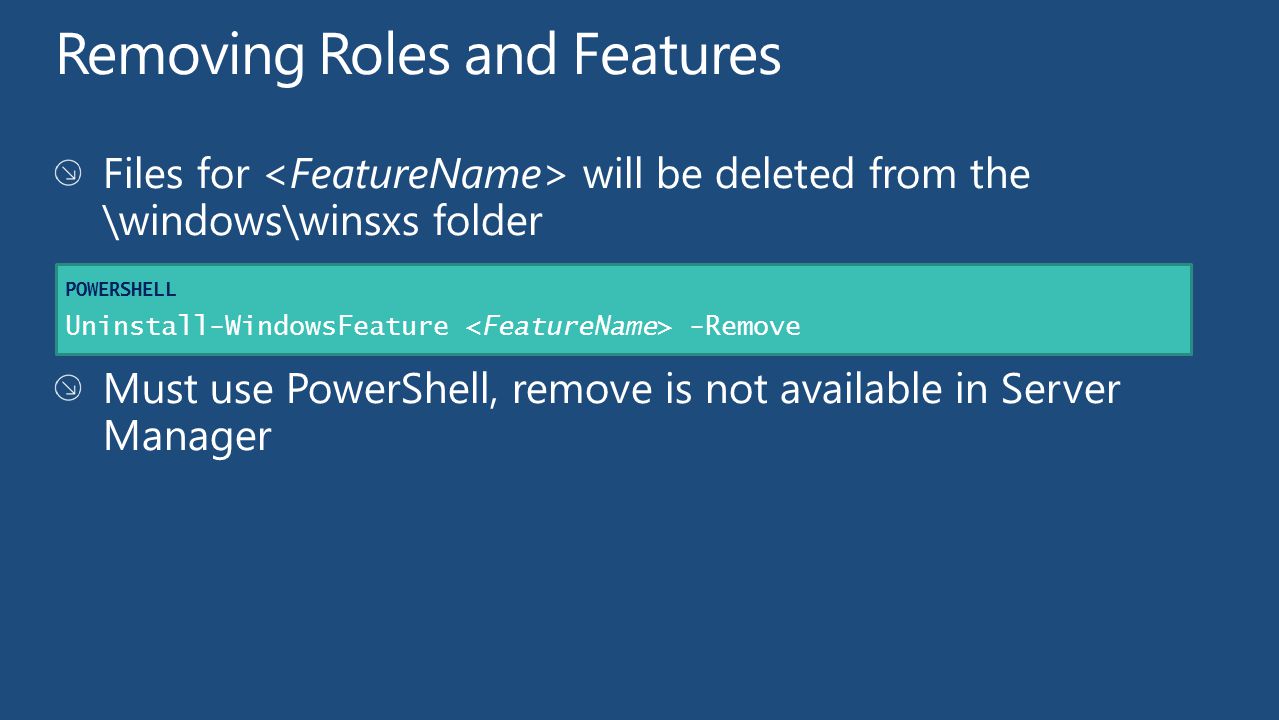

POWERSHELL Uninstall-WindowsFeature -Remove
35
CMD mkdir c:\mountdir CMD dism /mount-wim /WimFile: :\sources\install.wim /Index: /MountDir:c:\mountdir /readonly CMD Dism /get-wiminfo /wimfile: :sources\install.wim POWERSHELL with mounted WIM Install-WindowsFeature Server-Gui-Mgmt-Infra,Server-Gui-Shell –Restart –Source c:\mountdir\windows\winsxs
36
CMD Dism /get-wiminfo /wimfile: :sources\install.wim POWERSHELL Install-WindowsFeature Server-Gui-Mgmt-Infra,Server-Gui-Shell –Restart –Source wim: :\sources\install.wim:4
37
POWERSHELL Install-WindowsFeature -Source
38

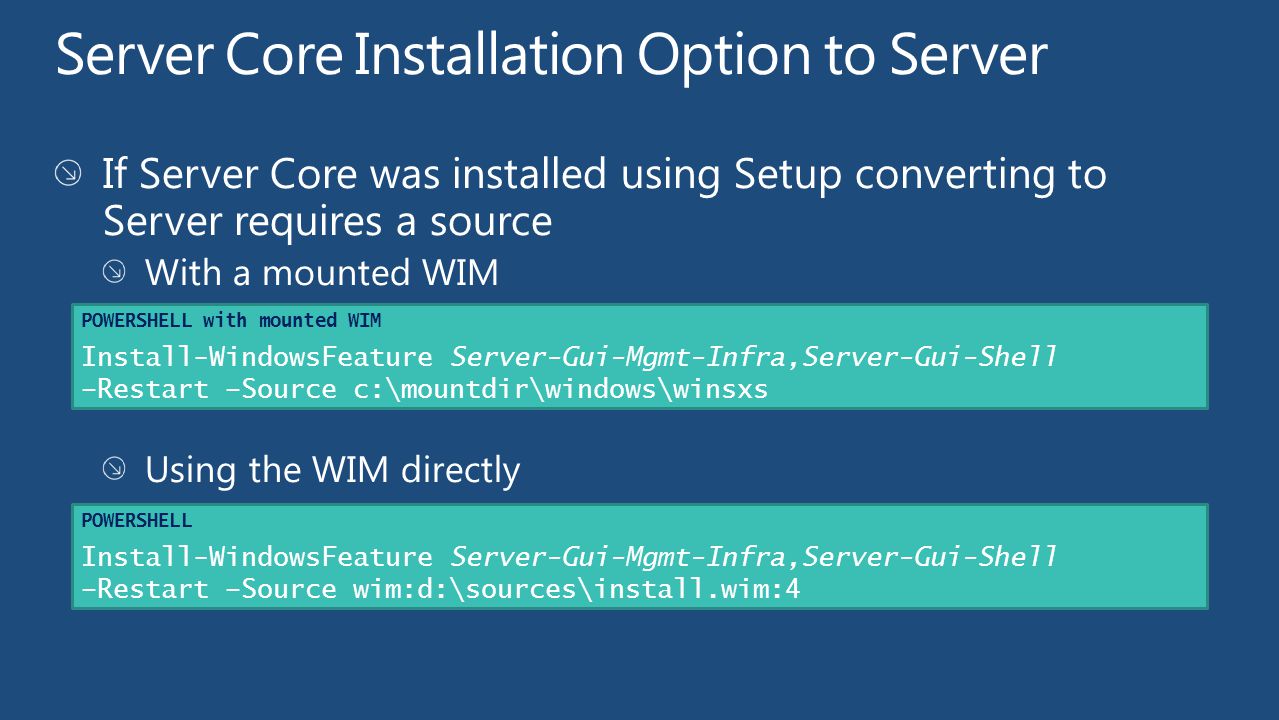

POWERSHELL with mounted WIM Install-WindowsFeature Server-Gui-Mgmt-Infra,Server-Gui-Shell –Restart –Source c:\mountdir\windows\winsxs POWERSHELL Install-WindowsFeature Server-Gui-Mgmt-Infra,Server-Gui-Shell –Restart –Source wim:d:\sources\install.wim:4
39
demo Reducing Disk Footprint with Features on Demand
41
Talk to our Experts at the TLC #TE(sessioncode) DOWNLOAD Windows Server 2012 Release Candidate microsoft.com/windowsserver Hands-On Labs DOWNLOAD Windows Azure Windowsazure.com/ teched
42
Connect. Share. Discuss. http://northamerica.msteched.com Learning Microsoft Certification & Training Resources www.microsoft.com/learning TechNet Resources for IT Professionals http://microsoft.com/technet Resources for Developers http://microsoft.com/msdn
43
Complete an evaluation on CommNet and enter to win!
44
Scan the Tag to evaluate this session now on myTechEd Mobile
