1 3.0.0 – Service Area

2 Service Area:  Kitchens – (Types and Layouts) Kitchens – (Types and Layouts)  Bathrooms / Powder Rooms Bathrooms / Powder Rooms  Laundry Rooms / Utility Rooms Laundry Rooms / Utility Rooms  Garage / Carports Garage / Carports Pictures used in this presentation are used for educational purposes only. The author of this presentation makes no claim to being the original creator of any photographs within.

3 Press Return to go back to Table of ContentsReturn

4 The Kitchen Work Triangle Stove Sink Refrigerator The stove, sink and refrigerator form the corners of the Work Triangle. The work triangle is used to guide the design of a kitchen.

5 1. No side of the work triangle should be less than 4’ long, or greater than 7’. 2. The sum of the sides of the work triangle should be at least 15’ and not more than 22’. 3. Household traffic should not pass through the work triangle. 4. Work space (counter area) should always be placed between each point of the triangle.

6 One Wall Kitchen CorridorL-shaped Peninsula Island Kitchen U-shaped Kitchen

7 Attributes: Commonly used in Efficiency Apartments and in hotel suites. Often placed in Rec. Rooms or basements for entertainment purposes. Usually do not have large workspaces available. Typically utilize smaller appliances than those used in full sized kitchens. Sometimes placed behind Bi-Fold closet doors.

8 One Wall Kitchen

9 Attributes: All Cabinets and appliances are placed along 2 parallel walls. Provides more storage and workspace than a one wall kitchen. Creates a very efficient work triangle. Typically found in small homes. Usually placed between two living areas. Sometimes walk-thru traffic can be a problem.

10

11 Attributes: Commonly used for both large and small kitchens. Cabinets and appliances are placed along 2 adjacent walls. Work triangle works well with L-Shape layouts but becomes inefficient with larger kitchens. Arrangement of this type kitchen eliminates walk-thru traffic.

12

13 Attributes: Provides additional cabinet space to an L-Shape kitchen by adding an additional leg of cabinets. The peninsula can be used as an: Eating Bar Service Bar Work Center Peninsula

14

15 Attributes: Provides efficient layout with easy access to all workstations. Corner storage is sometimes difficult to use because of cabinet layout required. Eliminates walk-thru traffic Usually used in large homes. A minimum of 60” must be maintained between the cabinet faces.

16

17 Attributes: An Island can be added to any type kitchen. Usually found in large homes, but may be found in smaller homes as well. Provides additional workspace, and perhaps may even contain a sink or cooktop. 42” clearance around the island must be maintained in order to provide walking and work area. ISLAND

18

19 COOKTOP RANGE HOOD / VENT ISLAND

20 Sink built into Island

21

22 Cabinet Types Cooktops Ranges Ovens Range Hoods

23 Island Base Cabinet 36” High 24” Deep Upper Cabinet: 12” Deep 3’ of clear counter space should be provided on one side of the sink, and 2’ of clear counter space should be provided on the other side of the sink.

24 Gas Cooktop

25 Electric Cooktop

26 Gas Range

27 Electric Range

28 Range Hood Used to pull fumes and smoke from the cooktop. Fumes may vent to the outside or be filtered and replaced into the room.

29 Range hoods come in all shapes, styles and sizes, but all perform the same function…They remove smoke, fumes and odors from the cooktop.

30 Upper Cabinet: Shown with dashed line 12” off wall Lower Cabinet: Shown with solid line 24” off wall Dishwasher Sink Range (Stove)

31 Press Return to go back to Table of ContentsReturn

32 Press Return to go back to Table of ContentsReturn

33 Some bathrooms may be plain and simple, or very ornate. It is often said in Real Estate that what typically sells a house is the kitchen and the bathrooms. Some bathrooms may be small while others may be very large.

34 Attributes: The smallest bathrooms are called Powder Rooms. Another name for a Powder Rooms is a Half Bath A Half Bath is a small bathroom without a tub or shower. A Powder Room contains only a sink and a water closet (Toilet). The sink in any bathroom is referred to as a Lavatory and is used for washing face and hands. Lavatories without a base cabinet are known as Pedestal Lavatories

35 Attributes: Bathrooms are considered part of the Service Area, but are usually located in the Sleeping Area of the house near the bedrooms Specifics Door Size: 2/0 x 6/8 Minimum 2/4 x 6/8 Maximum 2/4 x 6/8 Recommended Bathrooms Require an electric exhaust fan to remove moisture from the air. Note: Old building codes used to allow an exhaust fan to NOT be installed if there was an operable window in the bathroom.

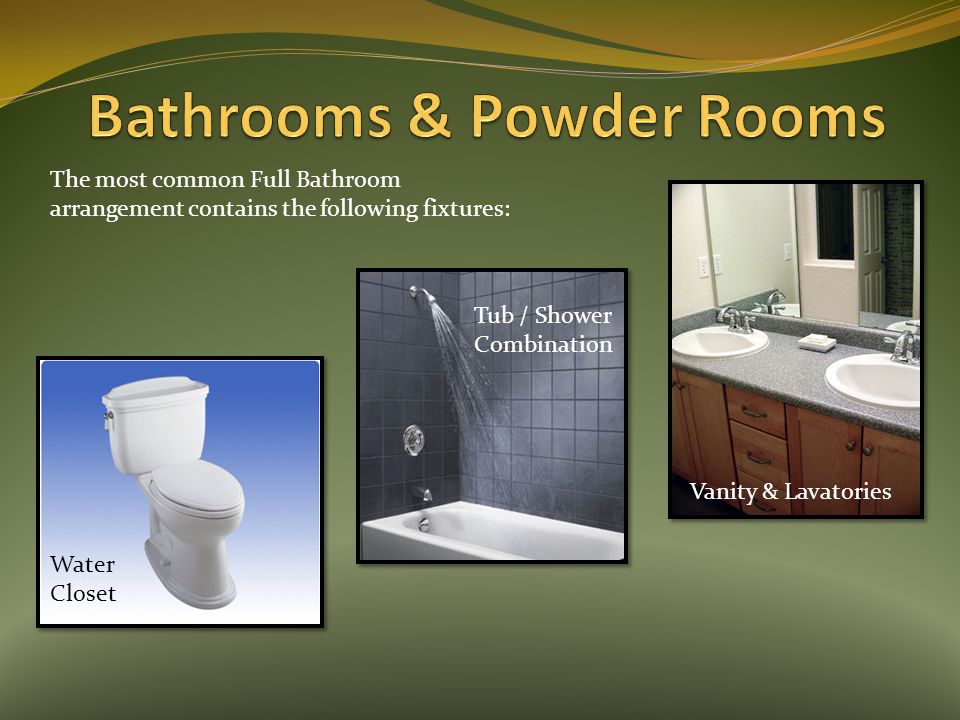

36 The most common Full Bathroom arrangement contains the following fixtures: Water Closet Tub / Shower Combination Vanity & Lavatories

37 Many bathrooms are upgraded depending on the size and luxury level of the home. Upgraded Tub Many will contain upgraded tubs, and showers. Upgraded Shower

38 Compartmentalized Bathroom: Compartmentalized Bathrooms are usually used in larger homes. In these type bathrooms, the water closet is placed in a separate room from the other parts of the bathroom. Water Closet in separate room Tub Vanity With Lavatories Shower

39 Jack & Jill Bathrooms: Jack & Jill Bathrooms are used in between two bedrooms. Each bedroom has a door leading directly to the bathroom without having to walk through a hallway. Door From Bedroom 2 Door From Bedroom 1

40 Specific Measurements for Bathrooms: Water Closet Spacing: Water Closet Centerline to Adjacent Wall or Tub = 18” Water Closet Centerline to Lavatory = 15” A minimum 21” clear space must be provided in front of the water closet

41 Press Return to go back to Table of ContentsReturn

42 Press Return to go back to Table of ContentsReturn

43 Utility Rooms and Laundry Rooms are often one room in the same, however some houses have them as two separate rooms. These rooms are designed for multiple functions that include: Often contains Electrical Panel Long Term Food Storage (Sometimes) Washing, Drying & Folding Clothes

44 Water Heater Storage Water Heaters are usually powered by electricity or by natural gas. Gas fired heaters must be vented to the outside via a vent through the roof or an adjacent exterior wall. Gas Water heaters in a utility room must be located to accommodate these ventilation requirements

45 Furnace / Air Conditioner Storage Placing the air conditioner and furnace in an interior utility room is a nice convenience because it allows for easy maintenance. If not located in a utility room, this equipment is either located in the attic, or in a crawl space if the house has a crawl foundation.

46 Electrical Panels In homes with a garage, the electrical panel is usually located in the garage. Often times however the electrical panel is placed in a utility room or utility closet. The electrical panel contains circuit breakers that control the supply of electricity to the rest of the house

47 Laundry Room Specifics In Review: These rooms are often placed near Garages or in Basements. Many newer home designs place these rooms in the Sleeping Area of the house because that’s where the dirty clothes are before being washed, and where they will be returned after being washed. Standard Door size should be Minimum 2/8 x 6/8. In order to provide room for a washer and dryer to fit through the door.

48 Press Return to go back to Table of ContentsReturn

49 Press Return to go back to Table of ContentsReturn

50 Garages are enclosed structures used to contain automobiles, boats, trailers equipment or other similar devices. These rooms are typically NOT climate controlled, meaning they do not have heat or air conditioning, and their area is not included in heated square footage calculations for a structure. Garages may be attached to the house, or free-standing …(Detached) Detached GarageAttached Garage

51 Common Garage Layouts 1 Car Garage 2 Car Garage 3 Car Garage

52 Two Car Garages usually have one of the following door configurations: (2) 7’ High by 8’ Wide Sectional Doors (1)7’ High by 16’ Wide Sectional Door (1) 7’ High by 18’ Wide Sectional Door (Special Order)

53 Three Car Garages usually have one of the following door configurations: (1) 7’ x 8’ Sectional Door and a 7’ x 16’ Sectional Door (3) 7’ x 8’ Sectional Doors

54 Minimum Size for a Single Car Garage is: 11’ wide x 19’ deep Maximum Size for a Single Car Garage should not exceed: 16’ wide x 25’ deep Single (1) Car Garage

55 Double (2) Car Garage Minimum Size for a Two Car Garage is: 20’ wide x 20’ deep Maximum Size for a 2 Car Garage is: 25’ wide x 25’ deep

56 Double (2) Car Garage With modern cars and SUV’s being larger than in years past, the minimum of 20’ x 20’ for a Two Car Garage is really too small. Parking is possible, however opening the car doors and walking between the cars is difficult. A more accurate size for a Two Car Garage is: 22’ wide x 24’ deep

57 Carports are simply a roof over a parking area. No side walls are present. Used to protect automobiles from weather Minimum size for a double carport is also: 20’ x 20’

58 Attached carports, as shown at right are enclosed on one side. These carports are simply roof structures attached to a house on one side, and supported on the other side by columns or posts. Occasionally a storage room is built into the “nose” of a carport.

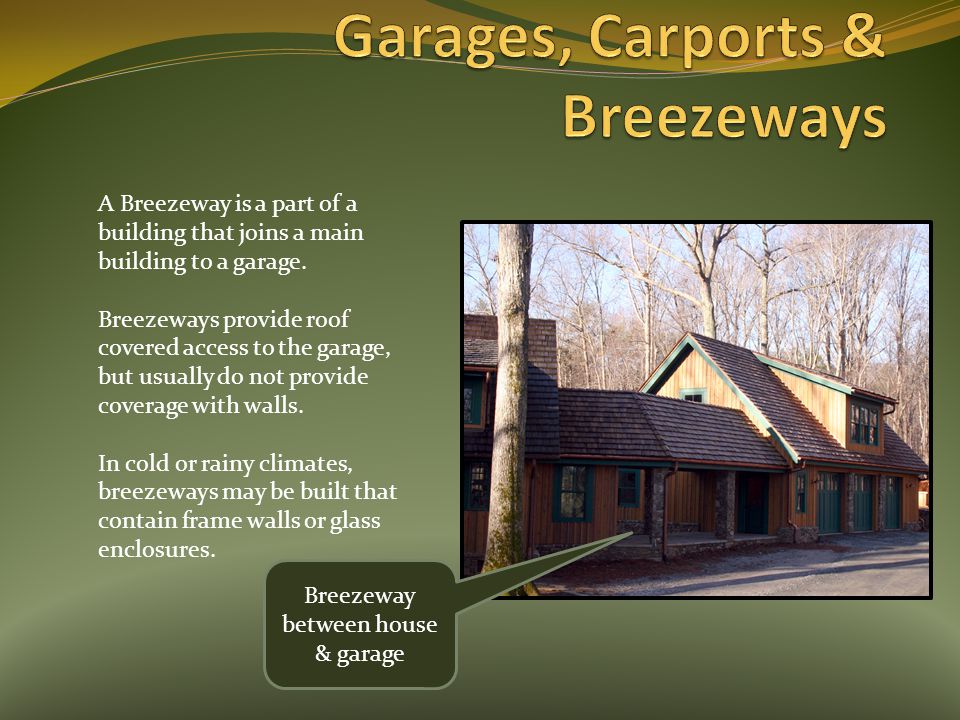

59 A Breezeway is a part of a building that joins a main building to a garage. Breezeways provide roof covered access to the garage, but usually do not provide coverage with walls. In cold or rainy climates, breezeways may be built that contain frame walls or glass enclosures. Breezeway between house & garage

60 Press Return to go back to Table of ContentsReturn
