1. Cardiovascular system - Blood Vessels Anatomy Chap. 22

2. Basic Anatomy of Circulatory routes Arteries Arterioles Capillaries Venules Veins Carry blood away from the heart Control blood flow into capillaries & help regulate BP Allow for “exchange” (filtration/reabsorption) of O2/CO2, nutrients/wastes Connect capillaries to veins Carry blood towards the heart

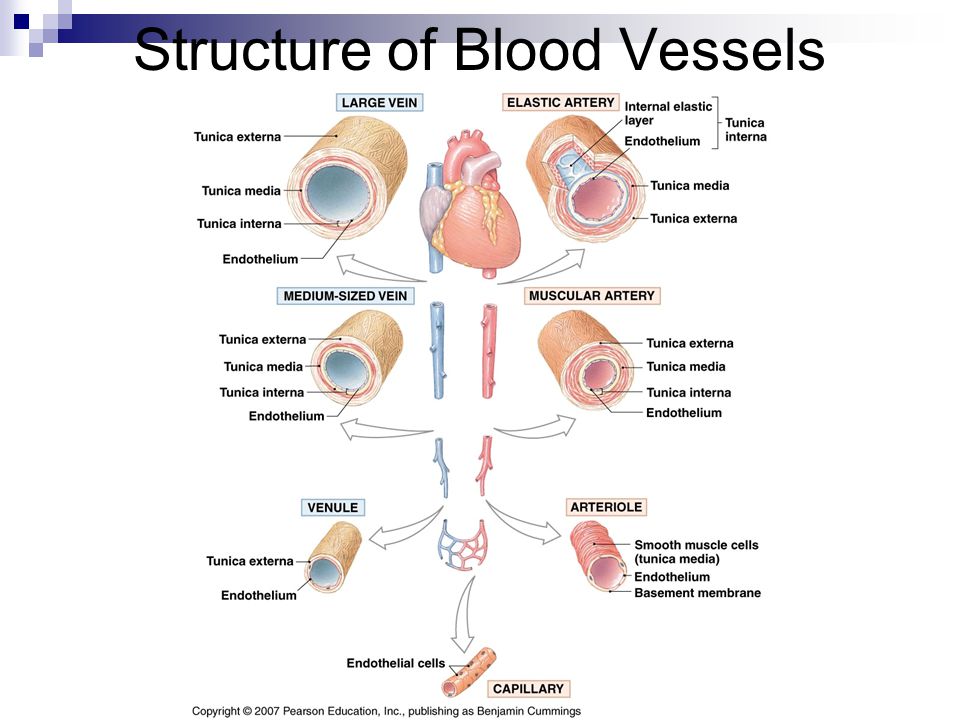

3. Structure of Blood Vessels

4. Arteries & Veins Both are comprised of 3 layers of tissue - tunica interna, tunica media & tunica externa - surrounding “lumen” through which blood will flow: All structural difference between arteries & veins primarily due to differences in pressure of blood flowing within Lumen – larger diameter in veins compared to corresponding artery

5. Arteries & Veins Tunica Interna – innermost endothelium of simple squamous epithelium + basement membrane  Arteries – have an “internal elastic lamina” of elastic CT to allow for expansion under pressure  Veins – may have “valves” (folds of endothelium + CT) to prevent backflow of blood due to low pressure

6. Arteries & Veins Tunica Media – middle layer containing smooth muscle (for contractility/vasoconstriction) & elastic CT (for elasticity)  Arteries – have relatively thick tunica media allowing for significant vasoconstriction & elasticity  Elastic/conducting arteries – relatively more elastic tissue than smooth muscle; ie. aorta, pulmonary trunk, etc.  Muscular/distributing arteries - relatively more muscle tissue than elastic tissue; ie. brachial, femoral, etc.  Veins – relatively thin tunica media therefore no significant constriction/elasticity

7. Arteries & Veins Tunica Externa (a.k.a. adventitia) – made of collagenous CT  Arteries – thin layer  Veins – thickest layer of vein, trying to support against gravity & low pressure

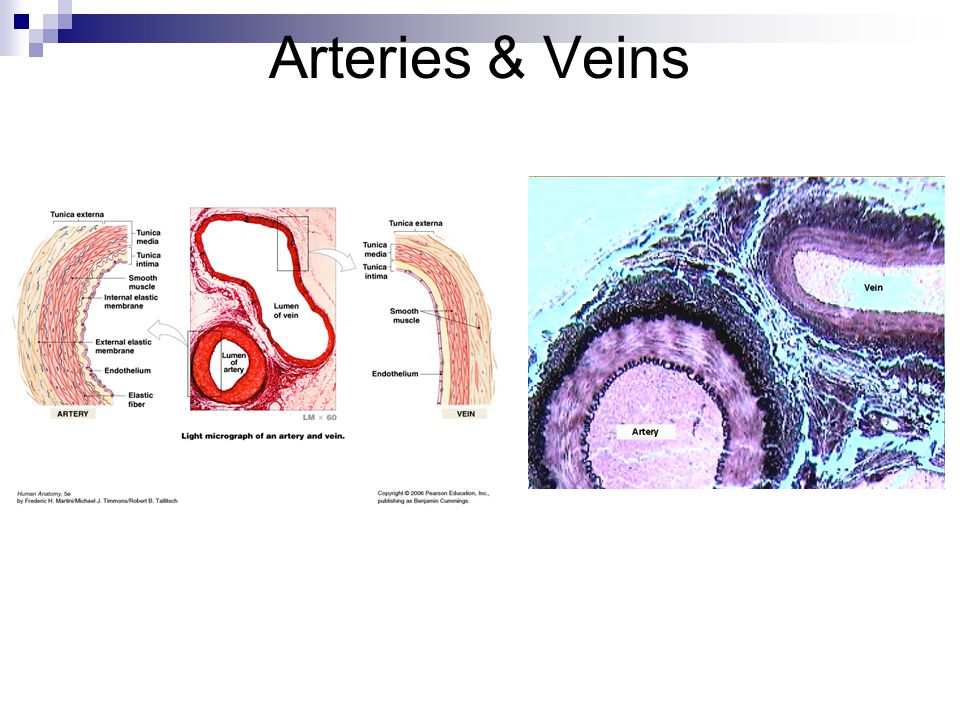

8. Arteries & Veins

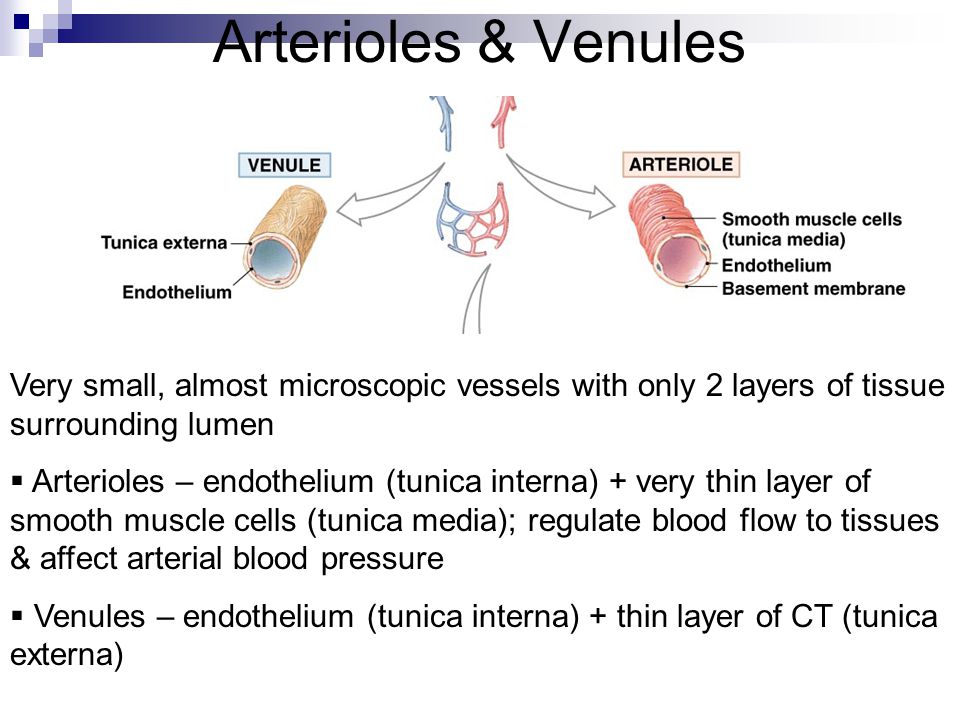

9. Arterioles & Venules Very small, almost microscopic vessels with only 2 layers of tissue surrounding lumen  Arterioles – endothelium (tunica interna) + very thin layer of smooth muscle cells (tunica media); regulate blood flow to tissues & affect arterial blood pressure  Venules – endothelium (tunica interna) + thin layer of CT (tunica externa)

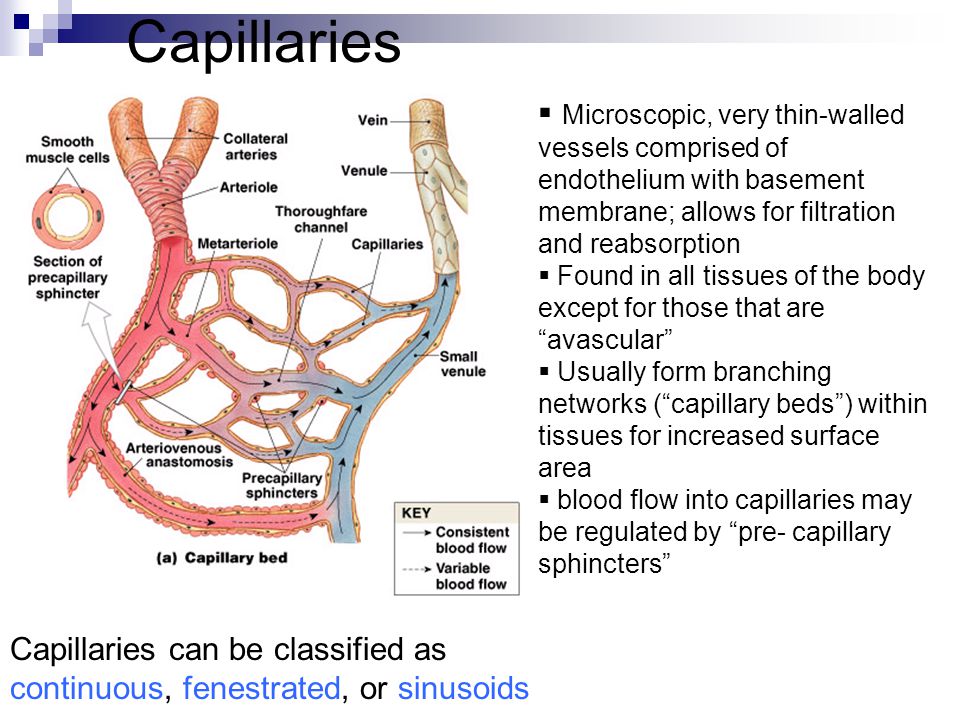

10. Capillaries  Microscopic, very thin-walled vessels comprised of endothelium with basement membrane; allows for filtration and reabsorption  Found in all tissues of the body except for those that are “avascular”  Usually form branching networks (“capillary beds”) within tissues for increased surface area  blood flow into capillaries may be regulated by “pre- capillary sphincters” Capillaries can be classified as continuous, fenestrated, or sinusoids

11. Circulatory Routes - overview

12. Circulatory Routes – Pulmonary Circuit

13. Circulatory Routes – Systemic circuit Ascending aorta (gives off coronary arteries) Aortic arch Brachiocephalic trunk Left common carotid artery Left subclavian artery Thoracic (descending) aorta Abdominal aorta Common iliac arteries  Arterial blood from left ventricle into ascending aorta  Venous return to right atrium through superior vena cava (SVC), inferior vena cava (IVC) & coronary sinus

14. Cerebral circulation Basilar artery (from union of vertebral arteries) + Internal carotid arteries Cerebral arterial circle (“circle of Willis)

15. Cerebral circulation Venous drainage from dural venous sinuses and cerebral veins into internal jugular vein and vertebral veins

17. LIVER Hepatic Portal Vein Cystic vein Lt. gastric vein Splenic vein Inferior mesenteric vein Superior mesenteric vein AORTAAORTA (blood mixes in sinusioids) Hepatic Veins IVCIVC Hepatic artery Hepatic portal circulation Venous blood flow from GIT & spleen to liver – ensures delivery of nutrients to liver first

18. Hepatic portal circulation  Cystic vein, left gastric vein, splenic vein, inferior & superior mesenteric veins  Hepatic portal vein  Hepatic portal vein (deoxygenated/nutrient rich blood) + Hepatic artery (oxygenated blood)  sinusoids of liver  Sinusoids of liver  Hepatic veins  IVC

20. Lt. Gastric v

21. Fetal Circulation Placenta – O2/CO2 & nutrient/waste between mom & baby Umbilical cord – (2) umbilical arteries (baby  mom) & (1) umbilical vein (mom  baby) Umbilical vein (O2/nutrient rich blood)  hepatic portal vein & ductus venosus  IVC  Rt. atrium Rt. Atrium  some blood to rt. Ventricle, most shunts across foramen ovale in interatrial septum  lt. atrium  lt. ventricle

22. Blood from Rt. Ventricle  pulmonary trunk  across ductus arteriosus to aorta Aorta  systemic arteries  internal iliac arteries  umbilical arteries  placenta Fetal Circulation

23. Fetal Circulation- Changes at Birth  Umbilical vein  ligamentum teres (round ligament)  Umbilical arteries  lateral umbilical ligaments  Ductus venosus  ligamentum venosum  Foramen ovale  fossa ovalis  Ductus arteriosus  ligamentum arteriosum  Placenta delivered (“afterbirth”)

24. Systemic circuit - Arteries

25. Systemic circuit - Veins

26. Upper extremity arteries

27. Ulna vein Radial vein Upper extremity arteries & veins

29. Arteries & Veins of lower extremity

32. Vessels of abdominal region

33. Lt. Gastric a
