Combinational circuit that selects binary information from one of many input lines and directs information to a single output line.
3

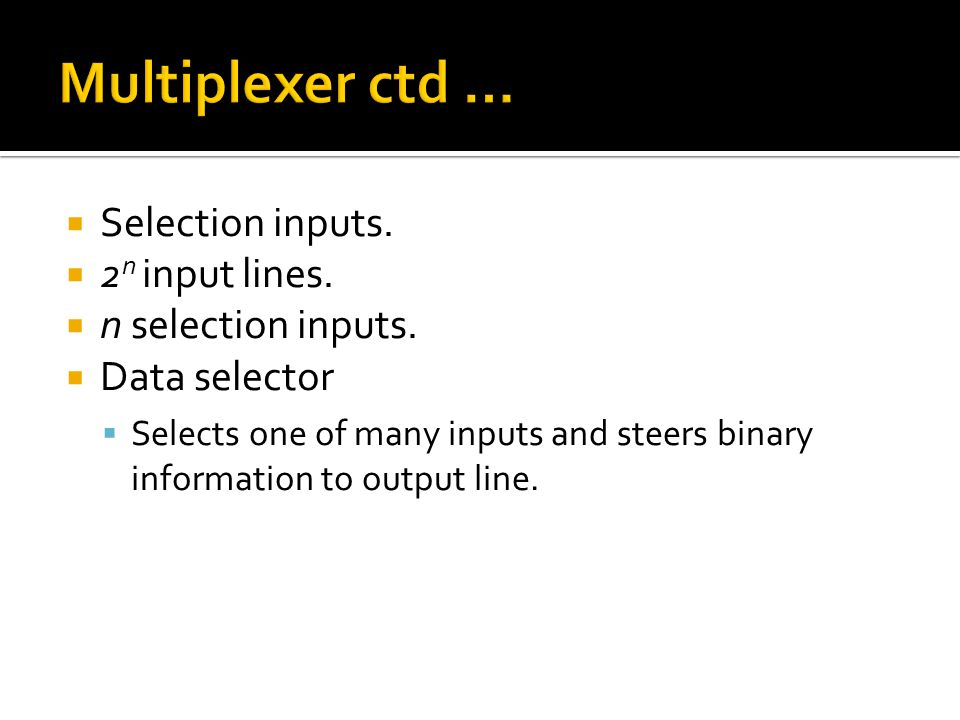

Selection inputs. 2 n input lines. n selection inputs. Data selector Selects one of many inputs and steers binary information to output line.
5

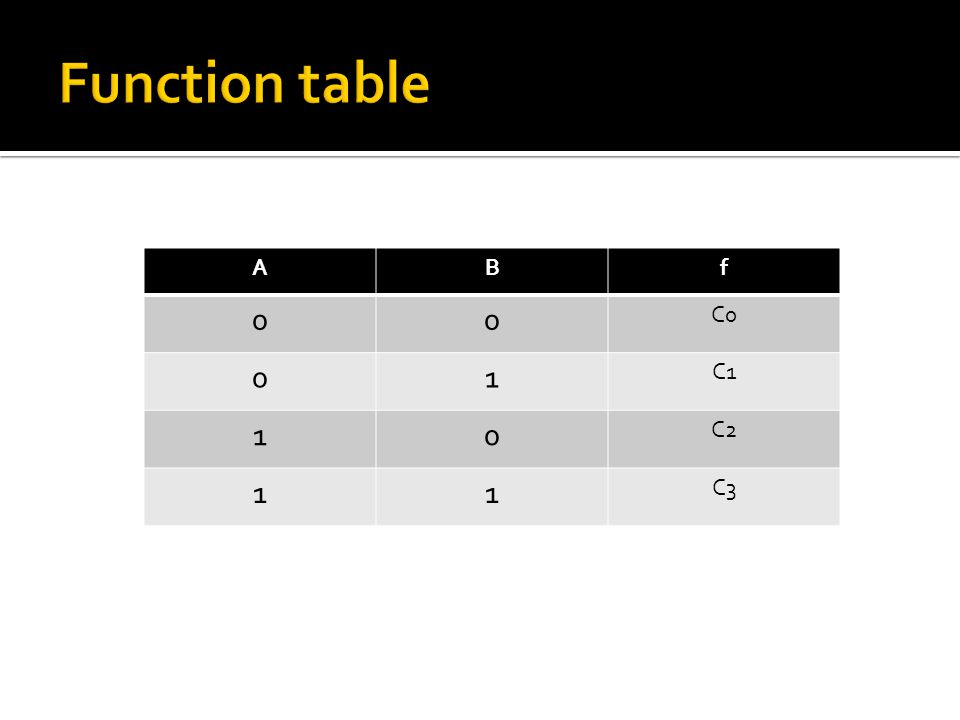

ABf 00 C0 01 C1 10 C2 11 C3
6
AND gates and inverters in multiplexer resemble a decoder circuit. 2 n - to – 1 line MUX is constructed from n-to- 2 n decoder by adding 2 n input lines. MUX blocks can be combined in parallel with common selection & enable lines.
7

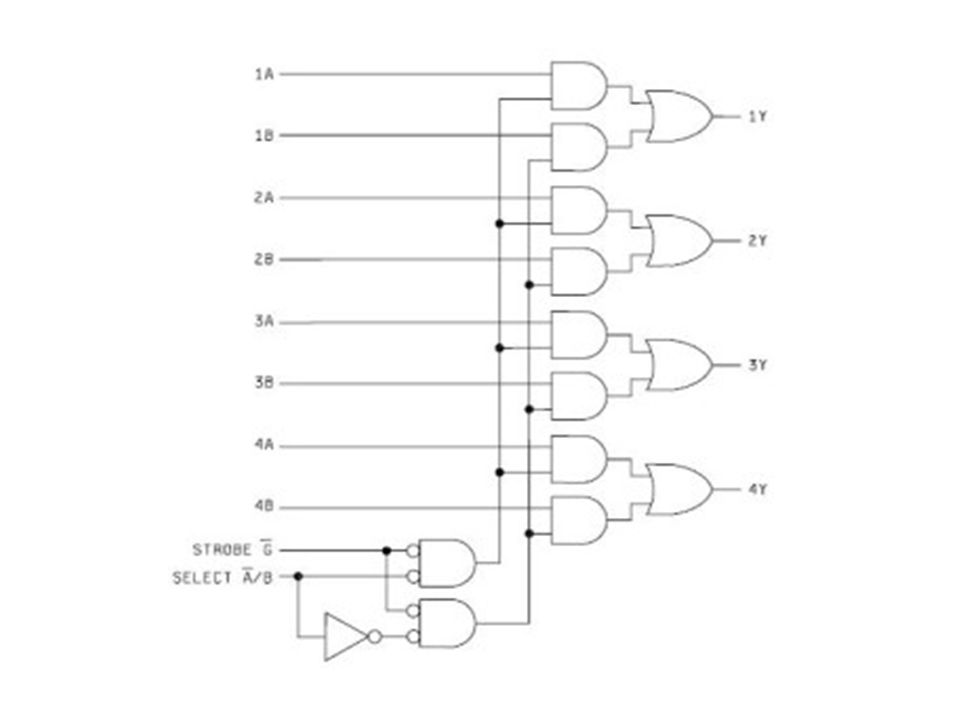

4 multiplexers Each capable of selecting one of two input lines. 1A 1Y 1B Input selection line S selects one of lines in each of four MUXs. Enable input E must be active for normal operations.
9

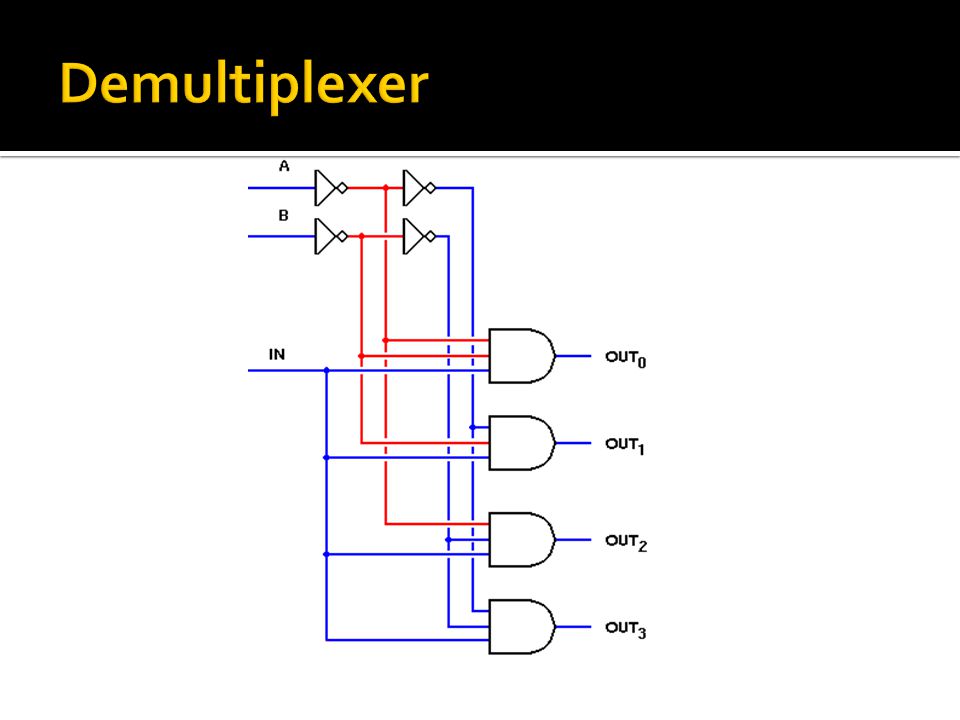

Inverse of MUX Demultiplexer receives information from a single line and transmits it to one of 2 n possible output lines. Selection of specific output is controlled by bit combination of n selection lines.
11

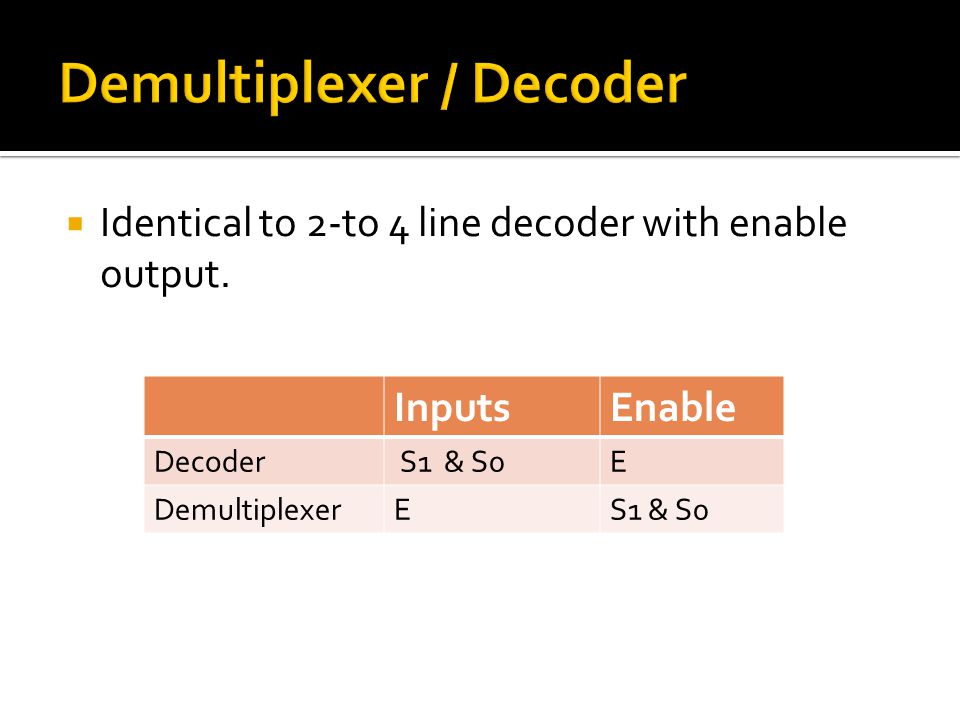

Identical to 2-to 4 line decoder with enable output. InputsEnable Decoder S1 & S0E DemultiplexerES1 & S0
