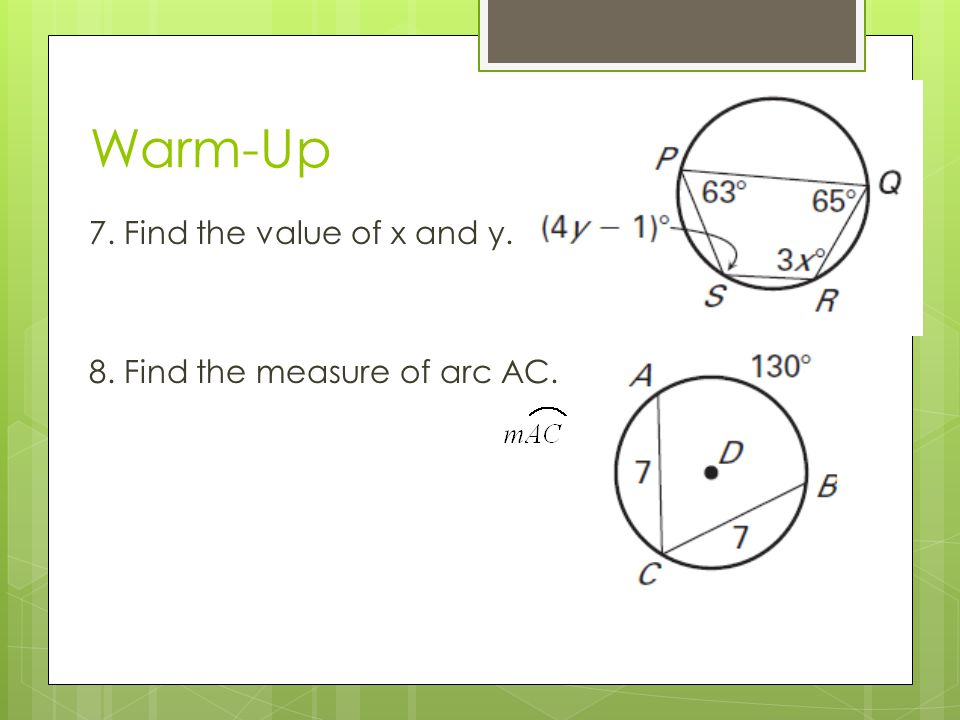

1. Warm-Up 7. Find the value of x and y. 8. Find the measure of arc AC.

2. Warm-Up4/29/15 Find the value of x 1.2. 3.

3. No Warm-Up4/30/15 -Take a seat so I can take roll -We will spend 20 minutes in partners from yesterday working on Ch 10.6 worksheet. 5 minutes going over questions on the worksheet. -We will go over Homework problems -We will spend 10 mins going over Ch 10.7 notes. Don’t worry, it’s easy! NOTE: Bring headphones tomorrow. We’ll attempt to log on to Chromebooks and watch Khan academy videos.

4. 10.6 Segment Lengths in Circles Geometry

5. Objectives/Assignment  Find the lengths of segments of chords.  Find the lengths of segments of tangents and secants.  Assignment:

6. Finding the Lengths of Chords  When two chords intersect in the interior of a circle, each chord is divided into two segments which are called segments of a chord. The following theorem gives a relationship between the lengths of the four segments that are formed.

7. Theorem 10.14  If two chords intersect in the interior of a circle, then the product of the lengths of the segments of one chord is equal to the product of the lengths of the segments of the other chord. EA EB = EC ED

8. Proving Theorem 10.14  You can use similar triangles to prove Theorem 10.15.  Given:, are chords that intersect at E.  Prove: EA EB = EC ED

9. Proving Theorem 10.14 Paragraph proof: Draw and. Because  C and  B intercept the same arc,  C   B. Likewise,  A   D. By the AA Similarity Postulate, ∆AEC  ∆DEB. So the lengths of corresponding sides are proportional. = EA EB = EC ED Lengths of sides are proportional. Cross Product Property

10. Ex. 1: Finding Segment Lengths  Chords ST and PQ intersect inside the circle. Find the value of x. RQ RP = RS RTUse Theorem 10.15 Substitute values.9 x = 3 6 9x = 18 x = 2 Simplify. Divide each side by 9.

11. Using Segments of Tangents and Secants IIn the figure shown, PS is called a tangent segment because it is tangent to the circle at an end point. Similarly, PR is a secant segment and PQ is the external segment of PR.

12. Theorem 10.15 IIf two secant segments share the same endpoint outside a circle, then the product of the length of one secant segment and the length of its external segment equals the product of the length of the other secant segment and the length of its external segment. EA EB = EC ED

13. Theorem 10.17 IIf a secant segment and a tangent segment share an endpoint outside a circle, then the product of the length of the secant segment and the length of its external segment equal the square of the length of the tangent segment. (EA) 2 = EC ED

14. Ex. 2: Finding Segment Lengths  Find the value of x. RP RQ = RS RTUse Theorem 10.16 Substitute values.9(11 + 9)=10(x + 10) 180 = 10x + 100 80 = 10x Simplify. Subtract 100 from each side. 8 = x Divide each side by 10.

15. Ex. 3: Estimating the radius of a circle  Aquarium Tank. You are standing at point C, about 8 feet from a circular aquarium tank. The distance from you to a point of tangency is about 20 feet. Estimate the radius of the tank.

16. (CB) 2 = CE CDUse Theorem 10.17 Substitute values. 400  16r + 64 336  16r Simplify. 21  r Divide each side by 16. (20) 2  8 (2r + 8) Subtract 64 from each side.  So, the radius of the tank is about 21 feet.

17. (BA) 2 = BC BDUse Theorem 10.17 Substitute values. 25 = x 2 + 4x 0 = x 2 + 4x - 25 Simplify. Use Quadratic Formula. (5) 2 = x (x + 4) Write in standard form. x =Simplify. Use the positive solution because lengths cannot be negative. So, x = -2 +  3.39. x =
