1
Parallel & GPU computing in MATLAB ITS Research Computing Lani Clough
2

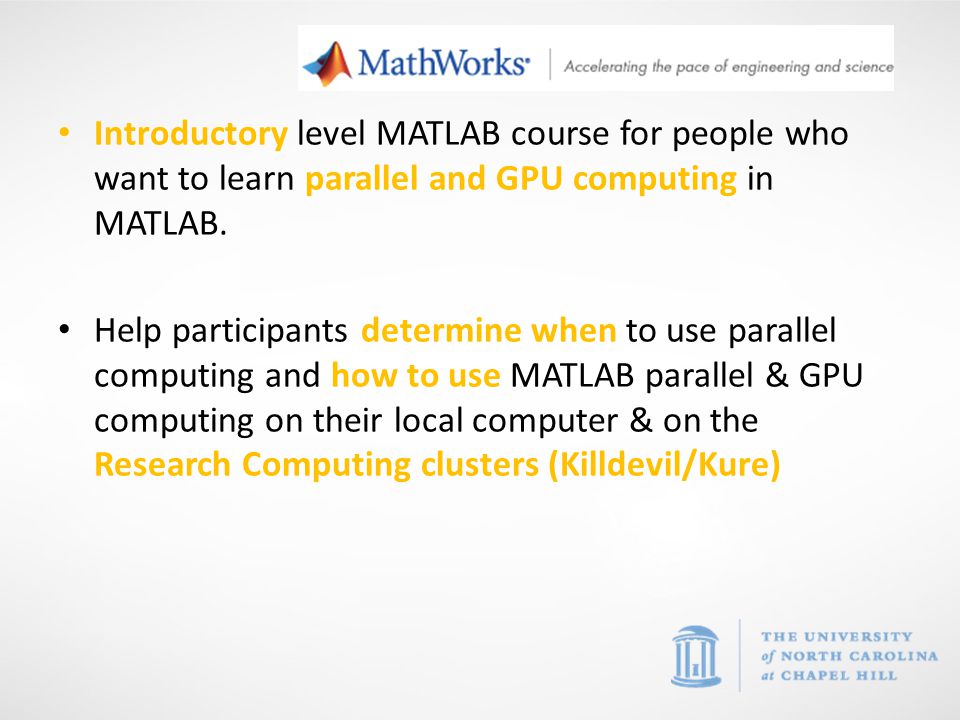

Objectives Introductory level MATLAB course for people who want to learn parallel and GPU computing in MATLAB. Help participants determine when to use parallel computing and how to use MATLAB parallel & GPU computing on their local computer & on the Research Computing clusters (Killdevil/Kure)
3

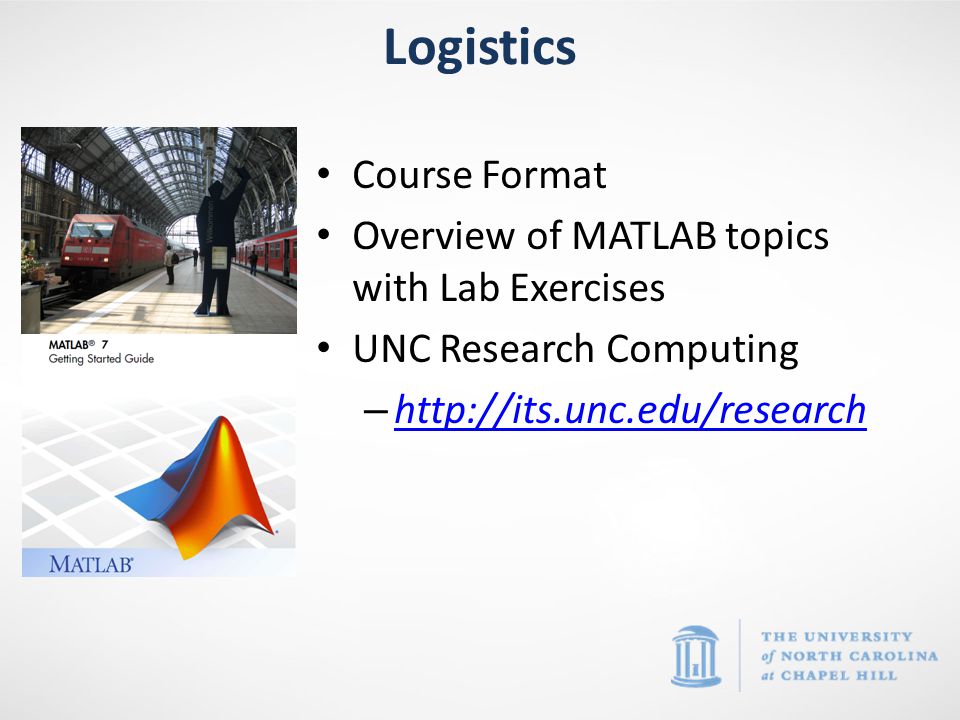

Logistics Course Format Overview of MATLAB topics with Lab Exercises UNC Research Computing – http://its.unc.edu/research http://its.unc.edu/research
4

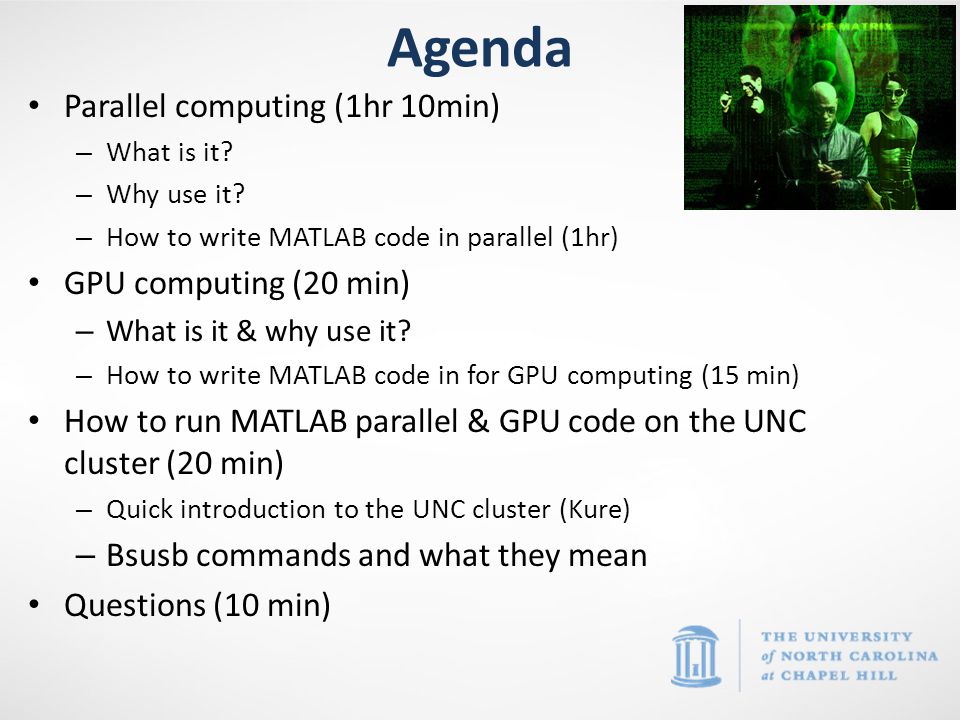

Agenda Parallel computing (1hr 10min) – What is it? – Why use it? – How to write MATLAB code in parallel (1hr) GPU computing (20 min) – What is it & why use it? – How to write MATLAB code in for GPU computing (15 min) How to run MATLAB parallel & GPU code on the UNC cluster (20 min) – Quick introduction to the UNC cluster (Kure) – Bsusb commands and what they mean Questions (10 min)
5
Parallel Computing
6
Generally, computer code is written in serial – 1 task completed after another until the script is finished with only 1 task completing at each time – Concept the computer only has 1 CPU What is Parallel Computing? Source: https://computing.llnl.gov/tutorials/parallel_comp/
7

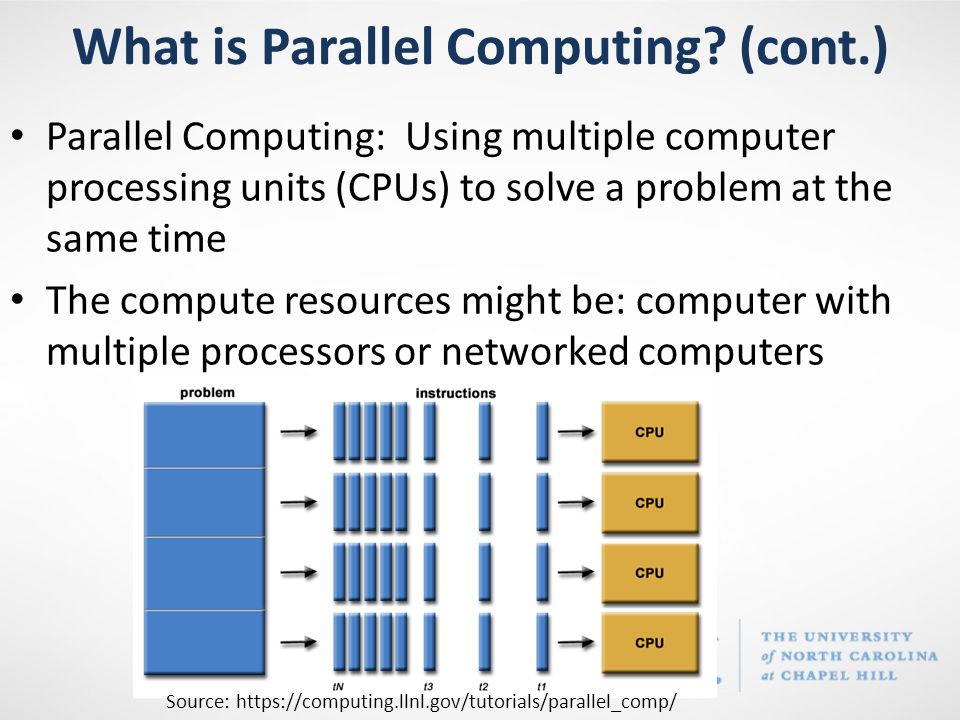

Parallel Computing: Using multiple computer processing units (CPUs) to solve a problem at the same time The compute resources might be: computer with multiple processors or networked computers What is Parallel Computing? (cont.) Source: https://computing.llnl.gov/tutorials/parallel_comp/
8
Save time & money (commodity components) Provide concurrency Solve larger problems Use non-local resources – UNC compute cluster – SETI: 2.9 million computers – Folding (Stanford): 450,000 cpus Why use Parallel Computing Source: https://computing.llnl.gov/tutorials/parallel_comp/
9

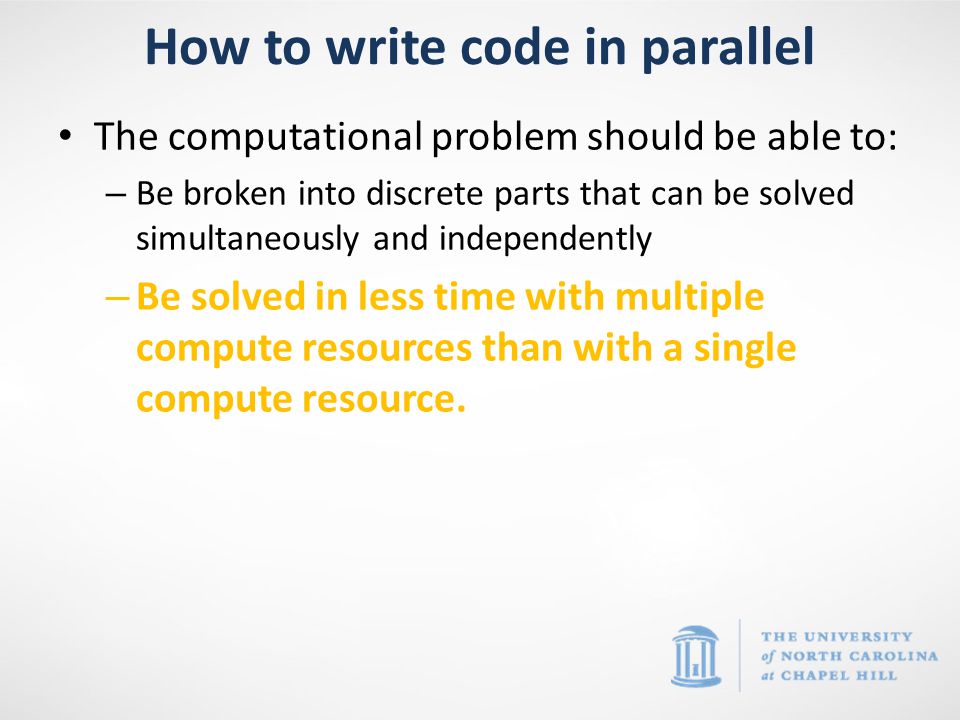

The computational problem should be able to: – Be broken into discrete parts that can be solved simultaneously and independently – Be solved in less time with multiple compute resources than with a single compute resource. How to write code in parallel
10
Parallel Computing in MATLAB
11

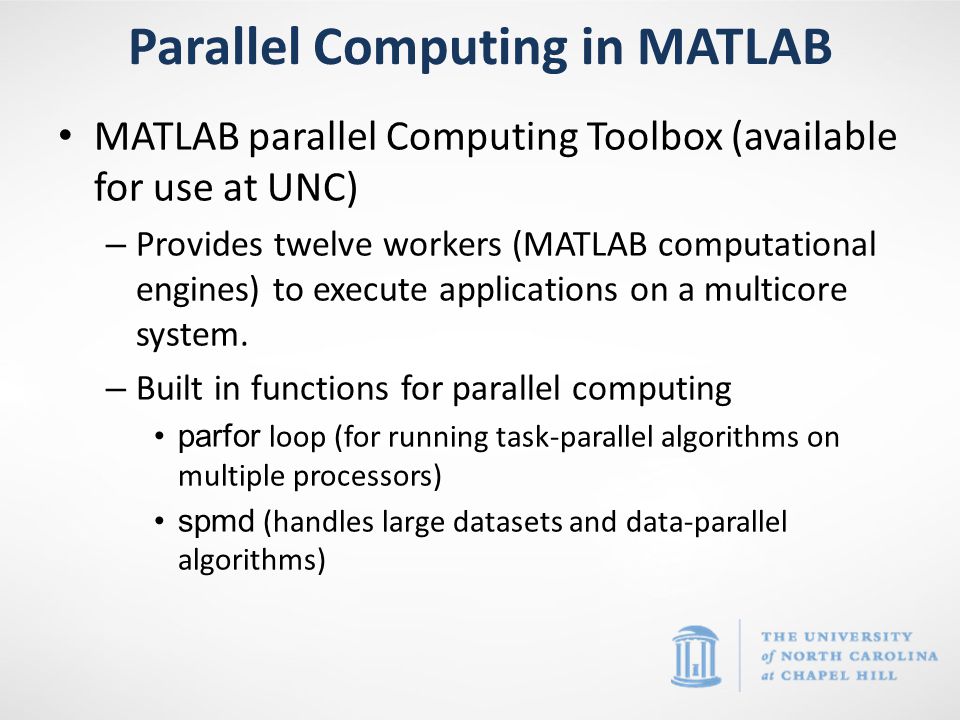

MATLAB parallel Computing Toolbox (available for use at UNC) – Provides twelve workers (MATLAB computational engines) to execute applications on a multicore system. – Built in functions for parallel computing parfor loop (for running task-parallel algorithms on multiple processors) spmd (handles large datasets and data-parallel algorithms) Parallel Computing in MATLAB
12

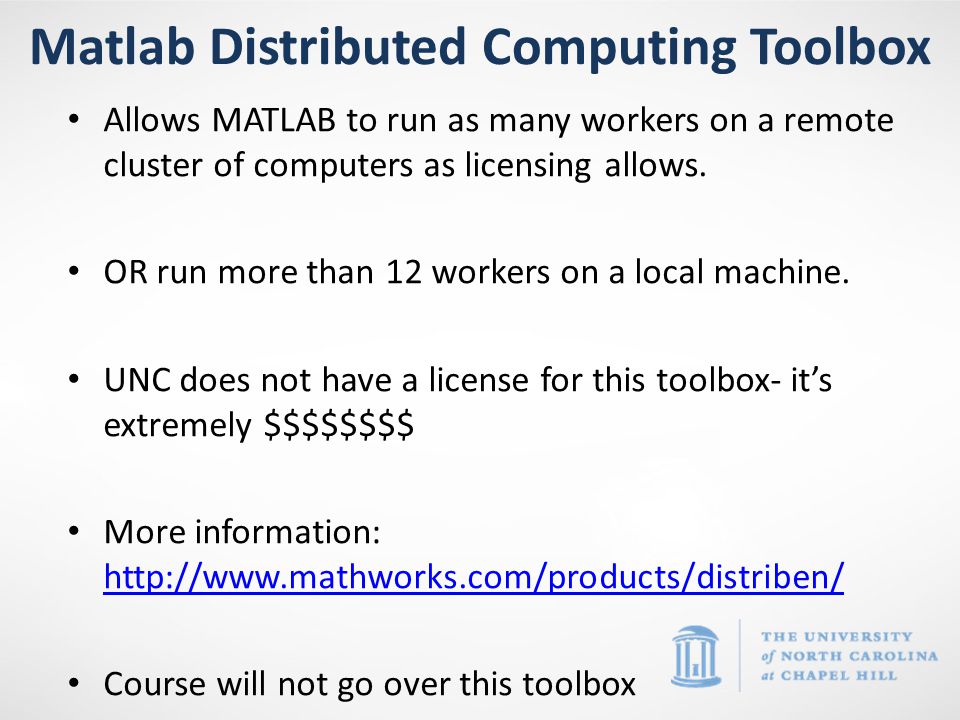

Allows MATLAB to run as many workers on a remote cluster of computers as licensing allows. OR run more than 12 workers on a local machine. UNC does not have a license for this toolbox- it’s extremely $$$$$$$$ More information: http://www.mathworks.com/products/distriben/ http://www.mathworks.com/products/distriben/ Course will not go over this toolbox Matlab Distributed Computing Toolbox
13

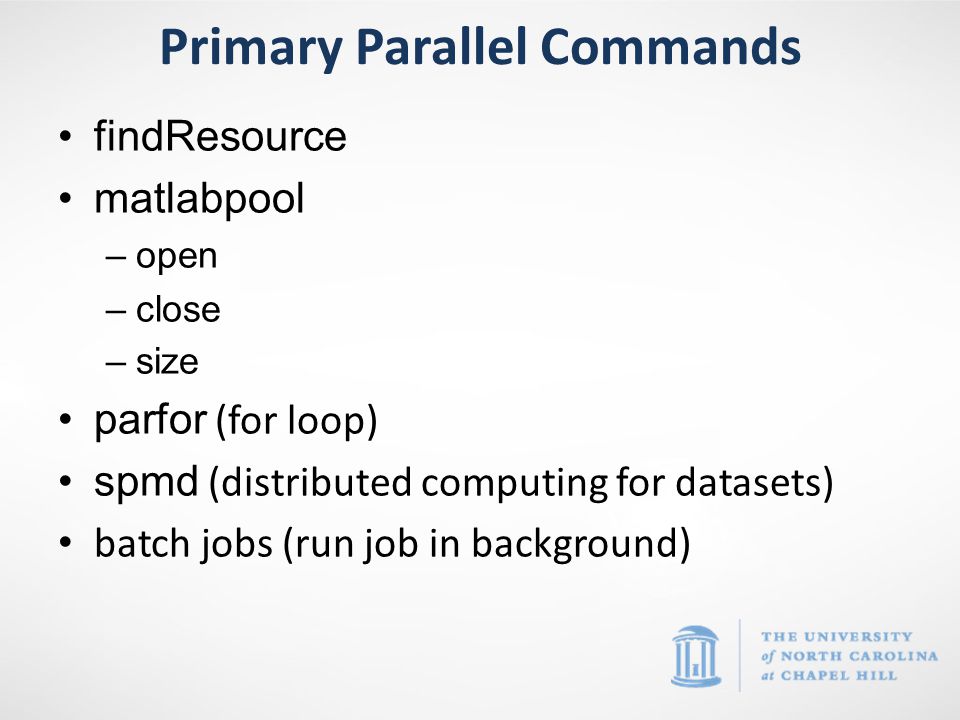

findResource matlabpool –open –close –size parfor (for loop) spmd (distributed computing for datasets) batch jobs (run job in background) Primary Parallel Commands
14

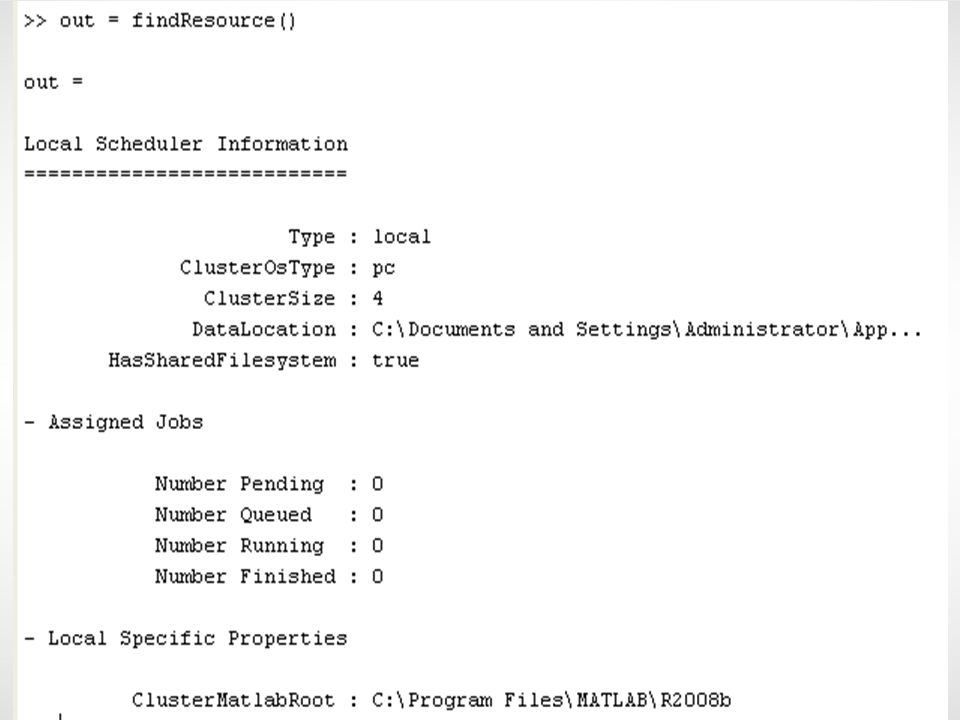

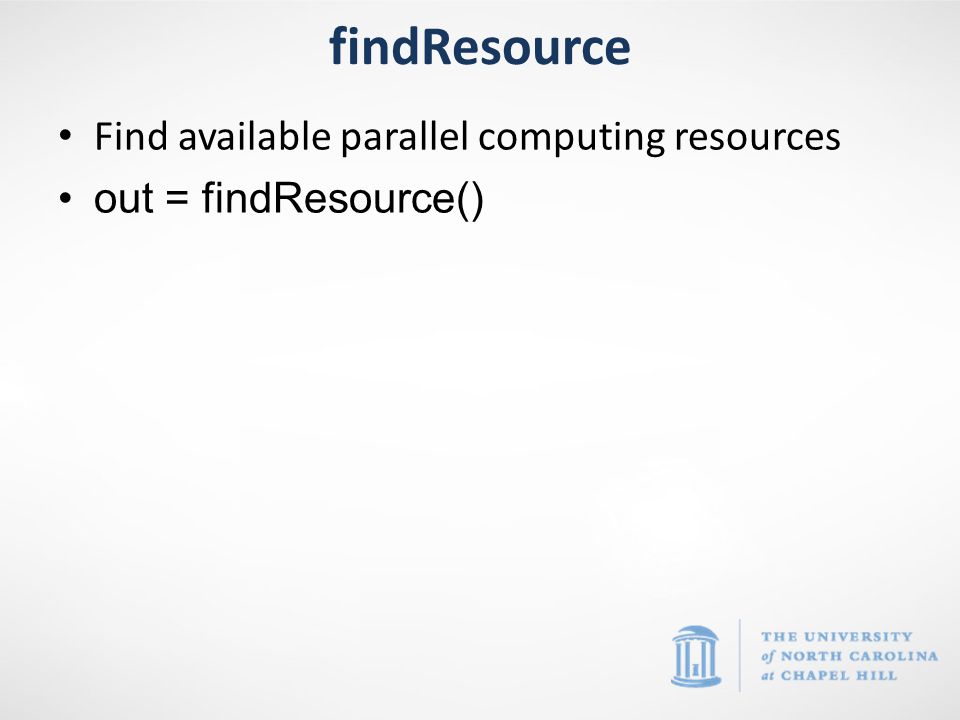

Find available parallel computing resources out = findResource() findResource
16

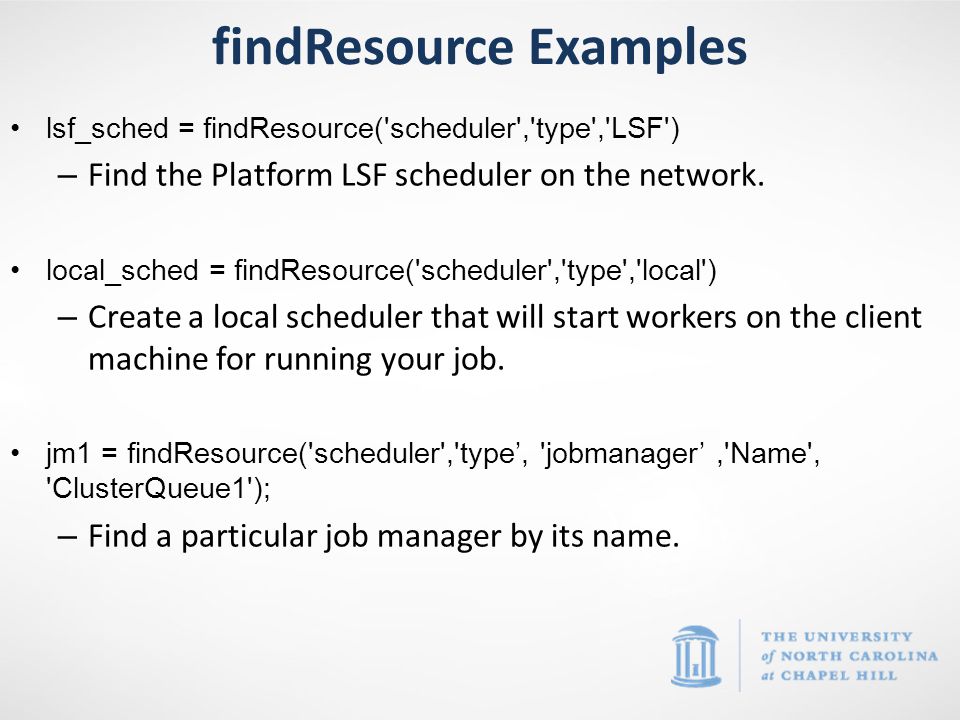

lsf_sched = findResource('scheduler','type','LSF') – Find the Platform LSF scheduler on the network. local_sched = findResource('scheduler','type','local') – Create a local scheduler that will start workers on the client machine for running your job. jm1 = findResource('scheduler','type’, 'jobmanager’,'Name', 'ClusterQueue1'); – Find a particular job manager by its name. findResource Examples
17

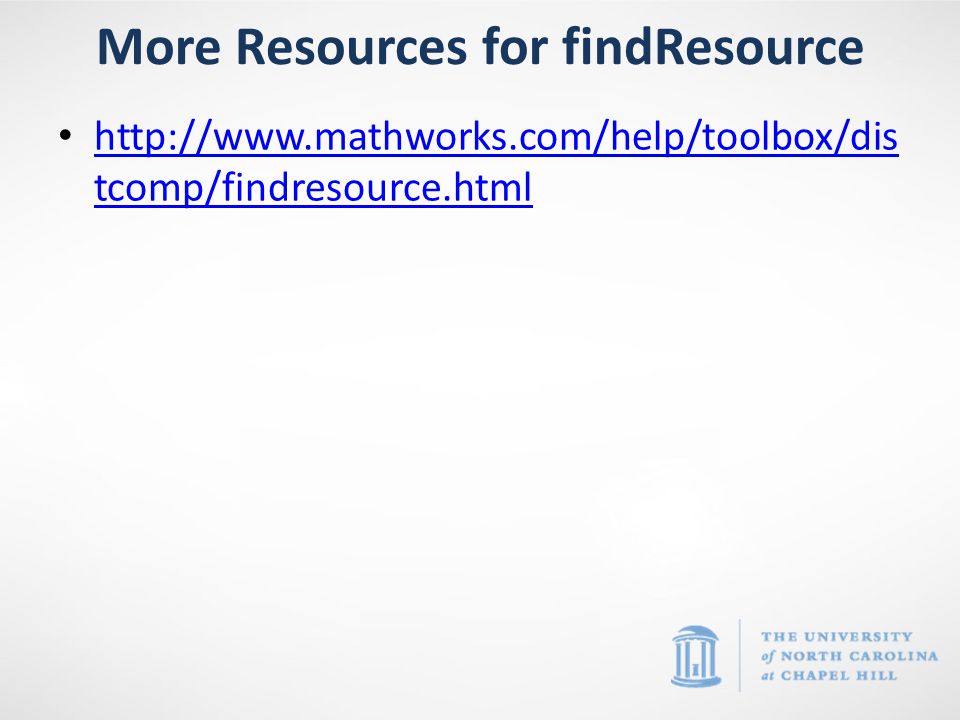

http://www.mathworks.com/help/toolbox/dis tcomp/findresource.html http://www.mathworks.com/help/toolbox/dis tcomp/findresource.html More Resources for findResource
18
matlabpool open – Begins a parallel work session Options for open matlab pool Matlabpool
19

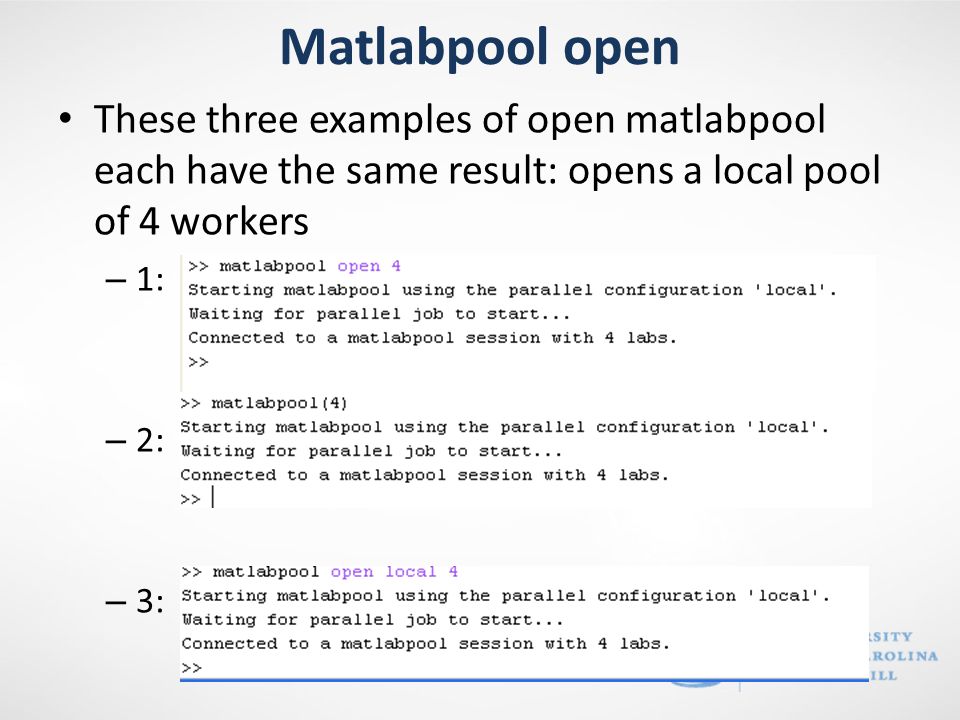

These three examples of open matlabpool each have the same result: opens a local pool of 4 workers – 1: – 2: – 3: Matlabpool open
20

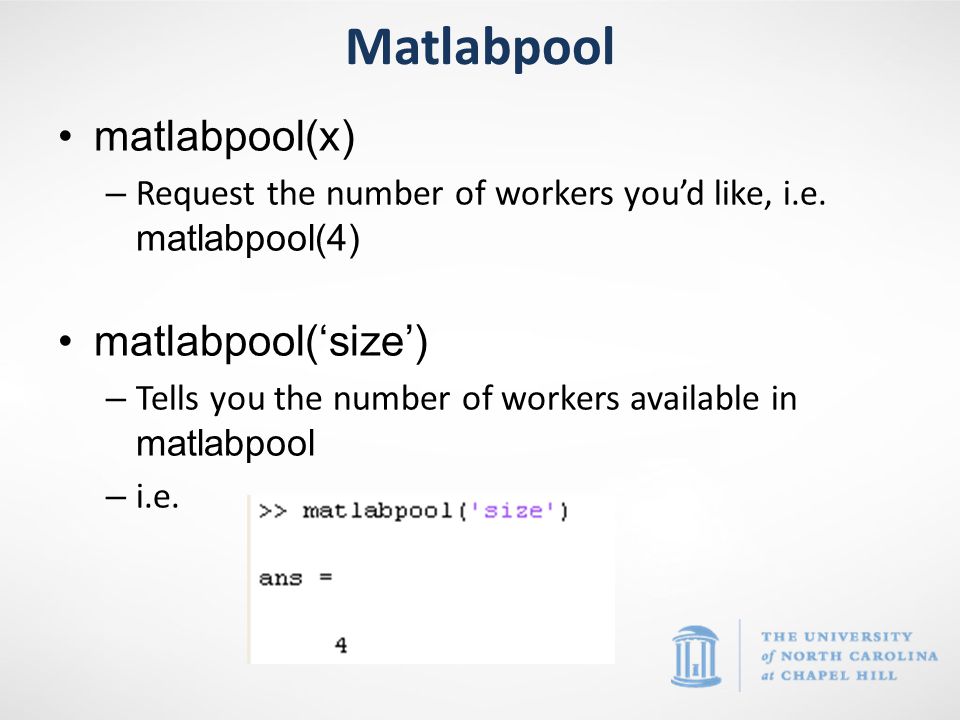

matlabpool(x) – Request the number of workers you’d like, i.e. matlabpool(4) matlabpool(‘size’) – Tells you the number of workers available in matlabpool – i.e. Matlabpool
21

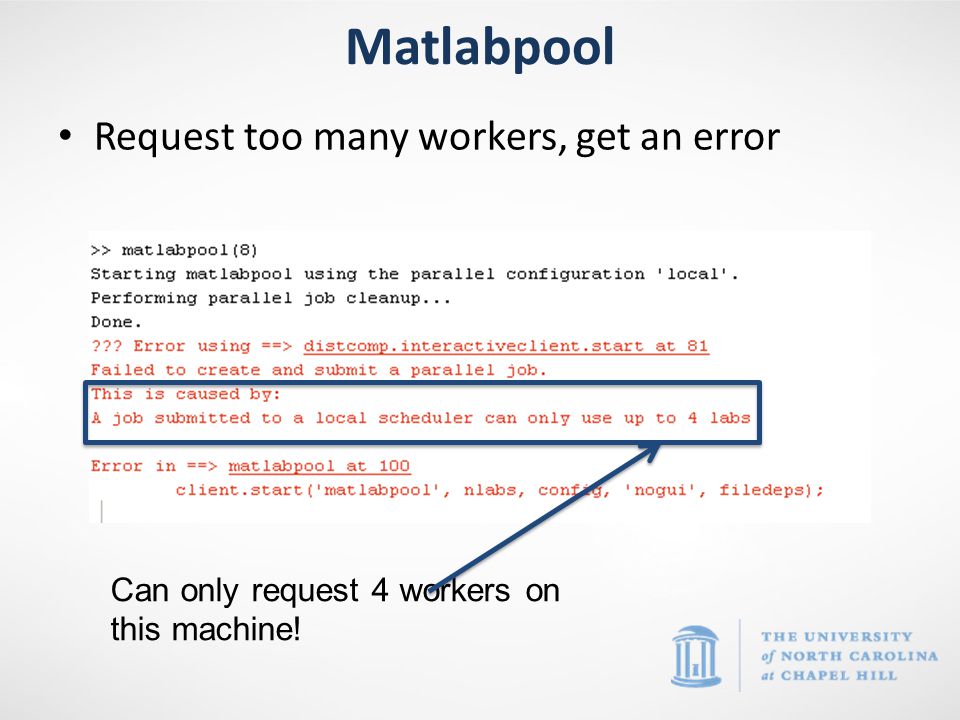

Request too many workers, get an error Matlabpool Can only request 4 workers on this machine!
22

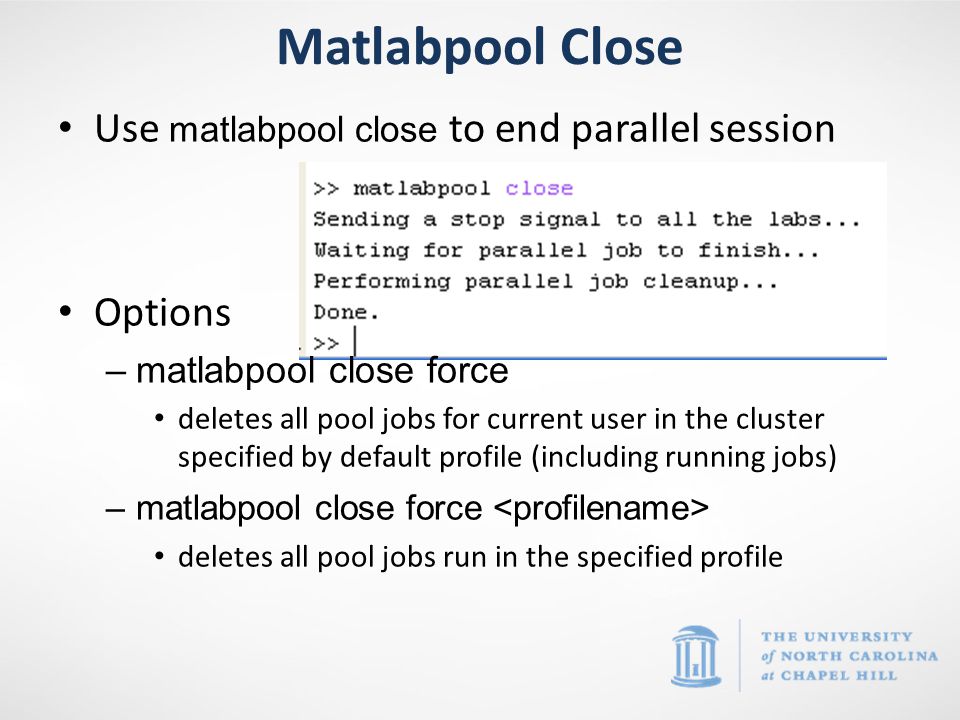

Use matlabpool close to end parallel session Options –matlabpool close force deletes all pool jobs for current user in the cluster specified by default profile (including running jobs) –matlabpool close force deletes all pool jobs run in the specified profile Matlabpool Close
23

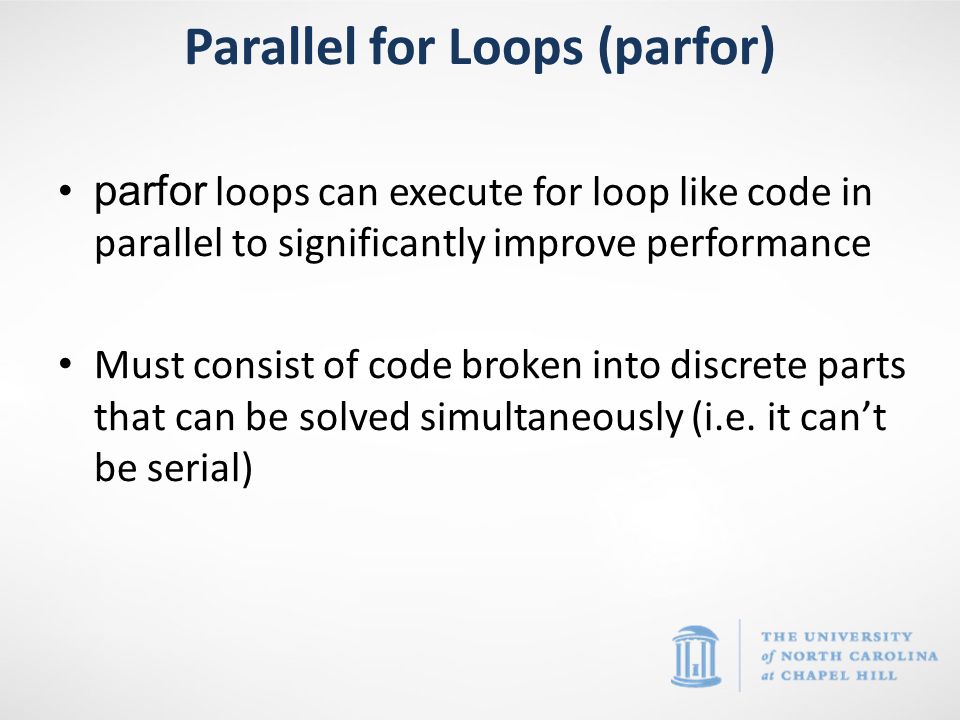

parfor loops can execute for loop like code in parallel to significantly improve performance Must consist of code broken into discrete parts that can be solved simultaneously (i.e. it can’t be serial) Parallel for Loops (parfor)
24

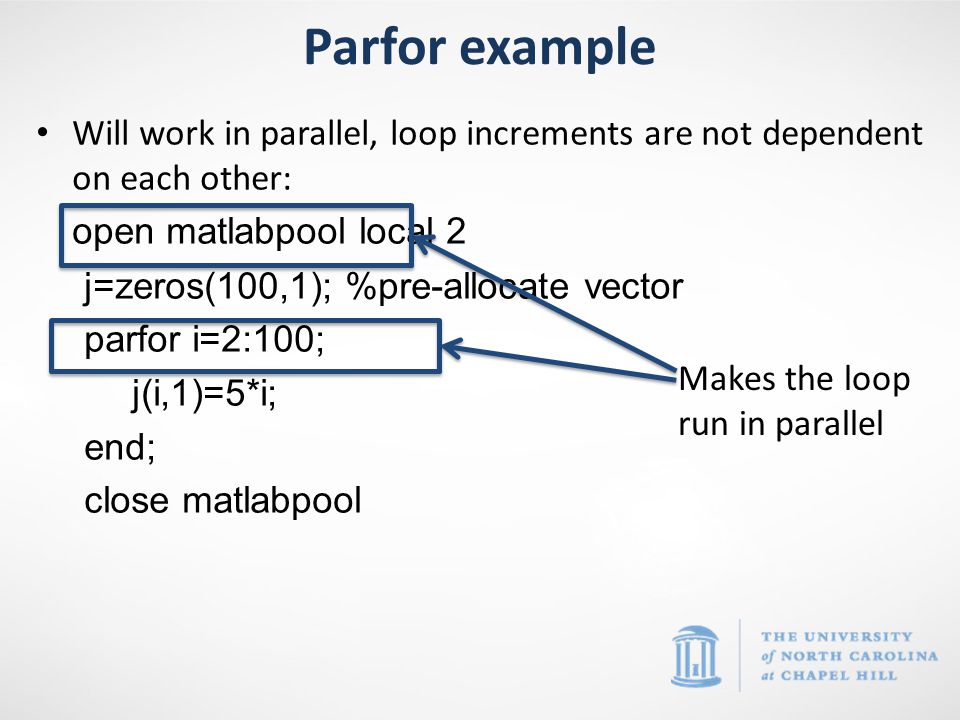

Will work in parallel, loop increments are not dependent on each other: open matlabpool local 2 j=zeros(100,1); %pre-allocate vector parfor i=2:100; j(i,1)=5*i; end; close matlabpool Parfor example Makes the loop run in parallel
25

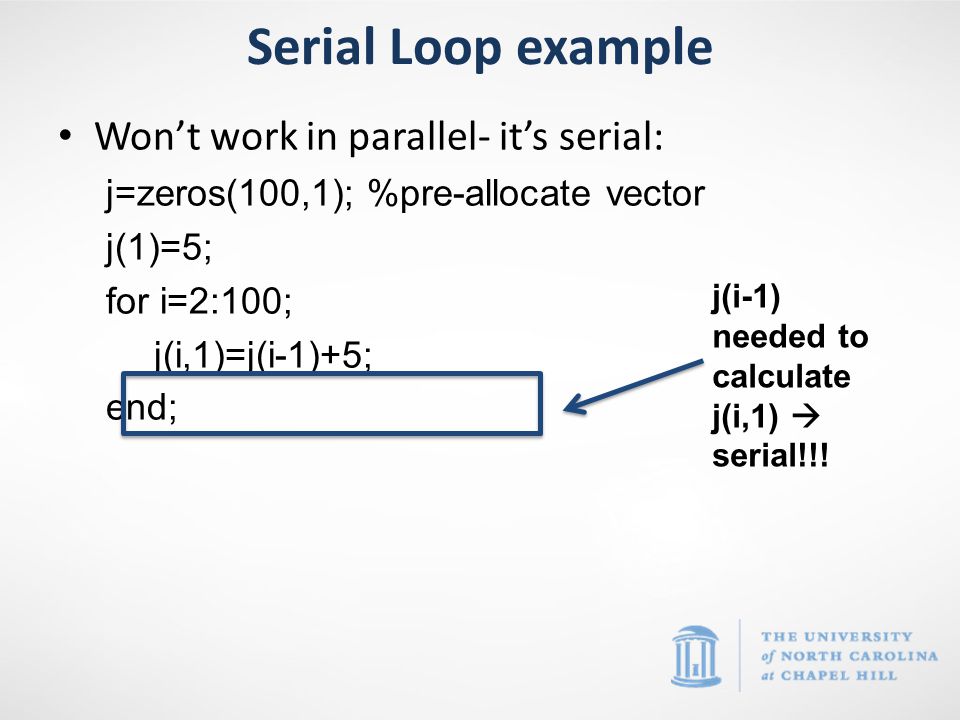

Won’t work in parallel- it’s serial: j=zeros(100,1); %pre-allocate vector j(1)=5; for i=2:100; j(i,1)=j(i-1)+5; end; Serial Loop example j(i-1) needed to calculate j(i,1) serial!!!
26

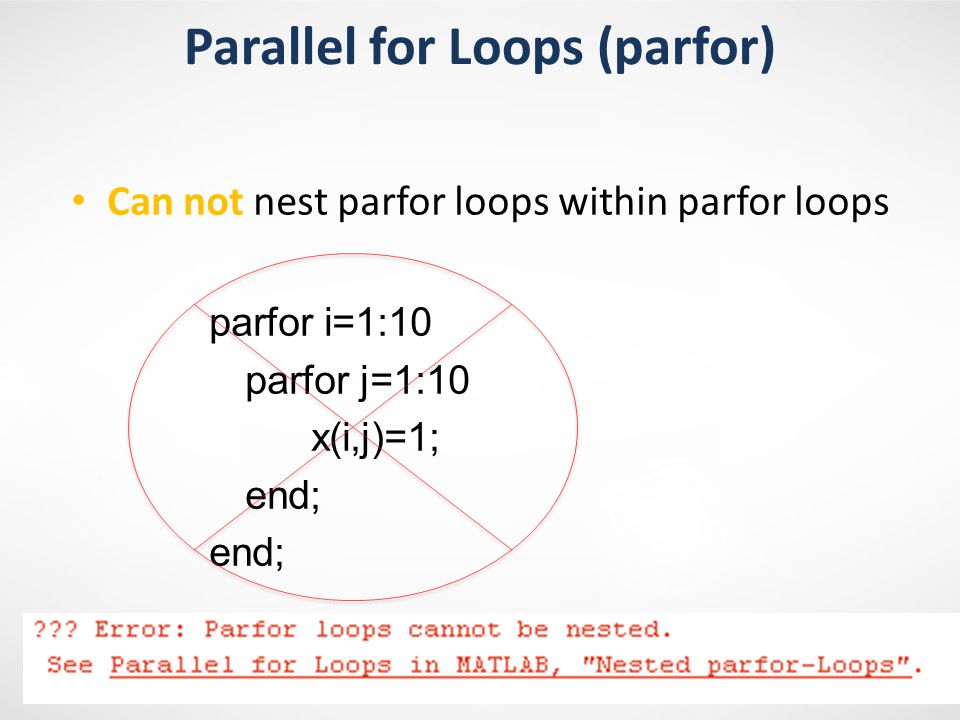

Can not nest parfor loops within parfor loops parfor i=1:10 parfor j=1:10 x(i,j)=1; end; Parallel for Loops (parfor)
27

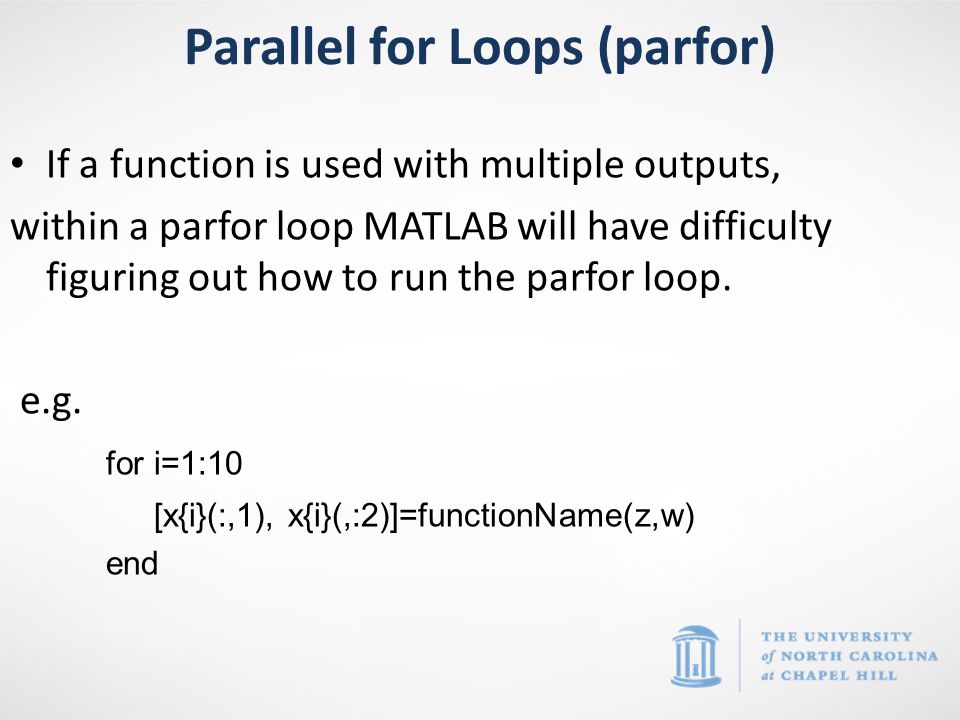

If a function is used with multiple outputs, within a parfor loop MATLAB will have difficulty figuring out how to run the parfor loop. e.g. for i=1:10 [x{i}(:,1), x{i}(,:2)]=functionName(z,w) end Parallel for Loops (parfor)
28

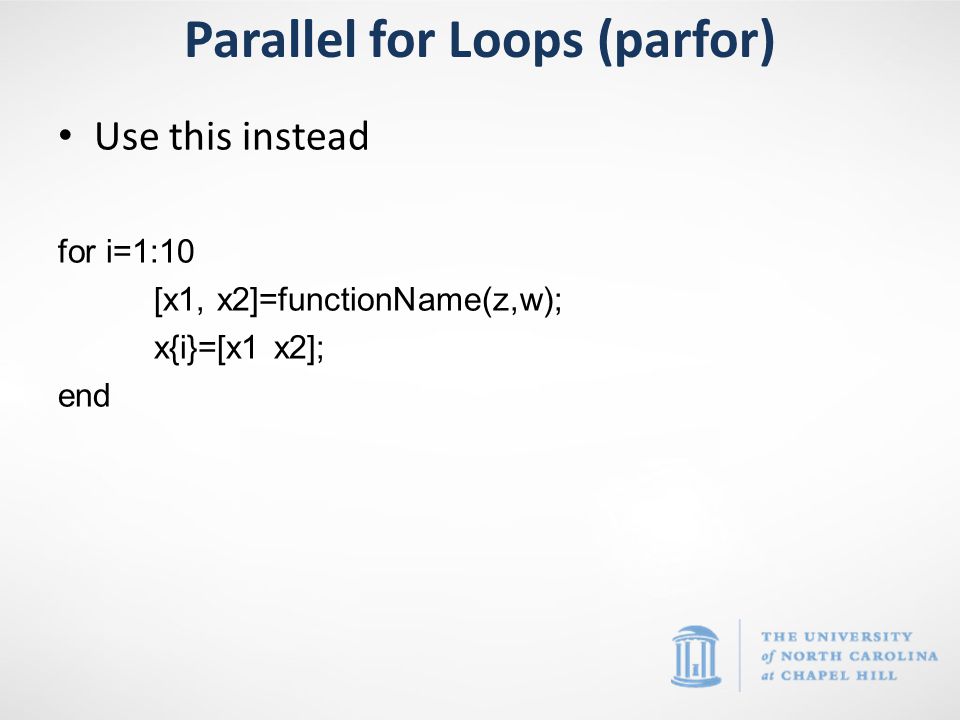

Use this instead for i=1:10 [x1, x2]=functionName(z,w); x{i}=[x1 x2]; end Parallel for Loops (parfor)
29

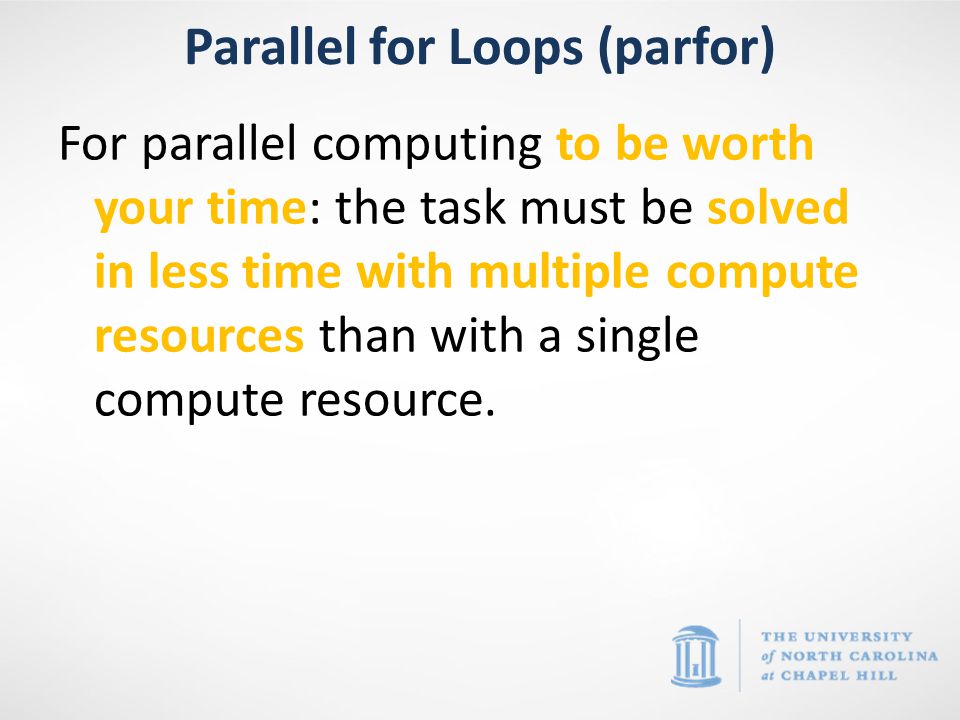

For parallel computing to be worth your time: the task must be solved in less time with multiple compute resources than with a single compute resource. Parallel for Loops (parfor)
30

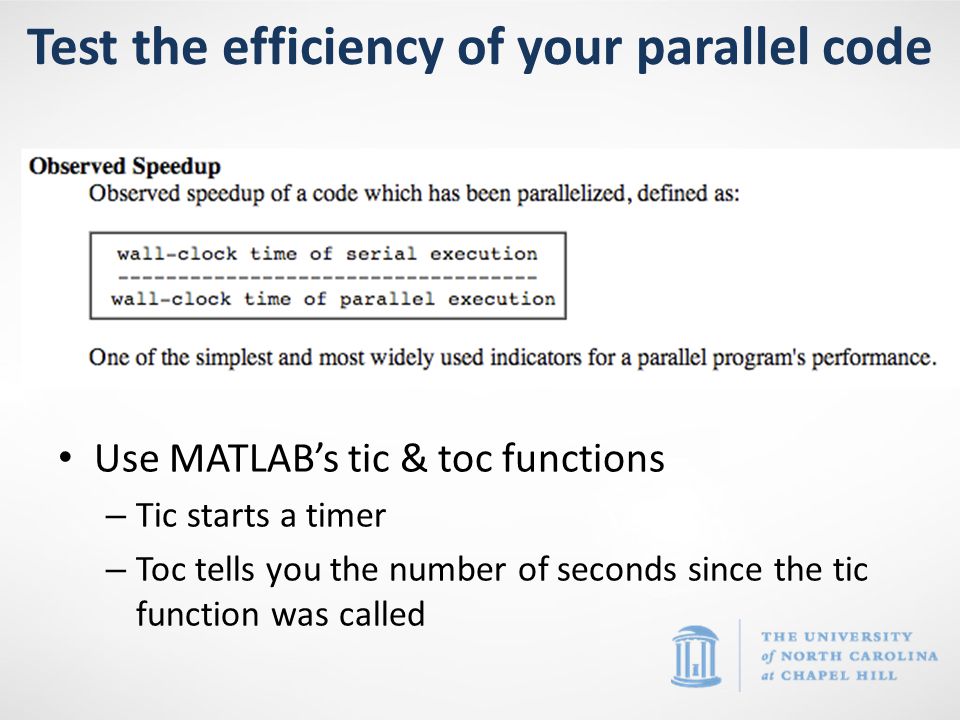

Use MATLAB’s tic & toc functions – Tic starts a timer – Toc tells you the number of seconds since the tic function was called Test the efficiency of your parallel code
31

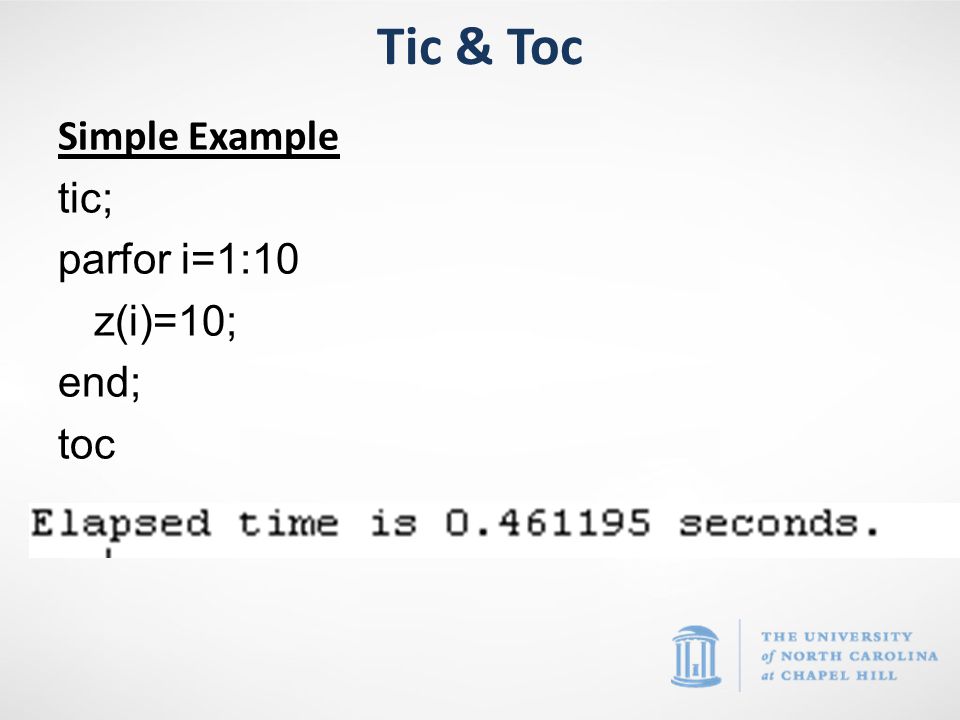

Simple Example tic; parfor i=1:10 z(i)=10; end; toc Tic & Toc
32

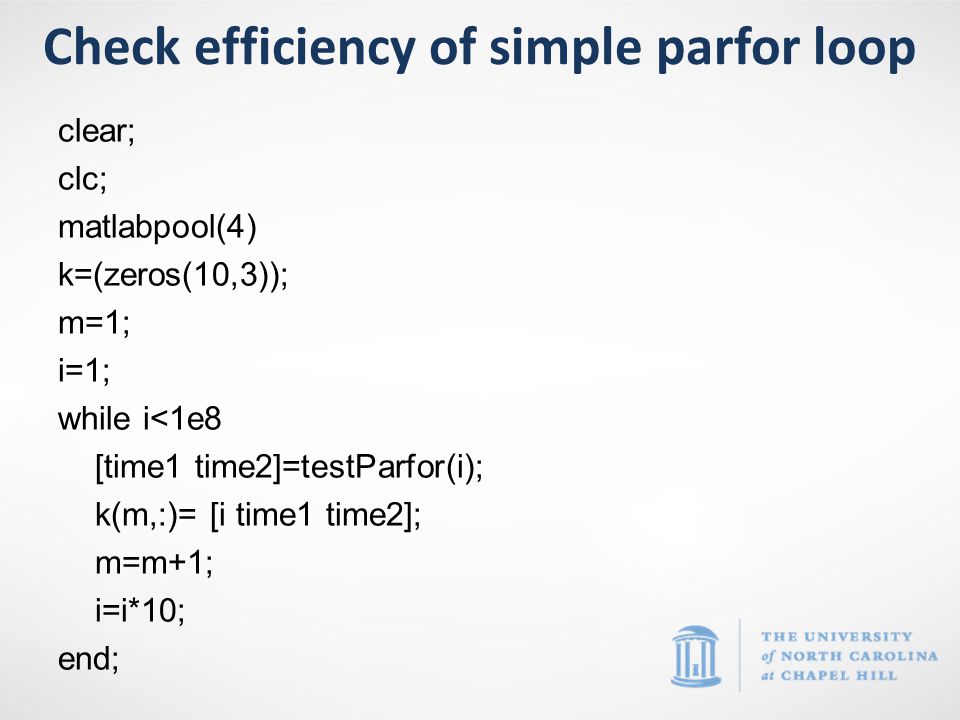

clear; clc; matlabpool(4) k=(zeros(10,3)); m=1; i=1; while i<1e8 [time1 time2]=testParfor(i); k(m,:)= [i time1 time2]; m=m+1; i=i*10; end; Check efficiency of simple parfor loop
33

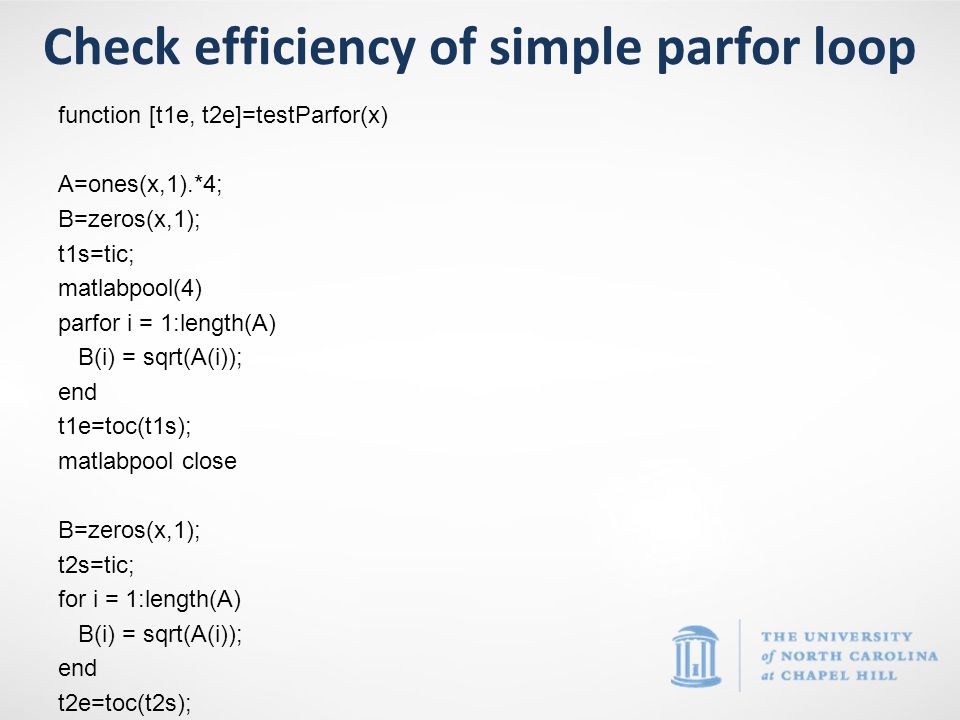

function [t1e, t2e]=testParfor(x) A=ones(x,1).*4; B=zeros(x,1); t1s=tic; matlabpool(4) parfor i = 1:length(A) B(i) = sqrt(A(i)); end t1e=toc(t1s); matlabpool close B=zeros(x,1); t2s=tic; for i = 1:length(A) B(i) = sqrt(A(i)); end t2e=toc(t2s); Check efficiency of simple parfor loop
34

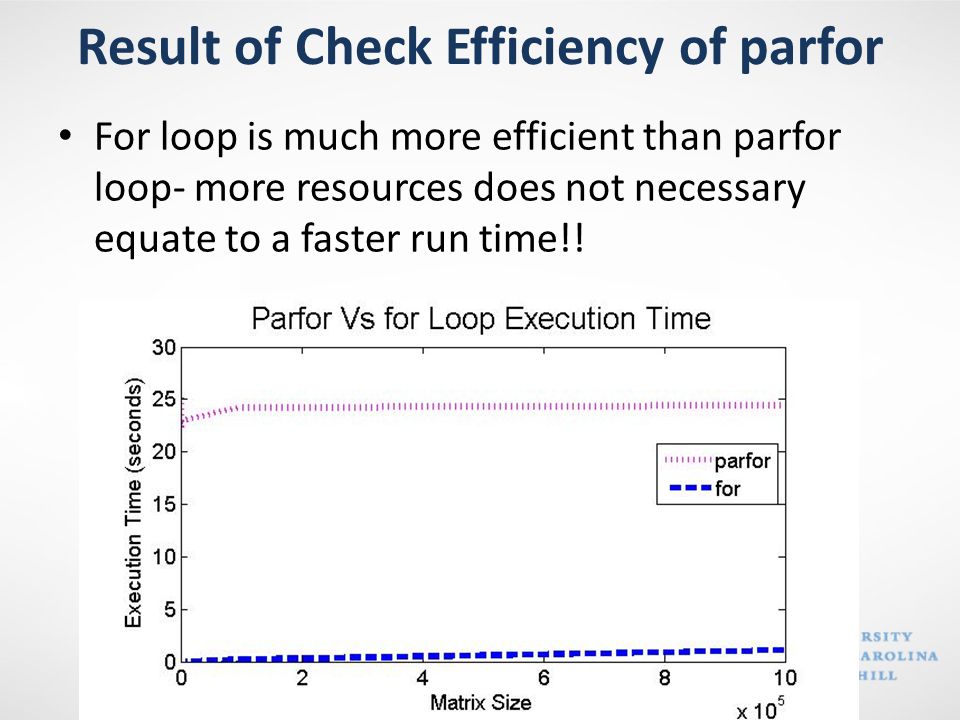

For loop is much more efficient than parfor loop- more resources does not necessary equate to a faster run time!! Result of Check Efficiency of parfor
35
Previous example is not an effective use of a parfor loop because it takes more time to evaluate than a for loop. – Data transfer is the issue – Parfor is more effective with long running calculations within the loop – Generally more iterations increase the efficiency of a parfor loop Parfor Efficiency
36

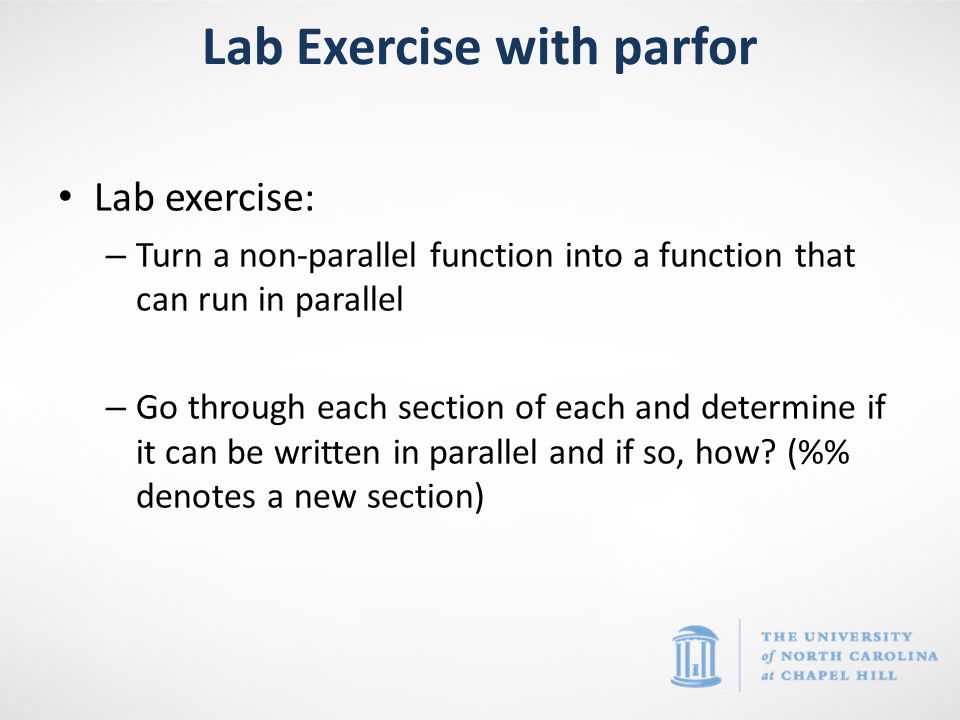

Lab exercise: – Turn a non-parallel function into a function that can run in parallel – Go through each section of each and determine if it can be written in parallel and if so, how? (% denotes a new section) Lab Exercise with parfor
37

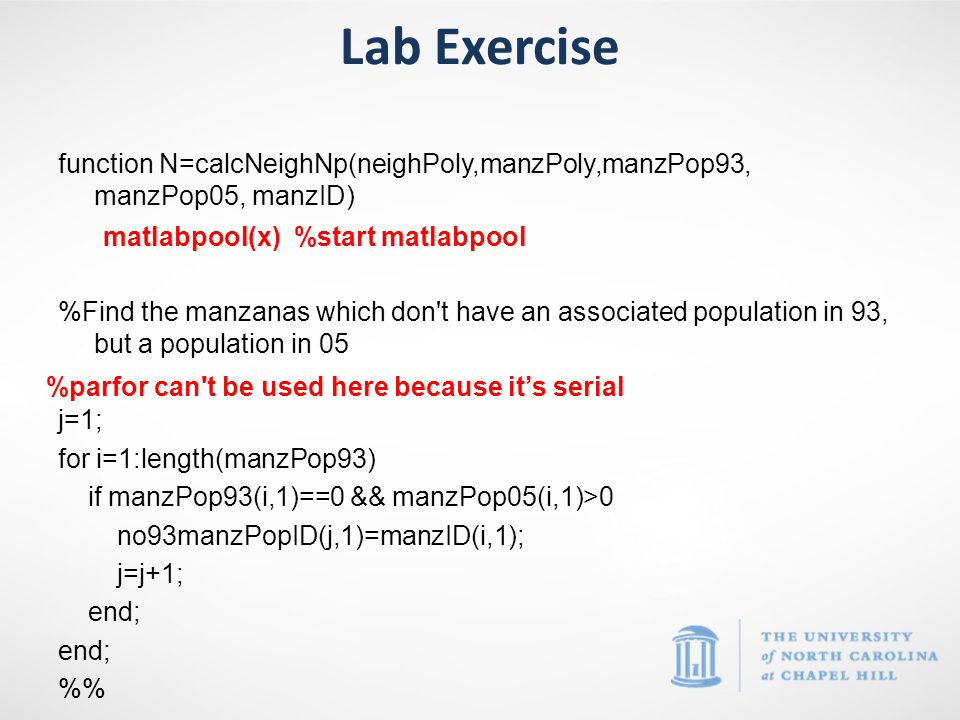

function N=calcNeighNp(neighPoly,manzPoly,manzPop93, manzPop05, manzID) %Find the manzanas which don't have an associated population in 93, but a population in 05 j=1; for i=1:length(manzPop93) if manzPop93(i,1)==0 && manzPop05(i,1)>0 no93manzPopID(j,1)=manzID(i,1); j=j+1; end; % Lab Exercise matlabpool(x) %start matlabpool %parfor can't be used here because it’s serial
38

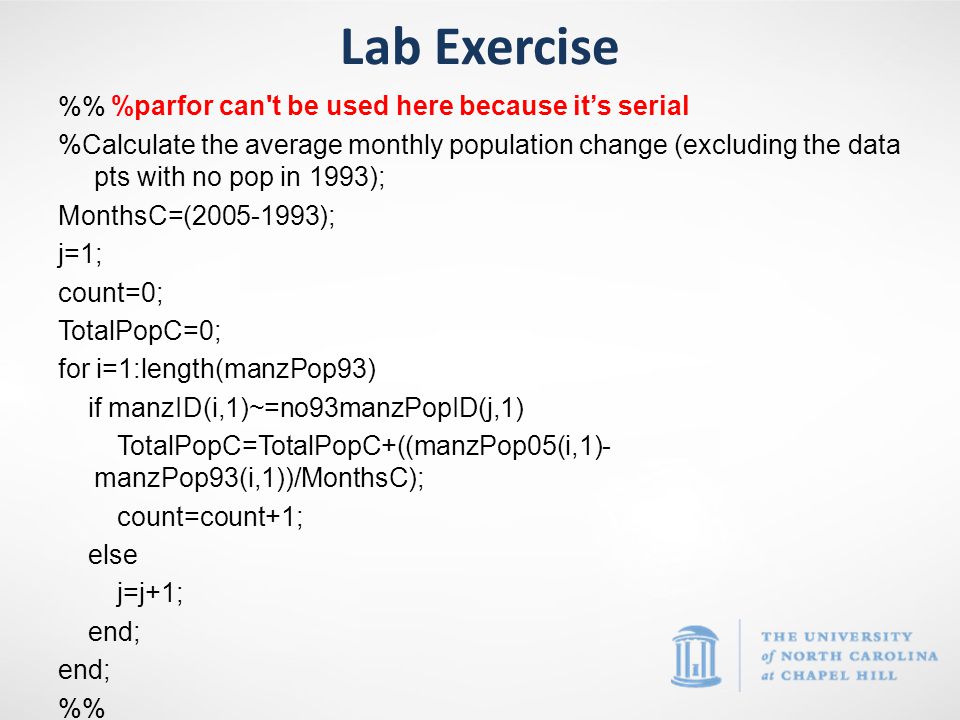

% %Calculate the average monthly population change (excluding the data pts with no pop in 1993); MonthsC=(2005-1993); j=1; count=0; TotalPopC=0; for i=1:length(manzPop93) if manzID(i,1)~=no93manzPopID(j,1) TotalPopC=TotalPopC+((manzPop05(i,1)- manzPop93(i,1))/MonthsC); count=count+1; else j=j+1; end; % Lab Exercise %parfor can't be used here because it’s serial
39

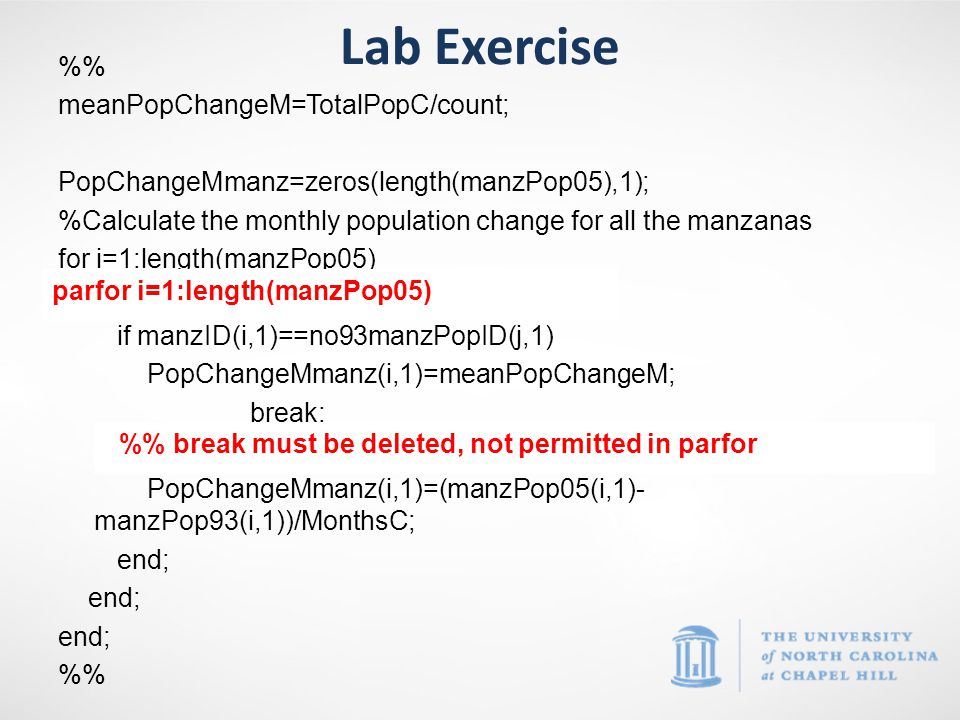

% meanPopChangeM=TotalPopC/count; PopChangeMmanz=zeros(length(manzPop05),1); %Calculate the monthly population change for all the manzanas for i=1:length(manzPop05) for j=1:length(no93manzPopID) if manzID(i,1)==no93manzPopID(j,1) PopChangeMmanz(i,1)=meanPopChangeM; break; else PopChangeMmanz(i,1)=(manzPop05(i,1)- manzPop93(i,1))/MonthsC; end; % Lab Exercise parfor i=1:length(manzPop05) % break must be deleted, not permitted in parfor
40

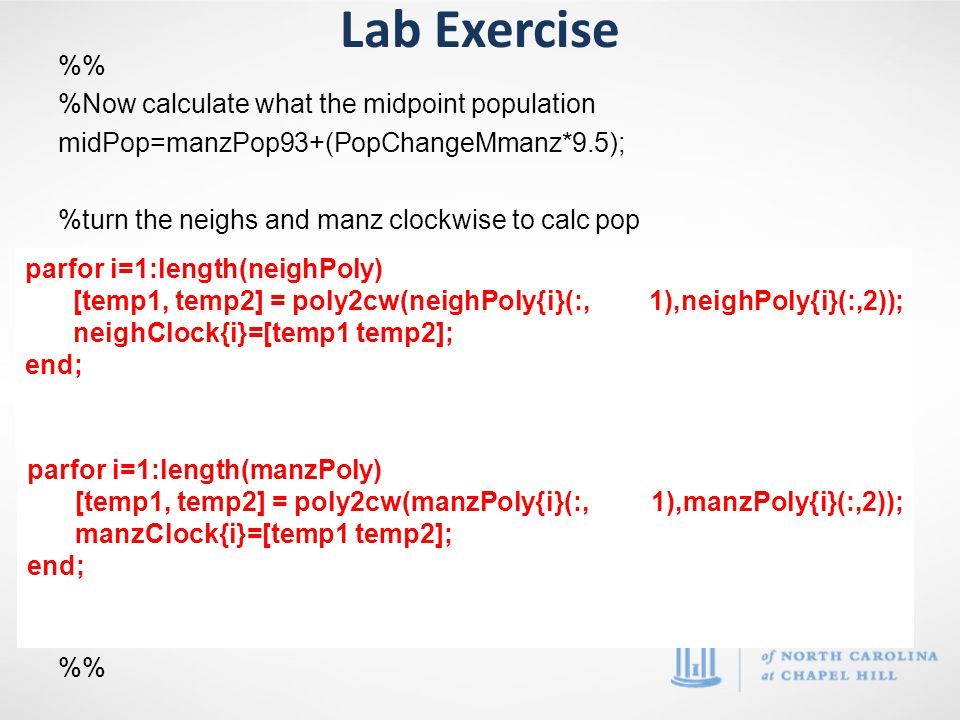

% %Now calculate what the midpoint population midPop=manzPop93+(PopChangeMmanz*9.5); %turn the neighs and manz clockwise to calc pop for i=1:length(neighPoly) [neighClock{i}(:,1) neighClock{i}(:,2)] = poly2cw(neighPoly{i}(:,1),neighPoly{i}(:,2)); end; for i=1:length(manzPoly) [manzClock{i}(:,1) manzClock{i}(:,2)]= poly2cw(manzPoly{i}(:,1),manzPoly{i}(:,2)); end; % Lab Exercise parfor i=1:length(neighPoly) [temp1, temp2] = poly2cw(neighPoly{i}(:,1),neighPoly{i}(:,2)); neighClock{i}=[temp1 temp2]; end; parfor i=1:length(manzPoly) [temp1, temp2] = poly2cw(manzPoly{i}(:,1),manzPoly{i}(:,2)); manzClock{i}=[temp1 temp2]; end;
41

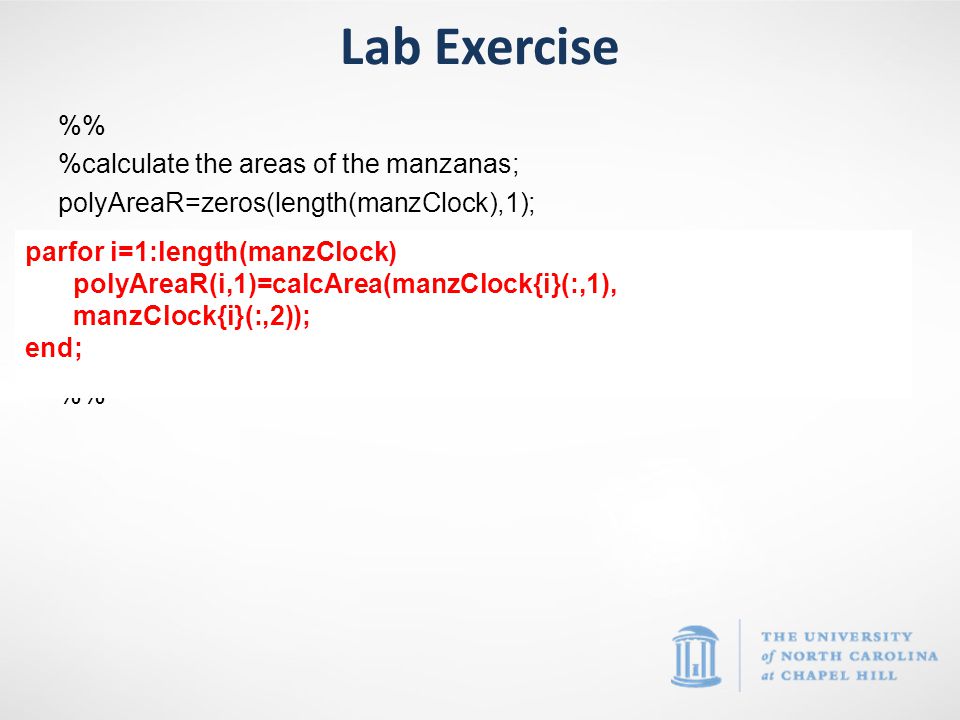

% %calculate the areas of the manzanas; polyAreaR=zeros(length(manzClock),1); for i=1:length(manzClock) polyAreaR(i,1)=calcArea(manzClock{i}(:,1), manzClock{i}(:,2)); end; % Lab Exercise parfor i=1:length(manzClock) polyAreaR(i,1)=calcArea(manzClock{i}(:,1), manzClock{i}(:,2)); end;
42

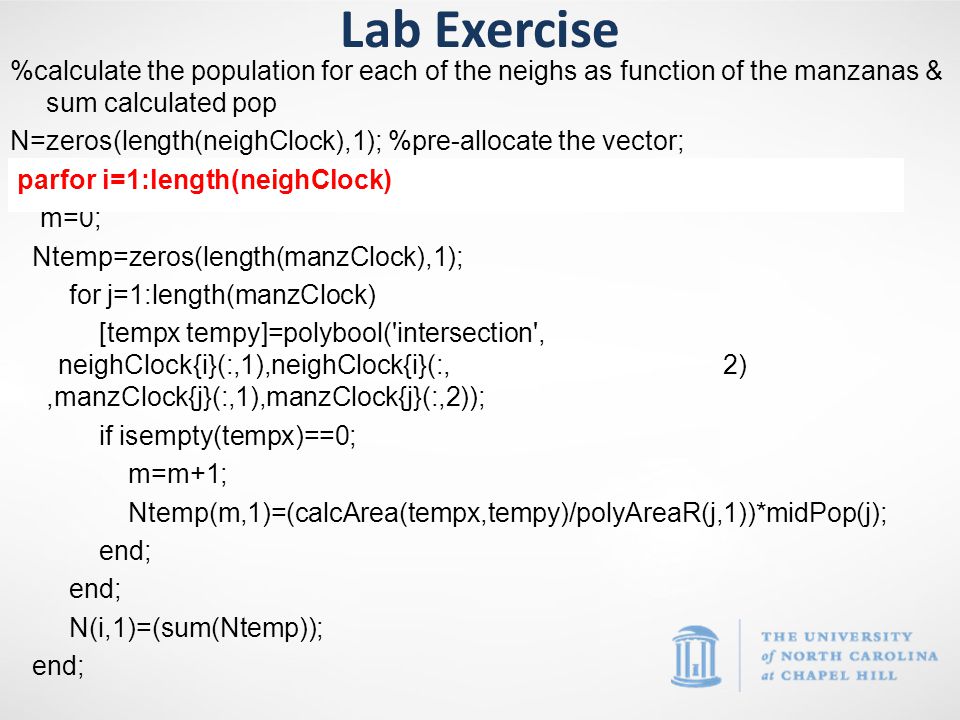

%calculate the population for each of the neighs as function of the manzanas & sum calculated pop N=zeros(length(neighClock),1); %pre-allocate the vector; for i=1:length(neighClock) m=0; Ntemp=zeros(length(manzClock),1); for j=1:length(manzClock) [tempx tempy]=polybool('intersection', neighClock{i}(:,1),neighClock{i}(:, 2),manzClock{j}(:,1),manzClock{j}(:,2)); if isempty(tempx)==0; m=m+1; Ntemp(m,1)=(calcArea(tempx,tempy)/polyAreaR(j,1))*midPop(j); end; N(i,1)=(sum(Ntemp)); end; Lab Exercise parfor i=1:length(neighClock)
43
Loren Shure’s blog entry on parfor – http://blogs.mathworks.com/loren/2009/10/02/u sing-parfor-loops-getting-up-and-running/ http://blogs.mathworks.com/loren/2009/10/02/u sing-parfor-loops-getting-up-and-running/ Advanced parfor topics (MATLAB online help) – http://www.mathworks.com/help/toolbox/distco mp/brdqtjj-1.html#bq_of7_-1 http://www.mathworks.com/help/toolbox/distco mp/brdqtjj-1.html#bq_of7_-1 Lauren Shore (MATLAB engineer) More parfor resources
44

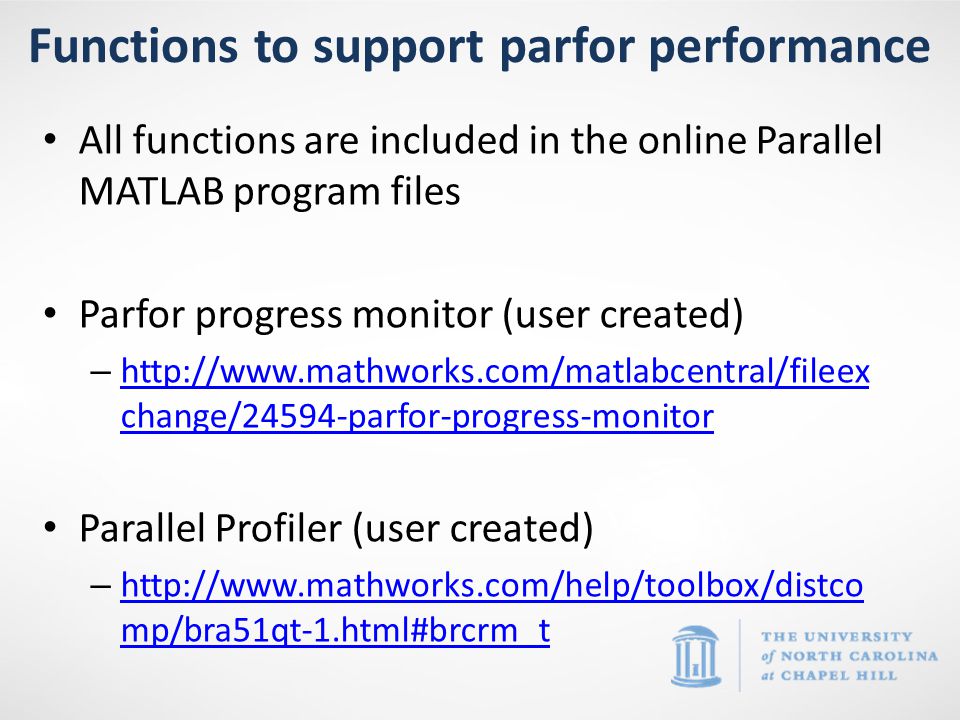

All functions are included in the online Parallel MATLAB program files Parfor progress monitor (user created) – http://www.mathworks.com/matlabcentral/fileex change/24594-parfor-progress-monitor http://www.mathworks.com/matlabcentral/fileex change/24594-parfor-progress-monitor Parallel Profiler (user created) – http://www.mathworks.com/help/toolbox/distco mp/bra51qt-1.html#brcrm_t http://www.mathworks.com/help/toolbox/distco mp/bra51qt-1.html#brcrm_t Functions to support parfor performance
45
All functions are included in the online Parallel MATLAB program files User-created codes Parfor progress monitor (user created) – http://www.mathworks.com/matlabcentral/fileex change/24594-parfor-progress-monitor http://www.mathworks.com/matlabcentral/fileex change/24594-parfor-progress-monitor Functions to support parfor performance
46
Parallel Profiler (built-in function) – http://www.mathworks.com/help/toolbox/distco mp/bra51qt-1.html#brcrm_t http://www.mathworks.com/help/toolbox/distco mp/bra51qt-1.html#brcrm_t partictoc – You can also use this user created function, partictoc to examine the efficiency of your parallel code – Download at:http://www.mathworks.com/matlabcentral/file exchange/27472-partictochttp://www.mathworks.com/matlabcentral/file exchange/27472-partictoc F unctions to support parfor performance
47

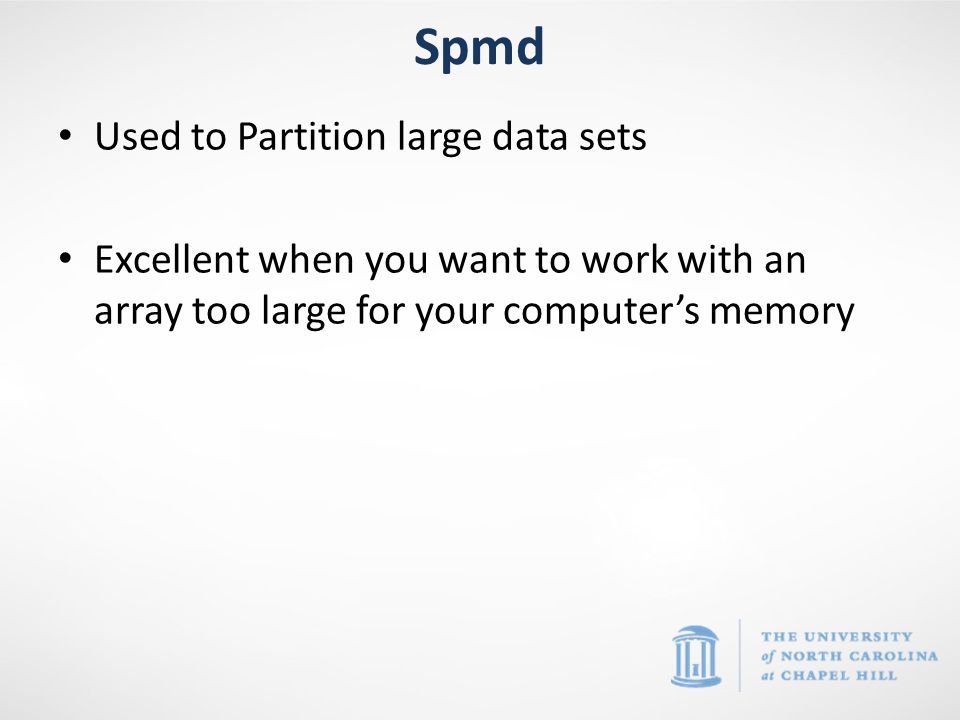

Used to Partition large data sets Excellent when you want to work with an array too large for your computer’s memory Spmd
48

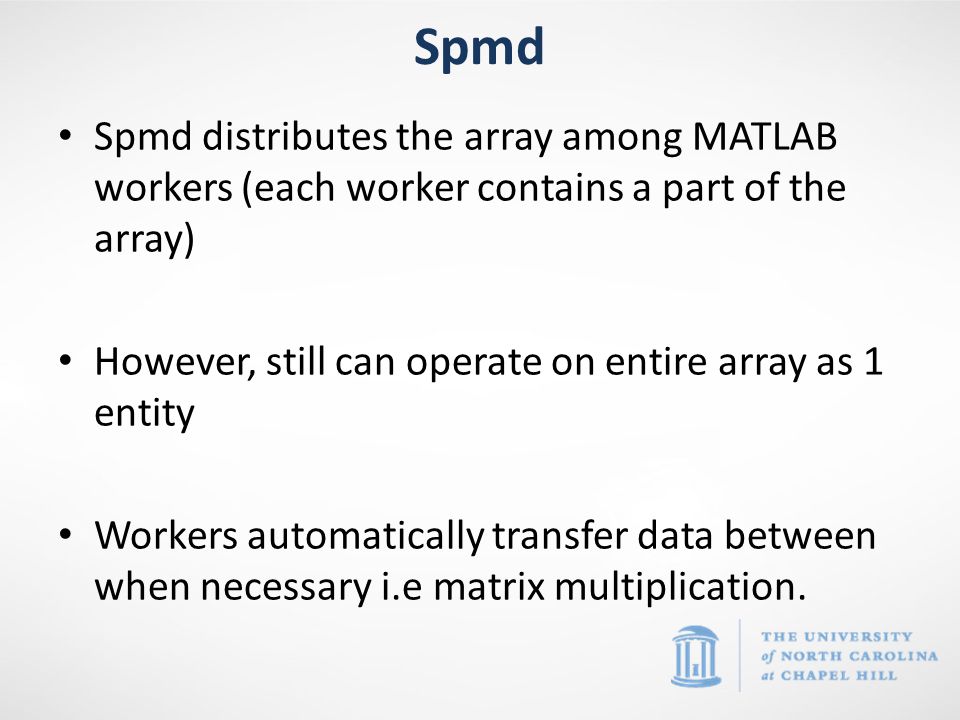

Spmd distributes the array among MATLAB workers (each worker contains a part of the array) However, still can operate on entire array as 1 entity Workers automatically transfer data between when necessary i.e matrix multiplication. Spmd
49

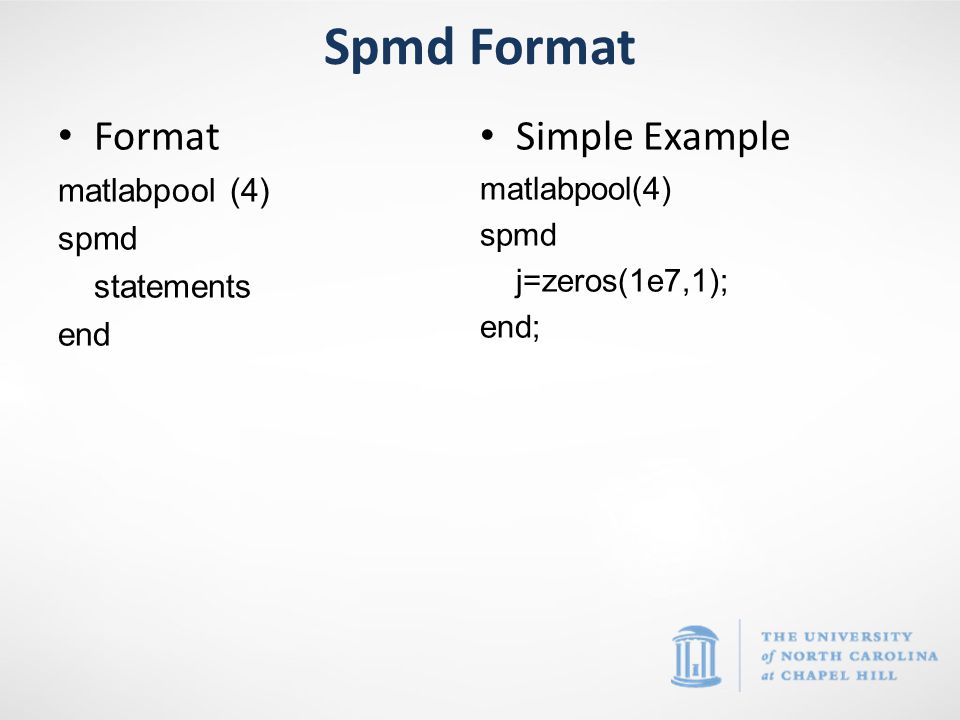

Format matlabpool (4) spmd statements end Simple Example matlabpool(4) spmd j=zeros(1e7,1); end; Spmd Format
50

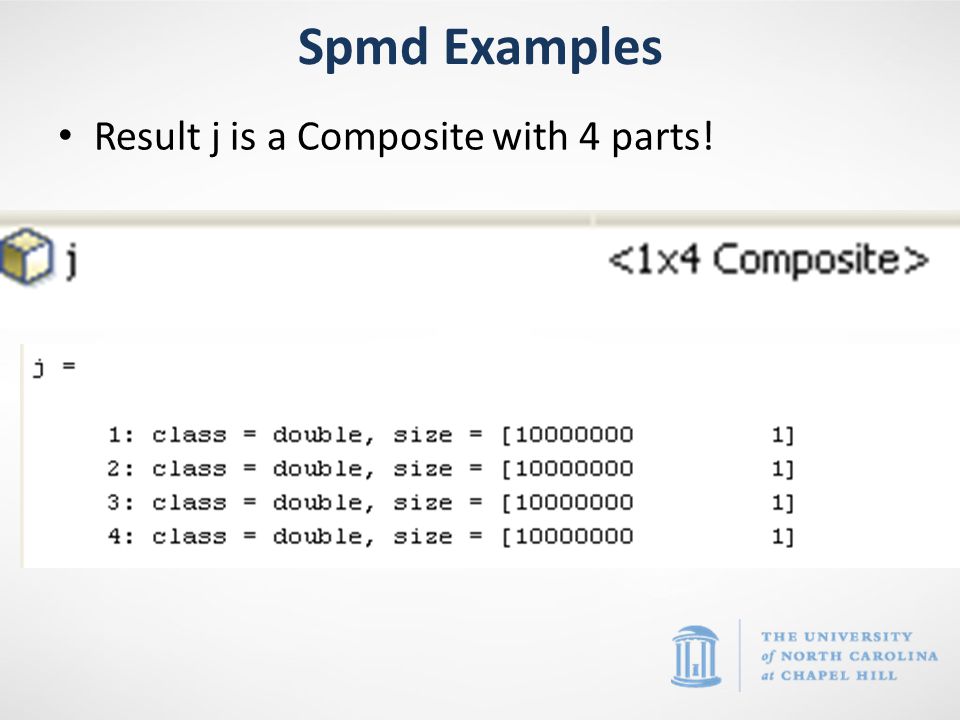

Result j is a Composite with 4 parts! Spmd Examples
51

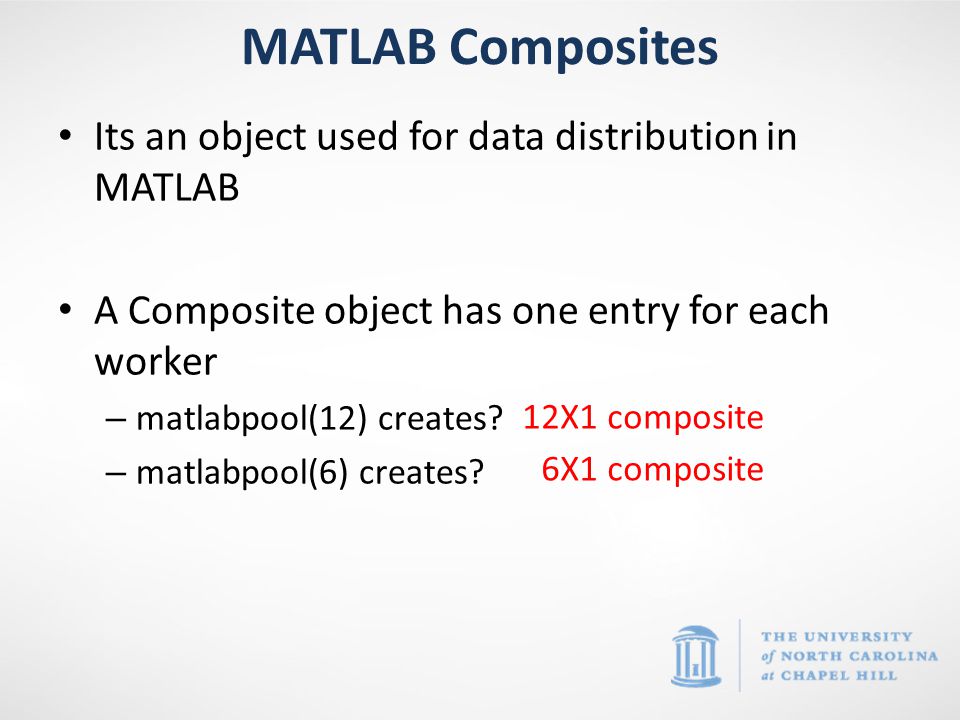

Its an object used for data distribution in MATLAB A Composite object has one entry for each worker – matlabpool(12) creates? – matlabpool(6) creates? MATLAB Composites 12X1 composite 6X1 composite
52

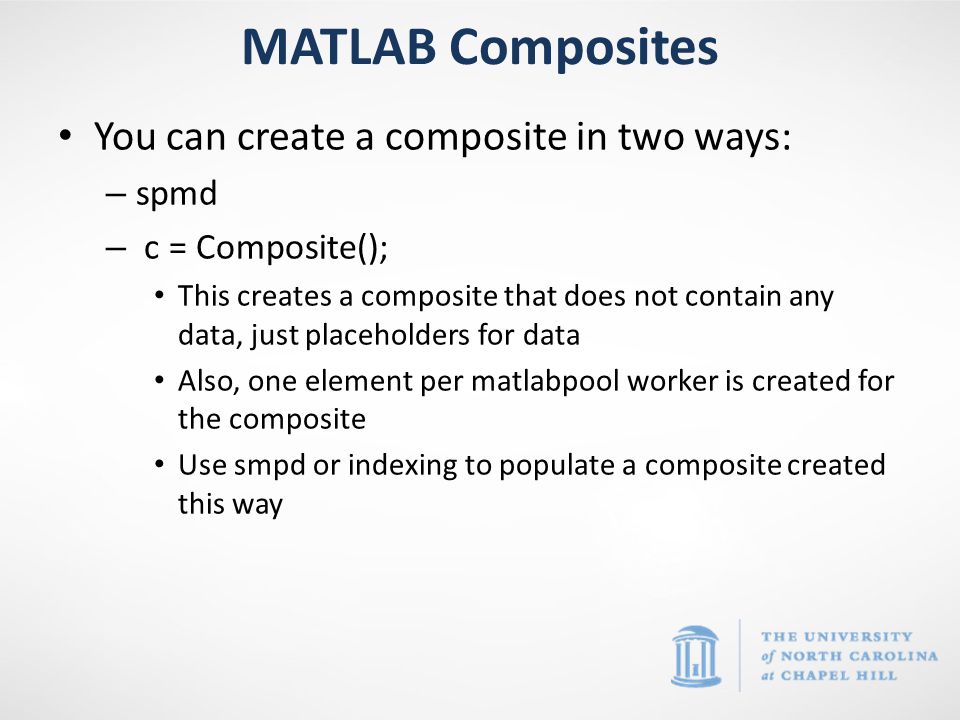

You can create a composite in two ways: – spmd – c = Composite(); This creates a composite that does not contain any data, just placeholders for data Also, one element per matlabpool worker is created for the composite Use smpd or indexing to populate a composite created this way MATLAB Composites
53

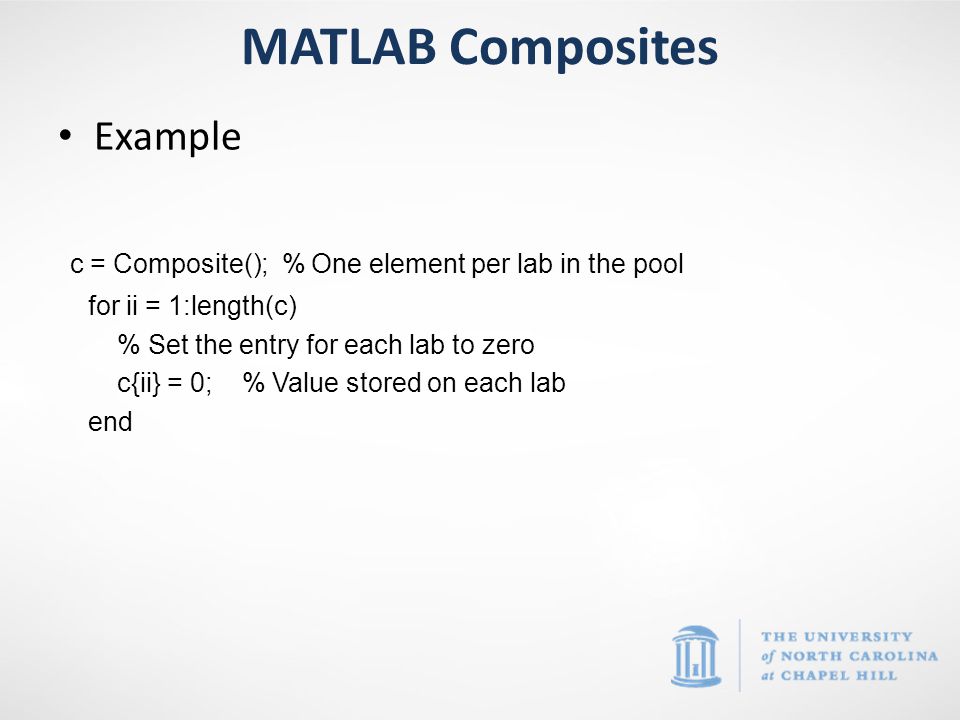

Example c = Composite(); % One element per lab in the pool for ii = 1:length(c) % Set the entry for each lab to zero c{ii} = 0; % Value stored on each lab end MATLAB Composites
54

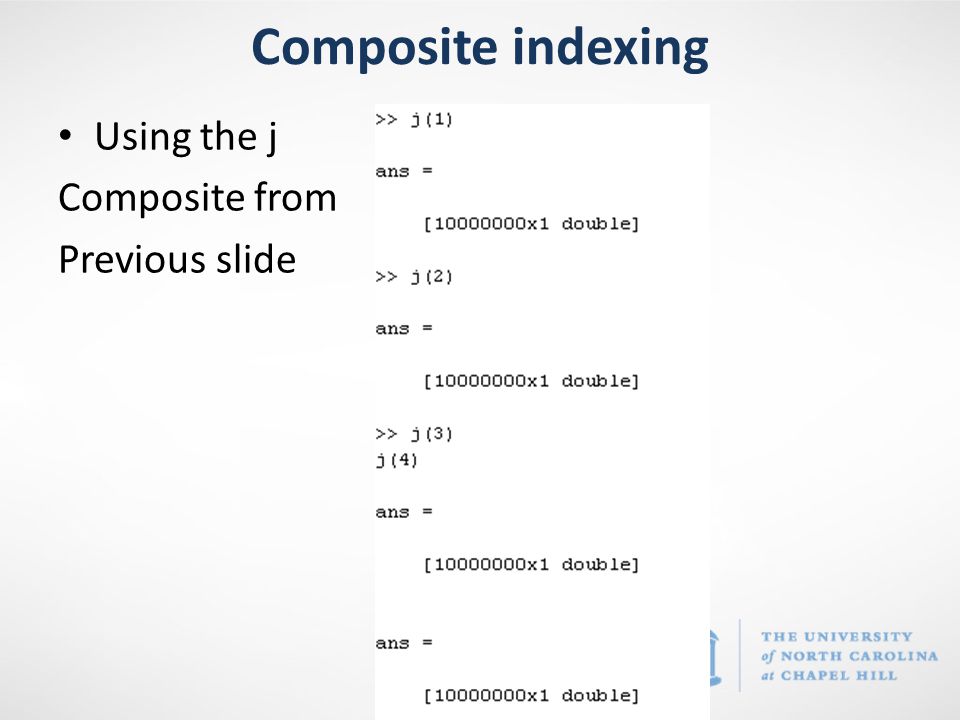

Using the j Composite from Previous slide Composite indexing
55

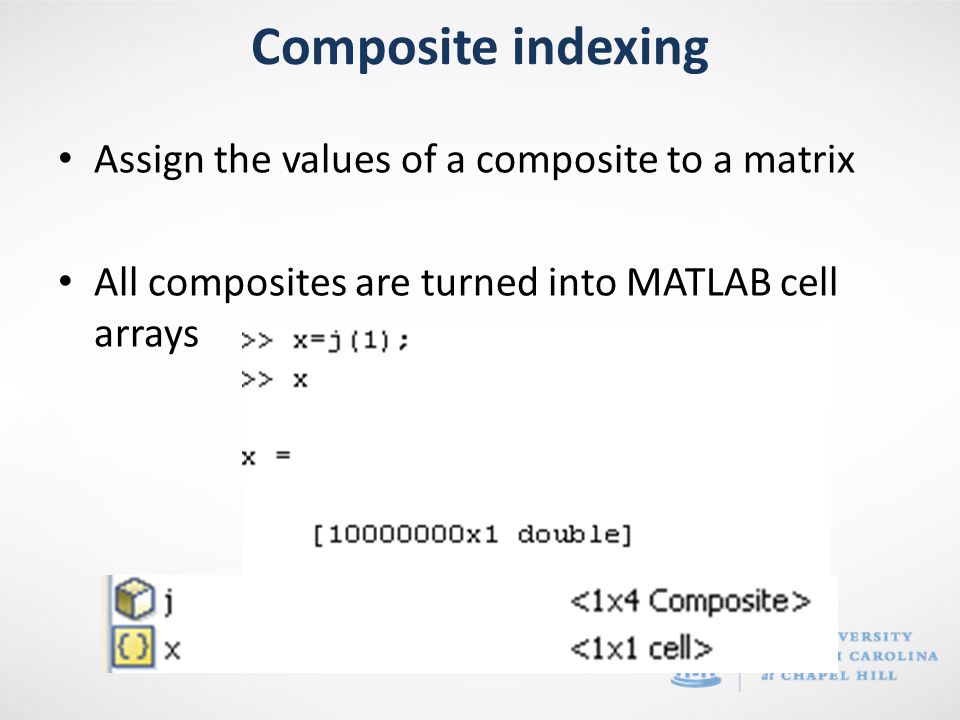

Assign the values of a composite to a matrix All composites are turned into MATLAB cell arrays Composite indexing
56

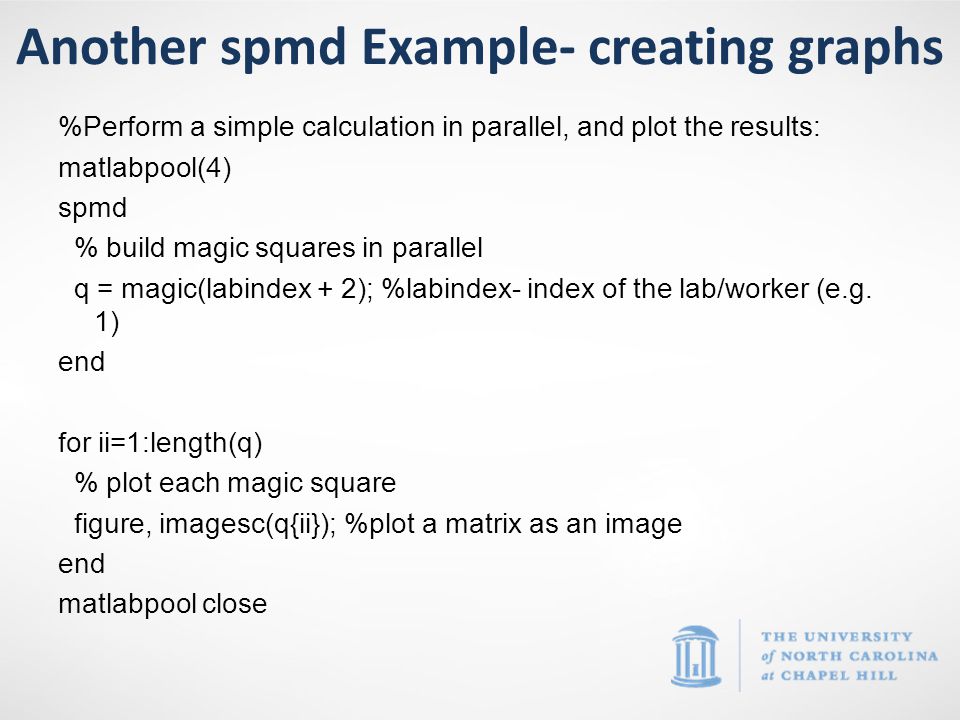

%Perform a simple calculation in parallel, and plot the results: matlabpool(4) spmd % build magic squares in parallel q = magic(labindex + 2); %labindex- index of the lab/worker (e.g. 1) end for ii=1:length(q) % plot each magic square figure, imagesc(q{ii}); %plot a matrix as an image end matlabpool close Another spmd Example- creating graphs
57

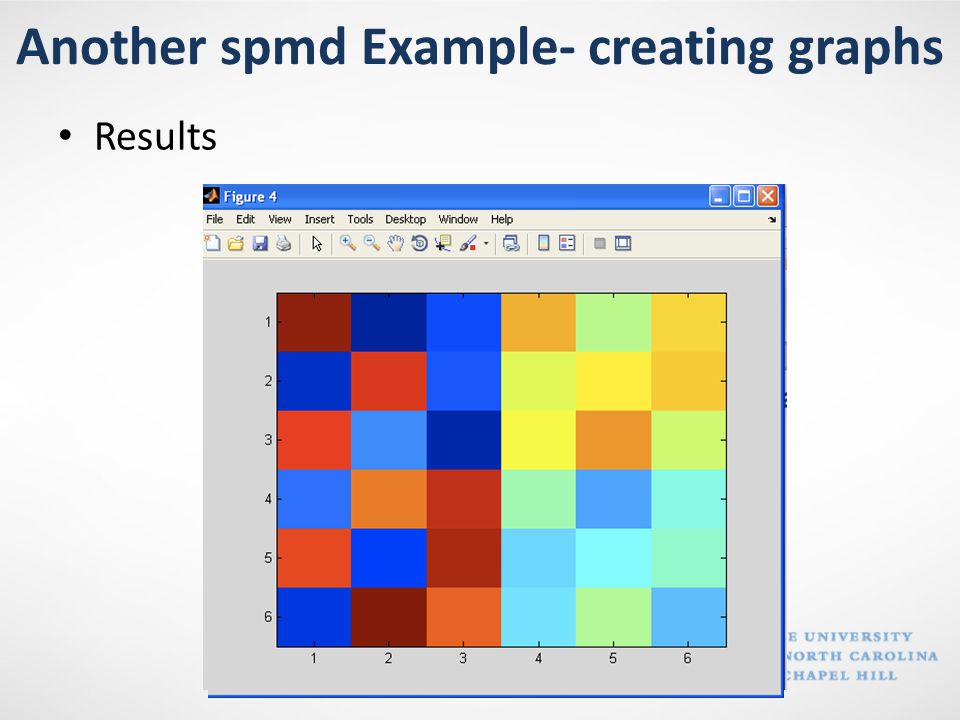

Results Another spmd Example- creating graphs
58

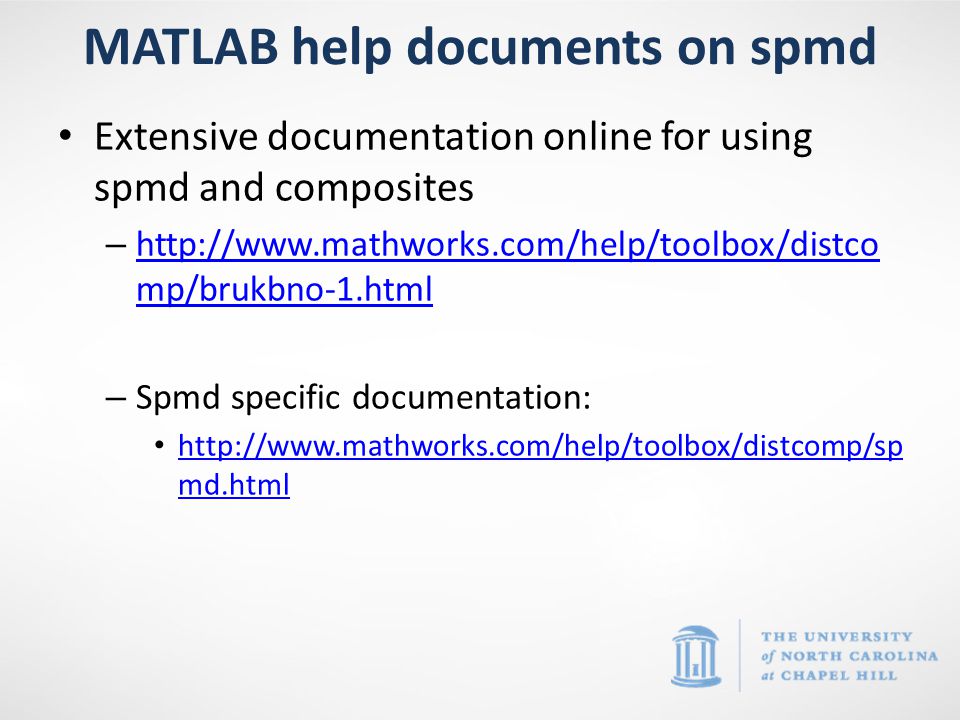

Extensive documentation online for using spmd and composites – http://www.mathworks.com/help/toolbox/distco mp/brukbno-1.html http://www.mathworks.com/help/toolbox/distco mp/brukbno-1.html – Spmd specific documentation: http://www.mathworks.com/help/toolbox/distcomp/sp md.html http://www.mathworks.com/help/toolbox/distcomp/sp md.html MATLAB help documents on spmd
59

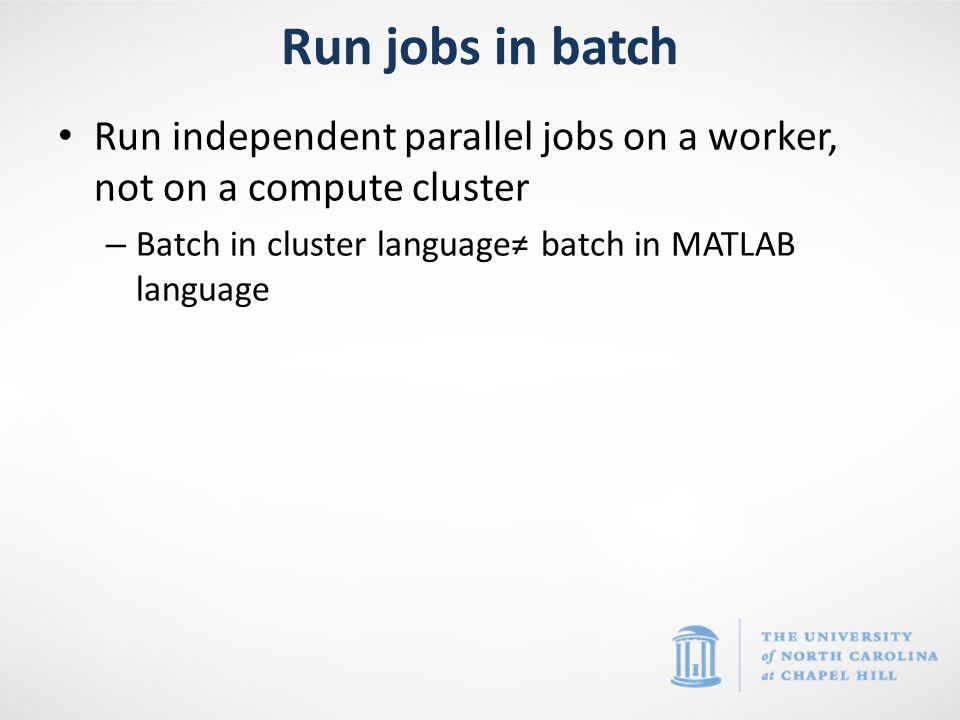

Run independent parallel jobs on a worker, not on a compute cluster – Batch in cluster language≠ batch in MATLAB language Run jobs in batch
60

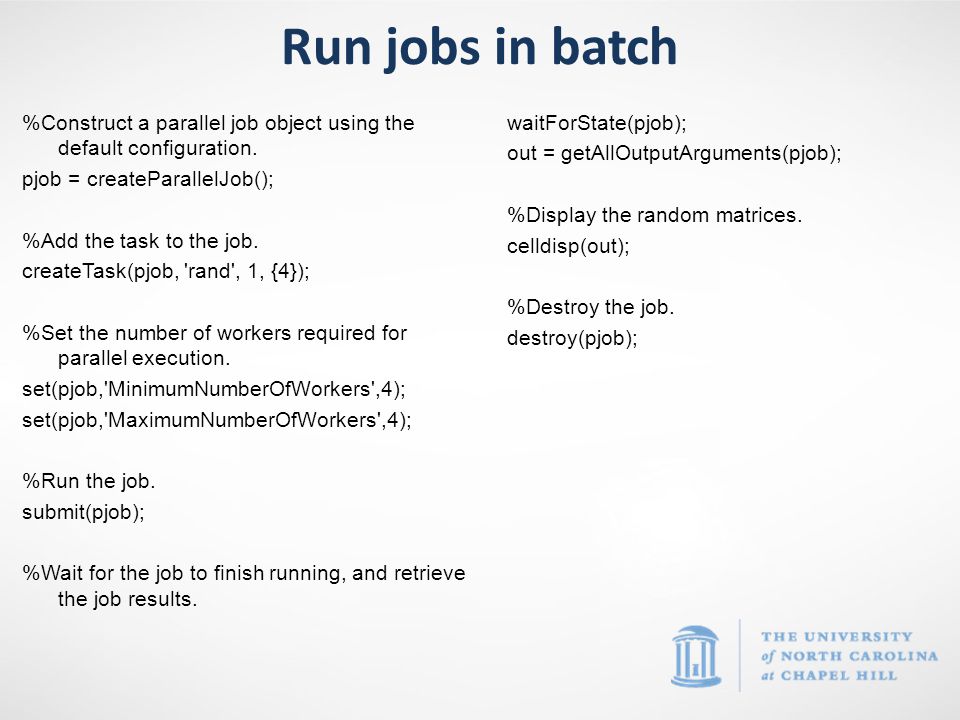

%Construct a parallel job object using the default configuration. pjob = createParallelJob(); %Add the task to the job. createTask(pjob, 'rand', 1, {4}); %Set the number of workers required for parallel execution. set(pjob,'MinimumNumberOfWorkers',4); set(pjob,'MaximumNumberOfWorkers',4); %Run the job. submit(pjob); %Wait for the job to finish running, and retrieve the job results. waitForState(pjob); out = getAllOutputArguments(pjob); %Display the random matrices. celldisp(out); %Destroy the job. destroy(pjob); Run jobs in batch
61

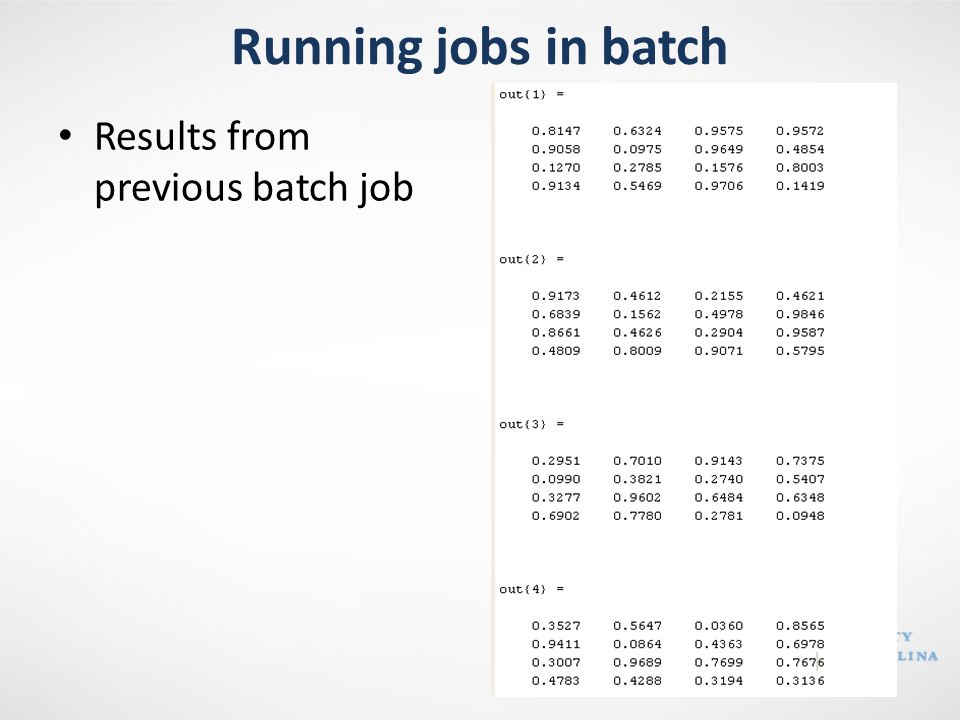

Results from previous batch job Running jobs in batch
62

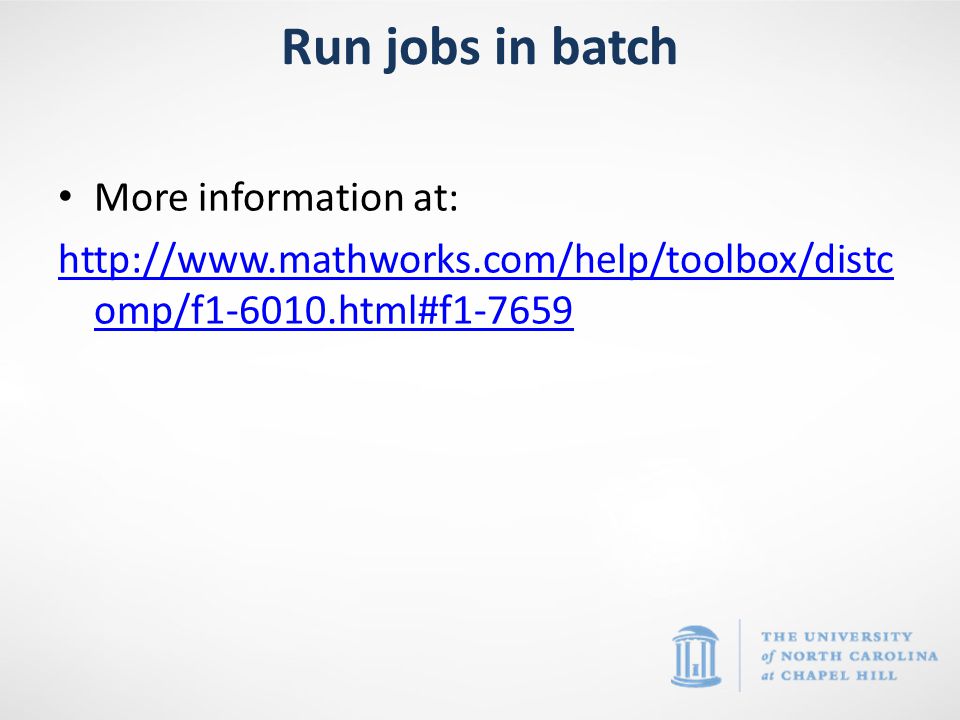

More information at: http://www.mathworks.com/help/toolbox/distc omp/f1-6010.html#f1-7659 Run jobs in batch
63
GPU Computing
64

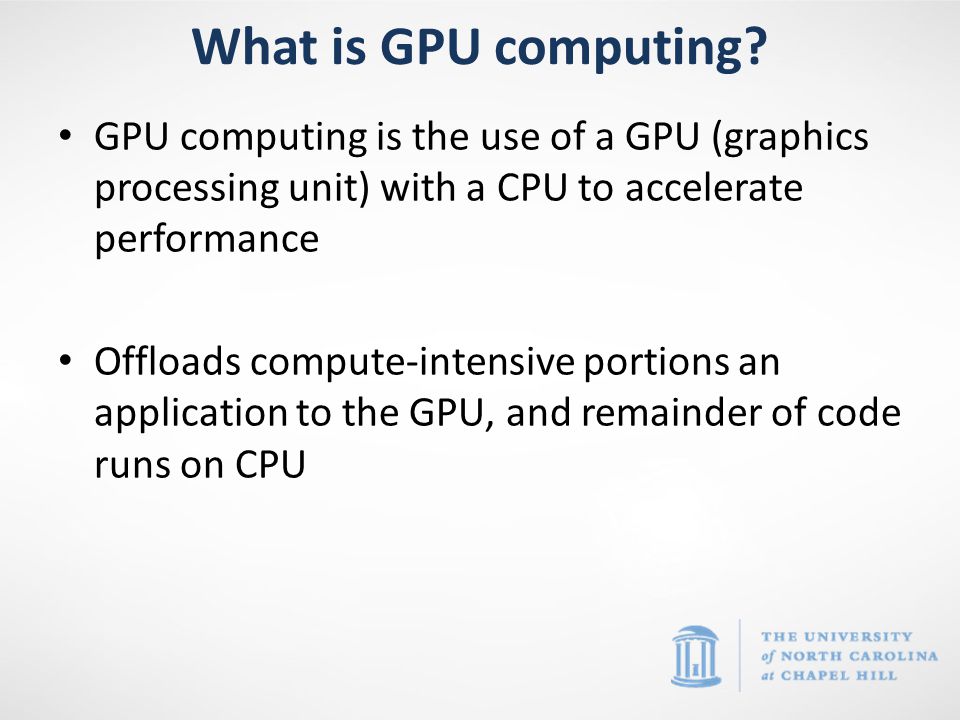

GPU computing is the use of a GPU (graphics processing unit) with a CPU to accelerate performance Offloads compute-intensive portions an application to the GPU, and remainder of code runs on CPU What is GPU computing?
65

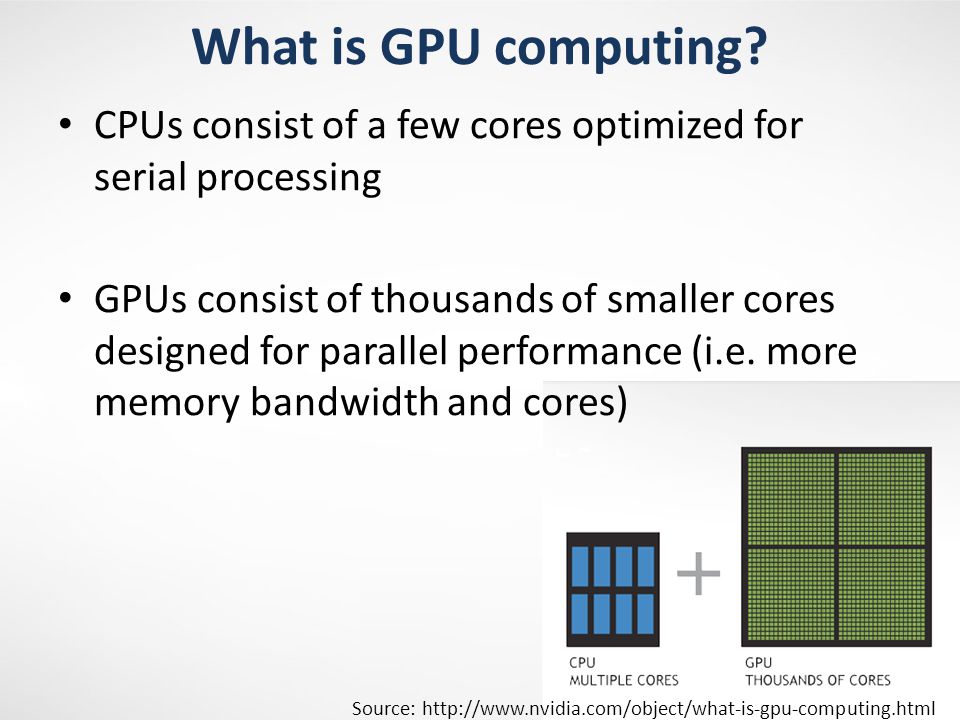

CPUs consist of a few cores optimized for serial processing GPUs consist of thousands of smaller cores designed for parallel performance (i.e. more memory bandwidth and cores) What is GPU computing? Source: http://www.nvidia.com/object/what-is-gpu-computing.html
66

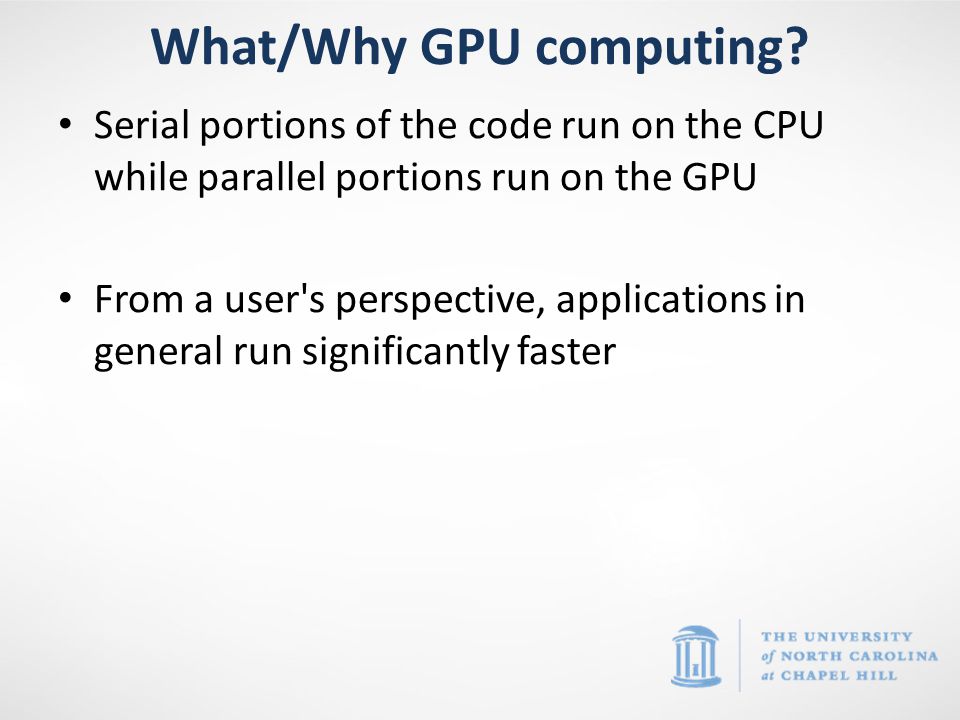

Serial portions of the code run on the CPU while parallel portions run on the GPU From a user's perspective, applications in general run significantly faster What/Why GPU computing?
67

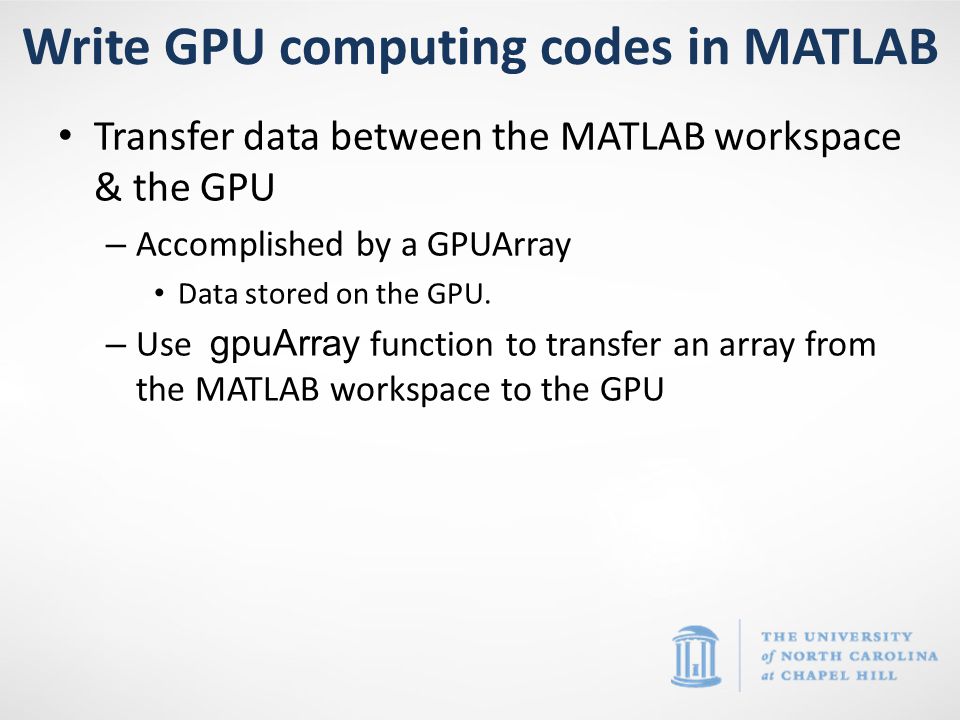

Transfer data between the MATLAB workspace & the GPU – Accomplished by a GPUArray Data stored on the GPU. – Use gpuArray function to transfer an array from the MATLAB workspace to the GPU Write GPU computing codes in MATLAB
68

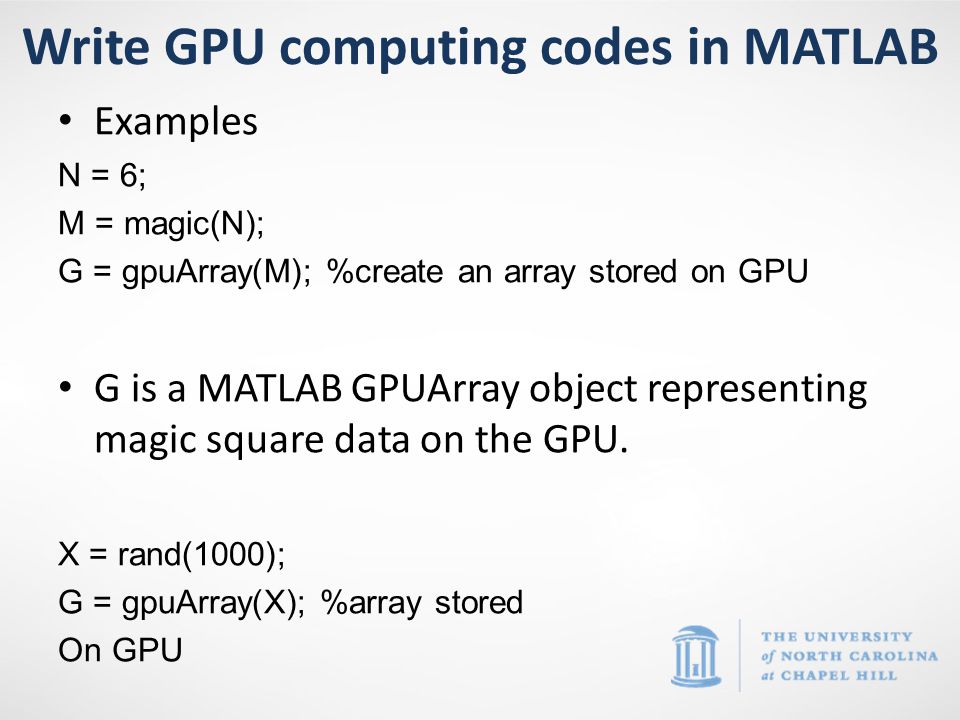

Examples N = 6; M = magic(N); G = gpuArray(M); %create an array stored on GPU G is a MATLAB GPUArray object representing magic square data on the GPU. X = rand(1000); G = gpuArray(X); %array stored On GPU Write GPU computing codes in MATLAB
69

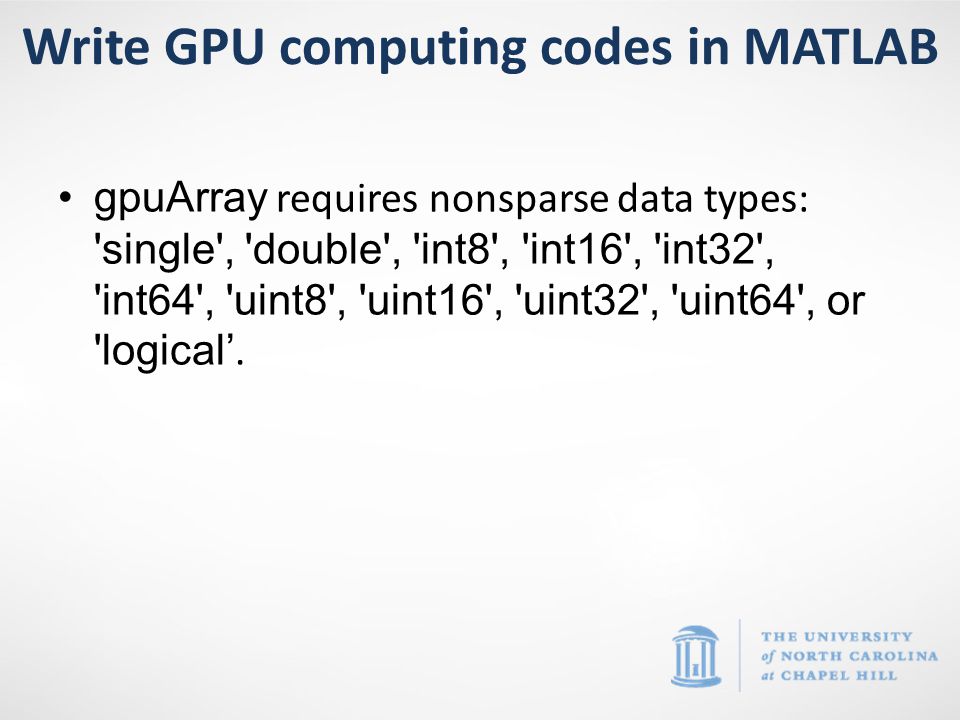

gpuArray requires nonsparse data types: 'single', 'double', 'int8', 'int16', 'int32', 'int64', 'uint8', 'uint16', 'uint32', 'uint64', or 'logical’. Write GPU computing codes in MATLAB
70

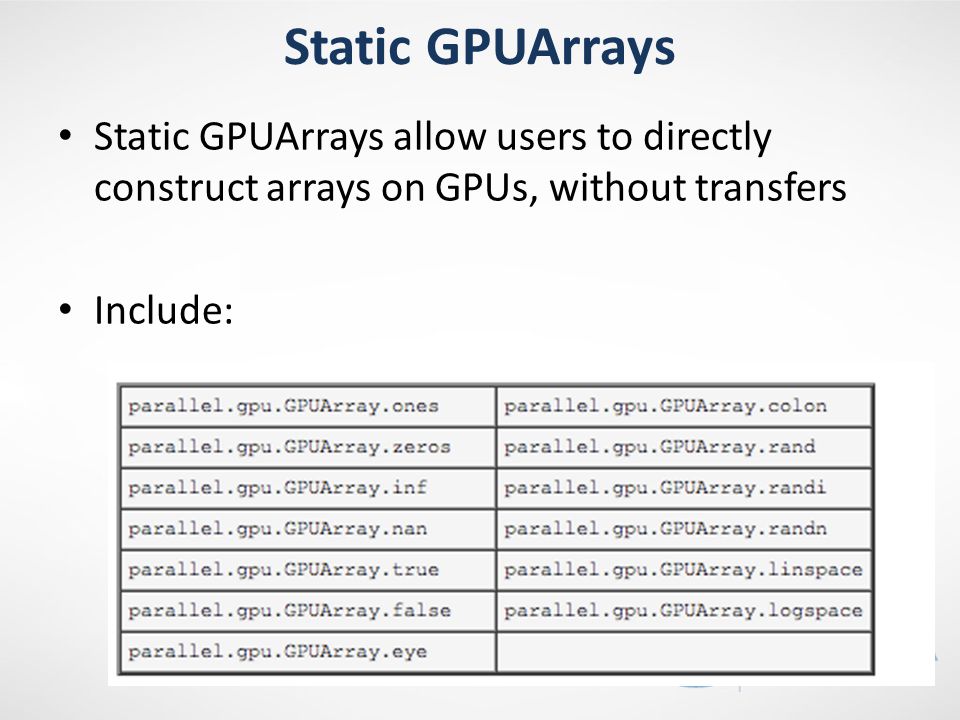

Static GPUArrays allow users to directly construct arrays on GPUs, without transfers Include: Static GPUArrays
71

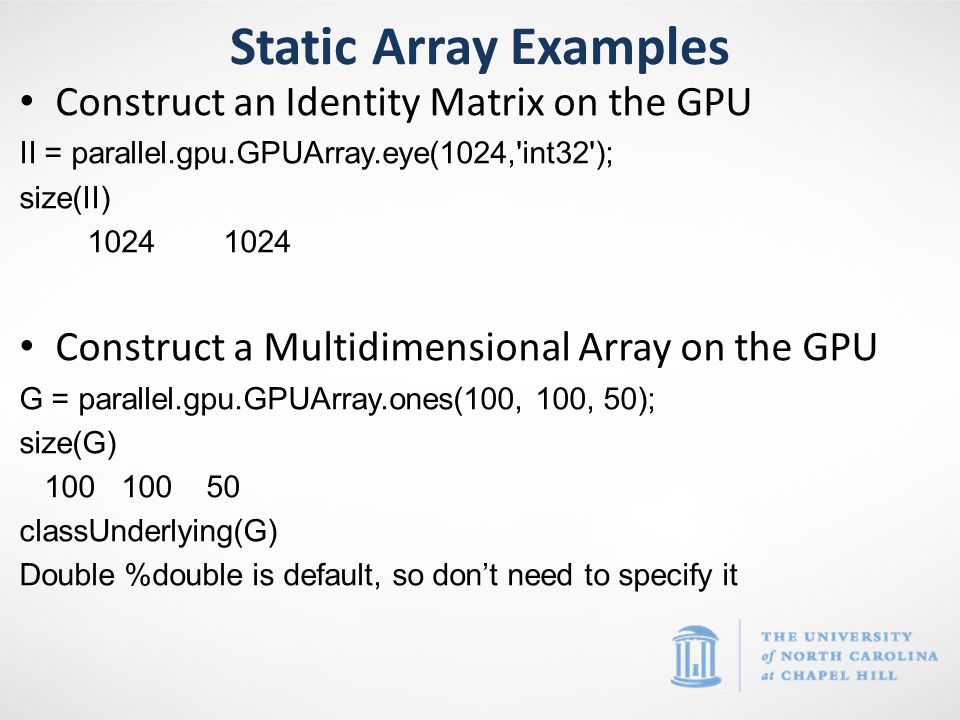

Construct an Identity Matrix on the GPU II = parallel.gpu.GPUArray.eye(1024,'int32'); size(II) 1024 1024 Construct a Multidimensional Array on the GPU G = parallel.gpu.GPUArray.ones(100, 100, 50); size(G) 100 100 50 classUnderlying(G) Double %double is default, so don’t need to specify it Static Array Examples
72

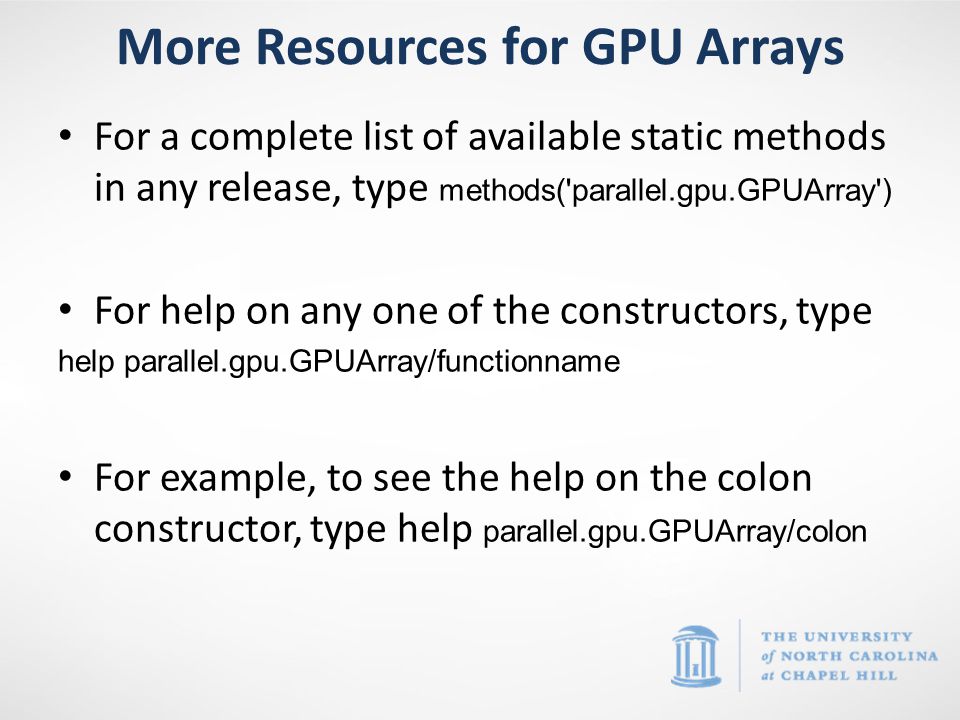

For a complete list of available static methods in any release, type methods('parallel.gpu.GPUArray') For help on any one of the constructors, type help parallel.gpu.GPUArray/functionname For example, to see the help on the colon constructor, type help parallel.gpu.GPUArray/colon More Resources for GPU Arrays
73

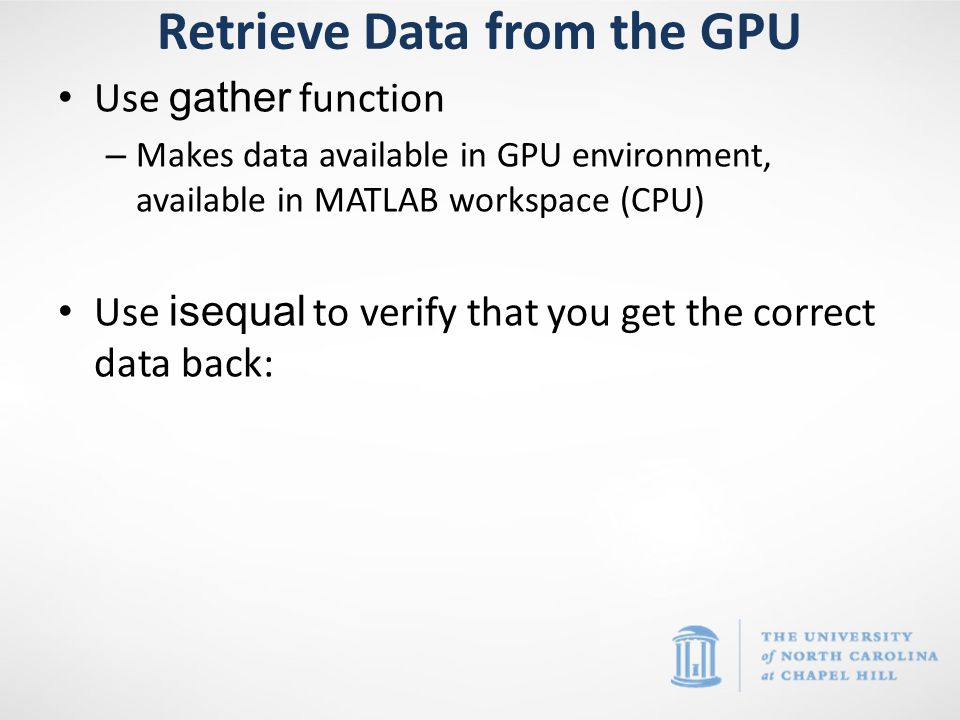

Use gather function – Makes data available in GPU environment, available in MATLAB workspace (CPU) Use isequal to verify that you get the correct data back: Retrieve Data from the GPU
74

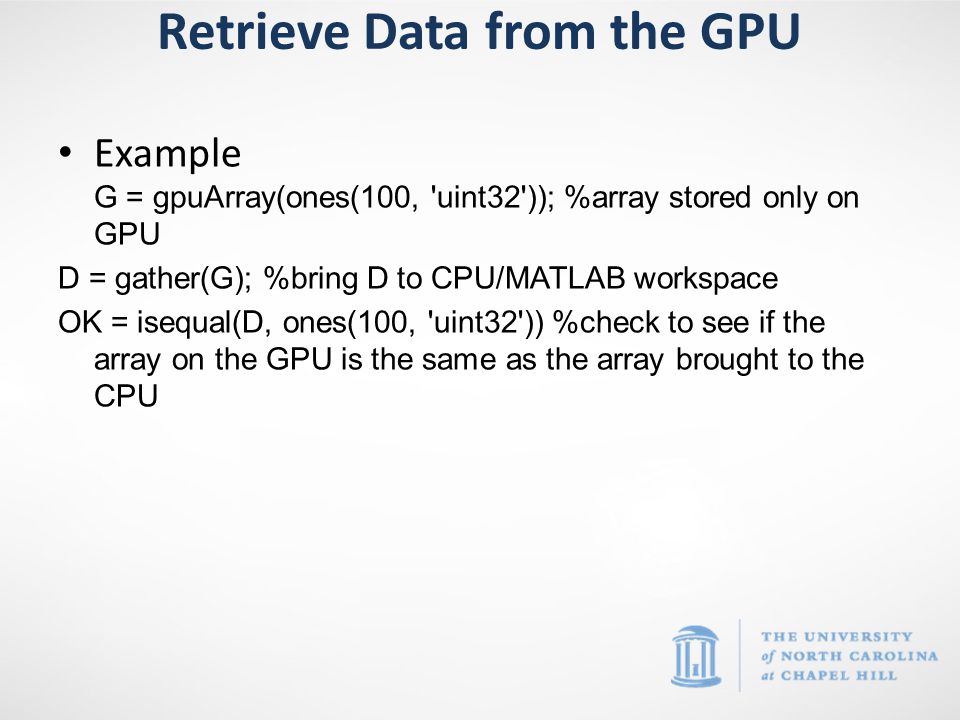

Example G = gpuArray(ones(100, 'uint32')); %array stored only on GPU D = gather(G); %bring D to CPU/MATLAB workspace OK = isequal(D, ones(100, 'uint32')) %check to see if the array on the GPU is the same as the array brought to the CPU Retrieve Data from the GPU
75

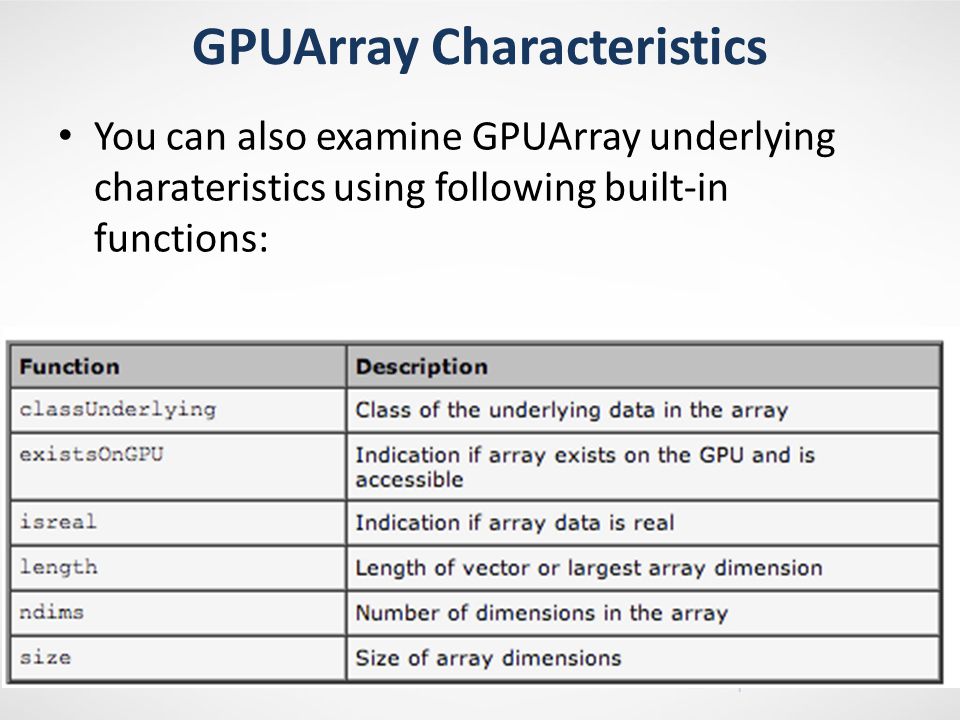

You can also examine GPUArray underlying charateristics using following built-in functions: GPUArray Characteristics
76

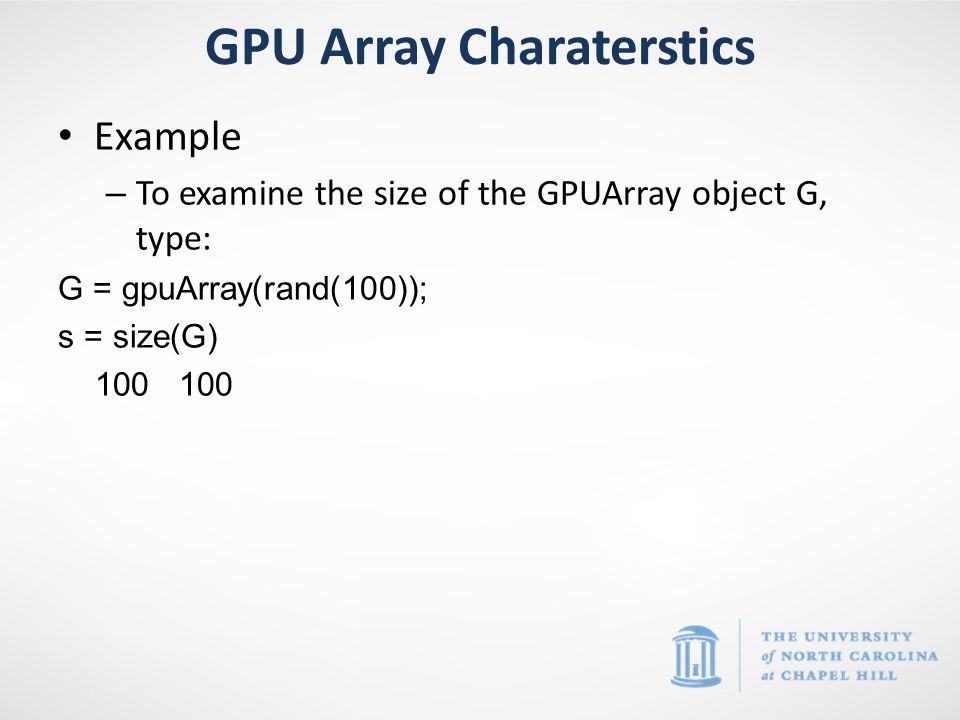

Example – To examine the size of the GPUArray object G, type: G = gpuArray(rand(100)); s = size(G) 100 100 GPU Array Charaterstics
77

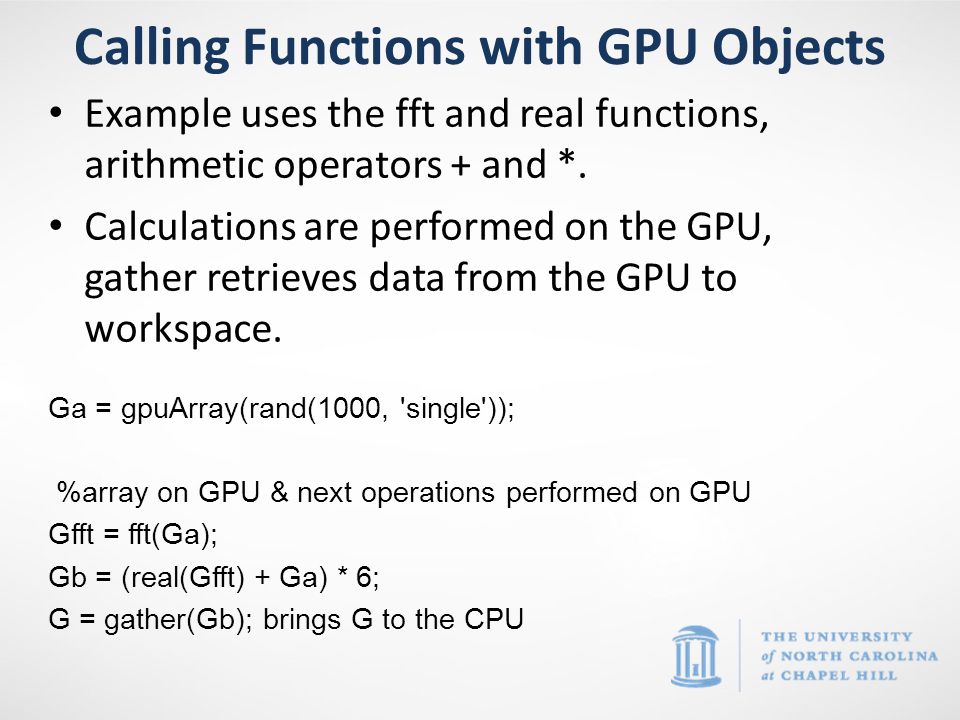

Example uses the fft and real functions, arithmetic operators + and *. Calculations are performed on the GPU, gather retrieves data from the GPU to workspace. Ga = gpuArray(rand(1000, 'single')); %array on GPU & next operations performed on GPU Gfft = fft(Ga); Gb = (real(Gfft) + Ga) * 6; G = gather(Gb); brings G to the CPU Calling Functions with GPU Objects
78

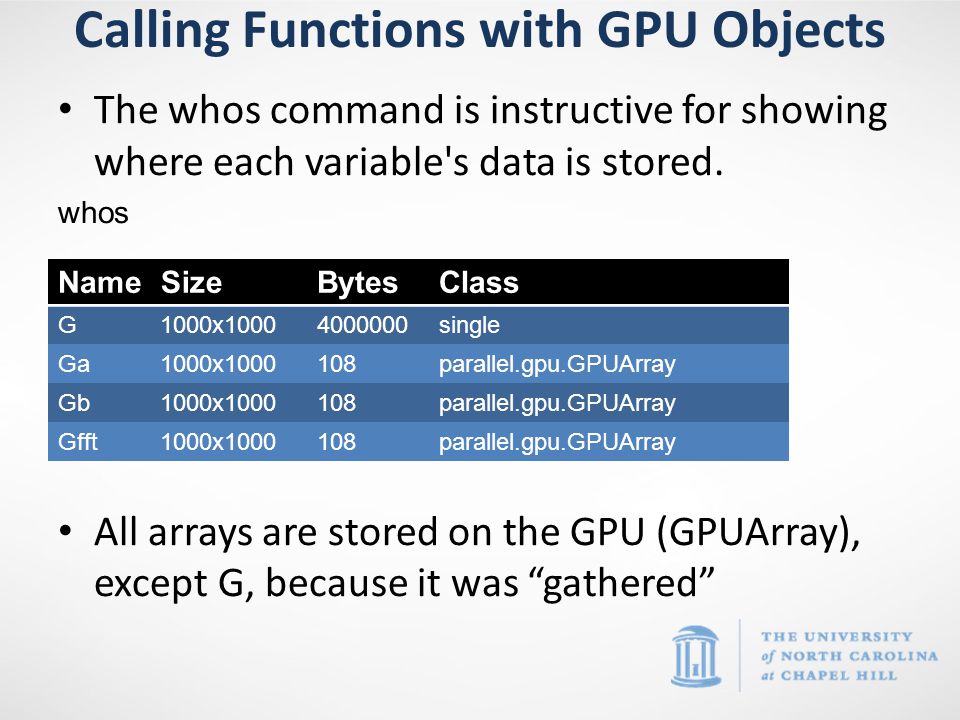

The whos command is instructive for showing where each variable's data is stored. whos All arrays are stored on the GPU (GPUArray), except G, because it was “gathered” Calling Functions with GPU Objects NameSizeBytesClass G1000x10004000000single Ga1000x1000108parallel.gpu.GPUArray Gb1000x1000108parallel.gpu.GPUArray Gfft1000x1000108parallel.gpu.GPUArray
79

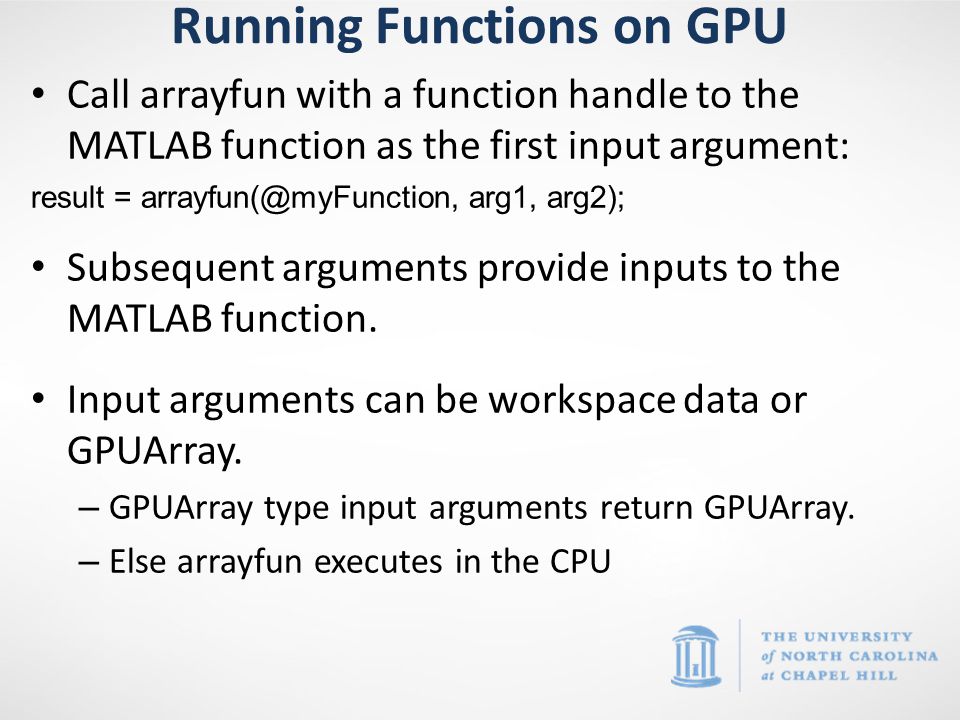

Call arrayfun with a function handle to the MATLAB function as the first input argument: result = arrayfun(@myFunction, arg1, arg2); Subsequent arguments provide inputs to the MATLAB function. Input arguments can be workspace data or GPUArray. – GPUArray type input arguments return GPUArray. – Else arrayfun executes in the CPU Running Functions on GPU
80

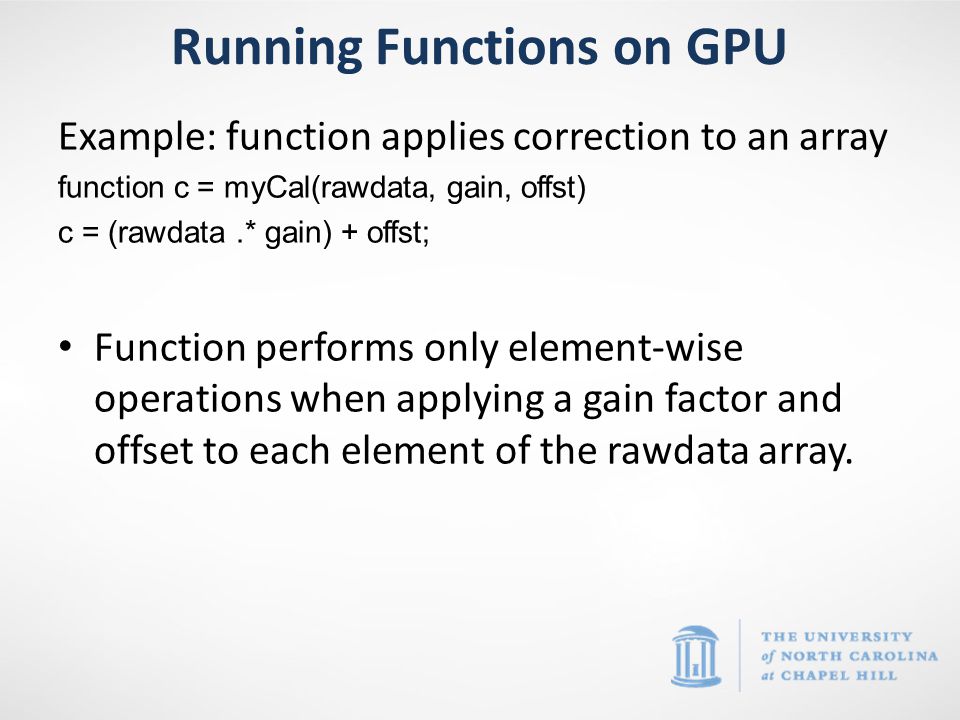

Example: function applies correction to an array function c = myCal(rawdata, gain, offst) c = (rawdata.* gain) + offst; Function performs only element-wise operations when applying a gain factor and offset to each element of the rawdata array. Running Functions on GPU
81

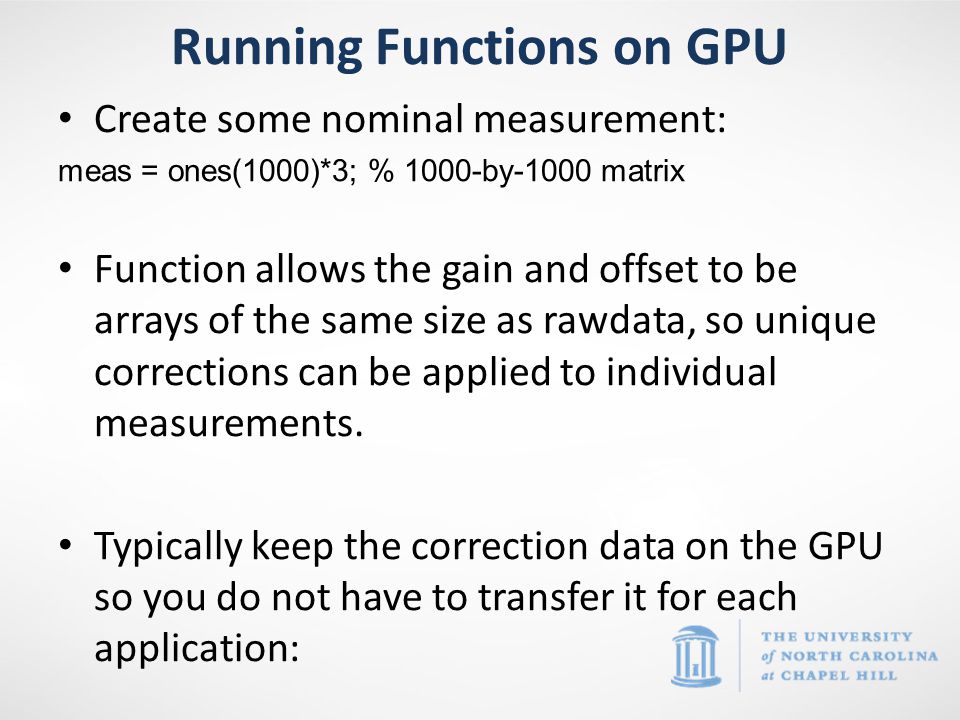

Create some nominal measurement: meas = ones(1000)*3; % 1000-by-1000 matrix Function allows the gain and offset to be arrays of the same size as rawdata, so unique corrections can be applied to individual measurements. Typically keep the correction data on the GPU so you do not have to transfer it for each application: Running Functions on GPU
82

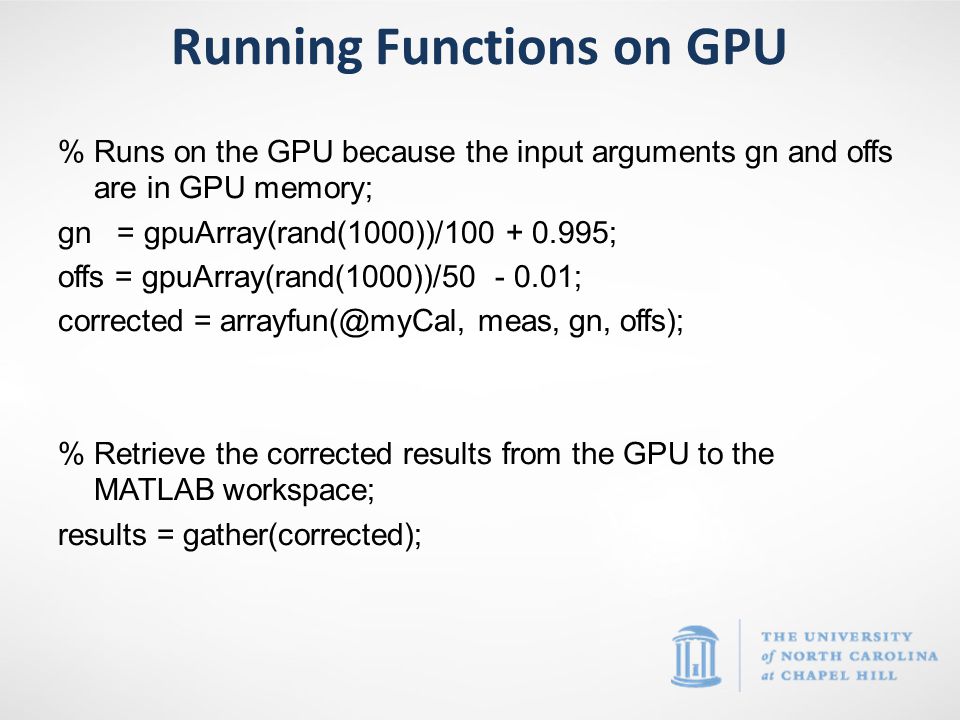

% Runs on the GPU because the input arguments gn and offs are in GPU memory; gn = gpuArray(rand(1000))/100 + 0.995; offs = gpuArray(rand(1000))/50 - 0.01; corrected = arrayfun(@myCal, meas, gn, offs); % Retrieve the corrected results from the GPU to the MATLAB workspace; results = gather(corrected); Running Functions on GPU
83

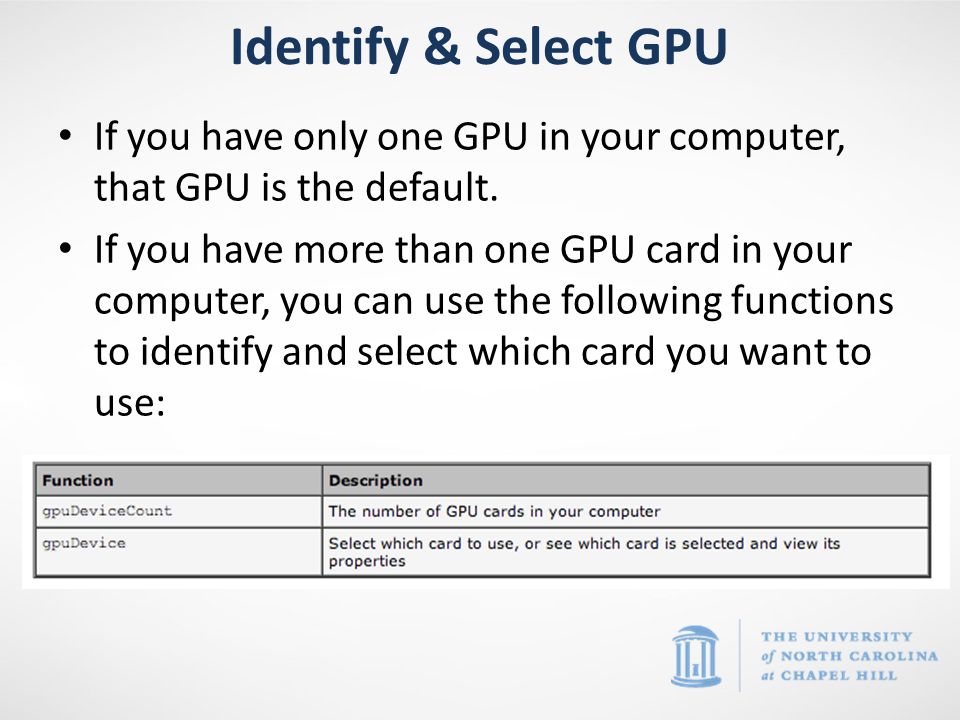

If you have only one GPU in your computer, that GPU is the default. If you have more than one GPU card in your computer, you can use the following functions to identify and select which card you want to use: Identify & Select GPU
84

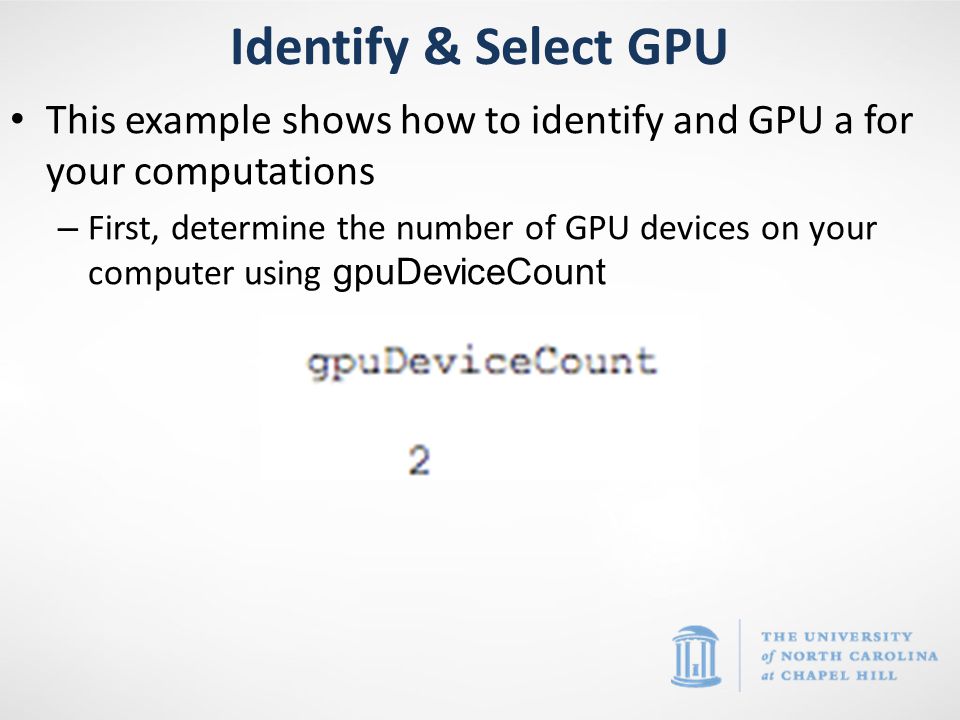

This example shows how to identify and GPU a for your computations – First, determine the number of GPU devices on your computer using gpuDeviceCount
85

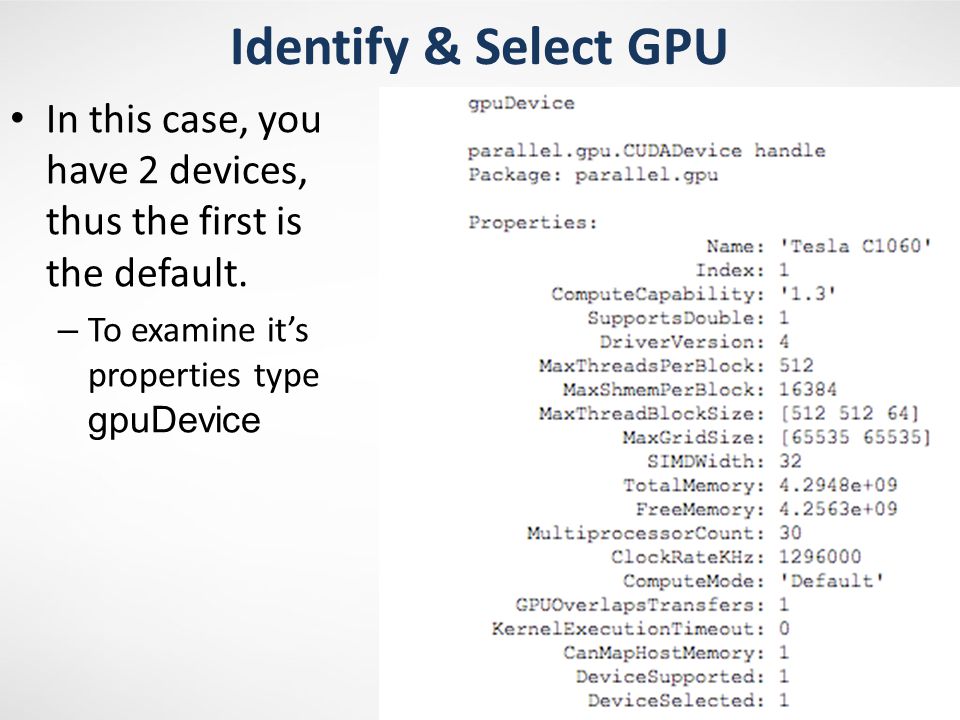

Identify & Select GPU In this case, you have 2 devices, thus the first is the default. – To examine it’s properties type gpuDevice
86

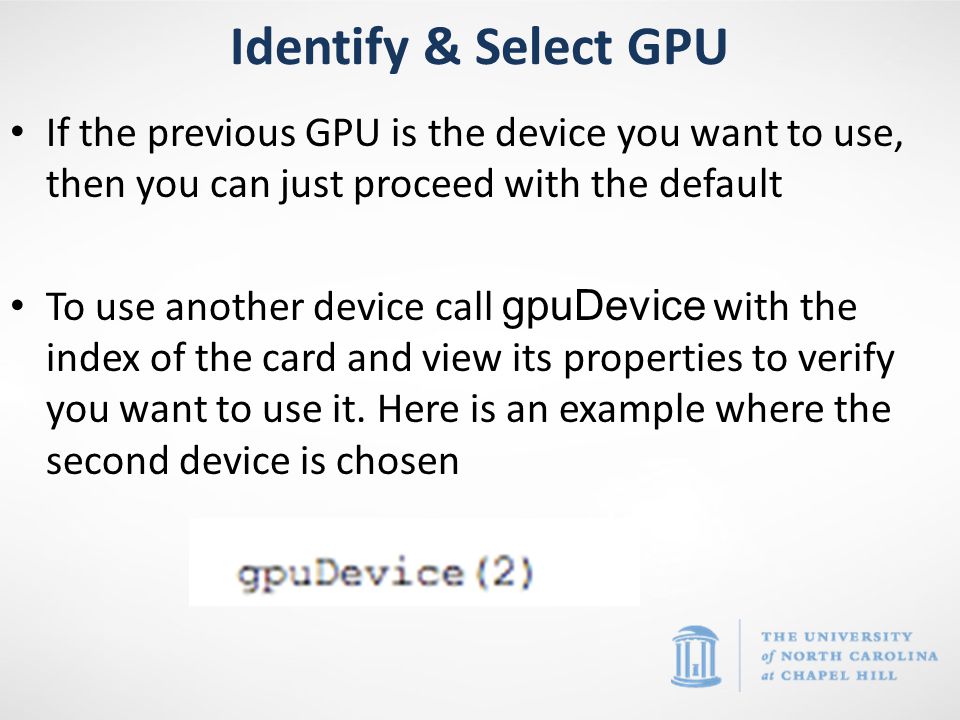

Identify & Select GPU If the previous GPU is the device you want to use, then you can just proceed with the default To use another device call gpuDevice with the index of the card and view its properties to verify you want to use it. Here is an example where the second device is chosen
87

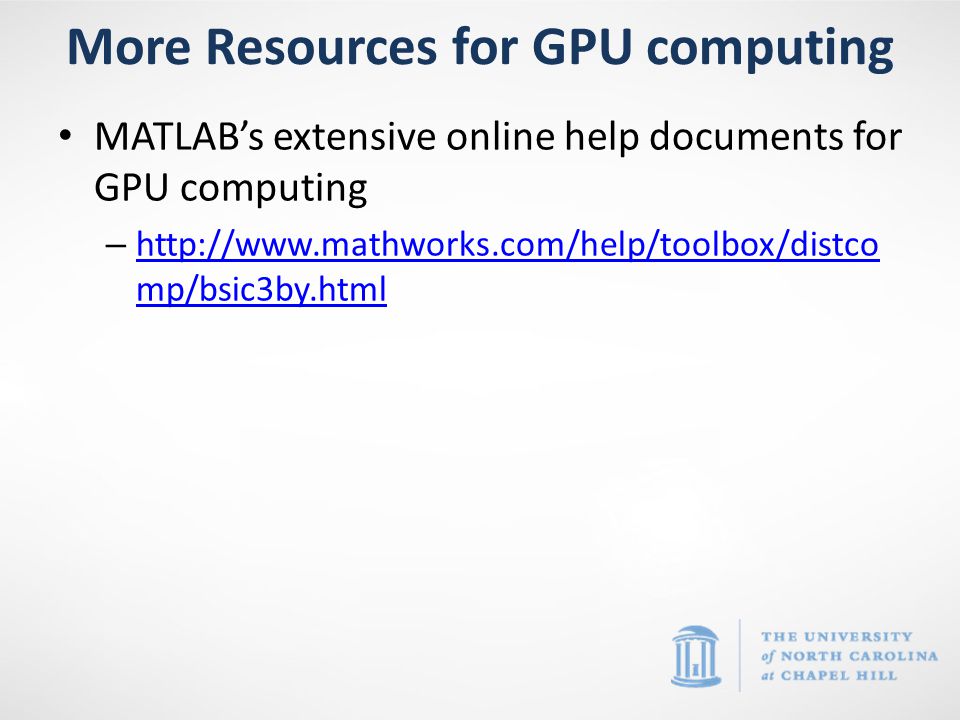

MATLAB’s extensive online help documents for GPU computing – http://www.mathworks.com/help/toolbox/distco mp/bsic3by.html http://www.mathworks.com/help/toolbox/distco mp/bsic3by.html More Resources for GPU computing
88
Parallel & GPU Computing on the cluster
89
Node – A standalone "computer in a box". Usually comprised of multiple CPUs/processors/cores. Nodes are networked together to comprise a cluster. Processor / Core – individual CPUs subdivided into multiple "cores", each being a unique execution unit (processor). The result is a node with multiple CPUs, each containing multiple cores. Cluster Jargon
90

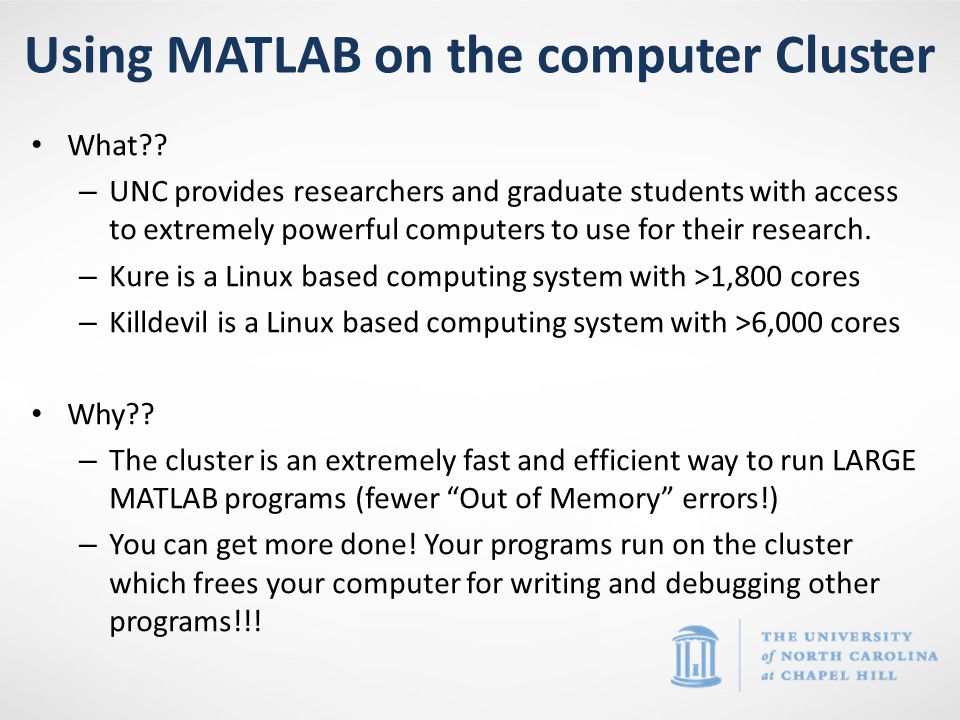

Using MATLAB on the computer Cluster What?? – UNC provides researchers and graduate students with access to extremely powerful computers to use for their research. – Kure is a Linux based computing system with >1,800 cores – Killdevil is a Linux based computing system with >6,000 cores Why?? – The cluster is an extremely fast and efficient way to run LARGE MATLAB programs (fewer “Out of Memory” errors!) – You can get more done! Your programs run on the cluster which frees your computer for writing and debugging other programs!!!
91

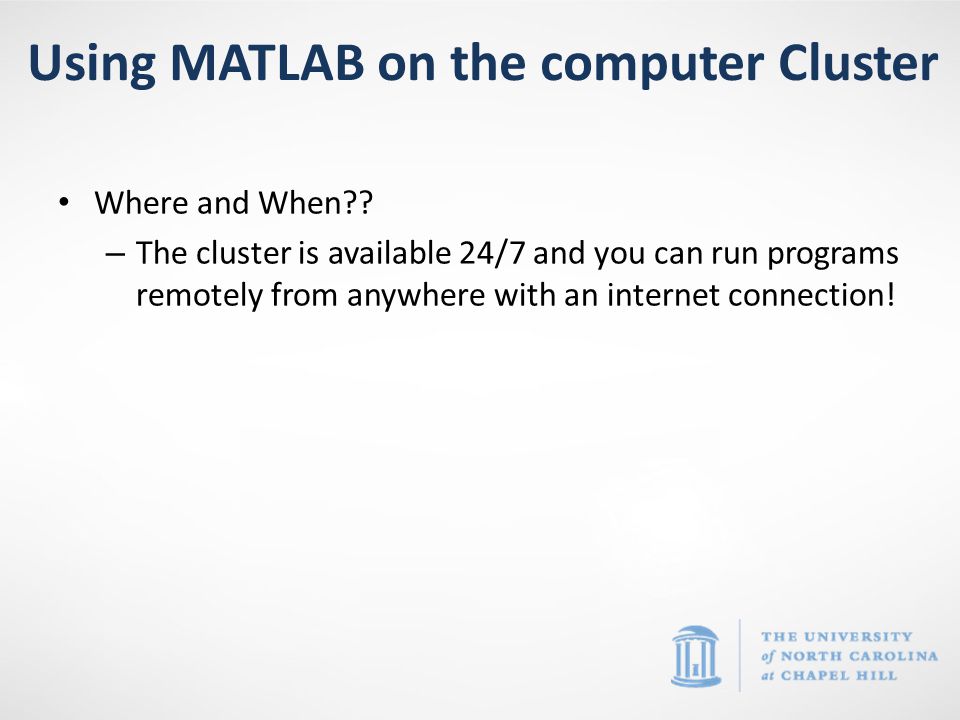

Using MATLAB on the computer Cluster Where and When?? – The cluster is available 24/7 and you can run programs remotely from anywhere with an internet connection!
92

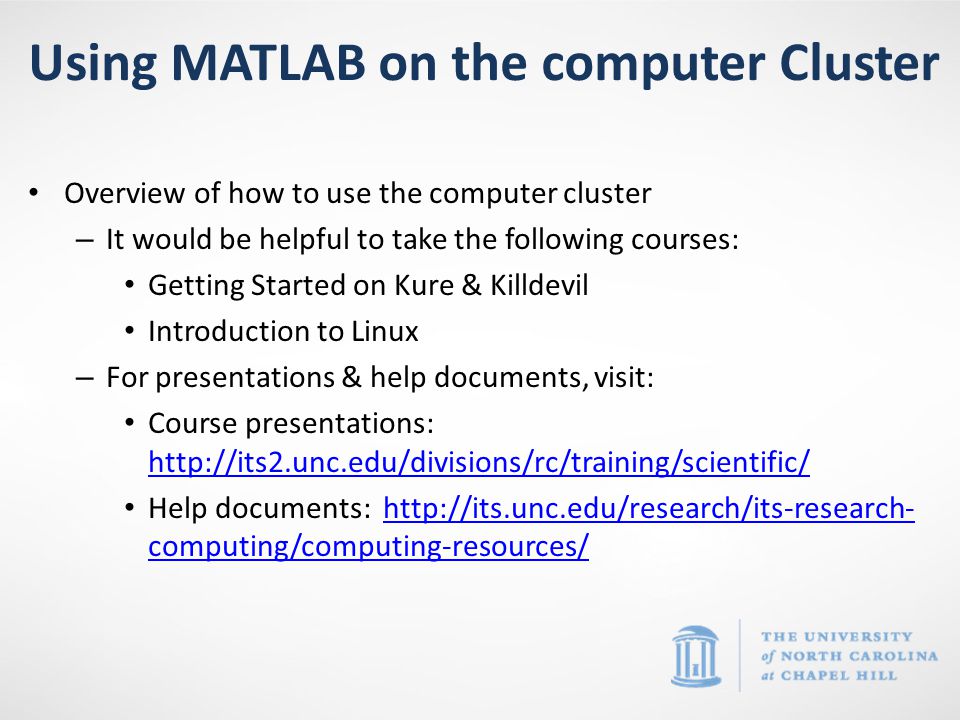

Using MATLAB on the computer Cluster Overview of how to use the computer cluster – It would be helpful to take the following courses: Getting Started on Kure & Killdevil Introduction to Linux – For presentations & help documents, visit: Course presentations: http://its2.unc.edu/divisions/rc/training/scientific/ http://its2.unc.edu/divisions/rc/training/scientific/ Help documents: http://its.unc.edu/research/its-research- computing/computing-resources/http://its.unc.edu/research/its-research- computing/computing-resources/
93

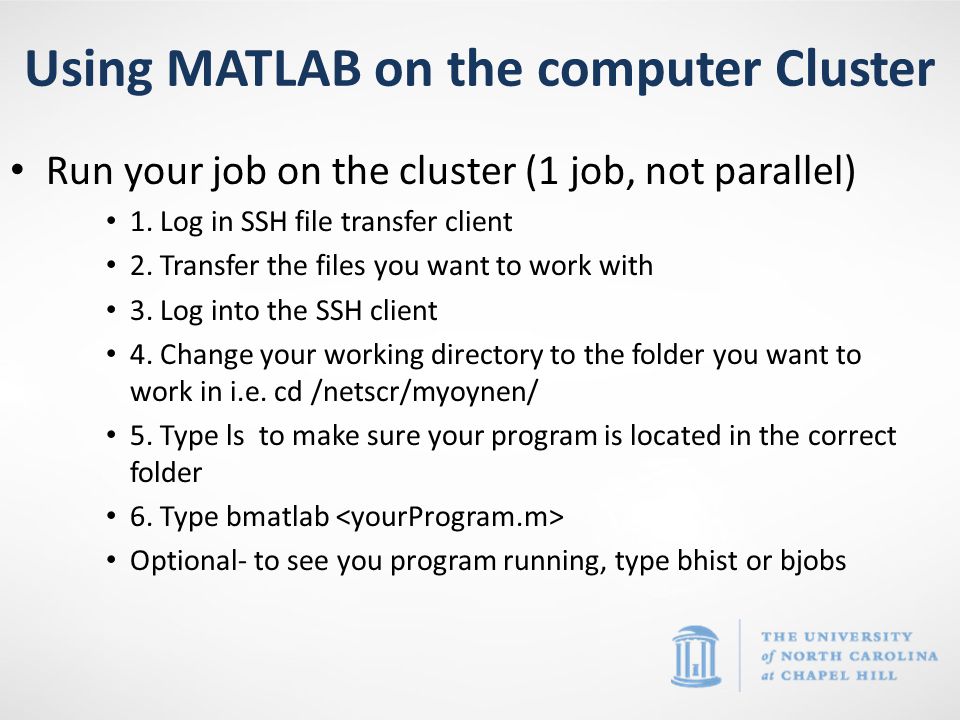

Run your job on the cluster (1 job, not parallel) 1. Log in SSH file transfer client 2. Transfer the files you want to work with 3. Log into the SSH client 4. Change your working directory to the folder you want to work in i.e. cd /netscr/myoynen/ 5. Type ls to make sure your program is located in the correct folder 6. Type bmatlab Optional- to see you program running, type bhist or bjobs Using MATLAB on the computer Cluster
94

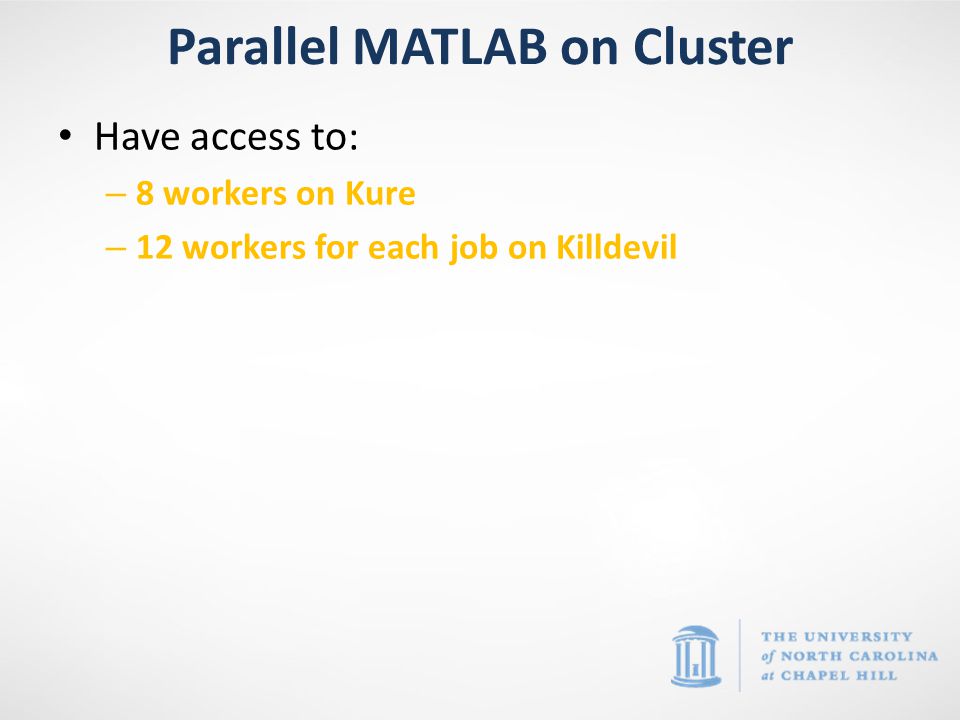

Have access to: – 8 workers on Kure – 12 workers for each job on Killdevil Parallel MATLAB on Cluster
95
Start a cluster job with this command which gives you 1 job that is NOT parallel OR GPU – bsub /nas02/apps/matlab-2011a/matlab –nodisplay –nosplash –singleCompThread –r o “filename” is the name of your Matlab script with the.m extension left off o singleCompThread o ALWAYS use this option unless you are requesting an entire node for a serial (i.e. not using the Parallel Computing Toolbox) Matlab job or using GPUs!!!!!! Bsub commands for parallel & GPU
96

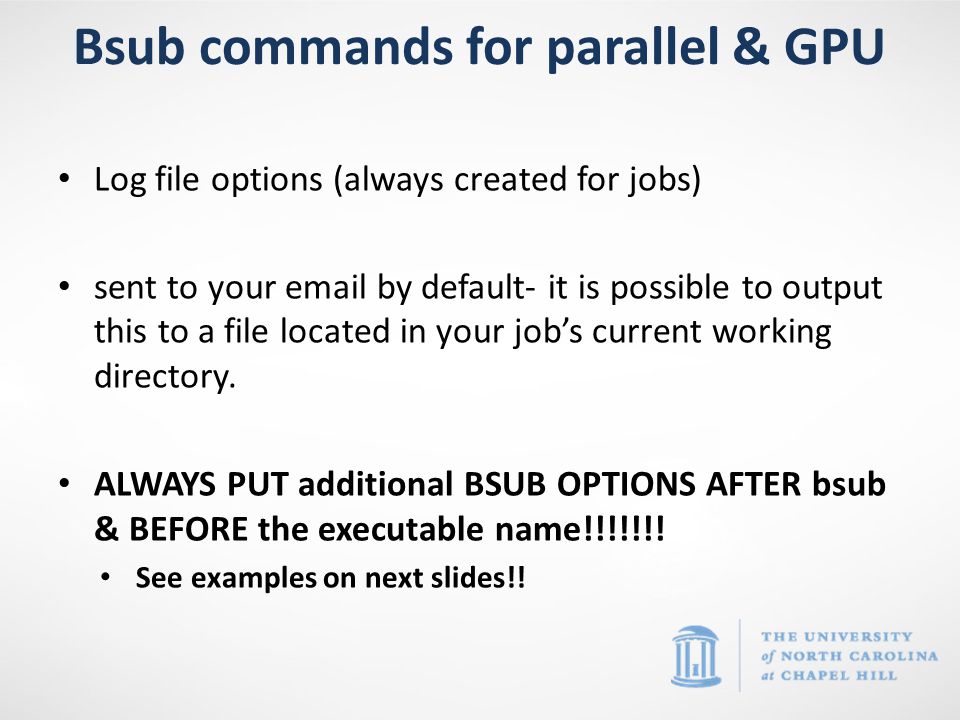

Log file options (always created for jobs) sent to your email by default- it is possible to output this to a file located in your job’s current working directory. ALWAYS PUT additional BSUB OPTIONS AFTER bsub & BEFORE the executable name!!!!!!! See examples on next slides!! Bsub commands for parallel & GPU
97

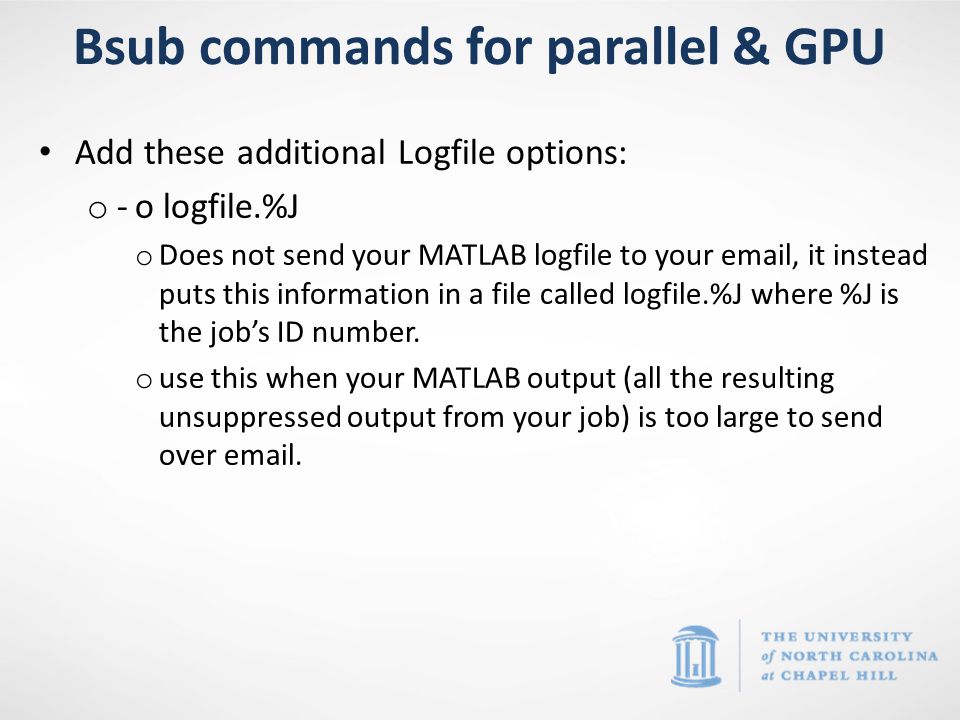

Add these additional Logfile options: o -o logfile.%J o Does not send your MATLAB logfile to your email, it instead puts this information in a file called logfile.%J where %J is the job’s ID number. o use this when your MATLAB output (all the resulting unsuppressed output from your job) is too large to send over email. Bsub commands for parallel & GPU
98

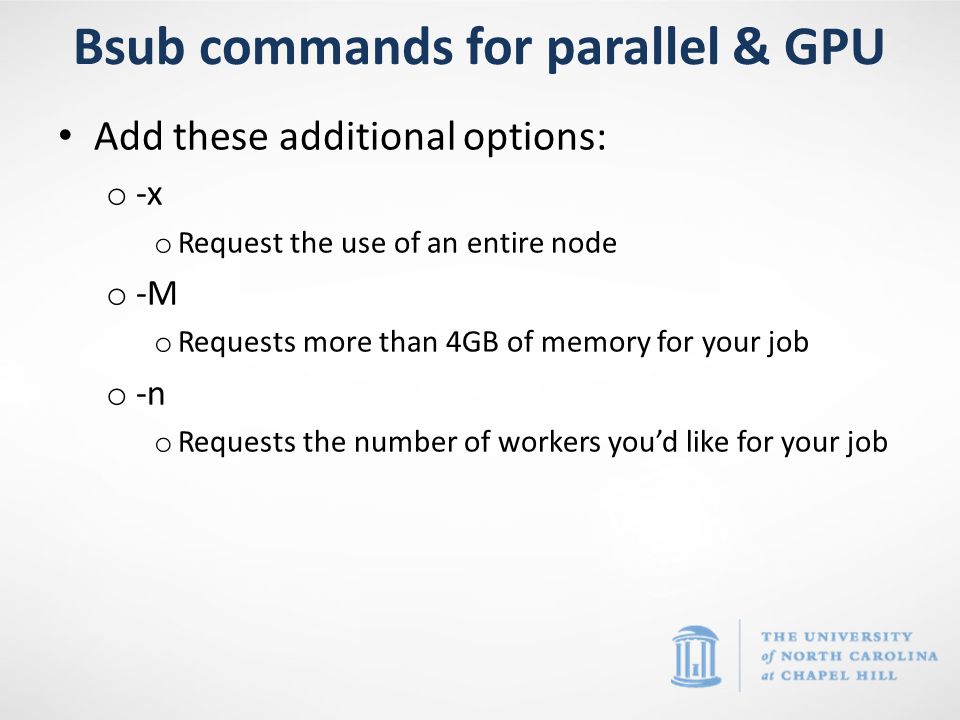

Add these additional options: o -x o Request the use of an entire node o -M o Requests more than 4GB of memory for your job o -n o Requests the number of workers you’d like for your job Bsub commands for parallel & GPU
99
ALL MATLAB jobs must run on 1 host! LSF option to use with parallel Matlab jobs: -R “span[hosts=1]” o -R “span[hosts=1]” o Send your job to one host. Bsub commands for parallel & GPU
100

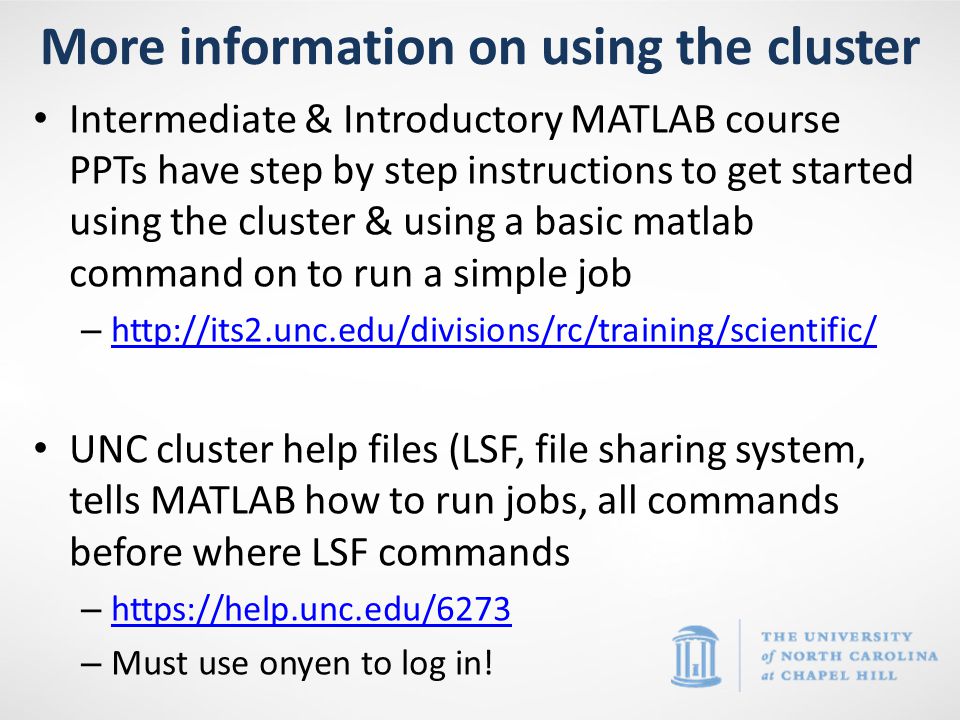

Intermediate & Introductory MATLAB course PPTs have step by step instructions to get started using the cluster & using a basic matlab command on to run a simple job – http://its2.unc.edu/divisions/rc/training/scientific/ http://its2.unc.edu/divisions/rc/training/scientific/ UNC cluster help files (LSF, file sharing system, tells MATLAB how to run jobs, all commands before where LSF commands – https://help.unc.edu/6273 https://help.unc.edu/6273 – Must use onyen to log in! More information on using the cluster
101

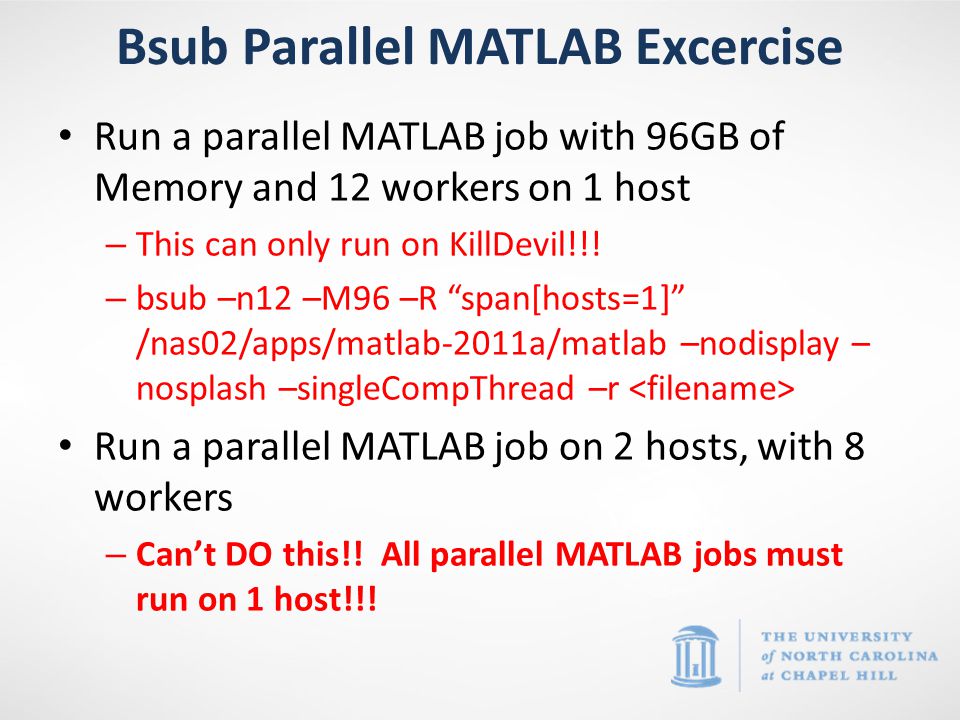

Run a parallel MATLAB job with 96GB of Memory and 12 workers on 1 host – This can only run on KillDevil!!! – bsub –n12 –M96 –R “span[hosts=1]” /nas02/apps/matlab-2011a/matlab –nodisplay – nosplash –singleCompThread –r Run a parallel MATLAB job on 2 hosts, with 8 workers – Can’t DO this!! All parallel MATLAB jobs must run on 1 host!!! Bsub Parallel MATLAB Excercise
102

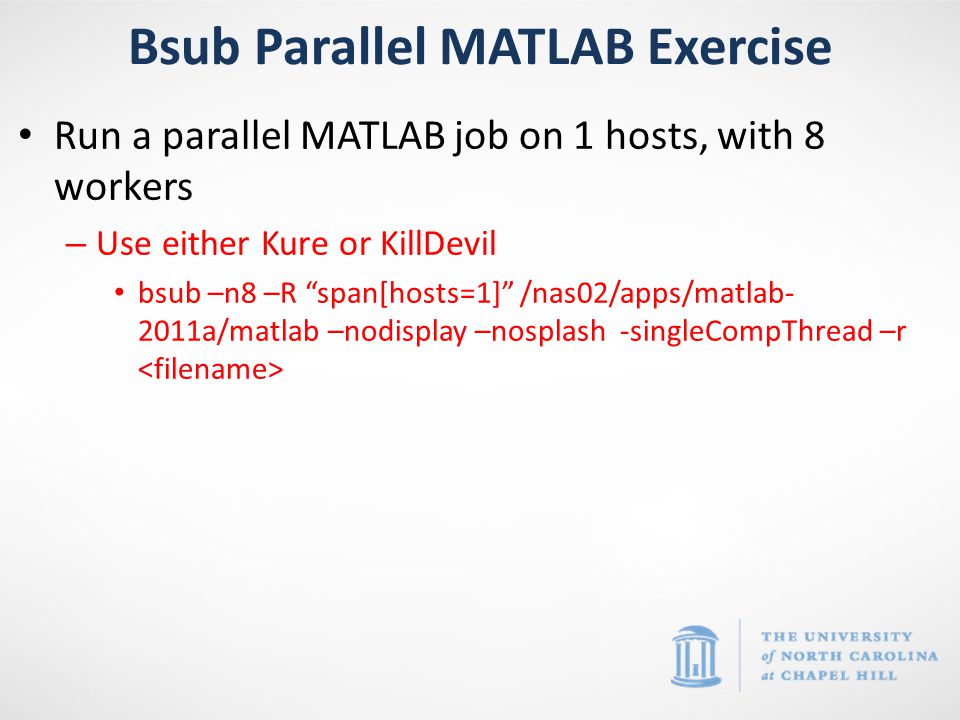

Run a parallel MATLAB job on 1 hosts, with 8 workers – Use either Kure or KillDevil bsub –n8 –R “span[hosts=1]” /nas02/apps/matlab- 2011a/matlab –nodisplay –nosplash -singleCompThread –r Bsub Parallel MATLAB Exercise
103

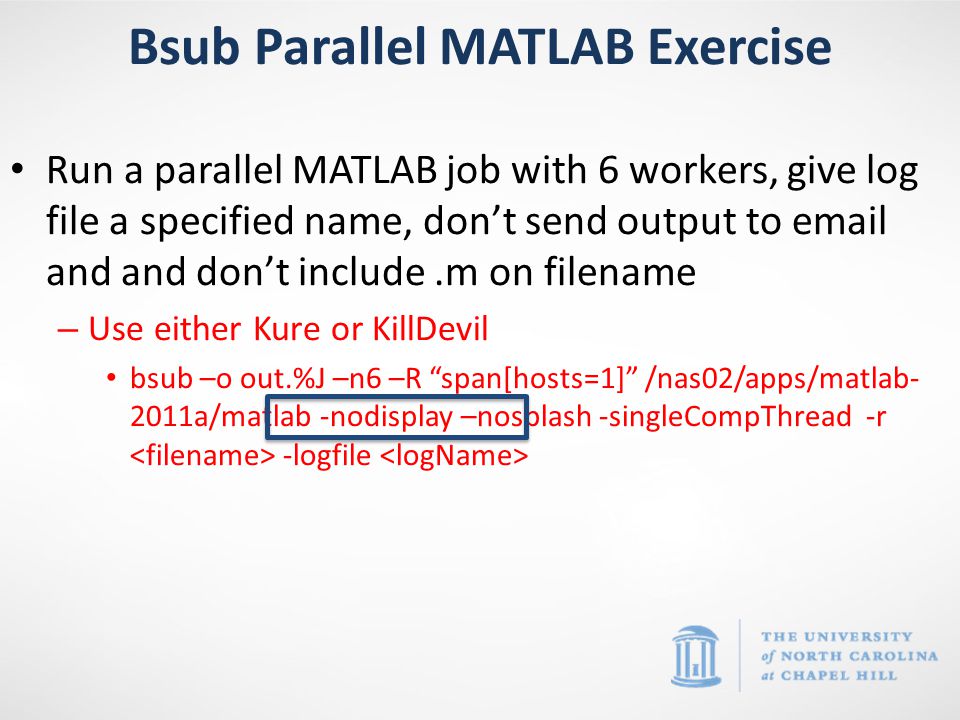

Run a parallel MATLAB job with 6 workers, give log file a specified name, don’t send output to email and and don’t include.m on filename – Use either Kure or KillDevil bsub –o out.%J –n6 –R “span[hosts=1]” /nas02/apps/matlab- 2011a/matlab -nodisplay –nosplash -singleCompThread -r -logfile Bsub Parallel MATLAB Exercise
104

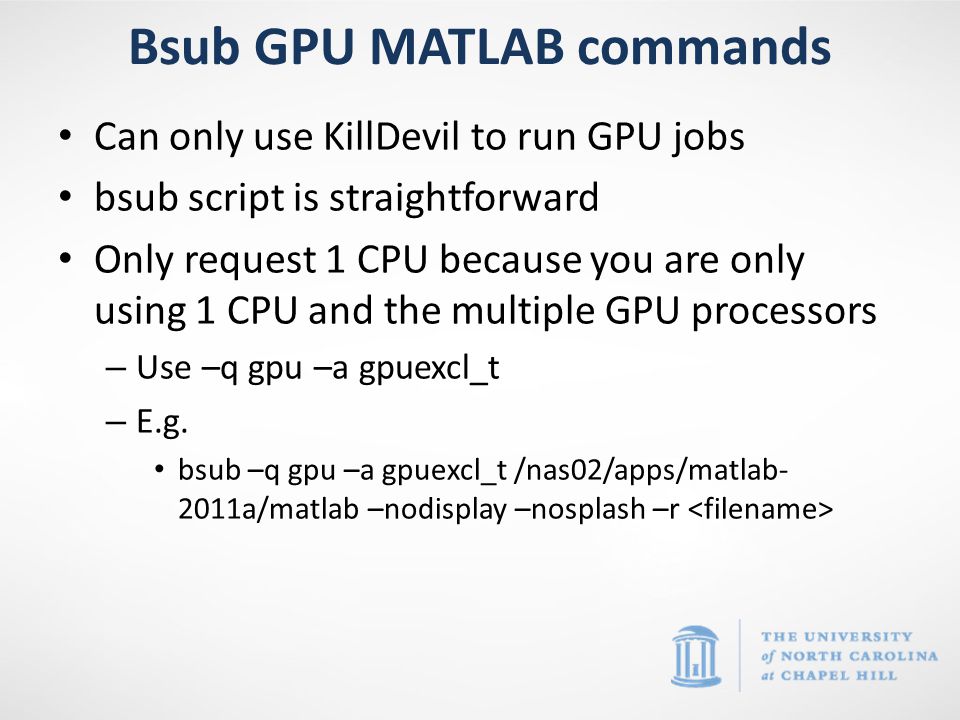

Can only use KillDevil to run GPU jobs bsub script is straightforward Only request 1 CPU because you are only using 1 CPU and the multiple GPU processors – Use –q gpu –a gpuexcl_t – E.g. bsub –q gpu –a gpuexcl_t /nas02/apps/matlab- 2011a/matlab –nodisplay –nosplash –r Bsub GPU MATLAB commands
105

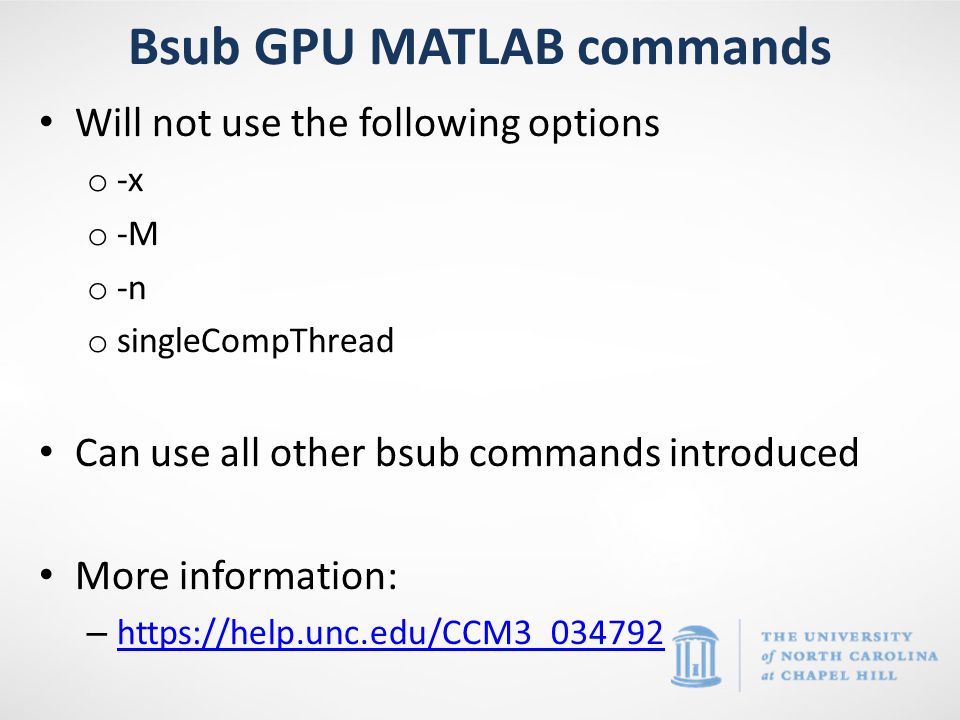

Will not use the following options o -x o -M o -n o singleCompThread Can use all other bsub commands introduced More information: – https://help.unc.edu/CCM3_034792 https://help.unc.edu/CCM3_034792 Bsub GPU MATLAB commands
106

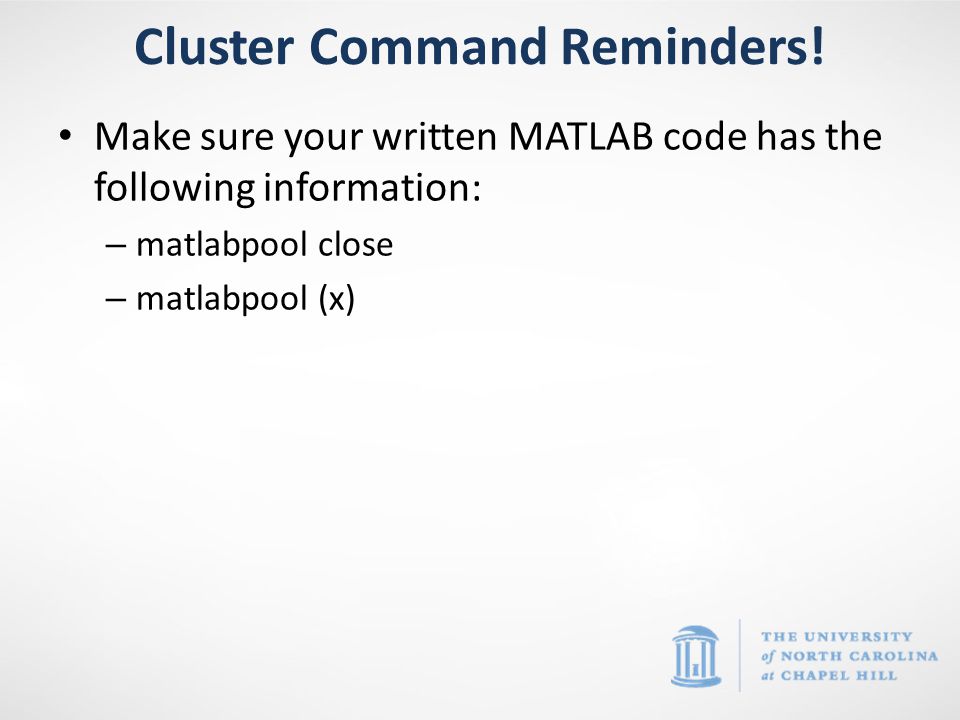

Make sure your written MATLAB code has the following information: – matlabpool close – matlabpool (x) Cluster Command Reminders!
107
Questions?
108
Questions and Comments? For assistance with MATLAB, please contact the Research Computing Group: Email: research@unc.eduresearch@unc.edu Phone: 919-962-HELP Submit help ticket at http://help.unc.eduhttp://help.unc.edu
