1 Lathe Accessories Unit 46

2 Objectives Identify and state the purpose of the common work-holding and -driving accessories Identify and state the purpose of the common cutting-tool-holding accessories Identify and state the purpose of modular and quick-change tooling

3 Lathe Accessories Divided into two categories
Work-holding, -supporting, and –driving devices Lathe centers, chucks, faceplates Mandrels, steady and follower rests Lathe dogs, drive plates Cutting-tool-holding devices Straight and offset toolholders Threading toolholders, boring bars Turret-type toolposts

4 Lathe Centers Work to be turned between centers must have center hole drilled in each end Provides bearing surface Support during cutting Most common have solid Morse taper shank 60º centers, steel with carbide tips Care to adjust and lubricate occasionally Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

5 Revolving Tailstock Centers
Replaced solid dead centers for most machining operations Used to support work held in chuck or when work is being machined between centers Contains antifriction bearings which allow center to revolve with workpiece No lubrication required between center and work Types: revolving dead center, long point center, and changeable point center

6 Microset Adjustable Center
Fits into tailstock spindle Provides means of aligning lathe centers or producing slight tapers on work machined between centers Eccentric slide (dovetail) allows center to be adjusted limited amount to each side of center

7 Self-Driving Live Center
Mounted in headstock spindle Used when entire length of workpiece is being machined in one operation Chuck or lathe dog could not be used to drive work Grooves ground around circumference of lathe center point provide drive Work usually soft material such as aluminum

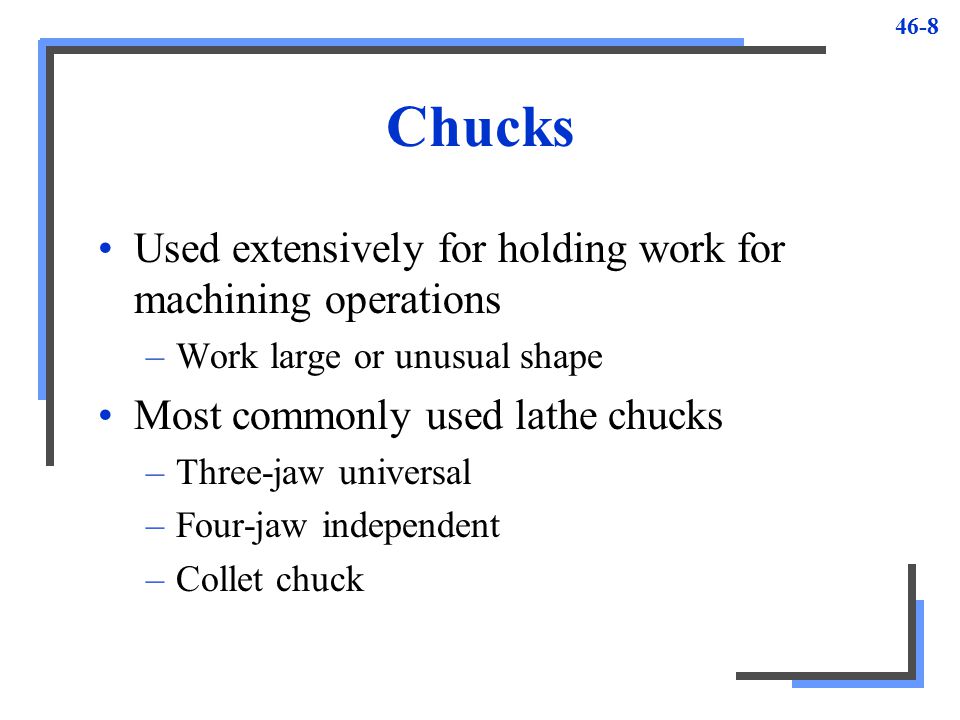

8 Chucks Used extensively for holding work for machining operations
Work large or unusual shape Most commonly used lathe chucks Three-jaw universal Four-jaw independent Collet chuck

9 Three-jaw Universal Chuck
Holds round and hexagonal work Grasps work quickly and accurate within few thousandths/inch Three jaws move simultaneously when adjusted by chuck wrench Caused by scroll plate into which all three jaws fit Two sets of jaw: outside chucking and inside chucking Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

10 Four-Jaw Independent Chuck
Used to hold round, square, hexagonal, and irregularly shaped workpieces Has four jaws Each can be adjusted independently by chuck wrench Jaws can be reversed to hold work by inside diameter

11 Headstock Spindles Universal and independent chuck fitted to three types of headstock spindles Threaded spindle nose Screws on in a clockwise direction Tapered spindle nose Held by lock nut that tightens on chuck Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

12 Cam-lock mating stud on chuck or faceplate
Headstock Spindles Cam-lock spindle nose Held by tightening cam-locks using T-wrench Chuck aligned by taper on spindle nose Registration lines on spindle nose Registration lines on cam-lock Cam-locks Cam-lock mating stud on chuck or faceplate Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

13 Collet Chuck Most accurate chuck Used for high-precision work
Spring collets available to hold round, square, or hexagon-shaped workpieces Each collet has range of only few thousandths of an inch over or under size stamped on collet

14 Types of Collet Chucks Spring-collet chuck Jacobs collet chuck
One form: Handwheel draws collet into tapered adapter Another form: Uses chuck wrench to tighten collet on workpiece Can hold larger work than draw-in type Jacobs collet chuck Utilizes impact-tightening handwheel to close collets Wider range than spring-collet chuck

15 Collet Chuck | Special adapter fitted into taper of headstock spindle, and hollow draw bar having internal thread inserted in opposite end of headstock spindle. It draws collet into tapered adapter causing collet to tighten on workpiece. Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

16 Magnetic Chucks Used to hold iron or steel parts that are too thin or may be damaged if held in conventional chuck Fitted to an adapter mounted on headstock spindle Used only for light cuts and for special grinding applications

17 Faceplates Used to hold work too large or shaped so it cannot be held in chuck or between centers Usually equipped with several slots to permit use of bolts to secure work Angle plate used so axis of workpiece may be aligned with lathe centers Counterbalance fastened to faceplate when work mounted off center Prevent imbalance and resultant vibrations

18 Steadyrest Used to support long work held in chuck or between lathe centers Prevent springing Located on and aligned by ways of the lathe Positioned at any point along lathe bed Three jaws tipped with plastic, bronze or rollers may be adjusted to support any work diameter with steadyrest capacity

19 Follower Rest Mounted on saddle
Travels with carriage to prevent work from springing up and away from cutting tool Cutting tool generally positioned just ahead of follower rest Provide smooth bearing surface for two jaws of follower rest

20 Mandrel Holds internally machined workpiece between centers so further machining operations are concentric with bore Several types, but most common Plain mandrel Expanding mandrel Gang mandrel Stub mandrel

21 Lathe Dogs Drives work machined between centers
Has opening to receive work and setscrew to fasten the dog to work Tail of dog fits into slot on driveplate and provides drive to workpiece Made in variety of sizes and types to suit various workpieces

22 Types of Lathe Dogs Standard bent-tail lathe dog
Most commonly used for round workpieces Available with square-head setscrews of headless setscrews Straight-tail lathe dog Driven by stud in driveplate Used in precision turning Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

23 Types of Lathe Dogs Safety clamp lathe dog Clamp lathe dog
Used to hold variety of work Wide range of adjustment Clamp lathe dog Wider range than others Used on all shapes Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

24 Cutting-Tool-Holding Devices
Available in three styles Left-hand offset Right-hand offset Straight Each has square hole to accommodate square toolbit held in place by setscrew Angle of approximately 15º to 30º to base of toolholder

25 Left-Hand Offset Toolholder
Offset to the right Designed for machining work close to chuck or faceplate and cutting right to left Designated by letter L Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

26 Right-Hand Offset Toolholder
Offset to the left Designed for machining work close to the tailstock and cutting left to right Also for facing operations Designated by letter R Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

27 Straight Toolholder General-purpose type
Used for taking cuts in either direction and for general machining operations Designated by letter S Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

28 Carbide Toolholder Has square hole parallel to base of toolholder to accommodate carbide-tipped toolbits Hold toolbit so there is little or no back rake Designated by letter C Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

29 Toolholders for Indexable Carbide Inserts
Held in holder by cam action or clamps Types available Conventional Turret-type Heavy-duty toolposts

30 Cutting-Off (Parting) Tools
Used when work must be grooved or parted off Long, thin cutting-off blade locked securely in toolholder by either cam lock or locking nut Three types of parting toolholders Left-hand Right-hand Straight

31 Threading Toolholder Designed to hold special form-relieved thread-cutting tool Has accurately ground 60º angle Maintained throughout life of tool Only top of cutting surface sharpened when becomes dull

32 Styles of Boring Toolholders
Held in standard toolpost Light boring toolholder Used for small holes and light cuts Medium boring toolholder Suitable for heavier cuts May be held at 45º or 90º to axis of bar Mounted on compound rest of lathe Heavy-duty boring bar holder Three bars of different diameters

33 Compound Rest Tooling Systems
Standard, or round, toolpost Generally supplied with conventional engine lathe Fits into T-slot of compound rest Provides means of holding and adjusting type of toolholder or cutting tool required Concave ring and the wedge or rocker provide for adjustment of cutting-tool height

34 Modular (Quick-Change) Tooling
Initially developed for CNC machine tools to improve accuracy, reduce tool-change time and increase productivity Benefits realized on conventional lathes with systems designed for these machines Modular tooling system must be rigid, accurate and have quick-change capabilities Basic clamping unit or turret can hold variety of cutting tool modules

35 Modular Tooling System
Principal function is to reduce cost of keeping large tool inventory Tools can be specifically mounted to suit characteristics of workpiece More common systems available The Super Quick-Change Toolpost The Quadra* Index Toolpost The Super-Six Index Turret The Vertical Index Turret

36 Super Quick-Change Toolpost
Provides fast, accurate, and reliable method of quickly changing and setting various toolholders for different operations Locking system has two sliding gibs forced out against toolholder Handle pulled into lock position Provides rigid, positive lock with zero backlash Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

37 Super Quick-Change Toolpost
Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

38 Quadr* Index Toolpost Allows four tools to be mounted on turret at same time Each tool locked independently Provides flexibility to use from one to four tools simultaneously Unique indexing system of turret allows it to be set in 24 positions (every 15º)

39 Super-Six Index Turret
Designed to simplify and increase machining productivity on engine lathes when multi-operation jobs require use of more than one tool Up to six tools for external and internal machining operations Allows height adjustment for each tool Tool changes can be made in less than 1 sec

40 Vertical Index Turret (VIT)
Designed to give highest accuracy, fastest tool change and greatest rigidity of any tool system available for engine lathes Same concept as indexing turrets on CNC lathes Can hold up to six or eight tools Closest to performance of CNC lathes
