1. ACER CONFIDENTIAL Product Brief Acer H6520BD Projector

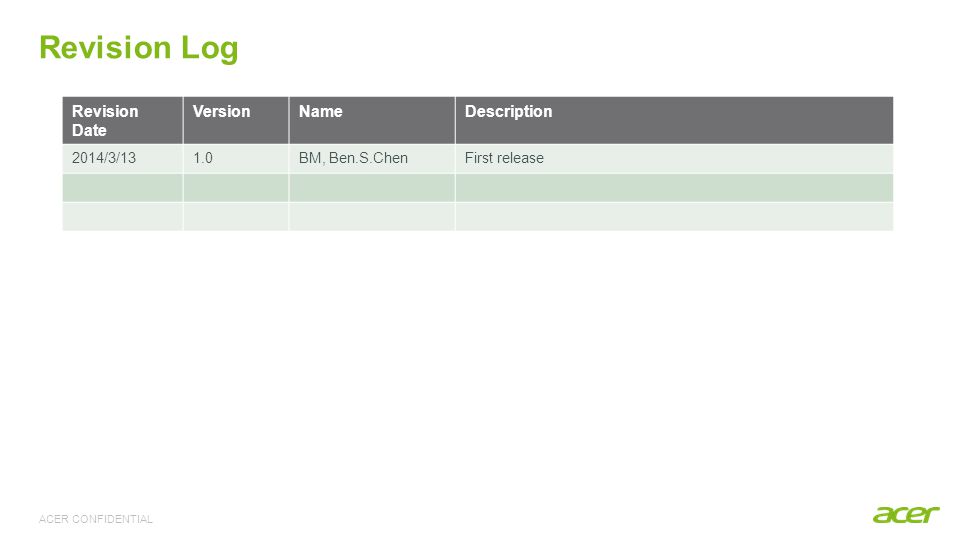

2. ACER CONFIDENTIAL Revision Log Revision Date VersionNameDescription 2014/3/131.0BM, Ben.S.ChenFirst release

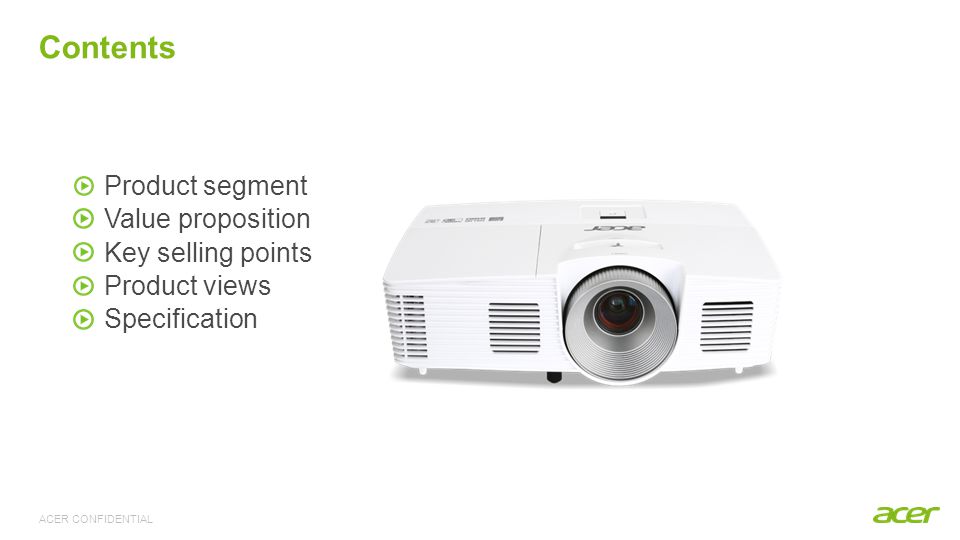

3. ACER CONFIDENTIAL Contents Product segment Value proposition Key selling points Product views Specification

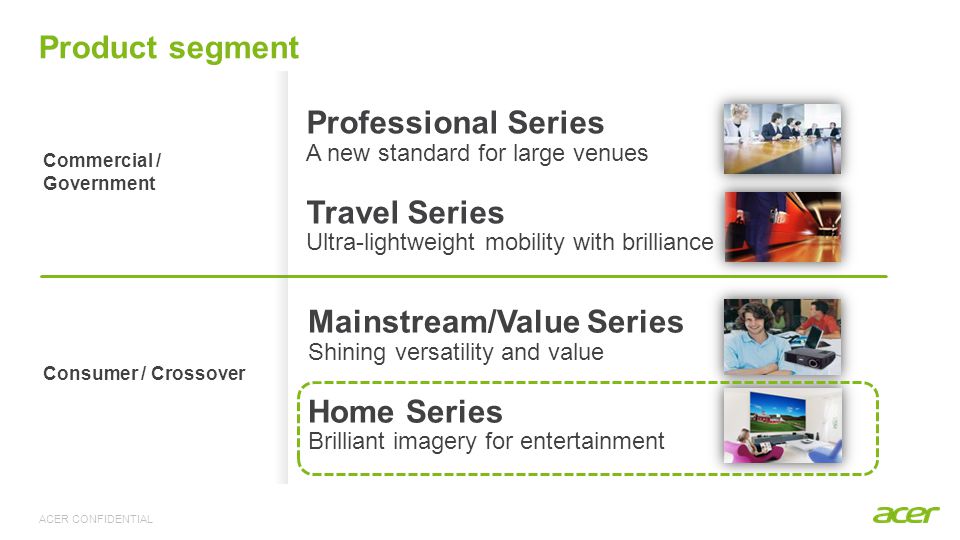

4. ACER CONFIDENTIAL Product segment Commercial / Government Professional Series A new standard for large venues Travel Series Ultra-lightweight mobility with brilliance Consumer / Crossover Mainstream/Value Series Shining versatility and value Home Series Brilliant imagery for entertainment

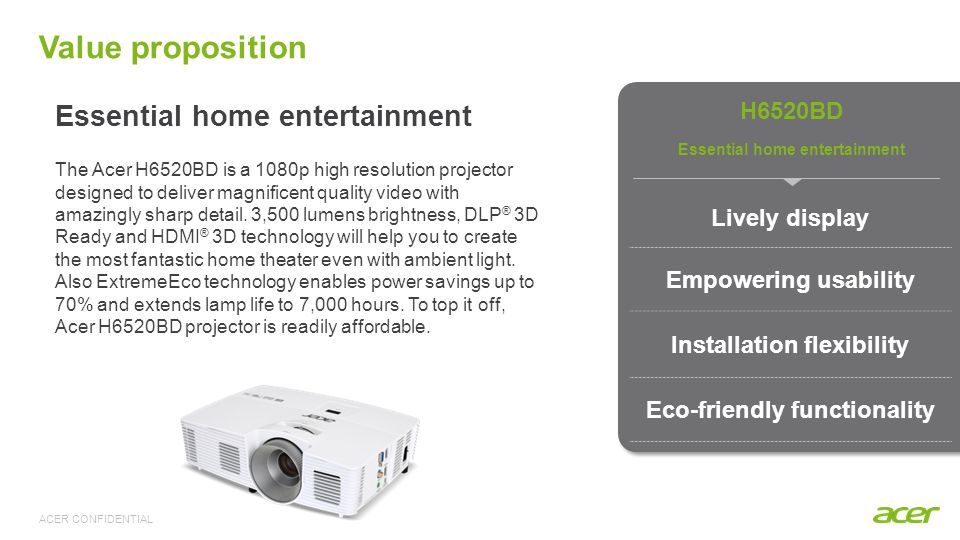

5. ACER CONFIDENTIAL Expressive projection Enhanced usability Eco-friendly functionality The Acer H6520BD is a 1080p high resolution projector designed to deliver magnificent quality video with amazingly sharp detail. 3,500 lumens brightness, DLP ® 3D Ready and HDMI ® 3D technology will help you to create the most fantastic home theater even with ambient light. Also ExtremeEco technology enables power savings up to 70% and extends lamp life to 7,000 hours. To top it off, Acer H6520BD projector is readily affordable. Value proposition Essential home entertainment H6520BD Essential home entertainment Lively display Empowering usability Installation flexibility Eco-friendly functionality

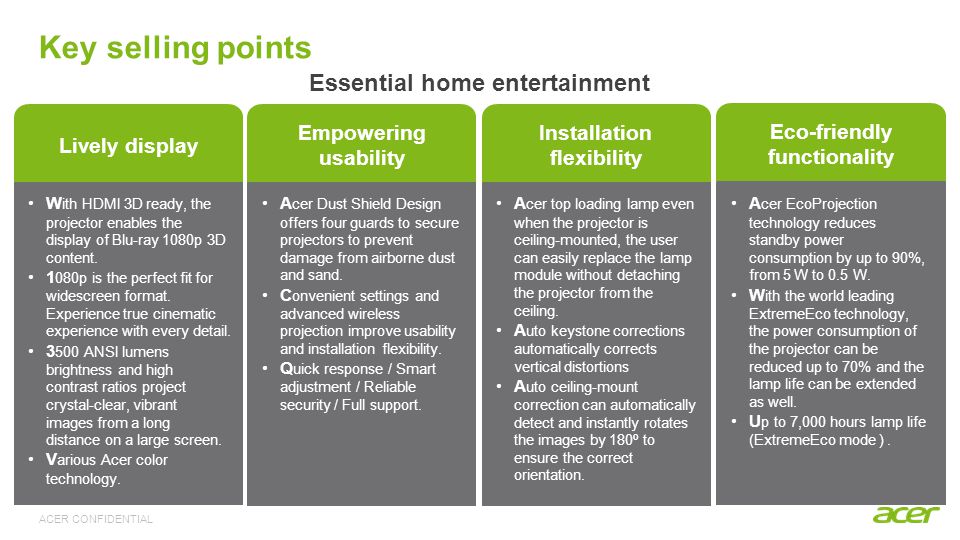

6. ACER CONFIDENTIAL A cer EcoProjection technology reduces standby power consumption by up to 90%, from 5 W to 0.5 W. W ith the world leading ExtremeEco technology, the power consumption of the projector can be reduced up to 70% and the lamp life can be extended as well. U p to 7,000 hours lamp life (ExtremeEco mode ). A cer top loading lamp even when the projector is ceiling-mounted, the user can easily replace the lamp module without detaching the projector from the ceiling. A uto keystone corrections automatically corrects vertical distortions A uto ceiling-mount correction can automatically detect and instantly rotates the images by 180º to ensure the correct orientation. Key selling points Essential home entertainment A cer Dust Shield Design offers four guards to secure projectors to prevent damage from airborne dust and sand. C onvenient settings and advanced wireless projection improve usability and installation flexibility. Q uick response / Smart adjustment / Reliable security / Full support. Eco-friendly functionality W ith HDMI 3D ready, the projector enables the display of Blu-ray 1080p 3D content. 1 080p is the perfect fit for widescreen format. Experience true cinematic experience with every detail. 3 500 ANSI lumens brightness and high contrast ratios project crystal-clear, vibrant images from a long distance on a large screen. V arious Acer color technology. Empowering usability Lively display Installation flexibility

7. ACER CONFIDENTIAL Lively display DLP ® 3D Ready for theater-like 3D enjoyment experience DLP ® 3D Ready kit, featuring advanced software that enables high (120 Hz) refresh rates to render a flicker-less 3D experience. Acer H6520BD projector and a PC or an A/V device supporting 3D output deliver a flicker-less 3D experience. The DLP ® 3D kit features DLP ® Link ™ 3D glasses for seamless 3D data transmission! DLP® Link™ 3D glasses PC supporting 120 Hz output plus 3D SW player installed NTSC DVD player + HQFS DVD or Blu-ray 3D player + Blu-ray 3D disk Acer H6520BD projector

8. ACER CONFIDENTIAL Lively display 3D Blu-ray, 3D gaming, 3D everything! H6520BD supports HDMI ® 1.4a 3D specifications; a compatible player and display are required to display 3D content. Use a console or a PC to watch 3D movies, play 3D games on Acer 3D monitors with NVIDIA ® 3DTV Play ™ software kit and HDMI ® connectivity, then become engrossed in cinematic splendor like never before. Blu-ray 3D movies 3D games PC with: NVIDIA ® 3DTV Play ™ compatible graphics card 3DTV Play ™ software installed HDMI ® 3D Acer H6520BD projector DLP ® Link ™ 3D glasses *Only available via HDMI ® port

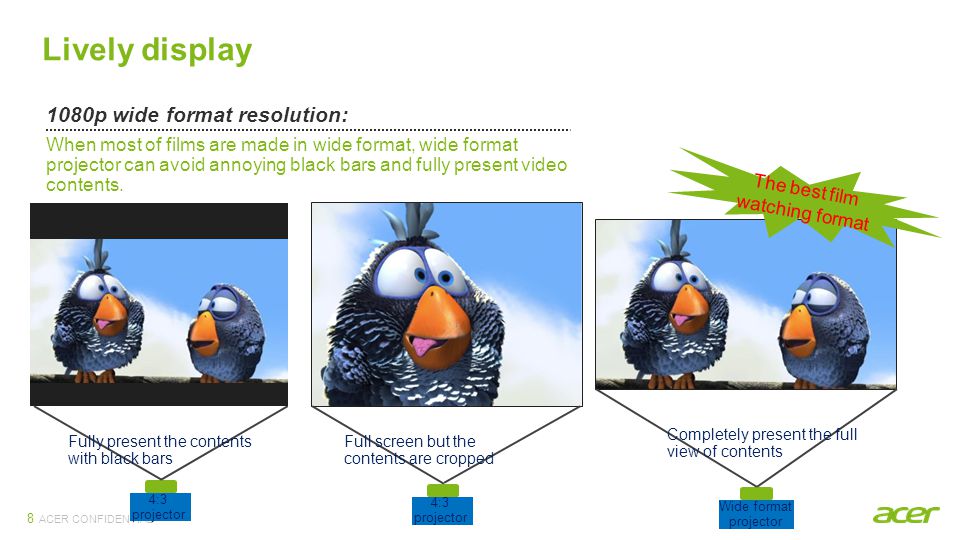

9. ACER CONFIDENTIAL 8 Wide format projector 4:3 projector Fully present the contents with black bars Full screen but the contents are cropped Completely present the full view of contents The best film watching format Lively display 1080p wide format resolution: When most of films are made in wide format, wide format projector can avoid annoying black bars and fully present video contents.

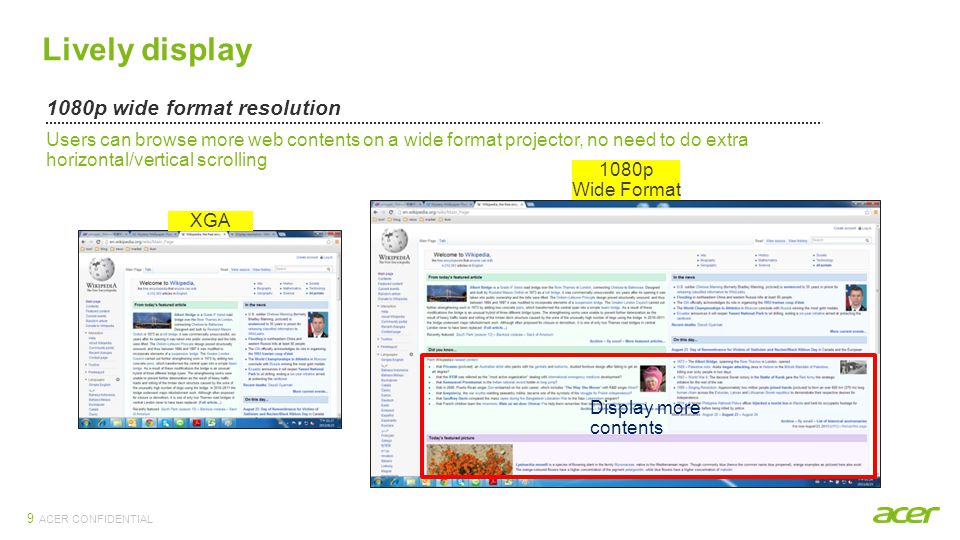

10. ACER CONFIDENTIAL 9 XGA 1080p Wide Format Display more contents Lively display 1080p wide format resolution Users can browse more web contents on a wide format projector, no need to do extra horizontal/vertical scrolling

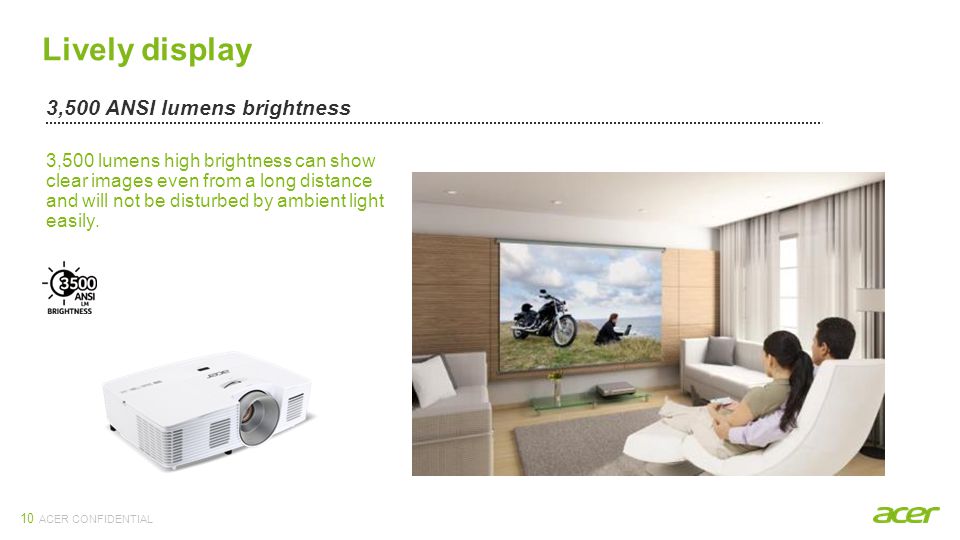

11. ACER CONFIDENTIAL 10 Lively display 3,500 ANSI lumens brightness 3,500 lumens high brightness can show clear images even from a long distance and will not be disturbed by ambient light easily.

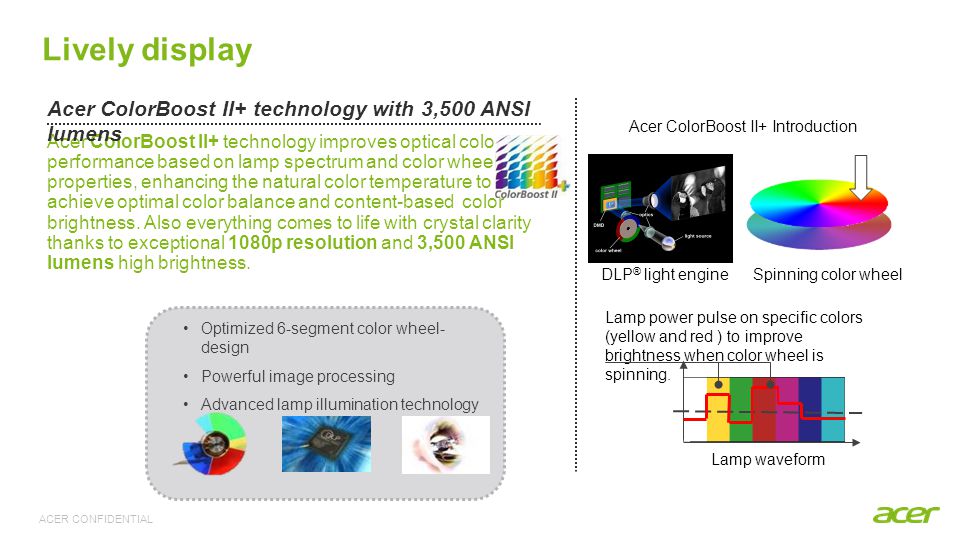

12. ACER CONFIDENTIAL Acer ColorBoost II+ technology improves optical color performance based on lamp spectrum and color wheel properties, enhancing the natural color temperature to achieve optimal color balance and content-based color brightness. Also everything comes to life with crystal clarity thanks to exceptional 1080p resolution and 3,500 ANSI lumens high brightness. Lively display Acer ColorBoost II+ technology with 3,500 ANSI lumens Optimized 6-segment color wheel- design Powerful image processing Advanced lamp illumination technology Spinning color wheelDLP ® light engine Lamp power pulse on specific colors (yellow and red ) to improve brightness when color wheel is spinning. Lamp waveform Acer ColorBoost II+ Introduction

13. ACER CONFIDENTIAL Lively display Acer ColorSafe II technology Acer ColorSafe II technology virtually eliminates color decay, and takes advantage of DLP ® technology to guarantee picture integrity despite prolonged use. Acer ColorSafe II technology uses dynamic RGB gain control to better secure color fidelity as compared to traditional DLP ® projectors. Greenish picture (traditional DLP ® projectors) Corrected images with color fidelity

14. ACER CONFIDENTIAL Ease of Use Few simple steps to control your projectors: Install Acer eDisplay on your devices Connect Acer Wireless Adapter to projectors Screen Mirroring Mirroring display: direct projection from Android 4.2 / Windows 8.1 devices Multimedia Compatibility Video, audio and photo PDF reader Office Windows/iOS/Android compatible Multitask Processing Quad-view Web browser Camera Sketch Empowering usability Wireless projection is enabled through Acer Wireless Adapter Wireless Projection

15. ACER CONFIDENTIAL Quick response Reliable security Smart adjustment Full support Instant resume / Instant pack Instant resume: Allows the next user to power up the projector right after it has been turned off. Instant pack: Allows the user to pack the projector right after it has been turned off. Acer SmartFormat technology Complete multi-format support for instant projection Complete widescreen format support Instant sync with wide-format displays without resolution adjustments from the notebook. Empowering usability

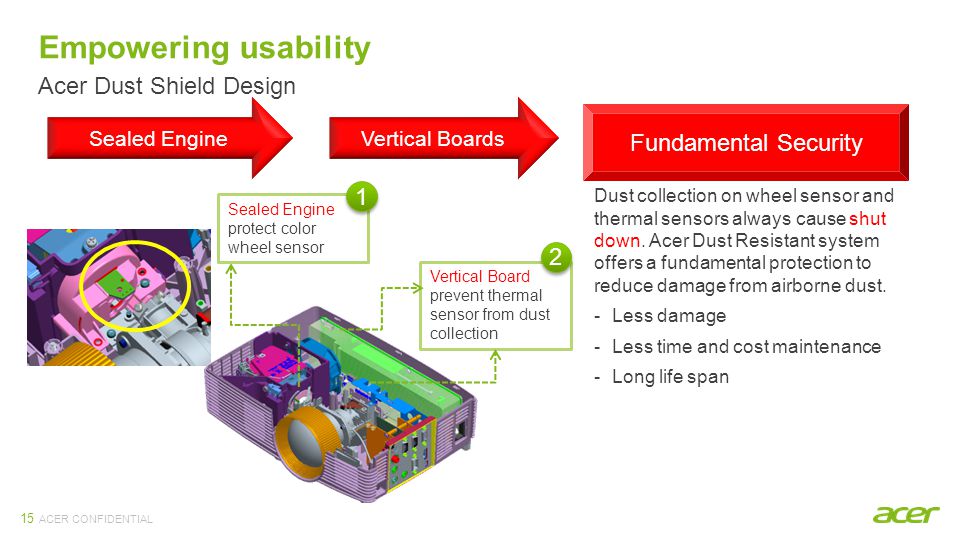

16. ACER CONFIDENTIAL 15 Vertical Board prevent thermal sensor from dust collection Sealed Engine protect color wheel sensor 1 1 2 2 Sealed EngineVertical Boards Fundamental Security Dust collection on wheel sensor and thermal sensors always cause shut down. Acer Dust Resistant system offers a fundamental protection to reduce damage from airborne dust. -Less damage -Less time and cost maintenance -Long life span Empowering usability Acer Dust Shield Design

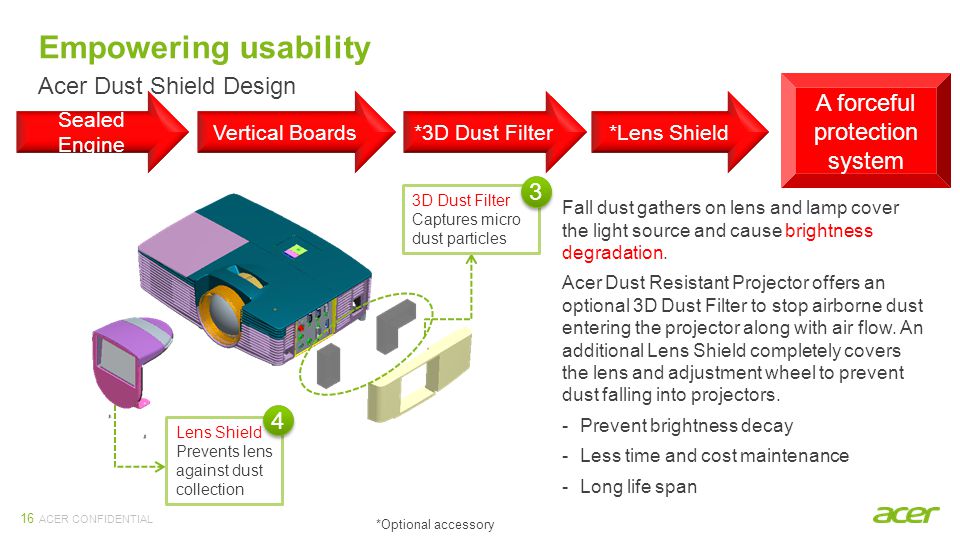

17. ACER CONFIDENTIAL 16 Sealed Engine Vertical Boards*3D Dust Filter*Lens Shield 3D Dust Filter Captures micro dust particles Lens Shield Prevents lens against dust collection 3 3 4 4 A forceful protection system Fall dust gathers on lens and lamp cover the light source and cause brightness degradation. Acer Dust Resistant Projector offers an optional 3D Dust Filter to stop airborne dust entering the projector along with air flow. An additional Lens Shield completely covers the lens and adjustment wheel to prevent dust falling into projectors. -Prevent brightness decay -Less time and cost maintenance -Long life span *Optional accessory Empowering usability Acer Dust Shield Design

18. ACER CONFIDENTIAL Acer Projector P1340W Acer top-loading lamp Installation flexibility To change the lamp: Step 1: Use a screwdriver to remove the screw from the cover. Step 2: Push up and remove the cover. Step 3: Remove the screw that secure the lamp module. Step 4: Pull out the lamp plug. Step 5: Lift the handle so that it stands up. Step 6: Pull out the lamp module by force. Step 7: To replace the lamp module, use a new lamp and reverse the above steps.

19. ACER CONFIDENTIAL Acer Projector P1340W Activating the Auto Keystone Correction feature automatically corrects vertical distortions, so the audience sees a rectangular image rather than one with a wider top/bottom, even if the projector is placed above or below the screen. Ceiling-mount correction Gravity sensor automatically detects that the projector is ceiling mounted, and instantly rotates projected images by 180º to ensure the correct orientation. Auto keystone correction Installation flexibility

20. ACER CONFIDENTIAL Acer EcoProjection technology Reduces standby power consumption dramatically With the world leading Acer ExtremeEco technology, the power consumption of the projector can be reduced up to 70% and the lamp life can be extended as well Up to 7,000 hours lamp life Standard mode – 3,500 hours ECO mode – 5,000 hours ExtremeEco mode – 7,000 hours Saves lamp replacement costs and ensures long-term, dependable projector use More Eco-friendly features Eco-friendly functionality

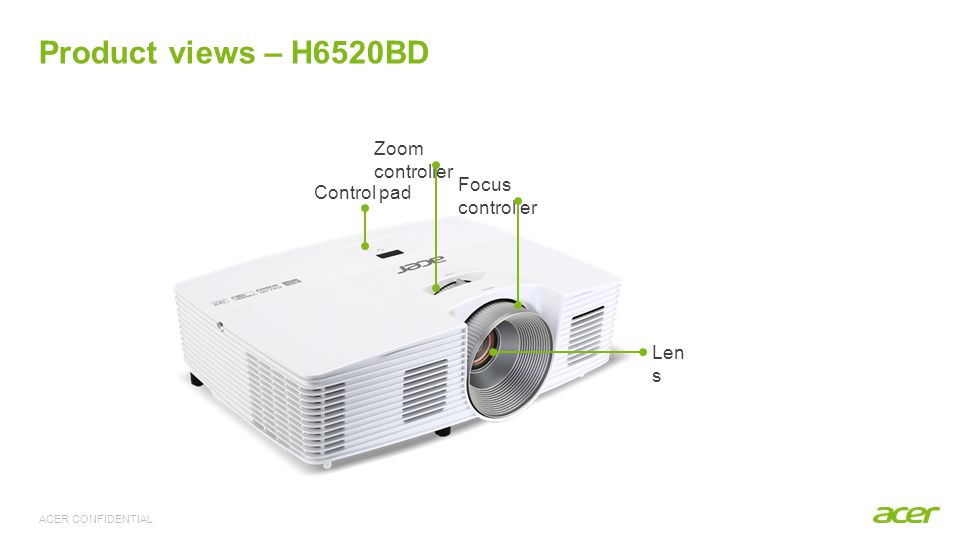

21. ACER CONFIDENTIAL Product views – H6520BD Len s Focus controller Control pad Zoom controller

22. ACER CONFIDENTIAL Product views – H6520BD Mini USB port HDMI/ MHL port D-sub in AC-in jack Audio in Composite HDMI port

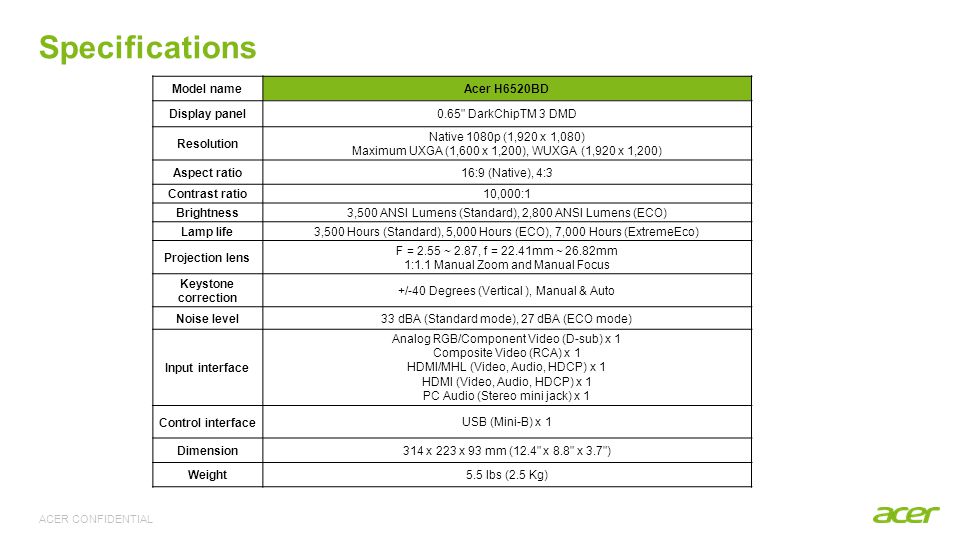

23. ACER CONFIDENTIAL Specifications Model nameAcer H6520BD Display panel0.65" DarkChipTM 3 DMD Resolution Native 1080p (1,920 x 1,080) Maximum UXGA (1,600 x 1,200), WUXGA (1,920 x 1,200) Aspect ratio 16:9 (Native), 4:3 Contrast ratio10,000:1 Brightness3,500 ANSI Lumens (Standard), 2,800 ANSI Lumens (ECO) Lamp life3,500 Hours (Standard), 5,000 Hours (ECO), 7,000 Hours (ExtremeEco) Projection lens F = 2.55 ~ 2.87, f = 22.41mm ~ 26.82mm 1:1.1 Manual Zoom and Manual Focus Keystone correction +/-40 Degrees (Vertical ), Manual & Auto Noise level33 dBA (Standard mode), 27 dBA (ECO mode) Input interface Analog RGB/Component Video (D-sub) x 1 Composite Video (RCA) x 1 HDMI/MHL (Video, Audio, HDCP) x 1 HDMI (Video, Audio, HDCP) x 1 PC Audio (Stereo mini jack) x 1 Control interface USB (Mini-B) x 1 Dimension 314 x 223 x 93 mm (12.4" x 8.8" x 3.7") Weight 5.5 lbs (2.5 Kg)

24. Thank you
