1 Inverses of Trigonometric Functions

2 The Sine Function Graph Domain: Range: All Reals -1≤y≤1 The Sine graph is a function (one output for each input). Let’s find the inverse of this graph.

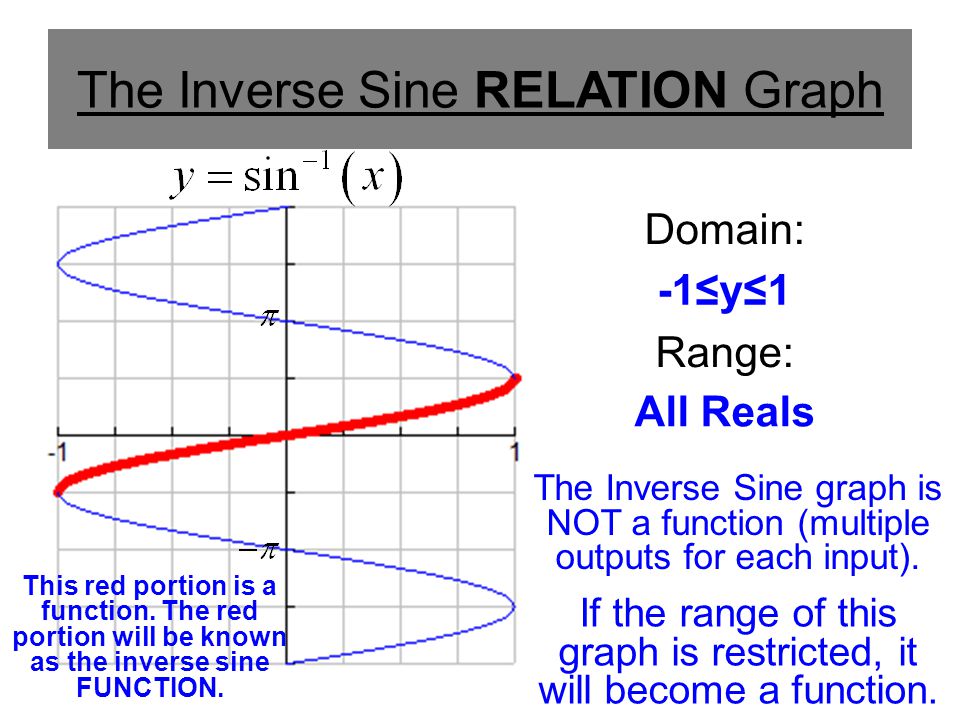

3 The Inverse Sine RELATION Graph Domain: Range: -1≤y≤1 All Reals The Inverse Sine graph is NOT a function (multiple outputs for each input). If the range of this graph is restricted, it will become a function. This red portion is a function. The red portion will be known as the inverse sine FUNCTION.

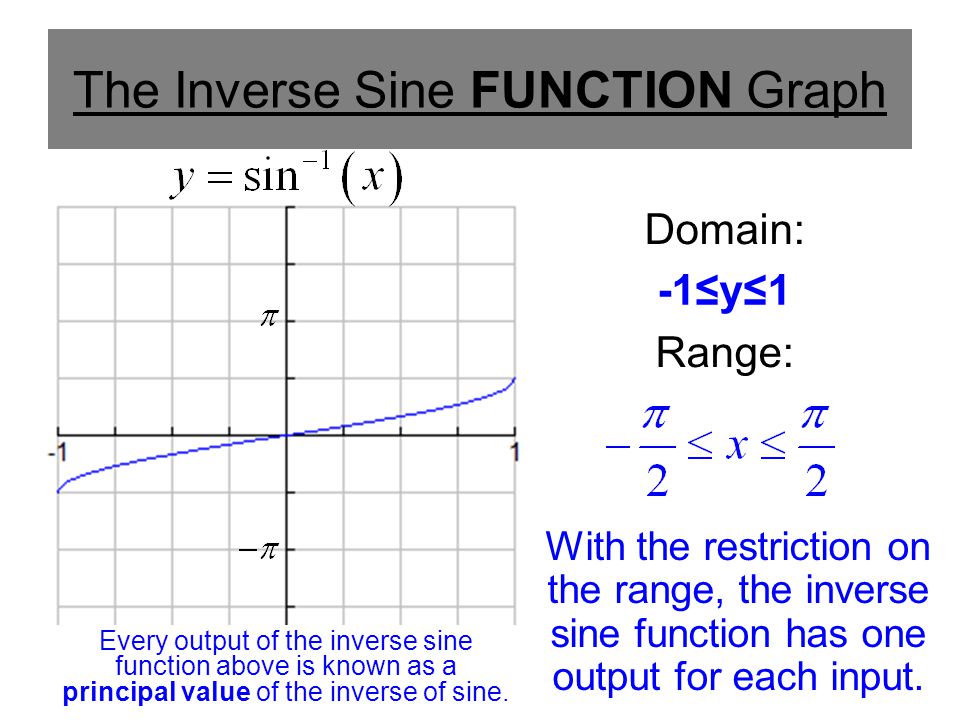

4 The Inverse Sine FUNCTION Graph Domain: Range: -1≤y≤1 With the restriction on the range, the inverse sine function has one output for each input. Every output of the inverse sine function above is known as a principal value of the inverse of sine.

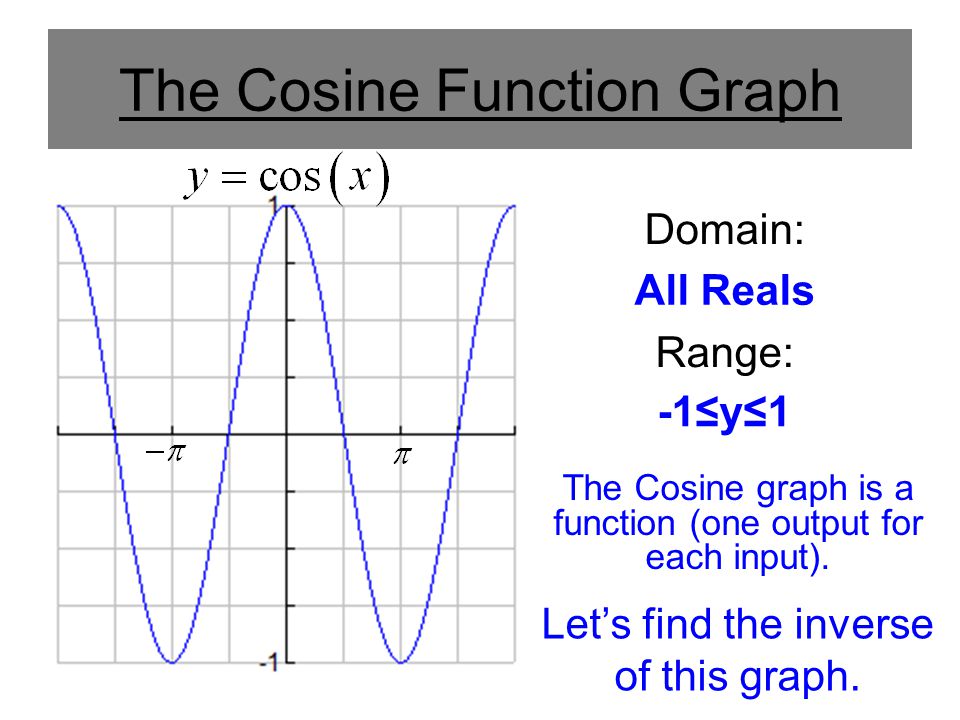

5 The Cosine Function Graph Domain: Range: All Reals -1≤y≤1 The Cosine graph is a function (one output for each input). Let’s find the inverse of this graph.

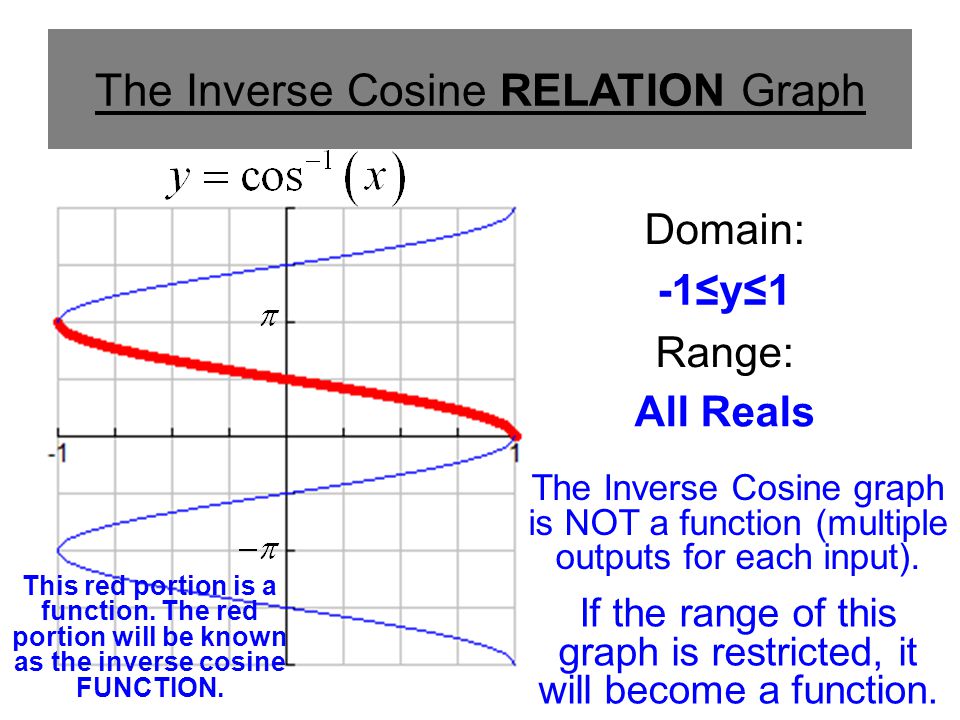

6 The Inverse Cosine RELATION Graph Domain: Range: -1≤y≤1 All Reals The Inverse Cosine graph is NOT a function (multiple outputs for each input). If the range of this graph is restricted, it will become a function. This red portion is a function. The red portion will be known as the inverse cosine FUNCTION.

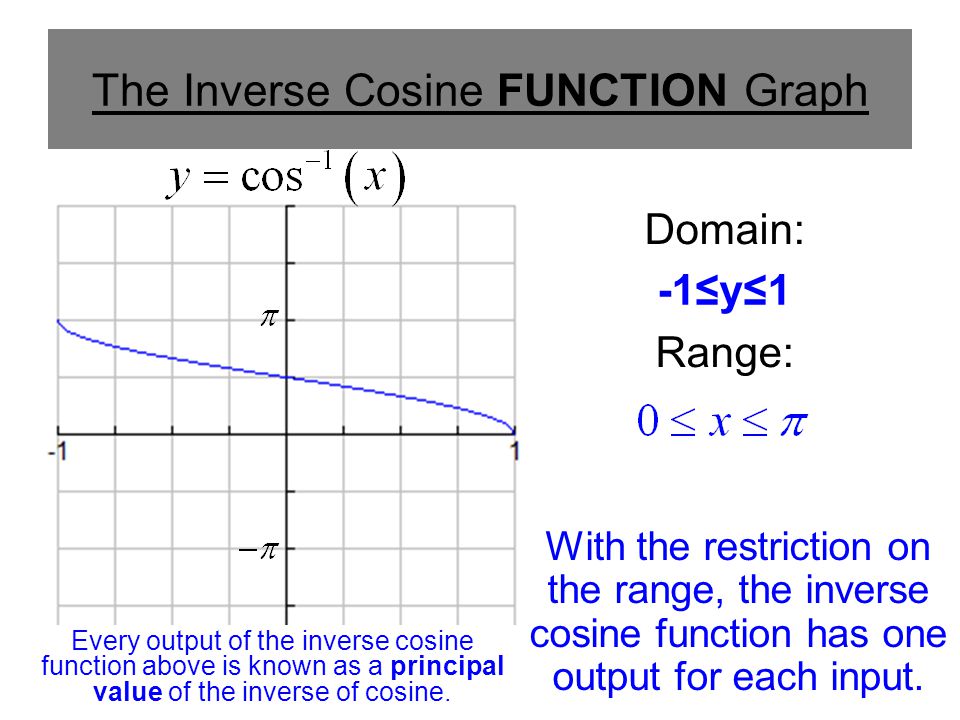

7 The Inverse Cosine FUNCTION Graph Domain: Range: -1≤y≤1 With the restriction on the range, the inverse cosine function has one output for each input. Every output of the inverse cosine function above is known as a principal value of the inverse of cosine.

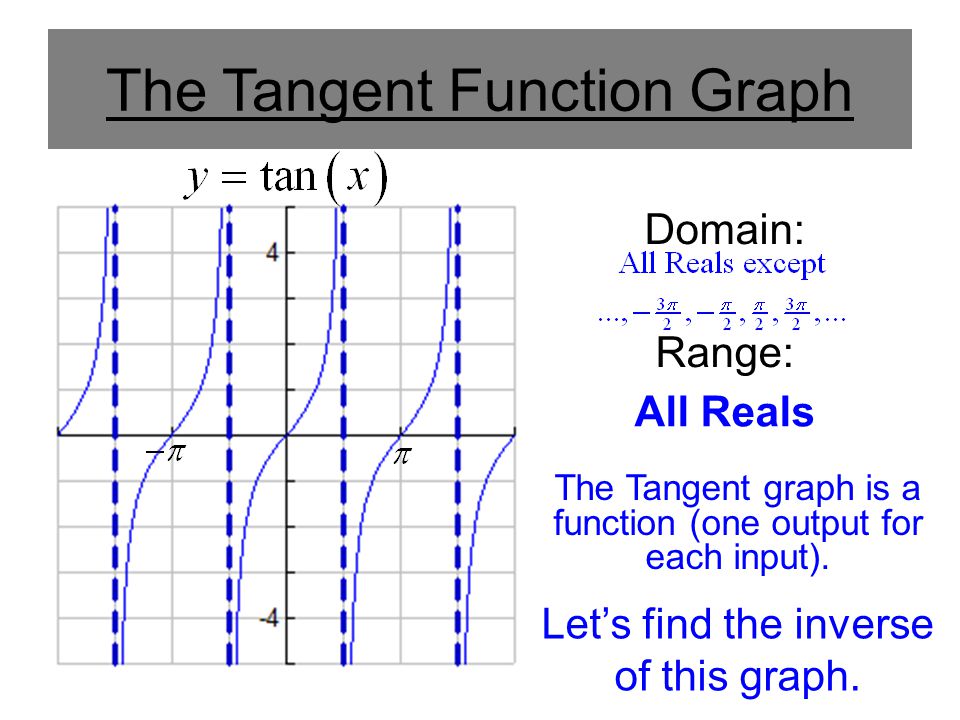

8 The Tangent Function Graph Domain: Range: All Reals The Tangent graph is a function (one output for each input). Let’s find the inverse of this graph.

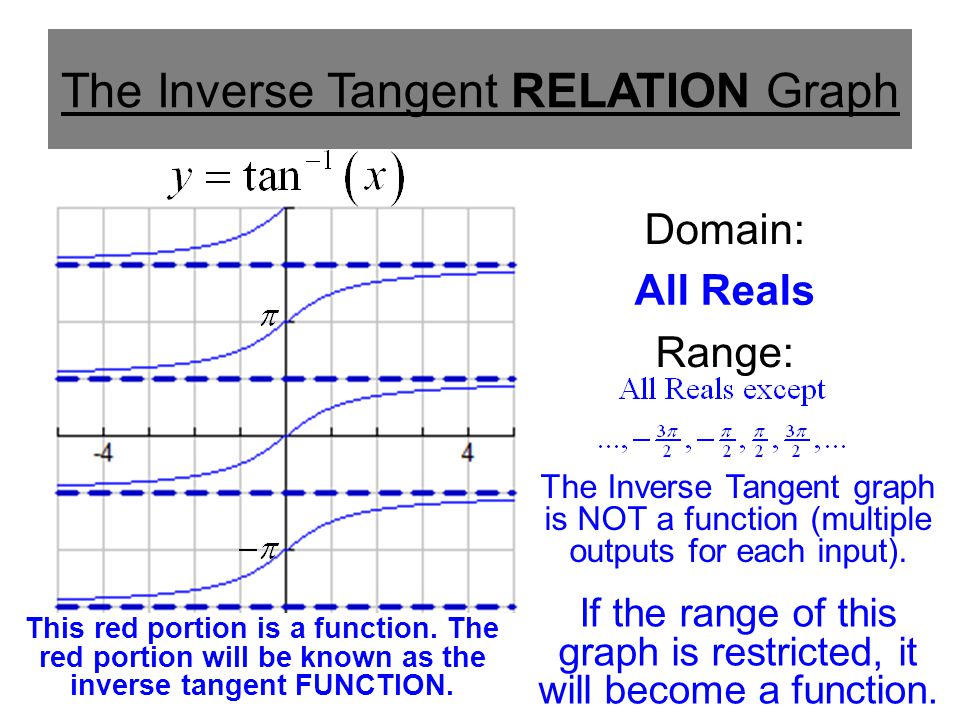

9 The Inverse Tangent RELATION Graph Domain: Range: All Reals The Inverse Tangent graph is NOT a function (multiple outputs for each input). If the range of this graph is restricted, it will become a function. This red portion is a function. The red portion will be known as the inverse tangent FUNCTION.

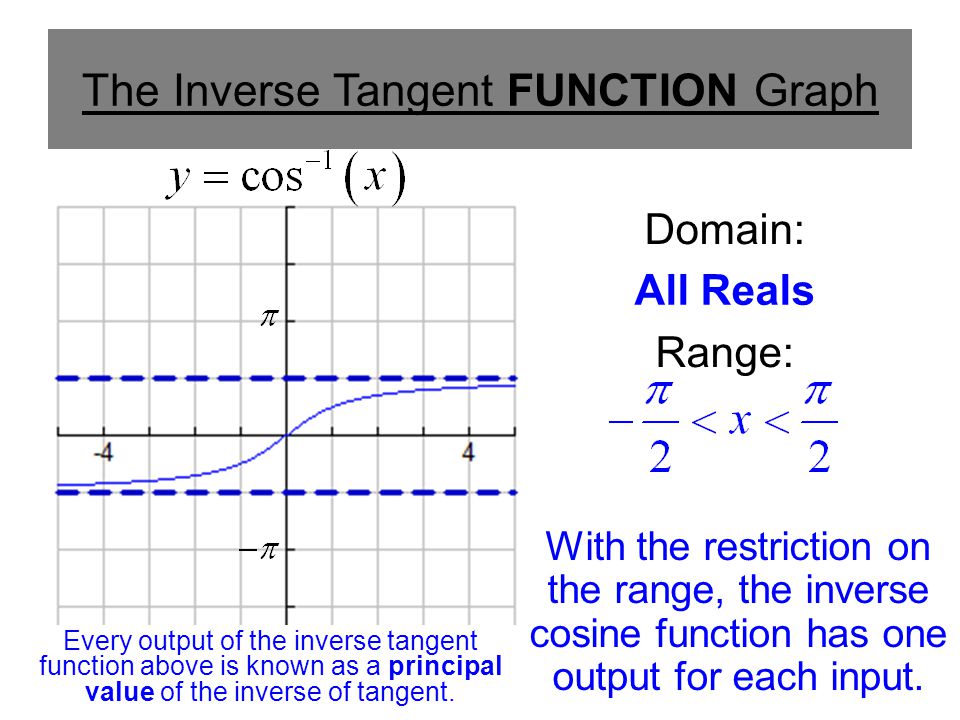

10 The Inverse Tangent FUNCTION Graph Domain: Range: All Reals With the restriction on the range, the inverse cosine function has one output for each input. Every output of the inverse tangent function above is known as a principal value of the inverse of tangent.
