1. Manning, Raghavan, Schutze
IR Indexing
Thanks to
B. Arms
SIMS
Baldi, Frasconi, Smyth
Manning, Raghavan, Schutze

2. What we have covered What is IR Evaluation
Tokenization, terms and properties of text
Web crawling; robots.txt
Vector model of documents
Bag of words
Queries
Measures of similarity
This presentation
Indexing
Inverted files

3. Last time Vector models of documents and queries Similarity measures
Bag of words model
Similarity measures
Text similarity typically used
Similarity is a measure of relevance (and ranking)
Query is a small document
Match query to document
All stored and indexed before a query is matched.

4. Summary: What’s the point of using vector spaces?
A well-formed algebraic space for retrieval
Key: A user’s query can be viewed as a (very) short document.
Query becomes a vector in the same space as the docs.
Can measure each doc’s proximity to it.
Natural measure of scores/ranking – no longer Boolean.
Queries are expressed as bags of words
Other similarity measures: see for a survey

5. A Typical Web Search Engine
YouSeer
Nutch
LucidWorks
Solr/Lucene
Index
Query Engine
Interface
Indexer
Users
Crawler
Web
A Typical Web Search Engine

6. A Typical Web Search Engine
Indexing
Index
Query Engine
Interface
Indexer
Users
Crawler
Web
A Typical Web Search Engine

7. Why indexing?
For efficient searching for documents with unstructured text (not databases) using terms as queries
Databases can still be searched with an index
Sphinx
Online sequential text search (grep)
Small collection
Text volatile
Data structures - indexes
Large, semi-stable document collection
Efficient search

8. Unstructured vs structured data
What’s available?
Web
Organizations
You
Unstructured usually means “text”
Structured usually means “databases”
Semistructured somewhere in between

9. Unstructured (text) vs. structured (database) data companies in 1996

10. Unstructured (text) vs. structured (database) data companies in 2006

11. IR vs. databases: Structured vs unstructured data
Structured data tends to refer to information in “tables”
Employee
Manager
Salary
Smith
Jones
50000
Chang
Smith
60000
Ivy
Smith
50000
Typically allows numerical range and exact match
(for text) queries, e.g.,
Salary < AND Manager = Smith.

12. Unstructured data Typically refers to free text Allows
Keyword queries including operators
More sophisticated “concept” queries e.g.,
find all web pages dealing with drug abuse
Classic model for searching text documents

13. Semi-structured data In fact almost no data is “unstructured”
E.g., this slide has distinctly identified zones such as the Title and Bullets
Facilitates “semi-structured” search such as
Title contains data AND Bullets contain search
… to say nothing of linguistic structure

14. More sophisticated semi-structured search
Title is about Object Oriented Programming AND Author something like stro*rup
where * is the wild-card operator
Issues:
how do you process “about”?
how do you rank results?
The focus of XML search.

15. Clustering and classification
Given a set of docs, group them into clusters based on their contents.
Given a set of topics, plus a new doc D, decide which topic(s) D belongs to.
Not discussed in this course

16. The web and its challenges
Unusual and diverse documents
Unusual and diverse users, queries, information needs
Beyond terms, exploit ideas from social networks
link analysis, clickstreams ...
How do search engines work? And how can we make them better?

17. More sophisticated information retrieval not covered here
Cross-language information retrieval
Question answering
Summarization
Text mining …

18. Search Subsystem query parse query query tokens ranked document set
stop list*
non-stoplist tokens
ranking*
stemming*
stemmed terms
Boolean operations*
retrieved document set
*Indicates optional operation.
Index database
relevant document set

19. Lexical Analysis: Tokens
What is a token?
Free text indexing
A token is a group of characters, extracted from the input string, that has some collective significance, e.g., a complete word.
Usually, tokens are strings of letters, digits or other specified characters, separated by punctuation, spaces, etc.

20. Decisions in Building Inverted Files: What is the Term/Token?

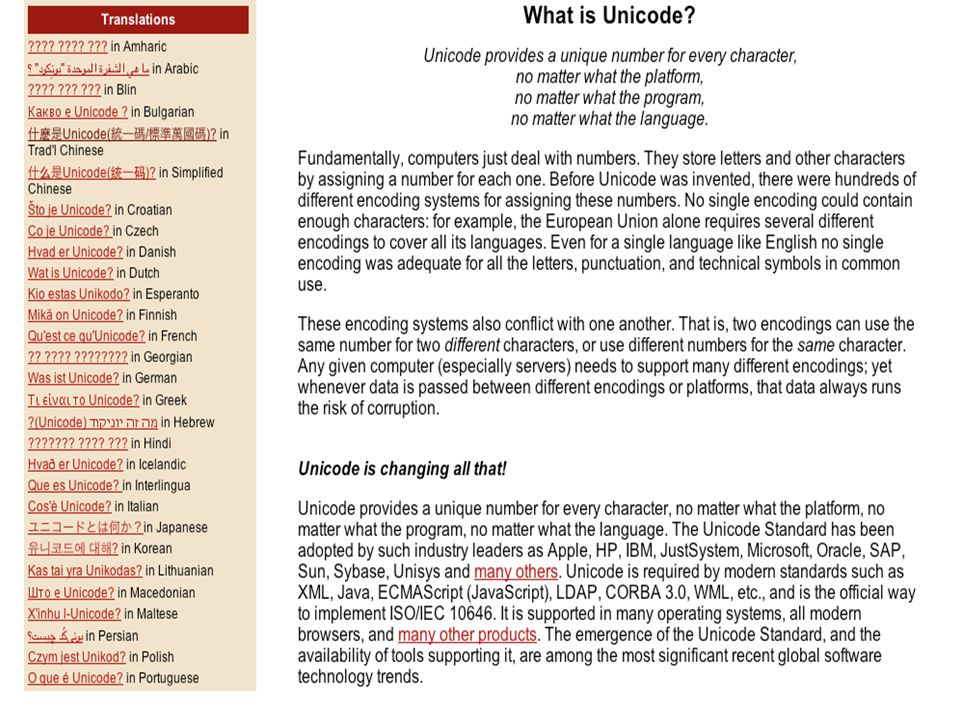

• Underlying character set, e.g., printable ASCII,
Unicode, UTF8.
• Is there a controlled vocabulary? If so, what
words are included? Stemming?
• List of stopwords.
• Rules to decide the beginning and end of words, e.g.,
spaces or punctuation.
• Character sequences not to be indexed, e.g.,
sequences of numbers.

22. Decisions in Building an Inverted File: Efficiency and Query Languages
Some query options may require huge computation, e.g.,
Regular expressions
If inverted files are stored in lexicographic order,
comp* can be processed efficiently
*comp cannot be processed efficiently
Boolean terms
If A and B are search terms
A or B can be processed by comparing two moderate sized lists
(not A) or (not B) requires two very large lists

23. Major Indexing Methods
Inverted index
effective for very large collections of documents
associates lexical items to their occurrences in the collection
Positional index
Non-positional indexs
Block-sort
Suffix trees and arrays
Faster for phrase searches; harder to build and maintain
Signature files
Word oriented index structures based on hashing (usually not used for large texts)

24. Sparse Vectors Terms (tokens) as vectors
Vocabulary and therefore dimensionality of vectors can be very large, ~104 .
However, most documents and queries do not contain most words, so vectors are sparse (i.e. most entries are 0).
Need efficient methods for storing and computing with sparse vectors.

25. Sparse Vectors as Lists
Store vectors as linked lists of non-zero-weight tokens paired with a weight.
Space proportional to number of unique terms (n) in document.
Requires linear search of the list to find (or change) the weight of a specific term.
Requires quadratic time in worst case to compute vector for a document:

26. Sparse Vectors as Trees
Index tokens in a document in a balanced binary tree or trie with weights stored with tokens at the leaves.
memory 
<
film
variable
Balanced Binary Tree  
<
<
bit 2
film 1
memory 1
variable 2

27. Sparse Vectors as Trees (cont.)
Space overhead for tree structure: ~2n nodes.
O(log n) time to find or update weight of a specific term.
O(n log n) time to construct vector.
Need software package to support such data structures.

28. Sparse Vectors as Hash Tables
Hashing:
well-defined procedure or mathematical function that converts a large, possibly variable-sized amount of data into a small datum, usually a single integer that may serve as an index to an array
Store tokens in hash table, with token string as key and weight as value.
Storage overhead for hash table ~1.5n
Table must fit in main memory.
Constant time to find or update weight of a specific token (ignoring collisions).
O(n) time to construct vector (ignoring collisions).

29. Implementation Based on Inverted Files
In practice, document vectors are not stored directly; an inverted organization provides much better efficiency.
The keyword-to-document index can be implemented as a hash table, a sorted array, or a tree-based data structure (trie, B-tree).
Critical issue is logarithmic or constant-time access to token information.

30. Index File Types - Lucene
Field File
Field infos: .fnm
Stored Fields
field index: .fdx
field data: .fdt
Term Dictionary file
Term infos: .tis
Term info index: .tii
Frequency file: .frq
Position file: .prx

31. Representation of Inverted Files
Field File
Field infos: Field names are stored in the field info file
Stored Fields
Field index: contains, for each document, a pointer to its field data
Field data: contains the stored fields of each document
Term Dictionary file (stores Document Frequency)
Term infos: This file is sorted by Term. Terms are ordered first lexicographically by the term's field name, and within that lexicographically by the term's text
Term info index: contains entries and locations in term infos file. This is designed to be read entirely into memory and used to provide random access to the term infos file.
Frequency file (posting file): contains the lists of documents which contain each term, along with the frequency of the term in that document
Ordered by term (the term is implicit, from the term infos file).
Term Frequency entries are ordered by increasing document number.
Position file (Inverted index file): contains the lists of positions that each term occurs at within documents. Can be used to highlight search results, etc.
Positions entries are ordered by increasing document number

32. Organization of Inverted Files
Term Frequency (Posting file)
Term Position File (Inverted index)
Term Dictionary
Prefix
Length
Suffix
Field
Num
Doc
Freq
cat 1 2 3 hy
dog 6 om
Term
(implicit)
DocDelta, Freq?
cat
3, 2, 2
cathy
3, 3, 7
dog
3, 3, 5, 3, 4, 2, 7
doom 7
Term(implicit)
Doc1
Doc2 …
DocN
cat 1
2, 1 2
cathy 3
dog 6
doom
Document Files

33. Efficiency Criteria Storage
Inverted files are big, typically 10% to 100% the size of the collection of documents.
Update performance
It must be possible, with a reasonable amount of computation, to:
(a) Add a large batch of documents
(b) Add a single document
Retrieval performance
Retrieval must be fast enough to satisfy users and not use excessive resources.

34. Document File
The documents file stores the documents that are being indexed. The documents may be:
• primary documents, e.g., electronic journal articles
• surrogates, e.g., catalog records or abstracts

35. Postings File
Merging inverted lists is the most computationally intensive task in many information retrieval systems.
Since inverted lists may be long, it is important to match postings efficiently.
Usually, the inverted lists will be held on disk and paged into memory for matching. Therefore algorithms for matching postings process the lists sequentially.
For efficient matching, the inverted lists should all be sorted in the same sequence.
Inverted lists are commonly cached to minimize disk accesses.

36. Document File The storage of the document file may be:
Central (monolithic) - all documents stored together on a single
server (e.g., library catalog)
Distributed database - all documents managed together but
stored on several servers (e.g., Medline, Westlaw, Dialog)
Highly distributed - documents are stored on independently
managed servers (e.g., Web)
Each requires: a document ID, which is a unique identifier that can be used by the inverted file system to refer to the document, and a location counter, which can be used to specify location within a document.

37. Documents File for Web Search System
For web search systems:
• A document is a web page.
• The documents file is the web.
• The document ID is the URL of the document.
Indexes are built using a web crawler, which retrieves each page
on the web (or a subset). After indexing, each page is discarded,
unless stored in a cache.
(In addition to the usual index file and postings file the indexing system stores contextual information, which will be discussed in a later lecture.)

38. Term Frequency (Postings File)
The postings file stores the elements of a sparse matrix, the term assignment matrix.
It is stored as a separate inverted list for each term, i.e., a list corresponding to each term in the index file.
Each element in an inverted list is called a posting, i.e., the occurrence on a term in documents
Each list consists of one or many individual postings.

39. Postings File in Lucene: A Linked List for Each Term
1 abacus : 3, 6, 5
meaning: “abacus” appeared once in document 1 ( |3/2| ), 5 times in document 4 ( 1+|6/2| ).
2 abc : 3, 5, 2, 3
meaning: “abc” appeared once in document 1 ( |3/2| ), once in document 3 ( 1+ |5/2| ), 3 times in document 4 ( 3+|2/2| ).
A linked list for each term is convenient to process sequentially, but slow to update when the lists are long.

40. Length of Postings File
For a common term there may be very large numbers of postings for a given term.
Example:
1,000,000,000 documents
1,000,000 distinct words
average length 1,000 words per document
1012 postings
By Zipf's law, the 10th ranking word occurs, approximately:
(1012/10)/10 times
= 1010 times

41. Inverted Index Primary data structure for text indexes
Basically two elements:
(Vocabulary, Occurrences)
Main Idea:
Invert documents into a big index
Basic steps:
Make a “dictionary” of all the terms/tokens in the collection
For each term/token, list all the docs it occurs in.
Possibly location in document (Lucene stores the positions)
Compress to reduce redundancy in the data structure
Also reduces I/O and storage required

42. Inverted Indexes
We have seen “Vector files”. An Inverted File is a vector file “inverted” so that rows become columns and columns become rows

43. How Are Inverted Files Created
Documents are parsed one document at a time to extract tokens/terms. These are saved with the Document ID (DID).
<term, DID>
Doc 1
Doc 2
Now is the time
for all good men
to come to the aid
of their country
It was a dark and
stormy night in
the country
manor. The time
was past midnight

44. How Inverted Files are Created
After all documents have been parsed, the inverted file is sorted alphabetically and in document order.

45. How Inverted Files are Created
Multiple term/token entries for a single document are merged.
Within-document term frequency information is compiled.
Result <term,DID,tf>
<the,1,2>

46. How Inverted Files are Created
Then the inverted file can be split into
A Dictionary file
File of unique terms
Fit in memory if possible
and
A Postings file
File of what document the term/token is in and how often.
Sometimes where the term is in the document.
Store on disk
Worst case O(n); n size of tokens.

47. Dictionary and Posting Files
Dictionary Posting

48. Inverted indexes Permit fast search for individual terms
For each term/token, you get a list consisting of:
document ID (DID)
frequency of term in doc (optional, implied in Lucene)
position of term in doc (optional, Lucene)
<term,DID,tf,position>
<term,(DIDi,tf,positionij),…>
Lucene:
<positionij,…> (term and DID are implied from other files)
These lists can be used to solve Boolean queries:
country -> d1, d2
manor -> d2
country AND manor -> d2

49. How Inverted Files are Used
Query on
“time” AND “dark”
2 docs with “time” in dictionary ->
IDs 1 and 2 from posting file
1 doc with “dark” in dictionary ->
ID 2 from posting file
Therefore, only doc 2 satisfied the query.
Dictionary Postings

50. Inverted index Associates a posting list with each term
POSTING LIST example
a (d1, 1) …
the (d1,2) (d2,2)
Replace term frequency(tf) with tfidf
Lucene only uses tf, idf added at query time
Compress index and put hash links
Hashing (a type of compression) speeds up the access
Match query to index and rank

51. Position in inverted file posting
POSTING LIST example
now (1, 1) …
time (1,4) (2,13)
Doc 1
Doc 2
Now is the time
for all good men
to come to the aid
of their country
It was a dark and
stormy night in
the country
manor. The time
was past midnight

52. Change weight Multiple term entries for a single document are merged.
Within-document term frequency information is compiled.

53. Example: WestLaw http://www.westlaw.com/
Largest commercial (paying subscribers) legal search service (started 1975; ranking added 1992)
About 7 terabytes of data; 700,000 users
Majority of users still use boolean queries
Example query:
What is the statute of limitations in cases involving the federal tort claims act?
LIMIT! /3 STATUTE ACTION /S FEDERAL /2 TORT /3 CLAIM
Long, precise queries; proximity operators; incrementally developed; not like web search

54. Time Complexity of Indexing
Complexity of creating vector and indexing a document of n terms is O(n).
So building an index of m such documents is O(m n).
Computing vector lengths is also O(m n), which is also the complexity of reading in the corpus.

55. Retrieval with an Inverted Index
Terms that are not in both the query and the document do not effect cosine similarity.
Product of term weights is zero and does not contribute to the dot product.
Usually the query is fairly short, and therefore its vector is extremely sparse.
Use inverted index to find the limited set of documents that contain at least one of the query words.
Retrieval time O(log M) due to hashing where M is the size of the document collection.

56. Inverted Query Retrieval Efficiency
Assume that, on average, a query word appears in B documents:
Then retrieval time is O(|Q| B), which is typically, much better than naïve retrieval that examines all M documents, O(|V| M), because |Q| << |N| and B << M. |V| size of vocabulary
Q = q q … qN
D11…D1B
D21…D2B
Dn1…DnB

57. Processing the Query
Incrementally compute cosine similarity of each indexed document as query words are processed one by one.
To accumulate a total score for each retrieved document, store retrieved documents in a hashtable, where DocumentReference is the key and the partial accumulated score is the value.

58. Index Files
On disk
If an index is held on disk, search time is dominated by the number of disk accesses.
In memory
Suppose that an index has 1,000,000 distinct terms.
Each index entry consists of the term, some basic statistics and a pointer to the inverted list, average 100 characters.
Size of index is 100 megabytes, which can easily be held in memory of a dedicated computer.

59. Index File Structures: Linear Index
Advantages
Can be searched quickly, e.g., by binary search, O(log M)
Good for sequential processing, e.g., comp*
Convenient for batch updating
Economical use of storage
Disadvantages
Index must be rebuilt if an extra term is added

60. Documents File for Web Search System
For Web search systems:
• A Document is a Web page.
• The Documents File is the Web.
• The Document ID is the URL of the document.
Indexes are built using a Web crawler, which retrieves each page
on the Web (or a subset). After indexing each page is discarded,
unless stored in a cache.
(In addition to the usual index file and postings file the indexing system stores special information)

61. Index File Structures: Binary Tree
Input: elk, hog, bee, fox, cat, gnu, ant, dog
elk
bee
hog
ant
cat
fox
gnu
dog

62. Binary Tree Advantages Can be searched quickly
Convenient for batch updating
Easy to add an extra term
Economical use of storage
Disadvantages
Less good for lexicographic processing, e.g., comp*
Tree tends to become unbalanced
If the index is held on disk, important to optimize
the number of disk accesses

63. Binary Tree Calculation of maximum depth of tree.
Illustrates importance of balanced trees.
Worst case: depth = n
O(n)
Ideal case: depth = log(n + 1)/log 2
O(log n)

64. Right Threaded Binary Tree
Threaded tree:
A binary search tree in which each node uses an otherwise-empty left child link to refer to the node's in-order predecessor and an empty right child link to refer to its in-order successor.
Right-threaded tree:
A variant of a threaded tree in which only the right thread, i.e. link to the successor, of each node is maintained. Can be used for lexicographic processing.
A good data structure when index held in memory
Knuth vol 1, 2.3.1, page 325.

65. Right Threaded Binary Tree
From: Robert F. Rossa

66. B-trees B-tree of order m: A balanced, multiway search tree:
• Each node stores many keys
• Root has between 2 and 2m keys.
All other internal nodes have between m and 2m keys.
• If ki is the ith key in a given internal node
-> all keys in the (i-1)th child are smaller than ki
-> all keys in the ith child are bigger than ki
• All leaves are at the same depth

67. B-trees B-tree example (order 2) 50 65 55 59 10 19 35 70 90 98 66 68
50 65
55 59
66 68
36 47
72 73
Every arrow points to a node containing between 2 and 4 keys.
A node with k keys has k + 1 pointers.

68. B+-tree • A B-tree is used as an index
• Data is stored in the leaves of the tree, known as buckets
Example: B+-tree of order 2, bucket size 4
50 65
10 25
55 59
... D9
D D54
D66...
D81 ...

69. Time Complexity of Indexing
Complexity of creating vector and indexing a document of n tokens is O(n).
So indexing m such documents is O(m n).
Computing token IDFs for a vocabularly V is O(|V|).
Computing vector lengths is also O(m n).
Since |V|  m n, complete process is O(m n), which is also the complexity of just reading in the corpus.

70. Index on disk vs. memory
Most retrieval systems keep the dictionary in memory and the postings on disk
Web search engines frequently keep both in memory
massive memory requirement
feasible for large web service installations
less so for commercial usage where query loads are lighter

71. Indexing in the real world
Typically, don’t have all documents sitting on a local filesystem
Documents need to be crawled
Could be dispersed over a WAN with varying connectivity
Must schedule distributed spiders/indexers
Could be (secure content) in
Databases
Content management applications
applications

72. Content residing in applications
Mail systems/groupware, content management contain the most “valuable” documents
http often not the most efficient way of fetching these documents - native API fetching
Specialized, repository-specific connectors
These connectors also facilitate document viewing when a search result is selected for viewing

73. Secure documents Each document is accessible to a subset of users
Usually implemented through some form of Access Control Lists (ACLs)
Search users are authenticated
Query should retrieve a document only if user can access it
So if there are docs matching your search but you’re not privy to them, “Sorry no results found”
E.g., as a lowly employee in the company, I get “No results” for the query “salary roster”
Solr has this with post filtering

74. Users in groups, docs from groups
Index the ACLs and filter results by them
Often, user membership in an ACL group verified at query time – slowdown
Documents
Users
0/1
0 if user can’t read doc, 1 otherwise.

75. Compound documents What if a doc consisted of components
Each component has its own ACL.
Your search should get a doc only if your query meets one of its components that you have access to.
More generally: doc assembled from computations on components
e.g., in Lotus databases or in content management systems
How do you index such docs?
No good answers …

76. “Rich” documents (How) Do we index images?
Researchers have devised Query based on Image Content (QBIC) systems
“show me a picture similar to this orange circle”
Then use vector space retrieval
In practice, image search usually based on meta- data such as file name e.g., monalisa.jpg
New approaches exploit social tagging
E.g., flickr.com

77. Passage/sentence retrieval
Suppose we want to retrieve not an entire document matching a query, but only a passage/sentence - say, in a very long document
Can index passages/sentences as mini- documents – what should the index units be?
This is the subject of XML search

78. Indexing Subsystem documents Documents assign document IDs text
document numbers and *field numbers
break into tokens
tokens
stop list*
non-stoplist tokens
stemming*
*Indicates optional operation.
stemmed terms
term weighting*
terms with weights
Index database

79. Search Subsystem query parse query query tokens ranked document set
stop list*
non-stoplist tokens
ranking*
stemming*
stemmed terms
Boolean operations*
retrieved document set
*Indicates optional operation.
Index database
relevant document set

80. Lucene’s index (conceptual)
Document
Document
Field
Field
Field
Document
Name
Value
Field
Document
Field

81. Create a Lucene index (step 1)
Create Lucene document and add fields
import org.apache.lucene.document.Document;
import org.apache.lucene.document.Field;
public void createDoc(String title, String body) {
Document doc=new Document( );
doc.add(Field.Text(“Title”, title));
doc.add(Field.Text(“Body”,body); }

82. Create a Lucene index (step 2)
Create an Analyser
Options
WhitespaceAnalyzer
divides text at whitespace
SimpleAnalyzer
divides text at non-letters
convert to lower case
StopAnalyzer
removes stop words
StandardAnalyzer
good for most European Languages

83. Create a Lucene index (step 3)
Create an index writer, add Lucene document into the index
import java.IOException;
import org.apache.lucene.index.IndexWriter;
import org.apache.lucene.analysis.standard.StandardAnalyser;
public void WriteDoc(Document doc, String idxPath) {
try{
IndexWriter writer =
new IndexWriter(idxPath, new StandardAnalyzer( ), true);
writer.addDocument(doc);
writer.close( ); }
catch (IOException exp) {System.out.println(“I/O Error!”);}

84. Luence Index – Behind the Scene
Inverted Index (Inverted File)
Posting id
word
doc
offset 1
football
Doc 1 3 67
Doc 2 2
penn
players 4
state 13
Doc 1:
Penn State Football …
football
Posting
Table
Doc 2:
Football players … State

85. Posting table Posting table is a fast look-up mechanism
Key: word
Value: posting id, satellite data (#df, offset, …)
Lucene implements the posting table with Java’s hash table
Objectified from java.util.Hashtable
Hash function depends on the JVM
hc2 = hc1 * 31 + nextChar
Posting table usage
Indexing: insertion (new terms), update (existing terms)
Searching: lookup, and construct document vector

86. Search Lucene’s index (step 1)
Construct an query (automatic)
import org.apache.lucene.search.Query;
import org.apache.lucene.queryParser.QueryParser;
import org.apache.lucene.analysis.standard.StandardAnalyser;
public void formQuery(String ques) {
Query query = new QueryParser.parse(
ques, “body”, new StandardAnalyser( ) ); }

87. Search Lucene’s index (step 1)
Types of query:
Boolean: [IST441 Giles] [IST441 OR Giles] [java AND NOT SUN]
wildcard: [nu?ch] [nutc*]
phrase: [“JAVA TOMCAT”]
proximity: [“lucene nutch” ~10]
fuzzy: [roam~] matches roams and foam
date range …

88. Search Lucene’s index (step 2)
Search the index
import org.apache.lucene.document.Document;
import org.apache.lucene.search.*;
import org.apache.lucene.store.*;
public void searchIdx(String idxPath) {
Directory fsDir=FSDirectory.getDirectory(idxPath,false);
IndexSearcher is=new IndexSearcher(fsDir);
Hits hits = is.search(query); }

89. Search Lucene’s index (step 3)
Display the results
for (int i=0;i<hits.length();i++) {
Document doc=hits.doc(i);
//show your results }

90. Example: WestLaw http://www.westlaw.com/
Largest commercial (paying subscribers) legal search service (started 1975; ranking added 1992)
About 7 terabytes of data; 700,000 users
Majority of users still use boolean queries
Example query:
What is the statute of limitations in cases involving the federal tort claims act?
LIMIT! /3 STATUTE ACTION /S FEDERAL /2 TORT /3 CLAIM
Long, precise queries; proximity operators; incrementally developed; not like web search 90

91. Lucene workflow Document super_name: Spider-Man name: Peter Parker
category: superhero
powers: agility, spider-sense
Hits
(Matching Docs)
Query
(powers:agility)
addDocument()
search()
Get Lucene jar file
Write indexing code to get data and create Document objects
Write code to create query objects
Write code to use/display results
IndexWriter
IndexSearcher
Get Lucene jar file
Write indexing code to get data and create Document objects to index with the IndexWriter
Write code to create query objects for search
Write code to use/display results
Only a single IndexWriter may be open on an index
An IndexWriter is thread-safe, so multiple threads can add documents at the same time.
Multiple IndexSearchers may be opened on an index
IndexSearchers are also thread safe, and can handle multiple searches concurrently
an IndexSearcher instance has a static view of the index... it sees no updates after it has been opened
An index may be concurrently added to and searched, but new additions won’t show up until the IndexWriter is closed and a new IndexSearcher is opened.
Lucene Index

92. What we covered Indexing modes Inverted files Examples from Lucene
Storage and access advantages
Posting files
Examples from Lucene 92
