1. AS/400 Security All you want to know about: Jim Stracka PentaSafe Exit Programs

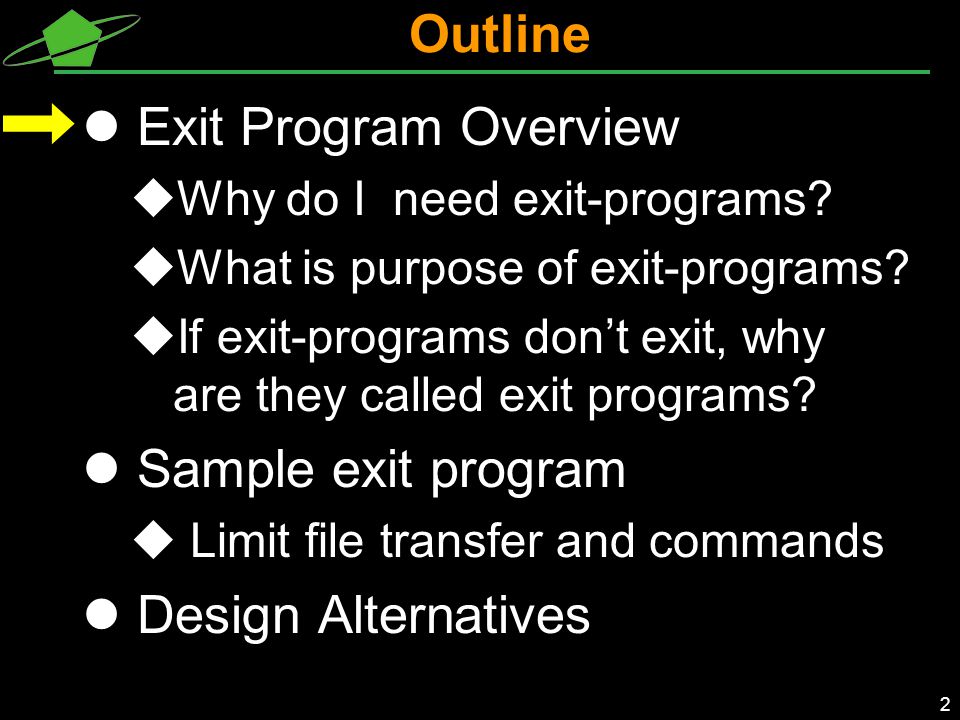

2. 2 Outline Exit Program Overview  Why do I need exit-programs?  What is purpose of exit-programs?  If exit-programs don’t exit, why are they called exit programs? Sample exit program  Limit file transfer and commands Design Alternatives

3. 3 1980s Security Has Changed Today Fixed Function Displays Remote Systems Internet E-Commerce Menu Security OK Menu security worked when users had no other access Menu security ineffective for today’s environment Menu Security PC Users PC

4. 4 Other Access Data Remote Systems Internet DDM (Distributed Data Management) File Transfer Remote Commands FTP File Transfer Remote Commands Shared Folders FTP File Transfer Remote Commands Telnet IFS (Integrated File System) Exit Program Exit Programs can restrict requests

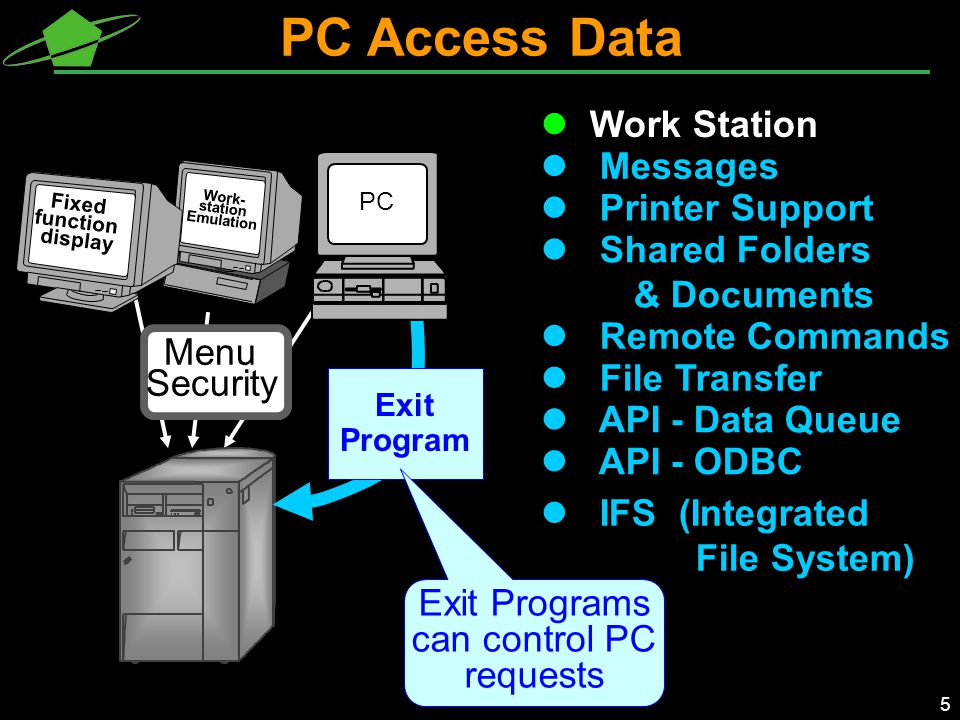

5. 5 PC Access Data Work- station Emulation Fixed function display Printer Support Shared Folders & Documents Remote Commands File Transfer API - Data Queue API - ODBC IFS (Integrated File System) Work Station Menu Security Messages Exit Program Exit Programs can control PC requests PC

6. 6 Why Exit Programs Can object security be used to protect data? YES AS/400 security can lock up data. HOWEVER Security design often makes security protection ineffective make security ineffective

7. 7 Why Exit Programs What security designs make object security ineffective? Group Profile Owns Objects Production Owner Group Profile End User Excessive Public Authority P r o d u c t i o n D a t a * PUBLIC *ALL Excessive Special Authority SPCAUT *ALLOBJ Need to provide additional protection

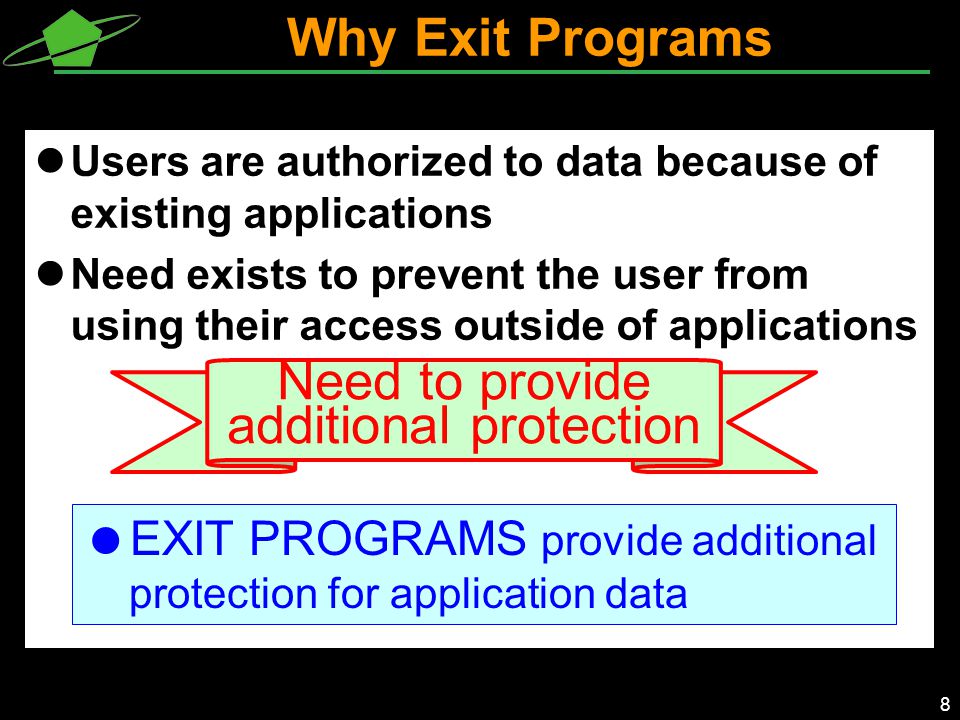

8. 8 Why Exit Programs Users are authorized to data because of existing applications Need exists to prevent the user from using their access outside of applications Need to provide additional protection  EXIT PROGRAMS provide additional protection for application data

9. 9 What are Exit Programs Exit programs are installation provided programs used to supplement security Exit Program Actions often performed in exit programs: Monitor user activity Modify user requests Assign user profile to anonymous sign-on Review request to determine if request meets installation rules Reject requests that do not meet installation rules The purpose of exit programs is not to exit

10. 10 Request Processing If these programs don’t exit, why are they called “Exit Programs”? Exit Program Programs are called exit programs because the system (OS/400) exits to a user program in the middle of a request request 1. Another system generates a request AS/400 Server 2. Server called to process request Exit Program 3. Server calls “exit program” to validate request 4. Server rejects or processes the request

11. 11 Request Processing AS/400 Server request PARAMETERS AS/400 Server User Exit Program 41 ¶ Server calls user exit program with parameters 2 · Exit program analyzes the parameters 3 ¸ Exit program sets return code ¹ Server rejects or performs the request based on exit program return code

12. 12 Network Attributes DDMACCPCSMACC Specifying Exit Programs How are exit programs specified? There are two methods to name the exit programs Limited number of request types - Distributed Data Management - PC support (Client Access ) One exit program per network attribute Registration Facility Multiple request types -Distributed data -Client Access -Integrated File System -Internet (FTP, Telnet) -Security -... Multiple exits specific to function

13. 13 DDMACC *OBJAUT - Request access determined by object authority *REJECT - Prevent all requests Lib/Pgm - Qualified name of exit program PCSACC *OBJAUT - Request access determined by object authority *REJECT - Prevent all requests *REGFAC - Use registration facility Lib/Pgm - Qualified name of exit program Specifying Exit Programs Network Attributes CHGNETA DDMACC(lib/pgm) PCSACC(lib/pgm) Must have *ALLOBJ special authority to change the network attributes

14. 14 WRKREGINF Specifying Exit Programs Work with Registration Information Type options, press Enter. 5=Display exit point 8=Work with exit programs Exit Exit Point Opt Point Format Registered Text _ QIBM_QHQ_DTAQ DTAQ0100 *YES Original Data Queue Server _ QIBM_QJO_DLT_JRNRCV DRCV0100 *YES Delete Journal Receiver _ QIBM_QLZP_LICENSE LICM0100 *YES Original License Mgmt Server _ QIBM_QMF_MESSAGE MESS0100 *YES Original Message Server _ QIBM_QNPS_ENTRY ENTR0100 *YES Network Print Server - entry _ QIBM_QNPS_SPLF SPLF0100 *YES Network Print Server - spool _ QIBM_QOE_OV_USR_ADM UADM0100 *YES OfficeVision/400 Administrati _ QIBM_QOE_OV_USR_SND DOCI0900 *YES OfficeVision/400 Mail Send Ex _ QIBM_QOK_NOTIFY VRFY0100 *YES System Directory Notify Exit _ QIBM_QOK_SUPPLIER SUPL0100 *YES System Directory Supplier Exi _ QIBM_QOK_VERIFY VRFY0100 *YES System Directory Verify Exit More... Command ===> F3=Exit F4=Prompt F9=Retrieve F12=Cancel 8 Registration Facility

15. 15 Work with Exit Programs Exit point: QIBM_QLZP_LICENSE Format: LICM0100 Type options, press Enter 1=Add 4=Remove 5=Display 10=Replace Exit Program Exit Opt Number Program Library _ ___________ ___________ (No exit programs found.) Bottom Command ===> F3=Exit F4=Prompt F5=Refresh F9=Retrieve F12=Cancel Specifying Exit Programs 1 PROG1 MYLIB When a request arrives PROG1 will be called Registration Facility

16. 16 Exit Points What exit points are used for a specific request? What are the parameters passed to an exit? Exit points are documented in the following publications Client Access (File transfer, ODBC) AS/400 Client Access Host Servers SC41-5740 Distributed Data Management (DDM, remote commands) AS/400 Distributed Data Management SC41-5307 Internet (Telnet, FTP) TCP/IP Configuration and ReferenceSC41-5420 Security System API Reference Security APIsSC41-5872 No good documentation available

17. 17 Outline Exit Program Overview  Why do I need exit- programs ?  What is purpose of exit-programs?  If exit-programs don’t exit, why are they called exit programs? Sample exit program  Limit file transfer and commands Design Alternatives

18. 18 CALL EXIT (RTNCDE STRUCTURE) Field Format Size User profile nameChar10 Application nameChar10 FunctionChar10 Object nameChar10 Library nameChar10 Object typeChar7 Format nameChar10 Variable data length Zoned5, 0 Variable dataChar* '0' NO '1' OK Exit Programs AS/400 Distributed Data Management SC41-5307 Client Access Server Concepts SC41-5740

19. 19 Applic function / operation ation *LMSR license management REQUEST RELEASE *VPRT virtual print EXTRACT CHECK OPEN *TFRFCL file transfer SELECT JOIN REPLACE EXTRACT AS/400 -> PC retrieve information SELECT AS/400 -> PC download file JOIN AS/400 -> PC download joined file REPLACE PC --> AS/400 UPLOAD file Operation code by Function

20. 20 Applic function / operation ation *FLRSRV shared folders type 2 CHANGE CREATE DELETE EXTRACT MOVE OPEN RENAME *MSGFCL messages SEND RECEIVE *DDM distributed data management ADDMBR DELETE RENAME CHANGE EXTRACT RGZMBR CHGMBR INITIALIZE RMVMBR CLEAR LOAD RNMMBR COMMAND COPY MOVE LOCK CREATE OPEN UNLOAD Operation code by Function Submit Remote Command

21. 21 PGM PARM(&RTNCODE &DATA) DCL &DATA *CHAR 30 DCL &RTNCODE *CHAR 1 DCL &FUNC *CHAR 10 CHGVAR &FUNC (%SST(&DATA 21 10)) IF (&FUNC = 'COMMAND ') + THEN( CHGVAR &RTNCODE '0') ELSE CHGVAR &RTNCODE '1' ENDPGM Prevent Remote Commands 2. Change network attributes CHGNETA DDMACC(STOPCMDS) 1. Create CL program CRTCLPGM STOPCMDS SRCFILE( )

22. 22 /****************************************************/ /* Installation instructions */ /* 1. Compile program */ /* CRTCLPGM PGM(LIB/EXIT1) */ /* SRCFILE( ) USRPRF(*OWNER) */ /* 2. Change owner of the program to user QSECOFR. */ /* Adopted authority allows the program sending */ /* to the audit journal */ /* CHGOBJOWN OBJ(LIB/EXIT1) */ /* OBJTYPE(*PGM) NEWOWN(QSECOFR) */ /* 3 Name the exit program in network attributes */ /* CHGNETA DDMACC(LIB/EXIT1) */ /* PCSACC(LIB/EXIT1) */ /* */ /* The audit journal QAUDJRN entries created are: */ /* 'X1' = Requests that are allowed */ /* 'X0' = Requests that are rejected */ /****************************************************/ PGM (&RC &STRU ) DCL &RC *CHAR 1 /*Return 1=allow */ /* 0=prevent*/ DCL &STRU *CHAR 200 /*Request description*/ DCL &USER *CHAR 10 /*User profile name */ DCL &APP1 *CHAR 10 /*Requested function */ DCL &APP2 *CHAR 10 /*Sub function */ DCL &TYPE *CHAR 2 /*Journal entry type */ Exit Program Example Prevent Remote Commands and File Upload 1 of 2

23. 23 MONMSG CPF0000 EXE(GOTO EXIT) /*If error exit*/ CHGVAR &RC '1' /*Allow request*/ CHGVAR &USER %SST(&STRU 1 10) /*Get user */ CHGVAR &APP1 %SST(&STRU 11 10) /*Get appl */ CHGVAR &APP2 %SST(&STRU 21 10) /*Get function */ /*Do not log IBM request to check license */ IF (&APP1 = '*LMSRV') GOTO EXIT IF &USER = 'XXXXXXXXX') GOTO LOG /* Prevent use of remote commands */ IF (&APP1 = '*DDM' *AND &APP2 = 'COMMAND') + CHGVAR &RC '0' /* Prevent the request */ ELSE /* Prevent file upload from PC users */ /* File download to PC is not prevented */ IF (&APP1 = '*TFRFCTL' *AND &APP2 = 'REPLACE') + CHGVAR &RC '0' /* Prevent the request */ /* Log request in the audit journal */ LOG:CHGVAR &TYPE ( 'X' *CAT &RC) SNDJRNE QAUDJRN TYPE(&TYPE) &ENTDTA(&STRU) EXIT:ENDPGM Good Way to Monitor Use Exit Program Example Prevent Remote Commands and File Upload 2 of 2

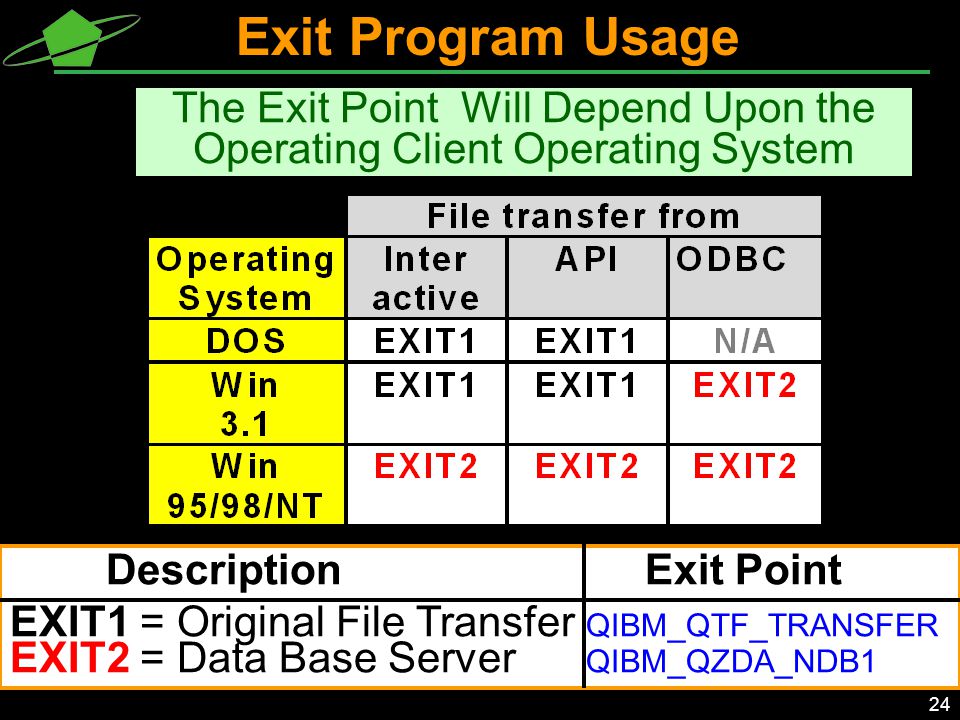

24. 24 The Exit Point Will Depend Upon the Operating Client Operating System Exit Program Usage Description Exit Point EXIT1 = Original File Transfer QIBM_QTF_TRANSFER EXIT2 = Data Base Server QIBM_QZDA_NDB1

25. 25 Original File Transfer Windows 95 and NT File Transfer Exit Program Usage EXIT1 EXIT2 Two programs are required because parameters are different Difficult to determine if request was upload or download

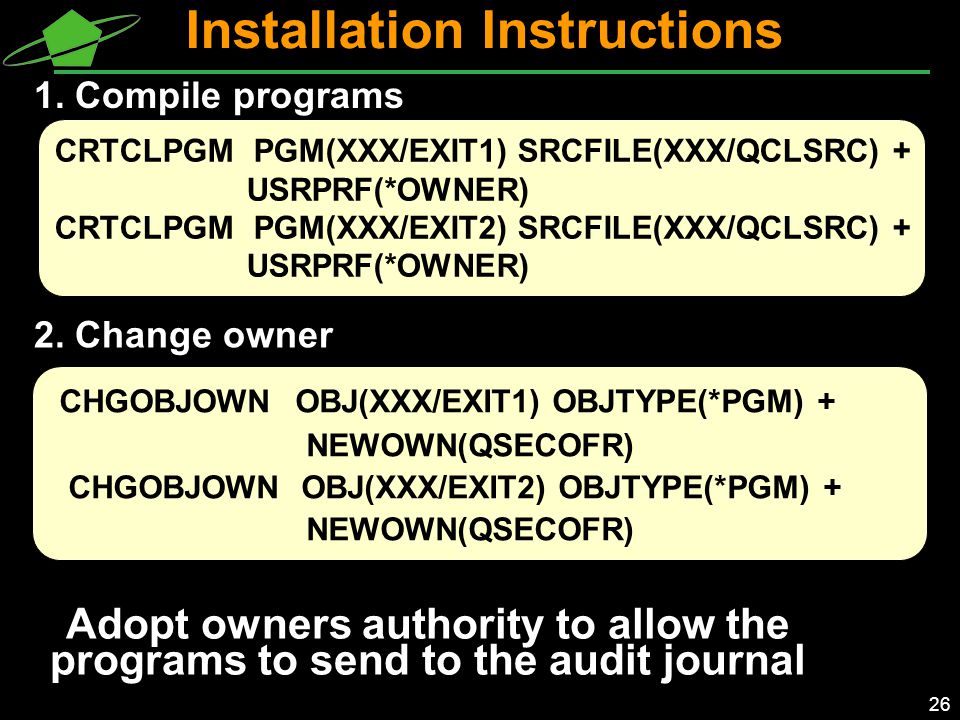

26. 26 Installation Instructions CRTCLPGM PGM(XXX/EXIT1) SRCFILE(XXX/QCLSRC) + USRPRF(*OWNER) CRTCLPGM PGM(XXX/EXIT2) SRCFILE(XXX/QCLSRC) + USRPRF(*OWNER) 1. Compile programs CHGOBJOWN OBJ(XXX/EXIT1) OBJTYPE(*PGM) + NEWOWN(QSECOFR) CHGOBJOWN OBJ(XXX/EXIT2) OBJTYPE(*PGM) + NEWOWN(QSECOFR) 2. Change owner Adopt owners authority to allow the programs to send to the audit journal

27. 27 /*******************************************/ /* Prevent file upload from PC users */ /* except in the UP_LIB library */ /* prevent download to PC */ /* except in the DOWN_LIB library */ /*******************************************/ IF COND(&APP2 *EQ 'REPLACE') THEN(DO) IF COND(&TFLIB *NE 'UP_LIB ') THEN( + CHGVAR &RC) '0') /*prevent request*/ ENDDO IF COND(&APP2 *EQ 'SELECT') THEN(DO) IF COND(&TFLIB *NE ’DOWN_LIB ') THEN( + CHGVAR &RC) '0') /*prevent request*/ ENDDO /*******************************************/ /* Log request in the audit journal */ /*******************************************/ LOG: CHGVAR VAR(&TYPE) VALUE('X' *CAT &RC) SNDJRNE JRN(QAUDJRN) TYPE(&TYPE)+ ENTDTA(&STRU) Exit:ENDPGM EXIT1 - File Transfer Exit Good Way to Monitor Use 3 of 3

28. 28 /*===============================================================*/ /* To compile: */ /* */ /* CRTCLPGM PGM(XXX/EXIT2) SRCFILE(XXX/QCLSRC) + */ /* USRPRF(*OWNER) */ /* */ /* installation instructions: */ /* 1. Compile program */ /* */ /* 2. Change owner of the program to user QSECOFR. */ /* Adopted authority allows the program sending */ /* to the audit journal */ /* CHGOBJOWN OBJ(XXX/EXIT2) OBJTYPE(*PGM) + */ /* NEWOWN(QSECOFR) */ /* */ /* 3. Name the exit program in registration facility */ /* ADDEXITPGM EXITPNT(QIBM_QZDA_NBR1 ) + */ /* FORMAT(ZDAD0100) PGMNBR(1)+ */ /* PGM(XXX/EXIT2) REPLACE(*NO) + */ /* text('limit to specific libraries') */ /* The request is recorded in the audit journal */ /* The audit journal QAUDJRN entries created are: */ /* 'Z1' = requests that are allowed */ /* 'Z0' = requests that are rejected */ /*==============================================================*/ PGM PARM(&RC &REQUEST) DCL VAR(&RC) TYPE(*CHAR) LEN(1) /* 1=allow 0=prevent*/ DCL VAR(&REQUEST) TYPE(*CHAR) LEN(700) /*request desc */ DCL VAR(&TYPE) TYPE(*CHAR) LEN(2) /*journal entry type */ EXIT2 - File Transfer Exit 1 of 3

29. 29 DCL var(&x1800) type(*char) len(4) + value(x'00001800') /* create database file*/ DCL var(&x1801) type(*char) len(4) + value(x'00001801') /* create source file*/ DCL var(&x1802) type(*char) len(4) + value(x'00001802') /* add member */ DCL var(&x1803) type(*char) len(4) + value(x'00001803') /* clear member */ DCL var(&x1804) type(*char) len(4) + value(x'00001804') /* delete member */ DCL var(&x1805) type(*char) len(4) + value(x'00001805') /* file override */ DCL var(&x1806) type(*char) len(4) + value(x'00001806') /* delete file override*/ DCL var(&x1807) type(*char) len(4) + value(x'00001807') /* create save file */ DCL var(&x1808) type(*char) len(4) + value(x'00001808') /* clear save file */ DCL var(&x1809) type(*char) len(4) + value(x'00001809') /* delete file */ /* OPTIMIZED DATABASE SERVER DECLARES */ DCL VAR(&DBFMT) TYPE(*CHAR) LEN(8) /* format name */ DCL VAR(&DBFID) TYPE(*CHAR) LEN(4) /* function identifier */ /* THE FOLLOWING PARAMETERS ADDITIONAL FOR FORMAT ZDAD0100 */ DCL VAR(&DBFILE) TYPE(*CHAR) LEN(128)/* file name */ DCL VAR(&DBLIB) TYPE(*CHAR) LEN(10) /* library name */ DCL VAR(&DBMBR) TYPE(*CHAR) LEN(10) /* member name */ DCL VAR(&DBAUT) TYPE(*CHAR) LEN(10) /* authority to file */ DCL VAR(&DBBFIL) TYPE(*CHAR) LEN(128) /* based on file name */ DCL VAR(&DBBLIB) TYPE(*CHAR) LEN(10) /* based on library name */ DCL VAR(&DBOFIL) TYPE(*CHAR) LEN(10) /* override file name */ DCL VAR(&DBOLIB) TYPE(*CHAR) LEN(10) /* override library name */ DCL VAR(&DBOMBR) TYPE(*CHAR) LEN(10) /* override member name */ EXIT2 - File Transfer Exit 2 of 3

30. 30 MONMSG MSGID(CPF0000) EXEC(GOTO CMDLBL(EXIT)) * allow request unless rejected by program */ CHGVAR VAR(&RC) VALUE('1') /* set variables from request description */ CHGVAR VAR(&DBFMT) VALUE(%SST(&REQUEST 21 8)) CHGVAR VAR(&DBFID) VALUE(%SST(&REQUEST 29 4)) CHGVAR VAR(&DBFILE) VALUE(%SST(&REQUEST 33 128)) CHGVAR VAR(&DBLIB) VALUE(%SST(&REQUEST 161 10)) CHGVAR VAR(&DBMBR) VALUE(%SST(&REQUEST 171 10)) CHGVAR VAR(&DBOFIL) VALUE(%SST(&REQUEST 329 10)) CHGVAR VAR(&DBOLIB) VALUE(%SST(&REQUEST 339 10)) CHGVAR VAR(&DBOMBR) VALUE(%SST(&REQUEST 349 10)) IF COND((&DBFID = &X1805)) THEN(DO) /* OVERRIDE */ IF COND(&DBOLIB = 'UP_LIB') THEN(GOTO LOG) IF COND(&DBOLIB = 'DOWN_LIB') THEN(GOTO LOG) CHGVAR VAR(&RC) VALUE('0') ENDDO /* log request in the audit journal */ LOG: CHGVAR VAR(&TYPE) VALUE('Z' *CAT &RC) SNDJRNE JRN(QAUDJRN) TYPE(&TYPE) ENTDTA(&REQUEST) EXIT: ENDPGM EXIT2 - File Transfer Exit 3 of 3

31. 31 Outline Exit Program Overview Sample Exit Programs  Client Access File Transfer  Other exits FTP & Telnet Design Alternatives

32. 32 Outline Exit Program Overview  Why do I need exit-programs?  What is purpose of exit-programs?  If exit-programs don’t exit, why are they called exit programs? Sample exit program  Limit file transfer and commands Design Alternatives

33. 33 Exit Design Alternative Compare to constant IF (&USER = ’ELLEN ’) Advantages Excellent performance Easy to determine program flow Limitations Must recompile program to make any change Security specification uses a different technique Constant

34. 34 Exit Design Alternative Read from File Advantages Good performance Add and remove users without recompiling program Limitations Program logic more complex Security specification uses a different technique Exit Program Read

35. 35 Exit Design Alternative Authorization list users Advantages Good performance Add and remove users without recompiling program Security specification uses a same technique Limitations Program logic more complex Exit Program CHKOBJ Authorization List List of Users

36. 36 IF COND(………………. ) THEN(DO) CHKOBJ OBJ(QSYS/FILEREAD) + OBJTYPE(*AUTL) AUT(*USE) MONMSG MSGID(CPF9800) + EXEC(CHGVAR &RC '0') GOTO LOG ENDDO Possible to check for different authorities *USE for Read actions *CHANGE for Update actions Check an Authorization List Exit Program CHKOBJ Authorization List List of Users

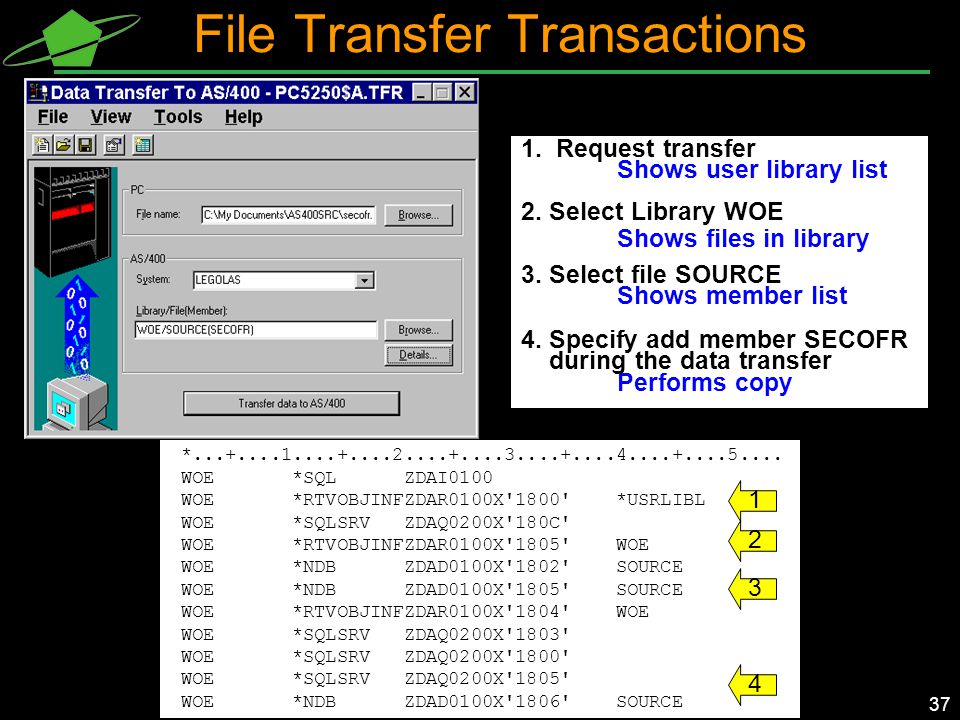

37. 37 File Transfer Transactions *...+....1....+....2....+....3....+....4....+....5.... WOE *SQL ZDAI0100 WOE *RTVOBJINFZDAR0100X'1800' *USRLIBL WOE *SQLSRV ZDAQ0200X'180C' WOE *RTVOBJINFZDAR0100X'1805' WOE WOE *NDB ZDAD0100X'1802' SOURCE WOE *NDB ZDAD0100X'1805' SOURCE WOE *RTVOBJINFZDAR0100X'1804' WOE WOE *SQLSRV ZDAQ0200X'1803' WOE *SQLSRV ZDAQ0200X'1800' WOE *SQLSRV ZDAQ0200X'1805' WOE *NDB ZDAD0100X'1806' SOURCE 1. Request transfer Shows user library list 1 2 2. Select Library WOE Shows files in library 3 3. Select file SOURCE Shows member list 4 4. Specify add member SECOFR during the data transfer Performs copy

38. 38

39. 39 SUMMARY Menu security is not adequate to limit a user. You must protect data from access via the other Client Access servers: FILE TRANSFER REMOTE COMMANDS FOLDER ACCESS Use exit programs to supplement object security

40. 40 Summary Specifying exit program using network attributes is not recommended  Increase overhead  Network attributes a limited set of exits Use Registration Facility to specify exit programs

41. 41 Information Sources Exit Point Documentation Client Access (File transfer, ODBC)  AS/400 Client Access Host Servers SC41-5740 Distributed Data Management (DDM, remote commands)  AS/400 Distributed Data Management SC41-5307 Internet (Telnet, FTP)  TCP/IP Configuration and ReferenceSC41-5420 Security  System API Reference Security APIsSC41-5872

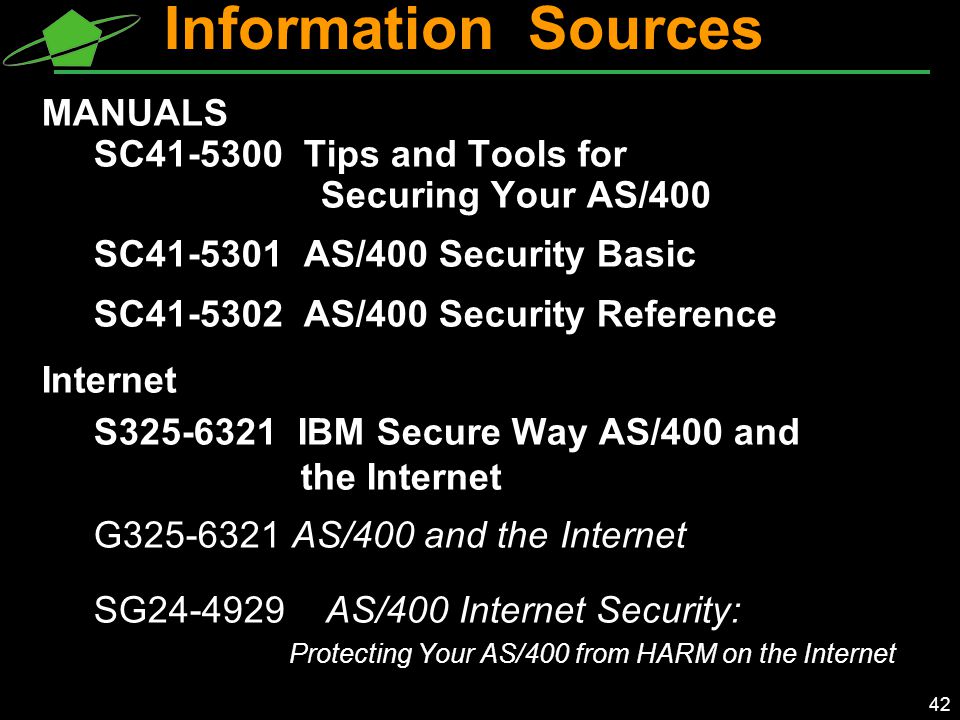

42. 42 Information Sources MANUALS SC41-5300 Tips and Tools for Securing Your AS/400 SC41-5301 AS/400 Security Basic SC41-5302 AS/400 Security Reference Internet S325-6321 IBM Secure Way AS/400 and the Internet G325-6321 AS/400 and the Internet SG24-4929 AS/400 Internet Security: Protecting Your AS/400 from HARM on the Internet

43. 43 More ? ? Jim Stracka j.stracka@pentasafe.com www.pentasafe.com 713-860-9412 - direct
