1. Plate Tectonics Objective(s): SWBAT describe the layers of the Earth. SWBAT describe the plate tectonics theory including, how plate tectonics operating over geologic time has changed the patterns of land, sea, and mountains on Earth’s surface. SWBAT differentiate between the features of the three different kinds of plate boundaries.

2. HA HA HA

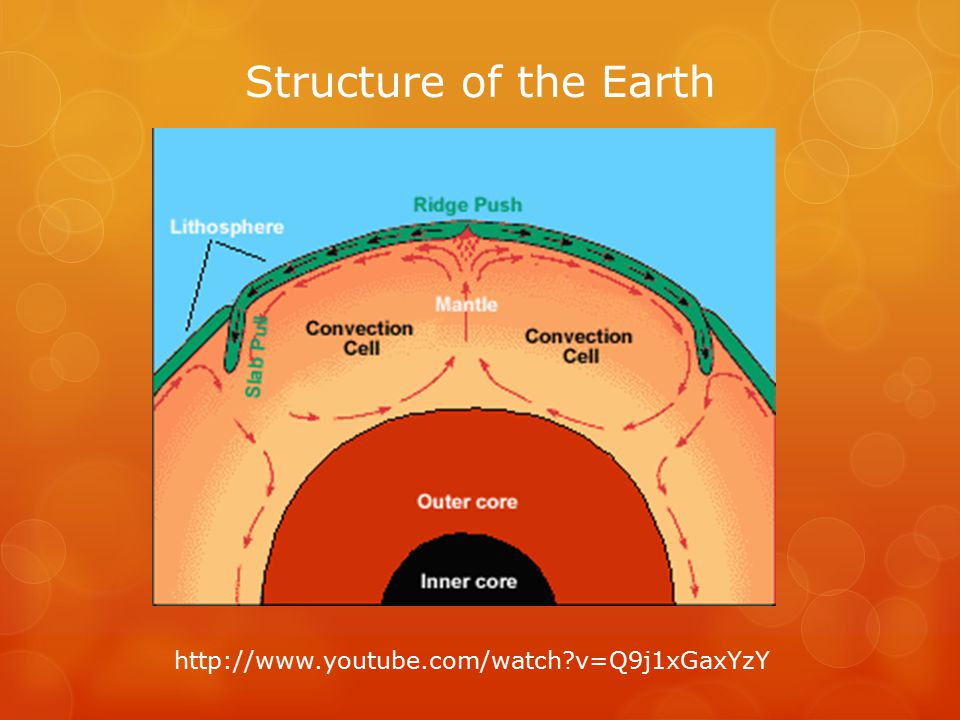

3. Structure of the Earth http://www.youtube.com/watch?v=Q9j1xGaxYzY

4. Structure of the Earth

5. GPS (Global Positioning System) – 24 satellites orbiting the Earth at a height of 20,200 km.

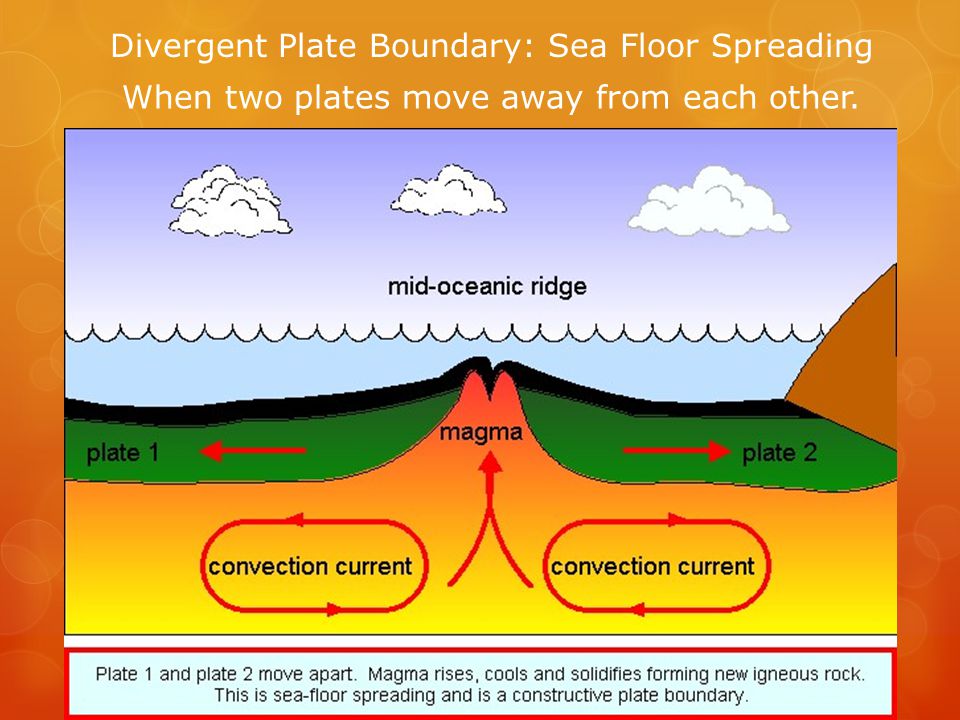

6. Divergent Plate Boundary: Sea Floor Spreading When two plates move away from each other.

7. Divergent Plate Boundaries: Sea Floor Spreading

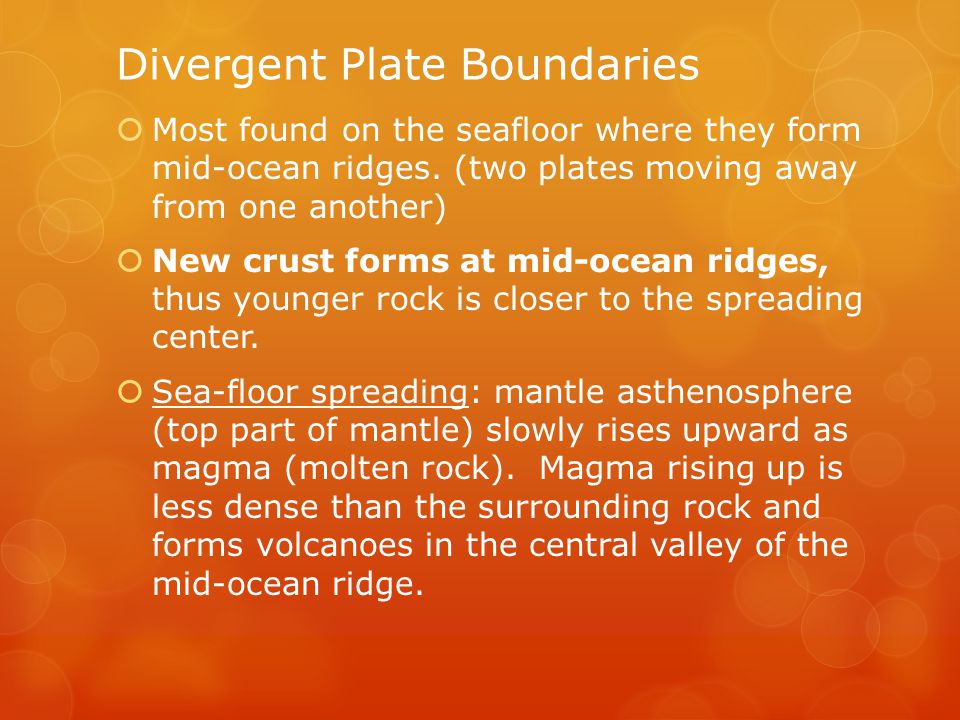

8. Divergent Plate Boundaries  Most found on the seafloor where they form mid-ocean ridges. (two plates moving away from one another)  New crust forms at mid-ocean ridges, thus younger rock is closer to the spreading center.  Sea-floor spreading: mantle asthenosphere (top part of mantle) slowly rises upward as magma (molten rock). Magma rising up is less dense than the surrounding rock and forms volcanoes in the central valley of the mid-ocean ridge.

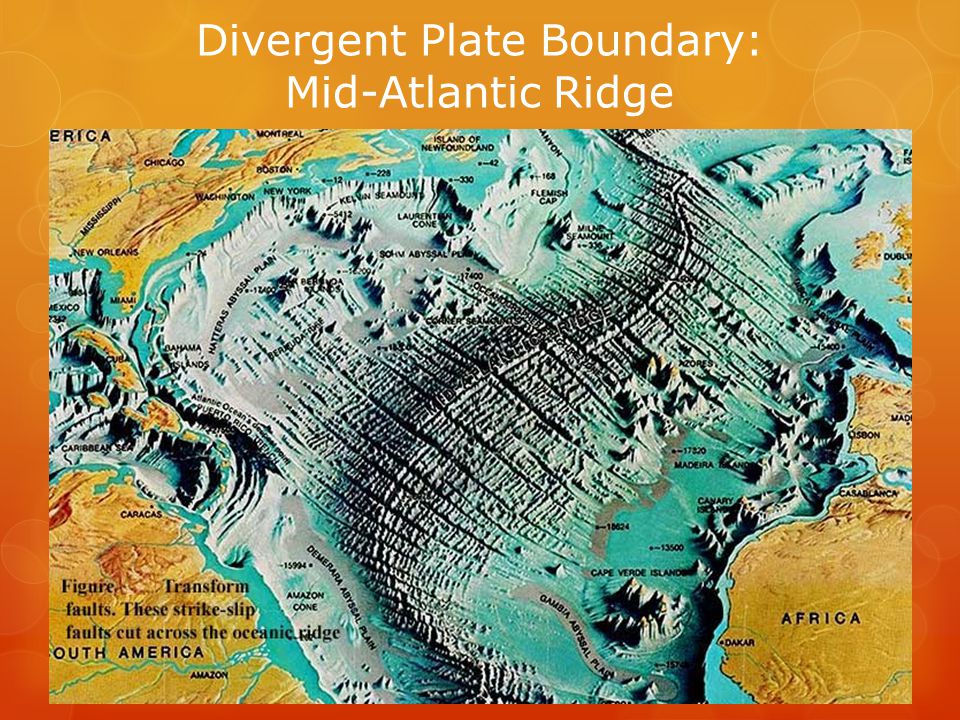

9. Divergent Plate Boundary: Mid-Atlantic Ridge

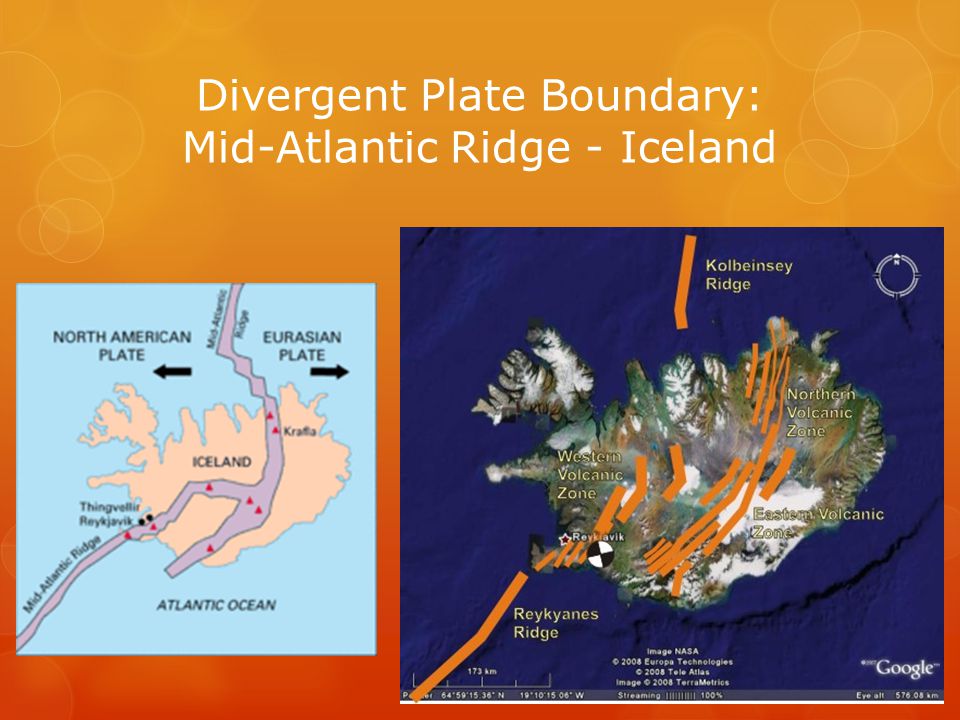

10. Divergent Plate Boundary: Mid-Atlantic Ridge - Iceland

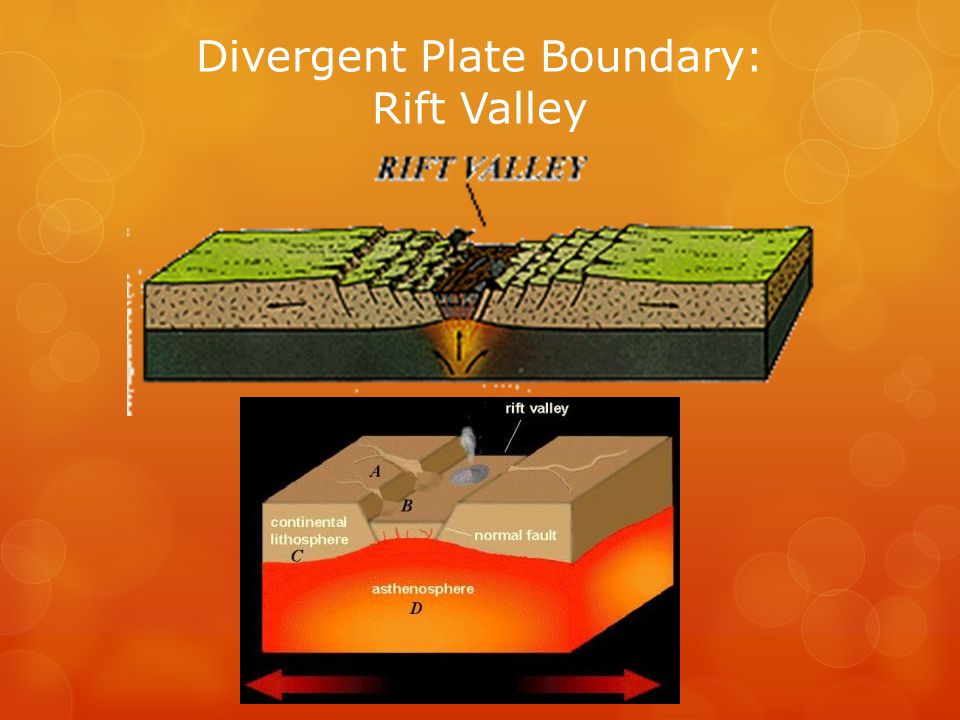

11. Divergent Plate Boundary: Rift Valley

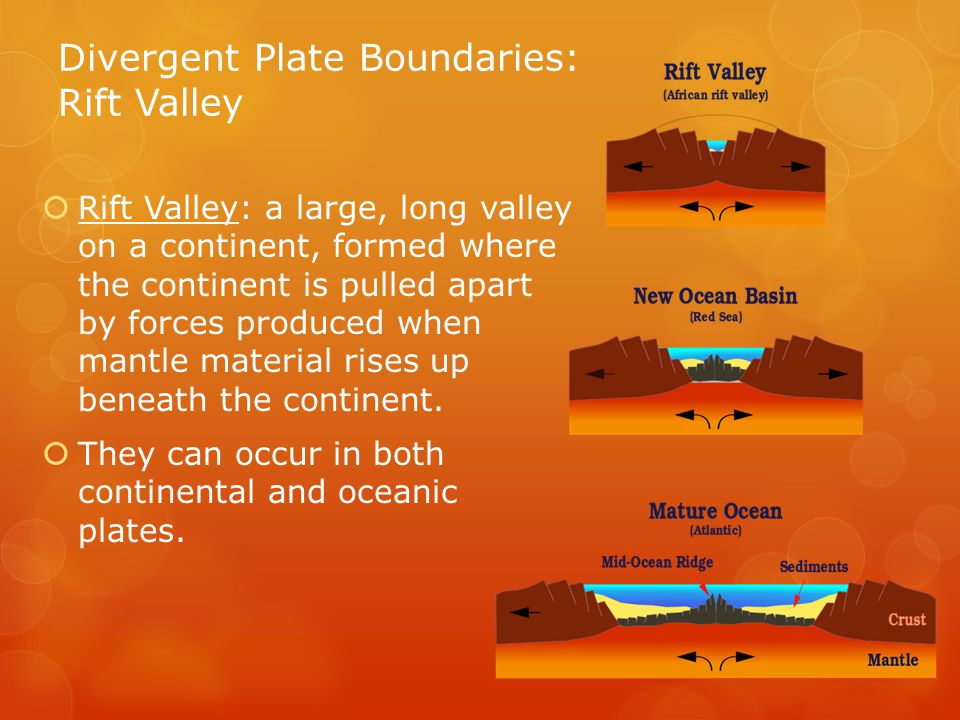

12. Divergent Plate Boundaries: Rift Valley  Rift Valley: a large, long valley on a continent, formed where the continent is pulled apart by forces produced when mantle material rises up beneath the continent.  They can occur in both continental and oceanic plates.

13. Divergent Plate Boundary: East African Rift Valley

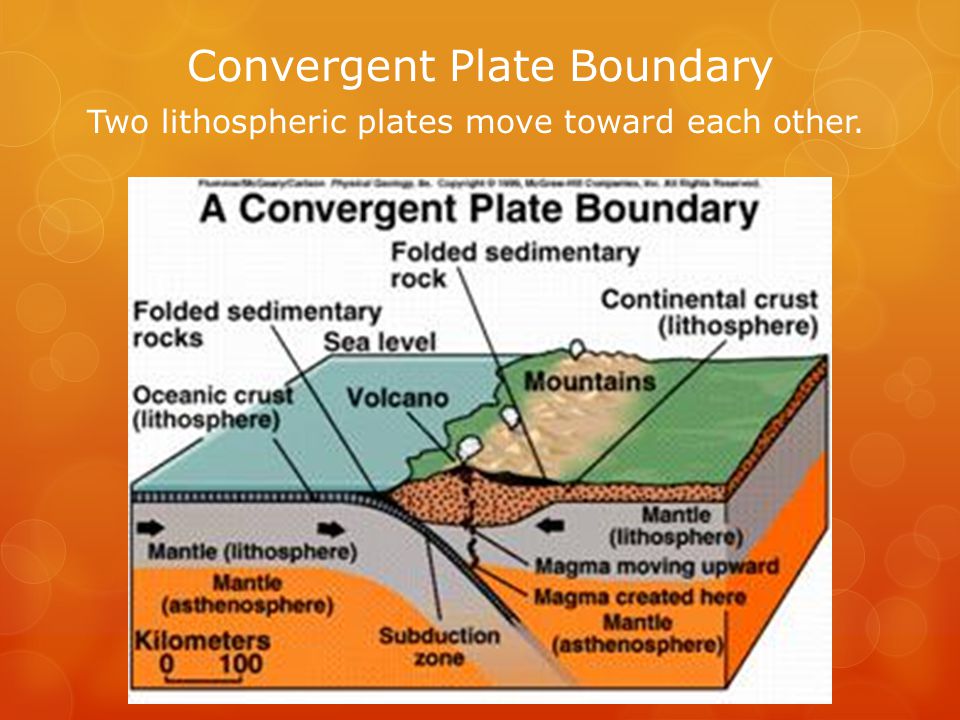

14. Convergent Plate Boundary Two lithospheric plates move toward each other.

15. Convergent Plate Boundary When Continental plates move toward each other.

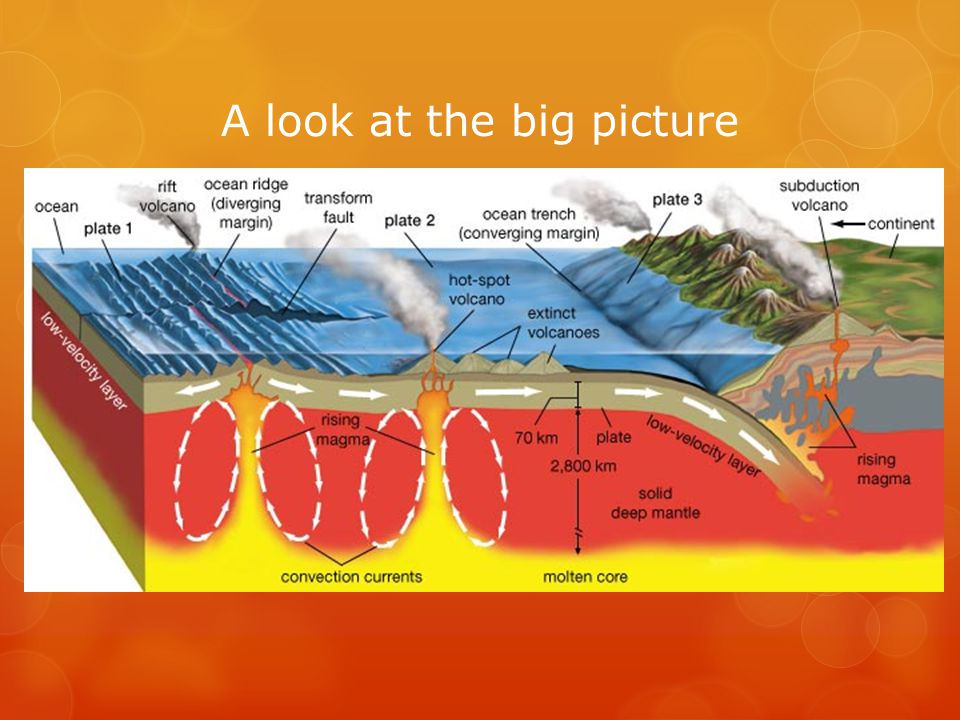

16. A look at the big picture

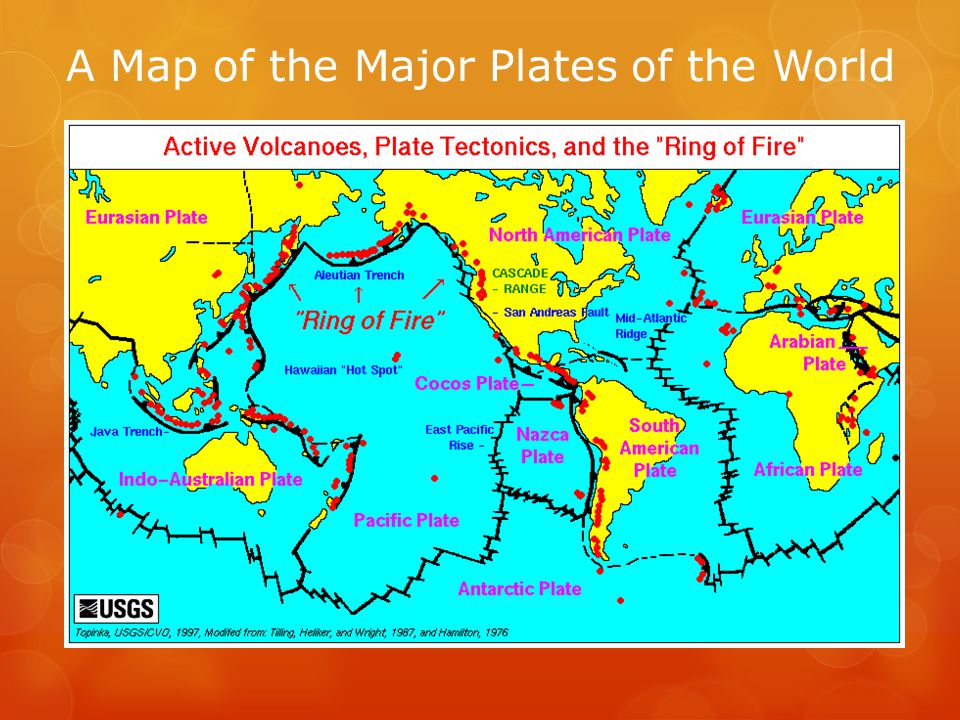

17. A Map of the Major Plates of the World

18. A World View of Boundary Types Key: 1. Divergent plate boundaries 2. Transform plate boundaries 3. Convergent plate boundaries 4. Plate boundary zones 5. Selected prominent hotspots

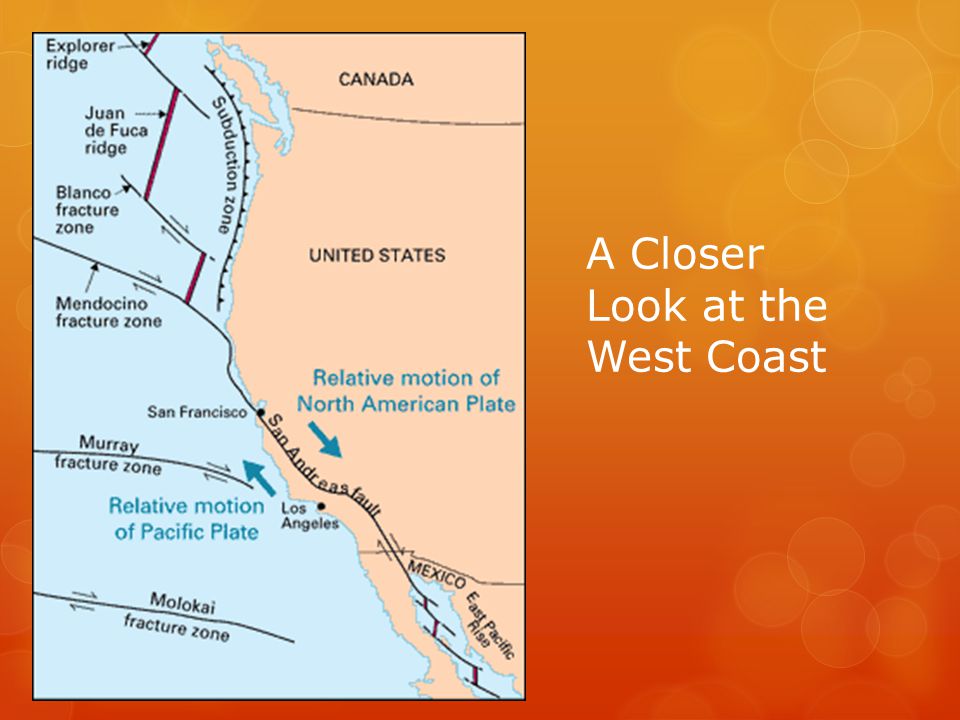

19. A Closer Look at the West Coast

20. Convergent Plate Boundaries (two plates moving toward one another)  3 types of convergent plate boundaries  Subduction – the movement of one plate downward into the mantle beneath the edge of the other plate at a convergent plate boundary. The downgoing plate is always oceanic lithosphere. The plate that stays at the surface may be either ocean lithosphere or continental lithosphere.  *Old crust is recycled at subduction zones

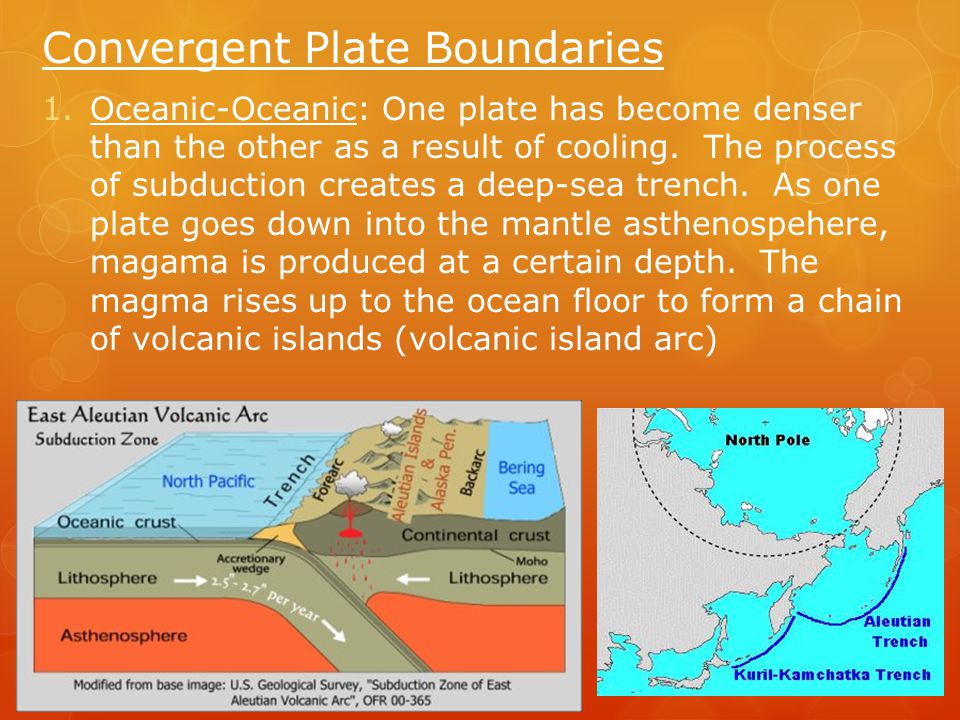

21. Convergent Plate Boundaries 1.Oceanic-Oceanic: One plate has become denser than the other as a result of cooling. The process of subduction creates a deep-sea trench. As one plate goes down into the mantle asthenospehere, magama is produced at a certain depth. The magma rises up to the ocean floor to form a chain of volcanic islands (volcanic island arc)

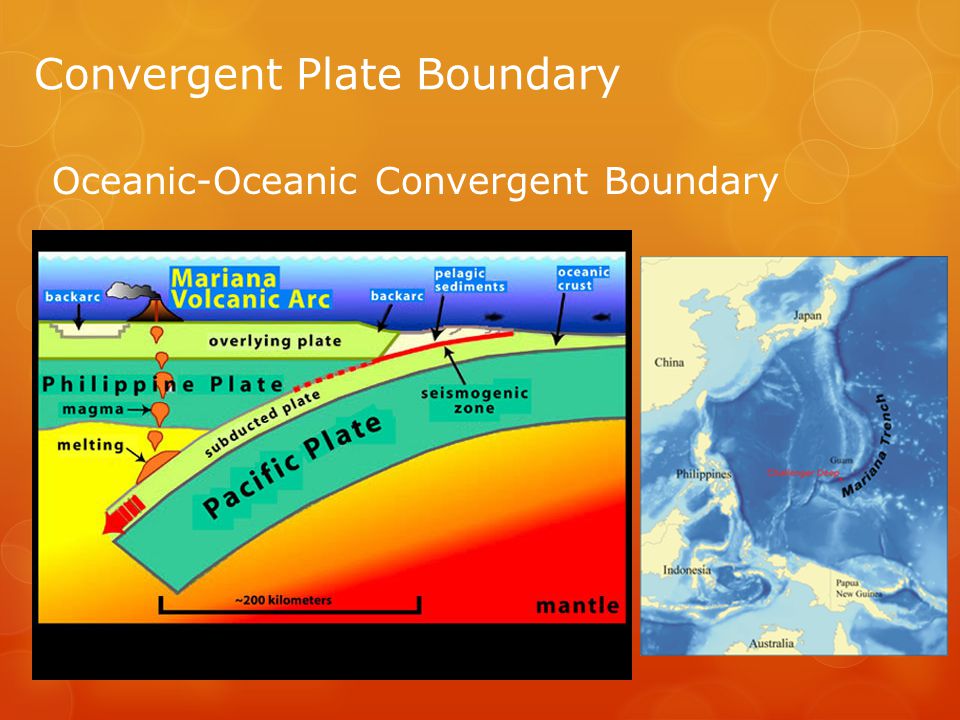

22. Convergent Plate Boundary Oceanic-Oceanic Convergent Boundary

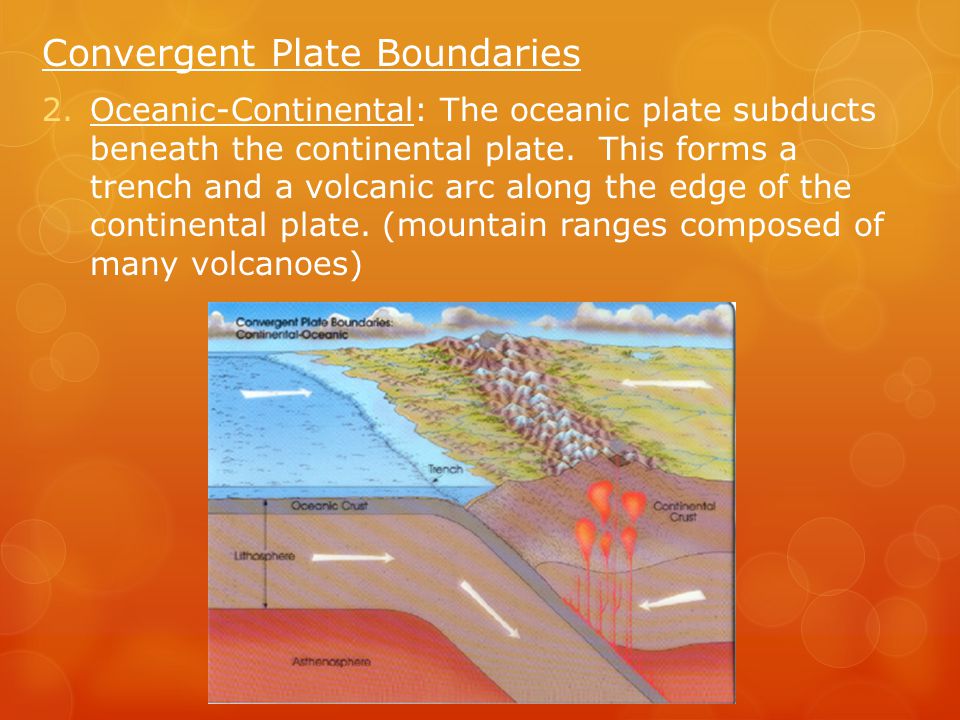

23. Convergent Plate Boundaries 2.Oceanic-Continental: The oceanic plate subducts beneath the continental plate. This forms a trench and a volcanic arc along the edge of the continental plate. (mountain ranges composed of many volcanoes)

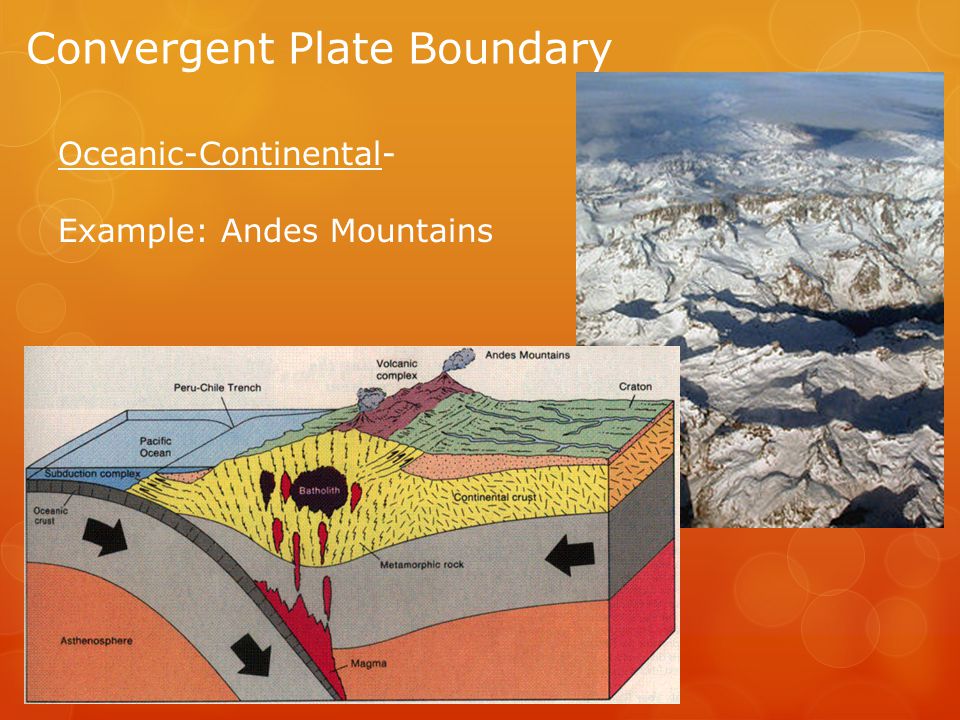

24. Convergent Plate Boundary Oceanic-Continental- Example: Andes Mountains

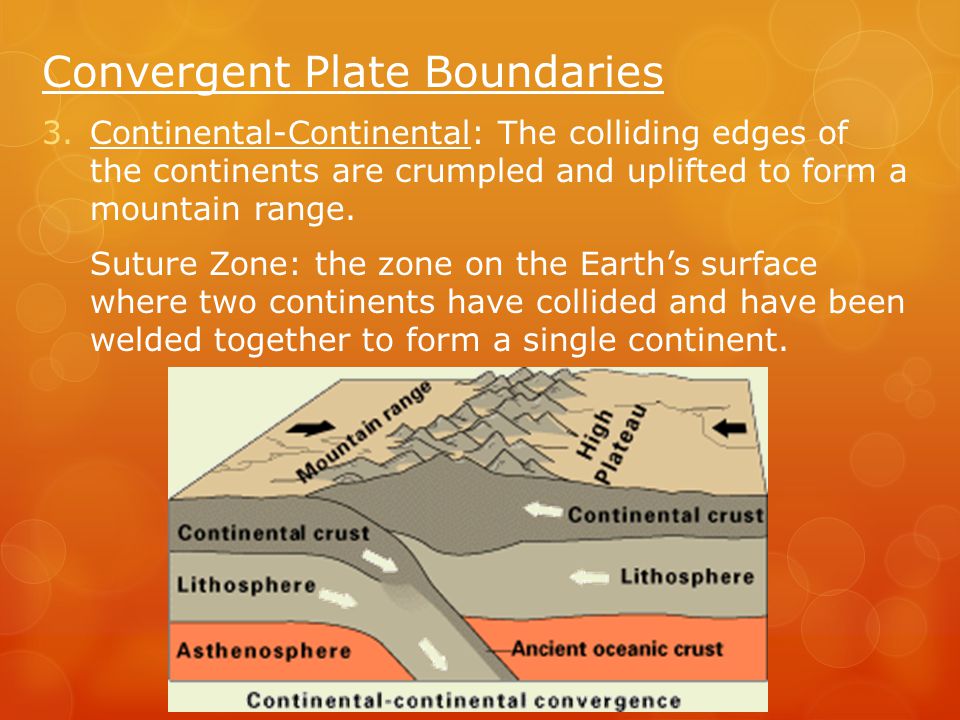

25. Convergent Plate Boundaries 3.Continental-Continental: The colliding edges of the continents are crumpled and uplifted to form a mountain range. Suture Zone: the zone on the Earth’s surface where two continents have collided and have been welded together to form a single continent.

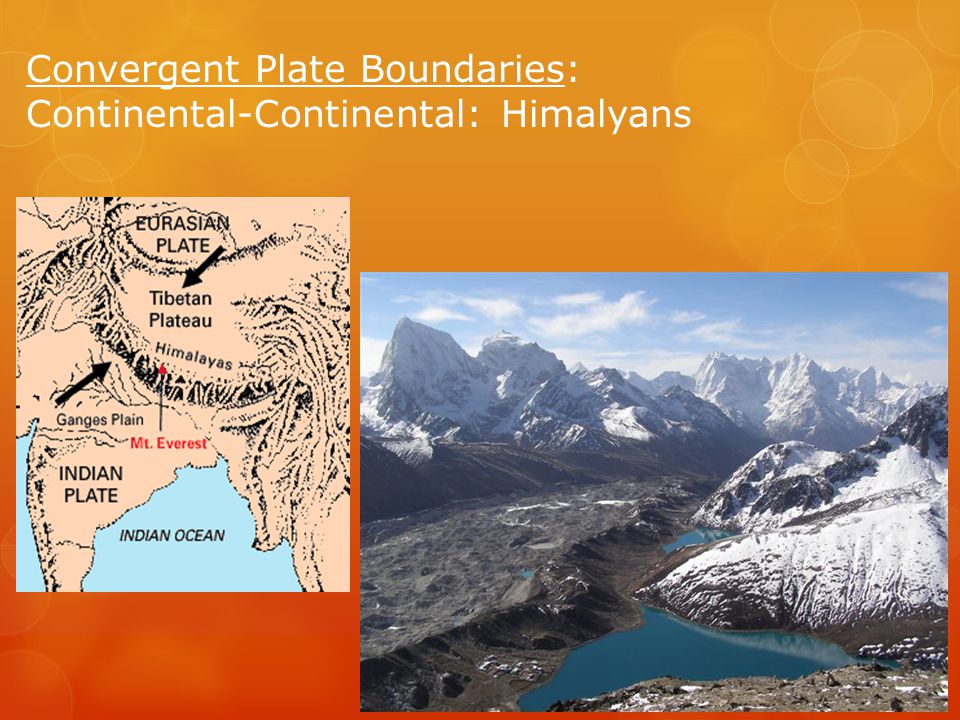

26. Convergent Plate Boundaries: Continental-Continental: Himalyans

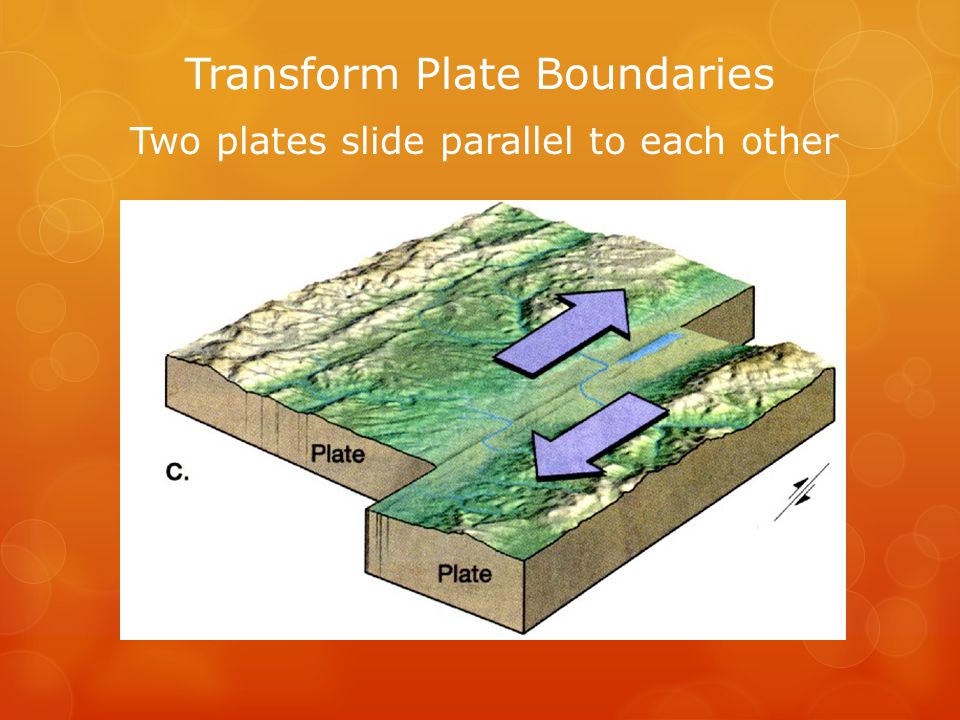

27. Transform Plate Boundaries Two plates slide parallel to each other

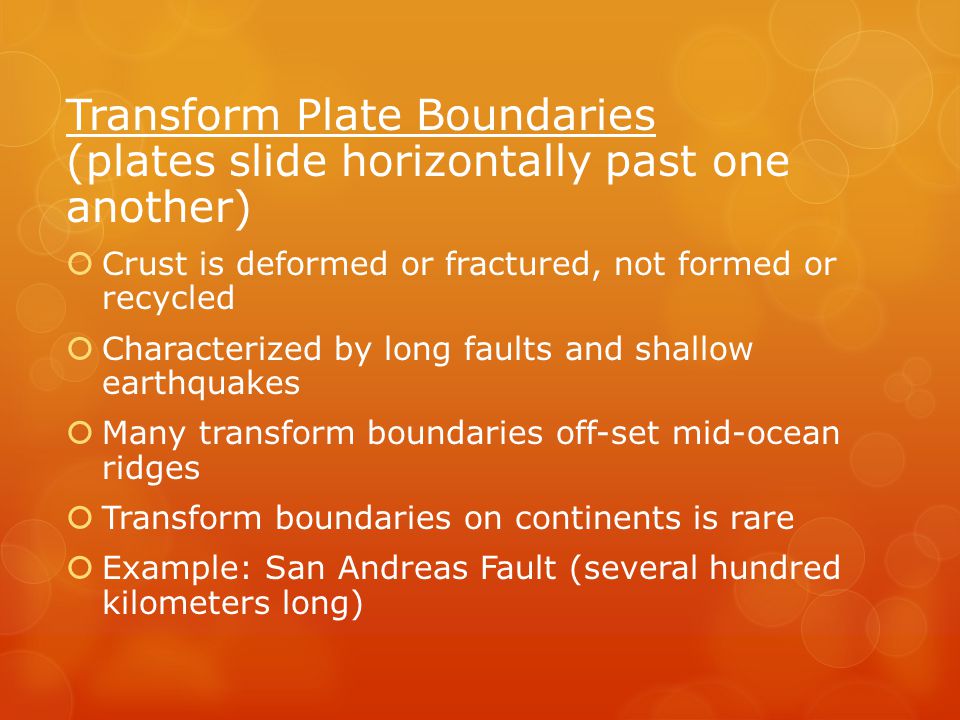

28. Transform Plate Boundaries (plates slide horizontally past one another)  Crust is deformed or fractured, not formed or recycled  Characterized by long faults and shallow earthquakes  Many transform boundaries off-set mid-ocean ridges  Transform boundaries on continents is rare  Example: San Andreas Fault (several hundred kilometers long)

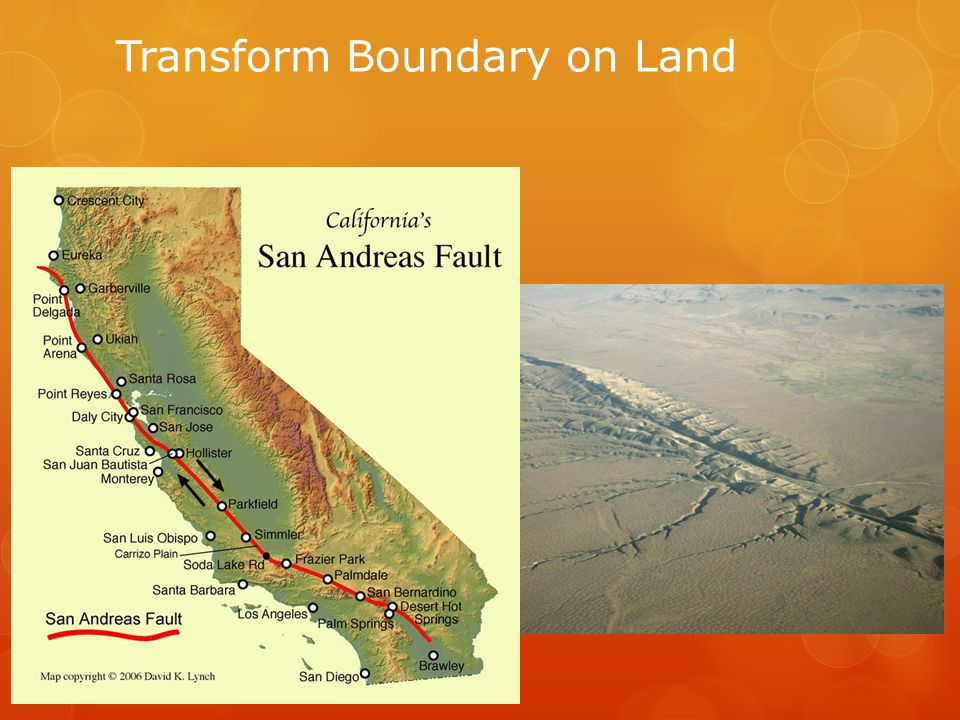

29. Transform Boundary on Land
