1. 1 CS101 Introduction to Computing Lecture 27 Computer Networks

2. 2 During the last lecture … (Web Design for Usability) We looked at the role of usability in Web design We identified some of the factors affecting the usability of a Web page

3. 3 don’t make me think!

4. 4 think roadside billboard rather than Dewan-e-Ghalib

5. 5 Designs should be consistent & predictable (unified)

6. 6 What’s a Good Site? The one that achieves the result that it was designed for Generally, that result can only be achieved by giving the user what s/he wants, as quickly as possible, without her/im expending much effort One definition of usability: Let the user have what s/he wants, quickly, without much effort “Quickly” is important!

7. 7 Website Navigation The interface/controls that a Website provides to the user for accessing various parts of the Website It probably is the most important aspect of the design of a Website

8. 8 Good designs assist the user in recovering from errors

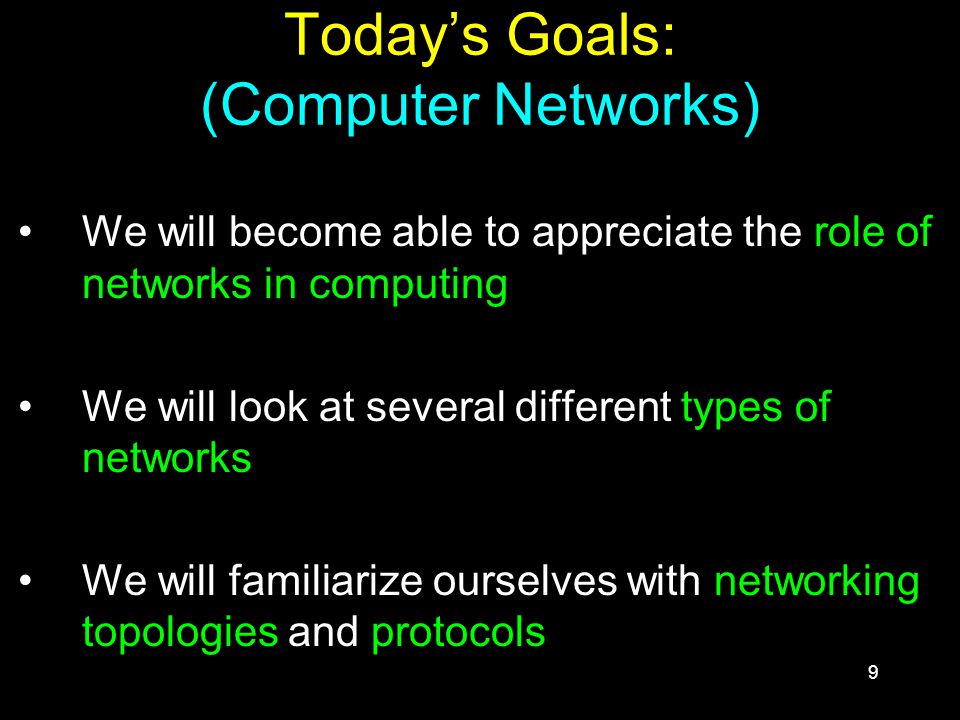

9. 9 Today’s Goals: (Computer Networks) We will become able to appreciate the role of networks in computing We will look at several different types of networks We will familiarize ourselves with networking topologies and protocols

10. 10 All of you have used computer networks. What is a computer network ?

11. 11 Computer Network Multiple computers that are connected together to share information and other resources

12. 12 Examples of Computer Network Usage I can send an eMail message to a remote computer using the SMTP protocol I can browse documents residing on a remote computer using the HTTP protocol I can download or upload files to a remote computer using the FTP protocol I can run a program on a remote computer using the TELNET protocol

13. 13 Computer C Computer D Computer E Computer A Computer B Hub Example of a Computer Network

14. 14 Components of Conventional Computer Networks 1.Computers 2.Network Interface Cards (NIC) –I/O device that plugs into the computer –Enables it to communicate over a network 3.Hub –The network traffic controller

15. 15 Components of Conventional Computer Networks 4.Cables –Are either electrical or optical –Not required at all for wireless networks 5.Protocol –Rules governing communications over the network

16. 16 How Does a Conventional Network Work? 1.Suppose computer A wants to send a message to D 2.Computer A sends the message to its NIC 3.The NIC translates the message into electrical pulses suitable for the computer network in use & transmits it to the hub through the cable

17. 17 How Does a Conventional Network Work? 4.The hub receives them and forwards them to all computers connected to the it 5.The NICs of all computers connected to the hub receive the forwarded electrical pulses 6.The NIC of computer D decides that the message is for it, & translates the pulses back to a form suitable for the computer

18. 18 Hub (1) A device that is used to connect several computers to form a network A hub has several ports. The number generally is 8, 12, 16, 24, 32, or 48

19. 19 Hub (2) Each computer in a network is connected to one of those ports through a cable A computer wanting to send a message to one of the others in the network sends a message to the hub, which, in turn, broadcasts the message to all others connected to it

20. 20 Packet (1) The smallest unit of data transmitted over a computer network A message to be transferred over the network is broken up into small packets by the sending computer Each packet contains the following info: –Sender's address –Destination address –Data –Error-recovery info

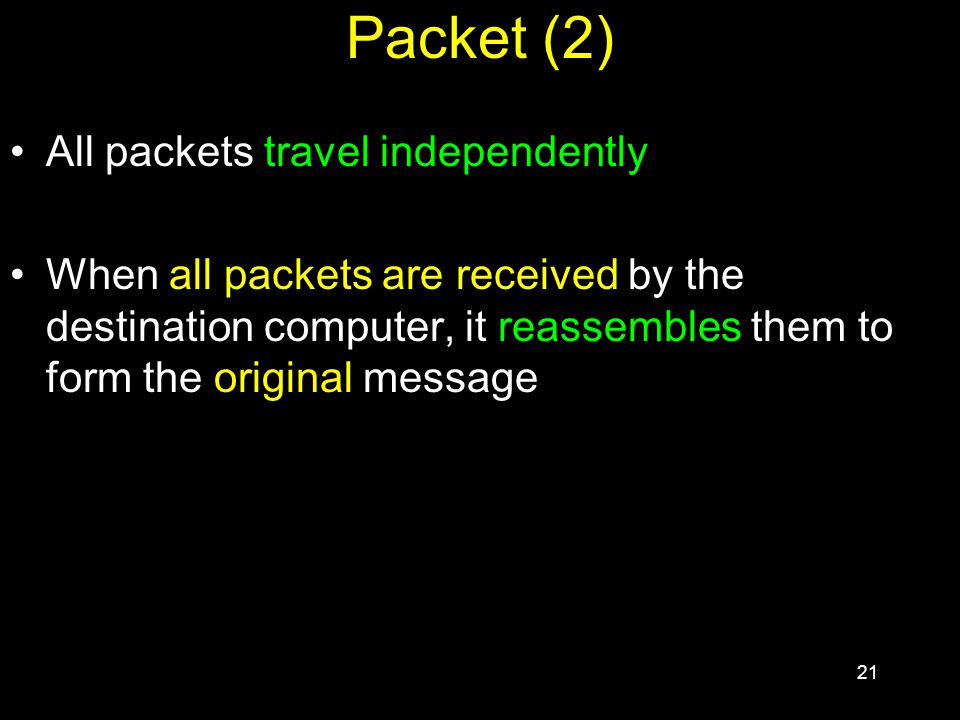

21. 21 Packet (2) All packets travel independently When all packets are received by the destination computer, it reassembles them to form the original message

22. 22 Types of Computer Networks according to the network access policy Private Public

23. 23 Private Networks (1) Organizations having many computers usually connect them in the form of private networks Access to these network is restricted to authorized computers only

24. 24 Private Networks (2) This allows computers from within the organization to exchange info, but keeps the info private and protected from outsiders All equipment on a private network is generally for the exclusive use of that organization

25. 25 Public Networks All networks that are not private, are … public Example: Internet Communication equipment used in these networks is generally being used by users belonging to several (possibly thousands of) organizations as well as those belonging to no organization

26. 26 VPN: Virtual Private Network (1) From the user’s point-of-view, a VPN looks like a secure, private network VPNs use public telecom infrastructure, maintaining privacy through security procedures

27. 27 VPN: Virtual Private Network (2) VPNs provide secure network connections for distance computers without using dedicated, private channels to supply the connection Key benefit of VPNs over conventional PNs: Lower cost

28. 28 Types of Computer Networks according to the distance between nodes LAN: Local Area Network) WAN: Wide Area Network)

29. 29 LAN A network of computers located in the same building or a handful of nearby buildings Examples: –Computer network at your PVC –Computer network of a University campus

30. 30 WAN A network in which computers are separated by great distances, typically across cities or even continents May consist of several interconnected LANs Example: –The network connecting the ATM of a bank located in various cities –A network connecting the local and oversea offices of a SW house –Internet

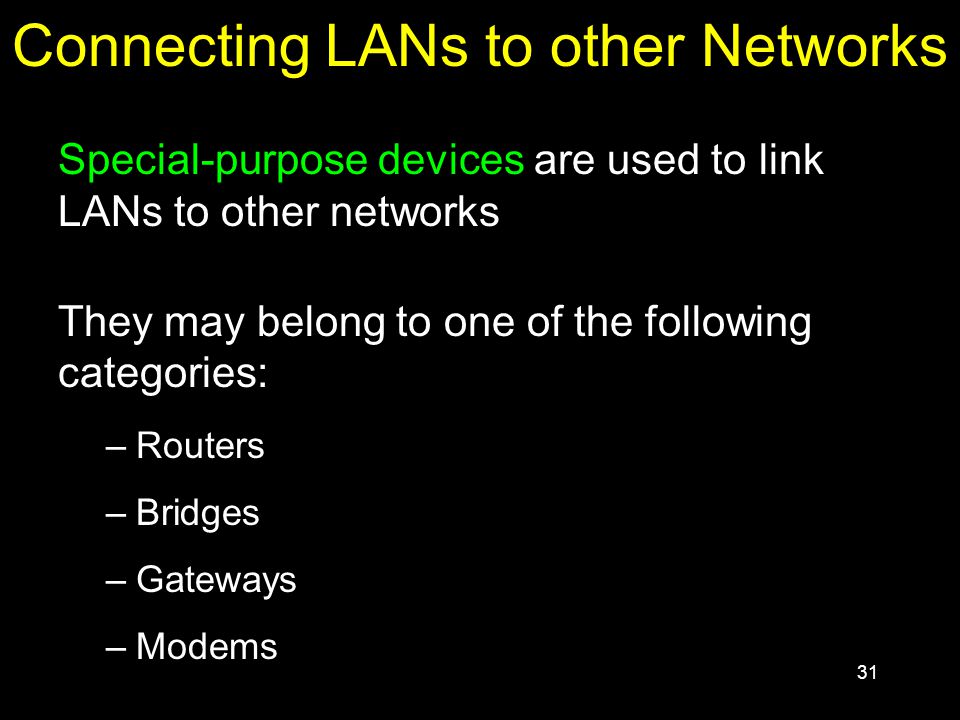

31. 31 Connecting LANs to other Networks Special-purpose devices are used to link LANs to other networks They may belong to one of the following categories: –Routers –Bridges –Gateways –Modems

32. 32 Router A special-purpose computer that directs data traffic when several paths are available A router examines the destination info in each arriving packet and then routes it through the most efficient path available The router either delivers the packet to the destination computer across a local network or forwards the packet to another router that is closer to the final destination

33. 33 Bridge Used to form a connection between two separate, but similar networks In a way, it creates an extended LAN by passing information between two or more LANs

34. 34 Gateway A special-purpose computer that connects and translates between networks that use different communications protocols LAN’s may use a gateway (or router) to connect to the Internet

35. 35 Modem (1) I/O device used for connecting two computers over telephone lines modem = modulator + demodulator

36. 36 Modem (2) Modulator converts computer messages to electrical pulses that are suitable for transmission over the telephone lines Demodulator converts electrical pulses received over telephone lines into messages that are comprehensible for computers

37. 37 Network Topologies The pattern in which computers are connected to form a network Popular patterns: –Point-to-point –Star –Bus –Ring Networks are also formed by combining 2 or more of these 4 basic patterns

38. 38 P2P Computer A Computer B

39. 39 P2P Inexpensive Limited connectivity Quite often used for connecting two LANs to form a WAN

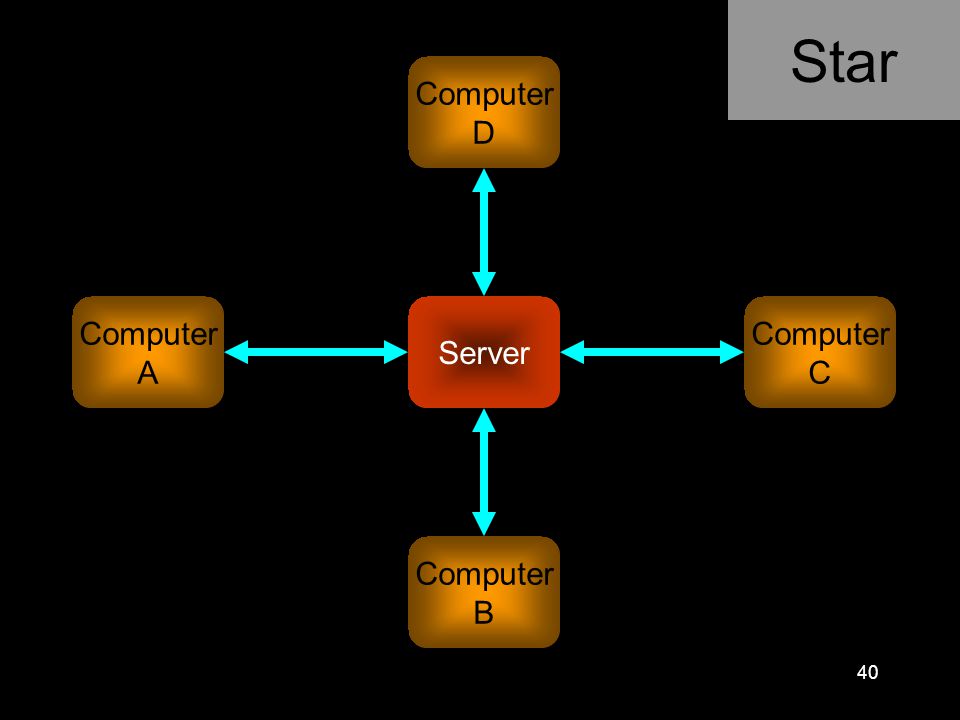

40. 40 Star Computer A Computer D Computer C Computer B Server

41. 41 Star (1) A computer sends the address of the intended receiver and the data to the server The server then sends the message to the intended receiver This topology allows multiple messages to be sent simultaneously

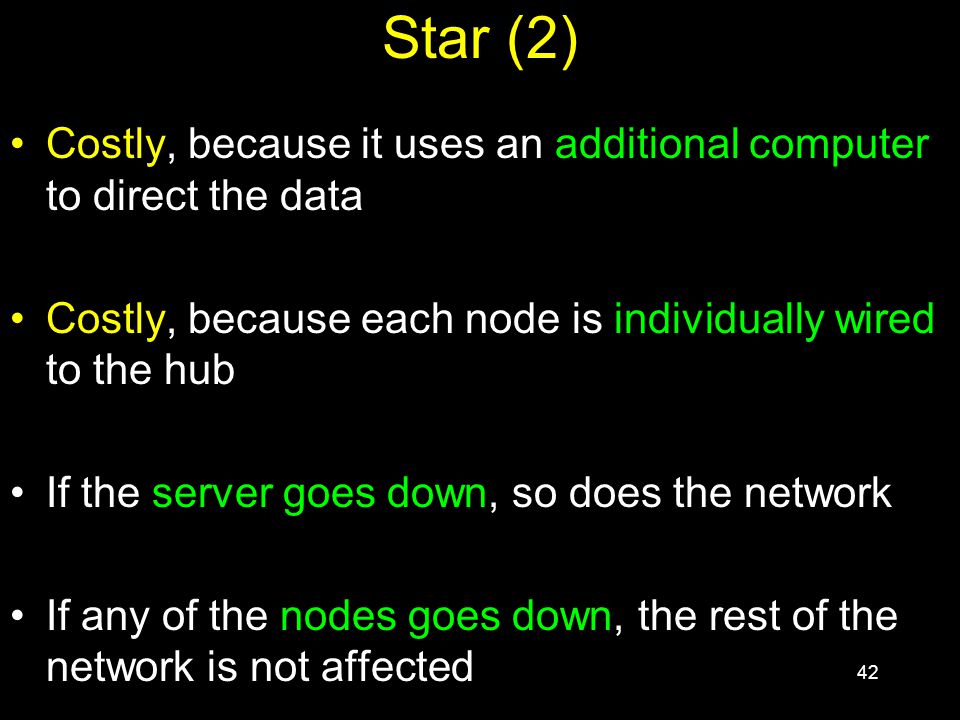

42. 42 Star (2) Costly, because it uses an additional computer to direct the data Costly, because each node is individually wired to the hub If the server goes down, so does the network If any of the nodes goes down, the rest of the network is not affected

43. 43 Bus Computer A Computer C Computer D Computer B Bus: A high speed cable

44. 44 Bus (1) No server is required One computer sends data to another by broadcasting the address of the receiver and the data over the bus All the computers in the network look at the address simultaneously, and the intended recipient accepts the data

45. 45 Bus (2) A bus network, unlike ring or star networks, allows data to be sent directly from one computer to another However, only one computer at a time can transmit data. The others must wait to until the bus gets idle If any of the nodes goes down, the rest of the network is not affected

46. 46 Ring Computer A Computer D Computer C Computer B

47. 47 Ring (1) No server is required A computer sends the message to its neighbor. The neighbor examines the message to determine if it is the intended recipient If the data are not intended for that particular neighbor, it passes the message to the next computer in the ring

48. 48 Ring (2) This process is repeated until the data arrive at their intended recipient This topology allows multiple messages to be carried, simultaneously Data transmission is slow since each message is checked by each computer

49. 49 Ring (3) New nodes are difficult to add Messages propagate in one direction only The network fails if a single node fails

50. 50 Combination Computer B Computer A Computer C Hub Computer E Computer D Computer F Hub

51. 51 Networking Protocols Networks use protocols, or rules, to exchange info through shared channels Protocols prevent collisions of packets caused by simultaneous transmission between two or more computers Several protocols are available for various types of networks. Here we discuss two that are popular for LANs: Ethernet; Token Ring

52. 52 Ethernet Protocol A computer using this protocol checks if a shared connection is in use before transmitting a message If not, the computer transmits data Two computers may sense an idle connection and may send packets simultaneously. To account for such situations, transmitting computers continue to monitor the connection and re-transmit if a packet collision occurs

53. 53 Token Ring Protocol This protocol passes a special message called a token through the network A computer that receives the token is given permission to send a packet of information If the computer has no packet to send, it passes the token to the next computer

54. 54 Computer Networks = Computers + Communications

55. 55 Types of Communication Channels 1. Wire 2. Wireless A key characteristic of these channels is bandwidth

56. 56 Bandwidth Capacity of a communication channel for carrying data Measured in bits/s (bps), kb/s, Mb/s, Gb/s, Tb/s Optical fiber channels have the highest (1 Tb/s) Telephone lines the lowest (56 kb/s)

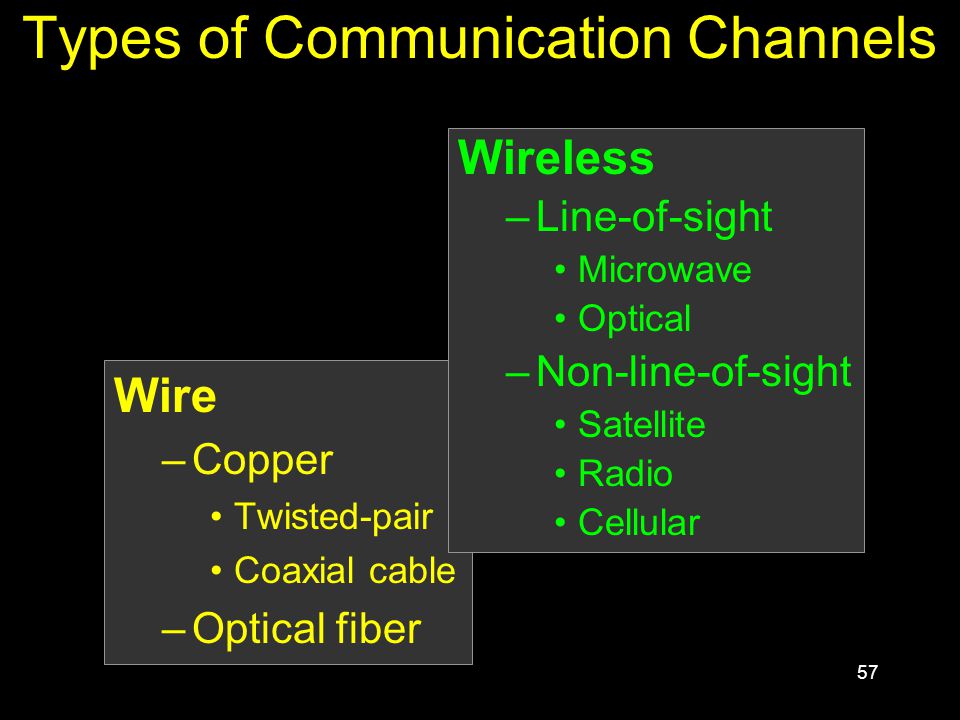

57. 57 Types of Communication Channels Wire –Copper Twisted-pair Coaxial cable –Optical fiber Wireless –Line-of-sight Microwave Optical –Non-line-of-sight Satellite Radio Cellular

58. 58 Wireless (Radio) LANs Are Becoming Popular Key benefits: –Set-up time –Set-up cost –Maintenance cost –Cost Key challenges: –Security & privacy –Quality of service –Cost

59. 59 Network Security (1) Keeping an eye on the security of private networks (e.g. LANs) is relatively easy However, their connections to other networks (e.g. the Internet) pose a security risk because the one has no control over users on those networks

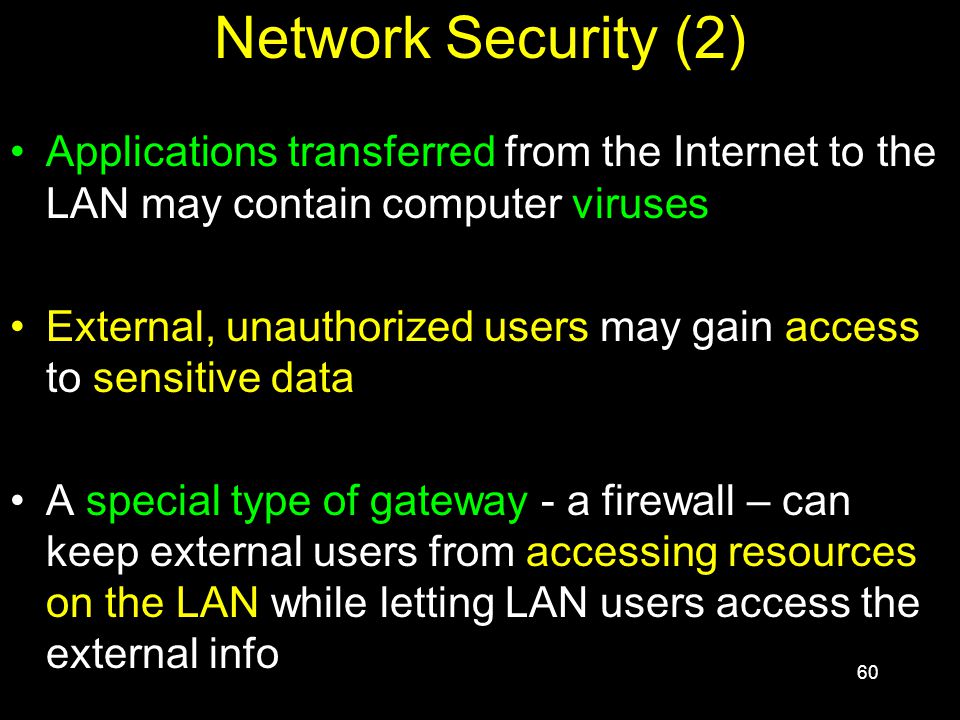

60. 60 Network Security (2) Applications transferred from the Internet to the LAN may contain computer viruses External, unauthorized users may gain access to sensitive data A special type of gateway - a firewall – can keep external users from accessing resources on the LAN while letting LAN users access the external info

61. 61 Firewall A system that that guards a private network, enforcing an access/deny policy to all traffic going to and coming from the Internet It keeps an eye on all the packets that go in and out of the private network and blocks them or allows them to continue to their destination according to the policy

62. 62 Private Network Internet Firewall

63. 63 Firewall Policy: Example One can configure a firewall to allow only eMail to enter the private network, thus shielding it from any malicious attacks except for those via eMail

64. 64 In Today’s Lecture We looked at the role of networks in computing We looked at several different types of networks We familiarized ourselves with networking topologies and protocols

65. 65 Next Lecture: Introduction to the Internet To become able to appreciate the role of the Internet in today’s computing To become familiar with the history and evolution of the Internet
