1. Dynamic Load Balancing on Web-server Systems Valeria Cardellini, Michele Colajanni, and Philip S. Yu Presented by Sui-Yu Wang

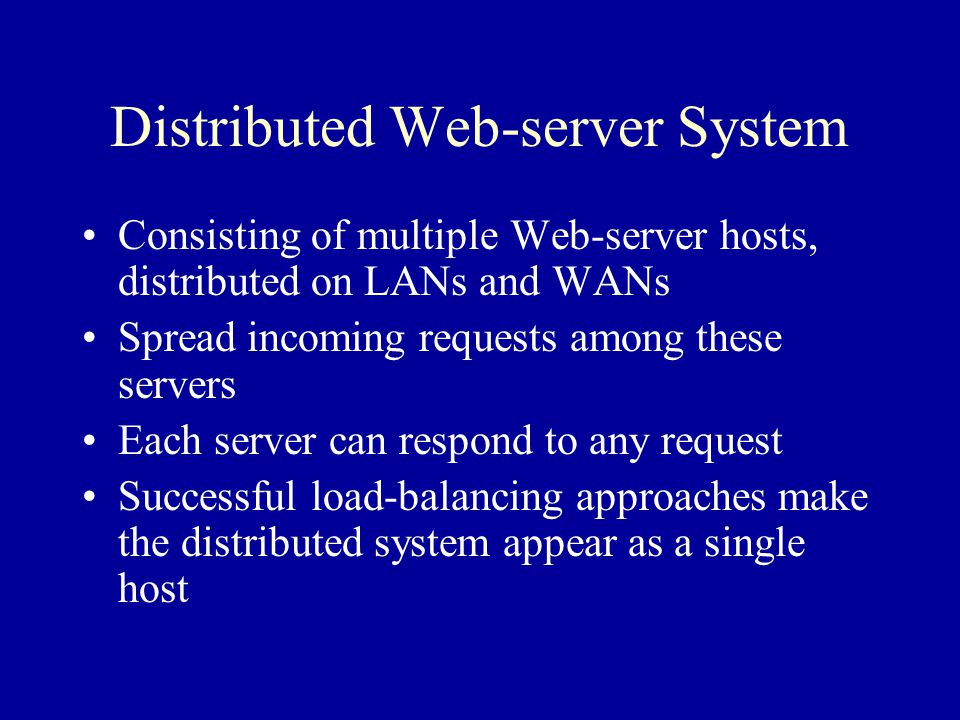

2. Distributed Web-server System Consisting of multiple Web-server hosts, distributed on LANs and WANs Spread incoming requests among these servers Each server can respond to any request Successful load-balancing approaches make the distributed system appear as a single host

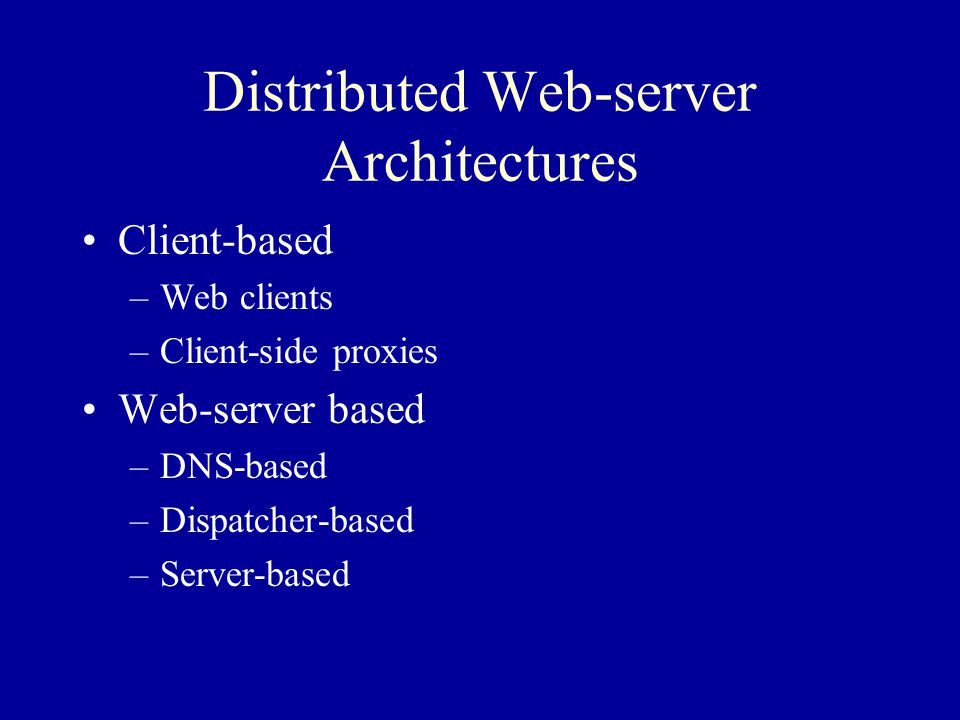

3. Distributed Web-server Architectures Client-based –Web clients –Client-side proxies Web-server based –DNS-based –Dispatcher-based –Server-based

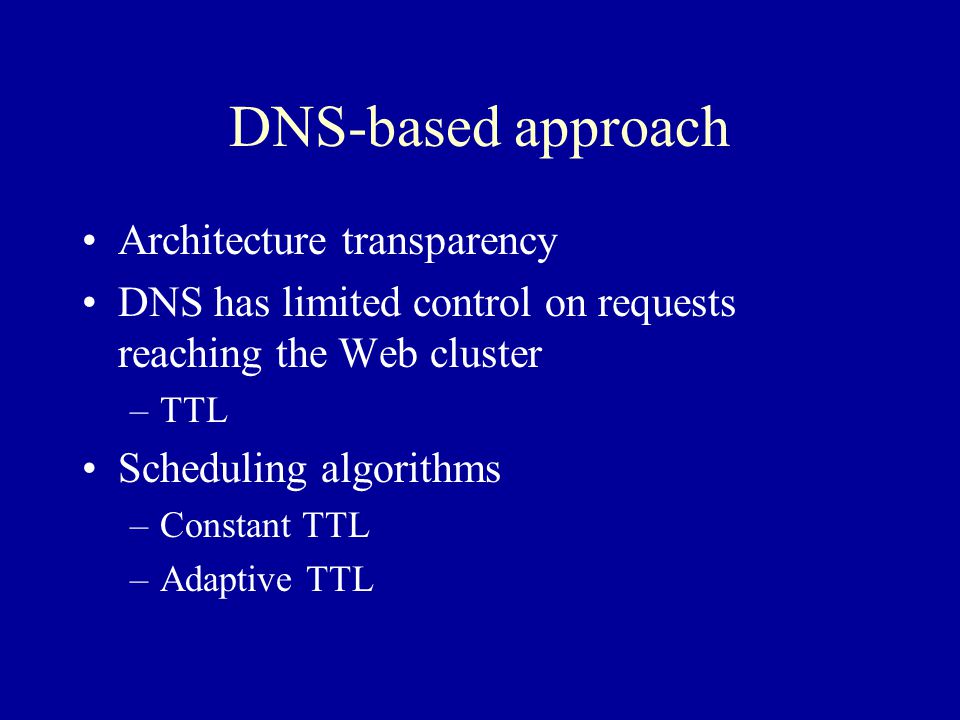

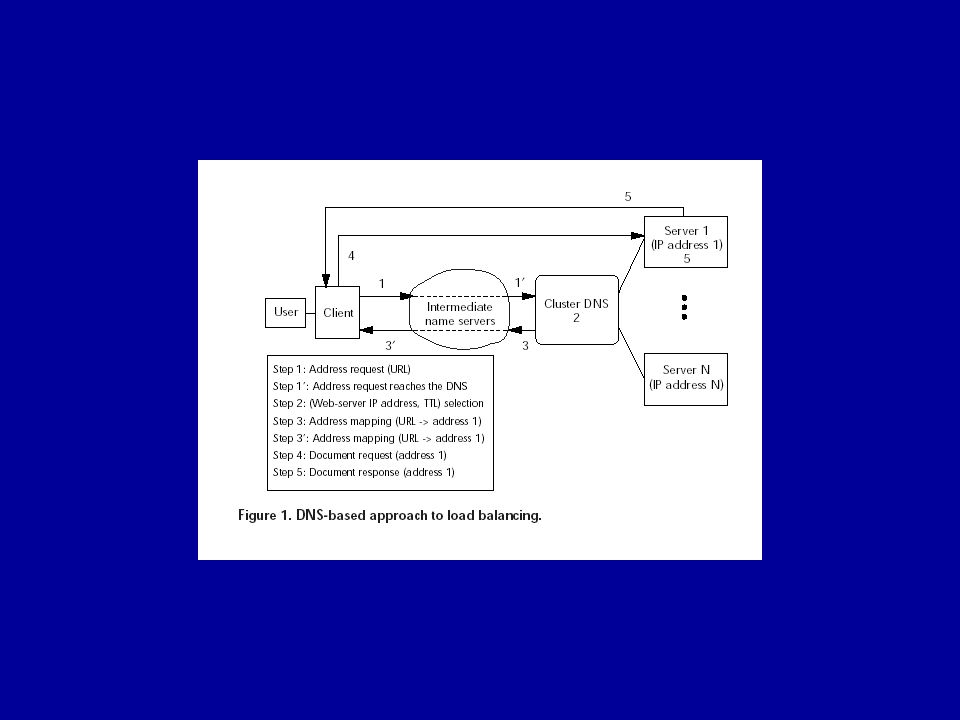

4. DNS-based approach Architecture transparency DNS has limited control on requests reaching the Web cluster –TTL Scheduling algorithms –Constant TTL –Adaptive TTL

6. Scheduling algorithms Constant TTL algorithms –System-stateless algorithms Round-Robin DNS –Server-state-based algorithms –Client-state-based algorithms Hidden load weight –Multitier round-robin policy Consider relative server-to-client topology and client-to-server link latency Network proximity information, round trip delays –Server-and client-state-based algorithms

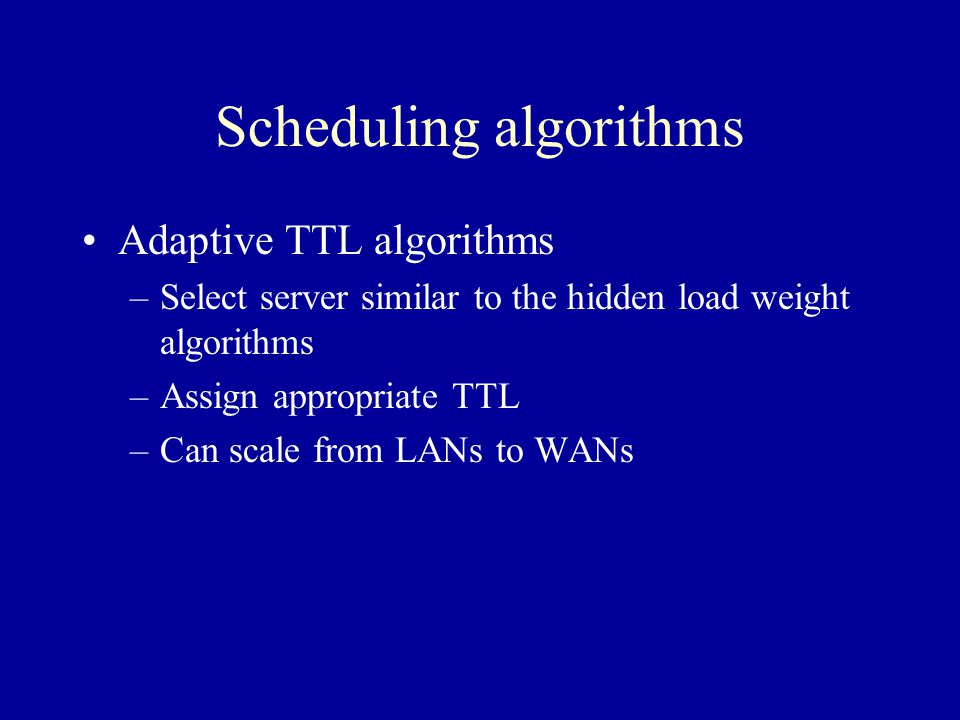

7. Scheduling algorithms Adaptive TTL algorithms –Select server similar to the hidden load weight algorithms –Assign appropriate TTL –Can scale from LANs to WANs

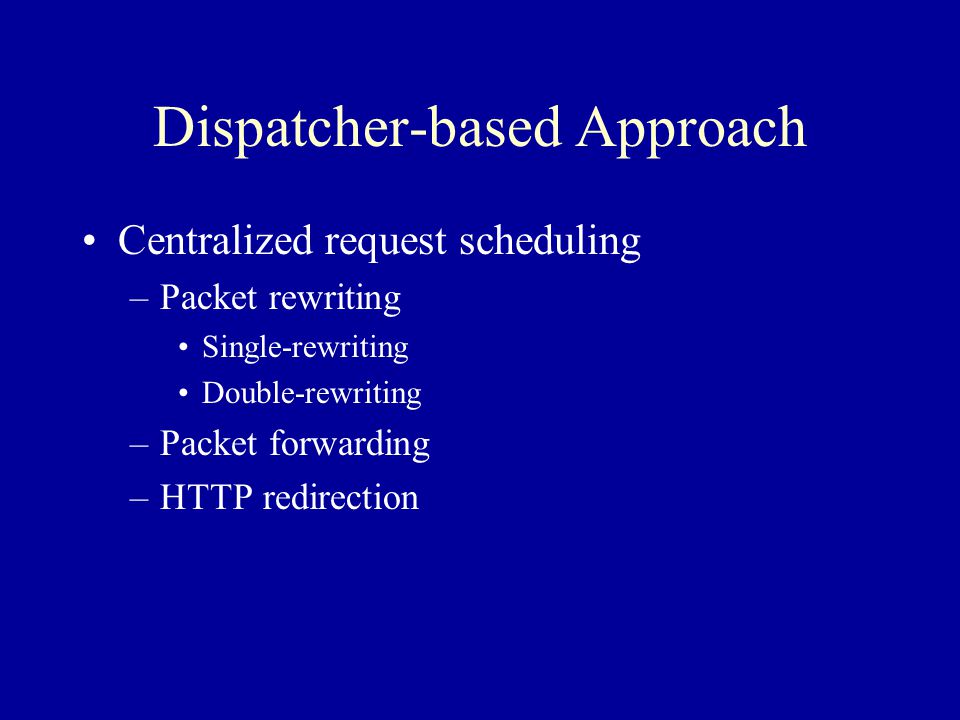

8. Dispatcher-based Approach Centralized request scheduling –Packet rewriting Single-rewriting Double-rewriting –Packet forwarding –HTTP redirection

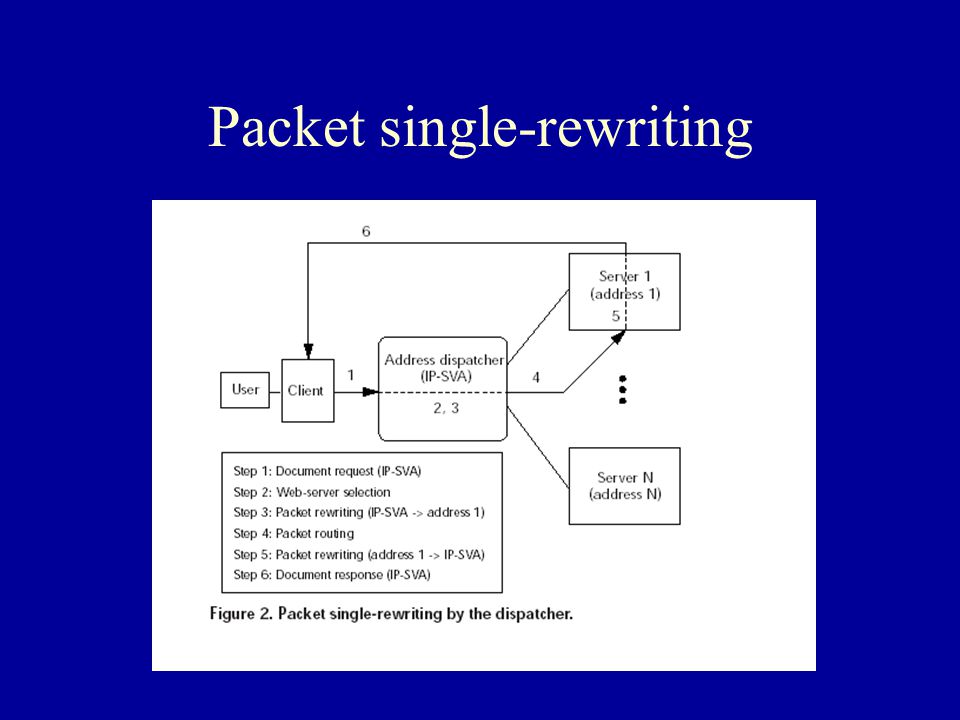

9. Packet single-rewriting

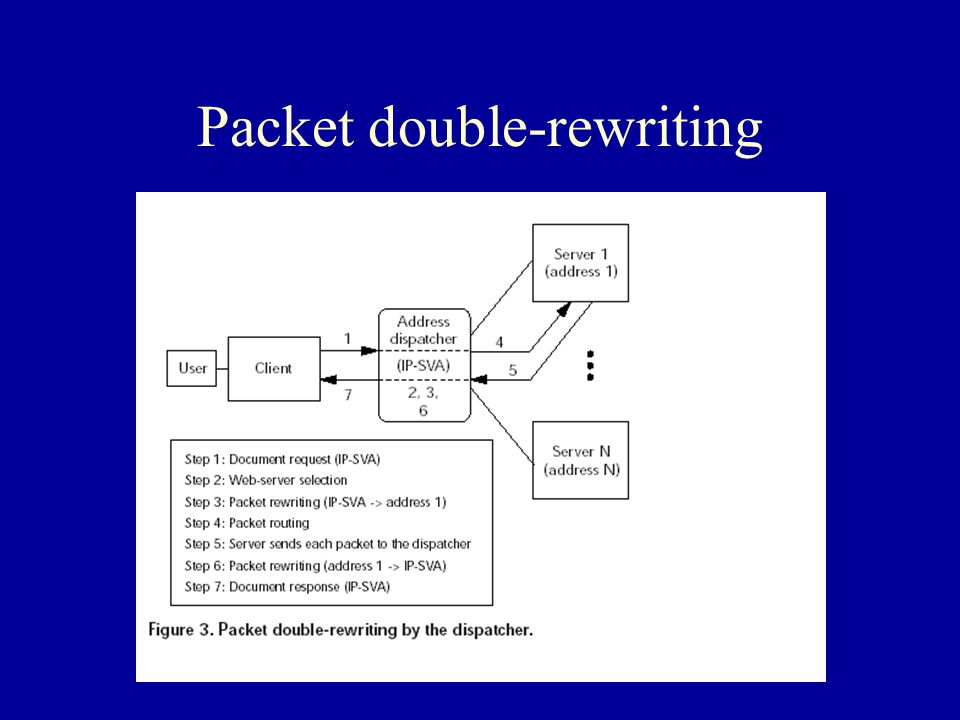

10. Packet double-rewriting

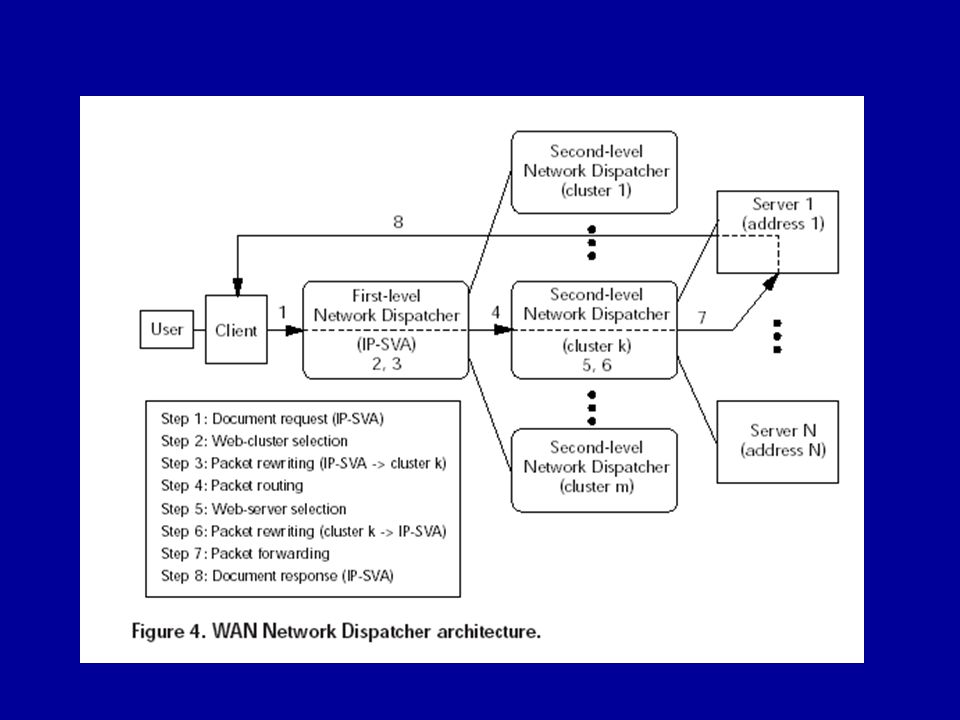

11. Packet forwarding Network Dispatcher –Works with LANs and WANs –Client and server transparent ONE-IP Address –Routing-based dispatching –Broadcast-based dispatching –No dynamic load-balancing based on server load

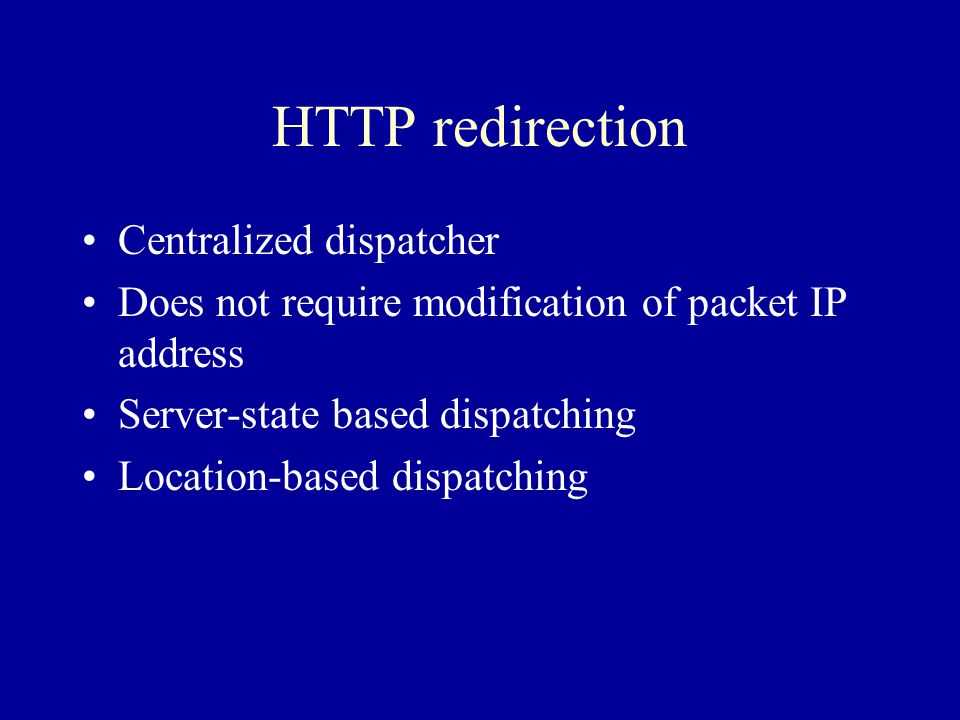

13. HTTP redirection Centralized dispatcher Does not require modification of packet IP address Server-state based dispatching Location-based dispatching

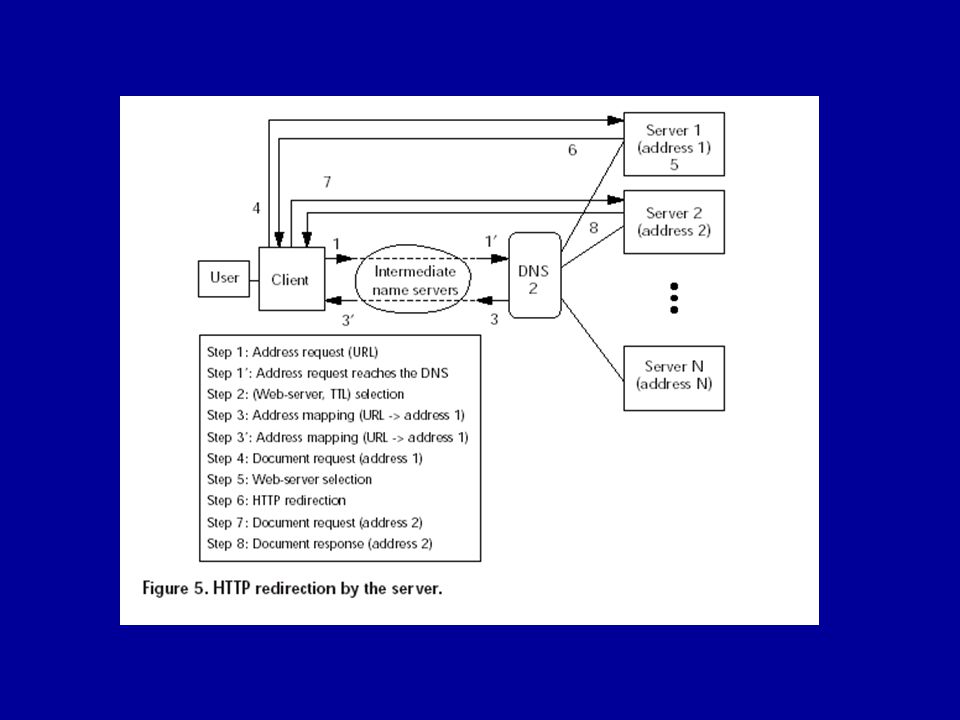

14. Server-based approach Two-level dispatching No centralized dispatching HTTP redirection Packet redirection –Static routing –Load-balancing

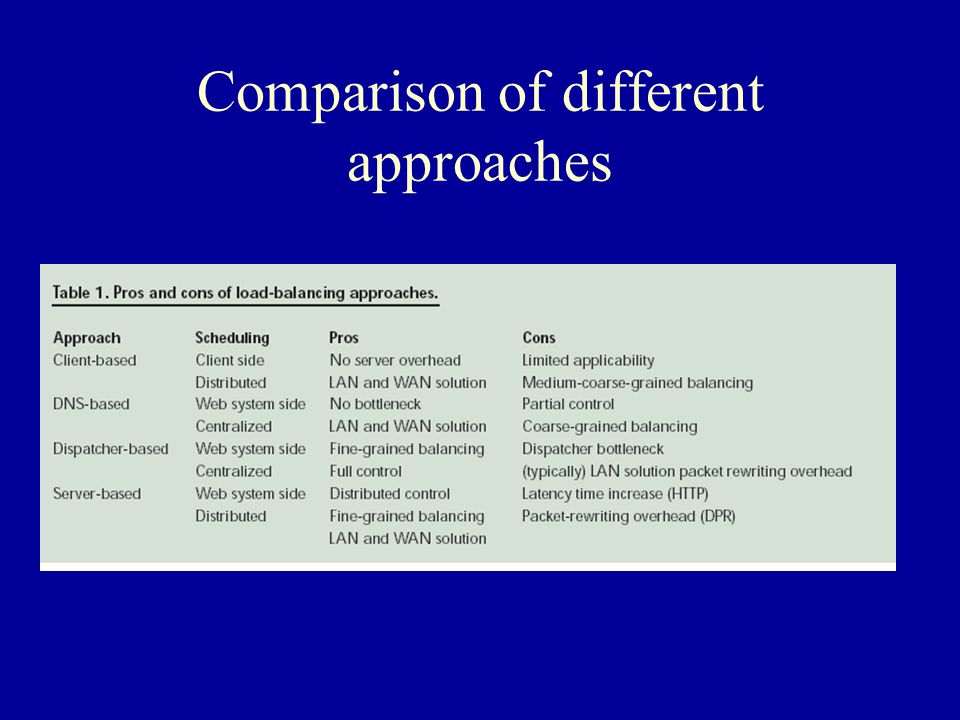

16. Comparison of different approaches

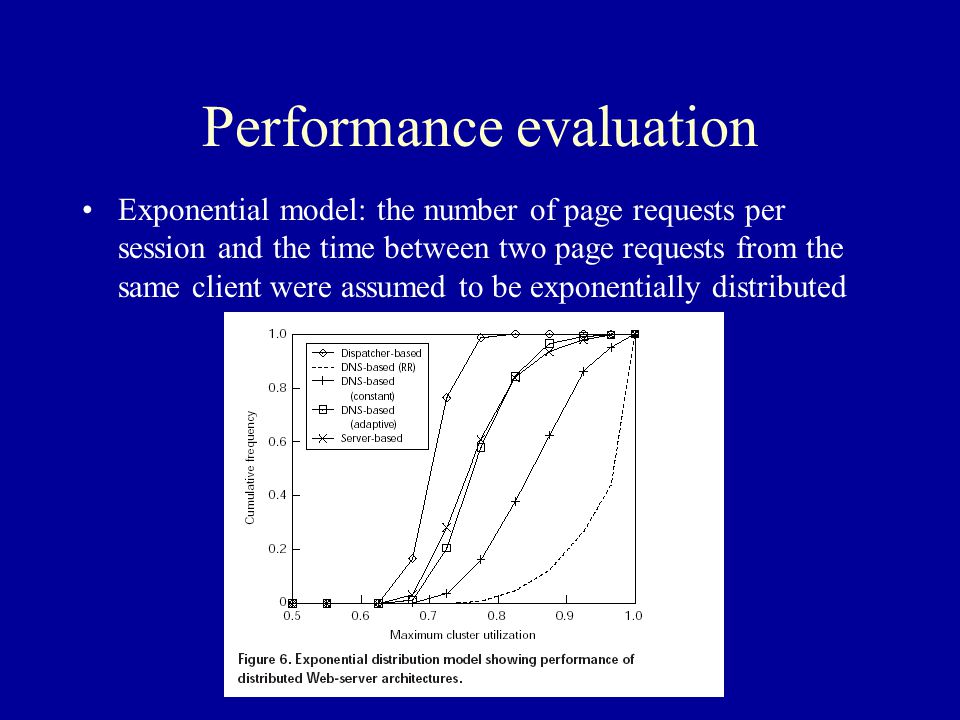

17. Performance evaluation Exponential model: the number of page requests per session and the time between two page requests from the same client were assumed to be exponentially distributed

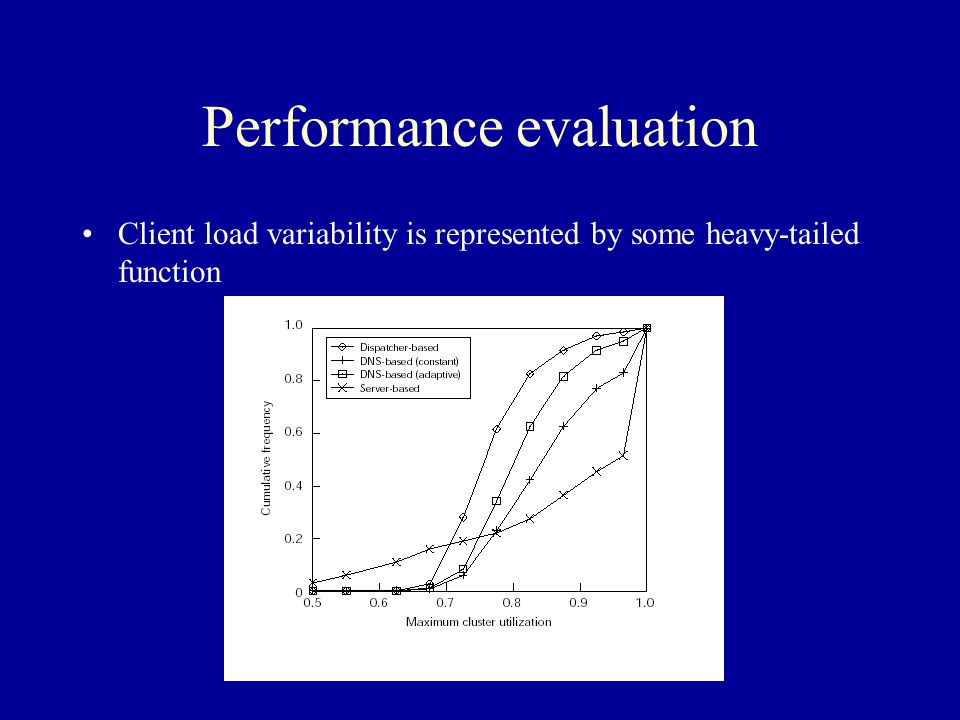

18. Performance evaluation Client load variability is represented by some heavy-tailed function
