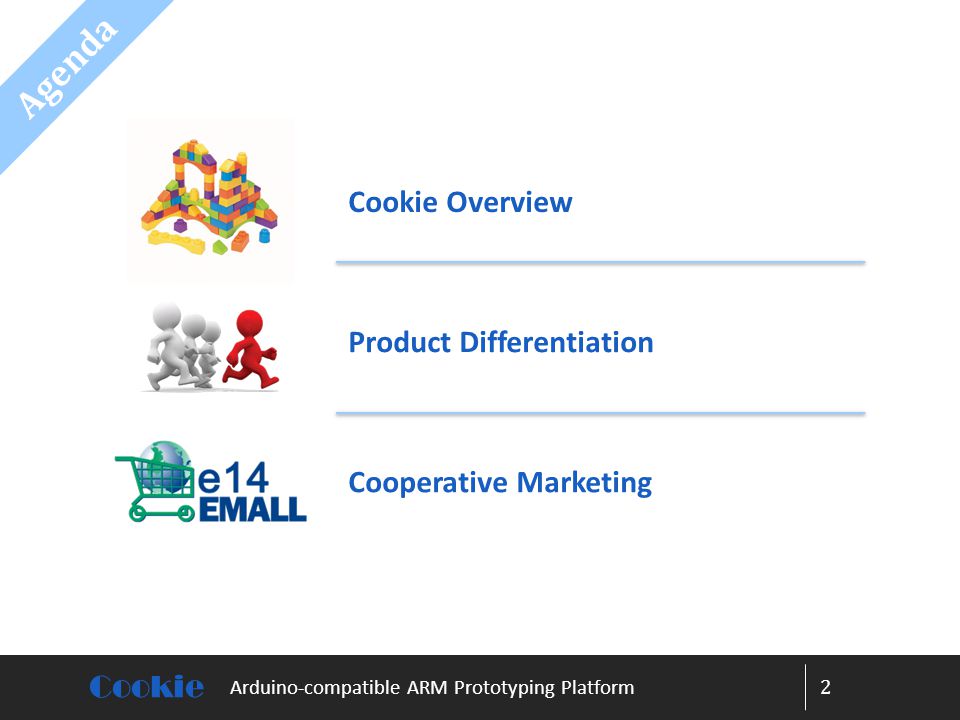

2. Agenda Cookie Overview Product Differentiation Cooperative Marketing Arduino-compatible ARM Prototyping Platform 2 Cookie

3. Arduino- compatible ARM Prototyping Platform Open source and Arduino form-factor fully compatible 32-bit ARM Cortex MCU based Hardware / Software building blocks based on a standard form A community for sharing & using the building blocks Arduino-compatible ARM Prototyping Platform 3 Cookie What is Cookie?

4. Cookie Board SCH, BOM List, PCB are all open, CoLinkEx Firmware is free to use, users can DIY. Cookie Shields, Peripheral Expansion Modules based on Cookie Extended Interfaces, are also in plan. CoLinkEx* (USB-JTAG/SW debug probe) onboard, Debug IN/OUT selectable with jumper Types of 32-bit ARM Cortex MCUs available (M0/M3/M4) Hardware open under CC BY-SA 3.0 license Features Fully compatible with Arduino, over 280 Shields can be reused Extended interfaces* beyond Arduino form-factor available Work on both 3.3V and 5V * OPTIONAL Arduino-compatible ARM Prototyping Platform 4 Cookie

5. Highlights of Cookie Low- cost Easy- to-use Com- munity Enormous building blocks Rapid Prototyping Easy to learn for beginners; Reduce time-to-market for product developers CooCox users from all over the world to communicate & share DIY < 20 USD Arduino-compatible ARM Prototyping Platform 5 Cookie

7. Arduino Toys for everybody Cookie Entrance of Embedded Development Raspberry Pi Toys for linux players Orientation Hardware Software Applications Community Product Differentiation 7

8. Orientation Hardware Software Applications Community Product Differentiation 8 MCU 8-bit AVR MCU 8MHz / 16MHz 32-bit ARM Cortex MCU ≥ 50MHz 32-bit ARM11 700MHz Arduino Cookie Raspberry Pi

9. Orientation Hardware Software Applications Community Product Differentiation 9 Extended Interfaces (OPTIONAL) Arduino Over 280 Over 280 Shields available based on the unified Arduino form-factor CoLinkEx (OPTIONAL) JTAG/SW USB- JTAG/SW debug probe onboard, Debug IN/OUT selectable with jumper Interfaces beyond Arduino form-factor like Ethernet, CAN, etc. Cookie

10. Orientation Hardware Software Applications Community Product Differentiation 10 Arduino Cookie Raspberry Pi Development tools Simplified C language C language Python or any language compiles for ARMv6 Arduino IDECooCox tool kit Development tools for Linux system Available Available across different MCUs with CoX / Reusable code Programming language

11. CooCox Tool kit is more adequate for developing products! Orientation Hardware Software Applications Community Full-functional IDE Software Manager RTOS JTAG/SW Debug adapter Flash Programmer Unified Peripheral Interface Register Assistant  CooCox tool kit is a complete set of tool chain.  CoIDE supports debugging while Arduino does not.

12. Standard: USB 2.0 Standard: CoX Orientation Hardware Software Applications Community CoX expands the application field of peripheral drivers! MCU Standard Interface Reusable across different MCUs via CoX interface Fan Plug and play via USB interface Drivers Code

13. Orientation Hardware Software Applications Community Product Differentiation 13 LED cube 8x8x8 demo Arduino Air Drums Wireless Arduino Powered Chess Vehicle with a wirelesssteering wheel Click the pictures to see the videos on YouTube. Arduino Applications (can also be realized with Cookie):

14. Orientation Hardware Software Applications Community Product Differentiation 14 Cookie Application --- using Hardware Building Blocks in Arduino form-factor ❶❷ ❸❹ ❺ 1.Cookie NuMicro Board 2.Arduino Ethernet Shield 3.Motor Control Shield for Arduino 4.LCD Keypad Shield 5.Two motors connected to Shield 3 Press the ‘UP’ key, motor speed will increase. Keypad controlled motor demo

15. Orientation Hardware Software Applications Community 1. Select Device2. Add & configure code components 3. Build4. Debug or download Just 4 steps to build the Cookie application!

16. Orientation Hardware Software Applications Community Posts Photos Videos Official promoters / Users Forum Blog Product Differentiation 16 General accesses of sharing

17. Orientation Hardware Software Applications Community Component Platform – Upload with just 5 steps Next version >>>>>>>>>>>>> Simpler sharing by uploading selected files within a compiled CoIDE project directly CoIDE has a more efficient way of sharing within it.

18. Orientation Hardware Software Applications Community Component Platform A sound management system with no need of secondary handle. Click to enter components page and… CommentsShareFavorite

19. Orientation Hardware Software Applications Community Abundant documents & reusable code from CooCox as well as community members Free & Timely technical support through Forum and E-mailForumE-mail Experts & Hobbyists around the world to communicate and share Get whatever you need for development from the community!

21. Arduino-compatible ARM Prototyping Platform 21 Cookie Cookie NuMicro Board is in production; Cookie ST Board is in design. July Cookie NuMicro (M051) Cookie ST (STM32F103RbT6) Cookie Shields Cookie NXP (LPC1100) September Cookie TI (M4) Later on Cookie More Development Roadmap for Cookie Boards

22. Arduino-compatible ARM Prototyping Platform 22 Cookie MCU: M0516LBNLQFP48 ‒operates at a 50 MHz frequency ‒Flash memory up to 64 Kbytes and SRAM up to 4 Kbytes CoLinkEx onboard: ‒JTAG/SW debug and power supply via one USB port ‒External debug supported ‒ARM Cortex-M0/M3/M4 chips supported * Cookie NuMicro Board has no Extended Interfaces. Features

23. Arduino-compatible ARM Prototyping Platform 24 Cookie Reference:  Arduino UNO – $25  Raspberry Pi – $25 for Model A, $35 for Model B  A stand-alone CoLinkEx – $19.9 Take pre-orders with less money and half freight! Cookie NuMicro Suggested retail price for e14$28 Price for Pre-orders$25 Take Pre-orders Now!

24. Come take a bite! Market@coocox.com forum.coocox.org www.coocox.org
