1. CSET 4650 Field Programmable Logic Devices Dan Solarek VHDL Behavioral & Structural

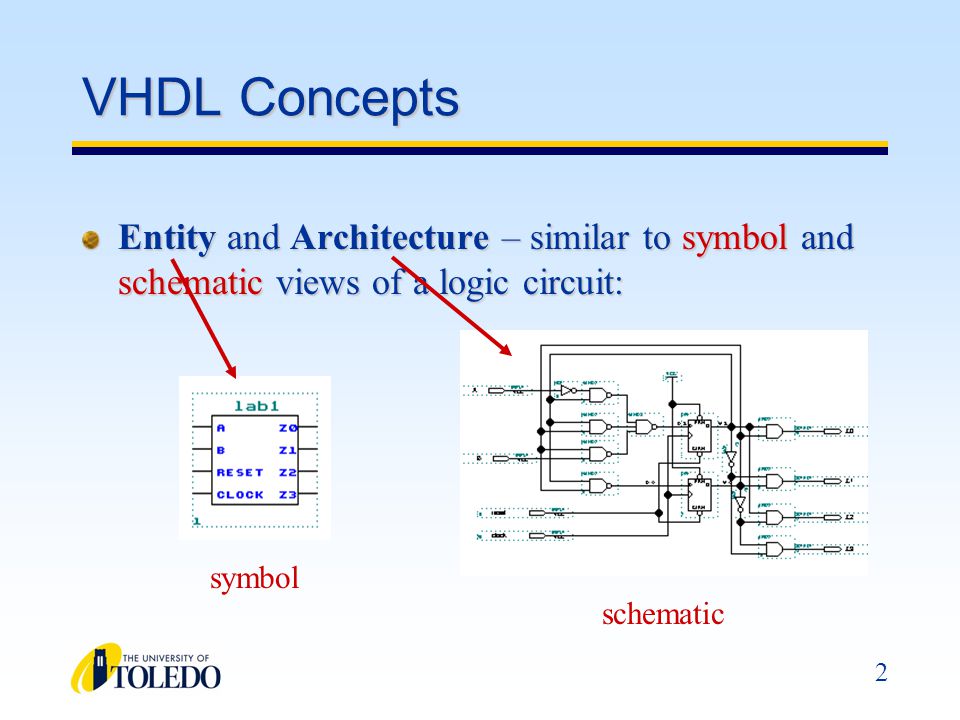

2. 2 VHDL Concepts Entity and Architecture – similar to symbol and schematic views of a logic circuit: symbol schematic

3. 3 VHDL Example Entity declaration for the 2 to 1 MUX from today’s quiz. ENTITY mux2_1 IS PORT (in0, in1, sel: IN STD_LOGIC; yout: OUT STD_LOGIC); END mux2_1;

4. 4 VHDL Example Logic circuit for a 2-1 MUX device Helpful for understanding architecture In0 In1 sel yout

5. 5 VHDL Example Behavioral architecture for the 2 to 1 MUX ARCHITECTURE a1 OF mux2_1 IS P1: PROCESS (sel, in0, in1) BEGIN IF (sel = ‘0’) THEN yout <= in0; ELSE yout <= in1; END IF; END P1; END a1; In0 In1 sel yout

6. 6 VHDL Example Structural architecture for the 2 to 1 MUX ARCHITECTURE a2 OF mux2_1 IS SIGNAL sel_not, in0_and, in1_and: STD_LOGIC; COMPONENT OR_GATE PORT(x,y: IN STD_LOGIC; z: OUT STD_LOGIC); COMPONENT AND_GATE PORT (x,y: IN STD_LOGIC; z: OUT STD_LOGIC); COMPONENT INV_GATE PORT (x: IN STD_LOGIC; z: OUT STD_LOGIC); BEGIN U1: AND_GATE PORT MAP (in0, sel_not, in0_and); U2: AND_GATE PORT MAP (in1, sel, in1_and); U3: INV_GATE PORT MAP (sel, sel_not); U4: OR_GATE PORT MAP (in0_and, in1_and, yout); END a2; U1 U3 U4 U2 In0 In1 sel yout

7. 7 VHDL Example Dataflow architecture for the 2 to 1 MUX ARCHITECTURE a3 OF mux2_1 IS BEGIN yout <= ((in0 AND NOT(sel)) OR (in1 AND sel)); END a3; In0 In1 sel yout

8. 8 Configuration for 2 to 1 MUX bbbb CONFIGURATION mux_behav OF mux2_1 IS FOR a1; END FOR; END mux_behav;

9. 9 Half Adder Circuit Looking at the truth table for a half adder, it is easy to visualize the circuit B A S C A B C S

10. 10 Full Adder Circuit The circuit at right shows a full adder constructed from two half adders. XOR generates the sum output AND generates the carry output half adder

11. 11 Full Adder – Entity & Architecture -- Dataflow model for a full adder circuit -- Library Statement declares the standard ieee synthesis library LIBRARY ieee; USE ieee.std_logic_1164.ALL; -- Entity declares the inputs and outputs using a PORT statement ENTITY fulladder IS PORT(Ain, Bin, Cin: IN STD_LOGIC; Cout, Sout: OUT STD_LOGIC); END fulladder; -- Architecture defines the function or entity -- In this case the function is defined using Boolean equations ARCHITECTURE dataflow OF fulladder IS BEGIN -- Concurrent Signal Assignment Statements Sout <= Ain XOR Bin XOR Cin; Cout <= (Ain AND Bin) OR (Ain AND Cin) OR (Bin AND Cin); END dataflow;

12. 12 Full Adder - Architecture -- In this case the function is defined by a circuit structure ARCHITECTURE structural OF fulladder IS COMPONENT AND2 PORT( A, B: IN STD_LOGIC; F: OUT STD_LOGIC); END COMPONENT; COMPONENT OR3 PORT( A, B, C: IN STD_LOGIC; F: OUT STD_LOGIC); END COMPONENT; COMPONENT XOR2 PORT( A, B: IN STD_LOGIC; F: OUT STD_LOGIC); END COMPONENT; SIGNAL AXB, AB, BC, AC: STD_LOGIC; BEGIN F1: XOR2 port map (Ain, Bin, AXB); F2: XOR2 port map (AXB, Cin, Sout); F3: AND2 port map (Ain, Bin, AB); --Port Map Statements F4: AND2 port map (Bin, Cin, BC); F5: AND2 port map (Ain, Cin, AC); F6: OR3 port map (AB, BC, AC, Cout); END structural;

13. 13 Binary Addition: 4-Bit Numbers The following example illustrates the addition of two 4-bit numbers A(A 3 A 2 A 1 A 0 ) and B(B 3 B 2 B 1 B 0 ): How would this change for a BCD adder?

14. 14 Binary Addition: 4-Bit Numbers The addition can be split-up in bit slices Each slice performs the addition of the bits A i, B i and the Carry-in bit C i C i <= carry-out bit of the previous slice Each slice is simply a full adder

15. 15 4-Bit Binary Adder Circuit for a 4-bit parallel binary adder constructed from full adder building blocks

16. 16 4-Bit Adder - Entity LIBRARY ieee; USE ieee.std_logic_1164.ALL; -- VHDL model of a 4-bit adder constructed from four full adders ENTITY four_bit_adder_st IS PORT (A, B : IN STD_LOGIC_VECTOR(3 downto 0); SUM : OUT STD_LOGIC_VECTOR(3 downto 0); CIN : IN STD_LOGIC; COUT : OUT STD_LOGIC); END four_bit_adder_st; C in C out

17. 17 4-Bit Adder Structural -- The architecture in this case is a structural one ARCHITECTURE structural OF four_bit_adder_st IS -- First all the components are declared. The full adder is -- declared only once, even though it will be used 4 times. COMPONENT fulladder PORT(Ain, Bin, Cin: IN STD_LOGIC; Cout, Sout: OUT STD_LOGIC); END COMPONENT; -- The full adders are connected by carry signals. These must -- be declared also. SIGNAL C : STD_LOGIC_VECTOR(1 to 3); -- Port map statements are used to define full adder instances -- and how they are connected. BEGIN F1: fulladder port map (A(0),B(0),CIN,C(1),SUM(0)); F2: fulladder port map (A(1),B(1),C(1),C(2),SUM(1)); F3: fulladder port map (A(2),B(2),C(2),C(3),SUM(2)); F4: fulladder port map (A(3),B(3),C(3),COUT,SUM(3)); END structural;

18. 18 4-Bit Adder Structural -- The architecture in this case is a dataflow one ARCHITECTURE dataflow OF four_bit_add_df IS -- Again there will be internal carry signals that are not -- inputs or outputs. These must be declared as signals. SIGNAL C : STD_LOGIC_VECTOR(1 to 3); -- Concurrent signal assignments can be used to describe -- each of the 4 outputs and the carry signals. BEGIN SUM(0) <= A(0) XOR B(0) XOR Cin; C(1) <= (A(0) AND B(0)) OR (A(0) AND Cin) OR (B(0) AND Cin); SUM(1) <= A(1) XOR B(1) XOR C(1); C(2) <= (A(1) AND B(1)) OR (A(1) AND C(1)) OR (B(1) AND C(1)); SUM(2) <= A(2) XOR B(2) XOR C(2); C(3) <= (A(2) AND B(2)) OR (A(2) AND C(2)) OR (B(2) AND C(2)); SUM(3) <= A(3) XOR B(3) XOR C(3); COUT <= (A(3) AND B(3)) OR (A(3) AND C(3)) OR (B(3) AND C(3)); END dataflow;

19. 19 4-Bit Adder Behavioral -- This is the current Lab assignment Work with Anil to get this done!
