2. Microsoft Spatial – SQL Server Spatial & Virtual Earth Matti Seikkula & Pete Smith e-Spatial www.e-spatial.co.nz

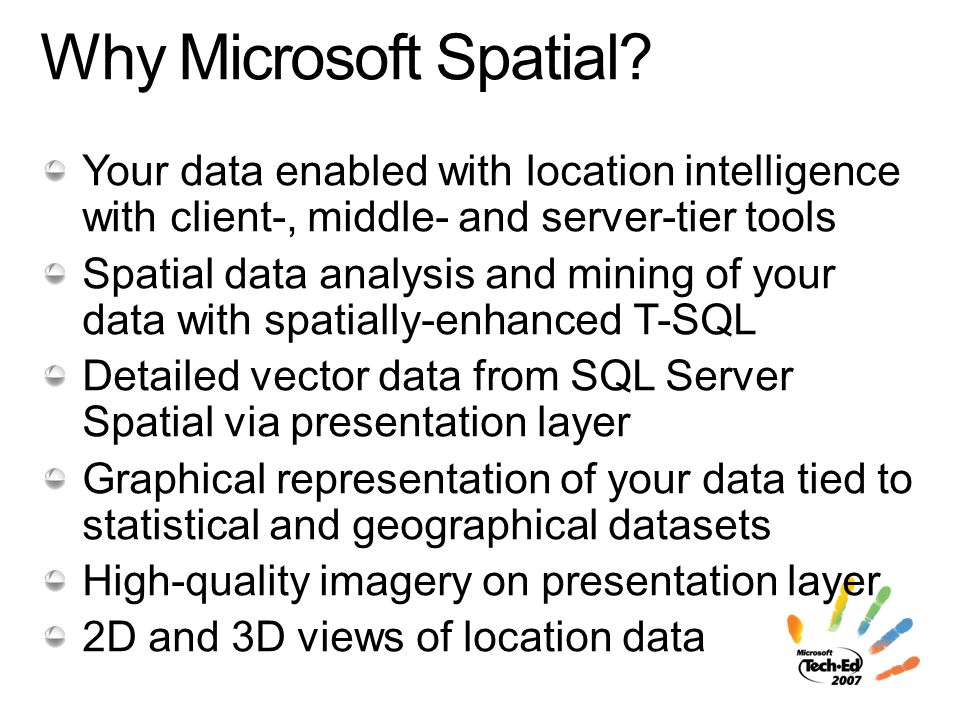

3. Why Microsoft Spatial? Your data enabled with location intelligence with client-, middle- and server-tier tools Spatial data analysis and mining of your data with spatially-enhanced T-SQL Detailed vector data from SQL Server Spatial via presentation layer Graphical representation of your data tied to statistical and geographical datasets High-quality imagery on presentation layer 2D and 3D views of location data

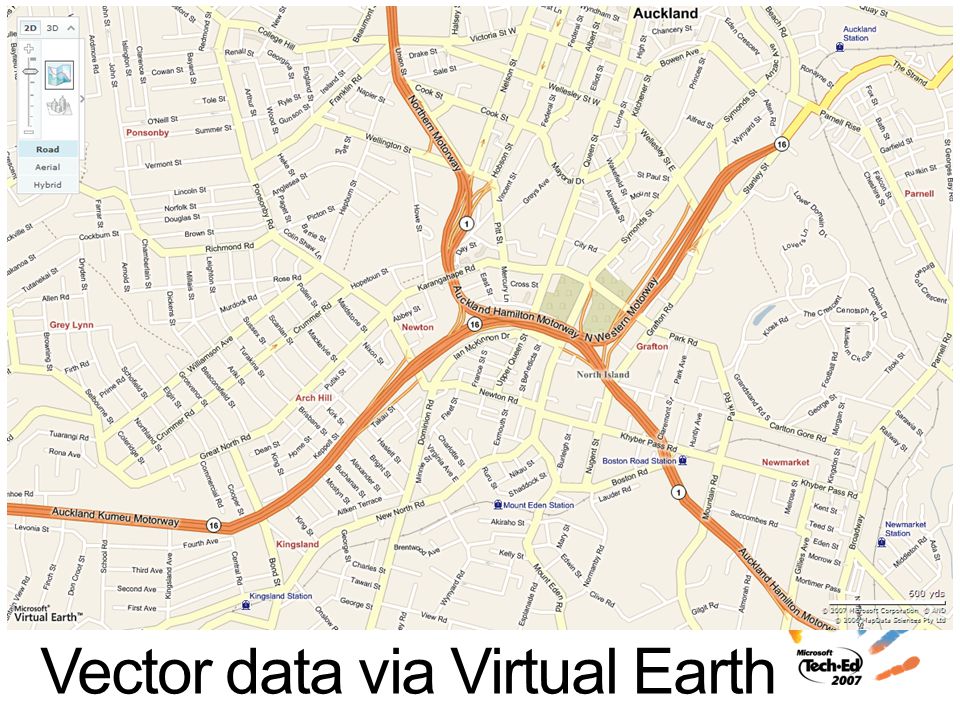

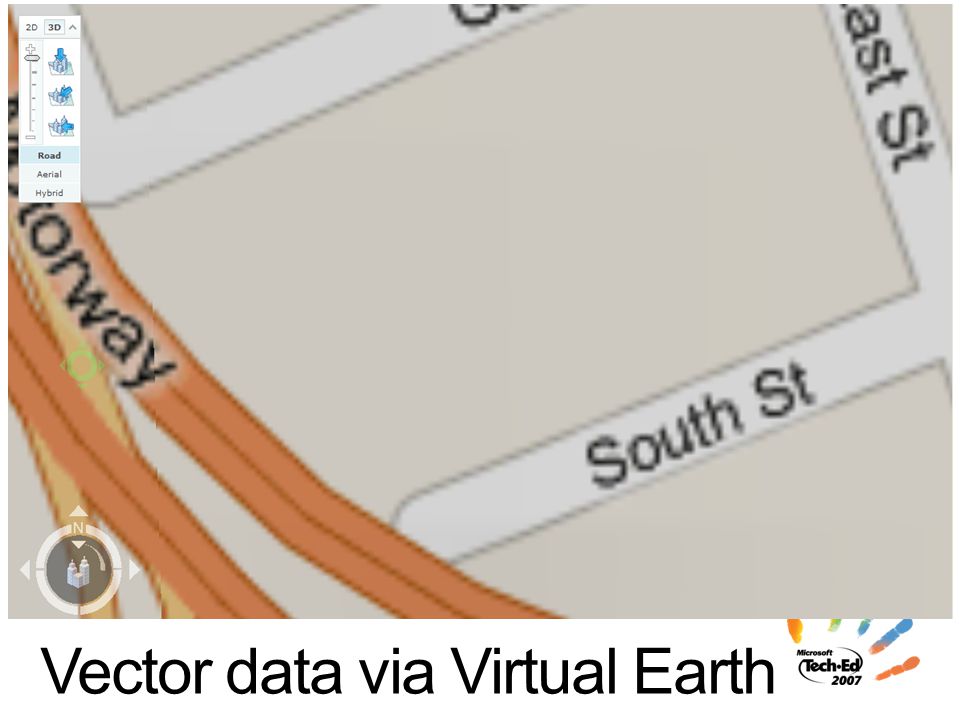

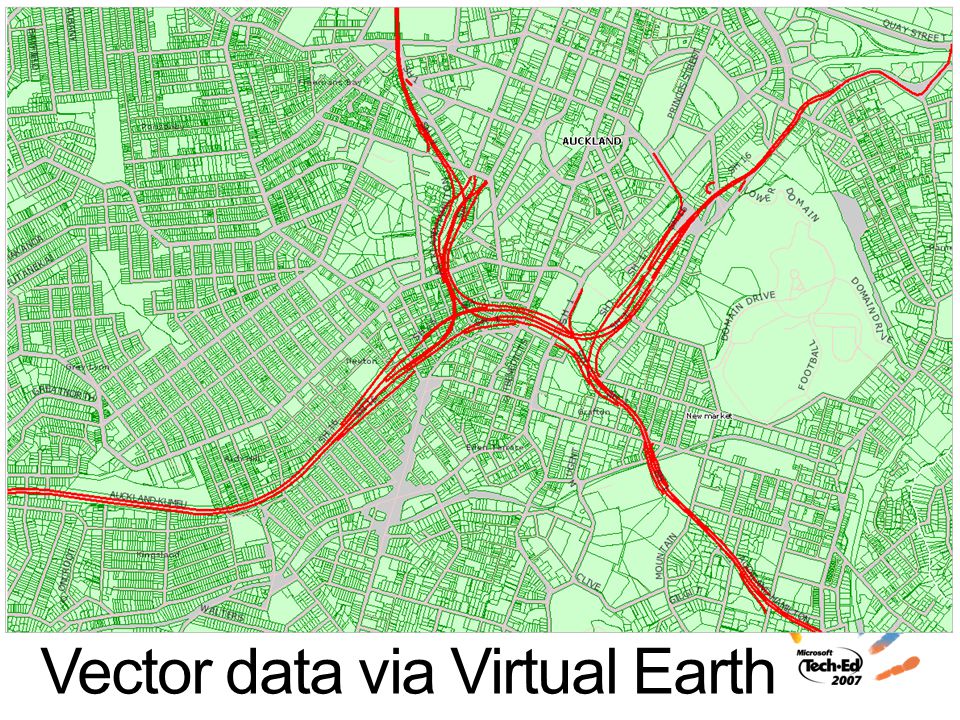

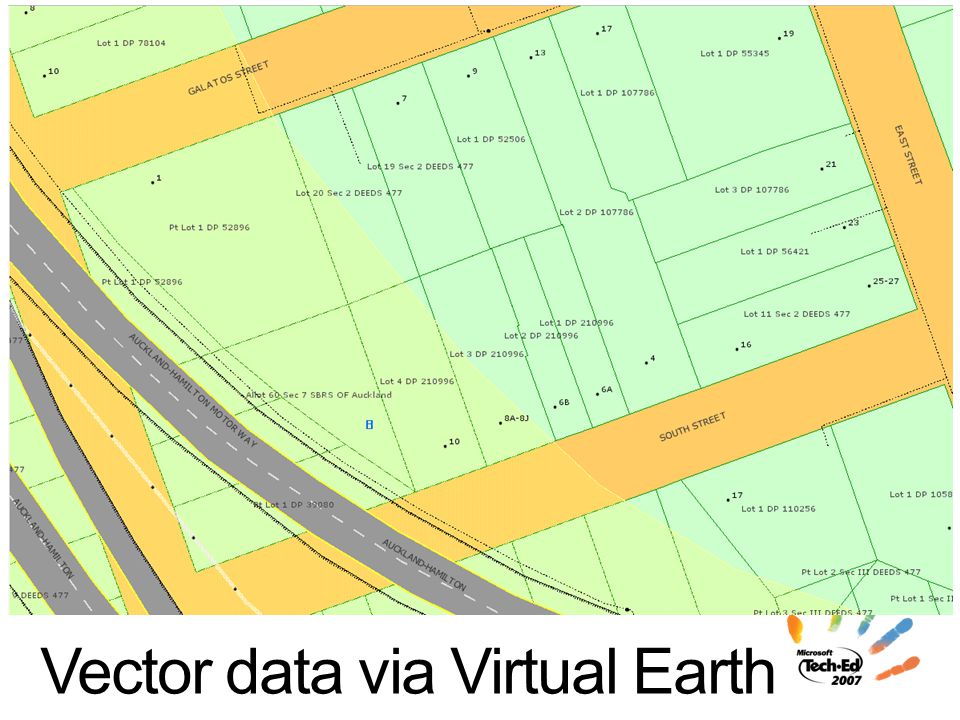

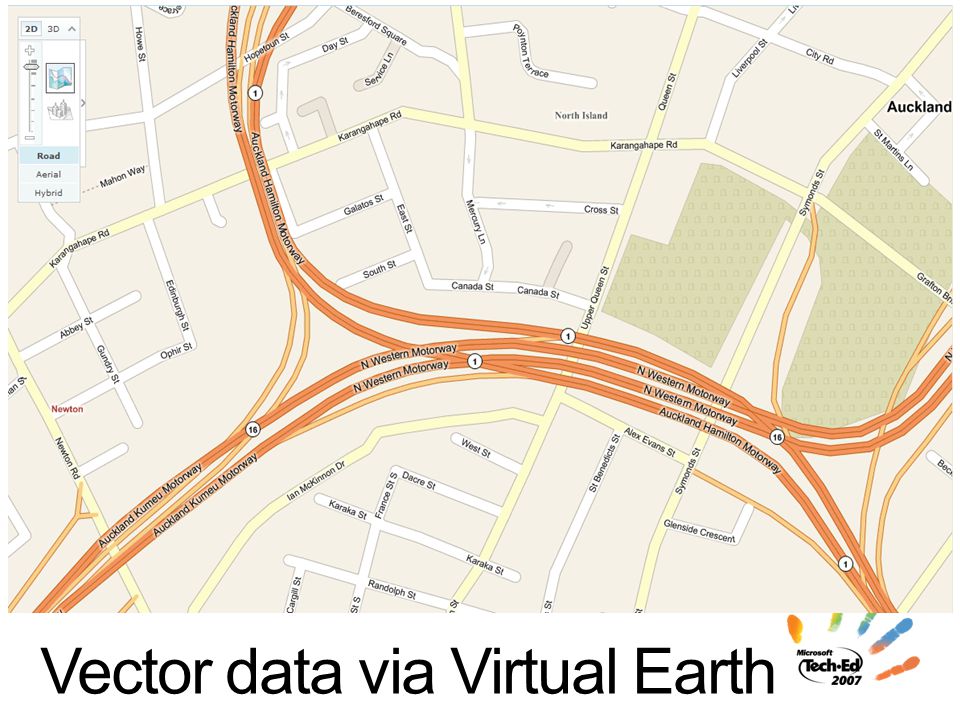

4. Vector data via Virtual Earth

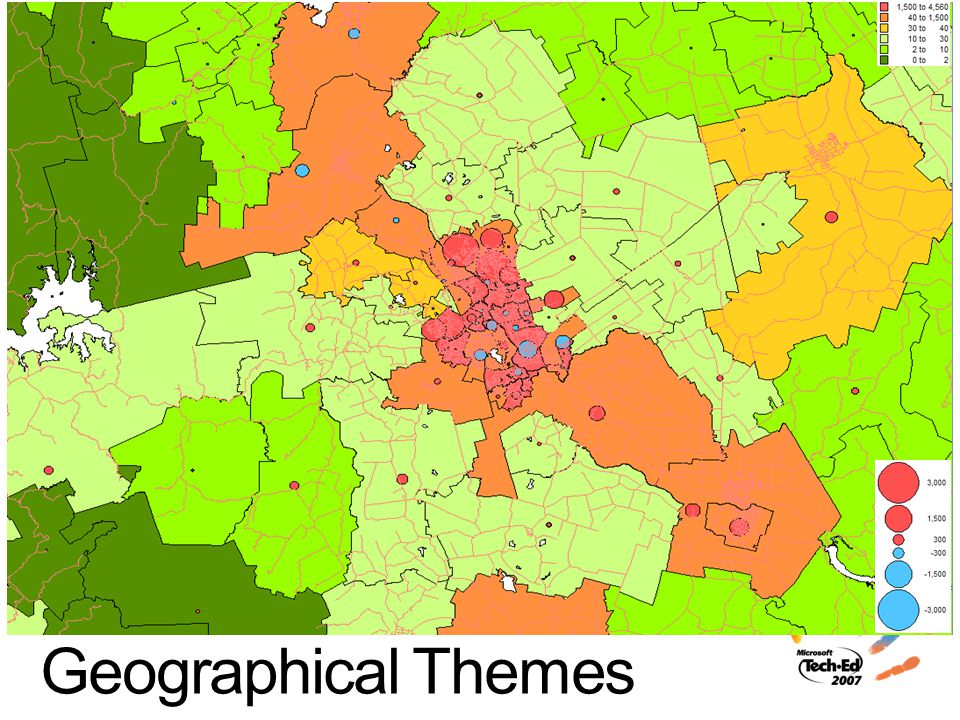

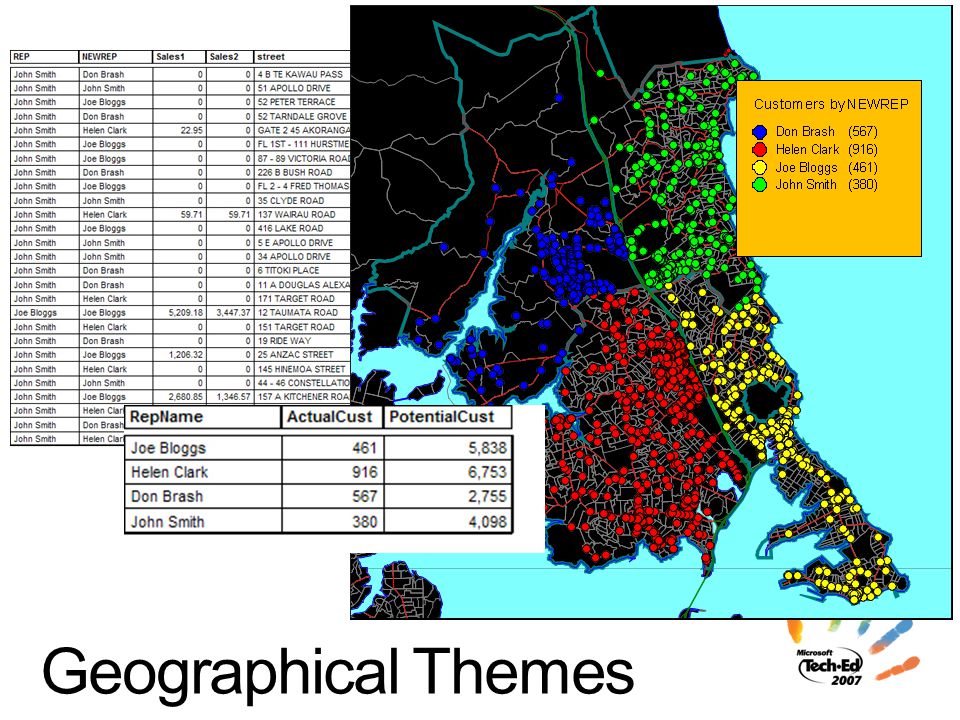

10. Geographical Themes

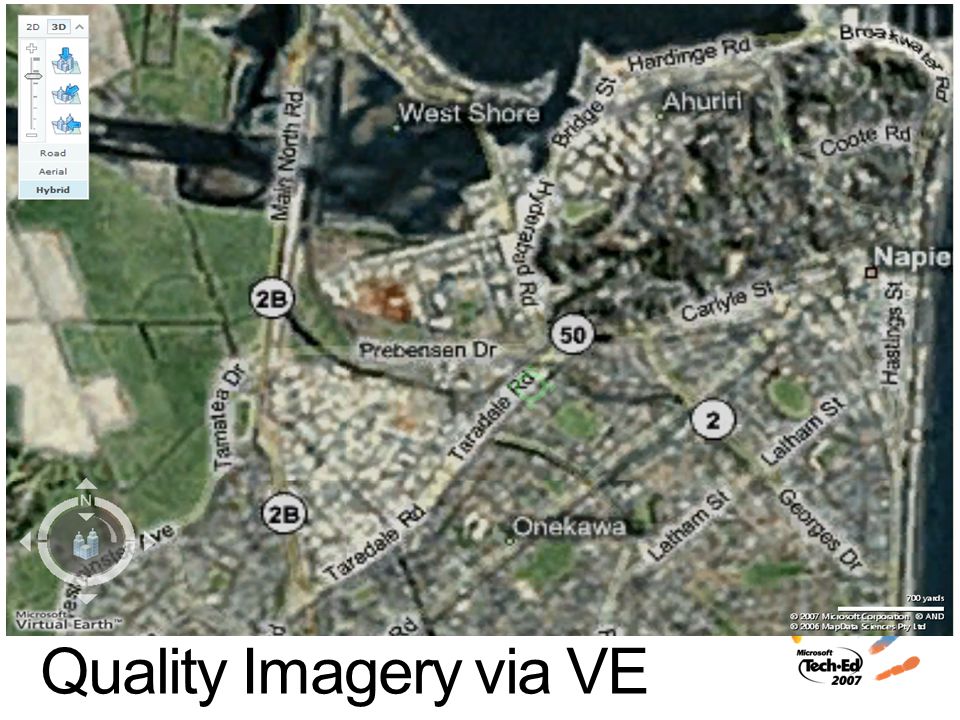

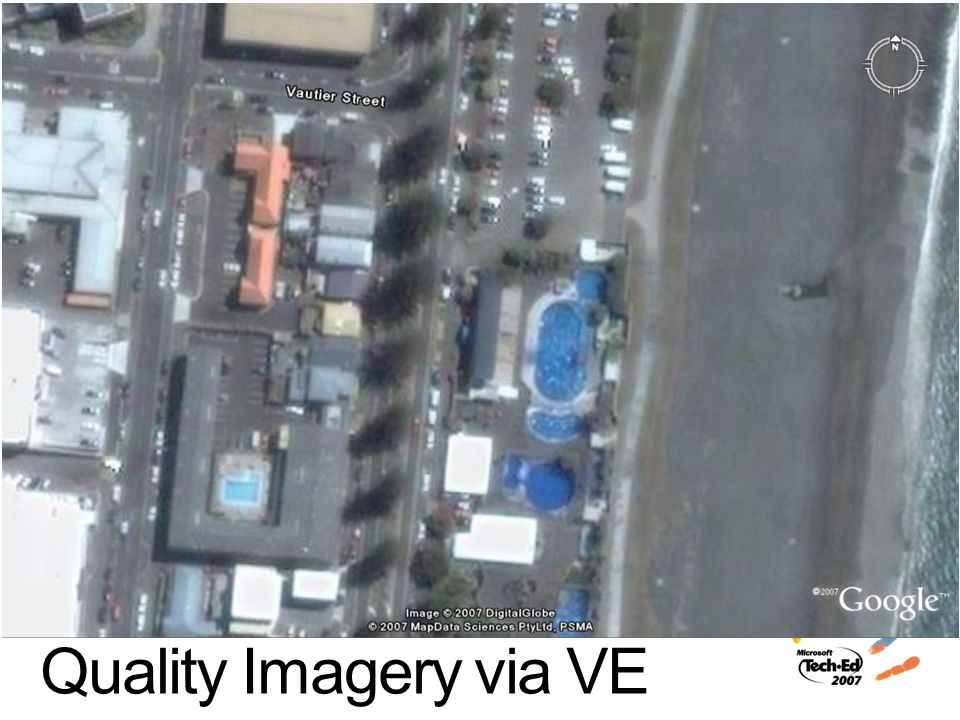

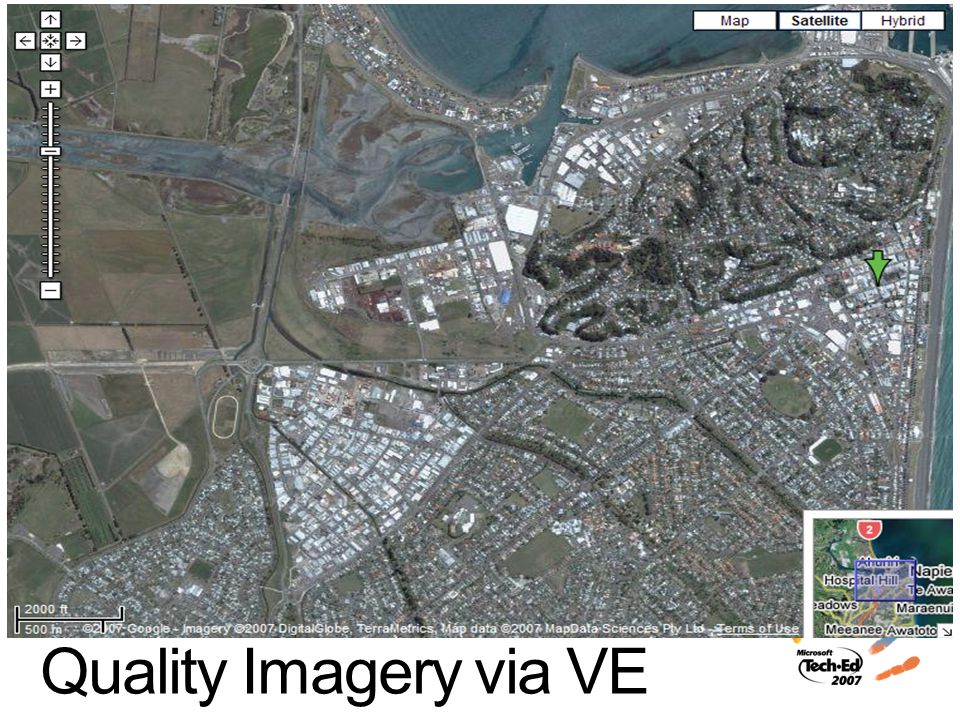

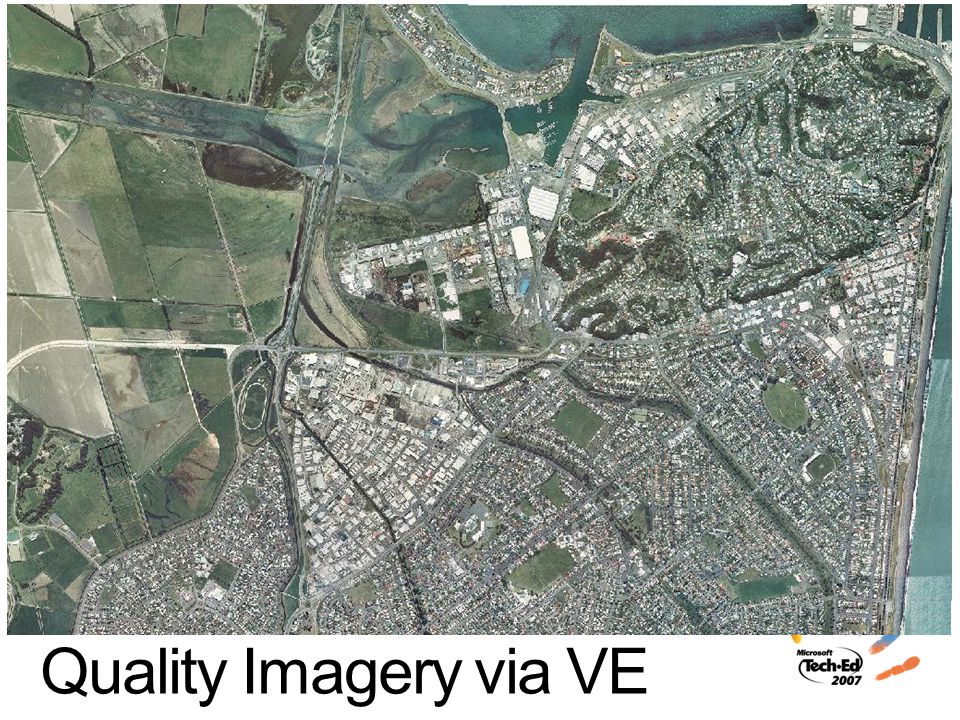

12. Quality Imagery via VE

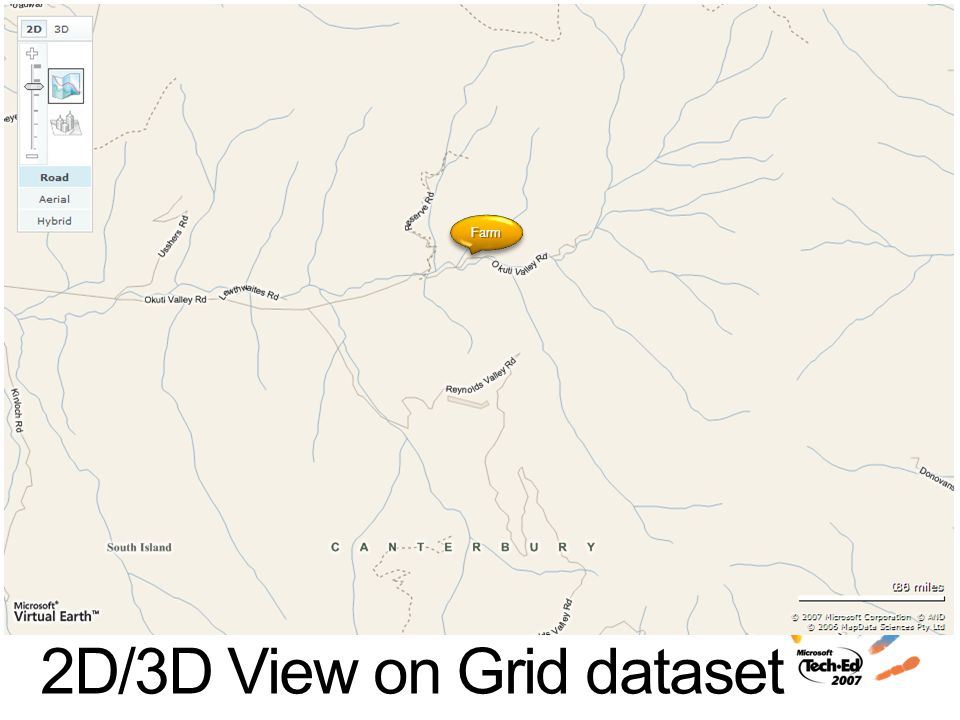

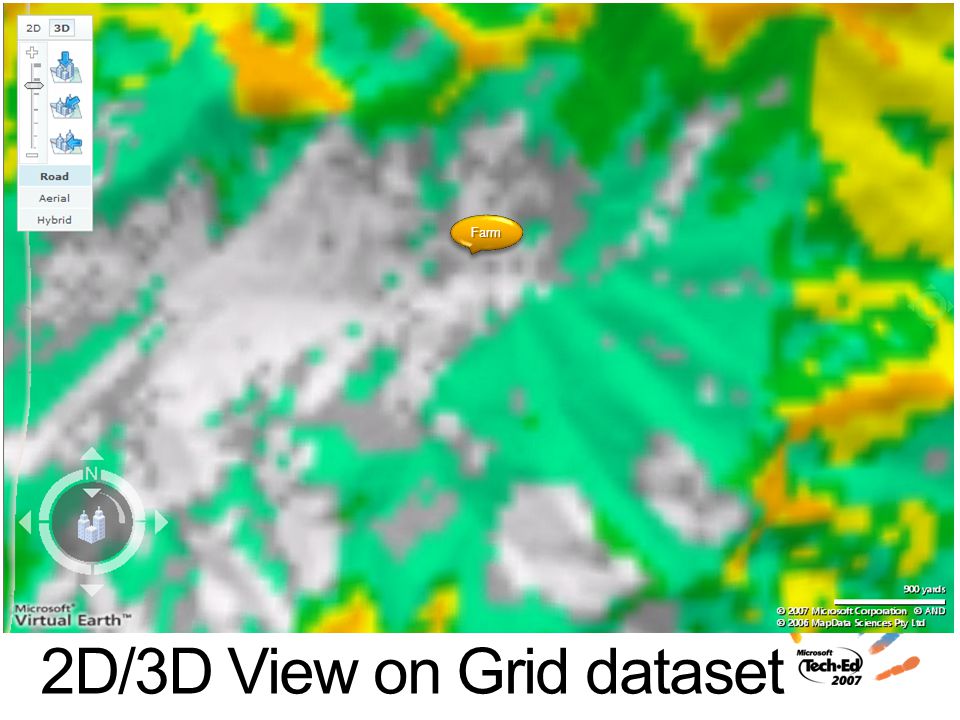

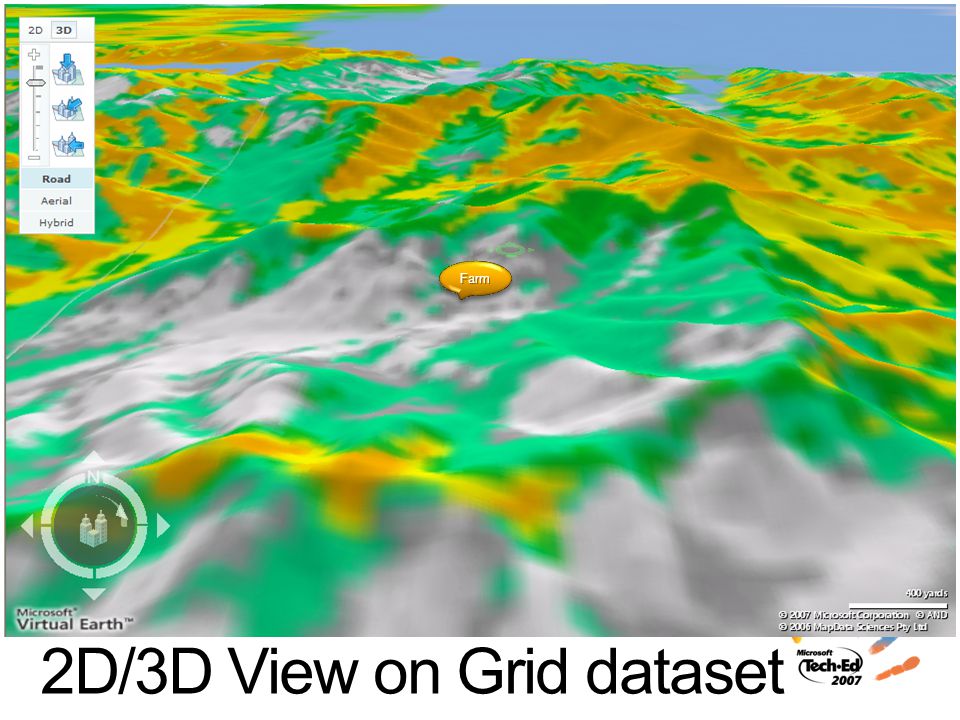

19. 2D/3D View on Grid dataset FarmFarm

20. FarmFarm

21. FarmFarm

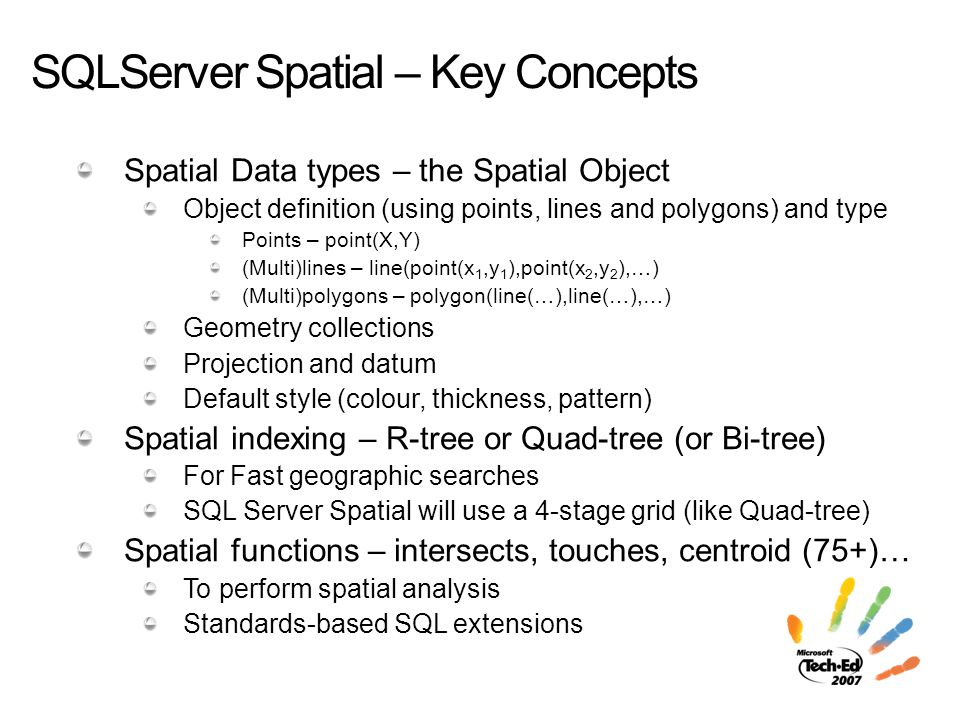

22. SQLServer Spatial – Key Concepts Spatial Data types – the Spatial Object Object definition (using points, lines and polygons) and type Points – point(X,Y) (Multi)lines – line(point(x 1,y 1 ),point(x 2,y 2 ),…) (Multi)polygons – polygon(line(…),line(…),…) Geometry collections Projection and datum Default style (colour, thickness, pattern) Spatial indexing – R-tree or Quad-tree (or Bi-tree) For Fast geographic searches SQL Server Spatial will use a 4-stage grid (like Quad-tree) Spatial functions – intersects, touches, centroid (75+)… To perform spatial analysis Standards-based SQL extensions

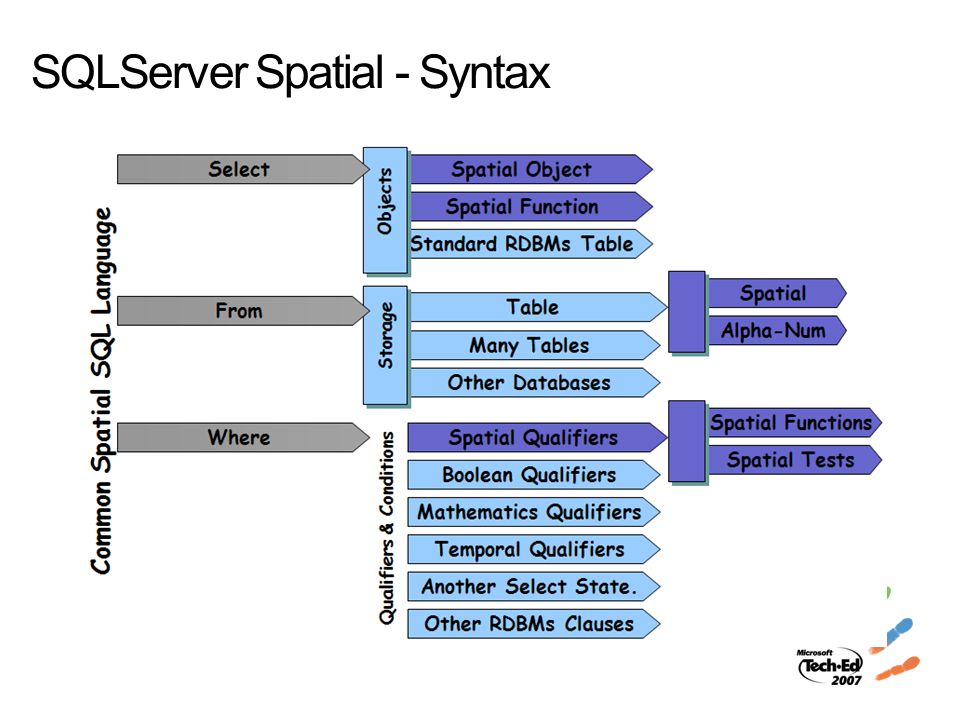

23. SQLServer Spatial - Syntax

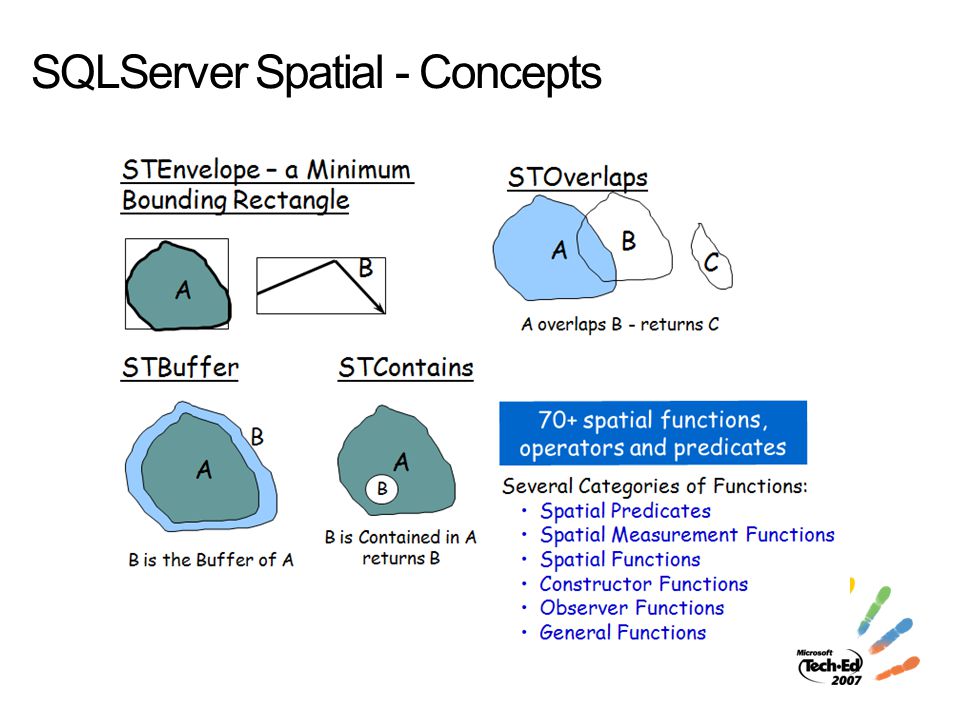

24. SQLServer Spatial - Concepts

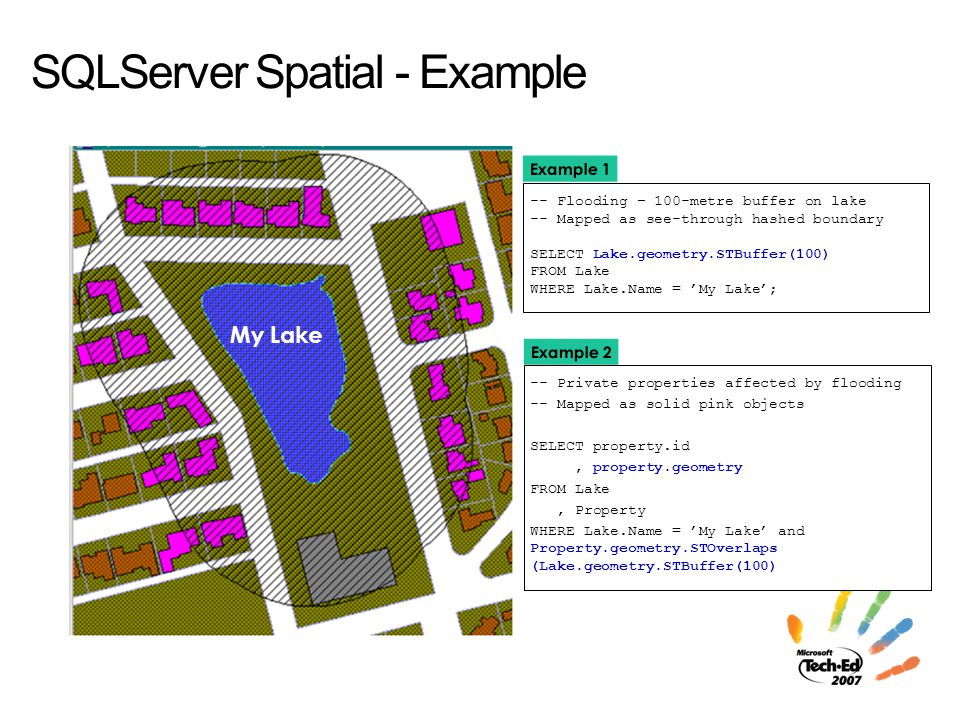

25. SQLServer Spatial - Example -- Private properties affected by flooding -- Mapped as solid pink objects SELECT property.id, property.geometry FROM Lake, Property WHERE Lake.Name = ’My Lake’ and Property.geometry.STOverlaps (Lake.geometry.STBuffer(100); -- Flooding – 100-metre buffer on lake -- Mapped as see-through hashed boundary SELECT Lake.geometry.STBuffer(100) FROM Lake WHERE Lake.Name = ’My Lake’; Example 1 Example 2 My Lake

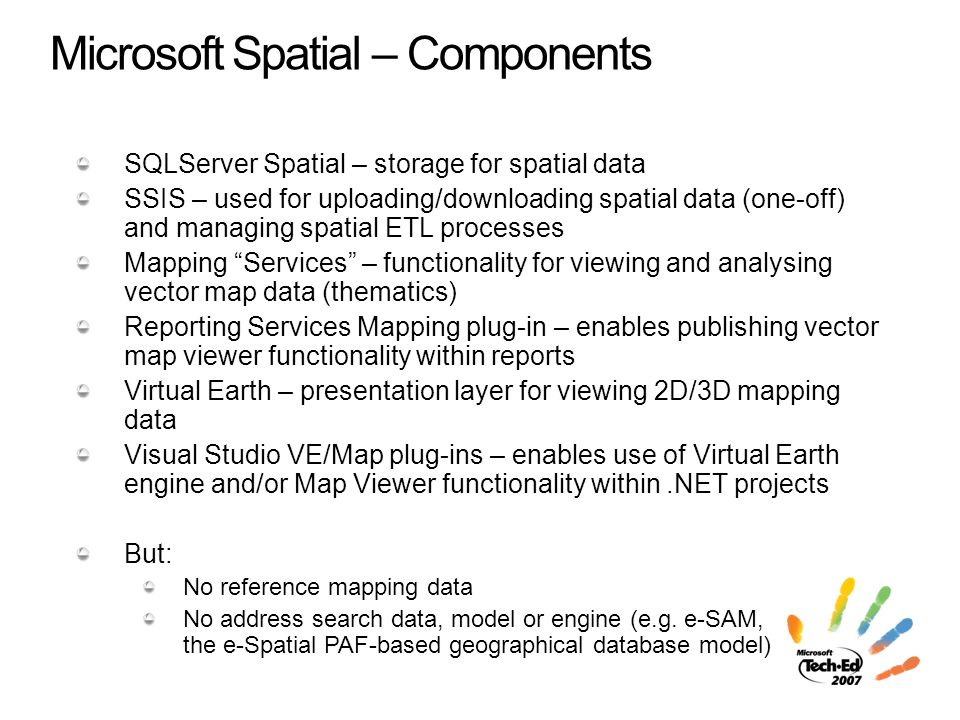

26. Microsoft Spatial – Components SQLServer Spatial – storage for spatial data SSIS – used for uploading/downloading spatial data (one-off) and managing spatial ETL processes Mapping “Services” – functionality for viewing and analysing vector map data (thematics) Reporting Services Mapping plug-in – enables publishing vector map viewer functionality within reports Virtual Earth – presentation layer for viewing 2D/3D mapping data Visual Studio VE/Map plug-ins – enables use of Virtual Earth engine and/or Map Viewer functionality within.NET projects But: No reference mapping data No address search data, model or engine (e.g. e-SAM, the e-Spatial PAF-based geographical database model)

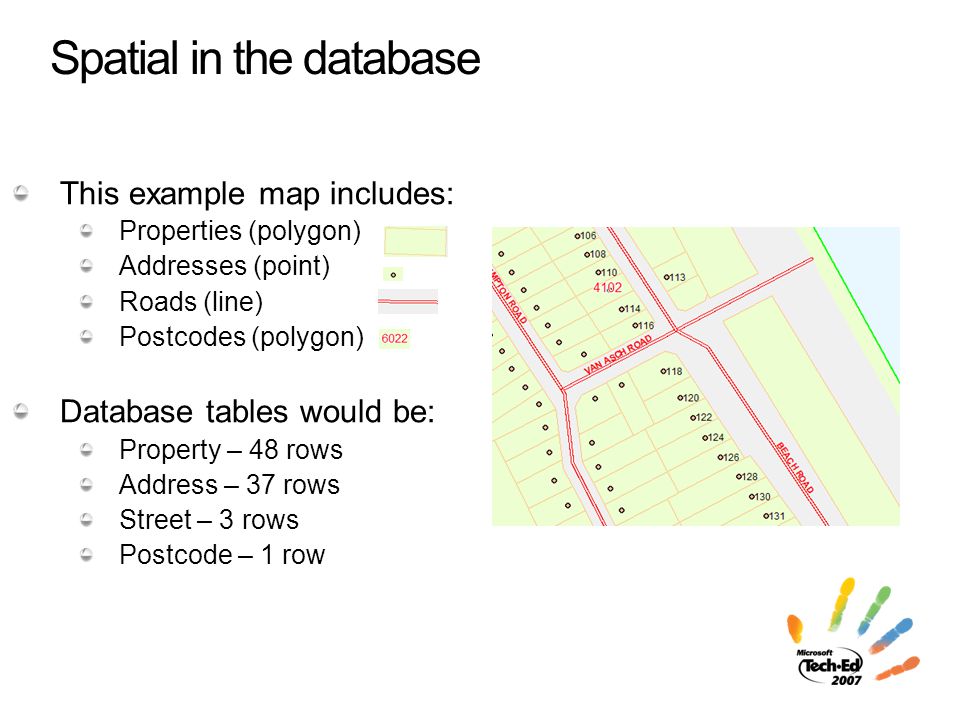

27. Spatial in the database This example map includes: Properties (polygon) Addresses (point) Roads (line) Postcodes (polygon) Database tables would be: Property – 48 rows Address – 37 rows Street – 3 rows Postcode – 1 row

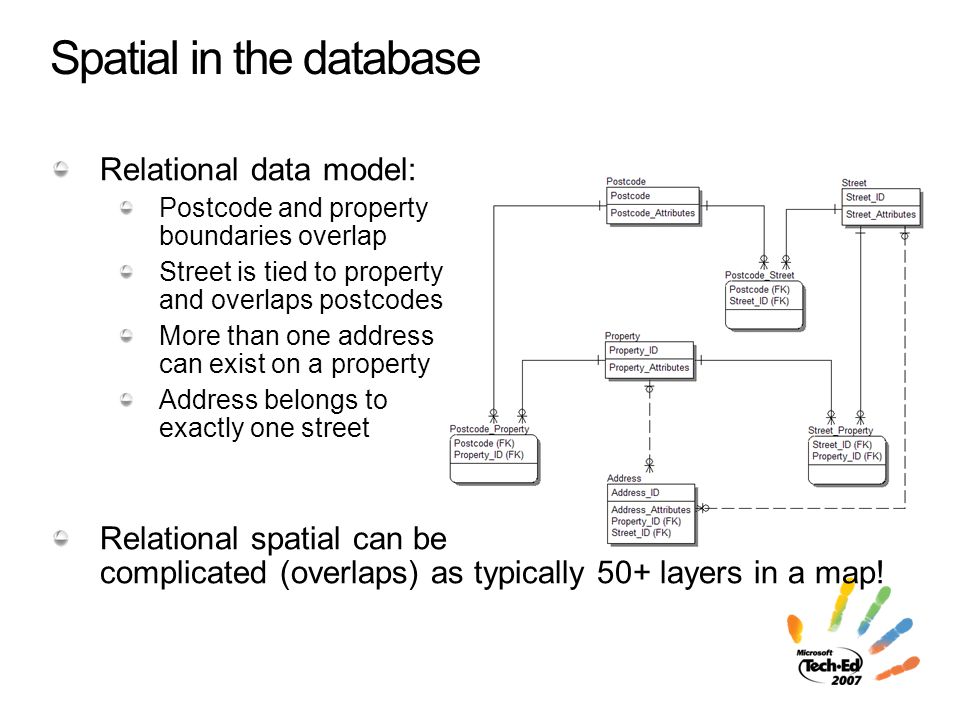

28. Spatial in the database Relational data model: Postcode and property boundaries overlap Street is tied to property and overlaps postcodes More than one address can exist on a property Address belongs to exactly one street Relational spatial can be complicated (overlaps) as typically 50+ layers in a map!

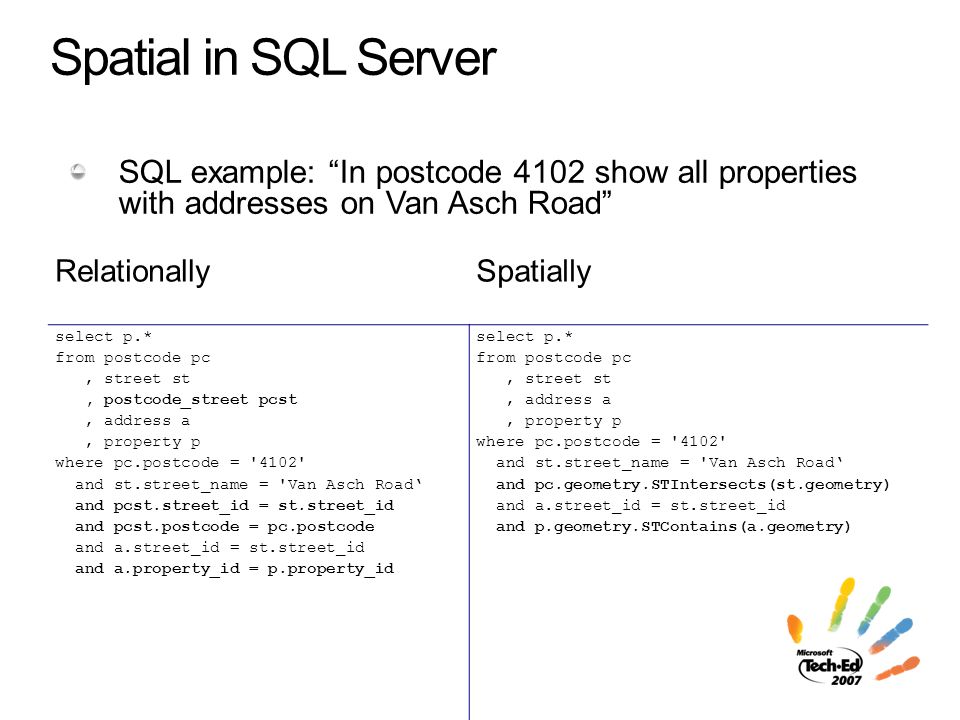

29. Spatial in SQL Server SQL example: “In postcode 4102 show all properties with addresses on Van Asch Road” RelationallySpatially select p.* from postcode pc, street st, postcode_street pcst, address a, property p where pc.postcode = '4102' and st.street_name = 'Van Asch Road‘ and pcst.street_id = st.street_id and pcst.postcode = pc.postcode and a.street_id = st.street_id and a.property_id = p.property_id select p.* from postcode pc, street st, address a, property p where pc.postcode = '4102' and st.street_name = 'Van Asch Road‘ and pc.geometry.STIntersects(st.geometry) and a.street_id = st.street_id and p.geometry.STContains(a.geometry)

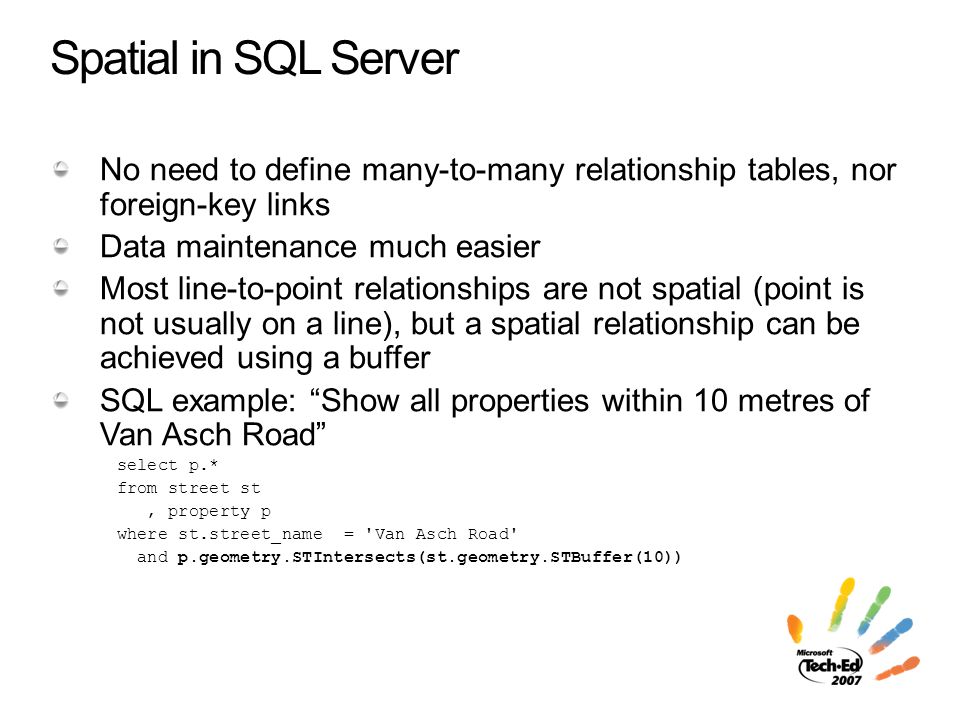

30. Spatial in SQL Server No need to define many-to-many relationship tables, nor foreign-key links Data maintenance much easier Most line-to-point relationships are not spatial (point is not usually on a line), but a spatial relationship can be achieved using a buffer SQL example: “Show all properties within 10 metres of Van Asch Road” select p.* from street st, property p where st.street_name = 'Van Asch Road' and p.geometry.STIntersects(st.geometry.STBuffer(10))

31. Spatial in SQL Server The buffer query applied a 10m buffer to the whole Van Asch Road This was used in an intersect query on properties to find all touching this road buffer This query returned 6 rows This is also an example of how spatial queries can be used on a database without necessarily returning a map

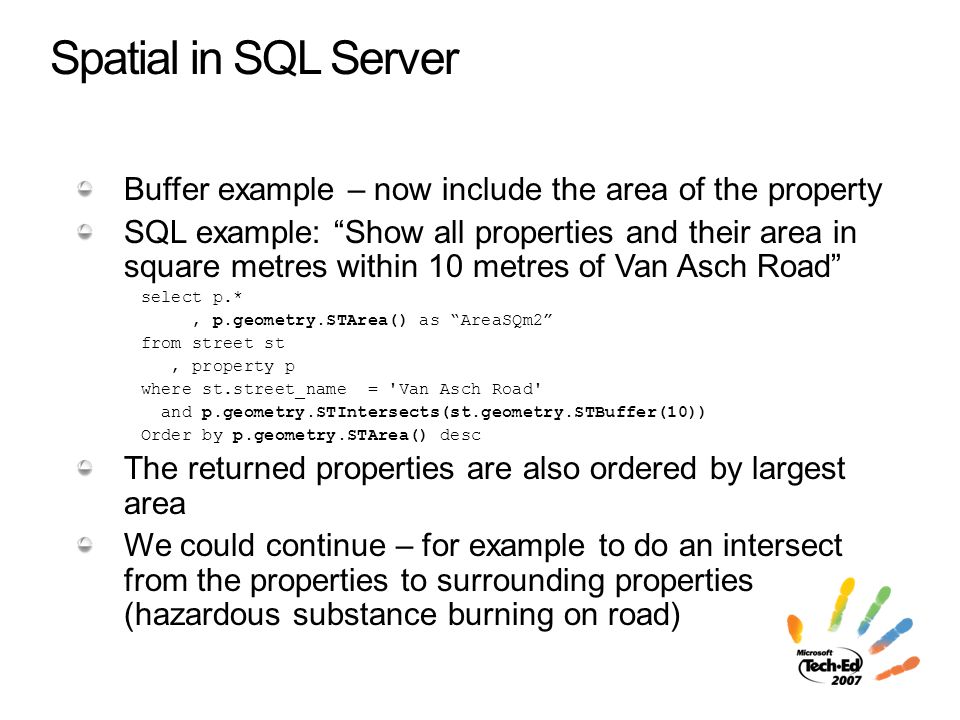

32. Spatial in SQL Server Buffer example – now include the area of the property SQL example: “Show all properties and their area in square metres within 10 metres of Van Asch Road” select p.*, p.geometry.STArea() as “AreaSQm2” from street st, property p where st.street_name = 'Van Asch Road' and p.geometry.STIntersects(st.geometry.STBuffer(10)) Order by p.geometry.STArea() desc The returned properties are also ordered by largest area We could continue – for example to do an intersect from the properties to surrounding properties (hazardous substance burning on road)

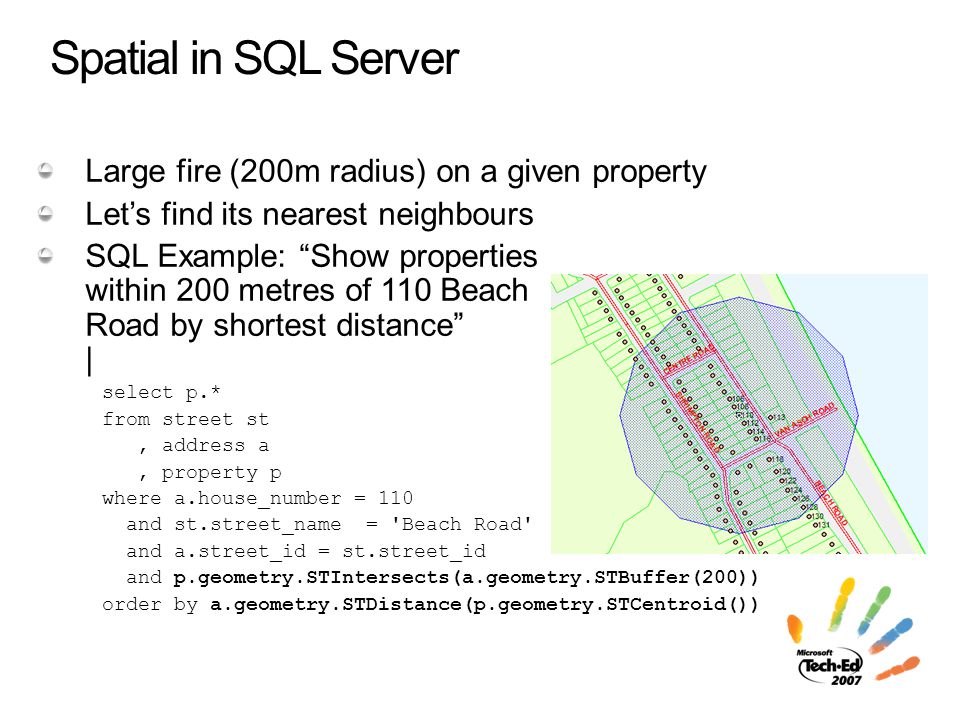

33. Spatial in SQL Server Large fire (200m radius) on a given property Let’s find its nearest neighbours SQL Example: “Show properties within 200 metres of 110 Beach Road by shortest distance” | select p.* from street st, address a, property p where a.house_number = 110 and st.street_name = 'Beach Road' and a.street_id = st.street_id and p.geometry.STIntersects(a.geometry.STBuffer(200)) order by a.geometry.STDistance(p.geometry.STCentroid())

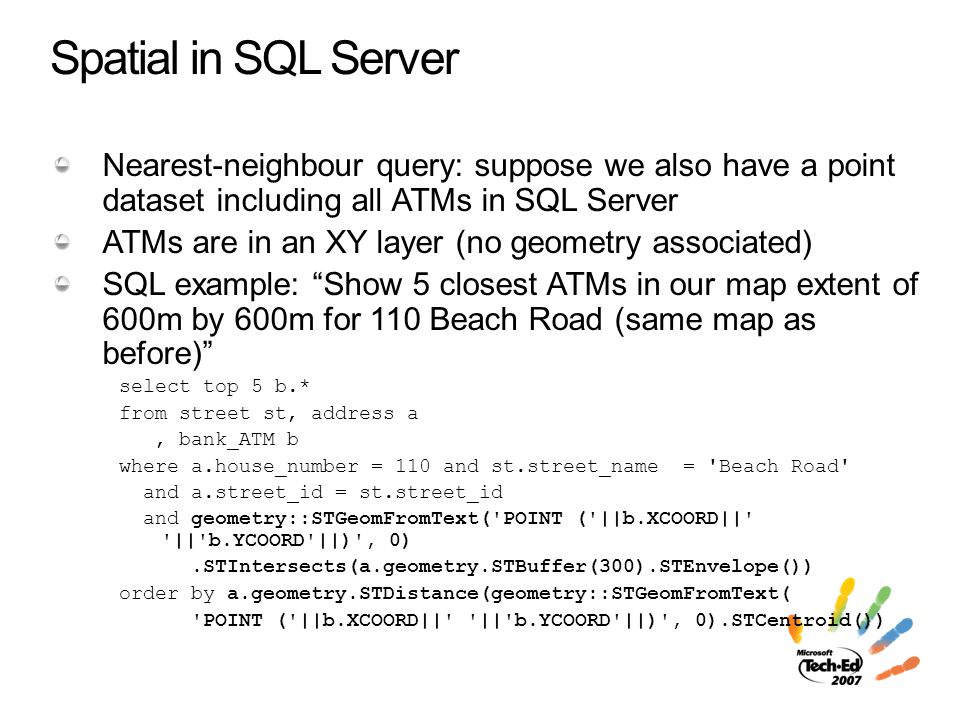

34. Spatial in SQL Server Nearest-neighbour query: suppose we also have a point dataset including all ATMs in SQL Server ATMs are in an XY layer (no geometry associated) SQL example: “Show 5 closest ATMs in our map extent of 600m by 600m for 110 Beach Road (same map as before)” select top 5 b.* from street st, address a, bank_ATM b where a.house_number = 110 and st.street_name = 'Beach Road' and a.street_id = st.street_id and geometry::STGeomFromText('POINT ('||b.XCOORD||' '||'b.YCOORD'||)', 0).STIntersects(a.geometry.STBuffer(300).STEnvelope()) order by a.geometry.STDistance(geometry::STGeomFromText( 'POINT ('||b.XCOORD||' '||'b.YCOORD'||)', 0).STCentroid())
