1. K L University By G.SUNITA DEPARTMENT OF PHYSICS

2. Lecture 02 & 03 Polarization of Light

3. Polarization… L ight is an electromagnetic wave. E M waves are those waves in which there are sinusoidal variation of electric and magnetic fields at right angles to each other as well as to the direction of propagation of wave.

5. Applications: 5 Photographic Filters 3 D films Polarization…

6. 6 Liquid Crystal (LCD) Displays Stress Analysis Polarization…

7. Polarization

8. Polarization…  The light which acquired the property of one-sidedness (Direction of vibration) is called polarized light.  The un-polarized light consists of an infinite number of waves, each having its own direction of vibration.

9. Polarization…  From Sun, bulbs, candles  No fixed plane of oscillation  Random changes in direction of light  Filtered Light  Fixed plane of oscillation  Half of the intensity of unpolarized light

10. Polarization…

11. Filters to transform un-polarized light to polarized light Polaroid filter Enables only 1 polarization of light to pass through.

12. 12 Polarization…

13. 13 Polarization…

14. 14 Polarization… Tourmaline crystal plate

15. 15 Polarization… Malus' law. When a perfect polarizer is placed in a polarized beam of light, the intensity I of the light that passes through is given by equation I=I 0 cos 2 θ, where θ is the angle between the light's initial polarization direction and the axis of the polarizer.

18. http://www.enzim.hu/~szia/cddemo/edemo2.htm http://www.enzim.hu/~szia/cddemo/edemo3.htm

19. Polarization… http://www.enzim.hu/~szia/cddemo/edemo5.htm

20. Polarization… http://www.amanogawa.com/archive/Polarization2/Polarization2-2.html

21. 21 Pictorial polarized light Vertically Polarized light ( п – vibration ) Horizontally Polarized light ( σ – vibration)........ Polarization…........ Un Polarized light ( п & σ – vibration)

22. Polarization… Plane of vibration and Plane of polarisation

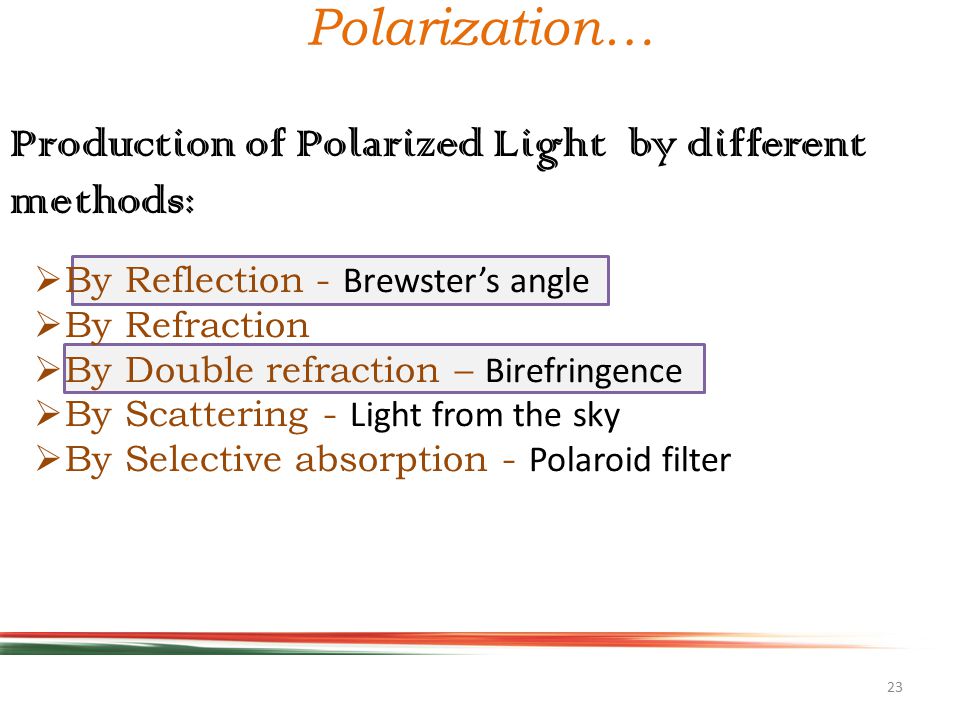

23. 23 Polarization… Production of Polarized Light by different methods:  By Reflection - Brewster’s angle  By Refraction  By Double refraction – Birefringence  By Scattering - Light from the sky  By Selective absorption - Polaroid filter

24. 24 Polarization…

25. 25 Polarization…................ XY N N1 P O Q R Polarization by Reflection I = p r = p r. N1 R... http://www.launc.tased.edu.au/online/sciences/physics/Polari.htm

26. Polarization… Polarization by Reflection Brewster’s law- That the tangent angle of polarization (p) is numerically equal to the refractive index(µ) of the medium.

27. Polarization… a) horizontally b) vertically horizontal vertical direction of polarization of reflected light

28. Polarization… wearing sunglasses will help reducing glare (reflection) from flat surfaces (highway/water) withoutwith sunglasses

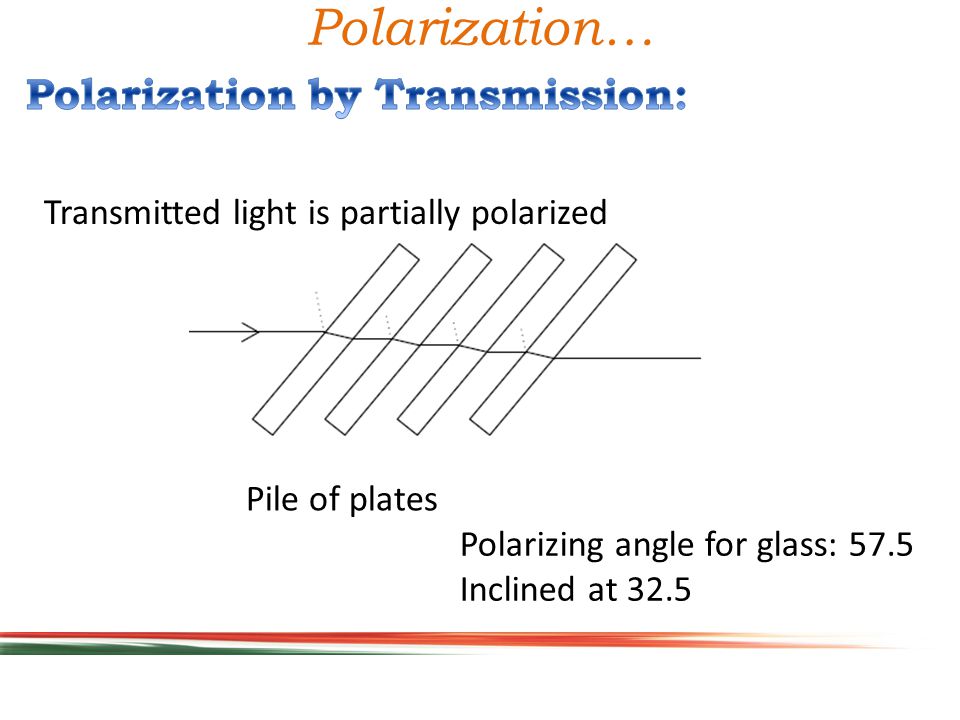

29. Polarization… Pile of plates Polarizing angle for glass: 57.5 Inclined at 32.5 Transmitted light is partially polarized

30. Polarization… Purely plane polarized

31. Polarization…

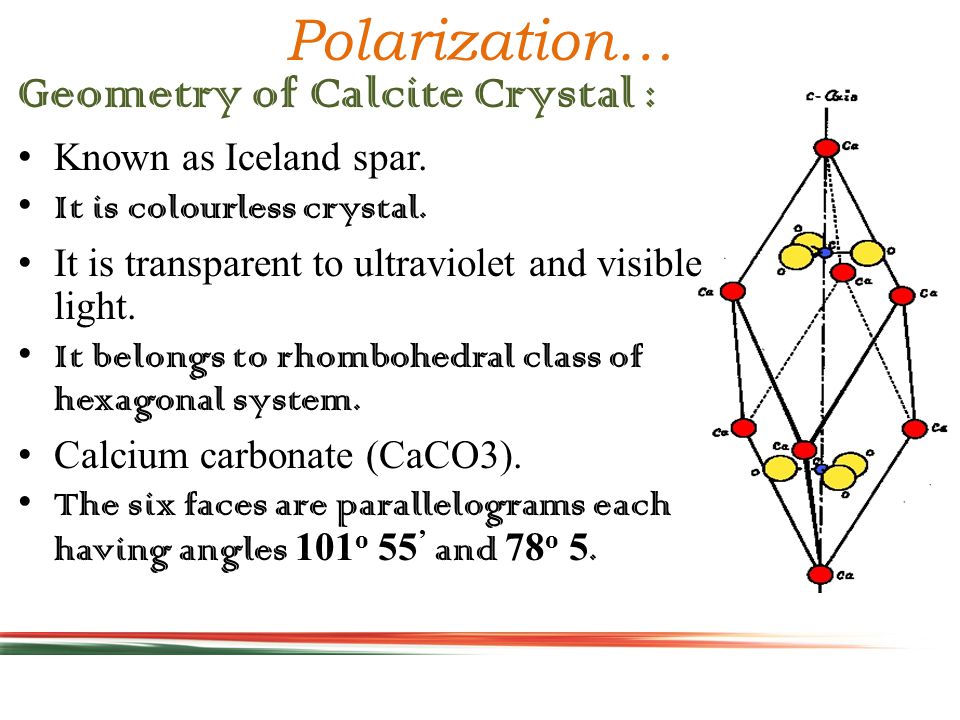

32. Geometry of Calcite Crystal : K nown as Iceland spar. I t is colourless crystal. I t is transparent to ultraviolet and visible light. I t belongs to rhombohedral class of hexagonal system. C alcium carbonate (CaCO3). T he six faces are parallelograms each having angles 101 o 55 ’ a nd 78 o 5.

33. 33 Calcite Crystal : CaCO3 Blunt Corner Optic axis Principle section Uniaxial crystals Biaxial crystals NareN @ KLU

34. Optic axis : 34 An imaginary line passing through one of the blunt corners and making equal angles with all the three faces is called optic axis. Optic axis is not an imaginary line but it is a direction. Any line parallel to optic axis also acts as optic axis. Polarization…

36. 36 Double Refraction : (Birefringence) Experiment Polarization… Anisotropic substance : physical prop. are different

37. Polarization…

38. O E http://www.science.smith.edu/geosciences/min_jb/Optics/Optics-3.pdf

39. 39 Double Refraction : (Birefringence) Polarization…

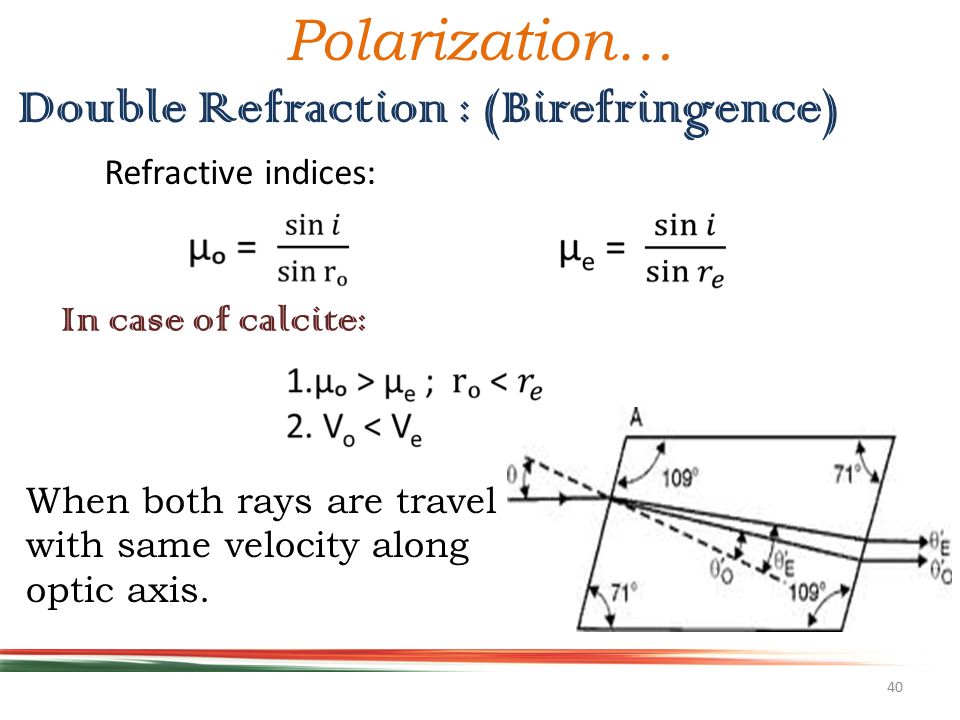

40. 40 Double Refraction : (Birefringence) Polarization… Refractive indices: In case of calcite: When both rays are travel with same velocity along optic axis.

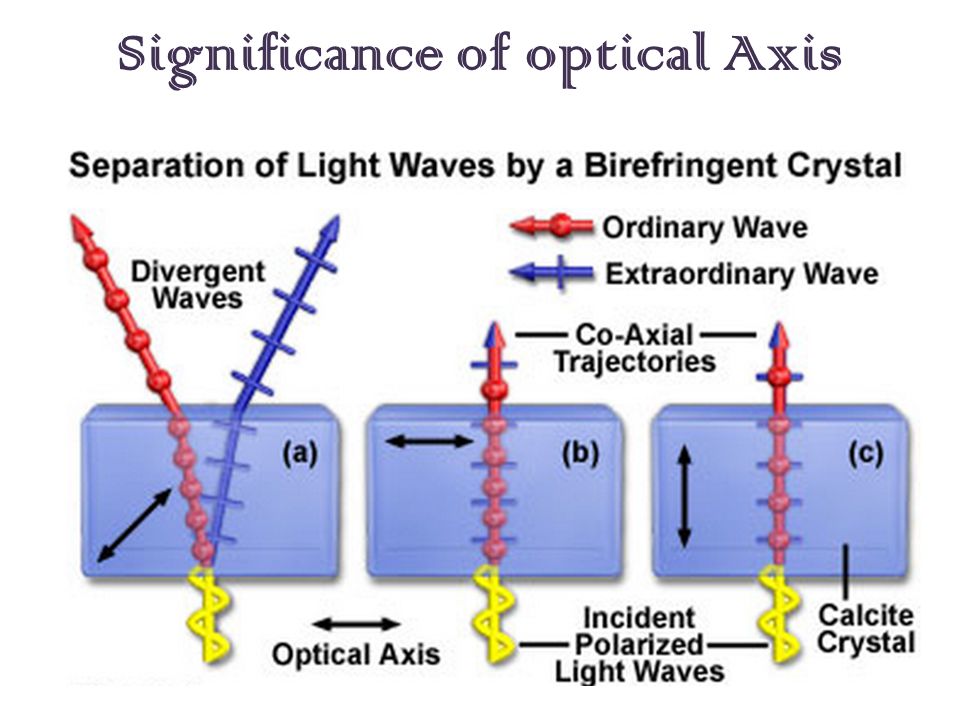

41. Significance of optical Axis

42. Polarization… 1.Principle 2.Construction 3.Action 4.Limitations 5.Uses Calcite canada balsam O ray E ray

43. Principle : Optical Device. Double Refraction Transmit extra-ordinary ray and cut off ordinary ray Construction: Length is 3 times as its width End Faces grounded – 68 and 112 instead of 71 and 109 Cut into two pieces – grounded – polished – cemented (With Canada balsam). Polarization…

44. µₒ = 1.658 µ e = 1.486 µ canada balsam = 1.55

45. Polarization… Action: Light entered the faces Canada balsam acts as Rarer medium for O-ray Denser medium for E-ray E-ray: Straight line Plane polarized O-ray: Total internal reflection > critical angle

46. Polarization… Limitations: 1.Much smaller than the ∠ SMB with face AB – O-ray strikes less than Ө c Both O-ray and E-rays transmitted Angle of incidence : 14 ◦ 2.Angle grater than ∠ SMB with face AB -- E-ray will refract suffer total reflection --- No light To obtain plane polarized light, the incident beam should be confined with an angle of 14 on either side of SM

47. Polarization… Uses: Polarizer Analyzer

48. Polarization… 1. A Ray of light is incident on the surface of glass plate µ=1.56 at the polarizing angle. Calculate the angle of refraction. 2. Calculate the Brewster angle for the following liquids Ethyl alcohol, µ=1.361 Carbon tetrachloride µ=1.461 3. The velocity of light in water is 2.2*10 8 m/s. What is the polarizing angle of incidence foe water surface? (c=3.8*10 8 m/s)

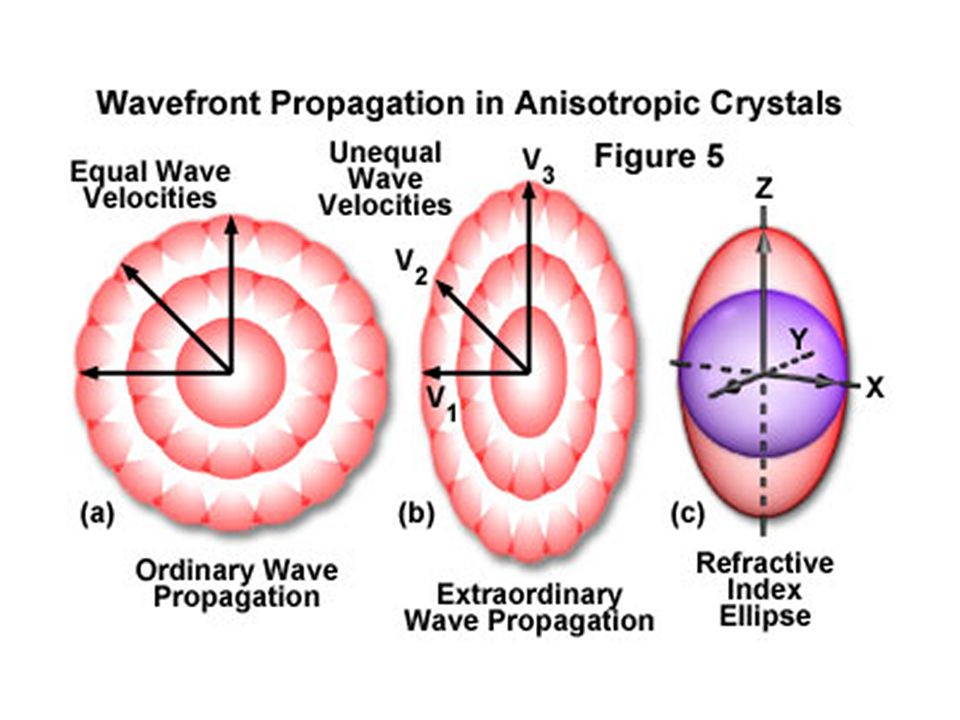

49. Huygens Theory of Double refraction http://www.microscopyu.com/print/articles/polarized/birefringence-print.html Negative BirefringencePositive Birefringence

51. http://demonstrations.wolfram.com/PolarizationOfAnOpticalWaveThroughPolarizersAndW avePlates/

54. Polarization… Types of polarized lights Detection and production of PPL Production of CPL &EPL Nicol’s prism
