The opposite sides of a parallelogram are __________ and __________
The opposite sides of a parallelogram are parallel and congruent: > > > > > >
Given the following parallelogram, find x and y: 10 8 x y
x = 8 y = 10
The opposite angles of a parallelogram are __________.
The opposite angles of a parallelogram are congruent. 70 0 110 0
The diagonals of a parallelogram __________________________.

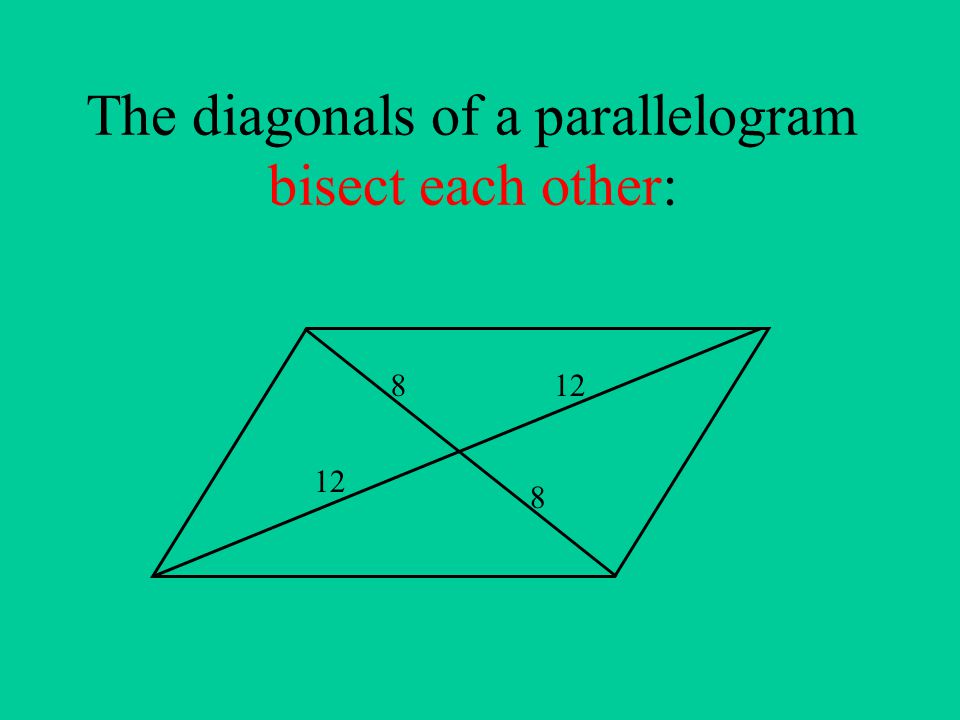

The diagonals of a parallelogram bisect each other: 12 8 8
The diagonals of a rhombus are __________ and ___________.

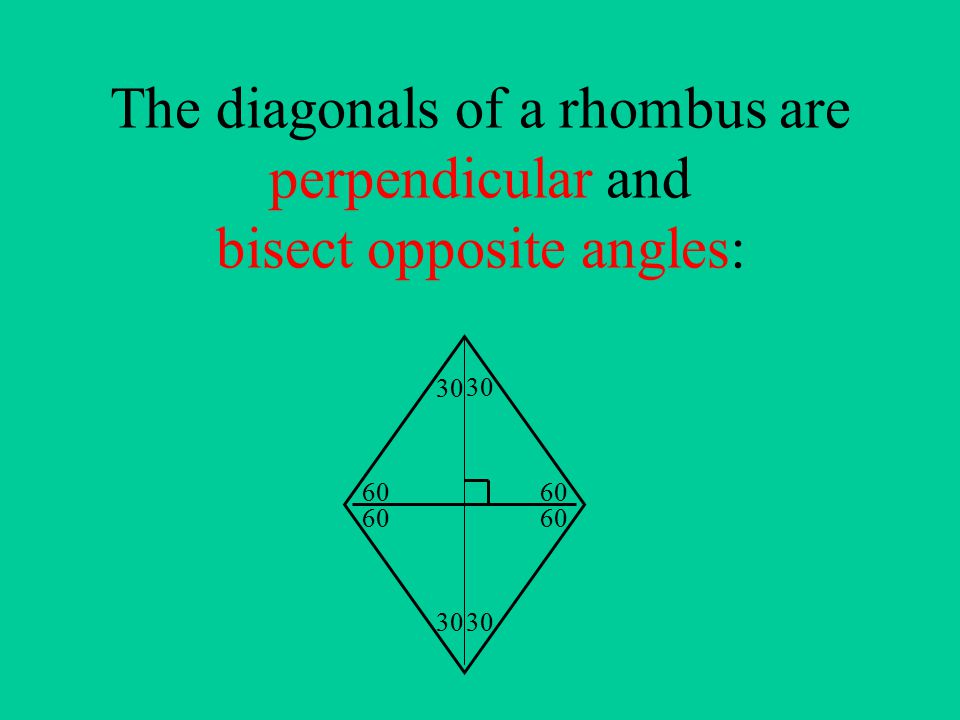

The diagonals of a rhombus are perpendicular and bisect opposite angles: 30 60 30 60
The diagonals of a rectangle are __________________.
The diagonals of a rectangle are congruent: LN HS LH = NS
Name the sides of the following trapezoid: 1 2 3 4
1- leg 2- base 3- leg 4- base
The __________ of a trapezoid connects the midpoints of the legs
The midsegment of a trapezoid connects the midpoints of the legs:
Find the length of the midsegment: 10 20
Midsegment = ½ (10 + 20) = 15
Midpoint Formula: A (x 1, y 1 ) B (x 2, y 2 ) M ( _____, _____ )

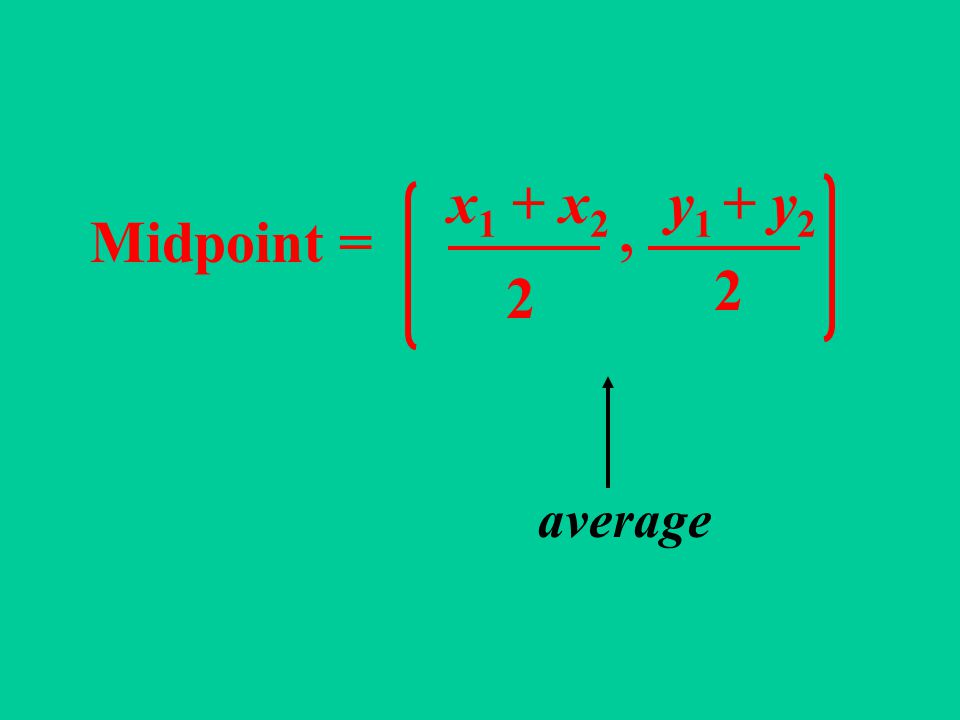

x 1 + x 2 y 1 + y 2 2 2, Midpoint = average

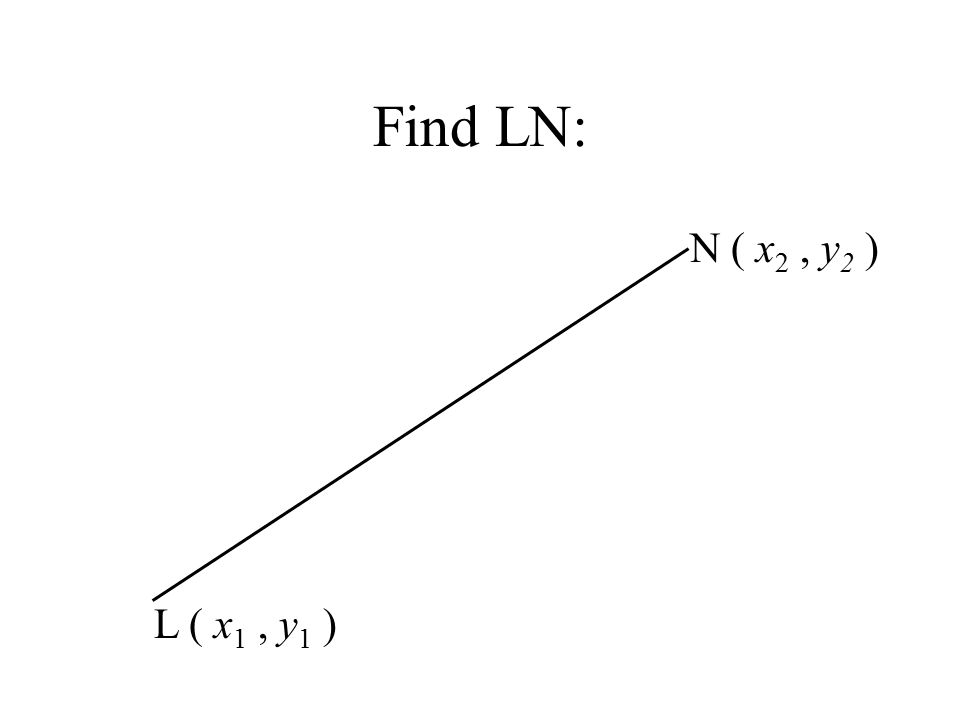

Find LN: L ( x 1, y 1 ) N ( x 2, y 2 )
LN = (x 1 – x 2 ) 2 + (y 1 – y 2 ) 2 (Distance Formula)
What 3 shapes in Geometry have “legs”?

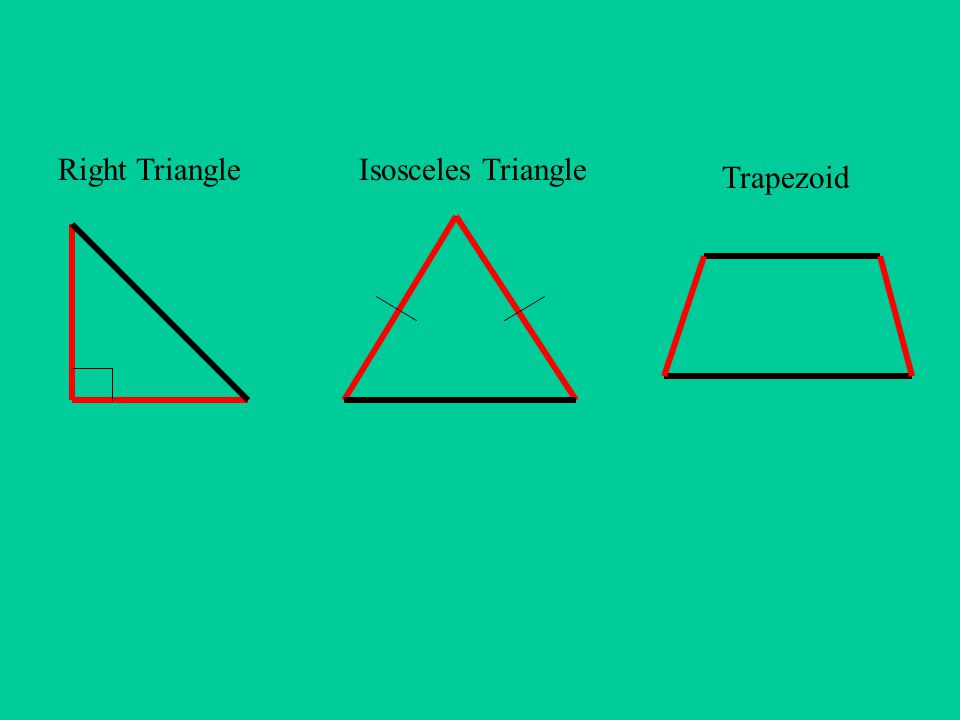

Right TriangleIsosceles Triangle Trapezoid
Name each shape: Quadrilateral
Name each shape: Quadrilateral Kite Rectangle Parallelogram Trapezoid Rhombus Square
Always, sometimes or never? A rhombus is _______ a square. A rectangle is _______ a parallelogram. A parallelogram is _______ a trapezoid.
A rhombus is sometimes a square. A rectangle is always a parallelogram. A parallelogram is never a trapezoid.
Name the following segment:
Find x: 10 x
x = 5
Parallelogram A quadrilateral with both pairs of opposite sides parallel *opposite sides are congruent *opposite angles are congruent *diagonals bisect.
