1 Lesson 2: Soils and Aggregates CEE 595 Construction Materials Winter Quarter 2008.

Similar presentations


Presentation on theme: "1 Lesson 2: Soils and Aggregates CEE 595 Construction Materials Winter Quarter 2008."— Presentation transcript:

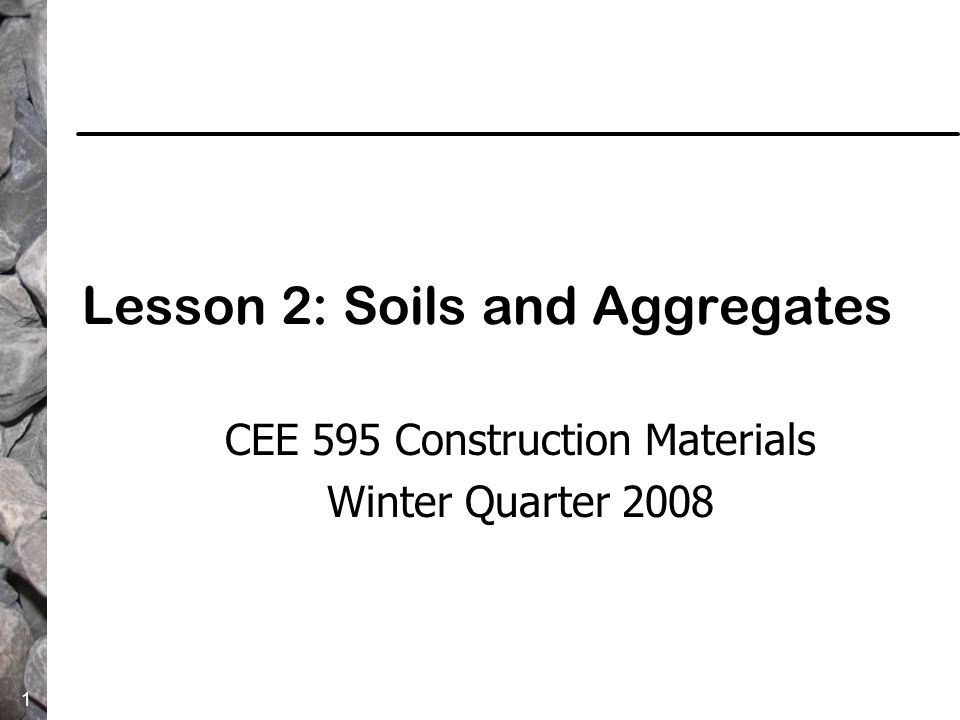

1 1 Lesson 2: Soils and Aggregates CEE 595 Construction Materials Winter Quarter 2008

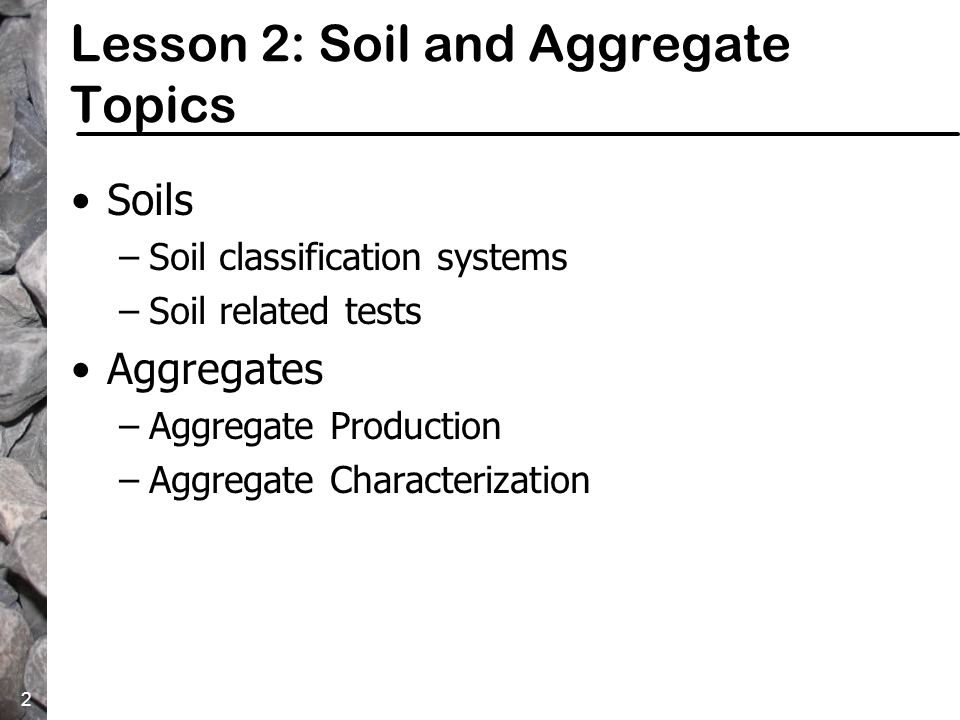

2 2 Lesson 2: Soil and Aggregate Topics Soils –Soil classification systems –Soil related tests Aggregates –Aggregate Production –Aggregate Characterization

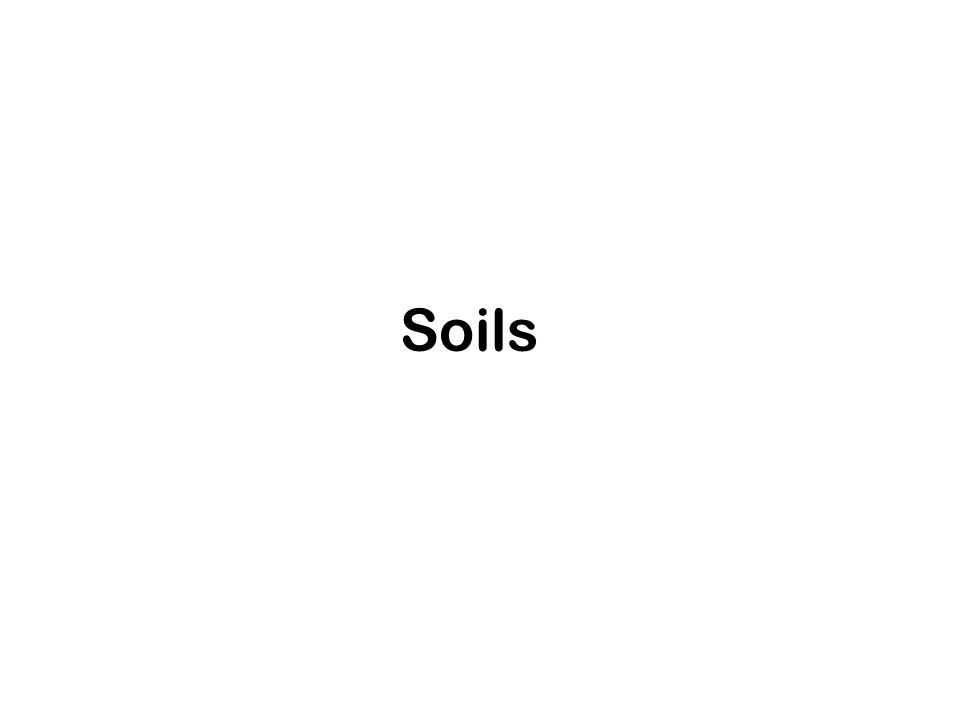

3 Soils

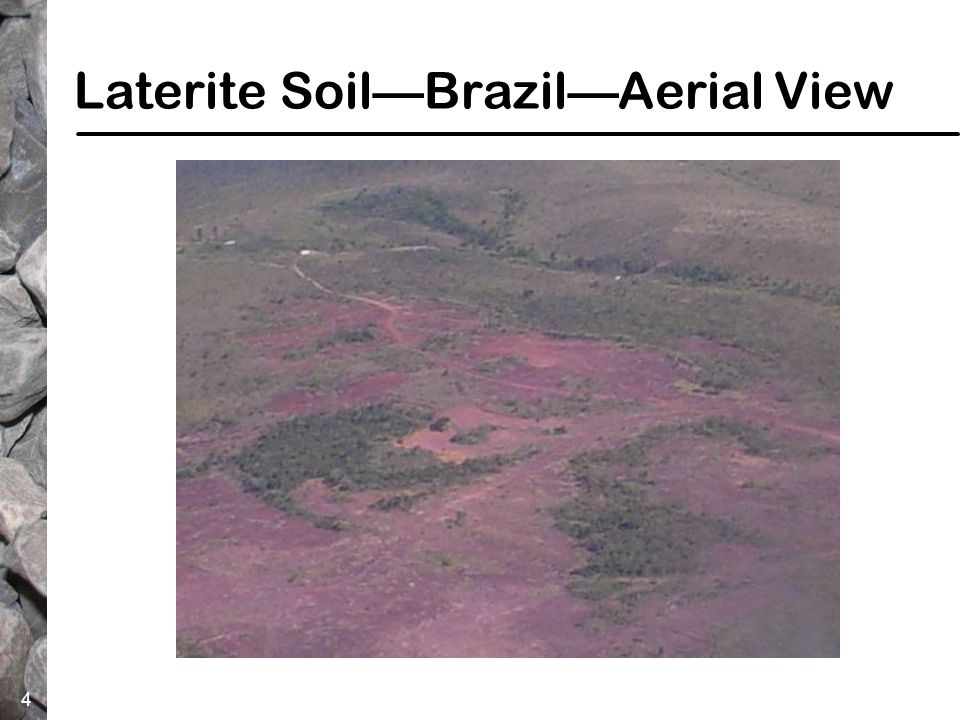

4 4 Laterite Soil—Brazil—Aerial View

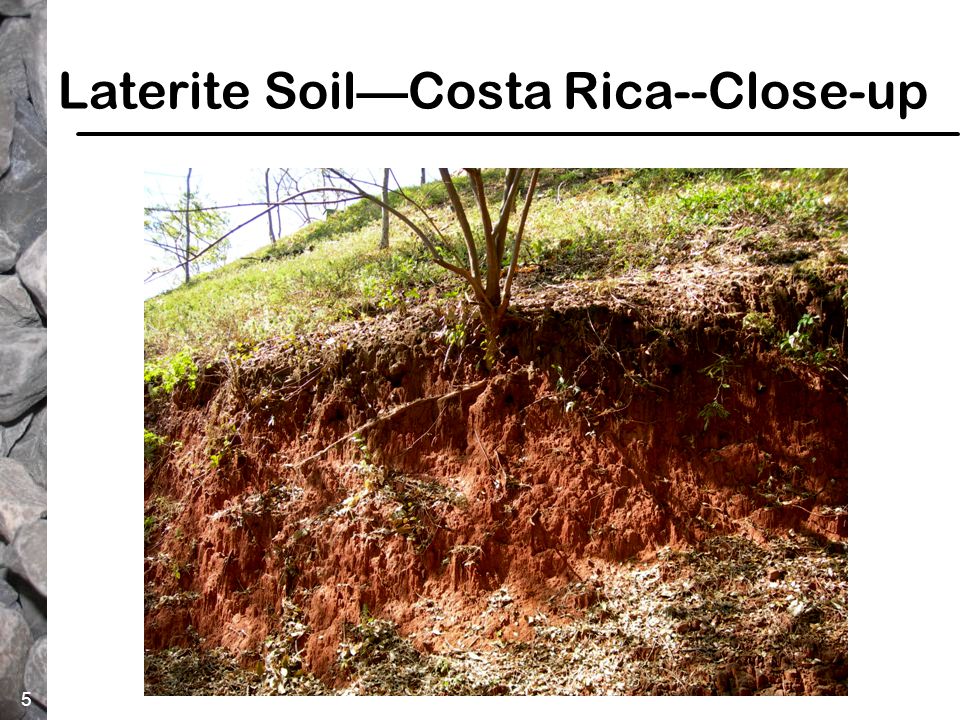

5 5 Laterite Soil—Costa Rica--Close-up

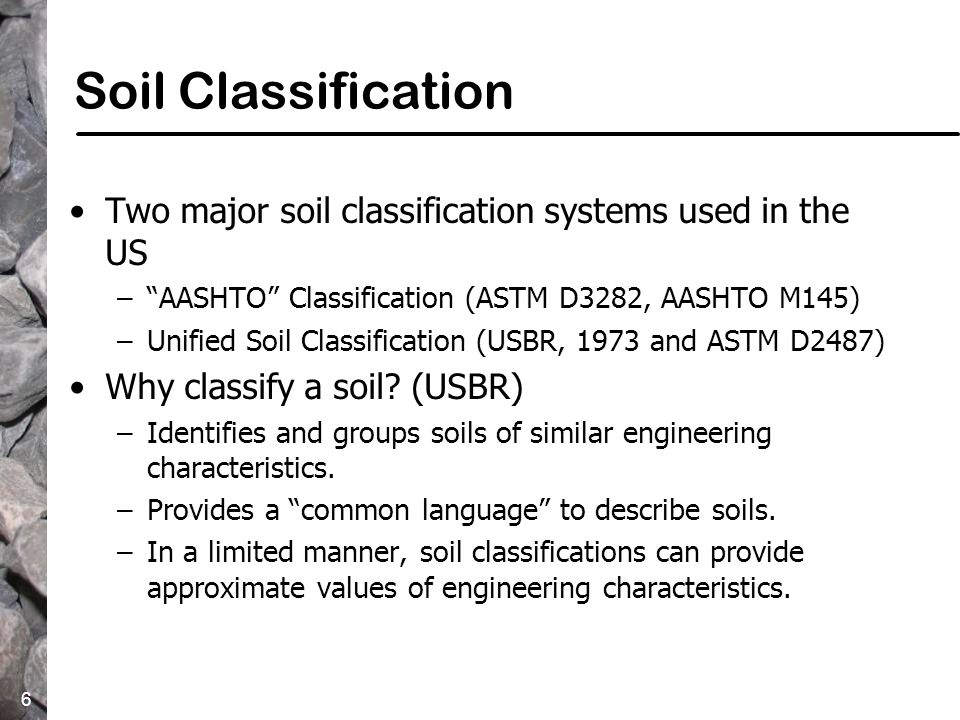

6 6 Soil Classification Two major soil classification systems used in the US –“AASHTO” Classification (ASTM D3282, AASHTO M145) –Unified Soil Classification (USBR, 1973 and ASTM D2487) Why classify a soil? (USBR) –Identifies and groups soils of similar engineering characteristics. –Provides a “common language” to describe soils. –In a limited manner, soil classifications can provide approximate values of engineering characteristics.

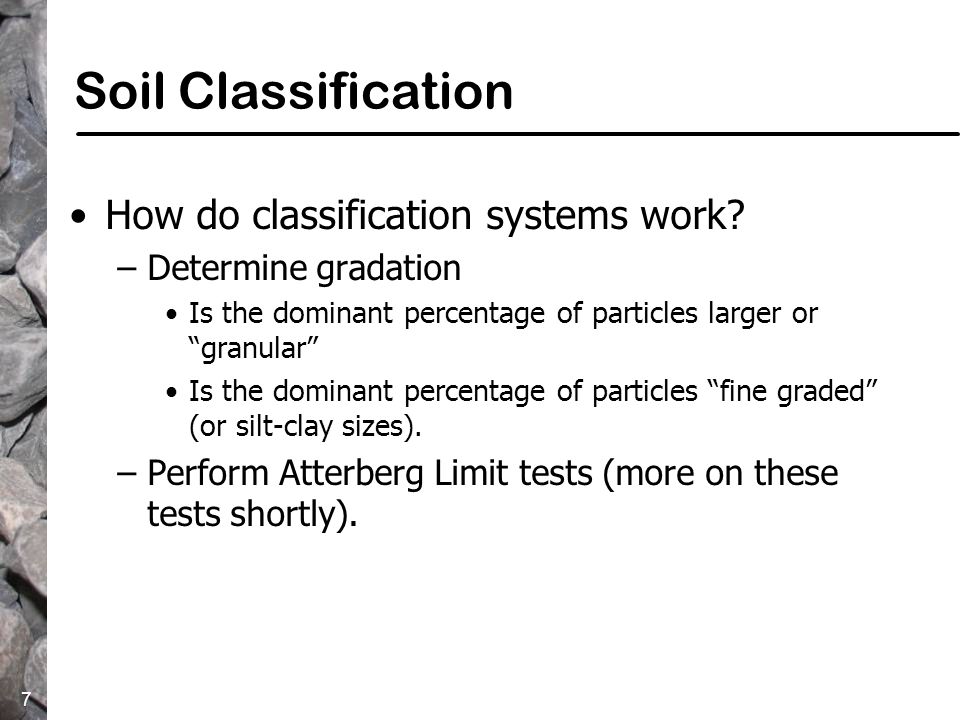

7 7 Soil Classification How do classification systems work? –Determine gradation Is the dominant percentage of particles larger or “granular” Is the dominant percentage of particles “fine graded” (or silt-clay sizes). –Perform Atterberg Limit tests (more on these tests shortly).

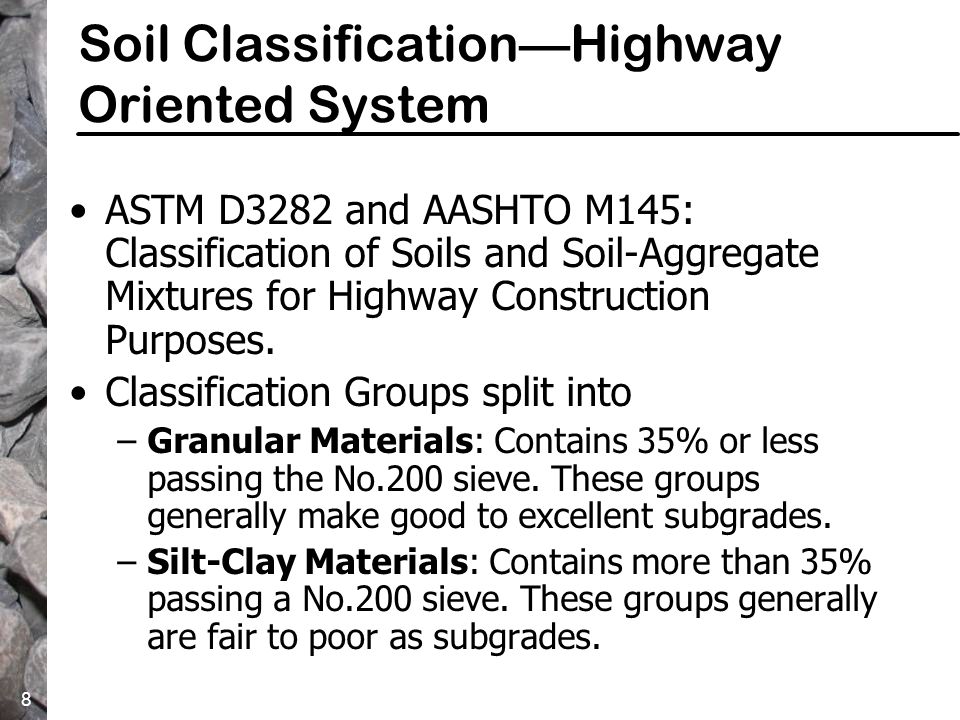

8 8 Soil Classification—Highway Oriented System ASTM D3282 and AASHTO M145: Classification of Soils and Soil-Aggregate Mixtures for Highway Construction Purposes. Classification Groups split into –Granular Materials: Contains 35% or less passing the No.200 sieve. These groups generally make good to excellent subgrades. –Silt-Clay Materials: Contains more than 35% passing a No.200 sieve. These groups generally are fair to poor as subgrades.

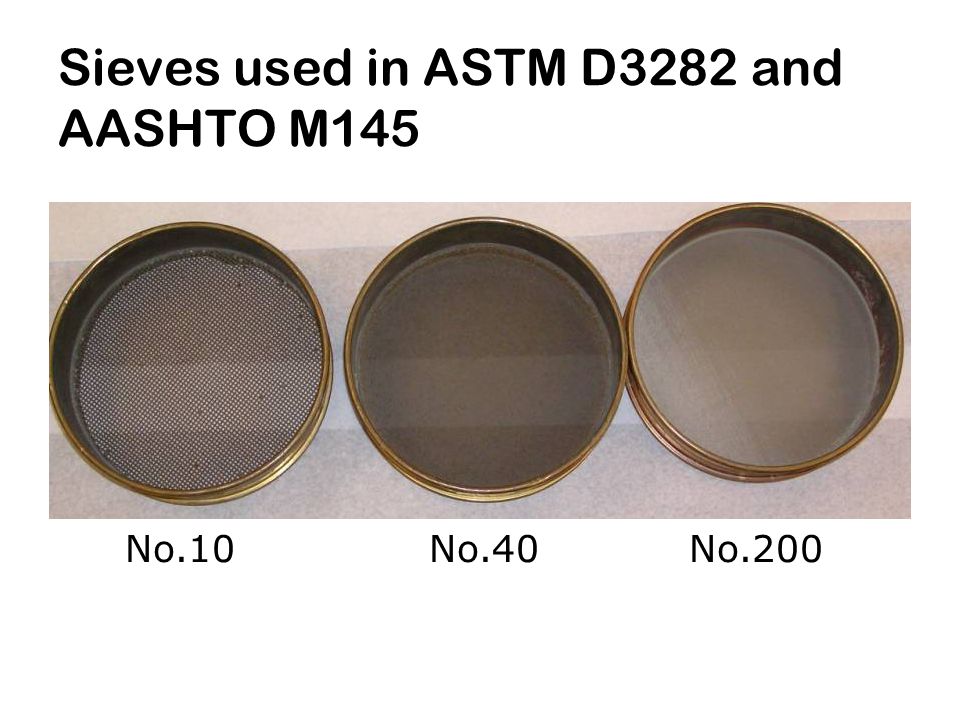

9 Sieves used in ASTM D3282 and AASHTO M145 No.10No.40No.200

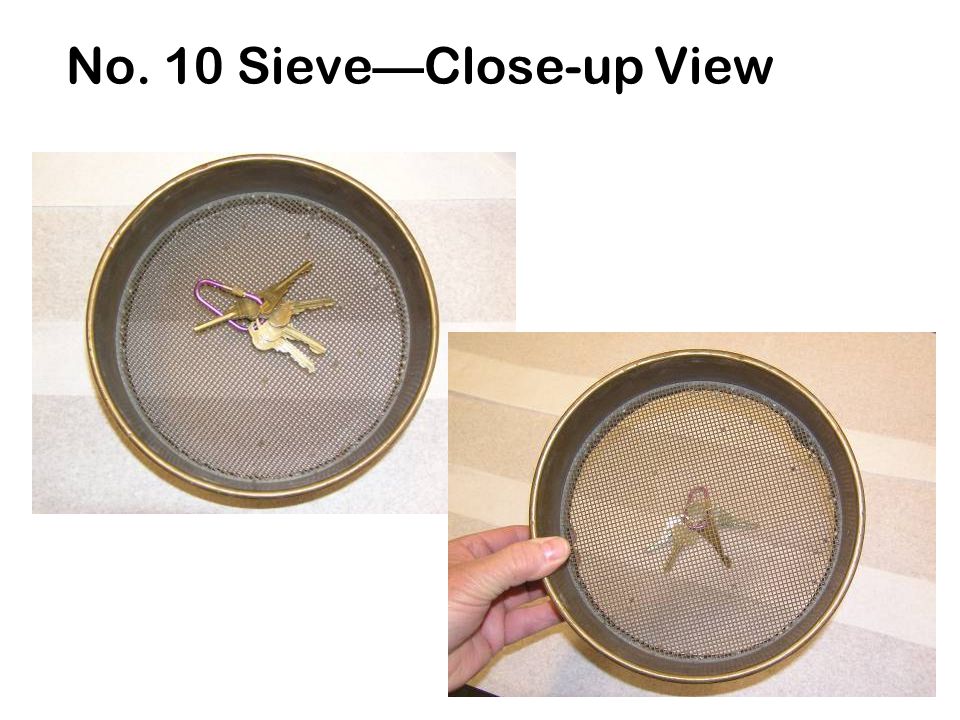

10 No. 10 Sieve—Close-up View

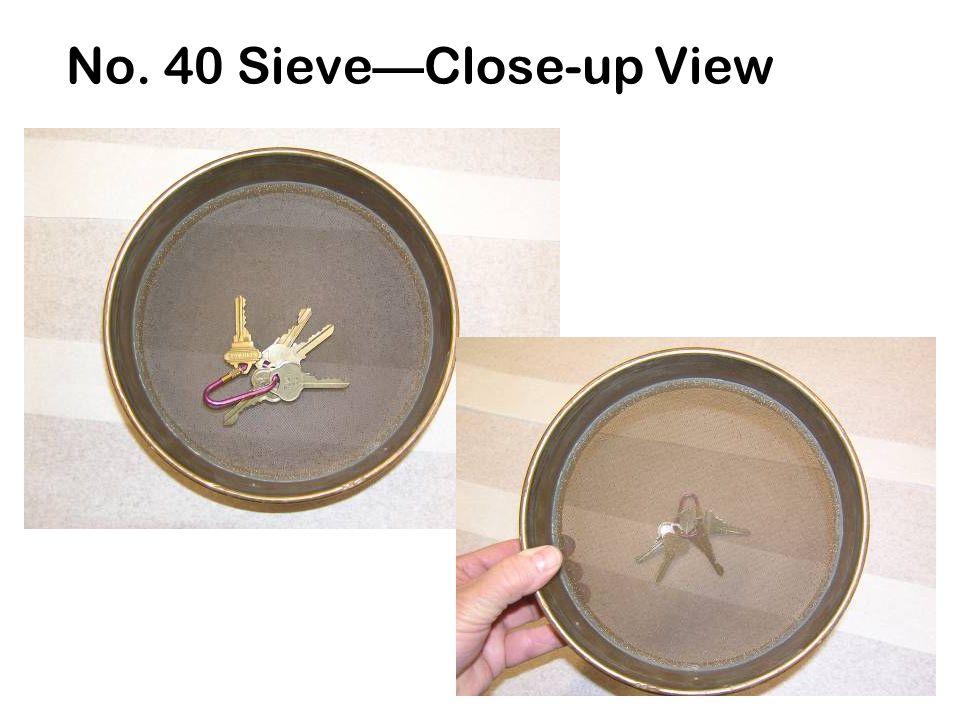

11 No. 40 Sieve—Close-up View

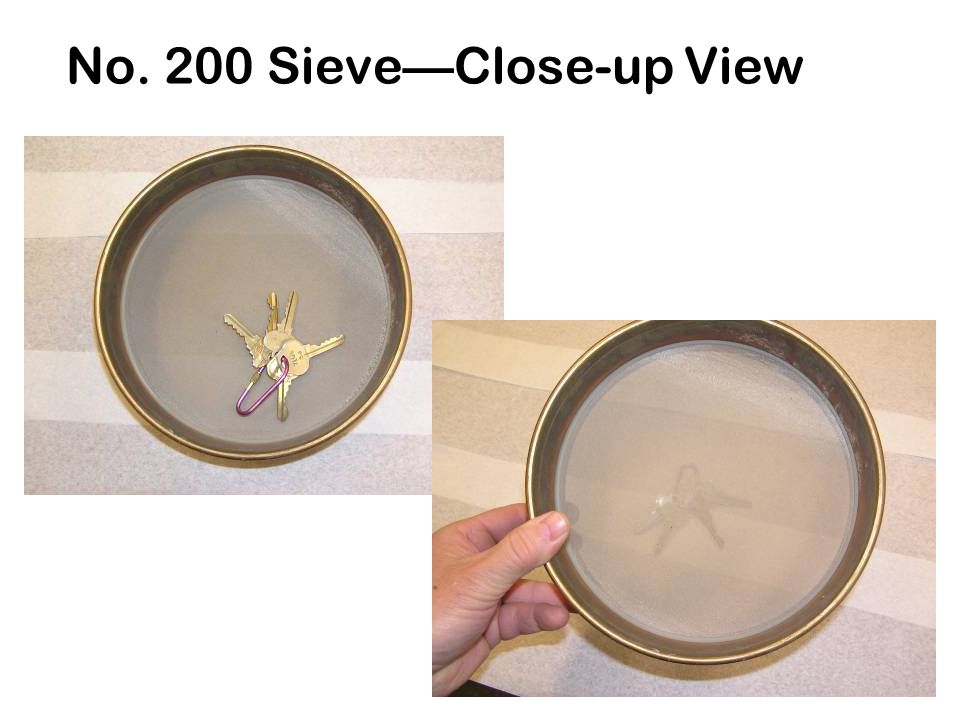

12 No. 200 Sieve—Close-up View

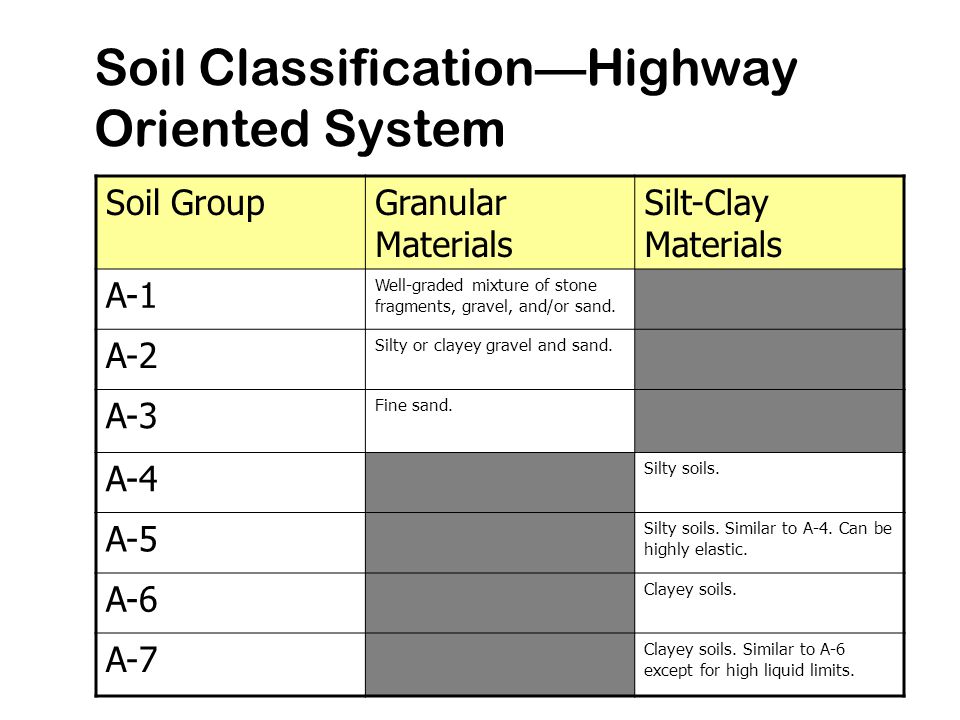

13 Soil Classification—Highway Oriented System Soil GroupGranular Materials Silt-Clay Materials A-1 Well-graded mixture of stone fragments, gravel, and/or sand. A-2 Silty or clayey gravel and sand. A-3 Fine sand. A-4 Silty soils. A-5 Silty soils. Similar to A-4. Can be highly elastic. A-6 Clayey soils. A-7 Clayey soils. Similar to A-6 except for high liquid limits.

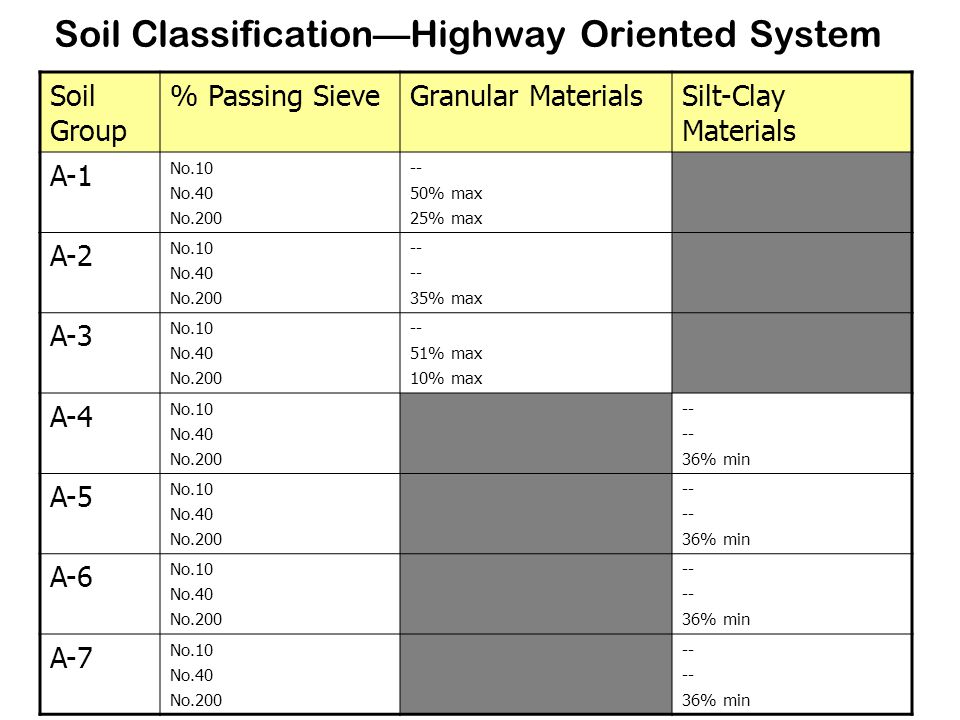

14 Soil Classification—Highway Oriented System Soil Group % Passing SieveGranular MaterialsSilt-Clay Materials A-1 No.10 No.40 No.200 -- 50% max 25% max A-2 No.10 No.40 No.200 -- 35% max A-3 No.10 No.40 No.200 -- 51% max 10% max A-4 No.10 No.40 No.200 -- 36% min A-5 No.10 No.40 No.200 -- 36% min A-6 No.10 No.40 No.200 -- 36% min A-7 No.10 No.40 No.200 -- 36% min

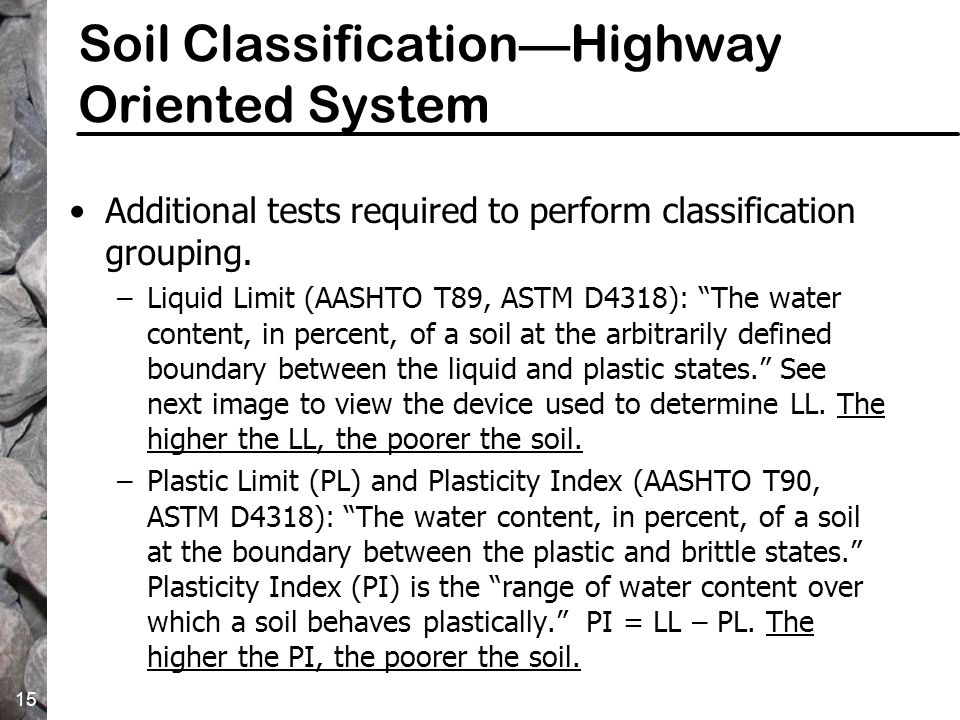

15 15 Soil Classification—Highway Oriented System Additional tests required to perform classification grouping. –Liquid Limit (AASHTO T89, ASTM D4318): “The water content, in percent, of a soil at the arbitrarily defined boundary between the liquid and plastic states.” See next image to view the device used to determine LL. The higher the LL, the poorer the soil. –Plastic Limit (PL) and Plasticity Index (AASHTO T90, ASTM D4318): “The water content, in percent, of a soil at the boundary between the plastic and brittle states.” Plasticity Index (PI) is the “range of water content over which a soil behaves plastically.” PI = LL – PL. The higher the PI, the poorer the soil.

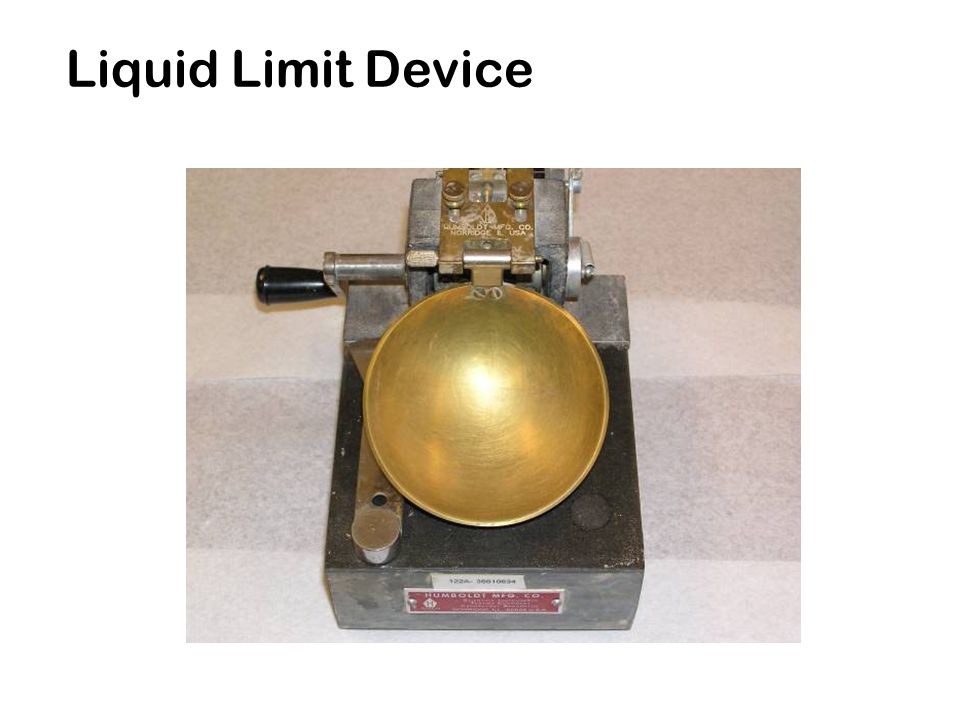

16 Liquid Limit Device

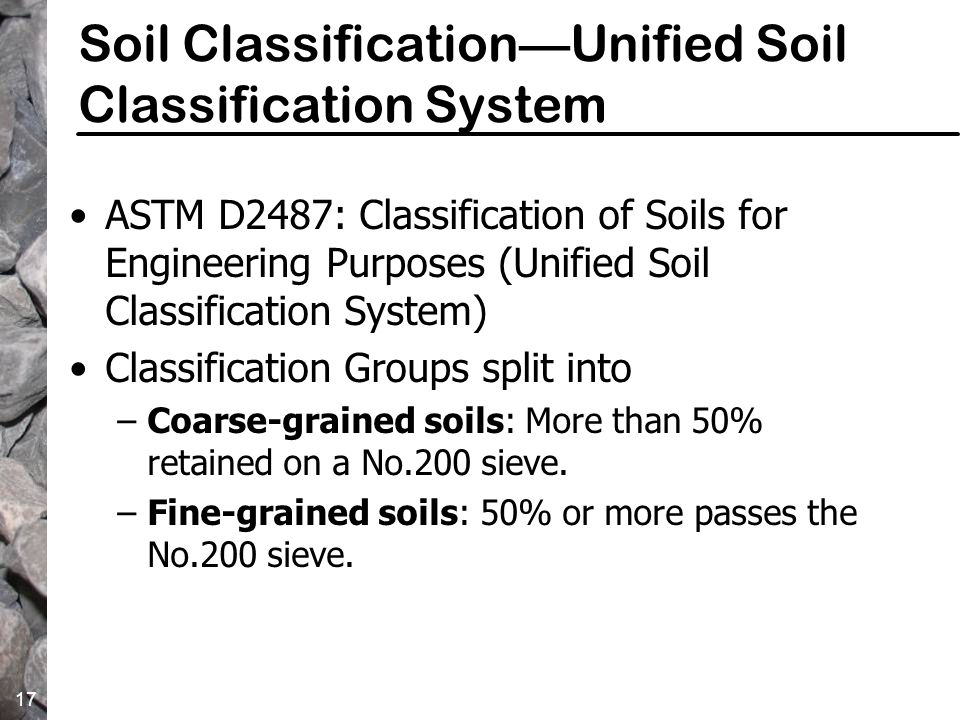

17 17 Soil Classification—Unified Soil Classification System ASTM D2487: Classification of Soils for Engineering Purposes (Unified Soil Classification System) Classification Groups split into –Coarse-grained soils: More than 50% retained on a No.200 sieve. –Fine-grained soils: 50% or more passes the No.200 sieve.

18 18 Soil Classification—Unified Soil Classification System Coarse-grained soils: More than 50% retained on a No.200 sieve. –Gravels: More than 50% of coarse fraction retained on No.4 sieve. –Sands: 50% or more of coarse fraction passes No.4 sieve. Fine-grained soils: 50% or more passes the No.200 sieve. –Silts and Clays: LL less than 50%. –Silts and Clays: LL 50% or more.

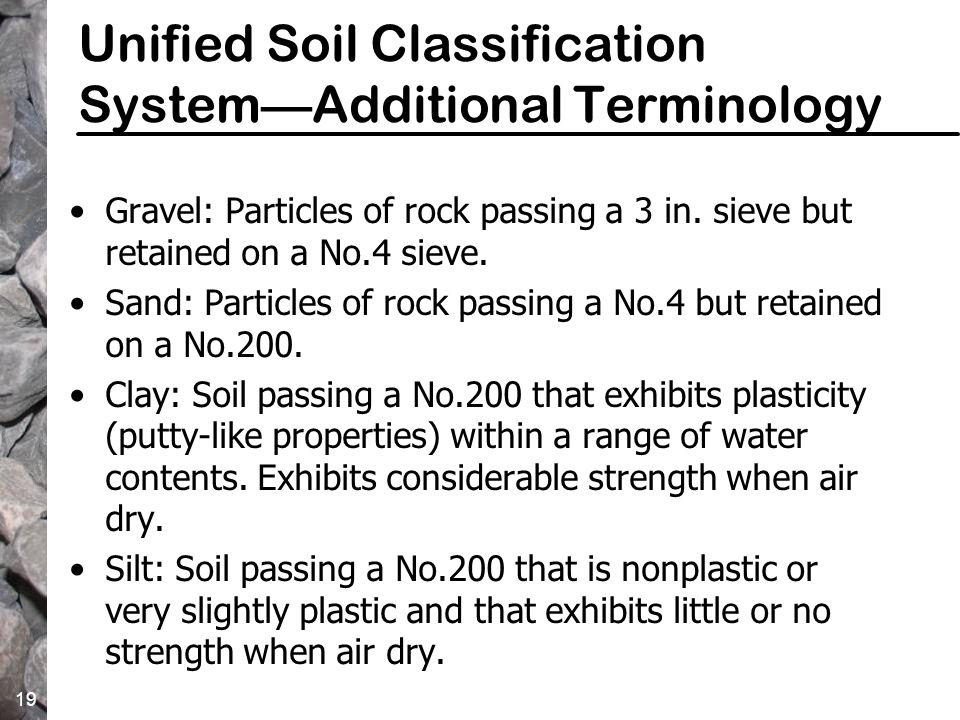

19 19 Unified Soil Classification System—Additional Terminology Gravel: Particles of rock passing a 3 in. sieve but retained on a No.4 sieve. Sand: Particles of rock passing a No.4 but retained on a No.200. Clay: Soil passing a No.200 that exhibits plasticity (putty-like properties) within a range of water contents. Exhibits considerable strength when air dry. Silt: Soil passing a No.200 that is nonplastic or very slightly plastic and that exhibits little or no strength when air dry.

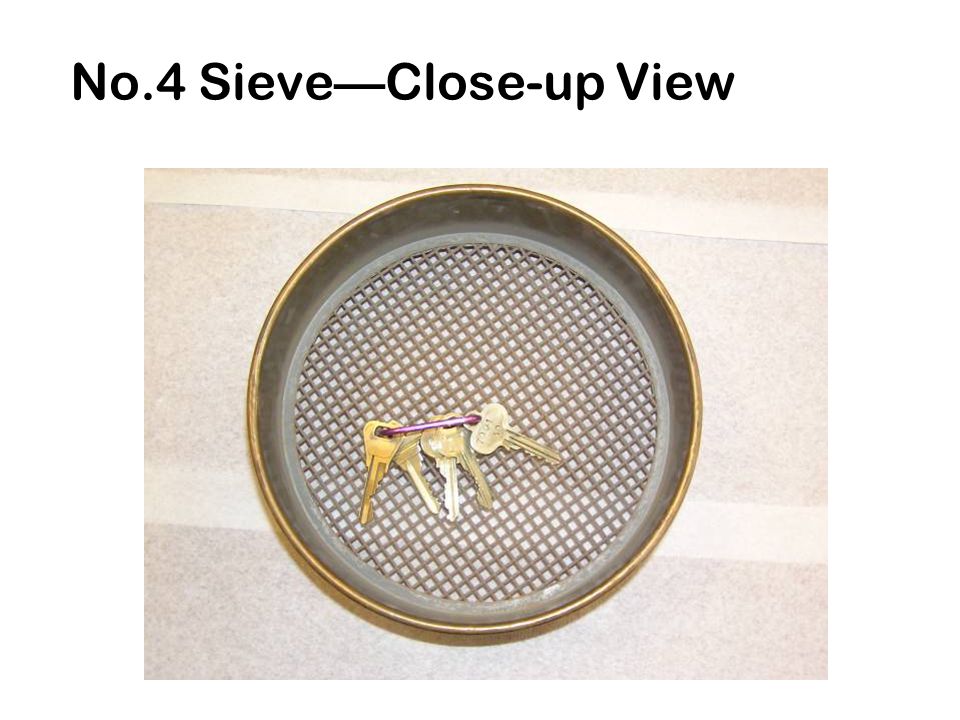

20 No.4 Sieve—Close-up View

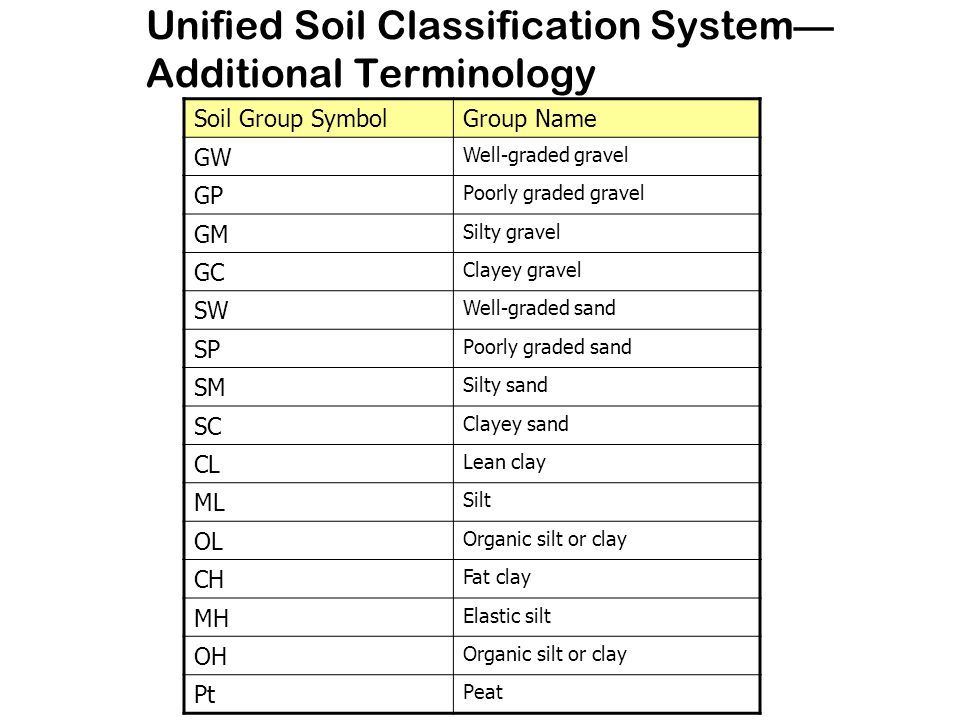

21 Unified Soil Classification System— Additional Terminology Soil Group SymbolGroup Name GW Well-graded gravel GP Poorly graded gravel GM Silty gravel GC Clayey gravel SW Well-graded sand SP Poorly graded sand SM Silty sand SC Clayey sand CL Lean clay ML Silt OL Organic silt or clay CH Fat clay MH Elastic silt OH Organic silt or clay Pt Peat

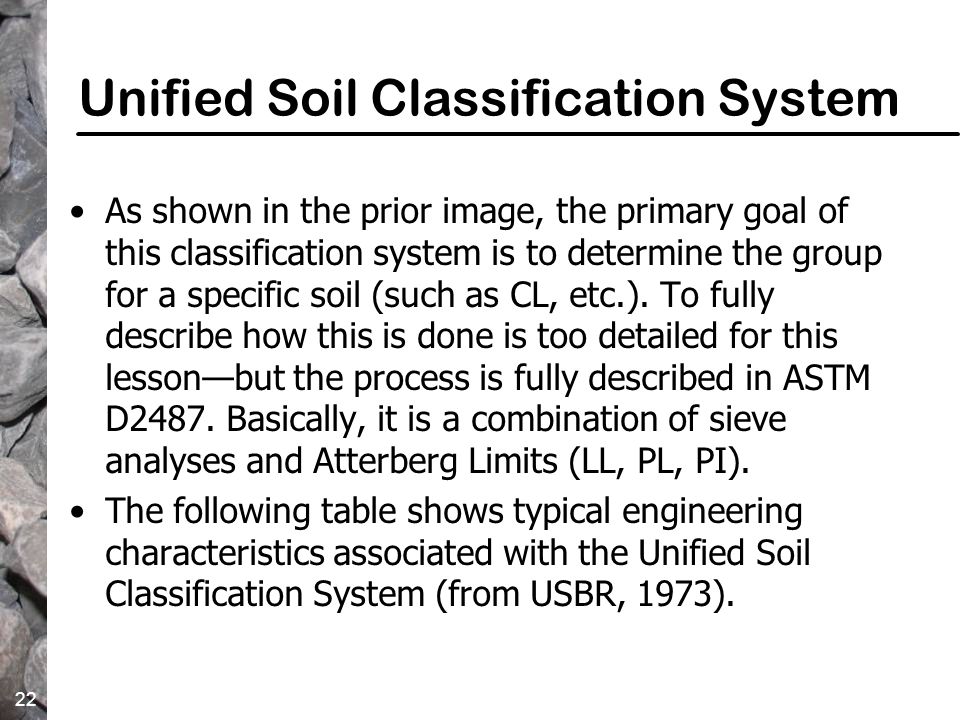

22 22 Unified Soil Classification System As shown in the prior image, the primary goal of this classification system is to determine the group for a specific soil (such as CL, etc.). To fully describe how this is done is too detailed for this lesson—but the process is fully described in ASTM D2487. Basically, it is a combination of sieve analyses and Atterberg Limits (LL, PL, PI). The following table shows typical engineering characteristics associated with the Unified Soil Classification System (from USBR, 1973).

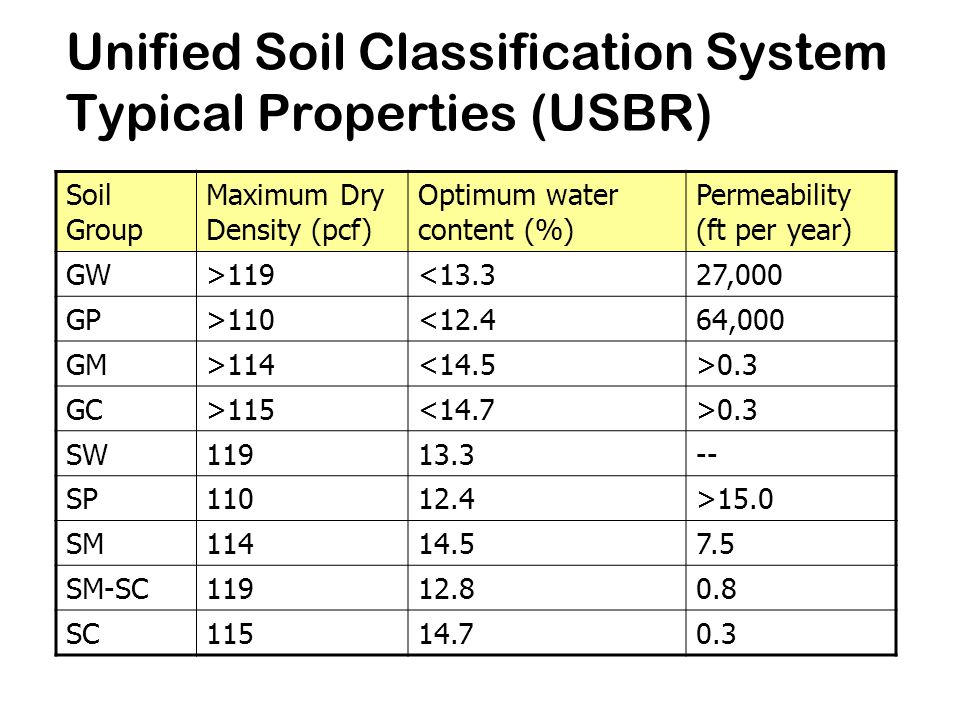

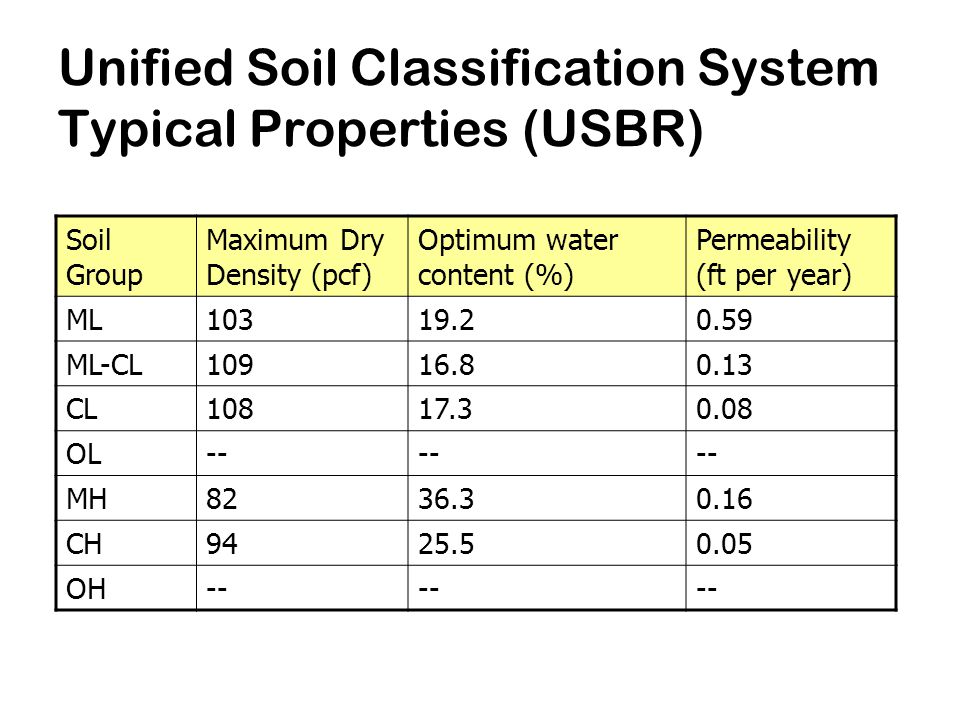

23 Unified Soil Classification System Typical Properties (USBR) Soil Group Maximum Dry Density (pcf) Optimum water content (%) Permeability (ft per year) GW>119<13.327,000 GP>110<12.464,000 GM>114<14.5>0.3 GC>115<14.7>0.3 SW11913.3-- SP11012.4>15.0 SM11414.57.5 SM-SC11912.80.8 SC11514.70.3

24 Unified Soil Classification System Typical Properties (USBR) Soil Group Maximum Dry Density (pcf) Optimum water content (%) Permeability (ft per year) ML10319.20.59 ML-CL10916.80.13 CL10817.30.08 OL-- MH8236.30.16 CH9425.50.05 OH--

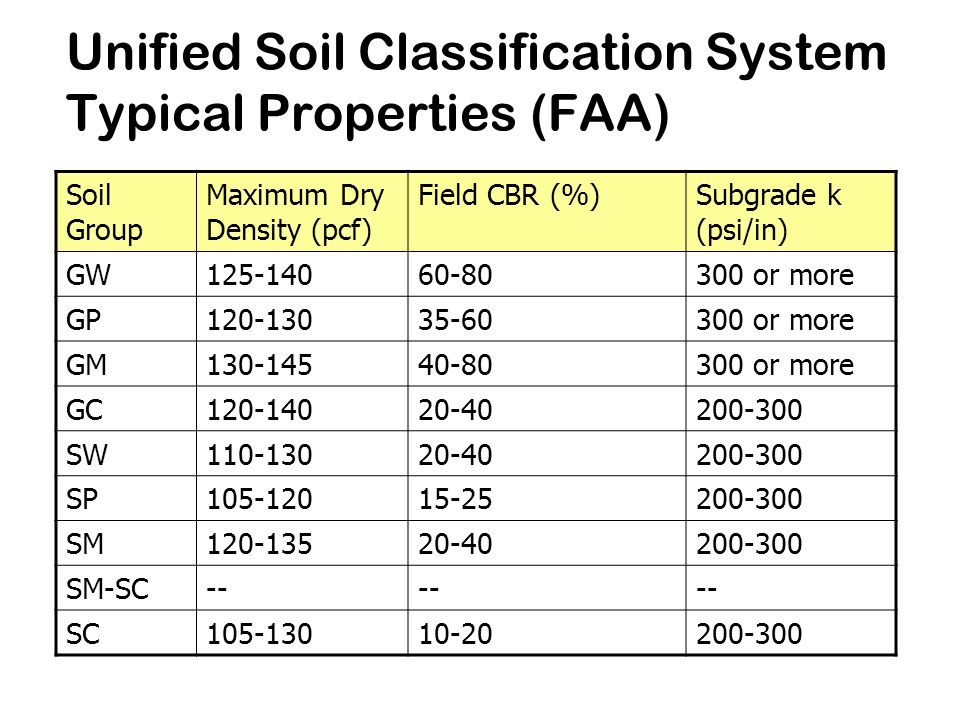

25 Unified Soil Classification System Typical Properties (FAA) Soil Group Maximum Dry Density (pcf) Field CBR (%)Subgrade k (psi/in) GW125-14060-80300 or more GP120-13035-60300 or more GM130-14540-80300 or more GC120-14020-40200-300 SW110-13020-40200-300 SP105-12015-25200-300 SM120-13520-40200-300 SM-SC-- SC105-13010-20200-300

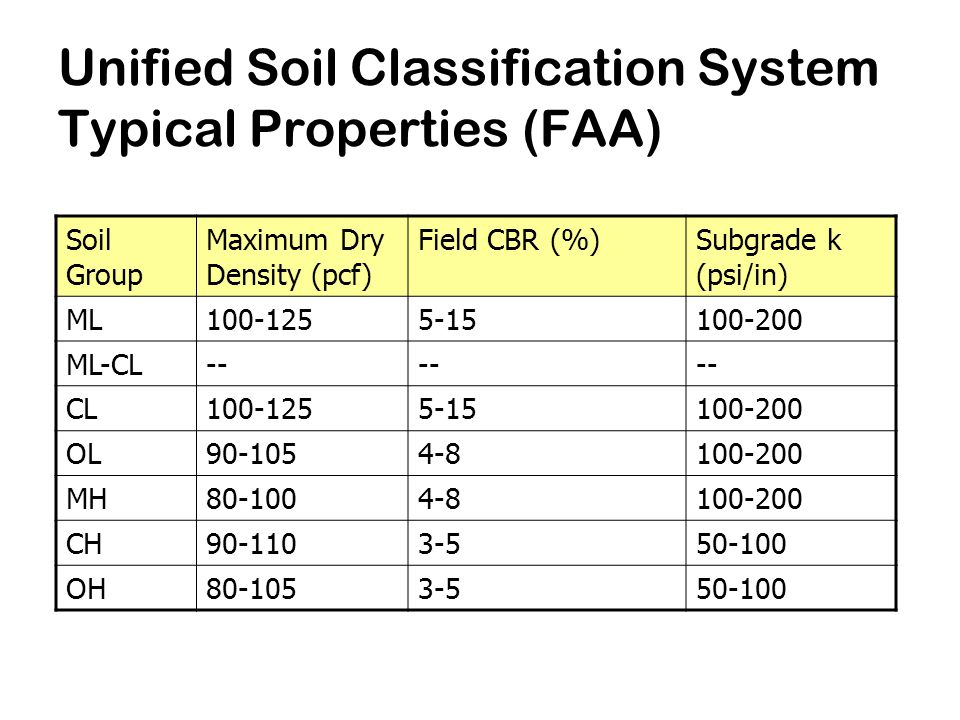

26 Unified Soil Classification System Typical Properties (FAA) Soil Group Maximum Dry Density (pcf) Field CBR (%)Subgrade k (psi/in) ML100-1255-15100-200 ML-CL-- CL100-1255-15100-200 OL90-1054-8100-200 MH80-1004-8100-200 CH90-1103-550-100 OH80-1053-550-100

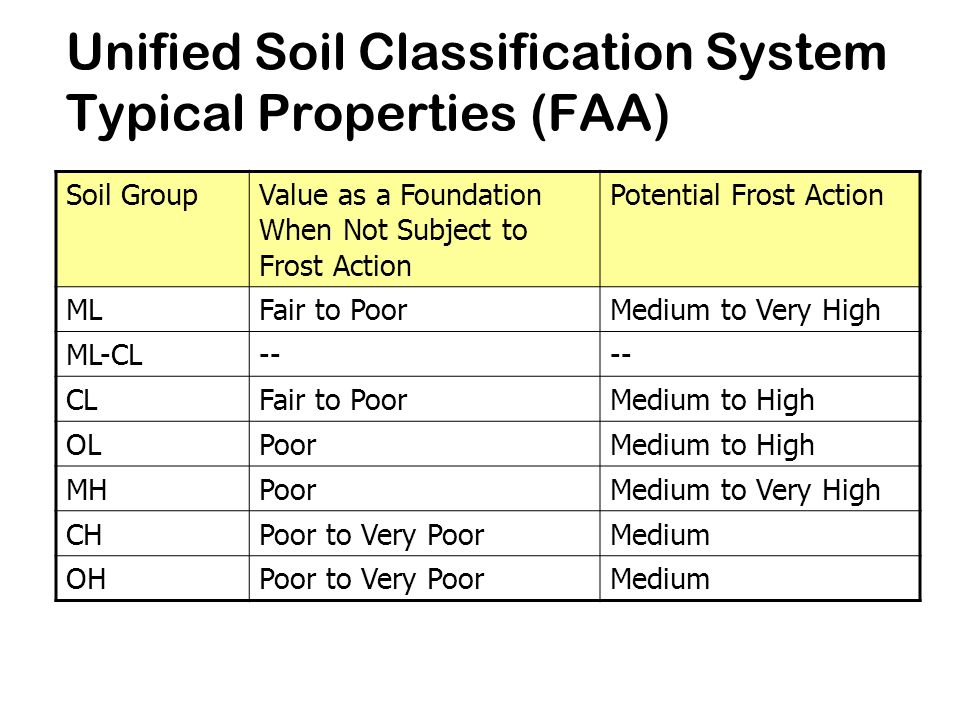

27 Unified Soil Classification System Typical Properties (FAA) Soil GroupValue as a Foundation When Not Subject to Frost Action Potential Frost Action GWExcellentNone to Very Slight GPGood to ExcellentNone to Very Slight GMGood to ExcellentSlight to Medium GCGoodSlight to Medium SWGoodNone to Very Slight SPFair to GoodNone to Very Slight SMGoodSlight to High SM-SC-- SCFair to GoodSlight to High

28 Unified Soil Classification System Typical Properties (FAA) Soil GroupValue as a Foundation When Not Subject to Frost Action Potential Frost Action MLFair to PoorMedium to Very High ML-CL-- CLFair to PoorMedium to High OLPoorMedium to High MHPoorMedium to Very High CHPoor to Very PoorMedium OHPoor to Very PoorMedium

29 29 Soil Related Tests Soil compaction Strength or stiffness of soils –Laboratory –Field

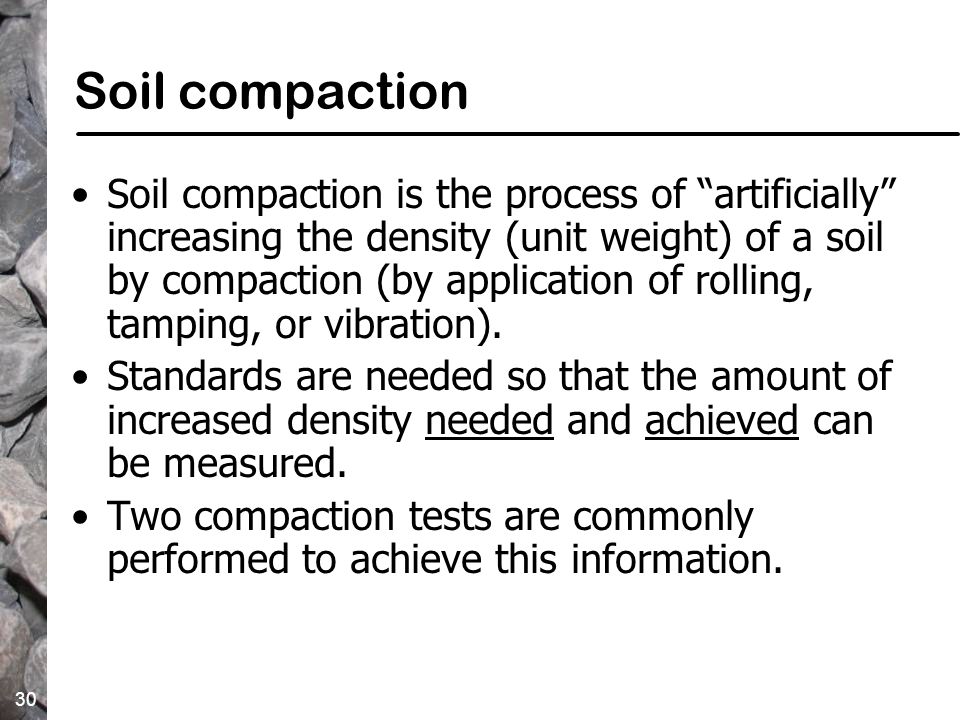

30 30 Soil compaction Soil compaction is the process of “artificially” increasing the density (unit weight) of a soil by compaction (by application of rolling, tamping, or vibration). Standards are needed so that the amount of increased density needed and achieved can be measured. Two compaction tests are commonly performed to achieve this information.

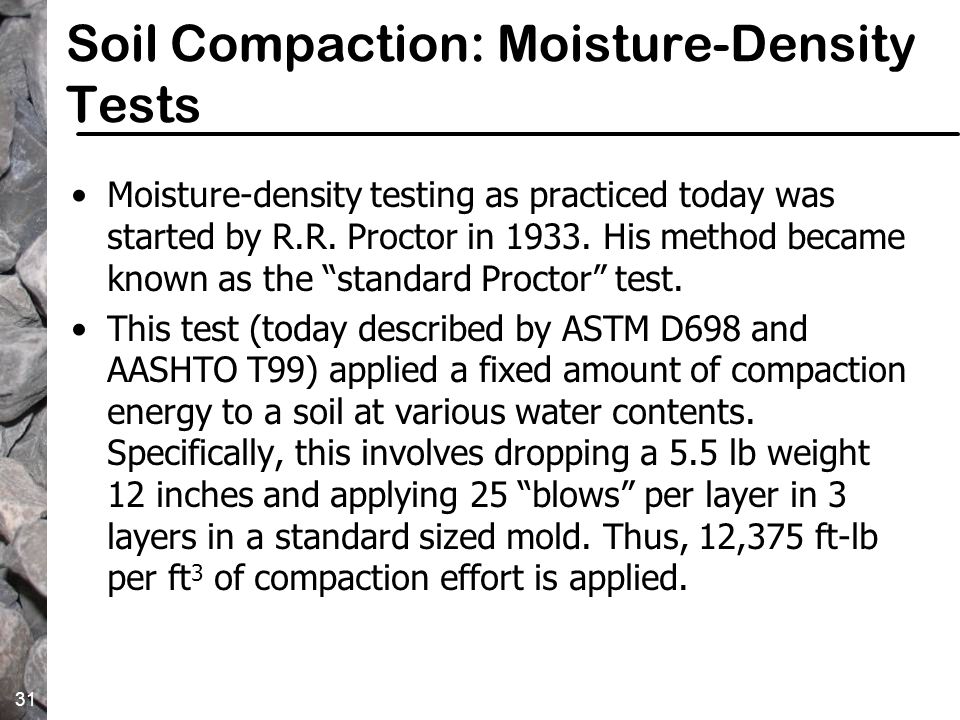

31 31 Soil Compaction: Moisture-Density Tests Moisture-density testing as practiced today was started by R.R. Proctor in 1933. His method became known as the “standard Proctor” test. This test (today described by ASTM D698 and AASHTO T99) applied a fixed amount of compaction energy to a soil at various water contents. Specifically, this involves dropping a 5.5 lb weight 12 inches and applying 25 “blows” per layer in 3 layers in a standard sized mold. Thus, 12,375 ft-lb per ft 3 of compaction effort is applied.

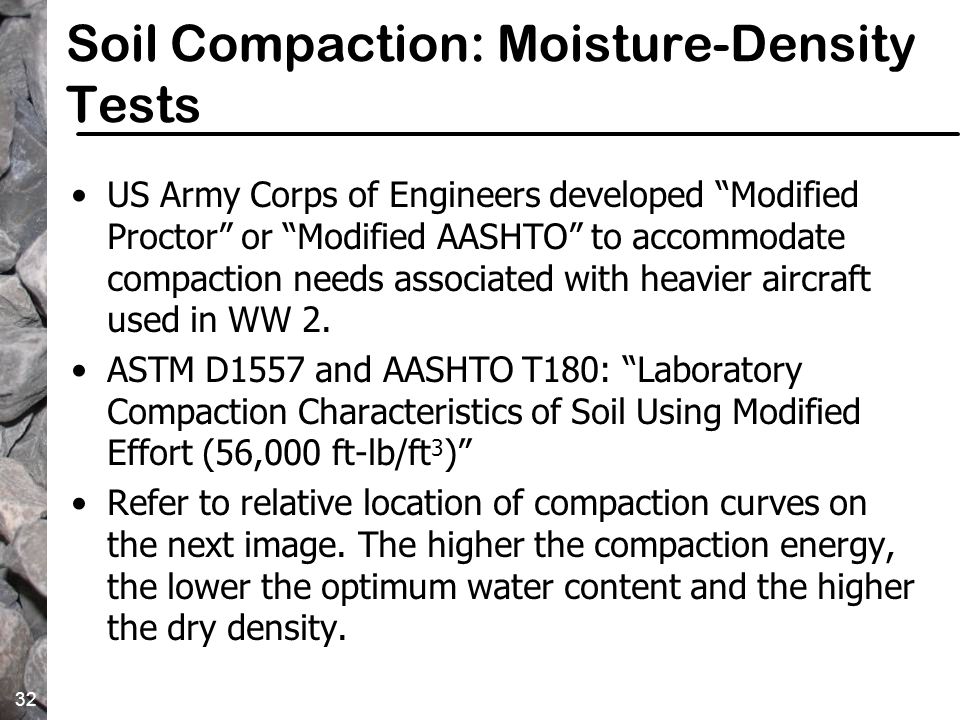

32 32 Soil Compaction: Moisture-Density Tests US Army Corps of Engineers developed “Modified Proctor” or “Modified AASHTO” to accommodate compaction needs associated with heavier aircraft used in WW 2. ASTM D1557 and AASHTO T180: “Laboratory Compaction Characteristics of Soil Using Modified Effort (56,000 ft-lb/ft 3 )” Refer to relative location of compaction curves on the next image. The higher the compaction energy, the lower the optimum water content and the higher the dry density.

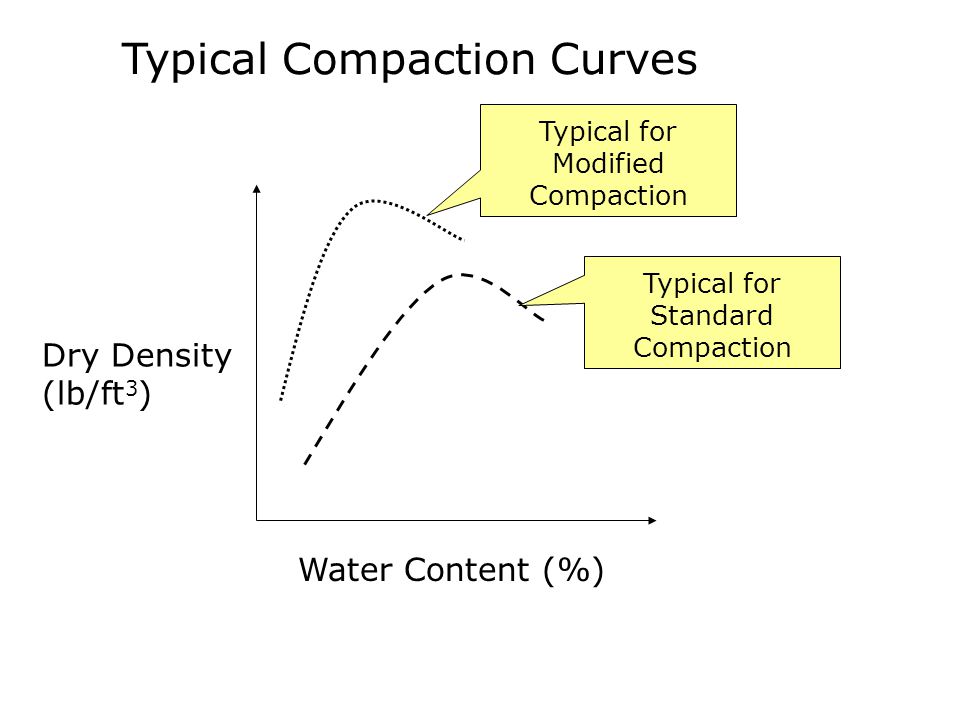

33 Water Content (%) Dry Density (lb/ft 3 ) Typical Compaction Curves Typical for Modified Compaction Typical for Standard Compaction

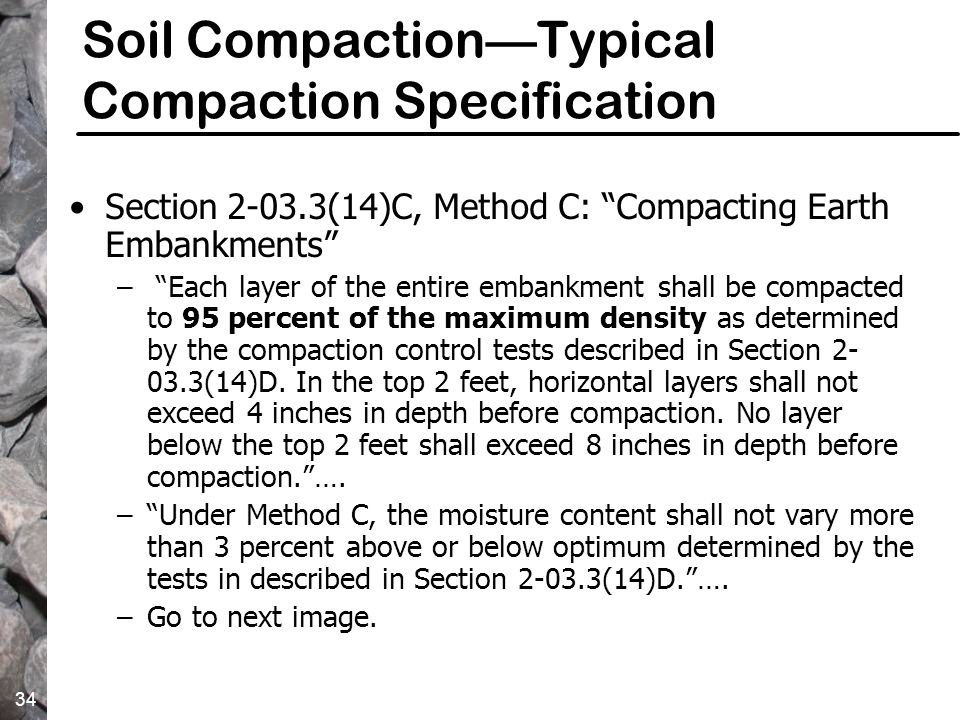

34 34 Soil Compaction—Typical Compaction Specification Section 2-03.3(14)C, Method C: “Compacting Earth Embankments” – “Each layer of the entire embankment shall be compacted to 95 percent of the maximum density as determined by the compaction control tests described in Section 2- 03.3(14)D. In the top 2 feet, horizontal layers shall not exceed 4 inches in depth before compaction. No layer below the top 2 feet shall exceed 8 inches in depth before compaction.”…. –“Under Method C, the moisture content shall not vary more than 3 percent above or below optimum determined by the tests in described in Section 2-03.3(14)D.”…. –Go to next image.

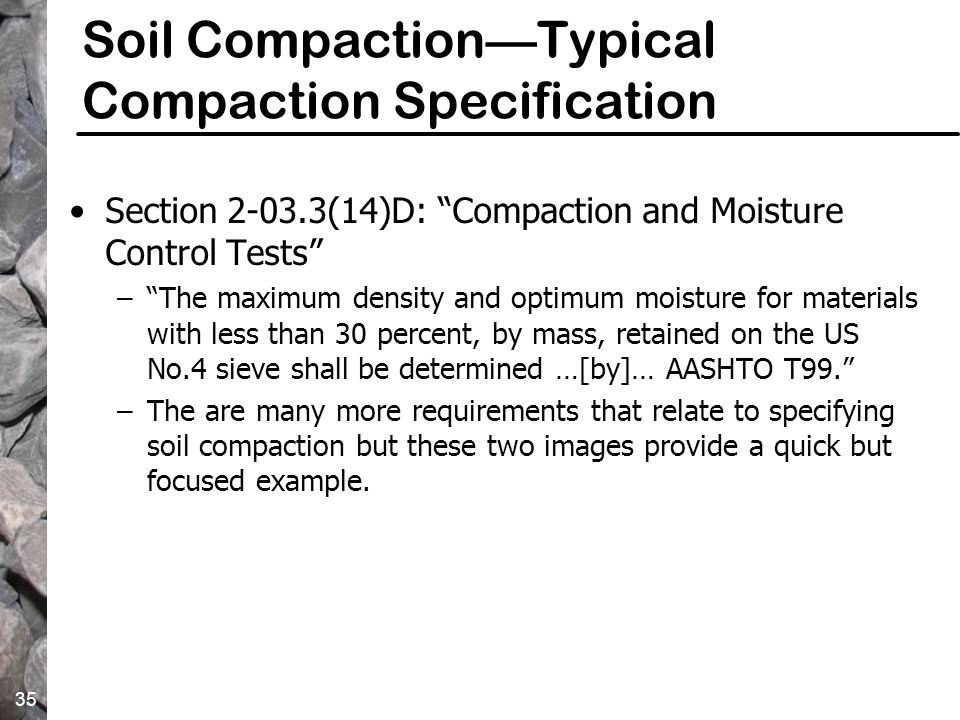

35 35 Soil Compaction—Typical Compaction Specification Section 2-03.3(14)D: “Compaction and Moisture Control Tests” –“The maximum density and optimum moisture for materials with less than 30 percent, by mass, retained on the US No.4 sieve shall be determined …[by]… AASHTO T99.” –The are many more requirements that relate to specifying soil compaction but these two images provide a quick but focused example.

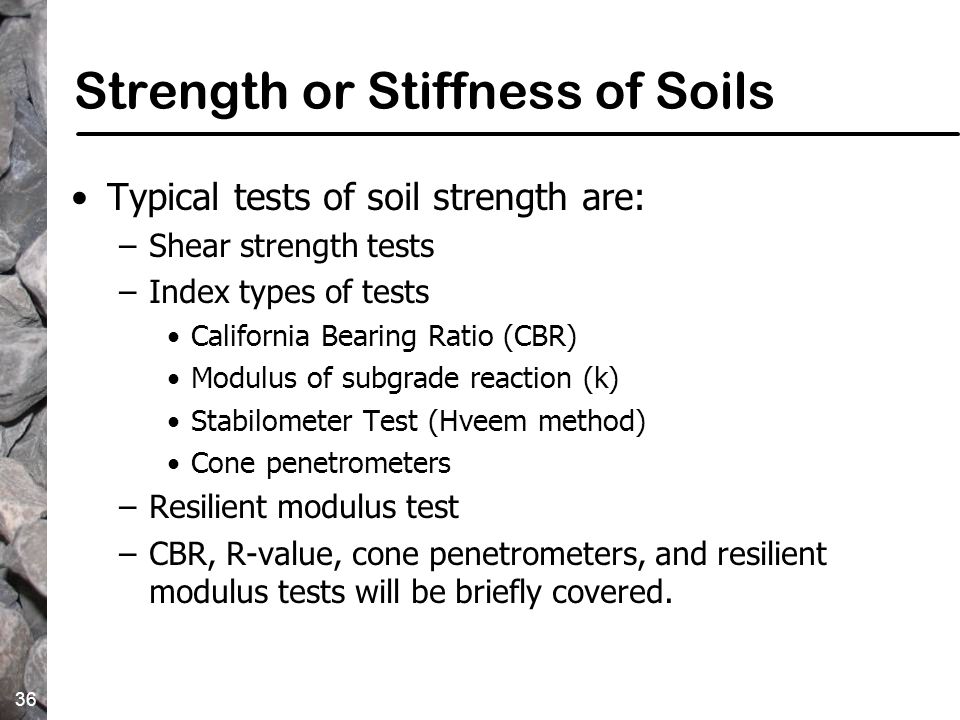

36 36 Strength or Stiffness of Soils Typical tests of soil strength are: –Shear strength tests –Index types of tests California Bearing Ratio (CBR) Modulus of subgrade reaction (k) Stabilometer Test (Hveem method) Cone penetrometers –Resilient modulus test –CBR, R-value, cone penetrometers, and resilient modulus tests will be briefly covered.

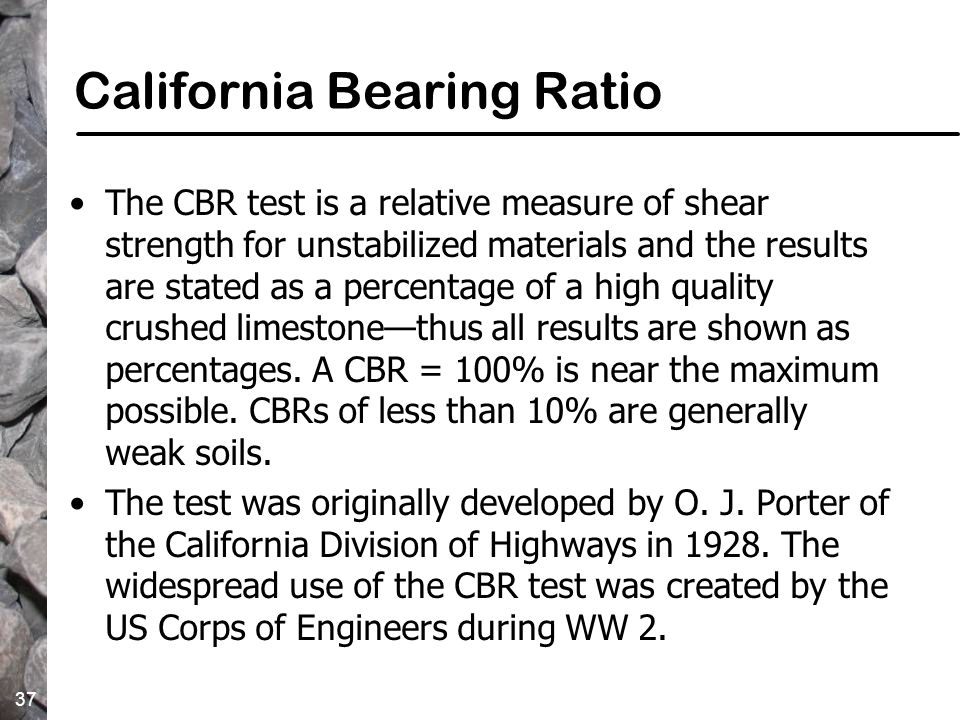

37 37 California Bearing Ratio The CBR test is a relative measure of shear strength for unstabilized materials and the results are stated as a percentage of a high quality crushed limestone—thus all results are shown as percentages. A CBR = 100% is near the maximum possible. CBRs of less than 10% are generally weak soils. The test was originally developed by O. J. Porter of the California Division of Highways in 1928. The widespread use of the CBR test was created by the US Corps of Engineers during WW 2.

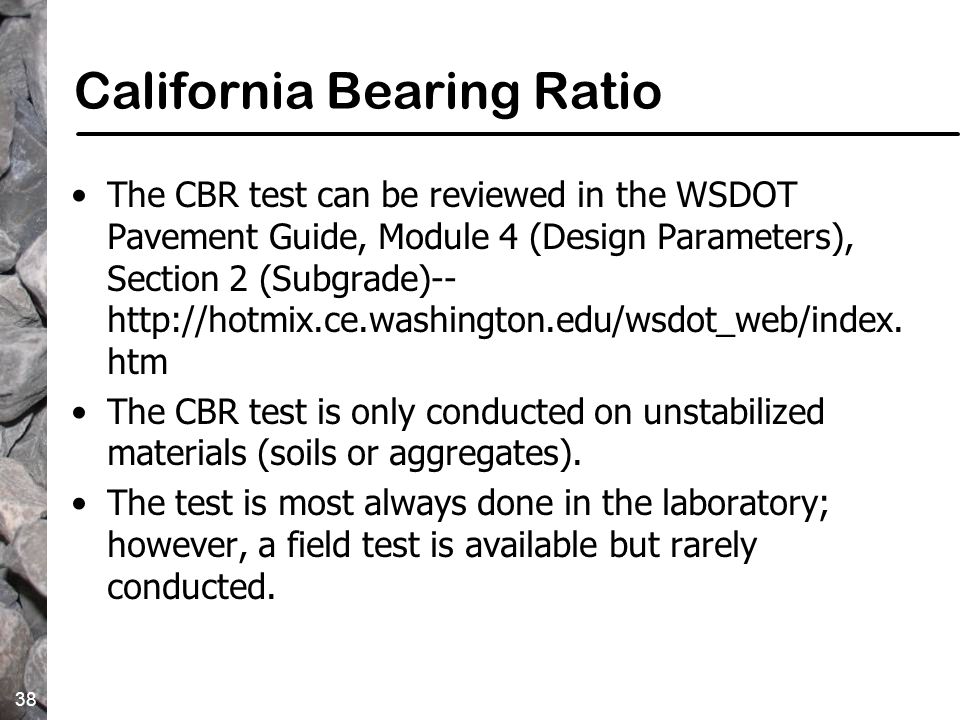

38 38 California Bearing Ratio The CBR test can be reviewed in the WSDOT Pavement Guide, Module 4 (Design Parameters), Section 2 (Subgrade)-- http://hotmix.ce.washington.edu/wsdot_web/index. htm The CBR test is only conducted on unstabilized materials (soils or aggregates). The test is most always done in the laboratory; however, a field test is available but rarely conducted.

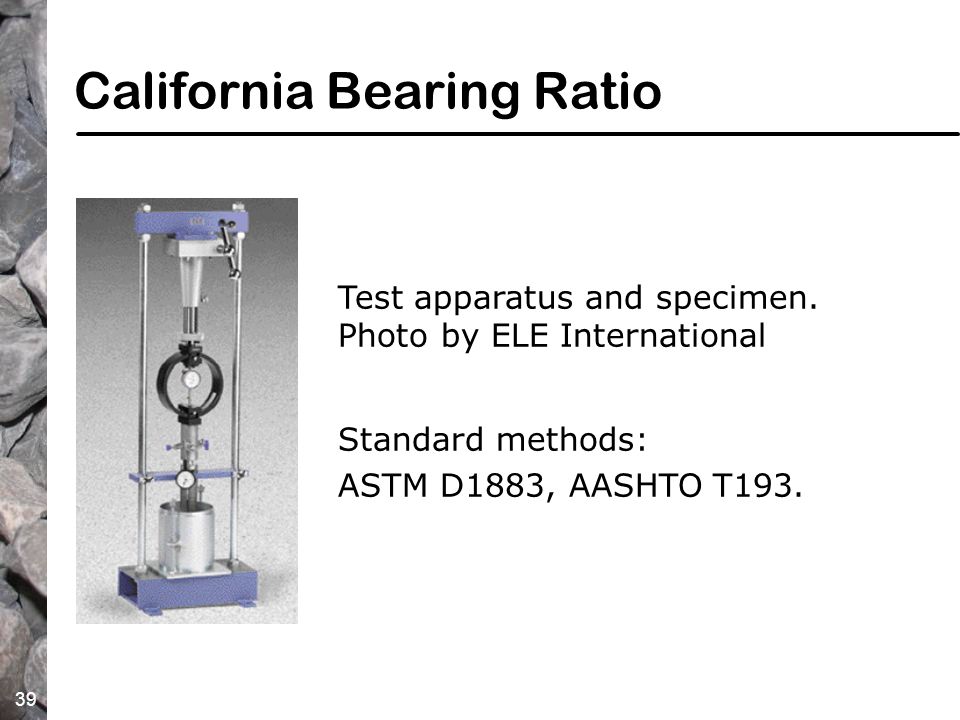

39 39 California Bearing Ratio Test apparatus and specimen. Photo by ELE International Standard methods: ASTM D1883, AASHTO T193.

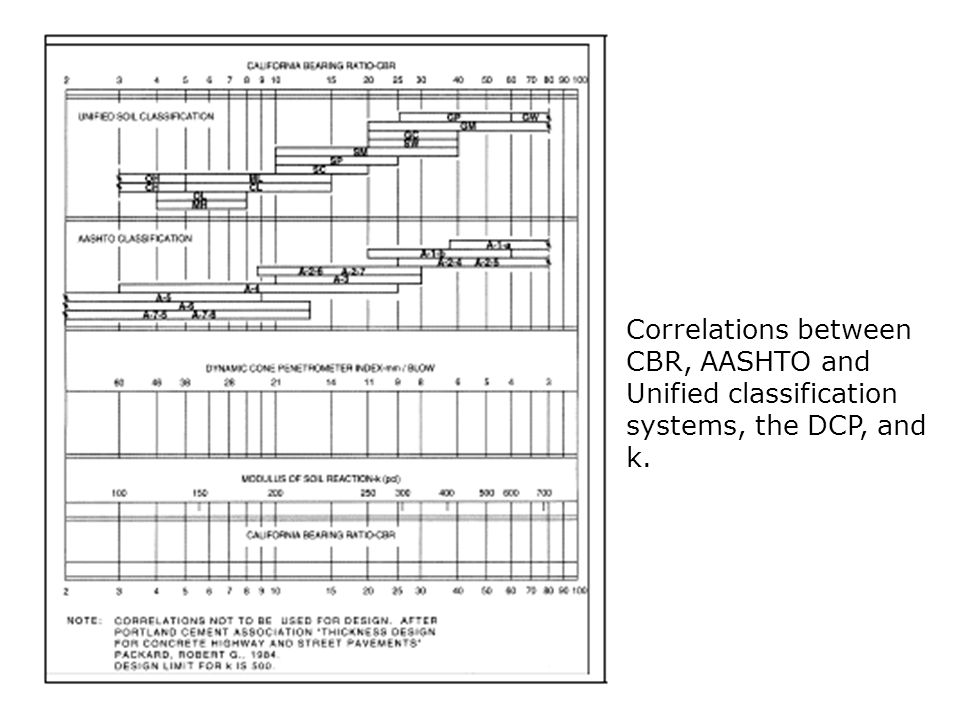

40 Correlations between CBR, AASHTO and Unified classification systems, the DCP, and k.

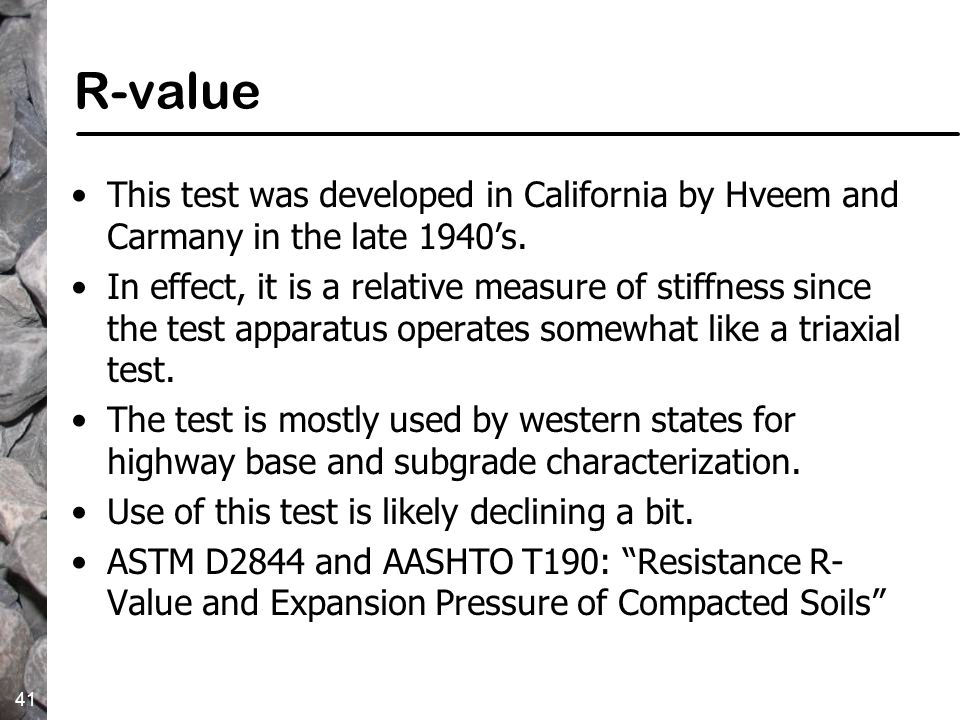

41 41 R-value This test was developed in California by Hveem and Carmany in the late 1940’s. In effect, it is a relative measure of stiffness since the test apparatus operates somewhat like a triaxial test. The test is mostly used by western states for highway base and subgrade characterization. Use of this test is likely declining a bit. ASTM D2844 and AASHTO T190: “Resistance R- Value and Expansion Pressure of Compacted Soils”

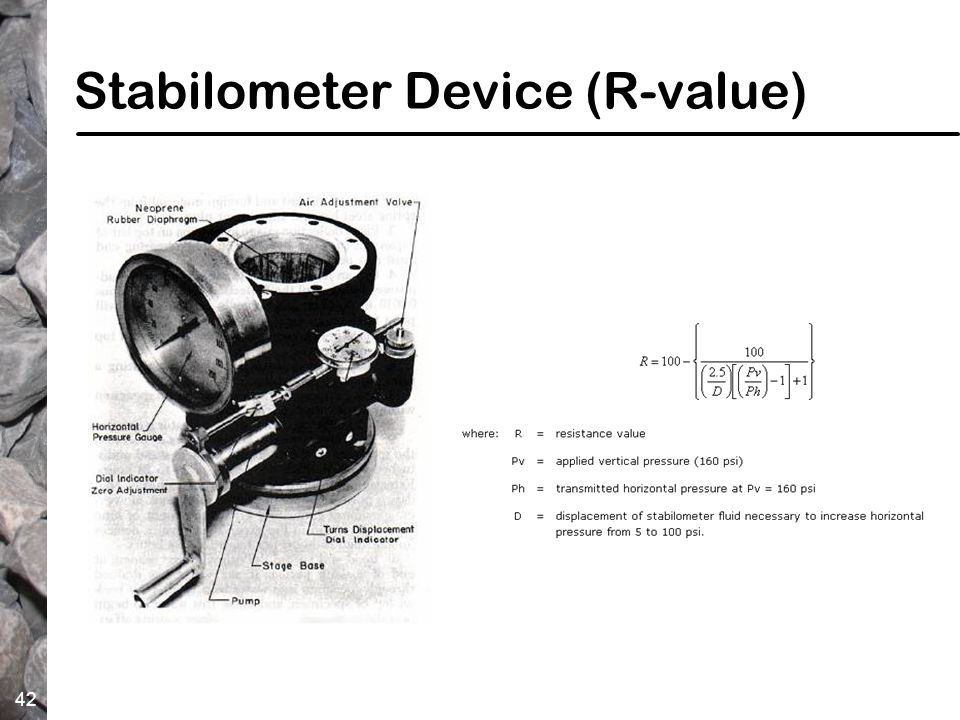

42 42 Stabilometer Device (R-value)

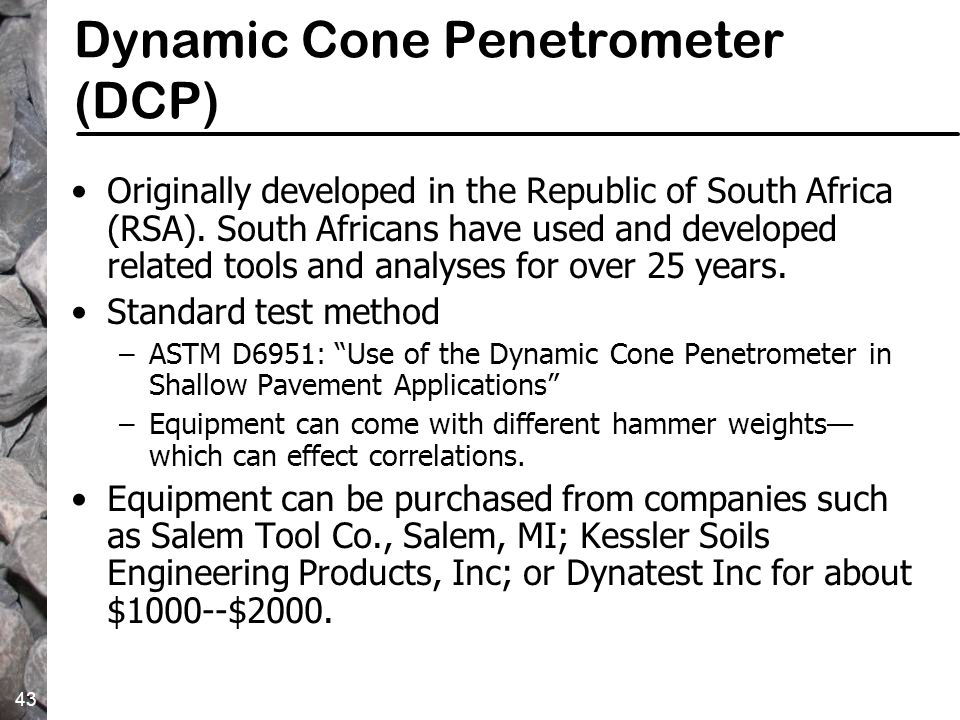

43 43 Dynamic Cone Penetrometer (DCP) Originally developed in the Republic of South Africa (RSA). South Africans have used and developed related tools and analyses for over 25 years. Standard test method –ASTM D6951: “Use of the Dynamic Cone Penetrometer in Shallow Pavement Applications” –Equipment can come with different hammer weights— which can effect correlations. Equipment can be purchased from companies such as Salem Tool Co., Salem, MI; Kessler Soils Engineering Products, Inc; or Dynatest Inc for about $1000--$2000.

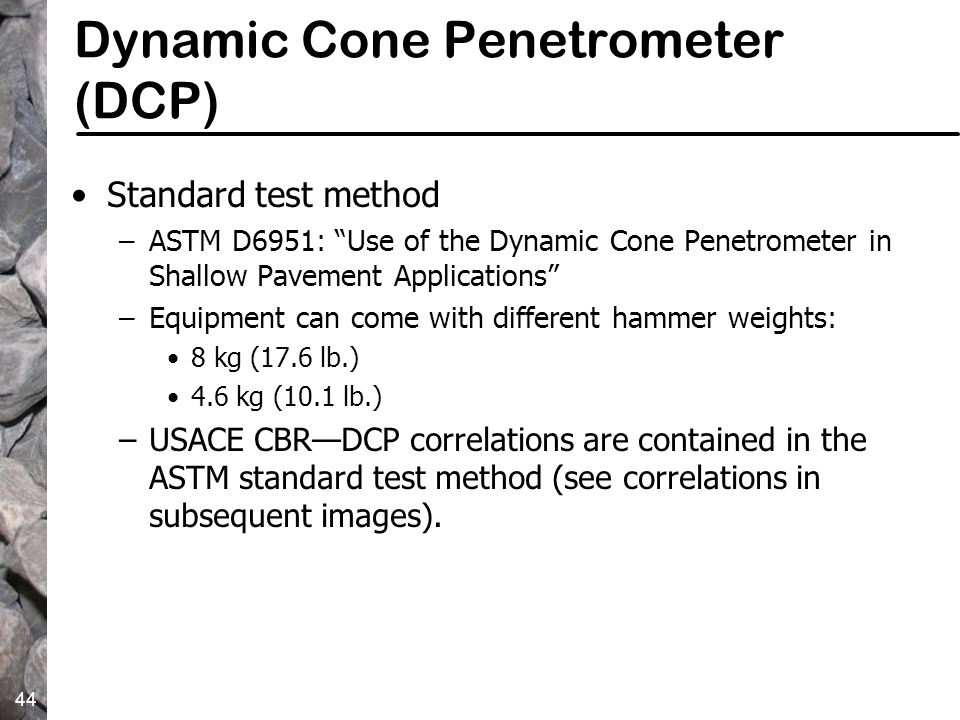

44 44 Dynamic Cone Penetrometer (DCP) Standard test method –ASTM D6951: “Use of the Dynamic Cone Penetrometer in Shallow Pavement Applications” –Equipment can come with different hammer weights: 8 kg (17.6 lb.) 4.6 kg (10.1 lb.) –USACE CBR—DCP correlations are contained in the ASTM standard test method (see correlations in subsequent images).

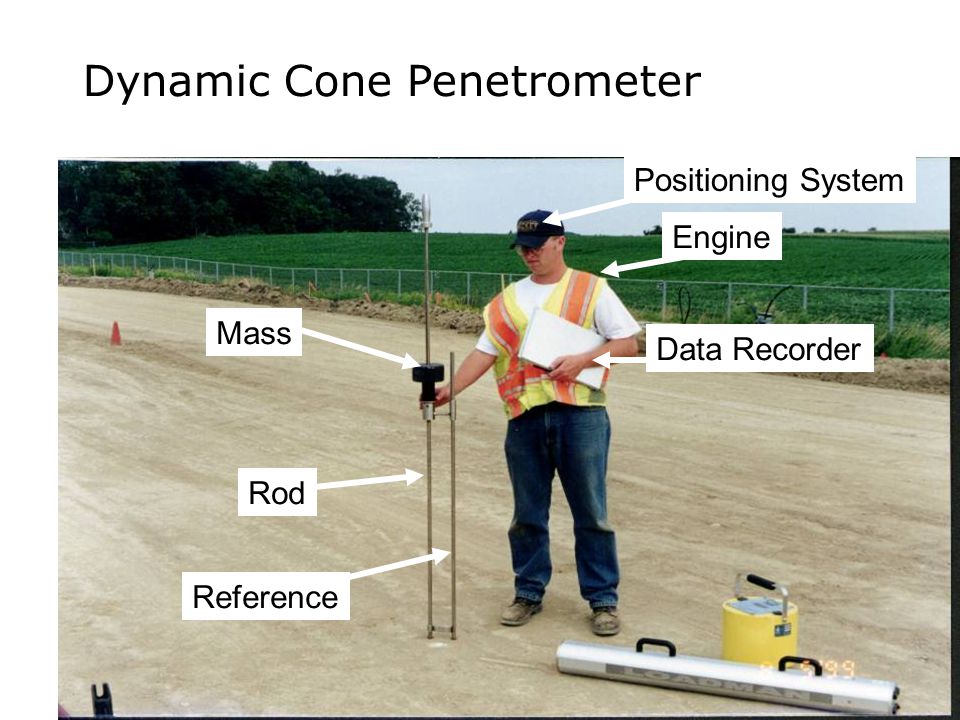

45 Dynamic Cone Penetrometer Rod Reference Mass Engine Data Recorder Positioning System

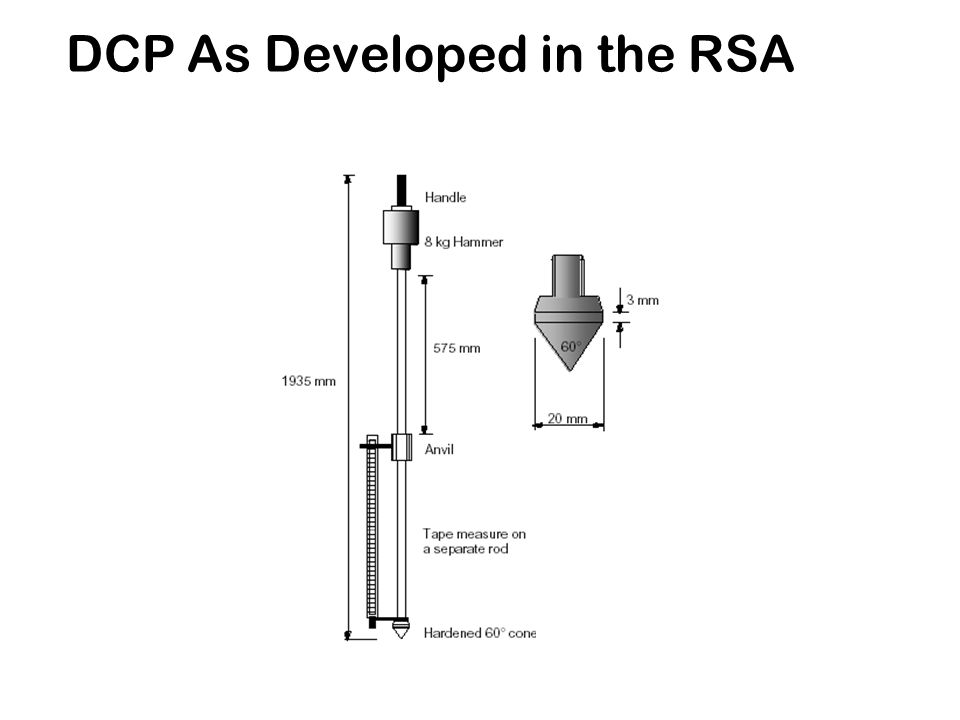

46 DCP As Developed in the RSA

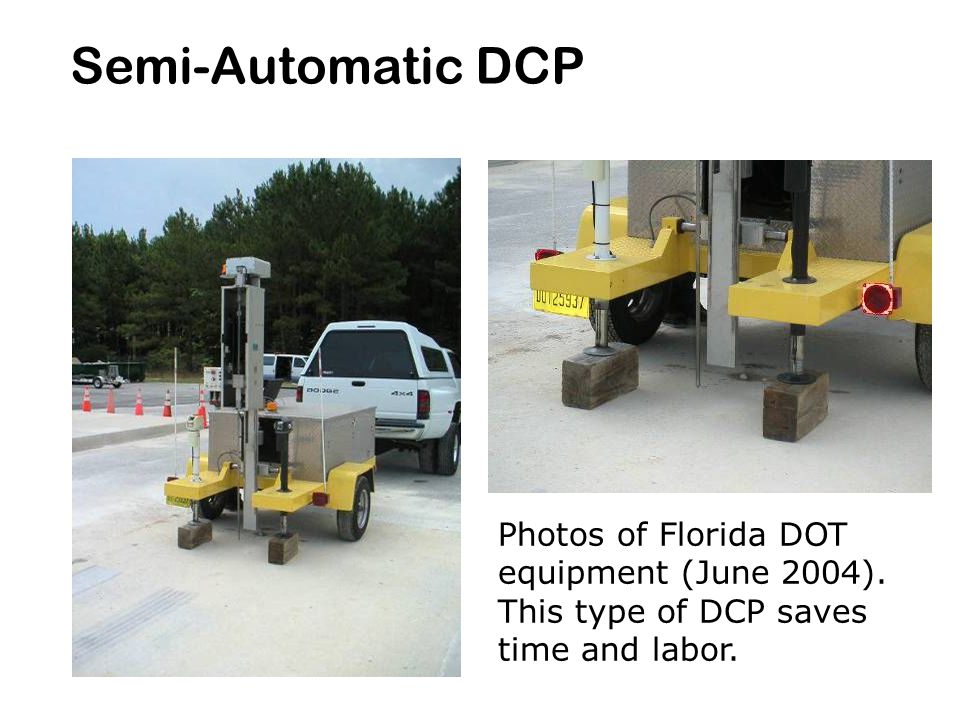

47 Semi-Automatic DCP Photos of Florida DOT equipment (June 2004). This type of DCP saves time and labor.

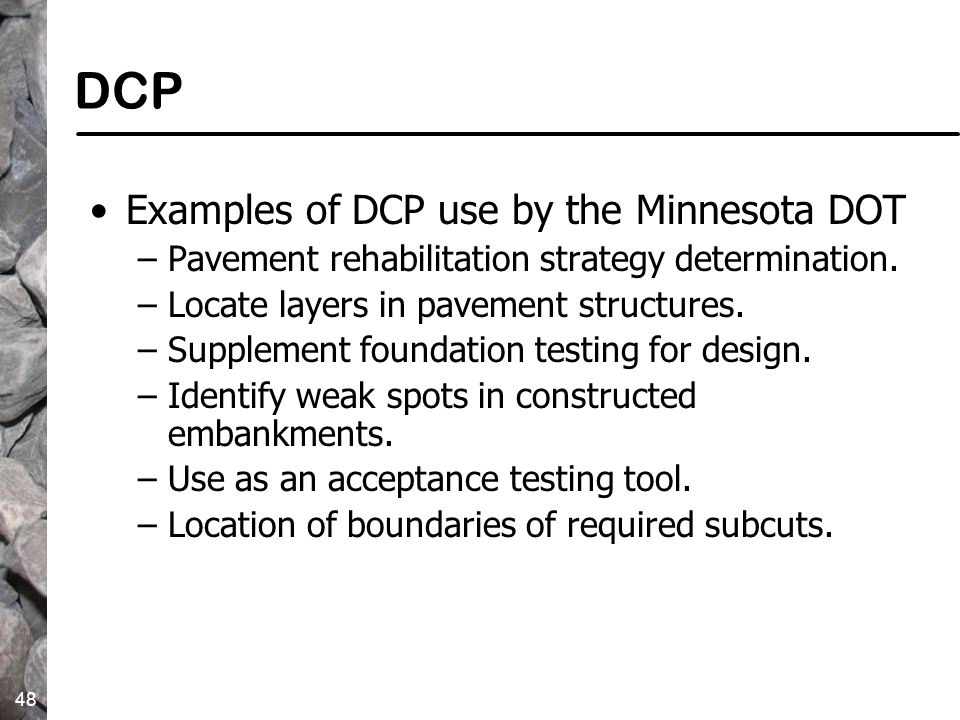

48 48 DCP Examples of DCP use by the Minnesota DOT –Pavement rehabilitation strategy determination. –Locate layers in pavement structures. –Supplement foundation testing for design. –Identify weak spots in constructed embankments. –Use as an acceptance testing tool. –Location of boundaries of required subcuts.

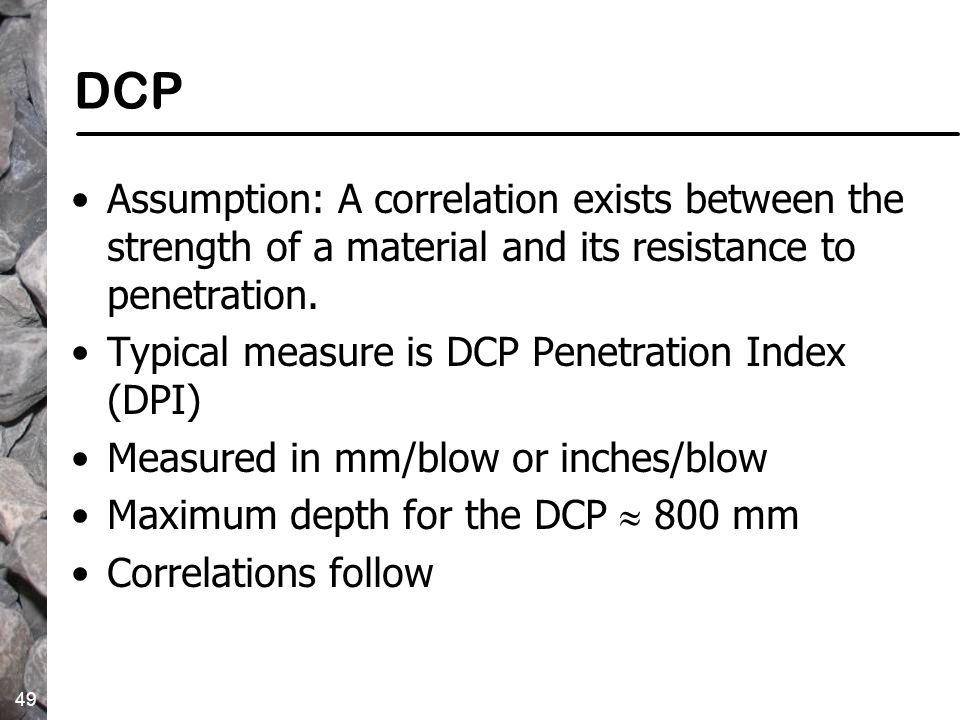

49 49 DCP Assumption: A correlation exists between the strength of a material and its resistance to penetration. Typical measure is DCP Penetration Index (DPI) Measured in mm/blow or inches/blow Maximum depth for the DCP  800 mm Correlations follow

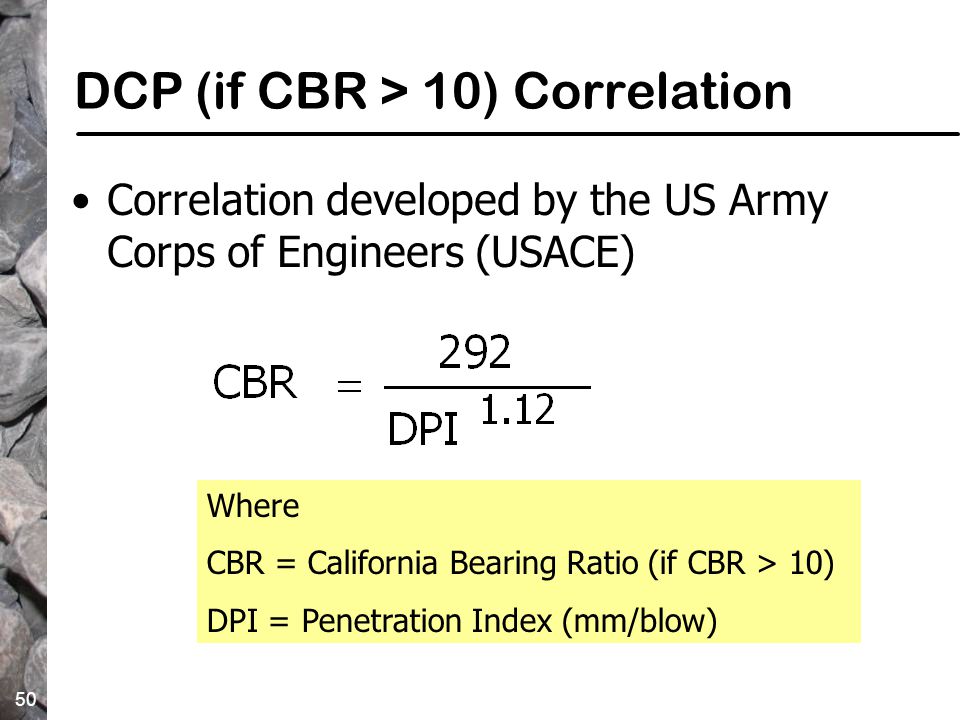

50 50 DCP (if CBR > 10) Correlation Correlation developed by the US Army Corps of Engineers (USACE) Where CBR = California Bearing Ratio (if CBR > 10) DPI = Penetration Index (mm/blow)

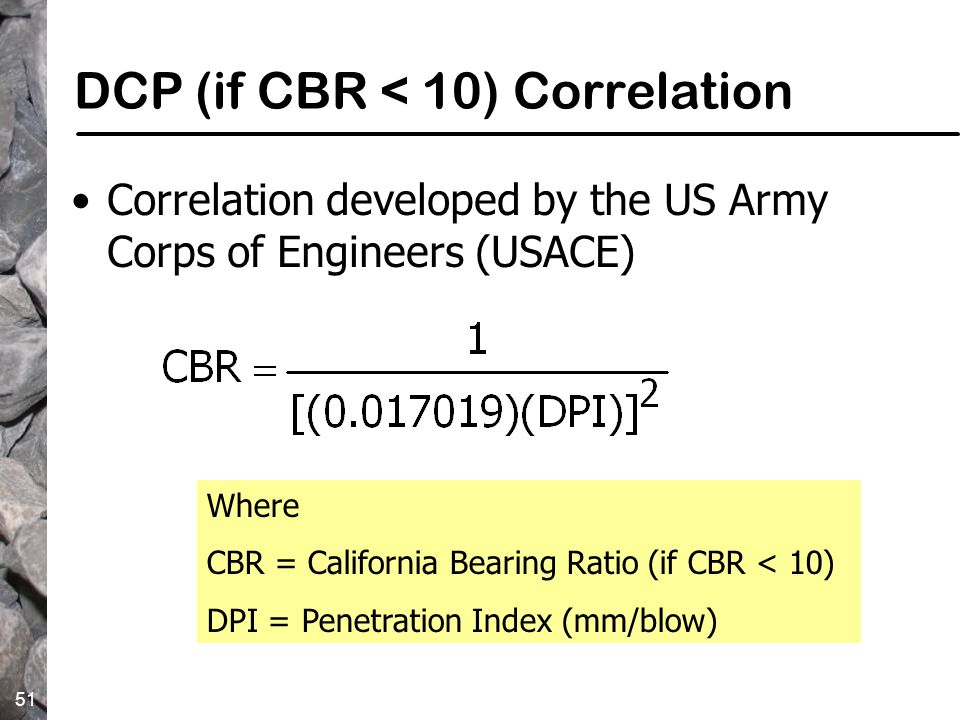

51 51 DCP (if CBR < 10) Correlation Correlation developed by the US Army Corps of Engineers (USACE) Where CBR = California Bearing Ratio (if CBR < 10) DPI = Penetration Index (mm/blow)

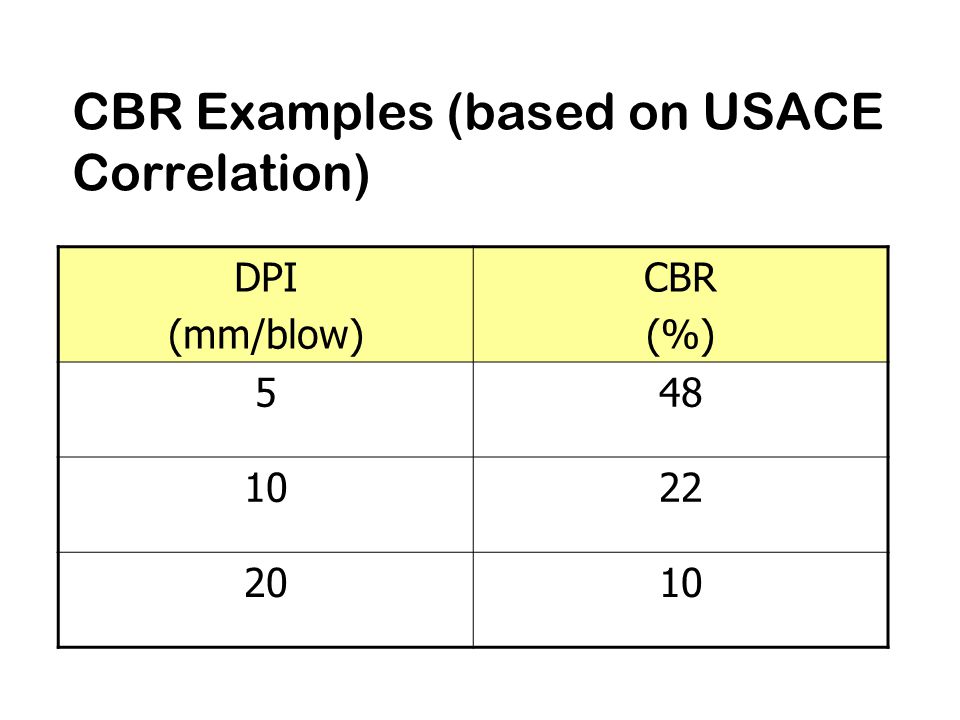

52 CBR Examples (based on USACE Correlation) DPI (mm/blow) CBR (%) 548 1022 2010

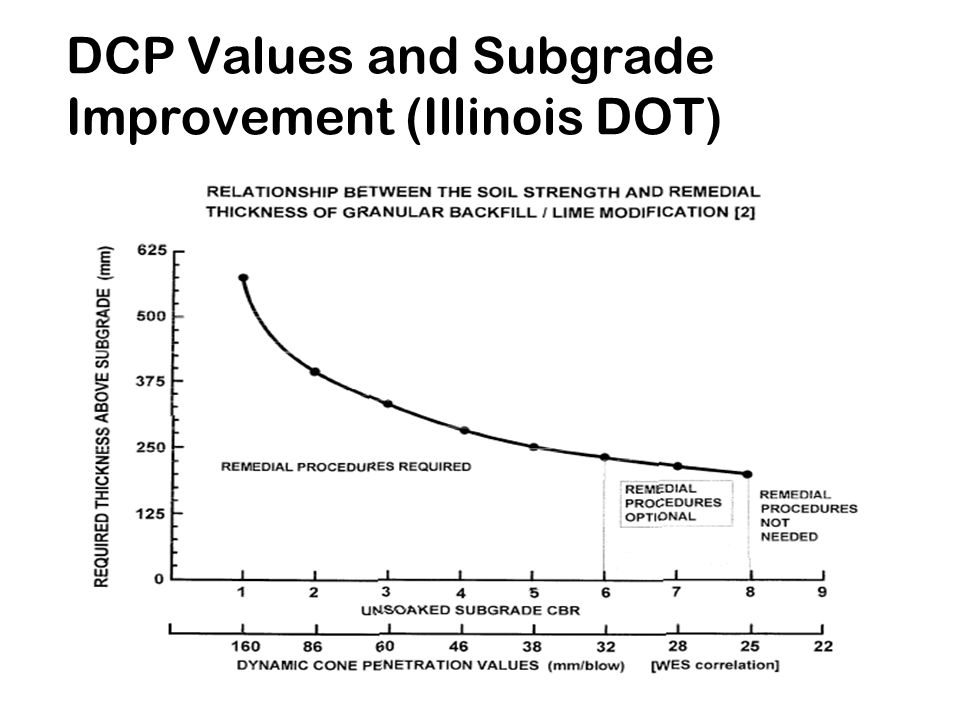

53 DCP Values and Subgrade Improvement (Illinois DOT)

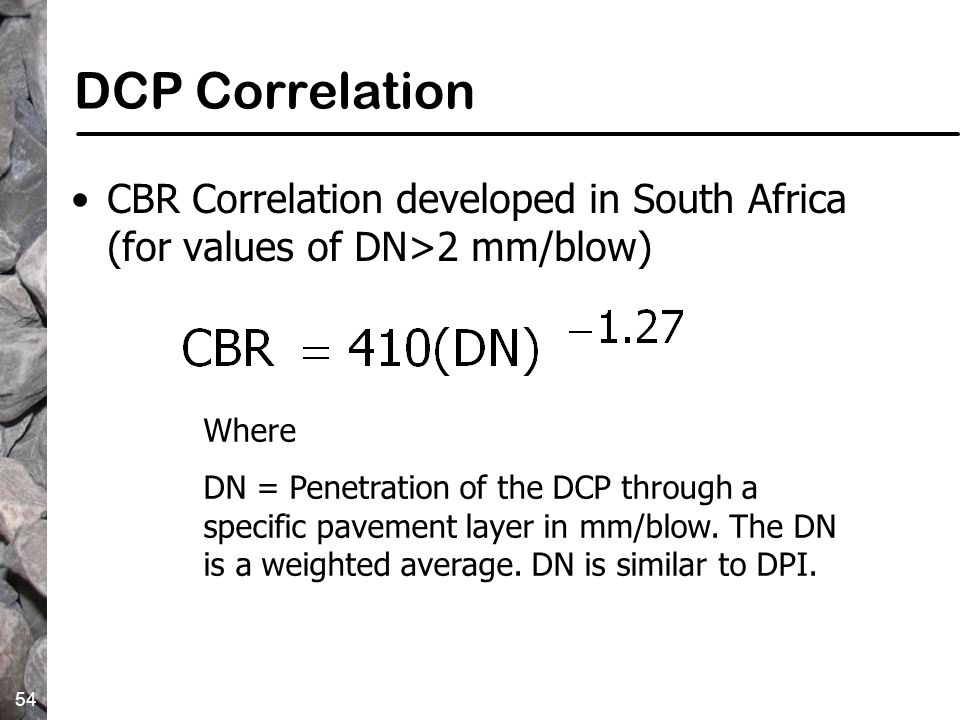

54 54 DCP Correlation CBR Correlation developed in South Africa (for values of DN>2 mm/blow) Where DN = Penetration of the DCP through a specific pavement layer in mm/blow. The DN is a weighted average. DN is similar to DPI.

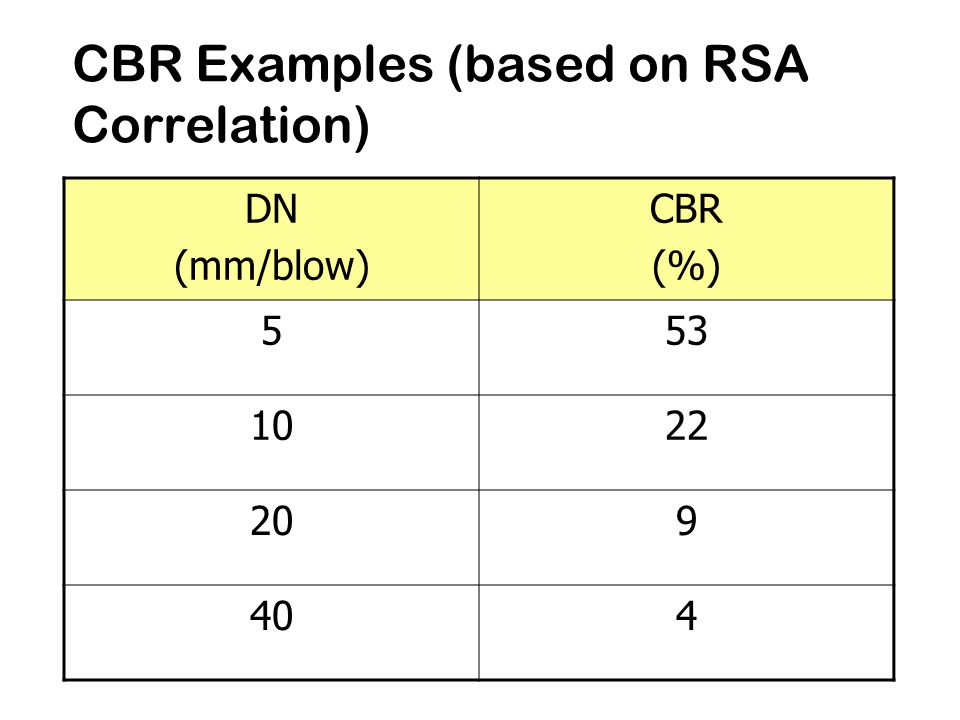

55 CBR Examples (based on RSA Correlation) DN (mm/blow) CBR (%) 553 1022 209 404

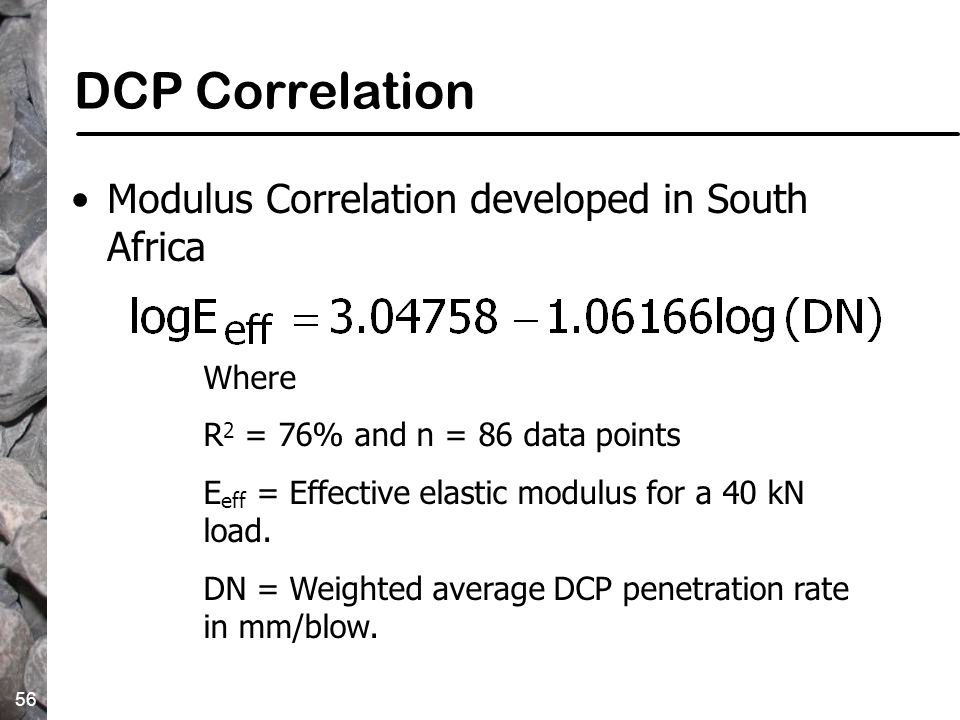

56 56 DCP Correlation Modulus Correlation developed in South Africa Where R 2 = 76% and n = 86 data points E eff = Effective elastic modulus for a 40 kN load. DN = Weighted average DCP penetration rate in mm/blow.

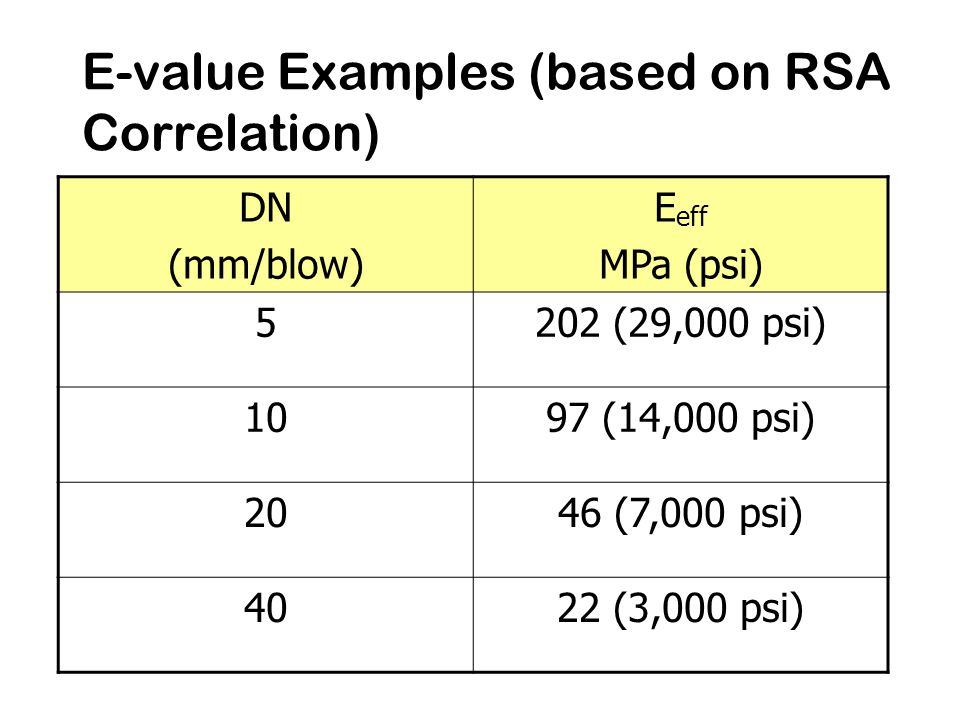

57 E-value Examples (based on RSA Correlation) DN (mm/blow) E eff MPa (psi) 5202 (29,000 psi) 1097 (14,000 psi) 2046 (7,000 psi) 4022 (3,000 psi)

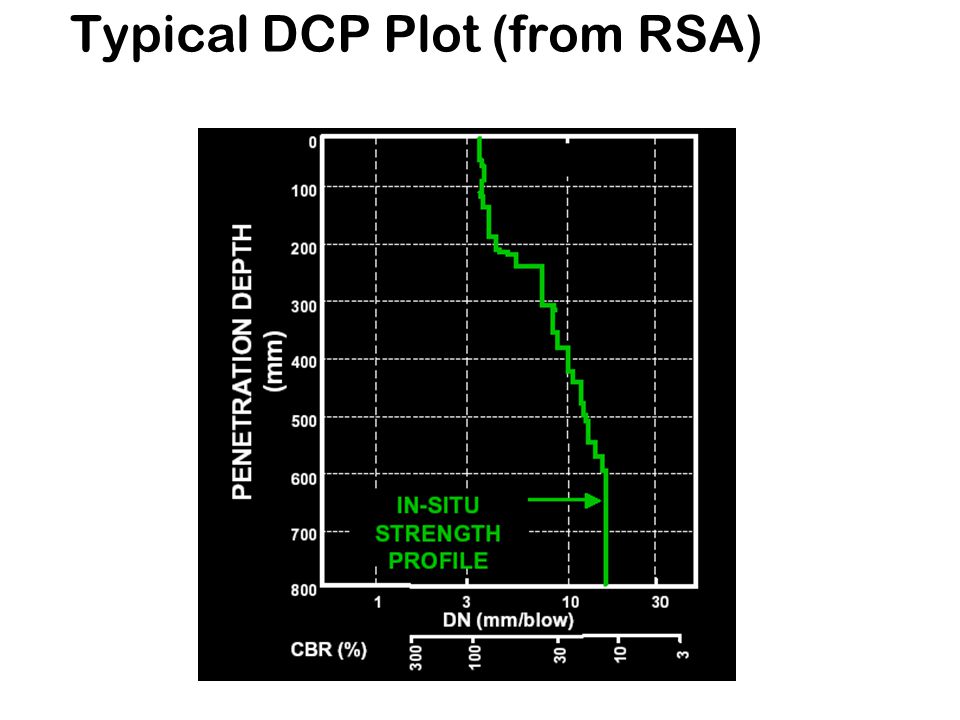

58 Typical DCP Plot (from RSA)

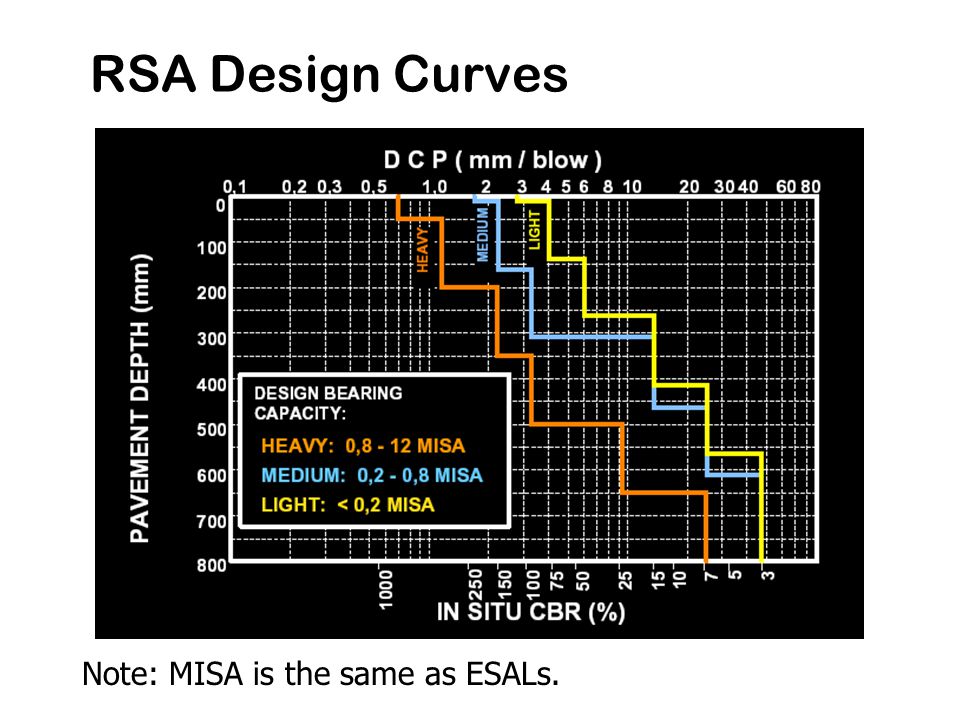

59 RSA Design Curves Note: MISA is the same as ESALs.

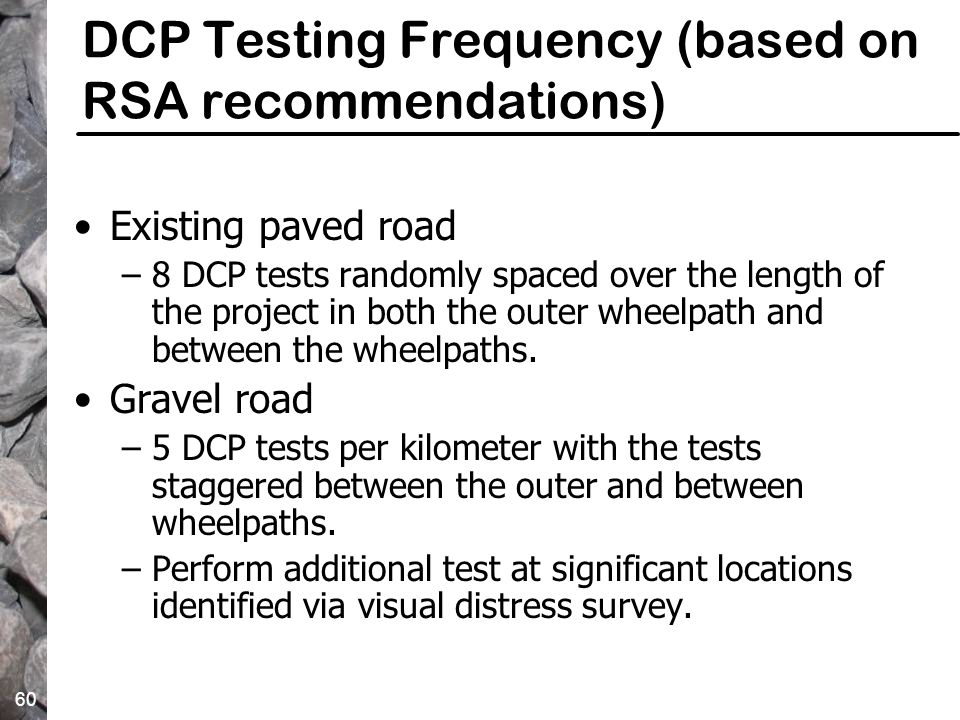

60 60 DCP Testing Frequency (based on RSA recommendations) Existing paved road –8 DCP tests randomly spaced over the length of the project in both the outer wheelpath and between the wheelpaths. Gravel road –5 DCP tests per kilometer with the tests staggered between the outer and between wheelpaths. –Perform additional test at significant locations identified via visual distress survey.

61 61 DCP—Supplemental Information

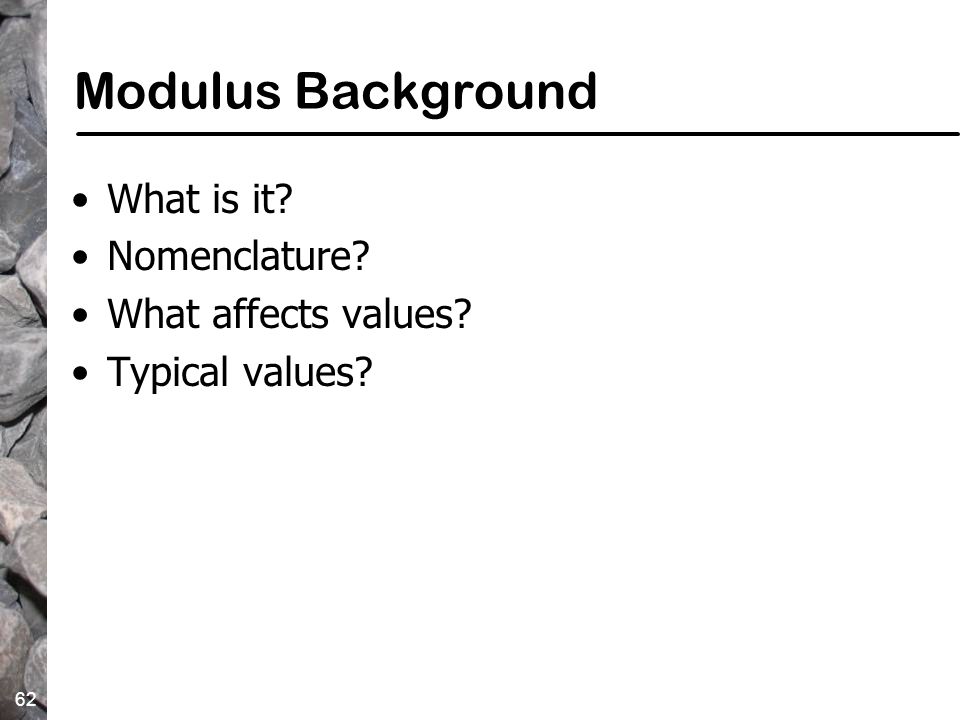

62 62 Modulus Background What is it? Nomenclature? What affects values? Typical values?

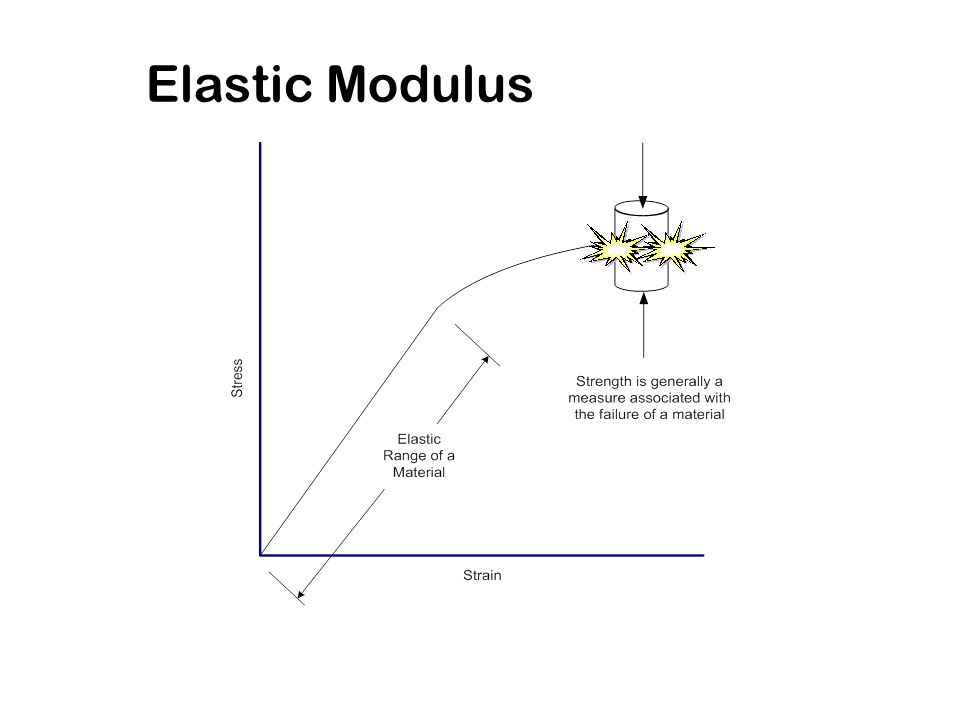

63 Elastic Modulus

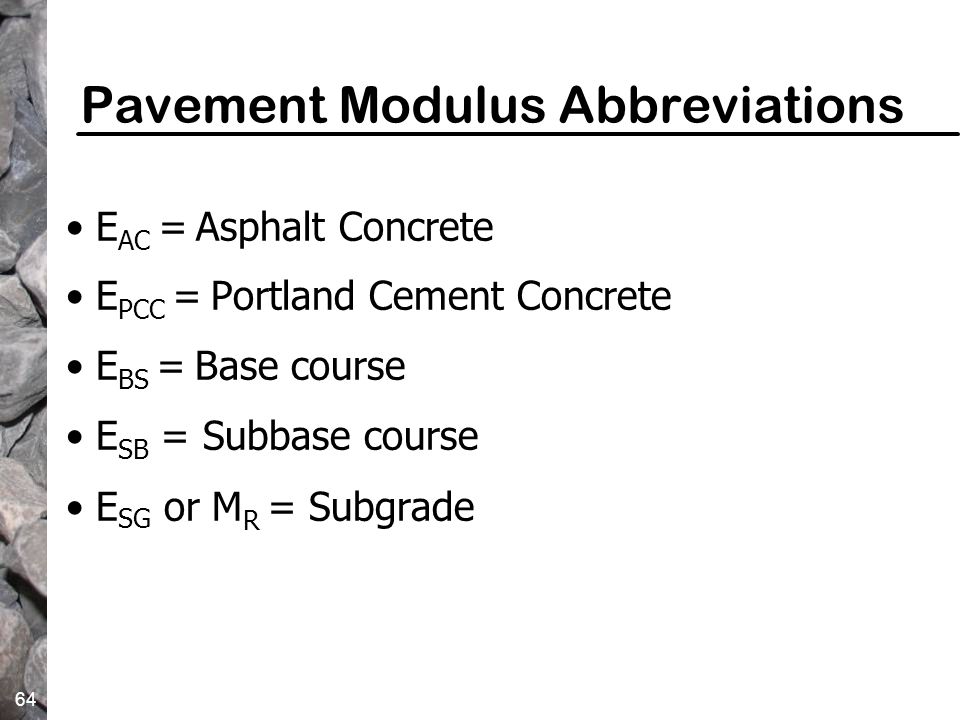

64 64 Pavement Modulus Abbreviations E AC = Asphalt Concrete E PCC = Portland Cement Concrete E BS = Base course E SB = Subbase course E SG or M R = Subgrade

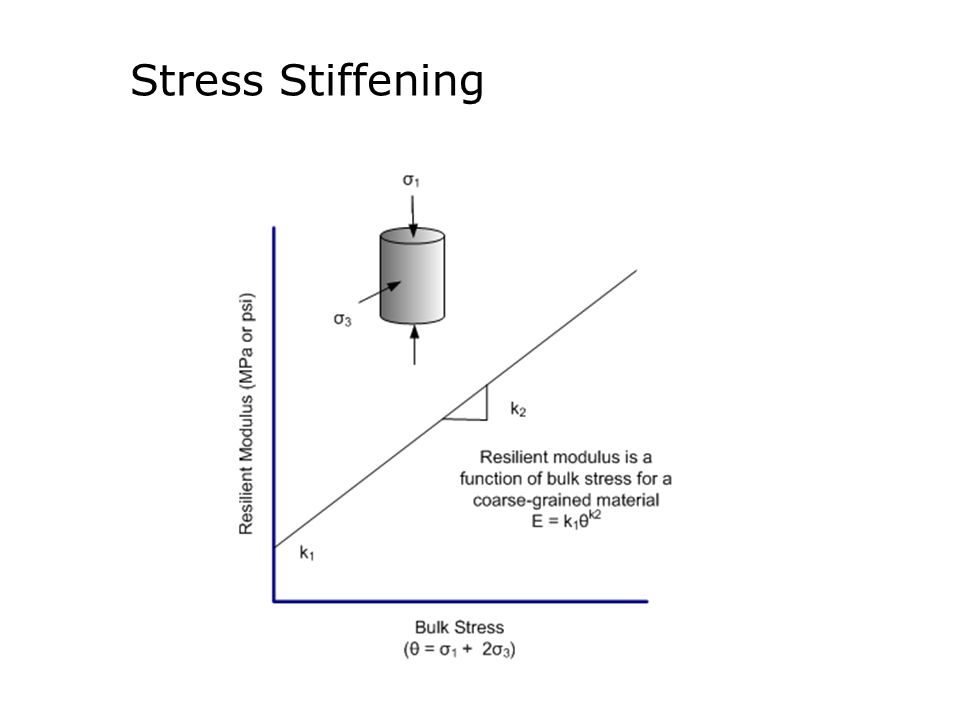

65 Stress Stiffening

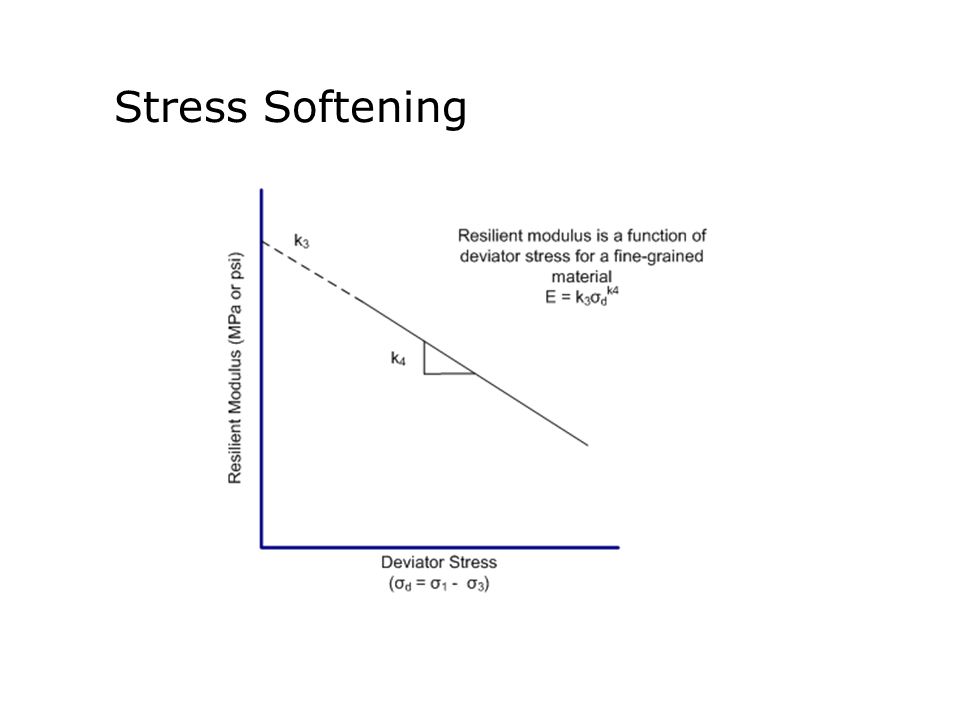

66 Stress Softening

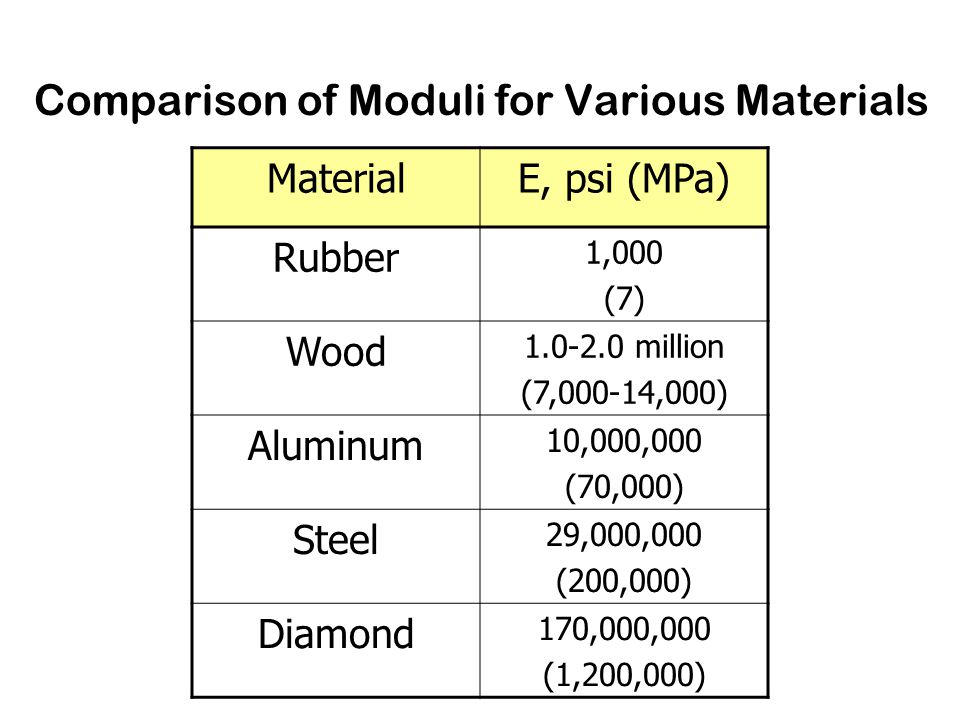

67 Comparison of Moduli for Various Materials MaterialE, psi (MPa) Rubber 1,000 (7) Wood 1.0-2.0 million (7,000-14,000) Aluminum 10,000,000 (70,000) Steel 29,000,000 (200,000) Diamond 170,000,000 (1,200,000)

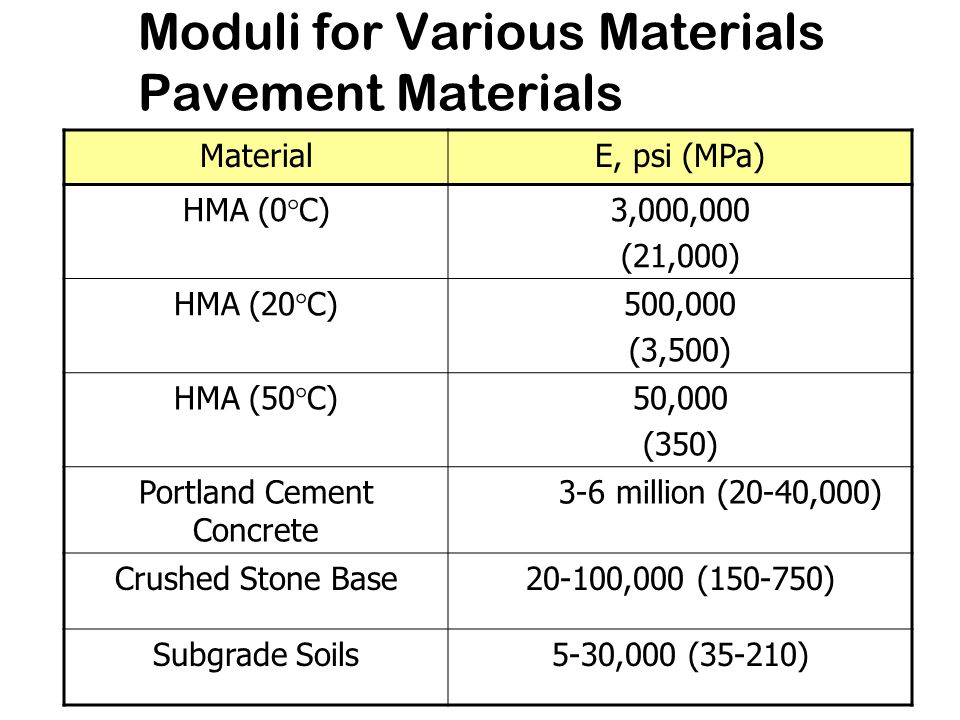

68 Moduli for Various Materials Pavement Materials MaterialE, psi (MPa) HMA (0  C) 3,000,000 (21,000) HMA (20  C) 500,000 (3,500) HMA (50  C) 50,000 (350) Portland Cement Concrete 3-6 million (20-40,000) Crushed Stone Base20-100,000 (150-750) Subgrade Soils5-30,000 (35-210)

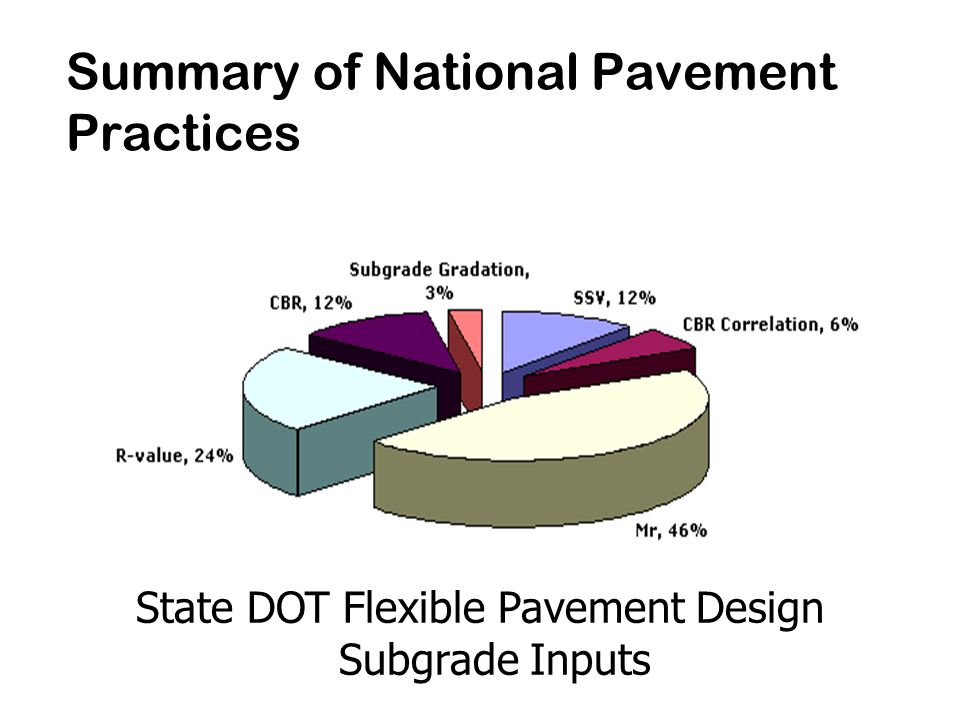

69 Summary of National Pavement Practices State DOT Flexible Pavement Design Subgrade Inputs

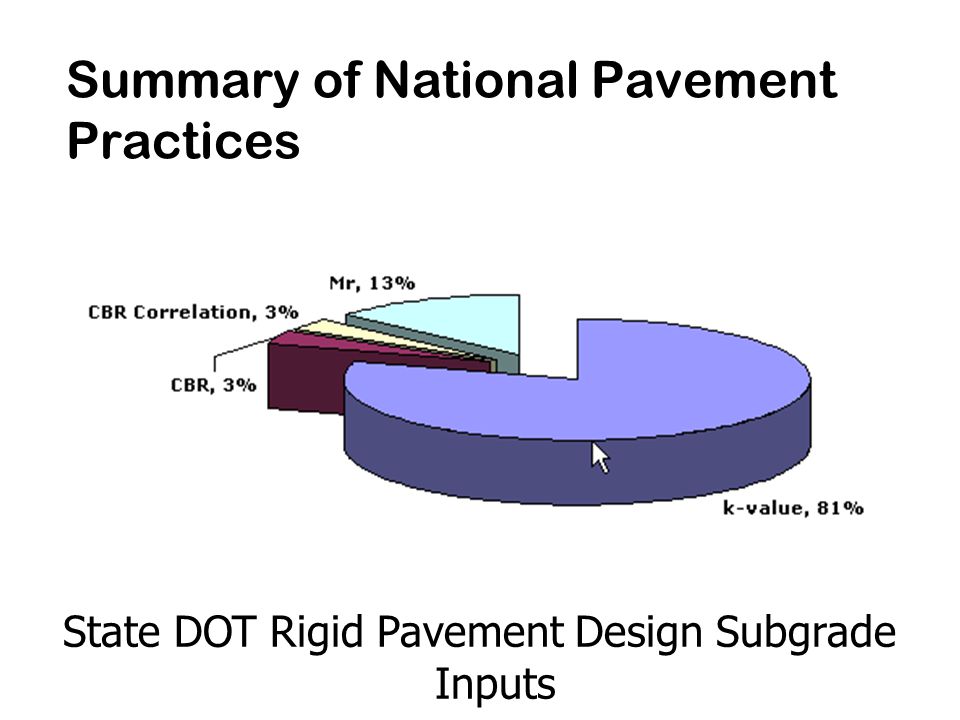

70 Summary of National Pavement Practices State DOT Rigid Pavement Design Subgrade Inputs

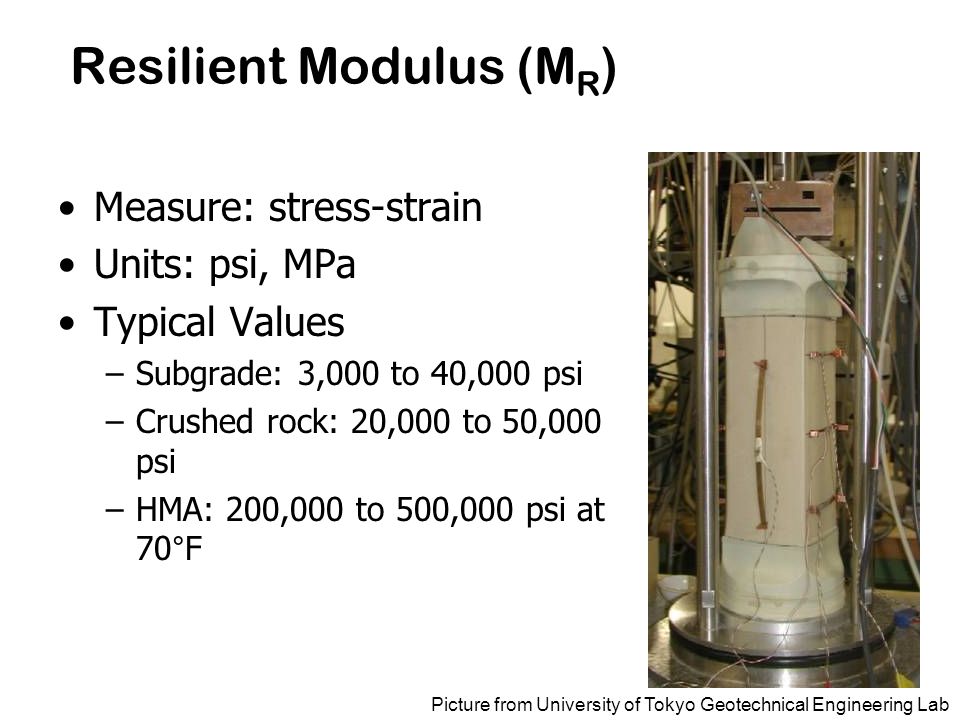

71 Resilient Modulus (M R ) Measure: stress-strain Units: psi, MPa Typical Values –Subgrade: 3,000 to 40,000 psi –Crushed rock: 20,000 to 50,000 psi –HMA: 200,000 to 500,000 psi at 70 ° F Picture from University of Tokyo Geotechnical Engineering Lab

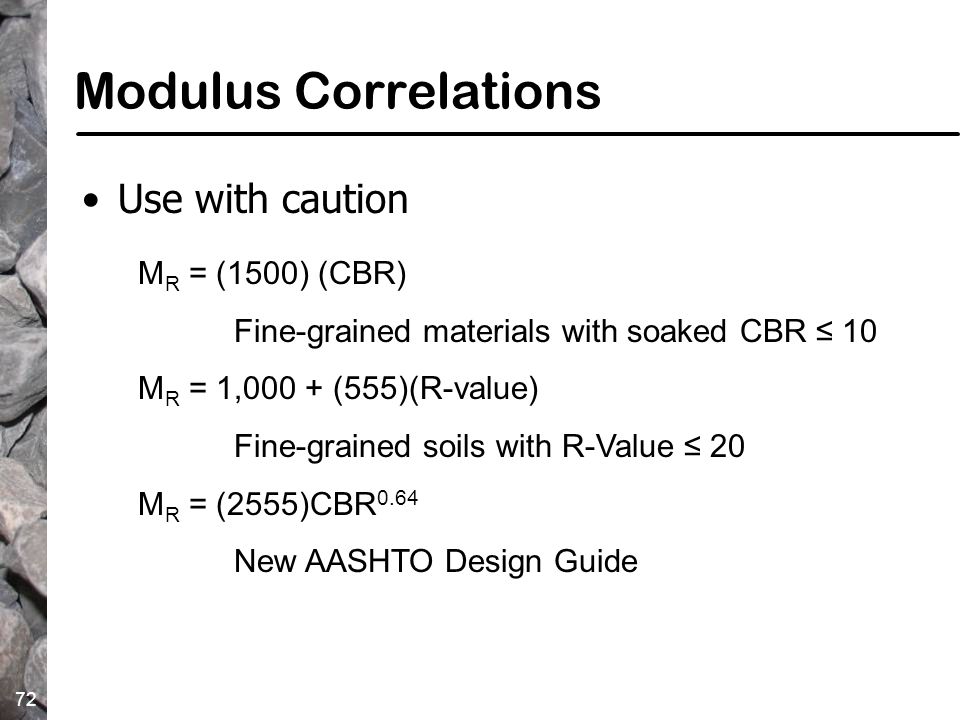

72 72 Modulus Correlations Use with caution M R = (1500) (CBR) Fine-grained materials with soaked CBR ≤ 10 M R = 1,000 + (555)(R-value) Fine-grained soils with R-Value ≤ 20 M R = (2555)CBR 0.64 New AASHTO Design Guide

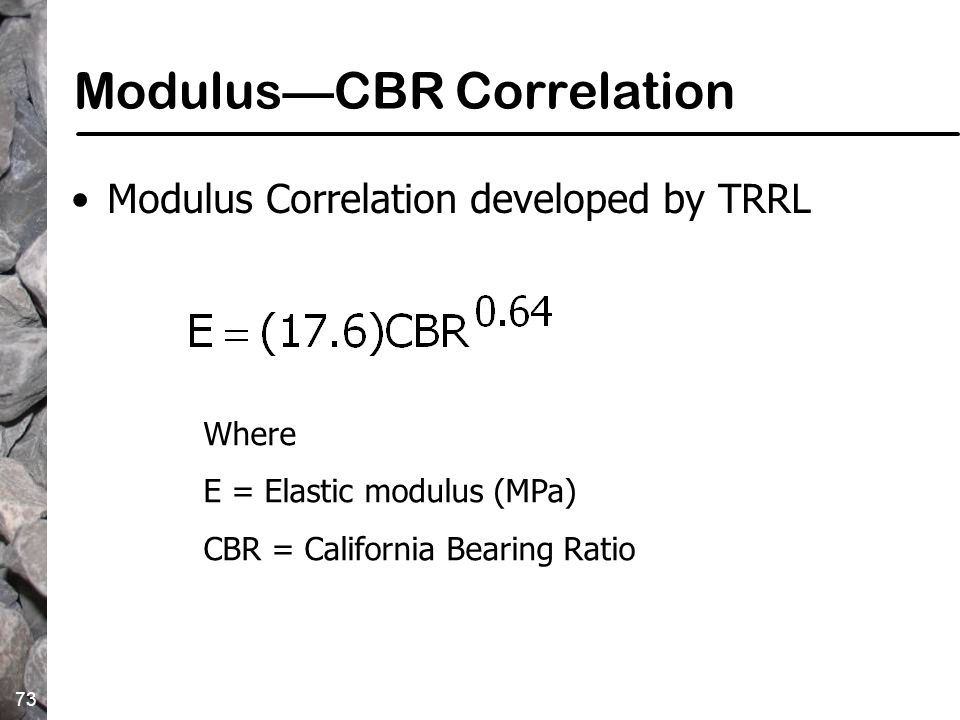

73 73 Modulus—CBR Correlation Modulus Correlation developed by TRRL Where E = Elastic modulus (MPa) CBR = California Bearing Ratio

74 Aggregates

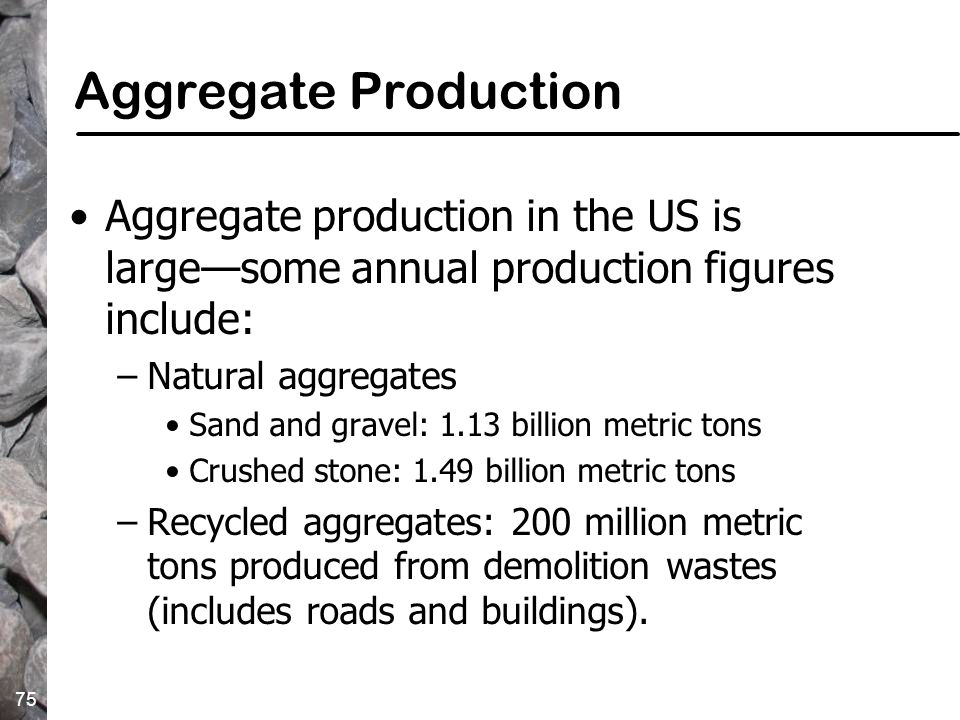

75 75 Aggregate Production Aggregate production in the US is large—some annual production figures include: –Natural aggregates Sand and gravel: 1.13 billion metric tons Crushed stone: 1.49 billion metric tons –Recycled aggregates: 200 million metric tons produced from demolition wastes (includes roads and buildings).

76 76 Aggregate Production Sand and gravel (estimated for 2003) –1.13 billion metric tons of sand and gravel produced in the US in 2003. –Value $5.8 billion –Produced by 4,000 companies from 6,400 operations in all 50 states. Leading production states are: California, Texas, Michigan, Arizona, Ohio, Minnesota, Washington, Wisconsin, Nevada, and Colorado. –How were these aggregates used? 53% unspecified 20% concrete aggregates 11% road bases and road stabilization 7% construction fill 6% HMA and other bituminous mixtures 3% other applications

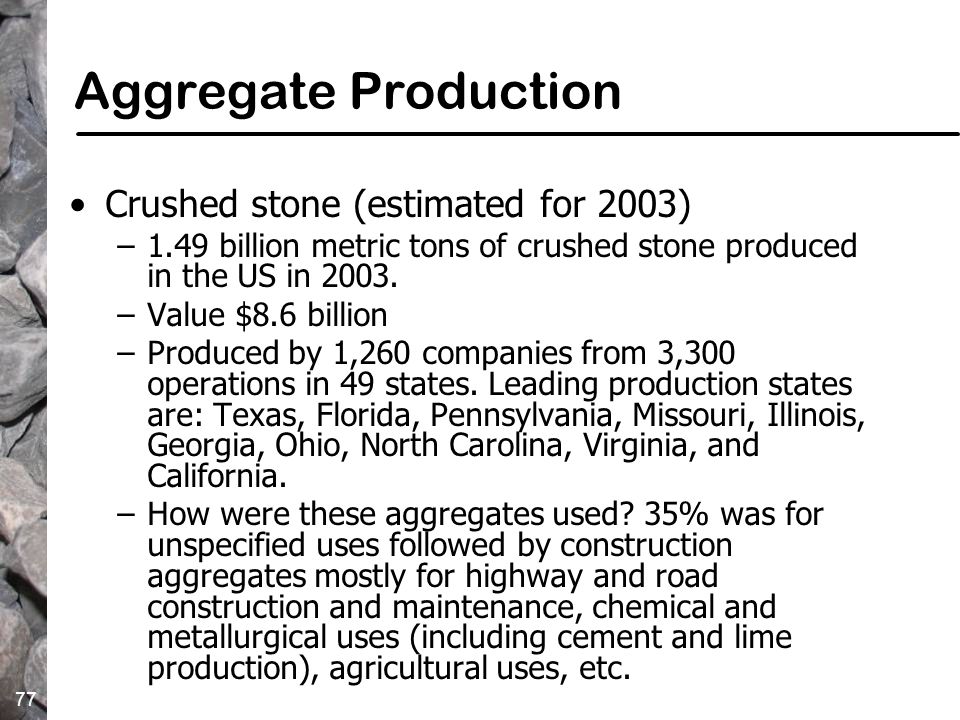

77 77 Aggregate Production Crushed stone (estimated for 2003) –1.49 billion metric tons of crushed stone produced in the US in 2003. –Value $8.6 billion –Produced by 1,260 companies from 3,300 operations in 49 states. Leading production states are: Texas, Florida, Pennsylvania, Missouri, Illinois, Georgia, Ohio, North Carolina, Virginia, and California. –How were these aggregates used? 35% was for unspecified uses followed by construction aggregates mostly for highway and road construction and maintenance, chemical and metallurgical uses (including cement and lime production), agricultural uses, etc.

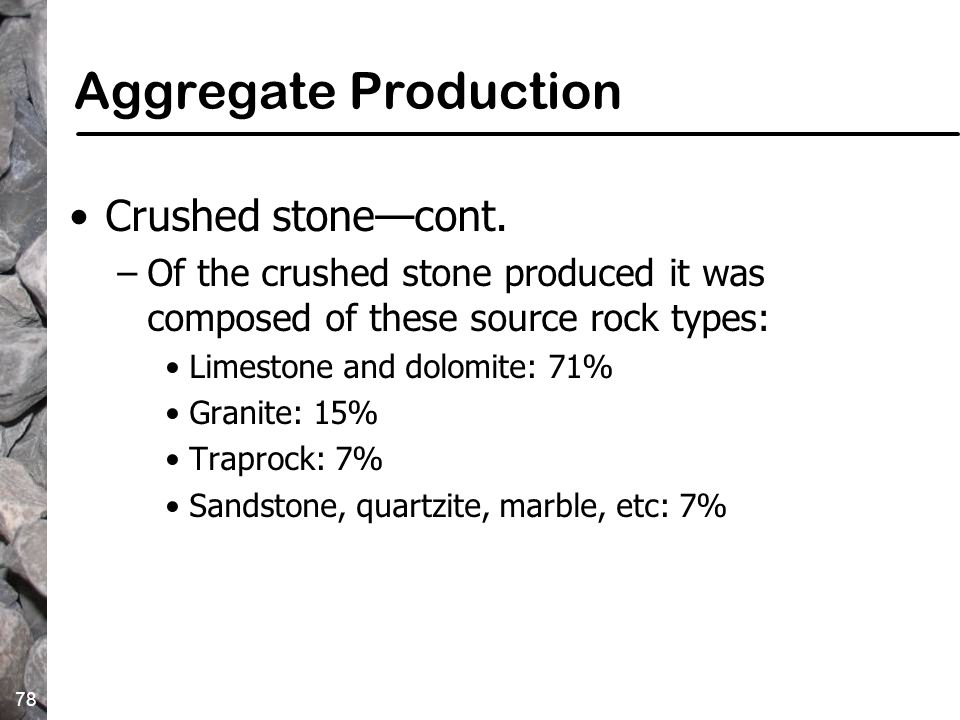

78 78 Aggregate Production Crushed stone—cont. –Of the crushed stone produced it was composed of these source rock types: Limestone and dolomite: 71% Granite: 15% Traprock: 7% Sandstone, quartzite, marble, etc: 7%

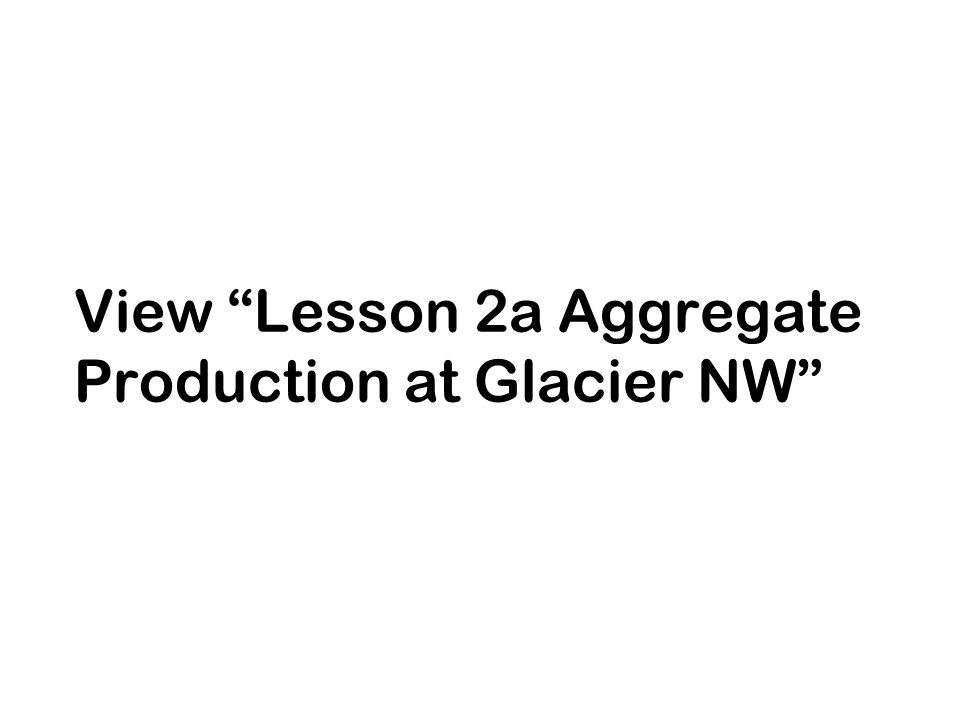

79 View “Lesson 2a Aggregate Production at Glacier NW”

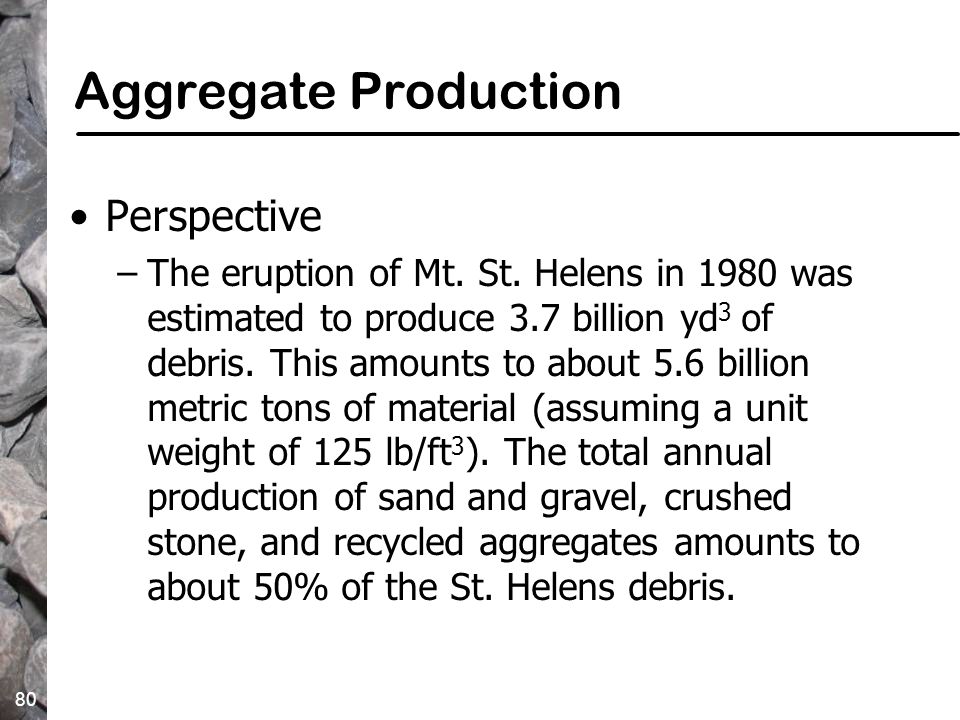

80 80 Aggregate Production Perspective –The eruption of Mt. St. Helens in 1980 was estimated to produce 3.7 billion yd 3 of debris. This amounts to about 5.6 billion metric tons of material (assuming a unit weight of 125 lb/ft 3 ). The total annual production of sand and gravel, crushed stone, and recycled aggregates amounts to about 50% of the St. Helens debris.

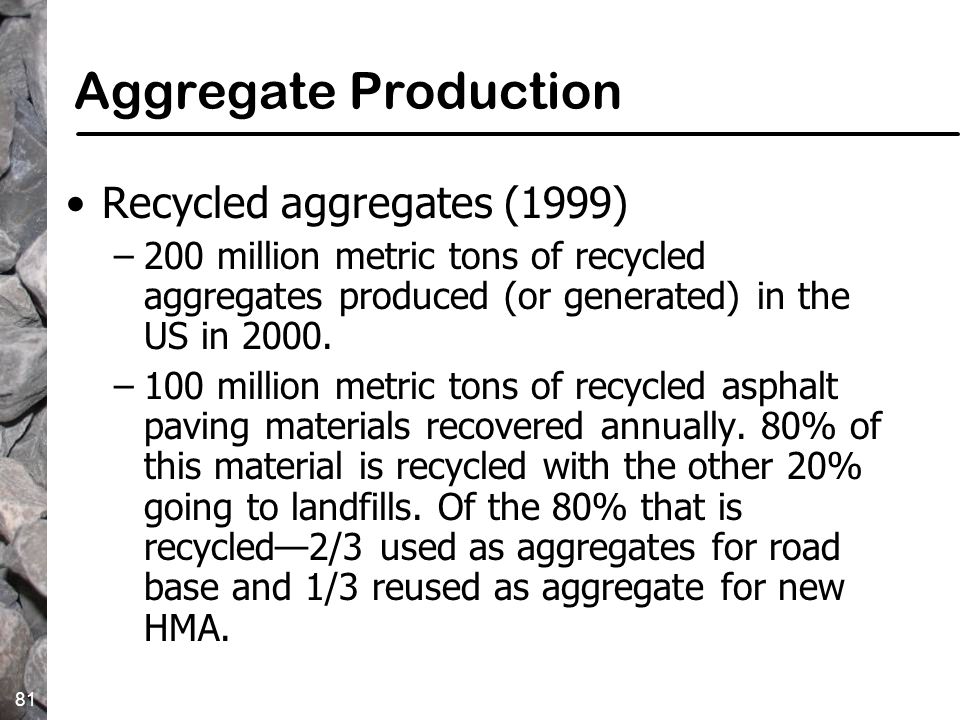

81 81 Aggregate Production Recycled aggregates (1999) –200 million metric tons of recycled aggregates produced (or generated) in the US in 2000. –100 million metric tons of recycled asphalt paving materials recovered annually. 80% of this material is recycled with the other 20% going to landfills. Of the 80% that is recycled—2/3 used as aggregates for road base and 1/3 reused as aggregate for new HMA.

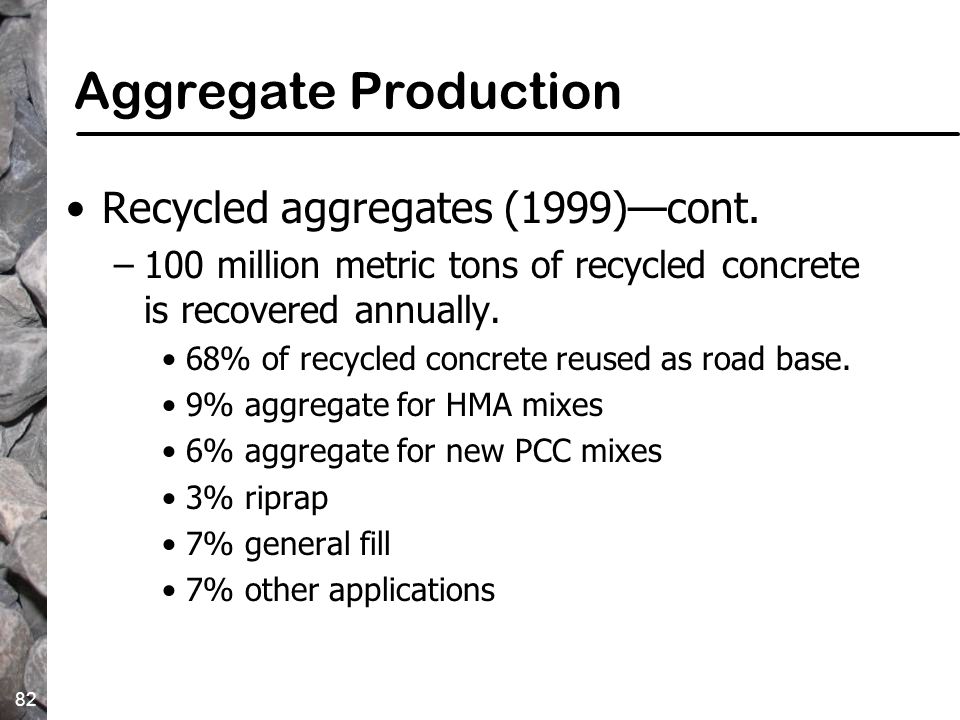

82 82 Aggregate Production Recycled aggregates (1999)—cont. –100 million metric tons of recycled concrete is recovered annually. 68% of recycled concrete reused as road base. 9% aggregate for HMA mixes 6% aggregate for new PCC mixes 3% riprap 7% general fill 7% other applications

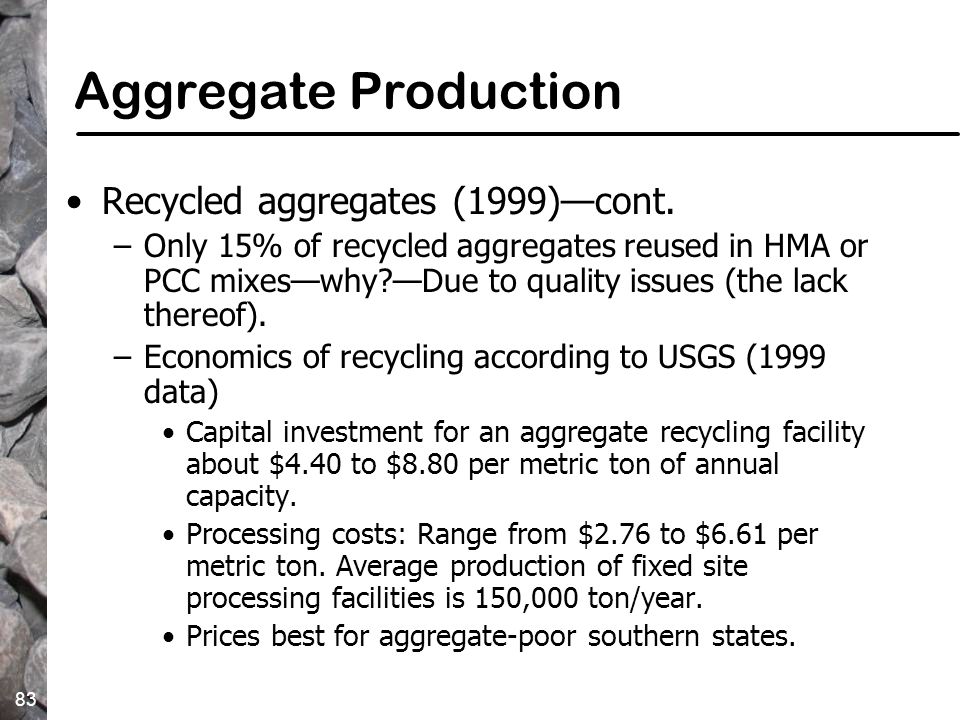

83 83 Aggregate Production Recycled aggregates (1999)—cont. –Only 15% of recycled aggregates reused in HMA or PCC mixes—why?—Due to quality issues (the lack thereof). –Economics of recycling according to USGS (1999 data) Capital investment for an aggregate recycling facility about $4.40 to $8.80 per metric ton of annual capacity. Processing costs: Range from $2.76 to $6.61 per metric ton. Average production of fixed site processing facilities is 150,000 ton/year. Prices best for aggregate-poor southern states.

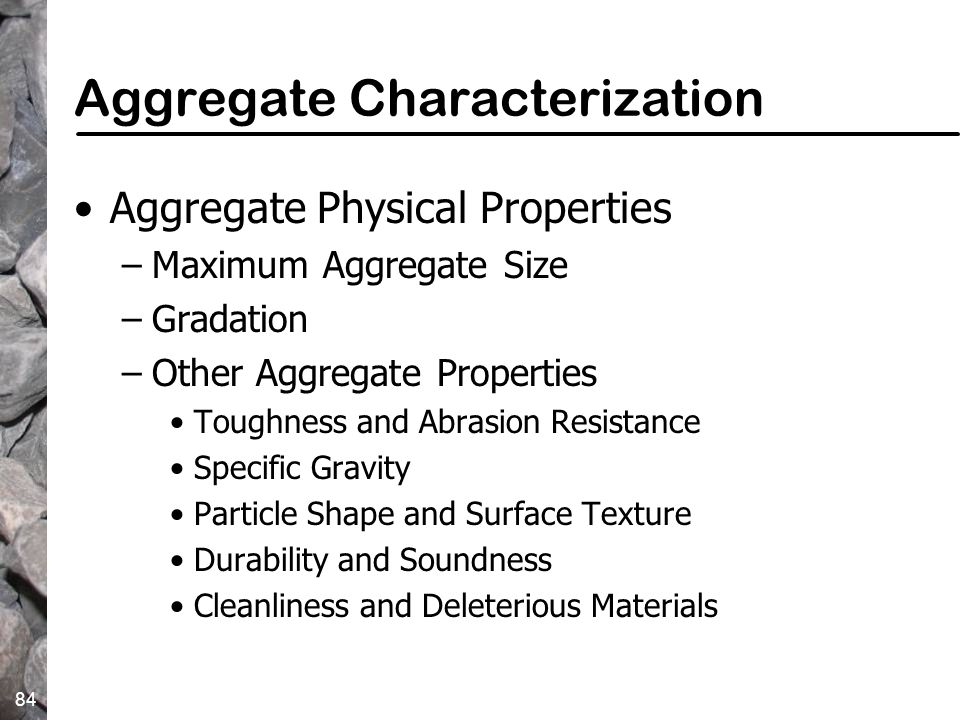

84 84 Aggregate Characterization Aggregate Physical Properties –Maximum Aggregate Size –Gradation –Other Aggregate Properties Toughness and Abrasion Resistance Specific Gravity Particle Shape and Surface Texture Durability and Soundness Cleanliness and Deleterious Materials

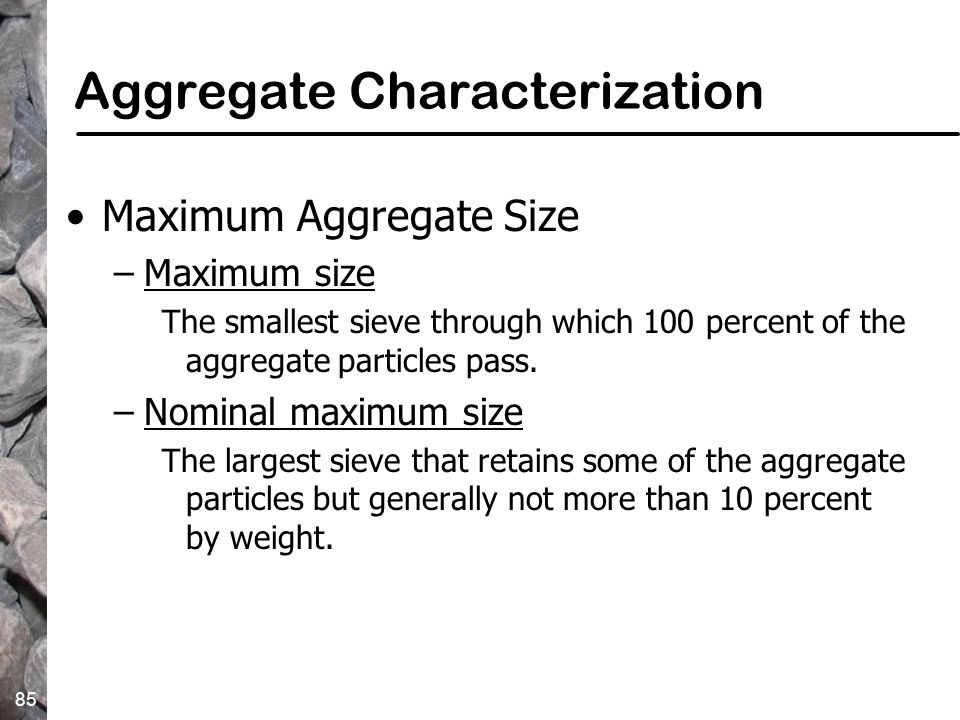

85 85 Aggregate Characterization Maximum Aggregate Size –Maximum size The smallest sieve through which 100 percent of the aggregate particles pass. –Nominal maximum size The largest sieve that retains some of the aggregate particles but generally not more than 10 percent by weight.

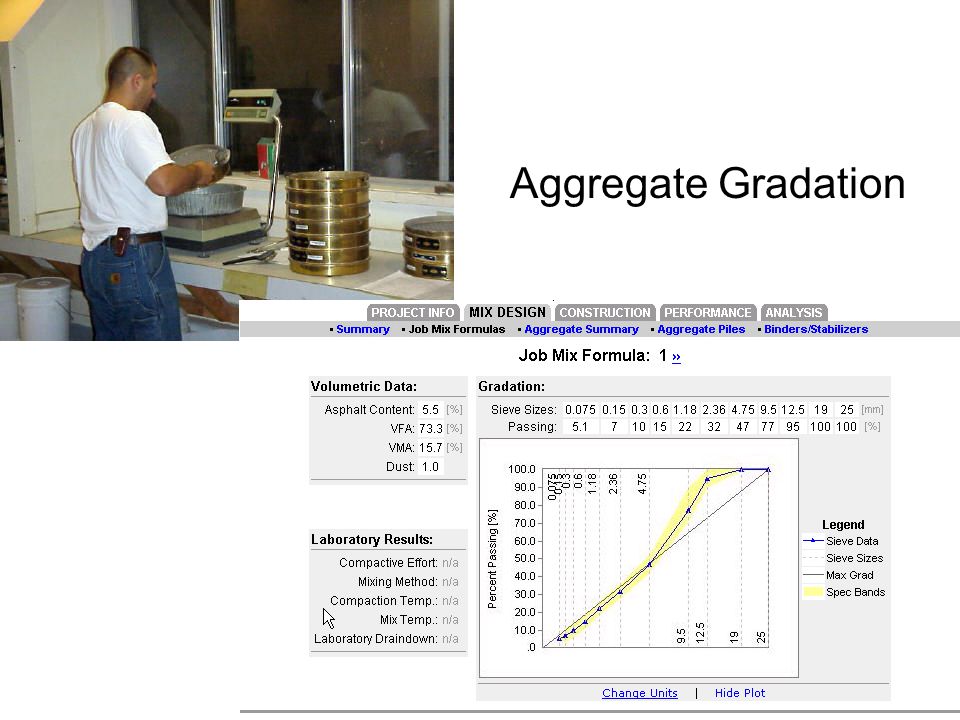

86 Aggregate Gradation

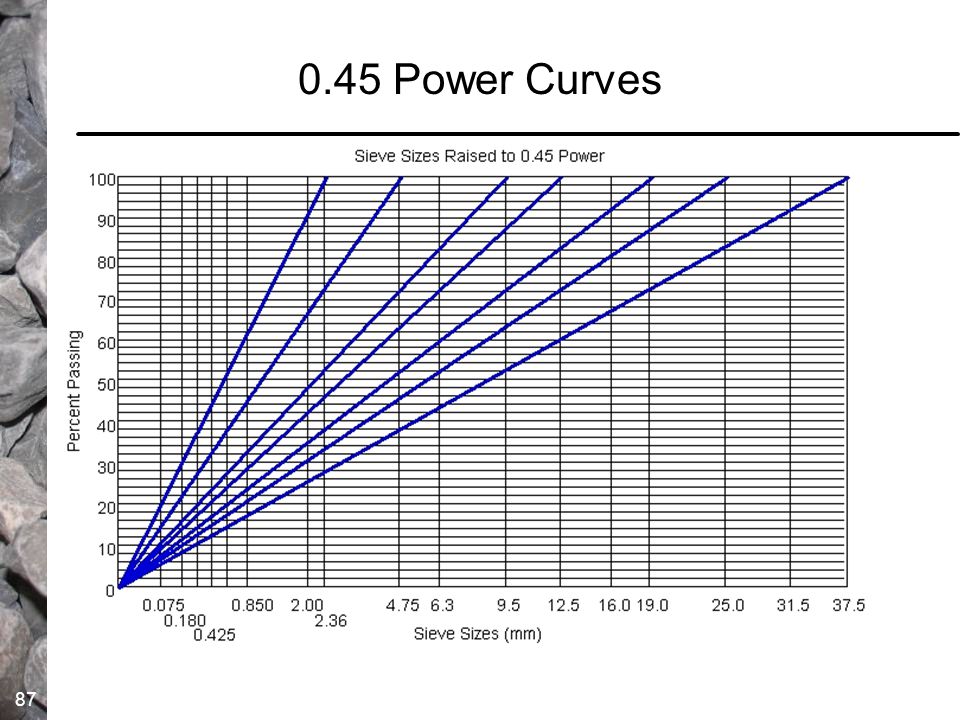

87 87 0.45 Power Curves

88 88 Calculation of the Max Density Curve where P = % finer than the sieve d = aggregate size being considered D = maximum aggregate size being used n = parameter which equals 0.45—represents the maximum particle packing

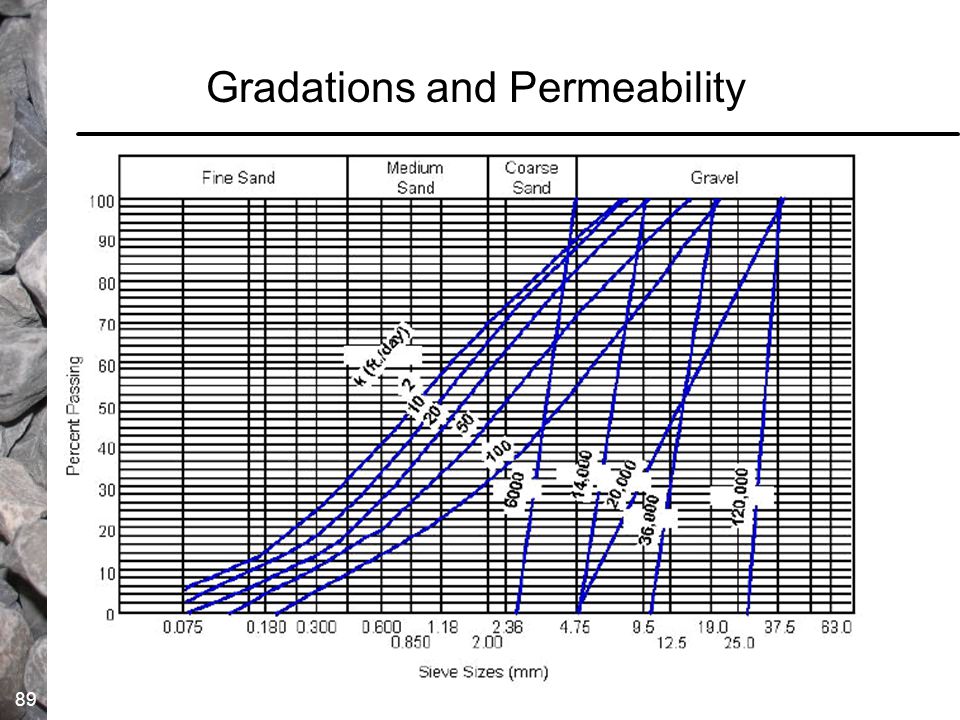

89 89 Gradations and Permeability

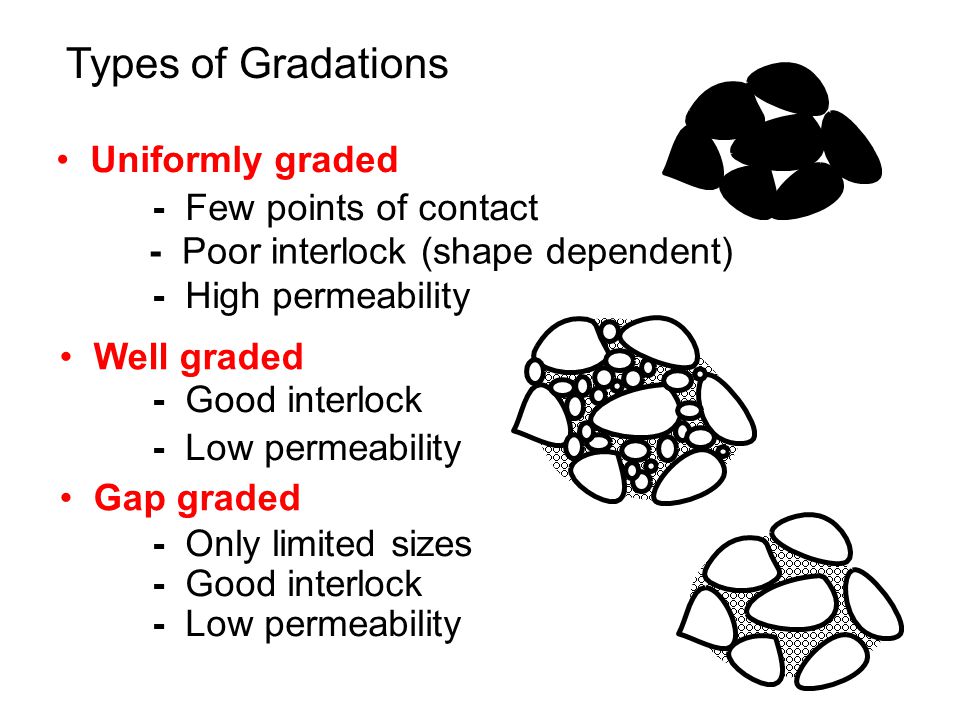

90 Uniformly graded - Few points of contact - Poor interlock (shape dependent) - High permeability Well graded - Good interlock - Low permeability Gap graded - Only limited sizes - Good interlock - Low permeability Types of Gradations

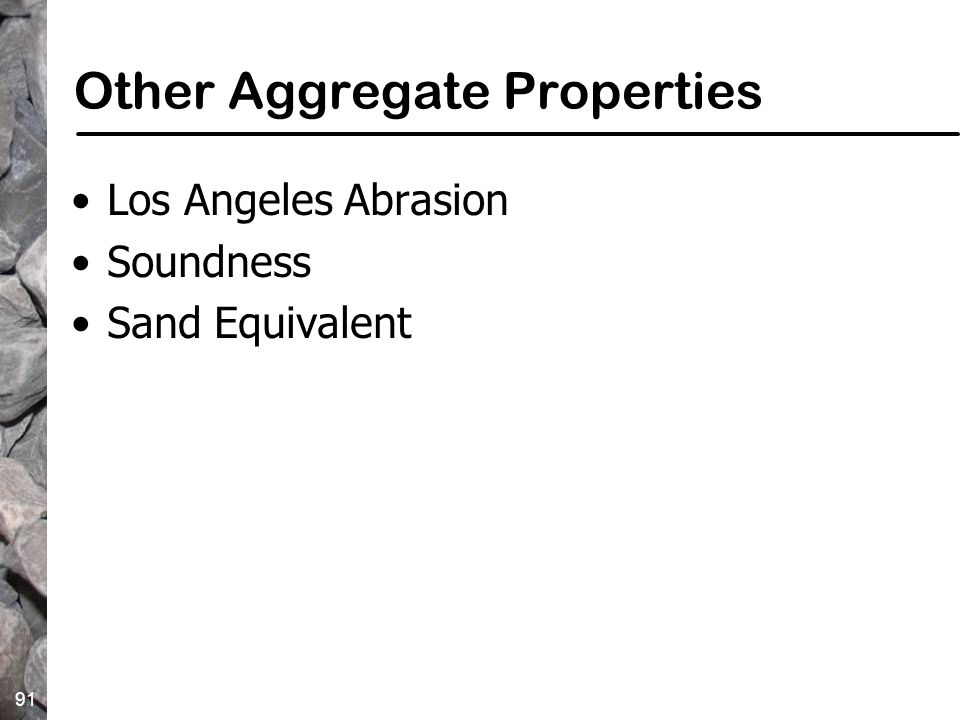

91 91 Other Aggregate Properties Los Angeles Abrasion Soundness Sand Equivalent

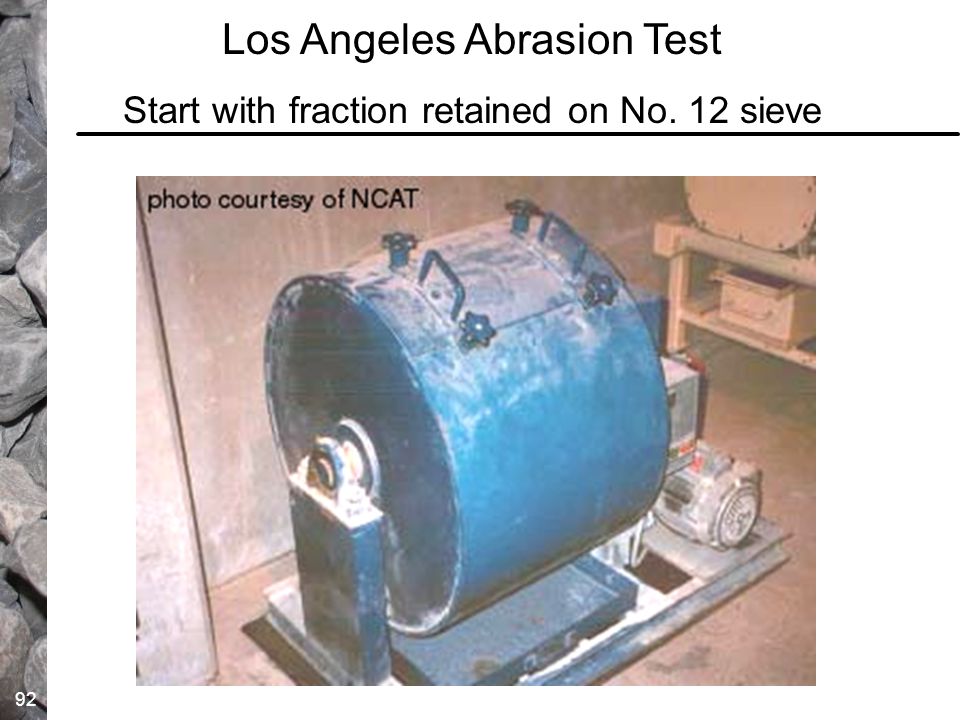

92 92 Los Angeles Abrasion Test Start with fraction retained on No. 12 sieve

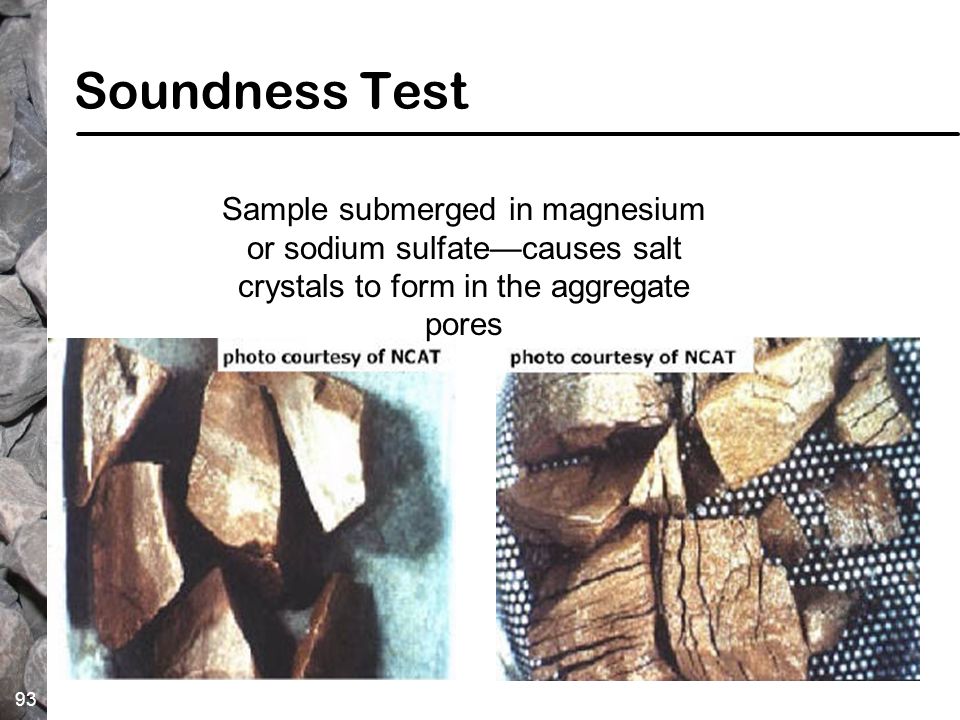

93 93 Sample submerged in magnesium or sodium sulfate—causes salt crystals to form in the aggregate pores Soundness Test

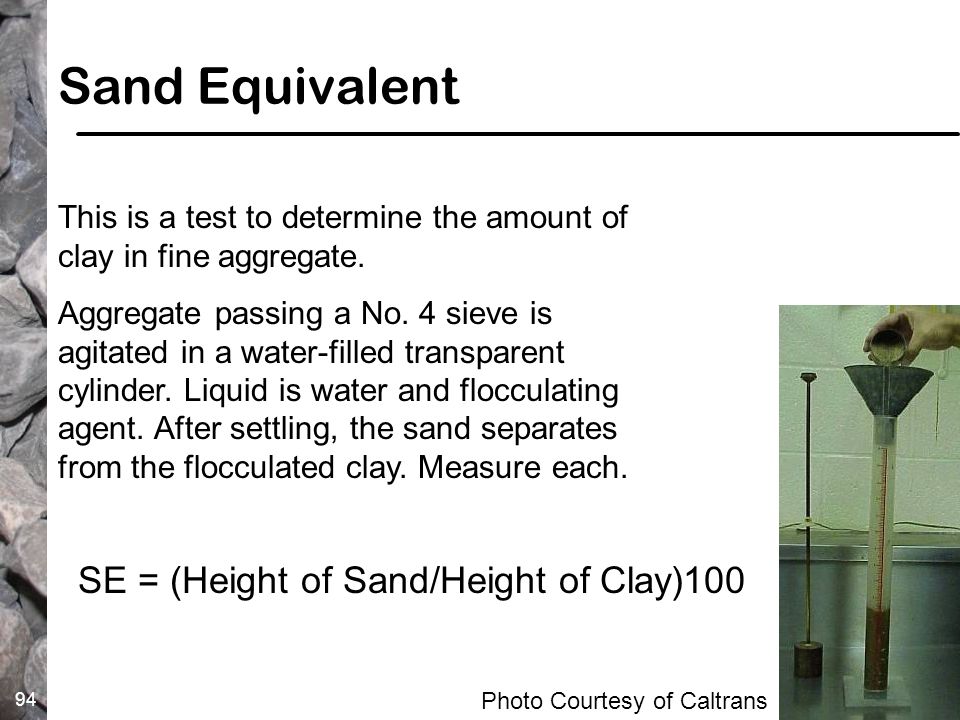

94 94 Sand Equivalent SE = (Height of Sand/Height of Clay)100 Photo Courtesy of Caltrans This is a test to determine the amount of clay in fine aggregate. Aggregate passing a No. 4 sieve is agitated in a water-filled transparent cylinder. Liquid is water and flocculating agent. After settling, the sand separates from the flocculated clay. Measure each.

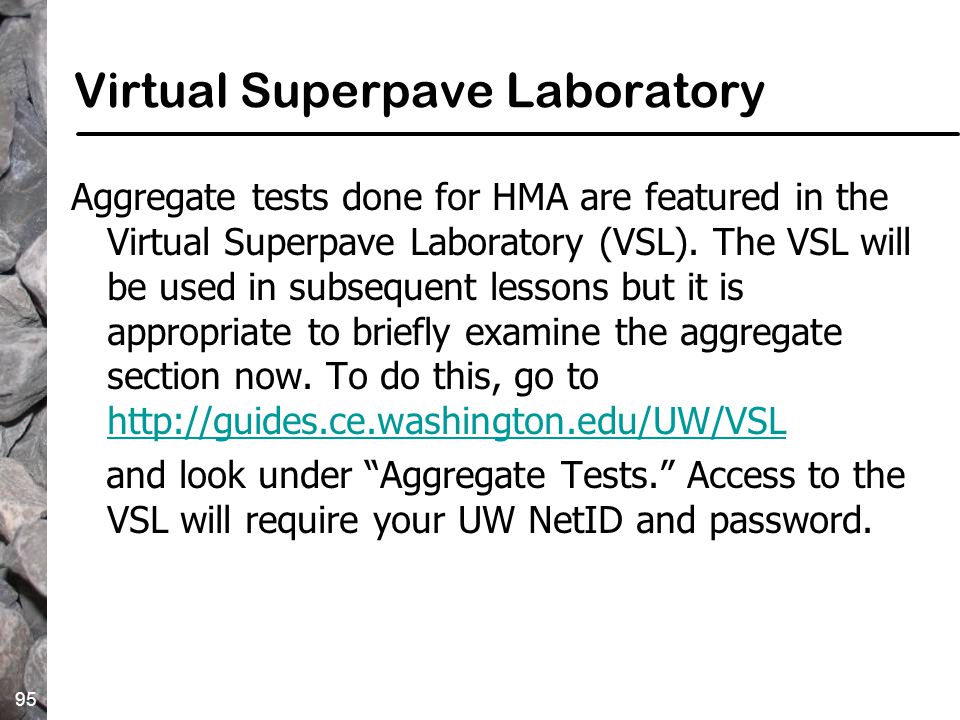

95 95 Virtual Superpave Laboratory Aggregate tests done for HMA are featured in the Virtual Superpave Laboratory (VSL). The VSL will be used in subsequent lessons but it is appropriate to briefly examine the aggregate section now. To do this, go to http://guides.ce.washington.edu/UW/VSL http://guides.ce.washington.edu/UW/VSL and look under “Aggregate Tests.” Access to the VSL will require your UW NetID and password.

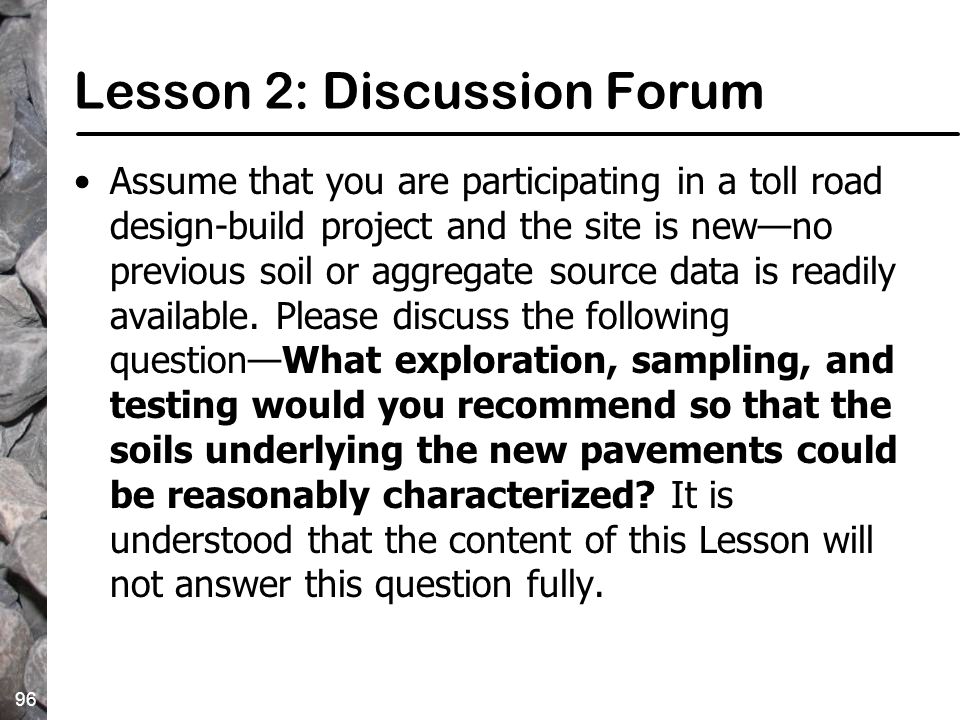

96 96 Lesson 2: Discussion Forum Assume that you are participating in a toll road design-build project and the site is new—no previous soil or aggregate source data is readily available. Please discuss the following question—What exploration, sampling, and testing would you recommend so that the soils underlying the new pavements could be reasonably characterized? It is understood that the content of this Lesson will not answer this question fully.

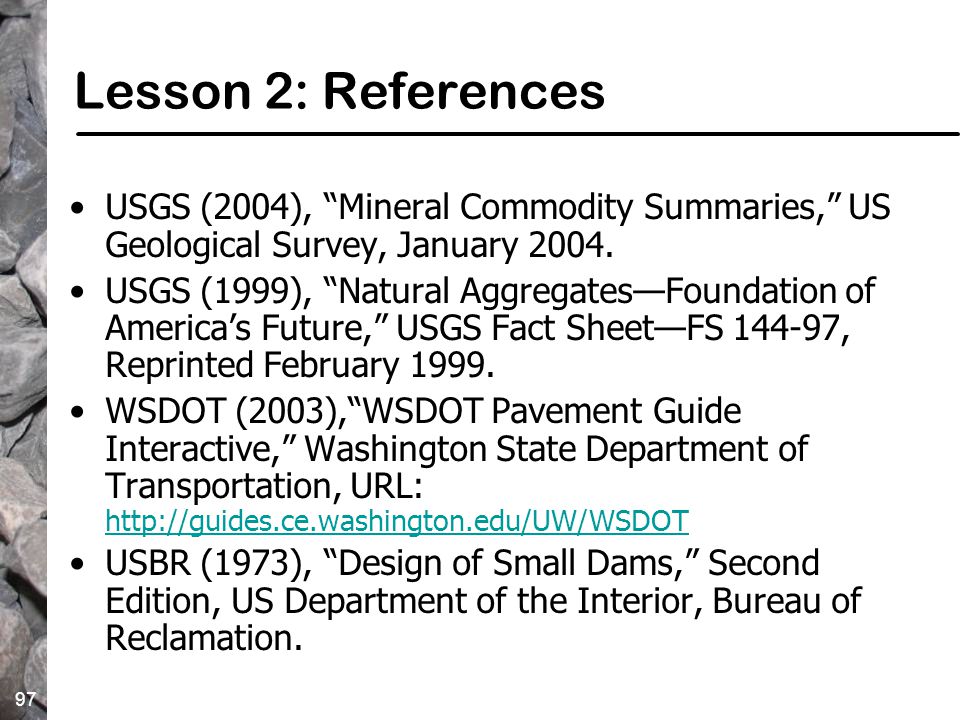

97 97 Lesson 2: References USGS (2004), “Mineral Commodity Summaries,” US Geological Survey, January 2004. USGS (1999), “Natural Aggregates—Foundation of America’s Future,” USGS Fact Sheet—FS 144-97, Reprinted February 1999. WSDOT (2003),“WSDOT Pavement Guide Interactive,” Washington State Department of Transportation, URL: http://guides.ce.washington.edu/UW/WSDOT http://guides.ce.washington.edu/UW/WSDOT USBR (1973), “Design of Small Dams,” Second Edition, US Department of the Interior, Bureau of Reclamation.

98 98 Lesson 2: References FAA (1996), “Airport Pavement Design and Evaluation,” Advisory Circular 150/5320-6D, Federal Aviation Administration, January 30, 1996. http://www.faa.gov/arp/pdf/5320-6dp1.pdf http://www.faa.gov/arp/pdf/5320-6dp1.pdf PCA (1992), “PCA Soil Primer,” Publication EB007.05S, Portland Cement Association, Skokie, Illinois. WSDOT (2004), “Standard Specifications for Road, Bridge, and Municipal Construction,” M41-10, Washington State Department of Transportation. http://www.wsdot.wa.gov/fasc/EngineeringPublications/Manuals/ SS2004.PDF http://www.wsdot.wa.gov/fasc/EngineeringPublications/Manuals/ SS2004.PDF
