Introduction to Programmable Logic Controller(PLC) Akram Hossain, Professor, Purdue University Calumet Hammond, IN 46323 A Hossain/August 24 20101.

Similar presentations


Presentation on theme: "Introduction to Programmable Logic Controller(PLC) Akram Hossain, Professor, Purdue University Calumet Hammond, IN 46323 A Hossain/August 24 20101."— Presentation transcript:

1 Introduction to Programmable Logic Controller(PLC) Akram Hossain, Professor, Purdue University Calumet Hammond, IN 46323 A Hossain/August 24 20101

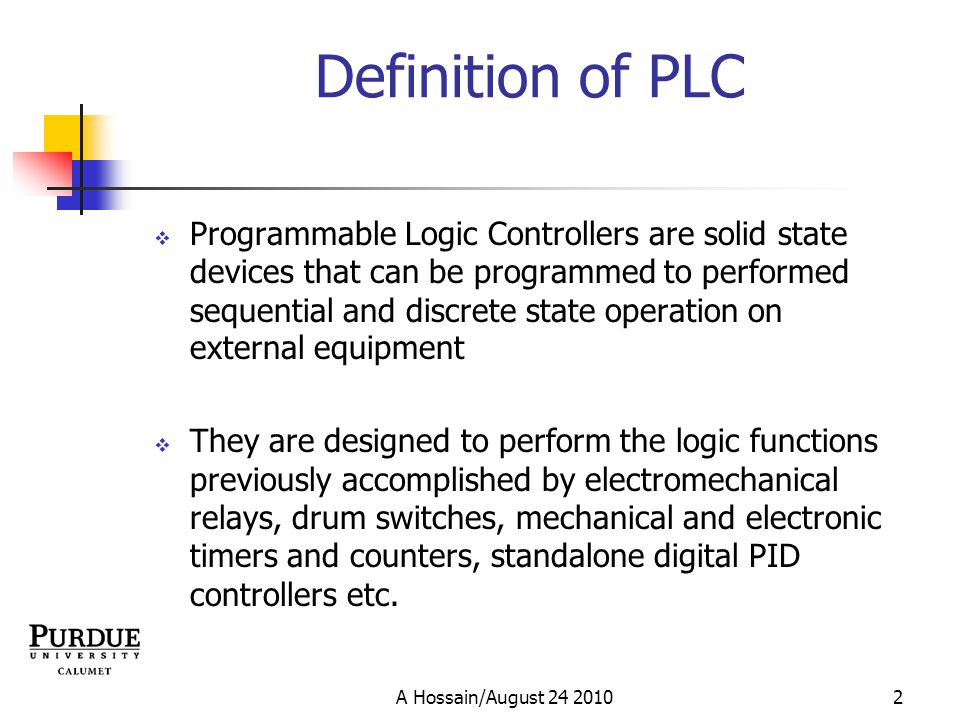

2 Definition of PLC  Programmable Logic Controllers are solid state devices that can be programmed to performed sequential and discrete state operation on external equipment  They are designed to perform the logic functions previously accomplished by electromechanical relays, drum switches, mechanical and electronic timers and counters, standalone digital PID controllers etc. A Hossain/August 24 20102

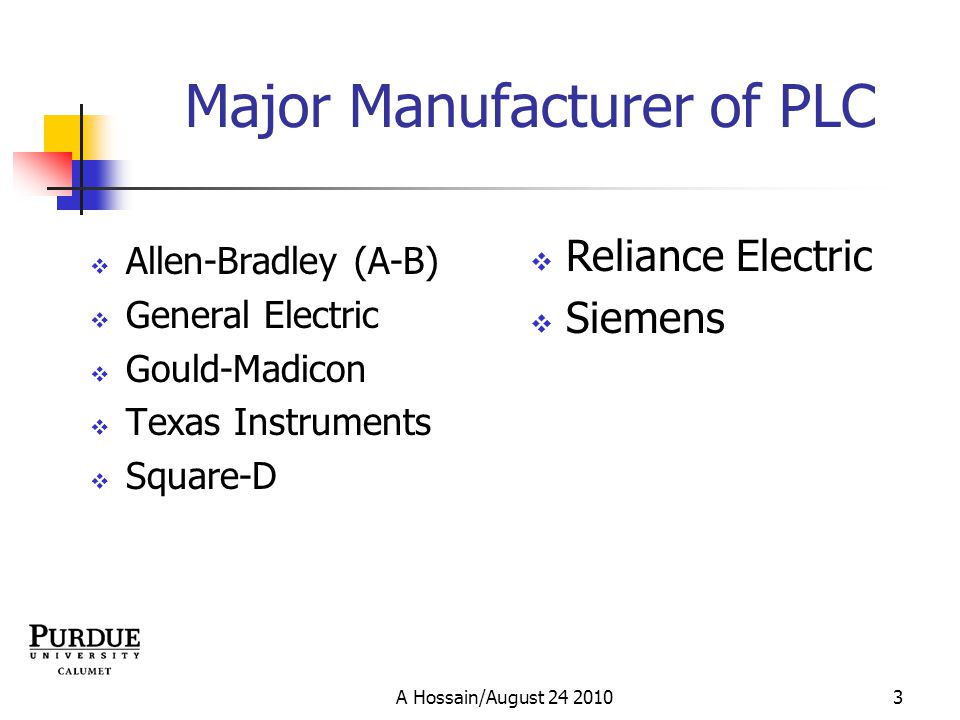

3 Major Manufacturer of PLC  Allen-Bradley (A-B)  General Electric  Gould-Madicon  Texas Instruments  Square-D A Hossain/August 24 20103  Reliance Electric  Siemens

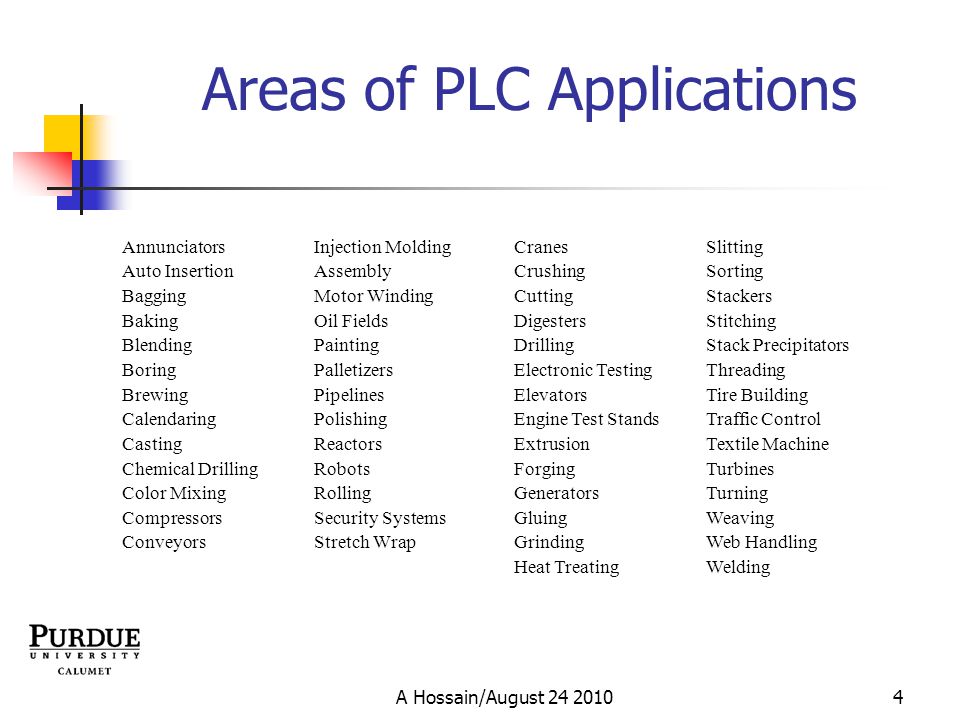

4 Areas of PLC Applications Annunciators Injection Molding Auto Insertion Assembly BaggingMotor Winding Baking Oil Fields Blending Painting Boring Palletizers Brewing Pipelines Calendaring Polishing Casting Reactors Chemical Drilling Robots Color Mixing Rolling Compressors Security Systems Conveyors Stretch Wrap A Hossain/August 24 20104 Cranes Slitting Crushing Sorting Cutting Stackers Digesters Stitching Drilling Stack Precipitators Electronic Testing Threading Elevators Tire Building Engine Test Stands Traffic Control Extrusion Textile Machine Forging Turbines Generators Turning Gluing Weaving Grinding Web Handling Heat Treating Welding

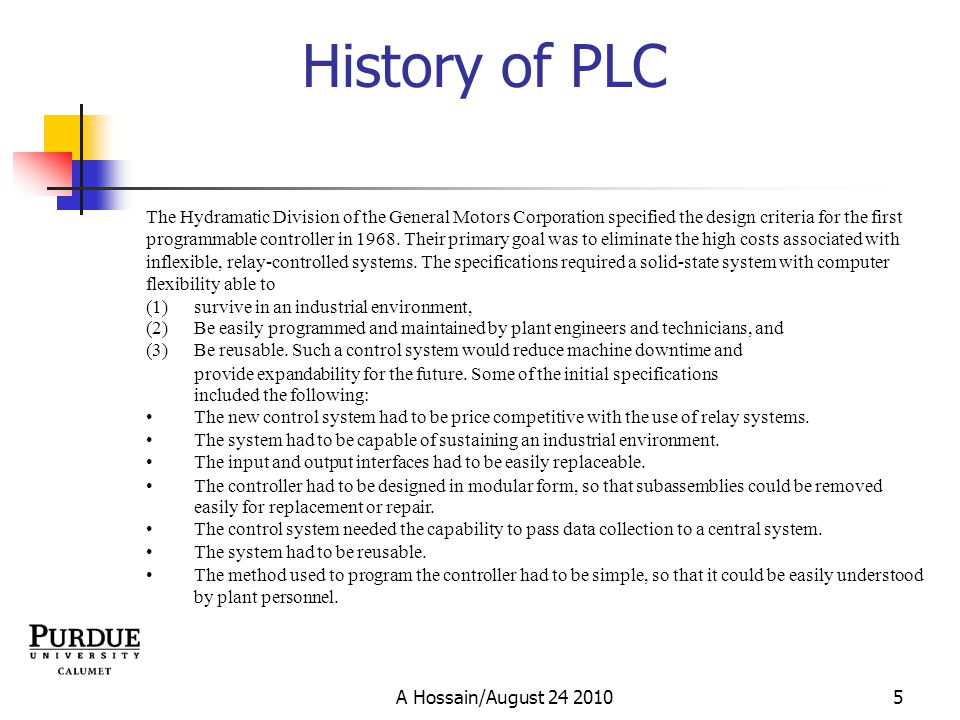

5 History of PLC A Hossain/August 24 20105 The Hydramatic Division of the General Motors Corporation specified the design criteria for the first programmable controller in 1968. Their primary goal was to eliminate the high costs associated with inflexible, relay-controlled systems. The specifications required a solid-state system with computer flexibility able to (1)survive in an industrial environment, (2)Be easily programmed and maintained by plant engineers and technicians, and (3) Be reusable. Such a control system would reduce machine downtime and provide expandability for the future. Some of the initial specifications included the following: The new control system had to be price competitive with the use of relay systems. The system had to be capable of sustaining an industrial environment. The input and output interfaces had to be easily replaceable. The controller had to be designed in modular form, so that subassemblies could be removed easily for replacement or repair. The control system needed the capability to pass data collection to a central system. The system had to be reusable. The method used to program the controller had to be simple, so that it could be easily understood by plant personnel.

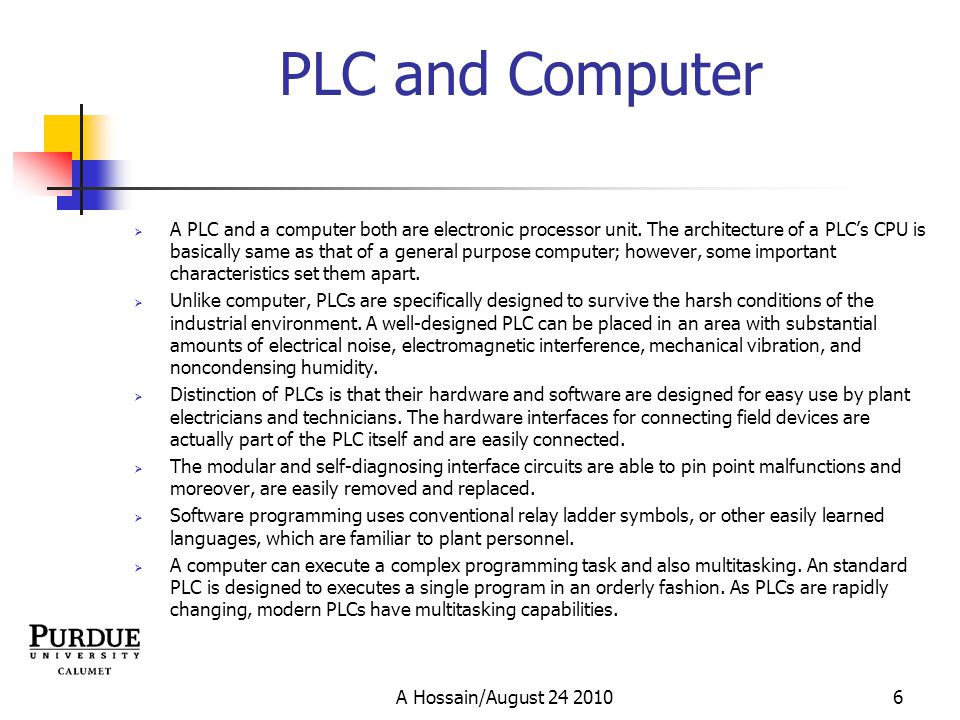

6 PLC and Computer  A PLC and a computer both are electronic processor unit. The architecture of a PLC’s CPU is basically same as that of a general purpose computer; however, some important characteristics set them apart.  Unlike computer, PLCs are specifically designed to survive the harsh conditions of the industrial environment. A well-designed PLC can be placed in an area with substantial amounts of electrical noise, electromagnetic interference, mechanical vibration, and noncondensing humidity.  Distinction of PLCs is that their hardware and software are designed for easy use by plant electricians and technicians. The hardware interfaces for connecting field devices are actually part of the PLC itself and are easily connected.  The modular and self-diagnosing interface circuits are able to pin point malfunctions and moreover, are easily removed and replaced.  Software programming uses conventional relay ladder symbols, or other easily learned languages, which are familiar to plant personnel.  A computer can execute a complex programming task and also multitasking. An standard PLC is designed to executes a single program in an orderly fashion. As PLCs are rapidly changing, modern PLCs have multitasking capabilities. A Hossain/August 24 20106

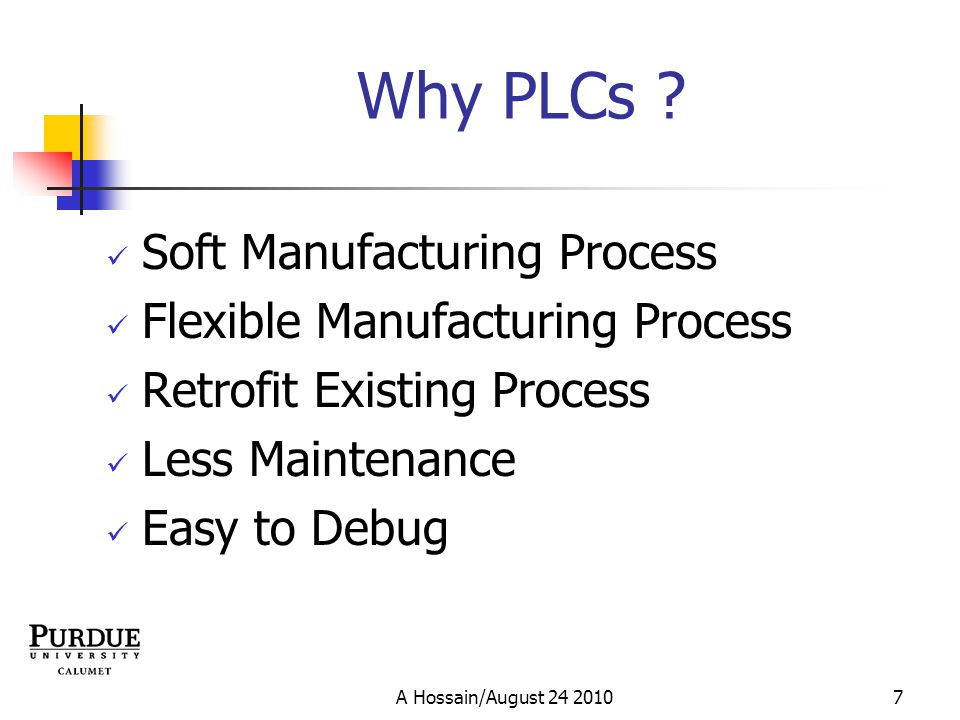

7 Why PLCs ? Soft Manufacturing Process Flexible Manufacturing Process Retrofit Existing Process Less Maintenance Easy to Debug A Hossain/August 24 20107

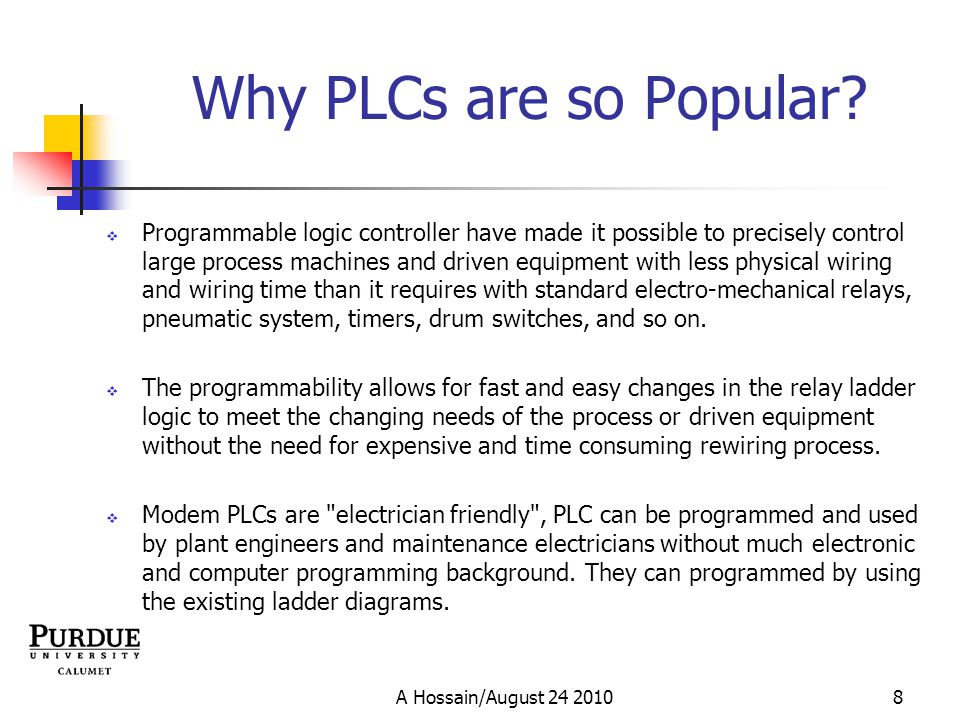

8 Why PLCs are so Popular?  Programmable logic controller have made it possible to precisely control large process machines and driven equipment with less physical wiring and wiring time than it requires with standard electro-mechanical relays, pneumatic system, timers, drum switches, and so on.  The programmability allows for fast and easy changes in the relay ladder logic to meet the changing needs of the process or driven equipment without the need for expensive and time consuming rewiring process.  Modem PLCs are "electrician friendly", PLC can be programmed and used by plant engineers and maintenance electricians without much electronic and computer programming background. They can programmed by using the existing ladder diagrams. A Hossain/August 24 20108

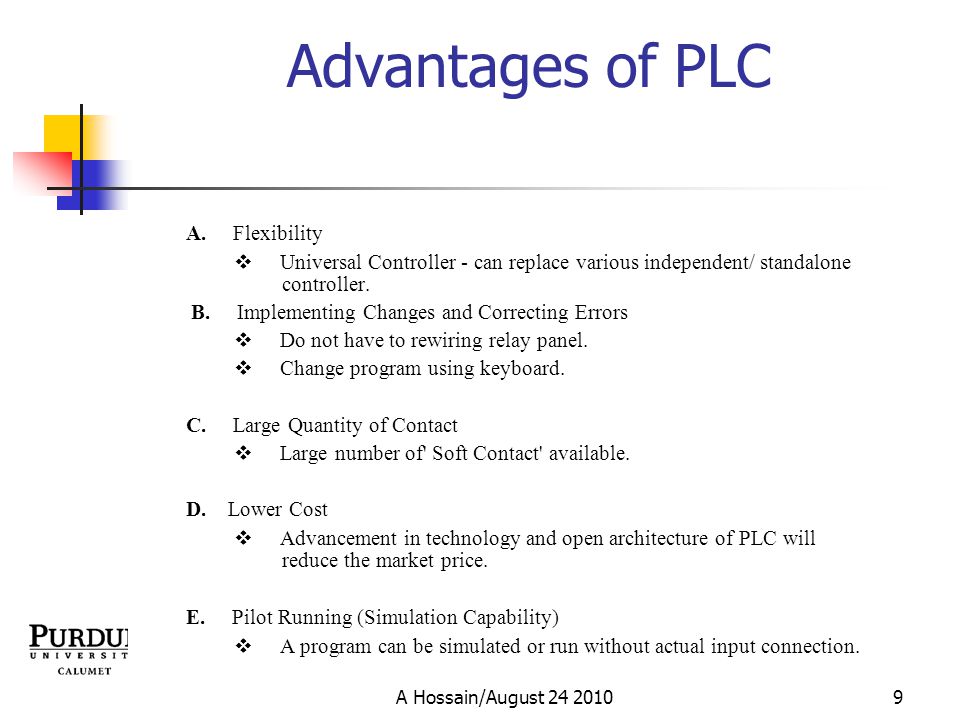

9 Advantages of PLC A. Flexibility  Universal Controller - can replace various independent/ standalone controller. B. Implementing Changes and Correcting Errors  Do not have to rewiring relay panel.  Change program using keyboard. C. Large Quantity of Contact  Large number of' Soft Contact' available. D. Lower Cost  Advancement in technology and open architecture of PLC will reduce the market price. E. Pilot Running (Simulation Capability)  A program can be simulated or run without actual input connection. A Hossain/August 24 20109

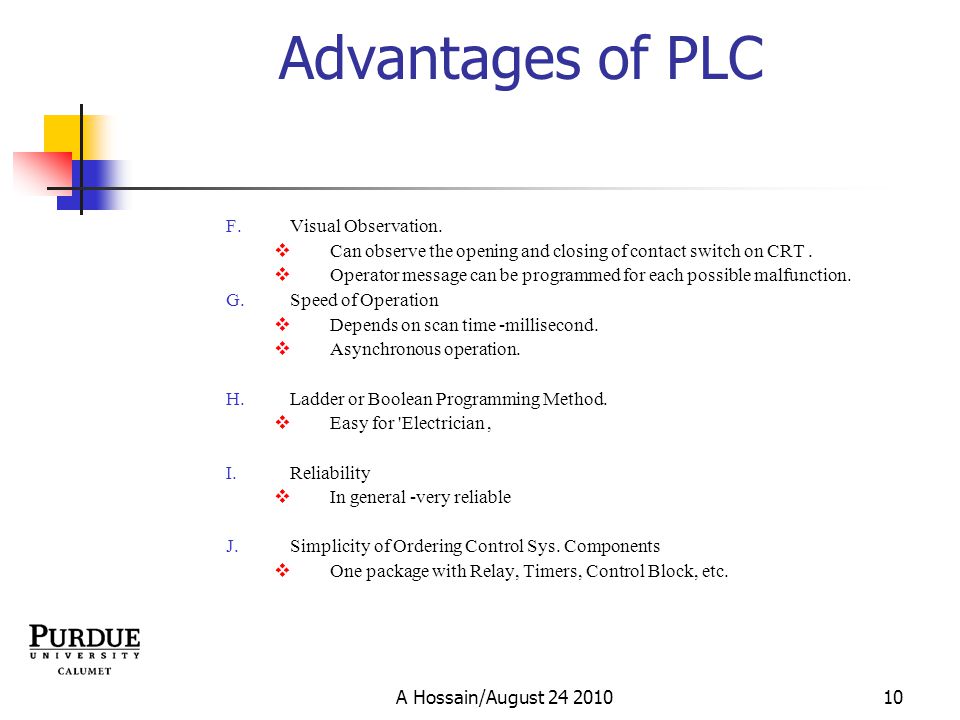

10 Advantages of PLC F.Visual Observation.  Can observe the opening and closing of contact switch on CRT.  Operator message can be programmed for each possible malfunction. G.Speed of Operation  Depends on scan time -millisecond.  Asynchronous operation. H.Ladder or Boolean Programming Method.  Easy for 'Electrician, I.Reliability  In general -very reliable J.Simplicity of Ordering Control Sys. Components  One package with Relay, Timers, Control Block, etc. A Hossain/August 24 201010

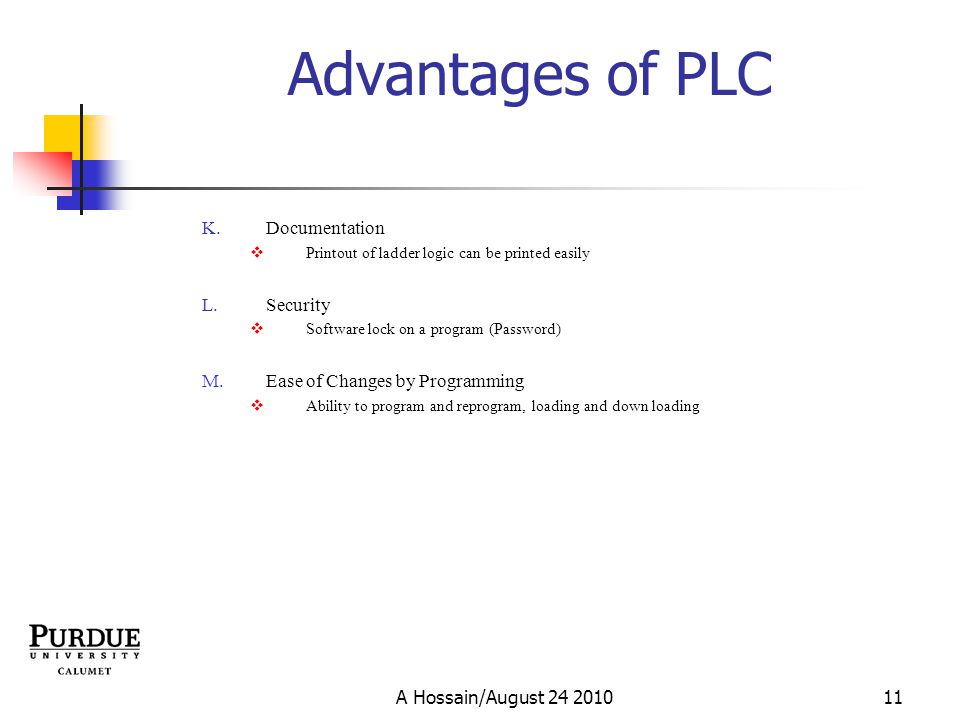

11 Advantages of PLC K.Documentation  Printout of ladder logic can be printed easily L.Security  Software lock on a program (Password) M.Ease of Changes by Programming  Ability to program and reprogram, loading and down loading A Hossain/August 24 201011

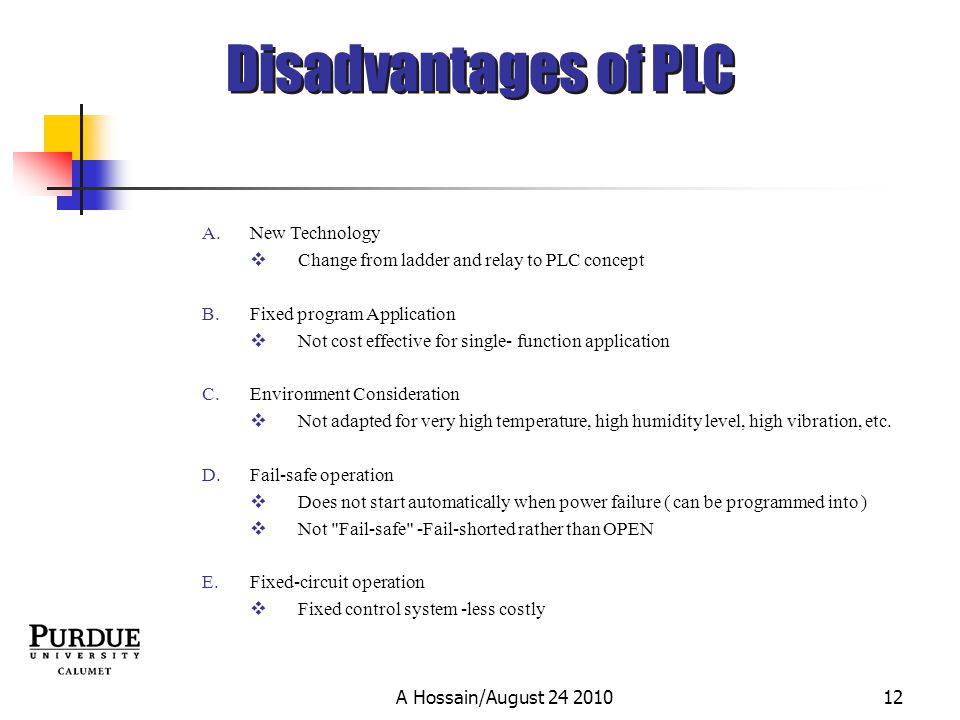

12 A Hossain/August 24 201012 Disadvantages of PLC A.New Technology  Change from ladder and relay to PLC concept B.Fixed program Application  Not cost effective for single- function application C.Environment Consideration  Not adapted for very high temperature, high humidity level, high vibration, etc. D.Fail-safe operation  Does not start automatically when power failure ( can be programmed into )  Not "Fail-safe" -Fail-shorted rather than OPEN E.Fixed-circuit operation  Fixed control system -less costly

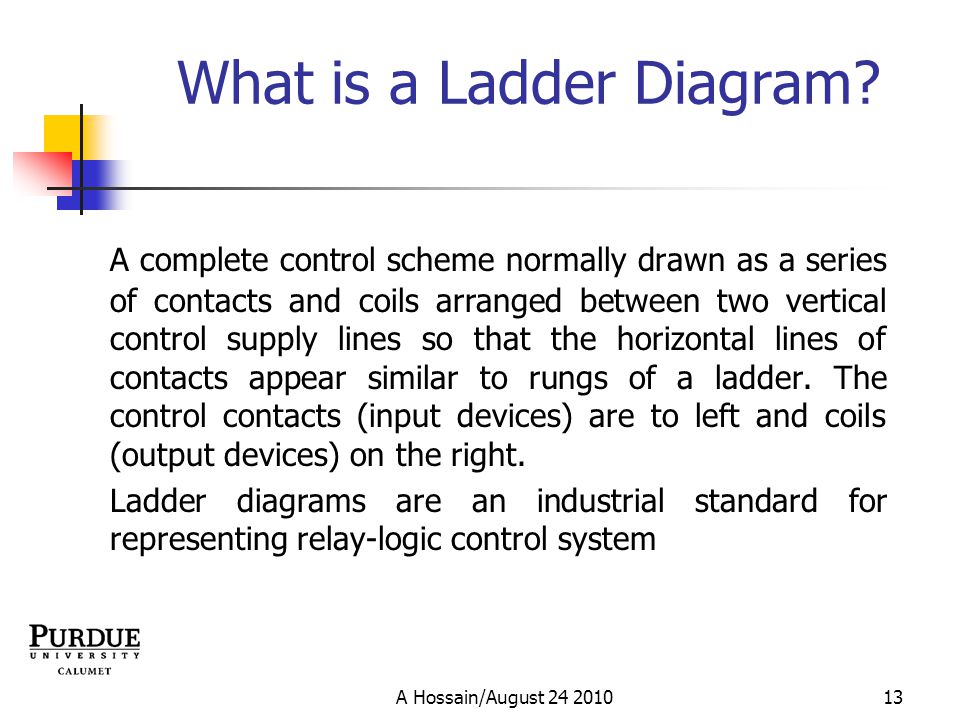

13 What is a Ladder Diagram? A complete control scheme normally drawn as a series of contacts and coils arranged between two vertical control supply lines so that the horizontal lines of contacts appear similar to rungs of a ladder. The control contacts (input devices) are to left and coils (output devices) on the right. Ladder diagrams are an industrial standard for representing relay-logic control system A Hossain/August 24 201013

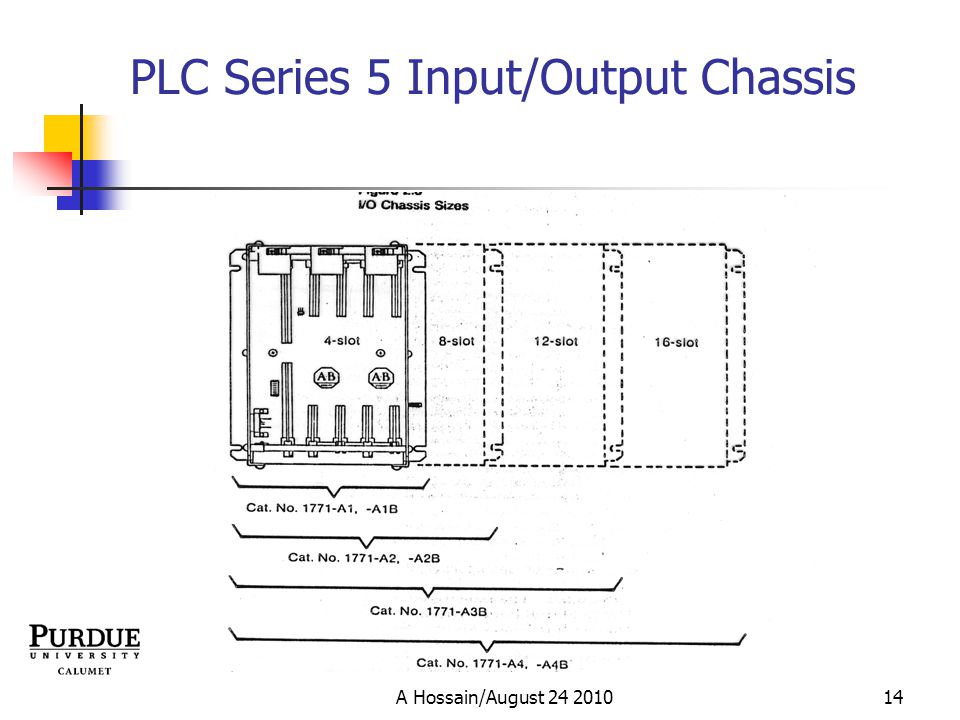

14 PLC Series 5 Input/Output Chassis A Hossain/August 24 201014

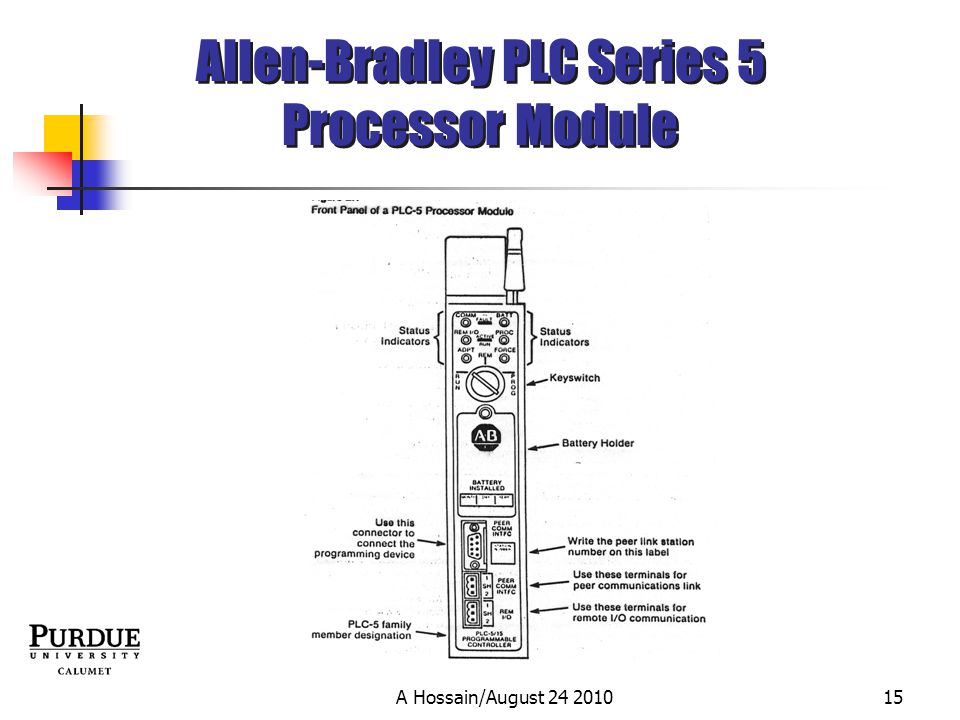

15 A Hossain/August 24 201015 Allen-Bradley PLC Series 5 Processor Module

16 A Hossain/August 24 201016 PLC 5/25 Processor Mode of Operation

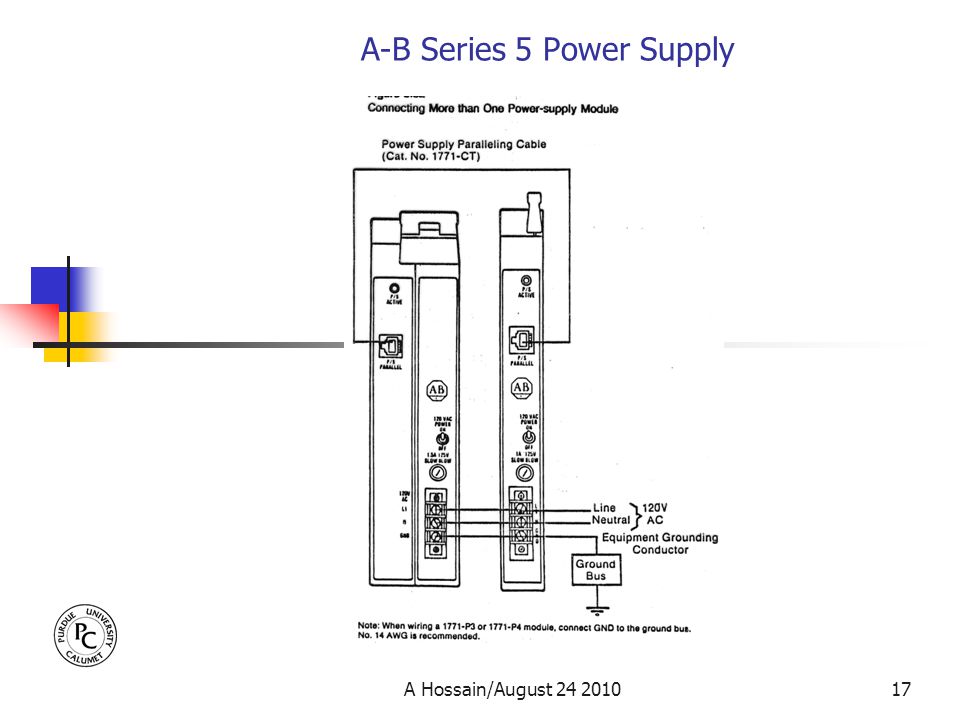

17 A-B Series 5 Power Supply A Hossain/August 24 201017

18 A Hossain/August 24 201018 120 VAC Input Module Connection

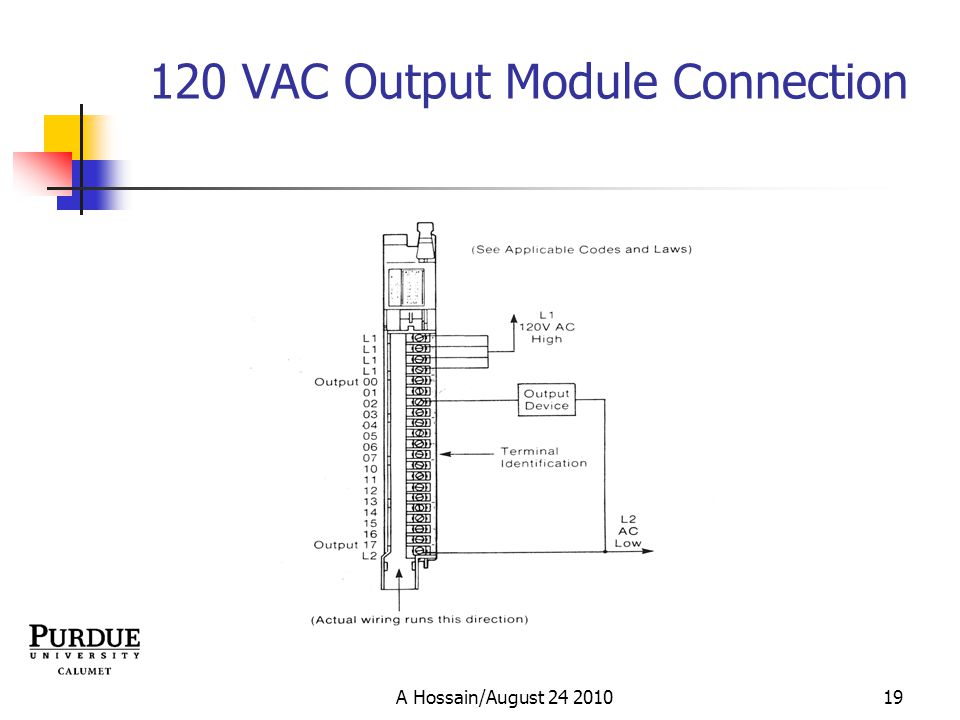

19 120 VAC Output Module Connection A Hossain/August 24 201019

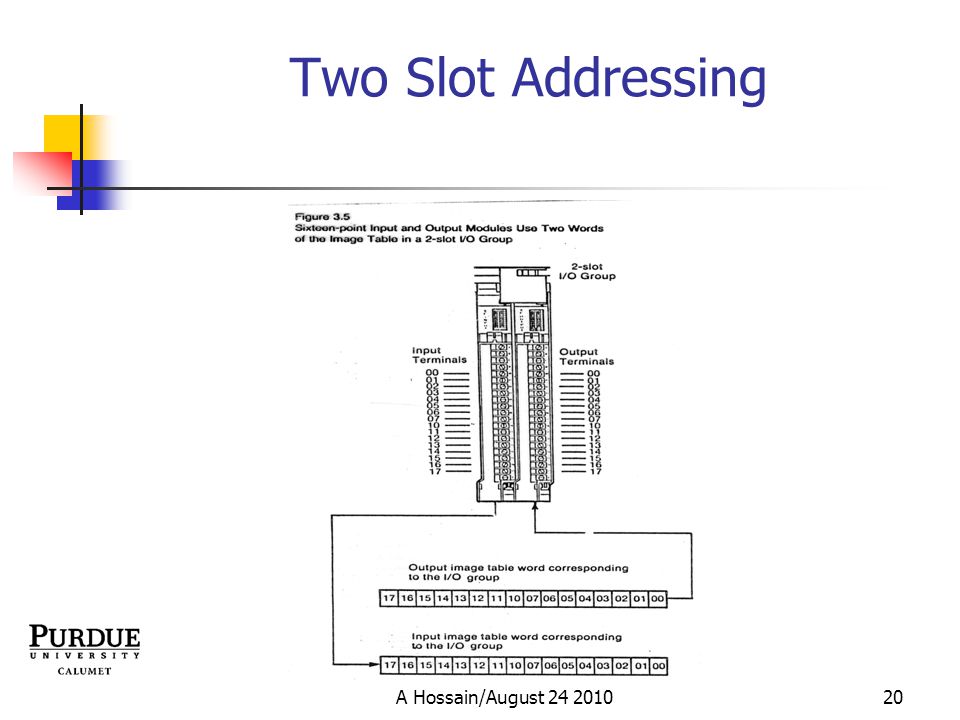

20 Two Slot Addressing A Hossain/August 24 201020

21 PLC Scan and Update Sequence A Hossain/August 24 201021

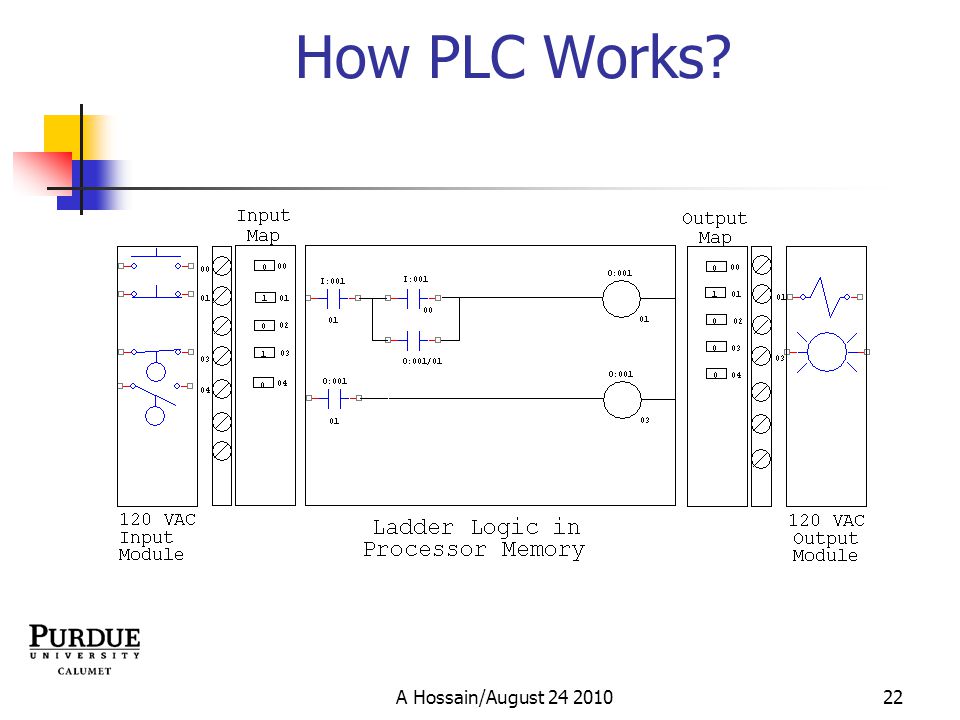

22 How PLC Works? A Hossain/August 24 201022

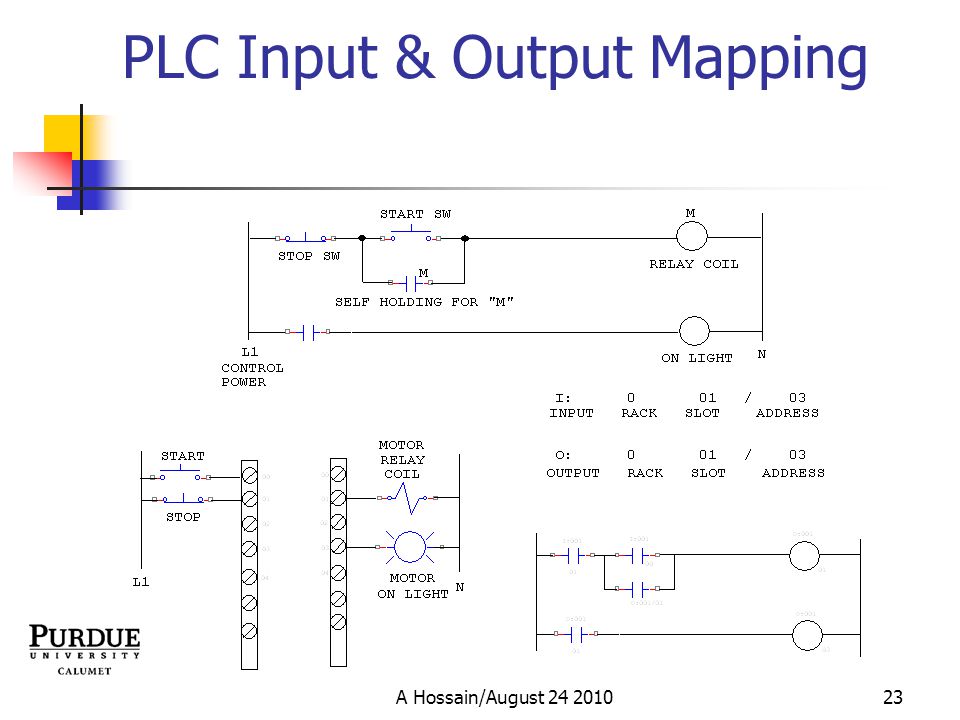

23 PLC Input & Output Mapping A Hossain/August 24 201023

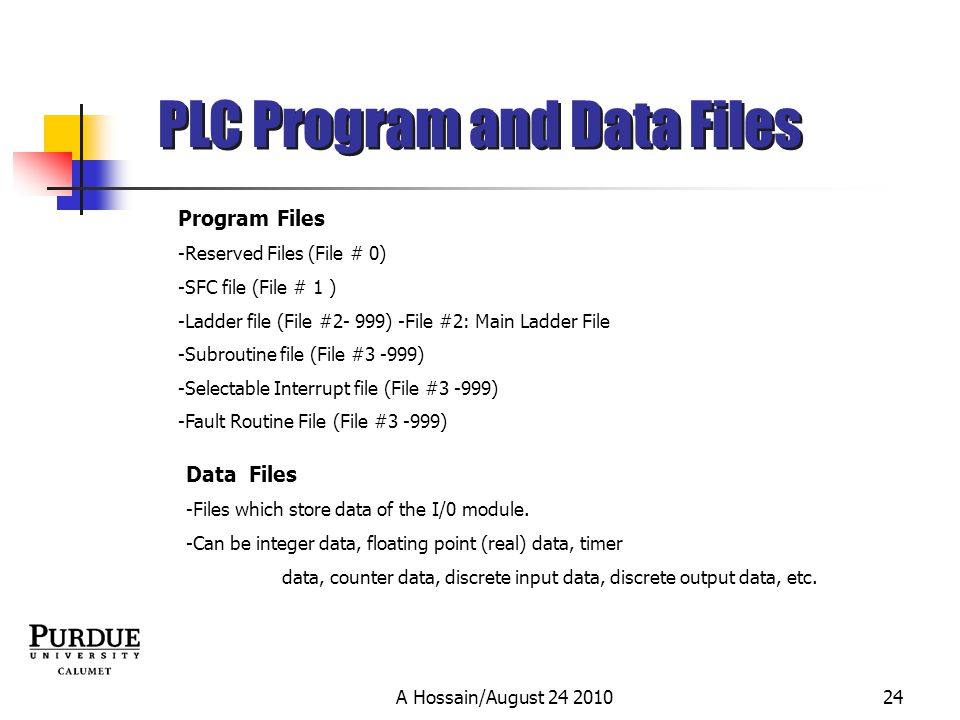

24 A Hossain/August 24 201024 PLC Program and Data Files Program Files -Reserved Files (File # 0) -SFC file (File # 1 ) -Ladder file (File #2- 999) -File #2: Main Ladder File -Subroutine file (File #3 -999) -Selectable Interrupt file (File #3 -999) -Fault Routine File (File #3 -999) Data Files -Files which store data of the I/0 module. -Can be integer data, floating point (real) data, timer data, counter data, discrete input data, discrete output data, etc.

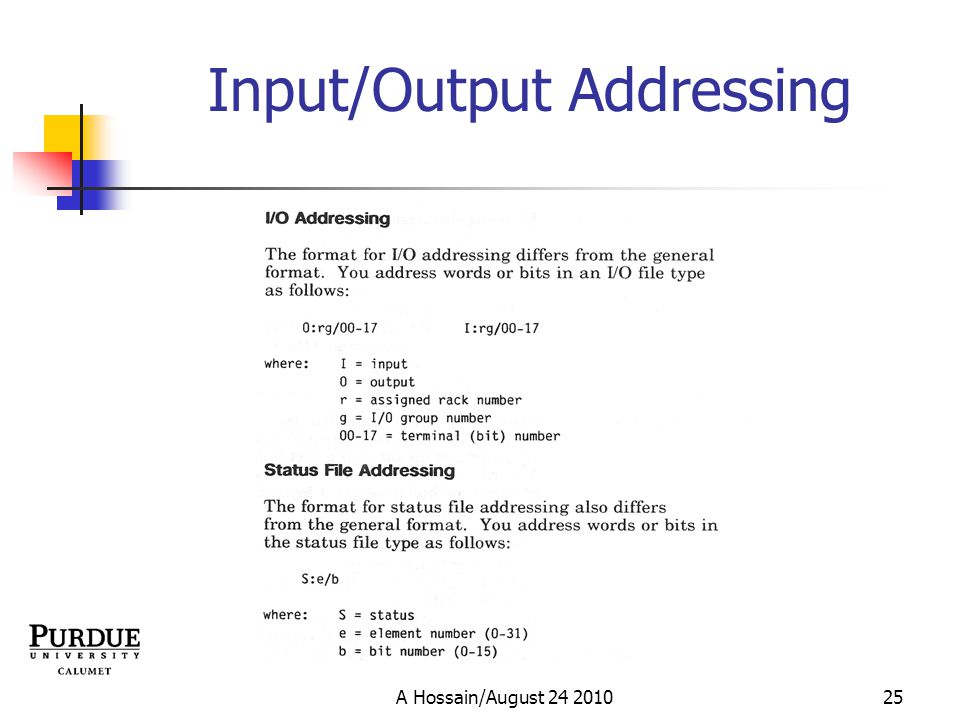

25 Input/Output Addressing A Hossain/August 24 201025

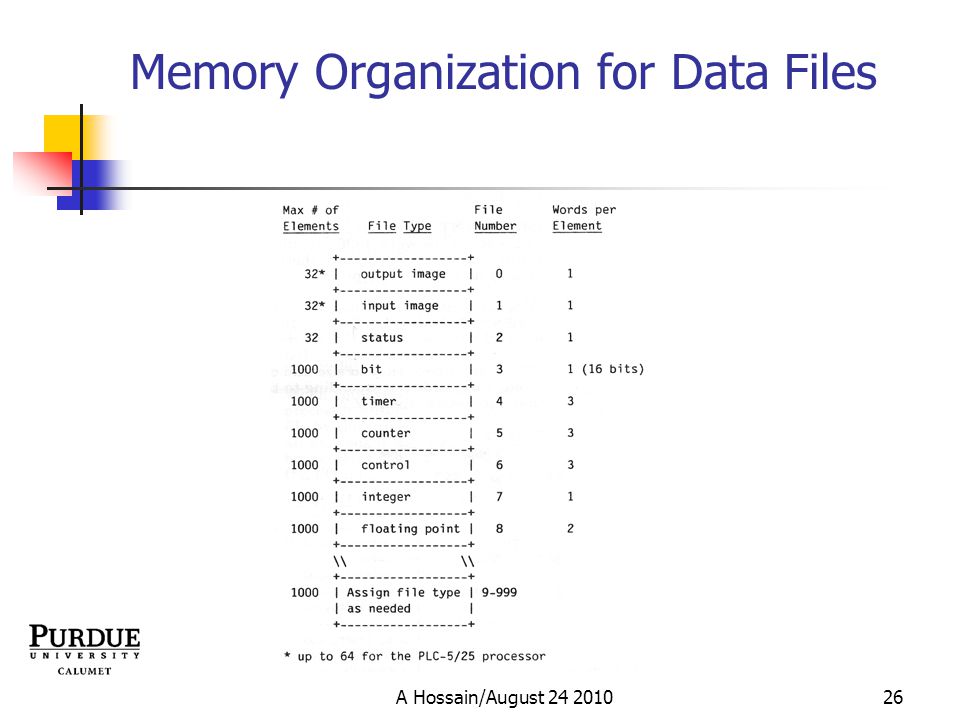

26 Memory Organization for Data Files A Hossain/August 24 201026

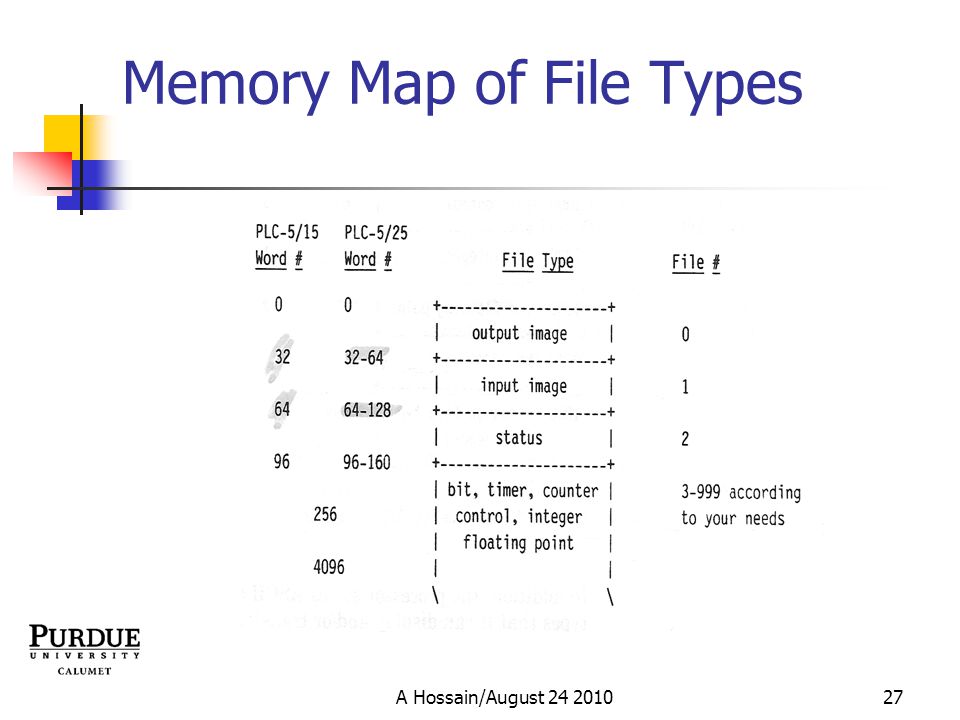

27 Memory Map of File Types A Hossain/August 24 201027

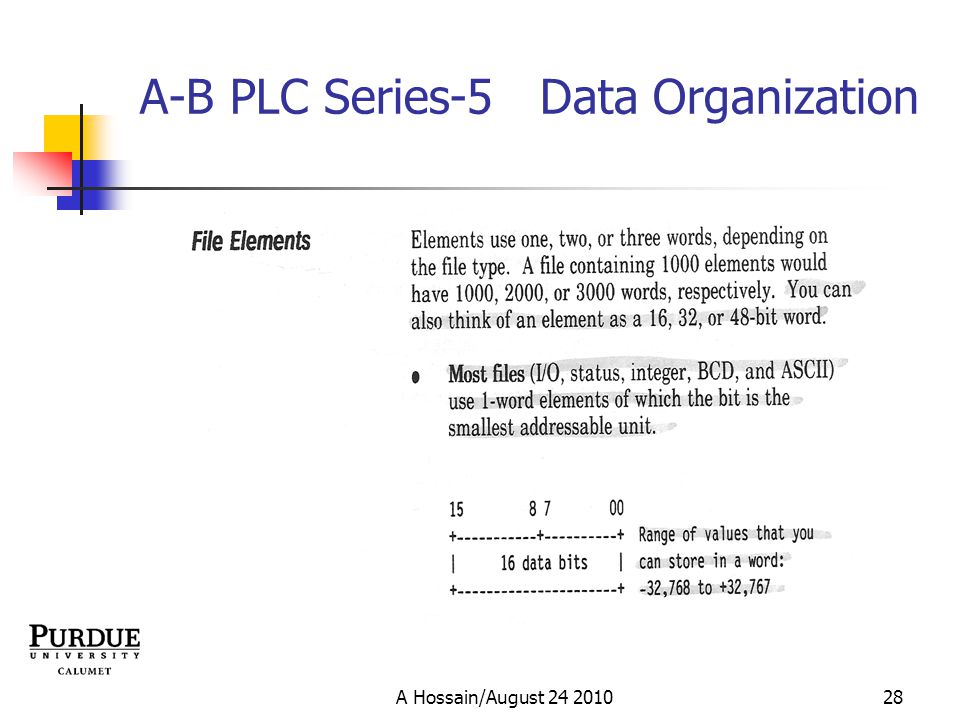

28 A-B PLC Series-5 Data Organization A Hossain/August 24 201028

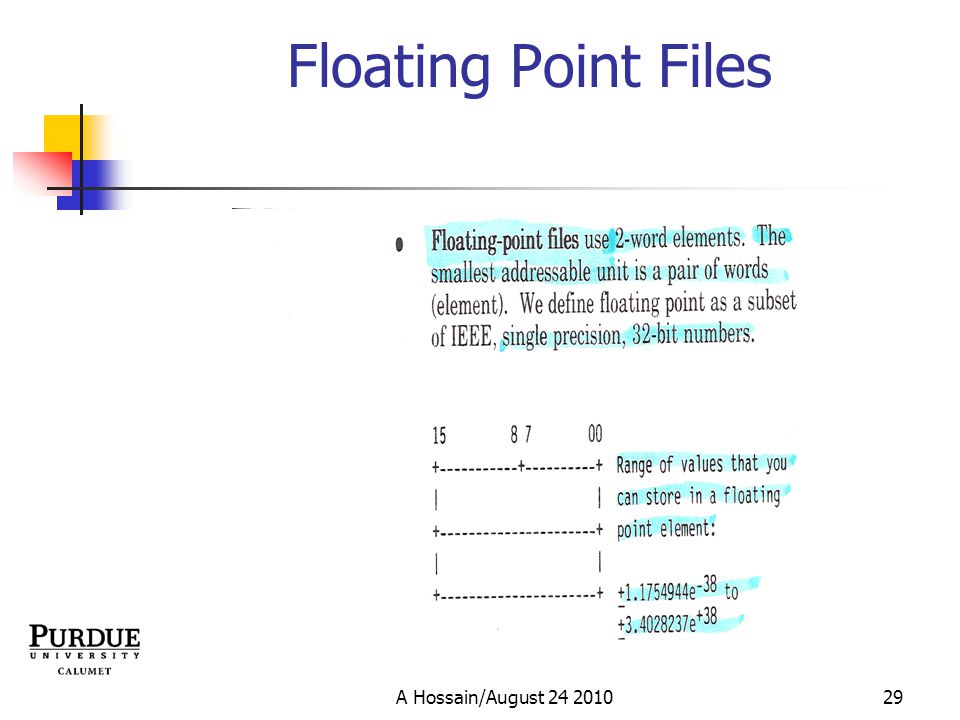

29 Floating Point Files A Hossain/August 24 201029

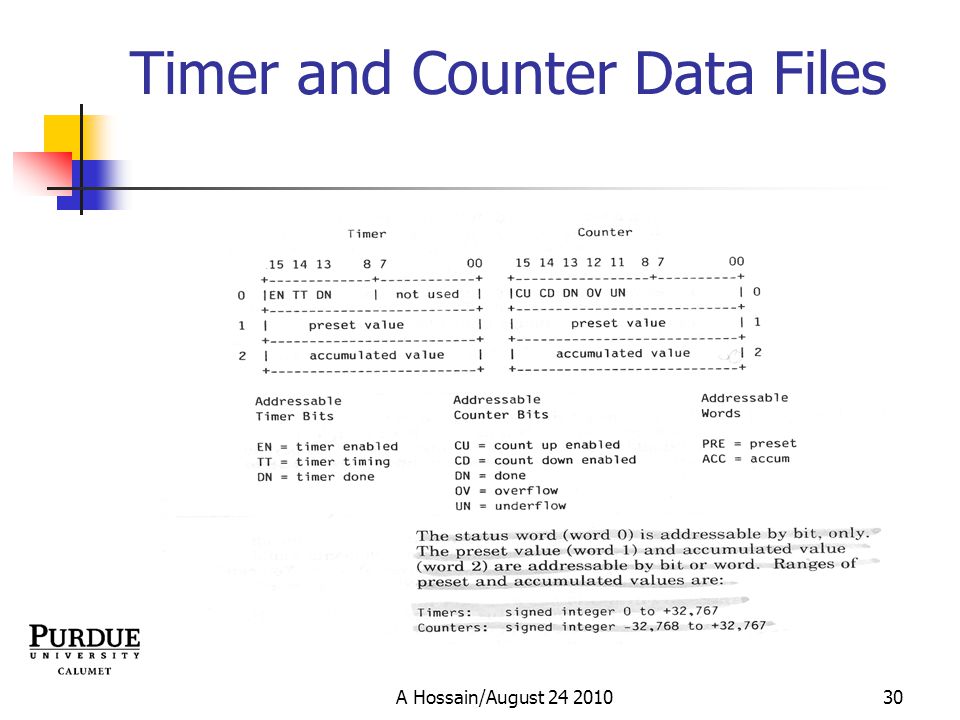

30 Timer and Counter Data Files A Hossain/August 24 201030

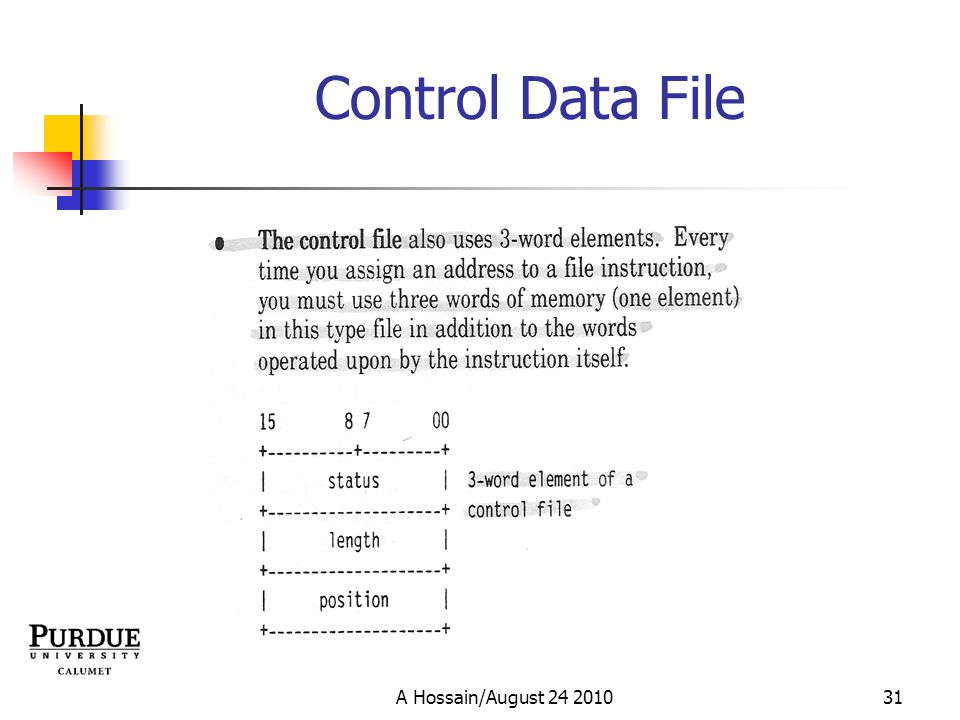

31 Control Data File A Hossain/August 24 201031

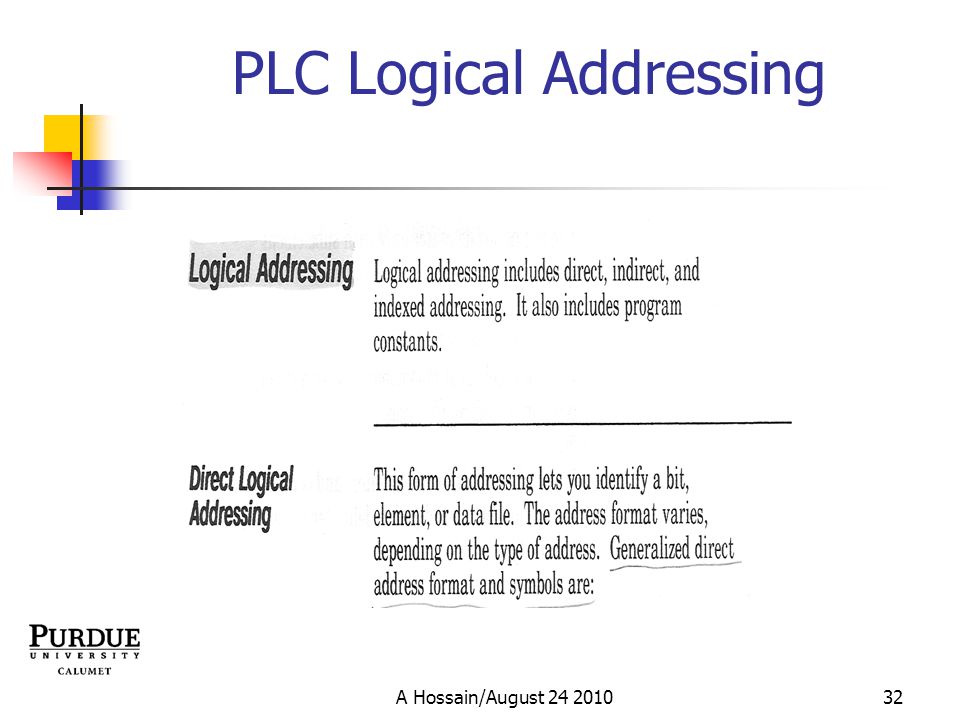

32 PLC Logical Addressing A Hossain/August 24 201032

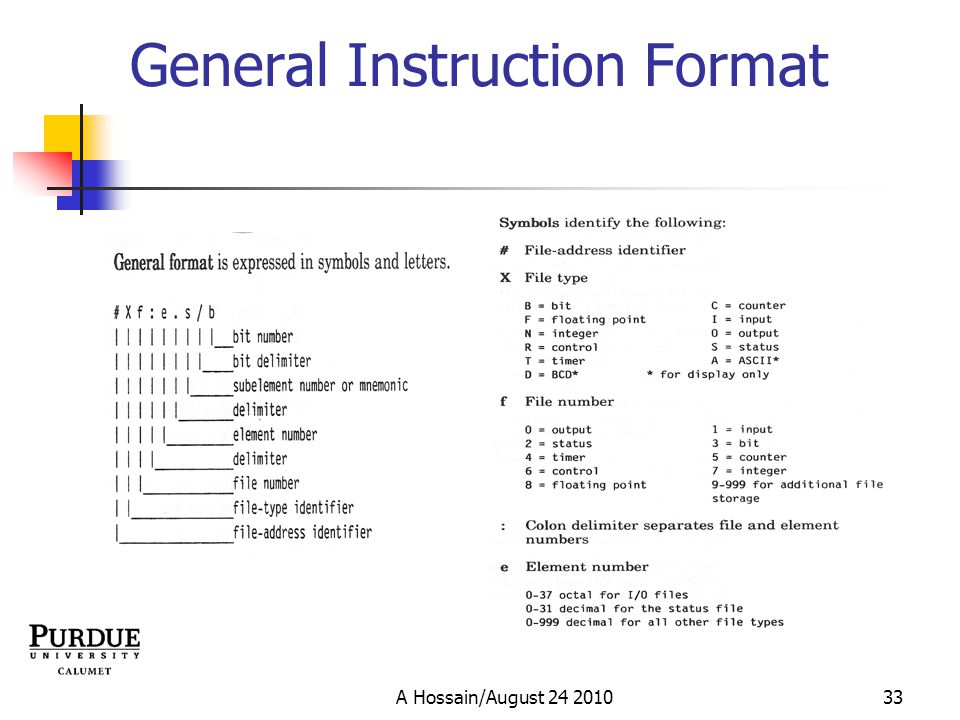

33 General Instruction Format A Hossain/August 24 201033

34 General Instruction Format A Hossain/August 24 201034

35 Status File A Hossain/August 24 201035

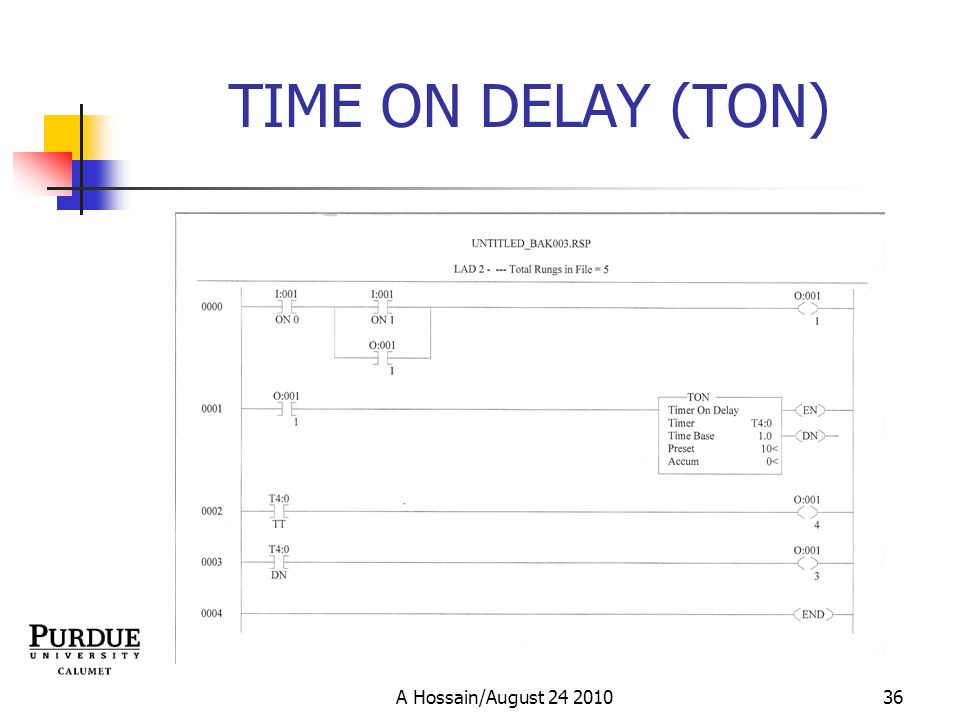

36 TIME ON DELAY (TON) A Hossain/August 24 201036
