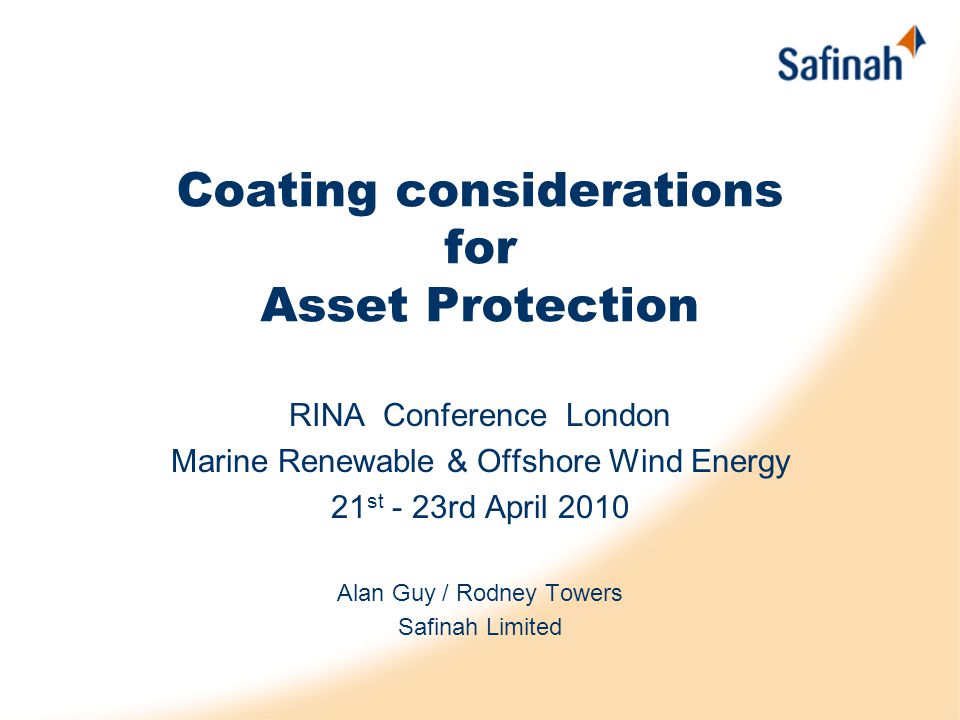

1. Coating considerations for Asset Protection RINA Conference London Marine Renewable & Offshore Wind Energy 21 st - 23rd April 2010 Alan Guy / Rodney Towers Safinah Limited

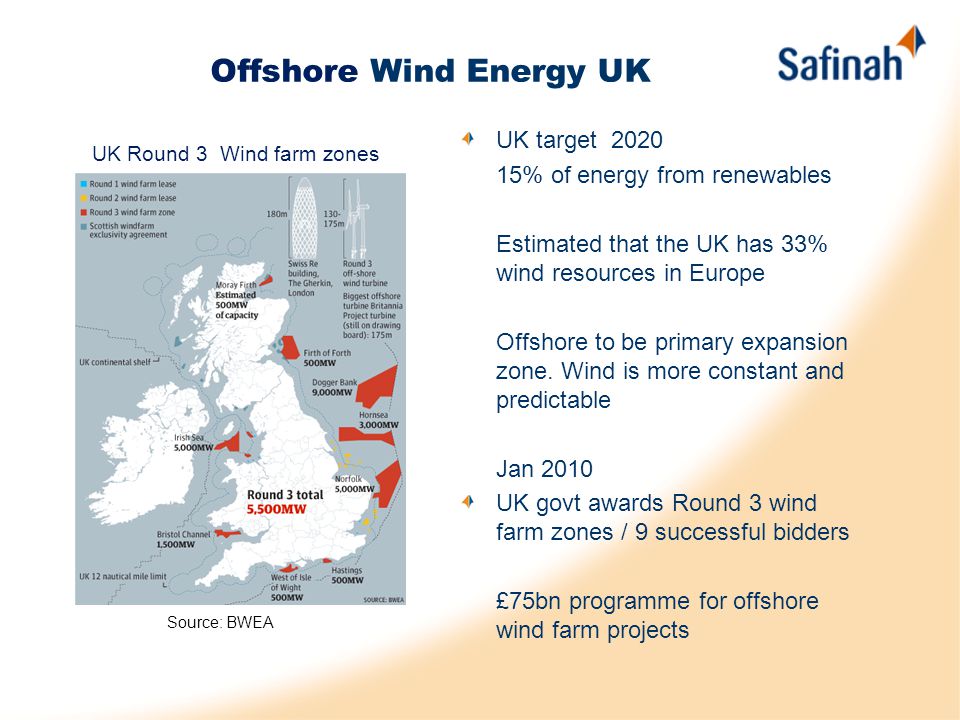

2. Offshore Wind Energy UK UK target 2020 15% of energy from renewables Estimated that the UK has 33% wind resources in Europe Offshore to be primary expansion zone. Wind is more constant and predictable Jan 2010 UK govt awards Round 3 wind farm zones / 9 successful bidders £75bn programme for offshore wind farm projects Source: BWEA UK Round 3 Wind farm zones

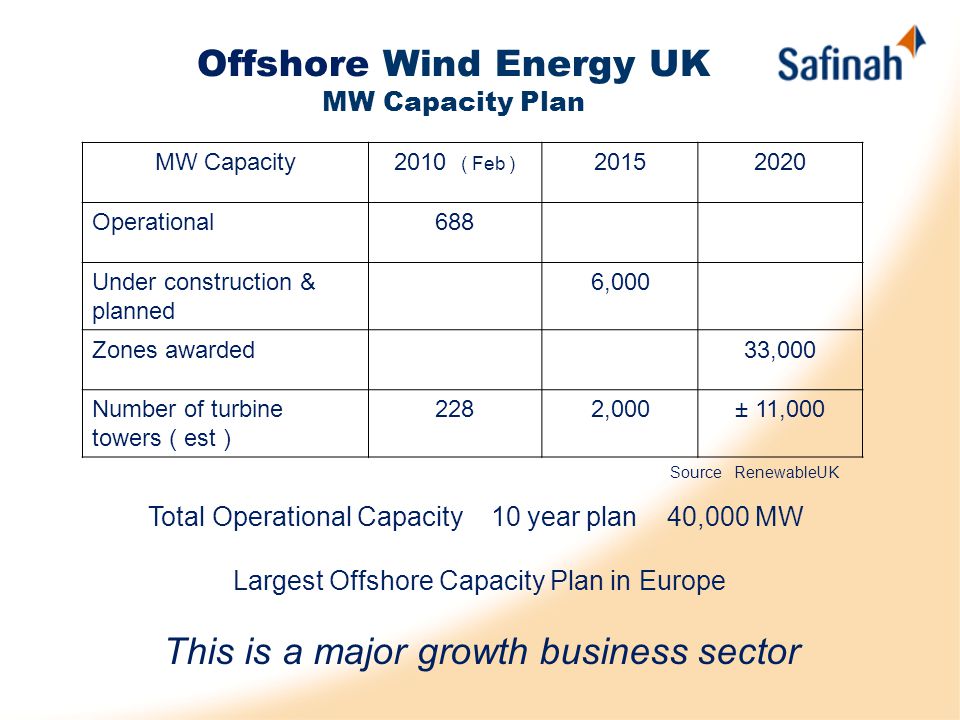

3. Offshore Wind Energy UK MW Capacity Plan MW Capacity2010 ( Feb ) 20152020 Operational688 Under construction & planned 6,000 Zones awarded33,000 Number of turbine towers ( est ) 2282,000± 11,000 Total Operational Capacity 10 year plan 40,000 MW Largest Offshore Capacity Plan in Europe This is a major growth business sector Source RenewableUK

4. Offshore Wind Towers Typical 3 MW Tower structureExternal m2 Internal m2 Total m2 Painting area per tower1250 2500 Painting cost per tower EP / PU multi layer @ € 5 / m 2 € 6250 € 12,500 Total cost Paint + Application up to € 25 / m 2 * € 31,250 € 60 – 70,000 per tower * Source JPCL / Muhlberg March 2010 Painting Offshore Wind Towers

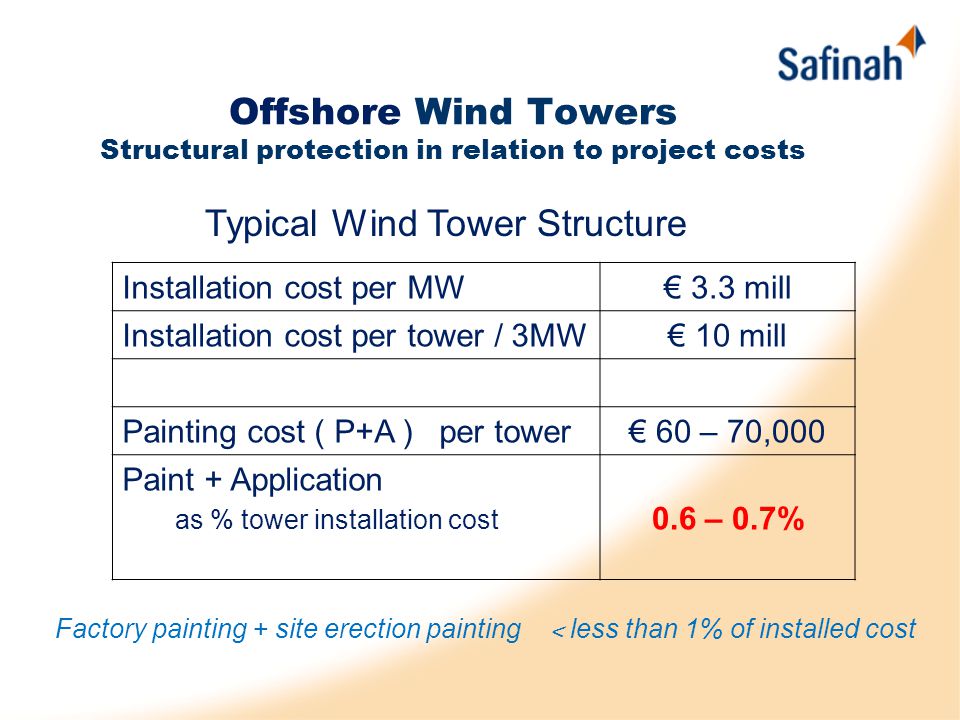

5. Offshore Wind Towers Structural protection in relation to project costs Installation cost per MW€ 3.3 mill Installation cost per tower / 3MW€ 10 mill Painting cost ( P+A ) per tower€ 60 – 70,000 Paint + Application as % tower installation cost 0.6 – 0.7% Typical Wind Tower Structure Factory painting + site erection painting ˂ less than 1% of installed cost

6. Offshore Wind Towers Structural protection in relation to project costs Tower structures2010 ( Feb ) 20152020 No. of Tower structures2282,00011,000 Painting areas 2500 m 2 per 100m tower0.57 mill m 2 5 mill m 2 27.5 mill m 2 Painting costs Paint + Application € 60 – 70,000 per tower €14-16 mill€120-140 mill€ 660-770 mill If the build specification fails to perform failure repetition can multiply by the number of towers in the field Overview Painting areas & costs

7. Offshore Wind Tower Fields offshore repairs Coatings unfortunately can fail

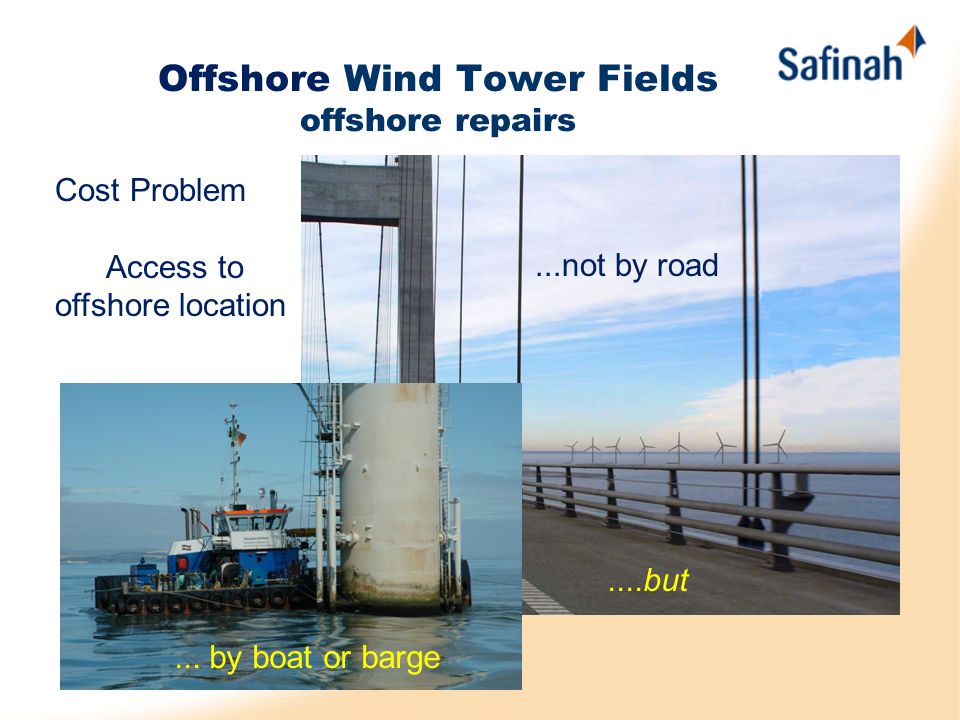

8. Offshore Wind Tower Fields offshore repairs Cost Problem Access to offshore location...not by road....but... by boat or barge

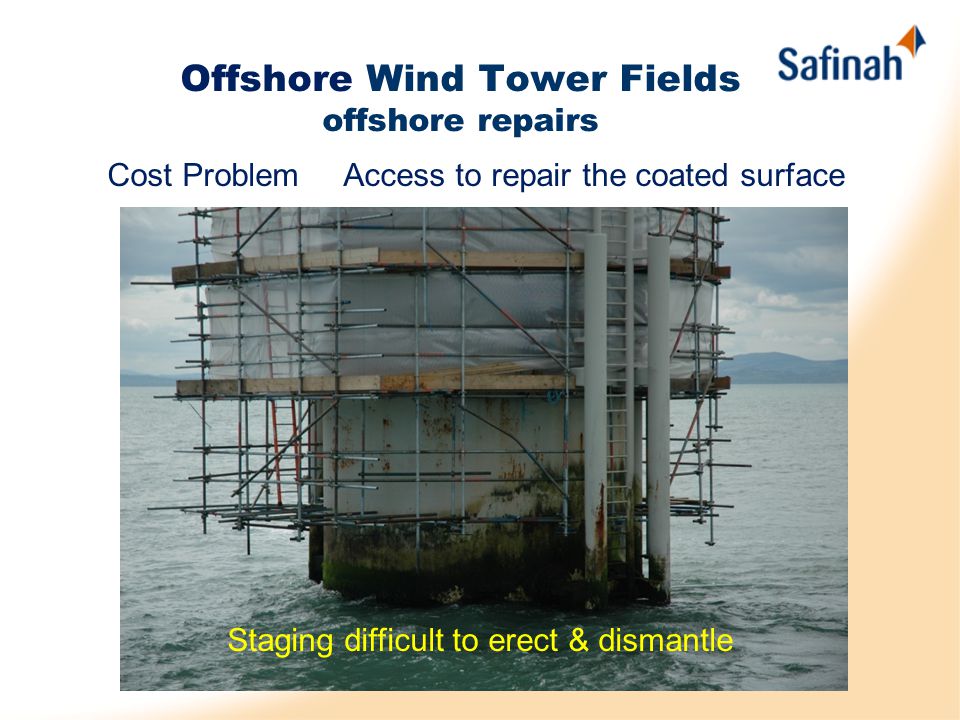

9. Offshore Wind Tower Fields offshore repairs Cost Problem Access to repair the coated surface Staging difficult to erect & dismantle

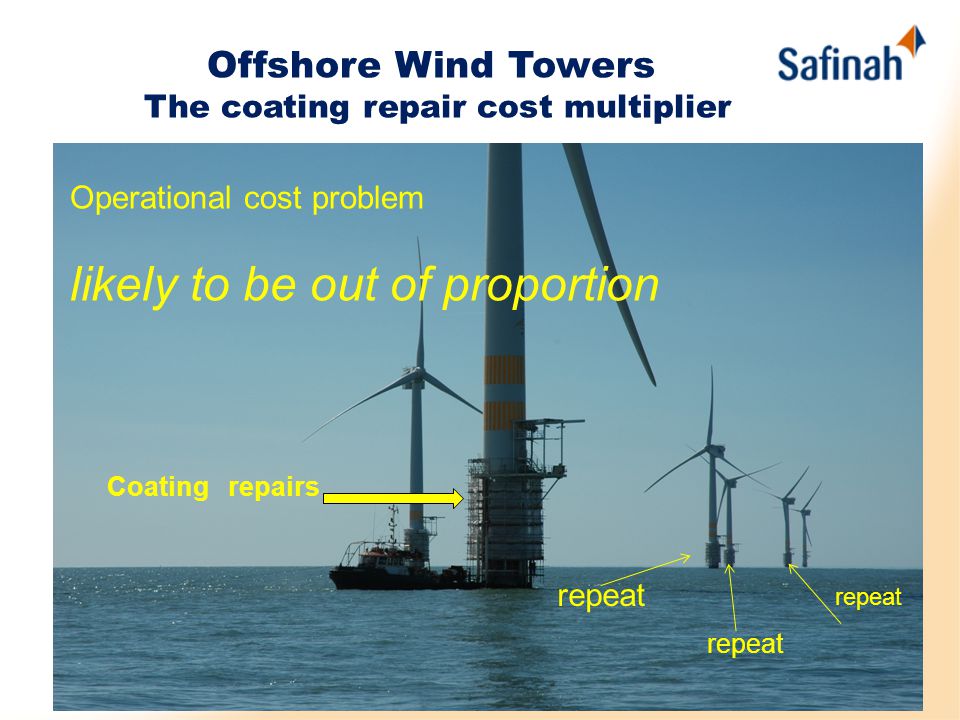

10. Coating repairs repeat Offshore Wind Towers The coating repair cost multiplier Operational cost problem likely to be out of proportion

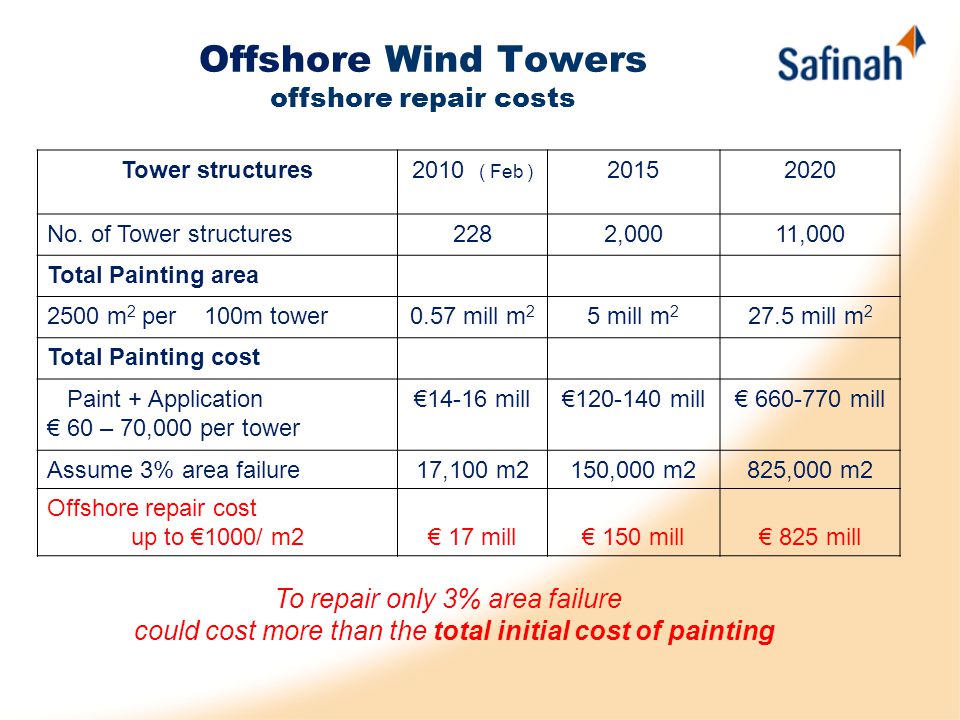

11. Offshore Wind Towers offshore repair costs Tower structures2010 ( Feb ) 20152020 No. of Tower structures2282,00011,000 Total Painting area 2500 m 2 per 100m tower0.57 mill m 2 5 mill m 2 27.5 mill m 2 Total Painting cost Paint + Application € 60 – 70,000 per tower €14-16 mill€120-140 mill€ 660-770 mill Assume 3% area failure17,100 m2150,000 m2825,000 m2 Offshore repair cost up to €1000/ m2€ 17 mill€ 150 mill€ 825 mill To repair only 3% area failure could cost more than the total initial cost of painting

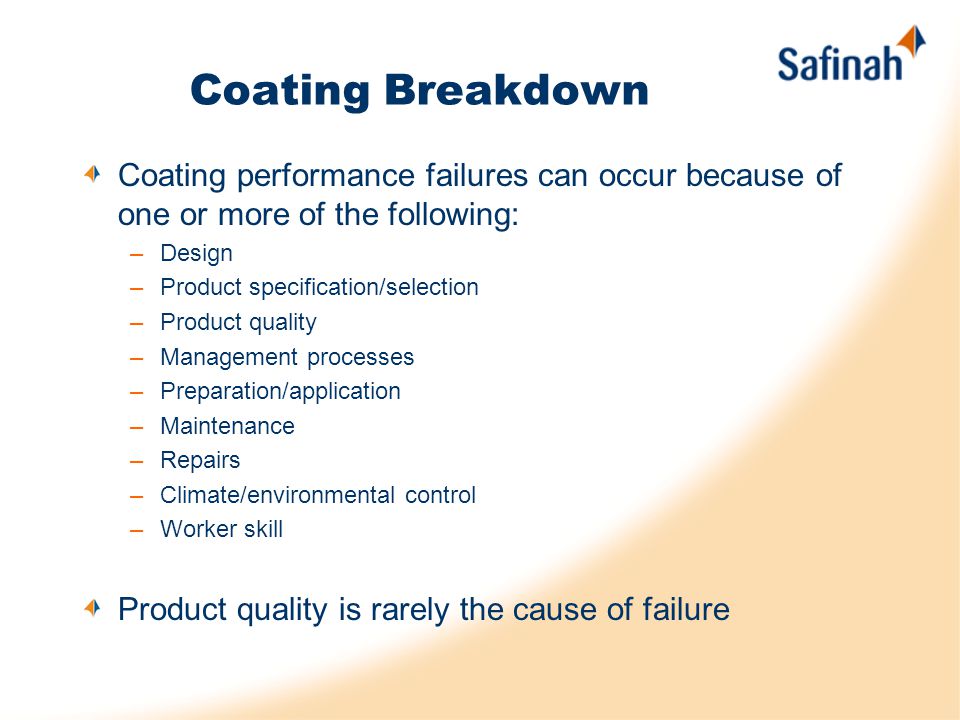

12. Coating Breakdown Coating performance failures can occur because of one or more of the following: –Design –Product specification/selection –Product quality –Management processes –Preparation/application –Maintenance –Repairs –Climate/environmental control –Worker skill Product quality is rarely the cause of failure

13. Coating breakdown problems for Asset Owner / Field Manager Design, application Specification ? System selection ? Application issues ?

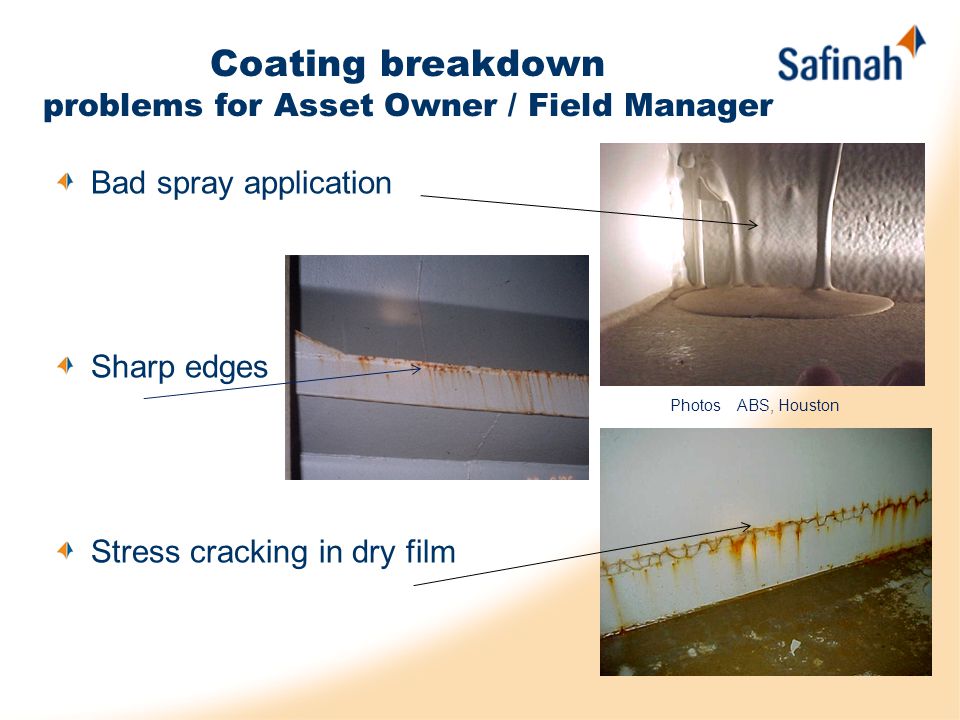

14. Coating breakdown problems for Asset Owner / Field Manager Bad spray application Sharp edges Stress cracking in dry film Photos ABS, Houston

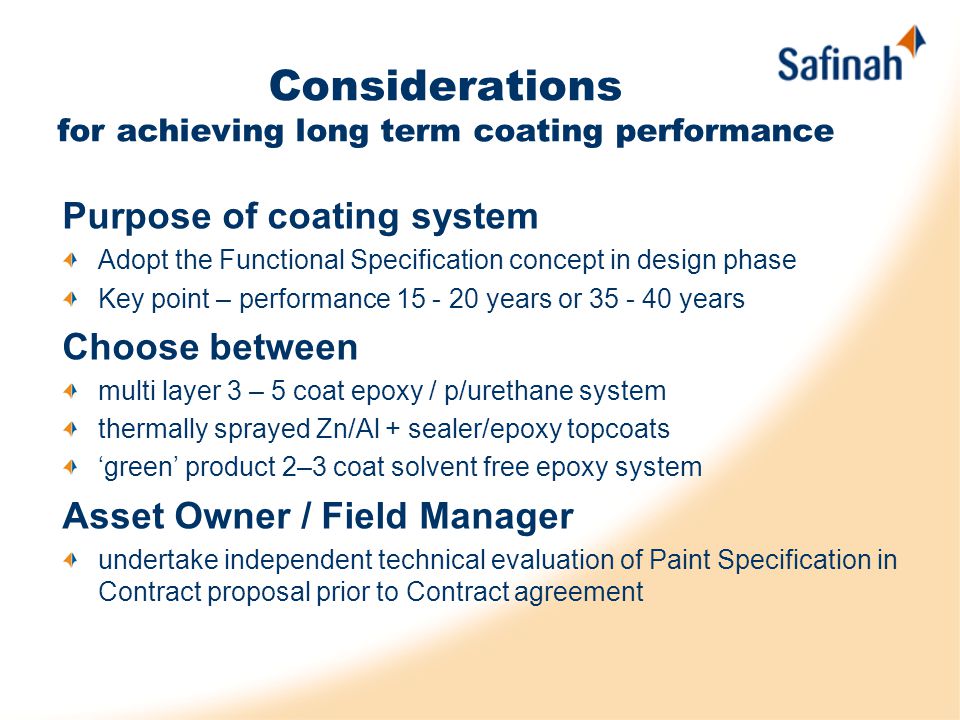

15. Considerations for achieving long term coating performance Purpose of coating system Adopt the Functional Specification concept in design phase Key point – performance 15 - 20 years or 35 - 40 years Choose between multi layer 3 – 5 coat epoxy / p/urethane system thermally sprayed Zn/Al + sealer/epoxy topcoats ‘green’ product 2–3 coat solvent free epoxy system Asset Owner / Field Manager undertake independent technical evaluation of Paint Specification in Contract proposal prior to Contract agreement

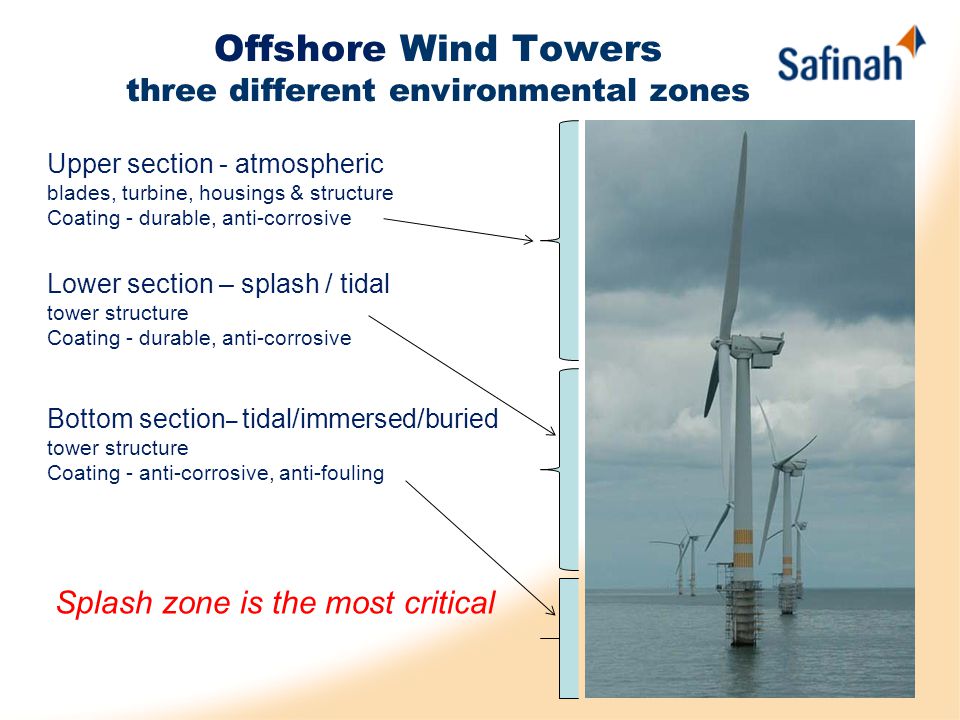

16. Offshore Wind Towers three different environmental zones Upper section - atmospheric blades, turbine, housings & structure Coating - durable, anti-corrosive Lower section – splash / tidal tower structure Coating - durable, anti-corrosive Bottom section – tidal/immersed/buried tower structure Coating - anti-corrosive, anti-fouling Splash zone is the most critical

17. Offshore Wind Towers Coating selection Structures similar to rigs, platforms and ships Difference unmanned difficult to monitor/assess Requirements long term performance suitable for fabrication process suitable for range of environment ease of repair Needs care in selection quality application

18. Offshore Wind Towers Coating selection Principal methodology ISO 12944-2 Defines corrosion category of site by rate of steel loss Combine category with required durability to select generic coating schemes –Non-immersed areas C5-M applies –Immersed areas Im-2 applies –ISO 20340 further defines requirements for high durability systems Zonemm / yr Splash0.4 Tidal 0.25 Immersed 0.2

19. Offshore Wind Towers Coating selection schemes selected should have proven track records in the field C5 CategoryIm-2 Category 3-6 coats EP + PU Total 300-500 microns 1-2 coats of solvent free EP Total 800 microns 3-5 coats Zinc silicate + EP + PU Total 300-400 microns 2-3 coats high solids EP Total 800 microns 1-2 coats solvent free EP Total 800 microns 2 coats glass flake EP Total 1000 microns Coastal / offshore areas with high salinity sea or brackish water Generic 15 year maintenance free systems

20. Offshore Wind Towers Coating system for 30-40 years protection Metallization has now achieved 30 – 40 years low maintenance protection on offshore oil & gas structures The cost and application speed for systems which include this process are now close to or the same as for multi layer organic coating systems The reasons are a combination of New alloy materials New technology spray equipment Contractors improved ability to control the application environment The current trend in Europe is to thermally spray Zn / Al (first coat) 60 – 100 mic dft + sealer coat + 2 x EP topcoats Full exterior surface and internally 6-8 m up from bottom

21. Painting Wind Towers the importance of quality application Best Quality Application requires Specified Standards of secondary surface preparation for steel & appropriate QC Trained and skilful spray painting personnel Applicators to conduct own DFT & QC work for multi layer coating systems Applicators to have control over environmental conditions during the application process The application contractor controls about 75-85% of the cost The importance of good application is fundamental for success

22. Painting Wind Towers for long term coating performance Photo Muehlhan Herning, Denmark Optimum approach Purpose built Wind Tower coating factory

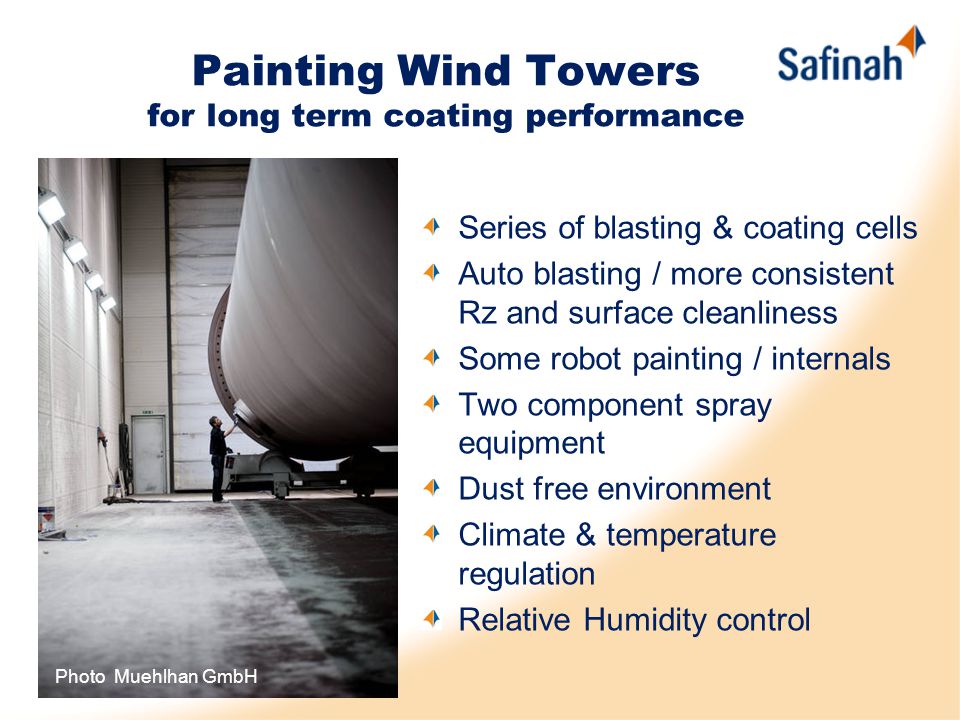

23. Painting Wind Towers for long term coating performance Series of blasting & coating cells Auto blasting / more consistent Rz and surface cleanliness Some robot painting / internals Two component spray equipment Dust free environment Climate & temperature regulation Relative Humidity control Photo Muehlhan GmbH

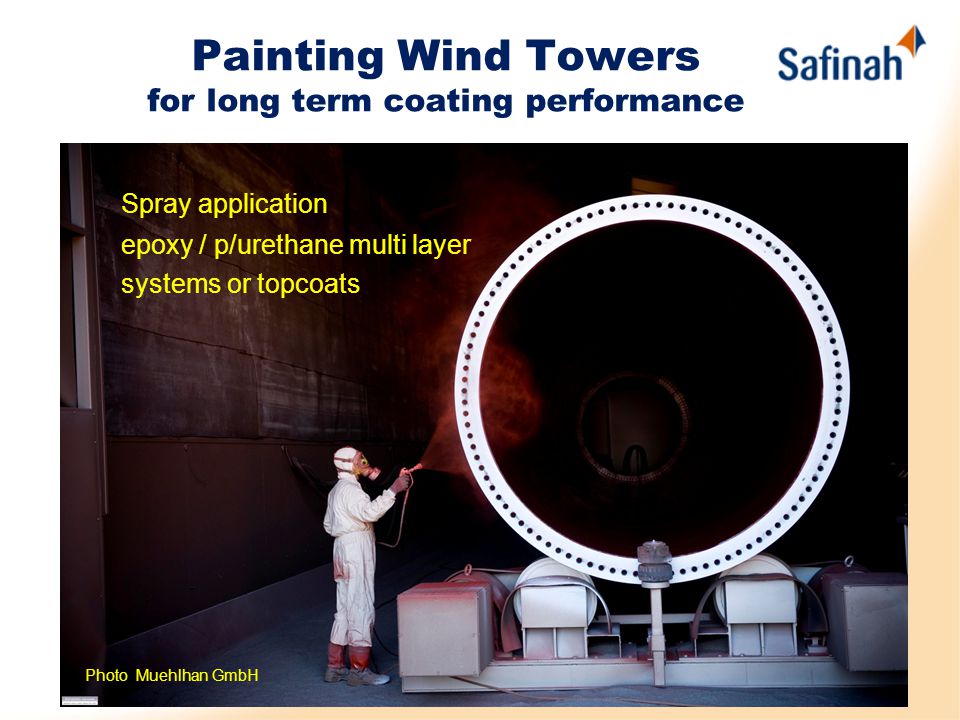

24. Painting Wind Towers for long term coating performance Spray application epoxy / p/urethane multi layer systems or topcoats Photo Muehlhan GmbH

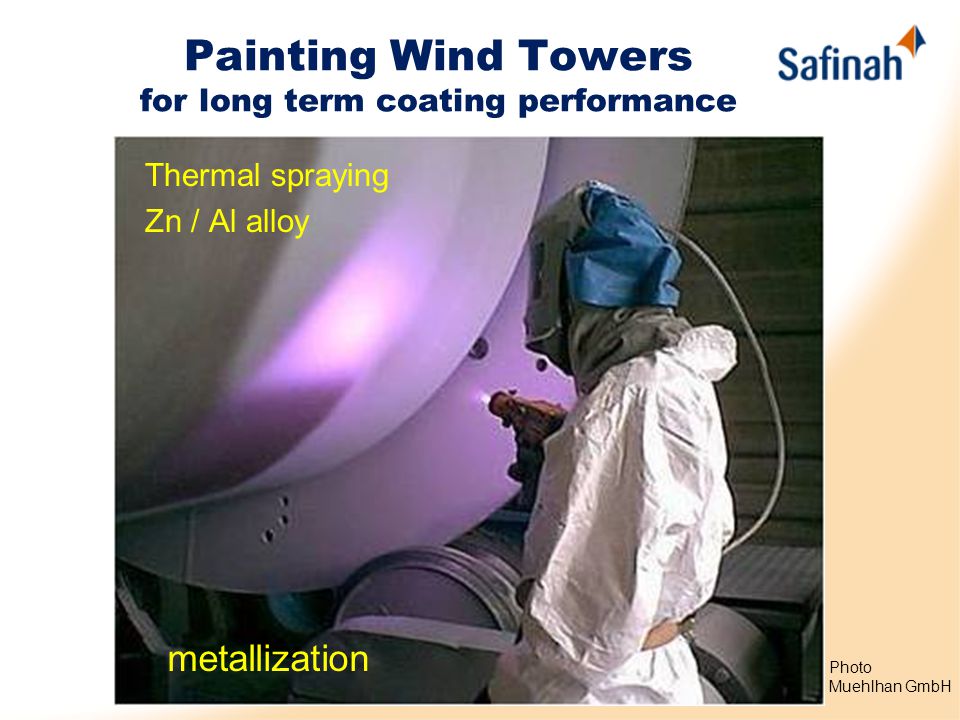

25. Painting Wind Towers for long term coating performance Thermal spraying Zn / Al alloy metallization Photo Muehlhan GmbH

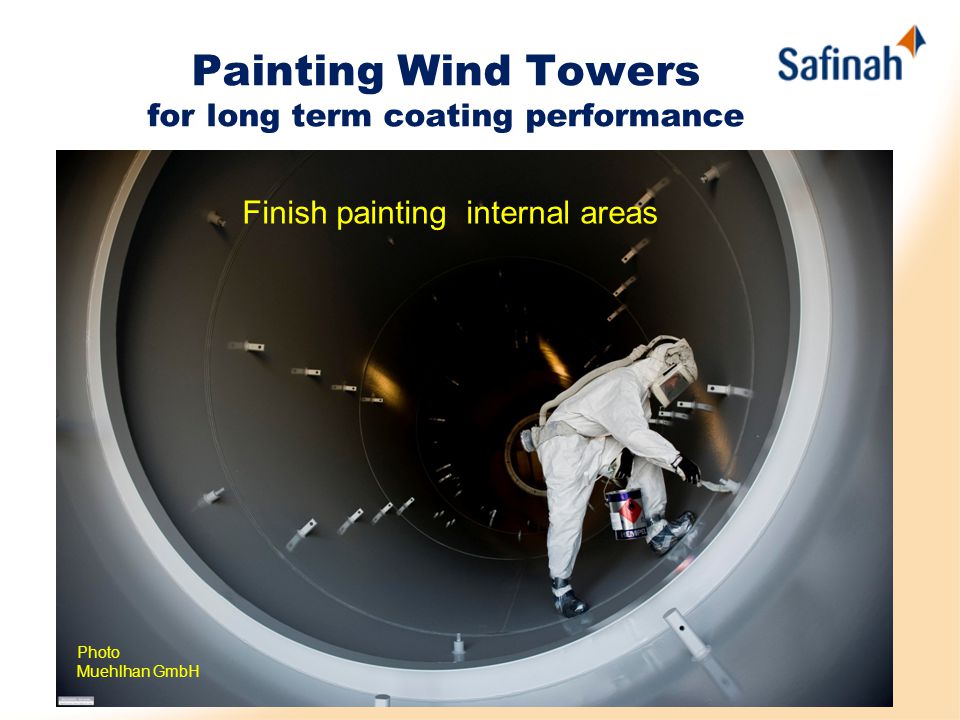

26. Painting Wind Towers for long term coating performance Finish painting internal areas Photo Muehlhan GmbH

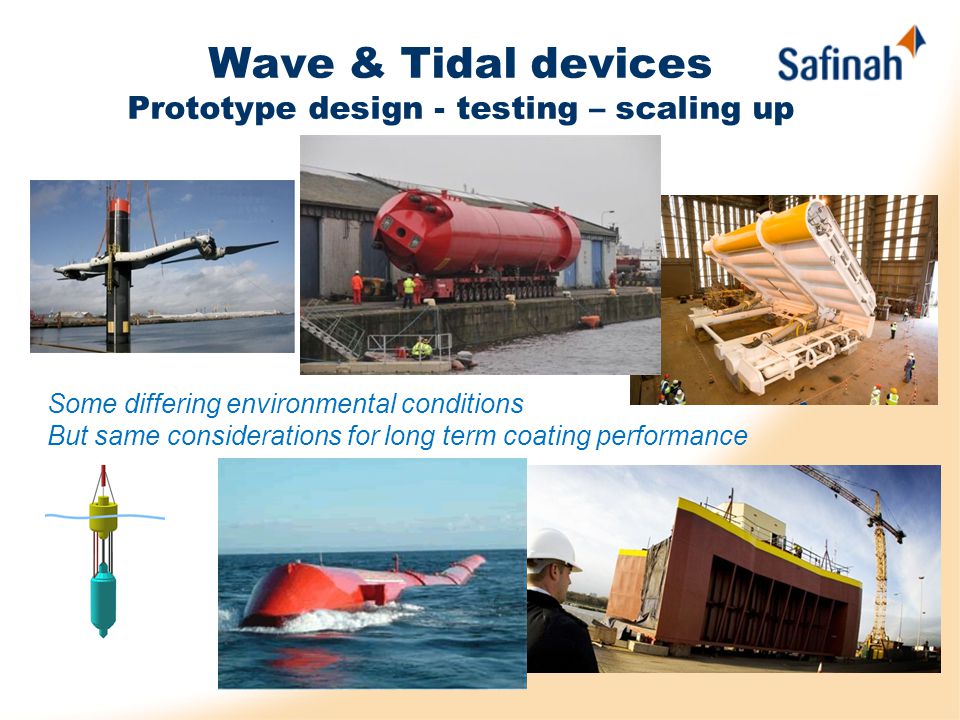

27. Wave & Tidal devices Prototype design - testing – scaling up Some differing environmental conditions But same considerations for long term coating performance

28. Offshore Marine Renewables impact of fouling Wind Towers will occur but impact on power generation and coating performance generally small will be confined to tidal & immersed areas Wave & Tidal devices Impact could be significant. Issues may be how to minimise fouling adhesion differences between exposed surfaces steel & composite materials static or moving possible impact of greater hydrodynamic loads on tethered devices from fouling build up

29. Offshore Marine Renewables tidal devices In locations of ‘useful’ tidal range and flow, abrasion resistance of coatings and materials may be an issue

30. Coating Considerations for Asset Protection & Structural Integrity Coating product quality failures are unusual. Specification failures are not Three recommended actions for Client / Asset Owner / Field Manager which can reduce risk 1. Apply the Functional Specification approach Coating system suitability for performance requirement Coating system suitability for the application process Coating system suitability for the field environment Coating system suitability for repair & maintenance 2. Make an independent technical evaluation of coating specification within design phase and prior to Build Contract 3. Audit the coating process independently during construction phase Post ISO 9000 wrong coating specification cases have doubled ! * * Source JPCL / K.Muhlberg Mar 2010

31. Unmanned structures...deserve wise protection !

32. Sources & References Sources of info & Photos NaREC, Blyth, Northumberland EMEC, Stromness, Orkney Muehlhan GmbH, Hamburg ABS, Houston Papers K.Muhlberg / JPCL March 2010 ‘ Corrosion Protection of Offshore Wind Turbines’ A. Momber / JPCL Apr 2008 & Apr 2009 ‘ Investigating Corrosion Protection of Offshore Wind Towers Parts 1 & 2 ’ ‘ Thank you ‘
