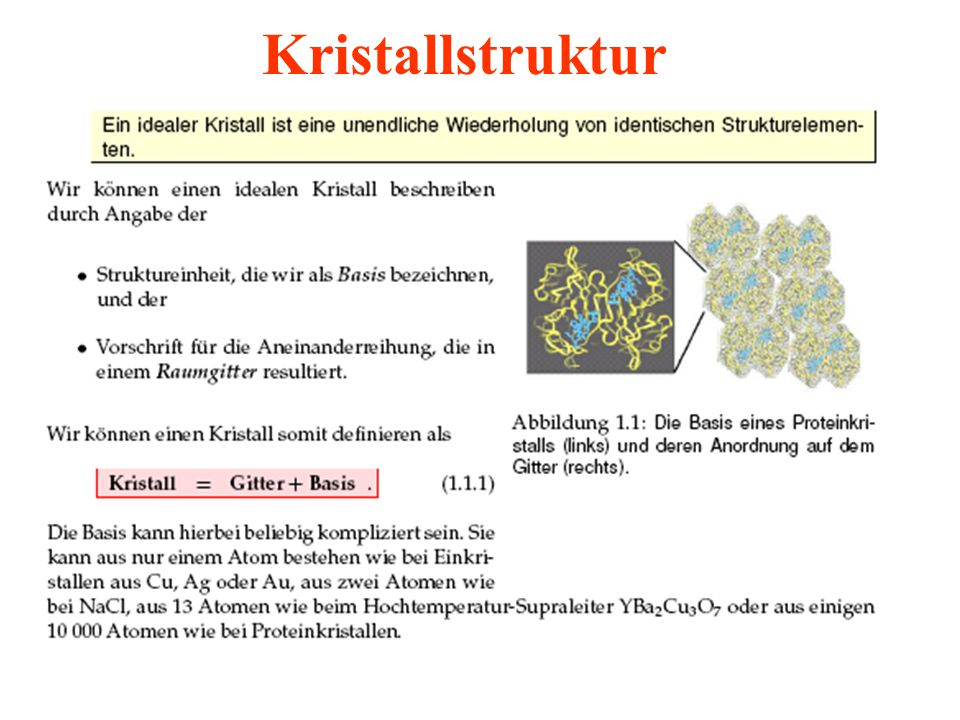

1 Kristallstruktur

2 Das Bravais-Gitter

3 Die 14 Bravais-Gitter

4 Primitive und konventionelle Zelle

5 fcc bcc Kubisches Gitter

6 fcc-Struktur (face-centered cubic) a 1 = a/2(0,1,1) a 2 = a/2(1,0,1) a 1 = a/2(1,1,0) bcc-Struktur (body-centered cubic) a 1 = a/2(-1,1,1) a 2 = a/2(1,-1,1) a 1 = a/2(1,1,-1)

7

8 Wigner-Seitz-Zelle

9 Zinkblende, Diamant BaTiO 3 CsCl NaCl Kristallstrukturen

10

11

12 Hexagonal dichteste Kugelpackung

13 hcp-Struktur (hexagonal close-packed)

14 2D und 3D-Graphit

15

16 Das reziproke Gitter

17

18

19

20 Brillouin-Zonen sc fcc bcc Hexagonales Gitter

21

22 Symbol Description ΓCenter of the Brillouin zone Face-centered cubic KMiddle of an edge joining two hexagonal faces LCenter of a hexagonal face UMiddle of an edge joining a hexagonal and a square face WCorner point XCenter of a square face Body-centered cubic HCorner point joining four edges NCenter of a face PCorner point joining three edges Hexagonal ACenter of a hexagonal face HCorner point KMiddle of an edge joining two rectangular faces LMiddle of an edge joining a hexagonal and a rectangular face MCenter of a rectangular face

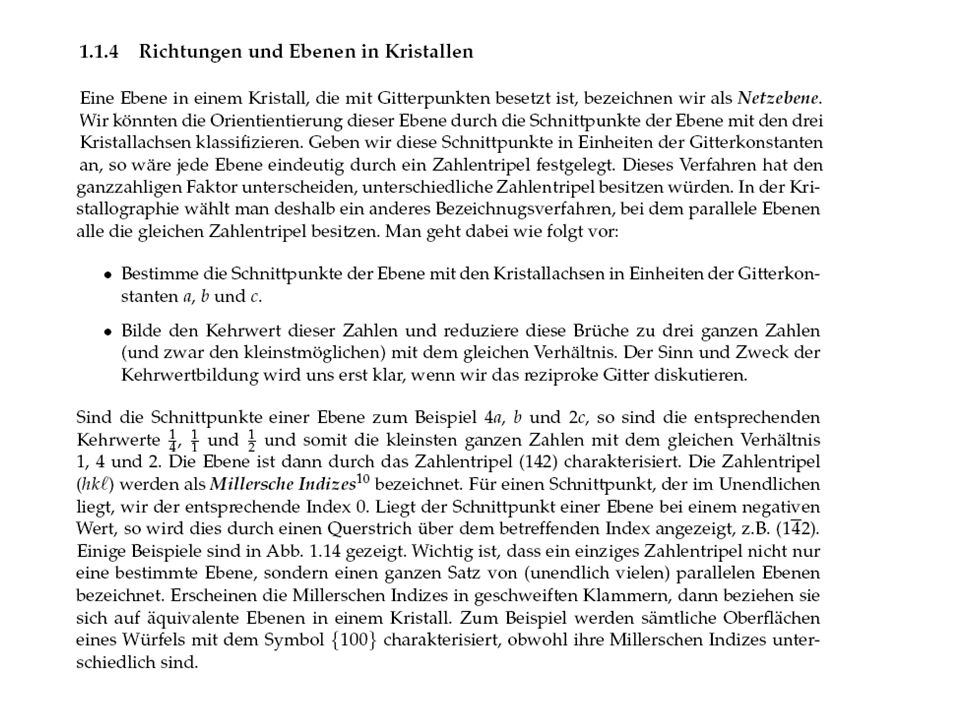

23 Ebenen und Richtungen

24

25

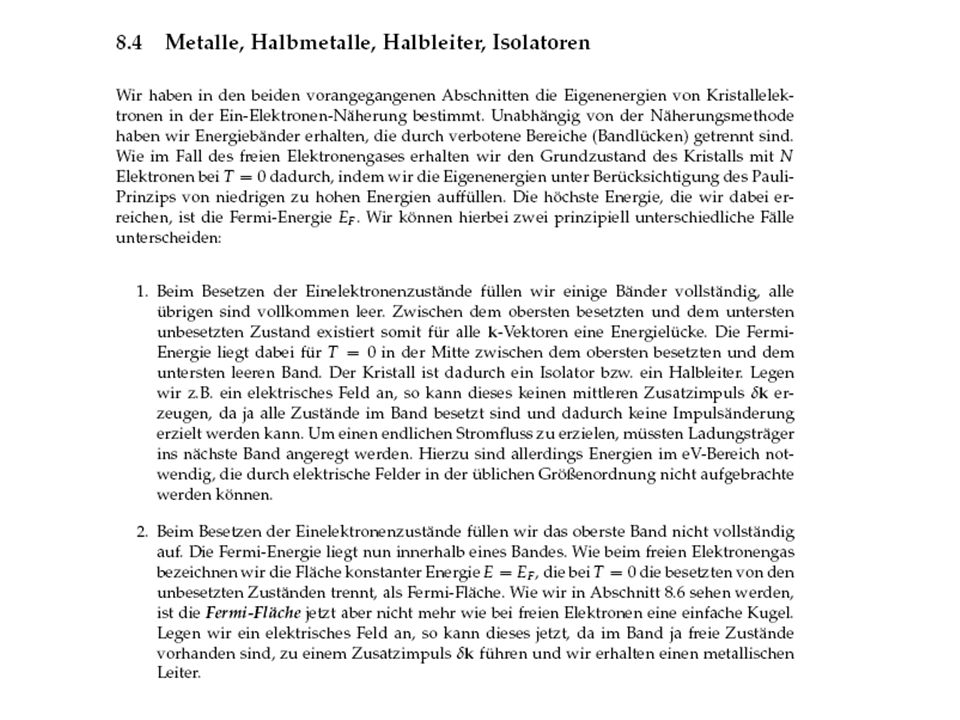

26

27

28

29

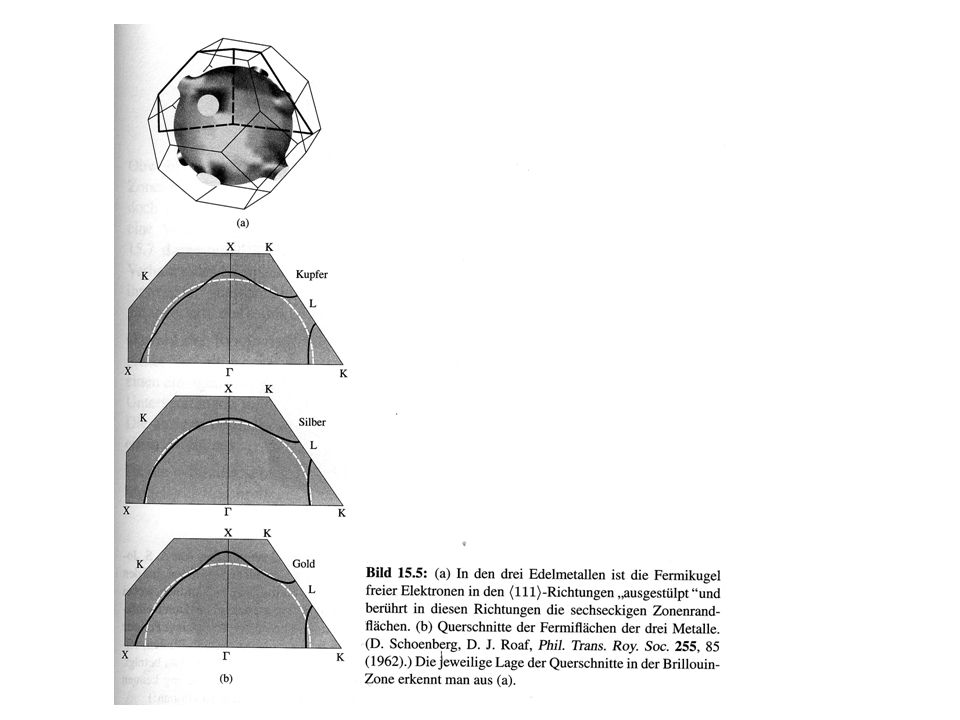

30 Bandstruktur von Cu d-Elektronen

31

32

33

34

35 Halbmetalle: Bandstruktur von Bi

36

37

38

39

40

41

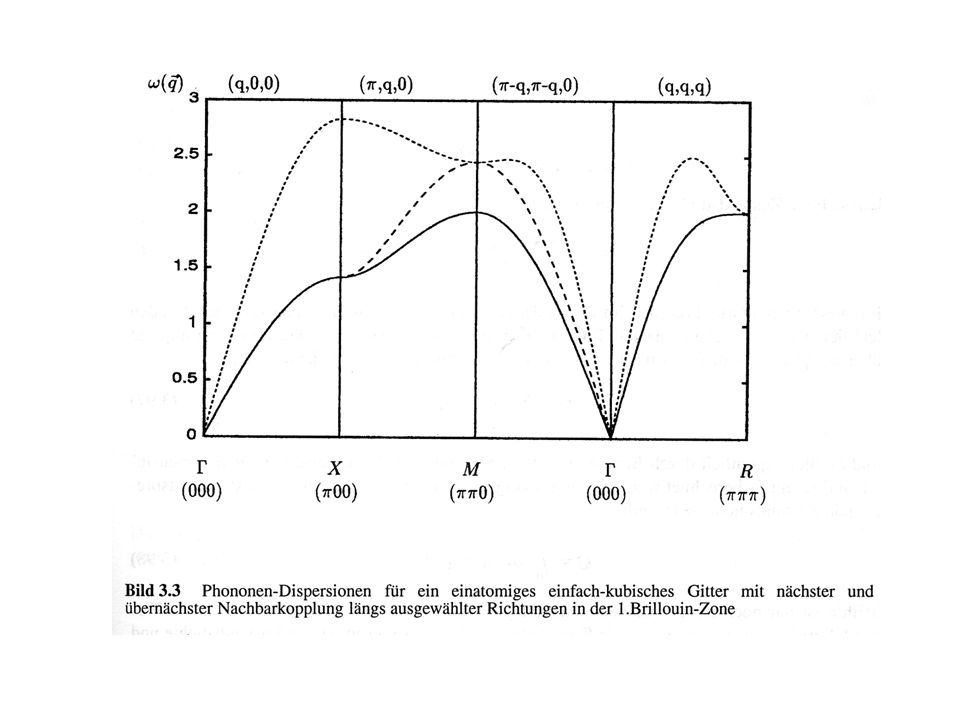

42

43

44
