1. An Introduction to XLIFF The XML Localisation Interchange File Format

2. Slide 2 Agenda Overview of Open Standards Benefits, drawbacks and development process Survey of Localisation Standards TMS, TBX, OpenTag Overview of XLIFF 1.0 Definition, goals, and benefits of XLIFF Business Use Cases Brief history of XLIFF Architecture Main features of XLIFF 1.0 The Real World Example of using XLIFF Tools support for XLIFF 1.0 Current State of Affairs XLIFF 1.1 – What’s new Work at OASIS on XLIFF

3. Slide 3 Industry Standards Overview A little bit about “Standards”…

4. Slide 4 Definition of a “Standard” is... A definition or format that has been approved by a recognized standards organization or is accepted as a de facto standard by the industry. Standards exist for programming languages, operating systems, data formats, communications protocols, and electrical interfaces* * Definition by www.webopedia.com

5. Slide 5 Standards are created by... Default acceptance of private specifications by the market Government regulation via state regulatory agency or public utility Formal standardisation via consensus body or committee

6. Slide 6 Categories of Standards Units, reference, definition- temperature, weights, lengths, volumes, etc. Similarity - screw gauges, character sets, colour schemes, UNIX operating system Compatibility - API’s, UI’s, nuts and bolts, hand tools and implements, radio transmitter & radio, modem standards (v32, v34), XLIFF 1.0 Etiquette - The IETF Internet draft Protocol Extension Protocol (PEP), designed to accommodate extensions of applications such as HTTP clients, servers and proxies, 3G

7. Slide 7 Further Reading on Standards… The Role of Standards in Today’s Society and in the Future, Dr. Carl Cargill, Director – Corporate Standards, Sun Microsystems. Inc:http://www.house.gov/science/cargill_091300.htmhttp://www.house.gov/science/cargill_091300.htm The Business of Open-Source Software, Frank Hecker, Originally published May 1998, revised 20 June 2000: http://www.hecker.org/writings/setting-up-shop.html http://www.hecker.org/writings/setting-up-shop.html Standards Making: Behind the Scenes, Don Deutsch:http://otn.oracle.com/oramag/webcolumns/20 03/opinion/deutsch_opinion.htmlhttp://otn.oracle.com/oramag/webcolumns/20 03/opinion/deutsch_opinion.html

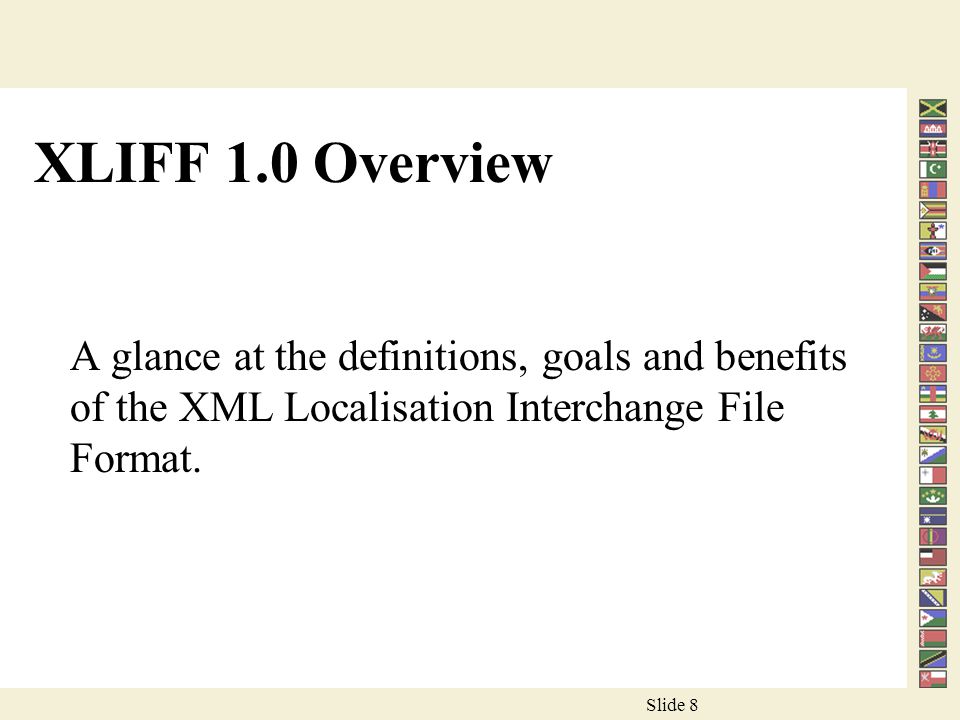

8. Slide 8 XLIFF 1.0 Overview A glance at the definitions, goals and benefits of the XML Localisation Interchange File Format.

9. Slide 9 What is XLIFF? A specification for the lossless interchange of localizable data and its related information, which is tool-neutral, has been formalized as an XML vocabulary (document type definition), and features an extensibility mechanism.

10. Slide 10 XLIFF TC’s Charter “The purpose of the OASIS XLIFF TC is to define, through XML vocabularies, an extensible specification for the interchange of localization information. The specification will provide the ability to mark up and capture localizable data and interoperate with different processes or phases without loss of information. The vocabularies will be tool-neutral, support the localization-related aspects of internationalization and the entire localization process. The vocabularies will support common software and content data formats. The specification will provide an extensibility mechanism to allow the development of tools compatible with an implementer's own proprietary data formats and workflow requirements.”

11. Slide 11 Why XLIFF is Needed? Localization offers the following challenges: Insufficient interoperability between tools. Lack of support for overall localization workflow. Necessity of localization tools developers to deal with many formats. Large number of proprietary intermediate formats.

12. Slide 12 Advantages – Localization Customer Single format for adjunct processing (e.g. quality control in terms of spell checking). Less dependency on vendors which are able to work with special formats. Tighter control on what goes to localization (Pre-filtering of what to translate or not). Controlled information flow (author/developer notes, item properties, etc.). ID-based leveraging. All advantages of XML-based processing.

13. Slide 13 Advantages – Tools Vendor Focus on development of core functionality rather treatment of source format. Allow usage of tools in new contexts. All advantages of XML-based processing.

14. Slide 14 Advantages – Service Provider Single format for adjunct processing (e.g. quality control in terms of spell checking). Less dependency on specific localization tools. Controlled information flow (author/developer notes, item properties, etc.). Allow usage of tools in new contexts. All advantages of XML-based processing. Open and standard solution for proprietary formats.

15. Slide 15 Advantages – Technology (1/2) For a given utility, only one implementation is necessary (e.g. not one spell checker for RTF, and another one for HTML). Increases usability of utilities (i.e. all formats with XLIFF filters can be used with XLIFF- enabled utilities).

16. Slide 16 Advantages – Technology (2/2) All advantages of XML-based processing: –Use of its internationalization features. –Better interoperability and cross-platform support. –Powerful rendering options (XSL-FO, CSS). –Powerful transformation options (XSLT). –Greater integration with Web services. Access to existing, and often open-source, XML implementation (lower costs).

17. Slide 17 Basic Use Case – without XLIFF Tool Resource Filters Developer Applications Translator Customer Specific Tool (s) Native File 2 (e.g., Java Files) Native File 1 (e.g., HTML) Native File 3 (e.g., Java Properties) Native File n Publisher/ Customer Domain Localisation Domain

18. Slide 18 Basic Use Case –with XLIFF XLIFF compliant Developer Applications Translator XLIFF Compliant Editor XLIFF file(s) containing HTML, Java, Properties, etc translatable resources Non XLIFF compliant Developer Applications - OR - Publisher/ Customer Domain Localisation Domain Direct to XLIFF authoring HTML Java Properties RC Data Pre-processing

19. Slide 19 Simple Automated Localisation Use Case Developer Translator Generate XLIFF Pseudo Translate / Test Localization Engineer XLIFF Translation Kit Leverage Translation Repository Defect Report XLIFF Editor Update XLIFF Translation Kit Translate Requires Translation 100% Translated 0% Translated 100% Translated

20. Slide 20 Automated Localisation with CAT Use Case Developer Translator Generate XLIFF Pseudo Translate / Test Localization Engineer XLIFF Translation Kit 100% match Translation Repository Defect Report XLIFF Editor XLIFF Translation Kit Translate Requires Translation 100% Translated 0% Translated 100% Translated Fuzzy match Translation Memory Machine Translation Machine Translate Update

21. Slide 21 Genesis of XLIFF Founded: Sept 2000 Founding Members: Novell, Oracle and Sun Initially named “DataDefinition” group

22. Slide 22 XLIFF 1.0 Timeline September 2000 - DataDefinition Kickoff December 2000 - first face to face March 2001 - second face to face End March 2001 - draft 1.0 spec and DTD published June 2001 - White Paper published December 2001 - OASIS XLIFF Technical Committee Proposal submitted April 2002 – XLIFF 1.0 Specification approved by formal vote as an OASIS Committee Specification

23. Slide 23 OASIS: A New Home for XLIFF OASIS: Organization for the Advancement of Structured Information Standards World’s largest independent, non-profit organization dedicated to the standardisation of XML applications and Web Services More than 150 member companies plus individuals Operates XML.ORG Registry, the open community clearinghouse of XML application schemas clearinghouse of XML application schemas Technical work on XML interoperability includes XML conformance and XML Registries/Repositories General XML technical resource

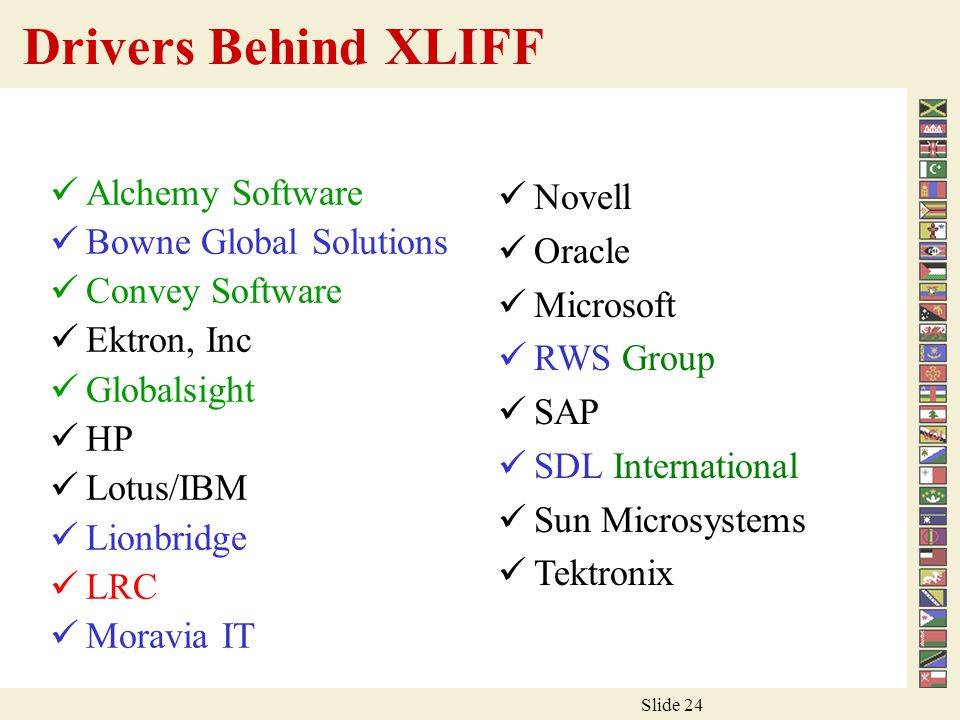

24. Slide 24 Drivers Behind XLIFF Alchemy Software Bowne Global Solutions Convey Software Ektron, Inc Globalsight HP Lotus/IBM Lionbridge LRC Moravia IT Novell Oracle Microsoft RWS Group SAP SDL International Sun Microsystems Tektronix

25. Slide 25 Present OASIS XLIFF TC TC Officers: –TC Chair: Tony Jewtushenko, Oracle Corporation –TC Vice-Chair: Jonathan Clark, Lionbidge –TC Secretary: Peter Reynolds, Bowne Global Solutions –TC Editor: Yves Savourel Current Members of TC: Gérard Cattin des Bois, Microsoft Doug Domeny Mirek Driml, Moravia-IT Milan Karásek, Moravia-IT Mark Levins, IBM/Lotus Christian Lieske, SAP Mat Lovatt, Oracle Enda McDonnell David Pooley, SDL John Reid, Novell Reinhard Schaler, LRC Bryan Schnabel, Tektronix Shigemichi Yazawa

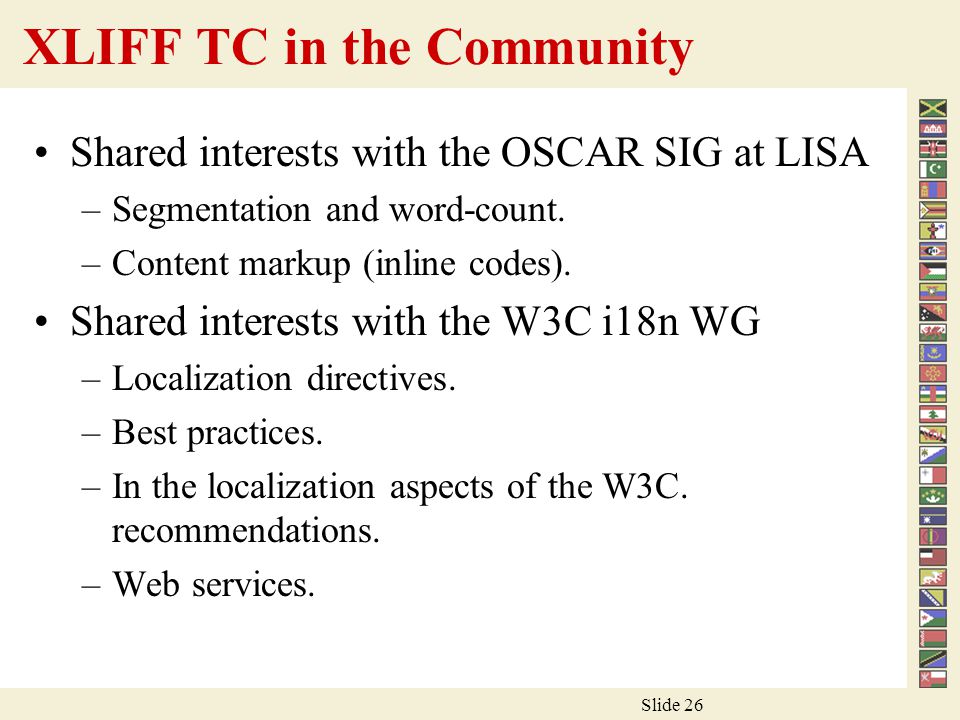

26. Slide 26 XLIFF TC in the Community Shared interests with the OSCAR SIG at LISA –Segmentation and word-count. –Content markup (inline codes). Shared interests with the W3C i18n WG –Localization directives. –Best practices. –In the localization aspects of the W3C. recommendations. –Web services.

27. Slide 27 Architecture A look at XLIFF’s main features and how they work together.

28. Slide 28 Extract-Localize-Merge Paradigm Separate data related to localization from parts not related to localization. Merge translated data with codes at the end of the process to create the final document. Skeleton file is optional, so this paradigm is also optional

29. Slide 29 A Birds-Eyes View An XLIFF document can capture anything needed for a localization project: 1.Localizable objects (e.g. text strings) in source and target languages. 2.Supplementary information (e.g. glossaries, or material to recreate the original format). 3.Administrative information (e.g. workflow data). 4.Custom data (e.g. initialization information for tools).

30. Slide 30 The XLIFF Document An XLIFF document is designed to store the extracted data related to localization. Each given source container (e.g. a file, a database table, and so forth) corresponds to a element in XLIFF. Each XLIFF document can include several elements. A whole localization project can possibly be stored in a single XLIFF document.

31. Slide 31 Bilingual Model Each element is designed to store one source language and one target language. The rational is that the translation of different target language is done by different people most of the time. However, languages in element can be different. For example, proposed matches in national Portuguese when translating into Brazilian Portuguese.

32. Slide 32 Localizable Objects – Overview XLIFF allows not only text string as localizable object but also other object types such as graphics. Supplementary information can be represented in a generic way through inline codes (e.g. formatting of text). Relationship between object can be captured (e.g. all items in a menu).

33. Slide 33 Localizable Objects – Text Extracted text goes in translation units ( ), in a element. The translation will go into a element. Cancel Annuler

34. Slide 34 Localizable Objects – Inline Codes (1/3) Supplementary information for translation units (e.g. formatting, links, image references, etc.) can be encapsulated, using a set of elements (,,, and ) very similar to the ones used in TMX. Text in <b> bold &;lt;/b>.

35. Slide 35 Localizable Objects – Inline Codes (2/3) Supplementary information can also be stored in the Skeleton; in this case, placeholders elements (,,, ), like the ones used in OpenTag, are inserted in the translation units. Text in bold.

36. Slide 36 Localizable Objects – Inline Codes (3/3) XLIFF provides furthermore the general purpose element to associate supplementary information to an arbitrary span of text. The fat cat sleeps soundly.

37. Slide 37 Localizable Objects – Non-Textual Non-textual objects such as bitmap, cursor, etc. can be stored in the XLIFF document, internally or externally), using a element.

38. Slide 38 Localizable Objects – Relationships Relations between objects can be captured by the mean of the element. (note: a can also contain another ). &File... E&xit

39. Slide 39 Supplementary Info – Overview XLIFF provides “hooks” for storing supplementary information (for example to glossaries or translation memories which should be used). The supplementary information can be referenced (i.e. reside outside of the document), or embedded within the document.

40. Slide 40 Supplementary Info – References (1/2) Pointers to reference material such as TMs or glossaries can be listed in the of each element....

41. Slide 41 Supplementary Info – References (2/2) Alternatively, the reference material can also be stored directly in the XLIFF document....

42. Slide 42 Supplementary Info – Skeleton (1/2) Non-localizable parts can be references in Skeleton files, which can be referenced from within the XLIFF document....

43. Slide 43 Supplementary Info – Skeleton (2/2) The Skeleton content can also be embedded in the XLIFF document itself.... PE9LRlNLTDEwMDpSRVM6OTY0MDA4 MjYxPg0KI2luY2x1ZGUgInJlc291cmNlLmgiDQpJRE RfRElBTE9HMSBESUFMTX01PREFMRlJBTUUgfCBXU19 QpDQVBUSU9O......

44. Slide 44 Administrative Info – Overview XLIFF provides mechanisms for capturing administrative information: For relating source material to XLIFF documents. For storing workflow data. For providing pre-translation entries. For keeping track of changes.

45. Slide 45 Administrative Info – Source First, define what is in the document, and how it relates to the source....

46. Slide 46 Administrative Info – Workflow (1/2) Simple data about the steps of the process for each element can be stored in its element....

47. Slide 47 Administrative Info – Workflow (2/2) Reference to the different phases can be set in the different items of the element (for example: where this edit came from? etc.) The text Le texte Un texte

48. Slide 48 Administrative Info – Pre-Leveraging A set of proposed translation can be included for each element, using the element. The text Le texte

49. Slide 49 Administrative Info – Tracking Changes Modifications made during the course of the process (translation, edit, proof, review, etc.), can also be stored using. The text Le texte Un texte

50. Slide 50 Custom Data Use the element and the ts attribute to store user-defined information. Some property data Text

51. Slide 51 The Real World A look at some concrete examples on how XLIFF can be used in localization projects.

52. Slide 52 Streamlining L10n Files Exchanges Localization Customer Localization Preprocessor Pre-translated Proprietary Format File Localization Vendor Customer Supported Localization Tool INC CSV DOC DB LANG SHL MDB CAT CFG.INI.TXT ZINC DOC LANG MSG AGENT ICS FIL XLIFF HTML.XSL XML INS NLM ASD HGFF VBN PARA CAT XRDB PROP.JAVA C++ HLP RC MC EN XSF TFD LDI MENU PCT.EXE..DLL Localization Customer INC CSV DOC DB LANG SHL MDB CAT CFG.INI.TXT ZINC DOC LANG MSG AGENT ICS FIL XLIFF HTML.XSL XML INS NLM ASD HGFF VBN PARA CAT XRDB PROP.JAVA C++ HLP RC MC EN XSF TFD LDI MENU PCT.EXE..DLL Localization Vendor Vendor Localization Process Localization Customer Localization Vendor Any tools based on XLIFF Industry Standard INC CSV DOC DB LANG SHL MDB CAT CFG.INI.TXT ZINC DOC LANG MSG AGENT ICS FIL XLIFF HTML.XSL XML INS NLM ASD HGFF VBN PARA CAT XRDB PROP.JAVA C++ HLP RC MC EN XSF TFD LDI MENU PCT.EXE..DLL XLIFF Localization Preprocessor

53. Slide 53 Concrete Examples Before –Windows Executable fileWindows Executable file –Java Properties fileJava Properties file After –Extracted Executable file in XLIFFExtracted Executable file in XLIFF –Extracted Java Properties file in XLIFFExtracted Java Properties file in XLIFF

54. Slide 54 Benefits: Use of XML Technologies XSL can be used to perform many tasks on XLIFF documents, for example: –Display translatable content in Web browser. –Generate statistics (e.g. number of localizable objects). Availability of many XML engines makes using XLIFF easy. –Content-related checks (e.g. that certain characters do not appear as textual contents) can be performed with ordinary Web browsers.

55. Slide 55 XML-Enabled Translation Tools Any XML-enabled translation tool can work with an XLIFF document, as long as the text to translate is initially copied in the elements. However, this does not mean it supports all XLIFF features, but just permits translation of content. Many tools cannot handle conditional translation (for example: ). Then, you need to add extra elements temporarily.

56. Slide 56 Case Study – DGW+Elcano (1/2) IBM’s Lotus Domino Global WorkBench (DGW) version 6 is an application used to localize Domino Web applications and Notes database applications. –The localizable text from Notes/Domino *.nsf and *.ntf formats is extracted into a Notes-based glossary application. –DGW 6 now supports XLIFF export and import. –Translation step previously required a Notes installation and translation in a restrictive comma- delimited text file.

57. Slide 57 Case Study – DGW+Elcano (2/2) Elcano (Bowne Global Solutions) recently developed a Translation Web Service using XLIFF for translation content. –Domino Global WorkBench glossary application calls directly to the Elcano Web Service. —To submit jobs for translation. —To check job status. —To receive translated jobs & import into glossary. –Allows DGW 6 users fast and convenient access to efficient, high quality human translation

58. Slide 58 3 rd Party Tools Support for XLIFF 1.0 RWS Group (to be demo’d): Extraction Utility for RC Data and Java Properties to XLIFF 1.1 http://dotnet.goglobalnow.net/ http://dotnet.goglobalnow.net/ Various Utilities: http://www.translate.com/shared/tools http://www.translate.com/shared/tools Alchemy Software (to be demo’d) - Catalyst 6.0 – Visual XLIFF 1.1 Editor http://www.alchemysoftware.iehttp://www.alchemysoftware.ie XML-Intl (to be demo’d): XLIFF Editor http://www.xml-intl.comhttp://www.xml-intl.com Heartsome (to be demo’d) XLIFF Editor: http://www.heartsome.orghttp://www.heartsome.org SDL International: SDLX support for XLIFF currently in development. See http://www.sdlx.com for more information. http://www.sdlx.com Trados: No direct XLIFF support, but can edit XLIFF files using modified INI file (will demo Workbench with INI file setting) PASS: (to be demo’d) Passolo Editor, http://www.passolo.comhttp://www.passolo.com Bowne Global Solutions: Elcano, Online Translation Service has a web service based connector for XLIFF files http://elcano.bowneglobal.com http://elcano.bowneglobal.com

59. Slide 59 More Tools Support for XLIFF 1.0 Oracle (to be demo’d): HyperHub: Internal Tool for editing Oracle based data contained in XLIFF archives IBM: Domino Global Workbench Version 6 (http://www6.software.ibm.com/devcon/devcon/docs/ dwkbbet6.htm)http://www6.software.ibm.com/devcon/devcon/docs/ dwkbbet6.htm Sun : Internal XLIFF Editor as described in this article: http://www.sun.com/developers/gadc/technicalpu blications/articles/xliff.html http://www.sun.com/developers/gadc/technicalpu blications/articles/xliff.html Open Source XSLT Tools: http://sourceforge.net/project/showfiles.php?grou p_id=42949&release_id=67485 http://sourceforge.net/project/showfiles.php?grou p_id=42949&release_id=67485

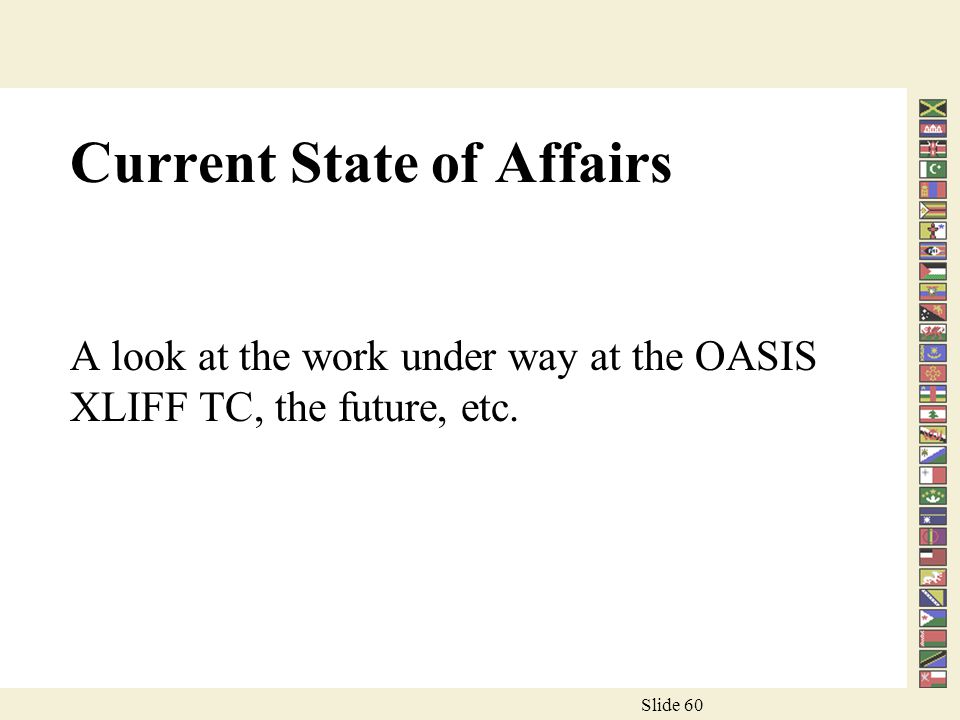

60. Slide 60 Current State of Affairs A look at the work under way at the OASIS XLIFF TC, the future, etc.

61. Slide 61 Current State of Affairs – Versions XLIFF version 1.0 released as an OASIS TC specification in April 2002 and is used today by various companies. XLIFF 1.1 was approved as Committee Specification on 20 May 2003

62. Slide 62 Current State of Affairs – To Do Specification of canonical representation in XLIFF of some formats (e.g. Windows resources, Java properties), so all XLIFF representations are the same regardless which tool created the document. Translation/Localization tools that support XLIFF out-of-the-box (not just as another XML format). Open Source filters (e.g. to convert from Windows message catalogues to XLIFF).

63. Slide 63 Overview of Changes from 1.0 -> 1.1 Validation by Schema (XSD) Extending XLIFF elements, attributes, attribute values Embedding XLIFF in XML documents Changed, added or deprecated 1.0 features

64. Slide 64 Validation by Schema (XSD) In 1.0, validation by DTD In 1.1, validation by XML Schema – XSD XSD provides better control over XML document: – Structure – structured order can be specified – Content – support for standard datatypes like date – Semantics – can specify range of valid values or pattern – Support for namespace

65. Slide 65 Extending Elements Extension points in the following elements: –,,,,, and. <alt- trans> content of each custom element can be any valid XML content: –empty content, PCDATA, mixed content, and so forth Custom elements defined in private namespace schema

66. Slide 66 Example of Extending Elements in XLIFF Example of Extended XLIFF file Example of private namespace schema

67. Slide 67 Extending Attributes Attributes of a namespace different than XLIFF can be included in these XLIFF elements: –,,,,,,,,,,,,,,,,,, and No specific location where to insert the non- XLIFF attributes No limit to the number of non-XLIFF attributes that can be used in an XLIFF document

68. Slide 68 Example of Extending Attributes attributes from the XHTML vocabulary extend the and Click for Example…

69. Slide 69 Extending Attribute Values Attributes where the list of values can be extended are the following: context-type, count-type, ctype, datatype, mtype, restype, size-unit, state, unit, priority, and purpose context-type count-type ctype datatype mtype restype size-unit state unit priority purpose User-defined values must start with a “ x- ” prefix There is no specified mechanism to validate individual user-defined values, beyond starting with “x-”

70. Slide 70 Example of Extending Attribute Values The following excerpt shows how the user-defined value x-for-engineer can be utilized in a document:... Data......

71. Slide 71 Validating Extensions Add the schemaLocation attribute of the XML schema-instance namespace to define what schemas to use to validate: <xliff version='1.1' xmlns='urn:oasis:names:tc:xliff:document:1.1' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation=' urn:oasis:names:tc:xliff:document:1.1 xliff-1-1.xsd http://www.ChaucerState.ac.pg/Frm/XLFSup-v1 XLFSupv1.xsd' >...

72. Slide 72 Embedding XLIFF Can embed an entire or part of an XLIFF doc in other XML doc XML defined by XML Schema (XSD) that includes an element in the definition of the element where the XLIFF data can be inserted

73. Slide 73 Example of Embedding XLIFF The following XSD excerpt illustrates the case of an element type dataBlockType that can contain zero, one or more XLIFF constructs after a mandatory element:......

74. Slide 74 Deprecated or changed 1.0 reformat – feature changed tool attribute becomes tool element new tool-id attribute ts, prop / prop-group - deprecated header was required, now optional default –can specify default values for given scope

75. Slide 75 Reformat 1.0 supported values of “ yes ” or “ no ”, which wasn ’ t granular enough 1.1 supports the following values: –“ yes" = all format attributes may be changed –"no" = no format attributes may be changed...or a semicolon-delimited list of the following in any order. If an attribute is listed, it means it may be reformatted. coord = all 4 coords, coord-x, coord-y, coord-cx, coord-cy, font = all 3 font values, font-name, font-size, font-weight, css-style, style, exstyle, Example:......

76. Slide 76 Tool Element Tool attribute promoted to element in 1.1 … …

77. Slide 77 New tool-id attribute Replaces tool attribute where it was defined Points to defined in, linked by tool-id value Used in,,,

78. Slide 78 Deprecated features ts, prop / prop-group, but can use private namespace extensions to customise elements, attributes, attrib values tool attribute deprecated, but richer feature set using element and tool-id attribute

79. Slide 79 Default Attribute Value These attributes added to so that default value can be set with scope across entire group: charclass maxbytes maxheight maxwidth minbytes minheight minwidth size-unit translate reformat Example, where maxwidth default set across entire group, except for trans-unit 4:...

80. Slide 80 More Information The XLIFF TC Web Site: http://www.xliff.orghttp://www.xliff.org Presenter: –XLIFF TC Chair: Tony Jewtushenko (Oracle) (tony.jewtushenko@oracle.com)tony.jewtushenko@oracle.com Significant Contributors to this Presentation: –Christian Lieske, (SAP) (christian.lieske@sap.com)christian.lieske@sap.com –Yves Savourel (RWS Group) (ysavourel@translate.com)ysavourel@translate.com

81. Slide 81 That’s it... Any Questions?
